ge.com
©
Safety Instructions .......... 2, 3
Operating Instru_¢ions
Controls--Control ga_obs ..... 6, 7
Controls--Touch Pads ....... 4, 5

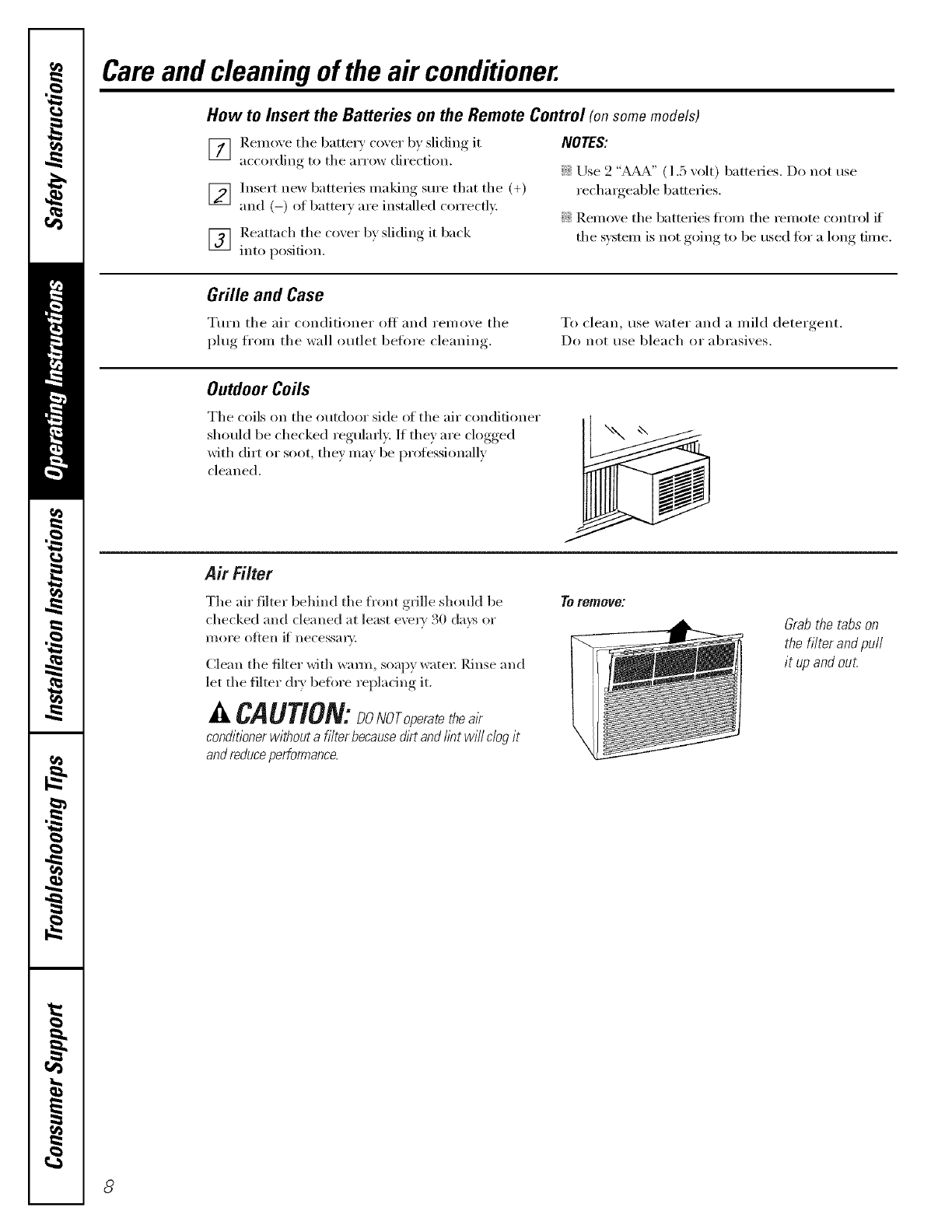

Care and Cleaning
Air Fiher ..................... 8
Batteries ..................... 8
Grille and Case ............... 8
Outdoor Coils ................ 8

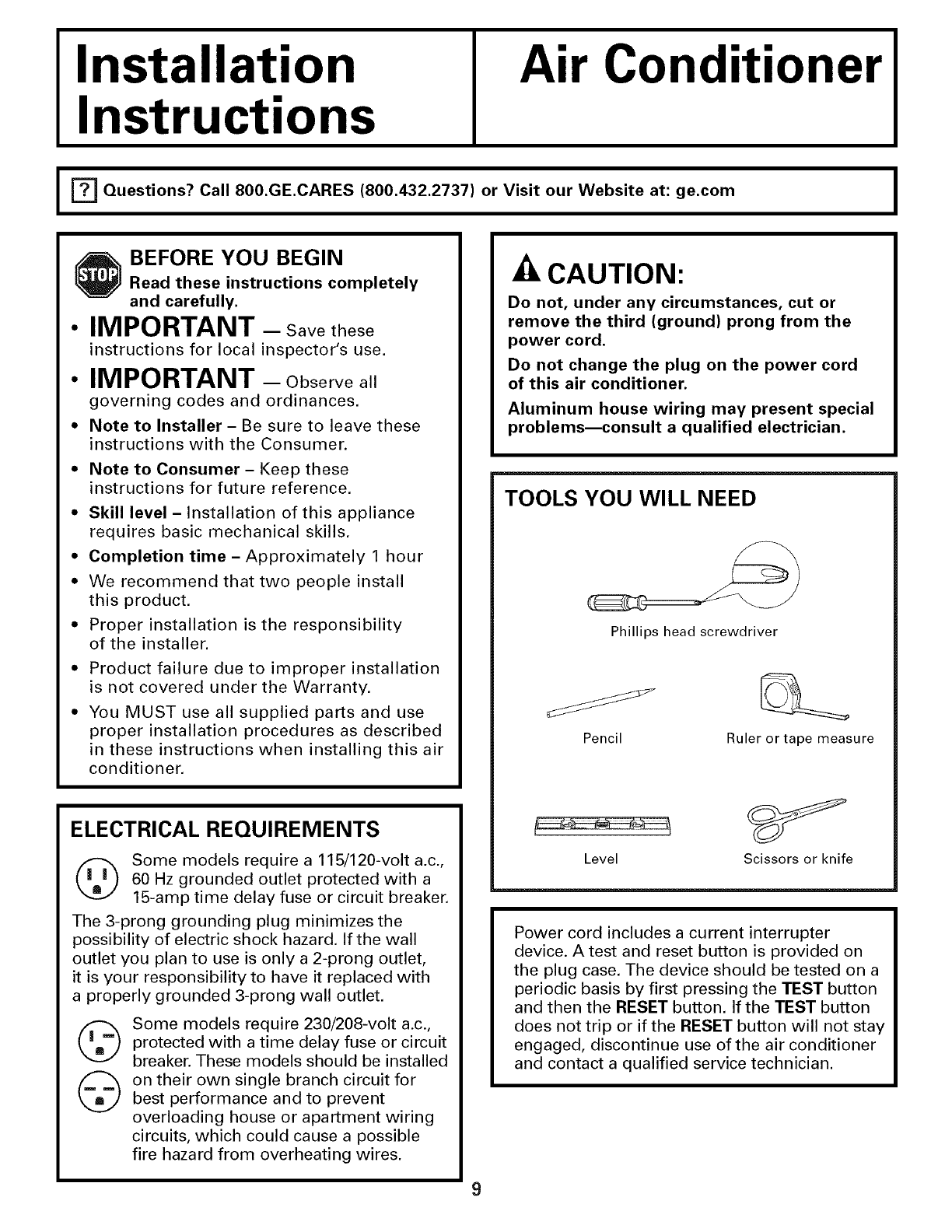

Installation Instru_¢ions .... 9-12

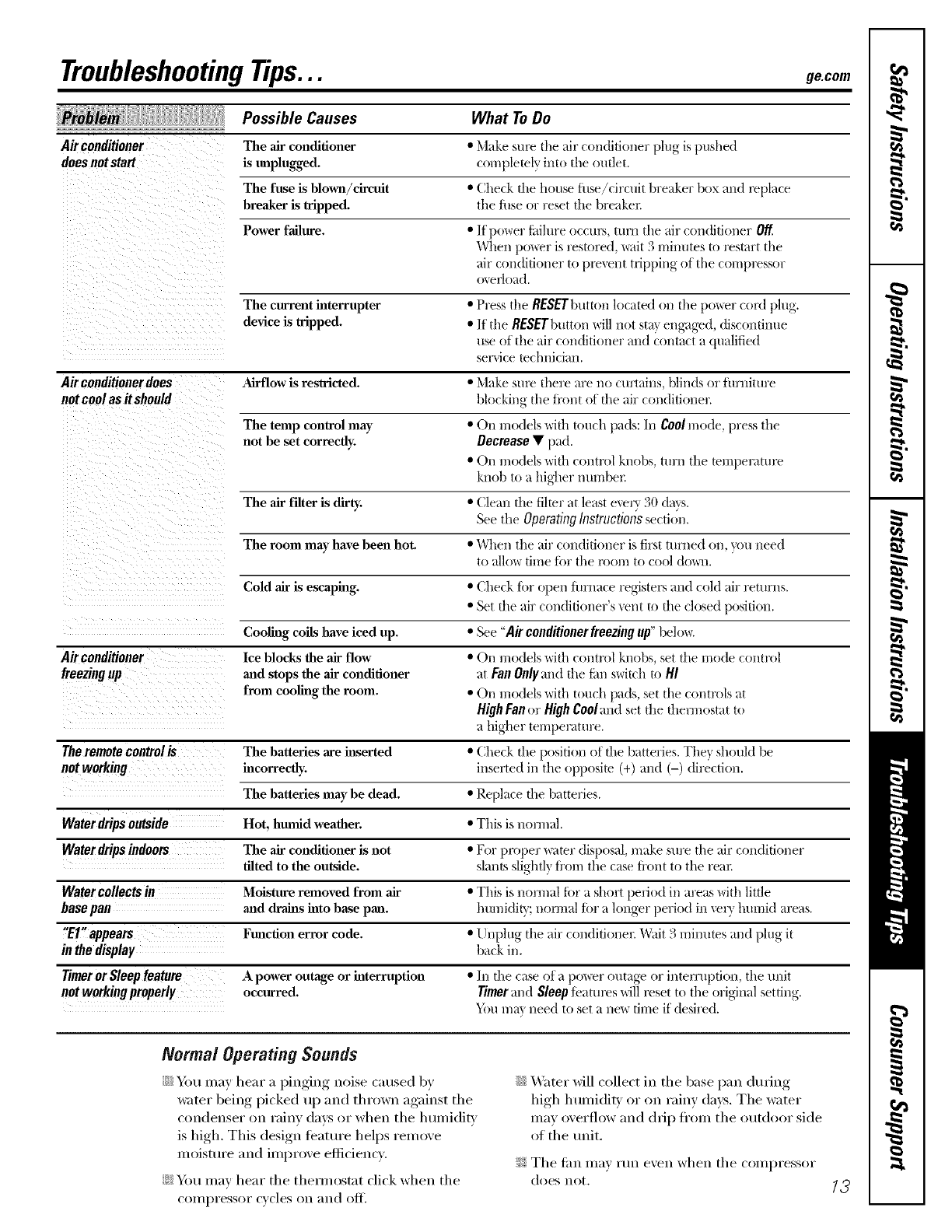

Troubleshooting Tips ........ 13
Normal Operating Sounds ..... 13

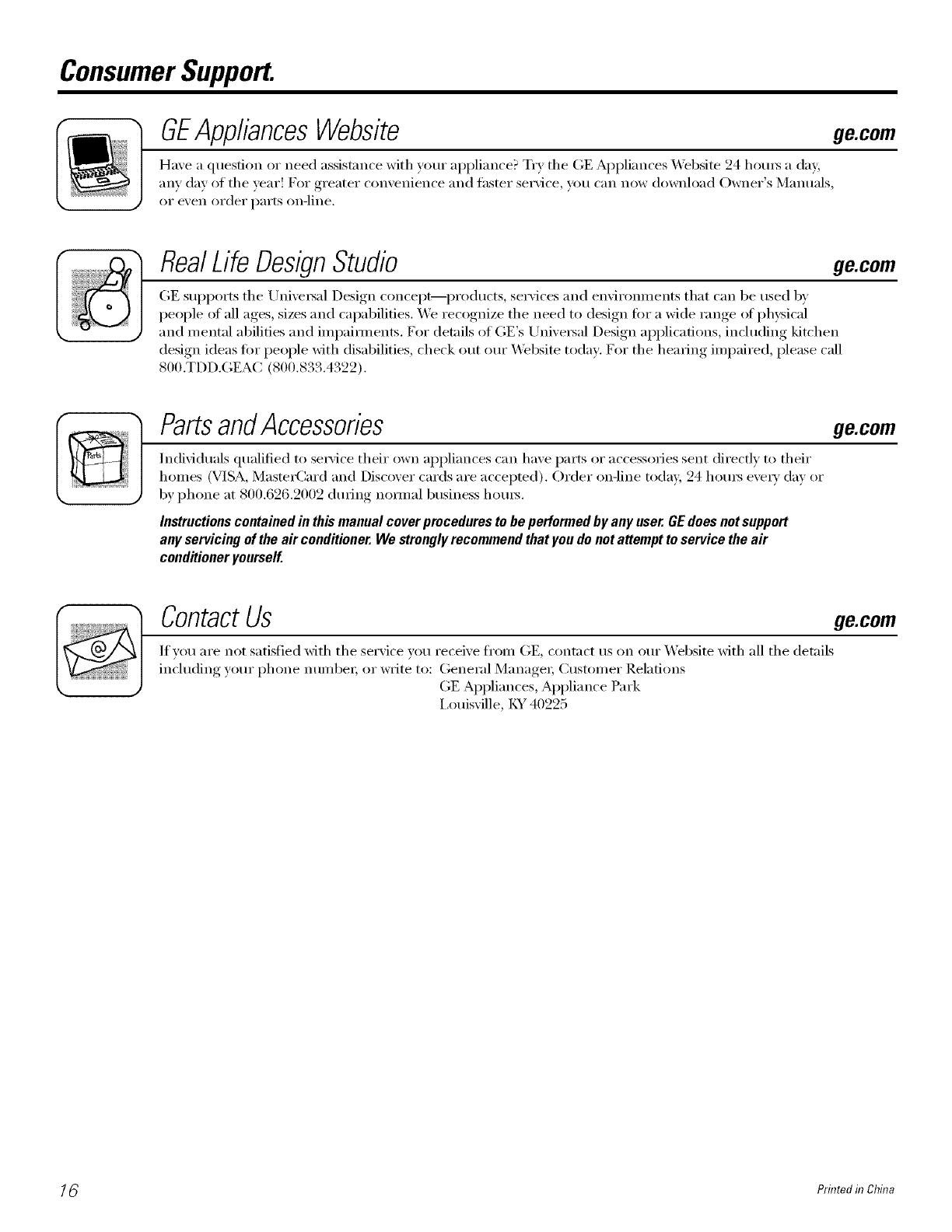

Consumer Support
Consumer Support ........... 16
_\arranty .................... 15
AST05
ASW05
ASH06
ASW06
ASH08
ASW08
©
Write the model and serial
numbers here:
Model #
Serial #
Find these numbers on a label on
the side ot the air conditionex:
DB98-26673A 49-7551 10-06JR
IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
WARNING!
For your safety;,the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injury.
SAFETYPRECAUTIONS
Use dfis appliance only %r its intended
i)ml)ose as described in this Owner's
Manual.
This air conditioner must be properly
installed in accordance with the Installation
Instructions befbre it is used.
Nexer unplug your air conditioner by pulling
on the power cord. Always grip plug firefly
and pull straigtlt out flom the receptacle.
Replace immediately all electric service
cords dmt haxe become flayed or otherwise
damaged. A damaged power supply cord
must be replaced with a new power supply
cord obtained flom the mamdZacmrer and
not repaired. Do not use a cord that shows
cracks or abrasion damag_ along its length
or at eifller the plug or connector end.
_?{:_Tm_ d_e unit OFFand unplug your air
conditioner before cleaning.
_{:_(;E does not support any servicing of dm air
conditioner _/e strongly _ecommend that
you do not attempt to service the air
conditioner yourself.
_?_:_For your safety...do not store or use
combustible mamrials, gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.
E:,:All air conditioners contain refrigerants,
which under federal law must be remoxed
prior to product disposal. If you are getting
rid of an old product with reflJgerants, check
with the company handling disposal about
what to do.
HOWTOCONNECTELECTRICITY
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
For personal safety, this appliance must be
properly grounded.
The power cord of fllis appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 31)iong (grounding) wall
outlet m minimize the possibility of electric
shock hazard flom this appliance.
Power cord includes a cmxent intenupmr
device. A rest and reset button is provided on
the plug case. The device should be rested on a
periodic basis by first pressing the rESrbutton
and then the RESE[button. If the TESTbutton
does not trip or if the RESt'button will not
stay eng:%ed, discontinue use of the air
conditioner and contact a qualified
service mchnician.
Hme the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
is properly grounded.
Where a 9-prong wall outlet is encounmred,
it is your personal responsibility and obligation
to have it tei)laced with a properly grounded
31)iong wa]] outlet.
The air conditioner should always be plugged
into its own indixidual electrical outlet which
has a xoltage rating that matches the rating
plate.
This provides the best perfommnce and also
prexents oxerloading house wiring circuits
which could cause a fire hazard flom
ox eflleated wires.
See the Installation Instructions, Electrical
Requirements section for specific electrical
connection requirements.
2
ge.com
WARNING!
USEOFEXTENSIONCORDS--115-Voltmodelsonly
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of an extension cord.
Howex>t; if you must/lse an extension cord,
it is absolutely necessary that it be a UiAismd,
14 gauge, 3-wire grounding b'pe appliance
extension cord having a grounding type plug
and outlet and flint fl)e electrical rating of rite
cord be 15 amperes (minimum) and 195 x_lts.
CAUTION:
DO NOT use an extension cord with any of the
230/208 voltmodels.
USEOFADAPTERPLUGS--115-Voltmodelsonly
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of an adapter plug.
Howex>[; if you must/lse an adapte[; where
local codes permit, a temporary connection
may be made m a properly grounded 9-prong
wall outlet by use of a UiAisted adaptor
available at most local hardware stores.
The larger slot in fl_e adapter must be
aligned with the larger slot in file wall outlet
to provide proper polarity in the connection
of the power cord.
When disconnecting file power cord flom rim
adaptel, alwws hold tile adaptor in place with
one hand while pulling tile power cord plug
with the other hand. If this is not done, the
adapter ground mmfinal is x>tT likely' to b_eak
with repeamd use.
If the adapter ground temfinal breaks, DO NOT
USE the air conditioner until a proper ground
has been established.
Attaching the adapter groundtermba/ to a waft outlet
coverscrew does not groundthe applianceunlessthe
coverscrew is metal, andnot bsulated, andthe waft
outlet is groundedthrough the housewiring. Youshould
have the circuit checkedby a quafifiedelectricianto
makesure the outlet is properlygrounded.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS
Aboutthe controlsonthe air conditionermmodels with touchpads.
Features and appearance will vary.
COOLOn
ENE£GY
SAVE£ On
SLEEPOn
Air ConditionerControls Remote Control
4
_k On/Off
WTurns air conditioner on and oil
@Display
@
Displays the set temperature or time
remaining on fimei:
Mode
Use to set tile air conditioner to Cool or Fan
mode.
OIncrease •/Decrease •Pads
Use to set temperature when in Cool mode.
0Fan
Use to set the tim speed at tow, Medor High.
O Circulaire(onsomemodels)
Turn on to provide continuous side-to-side
air circulation.
For fixed side-to-side air direction, turn On
until the desired air direction is obtained,
then turn it 0_.
Energy Saver-Controls the tim.
0n--The fiIIl and compressor cycle on and
off. This results in wider \miations of room
temperature and humidit,i. Nora/ally used
when the room is unoccupied. Note: The fan
will continue to run for a short time after the
compressor cycles off
0ffJThe liln i'tlns all the time, while the
COlIlI)I'essoI" cycles on and ()_]_
This sMtch must be set at Offin order to use
the tim settings (on the mode control).
OTimer
0
@
0n-iX,Vhen the air conditioner is off, it can be
set to automatically turn on in 1 to 24 hom_
at its previous setting. Each touch will set the
time in hom_.
0f/i_ hen the air conditioner is on, it can be
set to autolnaficallx turn off ill 1 to 24 houI_.
Each touch will set the time in hom_.
To cancel the timex; press the Timerpad
until the display time disappeais.
Sleep (on some models)
Press to set the air conditioner to run for
8 hom_ befin'e it automatically shuts off'.
One hour alter the sleep timer is set, the set
temperature will automatically increase 2°F.
To cancel the sleep mode, press the Sleep pad
a second tiIlle,
Note: Thesleep timerwill be cancelledff the
Timer,Energy Saver orMode pad is pressed.
RemoteControlSignal Receiver
Remote Control
iJi::To ensure proper operation, aim the
remote control at the signal receixer
on the air conditionei:
iJi::The remote control signal has a range of
up to 21 teet.
::Ji::Make sure nothing is between the air conditioner
and the remote control that could block the
signal.
::Ji::Make sure batteiies ale fl'esh and installed
correctly--see the Care and gleaning section.
Additional controls and important information.
g_com
Do Not Operate in Freezing Outdoor Conditions
This cool-only air conditioner was not designed fi)r
ti'eezing outdoor conditions. It must not be used in
ti'eezing outdoor conditions.
When the air conditioner is turned on, #will
automatically start in the setting last used.
Power Outage Recovery Feature
In tile case el a power outage or interruption, tile
unit will automatically re-start in tile settings last
used after the power is restored. The Timerand
Sleep teatures will reset to tile original setting.
_m may need to set a new time if desired.
Cool Mode
Use the Cool mode with High (3), Med (2) or
Low (1) fan fin" cooling. Use the Increase •/
Decrease •pads to set the desired temperature
between 64°F and 86°F in 1°F increments.
A them_ostat is used to maintain the room
temperature. Tile compressor will cycle on and off
to keep tile room at tile set level of comiort. Set tile
them/ostat at a lower number and the indoor air
will become coole_: Set the them_ostat at a higher
ntlll/bei" and the indoor air will become warmer
NOTE:If the air conditioneris off andis then turned on
while set to Cool,it will take approximately3 minutes for
the compressorto start and cooling to begin.
CoolingDescriptions
For Normal Coolino--Select tile Coolmode
and High (3) or Med (2)tan with a middle set
temperature.
For Maximum Cooling--Select the Cool mode
and High (3)tim with a lower set temperature.
For Quieter &Nighttime Coolino--Select the
Coolmode and Low (1)tan with a middle set
temperature.
NOTE: If you switch from aCool setting to Off or to
a fan setting, wait at least 3 minutes before switching
back to a Coolsetting.
Fan Mode
Lrse tile Fan at High (3), Med (2) or Low (1) to pr(Mde Since tim only settings do not provide cooling,
air circulation and filtering without cooling, a temperature setting will not be displayed.
Vent Control (on some models)
Tile vent control is located on tile inside ot tile
air lou\'e_ in tile lower right corne_;
\._]_en set at CLOSE,only tile air inside tile room
will be circulated and conditioned. _,\]/en set at
OPEN, some inside air is exhausted outside.
v
Toopenthevent,pushtheleverto theright.
Tocloseit, pushit to theleft.
Air Direction--Up and Down (onsomemodels)
Fingertip pressure on tile horizontal lou\'e_ a(!iusts
tile air direction up or down. OR
Air Direction--Side-to-Side (onsomemodels)
Tile side-to-side air direction is a(!justed by tile
lo/wer leveI_.
Aboutthecontrolsontheairconditioner--modelswithcontrolknob(s).
Features and appearance may vary.
Controls(o,models so equipped)
0
"'ILCL° ,ogi_m
ON/Oil:Switch
Turns air conditioner (m and off.
NOTE.:Iftheairconditionerisoffandisthenturnedonwhiin
setinaCoolmode,it willtakeapproximately3minutesfor
thecompressortostartandcoolingtobegin.
FanSwitch(onsomemodels)
/_.lseto set the fire speed to ].0 or I'll.
OMode/TempControl
Use to set tile air conditioner to the FanOnlyor a
Coolmode.
0
area, tbr the indoor air to become *mnnen
_e Mode/Temp control is used m maintain the
room temperature. When set in a Coolmode, tile
compressor will cycle on and off to keep tile room
at fl_e stone lmel of comfi)rt.
CoolingDescriptions
ForNormal Cooling--SelectaCoolmode _dth the
Mode!Temp knob set at the midpoint.
for MaximumCooling--Select a Cool mode _vith
tile Mode/Temp knob set to_ard the larger
bhle area.
FanOnlyMode
Use FanOnly at HI or LOFan to pro_(te air
circulation and filteling without cooling.
CoolMode
Use a Coolsetdng wid_ HIor LOFanfor cooling.
Turn the knob clochqse, toward the larger blue
area, for the indoor ai_a to become cooler Turn
the knob counterclock,qse, t_ard tile smaller blue
Controls modelssoequipped)
ForQuieter&Nighttime Cooling--Select aCoohnode with
tile Mode!Temp knob set toward the smaller blue area.
NOTE:If you moxe the Mode!Temp control knob fi"oirl ;:/
Coolsetting to the/:an On setting, wait at least 3 minutes
betore switching back to a Cool setting.
0-
Off 56
Ned Cool Th÷m ost_t
-@
oModeControl
Hi Cool,Med Cooland LowCoolprovide eoolino
with ditterent fan speeds.
O
LowFanor HiFan proddes _dr circulation and
filtering without cooling.
ThermostatControl
The thermostat control is used to maintain the
room temperature. The compressor will ctcle on
and off to kee l) the room at the sm;qe level of
comfbrt. When _ou Ulrll the knob to a higher
numbel; the iMoor air will becolne cooler Turn
the knob to a lo_vr number and the indoor air
will become _m'mer
NOTE:If youmovetheswitchfromacoolsettingtoOFFer
toa fansetting,waitat inast3 minutesbeforeswitchingban to a
coolsetting.
CoolingDescriptions
ForNormalCooling_e]ect HiCoolor Med Coolwith the
them_ostat control at midpoint.
ForMaximumCooling-Select Hi Coolwith the thermostat
contlX4 at the highest number available on _our knob.
ForQuieter& NighttimeCooling-Select Low Cool with the
them_osmt control at midpoint.
Additional controls and important information.
Do Not Operate in Freezing Outdoor Conditions
This cool-only air conditioner was not designed fi)r
ti'eezing outdoor conditions. It must not be used in
ti'eezing outdoor conditions.
g_com
Vent Control (on some models)
The vent control is located on the inside ot the
air lou','e_ in the lower right corne_:
_._]_en set at CLOSE, only the air inside the room
will be circtflated and conditioned, When set at
OPEN, some inside air is exhausted outside.
Toopen the vent, push the lever to the right.
Toclose it, push it to the left.
Air Direction--Side-to-Side
The side-to-side air direction is ac!justed by the
lotwer leveI_.
Air Direction--Up and Down (on some models)
Fingertip pressure on the horizontal lou\'e_ a(!iusts
the air direction up or down.
OR
7
Careand cleaning of the air conditioner.
How to Insert the Batteries on the Remote Control (on some models)
] Remove the battery cover by sliding it
according to the arrow direction.
]Insert new batteries making sure that the (+)
and (-) of battery are installed correctly:
] Reattach the coxer b) sliding it 1)ack
into position.
NOTES'.
::Ji::Use 2 "_%" ( 1.5 volt) battelJes. Do not use
recha_geable batteries.
::Ji::]_.einove the batteries fl'oIn the reInote control if'
the system is not going to be used tor a long time.
Grille and Case
Tm'n the air conditioner oIt and remoxe the
plug fl'om the wall outlet before cleanin ,
To clean, use water and a mild deteroent
Do not use bleach or abrasixes.
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly. If they are clogged
with dirt or soot, they may be i)roti_ssionally
cleaned.
Air Filter
The air filter behind the front g*ille should be
checked mid cleaned at least eve_) 30 days or
I//ol'e o[[ell if llecess;ll% _,
Clean the filter with warm, soapy watel; Rinse and
let the filter (h T betbre rep]adng it.
ACAUTION:DONOropera ea,>
conditioner Wlthout a fl/ter because dlFt and/Ibt Wl// clog /t
and reduce performance.
Toremove:
Grabthe tabson
the filter andpull
it upandout
8
Installation
Instructions Air Conditioner
I_-_ Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com I
BEFORE YOU BEGIN
Read these instructions completely
and carefully,
• IMPORTANT - Savethese
instructions for local inspector's use.
• IMPORTANT - Observeall
governing codes and ordinances,
•Note to Installer - Be sure to leave these
instructions with the Consumer.
•Note to Consumer - Keep these
instructions for future reference.
• Skill level - Installation of this appliance
requires basic mechanical skills,
• Completion time - Approximately 1 hour
• We recommend that two people install
this product.
• Proper installation is the responsibility
of the installer.
•Product failure due to improper installation
is not covered under the Warranty.
•You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this air
conditioner.
ELECTRICAL REQUIREMENTS
(_ Some models require a 115/120-volt a.c.,
60 Hz grounded outlet protected with a
15-amp time delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall
outlet you plan to use is only a 2-prong outlet,
it is your responsibility to have it replaced with
a properly grounded 3-prong wall outlet.
©Some models require 230/208-volt a.c.,
protected with a time delay fuse or circuit
breaker. These models should be installed
on their own single branch circuit for
best performance and to prevent
overloading house or apartment wiring
circuits, which could cause a possible
fire hazard from overheating wires.
CAUTION:
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord
of this air conditioner.
Aluminum house wiring may present special
problems--consult a qualified electrician.
TOOLS YOU WILL NEED
Phillips head screwdriver
Pencil Ruler or tape measure
Level Scissors or knife
Power cord includes a current interrupter
device. A test and reset button is provided on
the plug case. The device should be tested on a
periodic basis by first pressing the TEST button
and then the RESET button, If the TEST button
does not trip or if the RESET button will not stay
engaged, discontinue use of the air conditioner
and contact a qualified service technician.
Installation Instructions
PARTS INCLUDED
(appearance may vary)
Top mounting rail
\
Air
conditioner
Left
accordion
panel Right
accordion
panel
Type A (9 or 10)
1/2" screws
Type B (7)
3/4" screws
Security bracket (3)
10
Installation Instructions
[] WINDOW REQUIREMENTS
•These instructions are for a standard double-
hung window. You will need to modify them for
other types of windows.
• All supporting parts must be secured to firm
wood, masonry or metal.
• The electrical outlet must be within reach of the
power cord.
ModelsAST05, ASW05,ASH06 andASW06 only
See below illustration for Models ASH08 and ASW08.)
B===8
127/8" min.
< 22" to 36" >
(With accordion panels)
ModelsASH08and ASW08only
(Seeabove illustration for ModelsAST05,ASW05,ASH06and ASW06.)
[Y===8
241/2"to 36"
{With accordion panels)
[] STORM WINDOW REQUIREMENTS
A storm window frame will not allow the air
conditioner to tilt toward the outside, and will
keep it from draining properly. To adjust for this,
attach a piece of wood to the stool.
WOOD PIECES-
WIDTH: 2"
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the stool to make it 1/2" higher
than the top of the storm window frame or the
vinyl frame.
Attach securely with nails or screws provided by
the installer. 1/2" higher
than vinyl frame
L(on some windows)
/W
L / Wood
1/2" higher !
than storm _- [I rJ/J_ JJ/,J
window _-rl Ill II i-',, i,,i
frame _._J _t°°l r._
Storm window/ 1,7 _/inyl frame J J
frame 11
[] PREPARE AIR CONDITIONER
[] Remove the backing from the top
mounting rail seal strip and attach it
to the bottom of the top mounting rail.
Cut to size.
[] Install the top mounting rail with 3 or 4
type A screws (depending on the number
of holes in the top mounting rail) from the
outside of the case.
Top mounting _,
Bottom
mounting
[] Loosen the lower screw on each side of
the case and hook a security bracket on
each side. To allow for later adjustment,
do not tighten the screws until you install
the unit in the window.
Security
bracket
Security
bracket
Installation Instructions
[] PREPARE AIR CONDITIONER
(CONT.)
[] Insert the frames of the accordion panels
into the top and bottom mounting rails.
Attach the accordion panels to the side
of the case using 6 type A screws.
Top mounting
Accordion panels
[] INSTALL AIR CONDITIONER IN
WINDOW
[] Cut the window sash seal to the window
width and stick the adhesive side to the
bottom of the sash.
-- Window
sash seal
[] Place the air conditioner on the stool
with the bottom mounting rail against
its back edge. Center it and close the
window securely behind the top mounting
rail. It should be level or slightly tilted
to the outside. Use a level; about a 1/3
bubble will be the correct case slant to
the outside.
12
[] INSTALL AIR CONDITIONER IN
WINDOW (CONT.)
[] Extend the left and right accordion
panels to the vertical window sashes and
attach with 4 type B screws.
Type B
screws
_Type B
screws
[] Attach the brackets to the stool on both
sides using two type B screws.
[] Tighten the screws to secure the brackets
in place on each side of the air conditioner.
[] INSTALL SECURITY BRACKET
AND FOAM TOP WINDOW
GASKET
[] Attach a security bracket with a type B
screw.
[] Cut the foam top window gasket to the
window width.
[] Stuff the foam between the glass and the
window to prevent air and insects from
getting into the room.
Caulk or weather-strip any gaps or
openings to the outside to seal the
installation.
The installation is now complete.
TroubleshootingTips... ge.com
Airconditioner
doesnotstart
Possible Causes What ToDo
• Make sure the air conditioner plug is pushed
completely into the outlet.
The air conditioner
is unplugged.
The fuse is blown/circuit • Check tile house fllse/circuit breaker box and repk_ce
breaker is tripped, tile thse or reset the breakel;
Power failure. • If power fidlure occm_, turn the air con(fiti(mer Off
When po_er is restored, _ait 3 rMnutes to restart the
air conditioner to prevent tripping of tile compressor
overload.
The current interrupter • Press the RESETbutton located on the power cord plug.
device is tripped. • If tile RESETbutt(m will not stay eng:_ged, (fiscontinue
use of the air conditioner and c(intact a qualified
service technJcia/l.
Air conditioner does Airflow is restricted. • Make sure there are no curtains, blinds or furniture
not cool as itshould bhicking the front of the air conditioner.
The temp conlrol may • On models with touch pads: Ill Cool mode, press tile
not be set correctly. Decrease•pad.
• On models with control knobs, turn tile temperature
knob to a higher mmlbel:
The air Filter is dirty. • Clean tile filter at least e\erv 30 days.
See tile OperatingInstructionssecti(_n.
The room may have been hot. • When tile air conditioner is first turned (ill, y(iu need
to allo\_ time filr tile ro(m/to cool (hl_n.
Cold air is escaping. • Check filr open thrnace registels and cold air returns.
• Set the air conditioner's xent to tile closed position.
Cooling coils have iced up. • See "Air conditionerfreezing up"belo\_.
Air conditioner Ice blocks the air flow •On models with control knobs, set tile mode contr(ll
freezingup and stops the air conditioner at Fan Onlyand the tim switch to HI
from cooling the room. • On nlodels with touch pads, set tile contr(lls at
HighFan or HighCooland set the thel]nostat to
a trigher, tern })erature
The remote controlis The batteries are htserted • Check tile position of tile batteries. They shoukl be
not working incorrectly, inserted ill tile o})posite (+) and (-) direction.
The batteries may be dead. • Replace the batteries.
Waterdripsoutside Hot, hlmfid weather. •This is n(nmal.
Waterdrips indoors The air conditioner is not • For proper \xater disposal, make sure tile air conditioner
tilted to the outside, slants slightl} ti'(nn tile case fl'ont to tile real:
Watercollectsin Moistureremoved from air •This is nomM for a short pe/iod ill areas with little
basepan and drains into base pan. lnunidi/y; n(imlal for a hlnger period ill \erx humid areas.
"El" appears Function error code. * Unplug tile air conditioner. Wait 3 n/inutes and plug it
in the display back ill.
TimerorSleep featoro A power outage or interruption • Ill the case of a power outage or intelyuption, tile unit
networking properly occurred. Timer and Sleep teatures xdll reset to tile original setting.
_ilU mm need to set a ue\_ time if desired.
Normal Operating Sounds
::Ji::Ym may hear a pinging noise caused 1)y
water being picked up and thrown against tile
condenser (m rainy days or when the lmmidiP,'
is high. This design fe'ature helps remove
moisture and improve efficiency.
::Ji::xdm may hear the thermostat click when the
compressor cycles on and off.
::Ji::X_,lter will collect ill the base pan during
high lmmiditv or on rainy days. The water
may overflow and drip fl'onl the outdoor side
of the unit.
!i?:The tim max run exert when the c()ml)ressor
does not. /2
m

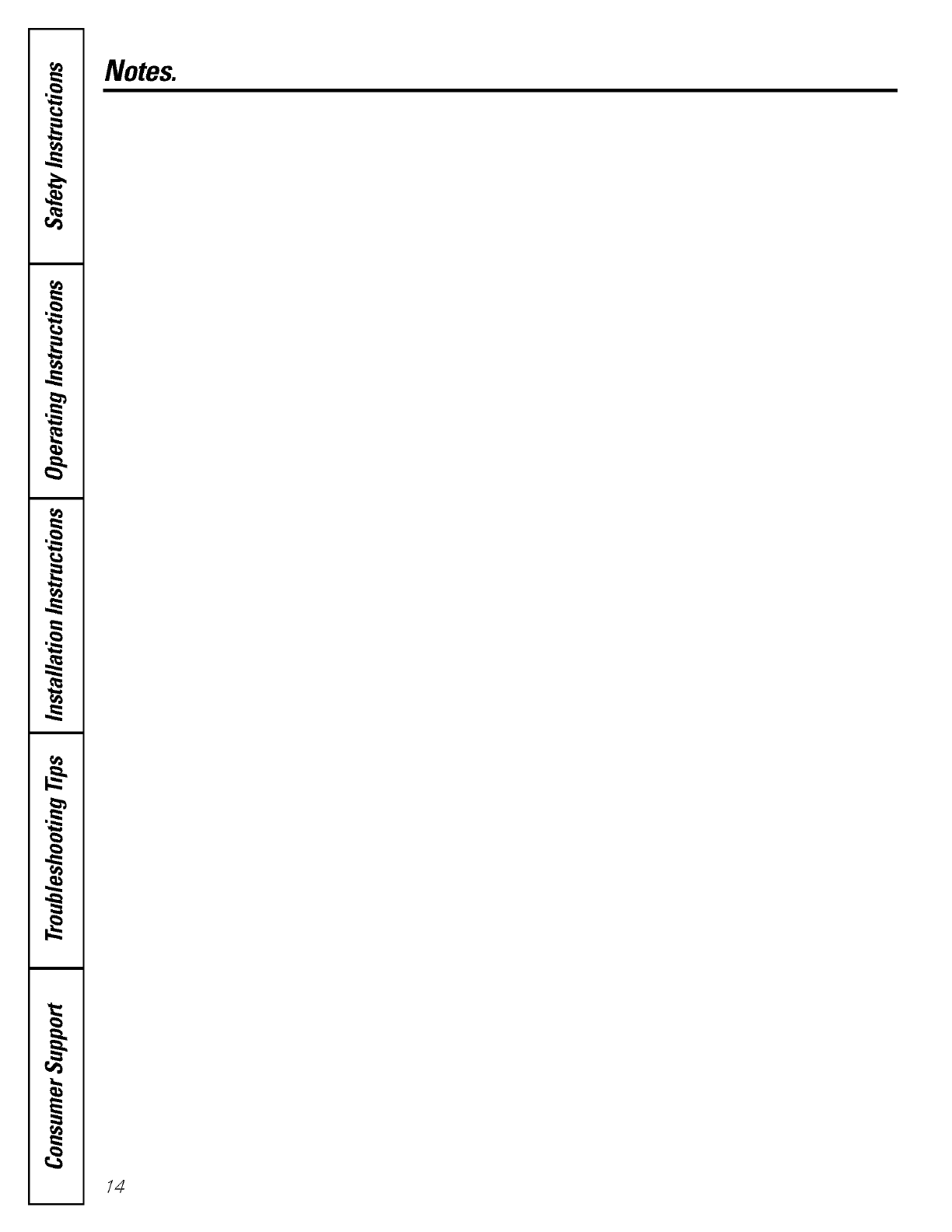

_ Notes_
€_
r_
m
m
Q_
€_
14
GEAir ConditionerWarranty--One YearLimited Warranty.
Staple your receipt here.
Proof of the original purchase date
is needed to make a warranty claim.
We Will Replace:
Replacement un#fin any product which fifils due to a defect in materials or workmanship.
From the date of the The exchange unit is warranted fin" the remainder of xotu" i)roduct's original one-year
originalpurchase "warraub perh)d.
::Ji::Properly pack your unit. We recommend using the
original caxton and packing materials.
::Ji::Retunl the product to the retail location where it
was purchased.
iJi::Include in the package a copy of the sales receipt or other
evidence of date of original purchase. Also print your
name and address m_d a description of the defect.
!i/:Customer instruction. This owner's manual provides
information regarding operating instructions and
user controls.
iJi::hnproper h_staJlation. If you have an installation problem,
or if the air conditioner is of improper cooling capacity
for the intended use, contact your dealer or installer.
You axe responsible for providing adequate electrical
cmmecth_g facilities.
_: Failure of the product restdth_g from modifications to
the product or due to mlreasonable use including failure
to provide reasonable m_d necessary maJntenm_ce.
!i_:Replacement of house fuses or resetting of circuit
breakers.
iJi::Daanage to the product caused by hnproper power supply
voltage, accident, fire, floods or acts of God.
ig: Incidental or consequential dmnage caused by possible
defects with this air conditioner.
EXCLUSION OF IMPLIED WARRANTIES--Your sole and exclusive remedy is product exchange as provided in
this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness
for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
Exclusion of implied warranties: Except where prohibited or restricted by law, there are no warranties, whether
express, oral or statutory which extend beyond the description on the face hereof, including specifically the
implied warranties of merchantability or fitness for a particular purpose.
Warrantor: General Electric Company. Louisville, KY 40225
/5
ConsumerSupport.
qgEAppliancesWebsite ge.com
Haxe a question or need assistance with your appliance? Try the (;E Appliances _4'ebsite 24 hom_ a day
' any day of the xear'. For greater comenience and taster service, you can now download Owner's Manuals,
or exert order parts on-line.
RealLifeDesignStudio ge.com
GE supports the Universal Design concept--products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design lot a wide range of physical
and mental abilities and impaim_ents. For details of GE's Universal Design applications, including kitchen
design ideas fin" people with disabilities, check out our Website today. For the headng impaired, please call
800.TDD.GEAC (800.833.4322).
PartsandAccessories
Individuals qualified m se_'ice their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours evet-v day or
by phone at 800.626.2002 dudng nomml business hours.
Instructions contained in this manual cover procedures to be performed by any user. GEdoes not support
any servicing of the air conditioner. We strongly recommend that you do not attempt to service the air
conditioner yourself.
ge.com
ContactUs ge.com
If you are not satistied with the service w)u receive fl'om (;E, contact us on our X&'ebsite with all the details
including your phone ntlI/lbeI; oI" write to: General Manager; Customer Relations
GE Appliances, Appliance Park
I,ouisville, KY 40225
_Printed in China

Navigation menu
