Leviton
Integrated Networks
Home Systems
Structured
Media
Systems,
Home Control &
Security,
Lighting Controls,
Power Quality and
Special Needs
Groups
Leviton
Integrated Networks
Home Systems
Table of Contents
The Leviton Company & Leviton Integrated Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Structured Media Systems Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
System Packages:
Value Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Essential Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Enhanced Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Advanced Entertainment Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Networked Home Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Broadband Home Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Multimedia Home Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Home Video Monitoring Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Guidelines For Levitons Certified Installer Partner Program . . . . . . . . . . . . . . . . . . . . . . .5
Builder Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Components and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–59
Home Control and Security Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60–63
System Packages:
Smarter Home Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Welcome Home Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
House Sitter Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Night Sentinel Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Lighting Controls Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64–68
Traditional Lighting Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
System Packages:
Traditional Living & Entertainment Director Package . . . . . . . . . . . . . . . . . . . . . . . .65
Bed & Bath Ambience Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Decora Lighting Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
System Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67–68
Decora Living & Entertainment Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Decora Bed & Bath Ambience Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Decora Lighting Magic Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Designer Lighting Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
System Packages:
Designer Living & Entertainment Director Package . . . . . . . . . . . . . . . . . . . . . . . . . .67
Designer Bed & Bath Lighting Ambience Package . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Designer Lighting Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Cinema Style Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Power Quality Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69–70
System Packages:
Whole-House Electrical “Networked” Surge Protection Package . . . . . . . . . . . . . .70
Whole-House Low-Voltage & Electrical Power Quality Protection Package . . . . .70
Special Needs Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71–72
System Packages:
Child Safety Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Universal Design Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Components and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73–74
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75–78
LIN Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75–76
Structural Cabling Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77–78
Catalog Number Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79–80
1
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
LEVITON THE COMPANY
Since its inception at the beginning of the electrical
age, the name Leviton has been synonymous with
quality electrical products for every conceivable com-
mercial and residential need. Today, Leviton is one of
the world’s most extensive and diversified electrical
manufacturing companies, with some thirty facilities
dedicated to engineering, manufacturing and distribu-
tion of over 25,000 products for nearly every connec-
tivity need—from electrical receptacles to optical
fiber components.
Leviton Integrated Networks
The information and
communication
revolution will have
as much impact
on Americas
homes and businesses as did the electrical revolution
of the 20th Century. To fully enable the modern home,
Leviton has developed Leviton Integrated Networks as
the upgrade path to the future.
From simple coaxial
cable to optical fiber,
Leviton Integrated
Networks’Structured
Mediacomponents
and systems deliver the
bandwidth and speed
that today’s and tomor-
rows information and
entertainment tech-
nologies will demand.
Power Quality products
provide essential pro-
tection for the sensitive
electronic components and systems that are now
standard in today’s homes and businesses.
Lighting Control systems bring out a homes personal-
ity by adding warmth and ambience, and deliver value
by making the home more efficient as well. Home
Control and Security systems raise a homes IQ level,
making it more secure and responsive to the needs of
its owner. Special Needs systems make a home more
accessible and safer for all its occupants. Leviton
Integrated Networks even includes the core wiring
devices that every home needs, selected from Levitons
highest-grade offerings, to upgrade to a quality level
that every homeowner can appreciate.
As the only company that can supply every conceiv-
able connectivity need, Leviton remains the industry’s
reference point for product quality and installation
support—and the company responsible for setting the
standards that all others ultimately meet.
The Industry Leader in Quality,
Support and Service
Leviton has been instrumental in influ-
encing, developing and establishing a
myriad of industry standards and codes.
An ISO-9000 certified manufacturer fully
resourced to support its substantial cus-
tomer base, Leviton provides long-term reliability and
the highest level of quality across its broad product
line. Six Sigma is an integral part of Levitons commit-
ment to continuous improvement in productivity
and customer satisfaction. Leviton also maintains
an extensive support network dedicated to providing
the best, most up-to-date product and systems
assistance possible.
Call us at: 800-722-2082 for tech support,
800-922-6229 for product literature and 800-323-8920
for the Leviton representative nearest you.
Introduction
Structured MediaSystems Group
2To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
New Advanced Home System Options for Every
Homeowner—Homeowners’ expectation are evolving
as new communication and entertainment products
and technologies trans-
form their homes and their
lives. The wired home,
once considered a luxury,
is now viewed as a neces-
sity in the digital age. The
challenge to building the
wired home lies in creating
an infrastructure with cate-
gory-rated cabling and
components that meet
today’s needs while laying
the groundwork for the
whole-house media system of the future. Leviton meets
this challenge head-on by offering a single source for
all applications.
Innovative Technology Blends Multiple Options
Into One System—Leviton Integrated Networks takes
the concept of structured cabling, as practiced in
demanding commercial
applications, and combines
it with multimedia. This
blending accommodates the
convergence of telephone
communications, computer
and Internet services,
audio/video, and much
more. An innovative series
of modules and media
centers—set up as either
pre-configured essential
platforms or more cus-
tomized enhanced platforms—manage and distribute
voice, data, audio and video in flexible configurations
and typical packages that best suit each homeowner’s
individual requirements. These requirements can range
from something as simple as cable TV and telephone in
several rooms, to a local area network (LAN) for a small
office or home-based business.
STRUCTURED MEDIASYSTEMS GROUP
SYSTEM PACKAGES
Value Platform
The Value Package ensures a multi-dwelling unit or home unit is wired for today’s technologies. It
can handle up to four separate telephone lines and distribute them to wall outlets. The system
also distributes cable and broadcast video to 4 outlets and can support DSL or cable modems.
Type Cat No. Description

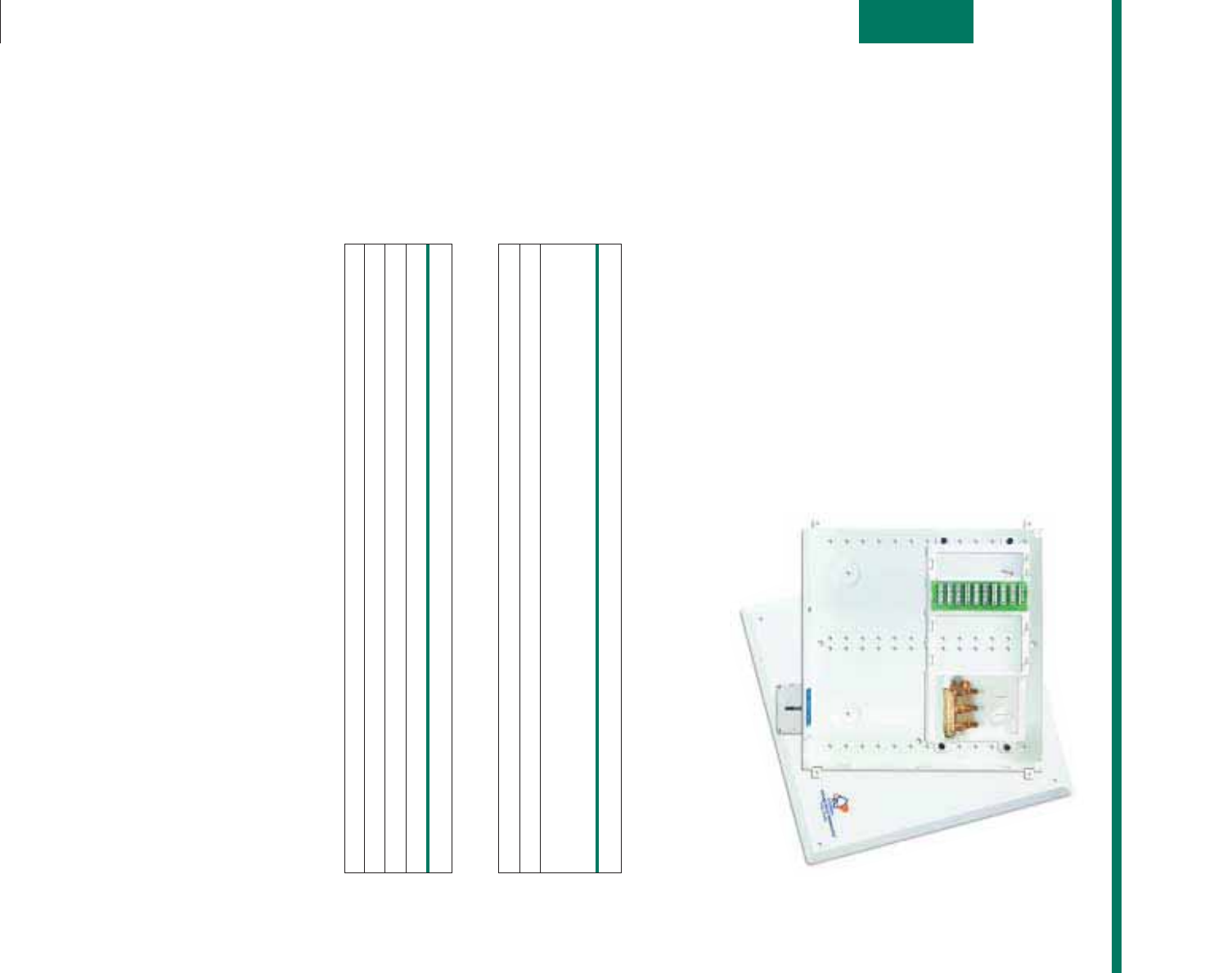

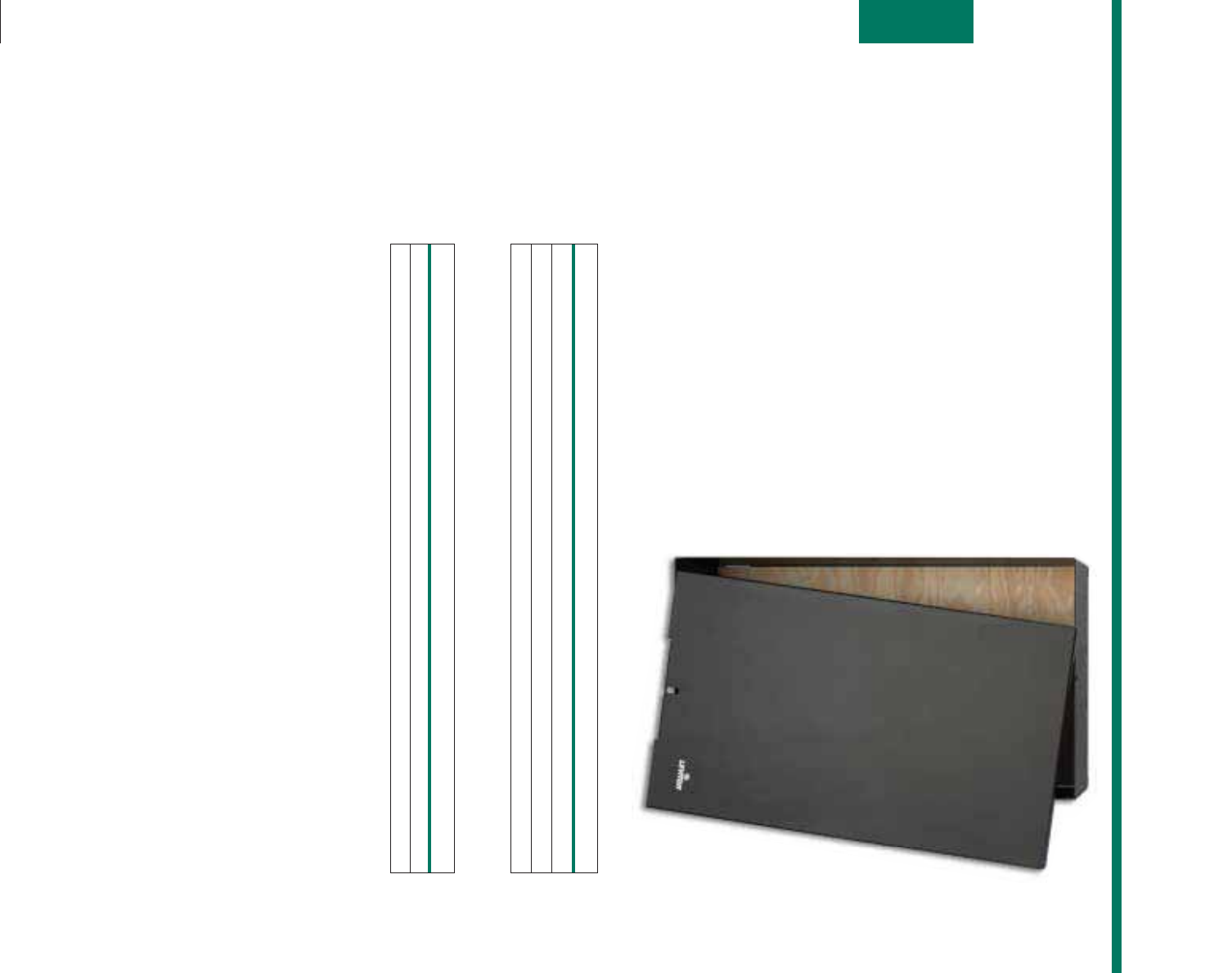

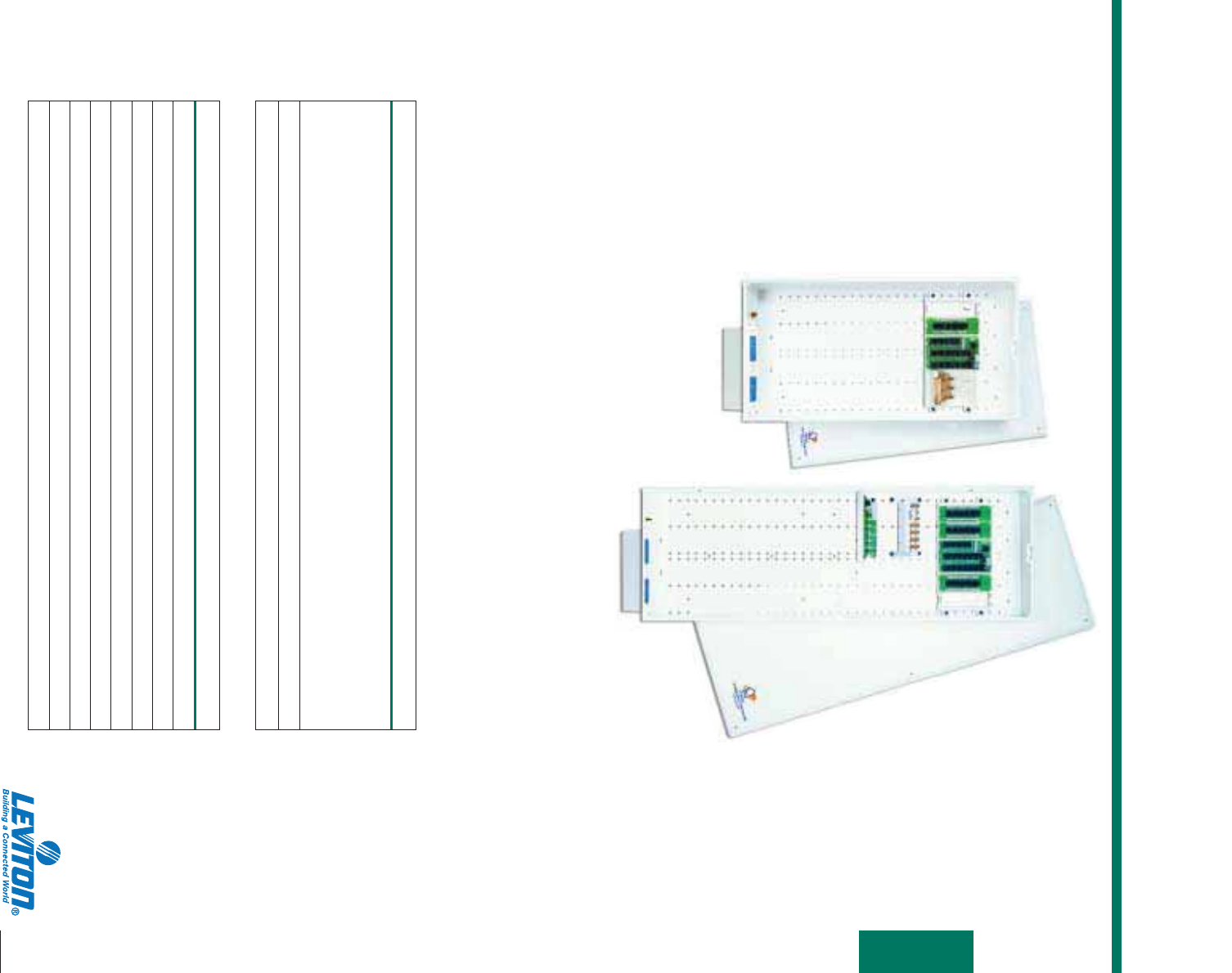

Structured Media Center 47605-14W 14" Enclosure acts as distribution center for voice, data and
video. Supports up to 4 additional modules
Compact Telephone and 47603-1G4 Supports distribution of up to 4 separate phone lines to
Video Panel (1GHZ) nine locations and cable and broadcast video to 4 locations

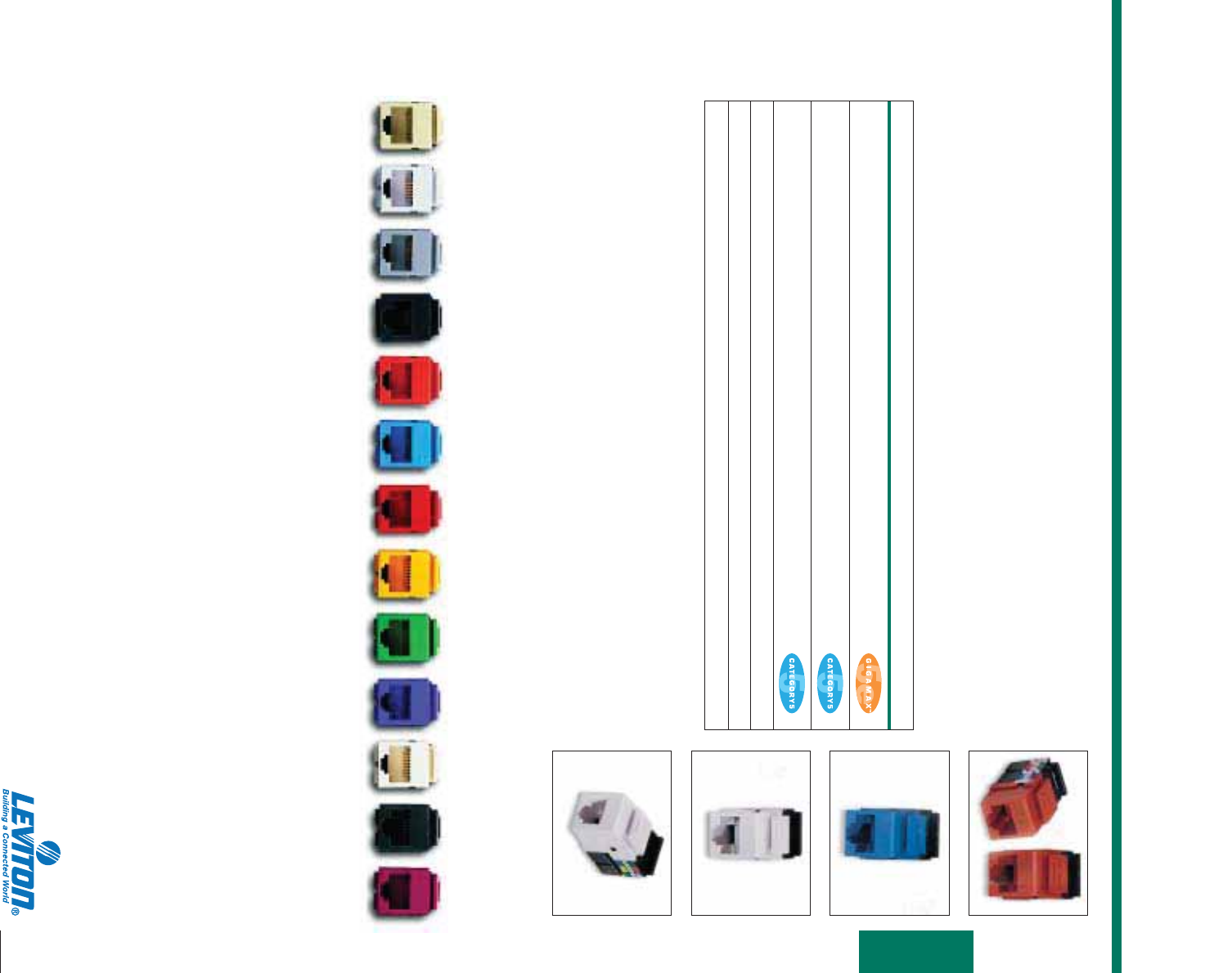

Quickport®Cat 5 Jacks 41108-R*5 Provide Cat 5 data and telephone connectivity
Quickport®F-Type Connectors 41084 F-connector provides cable/satellite/HDTV/DVD video and
high-speed broadband cable modem connectivity at wallplates
Essential Platform
The Essential Package ensures a home is wired for the connected future. It can handle up to four
separate telephone or data lines and distributes them to wall outlets. The system also distributes
cable TV and off-air antenna to six outlets and can support DSL or cable modems.
Type Cat No. Description
Structured Media Center 47605-14W 14" Enclosure acts as distribution center for voice, data and
video. Supports up to 4 additional modules
Basic Telephone and 47606-BTV Supports distribution of up to 4 separate phone lines to
Video Panel (2GHZ) nine locations and video to 6 locations
Quickport®Cat 5 Connectors 41108-R*5 Provide Cat 5 data and telephone connectivity
Quickport®F-Type Connectors 41084 F-connector provides cable/satellite/HDTV/DVD video and
high-speed broadband cable modem connectivity at wallplates
Surge Protected AC Power 47605-ACS Surge protected duplex receptacle provides AC power
Receptacle
For a detailed selection of Quickport®modules, connectors and wallplates refer to pages 29–39.
For additional Structured Media options refer to Leviton’s T600 Structured Cabling Systems brochure or visit our website at
www.leviton.com/lin
Structured MediaSystems Group
3
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Enhanced Platform
The Enhanced Platform provides a larger enclosure and features advanced adaptable architecture
for increased connectivity options. For example, it permits quickly changing a spare bedroom into
a home office. It includes a security interface and can support additional voice/data outlets.
Type Part No. Description
Structured Media Center 47605-28W 28" Enclosure acts as a distribution center for voice, data and
video. Supports up to 7 additional modules.
Advanced Telephone and 47606-AHT Supports distribution of up to 4 separate phone lines up to 19
2GHZ Video Panel locations (with expansion boards) and video to 6 locations
Quickport®Cat 5e 5G108-R*5 Provide Cat 5e data and telephone connectivity
GigaMax™ Connectors
Quickport®F-Type Connectors 41084-FWF Connects to coaxial cable infrastructure to distribute video
entertainment and broadband services.
Dual Surge Protected AC 47605-DP Two surge protected receptacles provide AC power
Power Receptacles
Advanced Entertainment Platform
The Advanced Entertainment Platform provides the core capabilities to distribute voice, data and
video to multiple locations throughout the entire home. It incorporates Levitons Premium 42"
Structured Media Enclosure to ensure an easy upgrading via the Networked Home, Broadband
Home or Multimedia Home Upgrade Packages.
Type Cat No. Description
Structured Media Center 47605-42W 42" Enclosure acts as a distribution center for voice, data and
video. Supports up to 12 modules.
24 Port Structured Media Panel 47603-24P Supports distribution of up to 4 phone lines through up to 19
telephone locations and/or 24 data locations.
3x8 Enhanced Bi-Directional 47690-G3Y Distributes and amplies cable TV, satellite, video security
RF Distribution Module, 2GHz camera, DVD and VCR signals to multiple TV’s and supports
bi-directional signaling such as cable modem/cable box
communications

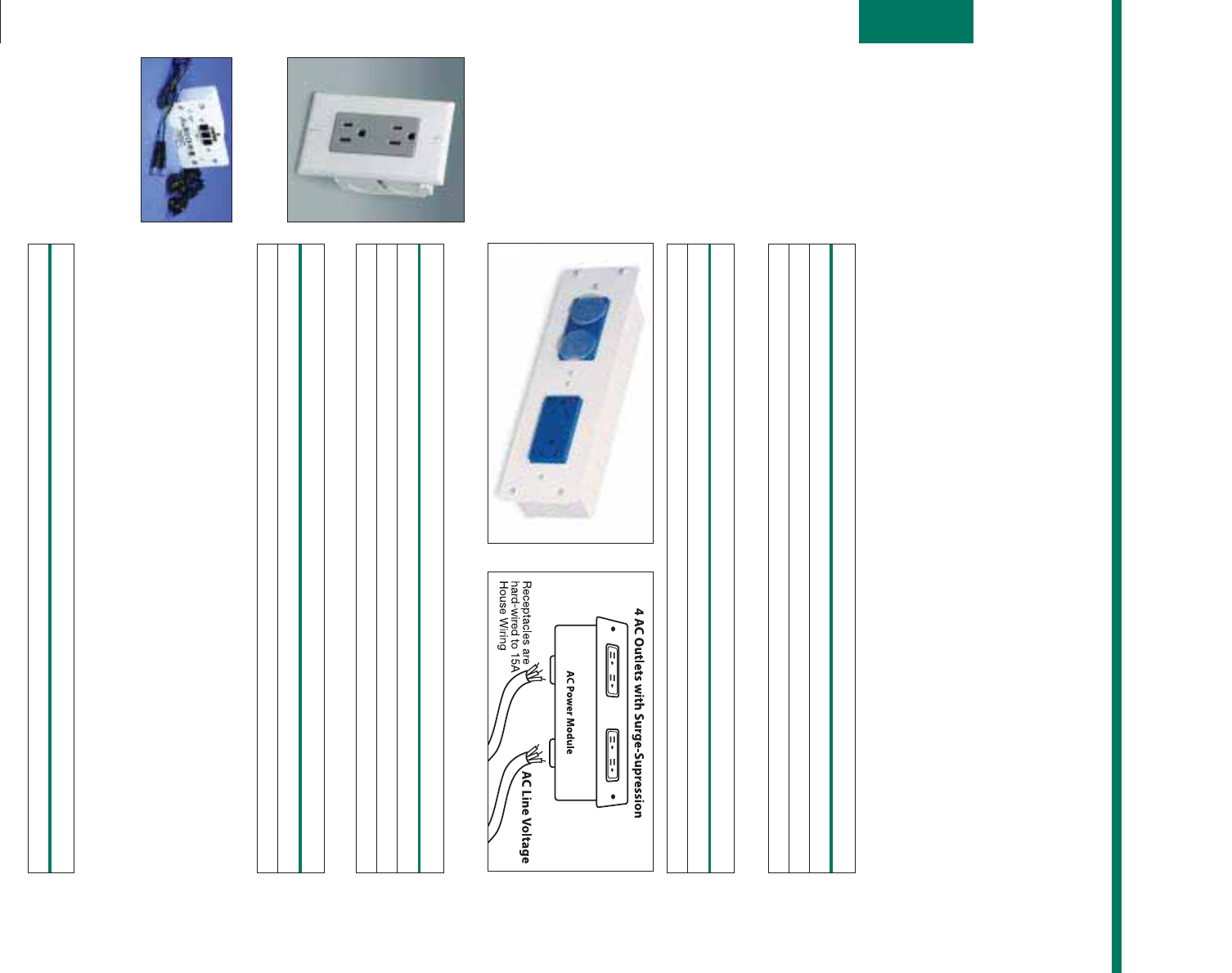

DC Power Distribution Module 48212-DCS Transformer powers multiple DC powered devices

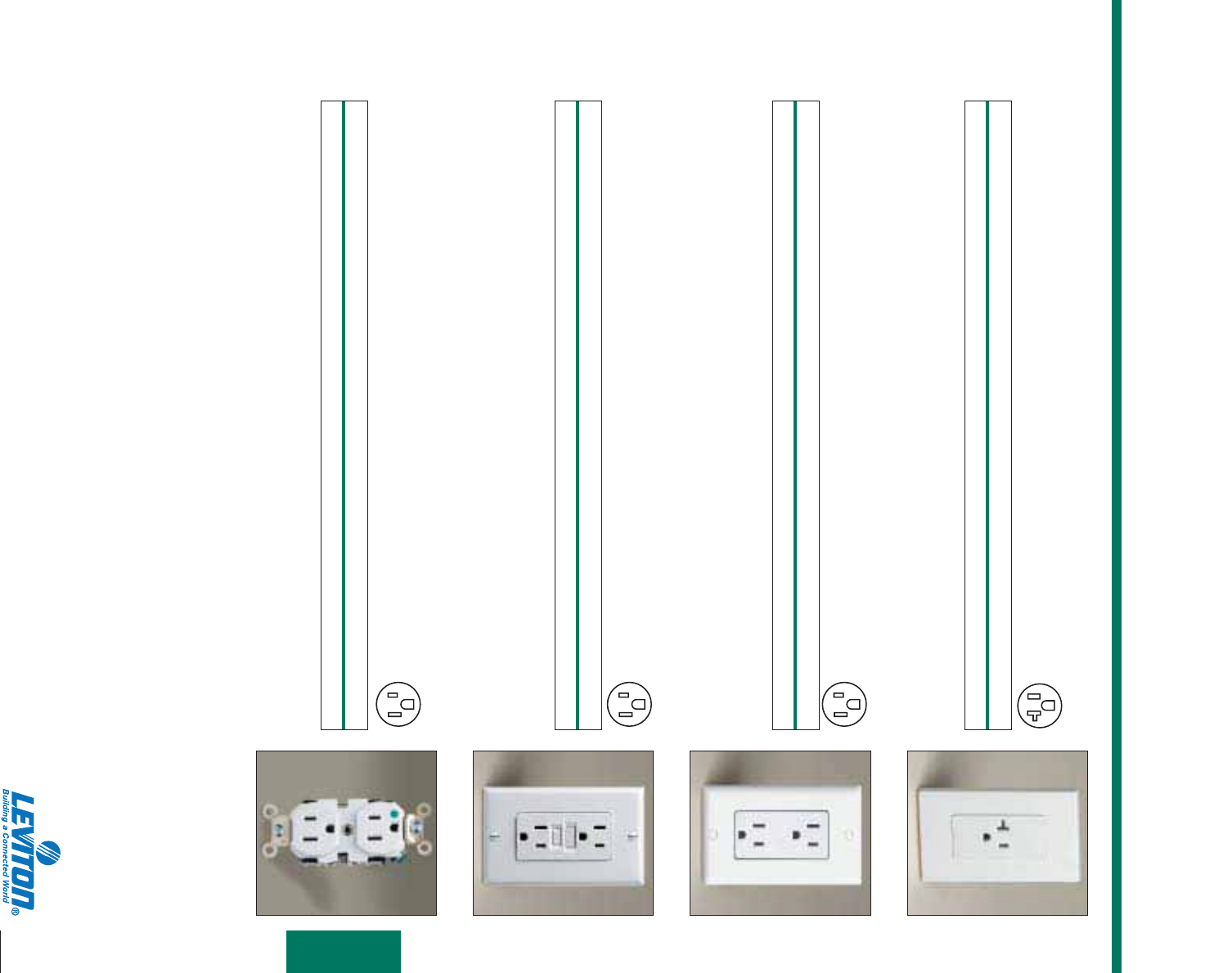

Dual Surge Protected AC 47605-DP 2 Surge-protected receptacles provide AC power
Power Receptacles
Networked Home Upgrade
Adds the convenience of networking PCs and other equipment at 5 locations.
Type Cat No. Description
Networking Switch 47611-5PT 10/100 Mbps 5 port Ethernet Switch for sharing data and
peripheral devices among 5 computers (cascade additional
switches to add more computers)
Cat 5e Expansion Board 47605-C5B Provides up to six additional telephone/data outlets
For a detailed selection of Quickport®modules, connectors and wallplates refer to pages 29–39.
For additional Structured Media options refer to Leviton’s T700 Structured Cabling Systems brochure or visit our website at
www.leviton.com/lin
For additional audio/video options refer to pages 15–17 and 22–28
Broadband Home Upgrade
Connect to a Category 5e network at either 10 or 100Mbps at 4 locations to share data and
peripherals. Plus, it provides Internet sharing with firewall protection for multiple PCs.
Type Cat No. Description
Internet Gateway 47611-GTA Provides Internet access sharing with rewall protection plus
sharing of data and peripheral devices between four PC’s in
remote locations around the house. Cascade with additional
hubs and switches to support a total of up to 253 devices
Cat 5e Expansion Board 47605-C5B Provides up to six additional telephone/data outlets
For a detailed selection of Quickport®modules, connectors and wallplates refer to pages 29–39.
4To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Structured MediaSystems Group
Multimedia Home Upgrade
Note:Advanced Entertainment Platform recommended
Type Cat No. Description

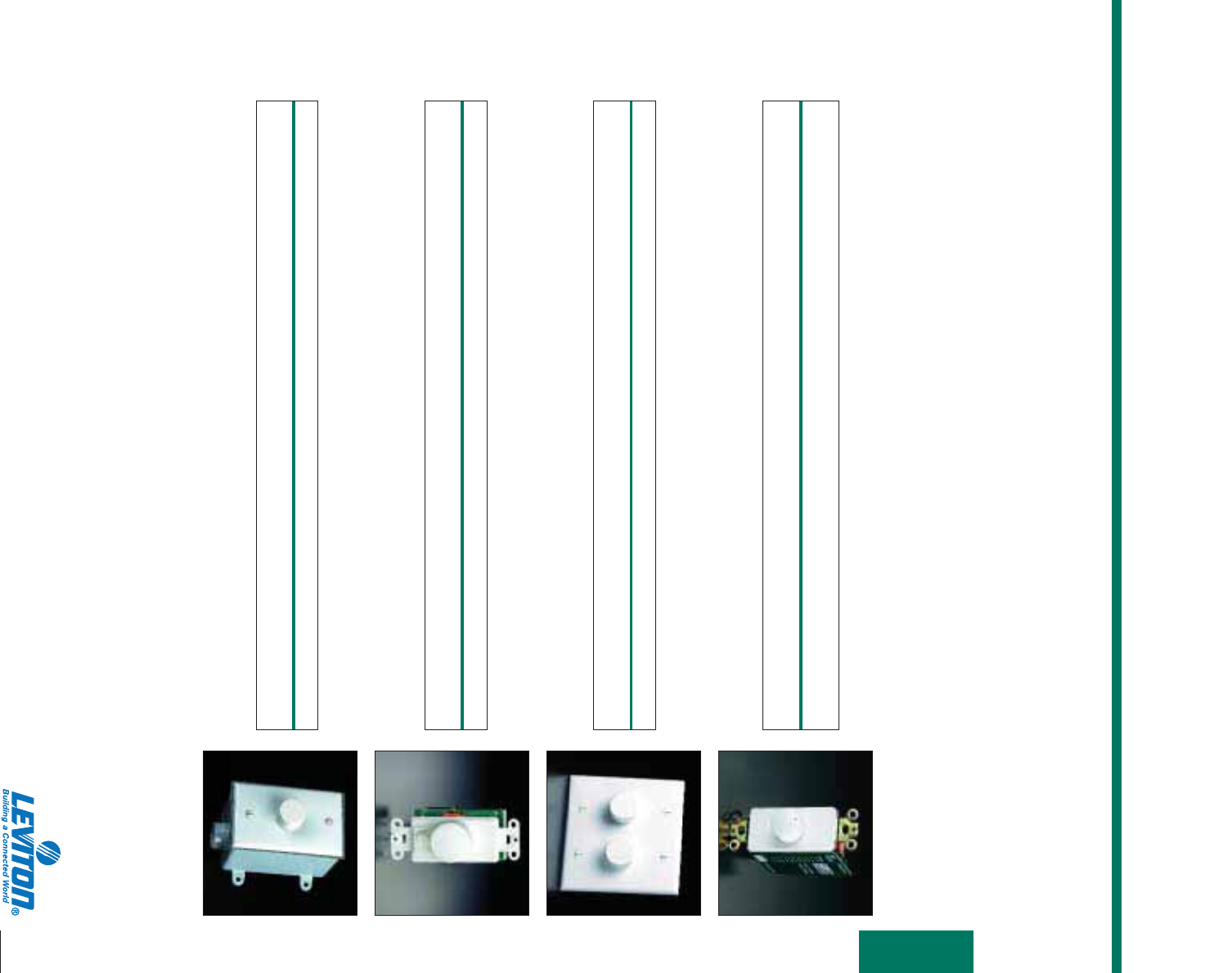

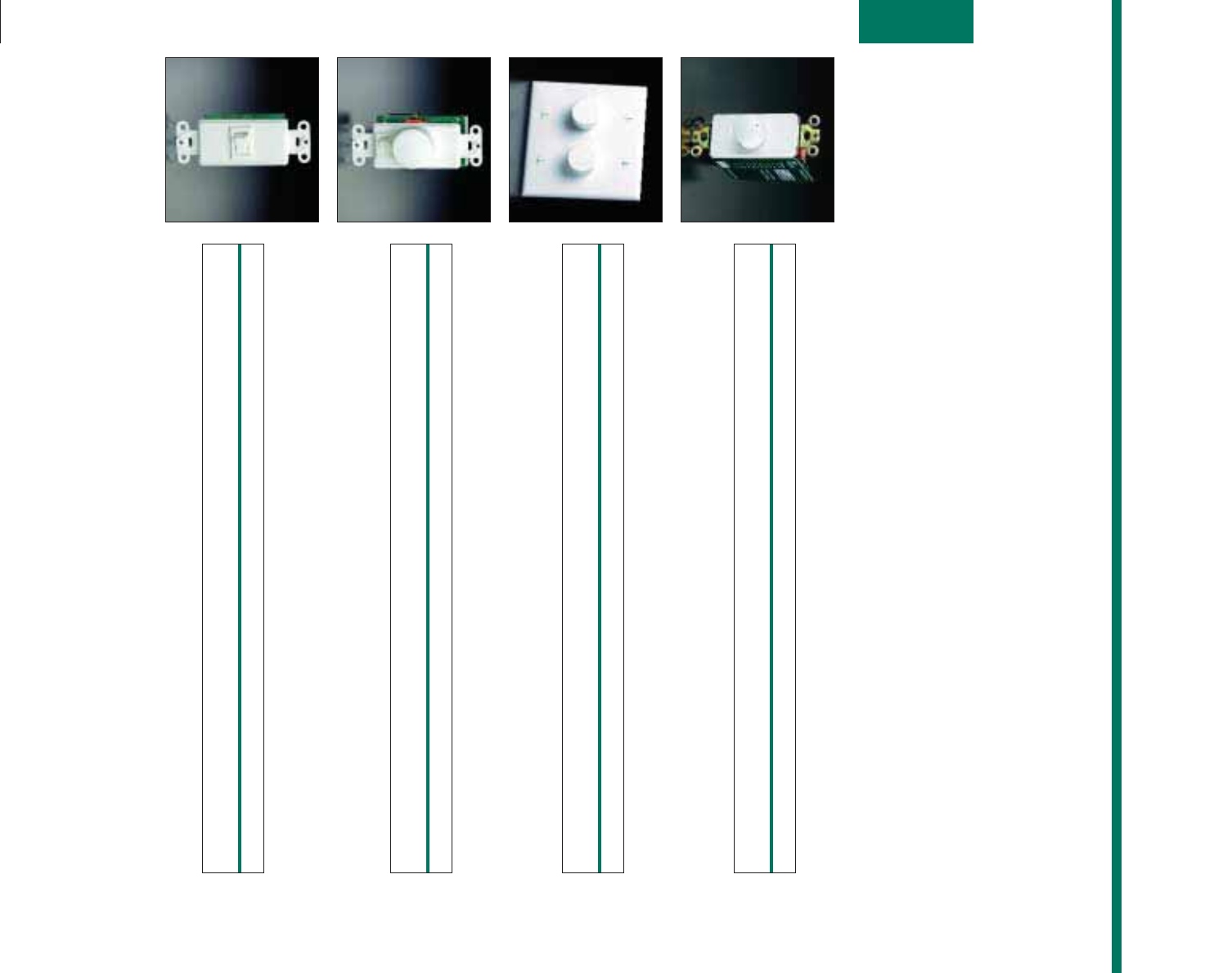

Decora Digital™ Chopin™ 48211-*VK Digital volume control provides high-quality sound and
Volume Control Kit Decora styling
Decora Digital Volume 48211-*VC Interface hub provides technologically advanced
Control Wall Unit volume control
Decora Strauss Stereo 40888-72W Impedance-matching analog stereo volume control with
Volume Control ON-OFF Switch
Decora Media System 48210-MCH DMS permits whole-house distribution of VCR, DVD, Media
Hub with Power Supply cable TV, MP3, etc. signals over Cat 5 cable
Decora Media System 48210-MSU DMS Send Unit is used to send information from its source to
Send Unit with Power Supply the DMS Hub or to a DMS Receive Unit
Decora Media System 48210-MRU DMS Receive Unit is used to send source information from the
Receive Unit DMS Hub or DMS Send Unit to an A/V output device

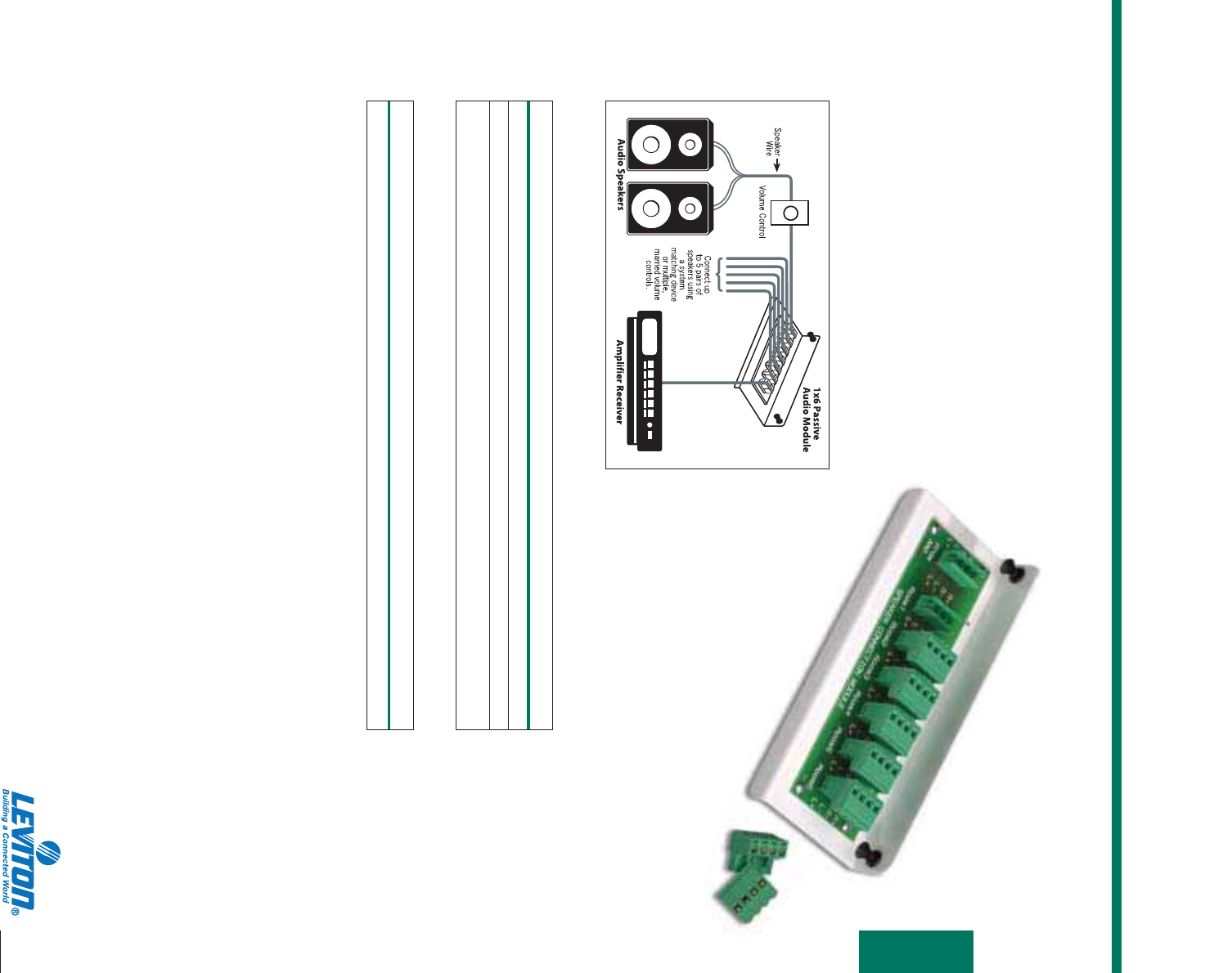

1X6 Passive Audio Module 48211-6A Distributes centralized stereo to up to six pairs of speakers
Decora Media Systems Send 48210-SRU Point-to-Point model where Send and Receive Units
and Receive Unit Pair are linked directly together
with Power Supply
100 Watt In-Wall Flush 40890-WS High-quality 100 watt 8" woofer, 12" Polydome Tweeter, 90dB,
Mount Speaker 8 1, paintable grill and frame, 958"x 614" wall opening
100 Watt Ceiling Mount 40896-W High-quality 100 watt 612" woofer, 1" Polydome Tweeter,
Round Speaker 90dB , 8 1, paintable grill and frame, 812" diameter ceiling
opening
Desktop Stereo Modulator 48210-DSM Combines A/V signals from source such as DVD Player and
converts it to RF for distribution
IR Repeater System Target 46721-CMS Receives IR Signal and converts it to low-voltage DC
IR Repeater System Emitter 47621-MIE Converts DC signal to RF to control device
1x9 Bridged Telephone Module 47603-110 Permits multiple emitter congurations
without bracket
DC Power Distribution Module 48212-DCS Transformer powers multiple DC powered devices
Internet Gateway 47611-GT4 Provides Internet access sharing with rewall protection plus
sharing of data and peripheral devices between four PC’s in
remote locations around the house. Cascade with additional
switches to support a total of up to 253 devices
For a detailed selection of Quickport®modules, connectors and wallplates refer to pages 29–39.
*Colors: (I) Ivory, (W) White, (A) Almond
Home Video Monitoring Upgrade
Gives homeowners the ability to keep an eye on home entry areas or family members with video
security cameras using an in-home (CCTV) system. The cameras monitor four locations and allow
homeowners to see the images on a dedicated “security” channel in sequence as the view changes
from one camera to the next.
Note:Advanced Entertainment Platform recommended
Type Cat No. Description
Indoor Camera 48213-*DC Decora-styled indoor monitoring camera provides high-quality
color video output
Outdoor Camera 48213-ECC Low-light sensitive, ruggedly-constructed, outdoor monitoring
camera provides high-quality color video output
3x8 Enhanced RF Distribution 47690-G3Y Distributes and amplies cable TV, satellite, video security
Module, 2GHz camera, DVD and VCR signals to multiple TV’s and supports
bi-directional signaling such as cable modem/cable box
communications
Video Modulator 48213-VMA Modulates signal on to one unused cable TV channel
Video Sequencer 48213-CVS Allows sequential monitoring of up to four cameras
Notch Filter 47690-NFA Blocks pre-assigned channel on your cable TV, allowing use
for video monitoring
Structured MediaSystems Group
5
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
GUIDELINES FOR LEVITON’S CERTIFIED INSTALLER PARTNER PROGRAM
Leviton Integrated Networks offers installers the opportunity to gain a competitive advantage in their
business through a Comprehensive Certification Program. This program includes seminars to improve
job planning and installation skills and adds a limited 15 Year Extended
Warranty on passive structured media component sys-
tems that have been tested and registered with the com-
pany. For details, please see warranty information in the
Installation Manual. Superior technical support
and effective marketing support tools
are also provided. For more infor-
mation on taking advantage of this
program for your business, contact
your distributor, your Leviton rep-
resentative or call 1-800-323-8920.
BUILDER PROGRAMS
These programs provide the marketing and training support that helps everyone understand the
benefits of home systems. This includes the education of builder sales people plus the availability of
consumer-friendly displays and consumer literature. Leviton Integrated Networks can even provide
discounted products to qualified parties as part of the Model Home Program. Speak to your Leviton
representative or see the Builder section of our website at www.Leviton.com/lin.
6To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Structured MediaCenters
Series 140 Structured Media Enclosure
This 14" professional-grade whole-
house media enclosure creates one
distribution point in the home for all
low voltage cables. The SMC-140 is
ideal for MDU’s (Multiple Dwelling
Units, such as condos and apart-
ments) or more modest homes
requiring limited audio/video/voice
and data configurations. It will
accommodate two Pre-Configured
Structured Cabling Panels. The
sturdy design and functionality facil-
itate installation, reducing job-site
labor costs, and making it ideal for
essential home networking.
Specifications
Dimensions:
Enclosure: . . . . . . . . . . . . . . . . . . . . . . . . .14.38"H.x 14.38"W.x 3.60"D.
Cover: . . . . . . . . . . . . . . . . . . . . . . . . . . . .16.10"H.x 16.10"W.
Materials: . . . . . . . . . . . . . . . . . . . . . . . . .White, powder-coated 18 gauge steel
Standards Compliance: . . . . . . . . . . . . .ACA and cULus Listed. UL Listed for re and burglary
FEATURES
Accommodates up to two
full-width Pre-Congured
Structured Cabling
Panels–delivering audio/
video, voice and data to any
room of the home or ofce.
• Positive “stops” on housing
sidewalls prevent the enclo-
sure from falling through
studs during installation.
• One piece white steel unit
holds full and half-width
expansion modules.
• Can be surface-mounted or
recessed.Ideal for new
installations or retrots.
• Mounting guides on the
cover align screw-holes and
reduce the chances of drop-
ping during attachment.
• Powder-coated white cover
features a 34" overlap to hide
irregular drywall cuts.
• Combine two or more enclo-
sures for larger installations
or future expansion.
• Multiple knock-outs on top
and bottom including two
new 2" knockouts on top,
facilitate cable entry and
routing.
• Cut-out in base of enclosure
for mounting single gang
J-Box kit
• Six 3" square self-healing
foam grommets accommo-
date cable bundles
Cat. Nos. 47605-14W Panel enclosure
47606-BTV Basic Telephone and
Video Panel
For more information about this sample cong-
uration and components see pages 2 and 10.
Series 140 Structured Media Enclosure
Cat No. Description
47605-14W Series140 Enclosure and Flush-Mount Cover, empty
47605-14N Series140 Enclosure only
47605-F14 Series 140 Flush Mount Cover
47605-H14 Series 140 Hinged Cover
Series 140 Structured Media Enclosures and Covers
For more information on Pre-Congured Cabling Panels, please see pages 10 – 11.
Structured MediaCenters
7
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Series 280 and 420 Structured Media Enclosures
Command central for home media
convergence, Levitons
SMC-280 and SMC-420
home technology
enclosures put the
home or small office on
the cutting edge of the
Information Age. By
bringing every conceiv-
able technology distri-
bution point together
in one place, they make
running cable and
managing media both
simple and more cost-
effective. Designed to
incorporate a hospital-
grade power quality
module for maximum protec-
tion from line surges, the 28" and 42" high units
accommodate all the latest in functions such as
home networking, fax, internet (including high
speed services such as DSL, cable modems and
ISDN), multi-line telephones, security camera, coaxial
cable and satellite video distribution, and speaker and volume controls, when equipped
with the correct accessories.
The Series 280 enclosure can comfortably accommodate up to 8 different Distribution
Modules, depending on selection and density, and the 420 enclosure, with its generous
size and capacity for up to 12 modules, can simultaneously manage many diverse
functions. Perfect for home office and home entertainment. Make sure you plan all
modules before starting the project, and specify the correct size media center.
*Module count will depend on the type used; some are larger than others.
Specifications
Dimensions:
SMC-280 Enclosure: . . . . . . . . . . . . . . . . .28"H.x 14.38"W. x 3.00"D.
SMC-280 Cover: . . . . . . . . . . . . . . . . . . .29.25"H.x 15.62"W.
SMC-420 Enclosure: . . . . . . . . . . . . . . . .42"H.x 14.38"W. x 3.60"D.
SMC-420 Cover: . . . . . . . . . . . . . . . . . . . .43.25"H.x 15.62"W.
Materials: . . . . . . . . . . . . . . . . . . . . . . . . .White, powder-coated 18 gauge steel
Standards Compliance: . . . . . . . . . . . . .ACA and CULUS Listed. UL Listed for re and burglary
Series 280 and 420 Structured Media Enclosures
Cat No. Description
47605-28W Series 280 Enclosure and Flush-mount Cover, empty
47605-28N Series 280 Enclosure, empty, no cover
47605-F28 Series 280 Flush Mount Cover
47605-H28 Series 280 Hinged Cover
47605-F42 Series 420 Flush Mount Cover
47605-42N Series 420 Enclosure, empty, no cover
47605-H42 Series 420 Hinged Cover
47605-42W Series 420 Enclosure and Flush-mount Cover, empty
Series 280 and 420 Structured Media Enclosures
FEATURES
• Multiple knock-outs (up to 2")
on top, bottom, sides and
back, including two new 2"
knock-outs on top, facilitate
cable entry and routing from
every desired room.
• Six 3" square self-healing
foam grommets accommo-
date cable bundles and
protect them from being cut
• Sturdy, one-piece white steel
construction.
• Combine two or more enclo-
sures for larger installations
or future expansions.
• Holds 14,12and full-width
expansion modules with the
ability to mount most mod-
ules vertically or horizontally.
• Large capacity provides
multiple functionality for
“wired” homes.
• Powder-coated white cover
features a 34" overlap to hide
irregular drywall cuts.
• Mounting hooks on the cover
align screw-holes and reduce
the chances of dropping dur-
ing attachment.
• Holds a broad range of cur-
rent and future distribution
modules, delivering audio,
video, voice, data, security,
and more to any room of the
home or ofce.
Threaded inserts added to
enclosure to ensure accurate
threading of screws when
mounting cover
• Can be surface-mounted or
recessed. Ideal for new
installations or retrots.
• Knock-out in base of enclo-
sure for mounting of either a
single gang J-Box kit or an
AC power module
• Designed to accommodate
safe, high-quality hospital-
grade power module with
surge suppression.
8To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Structured MediaCenters
Media VersatilePanel—For Custom
Retrofits and Remodeling
Ideal for custom retrofits and remodeling
applications, the Media VersatilePanel
with 38" plywood backing allows an open
architecture for consolidating low voltage
electronics and distribution components
for phone, fax/modem, data, home net-
working, audio, video and home control.
The 24" high cold-rolled steel panel with
securable door will accommodate a wide
variety of Structured Media Distribution
Modules by simply removing the Push-
Lock Pins and attaching directly to the ply-
wood backing. The sturdy construction is
built to industrial-grade standards, and the
panel can be surface mounted or recessed
in the wall. (Optional mounting brackets
may be used for non-standard stud
spacing). Ideal for custom retrofits and
remodeling applications. Available in
black powder coat finish. UL Listed.
Specifications
Dimensions: . . . . . . . . . . . . . . . . . . . . . . .24"H.x 14"W. x 6"D.
Materials: . . . . . . . . . . . . . . . . . . . . . . . . .Powder-coated 18 gauge steel with 38" plywood backing
Standards Compliance: . . . . . . . . . . . . .UL Listed.
FEATURES
• Eight 1" or 1.5" conduit t-
tings on top and bottom facili-
tate cable entry and routing.
• Wall-mount or recess. Ideal
for new installations or
retrots.
• Securable door provides
maximum protection from
dust and abuse.
• Plywood backing allows
open architecture for
customizing layout and
can accommodate a wide
variety of Structured Media
Distribution Modules.
Media Versatile Panel
Cat No. Description
47602-24E Media Versatile Panel
47602-BKE Mounting Brackets—(set of 4)
Media Versatile Panel
CS-204PV/DS
5-2150MHzSPLITTER
IN
SECURITY
FROM DEMARCATION
TEST
1,2,3,4 1,2,3,4 1,2,3,4 1,2,3,4 1,2,3,4
1,2,3,4 1,2,3,4 1,2,3,41,41,4
4,1 3,4 3,4 2,4 2,3 2,1 2,1
1,3 1,3
ADO
1
2
3
4
1
2
3
4
5
6
7
12
ON
34
FROM DEMARCATION
OFF
SECURITY
EXPANSION PORT
1
2
3
4
5
6
7
8
9
10
1234
1234
LEVITON
Category 5e
JACK 6
65
LINE
IN OUT
FILTERED
Structured MediaPanels/Modules
9
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
PRE-CONFIGURED STRUCTURED CABLING PANELS
Panel Components & Expansion Boards
Pre-configured Panels are assembled at the factory and will contain one or more of the following distribution modules.
Route telephone, data and video services throughout your home or office with one simple panel. Levitons Pre-
configured Structured Cabling Panels combine some of our most popular voice, data and RF modules to create an
economical one-stop home and office media distribution point. See the following pages for available configurations.
Some modules are available in expansion styles to fill unused panel slots (see this page). Choose the pre-configured
combination that best meets your needs, and enhance with expansion boards or stand-alone brackets.
• Bridge up to 4 telephone lines to 9 locations
• Connect up to 9 separate telephones per line
• Printed circuit board module
• 4-pair 110-type IDC punchdowns
• Part of a Pre-congured Panel
• Stand-alone module with bracket
• Expansion board without bracket
• Patch phone or data connections to 6 locations
• Combine with a TLDM, key system, or network
hubs for additional applications
• Printed circuit board module
• 4-pair 110-type IDC punchdowns and 6 CAT 5e
RJ-45 ports•
• Part of a Pre-congured Panel
• Stand-alone module with bracket
• Expansion board without bracket
Components Application Features Available As
1x9 Bridged
Telephone
Board
Basic telephone
distribution
Catagory 5e
Voice & Data
Board
Basic home
networking
Telephone
Patching
Board
Expanded 4-line
telephone
distribution
Telephone
Security
Board
Route simple
telephone with
security interface
DSL Filter
Board
Filters DSL
signal from
telephone line
Telephone
Line
Distribution
Module (TLDM)
Enhanced
telephone
distribution
Video
Splitters
Basic video
distribution
• 19 multi-line telephone connections in combina-
tions of 2 or 4 lines
• Bridge “Line 1” service to 12 locations and 4-line
service to 8 locations
• Connect to CAT 5e Voice & Data Board(s) or
additional panels for more connections and
easier adds/moves/changes
• Independant RJ-45 jack and punchdown
security interface to accomodate alarm systems
• Part of a Pre-congured
Panel ONLY
VIDEO
FAX MODEM
MODEM
• Filters DSL signal from phone line before
distribution throughout a home or ofce.
• Eliminates need for individual lters at each
wallplate.
• Use with any phone distribution module.
• Printed circuit board module with RJ-45 jack and
110 punchdowns
• Stand-alone module with bracket
• Expansion board without bracket
• Bridge up to 4 telephone lines to 7 locations
• Printed circuit board module
• One incoming 4-pair 110-type IDC punchdown
and 7 outgoing RJ-45 jack connections
• Combine with a Category 5e Board to route
telephone to remote locations
• Part of a Pre-congured Panel
• Expansion board without bracket
• Bridge up to 4 telephone lines to 6 locations
• Connect up to 6 separate telephones per line
• Connect to security system
• Printed circuit board module
• 4-pair 110-type IDC punchdowns
• Stand-alone module with bracket
TELEPHONE
FAX MODEM
DATA
TELEPHONE
FAX MODEM
TELEPHONE
FAX MODEM
TELEPHONE
FAX MODEM

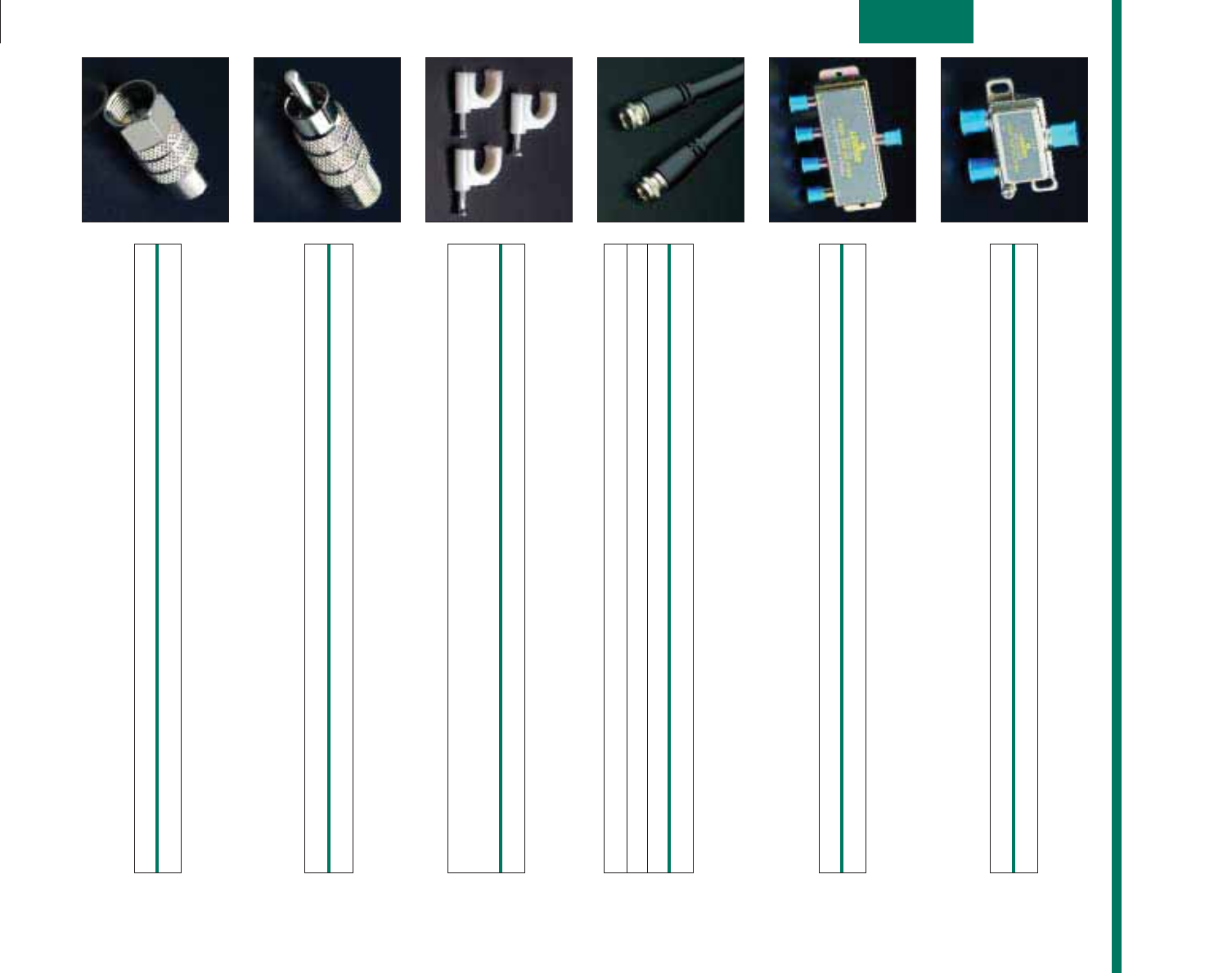

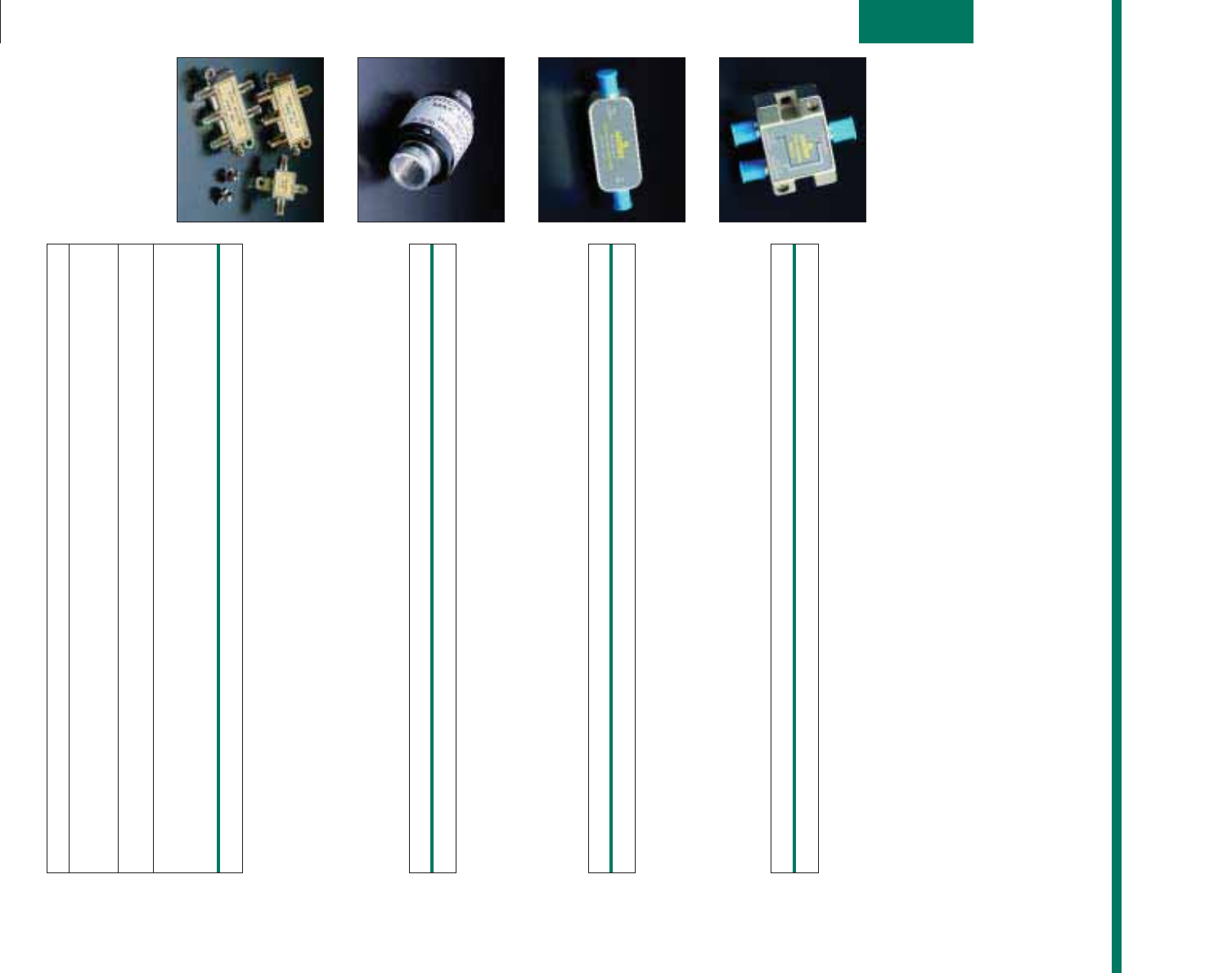

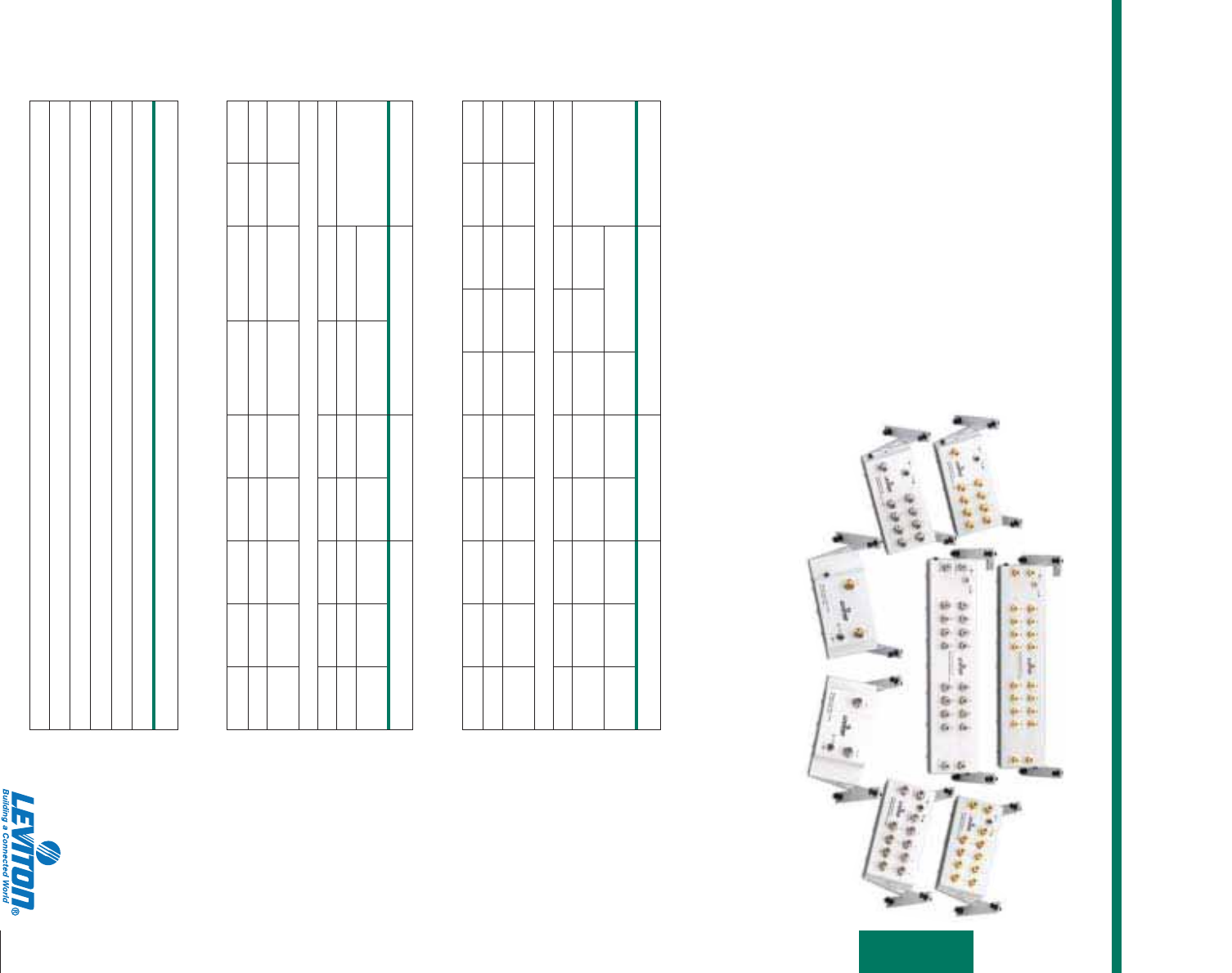

• Cable TV or off-air antenna signals
• 4-way or 6-way RF Splitter
• Die-cast housing
Available in 1GHz and 2GHz models
• Part of a Pre-congured Panel
• Stand-alone module with bracket
10 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Structured MediaPanels

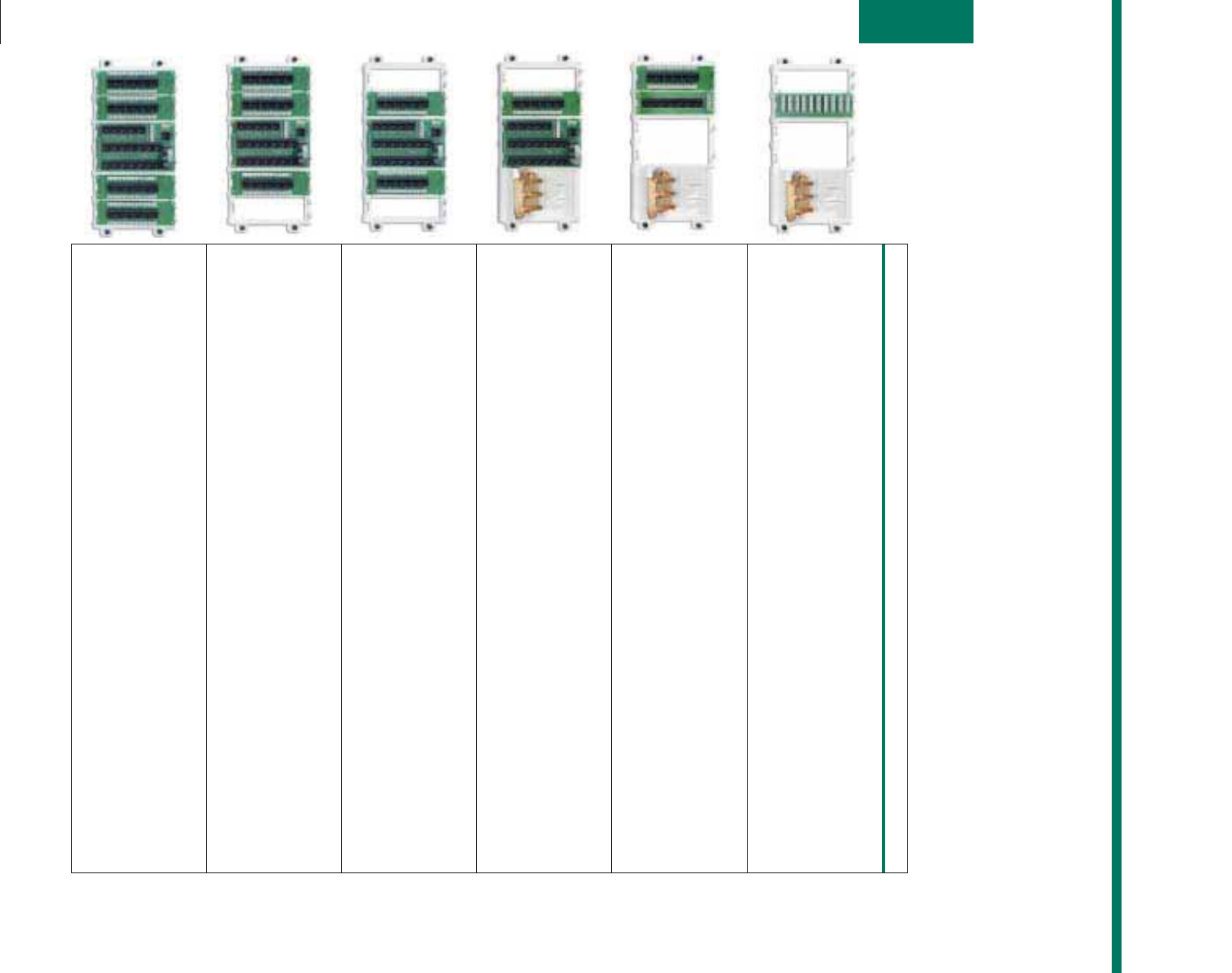

PRE-CONFIGURED STRUCTURED CABLING PANELS — FULL SIZE
Leviton has a Pre-Configured Structured Cabling Panel to fit any application. See opposite for explanations of
individual boards. Use the Panels as they are, expand with easy snap-in Expansion Boards, or combine with other
Panels or Stand-alone Modules to create a Structured Media solution tailored to your specific needs. Ideal for all
installations, from basic to high-end. The new non-conductive synthetic bracket features a rugged construction
and a shelf-style” design with enhanced cable management and easier installation. Boards quickly snap on and
off for easy adds/moves/changes.
Cat No. Description Consists of:
47606-BTV A–Basic Telephone and • (1) 1x9 Bridged Telephone Board
Video Panel (BTV) • (1) 6-way 2GHz Video Splitter
• Bridge up to 4 telephone lines to 9 locations
• Route video to 6 locations
47606-BNP B–Basic Home Networking • (1) Telephone Patching Board
Plus Panel (BNP) • (1) Category 5e Voice & Data Module
• (1) 6-way 2GHz Video Splitter
• 6 4-line telephone connections
• Route video to 6 locations
• Patch data or telephone service to
6 remote locations
• Comes with 6 8-inch 8p8c Flat Patch Cords
47606-AHT C–Advanced Home Telephone & • (1) Telephone Line Distribution Module
Video Panel (AHT) • (1) Category 5e Voice & Data Board
• (1) 6-way 2GHz Video Splitter
• 19 multi-line telephone connections (in various
combinations of 2 or 4 lines)
• Route video to 6 locations
• Patch data or telephone service to 6 remote locations
• Comes with 6 8-inch 8p8c Flat Patch Cords
47603-PTE D–12-Port Structured Media Panel (12P) • (1) Telephone Line Distribution Module
• (2) Category 5e Voice & Data Boards
• 19 multi-line telephone connections (in various
combinations of 2 or 4 lines)
• Patch data or telephone service to
12 remote locations
• Comes with 12 8-inch 8p8c Flat Patch Cords
47603-18P E–18-Port Structured Media Panel (18P) • (1) Telephone Line Distribution Module
• (3) Category 5e Voice & Data Boards
• 19 multi-line telephone connections (in various
combinations of 2 or 4 lines)
• Patch data or telephone service to
18 remote locations
• Comes with 18 8-inch 8p8c Flat Patch Cords
47603-24P F–24-Port Structured Media Panel (24P) • (1) Telephone Line Distribution Module
• (4) Category 5e Voice & Data Boards
• 19 multi-line telephone connections (in various
combinations of 2 or 4 lines)
• Patch data or telephone service to
24 remote locations
• Comes with 24 8-inch 8p8c Flat Patch Cords

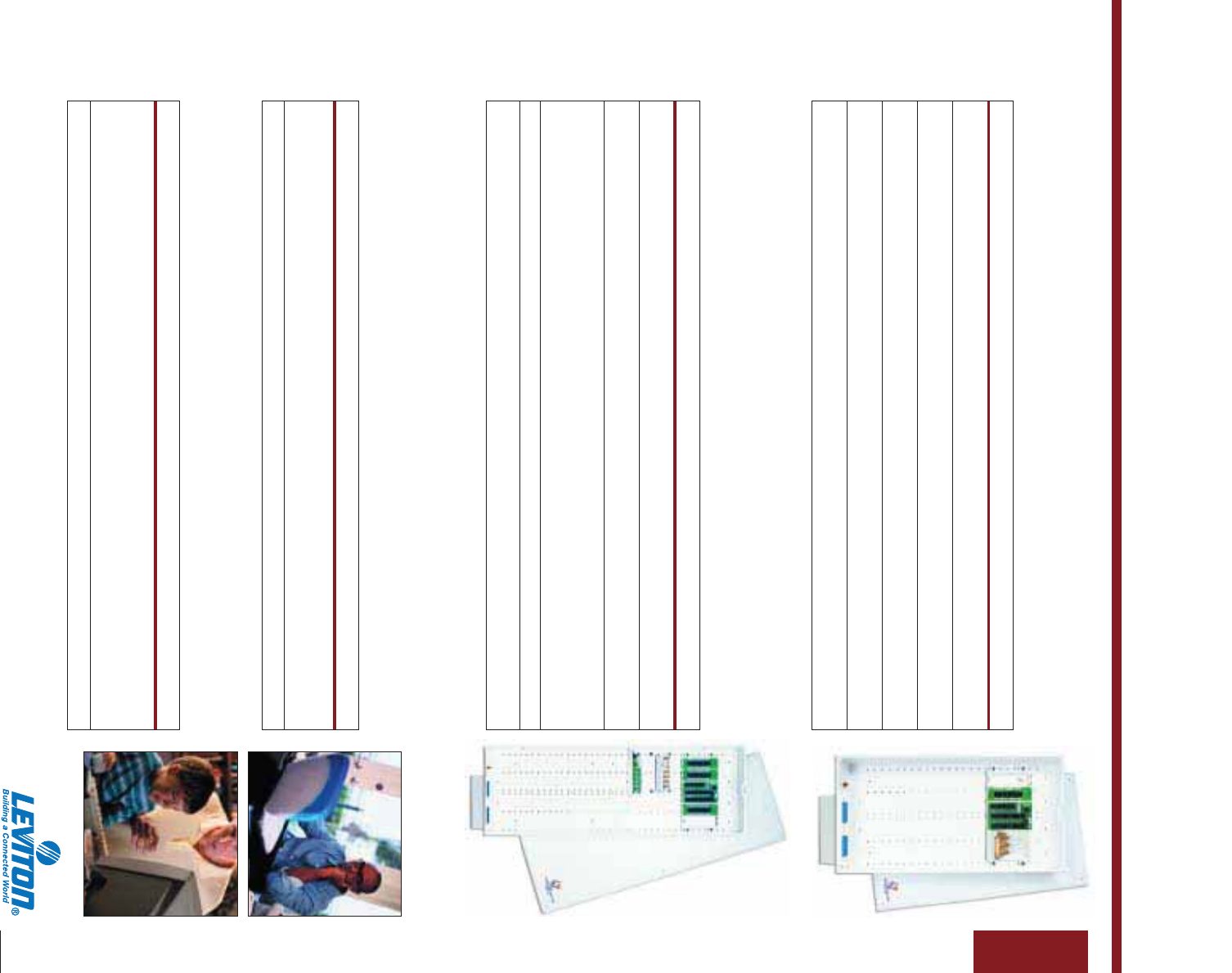

Pre-Configured Structured Cabling Panels
A
B
Full-size panel dimensions: 6.25"H.x 13.06"W.x 2.50"D.
For detailed features and dimensions, please consult individual specication sheets at www.levitonvoicedata.com
C
D
E
F
Structured MediaPanels
11
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
PRE-CONFIGURED STRUCTURED CABLING PANELS — COMPACT SERIES
Levitons simple solution for basic telephone and video distribution. These compact panels, with
their space-saving profile provide simple bridged telephone to 9 locations and 1GHz video to four or
six locations, respectively.
Compact Series Panels are ideal for MDUs and apartments, installations with space constraints
and/or installations where budget is the driving concern.
Cat No. Description Consists of:
47603-1G6 G–COMPACT SERIES • (1) 1x9 Bridged Telephone Board
Telephone & 6-Way Video • (1) 6-way 1GHz Video Splitter
• Bridge up to 4 telephone lines to 9 locations
• Route video to 6 locations
47603-1G4 H–COMPACT SERIES • (1) 1x9 Bridged Telephone Board
Telephone & 4-Way Video • (1) 4-way 1GHz Video Splitter
• Bridge up to 4 telephone lines to 9 locations
• Route video to 4 locations
47603-TSV I– COMPACT SERIES • (1) Telephone SecurityBoard
Telephone Security & 6-Way Video • (1) 6-way 1GHz Video Splitter
• Bridge up to 4 telephone lines to 6 locations
• RJ-45 Port for Security Interface
• RJ-45 Expansion Port
• Route video to 6 locations
Pre-Configured Structured Cabling Panels—Compact Series

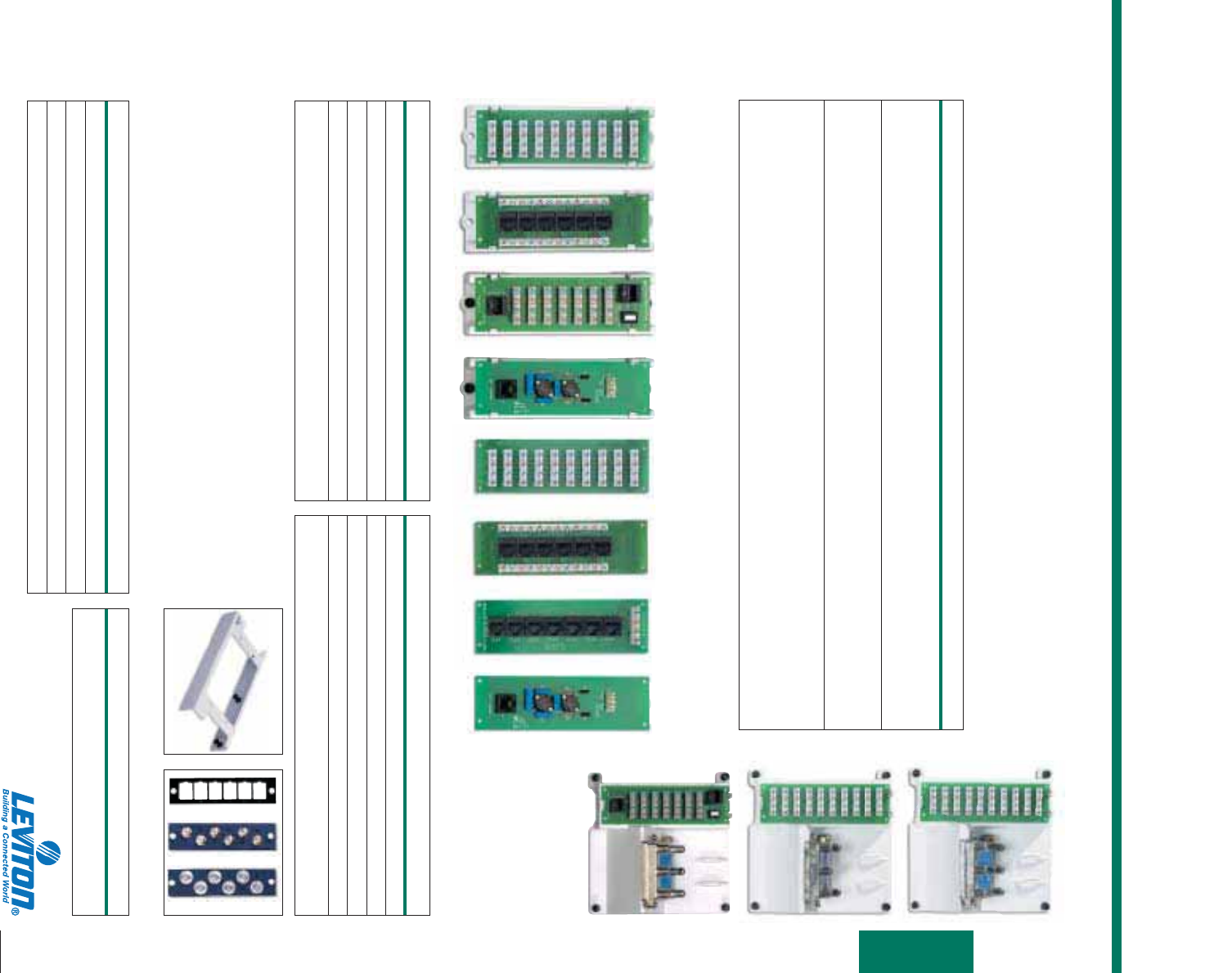

Cat.No. Description–Module w/Bracket
47689-00B J–1x9 Bridged Telephone Module
47605-C5B K–Category 5e Voice and Data Module
47609-TSV L–Telephone Security Module
47616-DSB M–DSL Filter Module
Available only as part of a Telephone Line Distribution Mode
Pre-congured panel
Cat.No. Description–Module w/Bracket
47603-110 N–1x9 Bridged Telephone Board
47603-C5 O–Category 5e Voice and Data Board
47609-EMP P–Telephone Patching Expansion Board
47616-DSF Q–DSL Filter Board
Available only as part of a Telephone Line Distribution Mode
Pre-congured panel
Stand-Alone Modules
Cat.No. Description

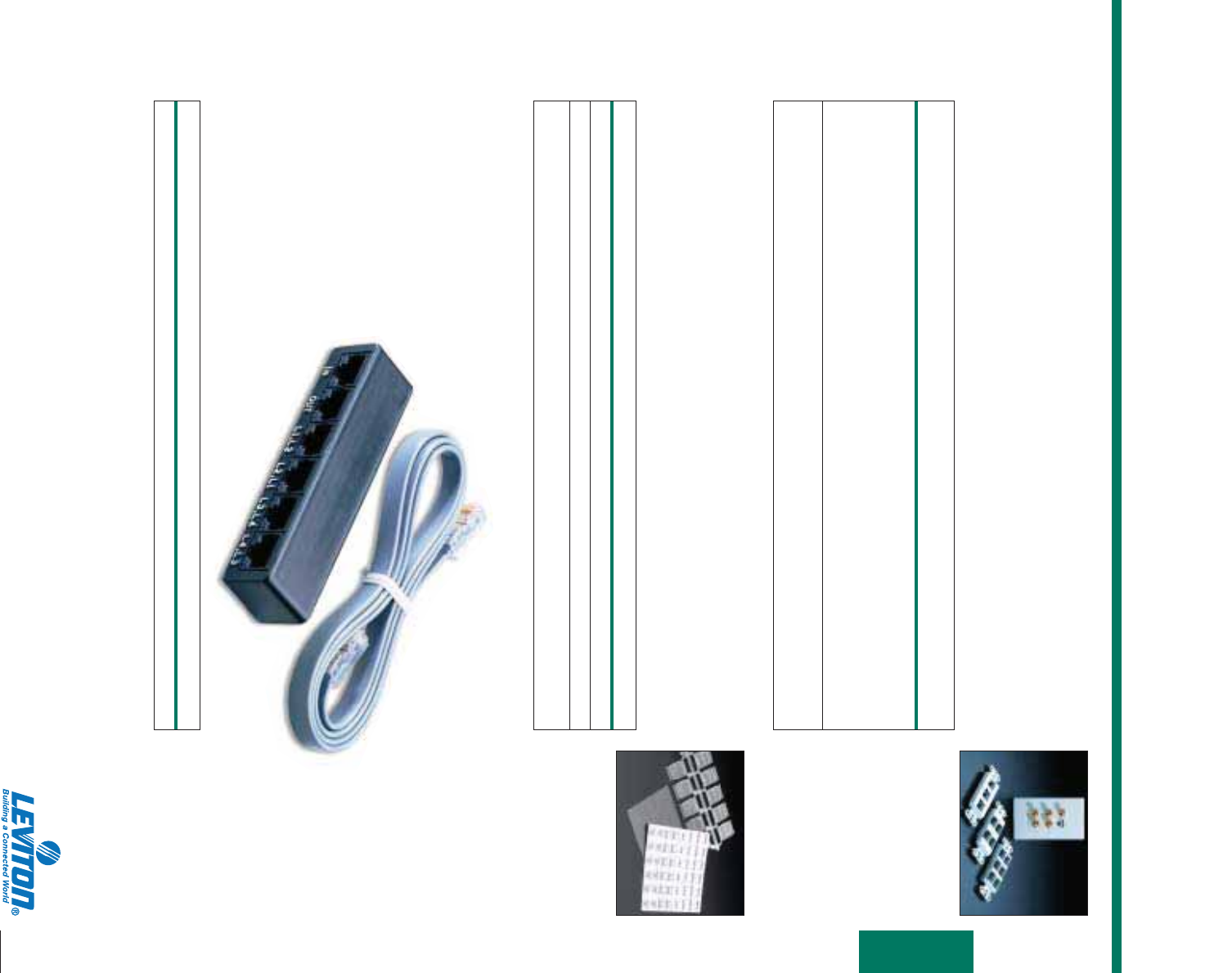

42400-8FG 8-Conductor Flat Telephone Patch
Cord, 8' long ((1 each)
Accessories
Expansion Boards
Compact panel dimensions: 6.5"H.x 6.5"W.
For detailed features and dimensions, please consult individual specication sheets at www.levitonvoicedata.com
STAND-ALONE MODULES AND EXPANSION BOARDS
Expansion Boards
Stand-Alone Modules
G
H
JK L NMO
PQ
R
Cat No. Description
47612-MMA R Multimedia Bracket
5F100-BNC S BNC Mounting plate, 6-pack, loaded
5F100-6VF T– F-Connector Mounting plate, 6-pack, loaded
5F100-6QP U QuickPort Mounting plate, 6-pack, unloaded

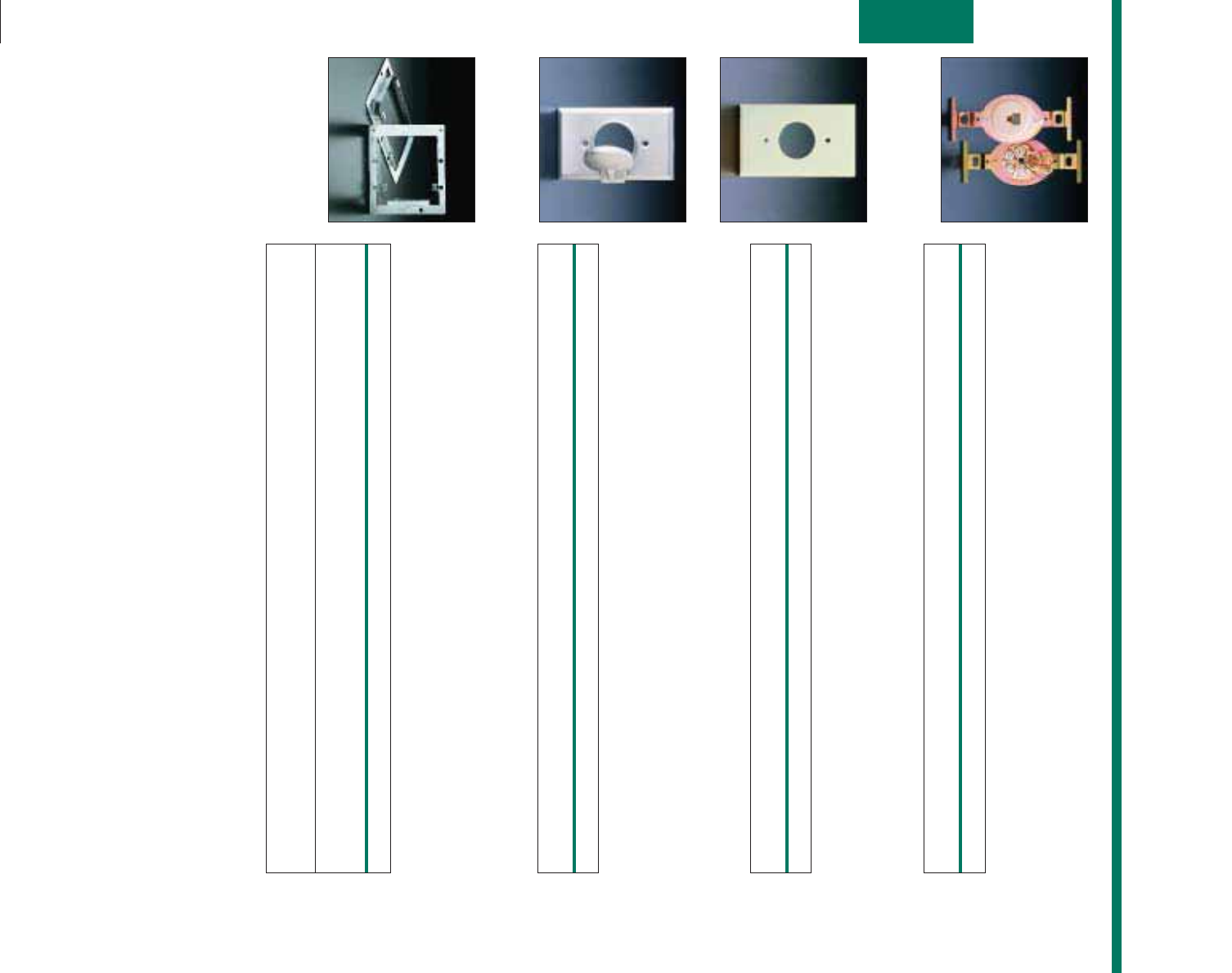

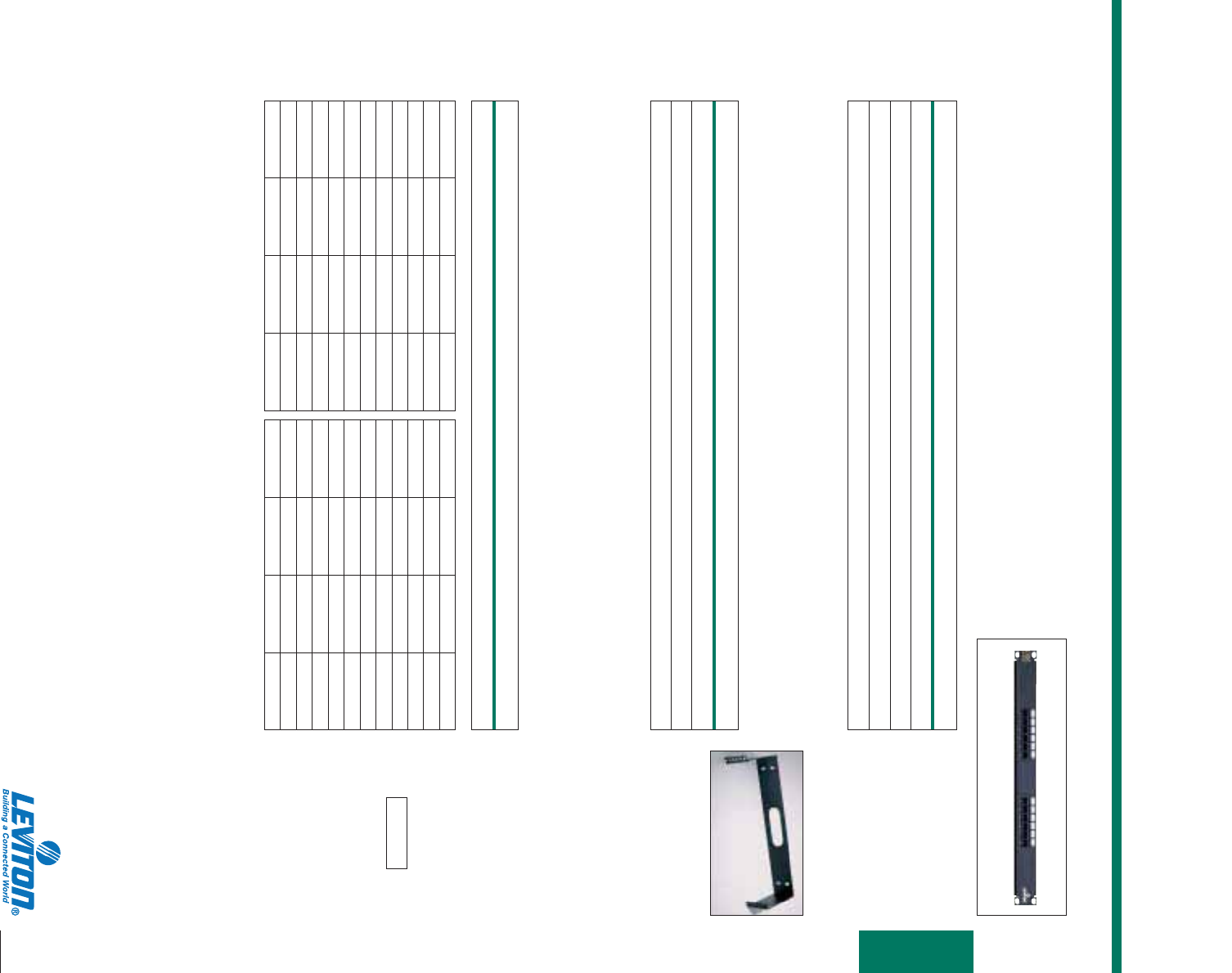

Multimedia Adapter Bracket and Mounting Plates
Create a custom audio/video, copper or fiber mini-panel in your Structured
Media Center with the Multi-Media Adapter Bracket. The bracket supports your
choice of two 6-pack mounting plates, and snaps easily into any of Levitons
Structured Media Centers with push-pins. Pre-loaded mounting plates are avail-
able for BNC and F-connectors, or create a custom configuration with unloaded
6-pack QuickPort plates. QuickPort plates accept any combination of the follow-
ing QuickPort adapters or connectors: BNC, F-Connector, ST, FC, SC and MT-RJ
Fiber Optics, Banana Jacks, Speaker Binding Posts, RCA, S-Video, Voice Grade,
and Category 5, 5e or 6. Bracket mounts vertically or horizontally.
UTS
I
12 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Media Center Power
SURGE-PROTECTIVE AND STANDARD
AC POWER MODULES AND J-BOX KITS
Surge AC Power Module or J-Box kit models add clean, safe power to the Series 280 or
420 Structured Media Enclosures (Series 140 enclosure only accepts J-Box kits). Two
non-surge protected AC Power Module or J-Box kit units offer an economical method of
providing power to distribution modules and, except for built-in surge suppression,
offer the same features as the respective surge-protected units. In extremely excessive
surge conditions, an alarm will sound to warn the user that power is unprotected.
Consists of one (J-Box kit) or two (AC Power Module) 15 Amp Hospital Grade duplex
receptacles housed in a powder-coated steel enclosure. They feature EMI/RFI filtering
and meet UL 1449 standards.
FEATURES
• Hospital grade surge-
protected units provide
greater protection for line-
voltage modules, including
multi-stage defense (L-N,
L-G, N-G)
• Non-surge suppressor units
provide an economical
method of providing power to
active components
Available with one (J-Box
kits) or two (AC Power
Modules) 15 Amp duplex
receptacles
• Safety clips protect outlets
against dust, dirt and debris
• One (J-Box kits) or two
(AC Power Modules) cable
knock-outs on bottom for
power service connection
• Saves valuable real estate
by mounting on outside of
Structured Media Enclosures
• Meets UL 1449 standards
Specifications
Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10"H.x 2.8"W.x 2.3"D.
Standards Compliance (Surge model only): . . . .UL 1449
Input: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 @ 15A 120V AC
AC Power Modules for 280 and 420 Series Structured Media Enclosures
Cat No. Description
47605-DP Surge AC Power Module, Two Duplex Receptacle
47605-NDP Non-Surge AC Power Module, Two Duplex Receptacles
AC Power Modules for 280 and 420 Series Structured Media Enclosures
Specifications
Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3"H.x 2"W.x 2.5"D.
Standards Compliance (Surge model only): . . . .UL 1449
Input: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 @ 15A 120V AC
J-Box Kits for 140,280 and 420 Series Structured Media Enclosures
Cat.No. Description
47605-ACS Surge J-Box Kit, One Duplex Receptacle
47605-ACN Non-Surge J-Box Kit, One Duplex Receptacle
J-Box Kits for 140,280 and 420 Series Structured Media Enclosures
Cat.No. Description
47605-PSB Universal Mini DC Power Supply
Universal Mini Power Supply
Cat. No. 47605-DP
Surge AC Power Module
Cat. No. 47605-ACN
Non-Surge J-Box Kit
Cat. No. 47605-PSB
Universal Mini DC Power Supply
UNIVERSAL MINI DC POWER SUPPLY
This compact unit is designed specifically to fit into Levitons Series 140, 280 and 420
Structured Media enclosures. It is compatible with any incoming AC voltage in the
range of 90 to 264V. Three 12VDC connectors provide up to 10 watts of power while pro-
viding short circuit overload and surge protection as well as EMI/RFI filtering to con-
nected equipment. Three DC cables are included to connect modules to the power
supply. (UL 1950, cULus listed, NOM, ACA and China)
13
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Media Center Power
FEATURES
• Interchangeable modules
accommodate changing
surge protection needs
All modules easily snap in to
the Cat. No. 3950 Surge
Module Bracket
• User-friendly design—no
wiring required
• Telephone/Fax/Modem
Module acts as a splitter,
allowing the connection of
two devices
FEATURES
• Contains six removable
double screw terminal jacks.
• One F-type output for use
with cable ampliers.
• Each jack utilizes slot-drive
screws.
• Shipped with 6 wires contain-
ing 18 gauge connectors and
2.1 mm power plugs.
• Fully regulated (12 volt DC
regulated output).
Snap-In Modules for Structured Media Enclosure
Surge Module Bracket
Levitons snap-in surge protective modules provide customized surge
protection for all low-voltage communication and data lines in the
Structured Media Enclosure. All Series 5950 modules can snap-in to the
Cat. No. 3950-BKT Surge Module Bracket. The bracket, allows you to add
and change modules to fit specific protection needs. Choose from a selection of
protection modules for Digital Satellite Systems, Ethernet systems, Cable TV,
Telephone/Fax/Modem and DSL/ADSL equipment. All devices attached to the modules
are covered under the Leviton $50,000 Connected Equipment Warranty.

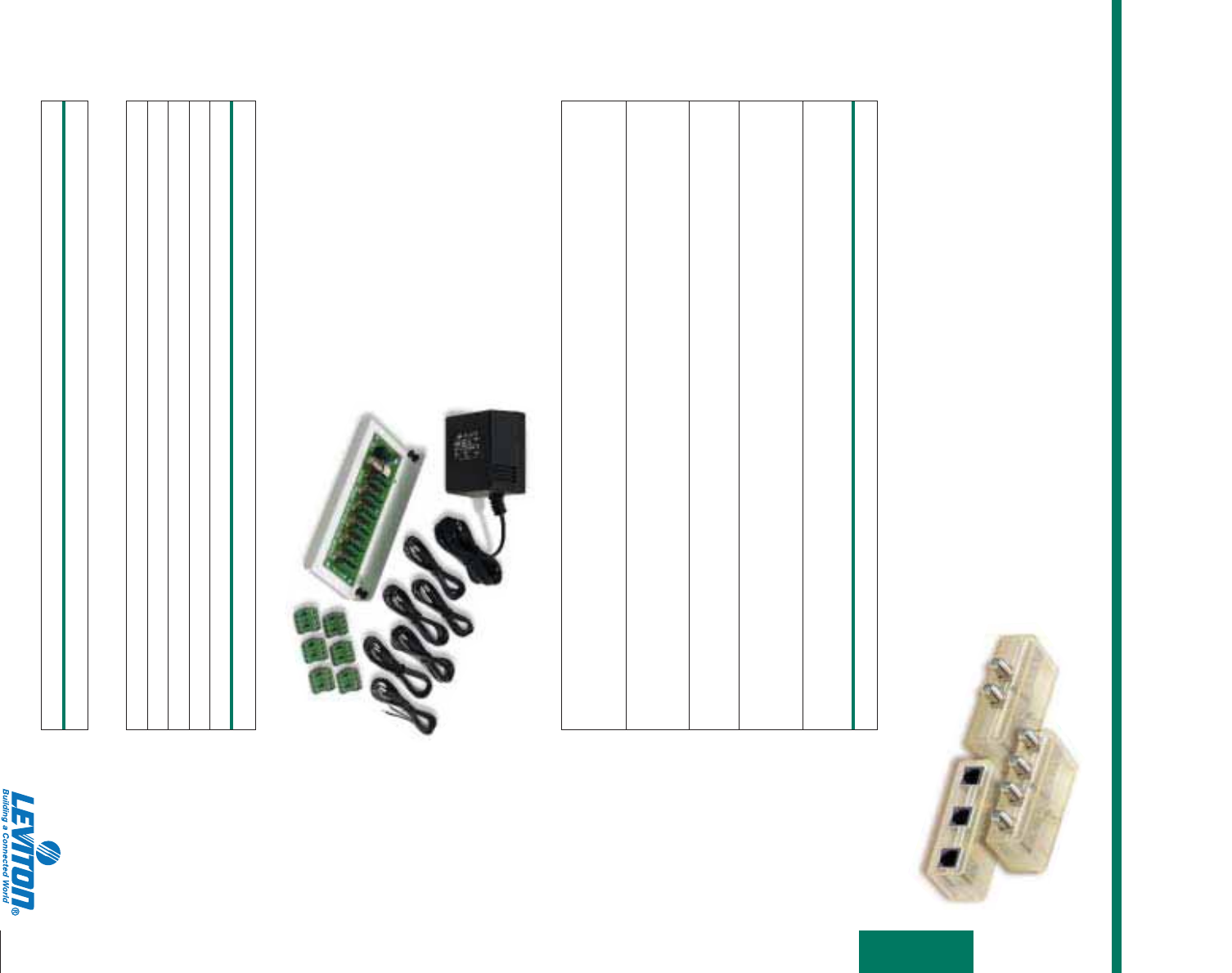

DC Power Distribution Module
The DC Power Distribution Module is a
unique solution to the need for high qual-
ity electrical power for the separate DC-
powered components in the Structured
Media Enclosure. This module reduces clutter
and opens-up space in the Structured
Media Enclosure by eliminating the need
for multiple DC transformers. Powered by
a single DC power supply, the Power
Distribution module provides fully-regulated 12
VDC power for up to 6 devices.
Cat No. Description
Beige—5951-SA Satellite System/Cable TV Protection Module—4 Standard
Gray—5951-SAT F-connectors. 3-Amp fuse for over-current. Max. line voltage: 75V DC.
Ice—5951-SAC Breakdown Voltage Range: 70.4-110 Volts/Sec
Beige—5952-ET Ethernet Protection Module (10 Base-T Applications)—Two RJ45
Gray—5952-ETH connectors to protect two pair of transmit/receive lines. 10-Amp automatic
Ice—5952-ETC Resettable PTC fuses. Max. operating voltage: 16.6V DC.
Breakdown Voltage Range: 2.62-19.2 Volts/Sec
Beige—5953-PC Cable TV System Protection Module—Two Standard F-type connectors.
Gray—5953-PCG 3-Amp fuse for over-current. Max. line voltage: 75V DC.
Ice—5953-PCC Breakdown Voltage Range: 70.4-110 Volts/Sec
Beige—5954-AT4 Telephone/Fax/Modem Protection Module–Three RJ11, 4-wire/2-pair
Gray—5954-PT4 connectors. 3-Position splitter allows for connection to a common line.
Ice—5954-CT4 3-Amp fuse for over-current protection. Max. operating voltage: 150V rms
(including ring voltage). Breakdown Voltage Range: 162-331 Volts/Sec
Beige—5955-DT DSL/ADSL Subscriber Equipment Protection Module–Three RJ11,
Gray—5955-DTG 4-wire/2pair connectors. 3-Amp fuse for over-current protection.
Ice—5955-DTC Max. operating voltage: 150V rms (including ring voltage).
Breakdown Voltage Range: 162-331 Volts/Sec
Specifications
Input: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110V AC
Output: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Provides 13V DC power for up to 6 devices 1500mA
Compliance (Surge model only): . . . . . . . . .UL 1449
Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . .6.58"H.x 2.5"W.x 1.5"D.
Wire Gauge: . . . . . . . . . . . . . . . . . . . . . . . . . . .Up to 12 gauge
DC Power Distribution Module
Cat No. Description
48212-DCS DC Power Distribution Module
DC Power Distribution Module
Snap-In Surge Protection Modules
14 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Networking and Internet Sharing
STRUCTURED MEDIA
MODULES—INTERNET
CONNECTION SHARING &
MULTI-LOCATION NETWORKING
FEATURES
• Connects up to 4 devices
directly (up to 253 computers
via a series of cascaded
devices) to the Internet using
a single shared high-speed
DSL, cable modem, or
Satellite connection
Allows fast Internet access at
up to 100 Mbps
• Permits creation of a private
high-speed home area net-
work HAN) or local area
network (LAN) in small
ofce/home ofce (SOHO)
environments for all con-
nected computers with its
fast, integral 10/100Mbps
auto-sensing Ethernet ports
• High performance suitable
for demanding home ofce
and telecommuting applica-
tions, including sharing of
high-speed and high-
capacity devices such as
storage devices and back-up
systems.
• Network Address Translation
technology (NAT) creates a
rewall that securely cloaks
the private network from
outside access
• Pass-through IPSEC and
ISAKMP protocols allow
attached LAN users to
implement secure Virtual
Private Network (VPN)
communication applications
on their PC’s.
• Built-in DHCP server for easy
setup and allocation of IP
addresses on the LAN.
• Connections are made by
running cable from desired
locations to a Category 5e
Voice and Data Module
(either a stand-alone module
page 16, or one of the units
in the Pre-Congured
Structured Cabling Panels
page 17). From there,
Category 5 or 5e patch cord
can be used to connect the
Gateway to the Category 5e
Module.
• Network protocols: TCP/IP,
DHCP, DNS, NAT, TFTP,
HTTP, PPOE. Not PPOA
10/100 Internet Gateway Cable/DSL
Broadband Router*
Levitons 10/100Mbps Internet Gateway (a.k.a
router) allows multiple users to securely share a single,
protected high-speed Internet connection.

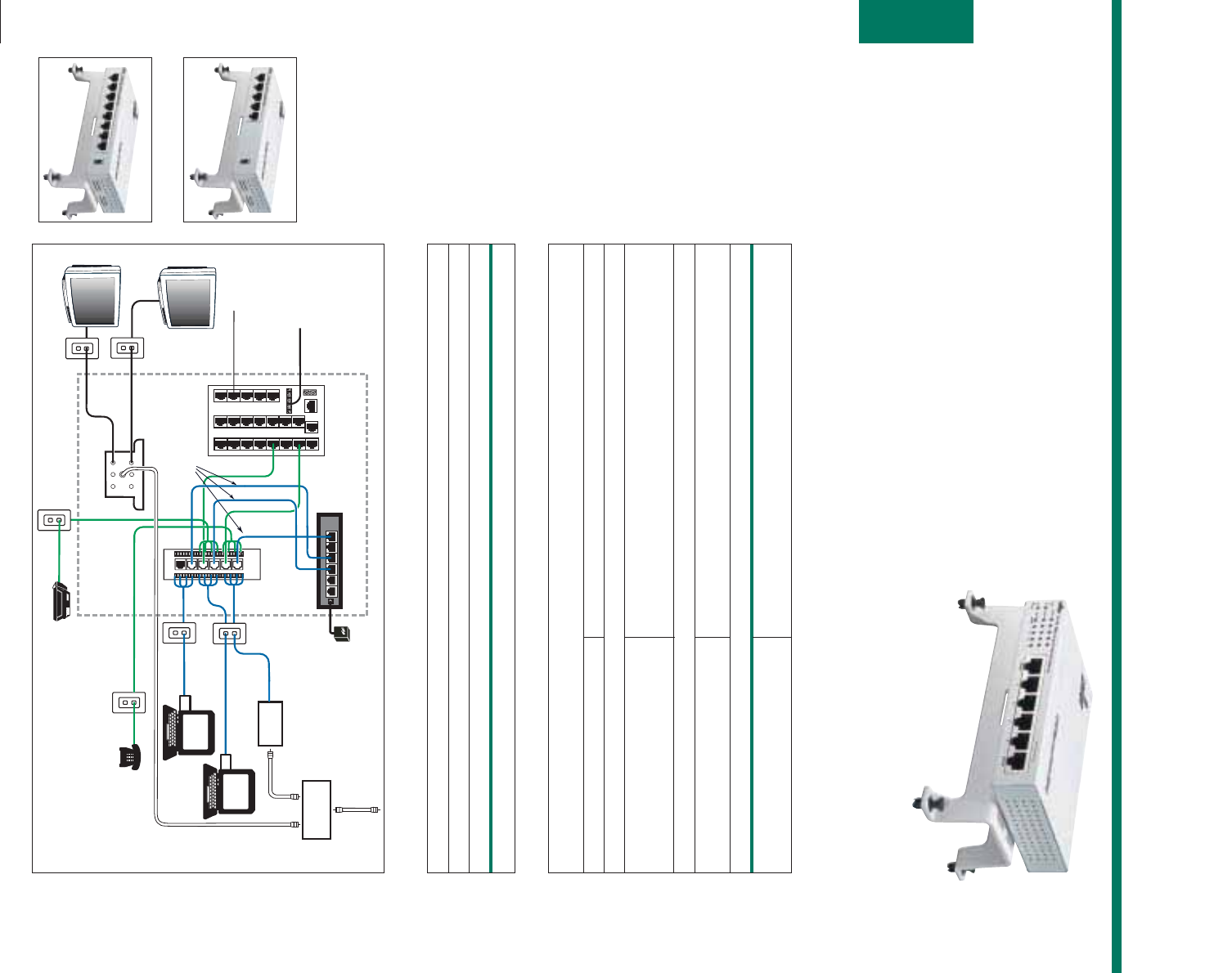

10/100 Base-T Switches*
At 10/100Mbps speeds, these units are excellent choices for networking PC’s to meet a
wide range of residential needs such as sharing files, printers and other peripherals.
*Networked PC’s and peripherals require compatible networking cards or adapters and associated software.
Incoming
CATV Signal
Category 5 Voice
& Data Module
Category 5/5e
Patch Cord
Splitter (from
cable provider)
TV
**Cable Modem
1 X 6 Cable
Distribution
Module
*SMC - Structured Media Center Enclosure
*SMC
Category 5/5e
Patch Cord
Category 5/5e
Patch Cords
Computer
NIC = Network
Interface
Card
NIC
Computer
Category 5/5e
Patch Cord
TV
(Add 2nd Voice and Data Module
for additional drops)
Phone
Line #1 Voice
Line 1, 2, 3, 4
Incoming
Telephone
Service
Telephone
Distribution
Module
Expansion
Jack
Line #1
Voice
NIC
RG-6
Coax
10/100 Internet Gateway
**Installing the Cable Modem within the
SMC will reduce installation time and
cut down on wiring and equipment cost
s
DC Power
Supply
In For
Modem
Fax
Line #2
Cable Distribution—Modem Outside the Structured Media Center
Cat.No. Description
47611-5PT 10/100 Base-T 5-Port Ethernet Switch, with Power Adapter
47611-8PT 10/100 Base-T 8-Port Ethernet Switch, with Power Adapter
47611-GT4 10/100 Base-T Internet Gateway Router, with Power Adapter
Cat. No. 47611-8PT
Cat. No. 47611-5PT
Specifications 10/100Base-T 5-Port 10/100 Base-T Internet
(or 8-Port) Switches Gateway Router
Data Transfer Rate 10/100 Mbps
Connectors 5 (or 8) ports, 1 AC Power 4 LAN ports, 1 WAN port,
Adapter Jack 1 Uplink port, 1 AC Power Adapter Jack
Cabling Requirements Standard Cat 5/5e UTP
LED Indicators One Power Indicator, 5 (or 8) One Power Indicator, one Diagnostic
Link/Activity and 5 (or 8) 100Mbps Indicator, ve Link/Activity, ve FDX/Col
and ve 10/100Mbps
Power Supply 12VDC, 1000mA
Dimensions 5.85" x 3.2" x 1.03" 5.54" x3.92" x 1.05"
Standards Compliance IEEE 802.3 10 Base-T Ethernet
IEEE 802.3u 100 Base-TX Fast Ethernet, and FCC Class B
10/100 Base-T Switches and 10/100 Base-T Internet Gateway Router
10/100 Base-T Switches and 10/100 Base-T Internet Gateway Router
Cat No. 47611-GT4
10/100Mbps Internet
Gateway Router
15
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Video Distribution
ENHANCED RF VIDEO DISTRIBUTION MODULES
Cable service providers are converting to digital systems. These
new systems will squeeze hundreds of channels
plus Internet service onto the coax line. Levitons high-
performance video modules can support
these new systems while limiting noise and
other artifacts. Modules can distribute stan-
dard inputs such as CATV and antennas,
and modulated inputs such as VCR’s, DVD’s
and security camera/CCTV on coaxial cable
throughout the house. Signals can be pre-
cisely controlled through the modules’ built-
in amplifier/attenuator (-5 to +15db) to
compensate for variations in incoming signal
strength for the clearest possible reception*.
Incorporates state-of-the-art bi-directional signal paths to
support cable modem or cable box communications throughout
a home or office. The outlet ports are isolated and do not require any termination caps. Choose from one or
three-input models; both come with 8 outputs. One and three-input models come in both 1 and 2 GHz versions.
Dimensions: 3.55"H.x 6.57"W.x 3.29"D. Connector: F-Type. Impedance: 75 Ohm. Power Input: 12 VDC, 500 mA
(1x8 & 3x8); 12 VDC, 1000 mA (4x16).
*Not for use in-line between DBS satellite dish (LNB) and DBS satellite TV receiver.
ITEM GAIN (dB) RETURN LOSS (dB) ISOLATION (dB)
FORWARD REVERSE FOR. REV. (ANY AUX– CABLE– OUT–
OUTPUT) AUX AUX OUT
54–1000 1.0–1.4 10–40
MHz GHz MHz
1x 8 RF Module +15 +/-2* +9 +/- 5 0 +/-2 11 Typ. 12 Typ. N/A N/A 25
3 x 8 RF CATV +15 +/-2* +9 +/- 5 0 +/-2 11 Typ. 12 Typ. 18 30 25
Module
AUX 1 +12 +/-2* +6 +/- 5 N/A 11 Typ.
AUX 2 +12 +/-2* +6 +/- 5 N/A 11 Typ.
1x8 and 3x8 Enhanced RF Distribution Modules (1 GHz)
*Note: Tilt specication for all units is less than +/- 3 dB to 1 GHz
ITEM GAIN (dB) RETURN LOSS (dB) ISOLATION (dB)
FORWARD REVERSE FOR. REV. (ANY AUX– CABLE– OUT–
OUTPUT) AUX AUX OUT
1.0–2.0 GHz 10–40 MHz
1x 8 RF Module +4 +/-6 0 +/-2 11 Typ. 12 Typ. N/A N/A 25
3 x 8 RF CATV +4 +/-6 0 +/-2 11 Typ. 12 Typ. 18 30 25
Module
AUX 1 +1 +/-6 N/A 11 Typ.
AUX 2 +1 +/-6 N/A 11 Typ.
1x8 and 3x8 Enhanced RF Distribution Modules (2 GHz)
*Note: Tilt specication for all units is less than +/- 5 dB to 2 GHz
Cat No. Description
47690-ESM 1x8 Enhanced RF Module, 1 GHz
47690-GSM 1x8 Enhanced RF Module, 2 GHz
47690-3BY 3x8 Enhanced RF Module, 1 GHz
47690-G3Y 3x8 Enhanced RF Module, 2 GHz
47690-4BY 4x16 Enhanced RF Module, 1 GHz
47690-G4Y 4x16 Enhanced RF Module, 2 GHz
Enhanced RF Distribution Modules
16 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin

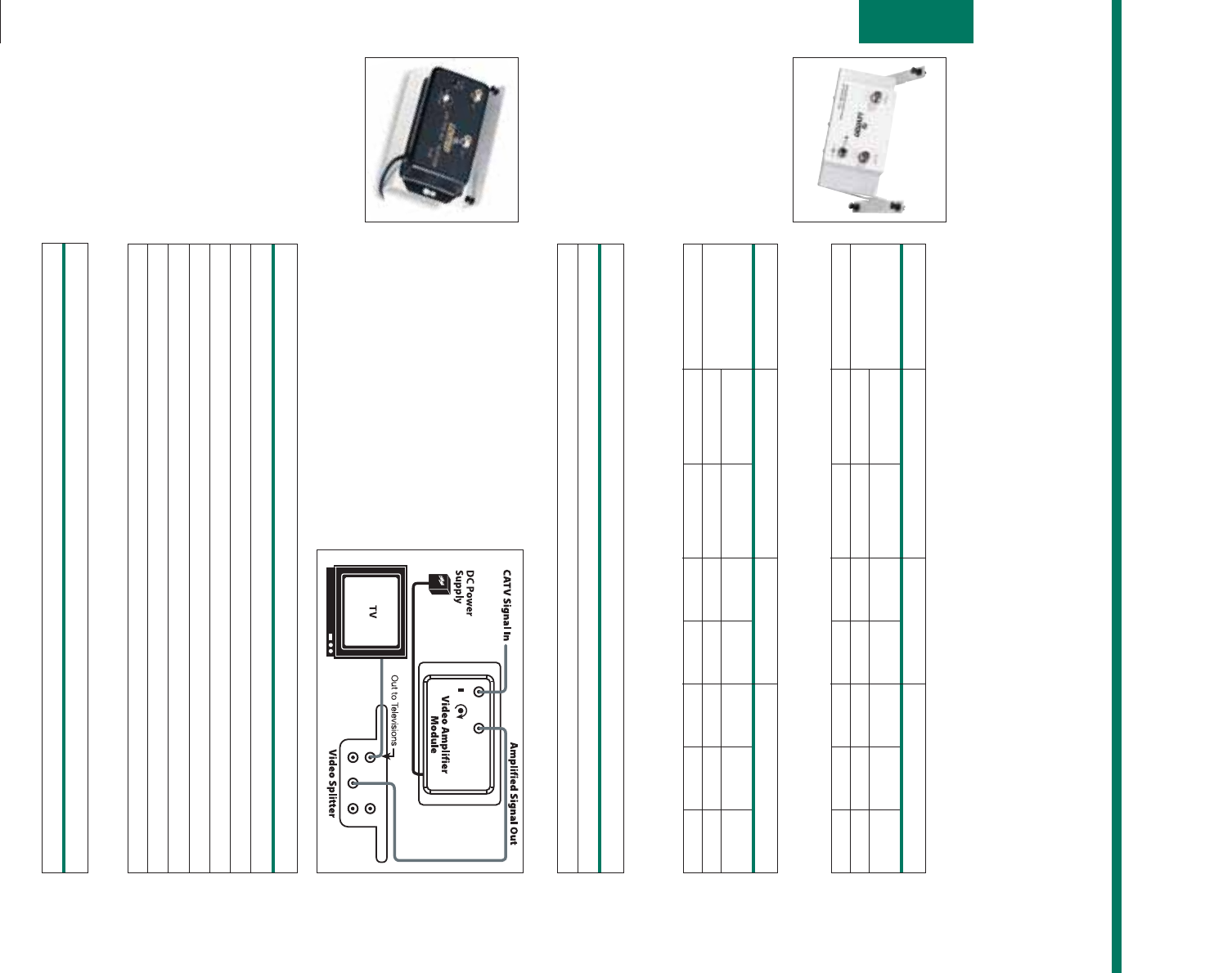

Video Distribution
Enhanced Bi-Directional RF Amplifier
This unit offers extremely low noise for 1 CATV/Antenna input and 1 coaxial output to
boost CATV (or other RF service) signal strength. It incorporates a variable attenuator
(0 to +20dB for precise amplification for the clearest signal possible. Cable TV or other RF
signals can be run through this Enhanced Bi-Directional RF Amplifier before splitting and
distributing them throughout a home or office. Dimensions: 3.55"H.x 6.57"W.x 3.29"D.
Connector Type: F. Impedance: 75 Ohm. Power Input: 12 VDC, 200 mA.
Video Amplifier
Run cable TV and other video service sig-
nals, such as antenna or other modulated
input through this Video Amplifier
Module and boost video signal strength
up to 25 dB. Features a variable attenuator
for signal amplification level setting,
and an FM trap to eliminate unwanted
FM interference.
A
ITEM GAIN (dB) RETURN LOSS (dB) ISOLATION (dB)
FORWARD REVERSE FOR. REV. (ANY AUX– CABLE– OUT–
OUTPUT) AUX AUX OUT
54 -1000MHz 10-40MHz
Enhanced RF Amp. 19 +/-2* 0 +/-2 11 Typ. 12 Typ. N/A N/A N/A
Enhanced Bi-Directional RF Amplifier–1 GHz
Enhanced Bi-Directional RF Amplifier–2 GHz
*NOTE: Tilt specication for all units is less than +/- 3 dB to 1 GHz
ITEM GAIN (dB) RETURN LOSS (dB) ISOLATION (dB)
FORWARD REVERSE FOR. REV. (ANY AUX– CABLE– OUT–
OUTPUT) AUX AUX OUT
1.0-2.0 GHz 10-40MHz
Enhanced RF Amp. 19 +/-2* 0 +/-2 11 Typ. 12 Typ. N/A N/A N/A
*NOTE: Tilt specication for all units is less than +/- 5 dB to 2 GHz
Cat No. Description
47690-BVA A–Enhanced Bi-Directional Amplier, 1 GHz
47690-GVA Enhanced Bi-Directional Amplier, 2 GHz
Enhanced Bi-Directional RF Amplifiers
FEATURES
• Variable attenuator enables
precise amplication for the
clearest signal possible.
• Run cable TV or other video
signals through the Video
Amplier before splitting and
distributing throughout the
home or ofce.
• Boost signal strength by up
to 20 dB.
FEATURES
• Run cable TV or other video
signals through the Video
Amplier before splitting and
distributing throughout the
home or ofce.
• Boost signal strength by up
to 25 dB.
Specifications
Dimensions: . . . . . . . . . . . . . . . . . . . . . . .6.58"H.x 3.67"W. x 4.4"D.
Frequency Range MHz: . . . . . . . . . . . . .50-1000
Gain Control Range dB: . . . . . . . . . . . . .10-25dB
FM Trap dB: . . . . . . . . . . . . . . . . . . . . . . .25
Impedance: . . . . . . . . . . . . . . . . . . . . . . .75 Ohm
Connector Type: . . . . . . . . . . . . . . . . . . .F-type
Power Source: . . . . . . . . . . . . . . . . . . . . .12 VDC 500 mA
Video Amplifier
Cat.No. Description
48210-VA B–Video Amplier Module
Video Amplifier
B
Video Distribution
PASSIVE COMPONENTS
1x4,1x6,1x8 Passive Video Splitters
Use 4-, 6- and 8-way Passive Video Splitters to split digital
cable (2.05 GHz units), quality cable TV and off-air
antenna signals to 4, 6, or 8 televisions throughout the
home or office. They feature die-cast housing and
printed circuit board construction. Use with the Video
Amplifier for increased signal strength.
FEATURES
• Splits video signals. Outputs
for up to 4, 6 or 8 televisions.
• Provide digital cable, cable
TV and other video services,
via coaxial cable, to any
room in the house.
• Die-cast housing and printed
circuit board.
• Use with the Video Amplier
for increased signal strength.
• Units come with mounting
bracket.
• Gold-ashed contacts on
2.05 GHz units provide
lowest conductive resistance.
Item Cat No. Dimension Range Insertion Loss (dB) Return Loss (dB) Isolation (dB)
1x4 47690-4C 6.58"H.x 2.14"W.x1.4"D. 1 GHz 7.0 dB – 8.1 dB 7.7 dB – 8.1 dB 28.3 dB – 48.5 dB
47690-4C2 6.58"H.x 2.14"W.x 1.4"D. 2 GHz 7.7 dB – 10.5 dB 9.5 dB – 21.0 dB 24.0 dB – 30.0 dB
1x6 47690-6C 6.58"H.x 3.0"W.x 1.4"D. 1 GHz 10.0 dB – 12.1 dB 6.5 dB – 23.5 dB 28.9 dB – 37.5 dB
47690-6C2 6.58"H.x 3.0"W.x 1.4"D. 2 GHz 11.0 dB – 14.0 dB 11.5 dB – 23.5 dB 35.0 dB – 39.5 dB
1x8 47690-8C 6.58"H.x 3.0"W.x 1.4"D. 1 GHz 11.5 dB – 13.0 dB 6.2 dB – 20.1 dB 34.0 dB – 65.0 dB
47690-8C2 6.58"H.x 3.0"W.x 1.4"D. 2 GHz 11.9 dB – 15.7 dB 9.9 dB – 30.0 dB 32.0 dB – 39.2 dB
1x4,1x6,1x8 Passive Video Splitters
Cat No. Description
47690-4C 1x4 Passive Video Splitter Module (1 GHz)
47690-6C 1x6 Passive Video Splitter Module (1 GHz)
47690-8C 1x8 Passive Video Splitter Module (1 GHz)
47690-4C2 1x4 Passive Video Splitter Module (2.05 GHz)
47690-6C2 1x6 Passive Video Splitter Module (2.05 GHz)
47690-8C2 1x8 Passive Video Splitter Module (2.05 GHz)
1x4,1x6,1x8 Passive Video Splitters
Cat No. Description
47691-3MS 3x4 Multi-Switch
3x4 Multi-Switch
Specifications
Dimensions: . . . . . . . . . . . .4.766"H.x 6.576"W.x 2.366"D.
Frequency Range: . . . . . . .TV Antenna 40-860 MHz
Frequency Range: . . . . . . .Dual LNB 950-2150 MHz
Frequency Range: . . . . . . .Receiver Output 40-2150 MHz
Impedance: . . . . . . . . . . . . .75 Ohm
Connector Type: . . . . . . . .F-type
LNB Selection Voltage: . .LNBA: 13/14V . . . . . . . . . . . .LNBB: 12/18V
Insertion Loss: . . . . . . . . . .40-860 MHz: . . . . . . . . . . . . .–7dB (typical) 950-2150 MHz: . . . .–3dB (typical)
Return Loss: . . . . . . . . . . .40-860 MHz: . . . . . . . . . . . . .–10dB (typical) 950-2150 MHz: . . . .–10dB (typical)
Isolation: . . . . . . . . . . . . . . .Output to Opposite Input . . .-22dB (typical)
DC Power Passing: . . . . . .RX–LNB . . . . . . . . . . . . . . . .500Ma (max.) RX–RX . . . . . . . . . . .None
DC Power Passing: . . . . . .LNB–RX . . . . . . . . . . . . . . . .None ANT–RX . . . . . . . . . .None
DC Power Passing: . . . . . .RX–ANT . . . . . . . . . . . . . . . .None
3x4 Multi-Switch
FEATURES
• Distributed digital satellite
signals to up to 4 TV’s.
• Combines signals from
digital satellite with off-air
antenna onto single coax
cable.
Satellite
Dish
3 x 4 Multi-Switch
3 x 4 Multi-Switch
RECEIVERS
12 34
ANTLNB-A LNB-B
Amplifier
(Optional PN#
48210-VA)
RG-6 Quad
Shielded
Coax
Diplexer
(PN# 40856
DSS)
To TV
(Local
antenna
feed)
*
Satellite
Rec. #2 *If hooking-up local antenna
to multi-switch
Satellite
Rec. #1
3x4 Multi-Switch
The 3x4 Multi-Switch distributes satellite signals to up to 4
TVs. It combines signals from dual incoming LNB (low noise
block) digital satellite systems with transmission from an off-
air antenna for distribution on a single coaxial cable. The
module incorporates a separate input to receive TV antenna
signals which is best used in combination with a video amplifier.
2 GHz Modules
17
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
18 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Home Security Monitoring
Decora®Camera
A high-tech addition to the attractive Decora family, the Decora Camera provides high-quality
color video output that will run through the Structured Media Enclosure and connect to a
monitor anywhere in the home or office–instantly turning a home media center into a home
security center. Combine multiple cameras with a Leviton Video Sequencer to create one
signal that steps through the different views. Then add a Leviton
Modulator and Notch Filter to route its signal not only to a dedicated
monitor, but also over a whole-house pre-assigned security channel”
between 75-80 (when used with a notch filter).
The Decora Camera produces clear and reliable CMOS-based video with
a wide angle lens that eliminates the need for constant re-adjustment. It
features a self-contained video differential amp for increased clarity of
signal. A manual horizontal pan feature allows you to easily aim the cam-
era. Power is indicated with a green LED indicator on the front of the
faceplate. The Decora Camera does not have audio capability.
The Decora Camera has a terminal block output. An RCA/F adapter is
provided for use with coaxial cable (shipped with one RCA female, 2-wire
adapter and two male RCA to female F-connector adapters). Powered
over separate cable. Connect power at your Structured Media Enclosure
with a Leviton DC Power Distribution Module. Video signal is carried on
coaxial cable. Power is supplied via a Cat 5 cable.
Shipped with one RCA female 2-wire adapter and two RCA male to female F-connector
adapters.
This stylish camera is complemented by a Decora wallplate (available separately).
Specifications
Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . . . .4.1"H.x 1.4"W.x 2.2"D.
Connection: . . . . . . . . . . . . . . . . . . . . . . . . . . .4-position, removable screw terminal.
Camera: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .CMOS imager: 13" 310 TV lines, NTSC with S/N ratio 38 dB min.
Camera: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Minimum illumination 5 lux
Transmission Total Harmonic Distortion: . .-75 dBc
Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-VDC @35mA typical 50mA max; green Power On LED
Decora®Camera
Cat.No. Description
48213-*DC Decora Camera
Decora®Camera
*Colors: (I) Ivory, (W) White, (A) Almond
For special and custom video installations, refer to Leviton’s Custom Installation Products section, starting on page 40
HOME SECURITY
FEATURES
• Self-contained video differen-
tial amp provide increased
clarity of signal.
• CMOS-based wide angle
color video camera in one
compact Decora-style unit.
• Features terminal block
output connections.
• Power is indicated by a
green LED on faceplate.
19
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538

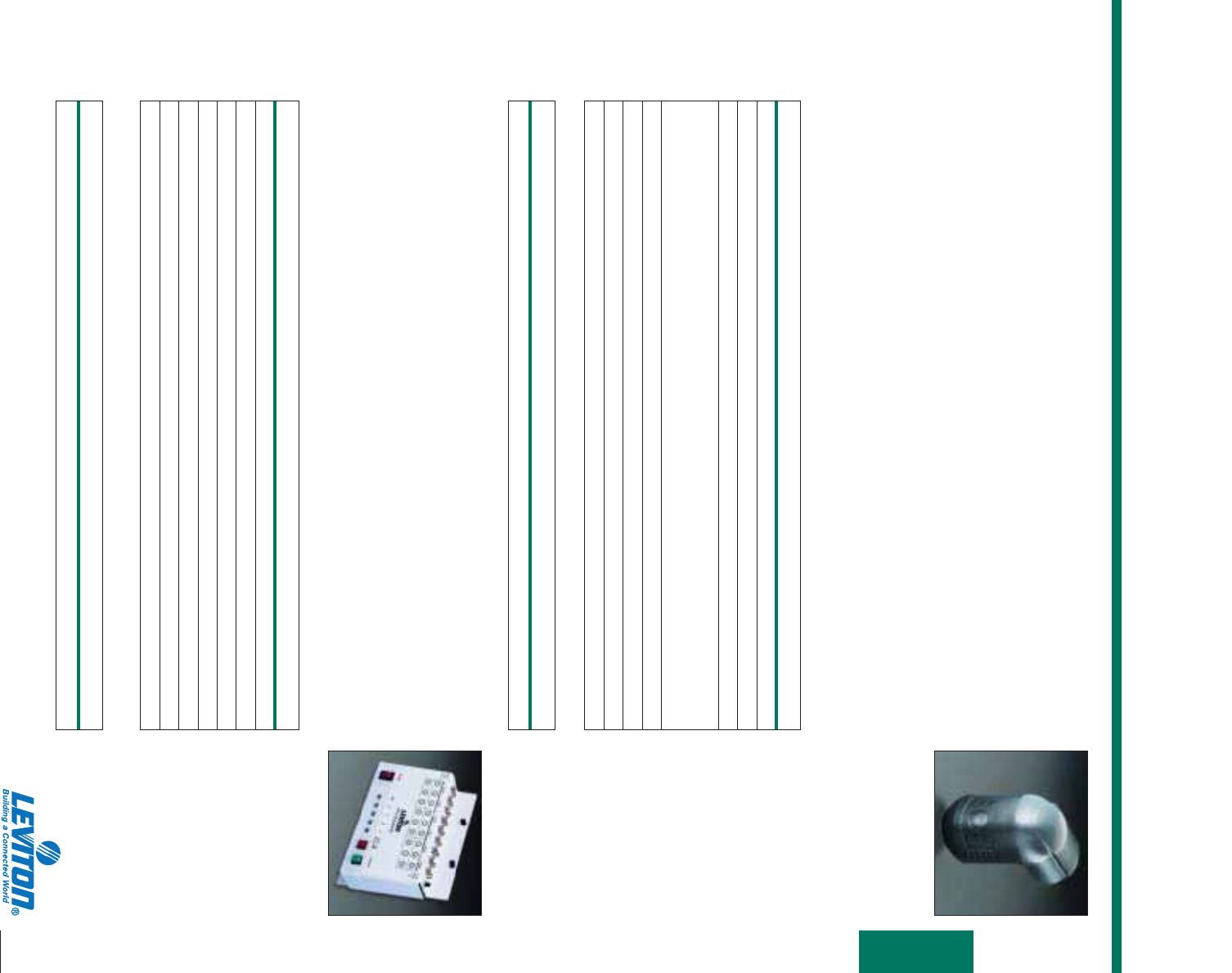

Home Security Monitoring
Outdoor camera
Incorporating the same advanced video technology as the Decora Camera, the Outdoor
Camera allows monitoring of front doors, back yards, and anywhere an extra eye is desir-
able. With the Video Sequencer, up to four Decora Cameras or Outdoor Cameras in any
combination may be monitored sequentially.
Used in conjunction with a Modulator and Notch Filter to view audio and video output
not only on a dedicated monitor, but all over your home via a preassigned channel in your
cable line-up.
The Outdoor Camera is designed to withstand temperature and environmental extremes
when mounted in a suitable location.* Its high-tech housing and manual tilt-and-pan
bracket assembly mount quickly and easily. The Outdoor Camera has a terminal block
output. An RCA/F adapter is provided for use with coaxial cable. The camera requires one
coaxial cable and one Cat 5 cable. Connect power at your Structured Media Enclosure,
with a Leviton DC Power Distribution Module, or included power transformer.
*Recommended mounting is in a sheltered location such as under an eave or overhang and away from direct exposure to
rain and snow.
FEATURES
• Self-contained video differen-
tial amp provides increased
clarity of signal.
• CCD-based wide angle color
video camera optimized
for a wide variety of lighting
conditions (black and white
under low-light conditions).
• Features a terminal block
output connection.
• Features audio output.
Specifications
Dimensions: . . . . . . . . . . . . . . . . . . . . . . .
Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 VDC 55mA typical 70mA max.
Connection: . . . . . . . . . . . . . . . . . . . . . . .One connecting block
Camera: . . . . . . . . . . . . . . . . . . . . . . . . . .CCD imager: 1/3” 310 TV lines, NTSC with S/N ratio 38 dB min.
Camera: . . . . . . . . . . . . . . . . . . . . . . . . . .Minimum illumination 10 lux
Camera: . . . . . . . . . . . . . . . . . . . . . . . . . .Lens is 3.5mm with swivel mount, adjustable focus
Camera: . . . . . . . . . . . . . . . . . . . . . . . . . .Output electronically balanced
Transmission Bandwidth: . . . . . . . . . . .50 M Hz @-3 dB
Transmission Total: . . . . . . . . . . . . . . . .
Harmonic Distortion: . . . . . . . . . . . . . . .-75 dBc
Transmission Slew Rate: . . . . . . . . . . . .800 V/us
Outdoor Camera
Cat No. Description
48213-ECC Outdoor Camera
Outdoor Camera
Video Sequencer
The Structured Media Video Sequencer, which automatically switches between video
cameras, is a security product engineered for long-term home use. With the Video
Sequencer, up to four Decora Cameras or Outdoor Cameras, in any combination, may be
monitored sequentially. The Sequencer allows a variable time-interval setting from 1–30
seconds on each camera to allow thorough surveillance of any perimeter or interior.
The Video Sequencer has four composite RCA audio/video inputs and two sets of RCA
outputs to connect with a monitor or modulator. It snaps into a 280 or 420 Structured
Media Center.
Specifications
Dimensions: . . . . . . . . . . . . . . . . . . . . . . .7.4"H.x 4.75"W.x 2"D.
Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 VDC @ 300mA
Inputs: . . . . . . . . . . . . . . . . . . . . . . . . . . . .Four RCA video; Eight RCA left/right audio
Outputs: . . . . . . . . . . . . . . . . . . . . . . . . . .2 RCA video and 4 RCA left/right audio
Time interval: . . . . . . . . . . . . . . . . . . . . . .1-30 seconds, variable/adjustable
Signal to Noise Ratio: . . . . . . . . . . . . . . .<1.2dB
Bandwidth: . . . . . . . . . . . . . . . . . . . . . . . .5MHz
Video Sequencer
Cat No. Description
48213-CVS Video Sequencer
Video Sequencer
FEATURES
• Inputs for up to four video
cameras and audio sources.
Automatic switching between
cameras.
• 1–30 second variable time
setting between cameras.
• RCA composite audio/video
inputs and outputs.
20 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Home Security Monitoring

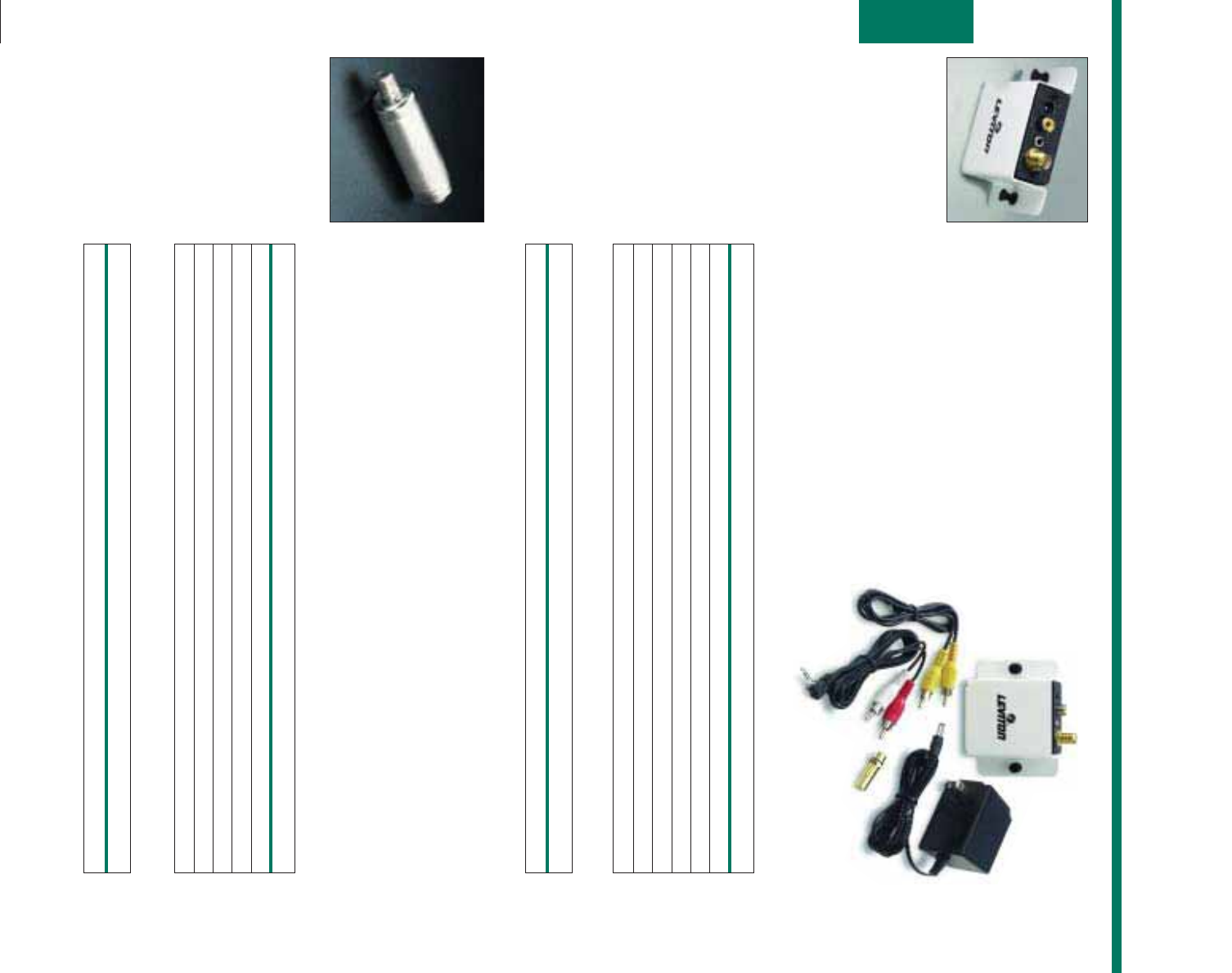

Specifications
Dimensions: . . . . . . . . . . . . . . . . . . . . . . .3.2"H.x 2.25"W.x 1"D.
Inputs: . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 RCA video, 2 RCA left/right audio
Outputs: . . . . . . . . . . . . . . . . . . . . . . . . . . 1 F connector for RF signal
Operational channels: . . . . . . . . . . . . . .14-69 UHF; 70-94, 100-125 CATV
Bandwidth: . . . . . . . . . . . . . . . . . . . . . . . .50MHZ-860MHZ
Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . .12V DC 400mA
Media Center Modulator
Cat No. Description
48213-VMA Media Center Modulator
Media Center Modulator
Media Center Modulator
The Media Center Modulator takes the signal from a
video device such as a security camera (or multiple cam-
eras using the Video Sequencer) and modulates the
signal to one unused cable TV channel, which can then
be combined with the CATV signal to multiple locations
anywhere in the home, effectively providing a
whole-house security channel.
Select the broadcast channel to be programmed
via dip-switch button programming. The modu-
lator provides 0, 10, 20 or 30 dBmV RF output.
Note: Modulator broadcasts mono audio only. In a
Structured Media System,when used with Structured
Media Video Distribution modules, the Modulator
must be used with a Leviton Notch Filter (PN 47690-NFA) to
clear the target cable channel and avoid interference.
Specifications
Dimensions/Weight: . . . . . . . . . . . . . . . .3"L.x .9"W.–2lbs
Type: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Passive RF lter
Bandwidth: . . . . . . . . . . . . . . . . . . . . . . .CATV channels 75-80
Input: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Female F-connector
Output: . . . . . . . . . . . . . . . . . . . . . . . . . . .Male F-connector
RF Notch Filter
Cat No. Description
47690-NFA RF Notch Filter
RF Notch Filter
RF Notch Filter
The RF Notch Filter is an essential element of Home Security Monitoring and Multi-
Room Video. It blocks incoming cable TV channels 75–80, allowing the Media Center
Modulator or Component Modulator to broadcast an in-house security” or entertain-
ment” channel over the coaxial cable system without interference. The Notch Filter sim-
ply couples to the coaxial cable TV input on either a splitter or an active video
distribution device. Once installed, it filters out six cable channels to make room for any
home security or entertainment video application. It also blocks outgoing signals, such
as cameras, from being broadcast outside the home.
FEATURES
• RCA video and stereo
audio inputs.
• F-Connector output
(channels 14-35 UHF and
54-86 CATV).
• DC power supply.
21
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Home Security Monitoring
Desktop Stereo Modulator
The Stereo Modulator is a desktop-style device designed to work with audio/video compo-
nents such as DVD players and home theater receivers.It combines composite audio and
video signals from a source such as a DVD player, DSS receiver, or VCR, converts the signals
to radio frequency and creates a television channel, which can then be broadcast over the
whole-house coaxial network to multiple televisions on one unused cable channel, effec-
tively setting-up an in-home entertainment channel.
The frequency agile” modulator allows the selected broadcast channel to be programmed
via push buttons. The modulator outputs on any UHF channel between 14 and 69 or CATV
channel between 54 and 94 and 100 and 125 (channels 75-80 are recommended with the
Notch Filter; see below note).
Note: The Desktop Stereo Modulator broadcasts in stereo.When used with Structured Media Video
Distribution modules such as Levitons 3x8 RF Video Module (Cat.No. 47690-3BY),the Desktop
Stereo Modulator must be used with a Leviton Notch Filter (Cat.No. 47690-NFA) to clear the cable
channel and avoid interference.
FEATURES
• Patented MTS stereo sur-
round sound technology for
the best modulated sound.
• Patent pending DVD com-
patible technology delivers
better sound from DVD
players.
• Digital read out for easy
channel selection.
• Memory retention for
power outages.
• Digital phase lock loop
(PLL) tuning eliminates
channel drift.
A
Specifications
Dimensions: . . . . . . . . . . . . . . . . . .7.8"W.x 2.4"H.x 7"D.
Inputs: . . . . . . . . . . . . . . . . . . . . . . .1 RCA video, 2 RCA left/right audio
Outputs: . . . . . . . . . . . . . . . . . . . . . .1 F connector for RF signal (1 RCA video, 2 RCA left/right audio) loop through
Operational channels: . . . . . . . . .14-69 UHF; 54-94 and 100-125 CATV (76-80 recommended with Notch Filter)
S/N ratio: . . . . . . . . . . . . . . . . . . . . .>60dB
Separation @1KHz: . . . . . . . . . . . .>25dB
Bandwidth: . . . . . . . . . . . . . . . . . . .50MHz-860MHz
Power: . . . . . . . . . . . . . . . . . . . . . . .12V DC @300mA
Desktop Stereo Modulator
Cat No. Description
48210-DSM A–Media Center Modulator
Desktop Stereo Modulator
Multi-Room Infrared (IR) Repeater System
The IR Repeater System consists of three pieces: an IR Target, IR Emitter and a distribu-
tion block for distributing control signals to multiple emitters. The IR Target takes the
signal from a remote control for an audio/video component, such as a DVD player or
home theater receiver, and converts it to a low-voltage electrical signal for use over long
distances and in different rooms. The electrical signal is converted back at the compo-
nent to be controlled by the IR emitter. With such a set-up, a user can control a DVD
player down in the family room from an upstairs bedroom, for example. The IR
Repeater System is highly useful with multi-room audio/video distribution using the
Component Modulator or Decora MediaSystem.
The IR Target easily installs in a ceiling or wall, and connects with Category 5 cable to
the IR Emitter. A separate IR Emitter is used for each controlled A/V component,
through the distribution block in the Structured Media Enclosure. Distribution block
(Cat. No. 47689-B) available separately.
Specifications
Dimensions: . . . . . . . . . . . . . .2"L.x 1"W.
Power: . . . . . . . . . . . . . . . . . . .12V DC @200mA
Target Output: . . . . . . . . . . . .4 signal leads
Target Input: . . . . . . . . . . . . . .2 power leads (DC + and -)
Emitter Output: . . . . . . . . . . .Infrared to control source component
Emitter Input: . . . . . . . . . . . . .2 signal leads
Power Supply: . . . . . . . . . . . .12V DC @5mA
IR Repeater System
Cat No. Description
47621-CMS B–Target
47621-MIE C–Emitter
47603-110 D–1x9 Bridged Telephone Module, w/o bracket. Indiv. boxed unit pack, rack pack carton.
IR Repeater System
FEATURES
• Low-prole, ush-mount
Target design.
Two signal connections and
two power connections.
• Emitter features adhesive
surface for easy installation
on audio/video components.
• Distribution block for multiple
Emitter congurations.
• DC power supply.
C
B
D
22 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Multi-Room Video
AUDIO/VIDEO DISTRIBUTION
Decora MediaSystem
Distribute audio and video signals any-
where in the home using Category 5 cable
and Levitons Decora Media System (DMS).
Send VCR, DVD library, CD, MP3 and
Internet radio signals through up to 1,000
feet (300 meters) of cable with no dis-
cernible audio or video distortion and bet-
ter performance than the more expensive,
specialized “designer” cables.
DMS is comprised of: a Send Unit for transmit-
ting audio/video signals, a Receive Unit for
receiving signals and a Media Hub for whole house distribution.
The DMS utilizes advanced active electronics to operate with
several different topologies: a star wiring scheme, with peripheral components sending
and receiving critical information via Send and Receive units and the centralized data-
communications hub; a Hub-to-Receive model, where information is sent to the
hub–and from the hub to
remote Receive units; and a
Point-to-Point model, where
Send and Receive units are
linked directly together.
Send and receive units run on
12VDC,hub runs on 15VDC and
can be powered independently
or through the Media Hub.
For Category 5 and 5e patch cords,
see page 46.
FEATURES
• Panel can be attached
vertically or horizontally in
Structured Media
Enclosures.
• Cascade hub units to distrib-
ute audio/video signals to
over 20 locations.
• Send and Receive units are
equipped with RJ-45 jacks
and 110 punchdown blocks
for maximum exibility in
installation.
• Composite RCA inputs for
connectivity directly from A/V
source.
• Send and Receive units t
standard wallboxes and
Decora wallplates.
Advanced circuitry with auto-
matic equalization streams
analog audio and video sig-
nals over long distances with
less distortion.
• Stereo audio input/output
handles Dolby®ProLogic
surround signals.
• Send VCR, DVD, cable TV,
satellite and security camera
signals through Category 5
cable.
• RJ-45 input for Send unit.
Specifications Send Unit Receive Unit Media Hub
Dimensions: 4.1"H.x 1.4"W.x 2.0"D. 4.1"H.x 1.4"W.x 2.0"D. 6.5"H.x 3.4"W.x 1.75"D.
Video Bandwidth: 50 M Hz @ -3 dB 50 M Hz @ -3 dB 50 M Hz @ -3 dB
Video THD: 75 dBc -75 dBc -75 dBc
Video Input:
0.5V to 2V composite 0.5V to 2V composite
Video Output: 0.5V to 2V composite
——
Slew Rate: 800/Vus 800/Vus 800/Vus
Audio Input Impedance:
20k Ohms, max 3Vp-p 20k Ohms, max 3Vp-p
Audio Output Impedance:51 Ohms, max 2Vp-p
——
Audio Freq. Response: 5 Hz-100k Hz, ±3 dB 5 Hz-100k Hz, ±3 dB 5 Hz-100k Hz, ±3 dB
Audio THD: 0.002% 20 Hz-20k Hz 0.004% 20 Hz-20k Hz 0.002% 20 Hz-20k Hz
Audio S/N Ratio: 100 dB typical, 80 dB 100 dB typical, 80 dB 100 dB typical, 80 dB
min 20 Hz-20k Hz min 20 Hz-20k Hz min 20 Hz-20k Hz
Input Noise: 4.5nV/( Hz), 1/2 6nV/( Hz), 1/2 4.5nV/( Hz), 1/2
typical @ 1k Hz typical @ 1k Hz typical @ 1k Hz
Input and Outputs: 3 RCA input jacks 3 RCA output jacks 3 RCA input jacks
1 set RJ-45 in/out jacks 1 set RJ-45 in/out jacks 1 RJ-45 input jack
1 110 punchdown out 1 110 punchdown out 6 RJ-45 output jacks
1 DC power input 1 DC power input 1 DC power input
Power: 12VDC 12VDC 15VDC
Decora MediaSystem
Cat No. Description
48210-MCH Decora Media System Media Hub with Power Supply
48210-SRU Decora Media System Send and Receive Unit Pair with Power Supply
48210-MSU Decora Media System Send Unit with Power Supply
48210-MRU Decora Media System Receive Unit
Decora MediaSystem
23
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Multi-Location Stereo
AUDIO/VIDEO DISTRIBUTION
1x6 Passive Audio Module
Easy, centralized audio system distribution module connects
up to six pairs of speakers from an entertainment center or
amplifier. Just run speaker wire to this passive bridging mod-
ule and fill multiple rooms with high-quality music or
sound. Supports up to six pairs of speakers; ideal for
multi-room sound systems. Note: To ensure a correct
impedance match with an amplifier, only use the
passive audio module with impedance matched vol-
ume controls or a system matching device.
FEATURES
• Supports up to six pairs of
speakers.
• Combine with Decora
Volume Controls to control
up to six pairs of speakers
from one amplier or
receiver.
• Parallel connection scheme
insures the best sound
quality.
• User-removable connectors
facilitate installation.
• Connects with standard re-
rated speaker wire.
Specifications
Dimensions: . . . . . . . . . . . . . . . . . . . . . . .6.58H.x 2.89W.x 1.42D.
Wire Gauge: . . . . . . . . . . . . . . . . . . . . . . .18–14 AWG
Requirements: . . . . . . . . . . . . . . . . . . . . .Product should be used with impedance-matched
volume controls or controller
1x6 Passive Audio Module
Cat No. Description
48211-6A 1x6 Passive Audio Module
1x6 Passive Audio Module
24 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Multi-Location Stereo
COMPOSER SERIES AUDIO AND SPEAKER CONTROLS
Levitons Composer Series controls are built to a single quality standard, which means
system designers can specify them for any distributed sound application with total con-
fidence. (Levitons Chopin Digital Volume control uses the same heat-dissipation tech-
nology used on the space shuttle and resistive switching to achieve ruler-flat frequency
response.) On the rotary analog controls, tapped auto-transformer design provides a
stable interface between high-current amplification and speakers of virtually any type
while resisting contamination from dust and dirt.
All analog audio power ratings are UL referenced. All volume controls feature screw
connectors for long-term connection integrity.
Decora DigitalChopinVolume Control
Fill a home with high-quality audio at the touch of a button, replacing traditional trans-
formers and rotary controls with this advanced interface module and one-touch Decora
Chopin™ Rocker-Switch Wall Unit. Attractive Decora styling
and transformer-less design bring simplicity
and superior sound-quality to this advanced
audio delivery system. The Volume Control
mounts in a standard wall box or low-voltage
mounting bracket and connects via Category 5
cable to the Interface Module in the Structured
Media Enclosure. Decora Chopin Wall Units are
a perfect match with Decora Mural™ lighting
controls, fit in all Decora wallplates and
accommodate up to 4 pairs of speakers if wired
in a series/parallel configuration.
FEATURES
• Connects to Interface
Module with a single RJ-45
connection. No direct
speaker/amplier connec-
tions required at the
controller.
• Microprocessor-controlled
relays for silent switching.
• Provides impedance match-
ing with speakers from
4–16 Ohms.
Terminates all amplier and
speaker connections using
high-quality audio connection
block.
• Digital, transformer-free
design uses aerospace-
quality cermatile resistors for
proper heat dissipation and
superior performance.
• Each audio zone requires
one Digital Volume Control
module.
• Each Digital Volume Control
module can support up to
three volume control units.
• Each Digital Volume Control
module can control up to 4
pairs of speakers.
Tap mute feature activated
when center of rocker panel
is pressed.
+-+-
Specifications
Peak RMS Power Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200 Watts per channel
Continuous Power Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 Watts RMS per channel
Frequency Response, all rated power levels, +/-0.1 dB: . . . .DC-50,000 Hz
Speaker Impedance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-16 Ohms nominal
Speaker/Amplier Connection: . . . . . . . . . . . . . . . . . . . . . . . . .Removable, snap-in audio monoblock w/screw terminals
Power Requirements: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Volts DC, 200 mA
Decora DigitalVolume Control Systems
Cat No. Description
48211-*VK Decora Digital Volume Control Kit
(Includes Interface Module and Wall Unit with Power Supply)
48211-*VC Decora Digital Volume Control Wall Unit
Decora DigitalVolume Control Systems
25
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Multi-Location Stereo
COMPOSER SERIES ANALOG AUDIO CONTROLS
BrahmsStereo Volume Controls—75 Watt Audio
The 75 Watt Brahms series (25 Watts RMS) of volume controls is ideal for low to moder-
ate power installations in the home and for use with dedicated multi-room amplifiers
and mini-systems. The units accommodate 4, 8 or 16 Ohm speakers and amplifiers up
to 75 Watts. All controls facilitate impedance matching.
Attenuation: -34 dB in 12 steps. Attenuator Type: Tapped auto transformer. Power
Rating: UL Listed @ 75 Watts audio, 25 Watts RMS continuous. Frequency Response:
35 Hz–20 kHz. Screw type connections, 12 position rotary switch.
Cat No.– Cat No.– Cat No.–
Ivory White Almond Description
40841-DI 40841-DW 40841-DA A–Decora®Brahms Stereo Volume Control, 75 Watt, 25 Watt RMS
with insert, knob and plate. Boxed unit pack, rack pack carton
Decora®BrahmsStereo Volume Controls
Control stereo volume from convenient wall-mounted location.
Cat No.–Ivory Cat No.–White Description
40899-I 40899-W BBrahms Dual Stereo Volume Controls, 75 Watt, 25 Watt RMS on
two-gang plate. Boxed unit pack, rack pack carton
Brahms Dual Stereo Volume Controls
Control two stereo systems at one location.
Cat No.–Ivory Cat No.–White Description
40905-25I 40905-25W C–Decora®Brahms Stereo Volume Control, 75 Watt, 25 Watt RMS with
insert, knob and plate. Boxed unit pack, rack pack carton
Decora®BrahmsStereo Volume Control with ON/OFF Switch
Convenience of ON/OFF, as well as volume control.
Cat No.–Gray ONLY Description
40853-OVC D25 Watt RMS with weather resistant enclosure.
Boxed unit pack, rack pack carton
Outdoor Stereo Volume Control
Enables the control of stereo volume from an outside location. Weatherproof with gasket.
A
B
C
D
26 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Multi-Location Stereo
COMPOSER SERIES ANALOG AUDIO CONTROLS
StraussStereo Volume Controls—216 Watt Audio
The 216 Watt Audio (72 Watt RMS) Strauss volume control series is ideal for higher
power installations in the home, and for use with home theater receivers and separate
power amplifiers. Their heavy-duty autoformer construction is designed to resist satura-
tion and degradation even after years of high-volume use while maintaining signal
purity. The units accommodate 4, 8 or 16 Ohm speakers and amplifier systems rated up
to 216 Watts. All controls facilitate impedance matching.
Attenuation: -34 dB in 12 steps. Attenuator Type: Tapped auto transformer. Power
Rating: UL Listed @ 216 Watts Audio, 72 Watts RMS continuous. Frequency Response:
35 Hz–20 kHz. Screw type connectors, 12 position rotary switch.
Cat No.–Ivory Cat No.–White Description
40901-DI 40901-DW ADecora®Strauss™ Stereo Volume Control, 216 Watt, 72 Watt RMS
with insert, knob and plate. Boxed unit pack, rack pack carton
Decora®Strauss Stereo Volume Controls
Control stereo volume from convenient wall-mounted location.
Cat No.–Ivory Cat No.–White Description
40864-DI 40864-DW BStrauss Dual Stereo Volume Controls , 216 Watt, 72 Watt RMS on
two- gang plate. Boxed unit pack, rack pack carton
Strauss Dual Stereo Volume Controls
Control two stereo systems at one location.
Cat No.–Ivory Cat No.–White Description
40888-72I 40888-72W C–Decora®Strauss Stereo Volume Control, 216 Watt, 72 Watt RMS with
two-gang plate. Boxed unit pack, rack pack carton
Decora®Strauss Stereo Volume Control with ON/OFF Switch
Convenience of ON/OFF, as well as volume control.
Cat No.–Ivory Cat No.–White Description
40911-DI 40911-DW D–Decora®Strauss Stereo A/B Selector Switch, 900 Watt audio,
300 Watt RMS. Boxed unit pack, rack pack carton
Decora®Strauss Stereo A/B Selector Switch
2 stereo source inputs, 1 stereo speaker pair output. Provides the ability to choose between two
separate sources, such as a receiver or an amplifier.
A
B
C
D
27
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Multi-Location Stereo

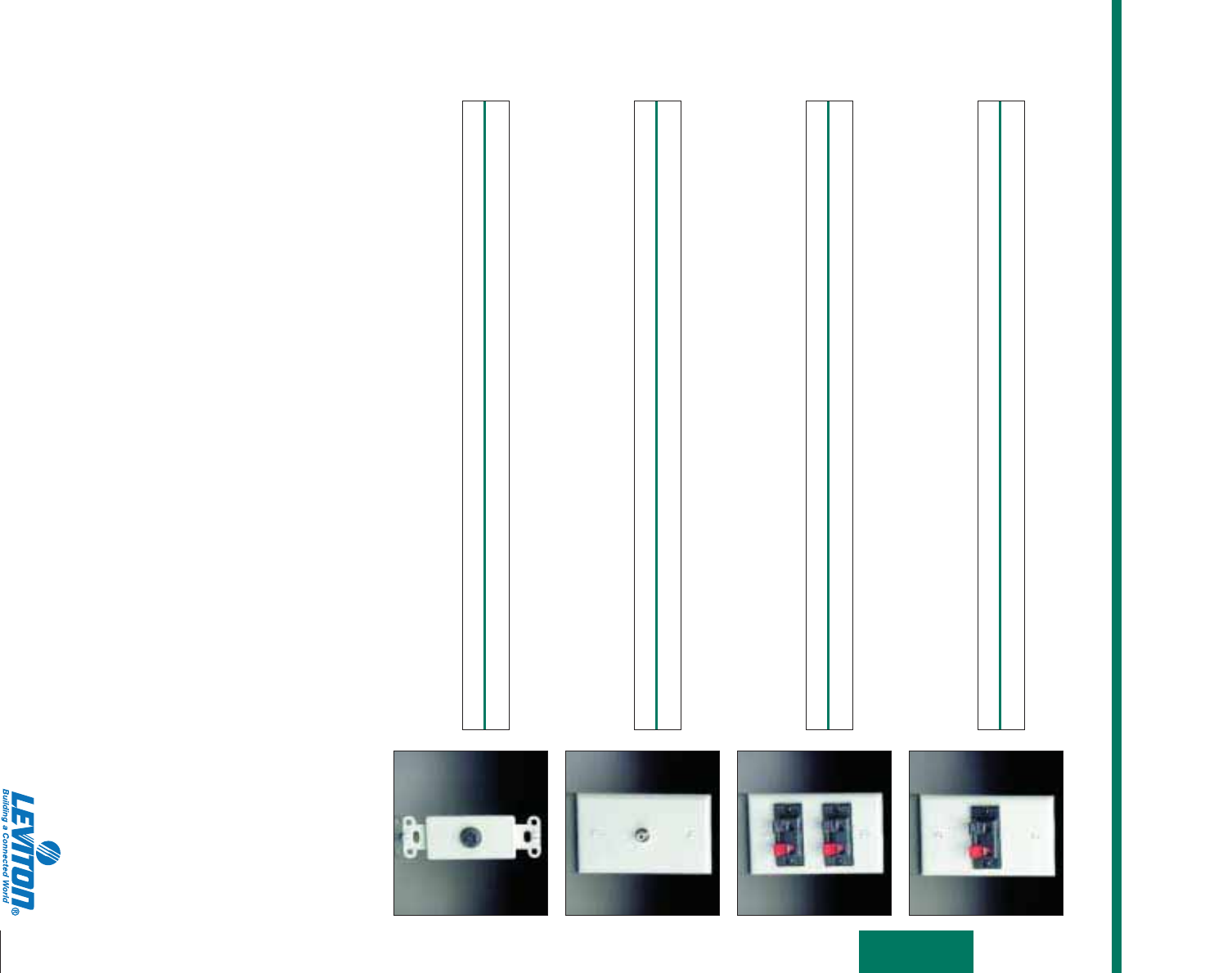

SPECIALIZED AUDIO/VIDEO WALLPLATES
Cat No.–Ivory Cat No.–White Description
40951-1PI 40951-1PW A–Single Spring Clip Wallplate. Carded unit pack, rack pack carton
Single Spring Clip Wallplate
Equipped with spade terminals. Mounted on break resistant polymer wallplate.
Cat No.–Ivory Cat No.–White Description
40952-2PI 40952-2PW B–Double Spring Clip Wallplate. Carded unit pack, rack pack carton
Double Spring Clip Wallplate
Equipped with spade terminals. Mounted on break resistant polymer wallplate.
Cat No.–Ivory Cat No.–White Description
40953-ADI 40953-ADW C–RCA to Coax Connector Wallplate. Carded unit pack, rack pack carton
RCA to Coax Connector Wallplate
Converts coax to RCA connector. Mounted on break resistant polymer wallplate.
Cat No.–Ivory Cat No.–White Description
40954-DMI 40954-DMW DSingle S-Video Decora®Insert. Carded unit pack, rack pack carton
Single S-Video Decora®Insert
Metal insert requires Decora wallplate for mounting.
A
B
C
D
28 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Multi-Location Stereo

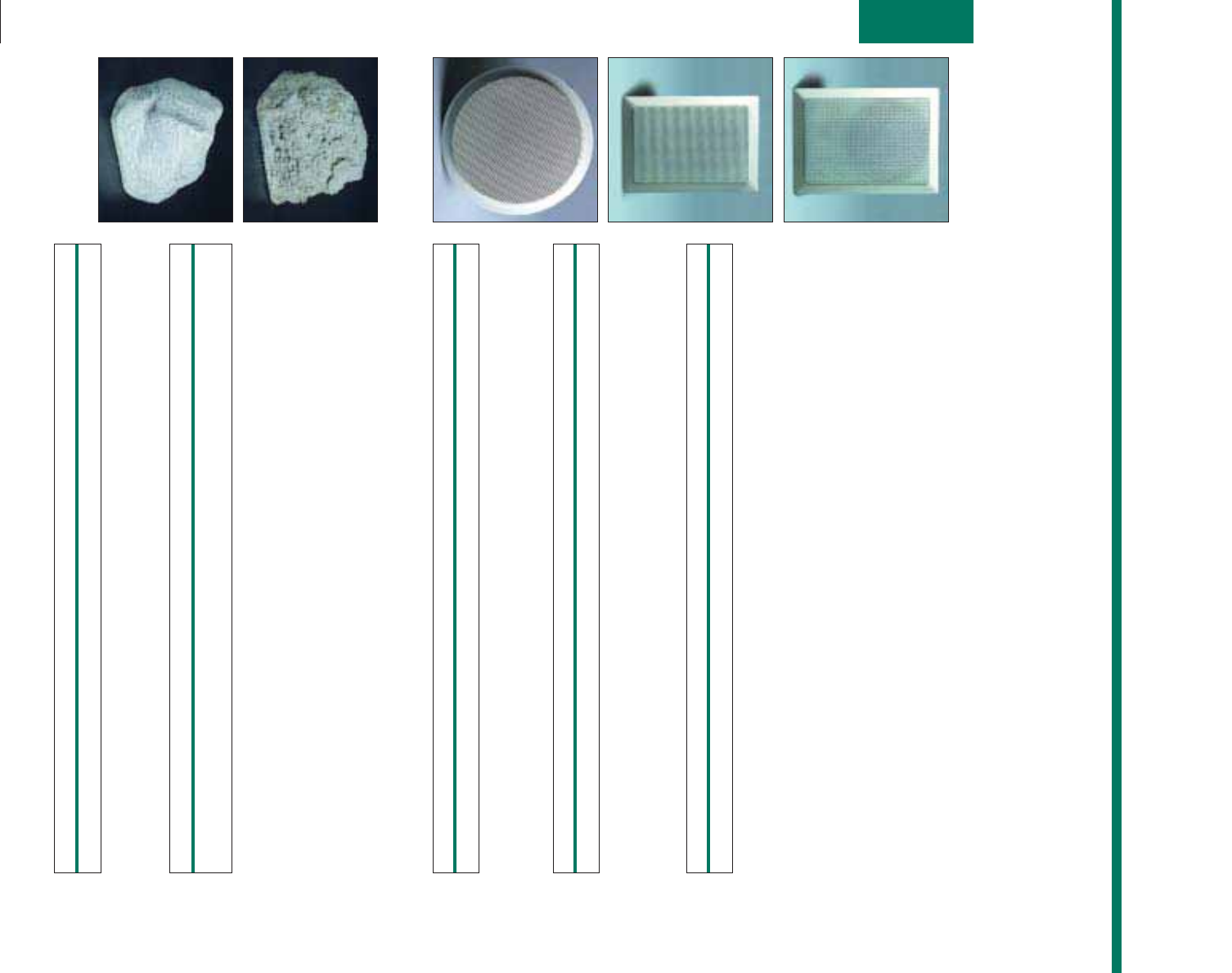

SPEAKERS
In-Wall and Ceiling Flush-Mount Speaker Series
Acoustically-optimized and architecturally-designed, Levitons series of in-wall and ceiling
speakers is ideal for use in anything from foreground music systems to fully-equipped
home theaters. Manufactured in the same facility as some prestigious “audiophile” types
and with specifications verified through independent audio lab testing, Leviton speakers
bring new meaning to the old phrase “value and performance.
All Leviton in-wall and ceiling series speakers incorporate long-throw, high-output
woofers and ultralight polydome tweeters for exceptional clarity, detail and impact, and a
low-loss precision crossover network for smooth, linear response. Leviton speakers have
paintable grilles and frames for an aesthetic match with any décor and come with mount-
ing frames for easy installation. Each speaker is acoustically engineered, or “voiced,” for
optimum performance when installed in walls or soffits. All are nominally rated at 8 Ohms
impedance and 90dB sensitivity.
Cat No.–White ONLY Description
40890-WS A100 Watt In-Wall Flush Mount Speaker, white. Boxed unit pack
100 Watt In-Wall Flush Mount Speaker
Paintable grill and frame. 8" Woofer, 1" Polydome tweeter, 90 dB sensitivity, 8 Ohm impedance,
5,000Hz crossover frequency, 50–20,000Hz frequency response. Includes mounting bracket.
13'x 9" wall opening.
Cat No.–White ONLY Description
40890-W B60 Watt In-Wall Flush Mount Speaker, white. Boxed unit pack
60 Watt In-Wall Flush Mount Speaker
Paintable grill and frame. 612" woofer, 12" Polydome tweeter, 90 dB sensitivity, 8 Ohm impedance,
6,000Hz crossover frequency, 50–20,000Hz frequency response. Includes mounting bracket.
958"x 6
14" wall opening.
Cat No.–White ONLY Description
40896-W C100 Watt Ceiling Mount Round Speaker, white. Boxed unit pack
100 Watt Ceiling Mount Round Speaker
Paintable grill and frame. 612" woofer, 12" Polydome tweeter, 90 db sensitivity, 8 Ohm impedance,
6,000Hz crossover frequency, 50–20,000Hz frequency response, 812" diameter ceiling opening.
Cat No.– Cat No.–
Dark Gray Lava Description
40827-G 40827-L D100 Watt Outdoor Rock Speaker, single. Boxed unit pack
100 Watt Outdoor Rock Speaker
8" Woofer. 2" dome tweeter with crossover, 77 dB Sensitivity, 8 Ohm impedance, 50–20,000Hz
frequency response. Includes 50 ft. of direct bury 16/2 gauge speaker wire
Cat No.–Light Gray ONLY Description
40828-G E–60 Watt Outdoor Rock Speaker, Single. Boxed unit pack
60 Watt Outdoor Rock Speaker
612" woofer, 12" tweeter, 77 dB sensitivity, 8 Ohm impedance, 50–20,000Hz frequency response.
Includes 50 ft. of direct bury 16/2 gauge speaker wire.
A
B
C
D
E
OUTDOOR SPEAKERS
For stealth installations, these Leviton speakers blend into the landscape and bring high-
fidelity sound to gardens, pools, atriums, and other environments. Each speaker incorpo-
rates exotic technology materials to withstand environmental extremes including heat
and humidity. All come complete with 50 feet of Direct Bury 16-gauge speaker wire. Rated
nominally at 8 Ohms impedance.
29
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
QuickPort®Modules and Wallplates
A
B
C
D
QuickPort®Snap-In Connectors Colors
Your choice of 13 connector colors—the largest selection in the industry— provides many options
for color-coded port ID.
Ivory (I) White (W) Gray (G) Black (E) Orange (O) Blue (L) Crimson Yellow (Y) Green (V) Purple (P) Almond (A) Brown (B) Dark
Red (C) Red (R)
QuickPort®Snap-In Connectors
The cornerstone of our superior copper structured cabling systems—GigaMax5e,
Category 5 and Voice Grade Snap-In Connectors feature dual-color-coded wiring labels with
both T568A and T568B wiring patterns for dual flexibility in a single connector, plus fast,
accurate termination of station wiring. All connectors meet or exceed industry standards. All
category-rated connectors are fully compliant with published TIA-568-A and 570-A require-
ments. All other QuickPort connectors are UL certified, fully compliant with NEC®Article
800, and meet FCC Part 68. Communication wiring interfaces can be tailored to support the
user’s exact requirements for voice, data, video, audio and security applications.
Cat No. Description
5G108-R*5 A–Category 5e GigaMax™ 8-Conductor Channel-rated Connector
Permanently laser-engraved with “Cat 5e”
41108-R*5 B–Category 5 8-Conductor Connector
Permanently engraved with “Cat 5”
41108-K*5 B–Category 5 8-conductor connector, keyed
Permanently laser-engraved with “Cat 5”
41108-R*3 C–Category 3 8-Conductor Connector
41106-R*6 D–Voice-Grade 6-Conductor USOC Connector
41108-R*8 D–Voice-Grade 8-Conductor USOC Connector
*Color choices for Category & Voice Grade Connectors: Ivory(I), White(W), Grey(G), Black(E), Orange(O), Blue(L),
Crimson Red(C), Yellow(Y), Green(V), Purple(P), Almond(A), Brown(B), and Dark Red(R). Choose from the color chart below.
**S-Video color choices: White(W), Ivory(I), Almond(A), Black(E)
30 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin

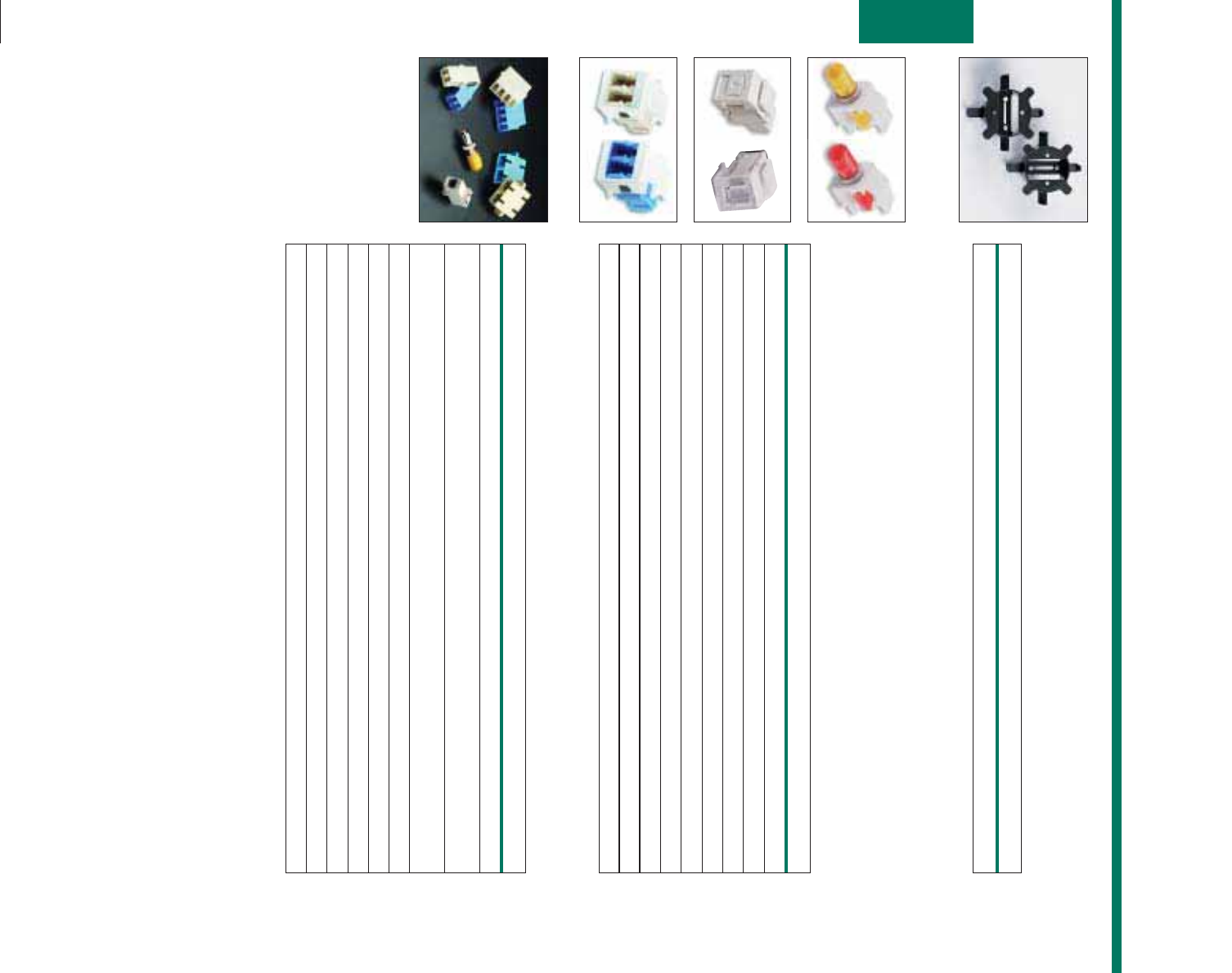

QuickPort®Modules and Wallplates
C
D
E
F

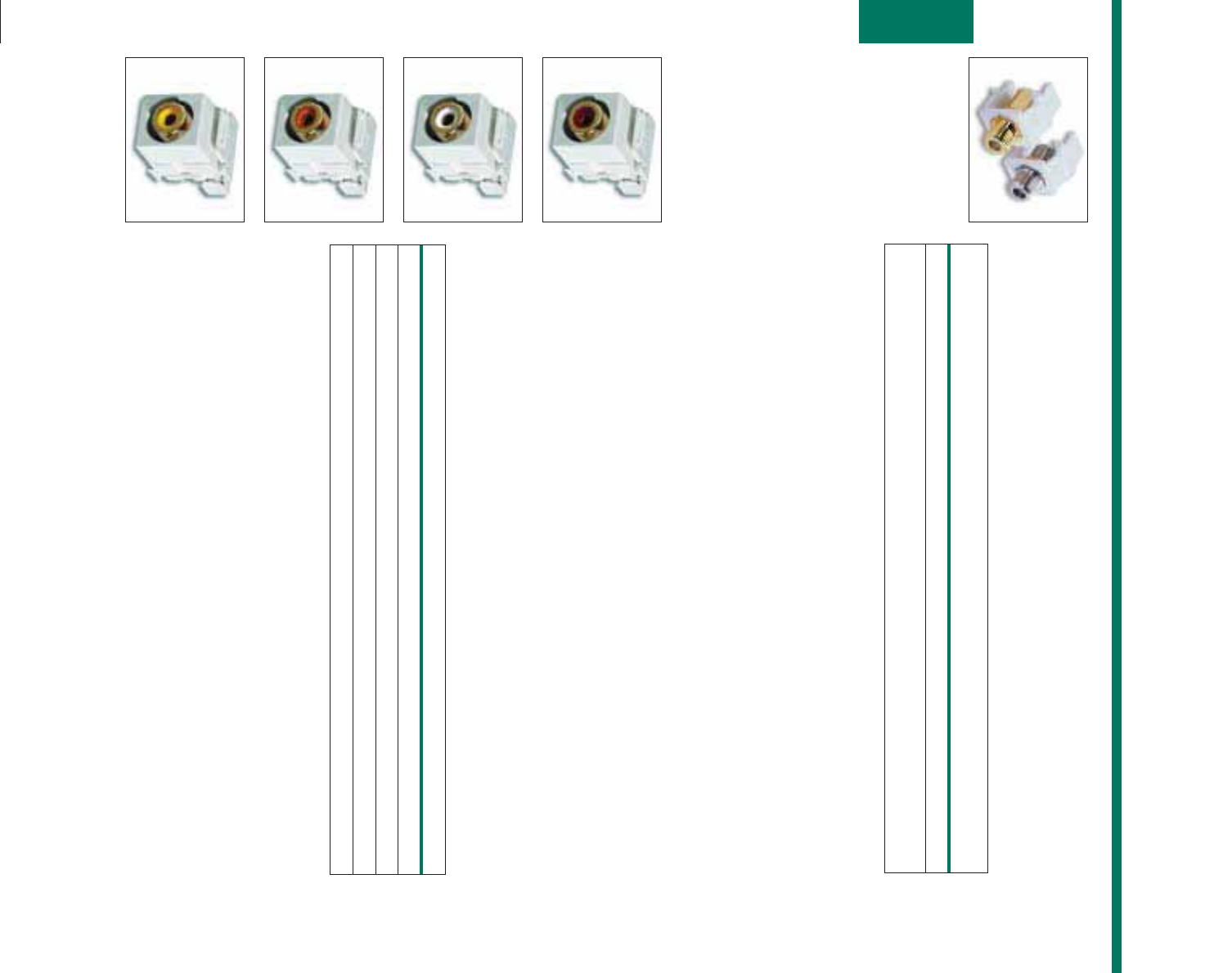

QuickPort®RCA-110 Connector
Levitons RCA-110 QuickPort®Connector transmits audio/video signals over standard
Category 5, 5e or 6 UTP cabling, and features 110-style IDC punchdowns on the rear for sim-
ple, fast installation. This simple connector is ideal in environments (like classrooms) that
have frequent adds, moves and changes, or where coaxial cable runs arent an option. The
front of the connector features a gold-plated contact surface for a better connection, and its
oversized cavity readily accommodates male RCA plugs. To indicate different media types,
connector inserts are offered in four colors, including Right Line Level Audio (red), Left Line
Level Audio (white), Composite Video (yellow) and PCM Audio (orange). Part of the
QuickPort family of connectors, Levitons RCA-110 Connectors are compatible with any
QuickPort housing or panel.
Cat No. Description
40735-RR* C–RCA 110-Type QuickPort Audio Right Red Insert
40735-RW* D–RCA 110-Type QuickPort Audio Left White Insert
40735-RO* E–RCA 110-Type QuickPort PCM Audio Orange Insert
40735-RY* F–RCA 110-Type QuickPort Video Yellow Insert
*Colors: White(W), Ivory (I), Almond (A), Grey (G), Black (E)
A
B
QuickPort®Snap-In Connectors for Audio/Video Cable Types
These F-type bulkhead modules are for TV, VCR, DVD, satellite and home theater applica-
tions where RG6 coaxial cable is used (“F” plug termination required). Each unit pack
includes one gold-plated female-to-female, front and rear screw-on connector. They require
no soldering and connections can be made with standard industry tools.
Cat No.– Cat No.– Cat No.–
Ivory White Almond Description
41084-FIF 41084-FWF 41084-FAF A– F-Type Bulkhead Module
B– Gold-plated F-Type Bulkhead Module
40831-BI 40831-BW 40831-BA Individual polybag pack
FEATURES
• Each modular jack’s patented “cutting ledge” trims the wire during termination when used with the high impact
punchdown tool.
Audio and video connectors require no soldering; connections can be made with easy-to-use tools.
All jacks feature color-coded wiring labels for fast, accurate terminations.
• F-Type, RCA, Binding Posts, BNC and Banana jacks are available gold-plated. F-Type, and BNC jacks are
also available nickel-plated.
• Modules are listed in accordance and fully compliant with NEC Article 800.
• Category 5 and 5e jacks are certied to meet TIA/EIA-568-A and FCC Part 68 requirements.
31
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
QuickPort®Modules and Wallplates
A
B
C
D
E
F
G
QuickPort®Snap-In Connectors for a Variety of Applications
These various connectors can be used with UTP copper cable and audio/video cable types
to create a customized multi-media center in your single- or dual-gang wallplate. They
require no soldering and connections can be made with standard industry tools.
Cat No.– Cat No.– Cat No.–
Ivory White Almond Description
A Gold-plated BNC Bulkhead Module
40832-BI 40832-BW 40832-BA Individual polybag pack
40832-I 40832-W
Carded pack, standard carton
40832-IR 40832-WR 40832-AR Carded pack, rack pack carton
41084-BI 41084-BW 41084-BA B Standard BNC Bulkhead Module, Polybag Pack
C Gold-plated RCA Bulkhead Module, Solderless Connection
40830-BIE 40830-BWE 40830-BWE Black stripe on connector, individual polybag pack
40830-BIR 40830-BWR 40830-BAR Red stripe on connector, individual polybag pack
40830-BIY 40830-BWY 40830-BAY Yellow stripe on connector, individual polybag pack
40830-I 40830-W
One black/one red stripe pair per carded unit pack,
standard carton
40830-IR 40830-WR 40830-AR One black/one red stripe pair per carded unit pack,
rack pack carton
D Gold-plated Banana Jack Module, Solderless Connection
40837-BIE 40837-BWE 40837-BAE Black stripe on connector, individual polybag pack
40837-BIR 40837-BWR 40837-BAR Red stripe on connector, individual polybag pack
40837-I 40837-W
One black/one red stripe pair per carded unit pack,
standard carton
40837-IR 40837-WR 40837-AR One black/one red stripe pair per carded unit pack,
rack pack carton
E Gold-plated Binding Post Module, Solderless Connection
40833-BIE 40833-BWE 40833-BAE Black stripe on connector, individual polybag pack
40833-BIR 40833-BWR 40833-BAR Red stripe on connector, individual polybag pack
40833-I 40833-W One black/one red stripe pair per carded unit pack,
standard carton
40833-IR 40833-WR 40833-AR One black/one red stripe pair per carded unit pack,
rack pack carton
40734-SVI 40734-SVW 40734-SVA F S-Video Connector, 110 Style IDC Punchdowns
on Rear of Connector, Individual polybag pack
G– Snap-in Blank Module
40859-BI 40859-BW 40859-BA Individual unit, 10 units per polybag pack
40859-I 40859-W
4 per carded unit pack, standard carton
40859-IR 40859-WR 40859-AR 4 per carded pack, rack pack carton
FEATURES
• Each modular jack’s patented “cutting ledge” trims the wire during termination when used with the high impact
punchdown tool.
Audio and video connectors require no soldering; connections can be made with easy-to-use tools.
All jacks feature color-coded wiring labels for fast, accurate terminations.
• F-Type, RCA, Binding Posts, BNC and Banana jacks are available gold-plated. F-Type, and BNC jacks are
also available nickel-plated.
• Modules are listed in accordance and fully compliant with NEC Article 800.
• Category 5 and 5e jacks are certied to meet TIA/EIA-568-A and FCC Part 68 requirements.
32 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
QuickPort®Modules and Wallplates
Cat No.– Cat No.– Cat No.–
Ivory White Almond Description
A 6-Port Flush Mount
40806-BI 40806-BW 40806-BA Individual polybag pack, standard carton
40806-IBR 40806-WBR 40806-ABR Individual polybag pack, rack pack carton
40806-I 40806-W Carded pack, standard carton
B 4-Port Flush Mount
40804-BI 40804-BW 40804-BA Individual polybag pack, standard carton
40804-IBR 40804-WBR 40804-ABR Individual polybag pack, rack pack carton
40804-I 40804-W Carded pack, standard carton
C 3-Port Flush Mount
40803-BI 40803-BW 40803-BA Individual polybag pack, standard carton
40803-IBR 40803-WBR 40803-ABR Individual polybag pack, rack pack carton
40803-I 40803-W Carded pack, standard carton
40702-BI 40702-BW 40702-BA D 2-Port Flush Mount, individual polybag pack,
standard carton
40701-BI 40701-BW 40701-BA E 1-Port Flush Mount, individual polybag pack,
standard carton
QuickPort®Flush-Mount Wallplates
Flush mount wallplates offer field-configurability in an attractive single-piece housing. All versions
include color-matched mounting screws.
Note: Midway size plates are also available in plastic and high-impact nylon.
QuickPort®Stainless Steel Wallplates—Single and Dual-Gang
Levitons QuickPort Stainless Steel Wallplates offer designer styling and a durable, easy-to-clean
solution. They support a number of commercial and residential applications with single-gang and
dual-gang versions in a variety of port configurations.
ECDBA
Cat No. Description
43080-1S1 F–1-Port Single-Gang Wallplate
43080-1S2 2-Port Single-Gang Wallplate
43080-1S3 3-Port Single-Gang Wallplate
43080-1S4 4-Port Single-Gang Wallplate
43080-1S5 5-Port Single-Gang Wallplate
43080-1S6 6-Port Single-Gang Wallplate
43080-2S2 G 2-Port Dual-Gang Wallplate
43080-2S4 4-Port Dual-Gang Wallplate
43080-2S6 6-Port Dual-Gang Wallplate
43080-2S8 8-Port Dual-Gang Wallplate
43080-2S12 12-Port Dual-Gang Wallplate
4108W-1SP Wall Phone Plate–Recessed
4108W-0SP Wall Phone Plate–Flush
QuickPort®Angled Wallplates
Available in single-gang 4-port and dual-gang 8-port versions, these wallplates feature angled
ports to relieve stress on equipment cords plugged into the device. The bottom opening is a duplex
port which can be partitioned with a divider (included) to hold two individual QuickPort snap-in
modules. All versions include mounting screws.
Cat No.– Cat No.– Cat No.–
Ivory White Almond Description
H–Angled 4-Port with 2 angled ports
40807-BI 40807-BW
Individual polybag pack, standard carton
40807-IR 40807-WR 40807-AR Individual polybag pack, rack pack carton
40807-I 40807-W
Carded pack, standard carton
I Angled 8-Port with 4 angled ports
40807-B2I 40807-B2W
Individual polybag pack, standard carton
I
H
G
F
33
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
QuickPort®Modules and Wallplates
QuickPort®Multimedia Wallplate Inserts
Bring voice, data, audio and video together in one wallplate. Decora multimedia wallplate inserts
match multimedia outlets to wallplates for electrical or lighting systems. Mix and match QuickPort
Snap-In modules in combinations of two, three, four or six. Compatible with the full line of stan-
dard Decora wallplates, Decora Plus snap-on wallplates with hidden mounting screws and Leviton
sectional wallplates (sold separately). The insert fits standard NEMA wallboxes and includes sturdy
steel nuts on mounting tabs to ensure secure wallplate mounting without stripping.
Cat No.– Cat No.– Cat No.–
Ivory White Almond Description
A QuickPort Decora Multimedia Insert,
40850-BI 40850-BW 40850-BA 2-Port Insert, polybag standard carton
40850-IBR 40850-WBR 40850-ABR 2-Port Insert, polybag rack pack carton
40753-BI 40753-BW 40753-BA 3-Port Insert, polybag standard carton
40754-BI 40754-BW 40754-BA 4-Port Insert, polybag standard carton
40756-BI 40756-BW 40756-BA 6-Port Insert, polybag standard carton
B Decora Wallplates:
80401-I 80401-W 80401-A 1-Gang
80409-I 80409-W 80409-A 2-Gang
A
B
QuickPort®Shutters
These field-installable shutters protect connectors with a one-piece hinged door that keeps dust
and contamination out. They work in any QuickPort housing and fit on USOC 8-position, Category
3, Category 5, Category 5e and Category 6 connectors.
C
Cat No. Description
51084-ICN C– QuickPort Shutter Kit w/Leviton logo and miscellaneous icons
51084-XLB Accessory Kit w/pre-printed icons on white paper
51084-CLB Color Label Kit w/pre-printed icons on colored paper
(Color Label Kit includes: brown, green, orange, red, blue, gray, purple)
QuickPort®Shutters and Accessories
4x4 Breakout Module
This unique telephone distribution module
provides easy plug-and-play access to all
incoming lines by using one outlet
connector. The 4x4 Breakout
Module allows you to divide an
incoming four-line telephone
connection into four individual
lines for use on one- or two-line
output connectors. The module
provides six, eight-position RJ-45 voice
grade connectors. This module is for use on
568A wiring sequenced systems.
Cat No. Description
47609-4X4 4x4 Breakout Module
4x4 Breakout Module
34 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Connectors and Wallplates
A
Cat No.–Ivory Cat No.–White Description
ADecora Modular Wall Jack 6-Position, 4-Conductor
C2449-I C2449-W Carded unit pack
40949-ID 40949-WD Individual polybag pack
Decora®Modular Wall Jack
This single flush mount jack is designed to match Levitons popular Decora line of decorator elec-
trical devices. Screw Terminals. Furnished with Decora wallplate.
B
Cat No.–Ivory Cat No.–White Description
BDecora Duplex Modular Wall Jacks 6-Position, 4-Conductor
C2447-ICP C2447-WCP Contractor pack, 3 per unit, rack pack carton
C2447-I C2447-W Carded unit pack
40944-ID 40944-WD Individual polybag pack
Decora®Duplex Modular Wall Jacks
This single flush mount jack is designed to match Levitons popular Decora line of decorator elec-
trical devices. Screw Terminals. Furnished with Decora wallplate.
C
Cat No.–Ivory Cat No.–White Description
CDecora TV/Phone Combination Jacks 6-Position, 4-Conductor
40959-ID 40959-WD Individual polybag pack
Decora®TV/Phone Combination Wall Jacks
Combination jack with 4-conductor modular jack for phone connections and F-connector for
video connections. Furnished with Decora wallplate.
D
Cat No.– Cat No.– Cat No.–
Ivory White Almond Description
D– Flush Mount Modular Wall Jack, 6-Position, 4-Conductor
C0249-ICP C0249-WCP
Contractor pack, 5 per unit, rack pack carton
C0249-I C0249-W
Carded unit pack
40949-I 40949-W 40949-A Individual polybag pack in carton
Flush Mount Modular Wall Jack, 6-Position, 6-Conductor
C2675-I C2675-W
Carded unit pack
E
Cat No.–Ivory Cat No.–White Description
E Flush Mount Duplex Wall Jack, 6-Position, 4-Conductor
C0254-I C0254-W Carded unit pack
40944-I 40944-W Individual polybag pack in carton
Flush Mount Duplex Wall Jack, 6-Position, 6-Conductor
C2676-I C2676-W Carded unit pack
Flush Mount Duplex Wall Jack
These smooth finish units include two jacks, a plate and mounting hardware. They can be wired
to provide the same dial tone on both jacks (e.g., for phone and answering machine combination)
or separate line on each jack. Screw terminals. UL Listed and CSA Certified.
Flush Mount Modular Wall Jack
One-piece construction, single outlet telephone wallplate.
35
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Connectors and Wallplates
A
Cat No.–Ivory Cat No.–White Description
AFlush Mount TV/Phone Wallplate, 6-Position, 4-Conductor
C2450-I C2450-W Carded unit pack
40959-I 40959-W Individual polybag pack
Flush Mount TV/Phone Wallplate
Connect phone lines and incoming video signals from a single antenna, cable TV or DSS.
B
Cat No.–Ivory Cat No.–White Description
BRound Flush Mount Wallplate, 6-Position, 4-Conductor
C0229-I C0229-W Carded unit pack
Round Flush Mount Wallplate
One-piece construction installs easily in a Type 63A mounting ring or 63C junction box. Includes
jack plate, ring and mounting screws. Four-conductor jack for use with 4-conductor modular line
cord. Screw terminals.
C
Cat No.– Cat No.– Cat No.–
Ivory White Almond Description
C– Wall Phone Jack, 6-Position, 4-Conductor
C0253-ICP C0253-WCP
Contractor pack, 3 per pack, rack pack carton
C0253-I C0253-W
Carded unit pack
40914-I 40914-W 40914-A Individual polybag pack
Wall Phone Jack
Accommodates all standard style wall phones. Four color-coded screw-down connections.
Wall Phone Jack
Single outlet telephone wall phone jack with quick-connect, punch-down terminals.
D
E
F
Cat No. Description
D– Stainless Steel Wall Phone Jack
C0256-SS Individual polybag pack, rack pack carton
Stainless Steel Wall Phone Jack
Stainless steel cover with quick-connect, punch-down wire connections. Four color-coded screw-
down connections provided.
Cat No.–Ivory Cat No.–White Description
F– Surface Mount Wall Phone Jack with 2 Extra Jacks,
6-Position, 4-Conductor
C2455-I C2455-W Carded unit pack
Surface Mount Wall Phone Jack with 2 Extra Jacks,
6-Position, 6-Conductor
C2655-I C2655-W Carded unit pack
Surface Mount Wall Phone Jack with 2 Extra Jacks
Offers two additional jacks. Ideal for use with answering machines or computer modems. One
jack each side. Holds all standard style wall phones.
Cat No.–Ivory Cat No.–White Description
E Wall Phone Jack, 6-Position, 6-Conductor
C2682-I C2682-W Carded unit pack
36 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Connectors and Wallplates
A–F
G–I
Standard Flush Mount Jacks—Smooth Finish
Flush mount jacks are available in smooth finish single-jack or duplex models and
Decora Styles. All feature one-piece construction and install easily in standard electrical
boxes. Many are available in both standard plate sizes (234"W.x412"H.x316"D.) and
Midway plate sizes (38" greater in height and width), in a variety of colors.
Cat No.– Cat No.– Cat No.– Cat No.–
Ivory White Brown Almond Description
AType 625B4 Modular Wall Jack, 6-Position,
4-Conductor, Standard Plate
40249-I* 40249-W* 40249* 40249-A* Individual polybag pack
BType 625B4 Modular Wall Jack, 6-Position,
6-Conductor, Standard Plate
40238-I* 40238-W*
——
Individual polybag pack
CType 625B4 Modular Wall Jack, 8-Position,
8-Conductor, Standard Plate
40280-I 40280-W
——
Individual polybag pack
DType 625B4 Modular Wall Jack, 6-Position,
4-Conductor, Midway Plate
40549-I* 40549-W* 40549*
Individual polybag pack
EType 625B4 Modular Wall Jack, 6-Position,
6-Conductor, Midway Plate
40538-I* 40538-W*
——
Individual polybag pack
F Type 625B4 Modular Wall Jack, 8-Position,
8-Conductor, Midway Plate
40580-I 40580-W
——
Individual polybag pack
Type 625B4 Modular Wall Jack, 6-Position,
4-Conductor, Nylon Midway Plate
40539-PMI 40539-PMW 40539-PMB 40539-PMA Individual polybag pack
Type 625B4 Modular Wall Jack—Smooth Finish UR
Includes jack, plate and mounting hardware. Fits standard NEMA wallboxes. Screw terminals. UL
Listed and CSA Certified.
*These products are UL Listed
Type 625B4 Modular Wall Jack—Smooth Finish,
alternate construction (not shown) UR
Includes jack, plate and mounting hardware. Fits standard NEMA wallboxes. Screw terminals. UL
Listed and CSA Certified.
Cat No.– Cat No.– Cat No.– Cat No.– Cat No.–
Ivory White Gray Brown Almond Description
GType 625B4 Modular Wall Jack,
6-Position, 4-Conductor,
Standard Plate
4625B-44I 4625B-44W 4625B-44G 4625B-44 4625B-44A Individual polybag pack
HType 625B4 Modular Wall Jack,
6-Position, 6-Conductor,
Standard Plate
4625B-46I 4625B-46W 4625B-46G
——
Individual polybag pack
I Type 625B4 Modular WallJack,
8-Position, 8-Conductor,
Standard Plate
4625B-48I 4625B-48W
——
Individual polybag pack
37
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538

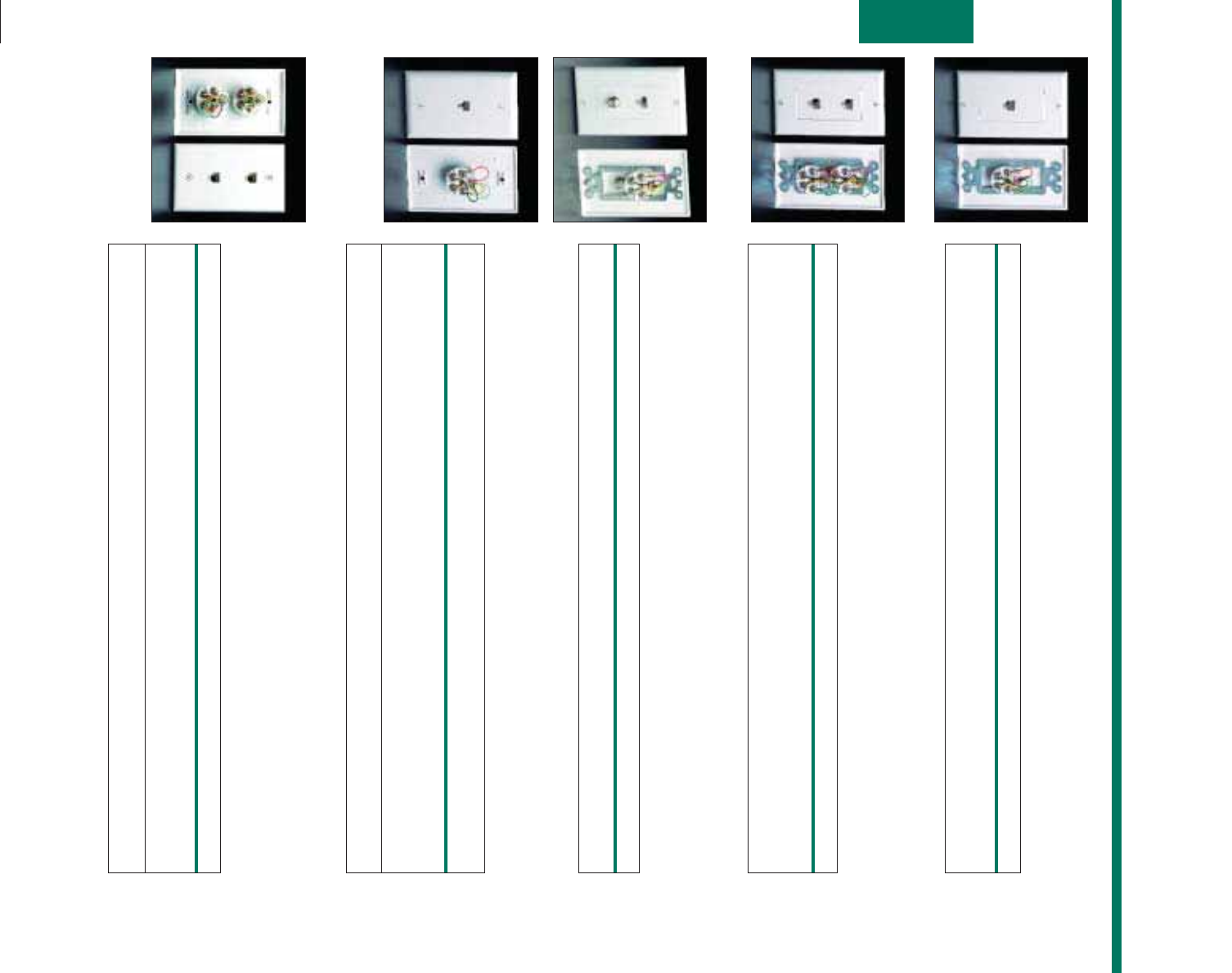

Connectors and Wallplates
A–E
Type 625B3 Duplex Wall Jack UR
These smooth finish units include two jacks, a plate and mounting hardware. They can be wired to
provide the same dial tone on both jacks (e.g., for phone and answering machine combination) or
separate line on each jack. Screw terminals. UL Listed and CSA Certified.
Cat No.– Cat No.– Cat No.– Cat No.–
Ivory White Brown Almond Description
AType 625B3 Duplex Wall Jack,
6-Position, 4-Conductor, Standard Plate
40244-I 40244-W 40244 40244-A Individual polybag pack
BType 625B3 Duplex Wall Jack,
6-Position, 6-Conductor, Standard Plate
40266-I 40266-W
——
Individual polybag pack
CType 625B3 Duplex Wall Jack,
6-Position, 4-Conductor, Midway Plate
40544-I 40544-W
——
Individual polybag pack
DType 625B3 Duplex Wall Jack,
6-Position, 6-Conductor, Midway Plate
40566-I 40566-W
——
Individual polybag pack
EType 625B3 Duplex Wall Jack,
8-Position, 8-Conductor, Midway Plate
40588-I 40588-W
——
Individual polybag pack
F, G
Type 625D Combination Wall Jacks and F-Connector Wallplates UR
The Type 625D includes one modular jack (with screw terminals) for voice and one F- connector
for cable TV or other video applications using RG6 or RG59 coax. UL Listed and CSA Certified.
Cat No.– Cat No.– Cat No.– Cat No.–
Ivory White Gray Almond Description
F Type 625D Combination Wall Jacks,
6-Position, 4-Conductor and F-Connector
40259-I 40259-W 40259-G 40259-A Individual polybag pack
G–Type 625D Combination Wall Jacks,
6-Position, 6-Conductor and F-Connector
40258-I 40258-W
——
Individual polybag pack
H-J
Type 625 Decora Modular Wall Jacks UR
This single flush mount jack is designed to match Levitons popular Decora line of decorator elec-
trical devices. Use with Decora Plus wallplates and mount in any standard electrical box. Gangable
in multiple-gang box. Screw terminals. UL Listed and CSA Certified.
Cat No.– Cat No.– Cat No.– Cat No.– Cat No.– Cat No.–
Brown Ivory White Gray Almond Black Description
HType 625 Decora Modular Wall Jacks,
6-Position, 4-Conductor
40649 40649-I 40649-W 40649-GY 40649-A 40649-E Individual polybag pack
IType 625 Decora Modular Wall Jacks,
6-Position, 6-Conductor
40638 40638-I 40638-W 40638-GY 40638-A 40638-E Individual polybag pack
JType 625 Decora Modular Wall Jacks,
8-Position, 8-Conductor
40680 40680-I 40680-W 40680-GY
——
Individual polybag pack
38 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Connectors and Wallplates
A
Type 625B Round Modular Jack UR
A 4-conductor jack with Type 43A mounting bracket attached. Mounts in any standard electrical
box; slotted holes facilitate alignment when electrical box has been mounted crooked or askew.
Can be used indoors or outdoors with corresponding Leviton wallplate (see below). For use with
4-conductor modular line cord. Screw terminals. UL Listed and CSA Certified.
Cat No.–Ivory Description
A– Type 625B Round Modular Jack
40201-I Individual polybag pack
B
Round Modular Jack Wallplate UR
Standard size plate in non-combustible, smooth-finish plastic. UL Listed and CSA Certified.
Cat No.–Ivory Description
B– Round Modular Jack Wallplate
86004 Individual polybag pack
C
Flush Mount Outdoor Wallplate UR
Rugged plate made of die-cast zinc with a corrosion-resistant gray baked enamel finish. For use
with surface-mounted, outdoor-type outlet boxes or flush-mounted wallboxes. Includes mounting
screws and rubber gasket. UL Listed and CSA Certified.
Cat No.–Ivory Description
C– Flush Mount Outdoor Wallplate
4925-2 Individual polybag pack
D, E
1 and 2 Gang Wallplate Mounting Brackets
Mounting a flush-mount wallplate without a back box is easy. Brackets insert into wall opening,
flexible tabs bend up to secure the bracket to the opening. Standard screw holes accept all
wallplate configurations.
Cat No. Description
D– Wallplate Mounting Brackets, 1-Gang
C0224-CP Contractor pack, 10 per unit pack, rack pack carton
C0224 2 per carded unit pack
E– Wallplate Mounting Brackets, 2-Gang
C0225-CP Contractor pack, 5 per unit pack, rack pack carton
C0225 Individual polybag pack, rack pack carton
39
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Connectors and Wallplates

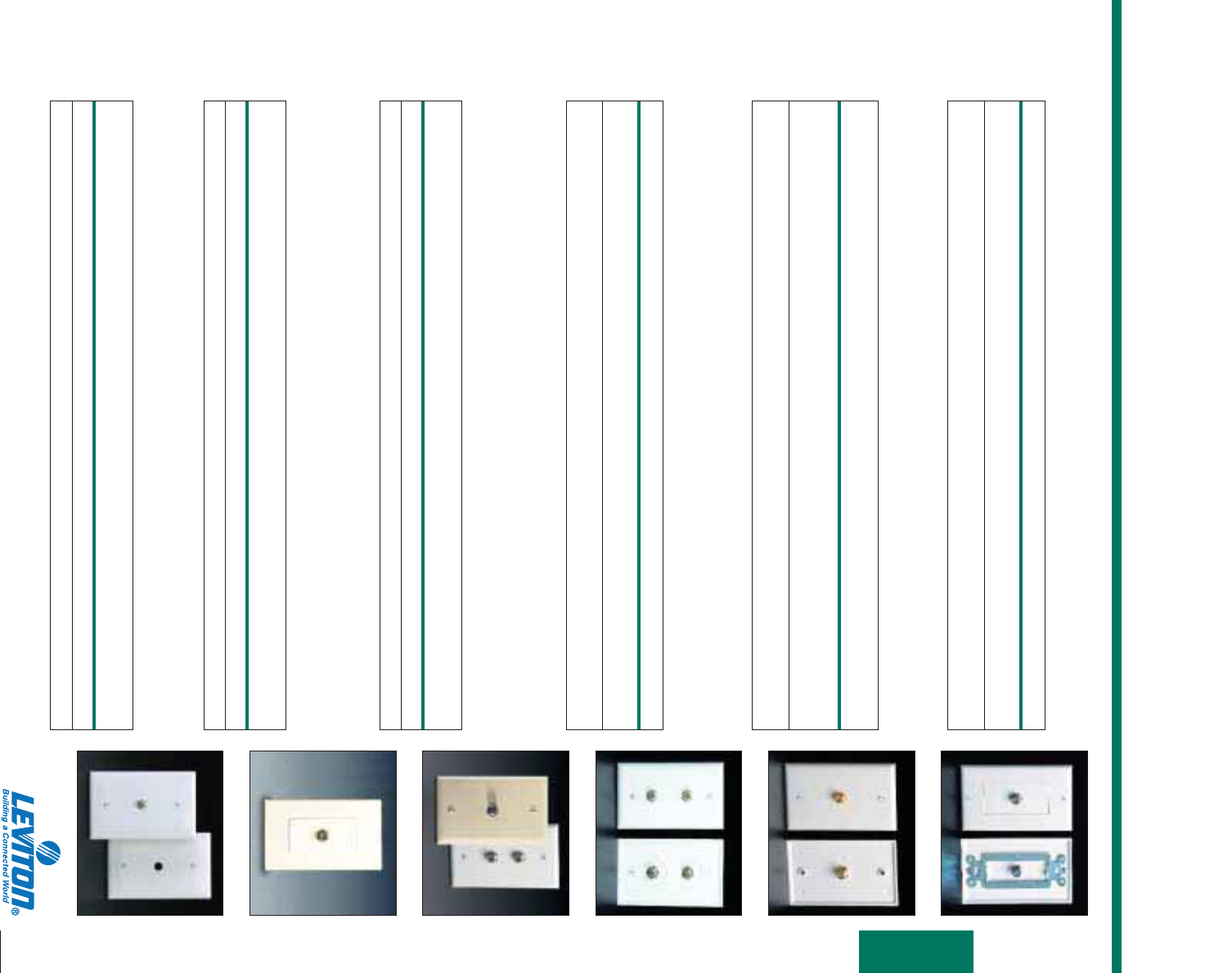

A
Flush Mount 75 Ohm Decora Wallplate
75 Ohm twist-on connections for input and output.
Cat No.–Ivory Cat No.–White Description
AFlush mount 75-Ohm Decora Wallplate,
C2448-I C2448-W Carded unit pack
Decora Single F-Connector Wall Jack with Wallplate
40981-ID 40981-WD Individual polybag pack
B
75 Ohm Wallplate
Twist-on connector on both sides.
Cat No.– Cat No.– Cat No.–
Ivory White Almond Description
B– Surface Mount 75 Ohm Wallplate
C5256-ICP C5256-WCP Contractor pack, 5/box
C5256-I C5256-W Carded unit pack
Single Flush Mount F-Connector Wall Jack
40981-I 40981-W 40981-A Individual polybag pack
D
E, F
Duplex 75 Ohm Wallplate
75 Ohm twist-on connections on both sides. Can be used as two inputs, one input and one output,
or two outputs.
Cat No.–Ivory Cat No.–White Description
CDuplex Flush Mount 75 Ohm Wall Plate
C2456-I C2456-W Carded unit pack
DDuplex Flush Mounted F-Connector Wallplate
40982-I 40982-W Carded unit pack
F-Connector Wallplates
The F-Connector is for cable TV or other video applications using RG6 or RG59 coaxial cabling.
F-connector wallplates have one or two F-connectors. These wallplates have a smooth finish.
UL Listed and CSA Certified.
G
Decora F-Connector Wall Jacks UR
Flush mount unit provides single or duplex standard bulkhead F-connector for CATV or other
video applications. UL Listed and CSA Certified.
Cat No.– Cat No.– Cat No.–
Ivory White Almond Description
80781-I 80781-W 80781-A E Flush Mount Single F-Connector
80782-I 80782-W 80782-A F Flush Mount Duplex F-Connector
Cat No.– Cat No.– Cat No.– Cat No.– Cat No.–
Brown Ivory White Gray Almond Description
40681 40681-I 40681-W 40681-GY 40681-A GSingle F-Connector, polybag
40682 40682-I 40682-W 40682-GY 40682-A Duplex F-Connector, polybag
H
Midway Coax Wallplates
Nylon midway size wallplates without F-connector
Cat No.– Cat No.– Cat No.– Cat No.–
Ivory White Brown Almond Description
40539-OMI 40539-OMW 40539-OMB 40539-OMA HSingle F-Connector Wallplate
40539-HMI 40539-HMW 40539-HMB 40539-HMA Hex Hole Wallplate —No Connector
C
40 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Custom Video, Cabling & Distribution
CUSTOM INSTALLATION PRODUCTS
CUSTOM VIDEO
Leviton Custom Installation products are designed for large-premise and retrofit applica-
tions, where a high degree of customization is required and installation space may be at a
premium. Custom Video includes in-wall modulators, multi-room distribution and IR
signal control over coaxial cable for making the most out of an existing cable infrastruc-
ture. Cable Distribution offers the same voice & data communications connection and
patching products proven in demanding commercial applications. Optical Fiber is based
on Levitons renowned Thread-Lock®technology, the first residential-friendly” fiber
termination system through its time-saving installation procedure and reusable design.
Cat No. Description
40856-DSS A DSS 75 Ohm and 2.0gHz Combiner/Duplexer, gold plated, carded unit pack
DSS 75 Ohm and 2.0gHz Combiner/Duplexer with DC Blocking
Connects one antenna/cable TV input and one DSS 2.1 gHz input, to one combined output.
A
Cat No. Description
40866-DSS B DSS Signal Amplier, gold plated, carded unit pack
DSS Signal Amplifier
Provides 12 dB in-line signal amplification.
B
Cat No. Description
47690-6S C Coaxial Surge Suppressor, carded unit pack
Coaxial Surge Suppressor
Maximum surge current of 5000 Amps. 0.3 dB maximum insertion loss at 5 MHz–1000 MHz.
Splitters and Termination Cap for F-Connector Jacks
Splits 75 Ohm CATV signal into 2, 3, or 4 signals. Standard F-connector input and outputs. Die-
cast body is configured with mounting tabs and ground screw.
C
Cat No. Description
C5002-CP D 2-Way Splitter, contractor pack, 12/box
C5002 2-Way Splitter, carded unit pack
C5002-GO 2-Way Splitter, gold plated, carded unit pack
40987-2 2-Way Splitter, gold plated, individual polybag pack
C5003 E– 3-Way Splitter, carded unit pack
40987-3 3-Way Splitter, gold plated, individual polybag pack
C5004 F 4-Way Splitter, carded unit pack
C5004-GO 4-Way Splitter, gold plated, carded unit pack
40987-4 4-Way Splitter, gold plated, individual polybag pack
40984 GTermination cap for F-connector jacks (bag of 25)
G
DE
F
2-,3- and 4-Way Splitters
41
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Custom Video, Cabling & Distribution
Push-On Male F-Connectors for 75 Ohm Coaxial Cable
Available in Quick and Universal styles, Levitons Push-On F-Connectors are an easy-to-use, cost-
effective solution for termination of 75 Ohm RG59, RG-6 and Quad coaxial cable. Innovative
Universal push-on rubber cap requires no crimping tools. F-connector style adds metal collar to
the Universal rubber cap for fast and easy, adds, moves and changes. Strip tool is included.
Cat No. Description
40985-HPC A– Universal F-Connector (bag of 100)
40985-HPM B– Quick F-Connector (bag of 20)
Twist-On Male F-Connectors
Terminate 75 Ohm coaxial cable with a twist-on male F-connector. No crimping tools required.
Cat No. Description
C– Twist-On F-Connector for RG-59
40985-TW9 Bulk polybag pack, 100 connectors per polybag
C5203 2 per carded unit pack
C5203-G 2 per carded unit pack, gold plated
C5203-CP Contractor pack, 25 connectors per unit, rack pack carton
D– Twist-On F-Connector for RG-6
40985-TW6 Bulk polybag pack, 100 connectors per polybag
C5008 2 per carded unit pack
C5008-G 2 per carded unit pack, gold plated
C5008-CP Contractor pack, 25 connectors per unit, rackpack carton
D
Cat No. Description
40986 E– In-line splice coupler (bag of 100)
In-Line Splice Coupler
Double female F-connector for use in splicing two cable runs together. Attaches to male
F-connectors.
E
F
Note: Retainer nut for wallplate mounting not provided.
Cat No. Description
C5914 H– Coaxial stripping tool
Coaxial Stripping Tool
Designed for easy, one-step cable stripping, this contractor-grade stripping tool has an adjustable
blade that adapts to different cable sizes; RG-6, RG-58 and RG-59.
H

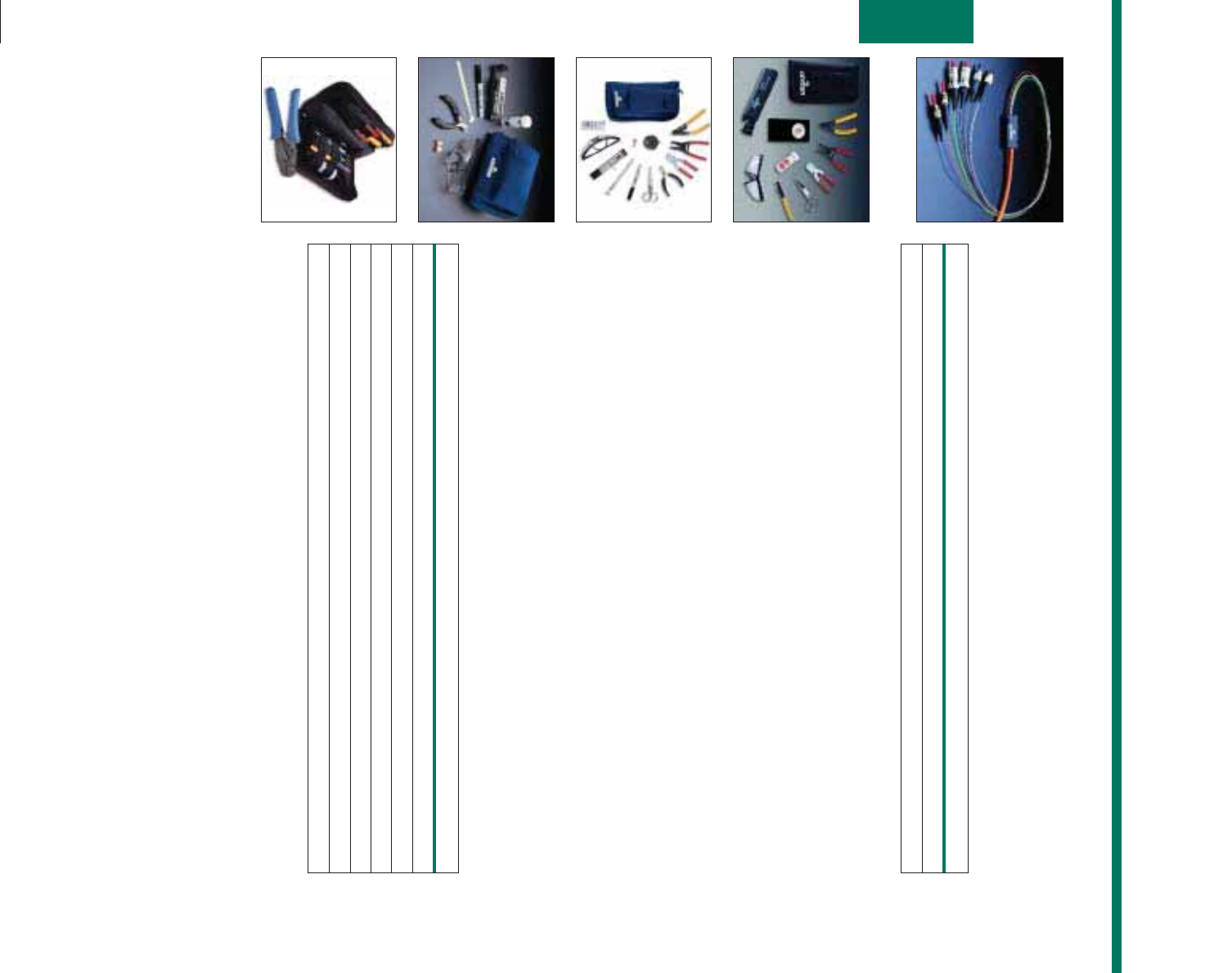

Residential Tool Kit
Residential Tool Kit provides everything needed to install coaxial cable and UTP wire in residential
or small office installations. The kit comes with everything you need, including a High-Impact
Punch-Down Tool with 110 Blade, a 2 Step Coaxial Cable Stripper, an EZ-RJ45™ Crimp Tool with 10
EZ-RJ45 connectors, a Round Wire Cable Cutter, a UTP Stripper and a 6-in-1-Head Screwdriver.
Cat No.–Ivory Description
40812-RTK F Residential Tool Kit
G
Cat No. Description
49553-814 GHigh-Impact Wire Punchdown/Termination Tool (blades sold separately)
49553-110 110 IDC Blade
49553-66 66 Clip Blade
High-Impact Wire Punchdown/Termination Tool
Versatile punchdown/termination tool makes reliable connections on a variety of wire termination
blocks. Its adjustable impact setting enables wires to be terminated with less effort than with other
impact tools.
A
B
C
Custom Video, Cabling & Distribution
42 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Cat No. Description
40867-DSS A– DSS 2-Way Splitter, gold plated, carded unit pack
DSS 2-Way Splitter
Connects one input to two outputs. All ports 2.1 gHz
A
Cat No. Description
40868-DSS B– DSS 4-Way Splitter, gold plated, carded unit pack
DSS 4-Way Splitter
Connects one input to four outputs. All ports 2.1 gHz.
B
Cat No. Description
40871-25W C– 25' Quad shield cable, gold plated, carded unit pack
40871-50W D– 50' Quad shield cable, gold plated, carded unit pack
40871-CW E– 100' Quad shield cable, gold plated, carded unit pack
RG6 Quad Shield Cables
Digital cable, gold plated "F" plugs.
C-E
Cat No.–White Cat No.–Black Description
F– Coax Cable Clips
C5811 C5812 10 per carded unit pack
C5811-WCP
Contractor pack, 50 clips per unit, rack pack carton
Coax Cable Clips
Nail-in clips to manage RG-59 or RG-6 coaxial cable.
F
Cat No. Description
C5229 G Video Adapter—1 "F" Jack to 1 RCA Plug
Video Adapter—1 F-Connector to 1 RCA Plug
Converts RCA plug to 75 Ohm F-connector connection.
G
Cat No. Description
C5205 H– RCA to F-Type Video Adapter, carded unit pack
RCA to F-Type Video Adapter—1 F Jack to 1 RCA Jack
Used for connecting a 75 Ohm female jack to RCA plug connection.
H
Custom Video, Cabling & Distribution
43
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538

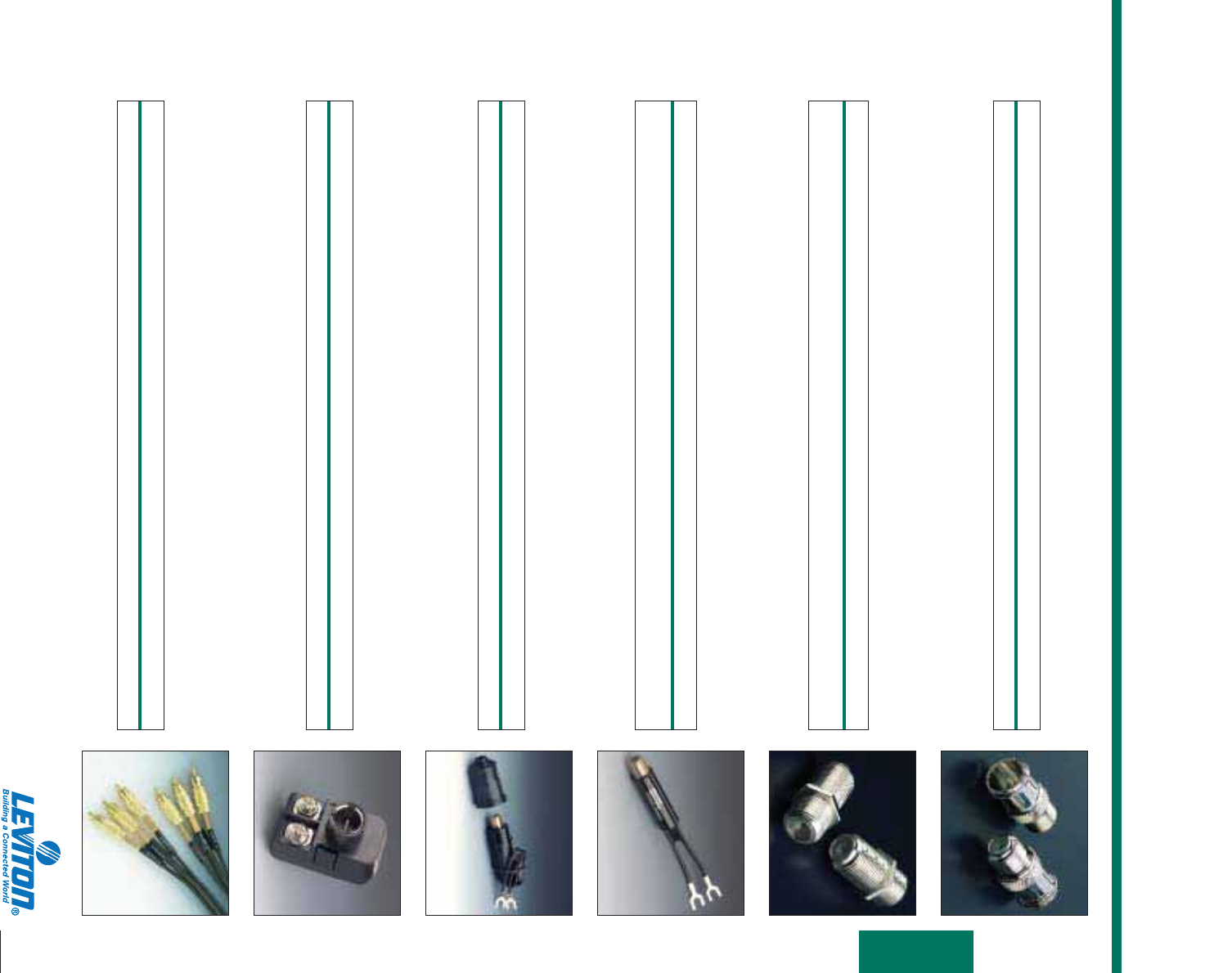

Cat No. Description
C5235 A– Push-on connector, 2 per carded unit pack
75-Ohm Push-On Connector
Converts 75 Ohm twist-on connection to 75 Ohm push-on connection.
A
Cat No. Description
C5259 B– In-line cable connector, 2 per carded unit pack
C5259-GO In-line cable connector, gold plated, 2 per carded unit pack
75-Ohm In-Line Cable Connector
Connects two cables that terminate in F plugs. Includes mounting nut.
B
Cat No. Description
C5052 C– Indoor matching transformer, carded unit pack
C5052-GO Indoor matching transformer, gold plated, carded unit pack
Indoor Matching Transformer
Converts 75-Ohm incoming signal to 300 Ohm.
C
Outdoor Matching Transformer
Converts 300-Ohm incoming signal to 75 Ohm. Includes waterproof slip-on boot.
D
Cat No. Description
C5053 D– Outdoor matching transformer, carded unit pack
Push-On Matching Transformer
Converts 300-Ohm incoming signal to 75 Ohm.
E
Cat No. Description
C5055 E– Converts 300 Ohm incoming signal into 75 Ohm.
Deluxe Shielded Composite A/V Cable
High-quality wire and extra shielding. Gold-plated RCA plugs with strain-relief. Permits connec-
tion between A/V components.
F
Cat No.–Black Description
C5822-GO F Stereo Dubbing Cable, carded unit pack
Custom Video, Cabling & Distribution
44 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
6' Composite A/V Cable
High-quality wire and extra shielding. Permits connection between A/V components.
A
B
Cat No.–Black Description
C5822 A– 6’ Stereo Dubbing Cable, carded unit pack
6' Composite A/V Cable,Gold-Plated
Molded gold-plated RCA plugs with strain-relief. Permits connection between A/V components.
Cat No.–Black Description
C5856-GO B– 6’ Stereo Dubbing Cable, gold plated, carded unit pack
F
In-Line RCA Coupler
Connects two RCA plug audio cables together in-line.
Cat No. Description
C5255 F In-Line RCA Coupler, carded unit pack, nickel
G
RCA Y Adapter, 1 RCA Jack to 2 RCA Plugs
Splits RCA audio cable into two cables when the two cables have a plug on one end and
jack on the other.
Cat No.–Black Description
C5402 G RCA Y Adapter, carded unit pack
C-D
RCA Coax Cable
Cat No.–Black Description
C5852-6GO C– 6’ RCA Coax Cable, gold plated, carded unit pack
C5852-12G D– 12’ RCA Coax Cable, gold plated, carded unit pack
Cat No.–Black Description
C5853-6 E– 6’ SVHS Cable, carded unit pack
6' S-Video Cable
Male-to-male plug. Designed for use with Super VHS video systems. Connects the SVHS TV
to the SVHS VCR.
E
Custom Video, Cabling & Distribution
45
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538

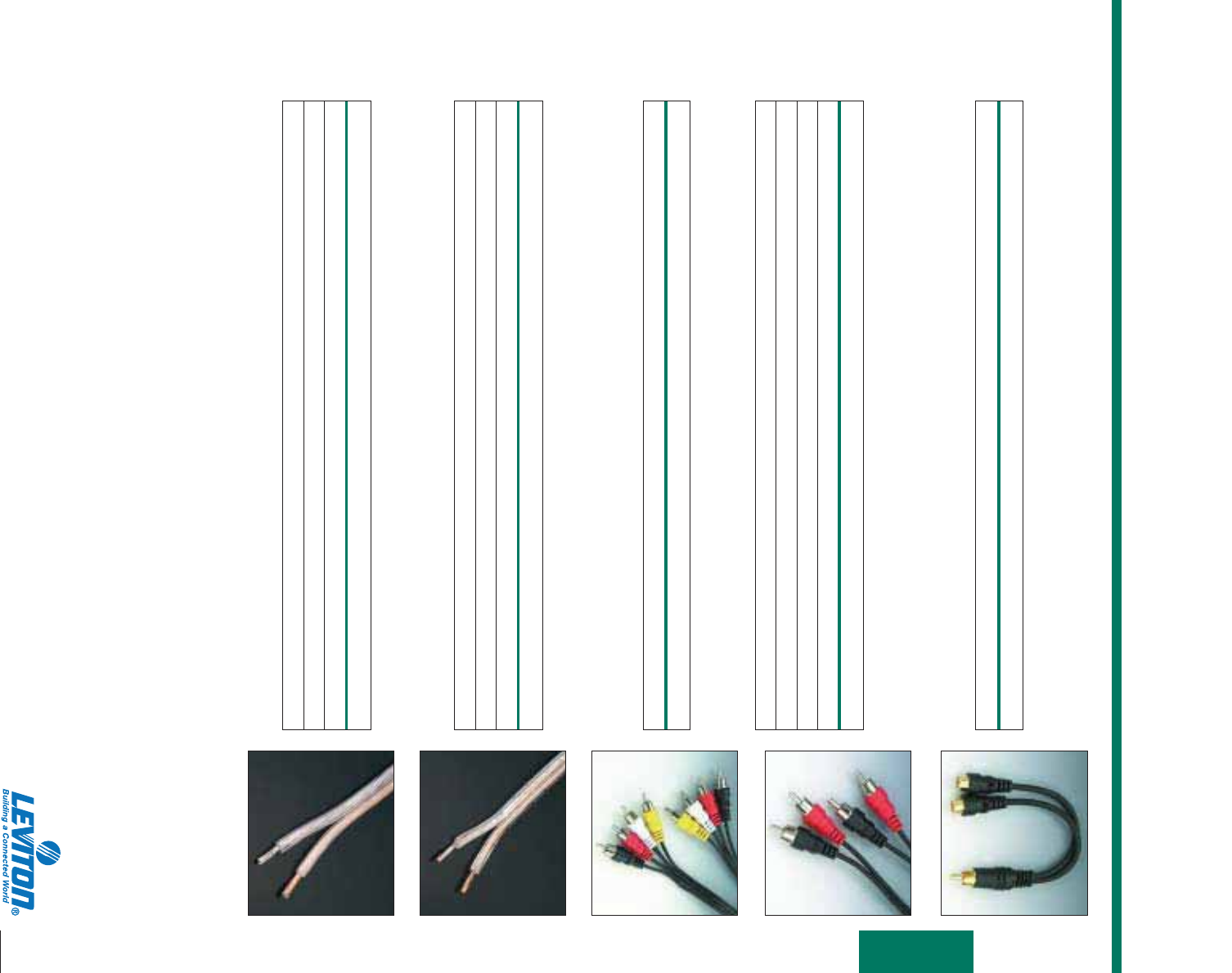

RCA Y Adapter, 1 RCA Plug to 2 RCA Jacks
Splits RCA audio cable into two cables when new cables have plugs on one end and jacks on the
other end or splits audio signal out of amplifier.
A
Cat No.–Black Description
C5405 A– RCAY Adapter, carded unit pack
B-E
Stereo Shielded Cable,2 RCA Plugs to 2 RCA Plugs
Red and black plugs on both ends.
Cat No.–Black Description
C5451-3 B– 3' Shielded Stereo Cable, carded unit pack
C5451-6 C– 6' Shielded Stereo Cable, carded unit pack
C5451-6GO D– 6' Shielded Stereo Cable, carded unit pack, gold-plated plugs
C5451-12 E– 12' Shielded Stereo Cable, carded unit pack
F
RCA Patch Cable—4 RCA Plugs to RCA Plugs
Yellow, white, red and black plugs on both ends.
Cat No.–Black Description
C-5454-3 F Black Cable with Color-Coded Plugs (Y-W-R-B)
H-J
18/2 AWG Speaker Wire
Cat No.–Clear Description
X3301-25C H– 18/2 AWG Speaker Wire, 25 ft., sleeve unit pack in carton
X3301-50C I 18/2 AWG Speaker Wire, 50 ft., sleeve unit pack in carton
X3301-100 J 18/2 AWG Speaker Wire, 100 ft., sleeve unit pack in carton
K-M
14/2 AWG Speaker Wire
Cat No.–Clear Description
X3324-25C K– 14/2 AWG Speaker Wire, 25 ft., sleeve unit pack
X3324-50C L 14/2 AWG Speaker Wire, 50 ft, sleeve unit pack.
X3324-100 M14/2 AWG Speaker Wire, 100 ft., sleeve unit pack
46 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Custom Video, Cabling & Distribution

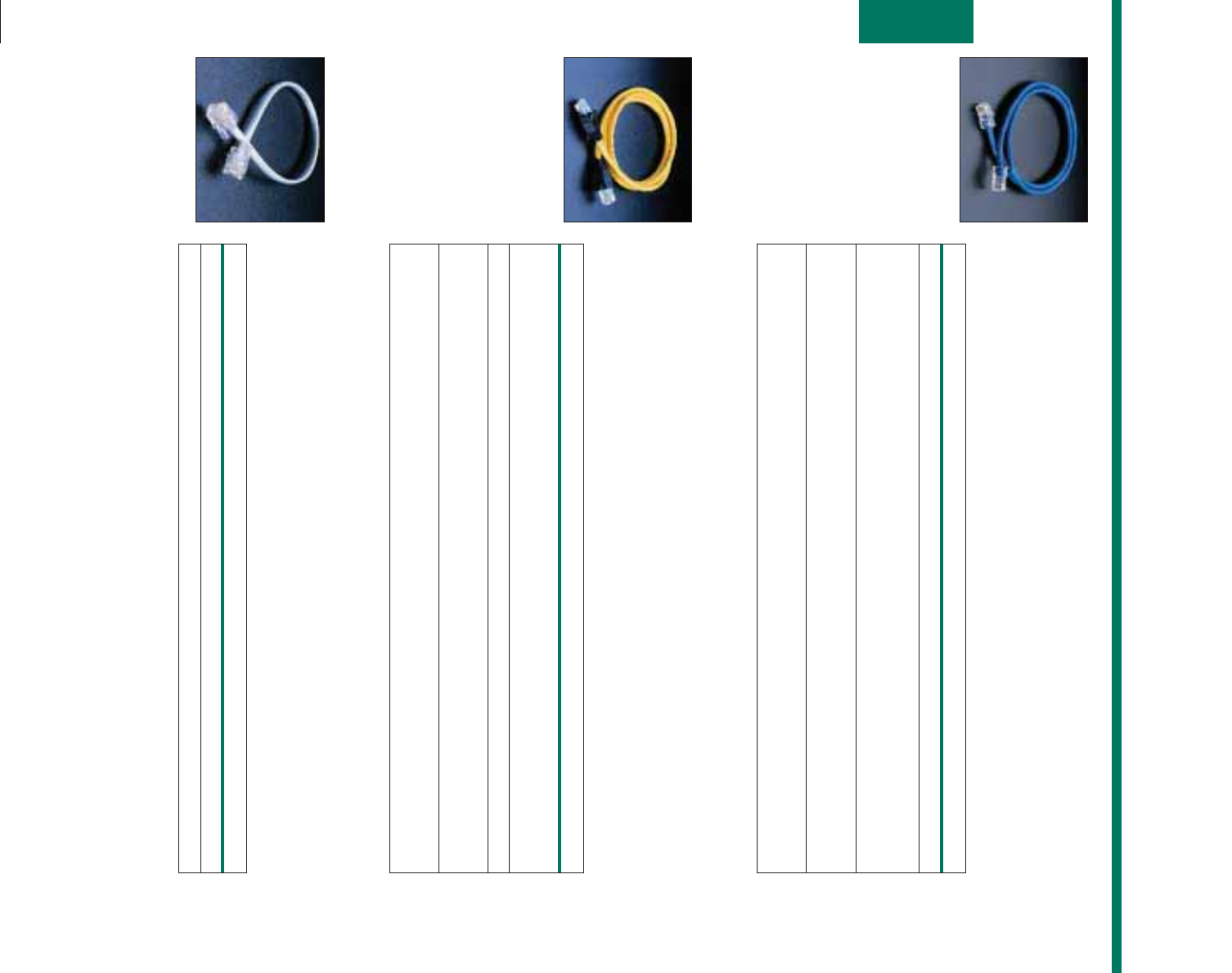

A–D
E–H
Cat No. Description
47620-1W A– 1 ft Patch Cord, Individual polybag pack, white only
B– 3 ft Patch Cord
52455-3* Individual polybag pack
52454-3R Carded unit pack, rack pack carton, blue only
47620-3W Individual polybag pack, white only
C– 7 ft Patch Cord
52455-7* Individual polybag pack
52454-7R Carded unit pack, rack pack carton, blue only
D– 15 ft Patch Cord
52455-15* Individual polybag pack
52454-15R Carded unit pack, rack pack carton, blue only
Category 5 Patch Cords
Leviton Category 5 patch cords are compliant with the latest standards, including TIA/EIA TSB-95,
meeting and exceeding a full range of patching performance requirements. All have superior
quality construction to maintain the integrity of signal transmission at the cross-connect, which is
critical to the performance of the entire cabling system. They can be used to connect a number
of SMC Modules, including the Decora Media System, 10/100 Switch, Internet Gateway and
Category 5e Voice and Data Module.
Cat No. Description
E– 3 ft Patch Cord
5G455-3* Individual polybag pack
5G454-3R Carded unit pack, rack pack carton, yellow only
5G455-5* F 5 ft Patch Cord, Individual polybag pack
G 7 ft Patch Cord
5G455-7* Individual polybag pack
5G454-7R Carded unit pack, rack pack carton, yellow only
H– 15 ft Patch Cord
5G455-15* Individual polybag pack
5G454-15R Carded unit pack, rack pack carton, yellow only
GigaMaxCategory 5e Patch Cords
Leviton GigaMax Category 5e patch cords meet the very latest TIA/EIA TSB-95 guidelines for sup-
porting 1000 Base-T gigabit applications. Superior quality guarantees no-risk data transmission
with soaring headroom over industry guidelines. They can be used to connect a number of SMC
Modules, including the Decora Media System, 10/100 Switch, Internet Gateway and Category 5e
Voice and Data Module.
*Colors: White(W), Red(R), Yellow(Y), Green(G), Blue(L), Grey(S), Black(E)
*Colors: White(W), Red(R), Yellow(Y), Green(G), Blue(L), Grey(S), Black(E)
ICat No. Description
42400-G IFlat Cordage Patch Cord, 7" long
42400-8FG 8P8C Patch Cord, 8" long
4- or 8-Conductor Telephone Patch Cords
Flat cordage patch cord used to connect the Telephone Distribution Module to the Category 5
Voice and Data Module, providing a dial tone instantly to any room of the home, with easy adds,
moves and changes.
47
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Custom Video, Cabling & Distribution
A
Cat No. Description
47613-EZC AEZ-RJ45 Connectors (bag of 50)
47613-EZR EZ-RJ45 Connectors (10 per clamshell)
40989-RCT BEZ-RJ45 Crimp Tool
EZ-RJ45 Connectors and Crimp Tool
Connectors and EZ-RJ45 Crimp Tool provide quick, cost-effective UTP wire terminations. The
high-quality connectors, terminated with our EZ-RJ45 Crimp Tool, feature openings that allow
wires to be inserted and extended out the front for increased performance, wire sequence verifica-
tion, and no wasted connectors, crimps, or bad terminations.
Cat No. Description
One-Piece Crimp-On F-Connector for RG6 Quad Shield
40985-Q6 Bulk polybag pack, 100 connectors per pack
COne-Piece Crimp-On F-Connector for RG59
40985-1P9 Bulk polybag pack, 100 connectors per pac
C5307 2 per carded unit pack
C5307-G 2 per carded unit pack, gold plated
C5307-CP Contractor pack, 25 connectors per unit, rack pack carton
DOne-Piece Crimp-On F-Connector for RG6
40985-1P6 Bulk polybag pack, 100 connectors per pack
ETwo-Piece Crimp-On F-Connector for RG59
40985-2P9 Bulk polybag pack, 100 connectors per pack
C5009 4 per carded unit pack
C5009-G 2 per carded unit pack, gold plated
FTwo-Piece Crimp-On F-Connector for RG6
40985-2P6 Bulk polybag pack, 100 connectors per pack
C5007 2 per carded unit pack
C5007-CP Contractor pack, 25 connectors per unit, rack pack carton
1-Piece and 2-Piece Crimp-On F-Connector
Terminates 75 OHM coaxial cable with crimp-on male F-connector. A crimping tool is required.
Comes in either a 2-piece version with separate crimp ring, or a 1-piece version with crimp ring
attached. Both RG-59 and RG-6 versions available
C
E
B
F
D
Cat No. Description
47615-NYL Push-Lock Pins—(bag of 20)
Push-Lock Pins
Use Leviton Push-Lock Pins to secure Structured Media Modules into your Structured Media
Enclosure. Each bag contains 20 replacement pin-and-base sets.
Use our Push Pins for installation of Expansion Boards on page 11
48 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Custom Video, Cabling & Distribution

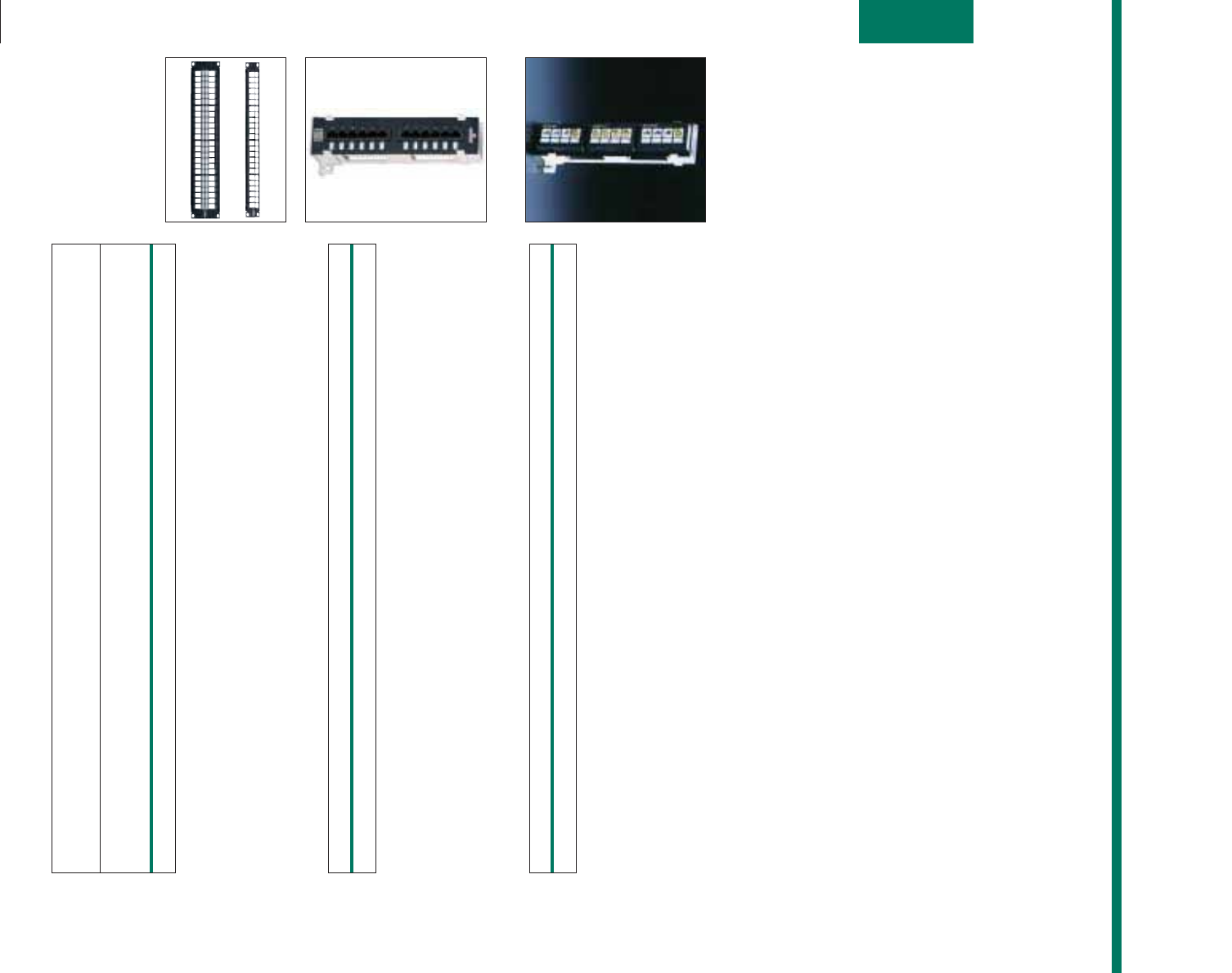

Patch Blocks and Panels
When a distribution panel enclosure doesnt provide the space or wire management necessary to
support a wiring consolidation point, Leviton patch blocks can provide a customized cabling solu-
tion. Installers can lay out the products of their choice on a wall or plywood base (backboard) to
build the exact configuration to meet their needs. All patch blocks fit into a standard “89D foot-
print” to facilitate space planning.
QuickPort®12-Port Multimedia Patch Block
It can be field-configured with QuickPort snap-in modules to support a full range of low-voltage
voice and data applications, and Category 5e and eXtreme applications. Provides custom-config-
urable cross-connects with all the performance of higher density products.
Snap-in module retention plates are accessible from the front side to simplify connector and cable
administration. This patch block also comes with an 89D mounting bracket and port identification
strips. Patch block is UL listed.
Cat No. Description
47689-QP A– QuickPort 12-port multimedia patch block
CABLING DISTRIBUTION
Levitons cabling distribution products for residential and small office environments
feature several excellent options for multimedia, 110 and 66-clip connectivity. The
QuickPort® Multimedia Patch Block and 12-Port Category 5e Patch Block are ideal for
small-scale network installations or additions, using twisted pair cabling where a wall-
mounted or low-profile solution is required. Voice and low-speed data applications such
as networks, fax machines, intercom systems and PBXs can be connected with Levitons
high-density M blocks—a well known standard for contractors and telecom profession-
als. Two types of patch panels are available: pre-configured Category 5e patch panels
with 12 or 24 Category 5e connectors to meet the needs of high-speed data applications,
or empty QuickPort®patch panels which can be configured on-site with 24 or 48
QuickPort snap-in modules (sold separately) for those high-media-density installations.
A
Cat No. Description
5G584-U89 B– 12-port Universal Category 5e Patch Block, includes mounting bracket
B
12-Port Universal Category 5e Patch Block
For smaller, wall-mount installations, this 12-port patch block is the ideal low-profile solution.
Pre-configured with twelve Category 5e connectors, this universal block is suitable for T568A or B
configurations, and comes complete with a mounting bracket and white write-on areas
silkscreened beside the connectors to help identify port assignments. The patch blocks are UL
Listed and fully comply with FCC Part 68. Dimensions: 10.0"H.x 2.375"W.
Cat No. Description
49255-H24 C– High Density 24-Port Patch Panel w/Wire Management Bar
(1.75"H.x 19"W.)
49257-I24 Order 1 Port identication kit
49255-H48 D– High Density 48-Port Patch Panel w/Wire Management Bar
(3.5"H.x 19"W.)
49257-I24 Order 2 Port identication kits
QuickPort®Patch Panels
QuickPort patch panels can be field-configured with any QuickPort snap-in modules to maximize
versatility, appearance, and ease of installation and upgrades. Choose from a 24-port or 48-port
high-density panel for small- or large-scale network installations. Both panel versions also
include a rear wire management bar. They are UL Listed and CSA Listed. Port identification kits
are sold separately.
C
D
49
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Custom Video, Cabling & Distribution
Universal Category 5 and GigaMax5e Patch Panels
The 12 and 24-port Category 5 and GigaMax™ 5e patch panels are pre-configured
with Category 5 and 5e connectors. White write-on areas are silk-screened beside the
connectors for ease of identification. The panels mount in standard 19" EIA
Equipment racks and accommodate top, bottom, or side cable entry. The panels are
UL Listed, meet National Electrical Code requirements and specifications for UL
1863, and fully comply with FCC Part 68 and TIA/EIA-568-B Category 5 and 5e.
Cat No. Configuration Description
59484-U12 T568A/B A 12-Port Patch Panel–CAT 5
59484-U24 T568A/B 24-Port Patch Panel–CAT 5
5G484-U12 T568A/B 12-Port Patch Panel–CAT 5e
5G484-U24 T568A/B 24-Port Patch Panel–CAT 5e
Hinged Wall Mount Brackets
Use these brackets to mount patch panels and cable management without the use of a rack.
Compatible with Category 5 patch panels and QuickPort®patch panels.
Cat No. Description
49251-W62 B– 2-position (3.5"H.x 6.0"D.) hinged wall mount bracket
49251-W63 3-position (5.25"H.x 6.0"D.) hinged wall mount bracket
49251-W64 4-position (7.0"H.x 6.0"D.) hinged wall mount bracket
Designation Labels
Identify the services coming to and from wall outlets, distribution panels and patch blocks with
these attractive, yet non-permanent designation labels. Ten sheets of clear, self-adhesive labels
per unit kit, 94 labels per sheet. Printed in black ink.
Cat No. Description
40740-BE Designation Labels, individual polybag pack, order in increments of 10
Phone-1 Security Video-In Antenna-In
Phone-1 Security Video-In Antenna-In
Phone-1 Alarm Video-In CableTV-In
Phone-2 Alarm Video-In CableTV-In
Phone-2 Printer Video-Out CableTV-In
Phone-2 Printer Video-Out CableTV-Out
Phone-3 Fax Video-Out CableTV-Out
Phone-3 Fax Video-Out CableTV-Out
Bedroom-1 Modem Remote-In Satellite-In
Bedroom-1 Modem Remote-In Satellite-In
Bedroom-2 Modem Remote-Out Satellite-Out
Bedroom-2 Garage Remote-Out Satellite-Out
Bedroom-3 Garage Speaker-1 Speaker-4
Bedroom-3 Den Speaker-1 Speaker-4
Bedroom-4 Den Speaker-2 Speaker-5
Bedroom-4 Family Room Speaker-2 Speaker-5
Ofce TV-1 In Speaker-3 Speaker-3
Ofce TV-1 Out IN OUT
Living Room TV-2 In IN OUT
Living Room TV-2 Out Audio Left-In Audio Left-Out
Kitchen TV-3 In Audio Left-In Audio Left-Out
Kitchen TV-3 Out Audio Right-In Audio Right-Out
Basement VCR-In Audio Right-In Audio Right-Out
Basement VCR-Out LEVITON OX-57819
PHONE
Actual Label size
.625" x .1875"
B
A
50 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Custom Video, Cabling & Distribution

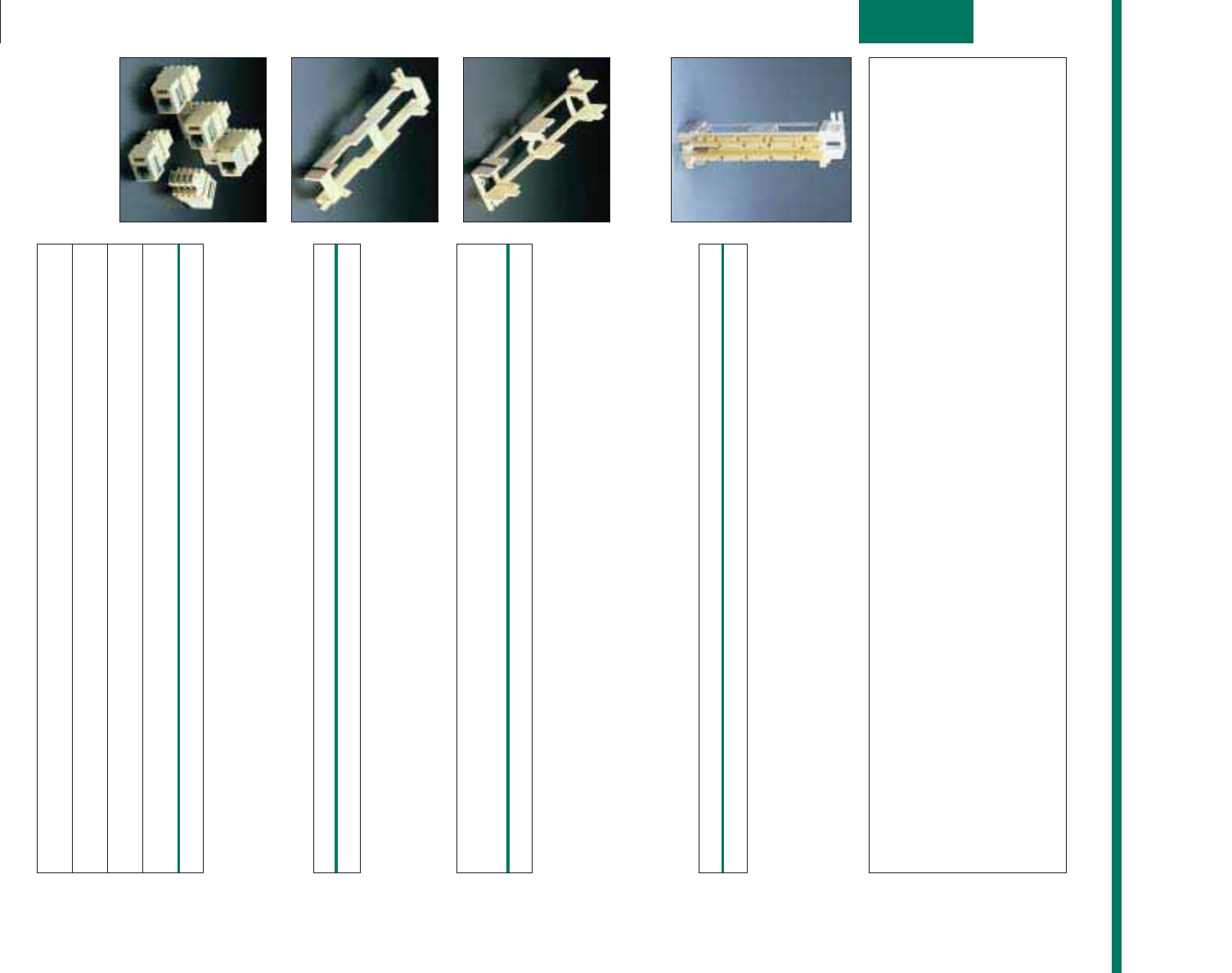

Cat No. Description
47690-110 A– Distribution Block with 110 Connectors
Distribution Block with 110 Connectors
50-pair 110 distribution block can be used as a termination point for all high-density voice and
data cabling applications, including Category 5 Power Sum. Kit includes an 89D bracket, port
identification strips, and C-4 and C-5 connectors.
APPLICATION NOTE
110 BLOCKS
110-Type Connections vs.66-Clip Connections
Leviton recommends the use of products with 110-type connectors over those with 66-clips. However, many
installers have different preferences, which is why Leviton offers some 66-clip products in addition to those
with 110-type connectors.
66-clip blocks have been the standard for voice connections for many years. Although 66-clip blocks have been
used for data, the 110 termination block may be a better choice. Both 66 and 110 blocks are insulation dis-
placement connection (IDC) devices, which are key to reliable data connections. The 110-type connection
offers: [A] higher density (more wiring in a smaller space) and [B] better control (less movement of the wires at
the connection). Since more and more homes and small businesses are calling for both voice and data connec-
tions, it is easy to see why it makes sense to install 110-type devices in most situations.
A
Cat No. Description
B– M Block Bracket for Jack/Connector Mounting Type 89D
40089-D Individual polybag pack
40089-DBR Individual poly bag pack, rack pack carton
M Block Bracket for Jack/Connector Mounting Type 89D
Stand-off mounting bracket for 25- and 50-pair M blocks is open at top and bottom so that
installers may mount bracket and lay cable, then install connecting blocks easily at a later date.
Dimensions: 10"H.x 3.46"W.x 1.5"D.
66-CLIP BLOCK ACCESSORIES
B
Cat No. Description
40089-B C– Standoff Mounting Bracket for M Blocks Type 89B
Standoff Mounting Bracket for M Blocks Type 89B
Stand-off mounting bracket for 25- and 50-pair M blocks is open at top and bottom so that
installers may lay cable and mount bracket, then install connecting blocks easily at a later date.
Dimensions: 10"H.x 3.41"W.x 1.5"D.
C
Cat No. Description Application
40072-T2 D2-position modular adapter Converts two 66-clip contacts into a
(Tap™-2) 6-position, 2-conductor modular jack.
40072-T4 E4-position modular adapter Converts four contacts into a
(Tap™-4) 6-position, 4-conductor modular jack.
40072-T6 F6-position modular adapter Converts six contacts into a
(Tap™-6) 6-position, 6 conductor modular jack.
40072-T8 G8-position modular adapter Converts eight contacts into an
(Tap™-8) T568B wiring 8-position, 8-conductor non-keyed modular jack
Modular Adapters
Plug into M blocks to convert 66-clip contacts to a modular jack for quick connection of
equipment. These products are typically used for testing and temporary connections.
D-G
51
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Custom Video, Cabling & Distribution
Cat No. Description
40054-DS A– Distribution Spool without captive screw (20-A)
40054-DSS B– Distribution Spool with captive screw (20-B)
Wire Distribution Spools
Facilitate routing and fanning of cable, cross-connections, and jumper wires to any connection
apparatus. Mount conveniently on backboard of distribution frame. Dimensions: 1.75" Dia. x 3"H. A
B
Cat No. Description
40056-DSM C– Designation Strip for M Blocks
Designation Strip for M Blocks (D-10)
Strip snaps onto fanning strips of M blocks to identify pair assignments.
C
Cat No. Description
40066-M25 D– M Block: 25-pair
M Block:25-pair (66M1-25)
25-pair M block contains 50 rows, each with a single clip having four slots. Incoming cable pairs
(“tip” and ring”) are connected by terminating tip” on the leftmost slot of one row and ring” on
the leftmost slot of the next lower row. The three remaining slots in each clip are available for
cross-connects. Dimensions: 10"H.x 3.31"W.x 1.19"D.
66-CLIP BLOCKS (Numbers in parentheses refer to industry product designations)
D
Cat No. Description
E– Split M Block: 50-pair
40066-M50 Individual polybag pack, rack pack carton*
Split M Block: 50-pair (66M1-50)
Split M block, like the 25-pair M block, contains 50 rows of clips, but instead of one 4-slot clip,
each row contains two separate 2-slot clips. By terminating 25 incoming pairs on the slots of the
left-hand clips and an additional 25 pairs on the slots of the right-hand clips, 50 cross-connects
can be made. To make or eliminate connections even faster, bridging clips may be used to
connect the two adjacent sets of clips together. Dimensions: 10"H.x 3.31"W.x 1.19"D.
E
Cat No. Description
F Bridging Clips
40067-BC Bulk polybag pack, order in increments of 50
40067-CLP Bulk polybag pack, 50 clips per unit, rack pack carton
Bridging Clips (SA-1)
Bridging clips press onto the two center slots in any row of a Split M block. If outside cable pairs
are terminated on the left-hand clips and station equipment wire is terminated on the right-hand
clips, then connections can quickly be made or eliminated by simply inserting or removing the
bridging clips. They can also be used on other products that use 66 clips. Made of phosphor
bronze alloy, these clips provide long-term conductivity in even the most hostile environments.
Because of their durability, they can easily be removed and reused for rewiring.
F
B
52 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Custom Video, Cabling & Distribution

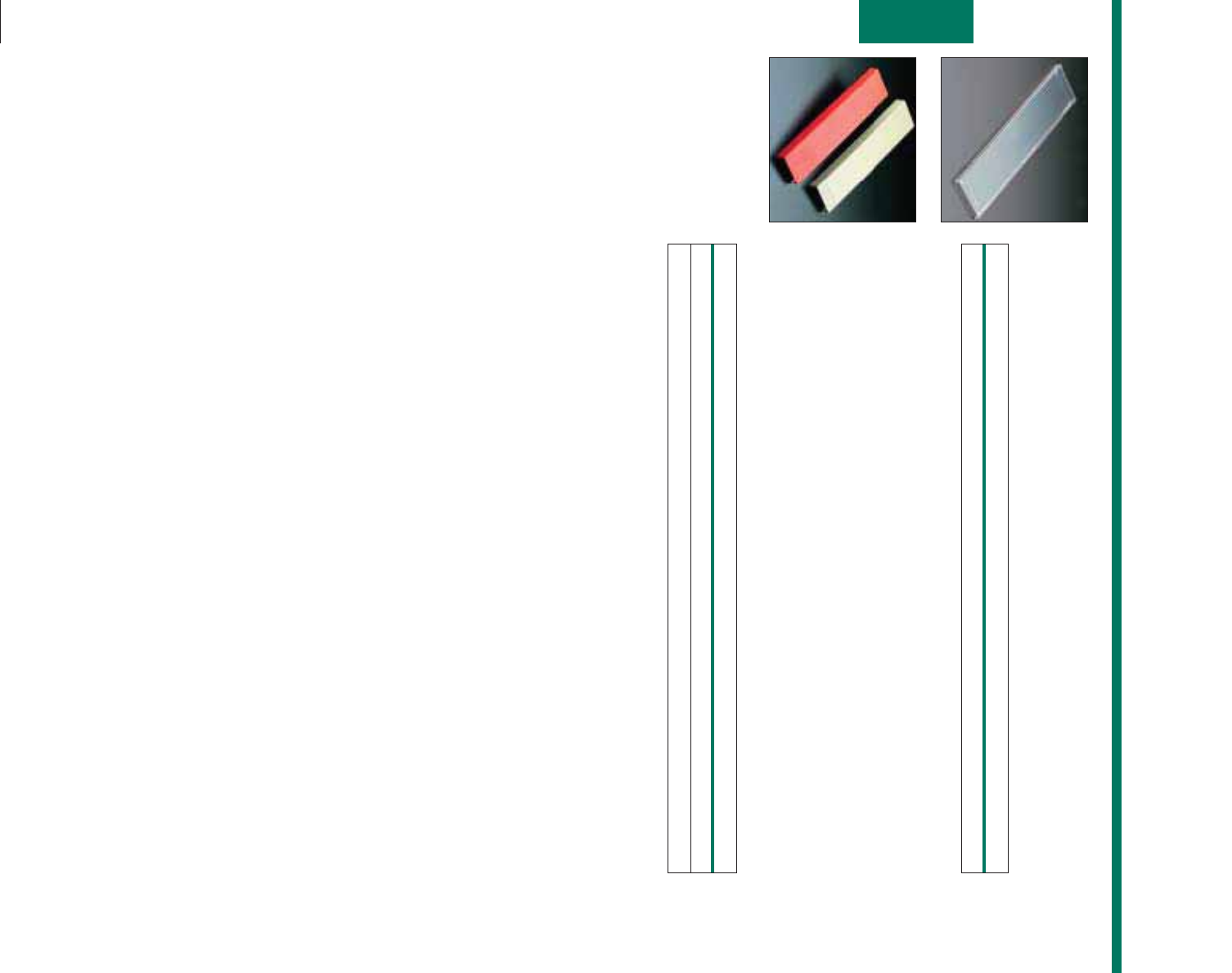

Snap-On Cover for M Blocks (66MC-4)
Durable cover snaps onto 25- and 50-pair M blocks to protect wiring from dust, dirt, and inciden-
tal shorting. Transparent plastic permits viewing of wiring and pair assignments.
Dimensions: 9.94"H.x 2.31"W.x .31"D.
A
Cat No.–Black Description
40050-MCV A– Snap-On Cover for M Blocks
Hinged Cover for Demarc Blocks (66MC4LH-O)
Orange-colored cover allows the easy identification of the network demarcation point. It snaps
onto the right side fanning strip of 25- and 50-pair M blocks to protect wiring from dust, dirt, and
incidental shorting. Allows wires to be routed from both the left and right sides. Designation strip
included on inside for recording pair assignments. Dimensions: 10"H.x 2.44"W.x .75"D.
Hinged Cover for M Blocks (66MC4LH-G)
Snaps onto the right side fanning strip of 25- and 50-pair M blocks to protect wiring from dust,
dirt, and incidental shorting. Allows wires to be routed from both left and right sides with inside
designation strip included for recording pair assignments. Dimensions: 10"H.x 2.44"W.x .75"D.
C
Cat No.–Black Description
40050-MHG B– Hinged Cover for M Blocks (grey)
40050-MHO C– Hinged Cover for Demarc Blocks (orange)
B
53
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Custom Video, Cabling & Distribution

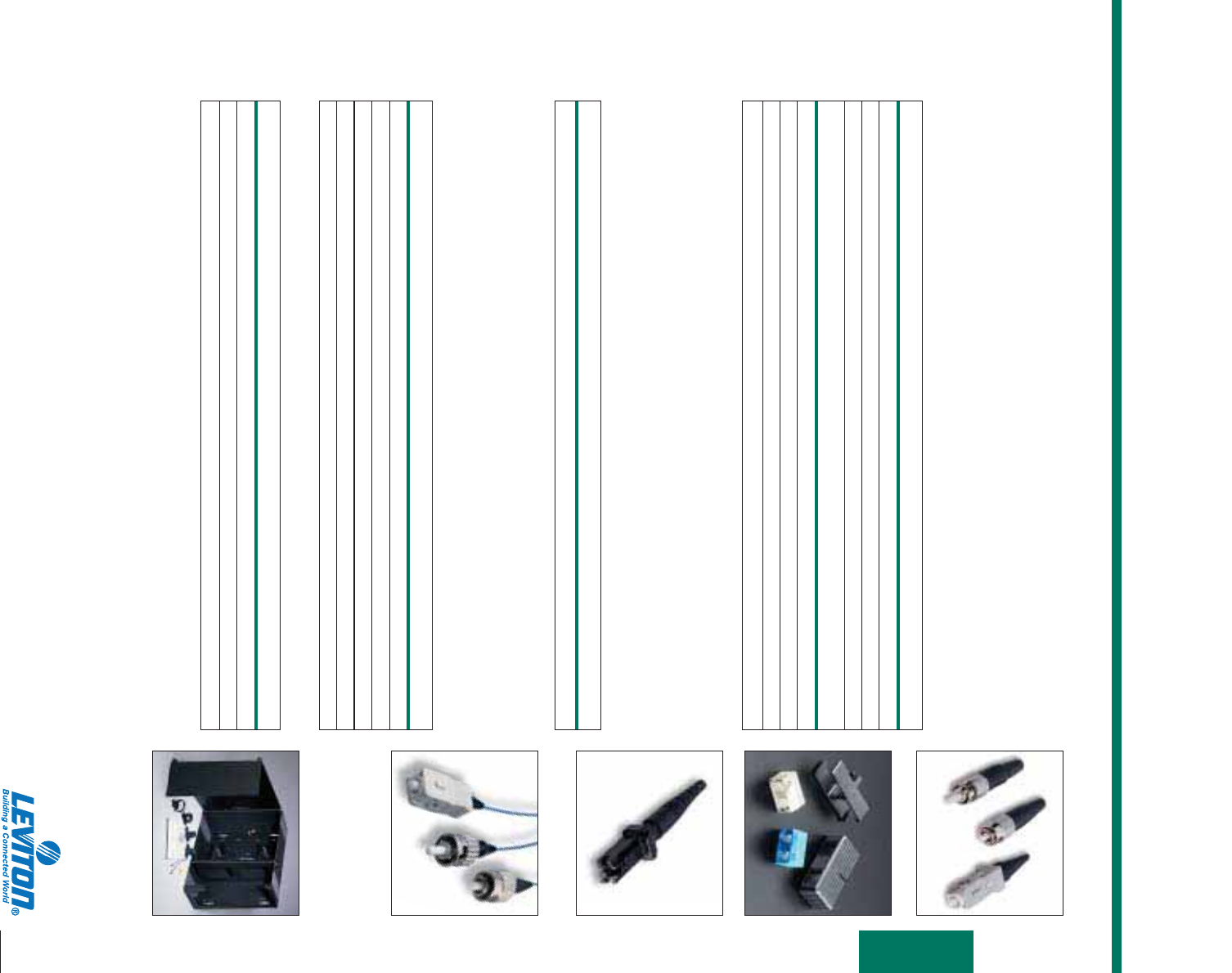

Cat No.–Singlemode Cat No.–Multimode Description
49884-SSC 49884-MSC A–SC Thread-Lock Connector
49882-SST 49882-MST B–ST®Thread-Lock Connector
49883-SFC 49883-MFC C–FC Thread-Lock Connector
Cat No. Description
49884-DPC D– SC Duplex Clip for Thread-Lock Connector, black (bag of 25)
49886-DSC E– SC Duplex Clip for Fast-Cure Connector, black (bag of 25)
49886-DLS FLC Duplex Connector for Fast-Cure Connector, blue (bag of 25)
49886-DLM G LC Duplex Clip for Fast-Cure Connector, beige (bag of 25)
Thread-Lock®Connectors
Award-winning Thread-Lock Connectors, available in SC, FC and ST®styles, are reusable, field-
terminable fiber optic connectors with a simple, craft-friendly installation. Bring high-speed fiber
to the home or small office. Combine with a QuickPort®adapter for use in a computer worksta-
tion or home theatre, or combine with a QuickPort Mounting Plate and Multimedia Adapter in the
Structured Media Center. No heat, epoxy or proprietary tools required. Silcone snap-on build-up
sleeves for easy installation. Available in multimode or singlemode versions for use with 62.5/125
and 50/125 fiber cable. Each box of 50 connectors includes one tightening tool.
Cat No.–Singlemode Cat No.–Multimode Description
49990-SST 49990-MST I ST Fast-Cure Adhesive Connector
49990-SSC 49990-MSC J SC Fast-Cure Adhesive Connector
49990-SFC 49990-MFC KFC Fast-Cure Adhesive Connector
49990-SL2 49990-ML2 LC Fast-Cure Adhesive Fiber Connector with 3mm boot
49990-SDL 49990-MDL LC Fast-Cure Adhesive Fiber Connector with 9mm boot
Fast Cure Adhesive Connectors
Leviton epoxy Fast Cure connectors, available in ST®, SC and FC styles, are reliable, cost-effective
fiber optic connectors with a quick, adhesive termination. Feature precision pre-radiused zirconia
ferrules, high cable retention crimp, and patented non-optical disconnect spacer design. Use with a
QuickPort adapter at the workstation, or combine with a QuickPort Mounting Plate and Multimedia
Adapter in your Structured Media Center. Available in multimode or singlemode versions.
Cat No.–62.5/125 Cat No.–50.0/125 Description
49888-6SF 49888-5SF HSpectro-Link MT-RJ Frame-Station Connector
Spectro-Link®Frame Station Connector
High-density small form factor fiber connectivity for the home or office. Spectro-Link Frame-
Station connectors use a cam technology to lock the fiber into a terminated position. Pair with an
MT-RJ QuickPort adapter to mount in any wallplate, or combine with a QuickPort Mounting Plate
and Multimedia Adapter for use in your Structured Media enclosure. Features a pre-polished rib-
bon fiber ferrule that eliminates polishing. Fiber can be tested and reterminated before crimping.
Multimode.
FIBER OPTIC CONNECTORS
C
A
B
G
DE
H
K
I
J
FEATURES
• Door is L-shaped for maximum access to couplings
through the open sidewall.
Door Options:
–Split with single lock
–Split with two locks
(custom option)
–Solid with single lock
–Solid without lock
K-N
Small Wall Mount Panels–8.0"H.x 13.0"W.x 3.5"D. UN
Cat No. Description
5W110-00N L Empty with Solid Metal Door, No Lock, boxed unit pack
5W120-00N MEmpty with Split Metal Door and One Lock/Key, boxed unit pack
5W170-00N N– Empty with Solid Metal Door and Lock/Key, boxed unit pack
• Unique cable management ring is adjustable and
stackable to simplify ber loop installation, bend
radius compliance, and future maintenance/additions.
Stores 3 meters of 900 micron ber per adapter.
• Houses two mounting plates for assorted ber or mul-
timedia applications, including ST, SC, FC, MT-RJ
and QuickPort.
• Sidewall cutout gives completely unobstructed
access to the bulkheads when door is open (covered
when door is closed).
F
54 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Optical Fiber
A
B
D
Cable Management Rings
Cable management rings can be stacked on top of existing rings for additional cable storage or
management or can stand alone. Can be used with Category 5 twisted pair wire or fiber optic cable.
Cat No. Description
5R100-0FR A– Fiber Optic Cable Management Rings, 2 per polybag pack
Cat No. Description
41084-S*Z BST Adapter, SM/MM, zirconia ceramic sleeve
41084-S*P BST Adapter, SM/MM, phosphor bronze sleeve
41084-F*Z CFC Adapter, SM/MM, zirconia ceramic sleeve
41084-F*P CFC Adapter, SM/MM, phosphor bronze sleeve
41085-S*C DSC Adapter, MM, phosphor bronze sleeve
41085-M*C DSC Adapter, SM, zirconia ceramic sleeve
49889-QF* E– Spectro-LinkMT-RJ Frame-Station Adapter
41085-ML* FQuickPort Duplex LC Adapter, SM/MM, Phos. Bronze Sleeve
41085-SL* GQuickPort Duplex LC Adapter, SM/MM, Zirconia Ceramic Sleeve
Fiber Optic QuickPort®Adapters
Bring ST®, SC, FC or MT-RJ fiber to any outlet or media enclosure with the QuickPort®ST, FC,
SC and MT-RJ Fiber Adapters. Snap-in connectors fit into any QuickPort Housing, including
wallplates, wallboxes and the Multimedia Adapter bracket (for mounting in a Structured
Media Enclosure).
FIBER OPTIC ADAPTERS
*= Color: Ivory(I), White(W), Grey(G), Black(E), Almond(A). **= Colors: Ivory(I), White(W), Grey(G), and Black(E)
IFiber Optic Adapters
Cat No. Description
49882-SAD H– STAdapter with Phosphor Bronze Sleeve, individual polybag pack
49884-BAD ISC Duplex Adapter with Phosphor Bronze Sleeve (beige)
Individual polybag pack
49884-MAD I SC Duplex Adapter with Phosphor Bronze Sleeve (blue)
Individual polybag pack
49884-SAD SC Duplex Adapter with Zirconia Sleeve (blue), individual polybag pack
49889-MAD J MT-RJ Adapter (beige) Dual Polarity Multimode, individual polybag pack
5F100-DLC KDuplex LC Adapter with Phosphor Bronze Sleeve (beige) (Pkg. of 25)
5F100-DLZ KDuplex LC Adapter with Zirconia Sleeve (blue) (Pkg. of 25)
5F100-QLC LQuad LC Adapter with Phosphor Bronze Sleeve (beige) (Pkg. of 25)
5F100-QLZ LQuad LC Adapter with Zirconia Sleeve (blue) (Pkg. of 25)
H
J
E
FG
C
L
K
55
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Optical Fiber
Leviton now offers an expanded line of low
cost, high quality fiber optic cable assemblies
and pigtail connectors for frame and worksta-
tion. Strenuously tested for return and inser-
tion loss, and held to strict internal quality
standards, these cords are developed to exceed
TIA 568-B.3 standards. The line includes stan-
dard and hybrid combinations of connectors,
as well as a selection of pre-polished pigtail
fiber connectors in ST, SC, FC, LC and MT-RJ
styles. We can even provide custom lengths and
configurations for fiber runs, to your exact
specifications—simply call Customer Service for more information.
Please Note—Custom lengths may require a waiting period. All cables are
OFN-riser rated and meet all applicable TIA/EIA and industry standards.

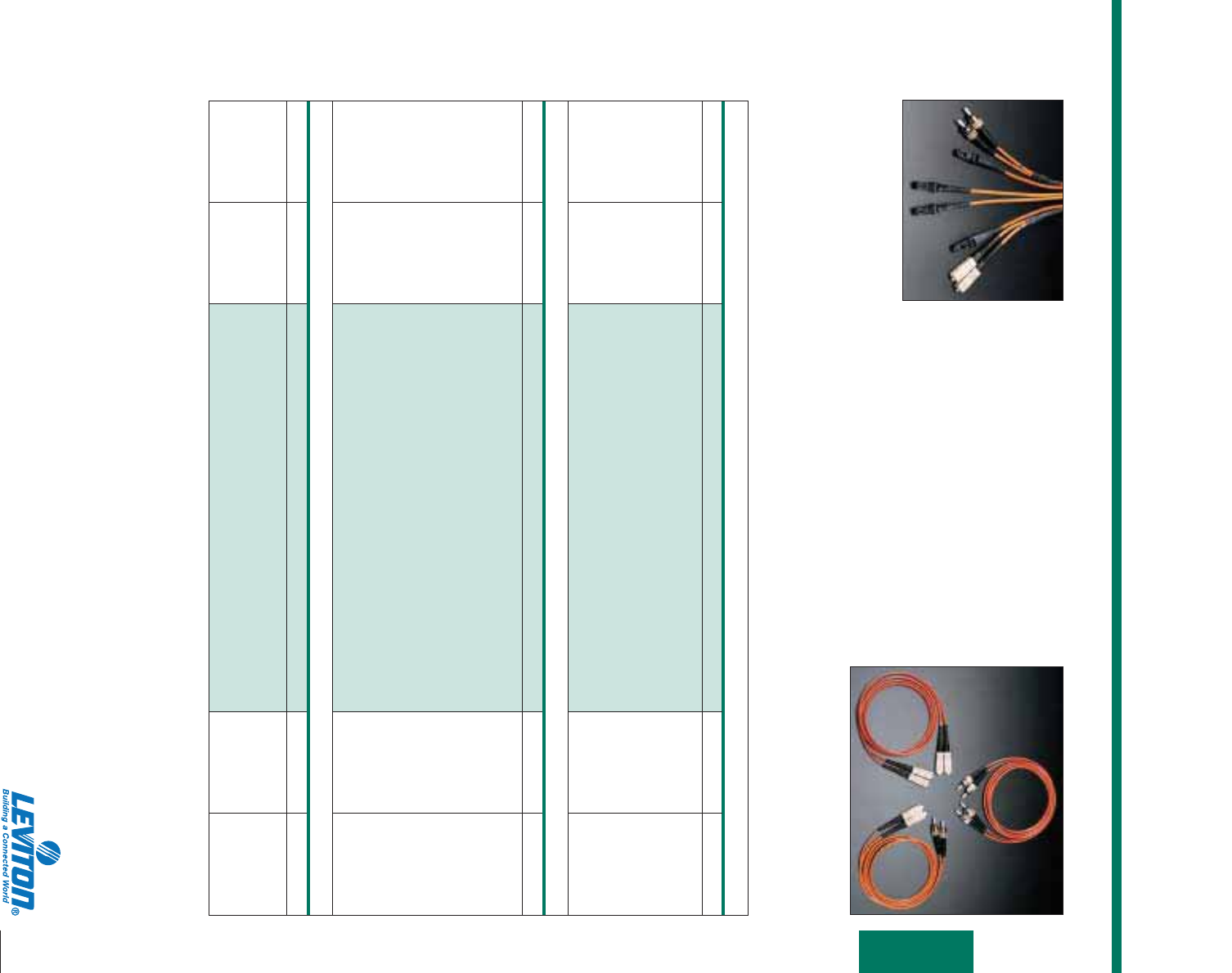

FIBER OPTIC CABLE ASSEMBLIES
STANDARD
Connector Style Density PC Polish SPC Polish UPC Polish APC Polish 50 micron 62.5 micron
MT-RJ to MT-RJ Duplex
————
50DMJ-M** 62DMJ-M**
ST to ST Duplex PCDST-S** SPDST-S** UPDST-S**
50DST-M** 62DST-M**
ST to ST Simplex PCSST-S** SPSST-S** UPSST-S**
☎☎
SC to SC Duplex PCDSC-S** SPDSC-S** UPDSC-S** APDSC-S** 50DSC-M** 62DSC-M**
SC to SC Simplex PCSSC-S** SPSSC-S** UPSSC-S** APSSC-S** ☎☎
FC to FC Duplex ☎☎☎☎50DFC-M** 62DFC-M**
FC to FC Simplex PCSFC-S** SPSFC-S** UPSFC-S** APSFC-S** ☎☎
LC to LC Duplex PCDLC-S** ☎☎
50DLC-M** 62DLC-M**
LC to LC Simplex PCSLC-S** SPSLC-S** UPSLC-S**
☎☎
HYBRID
Connector Style Density PC Polish SPC Polish UPC Polish APC Polish 50 micron 62.5 micron
MT-RJ to SC Duplex
————
50DCM-M** 62DCM-M**
MT-RJ to ST Duplex
————
50DTM-M** 62DTM-M**
ST to SC Duplex PCDCT-S** SPDCT-S** UPDCT-S**
50DCT-M** 62DCT-M**
ST to SC Simplex PCSCT-S** SPSCT-S** UPSCT-S**
☎☎
ST to FC Duplex SPDTF-S** UPDTF-S**
50DTF-M** 62DTF-M**
ST to FC Simplex PCSTF-S** SPSTF-S** UPSTF-S**
☎☎
SC to FC Duplex SPDCF-S** UPDCF-S** APDCF-S** 50DCF-M** 62DCF-M**
SC to FC Simplex PCSCF-S** SPSCF-S** UPSCF-S**
☎☎
ST to LC Duplex PCDTL-S** ☎☎
50DTL-M** 62DTL-M**
ST to LC Simplex PCSTL-S** SPFTL-S** UPSTl-S**
☎☎
SC to LC Duplex PCDCL-S** ☎☎
50DCL-M** 62DCL-M**
SC to LC Simplex PCSCL-S** SPSCL-S** UPSCLF-S**
☎☎
FC to LC Simplex PCSFL-S** SPSFL-S** UPSFL-S**
☎☎
PIGTAIL
Connector Style Density PC Polish SPC Polish UPC Polish APC Polish 50 micron 62.5 micron
MT-RJ Duplex
————
50PMJ-M03 62PMJ-M03
ST Simplex PCPST-S03 SPPST-S03 UPPST-S03
50PST-M03 62PST-M03
SC Simplex PCPSC-S03 SPPSC-S03 UPPSC-S03 APPSC-S03 50PSC-M03 62PSC-M03
FC Simplex PCPFC-S03 SPPFC-S03 UPPFC-S03 APPFC-S03 ☎☎
LC Simplex PCPLC-S03 SPPLC-S03 UPPLC-S03
50PLC-M03 62PLC-M03
=Special Order–Call Customer Service at 1-800-323-8920.
**=Length- 1 meter (01), 2 meters (02), 3 meters (03), 5 meters (05), or 10 meters (10)
All Pigtail Assemblies come standard in 3 meter lengths.
Note: To order custom lengths, please call Customer Service at 1-800-323-8920.
56 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Optical Fiber
A, B
Cat No. Description
49887-6S A6 Fiber Optic Fan-Out Kits with 24" Tubing, individual polybag pack
49887-6L B6 Fiber Optic Fan-Out Kits with 36" Tubing, iIndividual polybag pack
6 Fiber Optic Fan Out Kits
These kits are used to safely route 250 micron fibers into 6 individual 900 micron color-coded
fiber fan-out buffer tubes via a compact protective housing. The fiber can be directly terminated
without the need for splicing. Offered in 24" and 36", these fan-out kits are designed to work with
any Thread-Lock®connector.
C
D
E
F
Cat No. Description
49800-UTK C–Universal Fiber Optic Tool Kit
49800-UTP D–Universal Tool Kit Plus
49800-SLT E– Spectro-Link MT-RJ Fiber Optic Tool Kit
49800-SLA F– Spectro-Link MT-RJ Fiber Optic Accessory Kit
49800-FTP Fast Cure Tool Kit Plus
49800-202 Hardner Primer Kit
Universal Tool Kit/Universal Tool Kit Plus
Singlemode and multimode compatible, and designed with the help of field technicians—Leviton's
Universal Fiber Optic Tool Kits are designed for use with any Thread-Lock®connector: SC, ST or FC.
The Standard Kit includes a scribe tool, while the Tool Kit Plus comes with the new Thread-Lock®
Versa-Cleave®cleave tool. Leviton's state-of-the-art 200x inspection scope, which ships with both
kits, has laser eye protection and is suitable for both singlemode and multimode applications.
Fast Cure Tool Kit
Designed for use with any Fast Cure epoxy connector: SC, ST, FC or LC. Comprised of a full com-
plement of quality fiber tools, including a Crimp Tool, LC Scope Adapter and LC Polishing Puck.
Suitable for both singlemode and multimode applications. Comes with Versa-CleaveTool.
Spectro-Link MT-RJ Fiber Optic Tool Kit
Suitable for installing Spectro-Link MT-RJ connectors, this kit comes complete with Buffer
Removers (2), Jacket Strippers, Scissors, Piano Wire, Safety Glasses, Gauge, Marking Pen, Opt-X
20/20 lenses, Lead-In Crimp Tool, Frame-Station Assembly Tool, Thread-Lock®Versa-Cleave™
Tool and 2 Spectro-Link MT-RJ adapters for the Thread-Lock®Versa-Cleave™ tool (for
Workstation and Frame-Station connectors).
Accessory Kits
Accessory kits provide additional tools for installing Leviton Spectro-Link™ MT-RJ™ connectors or
Fast Cure Expoxy connectors to expand an existing Universal Fiber Optic Tool Kit or Tool Kit Plus.
All Tool Kits and Accessory Kits come in their own compact lightweight cases. Individual Fiber Optic
Tools and Components sold seperately.
FIBER OPTIC TOOL KITS
57
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Optical Fiber
FIBER OPTIC CONSUMABLES
FIBER OPTIC TOOLS
Cat No. Description
49800-CON AUniversal Consumable Kit
49800-FAC BFast Cure Consumable Kit
49880-202 Adhesive/Primer Kit
49886-SYR Syringes, 25/pack
49886-FCN Replacement Needles, 25/pack
49886-12F Lapping Film, 12 Micron Alum. Oxide, 100/pack
49886-03F Lapping Film, 3.0 Micron Alum. Oxide, 100/pack
49886-X3F Lapping Fil, 0.3 Micron Alum. Oxide, 100/pack
Cat No. Description
49886-FCT Crimp Tool
Universal Consumable Kit
Levitons Universal Consumable Kit contains everything you need to clean and polish singlemode
and multimode ThreadLock connectors. The kit includes polyester wipes, alcohol pads, music
wire, and 12-, 3- and 0.3 micron lapping film.
Fast Cure Consumable Kit
Levitons Fast Cure Consumable Kit contains everything you need to clean and polish singlemode
and multimode Fast Cure epoxy connectors. The kit includes polyester wipes, alcohol pads,
Hardner/Primer Kit, replacement needles, syringes and 12-, 3- and 0.3 micron lapping film.
Hardner/Primer Kit
Contains a set of one bottle each Hardner and Primer, and one needle for epoxy connector
terminations.
Cat No. Description
49886-TVC DVersa-Cleave Tool, individual polybag pack
49886-VWA Versa-Cleave Adapter for Spectro-Link MT-RJ Workstation Connector
49886-VFA Versa-Cleave Adapter for Spectro-Link MT-RJ Frame-Station Connector
49886-VSA Versa-Cleave Adapter Kit for Spectro-Link MT-RJ (includes 49886-VWA and -VFA)
Thread-Lock®Versa Cleave Tool
Levitons Versa-Cleavetool for mechanical or epoxy connectors features a unique cutting blade for a
quality fiber cleave every time, eliminating the need for a complicated scribe and break procedure. The
ergonomic stop-watch design fits comfortably in the hand and features a convenient integrated debris
cup to catch and retain dangerous fiber debris until it can be safely discarded. 2.5mm and 1.25mm
Ferrule Guide Tabs allow Versa-Cleaveto cut to the perfect length for ST, FC, SC or LC connectors. Add
a Workstation or Frame-Station Adapter to cleave fiber for Leviton MT-RJ connectors. Comes with
removeable Tungsten Carbide Blade Unit. Order Versa-Cleave on its own, or as part of a Fast Cure,
Spectro-Link or Universal Tool Kit Plus.
Cat No. Description
49886-CTT SC/ST Combination Tightening Tool, individual polybag pack
(must be ordered in increments of 10)
49883-FCT E FC Tightening Tool, individual polybag pack
(must be ordered in increments of 10)
Thread-Lock®Tightening Tools
Available in two styles, FC and Combination SC/ST, tightening tools help simplify Thread-Lock
connectorization by providing a wider gripping area to make it easier to tighten the connector
plug. Use the jacket stripper (Claus WS-6) included in Leviton installation kits as a small pliers to
hold the nylon sleeve head while the tool grips and rotates the metal connector plug. The tighten-
ing tools also protect the exposed fiber during the tightening process. The Combination tighten-
ing tool has an SC-style end and an ST-style end, for greater convenience and flexibility.
A
B
D
C
E
Crimp Tool
Cat No. Description
49884-DPC CSC Duplex Clip, bag of 25
SC Duplex Clip
58 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Wallplates
PLASTIC WALLPLATES
Decora Standard Size Smooth Plastic Wallplates
Cat No.* Description
80401 1-GANG
80409 2-GANG
80405 A– 2-GANG
1-Decora 1-Toggle
80411 3-GANG
80431 3-GANG
2-Decora 1-Toggle
80421 3-GANG
2-Toggles 1-Decora
A
C
*For color selections, add sufx to the catalog number as follows Ivory (-I), White (W), Black (-E) and Almond (-A)
Decora Plus Standard Size Screwless Snap-On Thermoplastic Wallplates
Cat No.* Description
80301 B1-GANG
80309 2-GANG
80311 3-GANG
*For color selections, add sufx to the catalog number as follows Ivory (-I), White (W), Black (-E) and Almond (-A)
Decora Midway Size Smooth Plastic Wallplates
Cat No.* Description
80601 C1-GANG
80609 2-GANG
80611 3-GANG
*For color selections, add sufx to the catalog number as follows Ivory (-I), White (W), Black (-E) and Almond (-A)
Many other sizes and types available—see Leviton D-503 Catalog
C
Decora Midway/Standard
wallplate size comparison
(38" wider and longer), 80401 in
front of 80601.
59
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Wallplates
METAL WALLPLATES
Decora Metal Wallplates
Cat No. Description
81401 1-GANG (Brush Brass Satin nish)
81409 2-GANG (Brush Brass Satin nish)
81411 3-GANG (Brush Brass Satin nish)
83401 A– 1-GANG (Aluminum Satin nish)
83409 2-GANG (Aluminum Satin nish)
83411 3-GANG ((Aluminum Satin nish)
A
Standard Size Metal Duplex Receptacle Wallplates
Cat No. Description
84003 B– 1-GANG (430 S/S)
84003-40 1-GANG (302 S/S)
B
C
Decora Standard Size Plastic Wallplate Adapters
Cat No. Description
80414* C– Blank (no hole)
6197** Wallbox Adapter
Extends shallow wallbox
to t GFCI/Decora devices
*For color selections, add sufx to the catalog number as follows Ivory (-I), White (W), Black (-E) and Almond (-A)
**For color selections, add sufx to the catalog number as follows Ivory (-I), White (W)
WALLPLATE ACCESSORIES
60 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Home Control & Security Group
A home smart enough to keep up with its owners.
Safety and security are a high priority with everyone
today. Security experts are unanimous on the fact that
making a home safer means first making it looked
“lived in.” Levitons Home Control and Security Group
(including Decora Home Controls–DHC) makes a
home more convenient, secure and comfortable.
The base-level Smarter Home package option brings
timed ON/OFF switching to selected exterior lighting
locations and
motion-sensor
activation at
strategic out-
side points. The
Welcome Home
package means
homeowners
never have to
come home to
a dark house
again. Exterior and entry lights can be turned ON and
OFF from the safety of a locked car in the driveway
using keychain transmitters, effectively reducing the
“window of opportunity” for suspicious activity out-
side the home.
The House Sitter package activates exterior and interior
lights according to preset time commands, and can
even turn ON appliances such as coffee and bread-
makers to help everyone start the day. The entire
system is controlled from a simple wall-mounted
whole-house programmable controller that's as easy
to use as a clock radio. This package also includes an
ALL LIGHTS ON panic mode for added security, and
has a SECURITY setting to randomize ON/OFF light
timing while everyone is away to make the home look
totally lived-in.
The Night Sentinel package adds total safety and con-
venience with four elements: photocell control that
activates selected lighting at dawn and dusk, outdoor
motion sensing that can turn an entire lighting
perimeter ON (and can even activate selected interior
lighting for a full alert), bedside control to enable users
to turn all Home Control devices ON and OFF without
leaving their bedroom, and an alarm interface that
integrates the smart lighting and control system to a
low-voltage security system (not included) so that
lights flash ON and OFF during an alarm.
Most Home Control and Security packages incorporate
Levitons award-winning Decora Home
Controls (DHC) product line, which com-
bines superior quality with state-of-the-
art electronic technology to form an
ultra-reliable home
control network thats
also extremely easy to
use. The system is also
simple to install and configure because it uses a wiring
network that’s already built-into the home: the power-
line itself. Core DHC products are equipped with
Levitons exclusive IntellisenseTechnology
to perform reliably even where
electrical noise” exists on the
powerline. Levitons DHC Coupler/Repeater
Module ensures proper signal integrity throughout the
entire home.
DHC systems can be expanded to automate sprinkler
systems, motorized blinds and curtains, heating sys-
tems, skylights, garage doors, motorized gates and
nearly anything else the homeowner desires.
Important: The Home Control and Security Group
should only be installed in conjunction with a Leviton
Power Quality network protection system for
maximum reliability.Welcome Home is a prerequisite
for House Sitter, and House Sitter is a prerequisite for
Night Sentinel.
HOME CONTROL & SECURITY GROUP
61
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Home Control & Security Group
SYSTEM PACKAGES
Smarter Home Package
A simple yet effective level of control for exterior lighting and interior pathways. Smarter Home
uses powerful, programmable Decora LCD timers that can assign up to 48 ON/OFF intervals over
a 24-hour period - perfect for setting outside lights to turn ON/OFF early in the morning, and
then again at night. Residential-grade outdoor motion sensors turn lights ON/OFF in back yards
and driveways, while occupancy/motion passive-infrared (PIR) sensors illuminate walk-
through/walk-in paths inside the home for added security and convenience.
Type Cat No. Description
Decora Wall Switch PIR ODS10-ID Automatic light switch turns incandescent or uorescent lights
Occupancy Sensor, 10A ON and OFF in response to occupancy
Self-Contained PIR ODC0S-I1W Automatically turns incandescent or uorescent lights
Ceiling Mount Occupancy Sensor ON and OFF in response to occupancy, 1000W/VA
Single-Pole & 3-Way Wall-Mount 6800 Automatic light switch turns incandescent or uorescent lights
Occupancy Sensor (PIR) ON and OFF in response to occupancy, 500W/VA
Outdoor Motion Sensor RS110-10 Outdoor sensor turns lights ON and OFF in response to motion,
500W/VA
Decora Plus Programmable 6124H 24-hour programmable timer for ON/OFF scheduling
Electronic Timer Switch
Welcome Home Package
Dark driveways and doorways are a thing of the past with Levitons Welcome Home package.
Welcome Home puts control of outside and entryway lights into the palm of a homeowner’s hand
with a small command transmitter that fits right on a key chain. Simply push a button to turn out-
side lights and inside entry lights ON, all from the safety of a locked car. Because it operates from
up to 75 feet away, Welcome Home can be a welcome deterrent in dealing with any unwelcome
presence lurking near the home. Its also a more convenient way to come home after a long day.
Welcome Home can even turn OFF power to a garage door opener (with an extra control module)
for added security during extended vacations.
Type Cat No. Description
Key Chain Transmitter HCCKR Key chain remote control (RF) turns lights ON and OFF
from a maximum distance of 75 feet
Transceiver HCPRF RF receiver/transmitter receives key chain signal and relays
signal to the DHC network
Universal Remote Control HCCUV Provides RF Control of DHC switches and receptacles
and IR ontrol of home entertainment components
(e.g., TV, cable, etc.)
DHC Single-Pole (One Location) 6291-WI Receiver responds to transmitter by turning light ON and OFF.
Receiver Switch Also, functions as a standard switch using manual override
DHC 3-Way (Multi-Location) 6293-WI Provides manual and remote ON/OFF control when used with
Receiver Switch one or more 6294 Remote Switches
3-Way and 4-Way 6294 Provides remote switching when used with Cat. No. 6293
Remote Receiver Switch
DHC Single-Pole or 3-Way HCM06-1TW Switch receives signals for ON/OFF or dimming.
Dimming Receiver Switch Also, functions using manual override
with Scene Control
DHC Single-Pole or 3-Way HCC10-1TW Provides manual and remote ON/OFF switching for incandes-
Switch with Scene Control cent, uorescent and low-voltage lighting, 10A 1200W/VA
DHC One-Address HCC1A-1TW One ON/OFF rocker transmits ON/OFF remote commands
ALL ON/ALL OFF Controller to one address
DHC 3-Way & 4-Way MS00R-10 For use as a remote switch for the HCM06-1SW
(Multi-Location) Remote & HCS10-1SW
Dimming Switch
DHC Signal Amplier/ HCA02-10E Ensures system reliability
Coupler/Repeater
DHC Split Duplex Receptacle 6227 Top outlet provides ON/OFF control, bottom outlet is
continuously live
62 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Home Control & Security Group
House Sitter Package
Levitons House Sitter package makes a home smart enough to turn its inside and outside lights
ON and OFF at pre-selected times, making it look like someone is always at home. House Sitter
lets users leave their home with a greater sense of confidence—in fact, they’ll never have to worry
about whether they left the lights on again. House Sitter turns them ON and OFF automatically.
House Sitter’sWall Programmer/Controller is as easy to preset and use as a clock radio. It assigns
up to eight different timed events for front, side and backyard lights, as well as entryway lights
and selected lamps inside the house. The Wall Programmer/Controller can also turn ON a
coffeemaker at a pre-selected time in the morning. Features include an ALL LIGHTS ON control
for panic” situations, an ALL UNITS OFF control, a BRIGHT/DIM control for dimmers (such as
the entryway) and a SECURITY mode to randomize lights and enhance the “lived in” look.
Note: House Sitter may require additional DHC-enabled receivers (switches, receptacles and lighting
controls) listed in the Welcome Home package.
Type Cat No. Description
Programmable Controller 6312 Basic Programmer provides automatic control plus security
mode random light switching and ALL-LIGHTS-ON control
DHC Toscana™ HCCPG-1TW One-touch access to up to 64 lighting scenes and direct remote
Deluxe Programmer control of up to 256 devices. Automatically turns appliances
ON/OFF and lights ON/OFF/DIM/BRIGHT. Run timed events
on recurring basis
Three-Address Dimming HCC4A-1TW Multi-button transmitter sends signals to 3 receiver addresses
ALL LIGHTS ONALL OFF for switching and dimming plus ALL LIGHTS ON/ALL OFF and
Wall Switch Controller GROUP DIM/BRIGHT control
One-Address ON/OFF HCC10-1TW One ON/OFF rocker transmits ON/OFF commands
Wall Switch Controller to one address
One-Address Dimming Wall HCC1D-1TW One ON/OFF rocker transmits ON/OFF commands to one
Switch Controller address while a built-in arrow-shaped rocker transmits
BRIGHT/DIM commands to the same address.
Two-Address Dimming HCC2D-1TW Two sets of ON/OFF buttons transmit ON/OFF commands to
Wall Switch Controller two sequential addresses in the same letter code and one set
of buttons transmits GROUP BRIGHT/DIM commands to the
most recently selected address
Three-Address Dimming HCC3D-1TW Three sets of ON/OFF buttons transmit ON/OFF commands
Wall Switch Controller to three sequential addresses in the same letter code. One
set of buttons transmits GROUP BRIGHT/DIM commands to
the most recently selected address
Four-Address Dimming HCC4D-1TW Four sets of buttons transmit ON/OFF commands to three
Wall Switch Controller sequential addresses of the same letter code. One set of
buttons transmits GROUP BRIGHT/DIM commands to the
most recently selected address.
Seven-Scene Dimming HCCS7-1TW Each of SEVEN scene buttons transmits ON commands to
Wall Switch Controller preset levels to 12 sequential addresses of the same letter
code group as the controller. Only works with scene-capable
receivers. One OFF button transmits OFF command to the
most recently selected scene.
System Coupler/Repeater HCA02-10E Ensures a strong signal throughout a residence
63
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Home Control & Security Group
Type Cat No. Description
Photocell Transmitter 6308 Outdoor photocell transmitter sends signals to switch receivers
in response to dawn and dusk
Outdoor Motion Sensor 6417 Outdoor motion sensor transmitter sends signal to outdoor and
indoor receivers to turn lights ON
Security Interface 6330 Alarm interface ashes lights ON/OFF in emergency
Table Top Controller 6320 Controls multiple light switches and offers ALL-LIGHTS-ON
control
Universal Low Voltage Module 6337 Allows almost any low voltage device to be automated by
interfacing it with a 120V AC wiring network from which it can
receive ON or OFF commands from DHC Controllers
System Coupler/Repeater HCA02-10E Ensures a strong signal throughout a residence
Night Sentinel Package
Night Sentinel turns a home into a smart castle. Automatically turn outside and inside lights ON
at sunset and OFF at sunrise, flash inside and outside lights ON and OFF at the cue of an optional
security system, turn back, side and front lights ON when anyone or anything approaches the
house, or even turn lights and appliances ON and OFF from the comfort of your bedside.
The Night Sentinel package consists of four main elements. An Outdoor Motion
Sensor/Transmitter not only controls a dedicated floodlight fixture, but all the lights included in
the Welcome Home and House Sitter packages by telling them to turn ON when anything
approaches the house. The Outdoor Photocell Transmitter turns selected lights and lamps OFF
and ON at dawn and at dusk, eliminating the need to constantly re-adjust OFF and ON times. In
conjunction with an alarm system (not included), the Alarm Interface ties that system into the
home's lighting, flashing the lights in an emergency to attract attention and deter criminals.
Finally, the Bedside Controller complements House Sitter’sWall Programmer/Controller by letting
your customers command essential functions from their bedsides.
Note: Night Sentinel must be used in conjunction with the House Sitter package and the
Welcome Home package
64 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Setting the mood for any occasion in every room
Light defines every feature in a home, and, through
variation, can even change a rooms personality. By
artfully controlling lighting, a room or zone can take
on many levels of involvement, from intimacy to
excitement.
Leviton Integrated Networks takes care of the control”
aspect by providing three levels of advanced lighting
products aimed at bringing more comfort and style to
the two primary seg-
ments of the home:
the living areas, and
the bed and bath
areas. Living Director
upgrades kitchens,
dining rooms,
offices, dens and
hallways, with stylish
controls for lighting
fixtures and ceiling fans. Bed & Bath focuses on bed-
rooms, bathrooms, associated hallways and common
areas, with controls specifically designed for these
applications. Together, these two innovations trans-
form the home into an environment suitable for enter-
taining, working, relaxing, and much more.
Cinema Style is an option that can equip a home the-
ater with a theatrical-grade intelligent lighting system
that's at home with any video presentation, from
casual channel-surfing to feature-length films.
Lighting Magic saves time by
providing “hands-freeoccu-
pancy and motion-sensing
ON/OFF activation in critical
walk-through and walk-in
areas such as garages, laun-
dries, hallways and closets. In
garages, Lighting Magic also
provides extra safety by turn-
ing entry lights ON before
anyone gets out of the vehicle.
These Lighting Control upgrades do more than add
ambience. They also add value. Even at modest set-
tings, dimmers save energy and increase light-bulb
life, while occupancy / motion sensors turn lights ON
only when needed.
All Leviton Lighting Controls are inspired by the
Leviton commercial and architectural lighting sys-
tems appearing in art galleries, hotels, fine restaurants
and other high-profile venues. All are built to a higher
level of quality, with superior on-board filtering tech-
nology, precision control features, air-gap internal
switching, encapsulated gold-surfaced contacts and
improved heat-dissipation design. The result is a line
of lighting controls designed for the life of the home
and built to withstand the rigors of everyday use.
Traditional Lighting Group
Classic and unobtrusive toggle
styling hides advanced lighting
technology that provides
extraordinary control from ordi-
nary-looking controls. Based on
Levitons ToggleTouchlighting
control, the Traditional Group is
a masterpiece of digital design
in a timeless setting.
ToggleTouch uses digital elec-
tronics and Touch Pad technol-
ogy to provide fingertip-control
dimming with advanced features such as preset dim-
ming and soft-ON. Protected memory ensures that
each ToggleTouch control retains its memory after
power outages.
LIGHTING CONTROLS GROUP
Lighting Controls Group
65
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Lighting Controls Group
SYSTEM PACKAGES
Traditional Living & Entertainment Director Package
Dimmers in living room, family room, dining room, bathroom and entry area
Type Cat No. Description
ToggleTouch™ 600W TGI06-10 Controls light levels
Incandescent Dimmer
(No LED locator)
ToggleTouch™ 600W TGI06-1L Controls light levels—helpful in dark hallways
Illuminated Incandescent Dimmer
ToggleTouch™ 1000VA TGM10-1L Controls light levels—helpful in dark hallways
Illuminated Magnetic
Low-Voltage Dimmer
Bed & Bath Ambience Package
Dimmers in bedrooms and bathrooms, and timers in the bathrooms
Type Cat No. Description
ToggleTouch™ 600W TGI06-10 Controls light levels
Incandescent Dimmer
(No LED locator)
ToggleTouch™ 600W TGI06-1L Controls light levels—help in dark hallways
Illuminated Incandescent Dimmer
Lighted Toggle Switch 5501-LH Illuminated switch helps in dark areas
3-Way Lighted Toggle Switch 5503-LH Illuminated switch for multiple switching
Timer Switch 6230M Timers turn OFF exhaust fan in bathrooms using factory-set
time increments of 5-10-20-30 minutes
66 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Lighting Controls Group
Levitons hallmark design is re-expressed for contemporary applications in these high-style lighting controls.
Centered on Levitons acclaimed Illumatechslide dimmer, the Decora Lighting Group includes innovations such
as digital timers for bathroom fans (turns fans OFF after preset intervals), and Lighting Magic occupancy/motion
sensors for hands-free ON/OFF switching in walk-through and walk-in areas. Proven in the hospitality industry,
the Decora Lighting Group is ideal for bringing style and utility into today’s homes. Features include power-failure
recovery, exceptionally fluid slide control, and full compatibility with models designed for different types of light-
ing fixtures including fluorescent and low-voltage.
DECORA LIGHTING GROUP
SYSTEM PACKAGES
Decora Living & Entertainment Director Package
Includes dimmers in all living areas such as living room, kitchen, family room and dining room as
well as dimmers and fan timers in the bathroom.

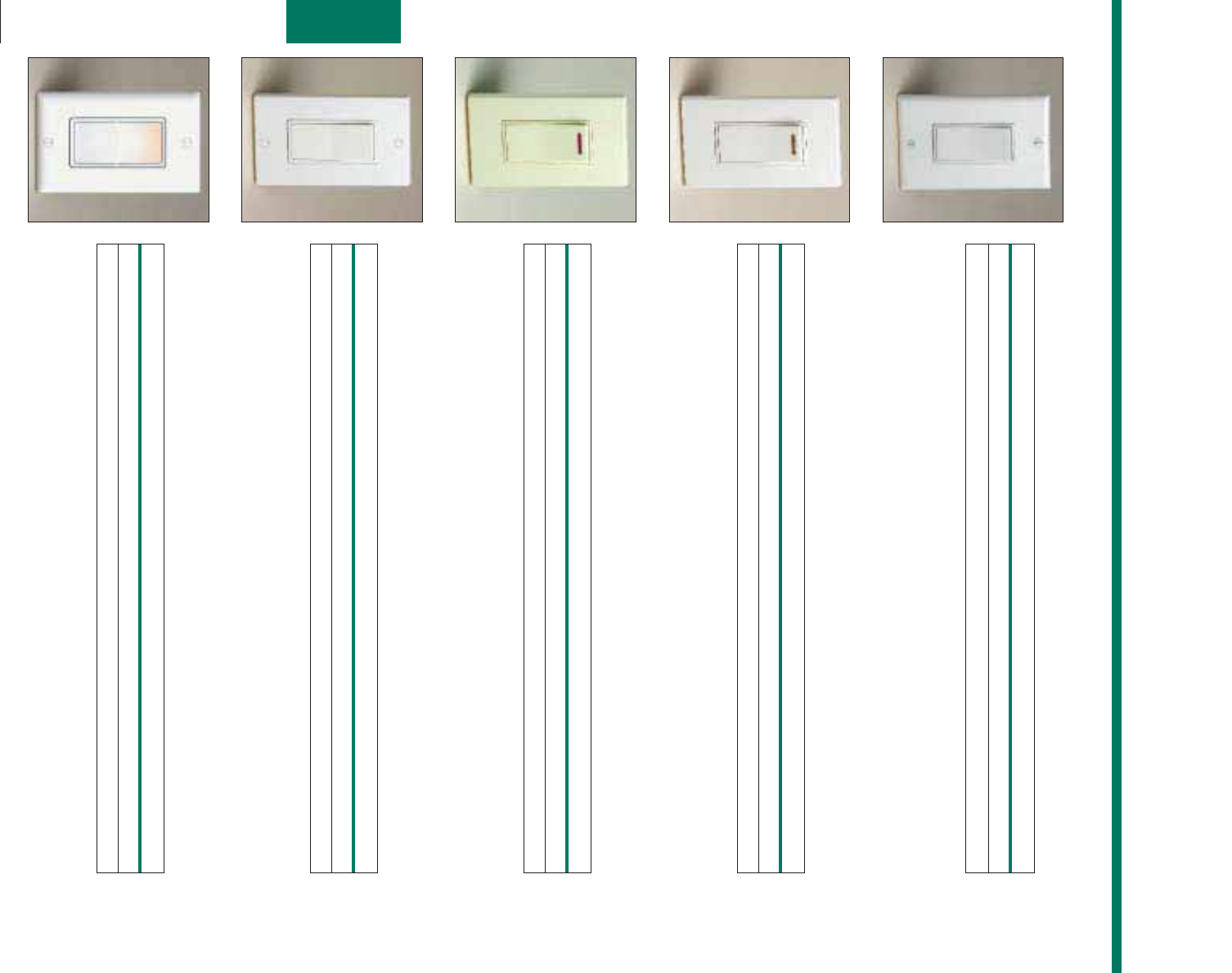

Type Cat No. Description
IllumaTech™ Preset 600W IPI06-1L Single-Pole and 3-Way preset uid slide incandescent dimming
Incandescent Dimmer with control with LED indicator when lights are OFF
LED Locator
IllumaTech™ Preset 400VA IPE04-1L Single-Pole and 3-Way preset uid slide electronic low-voltage
Electronic Low-Voltage Dimmer dimming control with LED indicator when lights are OFF
with LED Locatorr
IllumaTech™ Quiet Fan Speed IPF01-1L Ideal for up to 1.5 Amp preset step fan speed control with
Control with LED Locator LED indicator when fan is OFF in libraries, study rooms and
wherever fan noise could become distracting
IllumaTech™ Incandescent INI06-1L Single-pole uid slide incandescent dimming control with
Dimmer (no preset) LED indicator when lights are OFF
IllumaTech™ Magnetic with INM06-1L Single-pole uid slide magnetic low voltage dimming control
Low-Voltage Dimmer (no preset) LED indicator when lights are OFF
Decora Bed & Bath Ambience Package
Includes illuminated switches in hallways, dimmers in bedrooms and dimmers plus timers
in the bathroom.
Type Cat No. Description
IllumaTech™ Preset 600W IPI06-1L Single-Pole and 3-Way preset uid slide incandescent dimming
Incandescent Dimmer with control with LED indicator when lights are OFF
LED Locator
IllumaTech™ Preset 400VA IPE04-1L Single-Pole and 3-Way preset uid slide electronic low-voltage
Electronic Low-Voltage Dimmer dimming control with LED indicator when lights are OFF
with LED Locator
IllumaTech™ Quiet Fan Speed IPF01-1L Ideal for up to 1.5 Amp preset step fan speed control with LED
Control with LED Locator indicator when fan is OFF to eliminate distracting fan noise
Decora Quiet Rocker Switch 5613 3-Way illuminated switch (when OFF)
Decora Quiet Rocker Switch 5611 Single-Pole Illuminated (when OFF)
Timer Switch 6230M Fan Timers
Decora Lighting Magic Package
Provides energy savings plus convenience. Includes motion sensor light switches in areas such as
the laundry room, the garage and entryways as well as a timer in the attic.
Type Cat No. Description
Occupancy Sensor 6800 Automatic light switch turns lights ON and OFF in response
to occupancy
67
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Lighting Controls Group
Remote-controllable architectural-grade lighting thats equally at home in a residence as it is in art galleries and
museums. The Designer Lighting Group is based on Levitons Muraland TouchPointdigital dimmers that use
advanced microprocessor circuitry for extremely precise control.
DESIGNER LIGHTING GROUP
SYSTEM PACKAGES
Designer Living & Entertainment Director Package
In Living & Entertainment Director applications, dimmers are replaced with multiple Mural Scene
Capable Dimmers that can be combined with a Scene Controller to effect flexible, preset lighting
scenes with IR remote control over entire zones (such as an open kitchen/family room area).
Type Cat No. Description
Mural™ Decora-Style Dimmer MSI06-1L 600W Incandescent Dimmer with LED locator is easily found in
dark areas
Mural™ Decora-Style Dimmer MDI06-1L 600W Incandescent Dimmer with LED locator and LED
Brightness Display is easily found in dark areas and indicates
level of illumination
Mural™ L/S (Level Set) MLI06-1L 600W Incandescent Dimmer with LED locator is easily
Decora-Style Preset Digital Dimmer found in dark areas
Mural™ L/S (Level Set) MRI06-1L 600W Incandescent Dimmer with LED locator is easily found in
Decora-Style Preset Digital Dimmer dark areas and indicates level of illumination
Mural™ Multi-Remote Unit MS00R-10 Remote Switch permits Multi-Location Dimming
Mural™ Decora-Style Dimmer MDM06-1L 600VA Magnetic Low-Voltage Dimmer with LED locator and
LED Brightness Display is easily found in dark areas and
indicates level of illumination
Mural™ L/S (Level Set) MLM06-1L 600VA Magnetic Low-Voltage Dimmer with LED locator and
Decora-Style Preset Digital Dimmer LED Brightness Display is easily found in dark areas and
indicates level of illumination
Mural™ Scene Capable MCM06-1L 600VA Scene Capable Incandescent Magnetic Low-Voltage
Decora-Style Digital Magnetic Dimmer with LED locator and LED Brightness Display is easily
Low-Voltage Dimmer found in dark areas and indicates level of illumination that
can be set by a Scene Controller Device
Mural™ Scene Capable MCM10-1L 1000VA Scene Capable Incandescent Magnetic Low-Voltage
Decora-Style Digital Magnetic Dimmer with LED locator and LED Brightness Display is easily
Low-Voltage Dimmer found in dark areas and indicates level of illumination that
can be set by a Scene Controller Device
Mural™ Scene Controller MN00C-1L 7 Lighting-Scene plus OFF and Group DIM and BRIGHT
buttons provide for exible control
Remote Control 177RC Hand-Held IR Remote Control provides convenient lighting
controls from different room locations
Remote Control Infrared Receiver 177IR-IWA IR Receiver for 177RC Remote Control
2-Way Signal Repeater 17100-2WY Used to control lighting on more than one circuit
Occupancy Sensor Control Bridge 177OC Operates Scene devices in conjunction with any Leviton
Occupancy Sensor
68 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Lighting Controls Group
Designer Bed and Bath Lighting Ambience Package
Package features TouchPointTouch-Pad dimmers in bedrooms and bathrooms, Decora Plus
illuminated switches for welcome nighttime lighting in hallways and guest rooms and digital fan
controls for turning bathroom fans OFF after preset time intervals.
Type Cat No. Description
Decora Switch 5611 Single-Pole illuminated switch
(Lens illuminated when OFF)
Decora Switch 5613 3-way illuminated switch
Decora Switch 5614 4-way illuminated switch
(Lens illuminated when OFF)
Dimmer TPI06-1L TouchPoint600W incandescent w/LED locator
Dimmer TPI10-1L TouchPoint1000W incandescent
Timer Switch 6230M Turns fans OFF using factory-set time increments of
5-10-15-30 minutes
Designer Lighting Package
The Designer Lighting Groups energy-saving Lighting Magic package features advanced-
technology Leviton passive-infrared (PIR) occupancy sensors that have a proven track record in
commercial environments where reliability, efficiency and aesthetics are equally critical.
Type Cat No. Description
Motion Sensors ODS10-ID Features large coverage area and provides automatic ON and
OFF light switching in response to occupancy
Timer Switch 6230M Turns lights OFF using factory-set increments of
5-10-30 minutes
Cinema Style Package
The Cinema Style package brings a professional-quality, remote-controlled scene lighting system
to home theaters and entertainment areas.
Type Cat No. Description
Dimmer MNI10-1L Monetscene capable 1000W incandescent,
architectural style
Controller MN00C-1L Scene controller, 7 scenes
Accessory 177RC Remote control, 4 scenes
Accessory 177IR-IWA Infrared receiver, wall and ceiling mount
Dimmer MNM06-1L Monetscene-capable 600VA magnetic low-voltage,
architectural style
69
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Power Quality Group
A whole-house surge protection network for
residential applications
The popularity of home offices, the internet and home
theaters means that there are more home electronics
that are vulnerable to voltage surges than ever before.
A whole-house protection plan must protect against
voltage surges on both the powerline and the tele-
phone or communication lines. Homeowners may be
unaware that surges can enter their expensive elec-
tronic equipment (modems, FAX machines, answering
machines, TVs and VCRs) through telephone lines and
cable TV or satellite dish connections. Most surge pro-
tective devices (SPD’s) designed for the AC powerline
will not prevent telephone or communication line
surges from damaging valuable equipment. As a result,
Leviton offers a complete selection of SPD’s for power-
line, telephone and communication line applications.
The best protection for the home is an industrial-
strength solution: A Leviton Power Quality network,
designed to protect mission-critical equipment in the
most demanding professional environments including
hospitals and laboratories.
The keyword here is network.” Because power line
problems can be generated either outside (externally)
or even inside the home, full protection requires a
network that guards both the entire premises and each
device from potentially damaging problems. The
Leviton solution places an advanced-technology
transient voltage surge suppression (TVSS) device at
the service entrance (either at the electrical panel or
the meter), with point-of-use TVSS devices located
strategically throughout the home-behind PC’s and
entertainment centers, in home theater rooms and at
major appliances. Because damaging electrical
impulses can even enter through low-voltage lines
such as cable TV and telephone, total protection
includes TVSS devices designed to protect those lines
as well.
From the use of hybrid-circuit design for a more
advanced level of protection to Levitons hybrid MOV
(metal oxide varistor) design that delivers superior
noise filtering, tighter clamping, faster response to
high-speed transients and superior energy dissipation,
a Leviton Integrated Networks Power Quality system is
the last word in first-line defense against the damaging
effects of power line surges. It should be the first
choice of anyone with an electronic investment at risk.
Complete Warranty Coverage
We stand behind every Leviton Surge Protective
Device. The Panel-Mount Surge Protective Devices
are backed by Levitons Limited 10-Year Warranty.
Many plug-in SPD's and stand-alone and stackable
low-voltage Surge Protective Devices are backed by
Levitons Lifetime Limited Warranty that covers not
only the surge protective devices, but also the loads
they protect up to $25,000. Your Leviton representative
can provide you with detailed information.
POWER QUALITY GROUP
L
LIndicates suggested placement
of Leviton SPD product.
L
L
L
METER
Cat. No.
50240-MSA
METER SOCKET
SURGE ADAPTER
120/240
1-PHASE 200A
MICROWAVE REF.
20 AMP
FURNACE STEREO
HOME
ENTERTAIN-
MENT
CENTER DRYER WASHER
20 AMP
VCR
SATELLITE
CONTROLLER
TO DISH
COAX
CABLE
SECURITY
SYSTEM TO POINT
CONTACTS
HOME
OFFICE
L
SATELLITE DISH
COMMUNICATION
SPD
TELEPHONE
LINE
POWER
CONTROL CENTER
SPD
PHONE LINE
SPD
COAX
CABLE
CATV
COMMUNICATION SPD
PANEL-MOUNT
SPD
L
L
PC
RECEPTACLE SPD
RECEPTACLE
SPD
TV
BIG
SCREEN
TV
LL
RECEPTACLE OR PLUG-IN SPD'S
L
L
PLUG-IN SPD
PLUG-STRIP SPD
L
L
Example of Leviton's Whole-House
Surge Protection Network
70 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Power Quality Group
SYSTEM PACKAGES
Whole-House Electrical “NetworkedSurge Protection Package
Includes whole-house surge protection at the electrical panel and point-of-use protection at vari-
ous critical locations (home office, entertainment center, major appliances).
Type Cat No. Description
Whole house 51110-PTC Panel protects AC, CATV and telephone lines at
point-of-entry to home
Point-of-use 5280 Receptacle protects any plugged-in equipment (PC, stereo,
microwave oven, etc.)
Whole-House Low-Voltage and Electrical Complete PQ Protection Package
Includes whole-house surge protection at the electrical panel and point-of-use protection with
extra protection for low-voltage lines to protect sensitive electronics that can suffer circuit degra-
dation. UPS’s are employed for safe shutdown of home office computers when power is lost as
well to protect them from power fluctuations.
Type Cat No. Description
Whole house 51110-PTC Panel protects AC, CATV and telephone lines at
point-of-entry to home
Point-of-use 5280 Receptacle protects any plugged-in equipment (PC, stereo,
microwave oven, etc.)
Audio/Video Equipment 5505 19-inch rack-mount unit protects A/V equipment
UPS U1000-AKP Uninterruptible Power Supply functions as off-line power strip
up to 1000VA, 5 outlets
71
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Special Needs Group
Safer,More Accessible Home
Today, equal access is a rapidly growing residential need—not to mention a social and even
legal responsibility in certain applications. Diversity in ages and abilities as well as tempo-
rary circumstances can impose special challenges in everyday life.
Levitons Special Needs group is designed to help overcome some of those challenges by
making homes safer, more accessible and more enjoyable for all users. The Child Safety
package makes homes more secure for the littlest members of the household. The
Universal Design package makes the home more accessible for everyone. Leviton is a
pioneer in touch-operated electrical devices, with Leviton devices routinely specified in
managed-care and health facilities. Exceptionally intuitive and ergonomic design com-
bined with ease-of-use place Decora devices in the lead in this emerging field.
Levitons Special Needs group provides nearly effortless control over a wide variety of
devices and systems, placing every individual-regardless of their age, ability or mobility,
more in control of their living and working environment.
SPECIAL NEEDS GROUP
SYSTEM PACKAGES
Child Safety Package
Thousands of accidents happen each year involving children and electricity. Levitons Child Safety
package goes a long way to making them avoidable in the home.
Instead of potentially hazardous caps in outlets, the Child Safety package starts with Leviton
Kiddy Copoutlets which consist of two elements: a Tamper-Resistant outlet with an internal
plastic shield that will not open the outlet slots up to anything except an electrical plug (resisting
screwdrivers, keys and fingers), and an innovative outlet cover with spring-loaded plates that
snap shut over the Tamper-Resistant outlet for a second line of defense.
Complete shock protection is assured with Levitons innovative patent-pending SmartLock
GFCI receptacle. It makes sure that no electrical power is provided whenever the GFCI fails to
function properly for any reason.
Levitons Anywhere Light Switches help protect children from injuries while climbing to turn ON
lights by placing a second remote-controlled light switch where children can use it. The remote
control can be moved as the child grows. Switch Locks prevent children from turning critical
switches ON or OFF. A child’s room feels more secure with a Leviton Digital Timer, which can be
programmed for bedtime or naptime, letting a child fall asleep with the lights ON and turning
them OFF shortly after.
Type Cat No. Description
Tamper-Resistant Electric Outlet 5321 Exclusive internal shutter design protects against shock
due to insertion of objects in the outlet
Outlet Cover 86002 Outlet covers provide a cost-effective safety feature by
blocking outlet slots
GFCI (SmartLock) Receptacle 8599 SmartLockGFCI blocks power completely when ground
fault prevention has been compromised
Light Switch 6690 Anywhere Light Switch allows switch location lower on wall to
prevent child climbing accidents
Switch Cover 12005 Light switch lock
Timer Switch 6124H Digital timer switch
72 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Special Needs Group
Universal Design Package
For those with differing abilities and needs, even ordinary electrical switches can present a chal-
lenge. With the Universal Design package, the same Leviton electrical devices recommended by
the Center for Universal Design and used in assisted-living communities throughout the country
can be installed in your customers’ home to make it more comfortable for loved ones in their care.
Leviton True TouchDigital Dimmers require the least amount of physical pressure to activate. A
simple light touch turns lights ON or OFF. They are ideal for people with restricted range of
motion. For those with mobility restrictions, Leviton Anywhere Dimmers provide a second
remote-control point for room lighting and may be moved for convenience (next to a bed, for
example). Anywhere Dimmers provide simple three-stage dimming (low, mid and high), allowing
users to touch a rocker on the wall switch or use a remote (remotes may be handheld or
mounted). Bathrooms and bedrooms become friendlier with Illuminated Receptacles, which
provide welcome night-lighting and make it easier to locate electrical outlets. In case of an emer-
gency, the Leviton 911 Flasher can flash a home's outside lights to signal arriving help such as
police or paramedics.
Type Cat No. Description
Dimmer TTI06-10 True Touchdimmer for easy control.
600W-120V AC incandescent only.
Illuminated Receptacle 8200-HL Illumination helps those with reduced vision locate receptacle
in darkened rooms. 15A-125V
Illuminated Switch 1201-LH Illumination helps those with reduced vision locate switch in
darkened rooms. 15A-120V AC.
Flasher Switch 911 Light Switch will ash outdoor lights to notify emergency
vehicles of location (also operates as standard light switch).
500W-120V AC.
Anywhere Dimmer Switch 6698 Provides local and remote incandescent dimming
73
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Receptacles
RECEPTACLES
Decora Plus Back and Side Wired Self-Grounding Receptacle
NEMA 5-20R ,20A/125V
Cat No.* Description
16351* A– Single
G
W
*For color, add sufx to the catalog number as follows Ivory (-I) and White (-W)
Decora Side Wired and Quickwire Receptacle NEMA 5-15R,15A/125V
Cat No.* Description
5325* B– Duplex
G
W
*For color selections, add sufx to the catalog number as follows Ivory (-I), White (-W), Black (-E) and Almond (-A)
Decora Plus SmartLockGFCI Receptacle with Lockout Action
NEMA 5-15R ,15A/125V at Receptacle;20A 125V Feed-Through
Cat No.* Description
8599* C– Duplex GFCI Receptacle with Lockout Action, No Indicator Light
G
W
*For color selections, add sufx to the catalog number as follows Ivory (-I), White (-W), Black (-E) and Almond (-A)
Straight-Blade Hospital Grade Illuminated
Back and Side Wired Receptacle NEMA 5-15R ,15A/125V
Cat No.* Description
8200-HL* D– Illuminated Duplex Receptacle
G
W
*For color selections, add sufx to the catalog number as follows Ivory (I) and White (W)
A
B
C
D
74 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
SWITCHES
Decora Plus AC Quiet Rocker Switches—120/277V AC; Back and Side Wired
Cat No.* Description
5691-2* A– Single-Pole
5693-2* Three-Way
*For color selections, add sufx to the catalog number as follows Ivory (I), White (W), Black (E) and Almond (A)
Decora Plus AC Quiet Illuminated Rocker Switches
120V 60Hz AC Only;Back and Side Wired
Cat No.* Description
5631-2* B– Single-Pole
5633-2* Three-Way
*For color selections, add sufx to the catalog number as follows Ivory (I), White (W) and Almond (A)
A
B
Decora Plus AC Quiet Pilot Light Rocker Switches
120V 60Hz AC Only;Back and Side Wired
Cat No.* Description
5628-2* C– Single-Pole
5638-2* Three-Way
*For color selections, add sufx to the catalog number as follows Ivory (I), White (W) and Almond (A)
C
Decora AC Quiet Rocker Switches
15A/120/277V AC;Quickwire Push-In and Side Wired
Cat No.* Description
5601* D– Single-Pole
5603* Three-Way
*For color selections, add sufx to the catalog number as follows Ivory (-I), White (-W), Black (-2E) and Almond (-2A)
D
Decora AC Quiet Rocker Switches (Lens illuminated when OFF)
15A/120/277V AC;Quickwire Push-In and Side Wired
Cat No.* Description
5611* E– Single-Pole
5613* Three-Way
*For color selections, add sufx to the catalog number as follows Ivory (-I), White (-W) and Almond (-2A)
E
Switches
75
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
LIN Frequently Asked Questions
BASIC INFORMATION
Q. What is Leviton Integrated Networks?
A. Leviton Integrated Networks is the Leviton product line for home structured media, lighting, home
control and surge protection.
Q. OK. What’s a home-structured media system?
A. A system that distributes everything that isnt powered by standard electrical voltage, including
Internet, cable, VCR and satellite TV, phone and fax, stereo system, home and child monitoring.
Q. When should I install a structured media system?
A. Installing one is much more economical when a house is being built, but it’s also easy to install it
during remodeling or when adding an addition.
LEVITON INTEGRATED NETWORKS, THE INTERNET AND HOME NETWORKING
Q. What about Leviton Integrated Networks and the Internet?
A. Whether it’s for a home office or a students room, a kitchen or a family room, Leviton Integrated
Networks is capable of high-speed Internet transmission to as many rooms as you choose. (See the
following question for more information on high-speed Internet.) Leviton Integrated Networks also
turns homes with more than one computer into powerful home networks, for sharing of files,
printers or scanners.
Q. Will Leviton Integrated Networks make my Internet downloads go faster?
A. Yes. Leviton Integrated Networks provides a large capacity pathway for downloading information
from the Internet. The wiring connections allow speeds more than a hundred times faster than
standard modems. But keep in mind that your Internet service provider also affects the speed of
your Internet connection.
Q. Can Leviton Integrated Networks help me run an office in my home?
A. Along with Internet access, Leviton Integrated Networks puts telephones, fax/modems and other
devices to work in any room of your home, because all rooms are wired and connected. Leviton
Integrated Networks gives you a powerful phone network, managing distribution of multiple lines.
Leviton Integrated Networks also allows you to connect to your home network just by plugging in to
the data jacks in any room.
Q. Do I need anything else to set up a home network?
A. Your computer may need a networking card and software. Check your computer owner’s manual.
Q. Will I need to upgrade if I add phone lines or more TVs?
A. It depends on the module you choose for your home. Basic modules can handle four phone
lines and six TVs.
Q. Does Leviton Integrated Networks offer surge protection?
A. Yes. Leviton Integrated Networks helps protect sensitive and expensive electronics that can be
damaged by voltage surges.
LEVITON INTEGRATED NETWORKS AND WHOLE-HOUSE VIDEO
Q. Can I get TV reception in any room in my house?
A. Yes. Any video signal (VCR, cable, satellite, DVD) can be distributed to any room in the house.
Q. Do Leviton Integrated Networks products control interior lighting?
A. Leviton Integrated Networks sets the mood for an evening’s entertainment, with simplified
control of room lighting.
76 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
LIN Frequently Asked Questions
LEVITON INTEGRATED NETWORKS AND HOME-WIDE STEREO
Q. Can I distribute music throughout my home?
A. Yes. Using Leviton Integrated Networks audio components, you can have music throughout
your home.
Q. What if I want to play the stereo in only a couple of rooms?
A. A volume control unit in each location where speakers are present allows you to turn off the audio.
LEVITON INTEGRATED NETWORKS, CAMERA MONITORING
AND SECURITY LIGHTING
Q. Can I monitor the safety of my family in a different part of the house?
A. Yes. Leviton Integrated Networks allows you to distribute a signal to any TV in the house using a
camera in the kids room.
Q. How about security lighting?
A. Leviton Integrated Networks helps create a safer, more secure environment. With features like an
ALL LIGHTS ON panic button that turns all controlled lights on for “bumps in the night.
Q. What is the benefit of automatic lighting control?
A. It allows you to set a program for exterior lights to turn on and off automatically. It also increases
safety by providing automatic lighting for walkways or entry areas, giving a home an occupied look
when youre away.
Q. What is the benefit of remote” lighting control?
A. Using a transmitter at your bedside, you can control lights all over your home at bedtime.
Q. How does the automated home control system work?
A. It’s controlled by transmitters and receivers, which operate on either a programmed schedule or
manually like conventional switches, dimmers and outlets.
TECHNICAL INFORMATION
Q. What does it mean when something is rated Category 5 (Cat 5)?
A. Cat 5 indicates a high level of performance for wire and the products that connect to it. Products
that are rated Category 5 meet high performance levels, and allow the home to handle current and
future technologies.
Q. What kind of cabling would I need in my home?
A. Typically, voice and data signals are transmitted through either Category 5 or Category 5e wiring, or
fiber optic cabling. Each brings progressively higher speed and capability with it. RG-6 and other
coaxial cable are a higher level of video and audio wire.
77
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Structured Cabling Certification
STRUCTURED CABLING
CERTIFICATION
Structured Cabling Certification is fast becoming a
commonly used term, but not all Certifications are
alike. The value of our certified installation depends
upon the seamless combination of four elements:
1. Quality Hardware from Leviton
2. Quality Cables from Program Cable Partners
3. Quality Installation from Program Installation
Partners
4. Applications Assurance and Product Warranty
The Certification Program is a carefully crafted pro-
gram developed with the intent of providing real value
to network users. The Certification Program brings
these four elements together and offers end users
security and assurance that they are getting the
highest performance possible from their structured
cabling system.
1.Quality Hardware from Leviton
Leviton Voice and Data Division offers a complete line
of TIA/EIA-570-A compliant hardware, including one
of the industry’s broadest offerings of residential
products for UTP, coaxial, and fiber optic cabling. This
line includes products for virtually any residential
application, specifically designed to assist in a proper,
standards compliant installation, and manufactured
to the very highest quality standards.
The Leviton Category 5 jack is fast becoming the pre-
ferred jack in the industry. The extremely compact
and robust design is installer friendly, facilitates a
standards compliant installation, and its electrical
performance characteristics are second to none.
2.Quality Cables from Program Cable Partners
Leviton is the first company to develop a Residential
Certification Program, which is open to a wide selec-
tion of compliant cables manufactured by companies
participating in the Leviton program and offering a
similar warranty. Leviton does not limit the customers
options by offering a program that only recognizes one
brand of cable. Customers may choose an authorized
Cable Partner to provide the cable for an installation.
3.Quality Installation from Certified Program
Installation Partners
The third key to the success of this program is the
installation personnel. Leviton enters into special
arrangements with Certified Installation Companies,
called Certification Program Installation Partners, to
assist designers and users with product selection,
installation, testing, and support. Certification
Program Installation Partners are a select group of
the best installation companies/network integrators
in an area.
The Certification Program selects installation partners
who meet the following selection criteria:
• Provide premises network installation and mainte-
nance services.
• Design, install, and test in compliance with TIA/EIA
Residential Building Standards.
• Maintain the highest quality and standards compli-
ant installation practices.
• Provide engineering support for LAN design and
integration.
4.Applications Assurance and Warranty
Leviton ties all these elements together with a program
that offers a FIFTEEN-YEAR APPLICATIONS ASSUR-
ANCE FOR CATEGORY 5 STRUCTURED CABLING and
a FIFTEEN-YEAR EXTENDED WARRANTY for Leviton
passive structured cabling product in certified installa-
tions, along with a standard two-year warranty for
active electronics.
The Applications Assurance provides that the
Certification Program installation will support ANY
CURRENT OR FUTURE APPLICATION developed for a
TIA/EIA-570-A Category 5 structured cabling system
for the FIFTEEN YEARS of the application, providing
the installation remains as originally installed.
Leviton offers a FIFTEEN-YEAR Extended Warranty
against defects in material and workmanship for all
Certification Program passive structured cabling prod-
ucts as long as they are installed in a Certification
Program installation. Leviton produces the highest
quality products available and backs it with one of the
strongest warranties in the industry. It is one more
measure of assurance, which Leviton offers to provide
real value to its customers.
78 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Structured Cabling Certification
CERTIFICATION PROGRAM
OBJECTIVE
The objective of the Certification Program is to pro-
vide an assurance to the end user that their struc-
tured cabling system has been properly designed
and installed using high quality components and
installation practices and will meet or exceed
system specifications.
• Leviton and its Certification Program Cable and
Installation Partners guarantee that the users
systems will operate reliably and trouble free.
CERTIFICATION PROGRAM BENEFITS
The Certification Program provides a structure in
which the individual and otherwise stand-alone
pieces of a structured cabling system are combined
seamlessly for the end user.
The Program benefits the end user with a quality
installation and quality support.
The Program benefits the Certification Program
Installation Partner by providing access to high
quality products and structured cabling installation
certification, as well as factory training and technical
support, to offer to its customers.
CERTIFICATION PROGRAM
ADVANTAGES
The Certification Program Installation Partner receives
the following competitive advantages:
• FIFTEEN-YEAR Applications Assurance for Category 5
structured cabling and FIFTEEN-YEAR Extended
Warranties.
Training in industry standards and installation
practices.
• Access to the latest standards developments
information.
Technical support from Leviton applications engineers
and RCDDs.
• Joint Leviton promotional materials and opportunities.
• Ability to bid jobs requiring certified installers.
• Follow-up sales for moves, adds, and changes to the
certified installation.
• Promotion for the Certification Program and
Certification Program Partners to end users and
designers.
• Lead referrals
79
Leviton Help Lines—Customer Service: 1-800-323-8920 • Techline: 1-800-722-2082 • Fax: 1-800-832-9538
Index by Catalog Number
Cat No. Page No.
C0224 . . . . . . . . . . . . .38
C0224-CP . . . . . . . . . .38
C0225 . . . . . . . . . . . . .38
C0225-CP . . . . . . . . . .38
C0229-* . . . . . . . . . . . .35
C0249-* . . . . . . . . . . . .34
C0249-*CP . . . . . . . . .34
C0253-* . . . . . . . . . . . .35
C0253-*CP . . . . . . . . .35
C0254-* . . . . . . . . . . . .34
C0256-SS . . . . . . . . . .35
C2447-* . . . . . . . . . . . .34
C2447-*CP . . . . . . . . .34
C2448-* . . . . . . . . . . . .39
C2449-* . . . . . . . . . . . .34
C2450-* . . . . . . . . . . . .35
C2455-* . . . . . . . . . . . .35
C2456-* . . . . . . . . . . . .39
C2655-* . . . . . . . . . . . .35
C2675-* . . . . . . . . . . . .34
C2676-* . . . . . . . . . . . .34
C2682-* . . . . . . . . . . . .35
C5002 . . . . . . . . . . . . .40
C5002-CP . . . . . . . . . .40
C5002-GO . . . . . . . . . .40
C5003 . . . . . . . . . . . . .40
C5004 . . . . . . . . . . . . .40
C5004-GO . . . . . . . . . .40
C5007 . . . . . . . . . . . . .47
C5007-CP . . . . . . . . . .47
C5008 . . . . . . . . . . . . .41
C5008-CP . . . . . . . . . .41
C5008-G . . . . . . . . . . .41
C5009 . . . . . . . . . . . . .47
C5009-G . . . . . . . . . . .47
C5052 . . . . . . . . . . . . .43
C5052-GO . . . . . . . . . .43
C5053 . . . . . . . . . . . . .43
C5055 . . . . . . . . . . . . .43
C5203 . . . . . . . . . . . . .41
C5203-CP . . . . . . . . . .41
C5203-G . . . . . . . . . . .41
C5205 . . . . . . . . . . . . .42
C5229 . . . . . . . . . . . . .42
C5235 . . . . . . . . . . . . .43
C5255 . . . . . . . . . . . . .44
C5256-* . . . . . . . . . . . .39
C5256-*CP . . . . . . . . .39
C5259 . . . . . . . . . . . . .43
C5259-GO . . . . . . . . . .43
C5307 . . . . . . . . . . . . .47
C5307-CP . . . . . . . . . .47
C5307-G . . . . . . . . . . .47
C5402 . . . . . . . . . . . . .44
Cat No. Page No.
C5405 . . . . . . . . . . . . .45
C5451-12 . . . . . . . . . . .45
C5451-3 . . . . . . . . . . . .45
C5451-6 . . . . . . . . . . . .45
C5451-6GO . . . . . . . . .45
C5454-3 . . . . . . . . . . . .45
C5811 . . . . . . . . . . . . .42
C5811-WCP . . . . . . . .42
C5812 . . . . . . . . . . . . .42
C5822 . . . . . . . . . . . . .44
C5822-GO . . . . . . . . . .43
C5852-12G . . . . . . . . .44
C5852-6GO . . . . . . . . .44
C5853-6 . . . . . . . . . . . .44
C5856-GO . . . . . . . . . .44
C5914 . . . . . . . . . . . . .41
HCA02-10E . . . . . .61, 62
HCC10-1TW . . . . .61, 62
HCC1A-1TW . . . . . . . .61
HCC1D-1TW . . . . . . . .62
HCC2D-1TW . . . . . . . .62
HCC3D-1TW . . . . . . . .62
HCC4A-1TW . . . . . . . .62
HCC4D-1TW . . . . . . . .62
HCCKR . . . . . . . . . . . .61
HCCPG-1TW . . . . . . . .62
HCCS7-1TW . . . . . . . .62
HCCUV . . . . . . . . . . . .61
HCM06-1SW . . . . . . . .61
HCPRF . . . . . . . . . . . .61
INI06-1L* . . . . . . . . . . .66
INM06-1L* . . . . . . . . . .66
IPE04-1L* . . . . . . . . . .66
IPF01-1L* . . . . . . . . . .66
IPI06-1L* . . . . . . . . . . .66
MCM06-1L* . . . . . . . . .67
MCM10-1L* . . . . . . . . .67
MDI06-1L* . . . . . . . . . .67
MDM06-1L* . . . . . . . . .67
MLI06-1L* . . . . . . . . . .67
MLM06-1L* . . . . . . . . .67
MN00C-1L* . . . . . .67, 68
MNI10-1L* . . . . . . . . . .68
MNM06-1L* . . . . . . . . .68
MRI06-1L* . . . . . . . . . .67
MS00R-10* . . . . . .61, 67
MSI06-1L* . . . . . . . . . .67
ODC0S-I1W . . . . . . . .61
ODS10-ID . . . . . . .61, 68
RS110-10 . . . . . . . . . . .61
TGI06-10* . . . . . . . . . .65
TGI06-1L* . . . . . . . . . .65
TGM10-1L* . . . . . . . . .65
TPI06-1L* . . . . . . . . . .68
Cat No. Page No.
TPI10-1L* . . . . . . . . . .68
TTI06-10 . . . . . . . . . . .72
U1000-AKP . . . . . . . . .70
X3301-100 . . . . . . . . . .45
X3301-25C . . . . . . . . .45
X3301-50C . . . . . . . . .45
X3324-100 . . . . . . . . . .45
X3324-25C . . . . . . . . .45
X3324-50C . . . . . . . . .45
12005 . . . . . . . . . . . . .71
1201-LH . . . . . . . . . . . .72
16351-* . . . . . . . . . . . .73
17100-2WY . . . . . . . . .67
177IR-IWA . . . . . . .67, 68
177OC . . . . . . . . . . . . .67
177RC . . . . . . . . . .67, 68
40050-MCV . . . . . . . . .52
40050-MHG . . . . . . . . .52
40050-MHO . . . . . . . . .52
40054-DS . . . . . . . . . .51
40054-DSS . . . . . . . . .51
40056-DSM . . . . . . . . .51
40066-M25 . . . . . . . . .51
40066-M50 . . . . . . . . .51
40067-BC . . . . . . . . . .51
40067-CLP . . . . . . . . .51
40072-T2 . . . . . . . . . . .50
40072-T4 . . . . . . . . . . .50
40072-T6 . . . . . . . . . . .50
40072-T8 . . . . . . . . . . .50
40089-B . . . . . . . . . . . .50
40089-D . . . . . . . . . . . .50
40089-DBR . . . . . . . . .50
40201 . . . . . . . . . . . . .38
40238-* . . . . . . . . . . . .36
40244-* . . . . . . . . . . . .37
40249-* . . . . . . . . . . . .36
40258-* . . . . . . . . . . . .37
40259-* . . . . . . . . . . . .37
40266-* . . . . . . . . . . . .37
40280-* . . . . . . . . . . . .36
40538-* . . . . . . . . . . . .36
40539-HM* . . . . . . . . .39
40539-OM* . . . . . . . . .39
40539-PM* . . . . . . . . .36
40544-* . . . . . . . . . . . .37
40549-* . . . . . . . . . . . .36
40566-* . . . . . . . . . . . .37
40580-* . . . . . . . . . . . .36
40588-* . . . . . . . . . . . .37
40638-* . . . . . . . . . . . .37
40649-* . . . . . . . . . . . .37
40680-* . . . . . . . . . . . .37
40681-* . . . . . . . . . . . .39
Cat No. Page No.
40682-* . . . . . . . . . . . .39
40701-B* . . . . . . . . . . .32
40702-B* . . . . . . . . . . .32
40734-SV* . . . . . . . . . .31
40735-RO* . . . . . . . . .30
40735-RR* . . . . . . . . . .30
40735-RW* . . . . . . . . .30
40735-RY* . . . . . . . . . .30
40740-BE . . . . . . . . . .49
40753-B* . . . . . . . . . . .33
40754-B* . . . . . . . . . . .33
40756-B* . . . . . . . . . . .33
40803-* . . . . . . . . . . . .32
40803-*BR . . . . . . . . . .32
40803-B* . . . . . . . . . . .32
40804-* . . . . . . . . . . . .32
40804-*BR . . . . . . . . . .32
40804-B* . . . . . . . . . . .32
40806-* . . . . . . . . . . . .32
40806-*BR . . . . . . . . . .32
40806-B* . . . . . . . . . . .32
40807-* . . . . . . . . . . . .32
40807-*R . . . . . . . . . . .32
40807-B* . . . . . . . . . . .32
40807-B2* . . . . . . . . . .32
40812-RTK . . . . . . . . .41
40827-* . . . . . . . . . . . .28
40828 . . . . . . . . . . . . .28
40830-* . . . . . . . . . . . .31
40830-*R . . . . . . . . . . .31
40830-B*E . . . . . . . . . .31
40830-B*R . . . . . . . . . .31
40830-B*Y . . . . . . . . . .31
40831-B* . . . . . . . . . . .30
40832-* . . . . . . . . . . . .31
40832-*R . . . . . . . . . . .31
40832-B* . . . . . . . . . . .31
40833-* . . . . . . . . . . . .31
40833-*R . . . . . . . . . . .31
40833-B*E . . . . . . . . . .31
40833-B*R . . . . . . . . . .31
40837-* . . . . . . . . . . . .31
40837-*R . . . . . . . . . . .31
40837-B*E . . . . . . . . . .31
40837-B*R . . . . . . . . . .31
40841-D* . . . . . . . . . . .25
40850-*BR . . . . . . . . . .33
40850-B* . . . . . . . . . . .33
40853-OVC . . . . . . . . .25
40856-DSS . . . . . . . . .40
40859-* . . . . . . . . . . . .31
40859-*R . . . . . . . . . . .31
40859-B* . . . . . . . . . . .31
40864-D* . . . . . . . . . . .26
Cat No. Page No.
40866-DSS . . . . . . . . .40
40867-DSS . . . . . . . . .42
40868-DSS . . . . . . . . .42
40871-25W . . . . . . . . .42
40871-50W . . . . . . . . .42
40871-CW . . . . . . . . . .42
40888-72* . . . . . . . . . .26
40888-72W . . . . . . . . . .4
40890 . . . . . . . . . . . . .28
40890-WS . . . . . . . .4, 28
40896 . . . . . . . . . . . . .28
40896-W . . . . . . . . . . . .4
40899-* . . . . . . . . . . . .25
40901-D* . . . . . . . . . . .26
40905-25* . . . . . . . . . .25
40911-D* . . . . . . . . . . .26
40914-* . . . . . . . . . . . .35
40944-* . . . . . . . . . . . .34
40944-*D . . . . . . . . . . .34
40949-* . . . . . . . . . . . .34
40949-*D . . . . . . . . . . .34
40951-1P* . . . . . . . . . .27
40952-2P* . . . . . . . . . .27
40953-AD* . . . . . . . . . .27
40954-DM* . . . . . . . . .27
40959-* . . . . . . . . . . . .35
40959-*D . . . . . . . . . . .34
40981-* . . . . . . . . . . . .39
40981-*D . . . . . . . . . . .39
40982-* . . . . . . . . . . . .39
40984 . . . . . . . . . . . . .40
40985-1P6 . . . . . . . . . .47
40985-1P9 . . . . . . . . . .47
40985-2P6 . . . . . . . . . .47
40985-2P9 . . . . . . . . . .47
40985-HPC . . . . . . . . .41
40985-HPM . . . . . . . . .41
40985-Q6 . . . . . . . . . .47
40985-TW6 . . . . . . . . .41
40985-TW9 . . . . . . . . .41
40986 . . . . . . . . . . . . .41
40987-2 . . . . . . . . . . . .40
40987-3 . . . . . . . . . . . .40
40987-4 . . . . . . . . . . . .40
40989-RCT . . . . . . . . .47
41084 . . . . . . . . . . . . . . .2
41084-B* . . . . . . . . . . .31
41084-F*F . . . . . . . . . .30
41084-F*P . . . . . . . . . .54
41084-F*Z . . . . . . . . . .54
41084-FWF . . . . . . . . . .3
41084-S*P . . . . . . . . . .54
41084-S*Z . . . . . . . . . .54
41085M*C . . . . . . . . . .54
*= Multiple color options available
80 To learn more about Levitons outstanding offering of Advanced Home Systems devices visit our website: www.leviton.com/lin
Index by Catalog Number
Cat No. Page No.
41085-ML* . . . . . . . . . .54
41085-S*C . . . . . . . . . .54
41085-SL* . . . . . . . . . .54
4108W-0SP . . . . . . . . .32
4108W-1SP . . . . . . . . .32
41106-R*6 . . . . . . . . . .29
41108-K*5 . . . . . . . . . .29
41108-R*3 . . . . . . . . . .29
41108-R*5 . . . . . . . .2, 29
41108-R*8 . . . . . . . . . .29
42400-8FG . . . . . .11, 46
42400-G . . . . . . . . . . .46
43080-1S1 . . . . . . . . . .32
43080-1S2 . . . . . . . . . .32
43080-1S3 . . . . . . . . . .32
43080-1S4 . . . . . . . . . .32
43080-1S5 . . . . . . . . . .32
43080-1S6 . . . . . . . . . .32
43080-2S12 . . . . . . . . .32
43080-2S2 . . . . . . . . . .32
43080-2S4 . . . . . . . . . .32
43080-2S6 . . . . . . . . . .32
43080-2S8 . . . . . . . . . .32
4625B-44* . . . . . . . . . .36
4625B-46* . . . . . . . . . .36
4625B-48* . . . . . . . . . .36
46721-CMS . . . . . . . . . .4
47602-24E . . . . . . . . . . .8
47602-BKE . . . . . . . . . .8
47603-110 . . . . .4, 11, 21
47603-18P . . . . . . . . . .10
47603-1G4 . . . . . . . .2, 11
47603-1G6 . . . . . . . . . .11
47603-24P . . . . . . . .3, 10
47603-C5 . . . . . . . . . . .11
47603-PTE . . . . . . . . .10
47603-TSV . . . . . . . . .11
47605-14N . . . . . . . . . . .6
47605-14W . . . . . . . .2, 6
47605-28N . . . . . . . . . . .7
47605-28W . . . . . . . .3, 7
47605-42N . . . . . . . . . . .7
47605-42W . . . . . . . .3, 7
47605-ACN . . . . . . . . .12
47605-ACS . . . . . . .2, 12
47605-C5B . . . . . . .3, 11
47605-DP . . . . . . . .3, 12
47605-F14 . . . . . . . . . . .6
47605-F28 . . . . . . . . . . .7
47605-F42 . . . . . . . . . . .7
47605-H14 . . . . . . . . . . .6
47605-H28 . . . . . . . . . . .7
47605-H42 . . . . . . . . . . .7
47605-NDP . . . . . . . . .12
47605-PSB 12
Cat No. Page No.
47606-AHT 3, 10
47606-BNP . . . . . . . . .10
47606-BTV . . . . . . .2, 10
47609-4X4 . . . . . . . . . .33
47609-EMP . . . . . . . . .11
47609-TSV . . . . . . . . .11
47611-5PT . . . . . . . .3, 14
47611-8PT . . . . . . . . . .14
47611-GT4 . . . . . . .4, 14
47611-GTA . . . . . . . . . .3
47612-MMA . . . . . . . . .11
47613-EZC . . . . . . . . .47
47613-EZR . . . . . . . . .47
47615-NYL . . . . . . . . .47
47616-DSB . . . . . . . . .11
47616-DSF . . . . . . . . .11
47620-1W . . . . . . . . . .46
47620-3W . . . . . . . . . .46
47621-CMS . . . . . . . . .21
47621-MIE . . . . . . . .4, 21
47689-00B . . . . . . . . . .11
47689-QP . . . . . . . . . .48
47690-110 . . . . . . . . . .50
47690-3BY . . . . . . . . .15
47690-4BY . . . . . . . . .15
47690-4C . . . . . . . . . . .17
47690-4C2 . . . . . . . . . .17
47690-6C . . . . . . . . . . .17
47690-6C2 . . . . . . . . . .17
47690-6S . . . . . . . . . . .40
47690-8C . . . . . . . . . . .17
47690-8C2 . . . . . . . . . .17
47690-BVA . . . . . . . . .16
47690-ESM . . . . . . . . .15
47690-G3Y . . . . .3, 4, 15
47690-G4Y . . . . . . . . .15
47690-GSM . . . . . . . . .15
47690-GVA . . . . . . . . .16
47690-NFA . . . . . . . . .20
47690-NFA . . . . . . . . . .4
47691-3MS . . . . . . . . .17
48210-DSM . . . . . . .4, 21
48210-MCH . . . . . . .4, 22
48210-MRU . . . . . . .4, 22
48210-MSU . . . . . . .4, 22
48210-SRU . . . . . . .4, 22
48210-VA . . . . . . . . . . .16
48211-*VC . . . . . . . .4, 23
48211-*VK . . . . . . . .4, 24
48211-6A . . . . . . . . .4, 23
48212-DCS . . . . .3, 4, 13
48213-*DC . . . . . . . .4, 19
48213-CVS . . . . . . .4, 19
48213-ECC . . . . . . .4, 19
48213-VMA . . . . . . .4, 20
Cat No. Page No.
49251-W62 . . . . . . . . .49
49251-W63 . . . . . . . . .49
49251-W64 . . . . . . . . .49
4925-2 . . . . . . . . . . . . .38
49255-H24 . . . . . . . . . .48
49255-H48 . . . . . . . . . .48
49257-I24 . . . . . . . . . .48
49553-110 . . . . . . . . . .41
49553-66 . . . . . . . . . . .41
49553-814 . . . . . . . . . .41
49800-202 . . . . . . . . . .56
49800-CON . . . . . . . . .57
49800-FAC . . . . . . . . .57
49800-FTP . . . . . . . . .56
49800-SLA . . . . . . . . .56
49800-SLT . . . . . . . . . .56
49800-UTK . . . . . . . . .56
49800-UTP . . . . . . . . .56
49822-MST . . . . . . . . .53
49880-202 . . . . . . . . . .57
49882-SAD . . . . . . . . .54
49882-SST . . . . . . . . .53
49883-FCT . . . . . . . . .57
49883-MFC . . . . . . . . .53
49883-SFC . . . . . . . . .53
49884-BAD . . . . . . . . .54
49884-DPC . . . . . . . . .53
49884-DPC . . . . . . . . .57
49884-MAD . . . . . . . . .54
49884-MSC . . . . . . . . .53
49884-SAD . . . . . . . . .54
49884-SSC . . . . . . . . .53
49885-SBS . . . . . . . . .53
49885-SLV . . . . . . . . . .53
49886-03F . . . . . . . . . .57
49886-12F . . . . . . . . . .57
49886-CTT . . . . . . . . .57
49886-DLM . . . . . . . . .53
49886-DLS . . . . . . . . .53
49886-DSC . . . . . . . . .53
49886-FCN . . . . . . . . .57
49886-FCT . . . . . . . . .57
49886-SYR . . . . . . . . .57
49886-UVC . . . . . . . . .57
49886-VFA . . . . . . . . .57
49886-VSA . . . . . . . . .57
49886-VWF . . . . . . . . .57
49886-X3F . . . . . . . . . .57
49887-6L . . . . . . . . . . .56
49887-6S . . . . . . . . . . .56
49888-6SF . . . . . . . . . .53
49889-MAD . . . . . . . . .54
49889-QF* . . . . . . . . . .54
49990-MDL . . . . . . . . .53
49990-MFC . . . . . . . . .53
Cat No. Page No.
49990-ML2 . . . . . . . . .53
49990-MSC . . . . . . . . .53
49990-MST . . . . . . . . .53
49990-SDL . . . . . . . . .53
49990-SFC . . . . . . . . .53
49990-SL2 . . . . . . . . . .53
49990-SSC . . . . . . . . .53
49990-SST . . . . . . . . .53
51084-CLB . . . . . . . . .33
51084-ICN . . . . . . . . . .33
51084-XLB . . . . . . . . .33
51110-PTC . . . . . . . . . .70
52454-15R . . . . . . . . . .46
52454-3R . . . . . . . . . . .46
52454-7R . . . . . . . . . . .46
52455-15* . . . . . . . . . .46
52455-3* . . . . . . . . . . .46
52455-7* . . . . . . . . . . .46
5280 . . . . . . . . . . . . . . .70
5321 . . . . . . . . . . . . . . .71
5325-* . . . . . . . . . . . . .77
5501-LH* . . . . . . . . . . .65
5503-LH* . . . . . . . . . . .65
5505 . . . . . . . . . . . . . . .70
5601-* . . . . . . . . . . . . .78
5603-* . . . . . . . . . . . . .78
5611-* . . . . . . .66, 68, 74
5613-* . . . . . . .66, 68, 74
5614-* . . . . . . . . . . . . .68
5628-2* . . . . . . . . . . . .78
5631-2* . . . . . . . . . . . .78
5633-2* . . . . . . . . . . . .78
5638-2* . . . . . . . . . . . .78
5691-2* . . . . . . . . . . . .78
5693-2* . . . . . . . . . . . .78
59484-U12 . . . . . . . . . .49
59484-U24 . . . . . . . . . .49
5951-* . . . . . . . . . . . . .13
5952-* . . . . . . . . . . . . .13
5953-* . . . . . . . . . . . . .13
5954-* . . . . . . . . . . . . .13
5955-* . . . . . . . . . . . . .13
5F100-6QP . . . . . . . . .11
5F100-6VF . . . . . . . . . .11
5F100-BNC . . . . . . . . .11
5F100-DLC . . . . . . . . .54
5F100-DLZ . . . . . . . . .54
5F100-QLC . . . . . . . . .54
5F100-QLZ . . . . . . . . .54
5G108-R*5 . . . . . . .3, 29
5G454-15R . . . . . . . . .46
5G454-3R . . . . . . . . . .46
5G454-7R . . . . . . . . . .46
5G455-15* . . . . . . . . . .46
5G455-3* . . . . . . . . . . .46
Cat No. Page No.
5G455-5* . . . . . . . . . . .46
5G455-7* . . . . . . . . . . .46
5G484-U12 . . . . . . . . .49
5G484-U24 . . . . . . . . .49
5G584-U89 . . . . . . . . .48
5R100-0FR . . . . . . . . .54
5W110-00N . . . . . . . . .53
5W120-00N . . . . . . . . .53
5W170-00N . . . . . . . . .53
6124H . . . . . . . . . .61, 71
6197-* . . . . . . . . . . . . .59
6227 . . . . . . . . . . . . . . .61
6230M-* . . . . . .65, 66, 68
6291-WI . . . . . . . . . . . .61
6294 . . . . . . . . . . . . . . .61
6308 . . . . . . . . . . . . . . .63
6312 . . . . . . . . . . . . . . .62
6320 . . . . . . . . . . . . . . .63
6330 . . . . . . . . . . . . . . .63
6337 . . . . . . . . . . . . . . .63
6417 . . . . . . . . . . . . . . .63
6690 . . . . . . . . . . . . . . .71
6698 . . . . . . . . . . . . . . .72
6800-* . . . . . . . . . .61, 66
80301-* . . . . . . . . . . . .58
80309-* . . . . . . . . . . . .58
80311-* . . . . . . . . . . . .58
80401-* . . . . . . . . .33, 58
80405-* . . . . . . . . . . . .58
80409-* . . . . . . . . .33, 58
80411-* . . . . . . . . . . . .58
80414-* . . . . . . . . . . . .59
80421-* . . . . . . . . . . . .58
80431-* . . . . . . . . . . . .58
80601-* . . . . . . . . . . . .58
80609-* . . . . . . . . . . . .58
80611-* . . . . . . . . . . . .58
80781-* . . . . . . . . . . . .39
80782-* . . . . . . . . . . . .39
81401 . . . . . . . . . . . . .59
81409 . . . . . . . . . . . . .59
81411 . . . . . . . . . . . . . .59
8200-HL* . . . . . . . .72, 73
83401 . . . . . . . . . . . . .59
83409 . . . . . . . . . . . . .59
83411 . . . . . . . . . . . . . .59
84003 . . . . . . . . . . . . .59
84003-40 . . . . . . . . . . .59
8599-* . . . . . . . . . .71, 73
86002 . . . . . . . . . . . . .71
86004 . . . . . . . . . . . . .38
911 . . . . . . . . . . . . . . . .72
*= Multiple color options available
Levitons Complete Line of Catalogs
D-503 Wiring Devices
This catalog contains a comprehensive
selection of Leviton products for
Industrial, Commercial and Residential
construction and maintenance, includ-
ing switches, receptacles, plugs and con-
nectors, wire mesh safety grips, lighting
controls, surge protective devices
(TVSS), wallplates, communications
premise wiring products and more.
Lighting Control Products
This catalog provides a comprehensive
offering of Levitons state-of-the-art
lighting control products, including
our extensive line of architectural
lighting control systems, box-mounted
lighting and fan speed controls, occu-
pancy sensors and DHC powerline
carrier home automation products.
Decora Collection of Designer Devices
A comprehensive look at the Decora
collection of designer-styled switches,
receptacles, wallplates, lighting controls,
voice, data, video and audio devices,
and Decora Home Controls developed
by Leviton through the merging of sleek
design with the ultimate in technology
to provide an elegant finishing touch to
any interior.
Night and Day Decora Color Collection
Leviton offers the most complete col-
lection of residential and commercial
almond and black colored wiring,
electronic and communications
devices from a single source.
Structured Cabling Systems
This catalog covers the wide range of
structured cabling/structured media
products that Leviton offers for any
type of home or office cabling project,
new or retrofit, from multimedia
connectors to cable management to
fiber optic panels and more.
Power Quality Products
Virtually every educational facility has
microprocessor-driven electronic
equipment that is vulnerable to the
disruptive and damaging effects of
transient voltage surges, voltage sags
and power outages. Leviton offers a
full line of surge protective devices
and Uninterruptible Power Supplies
(UPS) to defend this equipment.
Decora Home Controls Technical Manual
A complete guide to Decora Home
Controls Components for automated
control of lighting scenes, time-set
On/Off lighting control and automated
appliance control, including wiring
diagrams and technical information
plus real-life applications for field use.
Structured Wiring Installation Manual
This manual provides a comprehensive
description of industry standards,
warranties, installer certification, ordi-
nances, tools, job planning, and system
design and installation techniques for
residential structured wiring.
Home Cabling User Guide
This user guide is designed to show you
the components and applications of
structured wiring. It also provides sug-
gestions and tips for the placement of
TVs, computers, telephones, and other
devices that will make use of structured
wiring. It concludes with a glossary and
section of frequently asked questions
related to structured wiring.
FOR MORE INFORMATION ABOUT OTHER
LEVITON PRODUCTS, PLEASE CALL OUR
CUSTOMER SERVICE AT 1-800-323-8920
© 2003 Leviton Manufacturing Co., Inc. All rights reserved.
G-6306/A3-50M rs
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck, NY 11362-2591
Telephone: 1-800-323-8920 • FAX: 1-800-832-9538
Tech Line 1-800-722-2082 (8:30–7:30 EST, Monday–Friday)
Leviton Voice & Data Headquarters
2222–222nd St. S.E., Bothell, WA 98021-4422 USA
Telephone: 1-800-722-2082 • International: 425-486-2222
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Telephone: 1-800-469-7890 • FAX: 1-800-563-1853
Leviton S.A. de C.V.
General Arista 54-A Col. Argentina, Mexico D.F., C.P. 11270
Telephone: 011-525-386-1131, 011-525-386-2052 • FAX: 011-525-386-1797
Visit Leviton’s Web site at : www.leviton.com/Lin
LEVITON
INTEGRATED
NETWORKS
HOME
SYSTEMS

Navigation menu
