A-Technology Ltd. POS-terminal Users manual

Contents

Users manual

User Guide
POS-terminal
Optima
Product Overview
Front View
Rear View
1.
Side View
A-Technology Ltd.
3
4
2
1
Installation
1. Unscrew the screw marked out in below picture via a cross head screw-drive and
remove the cover.
2. Find the power adapter port and connect the cable and adapter to support power
if the battery is in low level.
3. Then connect your cash drawer.
Operating System Setting
1. Hold and keep pressing the power button for several seconds. The indicator light
will turn blue after the device start-up.

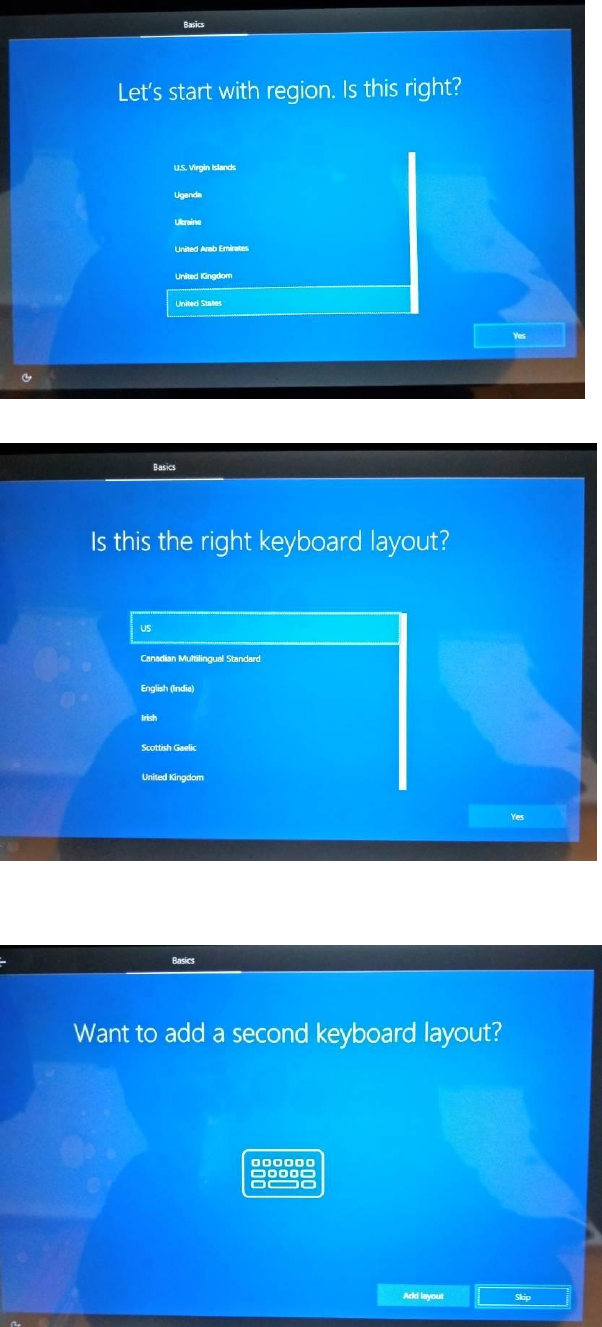

2. Then please choose your region. Then click ”Yes”.
5
5
7
8
9
6
1. LCD touch panel 6. Power adapter port
2. Port cover 7. RS232 port
3. USB port 8. HDMI port
4. Power button 9. RJ45 Net port
5. USB port
3. Choose your keyboard layout. Then click “Yes”.
4. If you want to add a second keyboard layout, please click ”Add layout”, if not,
please click ”Skip”.

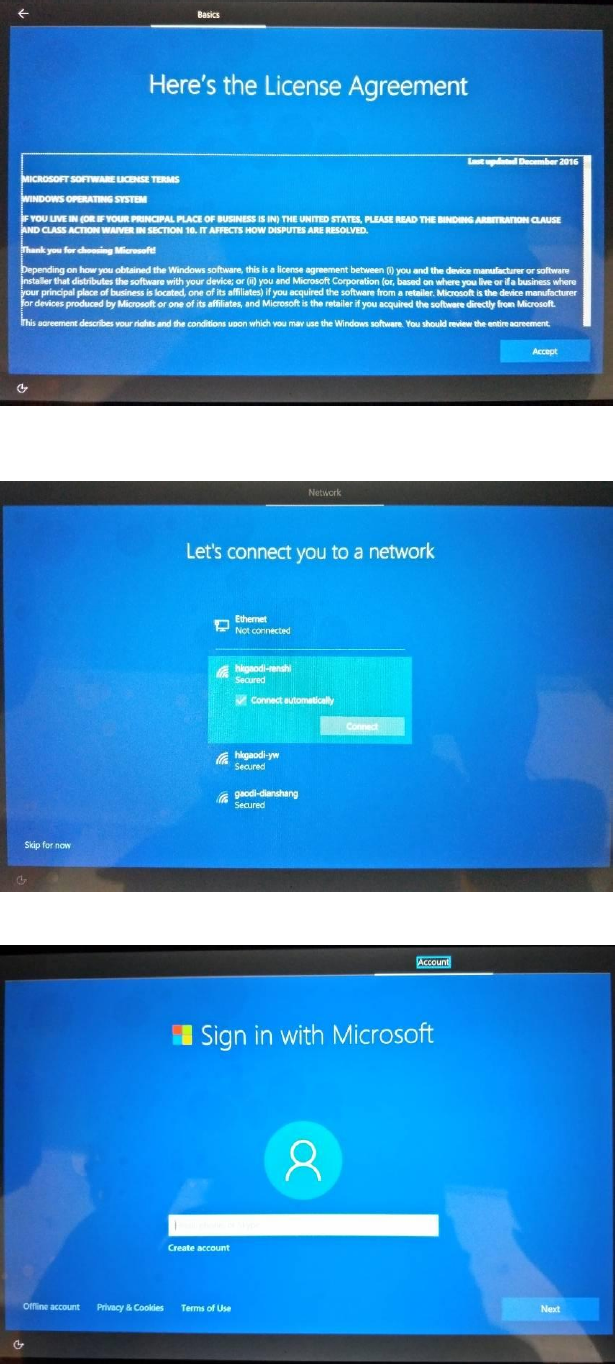

5. Read the License Agreement and click “Accept”.
6. Connect your device to a network. Ethernet and WLAN both are OK. Choose one
account in the net list and enter the network security key. Then press ”Next”.
7. Sign in your Microsoft account. If no account, please click ”Create account”.

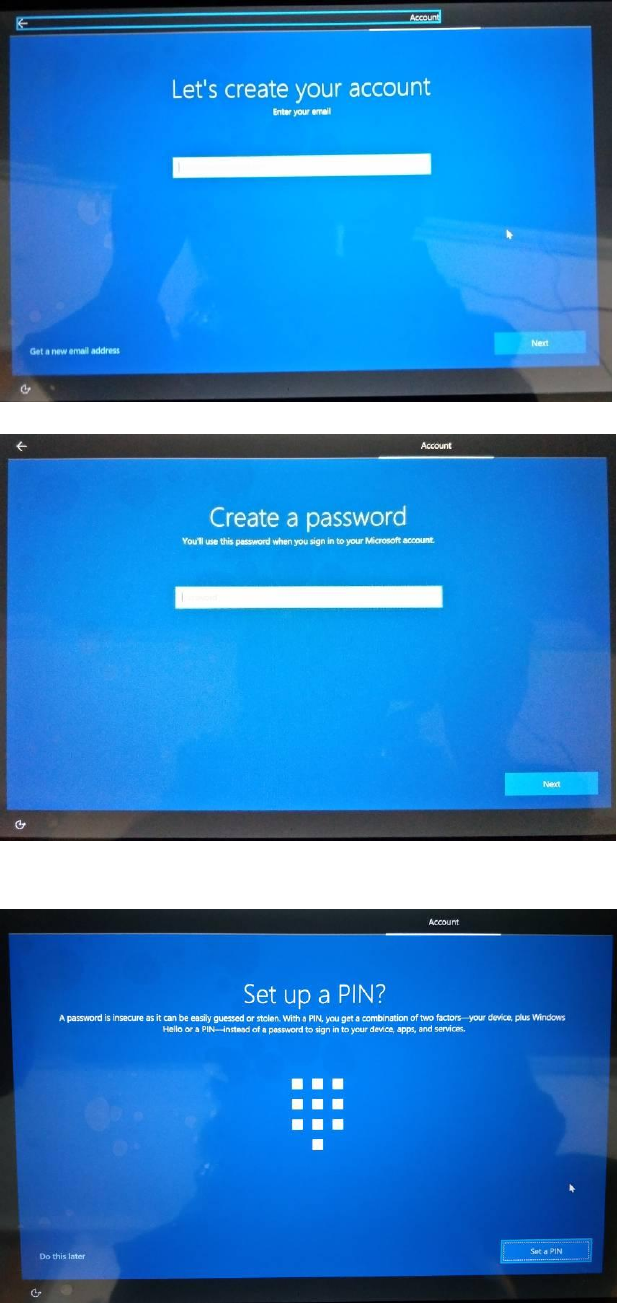

8. Enter your email address and click “Next”.
9. Set the password. Then click “Next”.
10. Then enter your password for sign in your account. Click”Next”.
11. The device will remind you if want to set up a PIN.
12. If you want to set up a PIN, please click “Set a PIN”. If not, click “Do this later”.

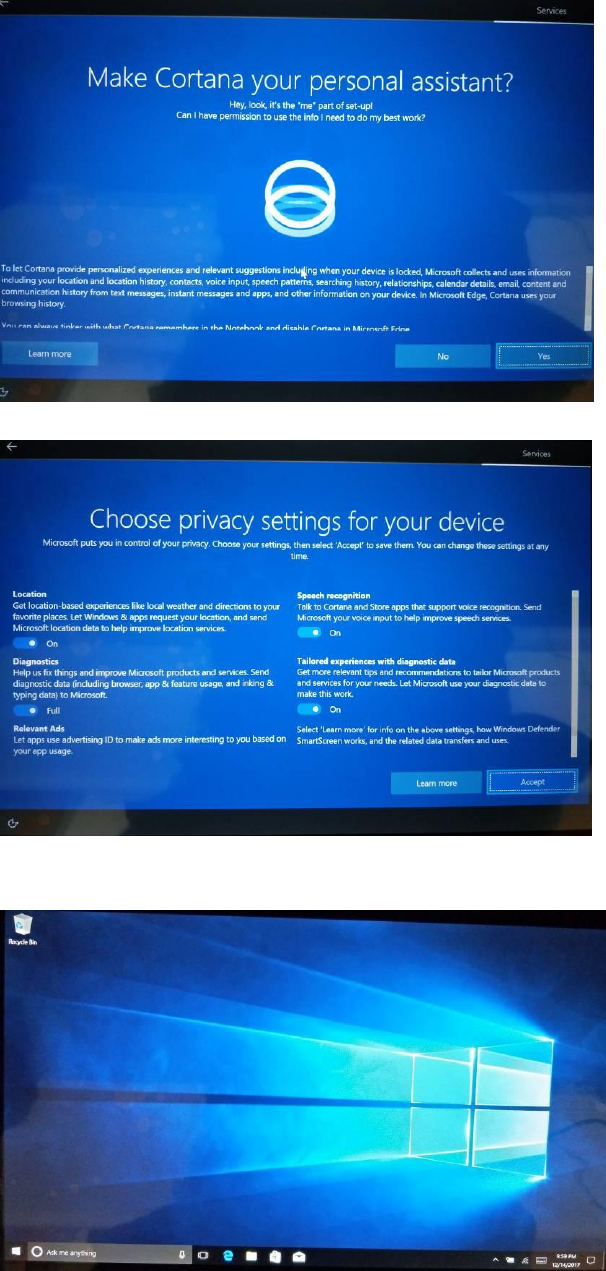

13. Then the device will remind you if make Cortana your personal assistant.
Click ”Yes” to set and click “Learn more” to learn more information. Click “No” to
enter next step.
14. Choose privacy settings for your device. Click “Accept”.
15. Enter the system interface and enter your password.The Microsoft will start-up as
below.

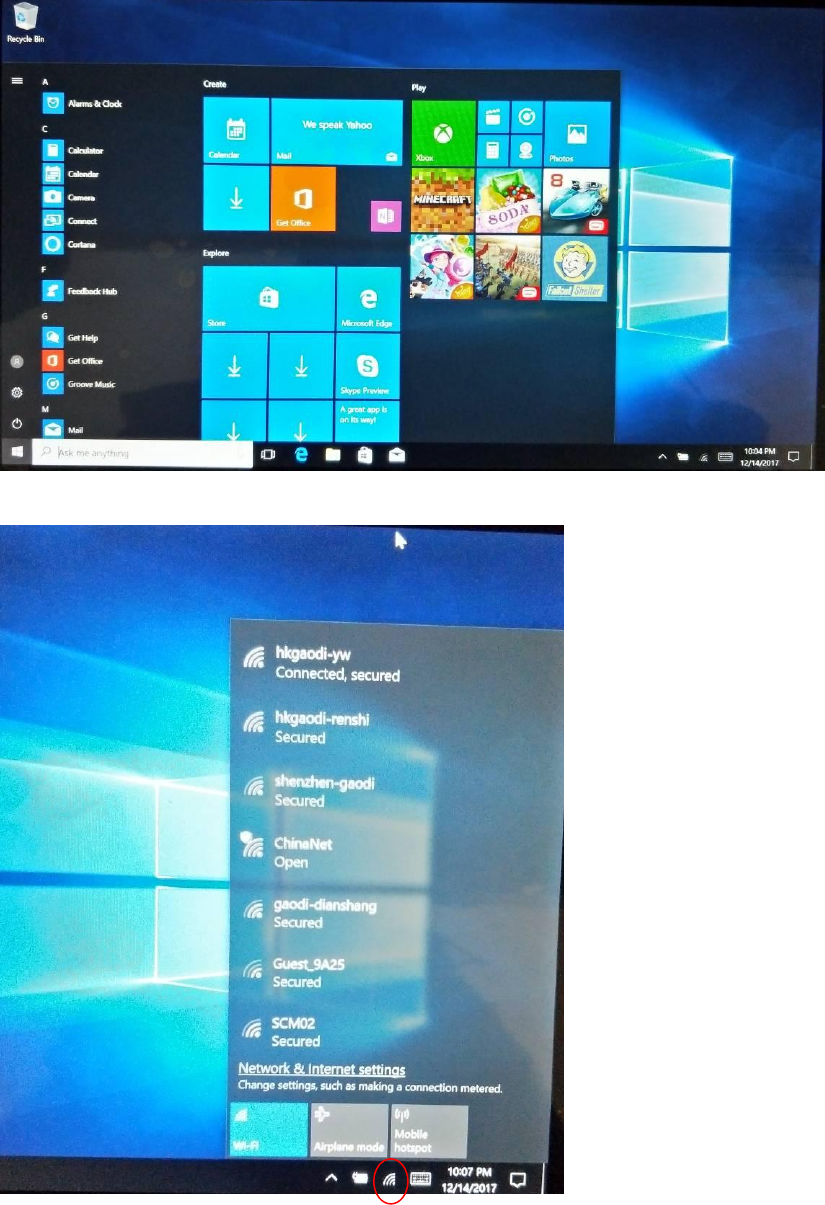

16. Open the system menu and you can find various tools and applications.
17. If want to change the network, please click below marked WiFi icon.
18. You can click turn off icon to close your device in system menu. Also can hold and
keep pressing the power button for several seconds, then the screen appear”Slip
down to shut down your device”. Then slip down can turn off the device.

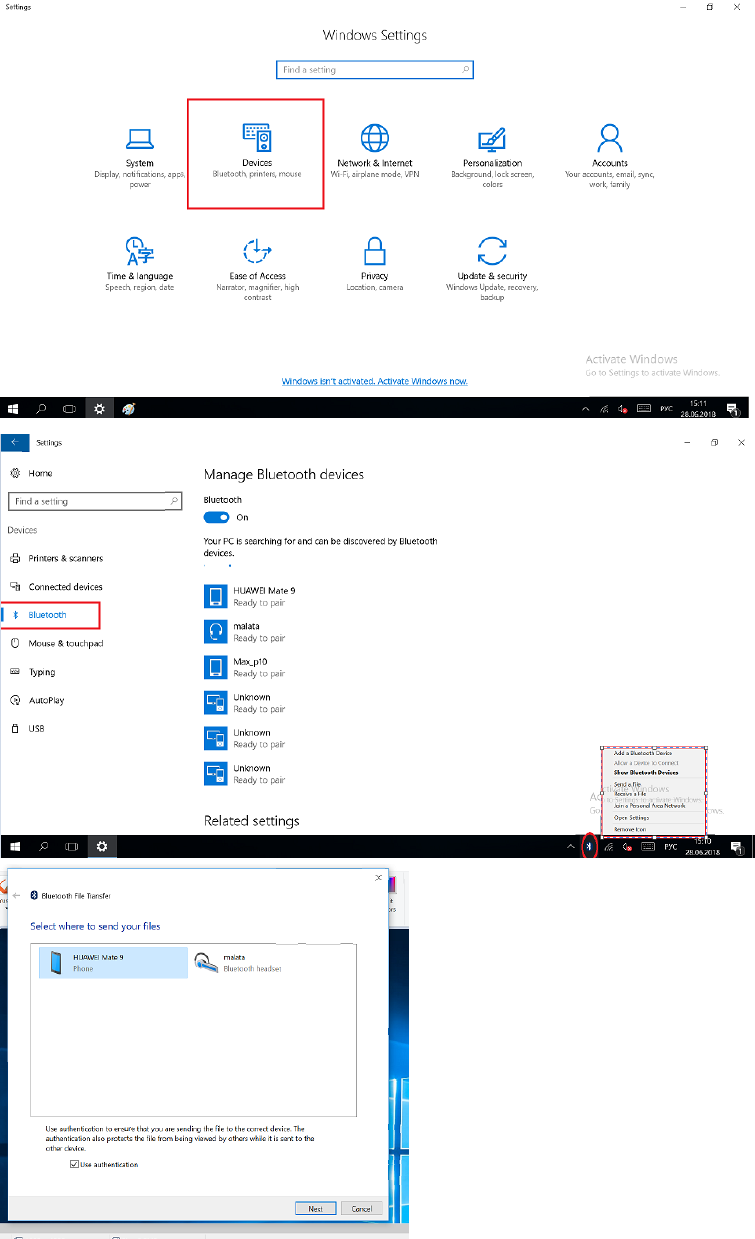

19 . You can go to setting-device to open Bluetooth, and send pair Device and
transfer files, please check below marked pictures.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement.
