User’s Manual
Art.Nr.50670
Version 1.4
>>>
Typhoon TV PVR Universal
CE
Declaration of Conformity
EMC Directive 89/336/EEC
We, the manufacturer/importer
Anubis Electronic GmbH
Am Langfeld 38
66130 Saarbrücken
Germany
Declare that the product
Brand: TYPHOON
Model NO: 50670
Model: TV PVR Universal
herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the
Laws of the Member States relating to Electromagnetic Compatibility Directive (89/336/EEC, Amended by
92/31/EEC, 93/68/EEC & 98/13/EC), For the evaluation regarding the Electromagnetic Compatibility (89/336/EEC,
Amended by 92/31/EEC, 93/68/EEC & 98/13/EC), the following standards are applied:
For EMC
EN 55022: 1998/A1:2000 Class B
EN 55013: 2001
EN 61000-3-2: 2000
EN 61000-3-3: 1995/A1:2001
EN 55024: 1998/A1:2001
IEC 61000-4-2: 1995
IEC 61000-4-3: 1995
IEC 61000-4-4: 1995
IEC 61000-4-5: 1995
IEC 61000-4-6: 1996
IEC 61000-4-8: 1993
ANUBIS Electronic GmbH. Am Langfeld 38.66130 Saarbrücken. Germany
Typhoon TV PVR Universal Article No: 50670
Table of Contents
1. TYPHOON TV PVR UNIVERSAL OVERVIEW.......................................................................... 2
1.1 Features ..................................................................................................................................................2
1.2 System Requirements............................................................................................................................4
1.3 Package contents...................................................................................................................................6
2. GETTING STARTED......................................................................................................................... 7
2.1 The Typhoon TV PVR Universal unit.....................................................................................................7
2.2 Software installation ............................................................................................................................10
2.3 MS Media Codec 8.0.............................................................................................................................14
2.4 Launching Typhoon TV PVR Universal...............................................................................................14
2.5 How to update the driver......................................................................................................................15
3. THE TYPHOON TV PVR UNIVERSAL INTERFACE ..................................................................... 17
3.1 Moving and resizing .............................................................................................................................17
3.2 Choosing your video source ...............................................................................................................17
3.3 Channel buttons ...................................................................................................................................18
3.4 Volume control .....................................................................................................................................18
3.5 Info panel ..............................................................................................................................................19
3.6 Settings button .....................................................................................................................................19
3.7 Additional settings ...............................................................................................................................27
3.8 How to record a program.....................................................................................................................30
3.9 TimeShifting..........................................................................................................................................31
3.10 The Gallery...........................................................................................................................................32
4. REMOTE CONTROL ...................................................................................................................... 34
5. KEYBOARD SHORTCUT SUMMARY ........................................................................................... 36
6. CONTACT US ................................................................................................................................. 38
FAQ ..................................................................................................................................................... 39
All specifications and information are subject to changes without further notices
S
1
Typhoon TV PVR Universal Article No: 50670
1. Typhoon TV PVR Universal Overview
Thank you for purchasing the Typhoon TV PVR Universal USB 2.0 all-in-one system. This product turns your PC
into a powerful desktop multimedia system. Your Typhoon TV PVR Universal provides a high-quality
video-viewing experience, enabling you to watch cable TV, broadcast TV, or video from external sources, right on
your computer monitor. It also allows you to record real-time video using an MPEG-1, MPEG-2, and MPEG-4
hardware encoder, and provides many other exciting features.
1.1 Features
z Connects to your PC through a USB 2.0 interface
z Contains a Phillips 7135 chipset
z Supports TV systems including NTSC M/N/NJ, PAL BG/DK/I/M/N, and SECAM LL' DK/I
z Provides worldwide TV audio decoding, including NiCAM, A2, MTS, BTSC, and EIAJ
z Provides real-time video recording with an MPEG-1, MPEG-2, and MPEG-4 hardware encoder
z Records full motion video up to 720x480/30fps (NTSC) and 720x576/25fps (PAL)
z Tunes in up to 125 cable or broadcast channels
z Enables input from external devices from either Composite Video or S-Video
z Pause, Rewind, and Fast Forward a live TV program through TimeShifting
z Scheduled Recording
z Captures still images from video
All specifications and information are subject to changes without further notices
S
2
Typhoon TV PVR Universal Article No: 50670
z Allows split-screen previewing of up to 25 channels through Multiple Channel Preview
z Provides full-screen and resizable viewing modes
z Receives audio through the same USB cable that carries video; no need for an additional audio
cable (except when using external devices)
z Powered by the USB port; no need for an external power adapter
z Fully compatible with current versions of Windows: Windows® 2000 (SP4), and Windows® XP (SP1)
All specifications and information are subject to changes without further notices
S
3
Typhoon TV PVR Universal Article No: 50670
1.2 System Requirements
To use the Typhoon TV PVR Universal, you will need to make sure that your PC meets the following
requirements:
z Windows® 2000 (SP4) or Windows® XP (SP1)
z CD-ROM or DVD drive
z Available USB 2.0 port
z Pentium® III 800 MHz processor, or faster (see the following specifications)
z Minimum of 128MB RAM (256MB RAM is recommended)
z 100MB hard disk space available for installation
z Additional hard disk space for recording and editing files
z DirectX9.0 installed
z VGA card with DirectX 8.1 support
z Sound card
z Speakers for audio output
z In addition, you will need cable TV or a TV antenna
* Please always refer to your PC’s manual.
All specifications and information are subject to changes without further notices
S
4
Typhoon TV PVR Universal Article No: 50670
Processor 320x240 640x480 720x480
MPEG1 MPEG2 MPEG4 MPEG1 MPEG2 MPEG4 MPEG1 MPEG2 MPEG 4
Preview 9 9 9 9 9 9 9 9 9
P3 800
Record 9 9 9 9 9 9 9
Preview 9 9 9 9 9 9 9 9 9
P4 2.4G
Record 9 9 9 9 9 9 9 9
Preview 9 9 9 9 9 9 9 9 9
P4 3.0G
Record 9 9 9 9 9 9 9 9 9
All specifications and information are subject to changes without further notices
S
5
Typhoon TV PVR Universal Article No: 50670
1.3 Package contents
Your Typhoon TV PVR Universal package should contain all the items listed below. Please inspect the package to
make sure that all items are present and no damage was sustained during shipping.
z Typhoon TV PVR Universal USB 2.0 TV box
z CD with driver and application software
z USB cable
z NTSC converter and PAL converter
z Composite video to S-Video converter
z Audio cable for use with external devices
z Remote control and IR extension cable
z User guide
All specifications and information are subject to changes without further notices
S
6
Typhoon TV PVR Universal Article No: 50670
2. Getting Started

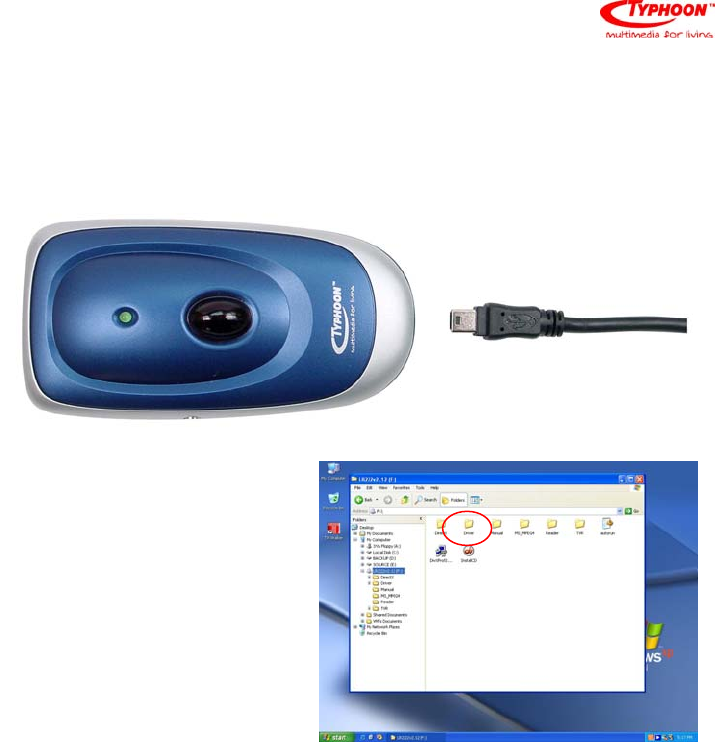

2.1 The Typhoon TV PVR Universal unit
6
5 4
3
2
1

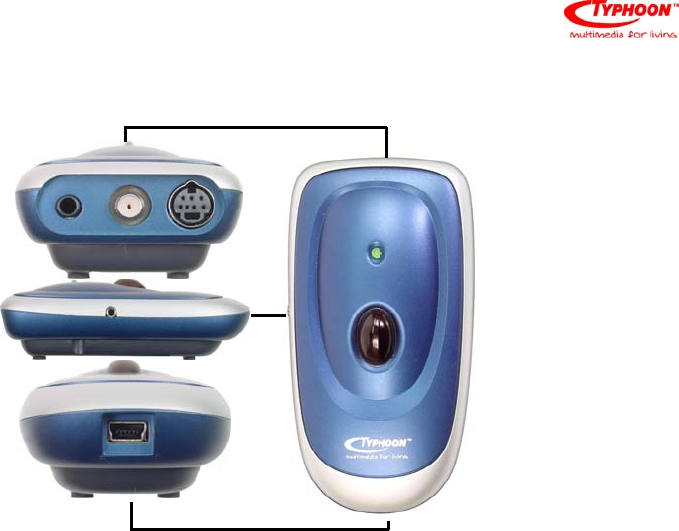

1 Audio In: Connects external audio to unit using supplied cable.
2 TV In: Connects to provided NTSC or PAL adaptor to connect to TV source.
3 S-Video In: Connects to S-Video sources, or to composite video sources using provided adaptor.
4 IR Sensor: Onboard IR sensor for remote control.
5 Extended IR Sensor port: Connects IR extension to Typhoon TV PVR Universal.
6 Mini USB: Connects the Typhoon TV PVR Universal to your PC.
All specifications and information are subject to changes without further notices
S
7
Typhoon TV PVR Universal Article No: 50670
Cables:
1 Mini USB cable: Connects the Typhoon TV PVR Universal to your PC's USB2.0 port (make sure that this
is connected before you install or launch the application).
* Plug in the primary USB connector to the computer; plug in the secondary USB connector only if your
PC/Notebook does not fully power the Typhoon TV PVR Universal. (See diagram 1)
2 NTSC/PAL converters: Connects your TV cable or antenna to the Typhoon TV PVR Universal (use one of
these two devices, depending on whether you have cable or broadcast TV). (See diagram 2)
3 Composite to S-Video adaptor: Connects the Typhoon TV PVR Universal to composite video-format
external devices, such as a DVD player or a VCR (devices that use S-Video plug directly into the Typhoon
TV PVR Universal). (See diagram 3)
4 IR Extension cable: Provides an external IR sensor to use with your remote control. (See diagram 4)
5 Audio cable: Transmits audio from external devices to the Typhoon TV PVR Universal (no cable required
for audio from your TV cable or antenna). (See diagram 5)
All specifications and information are subject to changes without further notices
S
8
Typhoon TV PVR Universal Article No: 50670
Cable and connector diagrams:
Diagram 1 (Mini USB cable)
Diagram 2 (NTSC and PAL converters)
Diagram 3
(Composite to S-Video adaptor)
Diagram 4 (IR extension)
Diagram 5 (Audio cable)
(Primary USB connector)
NTSC PAL
(Secondary USB connector)
All specifications and information are subject to changes without further notices
S
9
Typhoon TV PVR Universal Article No: 50670
2.2 Software installation
2.2.1 For Windows XP users
First, make sure that Windows XP (SP1) is installed in your system. Next, make sure the RF cable is connected to
the Typhoon TV PVR Universal and that the Typhoon TV PVR Universal is connected to your PC.

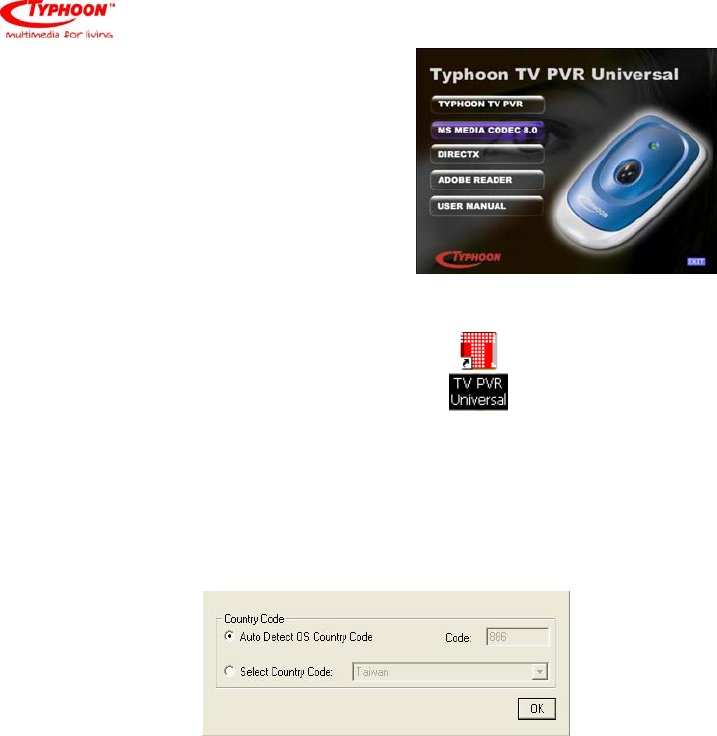

Insert the Typhoon TV PVR Universal software CD into your
PC's CD-ROM drive. The CD will automatically start and the
installation window will open on your screen.

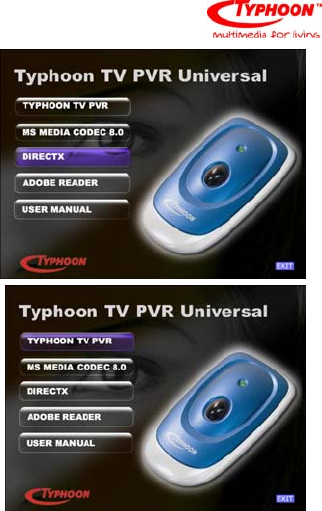

Before you install the Typhoon TV PVR Universal software,
you will need to install DirectX. Just click on [DirectX] in the
installation window to begin. A series of dialog boxes will
appear; click “Next“ or “Finish“ at each prompt.
All specifications and information are subject to changes without further notices
S
10
Typhoon TV PVR Universal Article No: 50670
When DirectX has finished installing, the installation
window will appear again. Now click on [Typhoon TV PVR] to
install the Typhoon TV PVR Universal software.

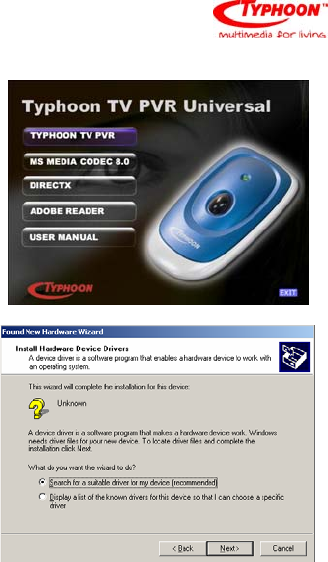

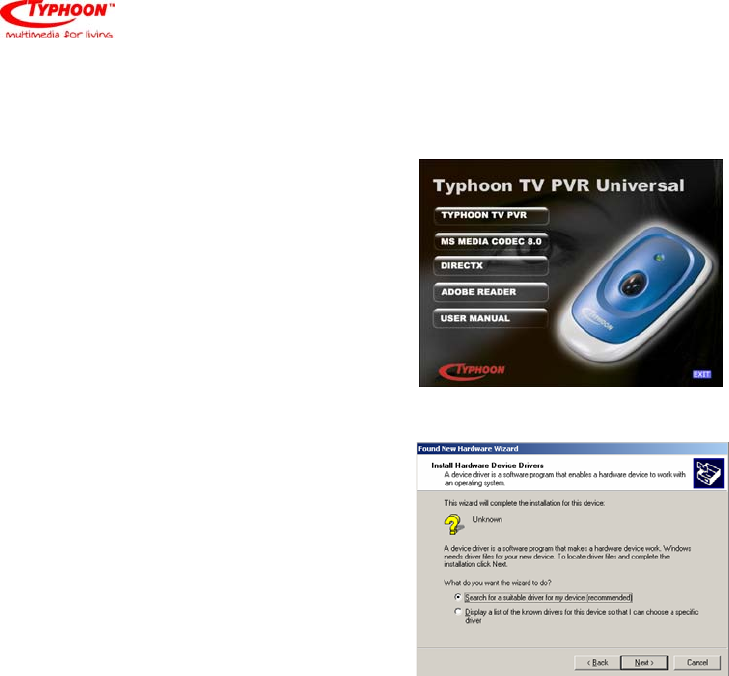

When a dialog box called “Found New Hardware
Wizard“ opens on your screen, choose “Search for a suitable
driver for my device“ (recommended) and click “Next”.
When the Typhoon TV PVR Universal driver has finished installing, you will need to reboot your computer. To
launch Typhoon TV PVR Universal, just double-click on the PVR icon on your desktop.
All specifications and information are subject to changes without further notices
S
11
Typhoon TV PVR Universal Article No: 50670
2.2.2 For Windows 2000 users
First, make sure that Windows 2000 (SP4) is installed on your system. Next, make sure the RF cable is connected
to the Typhoon TV PVR Universal and that the Typhoon TV PVR Universal is connected to your PC.
Insert the Typhoon TV PVR Universal software CD into your
PC's CD-ROM drive. The CD will start and the installation
window will appear.
If a dialog box called “Found New Hardware Wizard“ opens
on your screen, choose “Search for a suitable driver for my
device“ (recommended) and click “Next”.
All specifications and information are subject to changes without further notices
S
12
Typhoon TV PVR Universal Article No: 50670

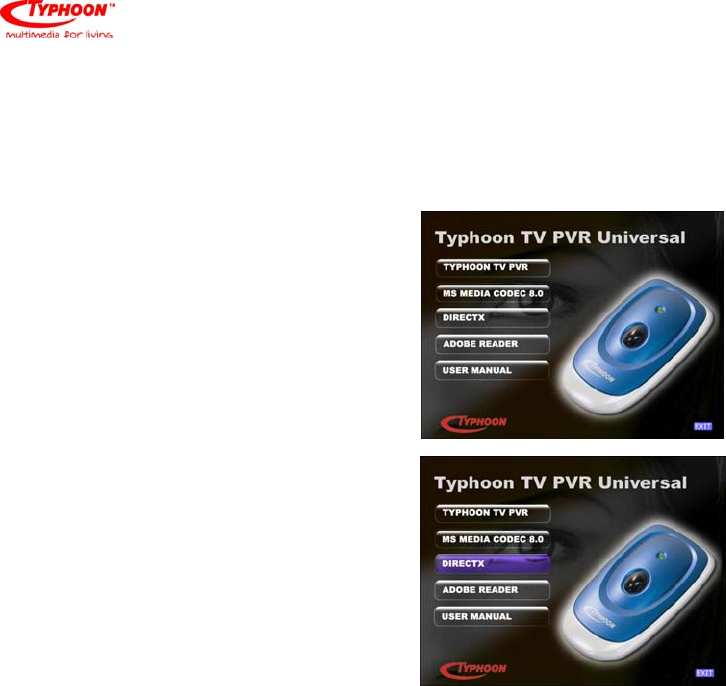

Before you install the Typhoon TV PVR Universal software,
you will need to click on [DirectX] to install it, then click
“Next“ or “Finish” at each prompt.
When DirectX has finished installing, reboot your computer.
When the installation window reappears, click on [Typhoon
TV PVR] to install the Typhoon TV PVR Universal software.
If “Found New Hardware Wizard“ opens again, choose “Install from a list or specific location (Advanced)”. At the
next dialog box, choose “Search for the best driver in these locations” and click “Browse“. Choose your CD drive
and then D:\Driver if “D:\” is your CD-ROM drive (otherwise, choose the appropriate drive).
The “Found New Hardware Wizard“ will reappear and allow you to install Matrix II. When the “Hardware
Installation“ box appears, choose “Continue Anyway“.
All specifications and information are subject to changes without further notices
S
13
Typhoon TV PVR Universal Article No: 50670
2.3 MS Media Codec 8.0
The MS Media Codec 8.0 is included on the CD so you can
record in MPEG-4 formats. To install it, simply click on MS
Media Codec 8.0 from the installation menu, and follow the
prompts.
2.4 Launching Typhoon TV PVR Universal
Click on the PVR icon on your desktop to launch the Typhoon TV
PVR Universal.
When you launch the PVR software for the first time, a dialog box will appear that will ask you to choose the
country in which you are using your Typhoon TV PVR Universal. Just choose your country and click 'OK', or just
click ‘OK’ to let the software Auto Detect your Country Code. At this point, the software will scan for available TV
channels. This will take a few minutes.
All specifications and information are subject to changes without further notices
S
14
Typhoon TV PVR Universal Article No: 50670
2.5 How to update the driver
If you want to update the driver to a newer version, you will need to uninstall the Typhoon TV PVR Universal
driver before reinstalling:
1. Remove the USB cable from the Typhoon TV PVR Universal.
2. Using File Manager, browse the contents
of the software CD and open the DRIVER folder.
(or unzip the updated driver from the web site and
then perform the next step).
All specifications and information are subject to changes without further notices
S
15
Typhoon TV PVR Universal Article No: 50670

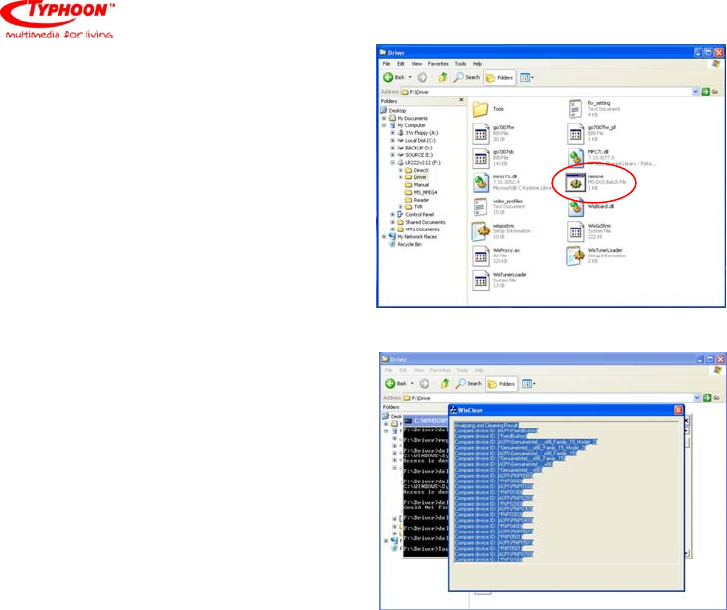

3. When this screen appears, double-click
emove.bat”
to remove the driver.
“r
4. This screen will appear and the old driver will
automatically be removed.
5. When the old driver is uninstalled, reconnect the USB cable and install the driver again.
All specifications and information are subject to changes without further notices
S
16
Typhoon TV PVR Universal Article No: 50670
3. The Typhoon TV PVR Universal Interface
The heart of Typhoon TV PVR Universal is the Typhoon TV PVR Universal software interface.
3.1 Moving and resizing
You can adjust the size of the TV screen by clicking and dragging on its edges with your mouse. You can move the
interface around your screen by clicking and dragging anywhere on the interface. To switch to a full-screen
display, double-click on the TV picture. Double click again to switch back to the previous view.

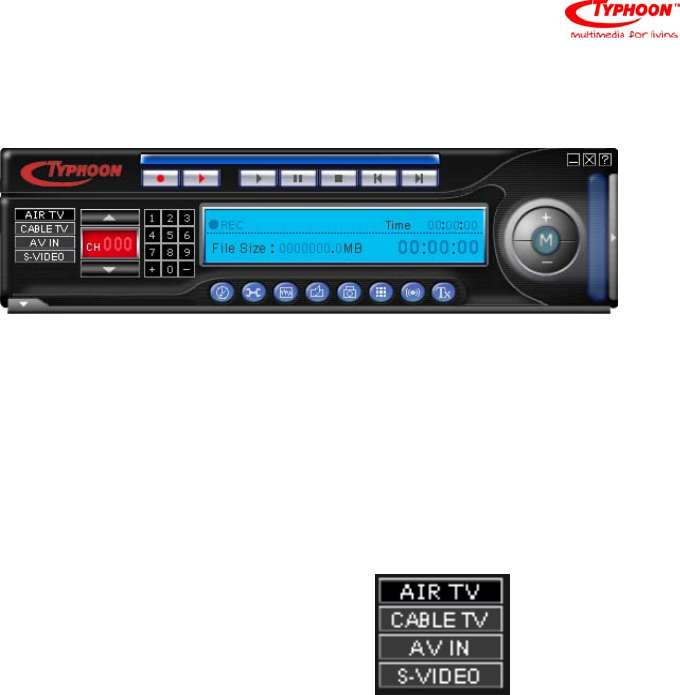

3.2 Choosing your video source
Four buttons on the left of the interface allow you to choose
your source.
All specifications and information are subject to changes without further notices
S
17
Typhoon TV PVR Universal Article No: 50670
Air TV: Use this to receive your TV signal through a broadcast antenna.
Cable TV: Use this to receive your TV signal via cable.
AV IN : Use this when an external device using composite video is connected to the Typhoon TV
PVR Universal.
S-Video: Use this when an external device using S-Video is connected to the Typhoon TV PVR
Universal.

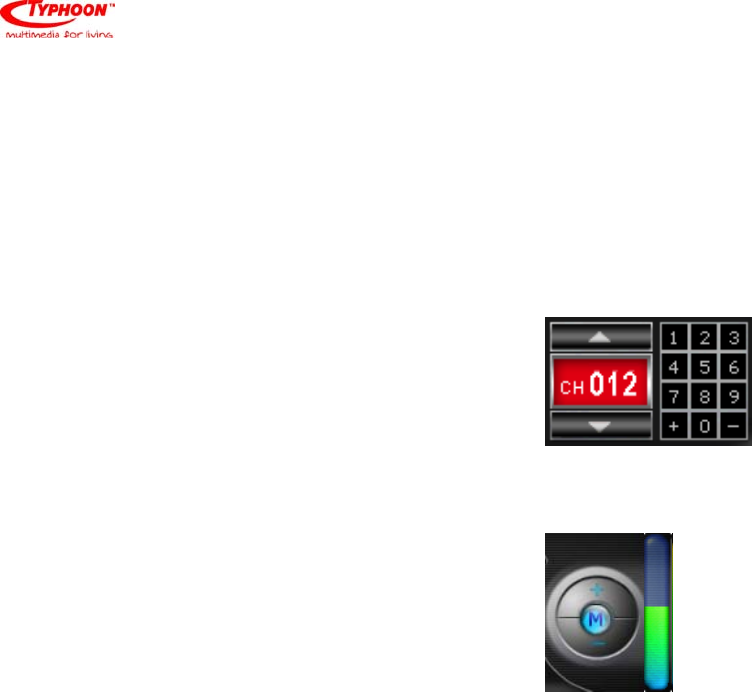

3.3 Channel buttons
On the left-hand side of the interface you will find the channel buttons; use them
to change channels. With the +/- buttons, located at the bottom of the channel
numbers panel, you can add or delete a tuned channel from your Channel List.
See sections 3.6.1 and 3.6.5.
3.4 Volume control
The +/- signs at either end of the volume control let you increase or decrease the
volume level. The M button in the middle will mute the volume. You can also
click on the level bar to the right to set the volume to that level.
All specifications and information are subject to changes without further notices
S
18
Typhoon TV PVR Universal Article No: 50670

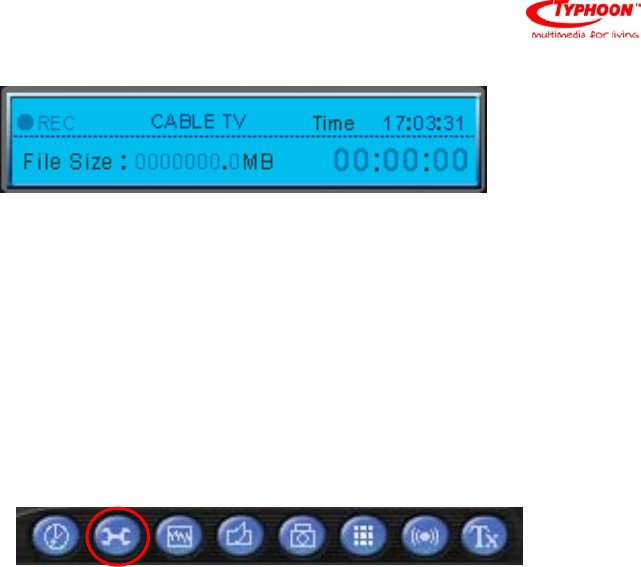

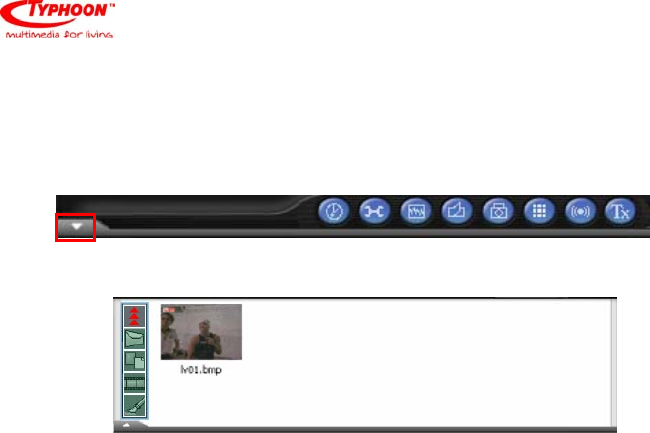

3.5 Info panel
Left of the channel buttons you will find the info panel. The top part of the info panel shows you your current
video source and the channel you are tuned in to. If you are in record mode, the “REC” button will be lit.
The bottom part of the info panel shows the size of file you are recording, your volume level, the current time, and
how long you have been recording. Clicking anywhere on the volume bar will set the volume to that level.
3.6 Settings button
Below the info panel you will see a number of buttons. These buttons provide you with many options for setting
your preferences. The most important button is the settings button, which opens the Settings dialog box.
All specifications and information are subject to changes without further notices
S
19
Typhoon TV PVR Universal Article No: 50670

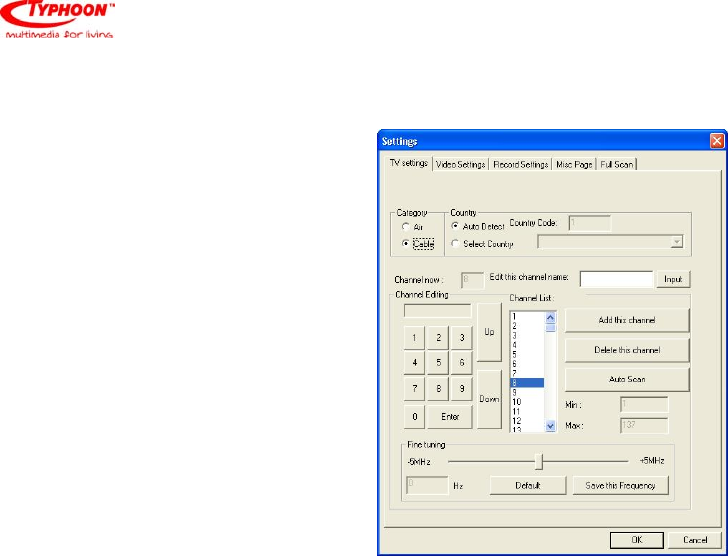

3.6.1 TV settings tab
The first tab in the Settings dialog box is TV settings.
Here you can select your video mode, set your country
settings, scan for channels, and select and name your
favorite channels.
Category
This tab allows you to choose either cable or air
(broadcast) TV as your TV source.
Country
This tab sets the Typhoon TV PVR Universal to the TV
standards of the country where you are using the
Typhoon TV PVR Universal. The setting process
should happen automatically, but if it does not, just
click on Select Country and choose your country manually.
All specifications and information are subject to changes without further notices
S
20
Typhoon TV PVR Universal Article No: 50670
Channel editing
This allows you to choose and name your favorite TV stations and add them to your channel list. To add a channel,
choose it and click on “Add this channel”; to delete a channel, choose it and click on “Delete this channel”. To name
a channel, choose it, type a name in the “Edit this channel“ box, and click on “Input”.
Later, you will be able to access your favorite channels by clicking the right edge of the Typhoon TV PVR
Universal interface - a list of your favorite channels will appear, and you can click on a channel to choose it. You
can also right-click on any channel listed in your favorites to change its name.
Fine Tuning
The Fine Tuning feature allows you to fine-tune your channel frequencies. Slide the Fine Tuning button to the left
or right to make minor adjustments to the frequencies. To save your changes, click “Save this Frequency”, or you
can click “Default” to go back to the default setting.
All specifications and information are subject to changes without further notices
S
21
Typhoon TV PVR Universal Article No: 50670

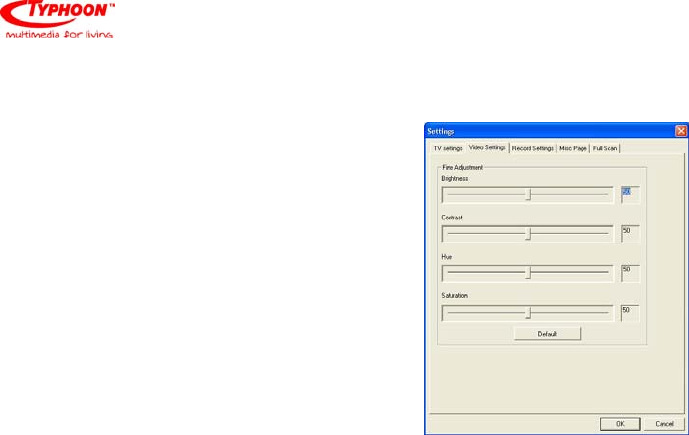

3.6.2 Video settings tab
This tab allows you to set TV display settings including
Brightness, Contrast, Hue, and Saturation. If you click on
“Default“, the display settings will return to their factory
settings.
All specifications and information are subject to changes without further notices
S
22
Typhoon TV PVR Universal Article No: 50670

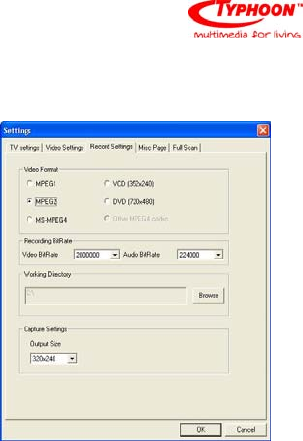

3.6.3 Record settings tab
This dialog box allows you to set your preferences for video
recording. If you are recording files that you only plan to view
on your computer, choose one of the MPEG options. For an
external device, choose the format of that external device.
Video format
This allows you to choose whether you will record files in
MPEG-1, MPEG-2, MS-MPEG-4, VCD, DVD, or another
MPEG4 codec such as DivX. You can go to the DivX website
http: /www.divx.com/divx//
to download a free codec.
Recording BitRate
Here you can choose the BitRate of your recording depending on which file format has been chosen. A higher
BitRate will improve the quality of recorded files.
All specifications and information are subject to changes without further notices
S
23
Typhoon TV PVR Universal Article No: 50670
Working directory
This allows you to choose the location on your PC where movies and pictures are saved. To change the location,
click on “Browse” and select the folder you want to save your files in.
Capture settings
Here you can choose the output size of video that you record.
Note:
MPEG-1: compressed video and audio files
MPEG-2: compressed video and audio files with better quality
MS-MPEG4: compressed video and audio files with highest quality
Other MPEG4 codec: compressed video and audio files with highest quality
VCD format: CD-video standards (standards similar to MPEG-1)
PAL: 352x288 pixels at 25 frames per second
NTSC: 352x240 pixels 29.97 frames per second
DVD format: High quality video standards (standards similar to MPEG-2)
PAL: 720x576 pixels at 25 frames per second
NTSC: 720x480 pixels 29.97 frames per second
All specifications and information are subject to changes without further notices
S
24
Typhoon TV PVR Universal Article No: 50670

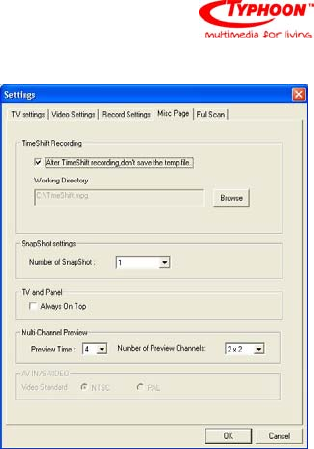

3.6.4 Misc Page tab
This box allows you to make additional settings for recording
and taking snapshots.
TimeShift recording
When you check this box, files that you record in TimeShift
mode will not be saved after you turn off TimeShift. See section
3.9 for an explanation of TimeShifting. You can also set the
directory that the software will use to hold the TimeShift temp
file. To change this, click on “Browse” and select the folder you
wish to use.
Snapshot settings
This allows you to choose how many snapshots are taken when
you click the Snapshot button. See section 3.7.4 for an explanation of Snapshots.
TV and Panel
When you check “Always on Top”, the TV window will always be in front of other applications on your screen.
Multi-Channel Preview
This allows you to preview channels, and to choose the number of channels you preview and the length of time you
preview each channel. See section 3.6.5.
All specifications and information are subject to changes without further notices
S
25
Typhoon TV PVR Universal Article No: 50670
3.6.5 Full Scan tab
This box lets you do a full scan for channels, as well as input
frequencies to create channels. If you wish to use this option,
check the “Use Full Scan Channel List” checkbox.
Min Freq. To Max Freq. Scan
This will scan through all available frequencies to detect
available channels. Click “Start Scan” on the box that appears
to start the full scan; click on “Stop Scan” to stop scanning. The
scan will take a while to complete.
Channel Edit
Here, you can edit channels detected, or add your own channels by entering a frequency. To name to a channel,
select it from the Channel List, type a name into the “Key In The Channel Name” box, and click on “Save or Add a
new channel”. To remove a channel, enter a Frequency, or adjust the current frequency with the +/- Hz buttons
and click “Save or Add a new channel”. To remove a channel, select it from the Channel List and click “Remove
this Channel”.
All specifications and information are subject to changes without further notices
S
26
Typhoon TV PVR Universal Article No: 50670

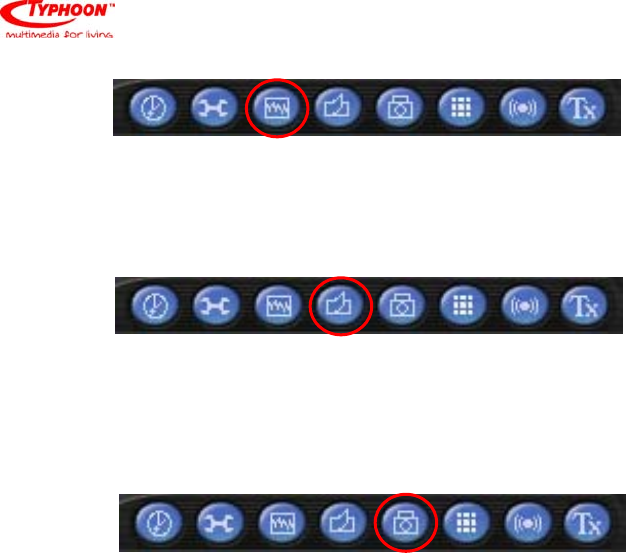

3.7 Additional settings
On the same toolbar as the settings button, you will find additional buttons that provide options for customizing
Typhoon TV PVR Universal.

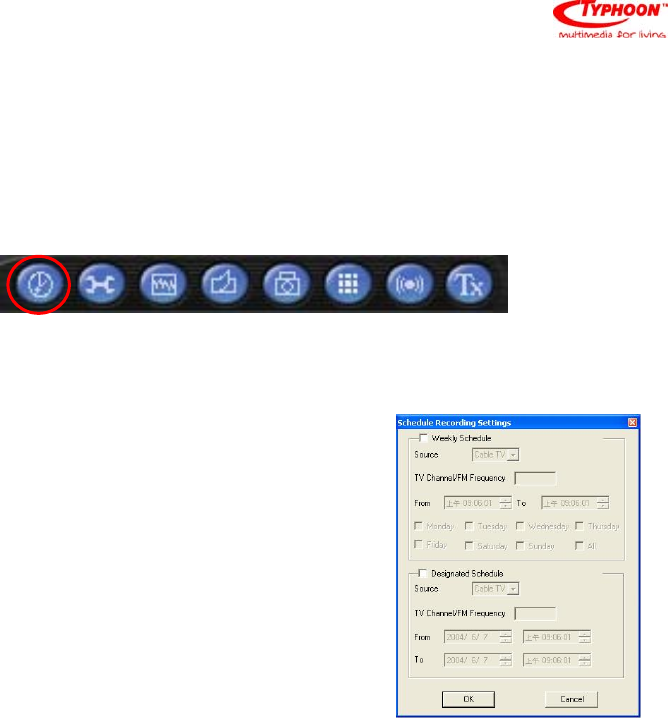

3.7.1 Schedule Recording button
To the left of the settings button is the Schedule Recording button. When you click on this button, you will see a
new symbol in your taskbar. When you click on this symbol, a window will appear that allows you to schedule
recording of TV programs.
Weekly Schedule
This allows you to schedule recording of shows that are broadcast at
the same time every day or every week.
Designated schedule
This allows you to program Typhoon TV PVR Universal to record a
single show.
All specifications and information are subject to changes without further notices
S
27
Typhoon TV PVR Universal Article No: 50670
3.7.2 AutoScan button
Clicking AutoScan allows you to quickly scan, one at a time, the TV channels that are currently available. To stop
AutoScan, click on the button again and click OK.
3.7.3 Change Skin button
Clicking the Change Skin button gives you a different view of the PVR software. Clicking on the button again will
cycle through available views.

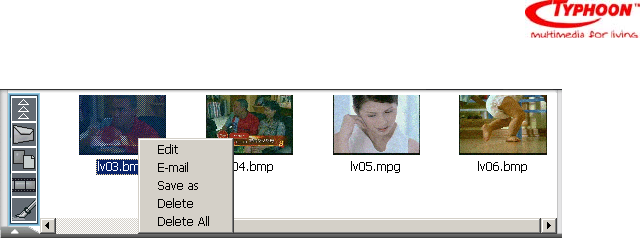

3.7.4 Snapshot button
When you click on Snapshot, the Typhoon TV PVR Universal will take a picture of the current frame appearing on
your monitor, and the snapshot will be saved in your Gallery. See section 3.10 for an explanation of the Gallery.
All specifications and information are subject to changes without further notices
S
28
Typhoon TV PVR Universal Article No: 50670

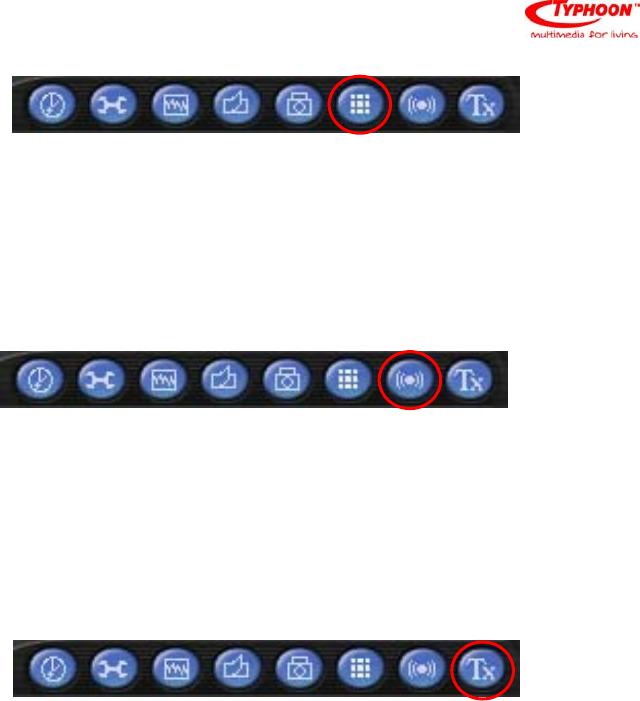

3.7.5 Multiple Preview button
When you click on the Multiple Preview button, you will be able to see an array of thumbnail images of the TV
programs currently airing. When you see a program that you want to watch, just double click on it. The amount of
time that each preview screen is displayed, and the number of channels shown, can be selected on the Misc Page
tab (see section 3.6.4).
3.7.6 Audio settings button
When you click the audio settings button, a dialog box opens that allows you to set your audio preferences —
balance, bass, treble, and volume. Also in this dialog box, “Audio Reception” allows you choose whether to play
audio from TV programs in stereo or mono. Additionally, if a TV station broadcasts its programs in more than one
language, you can use the language buttons to choose the language you prefer.
3.7.7 Reserved button
This button is reserved, and is non-functional.
All specifications and information are subject to changes without further notices
S
29
Typhoon TV PVR Universal Article No: 50670

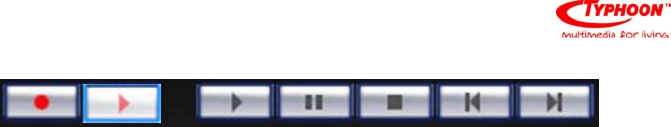

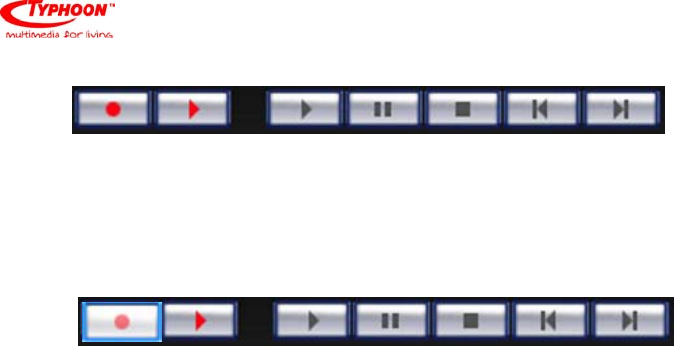

3.8 How to record a program
The top row of buttons on your Typhoon TV PVR Universal PVR interface allows you to record a program while
watching it, and lets you control the TimeShifting feature.
3.8.1 Record button
By clicking this button, you can record a program while watching it. When you click again, the recording will stop.
You will find the recorded file in the Gallery (see section 3.10 for an explanation of the Gallery) in the format you
chose in Record Settings/Video Format (see section 3.6.3). You cannot change channels while recording.
All specifications and information are subject to changes without further notices
S
30
Typhoon TV PVR Universal Article No: 50670
3.9 TimeShifting
The TimeShift Function allows you to pause, fast forward, or rewind a program while you are watching it. To start
a TimeShift recording, click on the red Start/Stop TimeShift button.
When in TimeShift mode, the Time Slider will appear in the horizontal bar above the TimeShift button. The bar
shows how much video is currently recorded, and the gray square is your current position. Dragging the slider to
the left rewinds the video, dragging the slider right fast-forwards the video up to what is currently playing.
The other controls are Play, Pause, Stop, Skip to Beginning, and Skip to End. Clicking on Pause will pause the
video, and you can resume watching by clicking on Play. Skip to Beginning will go to the beginning of the recorded
video, and Skip to End will skip to the end of the recorded video. (what is currently playing) To stop TimeShift
mode, you can click on Stop or on the red Start/Stop TimeShift button. You cannot change channels while
TimeShifting.
All specifications and information are subject to changes without further notices
S
31
Typhoon TV PVR Universal Article No: 50670
3.10 The Gallery
The gallery is a shortcut to the location on your hard drive where video files and snapshots are stored. You can
choose your hard drive location as explained in Record Settings/Video Format. (see section 3.6.3)
You can open the gallery by clicking on the button located at the bottom right corner of the PVR.
Here you can see what files you have recorded, as well as the following buttons:
Close Gallery: Closes the Gallery
Send by E-Mail: Opens your computer’s default e-mail program to e-mail the selected file
Change List View: Toggles between Thumbnail, List, and Detailed views of your files
Play Movie: Plays a selected movie
Paint: Opens selected image
All specifications and information are subject to changes without further notices
S
32
Typhoon TV PVR Universal Article No: 50670
Right-clicking a file gives you a dropdown menu with the following options:
Edit: Opens the file
E-Mail: Opens your computer’s default e-mail program to e-mail the selected file
Save As: Lets you name and save the file to a selected folder
Delete: Deletes selected file
Delete All: Deletes all files in gallery
All specifications and information are subject to changes without further notices
S
33
Typhoon TV PVR Universal Article No: 50670

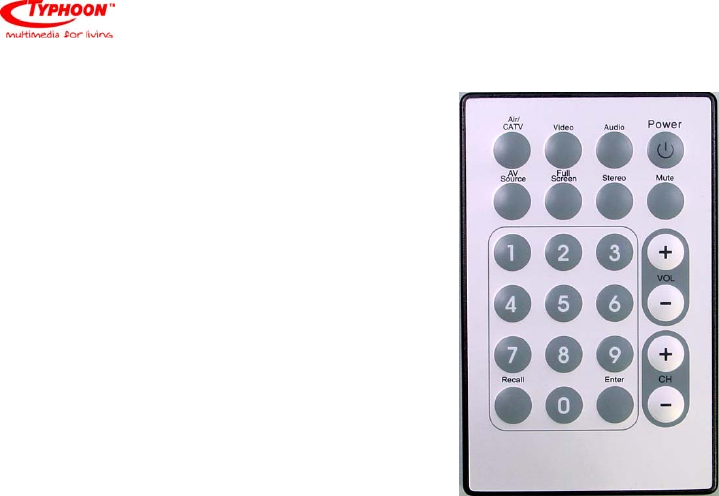

4. Remote Control
The Typhoon TV PVR Universal comes with a fully functional
remote control. Make sure you aim at either the IR sensor on the
unit or the IR sensor on the extension cable. (see section 2.1)
You can use the following buttons on Typhoon TV PVR Universal's
remote control to access many of Typhoon TV PVR Universal's
functions.
All specifications and information are subject to changes without further notices
S
34
Typhoon TV PVR Universal Article No: 50670
Button Function
Air/CATV Toggles between air and cable reception.
Video Toggles between Video settings; use Volume +/- to adjust
Audio Toggles between Audio settings; use Volume +/- to adjust
Power Turns the PRV program off
AV Source Controls the input source (air, cable, AV in, S-Video in)
Full screen Turns full screen mode on or off
Stereo Toggles between stereo and mono
Mute Turns mute on or off
Numbers 0-9 Allows you to select a channel
Volume +/- Raise or lowers the volume
Channel +/- Allow you to go up or down one channel
Recall Allows you to jump to the previous channel
Enter Takes a snapshot of the current image on the screen
All specifications and information are subject to changes without further notices
S
35
Typhoon TV PVR Universal Article No: 50670
5. Keyboard Shortcut Summary
The following table shows shortcuts that you can use to control Typhoon TV PVR Universal with your keyboard.
Function Remote Control Keyboard
Turn the PVR program off Power Ctrl + Alt + F4
Choose channel Numerals Numerals
Go up one channel CH+ Page Up
Go down one channel CH- Page Down
Recall previous channel Recall R
Add a channel +
Delete a channel -
Video setting mode (Brightness, Contrast, Hue, Saturation) Video V
Adjust selected video setting Vol+/Vol- Up or down arrow
Choose audio settings (balance, bass, treble) Audio A
All specifications and information are subject to changes without further notices
S
36
Typhoon TV PVR Universal Article No: 50670
Adjust selected audio setting Vol+ / Vol- Up or down arrow
Raise or lower volume Vol+ / Vol- Up or down arrow
Turn mute on or off Mute M
Switch between Stereo and Mono Stereo S
Choose input source (air, cable, AV in, S-Video in) AV Source I
Switch between air/cable reception Air/CATV C
Take a snapshot Enter Spacebar
Turn full screen mode on or off Full Screen F
Open 'About' dialog box Alt plus / or ?
All specifications and information are subject to changes without further notices
S
37
Typhoon TV PVR Universal Article No: 50670
6. Contact Us
If you have attempted to resolve any problems you have with your Typhoon TV PVR Universal and still require
assistance, please contact us by e-mail at: service@typhoon.de
Driver and software updates can be found on our website at www.typhoon.de
All specifications and information are subject to changes without further notices
S
38
Typhoon TV PVR Universal Article No: 50670
FAQ
Q: During the initial TV channel scanning just after installation, why does the scanning stop halfway?
A: Basically, there are 2 possibilities. a) Due to poor signals through the antenna – Ensure that the antenna
cable is directly from the main point and not using a splitter, b) the USB ports do not have sufficient power –
connect the TV PVR to the system main USB ports and not through USB Hubs. For the same reason, it is
why that the system requirements are set high. Newer mainboards can support up to 8 USB ports. Older
mainboards can only support 2 or 4 USB ports. For Notebooks, the requirements are even stricter. The
Notebook should be of Intel® Pentium® IV class to ensure that the mainboards used are the latest.
Q: Why do you need two USB interfaces for the TV PVR Universal?
A: For desktops of new generation mainboards do not require two of the USB plugs to be used, just the main
connector is sufficient. This is because USB 2.0 ports on newer mainboards are 100% compliance to the USB
2.0 specifications. Older mainboards might claim to support USB 2.0 ports but in reality, they were released
before the USB 2.0 specifications really come to effect. The main issue is due to the USB 2.0 port providing
the correct amount of power to the TV PVR Universal. For Notebooks, most of these ports do not match the
requirements, so two of the connectors must be inserted to ensure enough power to the TV PVR Universal.
All specifications and information are subject to changes without further notices
S
39
Typhoon TV PVR Universal Article No: 50670
Q: I have set the correct Country type in the Setup configuration, but why I cannot receive any TV signals?
A: First, check the antenna signal and ensure the signals are strong. Secondly, do not use any antenna splitter,
as this will degenerate the signal strength. After the Setup and if not signal are found, try rebooting and
check again. If necessary, do the auto-scan again.
Q: I can receive my TV channels but why is there snow, or tiny colored dots on the preview window?
A: Ensure the antenna cable is directly to the TV PVR Universal. Do not use any splitter as this is subjected to
interference from the surrounding thus inducing the disturbances.
Q: I am using S-Video connections to record my Videos but why is it in black-n-white, even in the preview
window?
A: Check the entire cable connection all the way to the source and ensure it is correctly rigged to S-Video
connection. If you have use the Composite interface in either the Source or on the TV PVR, the result will be
black-n-white playback. Vice versa, if you connect using Composite interface and set the TV PVR application
to S-Video (AV IN), the resulting image will also be black-n-white.
Q: I can view the TV channels but there is no audio.
A: Ensure the Sound properties in Windows have set the audio level to your preferred listening level. Also check
the box for “Use preferred devices” to ensure that your sound card is the main device.
All specifications and information are subject to changes without further notices
S
40
Typhoon TV PVR Universal Article No: 50670
Q: Why are the System Requirements so high?
A: Basically, at the point of release of this manual the fastest CPUs are the 3.0GHz systems. The TV PVR is
sufficient for Intel® Pentium® IV 1.8GHz and faster. The main driving issues are the speed of the USB Bus
through the system for previewing and fast graphics processing enough to do recording. A lower specification
might still do the job, but you might have performance lag due to older USB Bus, or slow CPU process power,
or even older Graphics card which cannot overlay correctly the video on screen.
Q: After auto-scan or during auto-scan, why does the application hang?
A: When auto-scanning is activated, the CPU resources are needed and if either the signal is poor or USB ports
do not have enough power to provide the processing – then the system might hang. Simply reboot the system
and change the USB connection position. The best is to connect to the number 3 and 4 USB ports. Also ensure
the antenna cable is directly routed and not from a splitter unit.
Q: After scanning, the system hanged and no images but audio is heard.
A: Reboot the system first and launched the Typhoon PVR application. If the station is heard but no image at all,
click on the Setup button below the interface panel. Go to the Recording Settings, and change the option to
either MPEG2 or MS-MPEG4. Check if the image appears. If the Station image appears, change the option
back to MPEG1 to check. This symptom is likely due to memory issues with the Graphics and system
allocations.
All specifications and information are subject to changes without further notices
S
41
Typhoon TV PVR Universal Article No: 50670
NOTES
All specifications and information are subject to changes without further notices
S
42
