Notebook PC

E-Manual

First Edition

February 2014

E8878

Notebook PC E-Manual

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by

any means, except documentation kept by the purchaser for backup purposes, without the express

written permission of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES

OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION

OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES

ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL

USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE

CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY

ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND

SOFTWARE DESCRIBED IN IT.

LIMITATION OF LIABILITY

Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to

recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to

claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death)

and damage to real property and tangible personal property; or any other actual and direct damages

resulted from omission or failure of performing legal duties under this Warranty Statement, up to the

listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or

infringement under this Warranty Statement.

This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers,

and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS

AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL,

INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING

LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR

POSSIBILITY.

SERVICE AND SUPPORT

Visit our multi-language web site at http://support.asus.com

Notebook PC E-Manual

Table of Contents

About this manual ..................................................................................................... 7

Conventions used in this manual ............................................................................. 8

Icons .................................................................................................................................... 8

Typography .......................................................................................................................8

Safety precautions .....................................................................................................9

Using your Notebook PC ..............................................................................................9

Caring for your Notebook PC .....................................................................................10

Proper disposal ................................................................................................................11

Chapter 1: Hardware Setup

Getting to know your Notebook PC ...................................................................14

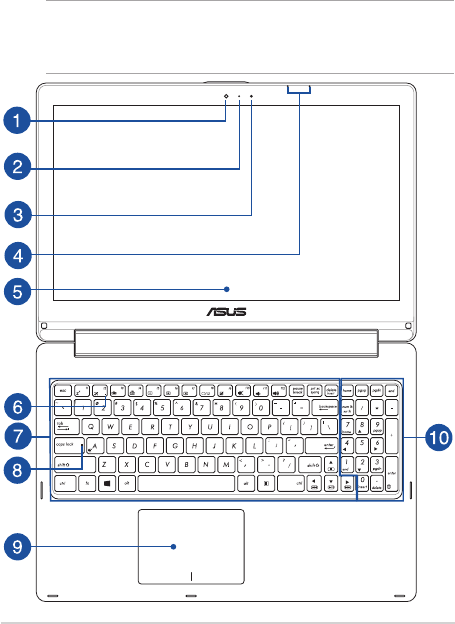

Top View ............................................................................................................................. 14

Bottom ................................................................................................................................ 17

Right Side .......................................................................................................................... 18

Left Side ............................................................................................................................. 20

Front Side .......................................................................................................................... 22

Chapter 2: Using your Notebook PC

Getting started ...........................................................................................................26

Charge your Notebook PC. ..........................................................................................26

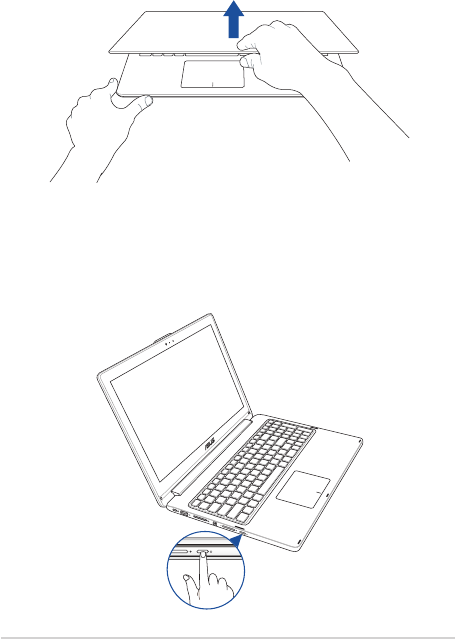

Lift to open the display panel. ................................................................................... 28

Press the power button. ............................................................................................... 28

Gestures for the touch screen panel and touchpad .....................................29

Using touch screen panel gestures ..........................................................................29

Using touchpad gestures.............................................................................................33

Using the keyboard ................................................................................................... 40

Function keys ................................................................................................................... 40

Windows® 8.1 keys .........................................................................................................41

Multimedia control keys............................................................................................... 42

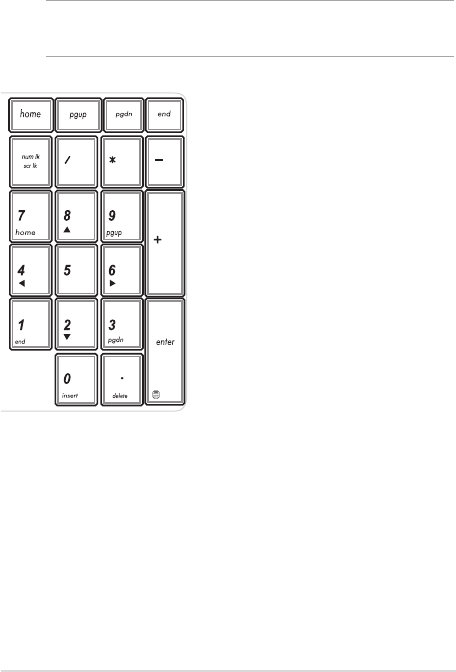

Using the numeric keypad .......................................................................................... 43

Using the touch screen panel as a tablet ..........................................................44

Notebook PC E-Manual

Chapter 3: Working with Windows® 8.1

Starting for the rst time .........................................................................................46

Windows® UI .................................................................................................................47

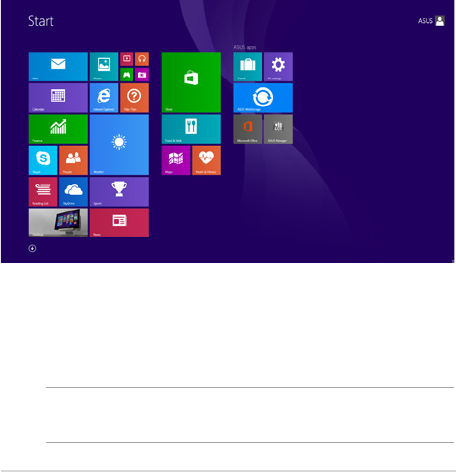

Start screen ....................................................................................................................... 47

Hotspots ............................................................................................................................. 48

Start button ...................................................................................................................... 51

Customizing your Start screen ...................................................................................53

Working with Windows® apps ...............................................................................54

Launching apps ............................................................................................................... 54

Customizing apps ...........................................................................................................54

Accessing the Apps screen .......................................................................................... 57

Charms bar ........................................................................................................................ 59

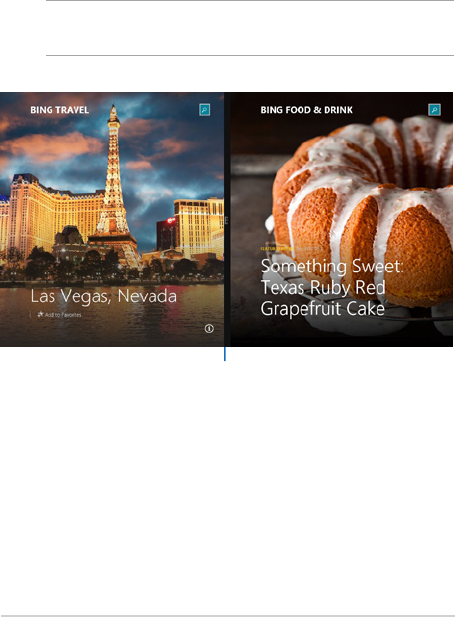

Snap feature .....................................................................................................................62

Other keyboard shortcuts ......................................................................................64

Connecting to wireless networks ........................................................................66

Wi-Fi ..................................................................................................................................... 66

Bluetooth .......................................................................................................................... 67

Airplane mode ................................................................................................................. 68

Connecting to wired networks .............................................................................69

Conguring a dynamic IP/PPPoE network connection ....................................69

Conguring a static IP network connection ......................................................... 70

Turning your Notebook PC o ..............................................................................71

Putting your Notebook PC to sleep ......................................................................... 71

Windows® 8.1 lock screen ........................................................................................72

To proceed from the lock screen ...............................................................................72

Customizing your lock screen .................................................................................... 73

Chapter 4: Power-On Self-Test (POST)

The Power-On Self-Test (POST) ............................................................................. 76

Using POST to access BIOS and Troubleshoot......................................................76

BIOS ................................................................................................................................76

Accessing BIOS ................................................................................................................76

BIOS Settings .................................................................................................................... 77

Troubleshoot ...............................................................................................................87

Notebook PC E-Manual

Refresh your PC ............................................................................................................... 87

Reset your PC ................................................................................................................... 88

Advanced options .......................................................................................................... 89

Appendices

DVD-ROM Drive Information (on selected models) ........................................... 92

Blu-ray ROM Drive Information (on selected models).......................................94

Internal Modem Compliancy ..................................................................................... 94

Overview ............................................................................................................................ 95

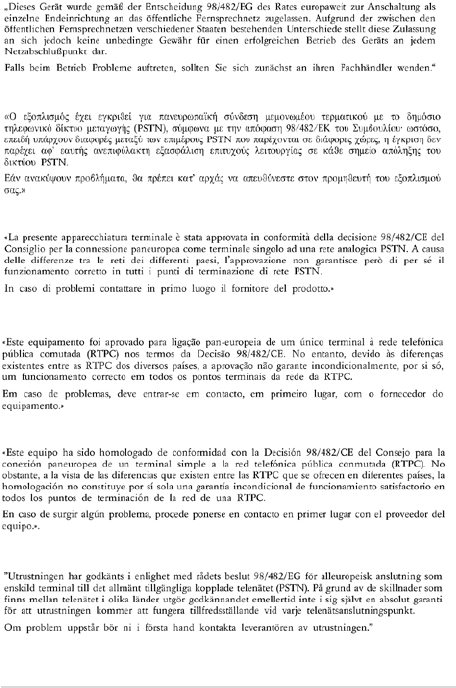

Network Compatibility Declaration ......................................................................... 95

Non-Voice Equipment ..................................................................................................95

Federal Communications Commission Interference Statement ................... 97

Declaration of Conformity (R&TTE directive 1999/5/EC) .................................. 98

FCC Radio Frequency (RF) Exposure Caution Statement ................................. 99

Radio Frequency (RF) Exposure Information .......................................................100

Informations concernant l’exposition aux fréquences radio (RF) .................100

CE Marking ........................................................................................................................ 101

IC Radiation Exposure Statement for Canada ...................................................... 102

Déclaration d’Industrie Canada relative à l’exposition aux ondes radio ... 103

Wireless Operation Channel for Dierent Domains ...........................................104

France Restricted Wireless Frequency Bands .......................................................104

UL Safety Notices ............................................................................................................ 106

Power Safety Requirement .......................................................................................... 107

TV Notices ......................................................................................................................... 107

REACH ................................................................................................................................. 107

Macrovision Corporation Product Notice .............................................................. 107

Prevention of Hearing Loss ......................................................................................... 107

Notebook PC E-Manual

Nordic Lithium Cautions (for lithium-ion batteries) ........................................... 108

Optical Drive Safety Information .............................................................................. 109

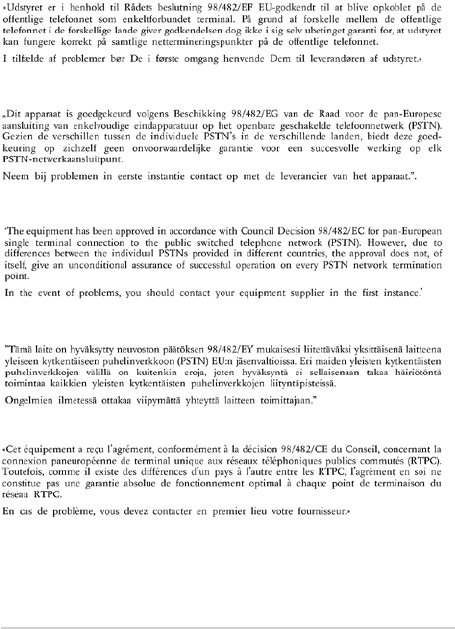

CTR 21 Approval (for Notebook PC with built-in Modem) .............................. 110

ENERGY STAR complied product .............................................................................. 112

European Union Eco-label ........................................................................................... 112

Global Environmental Regulation Compliance and Declaration .................. 113

ASUS Recycling/Takeback Services .......................................................................... 113

Rechargeable Battery Recycling Service in North America............................. 113

Regional notice for Singapore ...................................................................................114

Regional notice for India .............................................................................................. 114

Notices for removeable batteries..............................................................................114

Avis concernant les batteries remplaçables..........................................................114

Notebook PC E-Manual

About this manual

This manual provides information about the hardware and software

features of your Notebook PC, organized through the following

chapters:

Chapter 1: Hardware Setup

This chapter details the hardware components of your Notebook

PC.

Chapter 2: Using your Notebook PC

This chapter shows you how to use the dierent parts of your

Notebook PC.

Chapter 3: Working with Windows® 8.1

This chapter provides an overview of using Windows® 8.1 in your

Notebook PC.

Chapter 4: Power-On Self-Test (POST)

This chapter shows you how to use POST to change the settings

of your Notebook PC.

Appendices

This section includes notices and safety statements for your

Notebook PC.

Notebook PC E-Manual

Conventions used in this manual

To highlight key information in this manual, some text are presented as

follows:

IMPORTANT! This message contains vital information that must be

followed to complete a task.

NOTE: This message contains additional information and tips that can

help complete tasks.

WARNING! This message contains important information that must be

followed to keep you safe while performing tasks and prevent damage to

your Notebook PC's data and components.

Icons

The icons below indicate the devices you can use for completing a

series of tasks or procedures on your Notebook PC.

Typography

Bold = This indicates a menu or an item that must be selected.

Italic = This indicates sections that you can refer to in this manual.

= Use the touch screen panel.

= Use the touchpad.

= Use the keyboard.

Notebook PC E-Manual

Safety precautions

Using your Notebook PC

This Notebook PC should only be used in

environments with ambient temperatures between

5°C (41°F) and 35°C (95°F).

Refer to the rating label on the bottom of your

Notebook PC and ensure that your power adapter

complies with this rating.

Do not leave your Notebook PC on your lap or near

any part of your body to prevent discomfort or

injury from heat exposure.

Do not use damaged power cords, accessories, and

other peripherals with your Notebook PC.

While powered on, ensure that you do not carry or

cover your Notebook PC with any materials that can

reduce air circulation.

Do not place your Notebook PC on uneven or

unstable work surfaces.

You can send your Notebook PC through x-ray

machines (used on items placed on conveyor belts),

but do not expose them to magnetic detectors and

wands.

Contact your airline provider to learn about related

inight services that can be used and restrictions

that must be followed when using your Notebook

PC in-ight.

Notebook PC E-Manual

Caring for your Notebook PC

Disconnect the AC power and remove the battery

pack (if applicable) before cleaning your Notebook

PC. Use a clean cellulose sponge or chamois cloth

dampened with a solution of nonabrasive detergent

and a few drops of warm water. Remove any extra

moisture from your Notebook PC using a dry cloth.

Do not use strong solvents such as thinners,

benzene, or other chemicals on or near your

Notebook PC.

Do not place objects on top of your Notebook PC.

Do not expose your Notebook PC to strong

magnetic or electrical elds.

Do not use or expose your Notebook PC near

liquids, rain, or moisture.

Do not expose your Notebook PC to dusty

environments.

Do not use your Notebook PC near gas leaks.

Notebook PC E-Manual

Proper disposal

Do not throw your Notebook PC in municipal waste.

This product has been designed to enable proper

reuse of parts and recycling. The symbol of the

crossed out wheeled bin indicates that the product

(electrical, electronic equipment and mercury-

containing button cell battery) should not be

placed in municipal waste. Check local regulations

for disposal of electronic products.

Do not throw the battery in municipal waste. The

symbol of the crossed out wheeled bin indicates

that the battery should not be placed in municipal

waste.

Notebook PC E-Manual

Chapter 1:

Hardware Setup

Notebook PC E-Manual

Getting to know your Notebook PC

Top View

NOTE: The keyboard's layout may vary per region or country. The

Notebook view may also vary in appearance depending on the Notebook

PC model.

Notebook PC E-Manual

Camera

The built-in camera allows you to take pictures or record videos

using your Notebook PC.

Camera indicator

The camera indicator lights up when the built-in camera is in use.

Ambient light sensor

The ambient light sensor detects the amount of ambient light in

your environment. It allows the system to automatically adjust

the brightness of the display depending on the ambient light

condition.

Array microphones

The array microphones feature echo canceling, noise

suppression, and beam forming functions for better voice

recognition and audio recording.

360º-adjustable touch screen panel

Your Notebook PC’s touch screen panel can be adjusted all the

way into a 360º angle. This feature allows you to quickly turn

your device from a Notebook PC into a touch-enabled tablet PC.

This high-denition touch screen panel provides excellent

viewing features for photos, videos, and other multimedia les

on your Notebook PC. It also allows you to operate it using touch

screen gestures.

NOTE: For more details on how to turn your Notebook PC into a

tablet device, refer to the Using the touch screen panel as a tablet

section in this manual.

Bluetooth / Wireless indicator

This indicator lights up when your Notebook PC’s wireless

function (Bluetooth or Wi-Fi) is enabled.

Notebook PC E-Manual

Keyboard

The keyboard provides full-sized QWERTY keys with a

comfortable travel depth for typing. It also enables you to use

the function keys, allows quick access to Windows®, and controls

other multimedia functions.

NOTE: The keyboard layout diers by model or territory.

Capital lock indicator

This indicator lights up when the capital lock function is

activated. Using capital lock allows you to type capitalized letters

(such as A, B, C) using your Notebook PC’s keyboard.

Touchpad

The touchpad allows the use of multi-gestures to navigate

onscreen, providing an intuitive user experience. It also simulates

the functions of a regular mouse.

NOTE: For more details, refer to the Using touchpad gestures

section in this manual.

Numeric keypad

The numeric keypad toggles between these two functions: for

numeric input and as pointer direction keys.

NOTE: For more details, refer to the Using the numeric keypad

section in this manual.

Notebook PC E-Manual

Bottom

NOTE: The bottom side may vary in appearance depending on model.

WARNING! The bottom of the Notebook PC can get warm to hot while in

use or while charging the battery pack. When working on your Notebook

PC, do not place it on surfaces that can block the vents.

IMPORTANT! Battery time varies by usage and by the specications for

this Notebook PC. The battery pack cannot be disassembled.

Audio speakers

The built-in audio speakers allow you to hear audio straight from

your Notebook PC. Audio features are software-controlled.

Notebook PC E-Manual

Right Side

Headphone output/microphone input combo jack port

This port allows you to connect your Notebook PC to amplied

speakers or headphones. You can also use this port to connect

your Notebook PC to an external microphone.

USB 3.0 ports

These Universal Serial Bus 3.0 (USB 3.0) ports provide a transfer

rate of up to 5 Gbit/s and are backward compatible to USB 2.0.

HDMI port

This port is for a High-Denition Multimedia Interface (HDMI)

connector and is HDCP compliant for HD DVD, Blu-ray, and

Top edge swipe Finger slide

• IntheStartscreen,swipe

from the top edge of

the screen to view the

Customize bar.

• Inarunningapp,swipefrom

the top edge of the screen to

view its menu.

Slide your nger to scroll up and

down and slide your nger to

pan the screen left or right.

Zoom out Zoom in

Bring together your two ngers on

the touch screen panel.

Spread apart your two ngers

on the touch screen panel.

Notebook PC E-Manual

Tap/Double tap Tap/click and hold

• Tap an app to launch it.

• On Desktop mode, double-

tap an item to launch it.

• To move an app, tap and

hold the app tile and drag it

to a new location.

• To close an app, tap and

hold the top side of the

running app and drag it

down to the bottom of the

screen to close it.

Notebook PC E-Manual

Swipe up Swipe down

Swipe up from the Start screen to

launch the Apps screen.

Swipe down from the Apps

screen to return to the Start

screen.

Notebook PC E-Manual

Using touchpad gestures

Moving the pointer

You can tap or click anywhere on the touchpad to activate its pointer,

then slide your nger on the touchpad to move the pointer onscreen.

Slide horizontally

Slide vertically

Slide diagonally

Notebook PC E-Manual

One-nger gestures

Tap/click, Double tap/click

• IntheStartscreen,tap/clickanapptolaunchit.

• InDesktopmode,doubletap/clickanapplicationtolaunchit.

Drag and drop

Double-tap/click an item, then slide the same nger without lifting it

o the touchpad. To drop the item to its new location, lift your nger

from the touchpad.

Notebook PC E-Manual

Left-click Right-click

• IntheStartscreen,clickan

app to launch it.

• InDesktopmode,double-

click an application to

launch it.

• IntheStartscreen,clickan

app to select it and launch

the settings bar. You can also

press this button to launch

the All Apps bar.

• InDesktopmode,usethis

button to open the right-

click menu.

NOTE: The areas inside the dotted line represent the locations of the left

mouse button and the right mouse button on the touchpad.

Notebook PC E-Manual

Top edge swipe

• IntheStartscreen,swipefromthetopedgetolaunchtheAll

Apps bar.

• Inarunningapp,swipefromthetopedgetoviewitsmenu.

Left edge swipe Right edge swipe

Swipe from the left edge to shue

your running apps.

Swipe the right edge to launch

the Charms bar.

Notebook PC E-Manual

Two-nger gestures

Tap/click Rotate

Tap/click two ngers on the

touchpad to simulate the right-

click function.

To rotate an image, place two

ngers on the touchpad then

turn one nger clockwise or

counterclockwise while the other

stays still.

Two-nger scroll (up/down) Two-nger scroll (left/right)

Slide two ngers to scroll up or

down.

Slide two ngers to scroll left or

right.

Notebook PC E-Manual

Zoom out Zoom in

Bring together your two ngers on

the touchpad.

Spread apart your two ngers on

the touchpad.

Drag and drop

Select an item then press and hold the left button. Using your other

nger, slide down the touchpad to drag and drop the item to a new

location.

Notebook PC E-Manual

Three-nger gestures

Swipe up Swipe down

Swipe three ngers upward to

show all running applications.

Swipe three ngers downward to

show the Desktop mode.

Notebook PC E-Manual

Function keys

The function keys on your Notebook PC’s keyboard can trigger the

following commands:

Using the keyboard

Puts the Notebook PC into Sleep mode

Turns Airplane mode on or o

NOTE: When enabled, the Airplane mode disables

all wireless connectivity.

Decreases brightness for the backlit keyboard

Increases brightness for the backlit keyboard

Decreases display brightness

Increases display brightness

Turns the display panel o

Toggles the display mode

NOTE: Ensure that the second display is connected

to your Notebook PC.

Notebook PC E-Manual

Enables or disables the touchpad

Turns the speaker on or o

Turns the speaker volume down

Turns the speaker volume up

Windows® 8.1 keys

There are two special Windows® keys on your Notebook PC’s keyboard

used as below:

Press this key to go back to the Start screen. If you are

already in the Start screen, press this key to go back to

the last app you opened.

Press this key to simulate the right-click functions.

Notebook PC E-Manual

Multimedia control keys

The multimedia control keys allow you to control multimedia les, such

as audios and videos, when played in your Notebook PC.

Press in combination with the arrow keys on your Notebook PC,

illustrated as below.

Stop

Play or

pause

Skip to

track or

rewind

Skip to

next track

or fast

forward

Notebook PC E-Manual

Using the numeric keypad

A numeric keypad is available on

selected Notebook PC models. You

can use this keypad for numeric

input or as pointer direction keys.

NOTE: Actual numeric keypad may vary in appearance depending on

model.

Notebook PC E-Manual

Using the touch screen panel as a

tablet

To use your Notebook PC’s touch screen panel as a tablet device, you

may adjust it all the way into a 360º angle as shown below.

Notebook PC mode

adjust to a 360º angle

tablet mode

Notebook PC E-Manual

Chapter 3:

Working with Windows® 8.1

Notebook PC E-Manual

Starting for the rst time

When you start your computer for the rst time, a series of screens

appear to guide you in conguring your Windows® 8.1 operating

system.

To start your Notebook PC for the rst time:

1. Press the power button on your Notebook PC. Wait for a few

minutes until the setup screen appears.

2. From the setup screen, pick your region and a language to use on

your Notebook PC.

3. Carefully read the License Terms. Select I accept.

4. Follow the onscreen instructions to congure the following basic

items:

• Personalize

• Getonline

• Settings

• Youraccount

5. After conguring the basic items, Windows® 8.1 proceeds

to install your apps and preferred settings. Ensure that your

Notebook PC is kept powered on during the setup process.

6. Once the setup process is complete, the Start screen appears.

Notebook PC E-Manual

Windows® UI

Windows® 8.1 comes with a tile-based user interface (UI) which allows

you to organize and easily access Windows® apps from the Start screen.

It also includes the following features that you can use while working

on your Notebook PC.

Start screen

The Start screen appears after successfully signing in to your user

account. It helps organize all the applications you need in just one

place.

Windows® Apps

These are apps pinned on the Start screen and displayed on tiled-format

for easy access.

NOTE: Some apps require signing in to your Microsoft account before

they are fully launched.

Notebook PC E-Manual

Hotspots

Onscreen hotspots allow you to launch programs and access the

settings of your Notebook PC. The functions in these hotspots can be

activated using the touchpad.

Hotspots on a running app

Hotspots on the Start screen

Notebook PC E-Manual

Hotspot Action

upper left corner Hover your mouse pointer on the upper left

corner then tap/click on the recent app’s

thumbnail to revert back to that running app.

If you launched more than one app, slide

down to show all running apps.

lower left corner From a running app screen:

Hover your mouse pointer on the lower left

corner then tap/click to go back to the

Start screen.

NOTE: You can also press the Windows key

on your keyboard to go back to the

Start screen.

From the Start screen:

Hover your mouse pointer on the lower left

corner then tap/click to go back to that

app.

Notebook PC E-Manual

Hotspot Action

top side Hover your mouse pointer on the top side

until it changes to a hand icon. Drag then

drop the app to a new location.

NOTE: This hotspot function only works on

a running app or when you want to use the

Snap feature. For more details, refer to the

Snap feature under Working with Windows®

apps.

upper or lower right

corner

Hover your mouse pointer on the upper or

lower right corner to launch the Charms bar.

Notebook PC E-Manual

Start button

Windows® 8.1 features the Start button which allows you to switch

between the two most recent apps that you opened. The Start button

may be accessed from the Start screen, while on Desktop mode, and on

any app that is currently open onscreen.

Start button on the Start screen

NOTE: The actual color of your Start button varies depending on the

display settings you chose for your Start screen.

Hover your mouse pointer over the left corner of your Start

screen or any opened app to call out the Start button.

Notebook PC E-Manual

Start button on Desktop mode

Context menu

The context menu appears as a box lled with quick access to some of

the programs inside Windows® 8.1 when you right-click on the Start

button.

The context menu also includes the following shut down options for

your Notebook PC: sign out, sleep, shut down, restart.

Notebook PC E-Manual

Customizing your Start screen

Windows® 8.1 also enables you to customize your Start screen,

allowing you to boot directly to the Desktop mode and customize the

arrangement of your apps onscreen.

To customize the settings of your Start screen:

1. Launch the Desktop.

2. Right-click anywhere on the taskbar, except on the

Start button, to launch the pop-up window.

3. Click Properties then select the Navigation tab to

tick the Navigation and Start screen options you

want to use.

4. Tap/click Apply to save the new settings then exit.

Notebook PC E-Manual

Working with Windows® apps

Use your Notebook PC’s touch screen panel*, touchpad, or keyboard to

launch, customize, and close apps.

Launching apps

Customizing apps

You can move, resize, unpin, or close apps from the Start screen using

the following steps:

Tap an app to launch it.

Position your mouse pointer over the app then left-click

or tap once to launch it.

Press twice then use the arrow keys to browse

through the apps. Press to launch an app.

Moving apps

Tap and hold the app tile then drag it to a new location.

Double-tap on the app then drag and drop the app to a

new location.

Notebook PC E-Manual

Tap and hold the app to activate the Customize bar then

tap and select an app tile size.

Tap and hold the app to activate the Customize bar, then

tap to unpin an app.

Unpinning apps

Resizing apps

Right-click on the app to activate the Customize bar,

then tap/click and select an app tile size.

Right-click on the app to activate the Customize bar

then tap/click .

Notebook PC E-Manual

Tap and hold the top side of the running app then drag

it down to the bottom of the screen to close it.

1. Move your mouse pointer on the top side of the

launched app then wait for the pointer to change

to a hand icon.

2. Drag then drop the app to the bottom of the

screen to close it.

From the running app’s screen, press .

Closing apps

Notebook PC E-Manual

Accessing the Apps screen

Aside from the apps already pinned on your Start screen, you can also

open other applications through the Apps screen.

NOTE: Actual apps shown onscreen may vary per model. The following

screenshot is for reference only.

Launching the Apps screen

Launch the Apps screen using your Notebook PC's touch screen panel*,

touchpad, or keyboard.

Swipe up on the Start screen.

On the Start screen, click the button.

From the Start screen, Press then press .

Notebook PC E-Manual

Pinning more apps on the Start screen

You can pin more apps on the Start screen using your touch screen

panel* or touchpad.

1. Launch the All Apps screen.

2. Tap and hold an app you want to add on the

start to activate the Customize bar. Once the

Customize bar is launched, you may also tap

other more apps to add on the Start screen.

3. Tap to pin the selected apps on the Start

screen.

1. Launch the All Apps screen

2. Right-click on the apps that you want to add on

the Start screen.

3. Tap/click on the icon to pin the selected

apps on the Start screen.

Notebook PC E-Manual

Charms bar

The Charms bar is a toolbar that can be triggered on the right side

of your screen. It consists of several tools that allow you to share

applications and provide quick access for customizing the settings of

your Notebook PC.

Charms bar

Notebook PC E-Manual

Launching the Charms bar

NOTE: When called out, the Charms bar initially appears as a set of

white icons. The image above shows how the Charms bar looks like once

activated.

Use your Notebook PC’s touch screen panel*, touchpad, or keyboard to

launch the Charms bar.

Swipe from the right edge of the screen to launch the

charms bar.

Move your mouse pointer on the upper or lower right

corner of the screen.

Press

Notebook PC E-Manual

This charm allows you to look for les, applications, or

programs in your Notebook PC.

This charm allows you to share applications via social

networking sites or email.

Start

This charm reverts the display back to the Start screen.

From the Start screen, you can also use this to revert back

to a recently opened app.

Devices

This charm allows you to access and share les with

the devices attached to your Notebook PC such as an

external display or printer.

Settings

This charm allows you to access the PC settings of your

Notebook PC.

Inside the Charms bar

Notebook PC E-Manual

Snap feature

The Snap feature displays two apps side-by-side, allowing you to work

or switch between apps.

IMPORTANT! Ensure that your Notebook PC’s screen resolution is set to

1366 x 768 pixels or higher before using the Snap feature.

Snap bar

Notebook PC E-Manual

Using Snap

Use your Notebook PC’s touch screen panel*, touchpad, or keyboard to

activate and use Snap.

1. Launch the app you wish to snap.

2. Hover the mouse point on the top side of your

screen.

3. Once the pointer changes to a hand icon, drag

then drop the app to the left or right side of the

display panel.

4. Launch another app.

1. Launch the app you wish to snap.

2. Press and the left or right arrow key to snap

the app to the left or right pane.

3. Launch another app. This app is automatically

placed in the empty pane.

1. Launch the app you wish to snap.

2. Tap and hold the app’s topmost part then drag it

to the left or right side of the screen until the snap

bar appears.

3. Launch another app.

Notebook PC E-Manual

Other keyboard shortcuts

Using the keyboard, you can also use the following shortcuts to help

you launch applications and navigate Windows® 8.1.

Switches between the Start screen and the last

running app

Launches the desktop

Launches the This PC window on Desktop mode

Opens the File option from the Search charm

Opens the Share charm

Opens the Settings charm

Opens the Devices charm

Activates the Lock screen

Minimizes all currently active windows

Notebook PC E-Manual

Launches the Project pane

Opens the Everywhere option from the

Search charm

Opens the Run window

Opens Ease of Access Center

Opens the Settings option under the Search

charm

Opens the context menu of the Start button

Launches the magnier icon and zooms in

your screen

Zooms out your screen

Opens the Narrator Settings

Notebook PC E-Manual

Connecting to wireless networks

Wi-Fi

Access emails, surf the Internet, and share applications via social

networking sites using your Notebook PC’s Wi-Fi connection.

IMPORTANT! The Airplane mode disables this feature. Ensure that

Airplane mode is turned o before enabling the Wi-Fi connection of your

Notebook PC.

Enabling Wi-Fi

Activate Wi-Fi in your Notebook PC using the following steps on your

touch screen panel or touchpad.

1. Launch the Charms bar.

2. Tap/click and tap/click .

3. Select an access point from the list of available Wi-Fi

connections.

4. Tap/click Connect to start the network connection.

NOTE: You may be prompted to enter a security key to

activate the Wi-Fi connection.

5. If you want to enable sharing between your

Notebook PC and other wireless-enabled systems,

tap/click Yes . Tap/click No if you do not want to

enable the sharing function.

Notebook PC E-Manual

Bluetooth

Use Bluetooth to facilitate wireless data transfers with other Bluetooth-

enabled devices.

IMPORTANT! The Airplane mode disables this feature. Ensure that

Airplane mode is turned o before enabling the Bluetooth connection of

your Notebook PC.

Pairing with other Bluetooth-enabled devices

You need to pair your Notebook PC with other Bluetooth-enabled

devices to enable data transfers. To do this, use your touchpad as

follows:

1. Launch the Charms bar.

2. Tap/click then tap/click Change PC Settings.

3. Under PC Settings, select Devices then tap/click Add

a Device to search for Bluetooth-enabled devices.

4. Select a device from the list. Compare the passcode

on your Notebook PC with the passcode sent to your

chosen device. If they are the same, tap/click Yes to

successfully pair your Notebook PC with the device.

NOTE: For some bluetooth-enabled devices, you may be

prompted to key in the passcode of your Notebook PC.

Notebook PC E-Manual

1. Launch the Charms bar.

2. Tap/click and tap/click .

3. Move the slider to the right to turn the Airplane

mode on.

Press .

Airplane mode

The Airplane mode disables wireless communication, allowing you to

use your Notebook PC safely while in-ight.

Turning Airplane mode on

Turning Airplane mode o

1. Launch the Charms bar.

2. Tap/click and tap/click .

3. Move the slider to the left to turn the Airplane

mode o.

Press .

NOTE: Contact your airline provider to learn about related inight services

that can be used and restrictions that must be followed when using your

Notebook PC in-ight.

Notebook PC E-Manual

Connecting to wired networks

You can also connect to wired networks, such as local area networks

and broadband Internet connection, using your Notebook PC’s LAN

port.

NOTE: Contact your Internet Service Provider (ISP) for details or

your network administrator for assistance in setting up your Internet

connection.

To congure your settings, refer to the following procedures.

IMPORTANT! Ensure that a network cable is connected between your

Notebook PC’s LAN port and a local area network before performing the

following actions.

Conguring a dynamic IP/PPPoE network

connection

1. Launch Desktop.

2. From the Windows® taskbar, right-click the network

icon then tap/click Open Network and

Sharing Center.

3. In the Network and Sharing Center window, tap/

click Change adapter settings.

4. Right-click on your LAN then select Properties.

5. Tap/click Internet Protocol Version 4(TCP/IPv4)

then tap/click Properties.

Notebook PC E-Manual

7. Return to the Network and Sharing Center

window then tap/click Set up a new connection or

network.

8. Select Connect to the Internet then tap/click Next.

9. Tap/click Broadband (PPPoE).

10. Type your User name, Password, and Connection

name then tap/click Connect.

11. Tap/click Close to nish the conguration.

12. Tap/click on the taskbar then tap/click the

connection you just created.

13. Type your user name and password then tap/click

Connect to start connecting to the Internet.

Conguring a static IP network connection

1. Repeat steps 1 to 5 under Conguring a dynamic

IP/PPPoE network connection.

2 Tap/click Use the following IP address.

3. Type the IP address, Subnet mask and Default

gateway from your service provider.

4. If needed, you can also type the preferred DNS

server address and alternate DNS server address

then tap/click OK.

NOTE: Proceed to the next steps if you are using PPPoE connection.

6. Tap/click Obtain an IP address automatically then

tap/click OK.

Notebook PC E-Manual

Turning your Notebook PC off

You can turn o your Notebook PC by doing either of the following

procedures:

Putting your Notebook PC to sleep

To put your Notebook PC on Sleep mode, press the power button once.

You can also put your Notebook PC to sleep mode

using Desktop mode. To do this, launch the desktop

then press alt + f4 to launch the Shut Down window.

Select Sleep from the drop-down list then select OK.

• Tap/click from the Charms bar then

tap/click > Shut down to do a normal

shutdown.

• Fromthelog-inscreen,tap/click > Shut

down.

• YoucanalsoshutdownyourNotebookPCusing

Desktop mode. To do this, launch the desktop

then press alt + f4 to launch the Shut Down

window. Select Shut Down from the drop-down

list then select OK.

• IfyourNotebookPCisunresponsive,press

and hold the power button for at least four (4)

seconds until your Notebook PC turns o.

Notebook PC E-Manual

Windows® 8.1 lock screen

The Windows® 8.1 lock screen appears when you wake your Notebook

PC from sleep or hibernate mode. It also appears when you lock or

unlock Windows® 8.1.

The lock screen can be customized to regulate access to your operating

system. You can change its background display and access some of your

apps while your Notebook PC is still locked.

To proceed from the lock screen

1. Tap/click on the touchpad or press any key on

your Notebook PC's keyboard.

2. (optional) If your account is password-protected,

you need to key in the password to continue to

the Start screen.

Notebook PC E-Manual

Customizing your lock screen

You can customize your lock screen to show your preferred photo, a

photo slideshow, app updates, and quickly access your Notebook PC’s

camera. To change the settings of your lock screen, you may refer to the

following information:

1. Launch the Charms bar > Settings.

2. Select Change PC Settings > Lock screen.

3. Under the Lock screen preview, click Browse

to select the photo you would like to use as a

background on your lock screen.

Playing a slideshow

1. Launch the Charms bar > Settings.

2. Select Change PC Settings > Lock screen.

3. Under the Lock screen preview, move the Play

a slide show on the lock screen slide bar to On.

4. Scroll down to customize the following options

for your lock screen’s slideshow:

Selecting a photo

Notebook PC E-Manual

Adding app updates

1. Launch the Charms bar > Settings.

2. Select Change PC Settings > Lock screen.

3. Scroll down until you see the Lock screen apps

option.

4. Use the following options to add the apps whose

updates you would like to see from your lock

screen:

Activating your Notebook PC camera from the lock screen

From the lock screen, you can swipe down to activate and use your

Notebook PC's camera. Refer to the following steps on how to enable

this feature:

1. Launch the Charms bar > Settings.

2. Select Change PC Settings > Lock screen.

3. Scroll down until you see the Camera option.

4. Move the slide bar to On.

Notebook PC E-Manual

Chapter 4:

Power-On Self-Test (POST)

Notebook PC E-Manual

The Power-On Self-Test (POST)

The Power-On Self-Test (POST) is a series of software-controlled

diagnostic tests that run when you turn on or restart your Notebook PC.

The software that controls the POST is installed as a permanent part of

the Notebook PC’s architecture.

Using POST to access BIOS and Troubleshoot

During POST, you can access the BIOS settings or run troubleshooting

options using the function keys of your Notebook PC. You may refer to

the following information for more details.

BIOS

The Basic Input and Output System (BIOS) stores system hardware

settings that are needed for system startup in the Notebook PC.

The default BIOS settings apply to most conditions of your Notebook

PC. Do not change the default BIOS settings except in the following

circumstances:

• Anerrormessageappearsonscreenduringsystembootupand

requests you to run the BIOS Setup.

• Youhaveinstalledanewsystemcomponentthatrequiresfurther

BIOS settings or updates.

WARNING: Using inappropriate BIOS settings may result to system

instability or boot failure. We strongly recommend that you change the

BIOS settings only with the help of a trained service personnel.

Accessing BIOS

Restart your Notebook PC then press during POST.

Notebook PC E-Manual

BIOS Settings

NOTE: The BIOS screens in this section are for reference only. The actual

screens may dier by model and territory.

Boot

This menu allows you to set your boot option priorities. You may refer to

the following procedures when setting your boot priority.

1. On the Boot screen, select Boot Option #1.

→← : Select Screen

↑↓ : Select Item

Enter: Select

+/— : Change Opt.

F1 : General Help

F9 : Optimized Defaults

F10 : Save & Exit

ESC : Exit

Boot Conguration

Fast Boot [Enabled]

Launch CSM [Disabled]

Driver Option Priorities

Boot Option Priorities

Boot Option #1 [Windows Boot Manager]

Add New Boot Option

Delete Boot Option

Sets the system

boot order

Main Advanced Boot Security Save & Exit

Notebook PC E-Manual

2. Press and select a device as the Boot Option #1.

→← : Select Screen

↑↓ : Select Item

Enter: Select

+/— : Change Opt.

F1 : General Help

F9 : Optimized Defaults

F10 : Save & Exit

ESC : Exit

Sets the system

boot order

Main Advanced Boot Security Save & Exit

Boot Conguration

Fast Boot [Enabled]

Launch CSM [Disabled]

Driver Option Priorities

Boot Option Priorities

Boot Option #1 [Windows Boot Manager]

Add New Boot Option

Delete Boot Option

Boot Option #1

Windows Boot Manager

Disabled

Notebook PC E-Manual

Security

This menu allows you to set up the administrator and user password

of your Notebook PC. It also allows you to control the access to your

Notebook PC’s hard disk drive, input/output (I/O) interface, and USB

interface.

NOTE:

• IfyouinstallaUser Password, you will be prompted to input this

before entering your Notebook PC's operating system.

• IfyouinstallanAdministrator Password, you will be prompted to

input this before entering BIOS.

Password Description

If ONLY the Administrator’s password is set,

then this only limits access to Setup and is

only asked for when entering Setup. If ONLY

the user’s password is set, then this is a

power on password and must be entered to boot

or enter Setup. In Setup, the User will have

Administrator rights.

Administrator Password Status NOT INSTALLED

User Password Status NOT INSTALLED

Administrator Password

User Password

HDD Password Status : NOT INSTALLED

Set Master Password

Set User Password

I/O Interface Security

System Mode state User

Secure Boot state Enabled

Secure Boot Control [Enabled]

Key Management

Set Administrator

Password. The

password length

must be in the

following range:

Minimum length 3

Maximum length 20

Main Advanced Boot Security Save & Exit

→← : Select Screen

↑↓ : Select Item

Enter: Select

+/— : Change Opt.

F1 : General Help

F9 : Optimized Defaults

F10 : Save & Exit

ESC : Exit

Notebook PC E-Manual

To set the password:

1. On the Security screen, select Administrator Password or User

Password.

2. Type in a password then press .

3. Re-type to conrm the password then press .

To clear the password:

1. On the Security screen, select Administrator Password or User

Password.

2. Type in the current password then press .

3. Leave the Create New Password eld blank then press

4. Select Yes in the conrmation box then press .

Notebook PC E-Manual

I/O Interface Security

In the Security menu, you can access I/O Interface Security to lock

or unlock some interface functions of your Notebook PC.

I/O Interface Security

LAN Network Interface [UnLock]

Wireless Network Interface [UnLock]

HD AUDIO Interface [UnLock]

USB Interface Security

If Locked, LAN

controller will

be disabled.

Security

→← : Select Screen

↑↓ : Select Item

Enter: Select

+/— : Change Opt.

F1 : General Help

F9 : Optimized

Defaults

F10 : Save & Exit

ESC : Exit

LAN Network Interface

Lock

UnLock

To lock an interface:

1. On the Security screen, select I/O Interface Security.

2. Select an interface you would like to lock then press

3. Select Lock.

Notebook PC E-Manual

USB Interface Security

Through the I/O Interface Security menu, you can also access USB

Interface Security to lock or unlock ports and devices.

USB Interface Security

USB Interface [UnLock]

External Ports [UnLock]

CMOS Camera [UnLock]

Card Reader [UnLock]

If Locked, all

USB device will

be disabled

Security

→← : Select Screen

↑↓ : Select Item

Enter: Select

+/— : Change Opt.

F1 : General Help

F9 : Optimized

Defaults

F10 : Save & Exit

ESC : Exit

USB Interface

Lock

UnLock

To lock the USB interface:

1. On the Security screen, select I/O Interface Security > USB

Interface Security.

2. Select an interface that you would like to lock then select

Lock.

NOTE: Setting the USB Interface to Lock also locks and hides the

External Ports and other devices included under USB Interface Security.

Notebook PC E-Manual

Set Master Password

In the Security menu, you can use Set Master Password to set up

a password-enabled access to your hard disk drive.

Set HDD Master

Password.

***Advisable to

Power Cycle System

after Setting Hard

Disk Passwords***

Main Advanced Boot Security Save & Exit

→← : Select Screen

↑↓ : Select Item

Enter: Select

+/— : Change Opt.

F1 : General Help

F9 : Optimized

Defaults

F10 : Save & Exit

ESC : Exit

Password Description

If ONLY the Administrator’s password is

set,then this only limits access to Setup

and is only asked for when entering Setup.

If ONLY the user’s password is set, then

this is a power on password and must be

entered to boot or enter Setup. In Setup,

the User will have Administrator rights.

Administrator Password Status NOT INSTALLED

User Password Status NOT INSTALLED

Administrator Password

User Password

HDD Password Status : NOT INSTALLED

Set Master Password

Set User Password

I/O Interface Security

To set the HDD password:

1. On the Security screen, select Set Master Password.

2. Type in a password then press .

3. Re-type to conrm the password then press .

4. Select Set User Password then repeat the previous steps to

set up the user password.

Notebook PC E-Manual

Save & Exit

To keep your conguration settings, select Save Changes and Exit

before exiting the BIOS.

Main Advanced Boot Security Save & Exit

→← : Select Screen

↑↓ : Select Item

Enter: Select

+/— : Change Opt.

F1 : General Help

F9 : Optimized Defaults

F10 : Save & Exit

ESC : Exit

Save Changes and Exit

Discard Changes and Exit

Save Options

Save Changes

Discard Changes

Restore Defaults

Boot Override

Windows Boot Manager

Launch EFI Shell from lesystem device

Exit system setup

after saving the

changes.

Notebook PC E-Manual

To update the BIOS:

1. Verify the Notebook PC’s exact model then download the latest

BIOS le for your model from the ASUS website.

2. Save a copy of the downloaded BIOS le to a ash disk drive.

3. Connect your ash disk drive to your Notebook PC.

4. Restart your Notebook PC then press during POST.

5. From the BIOS menu, Select Advanced > Start Easy Flash, then

press .

Start Easy Flash

Internal Pointing Device [Enabled]

Wake on Lid Open [Enabled]

Power Off Energy Saving [Enabled]

SATA Conguration

Graphics Conguration

Intel (R) Anti-Theft Technology Corporation

USB Conguration

Network Stack

Press Enter to run

the utility to

select and update

BIOS.

Main Advanced Boot Security Save & Exit

→← : Select Screen

↑↓ : Select Item

Enter: Select

+/— : Change Opt.

F1 : General Help

F9 : Optimized Defaults

F10 : Save & Exit

ESC : Exit

Notebook PC E-Manual

FSO

FS1

FS2

FS3

FS4

0 EFI

<DIR>

ASUSTek Easy Flash Utility

[←→]: Switch [↑↓]: Choose [q]: Exit [Enter]: Enter/Execute

Current BIOS

Platform: Q502

Version: 101

Build Date: Oct 26 2012

Build Time: 11:51:05

New BIOS

Platform: Unknown

Version: Unknown

Build Date: Unknown

Build Time: Unknown

FLASH TYPE: MXIC 25L Series

6. Locate your downloaded BIOS le in the ash disk drive then

press .

7. After the BIOS update process, select Exit > Restore Defaults to

restore the system to its default settings.

Notebook PC E-Manual

Troubleshoot

By pressing during POST, you can access Windows® 8.1

troubleshoot options which includes the following:

• RefreshyourPC

• ResetyourPC

• Advancedoptions

Refresh your PC

Use Refresh your PC if you want to refresh your system without losing

your current les and applications.

To access this during POST:

1. Restart your Notebook PC then press during

POST.

2. Wait for Windows® to load the Choose an option

screen then tap/click Troubleshoot.

3. Tap/click Refresh your PC.

4. In the Refresh your PC screen, read the bullet points

to learn more about using this option then tap/click

Next.

5. Tap/click the account you would like to refresh.

6. Type your account password then tap/click

Continue.

7. Tap/click Refresh.

IMPORTANT! Ensure that your Notebook PC is plugged in

to a power source before refreshing your system.

Notebook PC E-Manual

Reset your PC

IMPORTANT! Back up all your data before performing this option.

Use Reset your PC to restore your Notebook PC to its default settings.

To access this during POST:

1. Restart your Notebook PC then press during

POST.

2. Wait for Windows® to load the Choose an option

screen then tap/click Troubleshoot.

3. Tap/click Reset your PC.

4. In the Reset your PC screen, read the bullet points

to learn more about using this option then tap/click

Next.

5. Tap/click your preferred reset option: Just remove

my les or Fully clean the drive.

6. Tap/click Reset.

IMPORTANT! Ensure that your Notebook PC is plugged in

to a power source before resetting your system.

Notebook PC E-Manual

Advanced options

Use Advanced options to perform additional troubleshooting options

in your Notebook PC.

To access this during POST:

1. Restart your Notebook PC then press during

POST.

2. Wait for Windows® to load the Choose an option

screen then tap/click Troubleshoot.

3. Tap/click Advanced options.

4. In the Advanced options screen, select the

troubleshooting option you wish to perform.

5. Follow the succeeding steps to complete the

process.

Using System Image Recovery

Under Advanced options, you can use System Image Recovery to

recover your system using your Notebook PC’s original image le.

To access this during POST:

1. Restart your Notebook PC then press during

POST.

2. Wait for Windows® to load the Choose an option

screen then tap/click Troubleshoot.

3. Tap/click Advanced options.

Notebook PC E-Manual

4. In the Advanced options screen, select System

Image Recovery.

5. Choose an account you would like to recover using

a system image le.

6. Type your account password then tap/click

Continue.

7. Select Use the latest available system image

(recommended), then tap/click Next. You can

also choose Select a system image if your system

image is in an external device or DVD.

8. Follow the succeeding steps to complete the

system image recovery procedure.

NOTE: We strongly recommend that you regularly backup

your system to prevent data loss in case your Notebook

PC stops working.

Notebook PC E-Manual

Appendices

Notebook PC E-Manual

DVD-ROM Drive Information

(on selected models)

The DVD-ROM drive allows you to view and create your own CDs and DVDs. You

can purchase an optional DVD viewer software to view DVD titles.

Regional Playback Information

Playback of DVD movie titles involves decoding MPEG2 video, digital AC3 audio

and decryption of CSS protected content. CSS (sometimes called copy guard) is

the name given to the content protection scheme adopted by the motion picture

industry to satisfy a need to protect against unlawful content duplication.

Although the design rules imposed on CSS licensors are many, one rule that is

most relevant is playback restrictions on regionalized content. In order to facilitate

geographically staggered movie releases, DVD video titles are released for specic

geographic regions as dened in “Region Denitions” below. Copyright laws require

that all DVD movies be limited to a particular region (usually coded to the region at

which it is sold). While DVD movie content may be released for multiple regions, CSS

design rules require that any system capable of playing CSS encrypted content must

only be capable of playing one region.

IMPORTANT! The region setting may be changed up to ve times using the viewer

software, then it can only play DVD movies for the last region setting. Changing the

region code after that will require factory resetting which is not covered by warranty. If

resetting is desired, shipping and resetting costs will be at the expense of the user.

Notebook PC E-Manual

Region Denitions

Region 1

Canada, US, US Territories

Region 2

Czech, Egypt, Finland, France, Germany, Gulf States, Hungary, Iceland, Iran,

Iraq, Ireland, Italy, Japan, Netherlands, Norway, Poland, Portugal, Saudi Arabia,

Scotland, South Africa, Spain, Sweden, Switzerland, Syria, Turkey, UK, Greece,

Former Yugoslav Republics, Slovakia

Region 3

Burma, Indonesia, South Korea, Malaysia, Philippines, Singapore, Taiwan, Thailand,

Vietnam

Region 4

Australia, Caribbean (Except US Territories), Central America, New Zealand, Pacic

Islands, South America

Region 5

CIS, India, Pakistan, Rest of Africa, Russia, North Korea

Region 6

China

Notebook PC E-Manual

The Blu-ray ROM Drive allows you to view high denition (HD) videos and other

disc le formats such as DVDs and CDs.

Region Denitions

Region A

North, Central and South American countries, and their territories; Taiwan, Hong

Kong, Macao, Japan, Korea (South and North), South East Asian countries and their

territories.

Region B

European, African, and South West Asian countries and their territories; Australia

and New Zealand.

Region C

Central, South Asian, Eastern European countries and their territories; China and

Mongolia.

NOTE: Refer to Blu-ray Disc website at www.blu-raydisc.com/en/Technical/FAQs/Blu-

rayDiscforVideo.aspx for more details.

Blu-ray ROM Drive Information

(on selected models)

Internal Modem Compliancy

The Notebook PC with internal modem model complies with JATE (Japan), FCC

(US, Canada, Korea, Taiwan), and CTR21. The internal modem has been approved

in accordance with Council Decision 98/482/EC for pan-European single terminal

connection to the public switched telephone network (PSTN). However due

to dierences between the individual PSTNs provided in dierent countries,

the approval does not, of itself, give an unconditional assurance of successful

operation on every PSTN network termination point. In the event of problems you

should contact your equipment supplier in the rst instance.

Notebook PC E-Manual

Overview

On 4th August 1998 the European Council Decision regarding the CTR 21 has

been published in the Ocial Journal of the EC. The CTR 21 applies to all non

voice terminal equipment with DTMF-dialling which is intended to be connected

to the analogue PSTN (Public Switched Telephone Network).

CTR 21 (Common Technical Regulation) for the attachment requirements for

connection to the analogue public switched telephone networks of terminal

equipment (excluding terminal equipment supporting the voice telephony

justied case service) in which network addressing, if provided, is by means of

dual tone multi-frequency signalling.

Network Compatibility Declaration

Statement to be made by the manufacturer to the Notied Body and the vendor:

“This declaration will indicate the networks with which the equipment is designed

to work and any notied networks with which the equipment may have inter-

working diculties.”

Statement to be made by the manufacturer to the user: “This declaration will

indicate the networks with which the equipment is designed to work and any

notied networks with which the equipment may have inter-working diculties.

The manufacturer shall also associate a statement to make it clear where network

compatibility is dependent on physical and software switch settings. It will also

advise the user to contact the vendor if it is desired to use the equipment on

another network.”

Up to now the Notied Body of CETECOM issued several pan-European approvals

using CTR 21. The results are Europe’s rst modems which do not require

regulatory approvals in each individual European country.

Non-Voice Equipment

Answering machines and loud-speaking telephones can be eligible as well as

modems, fax machines, auto-dialers and alarm systems. Equipment in which the

end-to-end quality of speech is controlled by regulations (e.g. handset telephones

and in some countries also cordless telephones) is excluded.

Notebook PC E-Manual

This table shows the countries currently under the CTR21

standard.

Country Applied More Testing

Austria

Yes No

Belgium Yes No

Czech Republic No Not Applicable

Denmark

Yes Yes

Finland Yes No

France Yes No

Germany Yes No

Greece Yes No

Hungary No Not Applicable

Iceland Yes No

Ireland Yes No

Italy Still Pending Still Pending

Israel No No

Lichtenstein Yes No

Luxemburg Yes No

The Netherlands

Yes Yes

Norway Yes No

Poland No Not Applicable

Portugal No Not Applicable

Spain No Not Applicable

Sweden Yes No

Switzerland Yes No

United Kingdom Yes No

Notebook PC E-Manual

This information was copied from CETECOM and is supplied without liability. For

updates to this table, you may visit http://www.cetecom.de/technologies/ctr_21.

html

1 National requirements will apply only if the equipment may use pulse dialling

(manufacturers may state in the user guide that the equipment is only intended to

support DTMF signalling, which would make any additional testing superuous).

In The Netherlands additional testing is required for series connection and caller

ID facilities.

Federal Communications Commission

Interference Statement

This device complies with FCC Rules Part 15. Operation is subject to the following

two conditions:

• Thisdevicemaynotcauseharmfulinterference.

• Thisdevicemustacceptanyinterferencereceived,includinginterference

that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class

B digital device, pursuant to Part 15 of the Federal Communications Commission

(FCC) rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment o and on, the user

is encouraged to try to correct the interference by one or more of the following

measures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

Notebook PC E-Manual

• Connecttheequipmentintoanoutletonacircuitdierentfromthatto

which the receiver is connected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

WARNING! The use of a shielded-type power cord is required in order to meet

FCC emission limits and to prevent interference to the nearby radio and television

reception. It is essential that only the supplied power cord be used. Use only shielded

cables to connect I/O devices to this equipment. You are cautioned that changes or

modications not expressly approved by the party responsible for compliance could

void your authority to operate the equipment.

(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993.

Washington DC: Oce of the Federal Register, National Archives and Records

Administration, U.S. Government Printing Oce.)

Declaration of Conformity (R&TTE directive

1999/5/EC)

The following items were completed and are considered relevant and sucient:

• Essentialrequirementsasin[Article3]

• Protectionrequirementsforhealthandsafetyasin[Article3.1a]

• Testingforelectricsafetyaccordingto[EN60950]

• Protectionrequirementsforelectromagneticcompatibilityin[Article3.1b]

• Testingforelectromagneticcompatibilityin[EN301489-1]&[EN301

489-17]

• Eectiveuseoftheradiospectrumasin[Article3.2]

• Radiotestsuitesaccordingto[EN300328-2]

Notebook PC E-Manual

FCC Radio Frequency (RF) Exposure Caution

Statement

WARNING! Any changes or modications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this equipment.

“The manufacture declares that this device is limited to Channels 1 through 11 in the

2.4GHz frequency by specied rmware controlled in the USA.”

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. To maintain compliance with FCC RF exposure

compliance requirements, please avoid direct contact to the transmitting antenna

during transmitting. End users must follow the specic operating instructions for

satisfying RF exposure compliance.

RF Exposure Information (SAR)

This device meets the government’s requirements for exposure to radio waves.

This device is designed and manufactured not to exceed the emission limits for

exposure to radio ferquency (RF) energy set by the Federal Communications

Commission of the U.S. Government.

The exposure standard employs a unit of measurement known as the Specic

Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are

conducted using standard operating positions accepted by the FCC with the EUT

transmitting at the specied power level in dierent channels.

The highest SAR value for device as reported to the FCC is 1.241 W/kg when

placed next to the body.

The FCC has granted an Equipment Authorization for this device with all reported

SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR

information on this device is on le with the FCC and can be found under the

Display Grant section of www.fcc.gov/eot/ea/fccid after searching on FCC ID: MSQ-

M80T

FCC ID: MSQ7260H

100

Notebook PC E-Manual

Radio Frequency (RF) Exposure Information

The radiated output power of the Wireless Device is below the Industry Canada

(IC) radio frequency exposure limits. The Wireless Device should be used in such

a manner such that the potential for human contact during normal operation is

minimized.

This device has been evaluated for and shown compliant with the IC Specic

Absorption Rate (“SAR”) limits when installed in specic host products operated in

portable exposure conditions.

Canada’s REL (Radio Equipment List) can be found at the following web address:

http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng

Additional Canadian information on RF exposure also can be found at the

following web address:

http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

Informations concernant l’exposition aux

fréquences radio (RF)

La puissance de sortie émise par cet appareil sans l est inférieure à la limite

d’exposition aux fréquences radio d’Industrie Canada (IC). Utilisez l’appareil sans l

de façon à minimiser les contacts humains lors du fonctionnement normal.

Ce périphérique a été évalué et démontré conforme aux limites SAR (Specic

Absorption Rate – Taux d’absorption spécique) d’IC lorsqu’il est installé dans des

produits hôtes particuliers qui fonctionnent dans des conditions d’exposition à

des appareils portables.

Ce périphérique est homologué pour l’utilisation au Canada. Pour consulter

l’entrée correspondant à l’appareil dans la liste d’équipement radio (REL - Radio

Equipment List) d’Industrie Canada rendez-vous sur: http://www.ic.gc.ca/app/sitt/

reltel/srch/nwRdSrch.do?lang=eng

Pour des informations supplémentaires concernant l’exposition aux RF au Canada

rendez-vous sur : http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

Notebook PC E-Manual

101

CE Marking

CE marking for devices without wireless LAN/Bluetooth

The shipped version of this device complies with the requirements of the EEC

directives 2004/108/EC “Electromagnetic compatibility” and 2006/95/EC “Low

voltage directive”.

CE marking for devices with wireless LAN/ Bluetooth

This equipment complies with the requirements of Directive 1999/5/EC of the

European Parliament and Commission from 9 March, 1999 governing Radio and

Telecommunications Equipment and mutual recognition of conformity.

102

Notebook PC E-Manual

IC Radiation Exposure Statement for Canada

This equipment complies with IC radiation exposure limits set forth for an

uncontrolled environment. To maintain compliance with IC RF exposure

compliance requirements, please avoid direct contact to the transmitting antenna

during transmitting. End users must follow the specic operating instructions for

satisfying RF exposure compliance.

Operation is subject to the following two conditions:

• Thisdevicemaynotcauseinterferenceand

• Thisdevicemustacceptanyinterference,includinginterferencethatmay

cause undesired operation of the device.

To prevent radio interference to the licensed service (i.e. co-channel Mobile

Satellite systems) this device is intended to be operated indoors and away from

windows to provide maximum shielding. Equipment (or its transmit antenna) that

is installed outdoors is subject to licensing.

This device complies with Industry Canada licence-exempt RSS standard(s).

CAN ICES-3(B)/NMB-3(B)

Notebook PC E-Manual

103

Déclaration d’Industrie Canada relative à l’

exposition aux ondes radio

Cet appareil est conforme aux limites d’exposition aux radiations d’Industrie

Canada dénies pour un environnement non-contrôlé. Pour maintenir la

conformité avec les exigences d’exposition RF d’IC, veuillez éviter tout contact

direct avec l’antenne pendant l’émission. Les utilisateurs naux doivent suivre

les instructions de fonctionnement spéciques pour satisfaire la conformité aux

expositions RF.

Son utilisation est sujette aux deux conditions suivantes :

• Cetappareilnepeutpascauserd’interférence,et

• Cetappareildoitacceptertouteinterférence,ycomprislesinterférences

qui pourraient causer un fonctionnement non souhaité de l’appareil.

Pour éviter les interférences radio avec le service sous licence (c’est à-dire le

partage de canal avec les systèmes de téléphonie satellite), cet appareil est destiné

à être utilisé en intérieur et loin des fenêtres pour fournir un blindage maximal.

Tout appareil (ou son antenne d’émission) qui est installé en extérieur est sujet à

cette licence.

Le present appareil est conforme aux CNR d’Industrie Canada applicables aux

appareils radio exempts de licence.

CAN ICES-3(B)/NMB-3(B)

104

Notebook PC E-Manual

France Restricted Wireless Frequency Bands

Some areas of France have a restricted frequency band. The worst case maximum

authorized power indoors are:

• 10mWfortheentire2.4GHzband(2400MHz–2483.5MHz)

• 100mWforfrequenciesbetween2446.5MHzand2483.5MHz

NOTE: Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5

MHz.

There are few possibilities for outdoor use: on private property or on the private

property of public persons, use is subject to a preliminary authorization procedure

by the Ministry of Defense, with maximum authorized power of 100mW in the

2446.5–2483.5 MHz band. Use outdoors on public property is not permitted.

In the departments listed below, for the entire 2.4 GHz band:

• Maximumauthorizedpowerindoorsis100mW

• Maximumauthorizedpoweroutdoorsis10mW

Wireless Operation Channel for Dierent

Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

Notebook PC E-Manual

105

Departments in which the use of the 2400–2483.5 MHz band is permitted with an

EIRP of less than 100mW indoors and less than 10mW outdoors:

01 Ain 02 Aisne 03 Allier

05 Hautes Alpes 08 Ardennes 09 Ariège

11 Aude 12 Aveyron 16 Charente

24 Dordogne 25 Doubs 26 Drôme

32 Gers 36 Indre 37 Indre et Loire

41 Loir et Cher 45 Loiret 50 Manche

55 Meuse 58 Nièvre 59 Nord

60 Oise 61 Orne 63 Puy du Dôme

64 Pyrénées Atlantique 66 Pyrénées Orientales 67 Bas Rhin

68 Haut Rhin 70 Haute Saône 71 Saône et Loire

75 Paris 82 Tarn et Garonne 84 Vaucluse

88 Vosges 89 Yonne 90 Territoire de Belfort

94 Val de Marne

This requirement is likely to change over time, allowing you to use your wireless

LAN card in more areas within France. Please check with ART for the latest

information (www.arcep.fr)

NOTE: Your WLAN Card transmits less than 100mW, but more than 10mW.

106

Notebook PC E-Manual

UL Safety Notices

Required for UL 1459 covering telecommunications (telephone) equipment

intended to be electrically connected to a telecommunication network that has an

operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak,

and 105V rms, and installed or used in accordance with the National Electrical

Code (NFPA 70).

When using the Notebook PC modem, basic safety precautions should always be

followed to reduce the risk of re, electric shock, and injury to persons, including

the following:

• DONOTusetheNotebookPCnearwater,forexample,nearabathtub,

wash bowl, kitchen sink or laundry tub, in a wet basement or near a

swimming pool.

• DONOTusetheNotebookPCduringanelectricalstorm.Theremaybea

remote risk of electric shock from lightning.

• DONOTusetheNotebookPCinthevicinityofagasleak.

Required for UL 1642 covering primary (nonrechargeable) and secondary

(rechargeable) lithium batteries for use as power sources in products. These

batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may

consist of a single electrochemical cell or two or more cells connected in series,

parallel, or both, that convert chemical energy into electrical energy by an

irreversible or reversible chemical reaction.

• DonotdisposetheNotebookPCbatterypackinare,astheymay

explode. Check with local codes for possible special disposal instructions

to reduce the risk of injury to persons due to re or explosion.

• Donotusepoweradaptersorbatteriesfromotherdevicestoreducethe

risk of injury to persons due to re or explosion. Use only UL certied

power adapters or batteries supplied by the manufacturer or authorized

retailers.

Notebook PC E-Manual

107

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg

must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm

H05VV-F, 2G, 0.75mm

TV Notices

Note to CATV System Installer—Cable distribution system should be grounded

(earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC),

in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial

Cable – installation should include bonding the screen of the coaxial cable to the

earth at the building entrance.

REACH

Complying with the REACH (Registration, Evaluation, Authorization, and

Restriction of Chemicals) regulatory framework, we publish the chemical

substances in our products at ASUS REACH website at http://csr.asus.com/english/

REACH.htm.

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is protected by

method claims of certain U.S.A. patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners. Use of this copyright

protection technology must be authorized by Macrovision Corporation, and

is intended for home and other limited viewing uses only

unless otherwise

authorized by Macrovision Corporation

. Reverse engineering or disassembly is

prohibited.

Prevention of Hearing Loss

To prevent possible hearing damage, do not listen at high volume

levels for long periods.

108

Notebook PC E-Manual

Nordic Lithium Cautions (for lithium-ion

batteries)

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer. Dispose of used

batteries according to the manufacturer’s instructions. (English)

ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo errato.

Sostituire la batteria con un una di tipo uguale o equivalente consigliata dalla

fabbrica. Non disperdere le batterie nell’ambiente. (Italian)

VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der Batterie. Ersatz

nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ.

Entsorgung gebrauchter Batterien nach Angaben des Herstellers. (German)

ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning

må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri

tilbage til leverandøren. (Danish)

VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller

en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt

batteri enligt fabrikantens instruktion. (Swedish)

VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo

ainoastaan laitevalmistajan sousittelemaan tyyppiin. Hävitä käytetty paristo

valmistagan ohjeiden mukaisesti. (Finnish)

ATTENTION! Il y a danger d’explosion s’il y a remplacement incorrect de la

batterie. Remplacer uniquement avec une batterie du mêre type ou d’un type

équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées

conformément aux instructions du fabricant. (French)

ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme

batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte

batterier kasseres i henhold til fabrikantens instruksjoner. (Norwegian)

(Japanese)

ВНИМАНИЕ! При замене аккумулятора на аккумулятор иного типа возможно

его возгорание. Утилизируйте аккумулятор в соответствии с инструкциями

производителя. (Russian)

Notebook PC E-Manual

109

Optical Drive Safety Information

Laser Safety Information

WARNING! To prevent exposure to the optical drive’s laser, do not attempt to

disassemble or repair the optical drive by yourself. For your safety, contact a

professional technician for assistance.

CD-ROM Drive Safety Warning

CLASS 1 LASER PRODUCT

Service warning label

WARNING! INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR

VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

CDRH Regulations

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug

Administration implemented regulations for laser products on August 2, 1976.

These regulations apply to laser products manufactured from August 1, 1976.

Compliance is mandatory for products marketed in the United States.

WARNING! Use of controls or adjustments or performance of procedures other

than those specied herein or in the laser product installation guide may result in

hazardous radiation exposure.

Coating Notice

IMPORTANT! To provide electrical insulation and maintain electrical safety, a

coating is applied to insulate the device except on the areas where the I/O ports

are located.

110

Notebook PC E-Manual

CTR 21 Approval (for Notebook PC with built-in

Modem)

Danish

Dutch

English

Finnish

French

Notebook PC E-Manual

111

German

Greek

Italian

Portuguese

Spanish

Swedish

112

Notebook PC E-Manual

ENERGY STAR complied product

ENERGY STAR is a joint program of the U.S. Environmental

Protection Agency and the U.S. Department of Energy helping

us all save money and protect the environment through energy

ecient products and practices.

All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR

standard, and the power management feature is enabled by default. The

monitor and computer are automatically set to sleep after 10 and 30 minutes

of user inactivity. To wake your computer, click the mouse or press any key on

the keyboard. Please visit http://www.energy.gov/powermanagement for detail

information on power management and its benets to the environment. In

addition, please visit http://www.energystar.gov for detail information on the

ENERGY STAR joint program.

NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating systems.

European Union Eco-label

This Notebook PC has been awarded the EU Flower label, which means that this

product has the following characteristics:

1. Decreased energy consumption during use and stand-by modes.

2. Limited use of toxic heavy metals.

3. Limited use of substances harmful to the environment and health.

4. Reduction of the use of natural resources by encouraging recycling.

5. Designed for easy upgrades and longer lifetime through providing

compatible spare parts such as batteries, power supplies, the keyboard, the

memory, and if available the CD drive or DVD drive.

6. Reduced solid waste through takeback policy.

For more information on the EU Flower label, please visit the European Union Eco-

label website at http://www.ecolabel.eu.

Notebook PC E-Manual

113

Global Environmental Regulation Compliance

and Declaration

ASUS follows the green design concept to design and manufacture our products,

and makes sure that each stage of the product life cycle of ASUS product is in line

with global environmental regulations. In addition, ASUS disclose the relevant

information based on regulation requirements.

Please refer to http://csr.asus.com/english/Compliance.htm for information

disclosure based on regulation requirements ASUS is complied with:

Japan JIS-C-0950 Material Declarations

EU REACH SVHC

Korea RoHS

Swiss Energy Laws

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the

highest standards for protecting our environment. We believe in providing

solutions for you to be able to responsibly recycle our products, batteries, other

components as well as the packaging materials. Please go to http://csr.asus.com/

english/Takeback.htm for detailed recycling information in dierent regions.

For US and Canada customers, you can call 1-800-822-8837

(toll-free) for recycling information of your ASUS products’

rechargeable batteries.

Rechargeable Battery Recycling Service in

North America

114

Notebook PC E-Manual

Regional notice for Singapore

This ASUS product complies with IDA Standards.

Complies with

IDA Standards

DB103778

Regional notice for India

This product complies with the “India E-waste (Management and Handling)Rule

2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated

biphenyls(PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations

exceeding 0.1 % by weight in homogenous materials and 0.01 % by weight

in homogenous materials for cadmium, except for the exemptions listed in

Schedule-II of the Rule.

Notices for removeable batteries

• Riskofexplosionifbatteryisreplacedbyanincorrecttype.

• Thebatteryanditscomponentmustberecycledordisposedofproperly.

Avis concernant les batteries remplaçables

• Labatteriedel’ordinateurportablepeutprésenterunrisqued’incendieou

de brûlure si celle-ci est retirée ou désassemblée.

• Labatterieetsescomposantsdoiventêtrerecyclésdefaçonappropriée.

Notebook PC E-Manual

115

116

Notebook PC E-Manual

EC Declaration of Conformity

We, the undersigned,

Manufacturer: ASUSTeK COMPUTER INC.

Address, City: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN

Country: TAIWAN

Authorized representative in Europe: ASUS COMPUTER GmbH

Address, City: HARKORT STR. 21-23, 40880 RATINGEN

Country: GERMANY

declare the following apparatus:

Product name : Notebook

Model name :

Q502L,N542L

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2010+AC:2011

EN 61000-3-2:2006+A2:2009

EN 55013:2001+A1:2003+A2:2006

EN 55024:2010

EN 61000-3-3:2008

EN 55020:2007+A11:2011

1999/5/EC-R &TTE Directive

EN 300 328 V1.8.1(2012-06)

EN 300 440-1 V1.6.1(2010-08)

EN 300 440-2 V1.4.1(2010-08)

EN 301 511 V9.0.2(2003-03)

EN 301 908-1 V5.2.1(2011-05)

EN 301 908-2 V5.2.1(2011-07)

EN 301 893 V1.7.1(2012-06)

EN 302 544-2 V1.1.1(2009-01)

EN 302 623 V1.1.1(2009-01)

EN 50360:2001

EN 62479:2010

EN 50385:2002

EN 62311:2008

EN 301 489-1 V1.9.2(2011-09)

EN 301 489-3 V1.4.1(2002-08)

EN 301 489-4 V1.4.1(2009-05)

EN 301 489-7 V1.3.1(2005-11)

EN 301 489-9 V1.4.1(2007-11)

EN 301 489-17 V2.2.1(2012-09)

EN 301 489-24 V1.5.1(2010-09)

EN 302 326-2 V1.2.2(2007-06)

EN 302 326-3 V1.3.1(2007-09)

EN 301 357-2 V1.4.1(2008-11)

EN 302 291-1 V1.1.1(2005-07)

EN 302 291-2 V1.1.1(2005-07)

2006/95/EC-LVD Directive

EN 60950-1 / A12:2011 EN 60065:2002 / A12:2011

2009/125/EC-ErP Directive

Regulation (EC) No. 1275/2008

Regulation (EC) No. 642/2009

Regulation (EC) No. 278/2009

Regulation (EC) No. 617/2013

2011/65/EU-RoHS Directive

Ver. 130816

CE marking

Declaration Date: 12/05/2014

Year to begin affixing CE marking: 2014

Position : CEO

Name :

Jerry Shen

Signature :

__________

(EC conformity marking)

ASUSTeK Computer 7260H Model 7260HMW Wireless Network Adapter User Manual 7260HMW UserMan 2014 04 29

ASUSTeK Computer Inc Model 7260HMW Wireless Network Adapter 7260HMW UserMan 2014 04 29

Contents

(7260HMW) UserMan-2014-04-29

Navigation menu

Namespaces

Views

Navigation
