Airspan Networks MMAX3605 Base station radio User Manual FCC RF Profile

Airspan Networks Inc Base station radio FCC RF Profile

Contents

Description of High band blocking

FCC RF Profile Designation
Software Release 9.0
FCC RF Profile Designation 
Page 2 Commercial in Confidence
Copyright
© Copyright by Airspan Networks Inc., 2010. All rights reserved worldwide.
The information contained within this document is proprietary and is subject to all relevant copyright,
patent and other laws protecting intellectual property, as well as any specific agreements protecting
Airspan Networks Inc. rights in the aforesaid information. Neither this document nor the information
contained herein may be published, reproduced or disclosed to third parties, in whole or in part,
without the express, prior, written permission of Airspan Networks Inc. In addition, any use of this
document or the information contained herein for the purposes other than those for which it is
disclosed is strictly forbidden.
Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in
equipment design or specifications.
Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no
responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third parties
which may be effected in any way by the use of thereof.
Any representation(s) in this document concerning performance of Airspan Networks Inc. product(s)
are for informational purposes only and are not warranties of future performance, either expressed or
implied. Airspan Networks Inc. standard limited warranty, stated in its sales contract or order
confirmation form, is the only warranty offered by Airspan Networks Inc. in relation thereto.
This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability
assumed in relation thereto unless specifically undertaken in Airspan Networks Inc. sales contract or
order confirmation. Information contained herein is periodically updated and changes will be
incorporated into subsequent editions. If you have encountered an error, please notify Airspan
Networks Inc. All specifications are subject to change without prior notice.
Product performance figures quoted within this document are indicative and for information purposes
only.
FCC RF Profile Designation 
Page 3 Commercial in Confidence
Table of Contents
Copyright ................................................................................................................................................. 2
Table of Contents .................................................................................................................................... 3
Summary of Figures ................................................................................................................................ 4
1About this Guide .............................................................................................................................. 5
1.1Conventions ............................................................................................................................ 5
2Overview ......................................................................................................................................... 6
3Verify FCC RF Configuration Setting .............................................................................................. 7
4Contact Information ......................................................................................................................... 8
FCC RF Profile Designation 
Page 4 Commercial in Confidence
Summary of Figures
Figure 1 - FCC designated profile ........................................................................................................... 7
Figure 2 – FCC RF Profile ....................................................................................................................... 7
FCC RF Profile Designation 
Page 5 Commercial in Confidence
1 About this Guide
This document discusses the specific USA-specific Netspan which will only enable the operation in
the approved lower 25MHz.
1.1 Conventions
This document uses the following informational conventions.
Icon Description
Checkpoint: Marks a point in the workflow where there may be an exit or branch
to some other procedure. At each Checkpoint the reason for an exit or branch is
given along with specific directions to locate the entry point in the other
procedure.
Reference: Gives a resource in the workflow that may be needed to complete a
procedure along with specific directions to use the resource.
Caution: Describes a possible risk and how to lessen or avoid the risk.
Advice: Provides a recommendation based on best practice.
Note: Provides useful information.
FCC RF Profile Designation 
Page 6 Commercial in Confidence
2 Overview
Netspan is a Element Software Management (EMS) comprehensive management solution that
manages the network elements in the WiMAX family, which consists of WiMAX-compliant Base
Stations (BS) and Subscriber Stations (SS). Netspan is a client-server application, with always-on
server components implemented as windows services, and with a front end web application. Netspan
uses SNMP to communicate with BS equipment, as well as third party WiMAX-compliant SS devices.
It can be adjusted to meet customer requirements through its flexible configuration options.
The key features associated with Netspan are as follows:
Fault management with comprehensive event, active alarm and historical alarms system
Configuration management with provisioning, configuration, status tracking and reporting,
software upgrade and inventory management for BS TRxs, Subscriber Stations and
other associated network elements
Performance management with collection of wide range of historical statistical data
Security management with EMS authentication and authorisation as well as with secure
SNMP communication to equipment.
FCC configuration limitation as per FCC CFR 47 Part 90 subpart Z.
Netspan EMS adds mobile product features that include the following:
Support for both mobile and fixed WiMAX platforms
Support for mobile Master Station (MS)
802.16d (IEEE Standard 802.16-2004) SS is configured for service on the network; does
not have to be tied to a fixed BS TRx (although can be)
Supports 802.16e
SQL database engine for Netspan database
Indirect management of SS (MIB model)
Template/class based provisioning
Asynchronous configuration for provisioning data
Synchronous configuration for commissioning data
Asynchronous status and statistics collection
Full off-line provisioning capabilities
Database is a master for provisioning data.
¾ Re-synchronisation between equipment and EMS on request.
Further explained below:
Note: The following are for illustration only; actual screens may differ as per
particular installation.
Note: MacroMAXe is shipped to the USA with a special USA-specific Netspan
which will only enable the operation in the approved lower 25MHz.
FCC RF Profile Designation 
Page 7 Commercial in Confidence

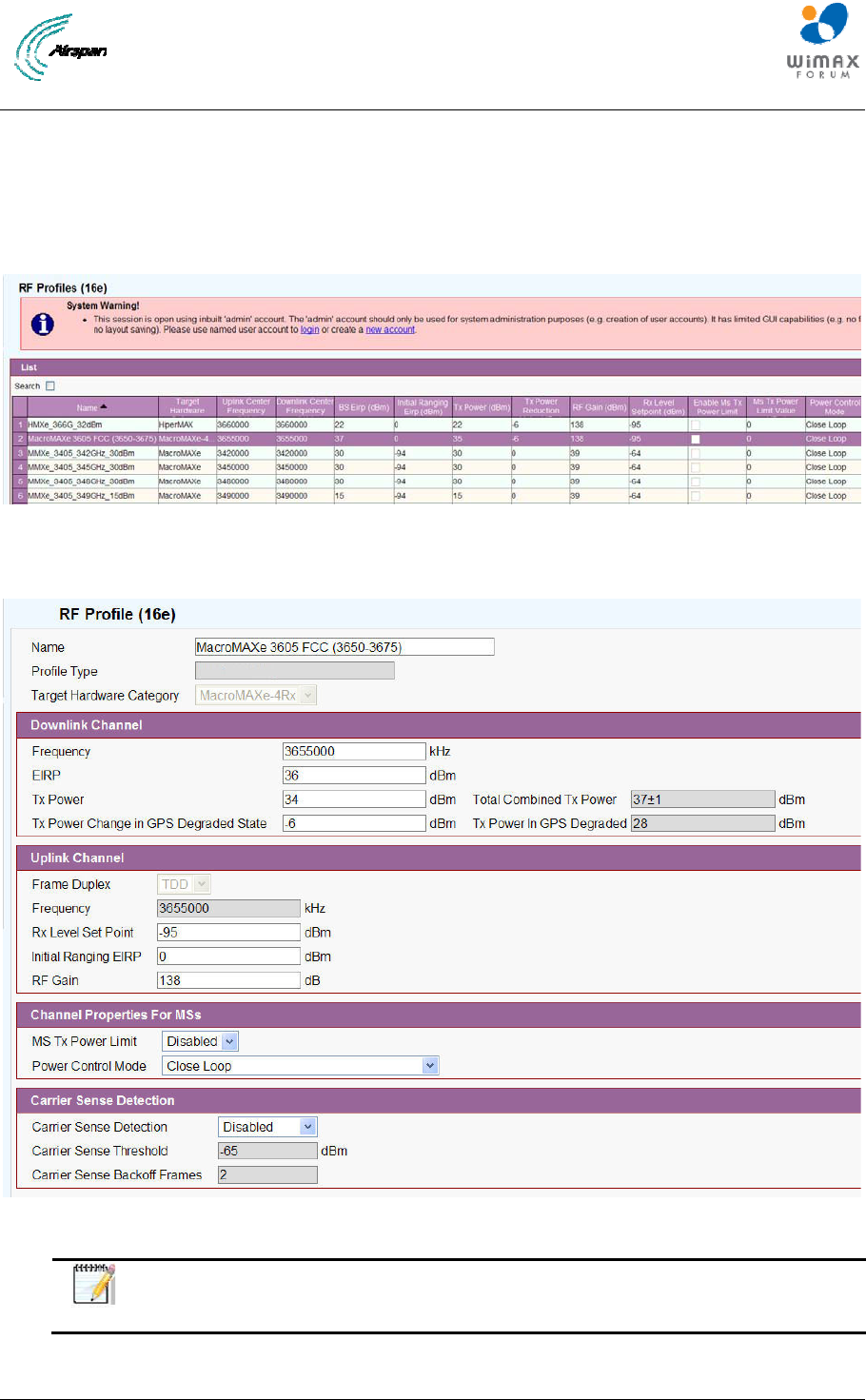

3 Verify FCC RF Configuration Setting
1. Open Netspan.
2. Navigate to BS TRx Channel (16e).
3. Select the FCC designated profile (MacroMAXe is shipped to the USA with a special USA-
specific Netspan), as displayed below:
Figure1‐FCCdesignatedprofile
4. Open to view RF Profile (16e), as displayed below:
Figure2–FCCRFProfile
Note: Netspan does not allow changing the operating frequencies from 3650 –
3675 as designated.
FCC RF Profile Designation 
Page 8 Commercial in Confidence
4 Contact Information
Customer Service Help-Desk for customer service emergency
Airspan Networks have introduced the Airspan Tracker application to enable prompt and efficient
Customer Support services.
If you do not have an Airspan Tracker account, please obtain login credentials by filling-in the form in
the main page www.airspan.com/Support Register New Account
Worldwide Headquarters:
Airspan Networks Inc.
777, Yamato Road, Suite 310,
Boca Raton, FL 33431, USA
Tel: +1 561 893 8670
www.airspan.com
Feedback:
To provide feedback on this document, please send comments to the following email
address: DocumentFeedback@airspan.com
