Open the PDF directly: View PDF PDF.
Page Count: 76

1 2
Table of Contents
Safety and use ............................................................................4
General information ...............................................................12
1 Your mobile .......................................................................14
1.1 Keys and connectors ................................................................................14
1.2 Getting started ..........................................................................................17

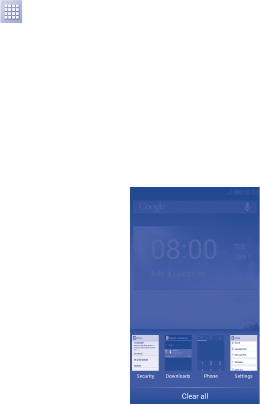

1.3 Home screen ..............................................................................................21
1.4 Applications and widgets list ..................................................................31
2 Text input ...........................................................................32
2.1 Using Onscreen Keyboard ......................................................................32
2.2 Text editing .................................................................................................33
3 Phone call, Call log and Contacts ....................................35
3.1 Phone ...........................................................................................................35
3.2 Call log .........................................................................................................43
3.3 People .......................................................................................................... 44
4 Messaging, Email ...............................................................51
4.1 Messaging ....................................................................................................51
4.2 Gmail/Email .................................................................................................58
4.3 Hangouts .....................................................................................................65
5 Calendar & Alarm clock & Calculator ............................68
5.1 Calendar ...................................................................................................... 68
5.2 Time .............................................................................................................70
5.3 Calculator ....................................................................................................71
This is a shared user manual for ONE TOUCH 4033X/ONE TOUCH 4033D
specifying Dual SIM information where relevant.
6 Getting connected ............................................................73
6.1 Connecting to the Internet ....................................................................73
6.2 Browser .......................................................................................................76
6.3 Connecting to Bluetooth devices ........................................................ 84
6.4 Connecting to a computer .....................................................................85
6.5 Sharing your phone's mobile data connection ...................................87
6.6 Connecting to virtual private networks ..............................................88
7 Google Play Store ............................................................90
7.1 Locate the item you want to download and install ..........................90
7.2 Download and install ................................................................................91
7.3 Manage your downloads ..........................................................................93
8 Multimedia applications ...................................................95
8.1 Camera ........................................................................................................95
8.2 Gallery ......................................................................................................... 97
8.3 YouTube .....................................................................................................101
8.4 Music ..........................................................................................................102
8.5 Video Player ..............................................................................................104
9 Google Maps ....................................................................105
9.1 Get My Location .....................................................................................105
9.2 Search for a location ..............................................................................106
9.3 Save a location .........................................................................................106
9.4 Open Street View for a location .........................................................108
9.5 Get driving, public transportation or walking directions...............108
9.6 Arrangement of Layers ..........................................................................109
10 Others ..............................................................................110
10.1 File Manager .............................................................................................110
10.2 Sound Recorder ......................................................................................110
10.3 Radio ..........................................................................................................111
10.4 Setup Wizard ...........................................................................................112
10.5 Alcatel Help ..............................................................................................113
10.6 Other applications .................................................................................113
3 4
This product meets applicable national SAR limits of
2.0W/kg. The specific maximum SAR values can be
found on page 8 of this user guide.
When carrying the product or using it while worn
on your body, either use an approved accessory
such as a holster or otherwise maintain a distance
of 10 mm from the body to ensure compliance with
RF exposure requirements. Note that the product
may be transmitting even if you are not making a
phone call.
11 Settings ............................................................................114
11.1 Wireless & networks .............................................................................114
11.2 Device ........................................................................................................117
11.3 Personal .....................................................................................................120
11.4 Accounts ...................................................................................................126
11.5 System ........................................................................................................126
12 Making the most of your phone ....................................135
12.1 ONE TOUCH Center ............................................................................135
12.2 Upgrade .....................................................................................................136
13 Telephone warranty ........................................................138
14 Accessories .....................................................................140
15 Troubleshooting ..............................................................141
16 Specifications ...................................................................147
Safety and use ..............................
We recommend that you read this chapter carefully before using your phone. The
manufacturer disclaims any liability for damage, which may result as a consequence of
improper use or use contrary to the instructions contained herein.
Given that studies show that using a mobile phone while driving a vehicle constitutes
a real risk, even when the hands-free kit is used (car kit, headset...), drivers are
requested to refrain from using their mobile when the vehicle is not parked.
When driving, do not use your phone and headphone to listen to music or to the
radio. Using a headphone can be dangerous and forbidden in some areas.
When switched on, your phone emits electromagnetic waves that can interfere with
the vehicle’s electronic systems such as ABS anti-lock brakes or airbags. To ensure
that there is no problem:
- do not place your phone on top of the dashboard or within an airbag deployment
- check with your car dealer or the car manufacturer to make sure that the
dashboard is adequately shielded from mobile phone RF energy.
You are advised to switch off the telephone from time to time to optimise its
Switch the phone off before boarding an aircraft.
Switch the phone off when you are in health care facilities, except in designated
areas. As with many other types of equipment now in regular use, mobile telephones
can interfere with other electrical or electronic devices, or equipment using radio
Switch the phone off when you are near gas or flammable liquids. Strictly obey all
signs and instructions posted in a fuel depot, petrol station, or chemical plant, or in
any potentially explosive atmosphere.
When the phone is switched on, it should be kept at least 15 cm from any medical
device such as a pacemaker, a hearing aid or insulin pump, etc. In particular when
using the phone, you should hold it against the ear on the opposite side to the
device, if any.
To avoid hearing impairment, pick up the call before holding your phone to your
ear. Also move the handset away from your ear while using the "hands-free" mode
because the amplified volume might cause hearing damage.
5 6
Do not let children use the phone and/or play with the telephone and accessories
without supervision.
When replacing the cover please note that your phone may contain substances that
could create an allergic reaction.
Always handle your phone with care and keep it in a clean and dust-free place.
Do not allow your phone to be exposed to adverse weather or environmental
conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc). The
manufacturer’s recommended operating temperature range is -10°C to +55°C.
At over 55°C the legibility of the phone’s display may be impaired, though this is
temporary and not serious.
Emergency call numbers may not be reachable on all cellular networks. You should
never rely only on your phone for emergency calls.
Do not open, dismantle or attempt to repair your mobile phone yourself.
Do not drop, throw or bend your mobile phone.
Do not use the phone if the glass made screen is damaged, cracked or broken to
avoid any injury.
Do not paint it.
Use only batteries, battery chargers, and accessories which are recommended by
TCT Mobile Limited and its affiliates and are compatible with your phone model. TCT
Mobile Limited and its affiliates disclaim any liability for damage caused by the use of
other chargers or batteries.
Remember to make back-up copies or keep a written record of all important
information stored in your phone.
Some people may suffer epileptic seizures or blackouts when exposed to flashing
lights, or when playing video games. These seizures or blackouts may occur even if
a person never had a previous seizure or blackout. If you have experienced seizures
or blackouts, or if you have a family history of such occurrences, please consult your
doctor before playing video games on your phone or enabling a flashing-lights feature
on your phone.
Parents should monitor their children’s use of video games or other features that
incorporate flashing lights on the phones. All persons should discontinue use and
consult a doctor if any of the following symptoms occur: convulsion, eye or muscle
twitching, loss of awareness, involuntary movements, or disorientation. To limit the
likelihood of such symptoms, please take the following safety precautions:
- Do not play or use a flashing-lights feature if you are tired or need sleep.
- Take a minimum of a 15-minute break hourly.
- Play in a room in which all lights are on.
- Play at the farthest distance possible from the screen.
- If your hands, wrists, or arms become tired or sore while playing, stop and rest for
several hours before playing again.
- If you continue to have sore hands, wrists, or arms during or after playing, stop the
game and see a doctor.
When you play games on your phone, you may experience occasional discomfort
in your hands, arms, shoulders, neck, or other parts of your body. Follow the
instructions to avoid problems such as tendinitis, carpal tunnel syndrome, or other
musculoskeletal disorders.
To prevent possible hearing damage, do not listen at high volume levels for
long periods. Exercise caution when holding your device near your ear while
the loudspeaker is in use.
Please note that you must respect the laws and regulations in force in your
jurisdiction or other jurisdiction(s) where you will use your mobile phone regarding
taking photographs and recording sounds with your mobile telephone. Pursuant to
such laws and regulations, it may be strictly forbidden to take photographs and/or to
record the voices of other people or any of their personal attributes, and duplicate
or distribute them, as this may be considered to be an invasion of privacy. It is the
user's sole responsibility to ensure that prior authorisation be obtained, if necessary,
in order to record private or confidential conversations or take a photograph
of another person; the manufacturer, the seller or vendor of your mobile phone
(including the operator) disclaim any liability which may result from the improper
use of the mobile phone.
Observe the following precautions for battery use:
- Do not attempt to open the battery (due to the risk of toxic fumes and burns).
- Do not puncture, disassemble or cause a short-circuit in a battery.
- Do not burn or dispose of a used battery in household rubbish or store it at
temperatures above 60°C.
Batteries must be disposed of in accordance with locally applicable environmental
regulations. Only use the battery for the purpose for which it was designed. Never
use damaged batteries or those not recommended by TCT Mobile Limited and/or
its affiliates.
7 8
This symbol on your telephone, the battery and the accessories means
that these products must be taken to collection points at the end of their
- Municipal waste disposal centres with specific bins for these items of
- Collection bins at points of sale.
They will then be recycled, preventing substances being disposed of in the
environment, so that their components can be reused.
In European Union countries:
These collection points are accessible free of charge.
All products with this sign must be brought to these collection points.
In non European Union jurisdictions:
Items of equipment with this symbol are not to be thrown into ordinary bins if your
jurisdiction or your region has suitable recycling and collection facilities; instead they
are to be taken to collection points for them to be recycled.
Mains powered chargers will operate within the temperature range of: 0°C to
The chargers designed for your mobile phone meet with the standard for safety of
information technology equipment and office equipment use. They are also compliant
to the ecodesign directive 2009/125/EC. Due to different applicable electrical
specifications, a charger you purchased in one jurisdiction may not work in another
jurisdiction. They should be used for this purpose only.
Proof of compliance with international standards (ICNIRP) or with European
Directive 1999/5/EC (R&TTE) is required of all mobile phone models before they can
be put on the market. The protection of the health and safety for the user and any
other person is an essential requirement of these standards or this directive.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed
the limits for exposure to radio waves (radio frequency electromagnetic fields)
recommended by international guidelines. The guidelines were developed by an
independent scientific organization (ICNIRP) and include a substantial safety margin
designed to assure the safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg.
Tests for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The
highest SAR values under the ICNIRP guidelines for this device model are:
Maximum SAR for this model and conditions under which it was recorded.
Head SAR GSM 900 + Bluetooth + Wi-Fi 0.769 W/kg
Body-worn SAR GSM 900 + Bluetooth + Wi-Fi 0.989 W/kg
Maximum SAR for this model and conditions under which it was recorded.
Head SAR GSM 900 + Bluetooth + Wi-Fi 0.769 W/kg
Body-worn SAR GSM 900 + Bluetooth + Wi-Fi 0.989 W/kg
During use, the actual SAR values for this device are usually well below the values
stated above. This is because, for purposes of system efficiency and to minimize
interference on the network, the operating power of your mobile device is
automatically decreased when full power is not needed for the call. The lower the
power output of the device, the lower its SAR value.
Body-worn SAR testing has been carried out at a separation distance of 10 mm.
To meet RF exposure guidelines during body-worn operation, the device should be
positioned at least this distance away from the body. If you are not using an approved
accessory ensure that whatever product is used is free of any metal and that it
positions the phone the indicated distance away from the body.
Organizations such as the World Health Organization and the US Food and Drug
Administration have statesd that if people are concerned and want to reduce their
exposure they could use a hands-free device to keep the phone away from the head
and body during phone calls, or reduce the amount of time spent on the phone.
For more information you can go to
Additional information about electromagnetic fields and public health are available on
the following site:
Your telephone is equipped with a built-in antenna. For optimal operation, you should
avoid touching it or degrading it.
As mobile devices offer a range of functions, they can be used in positions other
than against your ear. In such circumstances the device will be compliant with
the guidelines when used with headset or usb data cable. If you are using another
accessory ensure that whatever product is used is free of any metal and that it
positions the phone at least 10 mm away from the body.
9 10
Regulatory information
The following approvals and notices apply in specific regions as noted.
4033X: 4033D:
11 12
microSD Logo is a trademark.
The Bluetooth word mark and logos are owned by the Bluetooth
SIG, Inc. and any use of such marks by TCT Mobile Limited and its
affiliates is under license. Other trademarks and trade names are
those of their respective owners.
Bluetooth QD ID B021282
SwiftKey is a registered trademark of TouchType Ltd.
The HD Voice Logo is owned by the GSM Association ("GSMA" or
"Licensor"). It is designed for operators and vendors to market and
promote HD Voice capabilities on networks and products.
The Wi-Fi Logo is a certification mark of the Wi-Fi Alliance.
Google, the Google logo, Android, the Android logo, Google
SearchTM, Google MapsTM, GmailTM, YouTube, Google Play Store,
Google Latitude TM and Hangouts TM are trademarks of Google Inc.
The Android robot is reproduced or modified from work created and shared
by Google and used according to terms described in the Creative Commons 3.0
Attribution License (the text will show when you touch and hold Google legal in
Settings\About phone\Legal information) (1).
You have purchased a product which uses the open source (http://opensource.
org/) programs mtd, msdosfs, netfilter/iptables and initrd in object code and other
open source programs licensed under the GNU General Public License and Apache
We will provide you with a complete copy of the corresponding source codes upon
request within a period of three years from the distribution of the product by TCT.
You may download the source codes from
files/. The provision of the source code is free of charge from internet.
(1) It may not available according to the countries.
General information ...................
Internet address :
Hot Line Number: see "TCT Mobile Services" leaflet or go to our website.
Address: Room 1910-12A, Tower 3, China HK City, 33 Canton Road, Tsimshatsui,
Kowloon, Hong Kong
On our website, you will find our FAQ (Frequently Asked Questions) section. You
can also contact us by e-mail to ask any questions you may have.
An electronic version of this user guide is available in English and other languages
according to availability on our server:
Your telephone is a transceiver that operates on GSM in triple-band (900/1800/1900
MHz) or UMTS in dual-band (900/2100 MHz).
This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. The entire copy of the Declaration of Conformity
for your telephone can be obtained through our website: www.alcatelonetouch.
Protection against theft (1)
Your telephone is identified by an IMEI (phone serial number) shown on the packaging
label and in the phone’s memory. We recommend that you note the number the first
time you use your telephone by entering * # 0 6 # and keep it in a safe place. It may
be requested by the police or your operator if your telephone is stolen. This number
allows your mobile telephone to be blocked preventing a third person from using it,
even with a different SIM card.
(1) Contact your network operator to check service availability.
13 14
There may be certain differences between the user manual description and the
phone’s operation, depending on the software release of your telephone or specific
operator services.
TCT Mobile shall not be held legally responsible for such differences, if any, nor for
their potential consequences, which responsibility shall be borne by the operator
This handset may contain materials, including applications and software in executable
or source code form, which is submitted by third parties for inclusion in this handset
("Third Party Materials"). All third party materials in this handset are provided "as
is", without warranty of any kind, whether express or implied, including the implied
warranties of merchantability, fitness for a particular purpose or use/third party
application, interoperability with other materials or applications of the purchaser
and non-infringement of copyright. The purchaser undertakes that TCT Mobile has
complied with all quality obligations incumbent upon it as a manufacturer of mobile
devices and handsets in complying with Intellectual Property rights. TCT Mobile will
at no stage be responsible for the inability or failure of the Third Party Materials to
operate on this handset or in interaction with any other devices of the purchaser.
To the maximum extent permitted by law, TCT Mobile disclaims all liability for any
claims, demands, suits or actions, and more specifically – but not limited to – tort
law actions, under any theory of liability, arising out of the use, by whatever means,
or attempts to use, such Third Party Materials. Moreover, the present Third Party
Materials, which are provided free of charge by TCT Mobile, may be subject to
paid updates and upgrades in the future; TCT Mobile waives any responsibility
regarding such additional costs, which shall be borne exclusively by the purchaser.
The availability of the applications may vary depending on the countries and the
operators where the handset is used; in no event shall the list of possible applications
and software provided with the handsets be considered as an undertaking from
TCT Mobile; it shall remain merely as information for the purchaser. Therefore,
TCT Mobile shall not be held responsible for the lack of availability of one or more
applications wished for by the purchaser, as its availability depends on the country
and the operator of the purchaser. TCT mobile reserves the right at any time to add
or remove Third Party Materials from its handsets without prior notice; in no event
shall TCT Mobile be held responsible by the purchaser for any consequences that
such removal may have on the purchaser regarding the use or attempt to use such
applications and Third Party Materials.
Your mobile
1 ..........................
Keys and connectors1.1
Power key
Headset connector
Back key
LED light
Home key
Recent apps key
Touch screen
15 16
Volume up
Volume down
Recent apps key
Touch: As Menu key, touch to access Wallpaper, Manage
applications and Settings.
Touch and hold: Open a list of thumbnail images of apps
you've worked with recently. Touch it to open an app. Swipe it
upwards or downwards to remove a thumbnail from the list.
Home key
While on any application or screen, touch to return to the
Home screen.
Back key
Touch to go back to the previous screen, or to close a dialog
box, options menu, the Notification panel, etc.
Power key
Press: Lock the screen/Light up the screen.
Press and hold: Show the pop-up menu to select from Power
off/Restart/Airplane mode/Quick start.
Press and hold: Power on.
Press to mute the ringtone when there’s an incoming call.
Press and hold for more than 7 seconds to restart the phone
when the system halted.
Press and hold Power key and Volume down key to capture
a screenshot.
Press and hold Power key and Volume up key under power
off mode to restore factory set.
Volume Keys
Under call mode, adjust the earpiece or headset volume.
In Music/Video/Streaming mode, adjust the media volume.
In general mode, adjust the ring tone volume.
Mute the ringtone of an incoming call.
In Camera mode, using it as the capture key allows you to
take a photo.
17 18
Getting started1.2
Removing or installing the back cover
Inserting or removing the SIM card
You must insert your SIM card to make phone calls. Please power off your
phone before inserting or removing the SIM card.
Place the SIM card with the chip facing downwards and slide it into its
housing. Make sure that it is correctly inserted. To remove the card, press
and slide it out.
Your phone only support mini-SIM card. Do not attempt to insert other
SIM type like micro and nano card, otherwise may cause phone damage.
For dual SIM models, both SIM1 and SIM2 can support 2G and 3G
networks, but when 3G SIM cards are inserted into both SIM1 and
SIM2 slot at the same time, only SIM1 will support 3G network. (1)
Installing or removing the battery
Please power off your phone before removing the battery.
Insert and click the battery into place, then close the cover.
Unclip the cover, then remove the battery.
Installing the microSD card
To install, please open microSD card slot first, and then place the external
microSD card into the slot with the gold contact facing down. To remove
the external microSD card, please open microSD card lock and take it out
from the slot.
(1) 4033D only.
19 20
Charging the battery
Connect the battery charger to your phone and mains socket
Make sure the battery is correctly inserted before connecting the
When using your telephone for the first time, charge the battery fully
(approximately 5 hours).
You are advised to fully charge the battery ( ). Charging status is
indicated by the percentage on screen while the phone is powered off. The
percentage increases as the phone is charged.
The charging status bar will not float if your battery is extendly
consumed. To reduce power consumption and energy waste,
when battery is fully charged, disconnect your charger from the
plug; switch off Wi-Fi, GPS, Bluetooth or background-running
applications when not in use; reduce the backlight time, etc.
Power on your phone1.2.2
Hold down the Power key until the phone powers on, unlock your phone
(Slide, PIN, password or pattern) if necessary and confirm. The Home
screen will display.
If you do not know your PIN code or if you have forgotten it, contact your
network operator. Do not leave your PIN code with your phone. Store
this information in a safe place when not in use.
Set up your phone for the first time
The first time you power on the phone, you should set the following
Touch Get started..., then select the phone's language.
Select your input keyboard, then touch Next.
Select a SIM card or choose Always ask for voice call, messaging, etc. (1)
Set your date and timezone, you can also choose Automatic time zone,
then touch Next.
Setup Google account : Touch Setup now. If you have a Google
Account, touch Yes to sign in, then enter your user name and password.
If you forget your password, you can go to to
retrieve it. If you don’t own a Google Account, you are prompted to
create one by touching Get an account. Touch Not now to skip to
the next step.
Touch Next, then the Setup complete screen will display, touch Finish
to confirm.
If you power on your phone with no SIM card inserted, you can connect
to a Wi-Fi network to sign into your Google account and to use some
Power off your phone1.2.3
Hold down the Power key from the Home screen, select Power off, and
then touch OK to confirm.
(1) 4033D only.
21 22
Home screen1.3
You can bring all the items (applications, shortcuts, folders and widgets)
you love or use most frequently to your Home screen for quick access.
Touch the Home key to switch to the Home screen. (1)
Status bar
Status/Notification indicators
Touch and drag down to open the Notification
Application tab
Touch to open main menu
Search bar (1)
Touch to enter text search screen
Touch to enter voice search screen
Add a location to display local weather
Favorite tray applications
Touch to enter the application
Touch and hold to move or change applications
The Home screen is provided in an extended format to allow more space
for adding applications, shortcuts etc. Slide the Home screen horizontally
left and right to get a complete view of the Home screen. The white
short line at the lower part of the screen indicates which screen you are
Using the touchscreen1.3.1
To access an application, touch it with your finger.
(1) Depends on software version.
Touch and Hold
Touch and hold the Home screen to access the available options for
setting the wallpaper.
Place your finger on any item to drag it to another location.
Slide the screen to scroll up and down the applications, images, web
pages… at your convenience.
Similar to swiping, but flicking makes it move quicker.
Place your fingers of one hand on the screen surface and draw them apart
or together to scale an element on the screen.
Automatically change the screen orientation from portrait to landscape by
turning the phone sideways to have a better view.
Status bar1.3.2
From status bar, you can view both phone status (on the right side) and
notification information (on the left side).
23 24
Status icons
For dual SIM model, status icons referring to either SIM1 or SIM2 will be
identified by a colour which you have defined.
GPRS connected Roaming
GPRS in use No SIM card inserted
EDGE connected Vibrate mode
EDGE in use Ringer is silenced
3G connected Phone microphone is mute
3G in use Battery is very low
HSPA (3G+) connected Battery is low
HSPA (3G+) in use Battery is partially drained
Connected to a Wi-Fi
network Battery is full
Bluetooth is on Battery is charging
Connected to a Bluetooth
device Headset connected
Airplane mode No signal
Alarm is set Signal strength
GPS is on Song is playing
(1) 4033D only. Define through Settings\SIM management\SIM Information\
Set background color.
Notification icons
New text or multimedia
message Missed call
Problem with SMS or MMS
delivery Call on hold
New Hangouts message Call forwarding is on
New voicemail Uploading data
Upcoming event Downloading data
Data is synchronizing Download finished
Screenshot error Select input method
USB tethering is on An open Wi-Fi network is
Portable Wi-Fi hotspot
is on
Phone is connected via USB
Screenshot captured Radio is on
Carrier data use threshold
approaching or exceeded System update available
Call in progress Connected to VPN
25 26
Notification panel
Touch and drag down the Status bar to open the Notification panel.
Touch and drag up to close it. From the Notification panel, you can open
items and other reminders indicated by notification icons or view wireless
service information.
Touch to access Quick setting bar
Touch one notification and slide it sideways to delete it.
Touch the icon to clear all event–based notifications (other ongoing
notifications will remain).
Touch and then the Settings icon to access Settings.
Quick setting bar
Touch icons to enable/disable functions or to
change modes
Search bar 1.3.3 (1)
The phone provides a Search function which can be used to locate
information within applications, the phone or the web.
Search by text
Touch Search bar from the Home screen.
Enter the text/phrase you want to search for.
Touch on the keyboard if you want to search on the web.
Search by voice
Touch from Search bar to display a dialog screen.
Speak the word/phrase you want to search for. A list of search results
will display for you to select from.
(1) Depends on software version.
27 28
Lock/Unlock your screen1.3.4
To protect your phone and privacy, you can lock the phone screen by
choosing slide or creating a variety of patterns, PIN or password.
To create a screen unlock pattern (refer to section "Screen lock" for
detail settings)
Drag down the Notification panel and touch and then the Settings
icon to enter Settings, then touch Security\Set up screen lock\
Draw your own pattern.
Draw your unlock pattern
Touch to confirm by drawing pattern again
To create a screen unlock PIN/Password
Touch Settings\Security\Set up screen lock\PIN or Password.
Set your PIN or password.
To lock phone screen
Press the Power key once to lock the screen.
To unlock phone screen
Press the Power key once to light up the screen, draw the unlock pattern
you have created or enter PIN or password to unlock the screen.
If you have chosen Slide as the screen lock, touch and drag the icon
downwards to unlock the screen.
Personalize your Home screen1.3.5
Touch the Application tab , touch and hold an application or a widget
to active the Move mode, and drag the item to any Home screen as you
While adding an application to a Home screen, drag it to the top of App
info icon to view its detail information. If the application is downloaded,
drag it to the top of Uninstall icon to uninstall it directly.
29 30
Touch and hold the item to be repositioned to activate the Move mode,
drag the item to the desired position and then release. You can move
items both on the Home screen and the Favorite tray. Hold the icon on
the left or right edge of the screen to drag the item to another Home
Touch and hold the item to be removed to activate the Move mode, drag
the item up to the top of Remove icon, and release after the item turns
Create folders
To improve the organization of items (shortcuts or applications) on the
Home screen and the Favorite tray, you can add them to a folder by
stacking one item on top of another. To rename a folder, open it, touch
the folder’s title bar to input the new name.
Wallpaper customization
Touch and hold an empty area, a popup window named Choose
wallpaper from will appear, offering a range of options. Gallery includes
pictures you have taken, cropped or downloaded. Live wallpapers
includes a scrolling list of animated wallpapers. Video wallpaper includes
preset videos in phone, videos stored in SD card and camera. Wallpapers
includes all preset wallpapers in the phone. Slide left and right to locate a
desired image, touch Set wallpaper to confirm.
Application tab1.3.6
Touch on the Home screen to enter applications and widgets list.
To return to the Home screen, touch the Home key.
Consult recently-used applications
To consult recently-used applications, you can touch and hold the
Recent apps key. Touch a thumbnail in the window to open the related
application.Touch one thumbnail and slide it upwards or downwards to
delete it. You can also touch and hold the app and touch Remove from
list to delete it.
31 32
Volume adjustment1.3.7
Using volume key
Press Volume key to adjust the volume. To active the vibrate mode,
press the Volume down key until the phone vibrates. Press the Volume
down key once more to active the silent mode.
Using Settings menu
Drag down the Notification panel and touch and then the Settings
icon to enter Settings, then touch Sound you can set the volume of
ringtone, notification, system and etc. to your preference.
Applications and widgets list1.4
This list contains all pre-embedded and newly installed applications and
To access the list, touch from the Home screen.
To return to the Home screen, touch the Home key or the Back key.
Slide left and right to view all applications and widgets. Touch APPS,
DOWNLOADED or WIDGETS to access the category directly.
Touch the icon to access the Google Play Store.
Text input
2 ..............................
Using Onscreen Keyboard2.1
Onscreen Keyboard settings
Touch the Application tab from the Home screen, select Settings\
Language & input, touch the Settings icon on the right of Android
keyboard or SwiftKey, a series of settings are available for your
Adjust the Onscreen Keyboard orientation
Turn the phone sideways or upright to adjust the Onscreen Keyboard
orientation. You can also adjust it by changing the settings (On application
list, touch Settings\Display\Orientation).
Android keyboard2.1.1
Touch to switch between symbol and numeric keyboard
Touch & hold, then select to enter symbols/
Touch to enter text or numbers
Touch & hold to show input options; When Wi-Fi or data connection
is on, touch to enter voice input
Touch to switch between "abc/Abc" mode; Touch
& hold to switch between "abc/ABC" mode
33 34
SwiftKey keyboard2.1.2
Touch and hold to switch voice input
Touch to enter Numbers and symbols, etc.
Slide through letters to input characters
Touch to delete incorrect characters
Touch to insert a space or complete the current word or
insert a prediction as preferred
Text editing2.2
You can edit the text you have entered.
Touch and hold or double-tap within the text you would like to edit.
Drag the end points to change the highlighted selection.
Following options will show: Select all , Cut , Copy and
Paste .
Touch the icon to confirm.
You can also insert new text
Touch where you want to type, or touch and hold a blank space, the
cursor will blink and the tab will show. Drag the tab to move the
If you have selected any text, touch the tab to show PASTE icon which
allows you to paste any text you have previously copied.
35 36
Phone call, Call log
3 and Contacts .........................
Phone3.1 ...........................................................
Placing a call3.1.1
You can easily launch a call using Phone. Touch the Application tab from
the Home screen and select Phone.
Call log
Touch and hold to access voicemail
Slide to access Call log and Contacts
Touch to access Speed Dial, People, Settings
Touch to find call log
Enter the desired number from the keyboard directly or select a contact
from Contacts or Call log by sliding or touching tabs, then touch Call
to place the call.
The number you entered can be saved to Contacts by touching and
selecting Add to Contacts.
If you make a mistake, you can delete the incorrect digits by touching .
To hang up a call, touch End.
International call
To dial an international call, touch and hold to enter "+", then enter
the international country prefix followed by the full phone number and
finally touch Call.
Emergency call
If your phone has network coverage, dial emergency number and touch
Call to make an emergency call. This works even without a SIM card and
without typing the PIN code.
Make a call with two SIM cards, a dialog will popup for you to
choose a SIM card. The system will choose the default one if the
countdown time is over.
Answering or rejecting a call3.1.2
When you receive a call, touch .
Slide rightward to answer;
Slide leftward to reject;
Slide upward to reject the call by sending a preset message.
(1) 4033D only.
37 38
To mute the ringtone volume of an incoming call, press the Volume
up/down key or turn the phone face down if Turn over to mute is
activated. To activate, touch Settings\Gestures\Turn over to mute.
Calling your voicemail 3.1.3
Your voicemail is provided by your network to avoid missing calls. It works
like an answering machine that you can consult at any time.
To access your voicemail, touch and hold on Phone tab.
To set your voicemail number, touch and touch Settings\Voice call\
If you receive a voicemail, a voicemail icon appears on the Status bar.
Open the Notification panel, touch New voicemail.
During a call3.1.4
To adjust the volume during a call, press the Volume up/down key.
Touch to hold the current call. Touch this icon again to
retrieve the call.
Touch to display Dialpad.
Touch to end the current call.
Touch to mute the current call. Touch this icon again to
unmute the call.
Touch to activate the speaker during the current call. Touch
this icon again to deactivate the speaker.
Touch and select Start recording to record.
To avoid misoperation on touchscreen during a call, screen will
be locked automatically when you put the cellphone close to your
ear; and it will be unlocked when the cellphone is taken away
from your ear.
39 40
Managing multiple calls3.1.5
With this phone you can handle multiple calls at the same time.
Swap calls
When you accept two calls, touch icon , you can now switch between
two lines. The current call is put on hold and you have joined in the other
Conference calls (1)
You can set up a conference call.
Place a call to the first participant of the conference call.
Touch and select Add call.
Enter the phone number of the person you want to add to conference and
touch Call. You can also add participants from Contacts or Call log.
Touch icon to start a conference call.
During a conference call, touch to drop a participant or to talk
privately to one of the participants. Touch End to drop the participant
from the conference, touch to talk privately to the participant and
hold on other participants.
Touch End to end the conference call and disconnect all callers.
(1) Depending on your network operator.
Call settings3.1.6
Touch and select Settings from Dial screen, the following options are
Voice call
Voicemail service Opens a dialog box where you can select your
carrier’s voicemail service or another service.
Voicemail settings If you are using your carrier’s voicemail service,
this opens a dialog box where you can enter the
phone number to use for listening to and managing
your voicemail. You can enter a comma (,) to
insert a pause into the number — for example, to
add a password after the phone number.
IP prefix number
Enter prefix number Edit prefix number for IP dial.
Call forwarding
Touch to configure how your calls are forwarded when you are busy,
unanswered or unreachable.
41 42
Call barring
You can activate or deactivate the call barring for outgoing and incoming
calls. The various options are:
All outgoing calls All out going calls are barred.
outgoing calls
Outgoing international calls are barred.
except home
Outgoing international calls except those to your
country of subscription are barred.
All incoming calls All incoming calls are barred.
Incoming calls in
Incoming calls are barred when you are abroad.
Cancel all Deactivate all call barring.
Change barring
Change the original barring password for activating
call barring.
Additional settings
Caller ID Opens a dialog box where you can set whether
your phone number is displayed when making
Call waiting Mark the check box to notify you of a new
incoming call.
Call waiting status Check the call waiting status of your phone.
Video call (1)
Local video
You can pick a picture from your collection to
display when Camera is unreachable.
Bigger Peer video Touch to enable a bigger view of peer.
Outgoing video
Touch to display local video when you place a call.
Incoming video call Touch to display local video when receiving an
incoming call.
Other settings
Fixed Dialing Numbers
Fixed Dialing Number (FDN) is a service mode of SIM, where outgoing
calls are restricted to a set of phone numbers. These numbers are added
to the FDN list. The most common practical application of FDN is for
parents to restrict the phone numbers which their children can dial.
For security reasons, you’ll be prompted to enable FDN by entering SIM
PIN2 which is usually acquired from your service provider or SIM maker.
Service Dialing Numbers
Touch to place a call from SDN list.
Minute reminder
Mark the check box to enable minute reminder at 50s of every minute
during a call.
(1) Depending on your model.
43 44
Power key ends call
Mark the checkbox to enable hangup function of Power key during a call.
Dual mic noise reduction
Mark the checkbox to turn on dual mic for noise reduction.
Quick responses
Touch to edit quick responses which will be used when you reject a call
with messages.
International dialing assist
Mark the checkbox to activate.
Call log3.2
You can access your call memory by touching from the Dial screen.
Touch on the right side of contact/number to place a call directly.
There are three kinds of calls in Call log:
Missed calls
Outgoing calls
Incoming calls
Touch a contact or number to view information or further operations.
You can view detailed information of a call, launch a new call or send
messages to a contact or number, or add numbers to People (only
available for unsaved phone numbers), etc.
Touch the photo to open the Quick Contact panel.
To clear the entire call memory, touch key and Delete.
People3.3 ..........................................................
People app enables quick and easy access to the people you want to
You can view and create contacts on your phone and synchronize these
with your Gmail contacts or other applications on the web or on your
Consult your contacts3.3.1
To access People app, touch the Application tab on the Home screen,
then select People.
Touch icon to open Quick Contact panel
Touch to view the contact’s detailed information
Touch to view your favourite contacts
Touch to view your contact groups
Contact list
Touch to search in Contacts
Touch to add a new contact
45 46
Touch key to display contacts list option menu.
Following actions are enabled:
Delete contact Select and delete unwanted contacts.
Contacts to display Choose contacts to display.
Import/Export Import or export contacts between phone, SIM
card, and microSD card, or share contacts.
Accounts Manage the synchronization settings for different
Settings Access to contact display settings.
Share visible
Share contacts with others by sending the
contact's vCard to them via Bluetooth, Email,
SMS, etc.
Managing contact groups3.3.2
The contact group helps you to improve the organization of your contacts.
You can add, remove and view groups in the Contact group screen.
Touch the icon to view local groups. To create a new group, touch
the icon , enter the new name and touch DONE to confirm. If you
have added accounts to your phone, touch the icon to view groups
in accounts.
Adding a contact3.3.3
Touch the icon in the contact list to create a new contact.
You are required to enter the contact's name and other contact
information. By scrolling up and down the screen, you can move from one
field to another easily.
Touch to take a photo or select a picture for the
Touch to unfold the other predefined labels of
this category
Touch to save
Touch to add a new label
If you want to add more information, touch Add another field to add
a new category.
When finished, touch DONE to save.
To exit without saving, you can touch and then Discard.
Add to/remove from Favourites
To add a contact to favourites, you can touch a contact to view details
then touch to add the contact to favourites.
To remove a contact from favourites, touch on contact details
Only phone and account contacts can be added to favourites.
47 48
Editing your contacts3.3.4
To edit contact information, touch in the contact details screen, then
touch Edit. When finished, touch DONE.
Change a contact’s default phone number
The default phone number (the number which has priority when making
a call or sending a message) will always be displayed under the contact
To change the default phone number, touch and hold the number you
want to set as the default number from the contact's details screen, then
select Set default. A appears after the number.
This choice is only available when the contact has more than one
Set ringtone for a contact
On the contact's detail screen, touch
to display contacts list options menu,
touch Set ringtone.
Delete a contact
To delete a contact, touch and touch Delete from contact (details)
On contacts list screen, touch key and then Delete contact, select
the contact(s) you want to remove and touch to confirm. Touch
Select all and then to select all contacts, touch to deselect.
The contact you have deleted will also be removed from other
applications on the phone or web the next time you synchronize
your phone.
Communicating with your contacts3.3.5
From contact details screen, you can communicate with your contacts by
making a call or exchanging messages.
To launch a call, touch the icon on the right side of the number.
To send a message, touch the icon on the right side of the number.
Use Quick contact for Android
Touch a contact’s picture to open Quick Contact for Android, then you
can touch the number or the icon for the way you want to connect.
The icons available on Quick Contact panel depend on the information you
have for the contact and the applications/accounts on your phone.
49 50
Contacts importing, exporting and sharing3.3.6
This phone enables you to import contacts from SIM card/microSD card
and export contacts to a microSD card which can then be used to back
up your information.
From Contacts screen, touch key to open options menu, touch
Import/Export, then select to import/export contacts from/to SIM card,
Phone, SD card, Phone storage, Accounts, etc.
To import/export a single contact from/to SIM card, choose an account
and target SIM card(s), select the contact you want to import/export, and
touch to confirm.
To import/export all contacts from/to SIM card, choose an account and
target SIM card(s), touch Select all and touch to confirm.
You can share a single contact or contacts with others by sending the
contact's vCard to them via Bluetooth, Gmail, etc.
Touch a contact you want to share, touch and Share from contact
details screen, then select the application to perform this action.
Displaying contacts3.3.7
You can configure which group of contacts, for each account, you want to
display in the Contacts list. Touch key and then Contacts to display
from contacts list screen, then you can choose contacts to display.
Touch key and then Settings, you can Sort list by Given name or
Family name, as well as View contact names as Given name first or
Family name first.
Joining/Separating contacts3.3.8
To avoid duplication, you can add any new contact information to existing
contacts in a single action.
Touch the contact which you want to add information to, touch and then
Edit, then touch in edit screen and touch Join.
At this time, you are required to select the contact whose information
you want to join with the first contact. The information from the second
contact is added to the first one, and the second contact will no longer be
displayed in the Contacts list.
To separate contact information, touch the contact whose information
you want to separate, touch and then Edit, then touch in edit screen
and touch Separate, touch OK to confirm.
Synchronizing contacts in multiple accounts3.3.9
Contacts, data or other information can be synchronized from multiple
accounts, depending on the applications installed on your phone.
To add an account, touch on Quick setting bar to get to Settings, then
touch Add account.
You are required to select the kind of account you are adding, like Google,
Corporate, etc.
As with other account set-ups, you need to enter detailed information, like
username, password, etc.
You can remove an account and all associated information from the
phone. Open the Settings screen, touch the account you want to delete,
touch and then select Remove account, then confirm.
You can synchronize an account on Accounts screen, touch an account
in the list, then touch and select Sync now.
51 52
Messaging, Email
4 ..................
Messaging4.1 .....................................................
You can create, edit and receive SMS and MMS with this mobile phone.
To access this feature, touch the Application tab from the Home screen,
then select Messaging.
All messages you receive or send out can only be saved in phone
memory. To consult messages stored in SIM card, touch from
Messaging screen, then touch Settings\Text messages (SMS)\
Manage SIM messages.
Write message4.1.1
On message list screen, touch the new message icon to write text/
multimedia messages.
Touch to create a new message
Touch to search in all messages
Touch to view the whole message thread
Touch & hold message threads to delete
messages or to add shortcut
For saved contacts, touch the photo to open the Quick Contact
panel to communicate with the contact. For unsaved contacts,
touch the photo to add the number to your Contacts.
Sending a text message
Enter the mobile phone number of the recipient on Type name or
number bar or touch to add recipients, touch Type text message
bar to enter the text of the message. When finished, touch to send the
text message. You have to choose a SIM card if two cards are inserted.
An SMS of more than 160 characters will be charged as several
SMS. Specific letters (accent) will increase the size of the SMS,
which may cause multiple SMS to be sent to your recipient.
Sending a multimedia message
MMS enables you to send video clips, images, photos, animations, slides
and sounds to other compatible mobiles and e-mail addresses.
An SMS will be converted to MMS automatically when media files (image,
video, audio, slides, etc.) are attached or subject or email addresses are
To send a multimedia message, enter the recipient's phone number in the
Type name or number bar, touch Type text message bar to enter
the text of the message. touch to open the option menu, touch Add
subject to insert a subject, and touch to attach picture, video, audio
and so on.
When finished, touch to send the multimedia message.
(1) 4033D only.
53 54
Attach options: (1)
Choose a Photo Access Gallery or File manager to select a picture
as attachment.
Take a Photo Access Camera to capture a new picture for
Choose a Video Access Gallery or File manager to select a video
as attachment.
Record a Video Access Camcorder to record a new video for
Choose an Audio Access to select an audio file as attachment.
Record an Audio Enter voice message recorder to record a voice
message for attaching.
Slideshow Enter Edit slide show screen, touch Add slide to
create a new slide, and touch currently existing
slide to edit it (see following picture). Touch
to get more options, like slide duration setting,
music adding, etc.
Share Contact Access People to select one or more contact(s)
to attach.
Share Calendar Access Calendar to select one or more event(s)
to attach.
Share Location (1) Add location(s) in attachment to share with your
Draw a Sketch (1) Draw a sketch to add it in attachment.
(1) Only supported by iSMS service.
Touch to go to previous or next slide
Touch to preview current slide
Touch to edit the title of this slide
Manage messages4.1.2
When a new message comes, an icon will appear on status bar as
notification. Drag down the status bar to open the Notification panel,
touch the new message to open it. You can also access Messaging and
touch the new message to open it.
Messages are displayed in conversational order.
To reply to a message, touch the current message to enter message-
composing screen, enter the text, then touch .
Touch and hold a message in message details screen, the following options
will be available:
Copy This option only available for SMS. Touch to copy
current message content and past it to Type text
message bar of the new message you are going
to compose.
Forward Touch to forward the message to another recipient.
Delete message Delete the current message.
55 56
Flag as
Touch to mark current message as important with
a fag icon.
Add a number
to Contacts
Touch to add the number(s) in message content
(if there's any) to Contacts.
View message
Touch to view details of the message.
Save message to
SIM card
This option displays when the message is an SMS.
Touch to save the message to SIM card.
Adjust message settings4.1.3
In message list screen, touch and select Settings.
Text messages (SMS)
Delivery reports Mark to request a delivery report for each text
message you send.
Manage SIM
Touch to view or manage messages on your SIM
Edit quick text Touch to add or edit message templates.
SMS service centre Touch to view or edit your SMS service centre.
Validity period Touch to select SMS validity period.
SMS storage
Touch to select phone or SIM card to store
Multimedia messages (MMS)
Group messaging Mark the checkbox to send a single message to
multiple recipients.
Delivery reports Select to request a delivery report for each
multimedia message you send.
Read reports Select to request a report on whether each recipient
has read a multimedia message sent by you.
Send read report Select to request a report on whether the multimedia
message is sent out.
Auto-retrieve Select to download full MMS message (including
message body and attachment) automatically to
your phone. Otherwise, download only the MMS
message header.
Roaming auto-
Select to download full MMS message (including
message body and attachment) automatically
when roaming. Otherwise, download only the
MMS message header to avoid extra charges.
Creation mode Touch to set MMS creation mode when composing
message size
Select to edit the message size, but it should not
be more than 300KB.
Priority Set MMS priority as High, Normal or Low.
Notifications Select to display message notifications in status bar.
Select ringtone Touch to select a ringtone as a new message
notification tone.
Mute Select to make phone mute as a notification when
receiving a new message.
57 58
Chat wallpaper Touch to select wallpaper for message
Message font size Touch to select message font size.
Show email
Mark the checkbox to include email address in
contact results.
Delete old
Select to delete old messages when maximum
number of stored messages is reached.
Text message limit Touch to set the number of text messages to be
saved per conversation.
message limit
Touch to set the number of multimedia messages
to be saved per conversation.
Enable CB
Mark/unmark the checkbox to enable/disable cell
broadcast ringtone.
Select CB
Touch to select a ringtone for cell broadcast.
Cell Broadcast Touch to enable or disable cell broadcast service
or to choose language and channel for it.
Enable service
Mark/Unmark the checkbox to allow or block
service message.
Auto-Launch SL Mark the checkboxt to automatically launch
Service Loading (SL) message when received.
The first time you set up your phone, you can select to use an existing
Gmail account or to create a new Email account.
Gmail4.2.1 ...................................................................
As Google's web-based email service, Gmail is configured when you first
set up your phone. Gmail on your phone can be automatically synchronized
with your Gmail account on the web. Unlike other kinds of email account,
each message and its replies in Gmail are grouped in your inbox as a single
conversation; all emails are organized by labels instead of folders.
To access Gmail
From the Home screen, touch the Application tab to enter the applications
list, then touch Gmail.
Gmail displays messages and conversations from one single Gmail account
at a time, if you own more than one account, you can add an account
by touching and select Settings from Inbox screen, then touch ADD
ACCOUNT. When finished, you can switch to another by touching the
account name from Inbox screen, then select the account you want to
To create and send emails
Touch and Compose from Inbox screen.
Enter recipient(s)’s email address in To field.
If necessary, touch and touch Add Cc/Bcc to add a copy or a blind
copy to the message.
59 60
Enter the subject and the content of the message.
Touch and select Attach picture or Attach video to add an
Finally, touch the icon to send.
If you do not want to send the mail out right away, you can touch and
then Save draft or touch the Back key to save a copy. To view the
draft, touch your account name to display all labels, then select Drafts.
If you do not want to send or save the mail, you can touch and then
touch Discard.
To add a signature to emails, touch and then touch Settings from inbox
screen, choose an account, then touch Signature.
To receive and read your emails
When a new email arrives, you will be notified by a ringtone or vibration,
and an icon will appear on Status bar.
Touch and drag down the Status bar to display the Notification panel,
touch the new email to view it. Or you can also access the Gmail Inbox
label and touch the new mail to read it.
You can search for an email by sender, recipient, subject, etc.
Touch the icon from Inbox screen.
Enter the keyword you want to search for in the searching box and
touch on the software keyboard.
To reply or forward emails
Reply When viewing an email, touch to reply this
Reply all Touch and select Reply all to send message to all
people in a mail loop.
Forward Touch and select Forward to forward the
received mail to other people.
Managing Gmails by Labels
To conveniently manage conversations and messages, you can organize
them using a Label.
To label a conversation when reading a conversation’s messages, touch
and Change labels to assign a label for the conversation.
To view conversations by labels when viewing your inbox or another
conversation list, touch your account name, then touch a label to view a
list of conversations within that label.
To manage labels, touch and Settings, then touch your account and
select Manage labels.
61 62
Touch and hold a message thread to display below options:
Touch to archive the email message. To display the
archived messages.
Touch to delete the email message.
/Touch to mark an email message as read or unread.
Touch to open further options, like: Move to,
Mark as (not) important, Mute, Report spam,
Add star/
Remove star
To assign a star or remove the star from the
conversation. You can also add or delete star mark
by touching or icon at the end of each
message thread.
Mark as (not)
To Mark the email as important or not important.
Mute To mute the entire conversation. When muted,
new mails related to this conversation will not be
displayed in Inbox, but archived.
Report spam To report the email message/conversation as spam.
Gmail settings
To manage Gmail settings, touch and select Settings in Inbox screen.
General settings
Archive & delete
Touch to Show archive only, Show delete
only or to Show archive & delete.
Swipe to archive Mark the checkbox to swipe left or right
when viewing conversations.
Sender image Mark the checkbox to display photo beside
name in conversation list.
Reply all Touch to mark the checkbox to make the
default responding to messages.
Auto-fit messages Touch to mark the checkbox to zoom in/
out the messages to fit the screen.
Auto-advance Touch to select which screen to show after
you delete or archive a conversation.
Message actions Touch to show/hide message actions.
Confirm before
Mark the checkbox to confirm before
deleting emails.
Confirm before
Mark the checkbox to confirm before
archiving emails.
Confirm before
Mark the checkbox to confirm before
sending emails.
63 64
Touch an account, the following settings will show:
Inbox type To set this box as the default one.
Notifications Mark the checkbox to activate notification when
a new email arrives.
Inbox sound &
Touch to set Ringtone or vibration for Gmail
Signature To add a signature text to the end of each mail
you send.
Sync Gmail Mark the checkbox to turn on/off Gmail sync.
Days of mail to
Touch to set the duration of days for mail sync.
Manage labels Touch to open the Label screen, where you can
manage synchronization and notifications.
Mark the checkbox to auto download attachments
to recent messages via Wi-Fi.
Email4.2.2 ....................................................................
Besides your Gmail account, you can also set-up external POP3 or IMAP
email accounts in your phone.
To access this function, touch the Application tab from the Home screen,
then select Email.
An email wizard will guide you through the steps to set-up an email
Enter the email address and password of the account you want to set-up.
Touch Next. If the account you entered is not provided by your service
provider in the phone, you will be prompted to go to the email account
settings screen to enter settings manually. Or you can touch Manual
setup to directly enter the incoming and outgoing settings for the email
account you are setting up.
Enter the account name and display name in outgoing emails.
To add another email account, you can touch and Settings. Touch
ADD ACCOUNT on the right of the title to create.
To create and send emails
Touch the icon from Inbox screen.
Enter recipient(s) email address(es) in To field.
If necessary, touch and touch Add Cc/Bcc to add a copy or a blind
copy to the message.
Enter the subject and the content of the message.
Touch and touch Attach file to add an attachment.
Finally, touch to send.
If you do not want to send the mail right away, you can touch and Save
draft or touch Back key to save a copy.
65 66
Hangouts4.3 .....................................................
Google's instant messaging service, Hangouts, lets you communicate with
your friends whenever they are connected to this service.
To access this feature and sign in, touch the Application tab from the
Home screen, then touch Hangouts. All friends added by using Hangouts
from the web or phone will be displayed in your friends list.
To sign out, touch from Friends list screen to display options, then touch
Settings\Sign out.
Chatting with your friends4.3.1
To start a chat, touch the name of a friend in your Friends list, then type
your message and finally touch .
You can invite other friends to join in a group chat by touching and select
Add people on group chatting screen and then selecting the friend you
want to add.
To add a new friend4.3.2
From Friends list, touch the icon to add a new friend. Type name, email
or number of the friend you want to add, and then touch Message or
Video call to start a chat.
A notification with this invitation will be received by the friend. By touching
the invitation, the friend can select Decline or Reply in response.
To manage your friends4.3.3
Besides adding new friends to your friends list, touch and selecting
People & options from your Chatting screen, the following actions will
be available:
Touch to add the person into a new group
Touch to open Settings or Help.
Touch to add the person to your circles of Friends,
Family, Acquaintances or Following.
Notifications Mark the checkbox to be notified of new
Block Touch to block the friend from exchanging
messages. If blocked, you will no longer receive
direct messages and notifications, but this person
will still be present in any group Hangouts you
have in common. All blocked friends can be
viewed by touching and Settings, then touch
Blocked People. To unblock a friend, touch
Unblock besides the name of this friend.
67 68
A series of settings are available for your selection by touching and
Settings from Friends list screen.
Hangout requests Touch to view hangout request that you received
when someone sends you a message or invites
you to a video call for the first time.
Touch and select how long you'd like to go
without receiving Hangouts notifications. This
setting will temporarily disable notifications about
new messages and video calls.
Touch to display all archived Hangouts that have
been prevented from displaying in the Hangouts
list. To unarchive a Hangout, touch and hold it till
appear, touch and select Unarchive.
Settings Touch to open further personal settings for every
Hangout you have.
Send feedback Touch to send your feedback for Hangouts.
Help Touch to view Hangouts help through your
selected app.
Calendar & Alarm clock &
5 Calculator ..............................
Calendar5.1 ......................................................
Use Calendar to keep track of important meetings, appointments, etc.
To access this function, touch the Application tab from the Home screen,
then touch Calendar.
Multimode view5.1.1
You can display the Calendar in daily, weekly, monthly, or agenda view.
To change your Calendar view, touch the date title to open a drop-down
menu for your options. Touch the icon to return to Today's view.
In Agenda, Day or Week
view touch an event to view
its details. Touch a day in Month
view to open that day's
Agenda view
Day view
Week view
Month view
69 70
To create new events5.1.2
You can add new events from any Calendar view.
Touch the icon to access new event edit screen.
Fill in all required information for this new event. If it is a whole-day
event, you can select All day.
When finished, touch DONE from the top of the screen.
To quickly create an event from Day, Week view screen, touch and hold
an empty spot or an event to open Option menu, then touch New event
to enter the event details screen of the time you have previously selected.
Or you can also touch an empty spot till it turns orange, then tap again to
enter new event editing screen.
To delete or edit an event5.1.3
To share, delete or edit an event, touch the event to enter details screen,
touch the icon to share the event to other people by Bluetooth, Email
and messaging, etc., touch the icon to edit the event, and touch the
icon to delete.
Event reminder5.1.4
If a reminder is set for an event, the upcoming event icon will appear
on Status bar as a notification when the reminder time arrives.
Touch and drag down the status bar to open the Notification panel, touch
event name to view Calendar notification list.
Touch Snooze to turn off all event reminders for 5 minutes.
Touch Back key to keep the reminders pending in the status bar and the
Notification panel.
Important options by touching key from Calendar main screen:
Refresh To refresh the calendar.
Search To search in the calendar.
Calendars to display To show or hide the synchronized calendars.
Clear events To clear events in the calendar.
Go to Select to go to specific date.
Settings To set a series of Calendar settings.
Time5.2 .............................................................
Your mobile phone has a built-in clock.
To access this function, touch the Application tab from the Home screen,
then touch Time.
Touch Alarm to add or set an alarm.
To set an alarm5.2.1
From Time screen, touch to enter Alarm screen, touch to add
a new alarm. Following options will show:
Time Scroll up or down to select time for your alarm.
Label Touch to set a name for the alarm.
Repeat Touch to select days you want alarm to work.
Volume Slide to adjust volume for alarm ringtone.
Vibrate Select to activate vibration.
Ringtone Touch to select a ringtone for the alarm.
71 72
When finished, touch OK to confirm.
Touch and hold an already existing alarm and touch Delete alarm to
delete the selected alarm.
To adjust alarm settings5.2.2
Touch Menu icon from Alarm screen. The following options will be
Snooze duration Touch to set temporary turn off time of an
Auto-silence Touch to set the duration of alarms.
Volume buttons Touch to set side Volume up/down key
behaviors when alarm sounds: None, Snooze
or Dismiss.
Turn over to
Touch Turn over to activate to choose the
status Snooze or Dismiss. Touch the switch
to turn on/off snoozing or dismissing
the alarm by turning over the phone.
View after closing
Select to display weather forecast and today's
events after closing the alarm.
Calculator5.3 ....................................................
With Calculator, you can solve many mathematical problems.
To access this function, touch the Application tab from the Home screen,
then touch Calculator.
There are two panels available: Basic panel and Advanced panel.
To switch between panels, select one of the following two ways:
Touch and drag the basic screen to the left to open the Advanced
Or touch key from basic panel to open option menu and touch
Advanced panel.
Enter a number and the arithmetic operation to be performed, enter the
second number, then touch "=" to display the result. Touch to delete
digits one by one, touch and hold to delete all at one time.
When some numbers or operations have been entered, touch and hold
the entering bar to open a menu offering further operations:(1)
Cut To cut selected text.
Copy To copy selected text.
Paste (1) To paste what you have previously copied to the
entering bar.
(1) Option will not appear unless copy or cut operation has been made.
73 74
Getting connected
6 ................
To connect to the internet with this phone, you can use GPRS/EDGE/3G
networks or Wi-Fi, whichever is most convenient.
Connecting to the Internet6.1
You can touch on Quick setting bar to connect the network.
To check the network connection you are using, touch the Application tab
on the Home screen, then touch Settings\More...\Mobile networks\
Access Point Names or Network operators.
To create a new access point
A new GPRS/EDGE/3G network connection can be added to your phone
with the following steps:
Touch on Quick setting bar to get to Settings.
Touch More...\Mobile networks\Access Point Names
Then touch and select New APN.
Enter the required APN information.
When finished, touch and Save.
To activate/deactivate Data roaming
When roaming, you can decide to connect/disconnect to a data service.
Touch on Quick setting bar to get to Settings.
Touch SIM management\Roaming\Data roaming.
Mark/Unmark the checkbox to activate or deactivate data roaming.
When Data roaming is deactivated, you can still perform data exchange
with a Wi-Fi connection (refer to "6.1.2 Wi-Fi").
Using Wi-Fi, you can connect to the Internet when your phone is within
range of a wireless network. Wi-Fi can be used on your phone even
without a SIM card inserted.
To turn Wi-Fi on and connect to a wireless network
Touch on Quick setting bar to get to Settings.
Touch the switch beside Wi-Fi to turn on/off Wi-Fi.
Touch Wi-Fi, the detailed information of detected Wi-Fi networks is
displayed in the Wi-Fi networks section.
Touch a Wi-Fi network to connect. If the network you selected is
secured, you are required to enter a password or other credentials (you
may contact your network operator for details). When finished, touch
75 76
To activate notification when a new network is detected
When Wi-Fi is on and the network notification is activated, the Wi-Fi icon
will appear on the status bar whenever the phone detects an available
wireless network within range. The following steps activate the notification
function when Wi-Fi is on:
Touch on Quick setting bar to get to Settings.
Touch Wi-Fi, then and select Advanced.
Mark/Unmark the Network notification checkbox to activate/
deactivate this function.
To add a Wi-Fi network
When Wi-Fi is on, you may add new Wi-Fi networks according to your
Touch on Quick setting bar to get to Settings.
Touch Wi-Fi, and then touch .
Enter the name of the network and any required network information.
Touch Save.
When successfully connected, your phone will be connected automatically
the next time you are within range of this network.
To forget a Wi-Fi network
The following steps prevent automatic connections to networks which you
no longer wish to use.
Turn on Wi-Fi, if it’s not already on.
In the Wi-Fi screen, touch & hold the name of the saved network.
Touch Forget network in the dialog that opens.
Browser6.2 ........................................................
Using Browser, you can enjoy surfing the Web.
To access this function, touch the Application tab from the Home screen,
then touch Browser.
To go to a web page
On Browser screen, touch the URL bar at the top, enter the address of
the web page.
Touch to delete all contents
Touch to search and go to this address
Touch to input the suggested address
Touch to go the suggested web site
The URL bar will hide after a few seconds. To show the URL bar, you
can touch and slide down the screen.
To set homepage
Touch key from Browser screen to display option menu, touch
Settings\General\Set home page.
Choose a page or most visited website as your homepage.
If you choose Other, enter the URL of the website you want to set as
your homepage, touch OK to confirm.
77 78
Viewing web pages6.2.1
When opening a website, you can navigate on web pages by sliding your
finger on the screen in any direction to locate the information you want
to view.
To zoom in/out of a web page
Pinch/Spread your finger on the screen to zoom out/in of the web page.
To quickly zoom into a section of a web page, double-tap on the section
you want to view. To return to normal zoom level, double-tap again.
To find text on a web page
Touch key from web page screen, then touch Find on page.
Enter the text or phrase you want to find.
The first word with matching characters will be highlighted on the
screen, and subsequent matches will be boxed.
Touch the up or down arrow to switch to the previous or next matching
When finished, you can touch or the Back key to close the search
Further operations for the text on a web page
You can copy, share or search the text from a web page:
Touch and hold the text to highlight.
Move the two selecting tabs in orange to locate the text. Or touch
SELECT ALL to select all words in this web screen.
Touch to show further options, including Copy, Share, Find and
Web Search.
When finished, touch or the Back key to deactivate the mode.
To open new window/switch between windows
Multiple windows can be opened at the same time for your convenience.
Touch to open all windows' thumbnails.
Slide up and down to view all windows, touch one to view it.
Touch to open a new window.
Touch and touch New incognito tab to open a window without
any trace.
To close a window, touch on the window you want to close or slide
it sideways.
Other options:
Refresh To refresh the current page.
Stop To stop opening the current page.
Home page To get back to the homepage you set.
Save to
To add the current website page as bookmark.
Close To close all tabs and exit.
Save for offline
To save the web page for offline reading. You can find it
by touching and then touching Bookmarks\SAVED
Share page To share the current page with your friends via various
ways, like Message, Email, Bluetooth, etc.
Find on page To input contents you want to find on the current
desktop site
To enable/disable computer version websites.
Bookmarks To see the bookmarks and browsing history.
Settings To access a series of Browser settings.
Version To see the version of browser.
79 80
Manage links, history, downloads6.2.2
To manage a link, phone number or address displayed on a web
Link Touch the link to open the web page.
Touch and hold the link to open options for further
operation, like open in new window, save link, Copy
link URL, etc.
Phone number Touch to call the phone number.
Address Touch to open Google Maps and locate the address.
To view Browser history
Touch from Browser screen.
Touch Bookmarks.
Touch HISTORY tab to view browser history.
Touch SAVED PAGES to view the pages you saved.
To download a web application/view your downloads
Before downloading a web application, you need to enable your phone to
install web applications (touch the Application tab from the Home screen,
touch Settings\Security, mark checkbox of Unknown sources, finally
touch OK to confirm).
To download a item, touch the item or the link you want to download.
To cancel a download, touch the downloaded item from the Notification
panel, touch and hold the item to be deleted, and touch to confirm.
To view items you have downloaded, touch the Application tab, then
Manage bookmarks
To bookmark a web page
Open the web page you want to bookmark.
Touch and touch Save to bookmarks, or from the History screen,
touch the star beside the URL.
Enter the name and the location if needed and touch OK to confirm.
To open a bookmark
Touch and touch Bookmarks, or touch the icon to enter the
Bookmarks screen.
Touch the bookmark you want to open.
You can also touch and hold to display the options screen, then touch
Open or Open in new window.
Touch and hold a bookmark in the bookmark list to view
additional options:
Add shortcut to
To add a bookmark shortcut to the Home
Share link To share the bookmark.
Copy link URL To copy the bookmark link.
Set as homepage To set this page as the homepage.
81 82
A series of settings are available for your adjustment. To access Browser
settings, touch key from Browser screen, and touch Settings.
Set home page Touch to set homepage.
Form auto-fill Mark the checkbox to fill out web forms with a
single touch.
Auto-fill text Touch to set up text to auto-fill in web forms.
Privacy & security
Clear cache Touch to clear locally cached content and
Clear history Touch to clear the browser history.
Show security
Mark to show warning if there is a problem with
a site’s security.
Accept cookies Mark to allow sites to save and read cookie data.
Clear all cookie
Touch to clear all browser cookies.
Remember form
Mark to remember data in forms for later use.
Clear form data Touch to clear all the saved form data.
Enable location Mark to allow sites to request access to your
Clear location
Touch to clear location access for all websites.
Mark to save usernames and passwords for
Clear passwords Touch to clear all saved passwords.
Enable notifications Touch to select notification type.
Clear notification Touch to clear notification access to all websites.
Force enable zoom Mark to control a website's zoom as you prefer.
Text scaling Slide to change the size of the text display.
Zoom on double-
Slide to change the magnification level when
double-tapping the page.
Minimum font size Slide to change the minimum font size.
Font Touch to select fonts.
Inverted rendering Mark to display pages in invert color.
Contrast Slide to change pages contrast. It is grey, unless
you mark Inverted rendering.
Set search engine Touch to select a search engine.
Open in
Mark to open new windows behind the current
Enable JavaScript Mark to enable JavaScript.
Allow multiple
tabs per app
Mark to allow one app use multiple tabs.
83 84
Enable plug-ins Touch to enable plug-ins.
Website settings Touch to view advanced settings for individual
Default zoom Touch to select the magnification level by
Open pages
in overview
Mark the checkbox to open web pages zoomed
out, in an overview.
Auto-fit pages Mark to format web pages to fit the screen.
Block pop-up
Mark the checkbox to prevent pop-up windows.
Text encoding Touch to select the character-encoding standard.
Reset to default Touch to clear all browser data and to reset all
settings to default.
Bandwidth management
Search result
Touch to enable/disable browser to preload
search results in the background.
Web page
Touch to enable/disable browser to preload the
linked web pages in the background.
Load images Mark to display images on web pages.
Quick controls Mark to enable quick controls.
Full screen Mark to use the full screen mode.
Connecting to Bluetooth devices 6.3 (1)
Bluetooth is a short-range wireless communication technology that you
can use to exchange data, or connect to other Bluetooth devices for
various uses.
To access this function, touch on Quick setting bar to get to Settings,
then touch Bluetooth, your device and other available ones will show
on the screen.
To turn on Bluetooth
Touch on Quick setting bar to get to Settings.
Touch to activate/deactivate this function.
To make your phone more recognizable, you can change your phone name
which is visible to others.
Touch on Quick setting bar to get to Settings.
Touch Bluetooth.
Touch and select Rename phone.
Enter a name, and touch Rename to confirm.
To make device visible
Touch on Quick setting bar to get to Settings.
Touch Bluetooth.
Touch your device to make it visible or invisible.
Touch and select Visibility timeout to select the visible time.
(1) You are recommended to use ALCATEL ONE TOUCH Bluetooth headsets,
which have been tested and proved compatible with phone. You can go
to for more information about ALCATEL ONE
TOUCH Bluetooth headset.
85 86
To pair/connect your phone with a Bluetooth device
To exchange data with another device, you need to turn Bluetooth on
and pair your phone with the Bluetooth device with which you want to
exchange data.
Touch on Quick setting bar to get to Settings.
Touch Bluetooth.
Touch a Bluetooth device you want to be paired with in the list.
A dialog will popup, touch Pair to confirm.
If the pairing is successful, your phone connects to the device.
To disconnect/unpair from a Bluetooth device
Touch the Settings icon beside the device you want to unpair.
Touch Unpair to confirm.
Connecting to a computer6.4
With the USB cable, you can transfer media files and other files between
micro SD card/internal storage and computer.
Before using MTP or PTP you should firstly mark USB debugging.
To access this function, touch Settings\About phone, then touch
Build number 7 times. Now you may touch Settings\Development\
USB debugging.
To connect/disconnect your phone to/from the computer:
Use the USB cable that came with your phone to connect the phone to
a USB port on your computer. You will receive a notification that the
USB is connected.
If you use mass storage, open the Notification panel and touch USB
connected, then touch Mount in the dialog that opens to confirm that
you want to transfer files.
If you use MTP or PTP, your phone will be automatically connected.
To disconnect (from mass storage):
Unmount the microSD card on your computer.
Open the Notification panel and touch Turn off.
For the operating system Windows XP or lower, you should
download and install Windows Media Player 11 on your computer
from the following link:
To locate the data you have transferred or downloaded in the
internal storage:
Touch the Application tab from the Home screen to open the
applications list.
Touch File Manager.
All data you have downloaded is stored in File Manager, where you can
view media files (videos, photos, music and others), rename files, install
applications into your phone, etc.
87 88
To format a microSD card
Touch on Quick setting bar to get to Settings.
Touch Storage.
Touch Format SD card, a popup message appears to warn you that
formatting the miscroSD card will erase its contents.
Touch to confirm.
Sharing your phone's mobile data connection6.5
You can share your phone's mobile data connection with a single
computer via a USB cable(USB tethering) or with up to eight devices at
once by turning your phone into a portable Wi-Fi hotspot.
The functions below may incur additional network charges from
your network operator. Extra fees may also be charged in
roaming areas.
To share your phone's data connection via USB
Use the USB cable that along with your phone to connect the phone to a
USB port on your computer.
Drag down the Notification panel and touch then the Settings icon
to access Settings.
Touch More...\Tethering & portable hotspot.
Mark\unmark the checkbox of USB tethering to activate/deactivate
this function.
To share your phone's data connection as a portable Wi-Fi
Drag down the Notification panel and touch then the Settings icon
to access Settings.
Touch More...\Tethering & portable hotspot.
Touch the switch beside Wi-Fi hotspot to activate/deactivate
this function.
To rename or secure your portable hotspot
When Portable Wi-Fi hotspot is activated, you could change the name of
your phone's Wi-Fi network (SSID) and secure its Wi-Fi network.
Drag down the Notification panel and touch then the Settings icon
to access Settings. Drag down the Notification panel and touch then
the Settings icon to access Settings.
Touch More...\Tethering & portable hotspot\Wi-Fi hotspot.
Touch Set up Wi-Fi hotspot to change the network SSID or set your
network security.
Touch Save.
Connecting to virtual private networks6.6
Virtual private networks (VPNs) allow you to connect to the resources
inside a secured local network from outside that network. VPNs are
commonly deployed by corporations, schools, and other institutions so
that their users can access local network resources when not inside that
network, or when connected to a wireless network.
To add a VPN
Touch on Quick setting bar to get to Settings.
Touch More...\VPN settings and then touch .
In the screen that opens, follow the instructions from your network
administrator to configure each component of the VPN settings.
Touch Save.
The VPN is added to the list on the VPN settings screen.
Before adding a VPN, you should set a lock screen pattern, PIN
code or password for your phone.
89 90
To connect/disconnect to a VPN
To connect to a VPN:
Touch on Quick setting bar to get to Settings.
Touch More...\VPN settings.
VPNs you have added are listed; touch the VPN you want to connect
In the dialog that opens, enter any requested credentials and touch
To disconnect:
Open the Notification panel and touch the resulting notification for VPN
To edit/delete a VPN
To edit a VPN:
Touch on Quick setting bar to get to Settings.
Touch More...\VPN settings.
VPNs you have added are listed; touch & hold the VPN you want to
Touch Edit profile.
After finished, touch Save.
To delete:
Touch and hold the VPN you want to delete, in the dialog that opens,
touch Delete profile.
Google Play Store
7 (1) ......
Google Play Store is an online software store, where you can download
and install applications and games to your Android Powered Phone.
To open Google Play Store:
Touch the Application tab from the Home screen, then touch Play Store.
For the first time you access Google Play Store, a screen with terms of
service pops up for your attention, touch Accept to continue.
Touch and then select Help to enter Google Play Store help page for
more information on this function.
Locate the item you want to download 7.1
and install
Google Play Store home page provides several ways to find applications. It
showcases applications and games in categorized listings.
Touch and touch My apps to see all your downloads.
Touch to search in Play Store
Touch to open Settings and Help
Slide left and right to see all categories
(1) Depending on your country and operator.
91 92
Touch a category to browse its contents. You can also select a
subcategory if there is any. Within each category you can select to view
items sorted by Top paid, Top free, Top grossing, etc
Touch the Google Play Store icon on the top left of the screen or
touch Back key to return to the previous screen.
Download and install7.2
To download & install:
Navigate to the item you want to download, and select to enter the
details screen from which you can read its description, overall rating or
comments, view developer’s information, etc.
Touch INSTALL to preview the functions and data the application can
access on your phone if you install it.
Touch ACCEPT to download.
The progress of the download will show on the details screen, touch
to stop downloading the item. You can also access this screen through
the Notification panel.
After download and installation have finished, you will see a notification
icon on the status bar.
Be especially cautious with applications that have access to many
functions or to a significant amount of your data. Once you accept,
you are responsible for results of using this item on your phone.
To open the application you have downloaded:
On Google Play Store Apps screen, touch and touch My apps.
Touch the installed application in the list, then touch OPEN.
To buy an application (1)
On Google Play Store, some applications are labeled as free, while some
of them are to be paid for before downloading and installing.
Touch the application you want to buy.
Touch the price to preview the functions and data the application can
access on your phone if you install it.
Touch Continue to confirm.
When making your first purchase, you are required to input your credit
card information and to log in to Google payment and billing service.
If your account has multiple credit card accounts, select one to
Select the Terms of service link and read the document. When finished,
touch the Back key.
Mark the checkbox if you agree with the terms of service.
Touch Buy now at the bottom of the screen.
When finished, Android downloads the application.
(1) Google Paid applications may not be available to users in some countries.
93 94
To request a refund
If you are not satisfied with the application, you can ask for a refund within
15 minutes of the purchase. Your credit card will not be charged and the
application will be removed. If you change your mind, you can install the
application again, but you will not be able to request a refund.
Touch and touch My apps from Google Play Store Apps screen.
Touch the application that you want to uninstall and refund.
Touch REFUND to uninstall the application and refund. If the button
becomes UNINSTALL, your trial period has expired.
In the survey form, select the answer that best matches your reason,
and touch OK.
Manage your downloads7.3
After you downloaded and installed an application, the following further
operations are available for your selection.
On Google Play Store Apps screen, touch and touch My apps.
On Google Play Store Apps screen, touch and touch My apps. Touch
the application you want to uninstall to enter the details screen, touch
UNINSTALL, and finally touch OK to confirm.
On Google Play Store Apps screen, touch and touch My apps. Touch
the application you want to uninstall for a refund, touch REFUND, and
finally touch OK to confirm.
Update notification
On Google Play Store Apps screen, touch and touch Settings\
Notifications to enable update notification.
Auto update
To auto update all installed applications, touch from My apps screen,
and then touch Settings\Auto-update apps to enable this function.
To auto update one specific application, touch and mark the checkbox of
Auto-update from the app details screen.
Rate and review
Open the details screen for an application, touch the stars
besides Rate & review to award and input comments, touch OK to
You can report an inappropriate application to Google Play Store by
flagging it. Open the details screen for the application, scroll to the bottom
and touch Flag as inappropriate, enter the reason and finally touch
95 96
Multimedia applications
Camera8.1 ........................................................
Your mobile phone is fitted with a Camera for taking photos and shooting
Before using the Camera, please be sure to open the protective lens cover
before use to avoid it affecting your picture quality.
To access this function, touch the Application tab from the Home screen
and then touch Camera.
Slide to switch to video recorder
Touch to open settings
Slide to view pictures or videos you have taken
Double tap or Pinch/Spread to zoom in/out
Touch to take a picture
To take a picture
The screen acts as the viewfinder. First position the object or landscape
in the viewfinder, touch the screen to focus if necessary, touch icon to
take the picture which will be automatically saved.
To shoot a video
First position the object or landscape in the viewfinder, and touch icon
to start recording. Touch the back key to stop recording. The video will
be automatically saved.
Further operations when viewing a picture/video you have taken
Touch the icon of Gmail, Bluetooth, Messaging, etc to share the photo
or video you have taken.
Touch the photo icon to access Gallery.
Settings in framing mode8.1.1
Before taking a photo/shooting a video, touch the icon to adjust a
number of settings in framing mode.
Camera settings
HDR Touch to activate High-Dynamic Range.
Panorama Touch to switch to Panorama mode.
Night Touch to switch to Night mode.
Full screen Touch to turn on/off the full screen view.
Shutter sound Touch to turn on/off shutter sound.
Restore defaults Touch to restore camera settings to default.
Advanced Touch to show series of advanced options:
picture size, timer and exposure.
Picture size Touch to select picture size.
97 98
Timer Touch to select pause duration before capturing
Exposure Touch to adjust the value of exposure.
Camcorder settings
Video quality Touch to set Video quality as High, Medium
or Low.
Sound recording Touch to turn on/off sound recording.
Gallery8.2 ..........................................................
Gallery acts as a media player for you to view photos and playback videos.
In addition, a set of further operations to pictures and videos are available
for your choice.
To access this function, touch the Application tab from the Home screen,
then touch Gallery.
Touch to Switch to camera or Select album
Touch to select categories: Title, Locations, Times
Touch to select album, then choose several
pictures (max 9) for further editing
Touch the album to spread it apart
Slide left or right to view more albums
To view a picture/play a video
Pictures and videos are displayed by albums in Gallery.
Touch to show more options: Slideshow, Select
item, Group by
Touch to return to gallery's main screen
Slide left or right to view more pictures
Touch an album and all pictures or videos will spread the screen.
Touch the picture/video directly to view or play it.
Slide left/right to view previous or next pictures/videos.
99 100
Working with pictures
You can work with pictures by rotating or cropping them, sharing them
with friends, setting them as contact photo or wallpaper, etc.
Locate the picture you want to work on, touch the picture from full-
screen picture view. Slide the icon bar below left and right to select one,
touch icon to share the picture, touch icon above and confirm OK
to delete the picture.
Touch from full-screen picture view, picture details will be available for
your view.
Touch to play the slideshow
Touch to set the picture as contact photo or
Touch to edit the picture: Beauty, Enhance,
Effect, Frame, Mosaics, etc.
Touch to share the picture through selected apps
Touch from full-screen picture view to edit a picture.
Edit Touch to Crop, Rotate or Sharpen the picture.
Beauty Touch to beautify the picture by Dermabrasion, Whitening,
Enhance Touch to open Color mixing and Smart fill light.
Effect Touch to set effect of Lomo, Portrait, Fashion or Art.
Frame Touch to choose frame.
Mosaics Touch to add mosaics to the picture.
Word Touch to edit words onto the picture.
After activating the crop mode, the cropping square appears in
the middle of the picture. Select the portion to crop, touch to
confirm and Save, touch icon to exit without saving.
Batch operation
Gallery provides a multi-select function, so that you can work with
pictures/videos in batches.
Open the main Gallery window or an album, touch and touch Select
album or Select item to activate batch operation mode (you can also
touch and hold one album/picture), then touch albums/pictures you want
to work on. Touch to delete. Touch to share selected ones.
101 102
YouTube8.3 ......................................................
YouTube is an online video-sharing service where the user can download,
share and view videos. It supports a streaming function that allows you
to start watching videos almost as soon as they begin downloading from
the Internet.
To access this function, touch the Application tab from the Home screen,
then touch YouTube.
As an online video service, your phone must have a network
connection to access YouTube.
All videos in YouTube are grouped into several categories, like Most
Popular, Most Discussed, Featured Videos, etc.
Touch to play the video and to show more
Touch to open further options of Settings,
Feedback, Help, Sign in
Touch to search for a video
By touching icon from YouTube screen, you can set General settings and
Search settings for YouTube. For details about these features, please visit
the YouTube website:
Watch videos8.3.1
Touch a video to play it. In the Playing screen, you can view information
and video comments, and also browse links to related videos.You can also
rate, share, label as favorite, create a new playlist, etc from this screen.
To exit video playing screen, touch the Back key to return to the video
Music8.4 ............................................................
Using this menu, you can play music files stored on the microSD card in
your phone. Music files can be downloaded from computer to microSD
card using a USB cable.
To access this function, touch the Application tab from the Home screen,
then touch Music.
You will find four categories in which all songs are classified: Artists,
Albums, Songs and Playlists. Slide left and right to view all. Touch
key and touch Shuffle all to shuffle all songs.
103 104
Playing music8.4.1
Touch a song or touch Play from drop-down menu to play the song.
Touch to play the current playlist in shuffle mode (tracks are played in
random order).
Touch to skip to the previous track in the album, playlist, or shuffle.
Touch to pause/resume playback.
Touch to skip to the next track in the album, playlist, or shuffle.
Touch to select repeat mode: Repeating all songs, Repeating current
song, or Repeat is off.
Touch to show the displaying song.
Touch to open Music setting options.
While playing songs with Music, the operation of pause, play or
skip is still available even if the screen is locked.
Adjust sound effects
Touch and touch Sound effects from playing screen to enable and adjust
sound effects.
Working with playlists8.4.2
Playlists allow you to conveniently organize all songs stored in the SD
You can create a new playlist, add a song to the list, and delete or rename
a playlist.
To create a playlist
Touch Recently added from Playlists screen, touch and then touch
Save as playlist, enter the name and finally touch Save.
To delete a playlist
Touch and hold a playlist to show the menu, then touch Delete.
To rename a playlist
Touch and hold a playlist to show the menu, then touch Rename. When
finished, touch Save to confirm.
Video Player8.5 ................................................
To access this function, touch the Application tab from the Home screen,
then touch Video player.
Video player is a small built-in video player that lists all your videos.
Touch an item from the list to play. While playing, touch a point on the
timeline to jump to and play from.
105 106
Google Maps
9 (1) ................
Get My Location9.1
Choose a data source to decide My Location9.1.1
Touch on Quick setting bar to get to Settings, touch Location services.
Mark the checkbox of Access to my location, then the Switch
besides GPS satellites will be automatically on to set GPS as My location
data source.
Or mark the checkbox of Google's location service to set Wi-Fi and/
or mobile networks as My Location data source.
Open Google Maps and view My Location9.1.2
Touch the Application tab from the Home screen, then touch Maps.
Touch icon on the map to view My Location.
The map will then center on a blue dot. Your actual position at the blue dot.
(1) It may vary depending on the app version of Maps.
To move the map, drag the map with your finger.
To zoom in and out of a map, pinch or spread your fingers, or you can also
zoom in by double-tapping a location on screen.
Search for a location9.2
While viewing a map, touch the search icon to activate search function.
In the search box, enter an address, a city or a local business.
Touch the search icon to search, and in a while your search results will
appear on the map as red dots. You can touch one to show a label.
Slide left or right to view more search results
Touch to show more information
Save a location9.3
Just like bookmarking a web address on the Internet, you can star any
position on the map for later use.
107 108
How to star (or unstar) a location9.3.1
Touch a location on a map.
Touch the address rectangle that opens.
Touch to save the location. (Or touch to cancel the saving of that
View a list of saved items9.3.2
Touch and then Settings to open Maps history.
The list of your saved items and their addresses opens.
Touch a location in the list to view it.
To clear maps history, touch besides selected item.
Open Street View for a location9.4
Touch and hold a location to display to display its adress at the bottom
of the maps screen.
Drag up the details screen to display a Street View thumbnail.
Touch Street view.
Get driving, public transportation or walking 9.5
Get suggested routes for your trip9.5.1
Touch icon from Maps screen.
Touch enter bar to edit your start point by entering an address or
selecting a saved item.
Do likewise for your end point.
To reverse directions, touch .
Then select a transport mode: driving by car, using public transportation,
or walking directions.
Touch Route options to select Avoid highways or Avoid tolls.
A couple of suggested routes will appear in a list. Touch any route to
view its respective detailed direction.
109 110
Preview suggested routes and decide on a route 9.5.2
more preferable or feasible to you
You can preview each turn in your route in Navigation, Satellite, and
other views.
Touch Start to preview your selected route.
Touch to open Route preview, Step-by-step list, Mute/Unmute
voice guidance, or Satellite view, touch the Back key to return to
previous view.
When selecting a more preferable or feasible route, distance and time
will be the two most important factors for your evaluation. Distance and
estimated time will be displayed at the bottom of the directions screen.
Search for locations along your route9.5.3
Please refer to "9.2 Search for a location" for detailed information.
Arrangement of Layers9.6
Layers allow you to view locations and additional information overlaid
on the map. You can add multiple layers or remove only certain layers
so you control exactly what information you want visible on the map at
one time.
To view multiple layers9.6.1
Touch icon from Maps screen. All available layers are listed (like Traffic,
Satellite, etc), select one to view.
10 .................................
File Manager10.1 ................................................
To access this function, touch the Application tab from the Home screen,
then touch File Manager.
File Manager works with both external SD card and phone storage.
File Manager displays all data stored on both microSD card and phone
storage, including applications, media files; videos, pictures or audios you
have captured; other data transferred via Bluetooth, USB cable, etc.
When you download an application from PC to microSD card, you can
locate the application on File Manager, then touch it to install it in your
File Manager allows you to perform and be really efficient with the
following common operations: create (sub) folder, open folder/file, view,
rename, move, copy, delete, play, share, etc.
Sound Recorder10.2 ..........................................
To access this function, touch the Application tab from the Home screen,
then touch Sound Recorder.
Sound Recorder allows you to record voice/sound for seconds/hours.
111 112
Radio10.3 ............................................................
Your phone is equipped with a radio (1). You can use the application as a
traditional radio with saved channels or with parallel visual information
related to the radio program on the display if you turn to stations that
offer Visual Radio service.
To access this function, touch the Application tab from the Home screen,
then touch Radio.
To use it, you must plug in your headset, which works as an
antenna connected with your phone.
Touch to play/stop
Touch to increase 0.1MHz
Touch to add the current station to favourites
Touch to go to next saved channel
Touch to go to previous saved channel
Touch to decrease 0.1MHz
Touch and hold to search and go to the nearest
lower frequency channel
Touch to open and view the saved channels list
(1) The quality of the radio depends on the coverage of the radio station in that
particular area.
Available options:
Save channel Save the current tuned station to the channels list.
Audio mode Listen to the radio using loudspeaker or headset.
Delete Delete the channel.
Enter frequency Enter the frequency manually.
Search Search for all available stations automatically.
RDS settings Touch to select Channel information and Alternative
Record FM Record video voice of the current channel.
Exit Turn off the radio.
Setup Wizard 10.4 .............................................
To access this function, touch the Application tab from the Home screen,
then touch Setup Wizard.
Setup Wizard helps set up your phone in multiple ways: language, input
method, mobile data connection, account setup and synchronization, date
& time, etc. This will also be performed the first time you power on your
113 114
Alcatel Help10.5 ................................................
To access this function, touch the Application tab from the Home screen,
then touch Alcatel Help.
Alcatel Help provides help when you have questions or need assistance
when using the phone.
Other applications 10.6 (1) .........................................
The previous applications in this section are preinstalled on your phone.
To read a brief introduction of the preinstalled 3rd party applications,
please refer to the leaflet provided with the phone. You can also download
thousands of 3rd party applications by going to Android Market on your
(1) Application availability depends on country and operator.
11 .........................
Drag down the Notification panel and touch then the Settings icon
to access Settings.
Wireless & networks11.1
Using Wi-Fi you can now surf the Internet without using your SIM card
whenever you are in range of a wireless network. The only thing you
have to do is to enter the Wi-Fi screen and configure an access point to
connect your phone to the wireless network.
For detailed instructions on using Wi-Fi, please refer to "6.1.2 Wi-Fi".
Bluetooth 11.1.2
Bluetooth allows your phone to exchange data (videos, images, music,
etc.) in a small range with another Bluetooth supported device (phone,
computer, printer, headset, car kit, etc.).
For more information on Bluetooth, please refer to "6.3 Connecting to
Bluetooth devices".
Data usage11.1.3
To enable/disable mobile data by touching the switch .
115 116
Mark the checkbox of Set mobile data limit, then you can drag the
limit line and the warning line according to your limitation. Your mobile
data connection will be disabled when the specified limit is reached. You
can also choose a data usage cycle to view the statistics and related
applications of used data by your phone.
Touch , and you can view more settings related to your data usage.
Data usage is measured by your phone, and your carrier may
count differently. Please consider using a conservative limit.
Airplane mode11.1.4
Through More...\Airplane mode to simultaneously disable all wireless
connections including Wi-Fi, Bluetooth and more.
You can also open Airplane mode by touching AIRPLANE MODE on
Quick setting bar or in phone options when pressing Power key.
VPN settings11.1.5
A mobile virtual private network (mobile VPN or mVPN) provides mobile
devices with access to network resources and software applications on
their home network, when they connect via other wireless or wired
networks. Mobile VPNs are used in environments where workers need to
keep application sessions open at all times, throughout the working day,
as the user connects via various wireless networks, encounters gaps in
coverage, or suspend-and-resumes their devices to preserve battery life. A
conventional VPN cannot survive such events because the network tunnel
is disrupted, causing applications to disconnect, time out, fail, or even the
computing device itself to crash.
For more information on VPN, please refer to "6.6 Connecting to
virtual private networks".
Tethering & portable hotspot11.1.6
This function allows you to share your phone's mobile data connection
via USB or as a portable Wi-Fi access point (Please refer to "6.5 Sharing
your phone's mobile data connection").
Mobile networks11.1.7
Data connection
Touch to turn on/off data connection.
3G service
Touch to Enable 3G service or to select Network mode.
Touch to view/edit/delete preferences.
Access Point Names
You can select your preferred network with this menu.
Network operators
You can select a network operator.
117 118
Mark the checkbox or touch to enable the following gestures: Turn over
to mute, Turn over to activate, Shake to switch music.
Use the Sound settings to configure ringtones for different events and
Phone vibrate Mark the check box to vibrate phone for incoming
Silent mode Mark the check box to silence all sounds except
media & alarms.
Slide to adjust volume of Ringtone, notifications
and system.
Music, video,
games and other
Slide to adjust multimedia volume of music, video,
games, etc.
Alarms Slide to adjust Alarms ringtone volume.
Phone ringtone Touch to select your default incoming call
Crescendo ringing Mark the check box to enable Crescendo
Notification sound Touch to select your default notification ringtone.
Dial pad touch
Mark the check box to enable playing tones when
using dial pad.
Audible selection Mark the check box to enable playing sound when
making screen selection.
Screen lock sound Mark the check box to enable sounds to play
when locking and unlocking the screen.
Haptic feedback Mark the check box to activate vibration when
pressing soft keys and on certain UI interactions.
Power on ringtone Touch to set your default power on ringtone.
Power off ringtone Touch to set your default power off ringtone.
Lock screen
Mark the checkbox to show notifications on lock
Wallpaper Touch to set the wallpaper.
Orientation Mark the checkbox to select whether rotate
screen automatically or not.
Brightness Touch to adjust the brightness of the screen.
Screen module Touch to adjust screen module.
Font size Touch to set the fond size.
Sleep Touch to set screen timeout.
119 120
Status bar11.2.4
Touch the switch to open all notifications of 3rd party
applications to be shown on the left top of the status bar.
You can also touch some apps icons to deactivate their notifications in
status bar.
Use these settings to monitor the total and available space on your phone
and on your microSD card; to manage your microSD card.
If a warning message comes up saying that phone memory is
limited, you are required to free up space by deleting some
unwanted applications, downloaded files, etc.
Battery management 11.2.6
In battery screen you can view the battery usage data since you last
connected the phone to a power source. The screen also shows your
battery status and how long it has been used since last charging. Touch one
category, then you can learn its specific power consumption.
You can adjust power use via the screen brightness or screen timeout in
Display screen.
You use the Applications settings to view details about the applications
installed on your phone, to manage their data and force them to stop, and
to set whether you want to permit installation of applications that you
obtain from web sites and emails.
Location services11.3.1
Use GPS satellites
Check to use your phone’s global positioning system (GPS) satellite
receiver to pinpoint your location within an accuracy as close as several
meters ("street level"). The process of accessing the GPS satellite and
setting your phone's precise location for the first time will require up to
5 minutes. You will need to stand in a place with a clear view of the sky
and avoid moving. After this, GPS will only need 20-40 seconds to identify
your precise location.
Set up screen lock
None Touch to disable screen unlock security.
Slide Touch to enable slide unlock mode.
Pattern Touch to draw pattern to unlock screen.
PIN Touch to enter a numeric PIN to unlock screen.
Password Touch to enter a password to unlock screen.
Use visible pattern
Mark the check box to use visible pattern.
Automatically lock
Touch to automatically lock the phone after your preset time.
121 122
Power key instantly locks
Mark the checkbox to enable instant lock of the phone by pressing Power
Owner info
Touch to input owner information which will display on the lock screen.
Encrypt phone
You can encrypt your accounts, settings,download apps and their data,
media and other files by touching Encrypt phone.
Set up SIM card lock
Choose a SIM card you want to configure.
Mark the checkbox of Lock SIM card to lock the SIM card with PIN
Touch Change SIM PIN to change the PIN code.
Make passwords visible
Mark the checkbox to show passwords as you type.
Device administrators
Touch to view or deactivate device administrators.
Unknown sources
Mark the checkbox to permit installation of applications that you obtain
from web sites, emails, or other locations other than Android Market.
To protect your phone and personal data, download applications only
from trusted sources, such as Android Market.
Verify apps
Mark the checkbox to disallow or warn before installing apps which my
cause harm.
Trusted credentials
Touch to display trusted CA certificates.
Install from SD card
Touch to install encrypted certificates from the microSD card.
Clear storage
Touch to remove all credentials.
Language & input11.3.3
Use the Language & input settings to select the language for the text on
your phone and for configuring the onscreen keyboard. You can also
configure voice input settings and the pointer speed.
Touch to select the language and the region you want.
Spell checker
Mark the checkbox to enable the system to show suggested words.
Personal dictionary
Touch to open a list of the words you’ve added to the dictionary. Touch a
word to edit or delete it. Touch the add button (+) to add a word.
123 124
Touch to select a default input method. Touch the Settings icon on
the right of selected input method, a series of settings are available for
your selection.
Android keyboard
The Android keyboard settings apply to the onscreen keyboard that is
included with your phone. The correction and capitalization features affect
only the English version of the keyboard. Available options are as follows:
Input languages
Touch to set input language.
Mark the checkbox to have the onscreen keyboard automatically capitalize
the first letter of the first word after a period, the first word in a text field,
and each word in name fields.
Vibrate on keypress
Mark the checkbox to have the phone vibrate briefly each time you touch
a key on the onscreen keyboard.
Sound on keypress
Mark the checkbox to play a brief sound each time you touch a key on
the onscreen keyboard.
Popup on keypress
Mark the checkbox to popup the key that you touched.
Auto correction
Touch to turn on/off auto correction, or you can also adjust the sensitivity
of correction.
Show correction suggestions
Touch to show or not the correction suggestions while typing.
Next word prediction
Mark the checkbox to popup word prediction.
Advanced settings
Touch to view more advanced settings for android keyboard, such as Key
popup dismiss delay, Suggest Contact name, etc.
Voice search
Touch to view settings about voice search, such as Language, Speech
output, etc.
Text-to-speech settings
Prefered engine
Touch to choose a preferred text-to-speech engine, touch the Settings
icon to show more choices for each engine.
Speech rate
Touch to open a dialog where you can select how quickly you want the
synthesizer to speak.
Listen to an example
Touch to play a brief sample of the speech synthesizer, using your current
Pointer speed
Touch to open a dialog where you can change the pointer speed, touch
OK to confirm.
125 126
Backup and reset11.3.4
Back up my data
Mark the checkbox to back up your phone’s settings and other application
data to Google Servers, with your Google Account. If you replace your
phone, the settings and data you’ve backed up are restored onto the new
phone for the first time you sign in with your Google Account. If you mark
this option, a wide variety of settings and data are backed up, including
your Wi-Fi passwords, bookmarks, a list of the applications you’ve
installed, the words you’ve added to the dictionary used by the onscreen
keyboard, and most of the settings that you configure with the Settings
application. If you unmark this option, you stop backing up your settings,
and any existing backups are deleted from Google Servers.
Back up account
Touch to back up your account.
Automatic restore
Mark the checkbox to restore your backed up settings or other data when
you reinstall an application.
DRM reset
Touch to select delete all DRM licenses.
Factory data reset
Phone reset will erase all of your personal data from internal phone
storage, including information about your Google Account, any other
accounts, your system and application settings, and any downloaded
applications. Resetting the phone does not erase any system software
updates you’ve downloaded or any files on your microSD card. If you
reset the phone in this way, you’re prompted to re-enter the same kind of
information as when you first started Android.
When you are unable to power on your phone, there is another way to
perform a factory data reset by using hardware keys. Press the Volume
up key and the Power key at same time until the screen lights up.
Use the settings to add, remove, and manage your Email and other
supported accounts. You can also use these settings to control how and
whether all applications send, receive, and synchronize data on their
own schedules, and whether all applications can synchronize user data
Add account11.4.1
Touch to add an account for selected app.
Date & time11.5.1
Use Date & Time settings to customize your preferences for how date
and time are displayed.
127 128
Automatic date & time
Touch to select Use network/GPS provided time or Off.
Mark the checkbox to use network provided time or use GPS provided
Automatic time zone
Mark the checkbox to use network-provided time zone. Or unmark to
set all values manually.
Set date
Touch to open a dialog where you can manually set the phone’s date.
Set time
Touch to open a dialog where you can manually set the phone’s time.
Select time zone
Touch to open a dialog where you can set the phone’s time zone.
Use 24-hour format
Mark the checkbox to display the time using 24-hour clock format.
Select date format
Touch to open a dialog where you can select the format for displaying
NTP sever
Touch to select NTP server for time auto update settings.
Schedule power on/off11.5.2
Touch to preset the power on/off time and repeat mode.
You use the Accessibility settings to configure any accessibility plug-ins you
have installed on your phone.
Touch to turn on/off TalkBack.
Magnification gestures
Touch to turn on/off to activate/deactivate zoom in/out function by triple-
tapping the screen.
Large text
Mark the checkbox to enlarge the screen text.
Power button ends call
Mark the checkbox to end a call by pressing Power key during the call.
Mark the checkbox to rotate screen automatically.
Speak passwords
Mark the checkbox to speak passwords while typing.
Accessibility shortcut
Touch to turn on/off to enable/disable accessibility features.
129 130
Text-to-speech settings
Touch to open Text-to speech setting options.
Touch & hold delay
Touch to adjust the duration of touch and hold delay. This function enables
your phone to differ touch and touch & hold, which may avoid incorrect
Enhance web accessibility
Touch to open a dialog which asks you to install scripts from Google which
make their web content more accessible. Touch Allow to confirm.
To access this function, touch Settings\About phone, then touch Build
number 7 times. Now Development is available.
The Development screen contains settings that are useful for developing
Android applications. For full information, including documentation of the
Android applications and development tools, see the Android developer
web site (
Take bug report
Touch to select to collect information about your current device state and
send as an email message.
Desktop backup password
Touch to set/change/remove desktop full backup password.
Stay awake
Mark the checkbox to prevent the screen from dimming and locking when
the phone is connected to a charger or to a USB device that provides
power. Don’t use this setting with a static image on the phone for long
periods of time, or the screen may be marked with that image.
Protect memory
Mark the checkbox to select that Apps must request permission to read
SD card.
USB debugging
Mark the checkbox to permit debugging tools on a computer to
communicate with your phone via a USB connection.
Power menu bug report
Mark the checkbox to select to include option in power menu for
submitting a bug report.
Allow mock locations
Mark the checkbox to permit a development tool on a computer to
control where the phone believes it is located, rather than using the
phone’s own internal tools for this purpose.
Select debug app
Touch to select debug app.
Wait for debugger
Mark the checkbox to wait for debugger to attach before executing.
131 132
Verify apps over USB
Mark the checkbox to check apps over USB.
Show touches
Mark the checkbox to show visual feedback for touches.
Pointer location
Mark the checkbox to show current touch data.
Show layout bounds
Mark the checkbox to show clip bounds, margins, etc.
Show GPU view updates
Mark the checkbox to show GPU view updates.
Show hardware layers updates
Mark the checkbox to show hardware layers updates.
Show GPU overdraw
Mark the checkbox to show GPU overdraw.
Show screen updates
Mark the checkbox to show screen updates.
Window animation scale
Touch to adjust the animation scale for your window.
Transition animation scale
Touch to adjust the animation scale while performing transition.
Animator duration scale
Touch to adjust the animator duration scale.
Disable HW overlays
Mark the checkbox to select to always use GPU for screen compositing.
Force GPU rendering
Mark the checkbox to forcely use 2D hardware acceleration in
Force 4x MSAA
Mark the checkbox to enable 4x MSAA.
Strict mode enabled
Mark the checkbox to enable strict mode. After enabled, the screen will
flash when applications do long operations on the main thread.
Show CPU usage
Mark the checkbox to show current CPU usage.
Profile GPU rendering
Mark the checkbox to use 2D hardware acceleration in applications.
133 134
Enable OpenGL traces
Touch to adjust OpenGL traces.
Enable traces
Touch to adjust traces.
Don't keep activities
Mark the checkbox to destroy all activities as soon as you leave.
Background process limit
Touch to change the limit for background processes.
Show all ANRs
Mark the checkbox to show "Application Not Responding" dialog for
background applications.
Regulatory & Safety 11.5.5
Touch to view Regulatory & Safety information, including Product model,
Manufacturer name, etc.
Quick start11.5.6
Mark the checkbox to activate Quick start to shorten boot time. You can
also enable this function in phone options when pressing Power key.
About phone11.5.7
This contains information about things ranging from Legal information,
Model number, Firmware version, Baseband version, Kernel version, Build
number to those listed below:
System updates
Touch to check for system updates.
System udpates (storage)
Touch to check for system udpates (storage).
This contains the status of the Battery status, Battery level, My phone
number, Network, Signal strength, etc.
Legal information
Touch to view legal information.
135 136
Making the most of your
12 phone ..................................
You can download software upgrade for free from the website (www.
ONE TOUCH Center12.1
ONE TOUCH Center includes:
It allows you to back up contact entries so that you don't have to worry
about losing, breaking, switching phones or changing service providers.
It frees you from painstakingly inputting text on the keypads. All of your
messages are easily accessible and well-organized.
It allows you to easily import photos from PC or the handset and organize
them in different albums for better management.
It allows you to insert video files from PC for playback and then upload
to handset folder.
It allows you to quickly search your favourites in PC, manage the ultimate
Library, and enjoy the easiest digital jukebox in your own mobile way.
It allows you to import downloaded mobile applications and have them
installed into your handset upon synchronization.
It allows you to back up your contacts, messages, calendar, photos and
applications, then import the backup files to your phone.
Supported Operating Systems
Windows XP/Vista/Windows 7.
You can use Mobile Upgrade tool or FOTA Upgrade tool to update your
phone's software.
Mobile Upgrade12.2.1
Download Mobile Upgrade from ALCATEL ONE TOUCH website (www. and install it on your PC. Launch the tool and update
your phone by following the step by step instructions (refer to the User
Guide provided together with the tool). Your phone’s software will now
have the latest software.
All personal information will be permanently lost following the
update process. We recommend you backup your personal data
using ONE TOUCH Center before upgrading.
137 138
FOTA Upgrade12.2.2
Using FOTA Upgrade tool you can update your phone's software.
To access System Updates, please open the Notification panel and
touch and then , then press About phone\System updates. Or
you can directly touch and access Settings\About phone\System
updates. Touch Check for updates, and the phone will search for the
latest software. If you want to update the system, please touch the button
Download, after it's done please touch Install to complete the upgrade.
Now your phone's software will have the latest version.
You should turn on data connection before searching for updates. Settings
for auto-check intervals and reminders about upgrades are also available
once you restart the phone.
If you have chosen auto-check, when the system discovers the new
version, the icon will appear in the status bar. Touch the notification
to access the System Updates directly.
During FOTA downloading or updating, to avoid errors in locating
the correct update packages, do not change your default storage
Telephone warranty
13 ..........
Your phone is warranted against any defect or malfunctioning which may
occur in conditions of normal use during the warranty period of twelve
(12) months (1) from the date of purchase as shown on your original
Batteries (2) and accessories sold with your phone are also warranted
against any defect which may occur during the first six (6) months (1) from
the date of purchase as shown on your original invoice.
In case of any defect of your phone which prevents you from normal
use thereof, you must immediately inform your vendor and present your
phone with your proof of purchase.
If the defect is confirmed, your phone or part thereof will be either
replaced or repaired, as appropriate. Repaired phone and accessories
are entitled to a one (1) month warranty for the same defect. Repair or
replacement may be carried out using reconditioned components offering
equivalent functionality.
This warranty covers the cost of parts and labor but excludes any other
(1) The warranty period may vary depending on your country.
(2) The life of a rechargeable mobile phone battery in terms of conversation time
standby time, and total service life, will depend on the conditions of use and
network configuration. Batteries being considered expendable supplies, the
specifications state that you should obtain optimal performance for your phone
during the first six months after purchase and for approximately 200 more
139 140
This warranty shall not apply to defects to your phone and/or accessory
due to (without any limitation):
1) Non-compliance with the instructions for use or installation, or with
technical and safety standards applicable in the geographical area where
your phone is used,
2) Connection to any equipment not supplied or not recommended by
TCT Mobile Limited,
3) Modification or repair performed by individuals not authorised by TCT
Mobile Limited or its affiliates or your vendor,
4) Modification, adjustment or alteration of software or hardware
performed by individuals not authorized by TCT Mobile Limited,
5) Inclement weather, lightning, fire, humidity, infiltration of liquids
or foods, chemical products, download of files, crash, high voltage,
corrosion, oxidation…
Your phone will not be repaired in cases where labels or serial numbers
(IMEI) have been removed or altered.
There are no express warranties, whether written, oral or implied, other
than this printed limited warranty or the mandatory warranty provided by
your country or jurisdiction.
In no event shall TCT Mobile Limited or any of its affiliates be liable for
indirect, incidental or consequential damages of any nature whatsoever,
including but not limited commercial or financial loss or damage, loss of
data or loss of image to the full extent those damages can be disclaimed
by law.
Some countries/states do not allow the exclusion or limitation of indirect,
incidental or consequential damages, or limitation of the duration of
implied warranties, so the preceding limitations or exclusions may not
apply to you.
14 .......................
The latest generation of ALCATEL ONE TOUCH mobile phones offers
a built-in handsfree feature that allows you to use the telephone from a
distance, placed on a table for example. For those who prefer to keep
their conversations confidential, an earpiece is also available known as
the headset.
1. Charger
2. Battery
3. USB cable
4. Stereo headset
Only use your telephone with the ALCATEL ONE TOUCH
batteries, chargers and accessories in your box.
141 142
15 ................
Before contacting the service centre, you are advised to follow the
instructions below:
You are advised to fully charge ( ) the battery for optimal operation.
Avoid storing large amounts of data in your phone as this may affect its
Use Factory data reset and Mobile upgrade tool to perform phone
formatting or software upgrading (to reset factory data, hold down the
Power key and the Volume up key at the same time under power
off mode). ALL User phone data: contacts, photos, messages and files,
downloaded applications will be lost permanently. It is strongly advised
to fully backup the phone data and profile via ONE TOUCH Center
before doing formatting and upgrading.
and carry out the following checks:
My phone cannot be switched on or is frozen
Check the battery contacts, remove and reinstall your battery, then turn
your phone on.
When the phone cannot be switched on, charge for at least 20 minutes to
ensure the minimum battery power needed, then try to switch on again.
When the phone falls into a loop during power on-off animation and the
user interface cannot be accessed, press and hold the Volume down
key to enter Safe Mode. This eliminates any abnormal OS booting issues
caused by 3rd party APKs.
If neither method is effective, please reset the phone using the Power
key and the Volume up key (holding both together).
If it still does not work, please use Factory data reset to reset the phone
or FOTA/Mobile Upgrade to upgrade software.
My phone has not responded for several minutes
Restart your phone by pressing and holding the Power key.
Remove the battery and re-insert it, then restart the phone.
If it still does not work, please use Factory data reset to reset the phone
or FOTA/Mobile Upgrade to upgrade software.
My phone turns off by itself
Check that your screen is locked when you are not using your phone,
and make sure the Power key is not mis-contacted due to unlocked
Check the battery charge level.
If it still does not work, please use Factory data reset to reset the phone
or FOTA/Mobile Upgrade to upgrade software.
My phone cannot charge properly
Make sure you are using an ALCATEL ONE TOUCH battery and the
charger from the box.
Make sure your battery is inserted properly and clean the battery
contact if it’s dirty. It must be inserted before plugging in the charger.
Make sure that your battery is not completely discharged; if the battery
power is empty for a long time, it may take around 20 minutes to display
the battery charger indicator on the screen.
Make sure charging is carried out under normal conditions (0°C to
When abroad, check that the voltage input is compatible.
My phone cannot connect to a network or "No service" is
Try connecting in another location.
Verify the network coverage with your operator.
Check with your operator that your SIM card is valid.
Try selecting the available network(s) manually (see " 11.1.7 Mobile
Try connecting at a later time if the network is overloaded.
143 144
My phone cannot connect to the Internet
Check that the IMEI number (press *#06#) is the same as the one
printed on your warranty card or box.
Make sure that the internet access service of your SIM card is available.
Check your phone's Internet connecting settings.
Make sure you are in a place with network coverage.
Try connecting at a later time or another location.
Invalid SIM card
Make sure the SIM card has been correctly inserted (see " Inserting or
removing the SIM card").
Make sure the chip on your SIM card is not damaged or scratched.
Make sure the service of your SIM card is available.
Unable to make outgoing calls
Make sure you have dialed a valid number and have touched Call.
For international calls, check the country and area codes.
Make sure your phone is connected to a network, and the network is
not overloaded or unavailable.
Check your subscription status with your operator (credit, SIM card
valid, etc.).
Make sure you have not barred outgoing calls.
Make sure that your phone is not in airplane mode.
Unable to receive incoming calls
Make sure your phone is switched on and connected to a network
(check for overloaded or unavailable network).
Check your subscription status with your operator (credit, SIM card
valid, etc.).
Make sure you have not forwarded incoming calls.
Make sure that you have not barred certain calls.
Make sure that your phone is not in airplane mode.
The caller’s name/number does not appear when a call is
Check that you have subscribed to this service with your operator.
Your caller has concealed his/her name or number.
I cannot find my contacts
Make sure your SIM card is not broken.
Make sure your SIM card is inserted properly.
Import all contacts stored in SIM card to phone.
The sound quality of the calls is poor
You can adjust the volume during a call by pressing the Volume Up/
Down key.
Check the network strength .
Make sure that the receiver, connector or speaker on your phone is
I am unable to use the features described in the manual
Check with your operator to make sure that your subscription includes
this service.
Make sure this feature does not require an ALCATEL ONE TOUCH
When I select a number from my contacts, the number cannot
be dialed
Make sure that you have correctly recorded the number in your file.
Make sure that you have selected the country prefix when calling a
foreign country.
I am unable to add a contact in my contacts
Make sure that your SIM card contacts are not full; delete some files or
save the files in the phone contacts (i.e. your professional or personal
My callers are unable to leave messages on my voicemail
Contact your network operator to check service availability.
I cannot access my voicemail
Make sure your operator’s voicemail number is correctly entered in
"Voicemail number".
Try later if the network is busy.
145 146
I am unable to send and receive MMS
Check your phone memory availability as it might be full.
Contact your network operator to check service availability and check
MMS parameters (see "4.1.3 Adjust message settings").
Verify the server centre number or your MMS profile with your
The server centre may be swamped, try again later.
SIM card PIN locked
Contact your network operator to obtain the PUK code (Personal
Unblocking Key).
I am unable to connect my phone to my computer
Install ONE TOUCH Center.
Check that your USB driver is installed properly.
Open the Notification panel to check if the ONE TOUCH Center Agent
has been activated.
Check that you have marked the checkbox of USB debugging.
To access this function, touch Settings\About phone, then touch
Build number 7 times. Now you may touch Settings\Development\
USB debugging.
Check that your computer meets the requirements for ONE TOUCH
Center Installation.
Make sure that you’re using the right cable from the box.
I am unable to download new files
Make sure there is sufficient phone memory for your download.
Select the microSD card as the location to store downloaded files.
Check your subscription status with your operator.
The phone cannot be detected by others via Bluetooth
Make sure that Bluetooth is turned on and your phone is visible to other
users (see "6.3 Connecting to Bluetooth devices").
Make sure that the two phones are within Bluetooth’s detection range.
How to make your battery last longer
Make sure you follow the complete charge time (minimum 2.5 hours).
After a partial charge, the battery level indicator may not be exact. Wait
for at least 20 minutes after removing the charger to obtain an exact
Adjust the brightness of screen as appropriate.
Extend the email auto-check interval for as long as possible.
Update news and weather information on manual demand, or increase
their auto-check interval.
Exit background-running applications if they are not being used for a
long time.
Deactivate Bluetooth, Wi-Fi, or GPS when not in use.
The phone will become warm following prolonged calls, game
playing, internet surfing or running other complex applications.
This heating is a normal consequence of the CPU handling excessive
data. Ending above actions will make your phone return to normal
147 148
Processor MTK6572
Platform Android™ 4.2
Memory ROM: 4 GB
RAM: 512 MB
122 x 64.4 x 11.95 mm
Weight Around 121 grams with battery
Display 4.0-inch TFT-LED touchscreen with 800 x 480
WVGA Capacity resolution
Network GSM:
Triple-band 900/1800/1900 MHz
Dual band 900/2100 MHz
(Band frequency and data speed are operator
GPS Assisted GPS/Internal GPS antenna
Connectivity Bluetooth V4.0/A2DP
Wi-Fi IEEE 802.11 b/g/n
3.5 mm audio jack
Camera 3.0 megapixel embedded camera
Audio supported
Video supported
3GP (H263 profile 0 level 10+AMR) and
MP4 (MPEG-4 simple visual profile level 0)
Battery (1) Rechargeable Lithium battery
Capacity: 1300 mAh
Expansion Slot microSD™ memory card
(Availability of microSD card depends on
Special Features G-sensor
Proximity Sensor
Light sensor
Note: Specifications are subject to change without prior notice. (1)
(1) The original battery has undergone rigorous safety inspections to meet
qualification standards, the use of non-original batteries may be dangerous.
ALCATEL is a trademark of Alcatel-Lucent
and is used under license by
TCT Mobile Limited.
© Copyright 2013 TCT Mobile Limited
All rights reserved
TCT Mobile Limited reserves
the right to alter material
or technical specification
without prior notice.
English - CJA27B0ALAAA
All "Signature" ringtones embedded in this phone have been composed,
arranged and mixed by NU TROPIC (Amar Kabouche).

Navigation menu
