613-002009 Rev. A
AT-TQ4600
Enterprise-class Wireless Access Point
with IEEE802.11a/b/g/n/ac Dual Radio
Installation Guide
Draft 9-23-14
Copyright 2014 Allied Telesis, Inc.
All rights reserved.
This product includes software licensed under the BSD License. As such, the following language applies for those
portions of the software licensed under the BSD License:
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the name of Allied Telesis, Inc. nor the names of the respective companies above may be used to endorse or
promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT
SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY
WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Copyright (c) [dates as appropriate to package] by The Regents of the University of California - All rights reserved.
Copyright (c) 2000-2003 by Intel Corporation - All rights reserved. Copyright (c) 1997-2003, 2004 by Thomas E. Dickey
<dickey@invisible-island.net> - All rights reserved. Copyright (c) 2001-2009 by Brandon Long (ClearSilver is now
licensed under the New BSD License.) Copyright (c) 1984-2000 by Carnegie Mellon University - All rights reserved.
Copyright (c) 2002,2003 by Matt Johnston - All rights reserved. Copyright (c) 1995 by Tatu Ylonen <ylo@cs.hut.fi> - All
rights reserved. Copyright 1997-2003 by Simon Tatham. Portions copyright by Robert de Bath, Joris van Rantwijk,
Delian Delchev, Andreas Schultz, Jeroen Massar, Wez Furlong, Nicolas Barry, Justin Bradford, and CORE SDI S.A.
Copyright (c) 1989, 1991 by Free Software Foundation, Inc. (GNU General Public License, Version 2, June 1991).
Copyright (c) 2002-2005 by Jouni Malinen <jkmaline@cc.hut.fi> and contributors. Copyright (c) 1991, 1999 by Free
Software Foundation, Inc. (GNU Lesser General Public License, Version 2.1, February 1999). Copyright (c) 1998-2002
by Daniel Veillard - All rights reserved. Copyright (c) 1998-2004 by The OpenSSL Project - All rights reserved.
Copyright (c) 1995-1998 by Eric Young (eay@cryptsoft.com) - All rights reserved.
This product also includes software licensed under the GNU General Public License available from:
http://www.gnu.org/licenses/gpl2.html
Allied Telesis is committed to meeting the requirements of the open source licenses including the GNU General Public
License (GPL) and will make all required source code available.
If you would like a copy of the GPL source code contained in this product, please send us a request by registered mail
including a check for US$15 to cover production and shipping costs, and a CD with the GPL code will be mailed to you.
GPL Code Request
Allied Telesis Labs (Ltd)
PO Box 8011
Christchurch, New Zealand
No part of this publication may be reproduced without prior written permission from Allied Telesis, Inc.
Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names,
company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective
owners.
Allied Telesis, Inc. reserves the right to make changes in specifications and other information contained in this document
without prior written notice. The information provided herein is subject to change without notice. In no event shall Allied
Telesis, Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited
to lost profits, arising out of or related to this manual or the information contained herein, even if Allied Telesis, Inc. has
been advised of, known, or should have known, the possibility of such damages.
Draft 9-23-14
3
Electrical Safety and Emissions Standards
This product meets the following standards.
Federal Communications Commission Interference Statement
Declaration of Conformity
Manufacturer Name: Allied Telesis, Inc.
Declares that the product: Wireless access point with PoE powered device function
Model Number: AT-TQ4600
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The band from 5600-5650MHz will be disabled by the software during the manufacturing and
cannot be changed by the end user. This device meets all the other requirements specified in Part
15E, Section 15.407 of the FCC Rules.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Draft 9-23-14
4
Note
For additional regulatory statements, refer to Appendix B, ”Regulatory Statements” on page
51.
Safety and Electromagnetic Emissions Certificates
European Union Restriction of the Use of Certain Hazardous Substances
(RoHS) in Electrical and Electronic Equipment
This Allied Telesis RoHS-compliant product conforms to the European Union Restriction of the Use
of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment. Allied Telesis
ensures RoHS conformance by requiring supplier Declarations of Conformity, monitoring incoming
materials, and maintaining manufacturing process controls.
Standard
Compliance
RoHs compliant
European Union RoHS (Directive 2011/65/EU of the European Parliament
and of the Council of 8 June 2011 on the restriction of the use of certain
hazardous substances in electrical and electronic equipment.)
Certificates CE
EAC
FCC/IC
KC
RCM
Wi-Fi CERTIFIED
Electromagnetic
Compatibility (EMC)
EN 301 489-1
EN 301 489-17
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
AS/NZS CISPR 22
FCC 47 CFR Part 15, Subpart B
ICES-003
Medical (EMC) EN 60601-1-2
Draft 9-23-14
5
Radio Equipment EN 300 328
EN 301 893
AS/NZS 4268
FCC 47 CFR Part 15, Subpart C
FCC 47 CFR Part 15, Subpart E
FCC part 2
RSS210
RSS-Gen
RSS-102
Safety EN 60950-1
IEC 60950-1
TUV-T
UL 60950-1
Draft 9-23-14
7
Contents
Preface ............................................................................................................................................................13
Safety Symbols Used in this Document..................................................................................................... 14
Contacting Allied Telesis............................................................................................................................ 15
Chapter 1: Overview ......................................................................................................................................17
Features..................................................................................................................................................... 18
Rear Panel Components............................................................................................................................ 19
LAN Port..................................................................................................................................................... 21
Power over Ethernet............................................................................................................................ 21
Connector Type ................................................................................................................................... 21
Speed .................................................................................................................................................. 21
Duplex Mode ....................................................................................................................................... 21
Maximum Distance .............................................................................................................................. 21
Cable Requirements............................................................................................................................ 21
Automatic MDIX Detection .................................................................................................................. 22
Port Pinouts ......................................................................................................................................... 22
LEDs .......................................................................................................................................................... 23
Reset Button .............................................................................................................................................. 24
Chapter 2: Installing the Access Point ........................................................................................................25
Reviewing Safety Precautions ................................................................................................................... 26
Unpacking the AT-TQ4600 Access Point................................................................................................... 28
Installing the Access Point on a Table ....................................................................................................... 29
Installing the Access Point on a Wall or Ceiling......................................................................................... 33
Guidelines............................................................................................................................................ 33
Attaching the Mounting Bracket to the Access Point........................................................................... 34
Installing the Access Point to a Wall or Ceiling ................................................................................... 35
Cabling the Access Point..................................................................................................................... 36
Kensington Lock......................................................................................................................................... 37
Starting the Initial Management Session on the Access Point................................................................... 38
Starting the Initial Management Session with a Direct Connection ..................................................... 39
Starting the Initial Management Session without a DHCP Server....................................................... 40
Starting the Initial Management Session with a DHCP Server............................................................ 40
Setting the Country Setting ........................................................................................................................ 42
Appendix A: Technical Specifications ........................................................................................................45
Physical Specifications............................................................................................................................... 45
Environmental Specifications..................................................................................................................... 45
Power Specifications.................................................................................................................................. 46
LAN Port..................................................................................................................................................... 47
Safety and Electromagnetic Emissions Certifications ................................................................................ 49
Appendix B: Regulatory Statements ...........................................................................................................51
Federal Communication Commission Interference Statement................................................................... 52
Industry Canada Statement ....................................................................................................................... 54
Europe - EU Declaration of Conformity...................................................................................................... 56
Draft 9-23-14
Contents
8
Draft 9-23-14
9
Figures
Figure 1: Rear Panel Components .................................................................................................................. 19

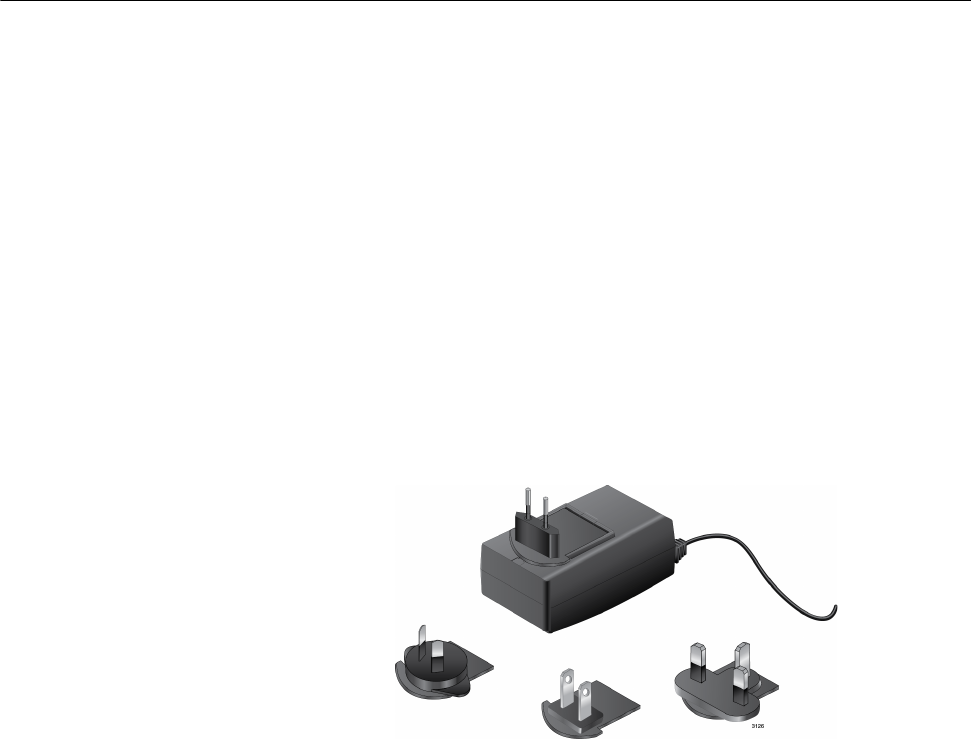

Figure 2: AT-TQ0091 AC/DC Power Adapter.................................................................................................. 28

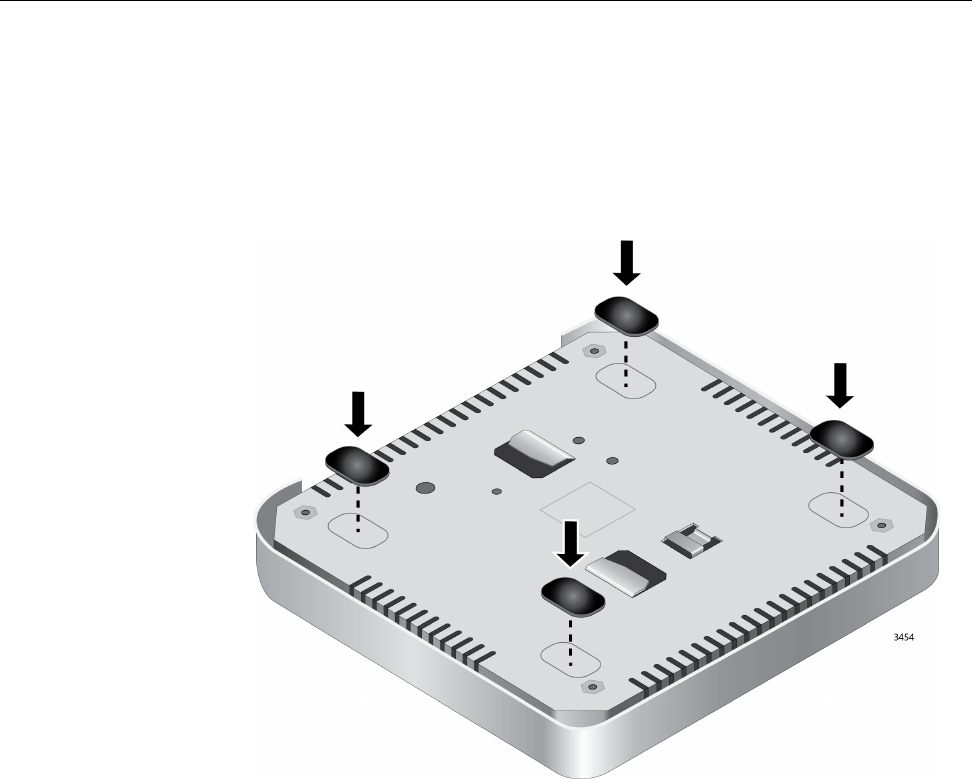

Figure 3: Installing the Rubber Feet ................................................................................................................ 29

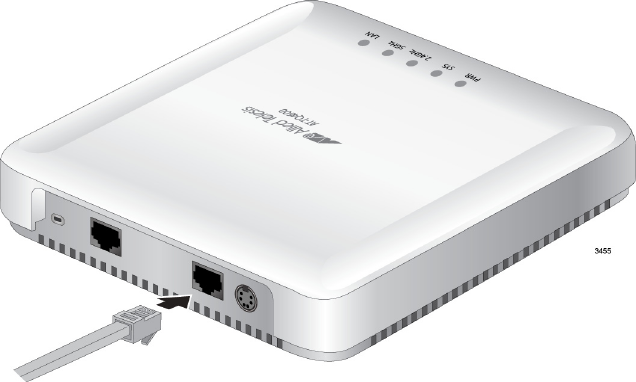

Figure 4: Connecting the Network Cable for Table or Desktop Installation..................................................... 30
Figure 5: Connecting the Power Cable from the AT-TQ0091 AC/DC Adapter................................................ 31
Figure 6: Removing an AC Plug from the AT-TQ0091 AC/DC Power Adapter ............................................... 31
Figure 7: Installing an AC Plug on the AT-TQ0091 AC/DC Power Adapter .................................................... 32

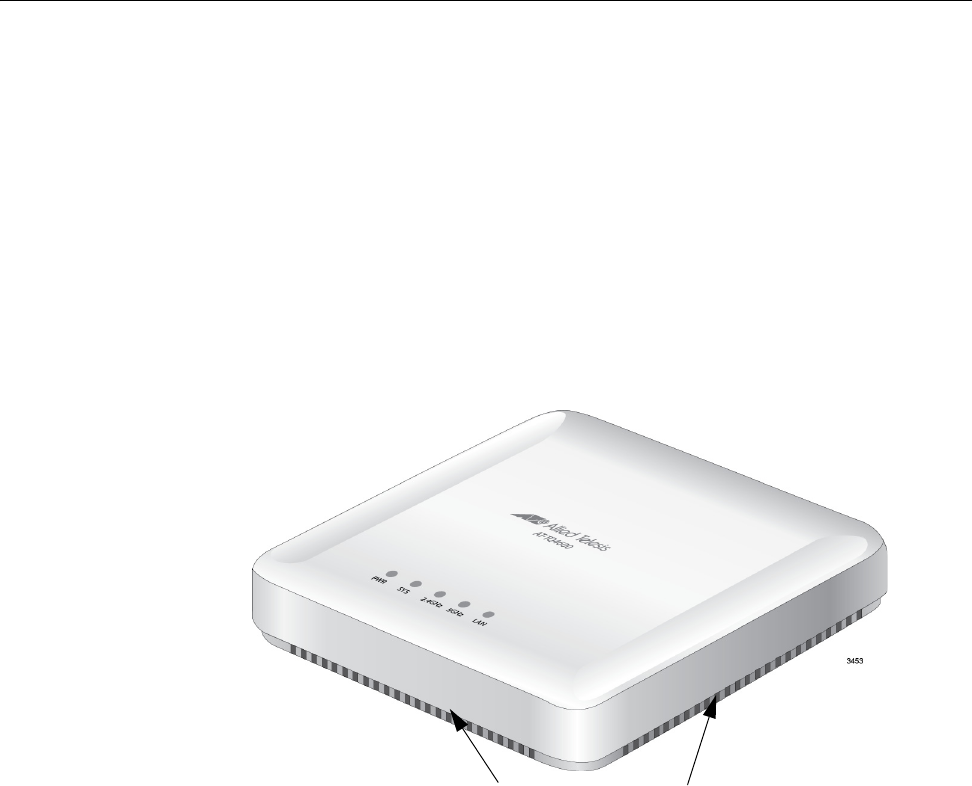

Figure 8: Ventilation Slots................................................................................................................................ 33

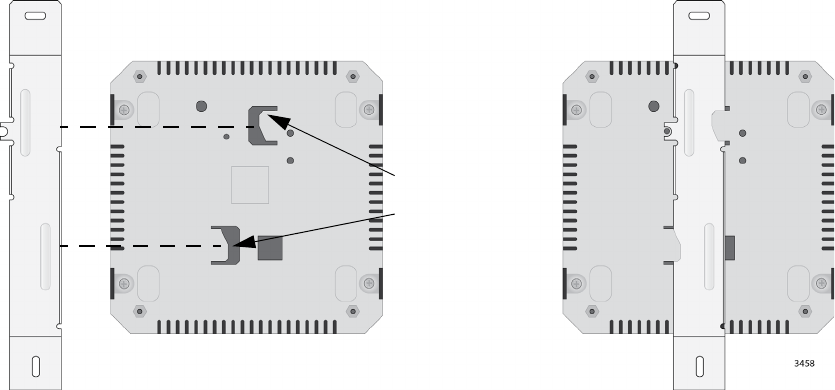

Figure 9: Inserting the Mounting Bracket......................................................................................................... 34

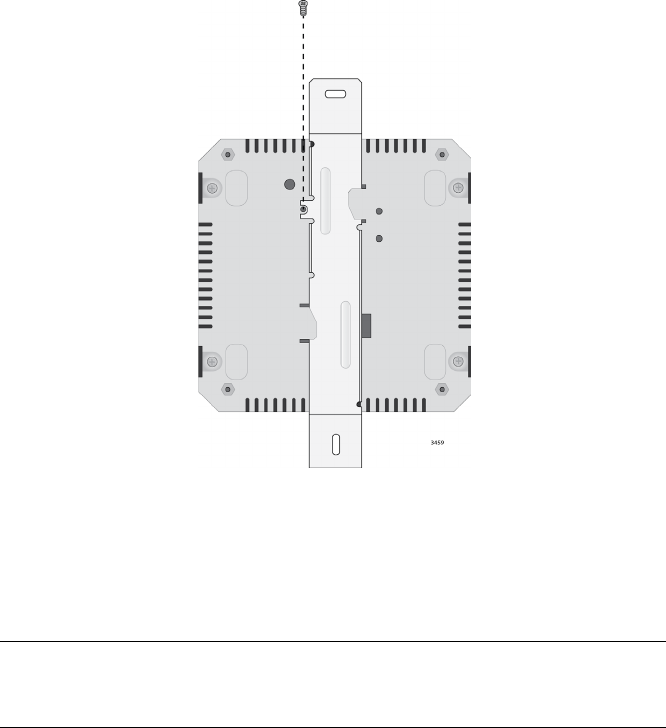

Figure 10: Attaching the Mounting-Bracket Screw .......................................................................................... 35

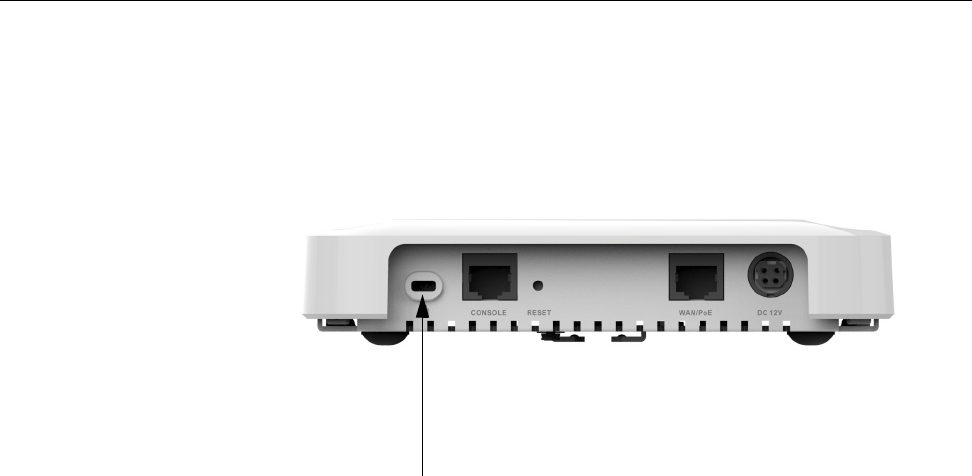

Figure 11: Kensington Lock............................................................................................................................. 37

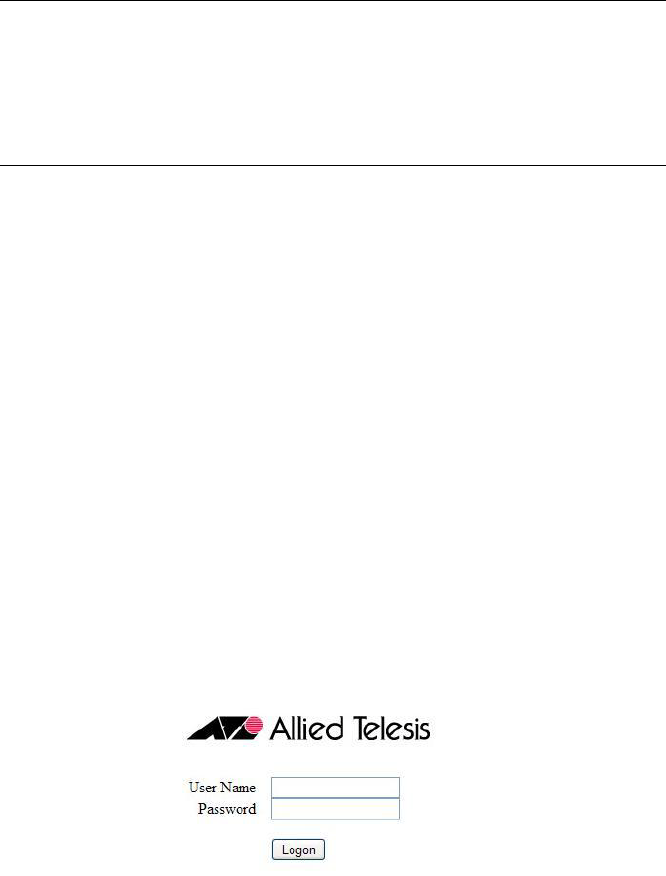

Figure 12: Logon Window................................................................................................................................ 39

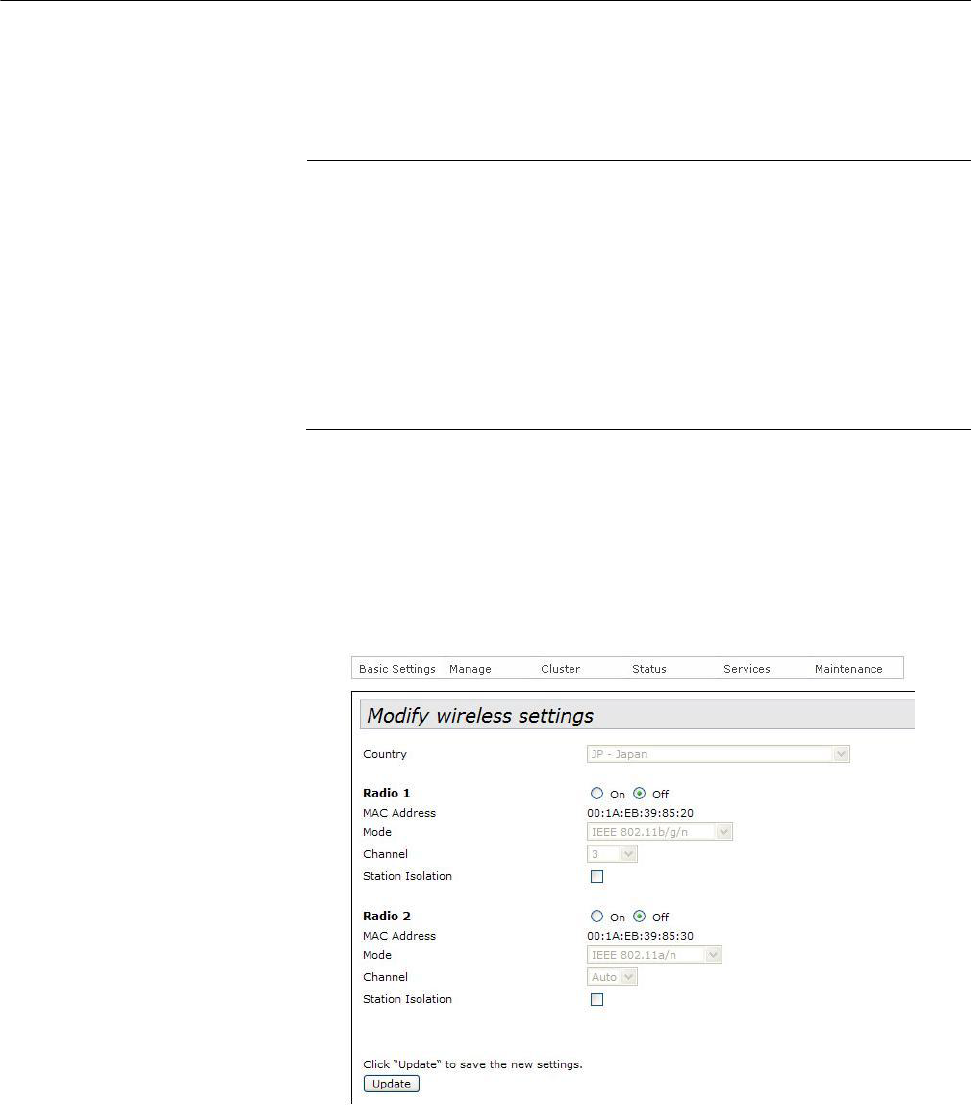

Figure 13: Modify Wireless Settings Window .................................................................................................. 42
Figure 14: Pin Layout for the RJ-45 Connector on the LAN Port .................................................................... 47
Draft 9-23-14
List of Figures
10
Draft 9-23-14
11
Tables
Table 1. Components on the Rear Panel ....................................................................................................... 19
Table 2. Twisted Pair Cable for the LAN Port ................................................................................................. 22
Table 3. LEDs on the AT-TQ4600 Access Point ............................................................................................ 23
Table 4. AT-TQ4600 Physical Specifications ................................................................................................. 45
Table 5. Environmental Specifications ........................................................................................................... 45
Table 6. AT-TQ4600 Maximum Power Consumption ..................................................................................... 46
Table 7. AT-TQ0091 Power Adapter .............................................................................................................. 46
Table 8. LAN Port Specifications .................................................................................................................... 47
Table 9. MDI Pin Signals (10Base-T or 100Base-TX) .................................................................................... 47
Table 10. MDI-X Pin Signals (10Base-T or 100Base-TX) .............................................................................. 48
Table 11. 1000Base-T Connector Pinouts ..................................................................................................... 48
Table 12. Safety and Electromagnetic Emissions Certificates ....................................................................... 49
Draft 9-23-14
List of Tables
12
Draft 9-23-14
Preface
14
Safety Symbols Used in this Document
This document uses the following conventions.
Note
Notes provide additional information.
Caution
Cautions inform you that performing or omitting a specific action
may result in equipment damage or loss of data.
Warning
Warnings inform you that performing or omitting a specific action
may result in bodily injury.
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
15
Contacting Allied Telesis
If you need assistance with this product, you may contact Allied Telesis
technical support by going to the Support & Services section of the Allied
Telesis web site at www.alliedtelesis.com/support. You can find links for
the following services on this page:
24/7 Online Support — Enter our interactive support center to
search for answers to your product questions in our knowledge
database, check support tickets, learn about Return Merchandise
Authorizations (RMAs), and contact Allied Telesis technical
experts.
USA and EMEA phone support — Select the phone number that
best fits your location and customer type.
Hardware warranty information — Learn about Allied Telesis
warranties and register your product online.
Replacement Services — Submit an RMA request via our
interactive support center.
Documentation — View the most recent installation and user
guides, software release notes, white papers, and data sheets for
your products.
Software Downloads — Download the latest software releases for
your managed products.
For sales or corporate information, go to www.alliedtelesis.com/
purchase.
Draft 9-23-14
Preface
16
Draft 9-23-14
Chapter 1: Overview
18
Features
The main features of the product are listed here:
Dual radio: 2.4 GHz and 5 GHz
IEEE 802.11a/b/g/n/ac
3x3:3ss MIMO with internal omni antennas
Maximum capacity 2.4 GHz: 450 Mbps
Maximum capacity 5 GHz: 1300 Mbps
Wireless Distribution System (WDS) bridges
Access point clustering
Rogue access point detection
Multiple SSIDs
One 10/100/1000Base-T Ethernet port with Auto-Negotiation, auto
MDI/MDIX, and IEEE 802.3at Power over Ethernet (PoE)
IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), and IEEE
802.3ab (1000Base-T) compliance on the Ethernet port
MAC address filtering for wireless access security
Broadcast and multicast rate limiting
Virtual access points for multiple broadcast domains
DHCP client
RADIUS accounting with external RADIUS server
Network Time Protocol (NTP) client
Domain name server (DNS) client
IEEE 802.1x authentication
WPA-Personal and WPA-Enterprise with WPA, WPA2, TKIP, and
CCMP (AES) authentication and encryption
Static WEP encryption
HTTP and HTTPS web browser management
SNMPv1 and v2c management
Quality of Service
Event log
Syslog client
Table, wall, or ceiling installation
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
19
Rear Panel Components
The rear panel components of the AT-TQ4600 Access Point are illustrated
in Figure 1.
Figure 1. Rear Panel Components
The components are listed in Table 1.
Table 1. Components on the Rear Panel
Field Description
Kensington Lock Lock to secure the access point. For
information, refer to “Kensington Lock” on
page 37.
Console Port The Console port is for manufacturing
purposes only.
Reset Button The Reset button returns the parameter
settings on the access point to their
default settings. For information, refer to
“Reset Button” on page 24.
LAN Port The LAN port connects the access point
to your wired network. It supports PoE. If
you connect the port to an Ethernet switch
that supports PoE, you do not have to use
the AC/DC adapter to power the device.
For information, refer to “LAN Port” on
page 21.
Reset
Button
Console
Port
Kensington
Lock
DC Power
Connector
LAN Port
Draft 9-23-14
Chapter 1: Overview
20
DC Power Connector This connector is for the AT-TQ0091
Power Adapter. The access point can be
powered with PoE on the LAN port or the
power adapter. The AT-TQ0091 Power
Adapter does not come with the access
point. It must be ordered separately from
Allied Telesis.
Table 1. Components on the Rear Panel (Continued)
Field Description
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
21
LAN Port
The LAN port is used to connect the device to your Local Area Network
(LAN), typically through an Ethernet switch.
Power over
Ethernet
The AT-TQ4600 Access Point supports Power over Ethernet (PoE) on the
LAN port. The unit is a PoE class 4 powered device with a maximum
power consumption of 16 watts. When the port is connected to a PoE
Ethernet switch, the unit receives its power over the network cable that
carries the network traffic. If you use the PoE feature, you do not need to
use the AC/DC power adapter that has to be purchased separately.
Connector Type The LAN port has an 8-pin RJ-45 connector. The port uses four pins at 10
or 100 Mbps and all eight pins at 1000 Mbps. The pin assignments are
listed in “LAN Port” on page 47.
Speed The LAN port can operate at 10, 100, or 1000 Mbps. The speed is set
automatically with Auto-Negotiation. You cannot disable Auto-Negotiation
on the port.
Note
The LAN port should be connected to a network device that also
adjusts its speed with Auto-Negotiation. If the network device does
not support Auto-Negotiation, the LAN port operates at 10 Mbps,
which may reduce network performance.
Duplex Mode The LAN port can operate in either half- or full-duplex mode at 10 or 100
Mbps, and full-duplex mode at 1000 Mbps. The port is IEEE 802.3u-
compliant and uses Auto-Negotiation to set the duplex mode. (You cannot
disable Auto-Negotiation on the port.)
Note
The LAN port should be connected to a network device that also
sets its duplex mode with Auto-Negotiation. If the network device
does not support Auto-Negotiation, the LAN port operates at half-
duplex mode. This may result in a duplex mode mismatch if the
network device is operating at full duplex.
Maximum
Distance
The LAN port has a maximum operating distance of 100 meters (328 feet).
Cable
Requirements
The cable requirements for the LAN port are listed in Table 2 on page 22.
Draft 9-23-14
Chapter 1: Overview
22
Automatic MDIX
Detection
The 10/100/1000 Mbps twisted-pair port is IEEE 802.3ab compliant and
features automatic MDIX detection when operating at 10 or 100 Mbps.
(Automatic MDIX detection does not apply to 1000 Mbps.) This feature
automatically configures the port to MDI or MDI-X depending on the wiring
configuration of the port on the Ethernet switch.
You may not disable automatic MDIX detection. For automatic MDIX
detection to work properly, it must also be present on the Ethernet switch.
The LAN port defaults to MDIX if it is connected to a network device that
does not support automatic MDIX detection.
Port Pinouts Refer to Table 9 on page 47 for the port pinouts of the LAN port when it is
operating at 10 or 100 Mbps in the MDI configuration and Table 10 on
page 48 for the MDI-X configuration. Refer to Table 11 on page 48 for the
port pinouts when the port is operating at 1000 Mbps.
Table 2. Twisted Pair Cable for the LAN Port
Cable Type
10Mbps 100Mbps 1000Mbps
Non-
PoE PoE Non-
PoE PoE Non-
PoE PoE
Standard TIA/EIA 568-
B-compliant Category 3
shielded or unshielded
cabling with 100 ohm
impedance and 16 MHz
frequency.
YesNoNoNoNoNo
Standard TIA/EIA 568-
A-compliant Category 5
shielded or unshielded
cabling with 100 ohm
impedance and 100
MHz frequency.
Yes Yes Yes Yes No No
Standard TIA/EIA 568-
B-compliant Enhanced
Category 5 (Cat 5e)
shielded or unshielded
cabling with 100 ohm
impedance and 100
MHz frequency.
Yes Yes Yes Yes Yes Yes
Standard TIA/EIA 568-
B-compliant Category 6
or 6a shielded cabling.
Yes Yes Yes Yes Yes Yes
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
23
LEDs
The LEDs on the AT-TQ4600 Access Point are described in Table 3.
Note
You may turn off the LEDs with the management software.
Table 3. LEDs on the AT-TQ4600 Access Point
LED State Description
PWR Solid Green The unit is receiving DC power that is
within the normal operating range.
Off The power supply is not receiving power
from either the AC/DC power adapter or a
PoE Ethernet switch.
SYS Solid Amber The access point is loading its firmware or
there is a system fault.
Off The unit is operating normally.
LAN Solid Green The Ethernet port is operating at 1000
Mbps.
Flashing
Green
The Ethernet port is operating at 1000
Mbps with link activity.
Solid Amber The Ethernet port is operating at 10/100
Mbps.
Flashing
Amber
The Ethernet port is operating at 10/100
Mbps with link activity.
2.4GHz Solid Green The 2.4GHz radio is sending and receiving
radio waves.
5GHz Solid Green The 5GHz radio is sending and receiving
radio waves.
Draft 9-23-14
Chapter 1: Overview
24
Reset Button
The Reset button on the rear panel is used to return the parameter
settings of the unit to their default values. You might use the button if you
want to discard the current configuration of the device or because you
forgot the password to the manager account and cannot manage the unit.
You may disable the button using the management software. If the unit is
installed in a non-secure area, you might want to disable the button to
prevent unauthorized individuals from pressing it and potentially disrupting
the operations of your wireless network.
The Reset button is recessed to prevent it from being accidentally
pressed. To press the button, use a pointed object, such as the end of a
straightened paper clip. Hold the button for five seconds and release. The
access point resets and loads its default configuration in a process that
takes one minute to complete. In its default configuration, the access point
attempts to contact a DHCP server from its LAN port for its IP address
configuration. If it receives a response, it configures its IP address
according to the settings from the DHCP server. If it does not receive a
response, it uses the default address 192.168.1.230 and subnet mask
255.255.255.0. For instructions on how to start a management session
when the access point is at its default configuration, refer to “Starting the
Initial Management Session on the Access Point” on page 38.
Draft 9-23-14
25
Chapter 2
Installing the Access Point
This chapter describes how to install the AT-TQ4600 Wireless Access
Point. This chapter contains the following sections:
“Reviewing Safety Precautions” on page 26
“Unpacking the AT-TQ4600 Access Point” on page 28
“Installing the Access Point on a Table” on page 29
“Installing the Access Point on a Wall or Ceiling” on page 33
“Kensington Lock” on page 37
“Starting the Initial Management Session on the Access Point” on
page 38
“Setting the Country Setting” on page 42
Note
The non-US model of this product has a country code setting that
must be set during the initial management session of the unit. The
setting ensures that the unit operates in compliance with the laws
and regulations of your country or region.
For the US model, the country code is preset and cannot be
changed. Per FCC regulations, the country code setting for all WiFi
products marketed in the US must be fixed to US operational
channels only.
Draft 9-23-14
Chapter 2: Installing the Access Point
26
Reviewing Safety Precautions
Please review the following safety precautions before you begin to install
the access point.
Note
The indicates that a translation of the safety statement is
available in a PDF document titled “Translated Safety Statements”
on the Allied Telesis website at http://www.alliedtelesis.com/
support.
Warning
To prevent electric shock, do not remove the cover. No user-
serviceable parts inside. This unit contains hazardous voltages and
should only be opened by a trained and qualified technician. To
avoid the possibility of electric shock, disconnect electric power to
the product before connecting or disconnecting the LAN cables.
E1
Warning
Do not work on equipment or cables during periods of lightning
activity. E2
Warning
Power cord is used as a disconnection device. To de-energize
equipment, disconnect the power cord. E3
Note
Pluggable Equipment. The socket outlet shall be installed near the
equipment and shall be easily accessible. E5
Caution
Air vents must not be blocked and must have free access to the
room ambient air for cooling. E6
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
27
Warning
Operating Temperature. This product is designed for a maximum
ambient temperature of 40°C with the AC/DC adapter or with Power
over Ethernet.
Warning
To reduce the risk of electric shock, the PoE port on this product
must not connect to cabling that is routed outside the building where
this device is located. E40
Warning
This equipment is intended for indoor use only.
Note
All Countries: Install product in accordance with local and National
Electrical Codes. E8
Note
This product is not approved for use in a computer room as defined
in the Standard for Protection of Electronic Computer/Data
Processing Equipment, ANSI/NFPA 75.
Note
If you are not using PoE to power to the unit, use only an approved
AC/DC adapter.
Note
You should verify that your PoE network adheres to the standards of
a separated extra-low voltage (SELV) circuit before using the PoE
feature on the wireless access point.
Draft 9-23-14
Chapter 2: Installing the Access Point
28
Unpacking the AT-TQ4600 Access Point
As you unpack the access point, check the shipping container for the
components the following items:
One AT-TQ4600 Wireless Access Point
One AT-TQ4600 Wireless Access Point Quick Install Guide
Four rubber feet with one mounting-bracket screw
One bracket for wall or ceiling mounting
If any item is missing or damaged, contact your Allied Telesis sales
representative for assistance.
If you are not using the PoE feature on the LAN port of the access point to
power the device, you need to separately order the AT-TQ0091 AC/DC
Power Adapter. The adapter comes with four regional AC plugs. (One of
the AC plugs comes pre-installed on the adapter.) Refer to Figure 2.
Figure 2. AT-TQ0091 AC/DC Power Adapter
Do one of the following:
To install the unit on a table, go to “Installing the Access Point on a
Table” on page 29.
To install the unit on a wall or ceiling, go to “Installing the Access
Point on a Wall or Ceiling” on page 33.
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
29
Installing the Access Point on a Table
To install the access point on a table, perform the following procedure:
1. Place the access point upside down on the table or desk selected for
the device.
2. Install the rubber feet that come with the wireless access point by
adhering the feet to the bottom panel. See Figure 3.
Figure 3. Installing the Rubber Feet
3. Turn the access point right side up on the table.
4. Connect a network cable to the LAN port (labeled WAN/PoE) on the
rear panel of the access point. Refer to Figure 4 on page 30. The
specifications of the cable are listed in Table 2 on page 22.
Draft 9-23-14
Chapter 2: Installing the Access Point
30
Figure 4. Connecting the Network Cable for Table or Desktop Installation
5. If you have not already done so, connect the other end of the network
cable to a port on an Ethernet switch.
6. Do one of the following:
If the access point is to be powered with the AT-TQ0091 AC/DC
Power Adapter, continue with this procedure to attach the power
adapter.
If the access point is to be powered with the PoE feature on the
LAN Port, the installation procedure is complete. Go to
“Kensington Lock” on page 37 or “Starting the Initial Management
Session on the Access Point” on page 38.
7. Connect the DC power cable from the AT-TQ0091 AC/DC Power
Adapter to the DC 12V connector on the rear panel of the access
point. Refer to Figure 5 on page 31.
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
31
Figure 5. Connecting the Power Cable from the AT-TQ0091 AC/DC
Adapter
8. Check the AC plug on the AC/DC Power Adapter to see if it is the
correct plug for your region. If it is not the correct plug, remove it by
pushing down on the release tab and sliding it from the slot on the
adapter. Refer to Figure 6.
Figure 6. Removing an AC Plug from the AT-TQ0091 AC/DC Power
Adapter
9. Slide the correct AC plug for your region into the slot on the adapter
until it clicks into place. Refer to Figure 7 on page 32.
Release Tab
Draft 9-23-14
Chapter 2: Installing the Access Point
32
Figure 7. Installing an AC Plug on the AT-TQ0091 AC/DC Power Adapter
10. Connect the AC plug on the power cord to an appropriate AC power
source. Refer to Table 7 on page 46 for the power specifications of the
power adapter.
After installing the access point on the table or desk, go to “Kensington
Lock” on page 37 or “Starting the Initial Management Session on the
Access Point” on page 38.
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
33
Installing the Access Point on a Wall or Ceiling
This procedure contains the following sections.
“Guidelines” on page 33
“Attaching the Mounting Bracket to the Access Point” on page 34
“Installing the Access Point to a Wall or Ceiling” on page 35
“Cabling the Access Point” on page 36
Guidelines Please review the following guidelines before installing the access point on
a wall or ceiling:
The selected location must not block the ventilation slots around
the base of the unit. Refer to Figure 8.
Figure 8. Ventilation Slots
You should verify that the wall or ceiling material is strong enough
to support the weight of the access point.
One mounting-bracket screw is provided for attaching the
mounting bracket to the unit. You must provide the two equipment
rack screws that secure the bracket (through the bracket ears) to
the wall or ceiling.
The location must have an AC power source if you are using the
AT-TQ0091 Power Adapter.
Ventilation Slots
Draft 9-23-14
Chapter 2: Installing the Access Point
34
Attaching the
Mounting
Bracket to the
Access Point
To attach the mounting bracket to the access point, perform the following:
1. Insert the mounting bracket under the clips on the bottom of the
access point to lock the bracket in place, as shown in Figure 9.
Figure 9. Inserting the Mounting Bracket
2. Attach the mounting-bracket screw through the cut-out in the mounting
bracket to the bottom of the access point, as shown in Figure 10 on
page 35.
Mounting
Bracket
Access Point
Mounting
Clips
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
35
Figure 10. Attaching the Mounting-Bracket Screw
Installing the
Access Point to a
Wall or Ceiling
To attach the access point and mounting bracket to a wall or ceiling,
perform the following:
Note
If you are using wall anchors, start with Step 1. If you are not using
wall anchors, start with Step 4.
1. To install wall anchors, hold the access point at the selected wall or
ceiling location, and with a pencil or pen, mark the locations of the two
screw holes that are to be used to secure the access point through the
two ears of the mounting bracket.
2. If necessary, pre-drill the holes for the anchors.
3. Install the wall anchors.
4. Have someone hold the bottom of the access point against the
selected wall or ceiling location while you secure it to the wall or ceiling
with two self-tapping screws (not provided with the access point).
Mounting-Bracket Screw
Draft 9-23-14
Chapter 2: Installing the Access Point
36
Cabling the
Access Point
To install cabling on the access point, perform the following:
1. If the access point is to be powered with the AT-TQ0091 Power
Adapter, connect the DC cable from the adapter to the DC 12V port on
the access point. Refer to Figure 5 on page 31.
2. If you have not already done so, connect the network cable from the
wireless access point to a port on an Ethernet switch.
3. Do one of the following:
If the access point is using PoE, the installation is complete. Go to
“Kensington Lock” on page 37 or “Starting the Initial Management
Session on the Access Point” on page 38.
If the access point is using the AT-TQ0091 AC/DC Power Adapter,
perform the rest of this procedure to check and, if necessary,
change the AC plug on the adapter.
4. Check the AC plug on the AT-TQ0091 AC/DC Power Adapter to see if
it is the correct plug for your region. If it is not the correct plug, remove
it by pushing down on the release tab and sliding it from the slot on the
adapter. Refer to Figure 6 on page 31.
5. Slide the correct plug for your region into the slot on the adapter until it
clicks into place. Refer to Figure 7 on page 32.
6. Connect the adapter to an appropriate AC power source. Refer to
Table 7 on page 46 for the power specifications of the power adapter.
After installing the access point on a wall or ceiling, go to “Kensington
Lock” on page 37 or “Starting the Initial Management Session on the
Access Point” on page 38.
Draft 9-23-14
Chapter 2: Installing the Access Point
38
Starting the Initial Management Session on the Access Point
When you power on the access point for the first time, it queries the
subnet on the LAN port for a DHCP server. If a DHCP server responds to
its query, the unit uses the IP address the server assigns to it. If there is no
DHCP server, the access point uses the default IP address
192.168.1.230.
There are a several ways to start the initial management session on the
access point. One way is to establish a direct connection between your
computer and the unit by connecting an Ethernet cable to the Ethernet
port on the computer and the LAN port on the access point. This
procedure requires changing the IP address on your computer to make it a
member of the same subnet as the default IP address on the access point.
You might perform this procedure if your network does not have a DHCP
server and you want to configure the access point before connecting it to
your network.
The initial management session may also be performed while the device is
connected to your network. However, If your network does not have a
DHCP server, you still have to change the IP address of your computer to
match the subnet of the default address of the access point. Furthermore,
if your network is divided into virtual LANs (VLANs), you have to be sure to
connect the access point and your computer to ports on an Ethernet
switch that are members of the same VLAN.
If your network has a DHCP server, use the IP address the server assigns
it to start the management session.
The instructions for starting the initial management session are found in
the following sections:
“Starting the Initial Management Session with a Direct Connection” on
page 39
“Starting the Initial Management Session without a DHCP Server” on
page 40
“Starting the Initial Management Session with a DHCP Server” on
page 40
Note
The initial management session of the access point has to be
conducted through the LAN port because the default setting for the
radios is off.
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
39
Starting the
Initial
Management
Session with a
Direct
Connection
To start the management session with a direct Ethernet connection
between your computer and the access point, perform the following
procedure:
Note
If the unit is using PoE for power, and you did not order an AC/DC
adapter with the unit, you cannot perform this procedure because it
requires removing the network cable from the LAN port. Instead,
perform one of the other procedures in this section to start the initial
management session.
1. Connect one end of a network cable to the LAN port on the access
point and the other end to the Ethernet network port on your computer.
(This requires removing the network cable that you connected to the
LAN port earlier in these instructions.)
2. Change the IP address on your computer to 192.168.1.n, where n is a
number from 1 to 254, but not 230. Refer to the documentation that
accompanies your computer for instructions on how to set the IP
address.
3. Set the subnet mask on your computer to 255.255.255.0.
4. Power on the access point.
5. Start the web browser on your computer.
6. Enter the IP address 192.168.1.230 in the URL field of the browser.
You should now see the logon window, shown in Figure 12.
Figure 12. Logon Window
7. Enter “manager” for the username and “friend” for the password. The
username and password are case-sensitive.
Draft 9-23-14
Chapter 2: Installing the Access Point
40
Starting the
Initial
Management
Session without a
DHCP Server
This procedure explains how to start the initial management session on
the access point when the LAN port is connected to an Ethernet switch on
a network that does not have a DHCP server. To start the management
session, perform the following procedure:
1. If your network has VLANs, check to be sure that your computer and
the access point are connected to ports on the Ethernet switch that are
members of the same VLAN. This might require accessing the
management software on the switch and listing the VLANs and their
port assignments. For example, if the access point is connected to a
port that is a member of the Sales VLAN, your computer must be
connected to a port that is also a member of that VLAN. If your
network is small and does not have VLANs or routers, you may
connect your computer to any port on the Ethernet switch.
2. Change the IP address on your computer to 192.168.1.n, where n is a
number from 1 to 254, but not 230. Refer to the documentation that
accompanies your computer for instructions on how to set the IP
address.
3. Set the subnet mask on your computer to 255.255.255.0.
4. Power on the access point.
5. Start the web browser on your computer.
6. Enter the IP address 192.168.1.230 in the URL field of the browser.
You should now see the logon window, shown in Figure 12 on page 39.
7. Enter “manager” for the username and “friend” for the password. The
username and password are case-sensitive.
Starting the
Initial
Management
Session with a
DHCP Server
This procedure explains how to start the initial management session on
the access point when the LAN port is connected to a network that has a
DHCP server. This procedure assumes that you have already configured
the DHCP server to assign the access point all the necessary
configuration information (for example, IP address and default gateway)
for your network. To start the management session, perform the following
procedure:
1. Power on the access point.
2. Start the web browser on your computer.
3. Enter the IP address of the access point in the URL field of the
browser. This is the IP address assigned to the unit by the DHCP
server. If you do not know the address, refer to the DHCP server.
4. You should now see the logon window in Figure 12 on page 39.
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
41
5. Enter “manager” for the username and “friend” for the password. The
username and password are case-sensitive.
Draft 9-23-14
Chapter 2: Installing the Access Point
42
Setting the Country Setting
You should set the country setting during the initial management session
of the access point to ensure that the device operates in compliance with
the codes and regulations of your region or country.
Note
The non-US model of this product has a country code setting that
must be set during the initial management session of the unit. The
setting ensures that the unit operates in compliance with the laws
and regulations of your country or region.
For the US model, the country code is preset and cannot be
changed. Per FCC regulations, the country code setting for all WiFi
products marketed in the US must be fixed to US operational
channels only.
To set the country setting, perform the following procedure:
1. Select Wireless Settings from the Manage menu.
The access point displays the Modify wireless settings window, shown
in Figure 13.
Figure 13. Modify Wireless Settings Window
2. Select the Country pull-down menu and select your country or region.
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
43
Note
If the Country pull-down menu is deactivated and cannot be
changed, the country parameter was set when the unit was
manufactured. If the setting is not correct for your country or region,
contact your Allied Telesis sales representative for assistance.
The access point displays a confirmation prompt.
3. Click OK to change the country setting or Cancel to cancel the
procedure.
If you click OK, the access point changes the country setting and
disables both radios on the access point.
This procedure does not require clicking the Update button.
You must now reboot the access point. The new country setting is not
active until the unit is rebooted. To reboot the unit, either power off and
on the unit or continue with these steps:
4. From the Maintenance menu, select Configuration.
5. Click the Reboot button in the To Reboot the Access Point section of
the “Manage the Access Point’s Configuration” window.
6. When the access point displays a confirmation prompt, click OK to
reboot the unit or Cancel to cancel the procedure.
7. To resume managing the unit, wait for it to complete initializing its
management software and then start a new management session.
For more instructions on how to configure the features of the access
point, refer to the AT-TQ4600 Wireless Access Point User’s Guide.
Draft 9-23-14
Chapter 2: Installing the Access Point
44
Draft 9-23-14
45
Appendix A
Technical Specifications
This appendix contains the following sections:
“Physical Specifications” on page 45
“Environmental Specifications” on page 45
“Power Specifications” on page 46
“LAN Port” on page 47
“Safety and Electromagnetic Emissions Certifications” on page 49
Physical Specifications
Environmental Specifications
Table 4. AT-TQ4600 Physical Specifications
Dimensions (W x D x H) 170.0 mm x 170.0 mm x 35.0 mm
(6.7 in. x 6.7 in. x 1.4 in.)
Weight 0.47 kg (1 lb.)
Table 5. Environmental Specifications
Operating Temperature of the
Access Point When Using PoE
0° C to 40° C (32° F to 104° F)
Operating Temperature of the
Access Point When Using the AC/
DC Adapter
0° C to 40° C (32° F to 104° F)
Storage Temperature -20° C to 60° C (-4° F to 140° F)
Operating Humidity 5% to 80% non-condensing
Storage Humidity 5% to 95% non-condensing
Draft 9-23-14
Appendix A: Technical Specifications
46
Power Specifications
Table 6. AT-TQ4600 Maximum Power Consumption
AT-TQ4600 16 watts
Table 7. AT-TQ0091 Power Adapter
Input Range 100~240 Vac
Input Frequency 47-63 Hz
Input Power Consumption (no load) <0.3W max.
Output Voltage +12 VDC
Output Current 2A max.
Manufacturer Elementech International Co., Ltd.
Model AU12412030
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
47
LAN Port
Figure 14 illustrates the pin layout of the LAN port.
Figure 14. Pin Layout for the RJ-45 Connector on the LAN Port
Table 9 lists the pin signals when the port is operating in the MDI
configuration at 10 or 100 Mbps.
Table 8. LAN Port Specifications
Connector RJ-45
Standards IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3ab (1000Base-T)
PoE standard IEEE 802.3at (class 4)
Table 9. MDI Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1TX+
2TX-
3RX+
6RX-
Draft 9-23-14
Appendix A: Technical Specifications
48
Table 10 lists the pin signals for the MDI-X configuration at 10 or 100
Mbps.
Table 11 lists the pin signals when the LAN port is operating at 1000
Mbps.
Table 10. MDI-X Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1RX+
2RX-
3TX+
6TX-
Table 11. 1000Base-T Connector Pinouts
Pin Pair Signal
1 1 TX and RX+
2 1 TX and RX-
3 2 TX and RX+
4 3 TX and RX+
5 3 TX and RX-
6 2 TX and RX-
7 4 TX and RX+
8 4 TX and RX-
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
49
Safety and Electromagnetic Emissions Certifications
Table 12. Safety and Electromagnetic Emissions Certificates
Standard
Compliance
RoHs compliant
European Union RoHS (Directive 2011/65/EU of
the European Parliament and of the Council of 8
June 2011 on the restriction of the use of certain
hazardous substances in electrical and electronic
equipment.)
Certificates CE
EAC
FCC/IC
KC
RCM
Wi-Fi CERTIFIED
Electromagnetic
Compatibility (EMC)
EN 301 489-1
EN 301 489-17
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
AS/NZS CISPR 22
FCC 47 CFR Part 15, Subpart B
ICES-003
Medical (EMC) EN 60601-1-2
Radio Equipment EN 300 328
EN 301 893
AS/NZS 4268
FCC 47 CFR Part 15, Subpart C
FCC 47 CFR Part 15, Subpart E
FCC part 2
RSS210
RSS-Gen
RSS-102
Draft 9-23-14
Appendix A: Technical Specifications
50
Safety EN 60950-1
IEC 60950-1
TUV-T
UL 60950-1
Table 12. Safety and Electromagnetic Emissions Certificates (Continued)
Draft 9-23-14
Appendix B: Regulatory Statements
52
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
The band from 5600-5650MHz will be disabled by the software during the
manufacturing and cannot be changed by the end user. This device meets
all the other requirements specified in Part 15E, Section 15.407 of the
FCC Rules.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
53
Country Code Selection (WiFi Devices)
Note
The non-US model of this product has a country code setting that
must be set during the initial management session of the unit. The
setting ensures that the unit operates in compliance with the laws
and regulations of your country or region.
For the US model, the country code is preset and cannot be
changed. Per FCC regulations, the country code setting for all WiFi
products marketed in the US must be fixed to US operational
channels only.
Draft 9-23-14
Appendix B: Regulatory Statements
54
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada
applicable aux appareils radio exempts de licence. Son fonctionnement
est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas
produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout
brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003
du Canada.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor
use to reduce the potential for harmful interference to co-channel mobile
satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-
5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and
(iii) the maximum antenna gain permitted for devices in the band 5725-
5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point
and non point-to-point operation as appropriate.
(iv) Users should also be advised that high-power radars are allocated as
primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-
5850 MHz and that these radars could cause interference and/or damage
to LE-LAN devices.
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des
instructions précises sur les restrictions susmentionnées, notamment:
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont
réservés uniquement pour une utilisation à l’intérieur afin de réduire les
risques de brouillage préjudiciable aux systèmes de satellites mobiles
utilisant les mêmes canaux;
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
55
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les
bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite
de p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la
bande 5 725-5 825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée
pour l’exploitation point à point et non point à point, selon le cas.
(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs
de radars de haute puissance sont désignés utilisateurs principaux (c.-à-
d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850
MHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LAN-EL.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements
IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source
de rayonnement et votre corps.
Draft 9-23-14
Appendix B: Regulatory Statements
56
Europe - EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE
Directive 1999/5/EC. The following test methods have been applied in
order to prove presumption of conformity with the essential requirements
of the R&TTE Directive 1999/5/EC:
EN60950-1
Safety of Information Technology Equipment
EN 300 328
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Wideband Transmission systems; Data transmission equipment
operating in the 2,4 GHz ISM band and using spread spectrum
modulation techniques; Harmonized EN covering essential
requirements under article 3.2 of the R&TTE Directive,
EN 301 893
Broadband Radio Access Networks (BRAN); 5 GHz high performance
RLAN; Harmonized EN covering essential requirements of article 3.2
of the R&TTE Directive
EN 301 489-1
Electromagnetic compatibility and Radio Spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment
and services; Part 1: Common technical requirements.
EN 301 489-17
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment
and services; Part 17: Specific conditions for 2,4 GHz wideband
transmission systems and 5 GHz high performance RLAN equipment
This device is a 5GHz wideband transmission system (transceiver),
intended for use in all EU member states and EFTA countries, except in
France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum
authorities in order to obtain authorization to use the device for setting up
outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France
and in some areas the RF output power may be limited to 10 mW EIRP in
the frequency range of 2454 - 2483.5 MHz. For detailed information the
end-user should contact the national spectrum authority in France.
Draft 9-23-14
AT-TQ4600 Wireless Access Point Installation Guide
57
Česky
[Czech]
Allied Telesis tímto prohlašuje, že tento wireless access
point je ve shodě se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede Allied Telesis erklærer herved, at
følgende udstyr wireless access point overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/
5/EF.
Deutsch
[German]
Hiermit erklärt Allied Telesis, dass sich das Gerät
wireless access point in Übereinstimmung mit den
grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG
befindet.
Eesti
[Estonian]
Käesolevaga kinnitab Allied Telesis seadme wireless
access point vastavust direktiivi 1999/5/EÜ põhinõuetele
ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English Hereby, Allied Telesis, declares that this wireless access
point is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente Allied Telesis declara que el
wireless access point cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables
o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Allied Telesis ∆ΗΛΩΝΕΙ ΟΤΙ
wireless access point ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Allied Telesis déclare que l'appareil
wireless access point est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Italiano
[Italian]
Con la presente Allied Telesis dichiara che questo
wireless access point è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski
[Latvian]
Ar šo Allied Telesis deklarē, ka wireless access point
atbilst Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.
Draft 9-23-14
Appendix B: Regulatory Statements
58
Lietuvių
[Lithuanian]
Šiuo Allied Telesis deklaruoja, kad šis wireless access
point atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart Allied Telesis dat het toestel wireless
access point in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn
1999/5/EG.
Malti
[Maltese]
Hawnhekk, Allied Telesis, jiddikjara li dan wireless
access point jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Magyar
[Hungarian]
Alulírott, Allied Telesis nyilatkozom, hogy a wireless
access point megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb
elõírásainak.
Polski
[Polish]
Niniejszym Allied Telesis oświadcza, że wireless access
point jest zgodny z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami Dyrektywy
1999/5/EC.
Português
[Portuguese
]
Allied Telesis declara que este wireless access point
está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
Allied Telesis izjavlja, da je ta wireless access point v
skladu z bistvenimi zahtevami in ostalimi relevantnimi
določili direktive 1999/5/ES.
Slovensky
[Slovak]
Allied Telesis týmto vyhlasuje, že wireless access point
spĺňa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
Allied Telesis vakuuttaa täten että wireless access point
tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Svenska
[Swedish]
Härmed intygar Allied Telesis att denna wireless access
point står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.
Draft 9-23-14
