Ameri King AK-451 Personal Locator Beacon User Manual PRODUCT
Ameri King Corporation Personal Locator Beacon PRODUCT
Manual
1
Document No. IM-451 Rev. 4, Vol 2 dated 9/26/07
OPERATION MANUAL
FOR SATELLITE PERSONAL LOCATOR BEACON
Part No.: AK-451-PLB
Harsh/ Robust/ Heavy Duty PLB
with Long Lasting Batteries
24 hrs for 406.028 MHz
78 hrs for 121.5 MHz
78 hrs for 243.0 MHz
AMERI-KING CORPORATION
17881 Sampson Lane
Huntington Beach, CA 92648, USA
Phone (714) 842-8555
Fax (714) 842-4235
www.ameri-king.com
Email: ameriking9@aol.com
2
* * * WARNING * * *
THIS TRANSMITTER IS AUTHORIZED FOR USE ONLY DURING SITUATIONS OF GRAVE AND
IMMINENT DANGER
* * * DELIBERATE MISUSE MAY INCUR A SEVERE PENALTY * * *
PLEASE READ ALL INSTRUCTIONS BEFORE PERFORMING ANY OF THE TESTS
Congratulations and thank you for purchasing the Ameri-King AK-451-PLB Satellite Personal Locator Beacon.
The combination
of superior design, high quality raw materials and quality controlled manufacturing
produce a product that will perform for years
to come. This assures that the life saving devices can stand up to the rigors found in any environment on earth. With proper care and
maintenance, your will be in service for years to come.
The PLB is designed to exceed the requirements of RTCM Paper 76-2002/SC110-STD, FAA TSO-C126 and FAA TSO-C91a and the
mandatory automatic PLB requirements of FAR Part 91. The PLB meets the requirements of Canadian DOT Aviation Regulations
Section 3, Chapter 3, Part 2.
This manual provides operation and maintenance instructions for the Ameri-King AK-451-PLB, hereinafter referred to as the PLB. This
manual also describes the characteristics and details of the System.
Table of Contents
SECTION 1 - REGISTRATION OF 406 MHz PLBS ............................................................3
SECTION 2 - RESPONSIBLE USE..................................................................................4
SECTION 3 - FALSE ALARMS ......................................................................................5
SECTION 4 - OPERATION ............................................................................................5
SECTION 5 - CARE AND MAINTENANCE......................................................................9
SECTION 6 - THE SEARCH AND RESCUE SYSTEM ......................................................10
SECTION 7 - AUTHORIZATIONS ................................................................................11
SECTION 8 - TECHNICAL DATA - 406.........................................................................12
SECTION 9 - WARRANTY AND REPAIR SERVICE .....................................................13
3
SECTION 1 - REGISTRATION OF 406 MHz PLBS
1.1 Registration Importance
It is mandatory that the owner of this 406 MHz registers it with the National Authorities*. All 406 MHz PLBs transmit a Unique
Identifier Number (UIN) when activated. This UIN is programmed in the based on the country in which the PLB was purchased.
Registration provides the Search and Rescue (SAR) forces with emergency contact information, and will speed the launch of a rescue
operation. The National Authorities use the information to verify if an actual emergency exists.
Valuable Search and Rescue
resources are wasted every year responding to false alarms. For PLBs
that are not registered, SAR authorities will not know who
you are, or who to contact regarding
additional information of your current situation. This could delay the launch of a rescue operation.
*A National Authority is the governmental body that is responsible for Registration Database administration for the country for which
the PLB is programmed.
1.2 Where to register
The owner of a 406 MHz should register it with the National Authority of which the PLB was programmed, (typically the country
where purchased), regardless of where you use your PLB. Each is programmed with a UIN for the country where the unit is shipped,
and will only be accepted for registration in that country. To verify the country, for which a PLB is programmed, see the label with the
UIN on the back of the unit. Units that do not have a country specified on the UIN label are
programmed for the United States. For
a list of the national authorities in your area, please view
them at http://www.cospas-sarsat.com/Management/listOfParticipants.htm
1.3 Registration in the United States
It is the Owner’s responsibility and required by law to Register 406 MHz PLBs that are programmed for and purchased in the United
States. The National Authority that accepts registrations in the United States is the National Oceanic and Atmospheric Administration
(NOAA). The owner should

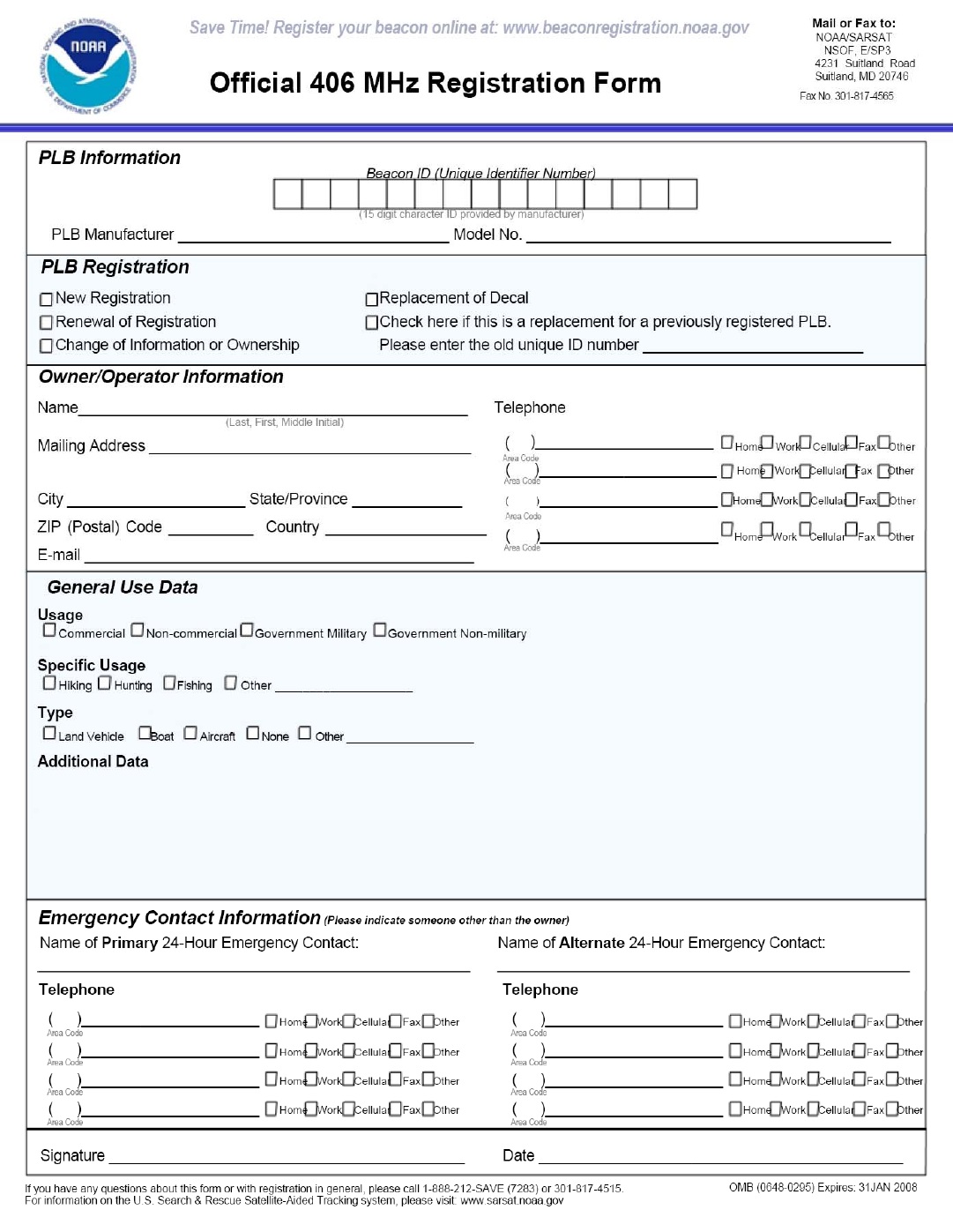

complete the enclosed registration form (Do not confuse this with the Ameri-King Corp. Electronics
Warranty
Card) and mail it with the pre-addressed; postage paid envelope to:
SARSAT Beacon Registration,
E/SP3, RM 3320, FB-4
NOAA/NESDIS
5200 Auth Rd.
Suitland, MD 20746-4304
PLB registration is also available online at: www.beaconregistration.noaa.gov
The information provided on the Registration Form is used only for rescue purposes. The Registration Form should be
filled out and mailed immediately. Registration can be expedited by
faxing the registration form or by completing the form online in
the event the PLB is to be placed in immediate use.
Typically, registration forms will be entered in the 406 MHz Registration Database within 48 hours of receipt. A confirmation
letter, a copy of the actual registration and a proof-of-registration
decal will be mailed to you within two weeks. When you receive
these documents, please check the information carefully and affix the decal to your PLB in the area marked “Place Beacon Decal Here”.
If you do not receive confirmation, contact NOAA for additional information at: +1-888-212-7283.
1.3.1 Registration in Canada
4
The National Authority in Canada is the NSS (National Search & Rescue Secretariat). Canadian
residents can register online at
http:beacons.nss.gc.ca. For more information please contact the NSS at (613) 966-1504 or (800) 727-9414.
National Search and Rescue Secretariat
400-275 Slater Street
Ottawa, Ontario K1A 0K2
1.4 Registration Outside of the United States and Canada
In countries other than the United States, 406 MHz PLBs are registered with that country’s National Authority at the time of Purchase.
The Sales agent should assist in filling out the forms and sending to that country’s National Authority. To verify that the unit is
properly programmed for that country,
view the UIN label on the side of the unit. In the event that this is not programmed for the
country in which it has been purchased, the sales agent, (if properly equipped) can reprogram the unit for that country.
1.5 Change of ownership or contact information
It is the owner’s responsibility to advise the National Authority of any change in the information on
the registration form. If the
current owner of the is transferring the to a new owner, the
current owner is required to inform the National Authority by Letter, Fax
or telephone, of the name
and address of the new owner. The new owner of the PLB is required to provide the National
Authority with all of the information requested on the Registration form. This obligation transfers to all subsequent owners.
Registration forms are available from NOAA, call +1(888) 212-7283 or visit our website at www.ameri-king.com
1.6 Lost PLB’s
Inform NOAA immediately at 1-888-212-SAVE (7283), or your national authority, that your PLB
has been lost. They will update
your registration information with the appropriate information.
1.7 Stolen PLB’s
Things That You Need To Do:
• Report to your local police department that the PLB has been stolen.
• Contact NOAA at 1-888-212-SAVE (7283), or your national authority, with the following
information so your registration
information can be updated with the appropriate remarks:
- Police Department Name
- Police Phone Number
- Police Case Number
If your was to activate, the information you provide will be forwarded to the appropriate Search and Rescue Authorities who will ensure
that your gets back to you. And, if someone attempts to register a reported as stolen, NOAA or your national authority will notify the
appropriate Police Department.
Visit the COSPAS-SARSAT website for more detailed information: www.cospas-sarsat.org
SECTION 2 - RESPONSIBLE USE
2.1
The Ameri-King AK-451-PLB should only be used in situations of grave and imminent danger!
What exactly does this mean? Technically speaking you should only activate your when all
other means of self rescue have been
exhausted. This means you have tried to use your cellular/satellite phone, signaling mirrors, strobe lights, or any other safety
device you may have.
When all else fails and you feel your situation has truly become extreme, ask yourself the following questions:
Am I in danger of losing life, limb, eye sight, or valuable property if I am not rescued soon? Am I in danger of not surviving the night or
upcoming hours if not rescued soon?
If you answer yes with confidence to these questions, it is time to activate your PLB.
5
The Ameri-King AK-451-PLB models are designed to be manually deployed and activated. It is
only to be activated when all other
means of self-rescue have been exhausted. Activation of the PLB
tells Search and Rescue who you are, where you are, and that
you are facing a life threatening
situation.
SECTION 3 - FALSE ALARMS
3.1 Preventing False Alarms
• Ensure that your PLB is registered with NOAA or your national authority. This does nothing to reduce false alarm rates, but
does have a dramatic effect on the impact of a false alarm. If the is properly registered, the situation will be resolved with a
phone call most of the time. It will also help speed rescue in an actual distress.
• Test your in accordance with the recommendations enclosed in this manual.
• Use care when leaving your and with whom you leave it with. Ensure that they are aware of
the device and know the
ramifications of causing a false alarm. A lot of false alarms are
generated by curious individuals.
•
Maintain your PLB. Ensure that the batteries are within their expiration date and that all
manufacturer recommendations
are followed.
Finally, realize that the COSPAS-SARSAT satellites are very good at what they do, detecting
emergency
PLBs. An activation of a 406 MHz for just a few seconds will usually be
detected. After a few minutes, it will usually
be detected and located. This is good if you're in
distress, but if you're not, you just generated a false alarm.
3.2 Should there be an inadvertent activation or false alarm, it must be reported to the nearest search and
rescue authorities. The
information that should be reported includes the Unique Identifier
Number (UIN), Date, Time, duration and cause of activation, as
well as location of at the time of activation. Outside the United States contact your National Authority.
3.3 To report false alarms in the United States contact any of the following:
Atlantic Ocean / Gulf of Mexico
USCG Atlantic Area Command Center Tel: (757) 398-6390
Pacific Ocean Area
USCG Atlantic Area Command Center Tel: (510) 437-3700
USCG HQ Command Center (From any location) Tel: (800) 323-7233
NOAA Tel: 1-888-212-SAVE (7283)
AFRCC Console Tel: 800-851-3051
(For official mission correspondence only)
SECTION 4 - OPERATION
4.1 GENERAL
This section describes the operation of the Satellite Personal Locator Beacon, model AK-451-(PLB).
The following types are applicable for the model AK-451:
The AK-451 is a "third generation PLB," transmitting on 406.028, 121.5 and 243.0 MHz. The PLB is designed to meet or exceed the
requirements of RTCM Paper 76-2002/SC110-STD, FAA TSO-C126 and TSO-C91a and the mandatory automatic PLB requirements
of FAR Part 91. The PLB meets the requirements of DOT Aviation Regulations, Section 3, Chapter 3, Part 2.
6
The PLB transmits the standard swept tone. The LED ON lights flashing, indicate when the PLB is activated. The ON switch allows
you to turn on the PLB manually.
The PLB unit is able to withstand extremely harsh environments. Units exactly like yours have been subjected to numerous 500 G
shock pulses; 1000 pounds crash weights and severe penetration tests, and continue to operate normally. Continued operation in a
temperature range of -20 degrees Celsius to +55 degrees Celsius is assured.
The AK-451-PLB supports the following protocols:
User Location Protocol (Long Message): This option is formed by coding bits 1 through 106 of the PLB as a User Protocol.
Standard Location Protocol (Long Message): This option uniquely identifies the PLB using a unique serial number allocated by either
the competent national authority or the beacon manufacturer accompanied with the Cospas-Sarsat beacon type approval certificate
number.
National Location Protocol (Long Message): This option uses a unique serial number allocated by the competent national authority to
uniquely identify the beacon.
Serial User Protocol (Non-location protocol) (Short Message): Coded with PLBs Unique Beacon Serial Number.
Note: PLB’s leave Ameri-King Corp. with Standard Location Protocol (Long Message), but can be reprogrammed at a
service center to other Protocol, including
nationality of registration.
The PLB may accept GPS/NAV position input by connecting the external GPS/NAV to the programming connector
4.2 OPERATION
The AK-451 PLB, Personal Locator Transmitter, is a state of the art Micro controller technology, long lasting, solid state based
equipment. It is an extremely reliable, highest standard of quality, designed to meet TSO-C126 and TSO-C91a requirements for
critical application.
Upon selected ON, it transmits the standard swept tone on 243/121.5 MHz lasting until battery power is gone, 78 hours approximately.
This 243/121.5 MHz signal is mainly used to pinpoint the beacon during search and rescue operations.
For the first 24 hours of operations, a 406 MHz signal is transmitted at 50-second intervals. This transmission lasts 520 ms and
contains identification data programmed into the beacon and is received by COSPAS-SARSAT satellites. The transmitted data is
referenced in a database (maintained by the national authority responsible for PLB registration) and used to identify the beacon and
owner.
Accuracy:
Doppler positioning is employed using both 121.5 MHz and 406 MHz signals. The Position accuracy of the 406 MHz signal is about
110 meters at 9.5 degree Cross Track Angle (found in Satellite Qualitative Test at a COSPAS-SARSAT approved Laboratory).
4.3 TRANSMITTER FUNTIONAL TEST
The PLB should be tested every month.
4.3.1 Switch ON / OFF / SELF TEST Operation:
The PLB has an "OFF" position. This allows the beacon to be handled or shipped without 'nuisance' activation. Care should be
taken when transporting or shipping the PLB not to move the switch or to allow packing material to become lodged such as to
toggle the switch.
7
Switch, alternate / alternate / momentary positions:
• "ON" Alternate position. Lift & flip the Switch to the ON position: PLB transmits immediately. ON LED light on the unit
flashes, 1 second ON, 4 seconds OFF.
• "OFF" Alternate position. Lift & flip the Switch to the ON position: The PLB is turned off.
• "SELF TEST" Momentary position. Lift & flip and hold the Switch to the SELF TEST position: PLB self-test is confirmed
after the switch is held for 25 seconds. If the self-test is passed, the ON LED light must be extinguished. The PLB system is fully
self-tested.
4.3.2 Transmitter Self-Test:
Lift & flip and hold the main switch, from the "OFF" position to the "SELF TEST" position. The ON LED light shall illuminate
for 4 seconds then extinguish. This is to allow coding programming during next 20 seconds window and self-test for 1 second
thereafter.
The PLB may be coding programming during the aforementioned 20 seconds window period. If no programming happened the
PLB will then enter the Self Test Mode for 1 second thereafter.
Self-test results after (4+20+1) =25 seconds, is:
If the self-test is passed, the LED is steadily extinguished.
If the self-test is failed, the LED flashes as shown below:
1 flash: Internal Data stored in Memory at fault.
2 flashes: Distress ID stored in Memory at fault.
3 flashes: Battery voltage is low < Useful Life Battery Voltage setting.
4 flashes: Vcc supplies for F3, F2, or F1 at fault.
5 flashes: F3 RF power level < 33 dbm @ 406.028 MHz
7 flashes: F1/F2 VHF RF power level < 17 dbm @ 121.5/243 MHz.
9 flashes: PLL locked in F3 or F1 or F2 at fault.
Continuous flash: no F3/F2/F1 RF output power, PLB shuts down completely.
NOTE:
The self-test mode that transmits a 406 MHz test code pulse monitors certain system functions before returning to the SELF TEST
mode. The 406 MHz test pulse is ignored by any satellite that receives the signal, but the PLB uses this output to check output power
and correct frequency.
• Self-test is 520 ms long message burst on the 406 MHz signal. Synchronization pattern is 011 010 000.
• Self-test is then 121/243 MHz (VHF) Continuous Wave during 1s.
The PLB may accept GPS/NAV position input by connecting the external GPS/NAV to the programming connector. The PLB
can be
reprogrammed at Ameri-King’s service center to other Protocol, including
nationality of registration.
Top Label
Figure: PLB complete assembly with antenna
Front label Back label
Front Label Back Label
Deliberate misuse may incur a severe penalty
Notice to the Public: Do not move if found. Report its
position to the proper authorities
DO NOT OPEN, TAMPER, INCINERATE OR
RECHARGE BATTERIES
Compass safe distance 1m (3.3 ft)
Warranty void if opened
This satellite PLB will NOT float
PLACE BEACON DECAL HERE
USA: PLB owner must register with NOAA the
identification code contained on this product: SARSAT
Beacon Registration NOAA SARSAT Beacon
Registration: NSOF, E/SP3, 4231 Suitland Road, Suitland
MD 20746 or at www.beaconregistration.noaa.gov
Outside USA: register with your national authority
BEACON REGISTRATION IS MANDATORY
To Activate: Lift & flip the switch to the “ON” position
Verify: The red “ON” light flashes 1 sec on, 4 sec off
Self Test: Lift & flip and Hold the switch to the
“SELF TEST” position and wait for 25 sec
Verify: The red “ON” light must illuminate for 4 sec
then extinguishes. Wait for an additional 21 sec.
Pass: The red “ON” light must remain extinguished
Fail: The red “ON” light flashes. Please see
Operation Manual for detail fault code analysis
PLB PERSONAL LOCATOR BEACON
Operation: 24 hrs @ -20o C to +55o C (-4o F to +131o F)
Stowage: -30o C to +70o C (-40o F to +158o F)
FCC: L79AK-451
IC:
Replace batteries after use
or by date shown:
*Batter
y
t
yp
e: Lithium LiMn02
*** WARNING ***
USE ONLY DURING
SITUATIONS OF
GRAVE AND
IMMINENT DANGER!
8
Name Plate
SECTION 5 - CARE AND MAINTENANCE
5.1 Carefully inspect the case and gasket for any visible cracks. Cracks may admit moisture, which
could cause a malfunction.
In the event of any cracking or structural damage, the PLB should be
immediately sent to Ameri-King Corp. for evaluation and repairs.
5.2
Do Not clean your with household cleaners and hydrocarbon materials such as gasoline,
benzene, bleach, sanitizers,
soaps, etc., simply wipe your down with a damp cloth until clean.
5.3 Battery Replacement
Power is provided by self contained long life batteries with a five-year recommended replacement
cycle. See Factory Authorized
Service Center for replacement.
The battery Package must be replaced by the date indicated on the PLB. At each inspection,
check the time remaining until
replacement is required. Batteries should be replaced if the has been activated for any use other than the self test.
Batteries should be replaced at an Authorized Battery Replacement Center for the warranty to remain in effect (if the 5 year warranty
has not expired). Services include: replacement of battery packs and
disposal of expired lithium batteries, gasket and O-ring
examination and replacement if necessary,
lubricated gaskets and O-ring, air pressure test to ensure water tight integrity, and a full
electronics diagnostic check.
NOTE: This unit is a life saving device and all repairs and replacements need to be made by Ameri-King Corp. or
an authorized
Ameri-King Corp. battery replacement center to ensure the beacon will perform properly when
called upon. Batteries can be
replace in the field if necessary (replacing your own batteries will void
your warranty, contact Ameri-King Corp. for a replacement
battery dealer nearest you),
however it is highly recommended to have your beacon serviced once you have returned from the
field
to ensure the integrity of the beacon has not been compromised.
For the nearest location of an authorized Ameri-King Corp. service center, call 1-714-842-8555
or visit our website at www.ameri-king.com
5.4 The Ameri-King AK-451-PLB contains 1 lithium battery pack.
5.5 Battery Disposal
Please dispose of Lithium batteries in accordance with local waste disposal regulations
AMERI-KING CORP. MADE IN U.S.A.
17881 Sampson Lane
Huntington Beach, CA 92648, USA
PLB PERSONAL LOCATOR BEACON
Model AK-451-( ) Series, Type: PLB
Part No.: AK-451-(PLB)
FCC ID: L79AK-451
FREQ: 406.028 / 121.5 / 243.0 MHz
PERP. 50 mW for 50 HRS (121.5 & 243.0) MHz
PEIRP: (25-100) mW for 48 HRS (121.5 & 243.0) MHz
PERP: 5 W EIRP: 6dBW for 24 HRS (406.028 MHz)
Software Version A
Serial No.:
15-DIGIT HEX ID:
COUNTRY
(3-DIGIT CODE):
9
10
SECTION 6 - THE SEARCH AND RESCUE SYSTEM
6.1 General Overview
The Ameri-King AK-451-PLB provides distress alerting via radio transmission on 406 MHz to
satellites of the COSPAS-SARSAT
network and to the GEOSAR network that includes GPS latitude and longitude coordinates when GPS data is present.
The message transmitted by the Ameri-King AK-451-PLB is unique for each PLB, which provides
identification of the
transmitter through computer access of registration files maintained by the
National Oceanic and Atmospheric Administration or
other National Authority. Remember, if your PLB
is not registered, Search and Rescue (SAR) Authorities do not know who you are,
or how to
contact anyone who might know anything about your situation (Refer to section1).
Once the Ameri-King AK-451-PLB signal (406 MHz) is relayed through the LEOSAR and/or GEOSAR
network, SAR forces
determine who is closest, and then track the signal using the 121.5 MHz homing
frequency for intermediate and short-range location.
6.2 Satellite Detection
6.2.1 The Ameri-King AK-451-PLB transmits an encoded phase modulated radio signal to the satellite portion
of the COSPAS-
SARSAT System. The system was developed and implemented by the COSPAS-
SARSAT Partners (Russian Federation, Canada,
France and the United States).
6.2.2
COSPAS-SARSAT is an international system that uses Russian Federation and United States low
altitude, near-polar
orbiting satellites
(LEOSAR) that assist in detecting and locating activated
121.5/243 MHz PLBs and 406 MHz Satellite PLBs.
6.2.3
COSPAS and SARSAT satellites receive distress signals from satellite PLBs transmitting on the
frequency of 406 MHz.
The COSPAS-SARSAT 406 MHz signal consists of a transmission of
non-modulated carriers followed by a digital message
format that provides identification data. The
406 MHz system uses Satellite-borne equipment to measure and store the Doppler-
shifted frequency along with the digital data message and time of measurement. This information is transmitted in real time to an
earth station called the Local User Terminal (LUT), which may be within the view of the satellite, as well as being stored for later
transmission to other LUTs.
6.2.4 The LUT processes the Doppler-shifted signal from the LEOSAR and determines the location of the PLB; then the LUT
relays the position of the distress to a Mission Control Center (MCC) where the
distress alert and location information is
immediately forwarded to an appropriate Rescue
Coordination Center (RCC). The RCC dispatches Search and Rescue (SAR)
forces.
6.2.5 The COSPAS-SARSAT System includes 39 LEOSAR LUT stations, 9 GEOSAR LUT stations and
over 19 Mission
Control Centers that provide real-time as well as global-mode coverage for the
Northern Hemisphere, while the Southern
Hemisphere is presently served primarily by the global
mode. Additional LUTs and MCCs are planned for installation in the near
future both in the northern and southern hemispheres.
The addition of the GEOSAR Satellite system greatly improves the reaction time for a SAR event.
This satellite system has no
Doppler capabilities at 406 MHz, but will relay the distress alert to any of the LUT stations.
6.2.6 Because most of the search and rescue forces presently are not equipped to home in on the 406 MHz Satellite signal, homing
must be accomplished at 121.5 MHz and 243.0 MHz
11

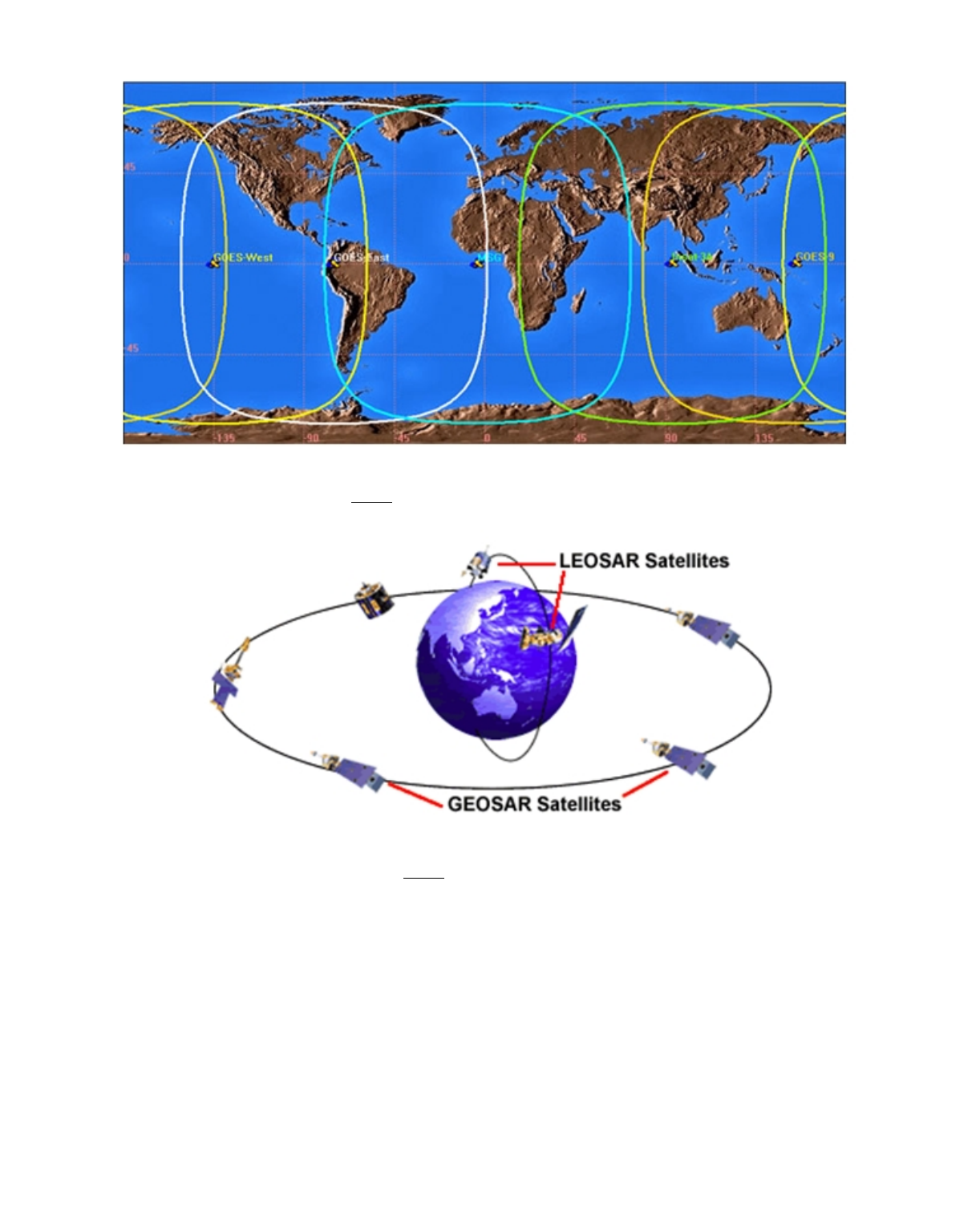

Figure GEOSAR SATELLITE COVERAGE
Figure SATELLITE ORBIT
SECTION 7 - AUTHORIZATIONS
7.1
The Ameri-King AK-451-PLB meets the requirements of Federal Communications Commission
(FCC) Part 95 Subpart K,
European R&TTE Directive.
7.2 Characteristics
The Ameri-King AK-451-PLB is a non-buoyant, battery operated Personal Locator Beacon. The
case, with its external antenna, is
waterproof. The semiconductor circuits are mounted within the
case assembly which also contains the battery power supply.
An ON / OFF / SELF TEST switch and an LED “ON” light on the case,
1
SECTION 8 - TECHNICAL DATA - 406
8.1 Applicable Documents
NSS PLB01-01 Standard for 406 MHz Satellite PLB’s Canada
COSPAS-SARSAT Document C/S T.001 & T.007 (spec for 406 MHz distress beacons)
RSS 187 Radio standards Specifications for Emergency Position Indicating Radio
Beacons, Emergency Locator Transmitter, and Personal Locator Beacon
FCC Part 95, Subpart K
ETSI 302152/1 version 2003
8.2 Specifications RTCM Paper 76-2002/SC110-STD
406 MHz Transmitter (16K0G1D), G1D Emission
Frequency 406.028 MHz
Frequency Stability ±1 parts per billion/100ms
Output Power 5 watts
Digital Message
Format
Long message / serialized
Message protocol Standard / National / User Location
Duration 520 ms
Rate 400 bps
Encoding Biphase L
Modulation ±1.1 radians peak
PLB’s leave Ameri-King Corp. with Standard Location Protocol but can be reprogrammed at a service center to other
Protocol, including
nationality of registration.
121.5 MHz Transmitter
Frequency 121.5 / 243.0 MHz
Frequency Tolerance ±50 ppm
Output Power 19.5 dbm
Modulation
Type AM
Sweep Range 400 to 1200 Hz
Sweep Rate 3 Hz
Duty Cycle 40.0%
Morse P AM (2K00A2A)
Antenna
Frequency 406.028, 121.5, and 243.0 MHz
Polarization Vertical
VSWR Less than 1.5/1
General/Environmental
Battery Life
Operating Class II 24 hours @ -20°C for 406.028 MHz
78 hours @ -20 deg C for 121.5 MHz
78 hours @ -20 deg C for 243.0 MHz
Replacement Interval 5 years or after use in an emergency
Size
PLB less Antenna 3.0" x 3.0" x 5.9"
Material High impact and UV resistant plastic
Color International Orange
Weight 14 oz (397 grams) - excluding antenna
Waterproof TSO C-126
Temperature Range
Operating Class II -20°C to +55°C (-4°F to +131°F)
Storage Class II -30°C to +70°C (-40°F to +158°F)
13
SECTION 9 - WARRANTY AND REPAIR SERVICE
9.1 LIMITED WARRANTY
• All equipments manufactured by Ameri-King Corp. are guaranteed against defective materials and workmanship for a period
of two years.
• Any equipment found to be defective due to material and workmanship during this limited warranty will be repaired and put
in original manufactured operating condition.
• An option of extended third and fourth year limited warranty becomes valid at the end of this second year, which will warrant
to the original owner.
• This Ameri-King Corp. warranty is void unless the Warranty Registration Card is filled out and returned to Ameri-King
Corp. within 15 days after original installation.
• Ameri-King Corp.’s liability under this warranty is limited to servicing, repairing, replacing or adjusting any equipment
returned prepaid to the factory by express written or oral authorization for that purpose and to repair or replace defective parts
thereof. This limited warranty does not include any damage caused by the leakage of batteries. Repaired equipment will be
returned to the equipment user freight pre-paid. Shipping charge will be paid one way only by Ameri-King Corp.
• Upon discovery of a condition believed to be caused by a defect in manufacturing, Ameri-King Corp. without prior
authorization. Any equipment returned to Ameri-King Corp. without prior authorization. Any equipment returned to Ameri-
King Corp. should be accompanied by a failure report, in writing, giving full particulars in support of the claim.
• This limited warranty does not cover or apply to any of the followings, including: misuses of the equipment; installation or
operation not in accordance with factory instructions; accidences or negligent damage; alterations of any manner; repair by
other factory; changes in calibration occurring as a result of normal use of equipment; the cost of labor, material, or other
expense incidental to the repair, installation, removal from the aircraft or replacement of the equipment; damaged during
shipment or installation; any personal injuries or damage to property resulting from the installation or the operation of the
equipment user assumes the risks of all such injuries or damage. In such cases, the repair will be billed at cost. An estimate
will be submitted for approval before repair is initiated.
• Any equipment that is returned for warranty and found not to be defective shall be charged a minimum handling and service
charge and returned C.O.D.
• No warranty will be activated for Ameri-King Corp. products unless the installation is approved by an FAA Certified
Installer and the warranty card is completed by the supplying dealer or upon receipt by Ameri-King Corp. of form(s) 337 or
8130-().
THE IMPLIED WARRANTY AND ALL OTHER IMPLIED WARRANTIES ARE HEREBY EXCULED. AMERI-KING
CORP. MAKES NO OTHER WARRANTY OR REPRESENTATION OF ANY KIND WHATSOEVER EXPRESSED OR
IMPLIED, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED.
AMERI-KING CORP.’S MAXIMUM LIABILITY HEREUNDER IS LIMITED TO THE PURCHASED PRICE OF THE
PRODUCT. IN NO EVENT SHALL AMERI-KING CORP. BE LIABLE FOR ANY DAMAGES OF ANY NATURE
ARISING FROM THE SALE OR USE OF THE PRODUCT, WHETHER BASED IN CONTRACT, TORT, STRICT
LIABILITY OR OTHERWISE.
9.2 REPAIR SERVICE
All equipments manufactured by Ameri-King Corp. must be repaired at the facility of Ameri-King Corp.
The entire repair service shall be performed and completed within 3 days upon repairing estimate is approved by equipment user or
installation dealer.
9.3 FACTORY COMPREHENSIVE TEST SERVICE
Factory Comprehensive Test Service including RF Peak Effective Radiated Power, Operating Carrier Frequency, Modulation
Characteristics, Duty Cycles and Digital Coding Message are available. There is a service charge for this service. All equipments
returned for Factory Comprehensive Test Service must be sent freight prepaid.
14
15
Important Notice - Please Read Before Completing Registration
Registration is an important facet for all Cospas-Sarsat 406 MHz emergency beacons. Not only is it required by Federal Regulations but
the information you furnish is used by Search And Rescue (SAR) agencies in the event of beacon activation. The registration information
is an important tool to assist the United States Coast Guard, United States Air Force, and other SAR agencies in locating and quickly
responding to you, your vessel, or your aircraft. Failure to register your beacon may delay a rescue response. Accurate, up-to-date
registration information will also be used to conserve resources by helping to eliminate false alert deployments, as an inadvertent
activation can be resolved with a phone call.
There is no charge for beacon registration. This is a service provided by the U.S. National Oceanic and Atmospheric Administration
(NOAA).
All online registrations will be entered into the National 406 MHz Beacon Registration Database on the same day of entry.
Registration forms received via postal mail will be entered within 2 business days of receipt. For online registrations, a confirmation letter
with your completed registration information form will be sent immediately via e-mail or fax (if provided). Confirmation letters sent via
postal mail should arrive within two weeks. Once your registration confirmation is received, please review all information. Any changes
or updates to your registration information can be done via the internet, fax, e-mail or postal mail. If you do not receive your registration
confirmation from NOAA on the same day you submit it over the internet or within two weeks if you submit it by postal mail, please call
NOAA toll-free at: 1-888-212-SAVE (7283) or 301-817-4515 for assistance.
After initial registration (or re-registration) you will receive a NOAA Proof of Registration Decal by postal mail. This decal is to be
affixed to the beacon and should be placed in such a way that it is clearly visible. If for some reason you do not receive the registration
decal within two weeks, please-6 call NOAA toll-free at: 1-888-212-SAVE (7283) or 301-817-4515.
Failure to register, re-register (as required every two years), or to notify NOAA of any changes to the status of your 406 MHz beacon
could result in penalties and/or fines being issued under Federal Law. The owner or user of the beacon is required to notify NOAA of any
changes to the registration information at any time. By submitting this registration the owner, operator, or legally authorized agent
declares under penalty of law that all information in the registration information is true, accurate, and complete. Providing information
that is knowingly false or inaccurate may be punishable under Federal Statutes. Solicitation of this information is authorized by Title 47 -
Parts 80, 87, and 95 of the U.S. Code of Federal Regulations (CFR). Additional registration forms can be found on the NOAA-SARSAT
website at: www.sarsat.noaa.gov or at: www.beaconregistration.noaa.gov.
Please note, NOAA will complement or update your registration information accordingly if your registration has expired and credible
information is provided from SAR sources. NOAA will also seek information from other databases to update and/or complement the
existing information for an expired beacon registration. Although the information provided will become a matter of public record, there is
no intent to circulate beyond its intended purpose, i.e., to assist SAR agencies in carrying out their mission. Public reporting burden for
the collection of this information is estimated to average 15 minutes per response, including the time for reviewing instructions, searching
existing data sources, and completing and reviewing the collection of information. Comments regarding this burden or any other aspect of
this collection of information, including suggestions for reducing this burden should be sent to:
NOAA/SARSAT
NSOF, E/SP3
4231 Suitland Road
Suitland, MD 20746
Or, fax the signed form to NOAA at 301-817-4565.
If you have any questions or comments pertaining to beacon registration, please call 301-817-4515 or toll-free at 1-888-212-SAVE
(7283).
Or you may e-mail your question to the Sarsat Webmaster: osdpd.dsd.reception@noaa.gov
Finally, false alerts remain a chief concern for SAR agencies. We ask that you carefully refer to the beacon’s user manual for instructions
on properly operating, installing, testing, performing required maintenance, and/or stowage of your beacon. We find that these are
important factors in reducing the number of false alerts. Please use the utmost care at all times!
