AnyDATA DT2000 CDMA Dual Band Data Module User Manual 01 DT2000 Dual 1 X3

CDMA DATA TERMINAL

DT2000-Dual Reference Manual

Application Information

October 2, 2002

01-DT2000-Dual-1 X3

AnyDATA.NET

AnyTime AnyPlace Any Wireless Data Solutions

International Contact

United Computer &

Telecommunication Inc.

18902 Bardeen Ave

Irvine, CA 92612-1522, U.S.A.

e-mail : info@uct-time.com

Korea Contact

AnyDATA.NET

Hanvit Bank Bldg. 6th Fl., 1-12

Byulyang-dong Kwachon,

Kyunggi-do, Korea

e-mail : info@anydata.net

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-2-

Notice

All data and information contained in or disclosed by this document are confidential and proprietary

information of AnyDATA.NET Inc., and all rights therein are expressly reserved. By accepting this

material, the recipient agrees that this material and the information contained therein are held in

confidence and in trust and will not be used, copied, reproduced, or distributed in whole or in part, nor its

contents revealed in any manner to others without the express written permission of AnyDATA.NET Inc.

AnyDATA.NET Inc. does not assume any liability arising out of the application or use of its products.

AnyDATA.NET Inc. assumes no responsibility for any damage or loss resulting from the misuse of its

products. AnyDATA.NET Inc. assumes no responsibility for any loss or claims by third parties, which

may arise through the use of its products. AnyDATA.NET Inc. assumes no responsibility for any damage

or loss caused by the deletion or loss of data as a result of malfunctions or repairs.

The information contained in this document is subject to change without notice. Information contained

herein is for reference only and does not constitute a commitment on the part of AnyDATA.NET Inc.

Although the information in this document has been carefully reviewed and it…s believed to be reliable,

AnyDATA.NET Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear

in this document nor are they in anyway responsible for any loss or damage resulting from the use (or

misuse) of this document.

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-3-

Contents

1 Introduction

1.1 Purpose

1.2 Organization

1.3 Revision History

1.4 Reference

1.5 Acronym List

2 Overview

2.1 Application Description

2.2 Technical Specifications

2.2.1 General Specification

2.2.2 Receive Specification

2.2.3 Transmit Specification

2.2.4 Standards

2.3 Interface Diagram

2.4 General Features

3 PIN Description

3.1 I/O Description Parameters

3.2 PIN Names and Pinouts

3.2.1 60-PIN Connector

3.3 60-Pin Connector Pinout (Top view)

4 Interface Descriptions

4.1 Overview

4.2 CODEC Interface

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-4-

4.3 UART Interface

4.3.1 Primary UART Interface

4.3.2 Secondary UART Interface

4.4 General Purpose Interface

4.5 External Hardware Reset

4.6 LEDs

4.7 User Interface

4.7.1 Key Pad

4.7.2 LCD

4.7.3 Ringer

5 Electrical Specifications

5.1 DC Electrical Specifications

5.1.1 Absolute Maximum Ratings

5.1.2 Recommended Operating Conditions

5.1.3 Power Consumption

5.1.4 Serial Interface Electrical Specifications

5.2 Timing Characteristics

5.2.1 External CODEC Timing

5.2.2 LCD Timing

6 Mechanical Dimension

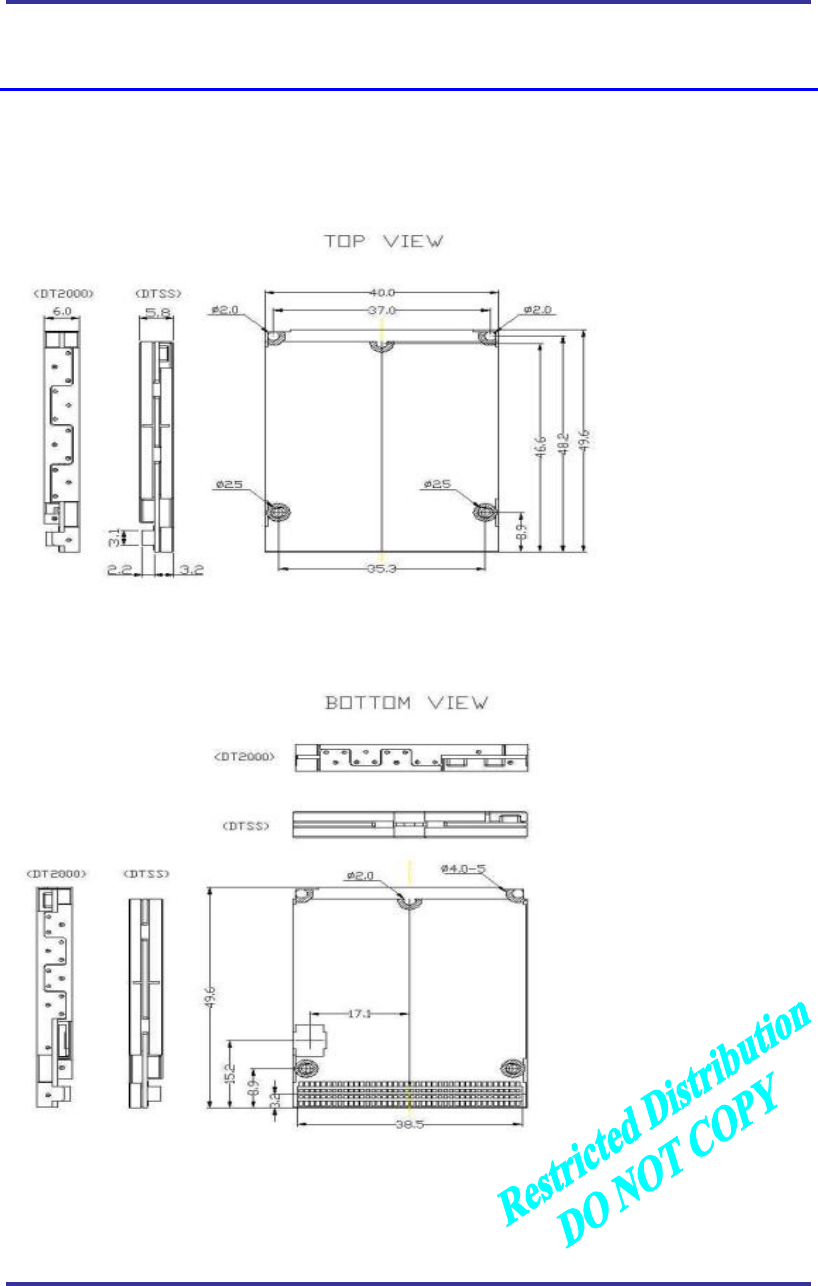

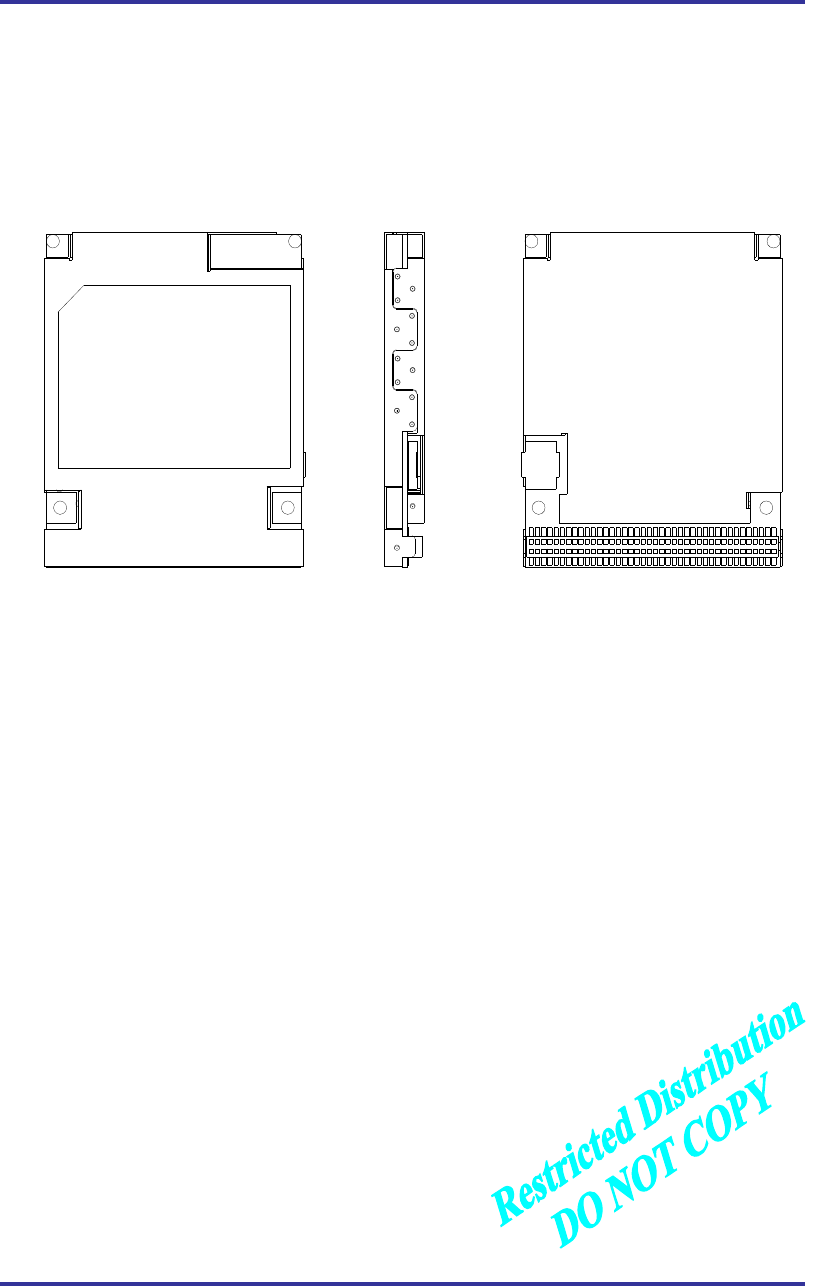

6.1 DT2000-Dual Outline

6.2 60-Pin Connector

6.3 RF Connector

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-5-

Figures

Figure 2-1 Interface Block Diagram ....................................................................................... 11

Figure 2-2 General Features ................................................................................................... 12

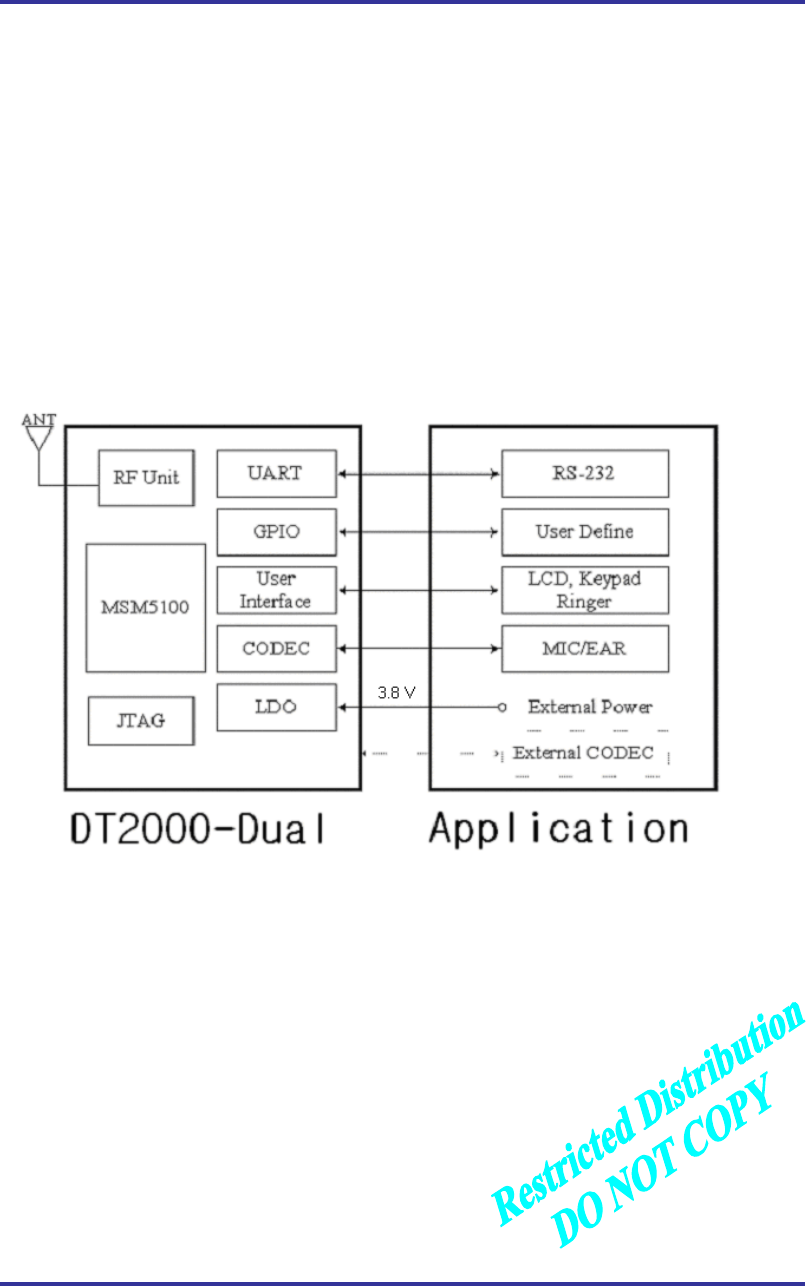

Figure 4-1 Interface Block Diagram ....................................................................................... 16

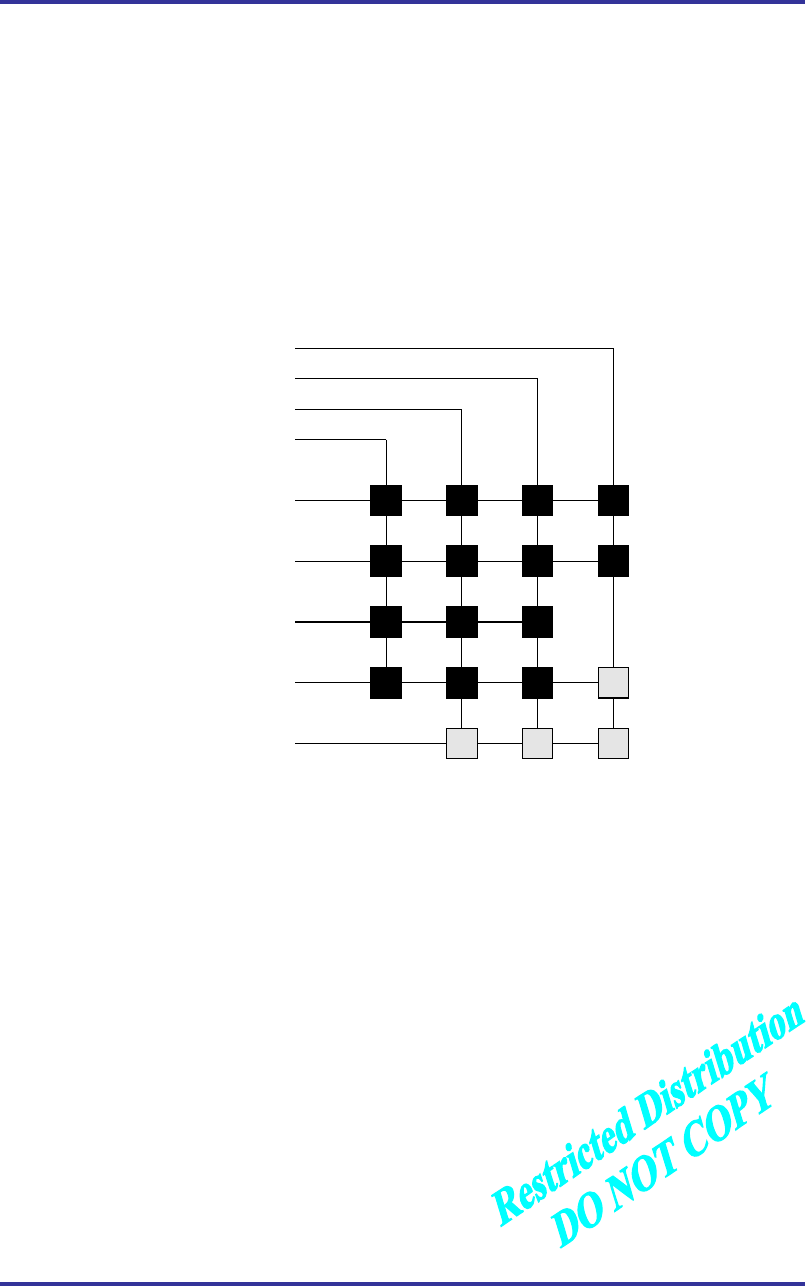

Figure 4-2 Keypad Matrix ...................................................................................................... 21

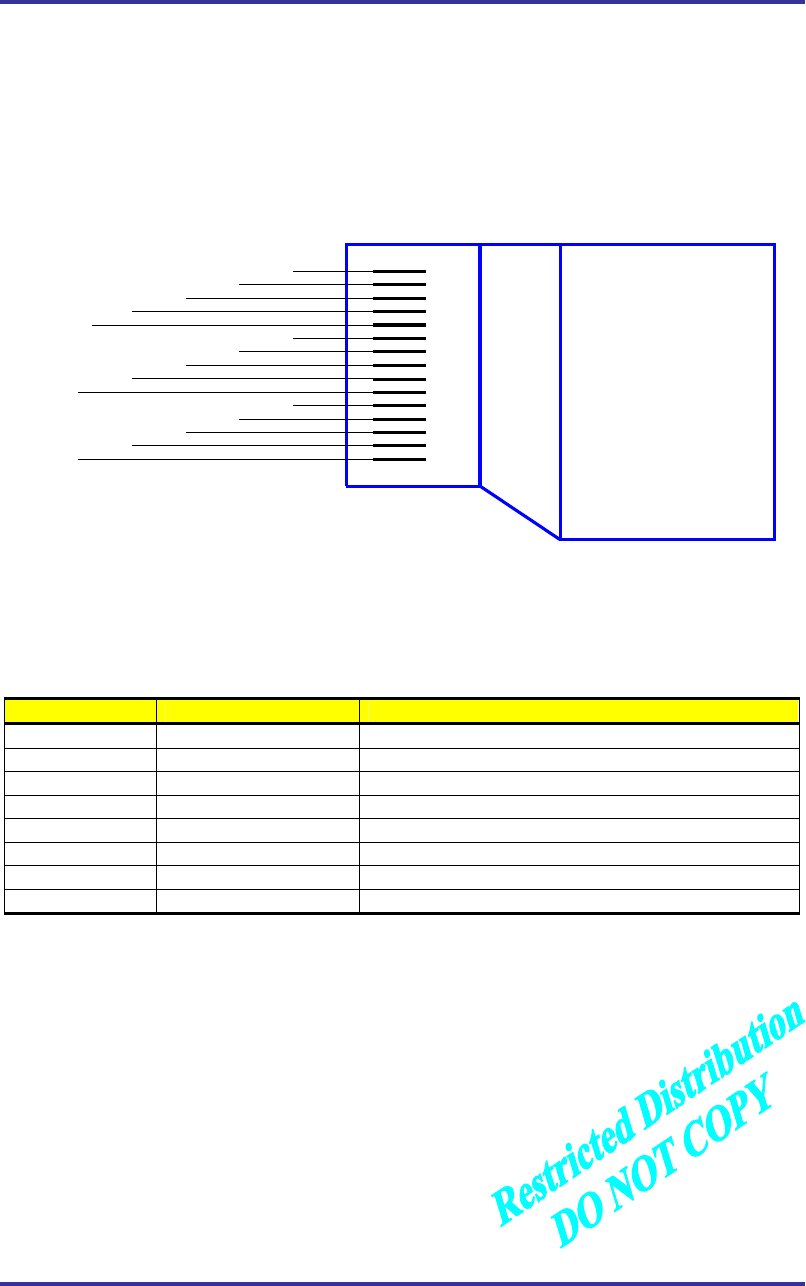

Figure 4-3 LCD Interface Block Diagram .............................................................................. 22

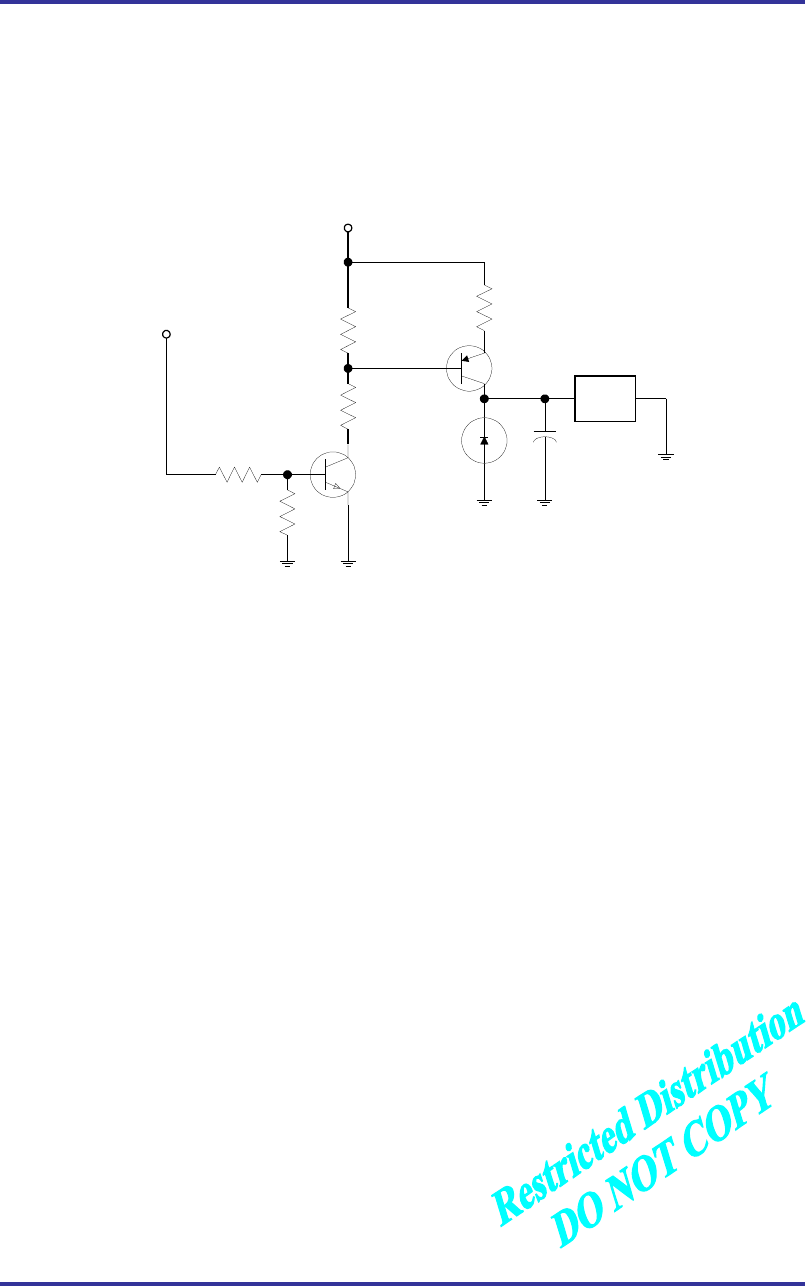

Figure 4-4 Reference External Ringer Driver Circuit ............................................................. 23

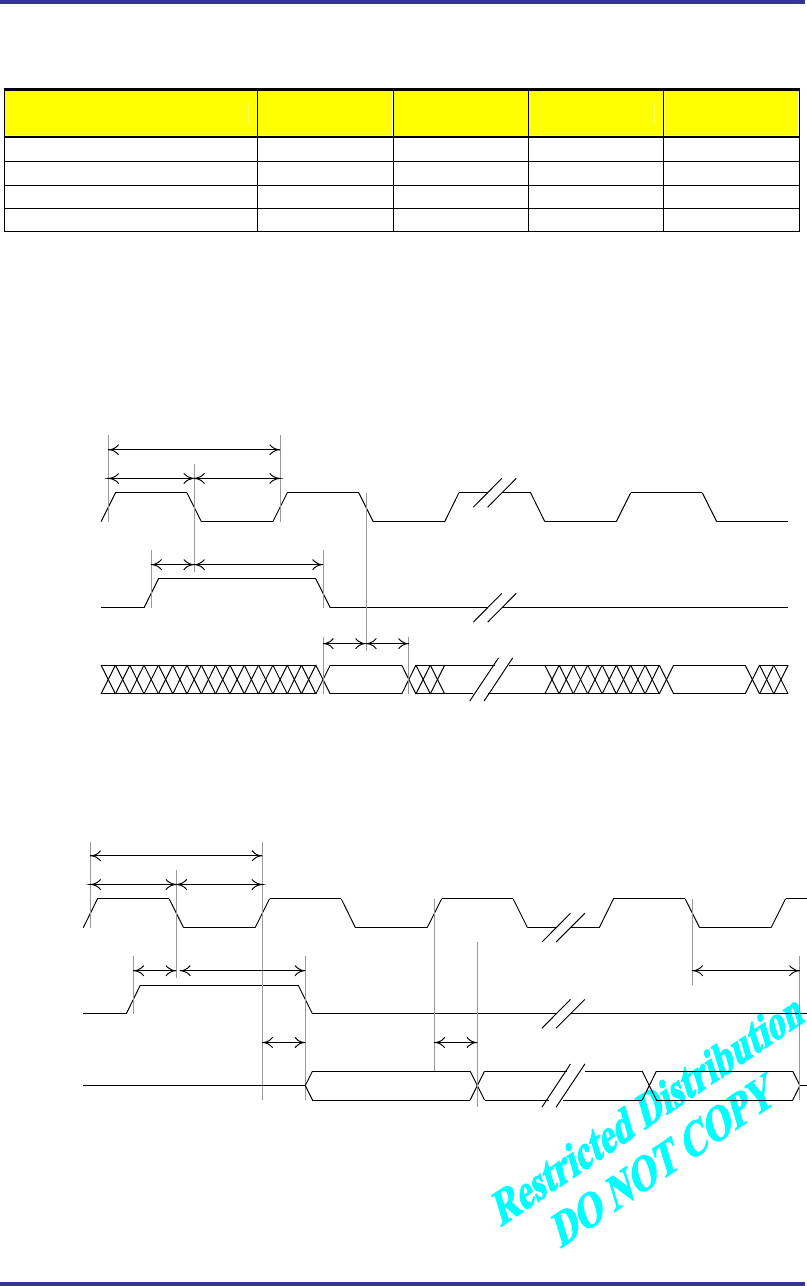

Figure 5-1 External PCM CODEC to Module timing ............................................................ 25

Figure 5-2 Module to External PCM CODEC timing ............................................................ 25

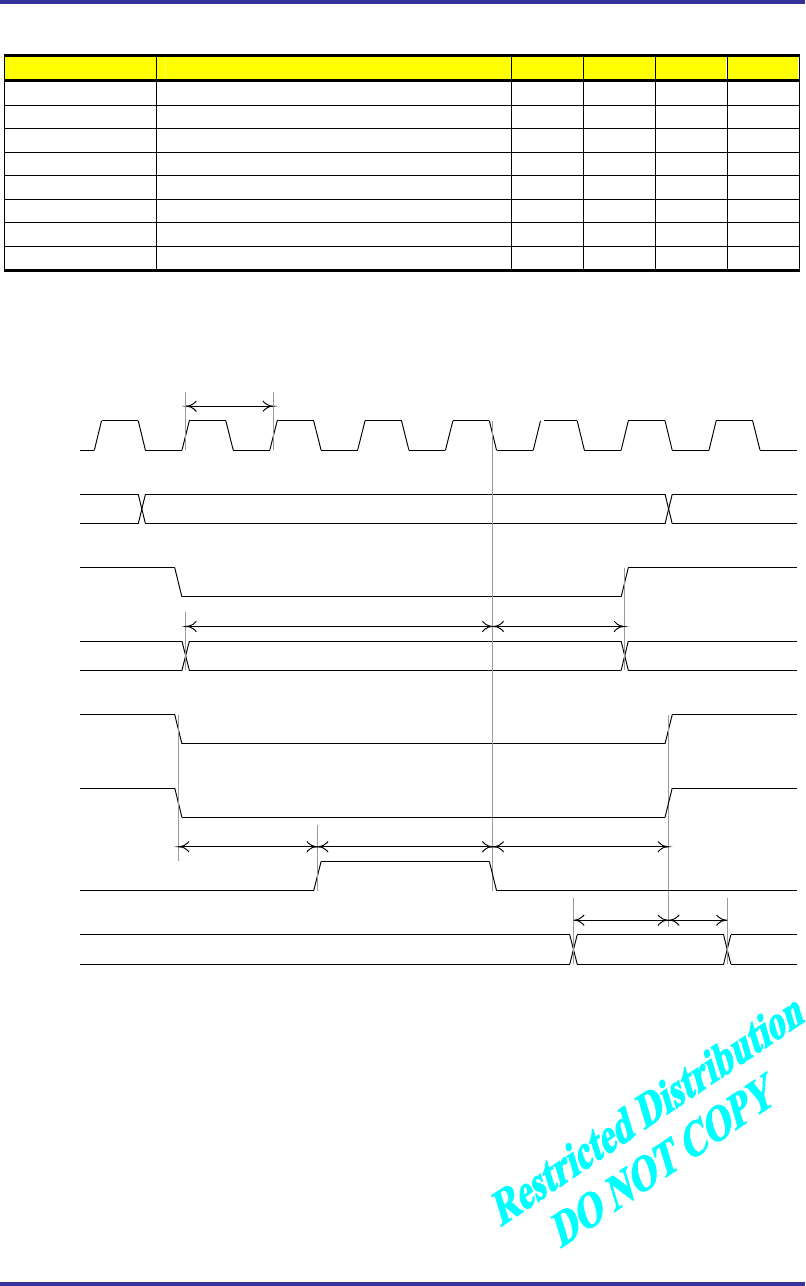

Figure 5-3 LCD Timing .......................................................................................................... 26

Figure 6-1 60-pin Female Connector ––––––––––––––––––––––... 29

Figure 6-2 PCB Connector .––––––––––––––––––––––––––..30

Figure 6-3 PCB Connector Layout .–––––––––––––––––––––––. 30

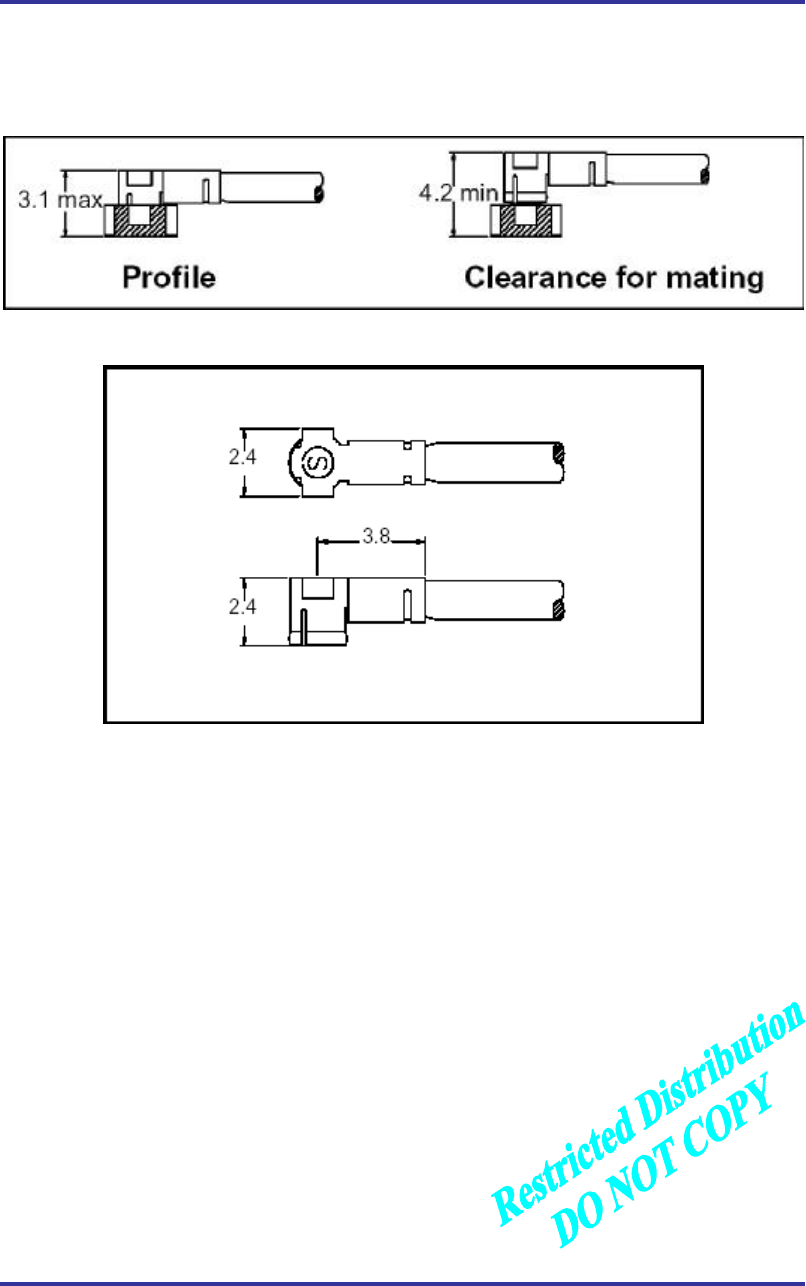

Figure 6-4 Mechanical Characteristics of Cable Harness Assembly .–––––––––.–. 31

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-6-

Tables

Table 1-1 Revision History ....................................................................................................... 7

Table 3-1 60-PIN Connector Pinouts ...................................................................................... 15

Table 4-1 Analog Audio Pinouts ............................................................................................ 17

Table 4-2 Digital CODEC Pinouts ......................................................................................... 18

Table 4-3 UART Interface Pinouts ......................................................................................... 18

Table 4-4 Secondary UART Interface Pinouts ––––––––––––––––––– 19

Table 4-5 General Purpose Interface Pinouts ......................................................................... 19

Table 4-6 LED Pinouts –––––––––––––––––––––––––––– 20

Table 4-7 LCD Interface Signals ............................................................................................ 22

Table 5-1 Absolute Maximum Ratings ................................................................................... 24

Table 5-2 External PCM CODEC Parameters ........................................................................ 26

Table 5-3 LCD Timing Parameters .......................................................................................... 27

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-7-

1. Introduction

1.1 Purpose

This Manual provides hardware interface and programming information for the DT2000-Dual

CDMA Wireless Data Module.

1.2 Organization

This Manual will discuss the interface and operation of the module and is divided into the following

subsections:

n Section 2 º Introduces users to the DT2000-Dual CDMA Wireless Data Module…s basic features

and general specifications.

n Section 3 º Lists each DT2000-Dual pin and its function within the device. The pinout for the

module is listed in numeric sequence.

n Section 4 º Specifies the recommended operating conditions, DC voltage characteristics, I/O

timing, and power estimations for the module. Timing diagrams are also included.

n Section 5 º Details each subsystem or block within the module and shows how the subsystem

or block interfaces with external peripherals.

n Section 6 º Provides package dimensions for the module.

1.3 Revision History

The revision history for this document is shown in Table 1-1.

Table 1-1 Revision History

Version

Date Description

V1_X1 April 2001 Initial Release º applicable DTS and DTSS series software

V1_X2 June 2001 Corrected document format

V1_X3 Oct. 2002 Corrected document content

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-8-

1.4 References

1. QUALCOMM Incorporated. MSM5100 Mobile Station Modem: Component Supply

Specification. 80-V2180-7-X1, July 13, 2001.

2. QUALCOMM Incorporated. MSM5100 Mobile Station Modem: Device Specification

(Preliminary Information). 93-V2180-1-X3, August 30, 2001.

3. QUALCOMM Incorporated. SURF5100 User Manual. 80-V2535-1-X1, March 28, 2001.

1.5 Acronym List

Term Definition

CDMA Code-Division Multiple Access

CODEC Coder-Decoder

GPIO General-purpose Input/Output

JTAG Joint Test Action Group (ANSI/ICEEE Std. 1149.1-1990)

LCD Liquid Crystal Display

LDO Voltage Regulator

LED Light Emitting Diode

PCB Printed Circuit Board

PCM Pulse Coded Modulation

PCS Personal Communications Service

RF Radio Frequency

Rx Receive

TCXO Temperature-Controlled Crystal Oscillator

Tx Transmit

UART Universal Asynchronous Receiver Transmitter

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-9-

2. Overview

2.1 Application Descriptions

The CDMA Wireless Data Module is a complex consumer communications instrument that relies

heavily on both digital signal and embedded processor technologies. The Wireless Data Modules

manufactured by AnyDATA.NET support Code-Division Multiple Access (CDMA). This operates in

both the cellular and PCS spectrum.

In a continuing effort to simplify the design and to reduce the production cost of the Wireless Data

Module, AnyDATA.NET has successfully developed the DT2000 series. The DT2000-Dual is

AnyDATA.NET…s latest compact Wireless Data Module operating in the Cellular and PCS spectrum. The

DT2000-Dual also contains a complete digital modulation and demodulation system for CDMA standards

as specified in IS-95 A/B and IS-2000.

The subsystem in the DT2000-Dual includes a CDMA processor (MSM5100), an integrated

CODEC with an ear piece and microphone amplifiers, and an RS-232 serial interface supporting forward

link data communications at a rate of 230.4kbps.

The DT2000-Dual provides an external interface that includes the standard RS-232, Digital Audio,

External reset control, LCD Display, Keypad, and Ringer extension ports.

The DT2000-Dual has the capability to power down unused circuits in order to dynamically

minimize power consumption.

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-10-

2.2 Technical Specifications

2.2.1 General Specifications

Parameters Descriptions

External Access Code-Division-Multiple-Access (CDMA)

CDMA Protocol IS-95 A/B, IS-98A, IS-126, IS-637A, IS-707A, IS-2000

Data Rate 153.6Kbps max

Transmit/Receive Frequency Interval 45MHz for Cellular and 80MHz for PCS

Number of Channel 832 for Cellular and 42 for PCS

Operating Voltage DC +3.4V ~ +4.2V

Current Consumption Stand by mode: Idle (110mA), Sleep (2mA)

Busy mode: 900mA (Max)

Operating Temperature -30”C ~ +60”C

Frequency Stability 300Hz for Cellular and 150Hz for PCS

Antenna MCA Connector, 50ohm

Size 39 X 49 X 6.0mm with case

Weight About 20g

External Interface RS-232, Digital/Analog Audio, LCD, Keypad, Ringer

External Reset Control

2.2.2 Receive Specifications

Parameters Descriptions

Frequency Range 869.04 ~ 893.97 MHz for Cellular and 1931.25 ~ 1988.75MHz for PCS

Sensitivity Below º104 dBm

Interference Rejection Single tone (-30dBm @900KHz): Below º101dBm

Two tone (-43 dBm @900KHz and 1700KHz): Below º101dBm

Two tone (-32 dBm @900KHz and 1700KHz): Below º90dBm

Two tone (-21 dBm @900KHz and 1700KHz): Below º79dBm

Spurious Wave Suppression Below º80dBc

Input Dynamic Range -25 dBm ~ -104dBm

2.2.3 Transmit Specifications

Parameters Descriptions

Frequency Range 824.04 ~ 848.97 MHz for Cellular and 1851.25 ~ 1908.75MHz for PCS

Nominal Power 0.32 W (24.7dBm)

Minimum Controlled Output Power Below º50dBm

Max Power Spurious 900KHz: Below º42dBc/30KHz

1.98MHz: Below º54dBc/30KHz

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-11-

2.2.4 Standards

IS-95 A/B: Protocol Between MS & BTS

IS-96A: Voice Signal Coding

IS-98A: Base MS Function

IS-126: Voice Loop-Back

IS-637: Short Message Service

IS-707: Data Service

2.3 Interface Diagram

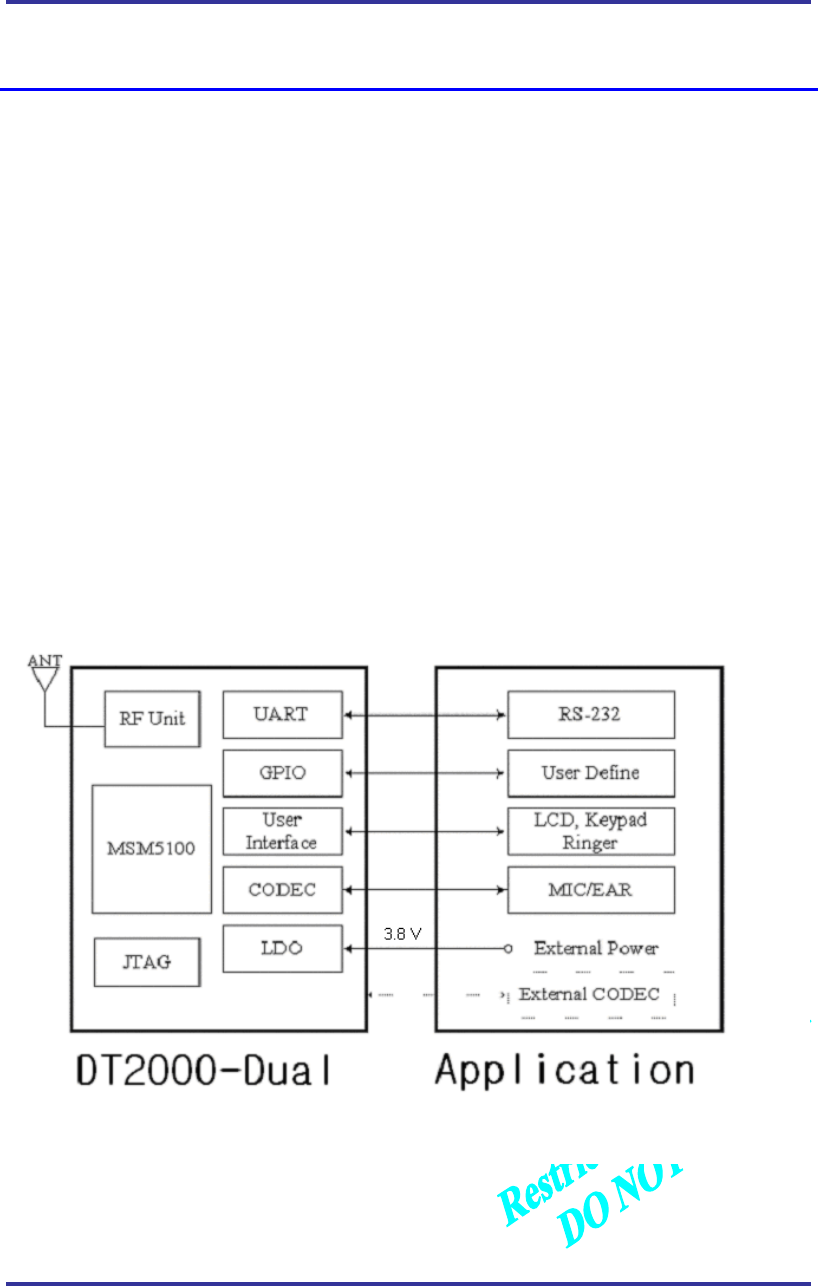

Figure 2-1 Interface Block Diagram

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-12-

2.4 General Features

Figure 2-2 General Features

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-13-

3. PIN Description

3.1 I/O Description Parameters

Symbol Description

I CMOS Input

O Output

B Bi-directional

N Voltage or Current Level

IS Input with Schmitt Trigger

BS Bi-directional Schmitt Trigger

PU Internal Pull-Up

PD Internal Pull-Down

KP Internal Weak Keeper Device (Keepers cannot drive external buses.)

3.2 PIN Names and Pinouts

3.2.1 60-Pin Connector

PIN NAME TYPE DESCRIPTION

1 MSM_DP_DCD/ (GPIO_INT16) BS-PD Data carrier detect

2 MSM_DP_RI/ (GPIO_INT25) BS-PD Ring indicator

3 MSM_DP_RFR/ O Ready for receive

4 MSM_DP_TXD O Transmit data

5 MSM_DP_DTR/ (GPIO_INT2) BS-PU Data terminal ready

6 MSM_DP_RXD IS-PD Receive data

7 MSM_DP_CTS/ IS-PD Clear to send

8 GND GND Signal ground

9 AUX_PCM_DIN IS-PD External CODEC PCM data input, RXD *

10 GND GND Signal ground *

11 AUX_PCM_DOUT BS_PU External CODEC PCM data output, TXD *

12 GPIO_INT22 (PRE_DIAL) BS_PU General purpose input output

13 AUX_PCM_CLK BS_PD External CODEC PCM clock

14 AUX_PCM_SYNC BS_PD External CODEC PCM sync.

15 GPIO_INT23 (SMS_LED) BS_PU General purpose input output

16 GPIO_INT03 (IDLE_LED) BS_PU General purpose input output

17 GPIO_INT04 (BUSY_LED) BS_PU General purpose input output

18 EXT_RESET I External Hardware Reset

19 GPIO_INT09 (HOST_RESET) BS_PD General purpose input output

20 GPIO_INT12 BS_PU General purpose input output

21 GPIO_INT13 BS_PD General purpose input output

22 GPIO_INT17 (PS_HOLD) BS_PD General purpose input output

23 RINGER O Ringer output

24 D00 B-KP Data line

25 D01 B-KP Data line

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-14-

PIN NAME TYPE DESCRIPTION

26 D02 B-KP Data line

27 D03 B-KP Data line

28 D04 B-KP Data line

29 D05 B-KP Data line

30 D06 B-KP Data line

31 D07 B-KP Data line

32 A01 B Address line

33 RES_OUT/ B Reset output

34 LCD_CS/ (GPIO_INT40) BS-PU LCD chip select

35 RD/ B Read enable output

36 LWR/ BS-PU Write enable output

37 BATT+ I Battery Monitoring **

38 GND GND Signal ground

39 VEXT_DC I External power input

40 VEXT_DC I External power input

41 MIC1P I Balanced Analog Audio Input (MIC)

(Speaker)

42 MIC1N I Balanced Analog Audio Input (MIC)

(Speaker)

43 EAR1P O Balanced Analog Audio Output (Speaker)

44 EAR1N O Balanced Analog Audio Output (Speaker)

45 GPIO_INT33 (KEYPAD_15) BS_PU General purpose input output

46 GPIO_INT35 (KEYPAD_11) BS_PU General purpose input output

47 GPIO_INT14 (MOTOR) BS_PD General purpose input output

48 GPIO_INT36 (KEYPAD_9) BS_PU General purpose input output

49 GPIO_INT34 (KEYPAD_13) BS_PU General purpose input output

50 KEYSENSE4/ (ON_SW) IS_PU Key sense input

51 KEYSENSE1/ IS_PU Key sense input

52 KEYSENSE2/ IS_PU Key sense input

53 KEYSENSE3/ IS_PU Key sense input

54 KEYSENSE0/ IS_PU Key sense input

55 LCD_E (GPIO_INT41) BS-PD LCD read enable

56 A00 B Address line

57 EAR_DET1 I Ear Kit Detect (small headset)

58 MIC2 (MIC) I Analog Audio Input (MIC) (small headset)

59 GND (GND_A) GND Signal ground (small headset)

60 EAR_JACK+ (EAR) O Analog Audio Output (Speaker) (small

headset)

Notes:

* If not used as PCM, it can be used as a secondary UART for debugging. We strongly recommend that

the user has a 3-pin connector or 3 test points on their board, so that one can easily monitor and diagnose

their module.

** If the user wants the module to monitor battery voltage and the user is using a regulator in conjunction

with a battery, whose maximum voltage exceeds 4.3 V, to drive the module, then the user should please

contact our engineers.

When using a battery in which the voltage is between 3.3 V to 4.3 V and regulators aren…t used to drive

the module, leave this pin open.

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-15-

3.3 60-PIN Connect Pinouts (Topview)

Table 3-1 60-PIN Connector Pinouts

1 MSM_DP_DCD/ 2 MSM_DP_RI/

3 MSM_DP_RFR/ 4 MSM_DP_TXD

5 MSM_DP_DTR/ 6 MSM_DP_RXD

7 MSM_DP_CTS/ 8 GND

9 AUX_PCM_DIN 10 GND

11 AUX_PCM_DOUT 12 GPIO_INT22

13 AUX_PCM_CLK 14 AUX_PCM_SYNC

15 GPIO_INT23 16 GPIO_INT03

17 GPIO_INT04 18 EXT_RESET

19 GPIO_INT09 20 GPIO_INT12

21 GPIO_INT13 22 GPIO_INT17

23 RINGER 24 D00

25 D01 26 D02

27 D03 28 D04

29 D05 30 D06

31 D07 32 A01

33 RES_OUT/ 34 LCD_CS/

35 RD/ 36 LWR/

37 BATT+ 38 GND

39 VEXT_DC 40 VEXT_DC

41 MIC1P 42 MIC1N

43 EAR1P 44 EAR1N

45 GPIO_INT33 46 GPIO_INT35

47 GPIO_INT14 48 GPIO_INT36

49 GPIO_INT34 50 KEYSENSE4/

51 KEYSENSE1/ 52 KEYSENSE2/

53 KEYSENSE3/ 54 KEYSENSE0/

55 LCD_E 56 A00

57 EAR_DET1 58 MIC2

59 GND 60 EAR_JACK+

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-16-

4. Interface Descriptions

4.1 Overview

This chapter covers information required to convert the DT2000-Dual into a subscriber unit

application. In addition, some of the internal blocks of the device are described. Understanding these

internal blocks is necessary for one to completely grasp the functions of the various interfaces.

This chapter discusses the interface to the major blocks of the DT2000-Dual as shown in the

following figure. These blocks include:

n CODEC Interface

n UART Interface

n General Purpose Interface

n User Interface

n JTAG Interface

Figure 4-1 Interface Block Diagram

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-17-

4.2 CODEC Interface

The CODEC Interface is configured by internal and external figures. If the internal CODEC

interface is used, additional glue logic is not necessary and the module…s very simple audio interface can

be used. Otherwise if the internal CODEC interface is not used, an external CODEC is necessary to

support the car-kit system. In this case, the module provides a PCM CODEC Interface.

4.2.1 Internal CODEC Interface

The module contains analog audio interface circuitry. The contained audio interface supports all of the

required conversation and amplification stages for the audio front end.

The audio interface includes the amplification stages for both the microphone and earphone. The

interface supports one single-ended microphone input and one single-ended earphone output.

Table 4-1 Analog Audio Pinouts

NAME DESCRIPTION CHARACTERISTIC

MIC2 MIC Input Analog Input (Pin No. 58) *

EAR_DET1 EAR/MIC Set Detect Logic Input (Pin No. 57) **

EAR_JACK+ Earphone Output Analog Output (Pin No. 60)

GND_A Audio Ground Audio Ground (Pin No. 59)

Note:

* MIC2, along with being a microphone input, checks to see if the user has pressed the headset key,

which allows the user to connect to or disconnect from a call. This pin is internally pulled high and is

therefore normally in the high state. To activate this input and connect to or disconnect from a call, the

user must set the MIC2 pin to a low state for 100ms to 200ms.

** EAR_DET1 checks to see if a headset has been connected to the ear-jack. When there is no headset

connected to the ear-jack, the audio path is disconnected. When a headset is connected to the ear-jack an

audio path is opened. To simulate a headset connected to the ear-jack, the user must apply a low signal to

the EAR_DET1 pin for as long as the user wants the audio path to be kept open.

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-18-

4.2.2 Extended CODEC Interface

The PCM CODEC interface is used for the car-kit audio system. This interface is optional.

External CODEC interface signals are listed below:

Table 4-2 Digital CODEC Pinouts

NAME DESCRIPTION PINOUTS

AUX_PCM_CLK PCM Clock Pin No. 13

AUX_PCM_DIN PCM Data Input Pin No. 9

AUX_PCM_DOUT

PCM Data Output Pin No. 11

AUX_PCM_SYNC

PCM Sync. Pin No. 14

4.3 UART Interface

4.3.1 Primary UART interface

The Universal Asynchronous Receiver Transmitter (UART) communicates with serial data that

conforms to the RS-232 Interface protocol. The module provides 3.0V CMOS level outputs and 3.0V

CMOS switching input levels. In addition, all inputs have a 5.0V tolerance, however 3.0V or 3.3V CMOS

logic compatible signals are highly recommended.

All the control signals of the RS-232 are active low, however the data signals, RXD and TXD, are

active high.

The UART has a 64 byte transmit (TX) FIFO and a 64 byte receive (RX) FIFO. The UART features

hardware handshaking, programmable data sizes, programmable stop bits, and odd, even, no parity. The

UART operates at a maximum bit rate of 115.2kbps.

Table 4-3 UART Interface Pinouts

NAME DESCRIPTION CHARACTERISTIC

DP_DCD/ Data Carrier Detect Network connected from the module

DP_RI/ Ring Indicator Output to host indicating coming call

DP_RFR/ Ready for Receive Ready for receive from host

DP_TXD Transmit Data Output data from the module

DP_DTR/ Data Terminal Ready Host ready signal

DP_RXD Receive Data Input data to the module

DP_CTS/ Clear to Send Clear to send to the host

GND Signal Ground Signal ground

Reference Plane: DT2000 Dual

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-19-

4.3.2 Secondary UART interface

The secondary UART is used to monitor and diagnose the status of the DT2000-Dual. It is strongly

recommended for the user to have the following secondary UART pins connected to an extra connector or

to test points, in order to easily troubleshoot any problems with the module.

Table 4-4 Secondary UART Interface Pinouts

NAME DESCRIPTION CHARACTERISTIC

AUX_PCM_DIN/ Data Input Input data to the module

AUX_PCM_DOUT/ Data Output Output data from the module

GND Signal Ground Signal ground

Reference Plane: DT2000 Dual

4.4 General Purpose Interface

The general purpose interface consists of 13 user-definable bi-directional pins.

Each GPIO pin can be configured as an input interrupt source. In addition, some GPIO pins can be

used as output control pins from the module. The user can define these pins properly as follows.

Table 4-5 General Purpose Interface Pinouts

NAME TYPE CHARACTERISTIC

GPIO_INT03 BS_PU Configured as a pull-up, Bi-directional

GPIO_INT04 BS_PU Configured as a pull-up, Bi-directional

GPIO_INT09 BS_PD Configured as a pull-down, Bi-directional

GPIO_INT12 BS_PU Configured as a pull-up, Bi-directional

GPIO_INT13 BS_PD Configured as a pull-down, Bi-directional

GPIO_INT14 BS_PD Configured as a pull-down, Bi-directional

GPIO_INT17 BS_PD Configured as a pull-down, Bi-directional

GPIO_INT22 BS_PU Configured as a pull-up, Bi-directional

GPIO_INT23 BS_PU Configured as a pull-up, Bi-directional

GPIO_INT33 BS_PU Configured as a pull-down, Bi-directional

GPIO_INT34 BS_PU Configured as a pull-down, Bi-directional

GPIO_INT35 BS_PU Configured as a pull-down, Bi-directional

GPIO_INT36 BS_PU Configured as a pull-down, Bi-directional

4.5 External Hardware Reset

There are two types of resets that the user can employ to restart the module. The first type will reset

the MSM and the memory and is performed when the user gives the AT command, AT+RESET, to the

MSM. Another way to reset the module is by using the external hardware reset. This type of reset will

reset the hardware as well as the MSM and the memory. The flash memory will be the only information

that is kept. To perform an external hardware reset, make sure the module has powered on and is not in

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-20-

the initialization stage, and then apply a high signal of 2.5 V to 3.7 V to the external hardware reset pin

for 200ms to 500ms. Keep the external hardware reset pin low when the module is initializing as well as

during normal operation.

4.6 LEDs

The DT2000-Dual can indicate its current status through three pins. These three pins can be

connected to LEDs to more quickly and easily determine the status of the module. The SMS LED

indicates to the user if there is a SMS message or a voicemail message. If there is a SMS message or a

voicemail message, the SMS LED will turn on. After the user has read the SMS message or listened to the

voicemail message, the SMS LED turns off. Shortly after the module has been turned on, the Idle LED

should turn on indicating that the module is in-service. This means that the module is within the range of

the base station and is able to receive a signal from the base station. When the module is in traffic or

conversation stage, the Busy LED is on.

Table 4-6 LED Pinouts

NAME DESCRIPTION PINOUTS

GPIO_INT23 SMS_LED Pin No. 15

GPIO_INT03 IDLE_LED Pin No. 16

GPIO_INT04 BUSY_LED Pin No. 17

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-21-

4.7 User Interface

4.7.1 Keypad

The keypad interface consists of a 4 X 5 matrix pattern. Only 4 of the 5-KEYSENSE/[4:0] pins are

used to connect a matrix keypad to the module. The KEYSENSE/ pins are active low.

5-GPIO pins are necessary to construct the other side of the matrix. These 5-GPIO pins must be active

high in order for the keypad matrix to work properly. The general keypad matrix is shown below:

#

KEYSENSE0/

KEYSENSE1/

KEYSENSE2/

KEYSENSE3/

1-GPIO

2-GPIO

3-GPIO

4-GPIO

5-GPIO

9

6

3

0

8

5

2

*

7

4

1

SEND

END

Reserved

Figure 4-2 Keypad Matrix

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-22-

4.7.2 LCD

The module supports the LCD interface. The LCD interface is composed of 15-signals. Direct access

to the LCD driver is not applicable. Hence, 8-bit operation interface logic is required. The LCD interface

block diagram is shown below:

GND

LWR/

RD/

A01

LCD_CS/ RES_OUT/

D00

D01

D02

D03 D04

D05

D06

D07

VDD

GND

RW

E

RS

CS

RESET

DO

D1

D2

D3

D4

D5

D6

D7

VDD

LCD

8-Bit

Operation

Interface

Logic

Figure 4-3 LCD Interface Block Diagram

Table 4-7 LCD Interface Signals

NAME TYPE CHARACTERISTIC

LWR/ BS_PU LCD RW pin out from the module

RD/ BS LCD E pin out from the module

A01 B LCD RS pin out from the module

LCD_CS/ O LCD Chip Select pin out from the module

RES_OUT/ O LCD Reset from the module

D00 ~ D07 O LCD Data Lines from the module

VDD LCD Power Supply

GND LCD Signal Ground

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-23-

4.7.3 Ringer

The Ringer pin provides the output to drive the sound transducer on the host. It alerts the user of a

voice call event and outputs key tones if the keypad is connected.

The reference external driver circuit is shown below:

4.7ohm

10Kohm

2.2Kohm

4.7Kohm

Q1

Q2

D1

Vdd

Ringer signal

From

the modem

0.01uF

Buzzer

Figure 4-4 Reference External Ringer Driver Circuit

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-24-

5. Electrical Specifications

5.1 DC Electrical Specifications

5.1.1 Absolute Maximum Ratings

Operating the module under conditions that exceed those listed in the Absolute Maximum Ratings

table may result in damage to the module.

Absolute Maximum Ratings should be considered as limiting values. The module may not function

properly and should not be operated if any one of the parameters is not within its specified operating

range.

Table 5-1 Absolute Maximum Ratings

PARAMETER MIN MAX UNITS

Storage Temperature -50 +85 ”C

Voltage On Any Input or Output Pin -0.8 +4.8 V

Supply Voltage -1.0 +5.0 V

Initializing Current 250 mA

Drop No damages after 60-Inch drop over concrete floor

5.1.2 Recommended Operating Conditions

PARAMETER MIN TYP MAX UNITS

Supply Voltage +3.4 +3.8 +4.2 V

Operating Temperature -30 +60 ”C

Operating Humidity 95% (50°C) Relative Humidity

5.1.3 Power Consumption

STANDBY

CONVERSATION

(Busy) Idle Sleep

900mA (MAX) 110mA 2mA

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-25-

5.1.4 Serial Interface Electrical Specifications

PARAMETER MIN TYP

(NO LOAD) MAX UNITS

Input High Voltage +2.0 +3 +3.7 V

Input Low Voltage -0.5 0 +0.8 V

Output High Voltage +2.4 +2.7 V

Output Low Voltage 0 +0.4 V

5.2 Timing characteristics

5.2.1 External CODEC Timing

tclk

tclkl tclkh

tsu(sync) th(sync)

tsu(din) th(din)

MSB LSB

PCM_CLK

PCM_SYNC

PCM_DIN

Figure 5-1 External PCM CODEC to Module timing

tclk

tclkl tclkh

tsu(sync) th(sync)

MSB LSB

PCM_CLK

PCM_SYNC

PCM_DOUT

tpdout tpdout

tzdout

Figure 5-2 Module to External PCM CODEC timing

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-26-

Table 5-2 External PCM CODEC Parameters

PARAMETER DESCRIPTION MIN TYP. MAX

UNIT

tclk PCM-CLK cycle time 400 500 ns

tclkl PCM-CLK low time 200 250 ns

tclkh PCM-CLK high time 200 250 ns

tsu(sync) PCM_SYNC setup time to PCM_CLK falling 150 ns

th(sync) PCM_SYNC hold time after PCM_CLK falling 350 ns

tsu(din) PCM_DIN setup time to PCM_CLK falling 50 ns

th(din) PCM_DIN hold time after PCM_CLK falling 10 ns

tpdout Delay from PCM_CLK falling to PCM_DOUT 50 ns

5.2.2 LCD Timing

tWRS

MCLK

(modem)

A[21:0]

LWR/

Write

Data[7:0]

LCD_CS/

RD/

LCD_E

Read

Data[7:0]

T

tWRH

tLCDES tLCDEHI tLCDEH

tRDS tRDH

LCD Data Write

LCD Data Read

Figure 5-3 LCD Timing

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-27-

Table 5-3 LCD Timing Parameters

PARAMETER DESCRIPTION MIN MAX UNIT

tLCDES LCD_CS/ active to LCD_E active ns

tLCDEHI Pulse width if LCD_E active ns

tLCDEH LCD_E inactive to LCD_CS/ inactive (write) ns

tLCDEHR LCD_E inactive to LCD_CS/ inactive (Read)

tRDS Read data setup ns

tRDH Read data hold ns

tWRS Write data setup to LCD_E inactive ns

tWRH Write data hold from LCD_E inactive ns

l k, I, n is integer lower than 16, MCLK is internal Clock of module

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-28-

6. Mechanical Dimensions

6.1 Outline for DT2000 and DTSS series

Units: mm

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-29-

6.2 60-Pin Connector

40

1.27

0.55

1.27

5.40

2.20

((Pin number/2)-2)x1.27

((Pin number/2)-1)x1.27

0.70 0.10

0.70 0.05

Figure 6-1 60-pin Female Connector (Units: mm)

Counter-Part (the 60-pin male connector (not on the DT2000-Dual)):

Part Name: Header pin connector (0.05„ (1.27mm) pitch, straight, dual row)

Part Number: GDH7-60DBC-SMT

Note: For more information on the 60-pin male connector, please refer to:

http://www.goldenconnector.co.kr/index_product_e.html

Use the part name and number to help search for the correct part.

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-30-

6.3 RF Connector

Figure 6-2 PCB Connector (Units: mm)

Figure 6-3 PCB Connector Layout (Units: mm)

Part name: PCB Connector (RF Connector)

AnyDATA.NET Inc. AnyTime AnyPlace Any Wireless Data SolutionTM

-31-

Counter-Part (not found on the DT2000-Dual) used to connect the RF connector to an antenna:

Figure 6-4 Mechanical Characteristics of Cable Harness Assembly (Units: mm)

Part name: Cable Harness Assembly

Note: For more information about the RF connector parts, please refer to the file found at

http://www.sunridgecorp.com/pdf/MCAseries.pdf

AnyDATA DT2000 CDMA Dual Band Data Module User Manual 01 DT2000 Dual 1 X3

AnyDATA Corporation CDMA Dual Band Data Module 01 DT2000 Dual 1 X3

Contents

users manual

Navigation menu

Namespaces

Views

Navigation
