HD Media Player
User Manual
O!Play HDP-R1
ii
E5182
Second Edition
November 2009
Copyright © 2009 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
iii
Safety information ....................................................................................... v
License notice and trademark acknowledgement for Dolby Digital ...... vi
License notice and trademark acknowledgement for DTS ..................... vi
About this user guide ................................................................................ vii
Chapter 1: Getting started
Welcome .................................................................................................... 1-1
Package contents ..................................................................................... 1-1
Specications summary .......................................................................... 1-2
System requirements ............................................................................... 1-3
Getting to know your O!Play HD media player ...................................... 1-3
Front/left panel ............................................................................... 1-3
Rear panel ...................................................................................... 1-4
Remote control ............................................................................... 1-5
Getting your O!Play HD media player ready .......................................... 1-7
Connecting the power adapter ....................................................... 1-7
Connecting devices to your HD media player ................................ 1-7
Starting for the rst time ................................................................. 1-9
Chapter 2: Getting connected
Connecting to a network .......................................................................... 2-1
Wired connection ........................................................................... 2-1
Conguring the network clients ...................................................... 2-3
Sharing les over the network ................................................................ 2-5
Sharing les under Windows® XP OS ............................................ 2-5
Sharing les under Windows® Vista OS ......................................... 2-6
Chapter 3: Using your O!Play HD media player
The Home screen ...................................................................................... 3-1
Conguring the system settings ............................................................. 3-1
Playing a video le ................................................................................... 3-2
Video control buttons on the remote control .................................. 3-2
Playing a video le ......................................................................... 3-3
Conguring the subtitle settings ..................................................... 3-4
Conguring the video settings ........................................................ 3-4
Playing music ............................................................................................ 3-5
Contents
iv
Music control buttons on the remote control .................................. 3-5
Playing a music le ........................................................................ 3-5
Conguring the audio settings ........................................................ 3-6
Viewing photos ......................................................................................... 3-7
Viewing photos ............................................................................... 3-7
Viewing photos in slideshow mode ................................................ 3-8
Setting the background music for the slideshow ............................ 3-8
Conguring the slideshow settings ................................................. 3-8
Copying les ........................................................................................... 3-10
Chapter 4: Troubleshooting
Troubleshooting ........................................................................................ 4-1
Display ........................................................................................ 4-1
Audio ........................................................................................ 4-3
USB storage device ....................................................................... 4-3
Remote Control .............................................................................. 4-3
Firmware Update ............................................................................ 4-4
Operation/function failure ............................................................... 4-4
Appendices
Notices .......................................................................................................A-1
GNU General Public License ...................................................................A-2
ASUS contact information .......................................................................A-8
v

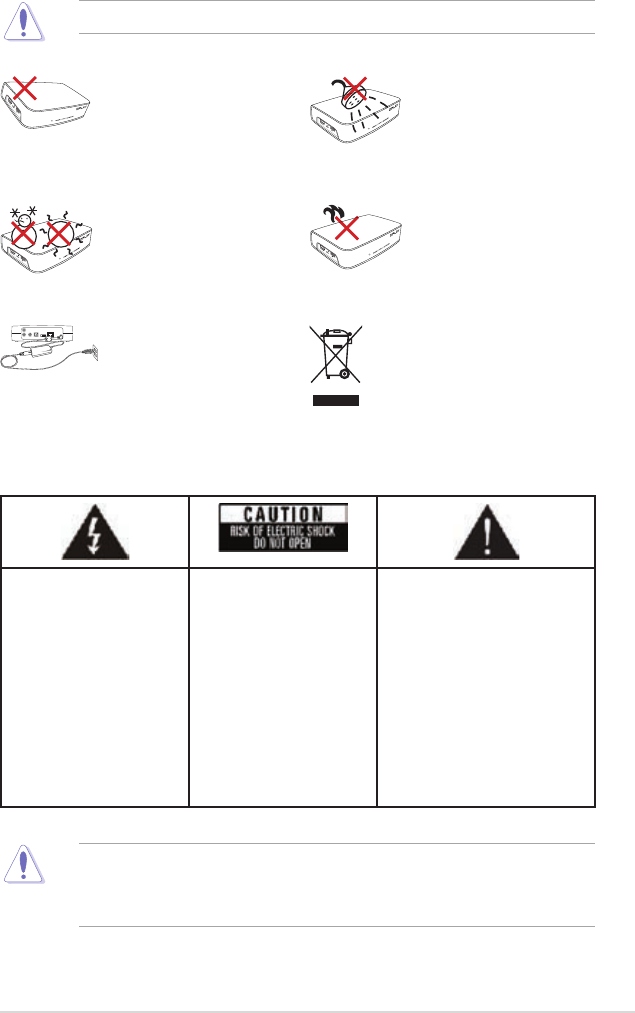

DO NOT place on uneven
or unstable work surfaces.
Seek servicing if the casing
has been damaged. Refer all
servicing to qualied service
personnel.
DO NOT expose to or
use near liquids, rain, or
moisture.
SAFE TEMP: This device
should only be used in
environments with ambient
temperatures between 5oC
(41oF) and 35oC (95oF).
DO NOT install near any
heat-producing devices or
sources such as radiators,
heat registers, stoves, or
ampliers.
DO NOT throw the device in
municipal waste. This device
is designed to enable proper
reuse and recycling. Check
local regulations for disposal
of electronic products.
Ensure that you plugged
the device into the correct
power input rating (12Vdc,
2A).
Safety information
• Danger of explosion if battery is incorrectly replaced. Replace only with the
same or recommended battery type.
• Dispose of used batteries according to local regulations.
The lightning ash with
arrowhead symbol,
within an equilateral
triangle, is intended
to alert the user to the
presence of uninsulated
dangerous voltage within
the product’s enclosure
that may be of sufcient
magnitude to constitute
a risk of electric shock to
persons.
To reduce the risk of
electric shock, do not
remove the back cover.
No user serviceable parts
inside. Refer servicing
to qualied service
personnel.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
Use only a dry cloth to clean the device.
Warning labels
vi
License notice and trademark
acknowledgement for Dolby Digital
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
License notice and trademark
acknowledgement for DTS
Manufactured under license under US Patent #s: 5,451,942; 5,956,674;
5,974, 380; 5,978,762; 6,487,535 & other US and worldwide patents issued &
pending. DTS and DTS 2.0 + Digital Out are registered trademarks and DTS
logos and symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights
Reserved.
vii
DANGER/WARNING: Information to prevent injury to yourself
when trying to complete a task.
NOTE: Tips and additional information to help you complete a
task.
IMPORTANT: Instructions that you MUST follow to complete a
task.
Where to nd more information
Refer to the following sources for additional information and for product and
software updates.
1. ASUS Support site
Download the latest rmwares, drivers, and utilities from the ASUS Support
site at http://support.asus.com.
2. Optional documentation
Your product package may include optional documentation, such as warranty
yers, that may have been added by your dealer. These documents are not
part of the standard package.
CAUTION: Information to prevent damage to the components when
trying to complete a task.
About this user guide
How this user guide is organized
• Chapter 1: Getting started
Provides the basic information about your ASUS O!Play HD Media Player.
• Chapter 2: Getting connected
Provides information on connecting your ASUS O!Play HD Media Player to a
home or an ofce network.
• Chapter 3: Using the ASUS O!Play HD Media Player
Provides information on using your ASUS O!Play HD Media Player.
• Chapter 4: Troubleshooting
Provides solutions to frequently-asked questions about your ASUS O!Play
HD Media Player.
Conventions used in this guide
To enure that you perform certain tasks properly, take note of the following symbols
used throughout this user guide.
1-1
Chapter 1
Getting started
Welcome
Thank you for buying the ASUS O!Play HD Media Player!
ASUS O!Play HD Media Player allows you to enjoy digital media les from your
computer via portable USB/eSATA storage devices, or over the network to your TV
or entertainment system.
If any of the above items is damaged or missing, contact your retailer.
DISPLAY

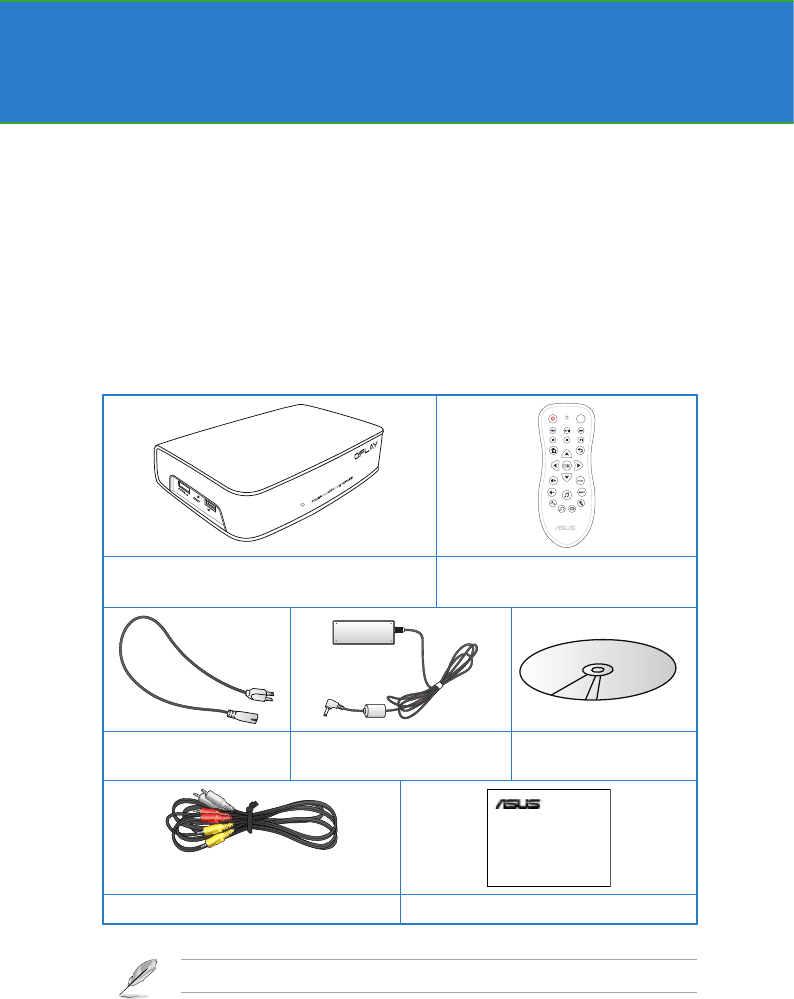

O!Play HDP-R1 HD Media Player Remote control with two AAA
batteries
Power cord AC adapter Support CD
(User Manual)
Quick Start Guide
O!Play
HD Media Player
Composite AV (audio-video) cable Quick Start Guide
Package contents
Chapter 1: Getting started
1-2
Specications summary
Specications are subject to change without notice.
Network TCP/IP (DHCP or Static IP Address)
10/100Mbps Wired LAN
Supported video formats MPEG1/2/4, H.264, VC-1, RM/RMVB
Supported video le
extension
.mp4, .mov, .xvid, .avi, .asf, .wmv, .mkv, .rm, .rmvb, .v,
.ts, m2ts, .dat, .mpg, .vob
Supported audio formats MP3, WAV, AAC, OGG, WAV, FLAC, AIFF, Dolby Digital,
DTS Digital Surround
Supported image formats JPEG, BMP, PNG, GIF, TIFF
Supported subtitile
formats
SRT, SUB, SMI, SSA
Outputs HDMI (High-Denition Multimedia Interface)
Composite Video and Audio
Optical Digital Audio
Inputs DC Power in
USB 2.0 port x1
USB / eSATA combo port x1
RJ-45 LAN port
Dimensions W x D x H: 181.0mm x 125.32mm x 47.73mm
Weight: 480g
Power Source 12Vdc, 2A
Power Consumption 10W
Operating Temperature 5˚C (41˚F) – 35˚C (95˚F)
ASUS O!Play HD media player 1-3
Getting to know your O!Play HD media player

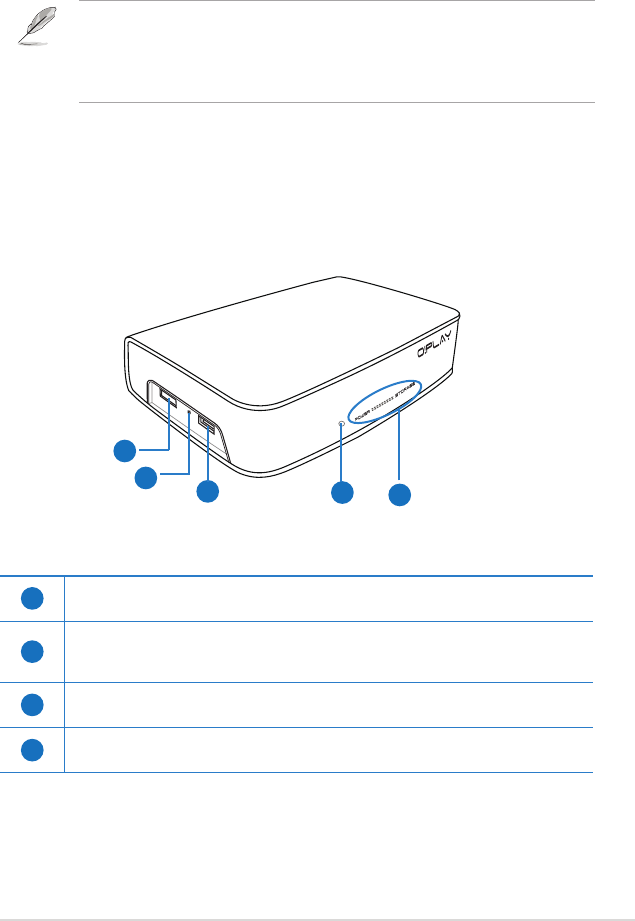

Front/left panel
34
1
5
2
1
eSATA/USB 2.0 combo port
Connect a USB 2.0/eSATA device such as an external hard drive into this port.
2
Reset button
Using a pin or a paper clip, press this button to reset the device to its factory
default settings.
3
USB 2.0 port
Connect a USB 2.0 device into this port.
4
IR (Infra-red) Receiver
Allows you to control the HD media player using the IR remote control.
System requirements
• High-denition TV (HDTV), standard TV, or HDMI monitor
• Storage device (USB ash drive / USB HDD/ eSATA ash drive/ eSATA HDD)
• RJ-45 cable to connect to a home or an ofce network (Optional)
• Use an HDMI cable to connect your HD media player to an HDTV or HDMI
monitor.
• Use the bundled composite AV cable to connect your HD media player to a
standard TV.
Chapter 1: Getting started
1-4
Ensure that the IR receiver is not blocked. Otherwise, the Media Player will not
be able to receive the command from the remote control.

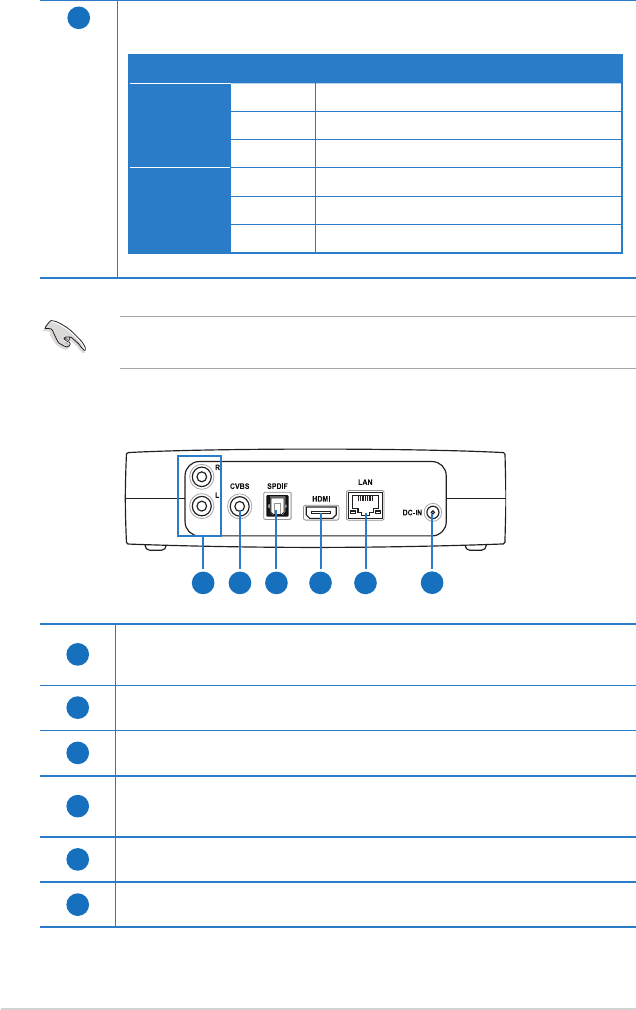

Rear panel
1
Analog audio output (red and white)
Insert the left and right audio cable jacks to connect to a television or other
audio equipment.
2
Analog video output (yellow)
Insert a composite cable to connect to a television or other video equipment.
3
Digital audio output (S/PDIF)
Insert an optical cable into this port to connect an external Hi-Fi audio system.
4
HDMI port
Insert an HDMI cable into this port to connect to a high-denition multimedia
interface (HDMI) device.
5
LAN (RJ-45) port
Insert an RJ-45 cable into this port to connect to a local area network (LAN).
6
Power (DC-In) input
Insert the power adapter into this port.
1 3 4 5 6
2
5
LED indicators
Displays the status of the HD media player.
LED Status Description
Power OFF The device is turned off.
Red The device is in sleep mode.
Blue The device is turned on.
Storage OFF No storage device is found.
Blinking Receiving data from a storage device.
ON A storage device is found.
ASUS O!Play HD media player 1-5
Remote control
Use the remote control to power on/off the O!Play HD media player, browse
through menus, and select the media le to play, view, or listen to.
2
3
11
12
13
14
4
8
10
15
16
17
18
DISPLAY
Power on/off Display
Play/Pause
Fast forward
Rewind
Stop
Previous Next
Home Return
Navigation buttons
/OK button
Setup
Volume up
Mode switch
Volume down
Music shufe
Zoom
Repeat
Subtitle
Language
1
5
6
7
9
19
20

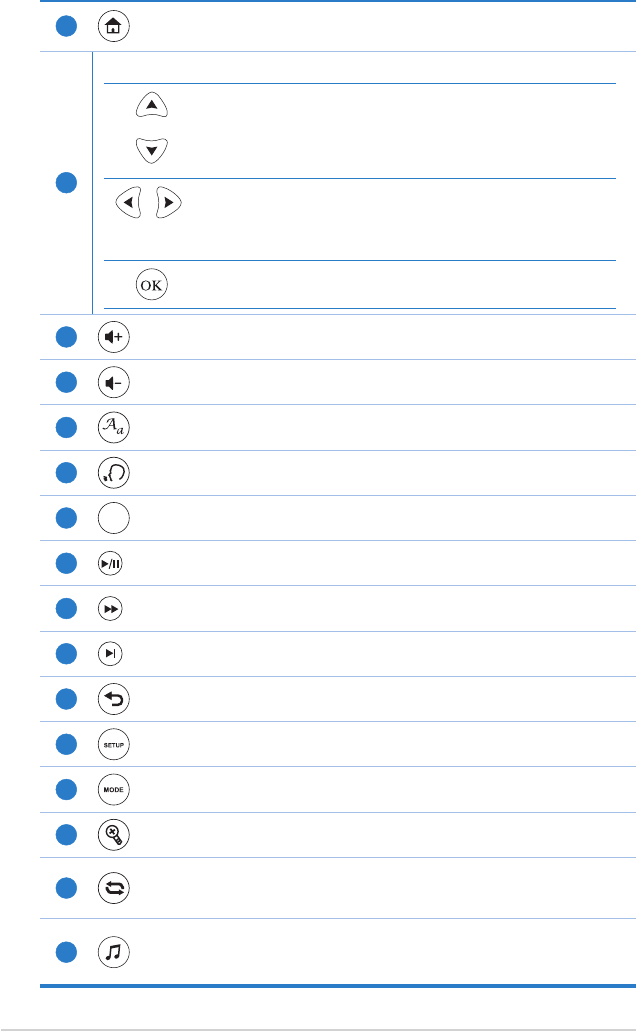

1Power
Turn the HD media player on or off.
2Rewind
Press to rewind the playback.
3Stop
Stops the playback.
4Previous
Returns to the previous media le.
Chapter 1: Getting started
1-6
5Home
Displays the home menu.
6
Navigation/OK keys
Press the up/down keys to move through the main menus in
the Home screen.
Press the up/down keys to move through the items in a
submenu.
Press the left/right keys to move through the menu bar in a
submenu.
Press the left/right keys to decrease/increase a numerical
value.
Press OK to conrm the selection.
7Volume up
Increases the volume.
8Volume down
Decreases the volume.
9Subtitle
Press to congure the subtitle settings such as color and font size.
10 Language
Press to select the language for the video you are watching.
11
DISPLAY
Display
Press to display the le name, le type, and time.
12 Pause/Play
Toggles between playback and pause.
13 Forward
Press to forward the playback.
14 Next
Goes to the next media le.
15 Return
Returns to the previous screen.
16 Setup
Launches the Setup menu.
17 Mode
Toggles among Music, Photo, and Movies modes.
18 Zoom
Zooms in on the screen.
19
Repeat
Press to repeat the playback of the currently playing music, movie, or
photo le.
20
Music shufe
Press to group all your music les in your storage device and then play the
music les randomly.
ASUS O!Play HD media player 1-7
Connecting the power adapter
To connect the power adapter:
1. Connect the AC power cord to the AC adapter.

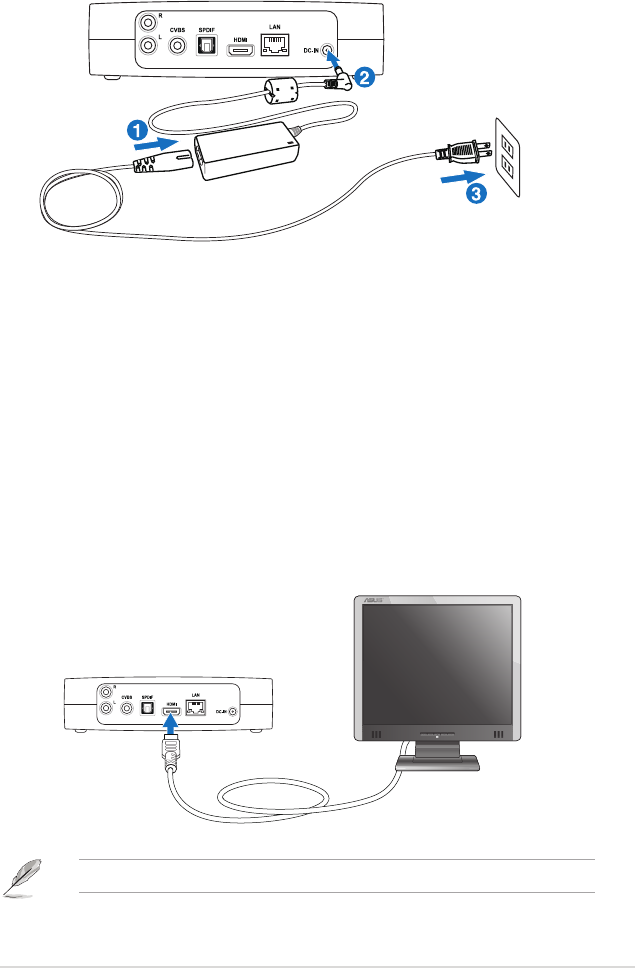

2. Connect the AC adapter to the DC-in port at the back of your HD media
player.
3. Connect the AC adapter to a power source.
Connecting devices to your HD media player
To connect devices to your HD media player:
1. Do any of the following to connect a display to your HD media player:
• Use an HDMI cable to connect your HD media player to an HDTV or an
HDMI monitor.
The HDMI cable is purchased separately.
Getting your O!Play HD media player ready
Chapter 1: Getting started
1-8
• Use the bundled composite AV cable to connect your HD media player to
a standard TV.

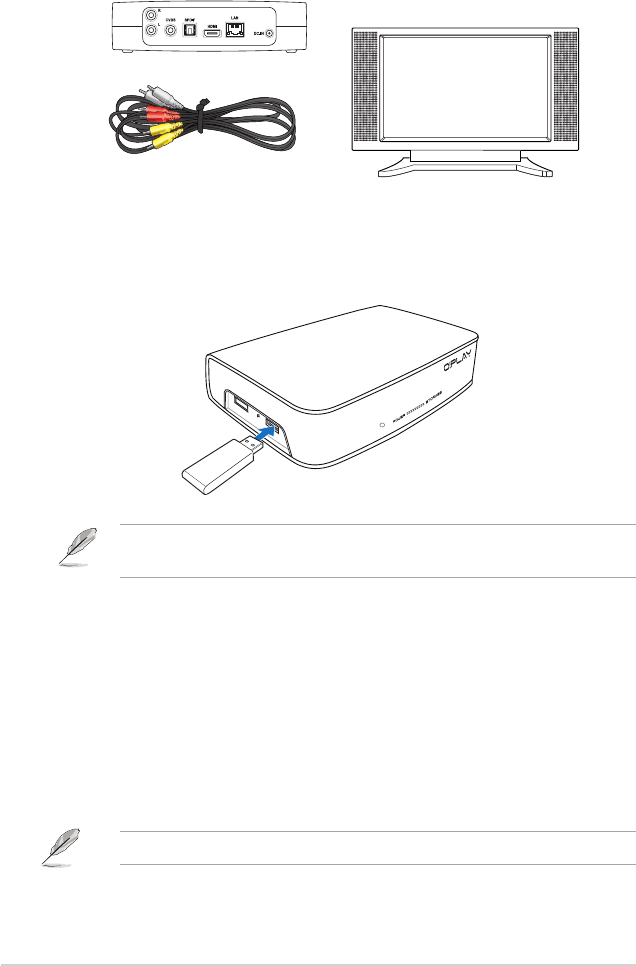

2. Insert a USB/eSATA storage device such as a portable hard disk drive or a
USB ash disk to the USB port or USB/eSATA combo port at the left side of
your HD media player.
You can also access media les from a shared folder of a network computer.
For more details, refer to the section Connecting to a network in Chapter 2.
3. Use either the bundled composite AV cable or an S/PDIF cable to connect
your audio system to your HD media player.
4. Plug the HD media player’s power cable to a power source.
5. Turn on the HDTV, TV, or HDMI monitor.
6. If you are using an HDTV or a standard TV, set your HDTV/TV to video
mode.
If you are using an HDMI monitor, ensure that the monitor’s display resolution
is set to HDMI.
Refer to the documentation that came with your HDMI monitor.
ASUS O!Play HD media player 1-9
Use the remote control the navigate the screen.
Starting for the rst time
When you start your HD media player for the rst time, a series of screens appear
to guide you in conguring the basic settings of your HD media player.
To start for the rst time:
1. Turn on your HD media player and your HDTV, TV, or HDMI monitor.
• If you are using an HDTV or a standard TV, set your HDTV/TV to video
mode.
• If you are using an HDMI monitor, ensure that the monitor’s display
resolution is set to HDMI.
2. The Setup Wizard appears. Follow the onscreen instructions to complete the
setup process.
2-1
Chapter 2
Getting connected
Connecting to a network
Wired connection
Use an RJ-45 cable to connect your HD media player to a home or an ofce
network.
To connect to your network:

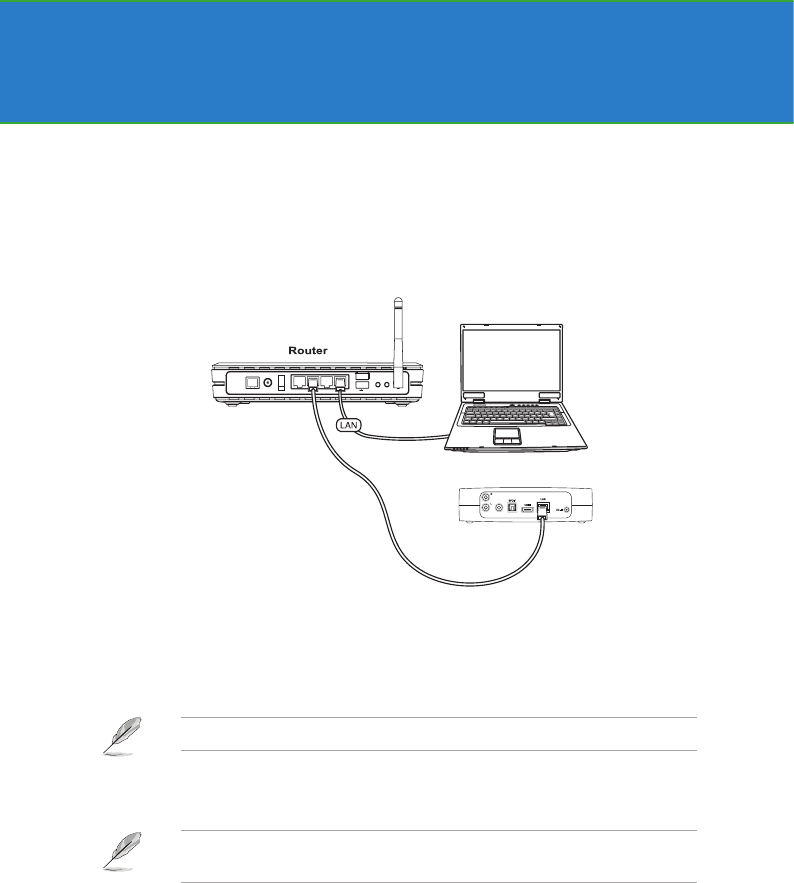

1. Connect one end of the RJ-45 cable to the LAN port at the back of your HD
media player and the other end to the LAN port of the router.
Your HD media player only supports Intranet connection.
2. Connect all the necessary devices to your HD media player.
For more details, refer to the section Connecting devices to your HD media
player in Chapter 1.
Chapter 2: Getting connected
2-2
4. Select Network > Wired LAN Setup and press .
5. Select eitherSelect either DHCP IP (AUTO) or FIX IP (MANUAL) as your setup type:
• If you select DHCP IP (AUTO), the DHCP server automatically assigns
an IP address for your media player.
• If you select FIX IP (MANUAL), key in the IP address and Subnet
Mask.
• Use the up/down keys / to increase/decrease a numerical value.
• Use the left/right keys / to move to other items on the System menu.
3. From the Home screen, press the
up/down keys / to navigate
to Setup, then press .
You may also press to launch
the Setup menu.
• You may use the Fix IP address default settings:
• IP Address: 192.168.0.2
• Subnet mask: 255.255.255.0
• You may also obtain the IP address and subnet mask from your Internet
Service Provider (ISP).
• If you cannot connect to your ofce network, contact your network
administratior.
• If you want to access shared network les, ensure that the computer’s lesensure that the computer’s les
are shared on the network. For more details, refer to the section Sharing
media les over the network in this chapter.
6. On the conrmation message, select OK to save the setting or CANCEL to
discard the setting.
7. On your computer, you may manually congure the IP address settings.
For more details, refer to the section Conguring the network clients in this
chapter.
ASUS O!Play HD media player 2-3
Conguring the network clients
Setting an IP address for wired client
To access the ASUS HD media player, you must have the correct TCP/IP settings on
your computer.
Follow the instructions below that correspond to the operating system installed on
your computer.
Use the following default IP settings:
• IP address: 192.168.0.xxx
xxx can be any number between 2 and 254. Ensure that the IP address is
not used by another device.
• Subnet Mask: 255.255.255.0 (same as the HD media player)
Windows® XP OS

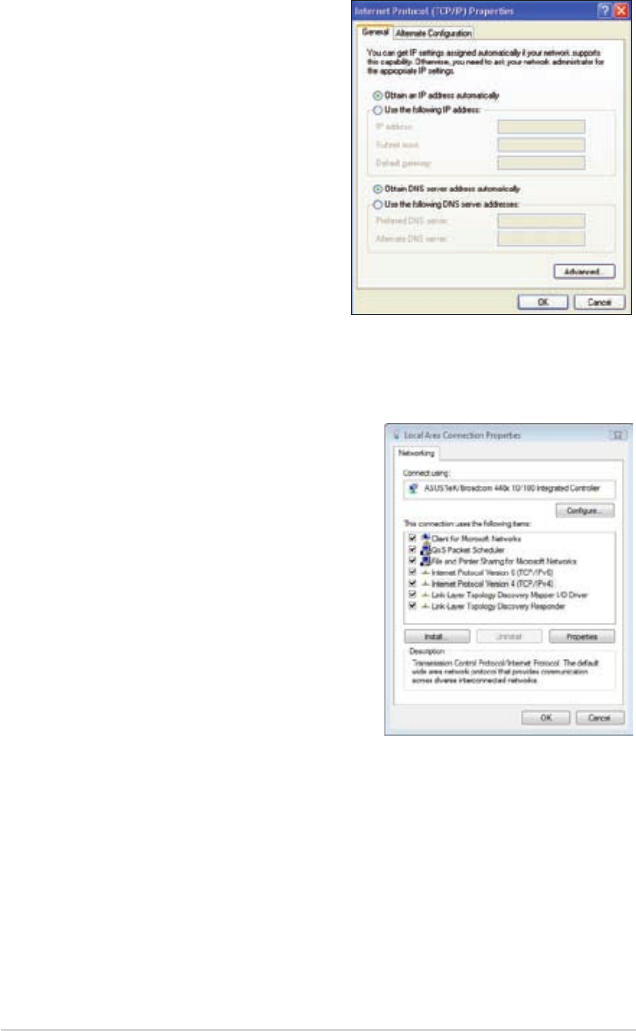

1. Click Start > Control Panel >
Network Connection. Right-click
Local Area Connection then
select Properties.
Chapter 2: Getting connected
2-4

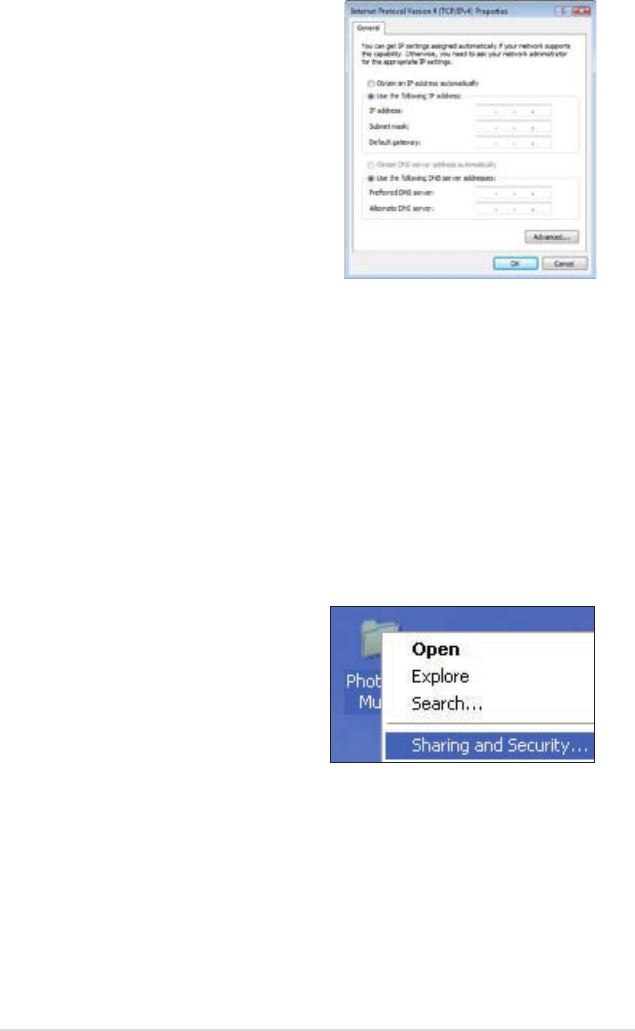

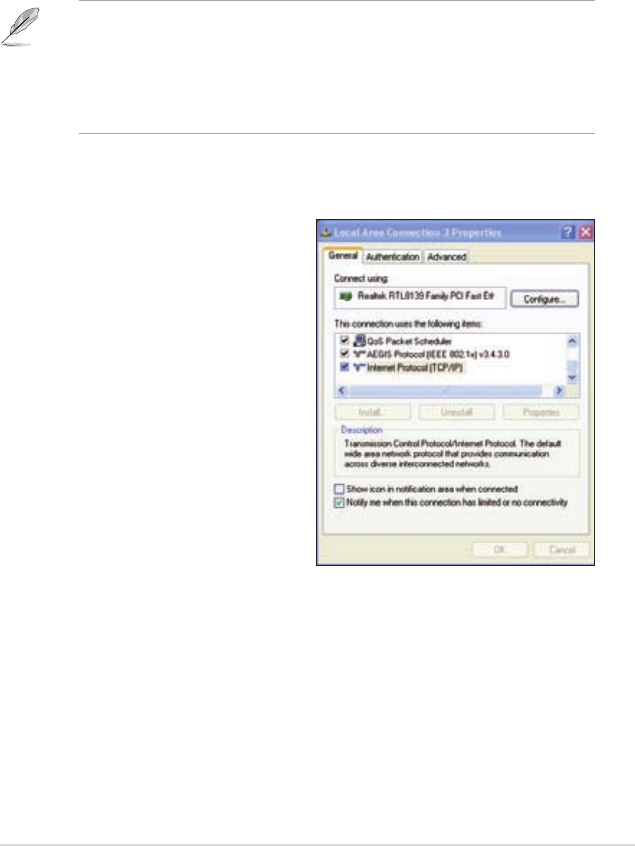

2. Select Internet Protocol (TCP/
IP), then click Properties.
3. Select Obtain an IP address
automatically if you want
the IP settings to be assigned
automatically. Otherwise, select
Use the following IP address:
and key in the IP address and
Subnet mask.
4. Click OK when done.
Windows® Vista OS
1. Click Start > Control Panel
> Network and Sharing
Center. Right-click Local
Area Connection then select
Properties.
ASUS O!Play HD media player 2-5
3. Select Obtain an IP address automatically if you want the IP settings to be
assigned automatically. Otherwise, select Use the following IP address:
and key in the IP address and Subnet mask.
4. Click OK when done.
2. Select Internet Protocol
Version 4(TCP/IPv4), then click
Properties.
Sharing les over the network
Sharing les under Windows® XP OS
To share les under Windows® XP OS:
1. On your computer, select the folder containing the les that you want to
share.
2. Right-click the selected folder, and
select Sharing and Security.
Chapter 2: Getting connected
2-6
3. Tick Share this folder.
If you want to set permissions for the
network users, click Permissions. Click
Apply when done.
4. A hand icon appears on the folder
indicating that the folder’s contents are
shared over the network.
Sharing les under Windows® Vista OS
In Windows® Vista OS, you can share les in any of these two ways:
• Share les from a folder on your computer.
• Share les from the Public folder.
Sharing les from a folder on your computer
To share les from a folder on your computer:
1. On your computer, select the folder containing the les that you want to
share.
2. Right-click the selected folder, and select Share.
3. In the File Sharing screen, select the network user that you want to share
les with from the dropdown list, then click Add.
4. To set permissions for the network user, select any of these permission levels
from the dropdown list under Permission Level:
• Reader: Select this option if you want the user to have a read-only
access rights to the shared les. S/he cannot add, change, or delete the
shared les.
• Contributor: Select this option to allow the user to view and add shared
les. S/he can only change or delete the les s/he had shared.
• Co-owner: Select this option to allow the user to view, add, change, or
delete a shared le.
5. When done, click Share.
ASUS O!Play HD media player 2-7
Sharing les from the Public folder
The Public folder allows you to share your les with other people using your
computer or with other users in the network.
To share les from the Public folder:
1. Click > Documents.
2. From Favorite Links in the navigation pane, click Public. Put any les or
folders that you want to share into any subfolders in the Public folder.
To restrict access to the les and folders in the Public folder, refer to the
succeeding sections.
To restrict a user’s access to the Public folder:
You can turn on the password-protected sharing function to restrict access to the
Public folder only to people with user accounts and passwords on your computer.
1. Click > Control Panel > Network and Internet > Network and Sharing
Center to launch the Network and Sharing Center.
2. From the Password protected sharing dropdown list, select Turn on
password protected sharing.
3. When done, click Apply.
To set the user’s access level to the Public folder:
1. Click > Control Panel > Network and Internet > Network and Sharing
Center to launch the Network and Sharing Center.
2. From the Public folder sharing dropdown list, select any of these three
options:
• Turn on sharing so anyone with network access can open les
• Turn on sharing so anyone with network access can open, change,
and create les
• Turn off sharing (people logged on to this computer can still access
this folder)
3. When done, click Apply.
3-1
Chapter 3
Using your O!Play HD media player
The Home screen

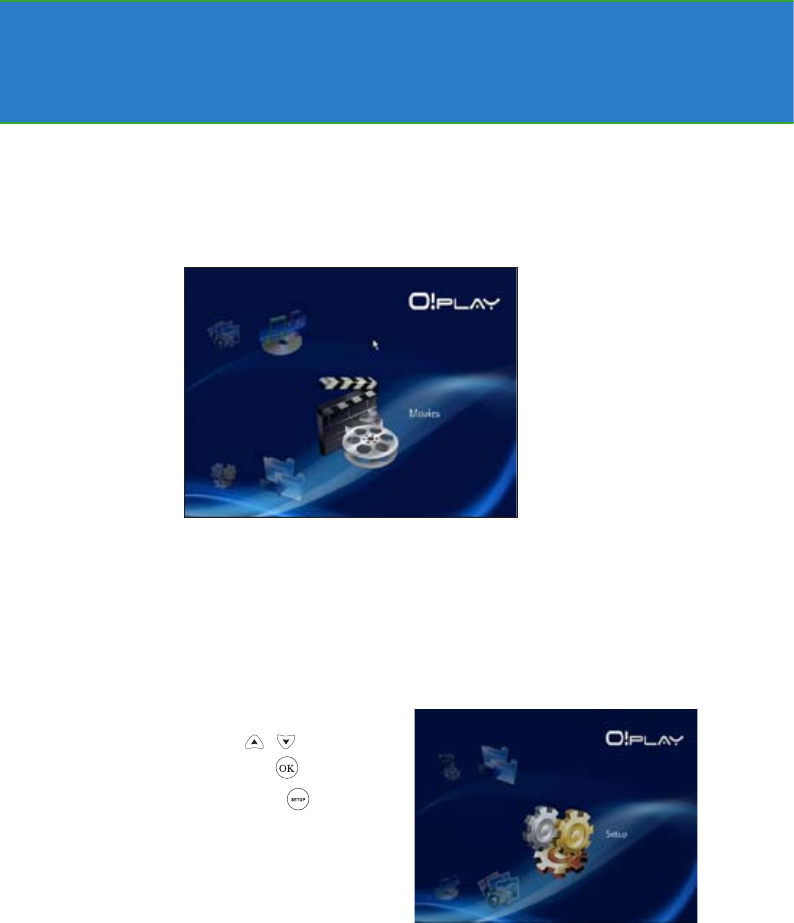

The Home screen includes these main options: Movies, Music, Photos, Setup,
and File Copy.
Conguring the system settings
The System menu allows you to congure the menu language, text encoding,
system update, and system time, turns on/off the screen saver function, and
restore the HD media player to the default settings.
To congure the system settings:

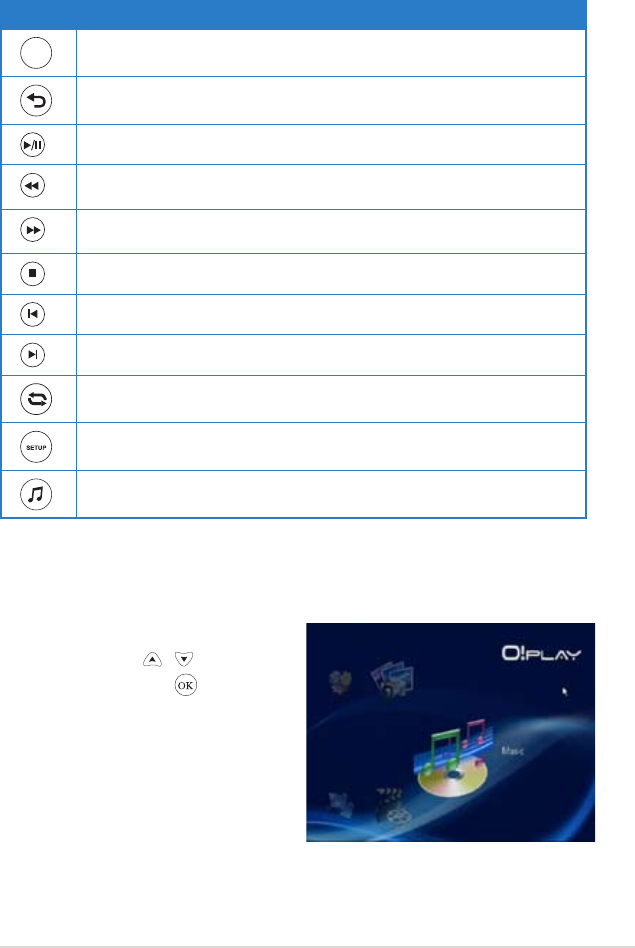

1. From the Home screen, press the
up/down keys / to navigate to
Setup, then press .
You may also press to launch
the Setup menu.
Chapter 3: Using your HD media player
3-2
3. Press to save or press to cancel the settings made.
Use the up/down keys / to increase/decrease a numerical value.

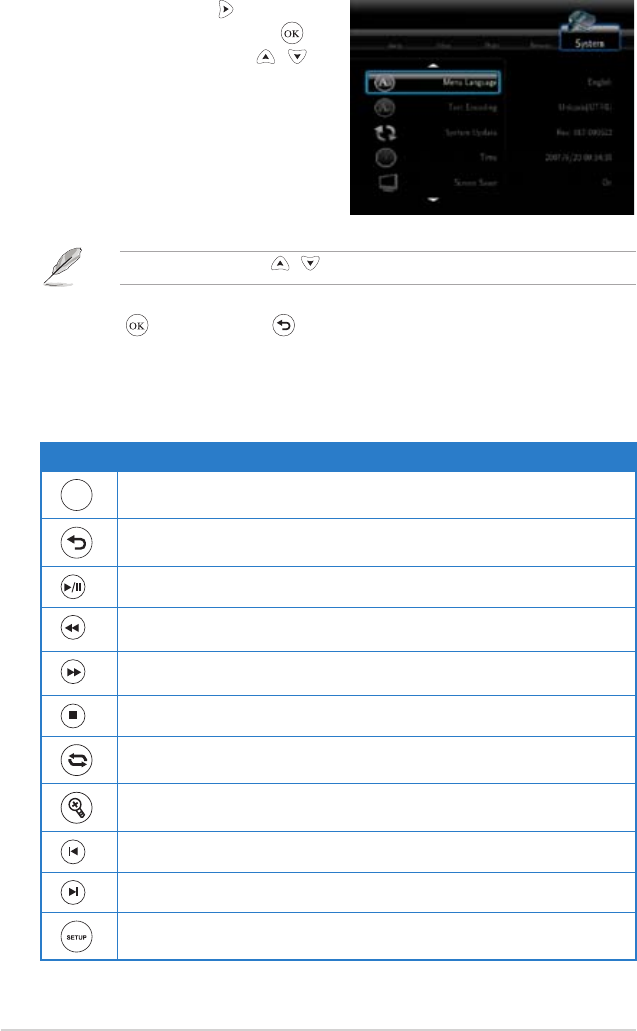

2. Press the right key to navigate to
the System tab, then press .
3. Press the up/down keys / to
navigate and select the function that
you want to congure.
Playing a video le
Video control buttons on the remote control
Button Function
DISPLAY
Press to display the video’s le source, le name, le format, and elapsed
time.
Press to return to the previous screen.
Press to toggle between playback and pause.
Press to rewind the playback. Press repeatedly to change the rewinding
speed to x1.5, x2, x4, x8, x16, x32, or normal speed (x1)
Press to forward the playback. Press repeatedly to change the forward
speed to x1.5, x2, x4, x8, x16, x32, or normal speed (x1)
Press to stop the playback.
Press to repeat the playback.
Press to zoom in on the screen. Use the navigation keys to move to a certain
area on the enlarged screen.
Press to return to the previous video le.
Press to go to the next video le.
Press to launch the Setup menu.
ASUS O!Play HD media player 3-3
2. Using the up/down keys / , select the source of your video le, then
press . Locate the video that you want to play.
3. Press or twice to play the
video.
Before you can access a media le over the network, ensure that the folder
containing the le is shared. For more details, refer to the section Sharing les
over the network in Chapter 2.
Playing a video le
To play a video le:

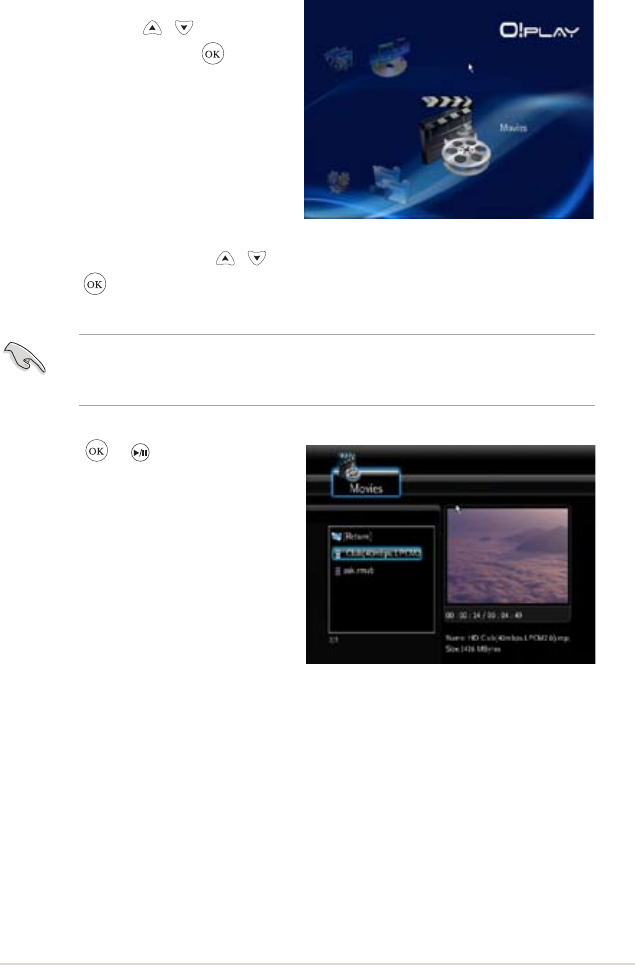

1. From the Home screen, press the
up/down keys / to navigate
to Movies, then press .
Chapter 3: Using your HD media player
3-4
Conguring the video settings
The Video menu allows you to congure several video settings such as the aspectseveral video settings such as the aspect
ratio, brightness, contrast, noise reduction, TV system, 1080P 24HZ, resume play,
and movie preview.
To congure the video settings:

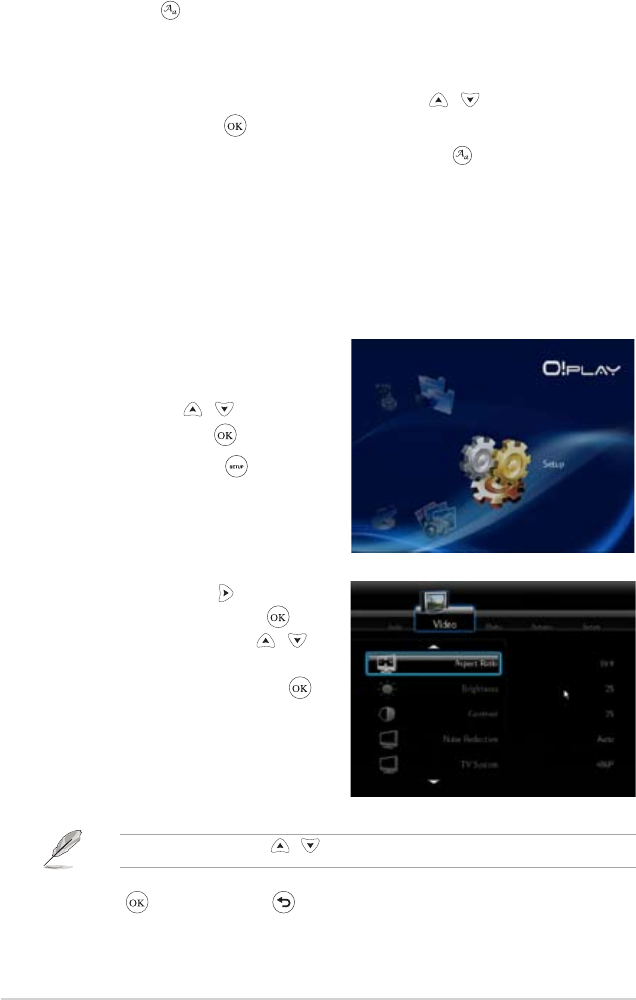

1. From the Home screen, press the
up/down keys / to navigate to
Setup, then press .
You may also press to launch
the Setup menu.
2. Press the right key to navigate to
the Video tab, then press .
3. Press the up/down keys /
to navigate to the the function that
you want to congure. Press to
conrm the selection.
Use the up/down keys / to increase/decrease a numerical value.
3. Press to save or press to cancel the settings made.
Conguring the subtitle settings
The Subtitle key allows you to congure the subtitle settings such as font size
and color.
To congure the video settings:
1. From the Home screen, press the up/down keys / to navigate to
Movies, then press .
2. Locate and play your selected video le, then press .
3. Use the navigation keys to move through and make your changes to the
subtitle settings.
ASUS O!Play HD media player 3-5
Playing a music le
To play a music le:
1. From the Home screen, press the
up/down keys / to navigate to
Music, then press .
Playing music
Music control buttons on the remote control
Button Function
DISPLAY
Press to display the song’s le source, le name, le format, and elapsed
time.
Press to return to the previous screen.
Press to toggle between playback and pause.
Press to rewind the playback. Press repeatedly to change the rewinding
speed to x1.5, x2, x4, x8, x16, x32, or normal speed (x1)
Press to forward the playback. Press repeatedly to change the forward
speed to x1.5, x2, x4, x8, x16, x32, or normal speed (x1)
Press to stop the playback.
Press to return to the previous music le.
Press to go to the next music le.
Press to repeat the playback.
Press to launch the Setup menul
Press to group all your music les in your storage device and then play the
music les randomly.
Chapter 3: Using your HD media player
3-6
2. Using the up/down keys / , select the source of your music le, then
press . Locate the music le that you want to play.
3. Press or twice to play the
music le.
Before you can access a media le over the network, ensure that the folder
containing the le is shared. For more details, refer to the section Sharing les
over the network in Chapter 2.
Conguring the audio settings
The Audio menu allows you to congure the audio settings such as Night Mode
and Digital Output.
To congure the audio settings:
1. From the Home screen, press the up/down keys / to navigate to Setup,
then press .
You may also press to launch the Setup menu.

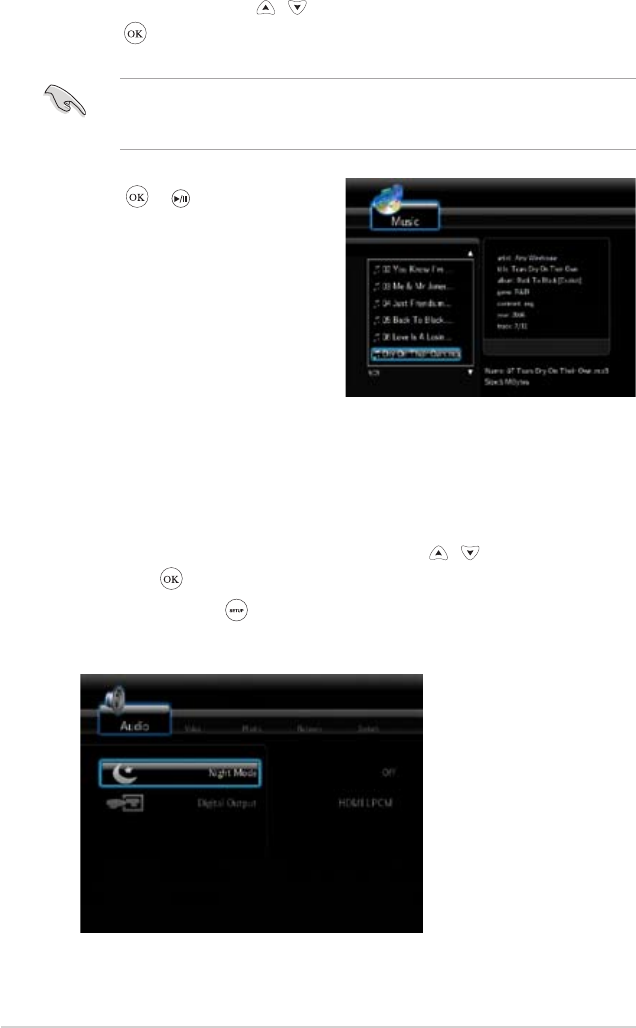

2. Select the Audio tab, then select the function that you want to congure.
ASUS O!Play HD media player 3-7
If you want to congure the Digital Output, refer to the following for the
descriptions of the options:
• HDMI LPCM (Default): Select this option when connecting your TV to
the HDMI port of the media player.
• HDMI RAW: Select this option for the multichannel audio receiver. The
RAW data of the audio will be sent to the HDMI multichannel receiver for
decoding.
• SPDIF LPCM: Select this option for the S/PDIF audio receiver.
• SPDIF RAW: Select this option for the S/PDIF multichannel audio
receiver. The RAW data of the audio will be sent to the S/PDIF
multichannel receiver for decoding.
Viewing photos
Viewing photos
To view photos:
1. From the Home screen, press the
up/down keys / to navigate
to Photos, then press .
2. Using the up/down keys / , select the source of your photo, then press
. Locate the photo that you want to view.
3. Press to browse the photos.
Press to view the photos in
slideshow mode.
Chapter 3: Using your HD media player
3-8
Viewing photos in slideshow mode
To view photos in slideshow mode:
1. When the selected photo is displayed in full screen, press on the remote
control to start the slideshow. Photos in the same source folder will be
displayed in order.
2. Press to pause the slideshow. Press or to return to the source
folder.
3. You can congure the slide show interval and the transition effect from
Setup > Photo.
Setting the background music for the slideshow
To set the background music for the slideshow
1. Before viewing photos, go to Music and play music les rst.
2. Press to return to the Home screen and then go to Photo to start the
photo slideshow. The slideshow plays with the background music.
Press
DISPLAY
instead of
DISPLAY
while playing music les. Otherwise, the background
music will not play.
Conguring the slideshow settings
The Photo menu allows you to congure the slideshow settings such as Slide
Show Interval and Transition Effect.
ASUS O!Play HD media player 3-9
• Slide Show Interval
Set the time interval between
the photos in the slideshow
from two seconds (default) to
two minutes.

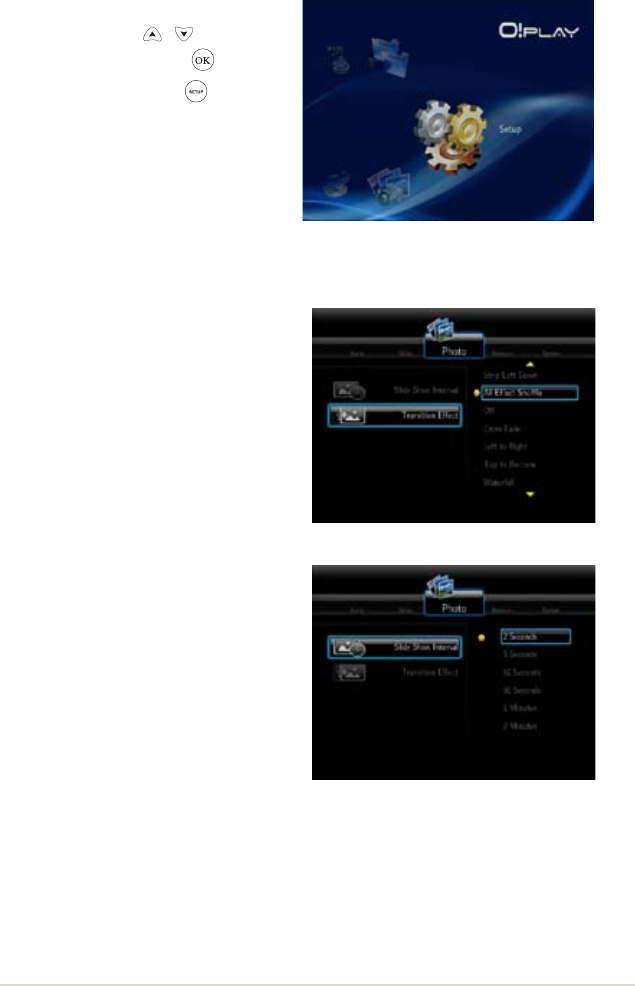

To congure the slideshow settings:
1. From the Home screen, press the
up/down keys / to navigate
to Setup, then press .
You may also press to launch
the Setup menu.

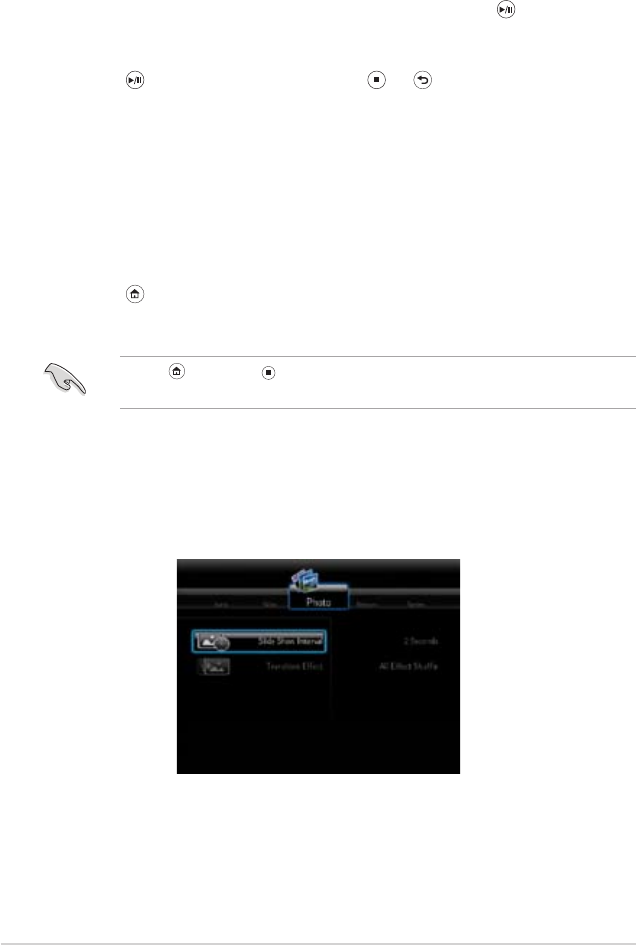

2. Select the Photo tab, then select any of these functions that you want to
congure.
• Transition Effect
Select the effect displayed
between slides in a slideshow.
You can select the transition
effect from Off, Cross Fade,
Left to Right, Top to Bottom,
Waterfall, Snake, Dissolve,
Strip Left Down, and All Effect
Shufe.
Chapter 3: Using your HD media player
3-10
Copying les
To copy les:
1. From the Home screen, press the up/down keys / to navigate to File
Copy, then press . You may also press to launch the Setup menu.
2. Select your Source, then press .
3. Select your Destination, then press .
4. In your source’s directory, locate the le that you want to copy to another
location, then press . A red checkmark appears next to your selected le.
5. Press to go to your destination directory. Select the new location for your
selected le.
6. Press to conrm the le copy.
4-1
Display
The media player does not work. You think that the problem might be
with the media player’s power adapter.
• The media player’s power adapter possibly performs the overload protection
function — automatic shutdown during overload conditions, such as Over
Current, Over Voltage, and Over Temperature.
• Disconnect the media player’s power adapter and wait few minutes before you
reinsert the player’s power adapter directly into an outlet. Turn on the media
player again.
• If the problem still exists, contact your retailer.
The TV screen is blank and the media player power LED remains off.
• Ensure that the TV is turned on.
• Ensure that the media player’s power adapter and power outlet are functional.
• Ensure that the media player’s power adapter plug is rmly attached to the rear
panel of the player and to the power outlet.
I cannot see the Setup Wizard when I turn on the player for the rst
time. The TV screen is blank and the media player power LED is on.
• Ensure that the TV is turned on.
• Ensure that the AV/HDMI cable is properly connected to the correct terminals
on both the TV and the media player.
• Ensure that your TV is switched to the appropriate video source (AV IN or
HDMI). You may need to use your TV Remote control to change video sources.
• Turn off your media player and wait for a few minutes before turning it on again
or press the reset button at the left panel.
This section provides answers to some common problems that you may encounter
while installing or using the ASUS O!Play HD media player. These problems
require simple troubleshooting that you can perform by yourself. Contact ASUS
Technical Support if you encounter problems not mentioned in this section.
Troubleshooting
Chapter 4
Troubleshooting
Chapter 4: Troubleshooting
4-2
The TV screen is blinking and fuzzy.
• Ensure that the AV/HDMI cable is properly connected to the correct terminals
on both the TV and the media player.
• Ensure that the media player power LED is on.
• Ensure that the TV system setting matches the system used in your country.
• Ensure that the correct video resolution option is selected.
I cannot nd any of my music, movie, or photo les.
• Ensure that your Media Server (such as USB storage device) or your computer
is switched on and that the device is not in standby mode.
• If using a wired network, check that the Ethernet cable is properly attached to
the Media Player and to a network router. Check that the router is switched on.
• Check that the Media server (your computer) used has shared the Media
Player as a client and that the les are also shared.
• If you are using static IP addresses, check that the IP address is in the same
range as other addresses on your network. Verify that the address is not
already used by another PC or device.
• Ensure that the les you are sharing use a supported le format.
Certain les cannot be played on the Media Player.
The Media Player may not support the video or audio format used in the le.
For information on what media formats the Media Player supports, refer to
Specications summary in Chapter 1.
Only one video/music/photo is played when I selected it. How do I
play the entire list?
When selecting a video/music/photo to play, pressing the OK button on the remote
control plays just the selected le while pressing the PLAY/PAUSE button plays the
entire list of les.
The LEDs on the Ethernet port do not blink and my wired connection
does not work.
• Ensure that the LAN Cable plug is rmly connected to the Ethernet port of the
Media Player’s rear panel.
• Try to replace a functional LAN cable.
• Try to reconnect the LAN cable to the Media Player to keep the network
connection active.
ASUS O!Play HD media player 4-3
Audio
There is no sound.
• Ensure the volume on the entertainment unit is not on mute mode.
• Navigate to the Setup > System screen and ensure that the correct Digital
output setting is enabled. If you are using the multiple audio Amplier, the RAW
setting should be enabled.
• If you are watching a video that supports multiple audio channels, press Audio
Options button repeatedly until the intended audio channel is displayed.
I cannot hear any sound when I am playing music les.
• Ensure that the audio cables are properly connected.
• If the audio cables are connected to your TV, the TV must be turned on to play
any music les.
• If the audio cables are connected to your stereo, ensure that the stereo is
on and you have the correct stereo input selected. If you are having trouble
selecting the correct audio source, refer to the instructions that came with your
stereo.
A few of my Music les do not appear.
The Media Player supports the most common music le formats. However, there
are almost an innite variety of bit rates and sample rates. If a le is not displayed
on the screen, it most likely uses an unsupported bit rate or sample rate. Only use
les with supported formats, bit rates, and sample rates.
USB storage device
The Media Player does not recognize my USB storage device.
Your USB storage device may not be detected because of problems with the
hardware driver, power cord, cable,or longer system response time. Try to re-plug
the USB storage device and the power cord to the Media player.
Remote Control
The media player remote control is not working.
• Ensure that the batteries are properly inserted.
• The batteries may already be drained out. Replace the batteries with new
ones.
• Ensure that the path between the remote control and the media player is not
blocked.
Chapter 4: Troubleshooting
4-4
Firmware Update
What version of rmware do I have? How do I upgrade it?
• On the Home screen, press the Stop and then Play/Pause button to display the
rmware version (ex. system Rev:01.01).
Check the rmware version before the upgrade process. If the rmware is the
latest version, you will not need to update the rmware.
• Go to Setup > System > System Update to perform the rmware upgrade
process.
• If you are still unable to update the rmware, reset the system and perform the
updating process again.
• Download the O!Play Firmware Update manual and the latest rmware from
our support website at http://support.asus.com.
Operation/function failure
An operation/function failed on my HD media player.
Disconnect the AC adapter from the power source, then plug it in again. If you still
encounter the same problem, contact the ASUS Technical Support.
A-1
Appendices
Any changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
equipment.
Notices
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and
Restriction of Chemicals) regulatory framework, we published the chemical
substances in our products at ASUS REACH website at http://green.asus.com/
english/REACH.htm.
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer’s
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Appendices
A-2
Canadian Department of Communications Statement
This digital device does not exceed the Class B limits for radio noise emissions
from digital device set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This class B digital device complies with Canadian ICES-003.
GNU General Public License
Licensing information
This product includes copyrighted third-party software licensed under the terms of
the GNU General Public License. Please see The GNU General Public License
for the exact terms and conditions of this license. We include a copy of the GPL
with every CD shipped with our product. All future rmware updates will also
be accompanied with their respective source code. Please visit our web site for
updated information. Note that we do not offer direct support for the distribution.
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license
document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to
share and change it. By contrast, the GNU General Public License is intended
to guarantee your freedom to share and change free software--to make sure the
software is free for all its users. This General Public License applies to most of the
Free Software Foundation’s software and to any other program whose authors
commit to using it. (Some other Free Software Foundation software is covered
by the GNU Library General Public License instead.) You can apply it to your
programs, too.
ASUS O!Play HD media player A-3
When we speak of free software, we are referring to freedom, not price. Our
General Public Licenses are designed to make sure that you have the freedom to
distribute copies of free software (and charge for this service if you wish), that you
receive source code or can get it if you want it, that you can change the software or
use pieces of it in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny
you these rights or to ask you to surrender the rights. These restrictions translate
to certain responsibilities for you if you distribute copies of the software, or if you
modify it.
For example, if you distribute copies of such a program, whether gratis or for a
fee, you must give the recipients all the rights that you have. You must make sure
that they, too, receive or can get the source code. And you must show them these
terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you
this license which gives you legal permission to copy, distribute and/or modify the
software.
Also, for each author’s protection and ours, we want to make certain that everyone
understands that there is no warranty for this free software. If the software is
modied by someone else and passed on, we want its recipients to know that what
they have is not the original, so that any problems introduced by others will not
reect on the original authors’ reputations.
Finally, any free program is threatened constantly by software patents. We wish to
avoid the danger that redistributors of a free program will individually obtain patent
licenses, in effect making the program proprietary. To prevent this, we have made it
clear that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modication follow.
Terms & conditions for copying, distribution, & modication
0. This License applies to any program or other work which contains a notice
placed by the copyright holder saying it may be distributed under the terms
of this General Public License. The “Program”, below, refers to any such
program or work, and a “work based on the Program” means either the
Program or any derivative work under copyright law: that is to say, a work
containing the Program or a portion of it, either verbatim or with modications
and/or translated into another language. (Hereinafter, translation is included
without limitation in the term “modication”.) Each licensee is addressed as
“you”.
Appendices
A-4
Activities other than copying, distribution and modication are not covered
by this License; they are outside its scope. The act of running the Program is
not restricted, and the output from the Program is covered only if its contents
constitute a work based on the Program (independent of having been made
by running the Program). Whether that is true depends on what the Program
does.
1. You may copy and distribute verbatim copies of the Program’s source code
as you receive it, in any medium, provided that you conspicuously and
appropriately publish on each copy an appropriate copyright notice and
disclaimer of warranty; keep intact all the notices that refer to this License
and to the absence of any warranty; and give any other recipients of the
Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may
at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it,
thus forming a work based on the Program, and copy and distribute such
modications or work under the terms of Section 1 above, provided that you
also meet all of these conditions:
a) You must cause the modied les to carry prominent notices stating that
you changed the les and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or
in part contains or is derived from the Program or any part thereof, to be
licensed as a whole at no charge to all third parties under the terms of this
License.
c) If the modied program normally reads commands interactively when run,
you must cause it, when started running for such interactive use in the most
ordinary way, to print or display an announcement including an appropriate
copyright notice and a notice that there is no warranty (or else, saying that
you provide a warranty) and that users may redistribute the program under
these conditions, and telling the user how to view a copy of this License.
(Exception: if the Program itself is interactive but does not normally print such
an announcement, your work based on the Program is not required to print
an announcement.)
These requirements apply to the modied work as a whole. If identiable
sections of that work are not derived from the Program, and can be
reasonably considered independent and separate works in themselves,
then this License, and its terms, do not apply to those sections when you
distribute them as separate works. But when you distribute the same sections
as part of a whole which is a work based on the Program, the distribution
of the whole must be on the terms of this License, whose permissions for
other licensees extend to the entire whole, and thus to each and every part
regardless of who wrote it.
ASUS O!Play HD media player A-5
Thus, it is not the intent of this section to claim rights or contest your rights to
work written entirely by you; rather, the intent is to exercise the right to control
the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with
the Program (or with a work based on the Program) on a volume of a storage
or distribution medium does not bring the other work under the scope of this
License.
3. You may copy and distribute the Program (or a work based on it, under
Section 2) in object code or executable form under the terms of Sections 1
and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source
code, which must be distributed under the terms of Sections 1 and 2 above
on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give
any third party, for a charge no more than your cost of physically performing
source distribution, a complete machine-readable copy of the corresponding
source code, to be distributed under the terms of Sections 1 and 2 above on
a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to
distribute corresponding source code. (This alternative is allowed only for
noncommercial distribution and only if you received the program in object
code or executable form with such an offer, in accord with Subsection b
above.)
The source code for a work means the preferred form of the work for making
modications to it. For an executable work, complete source code means
all the source code for all modules it contains, plus any associated interface
denition les, plus the scripts used to control compilation and installation of
the executable. However, as a special exception, the source code distributed
need not include anything that is normally distributed (in either source or
binary form) with the major components (compiler, kernel, and so on) of the
operating system on which the executable runs, unless that component itself
accompanies the executable.
If distribution of executable or object code is made by offering access to
copy from a designated place, then offering equivalent access to copy the
source code from the same place counts as distribution of the source code,
even though third parties are not compelled to copy the source along with the
object code.
4. You may not copy, modify, sublicense, or distribute the Program except as
expressly provided under this License. Any attempt otherwise to copy, modify,
sublicense or distribute the Program is void, and will automatically terminate
your rights under this License. However, parties who have received copies, or
rights, from you under this License will not have their licenses terminated so
long as such parties remain in full compliance.
Appendices
A-6
5. You are not required to accept this License, since you have not signed it.
However, nothing else grants you permission to modify or distribute the
Program or its derivative works. These actions are prohibited by law if you do
not accept this License. Therefore, by modifying or distributing the Program
(or any work based on the Program), you indicate your acceptance of this
License to do so, and all its terms and conditions for copying, distributing or
modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program),
the recipient automatically receives a license from the original licensor to
copy, distribute or modify the Program subject to these terms and conditions.
You may not impose any further restrictions on the recipients’ exercise of the
rights granted herein. You are not responsible for enforcing compliance by
third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement
or for any other reason (not limited to patent issues), conditions are imposed
on you (whether by court order, agreement or otherwise) that contradict
the conditions of this License, they do not excuse you from the conditions
of this License. If you cannot distribute so as to satisfy simultaneously your
obligations under this License and any other pertinent obligations, then as
a consequence you may not distribute the Program at all. For example, if a
patent license would not permit royalty-free redistribution of the Program by
all those who receive copies directly or indirectly through you, then the only
way you could satisfy both it and this License would be to refrain entirely from
distribution of the Program.
If any portion of this section is held invalid or unenforceable under any
particular circumstance, the balance of the section is intended to apply and
the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents
or other property right claims or to contest validity of any such claims; this
section has the sole purpose of protecting the integrity of the free software
distribution system, which is implemented by public license practices. Many
people have made generous contributions to the wide range of software
distributed through that system in reliance on consistent application of
that system; it is up to the author/donor to decide if he or she is willing to
distribute software through any other system and a licensee cannot impose
that choice.
This section is intended to make thoroughly clear what is believed to be a
consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries
either by patents or by copyrighted interfaces, the original copyright holder
who places the Program under this License may add an explicit geographical
distribution limitation excluding those countries, so that distribution is
permitted only in or among countries not thus excluded. In such case, this
License incorporates the limitation as if written in the body of this License.
ASUS O!Play HD media player A-7
9. The Free Software Foundation may publish revised and/or new versions
of the General Public License from time to time. Such new versions will be
similar in spirit to the present version, but may differ in detail to address new
problems or concerns.
Each version is given a distinguishing version number. If the Program
species a version number of this License which applies to it and “any
later version”, you have the option of following the terms and conditions
either of that version or of any later version published by the Free Software
Foundation. If the Program does not specify a version number of this
License, you may choose any version ever published by the Free Software
Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose
distribution conditions are different, write to the author to ask for permission.
For software which is copyrighted by the Free Software Foundation, write to
the Free Software Foundation; we sometimes make exceptions for this. Our
decision will be guided by the two goals of preserving the free status of all
derivatives of our free software and of promoting the sharing and reuse of
software generally.
NO WARRANTY
11 BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS
NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING
THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE
THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE
PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL
NECESSARY SERVICING, REPAIR OR CORRECTION.
12 IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED
TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER
PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS
PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING
ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM
(INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING
RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD
PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY
OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
Appendices
A-8
ASUS contact information
ASUSTeK COMPUTER INC.
Address 5 Li-Te Road, Peitou, Taipei, Taiwan 11259
Telephone +886-2-2894-3447
Fax +886-2-2890-7798
E-mail info@asus.com.tw
Web site www.asus.com.tw
Technical Support
Telephone +86-21-38429911
Online support support.asus.com
ASUS COMPUTER INTERNATIONAL (America)
Address 800 Corporate Way, Fremont, CA 94539, USA
Telephone +1-510-739-3777
Fax +1-510-608-4555
Web site usa.asus.com
Technical Support
Telephone +1-812-282-2787
Support fax +1-812-284-0883
Online support support.asus.com
ASUS COMPUTER GmbH (Germany and Austria)
Address Harkort Str. 21-23, D-40880 Ratingen, Germany
Fax +49-2102-959911
Web site www.asus.de
Online contact www.asus.de/sales
Technical Support
Component Telephone +49-1805-010923
System/Notebook/Eee/LCD Telephone +49-1805-010920
Support Fax +49-2102-9599-11
Online support support.asus.com

Navigation menu
