Busch Jaeger Elektro FHIWD1US ABB-free at home in wall devices User Manual Manual ABB Ceiling Fan Controller

Busch-Jaeger Elektro GmbH ABB-free at home in wall devices Manual ABB Ceiling Fan Controller

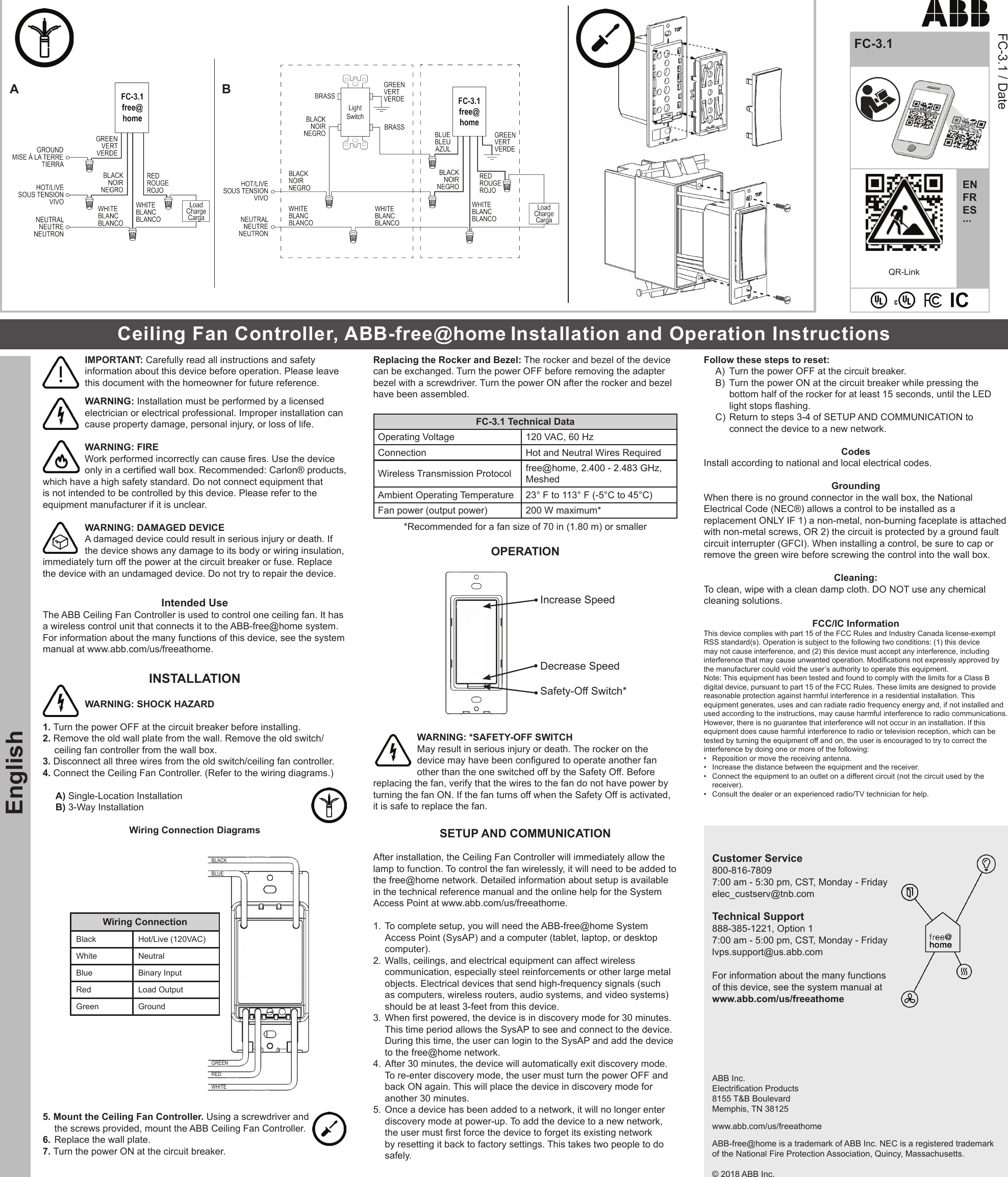

Manual - ABB Ceiling Fan Controller

QR-LinkEnglishENFRES...FC-3.1FC-3.1 / DateIMPORTANT: Carefully read all instructions and safety information about this device before operation. Please leave this document with the homeowner for future reference. WARNING: Installation must be performed by a licensed electrician or electrical professional. Improper installation can cause property damage, personal injury, or loss of life.WARNING: FIREWork performed incorrectly can cause res. Use the device only in a certied wall box. Recommended: Carlon® products, which have a high safety standard. Do not connect equipment that is not intended to be controlled by this device. Please refer to the equipment manufacturer if it is unclear. WARNING: DAMAGED DEVICE A damaged device could result in serious injury or death. If the device shows any damage to its body or wiring insulation, immediately turn off the power at the circuit breaker or fuse. Replace the device with an undamaged device. Do not try to repair the device. Intended Use The ABB Ceiling Fan Controller is used to control one ceiling fan. It has a wireless control unit that connects it to the ABB-free@home system. For information about the many functions of this device, see the system manual at www.abb.com/us/freeathome. INSTALLATION WARNING: SHOCK HAZARD1. Turn the power OFF at the circuit breaker before installing. 2. Remove the old wall plate from the wall. Remove the old switch/ceiling fan controller from the wall box. 3. Disconnect all three wires from the old switch/ceiling fan controller. 4. Connect the Ceiling Fan Controller. (Refer to the wiring diagrams.) A) Single-Location InstallationB) 3-Way InstallationWiring Connection DiagramsgreenbluewhiteblackredWiring ConnectionBlack Hot/Live (120VAC)White NeutralBlue Binary InputRed Load OutputGreen Ground5. Mount the Ceiling Fan Controller. Using a screwdriver and the screws provided, mount the ABB Ceiling Fan Controller.6. Replace the wall plate.7. Turn the power ON at the circuit breaker.Replacing the Rocker and Bezel: The rocker and bezel of the device can be exchanged. Turn the power OFF before removing the adapter bezel with a screwdriver. Turn the power ON after the rocker and bezel have been assembled.FC-3.1 Technical DataOperating Voltage 120 VAC, 60 HzConnection Hot and Neutral Wires RequiredWireless Transmission Protocol free@home, 2.400 - 2.483 GHz, MeshedAmbient Operating Temperature 23° F to 113° F (-5°C to 45°C)Fan power (output power) 200 W maximum**Recommended for a fan size of 70 in (1.80 m) or smallerOPERATIONIncrease SpeedDecrease SpeedSafety-Off Switch*WARNING: *SAFETY-OFF SWITCHMay result in serious injury or death. The rocker on the device may have been congured to operate another fan other than the one switched off by the Safety Off. Before replacing the fan, verify that the wires to the fan do not have power by turning the fan ON. If the fan turns off when the Safety Off is activated, it is safe to replace the fan.SETUP AND COMMUNICATIONAfter installation, the Ceiling Fan Controller will immediately allow the lamp to function. To control the fan wirelessly, it will need to be added to the free@home network. Detailed information about setup is available in the technical reference manual and the online help for the System Access Point at www.abb.com/us/freeathome. 1. To complete setup, you will need the ABB-free@home System Access Point (SysAP) and a computer (tablet, laptop, or desktop computer). 2. Walls, ceilings, and electrical equipment can affect wireless communication, especially steel reinforcements or other large metal objects. Electrical devices that send high-frequency signals (such as computers, wireless routers, audio systems, and video systems) should be at least 3-feet from this device. 3. When rst powered, the device is in discovery mode for 30 minutes. This time period allows the SysAP to see and connect to the device. During this time, the user can login to the SysAP and add the device to the free@home network.4. After 30 minutes, the device will automatically exit discovery mode. To re-enter discovery mode, the user must turn the power OFF and back ON again. This will place the device in discovery mode for another 30 minutes.5. Once a device has been added to a network, it will no longer enter discovery mode at power-up. To add the device to a new network, the user must rst force the device to forget its existing network by resetting it back to factory settings. This takes two people to do safely. Follow these steps to reset:A) Turn the power OFF at the circuit breaker.B) Turn the power ON at the circuit breaker while pressing the bottom half of the rocker for at least 15 seconds, until the LED light stops ashing.C) Return to steps 3-4 of SETUP AND COMMUNICATION to connect the device to a new network. Codes Install according to national and local electrical codes. Grounding When there is no ground connector in the wall box, the National Electrical Code (NEC®) allows a control to be installed as a replacement ONLY IF 1) a non-metal, non-burning faceplate is attached with non-metal screws, OR 2) the circuit is protected by a ground fault circuit interrupter (GFCI). When installing a control, be sure to cap or remove the green wire before screwing the control into the wall box. Cleaning: To clean, wipe with a clean damp cloth. DO NOT use any chemical cleaning solutions. FCC/IC Information This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause unwanted operation. Modications not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in an installation. If this equipment does cause harmful interference to radio or television reception, which can be tested by turning the equipment off and on, the user is encouraged to try to correct the interference by doing one or more of the following: • Reposition or move the receiving antenna. • Increase the distance between the equipment and the receiver. • Connect the equipment to an outlet on a different circuit (not the circuit used by the receiver). • Consult the dealer or an experienced radio/TV technician for help.Customer Service 800-816-7809 7:00 am - 5:30 pm, CST, Monday - Friday elec_custserv@tnb.com Technical Support888-385-1221, Option 1 7:00 am - 5:00 pm, CST, Monday - Fridaylvps.support@us.abb.comFor information about the many functions of this device, see the system manual at www.abb.com/us/freeathomeABB Inc. Electrication Products 8155 T&B Boulevard Memphis, TN 38125 www.abb.com/us/freeathomeABB-free@home is a trademark of ABB Inc. NEC is a registered trademark of the National Fire Protection Association, Quincy, Massachusetts. © 2018 ABB Inc.Ceiling Fan Controller, ABB-free@home Installation and Operation Instructions A B
