CAPSTONE IPCO smart switch User Manual Model MW3R15GS

CAPSTONE INDUSTRIES INC smart switch Model MW3R15GS

user manual

Model: IPCO
Introduction
This product is a wireless Smart AC plug; with the built-in WIFI module, you can control the
socket power ON/OFF by using iOS/Android devices through our APP. You can also check the
power consumption, set a timer or scheduling the socket individually or by group all through our
APP.
Technical Specification
Input : 120V AC 60Hz 15A
Output: 120V AC 60Hz 15A
Instruction
Please read the following instructions step-by-step before using the product.
1.) You can search “Capstone HAin APP Store or Google play to down load APP.
2.) Connect this product to wall socket.
2.1) Open the APP to connect our product.
2.2) Connect the used equipment to our product after wireless connection finishes.
2.3)You can control ON/OFF by smart phone or the power button on the product.
How to connect this product by APP

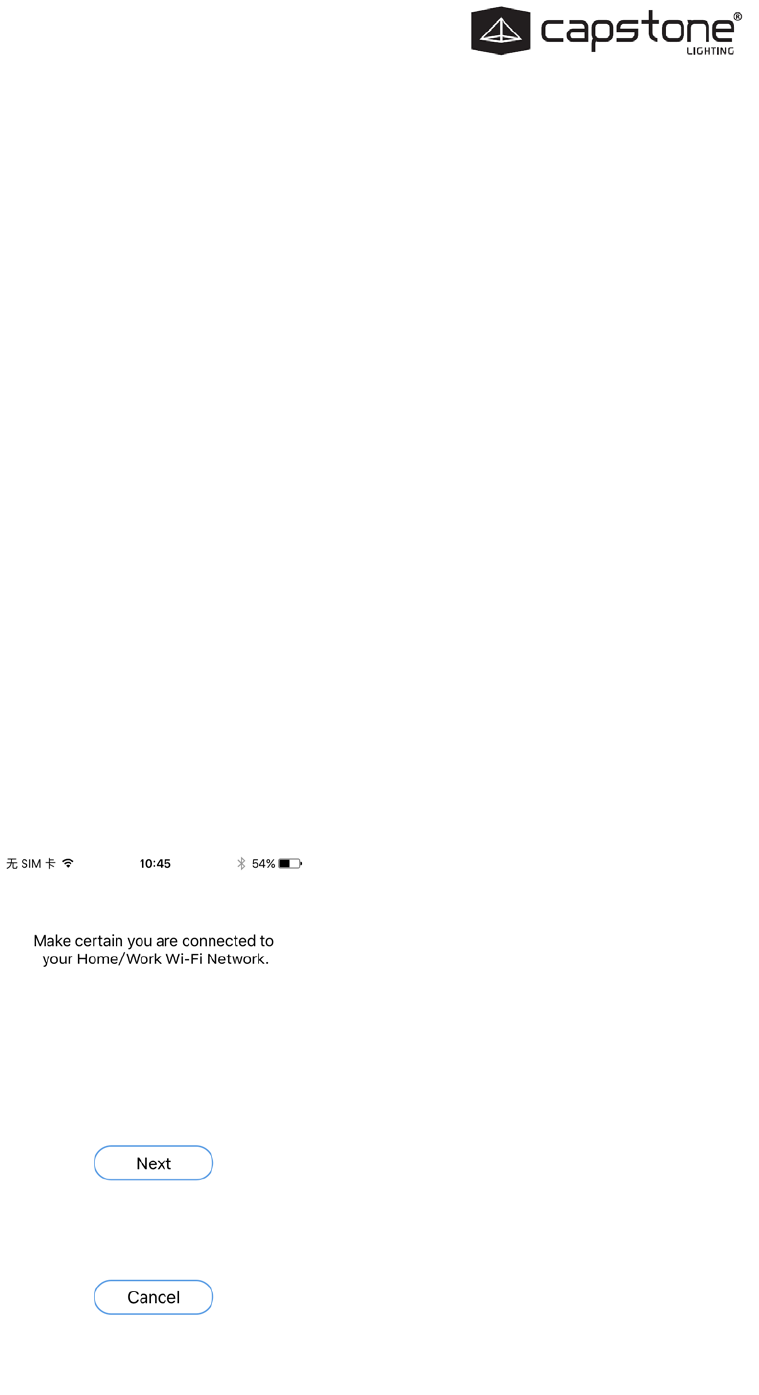

1) Open your smart phone, and connect your home WIFI.
2) Open APP, click NEXT

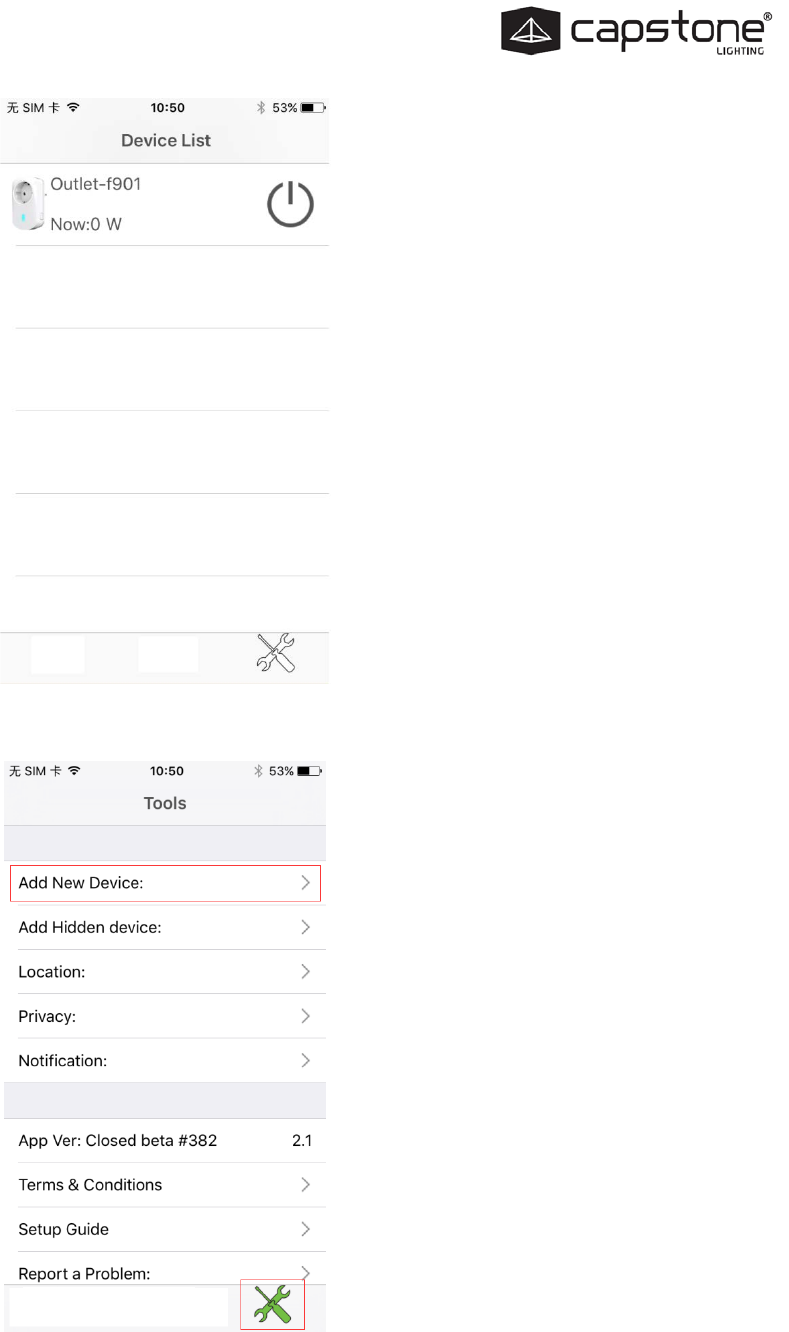

3) Add a new smart switch

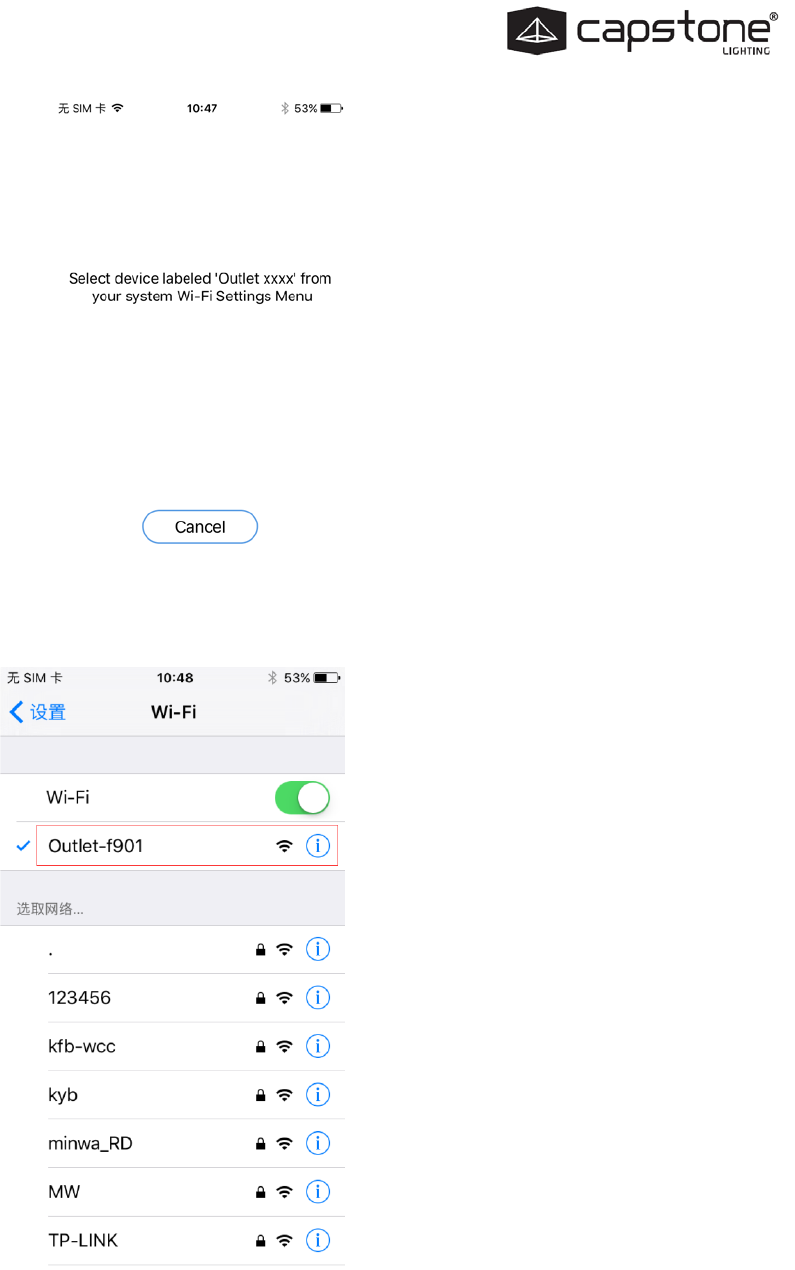

4) Return to smart phone “Setting/wifi, select “outlet xxxx”

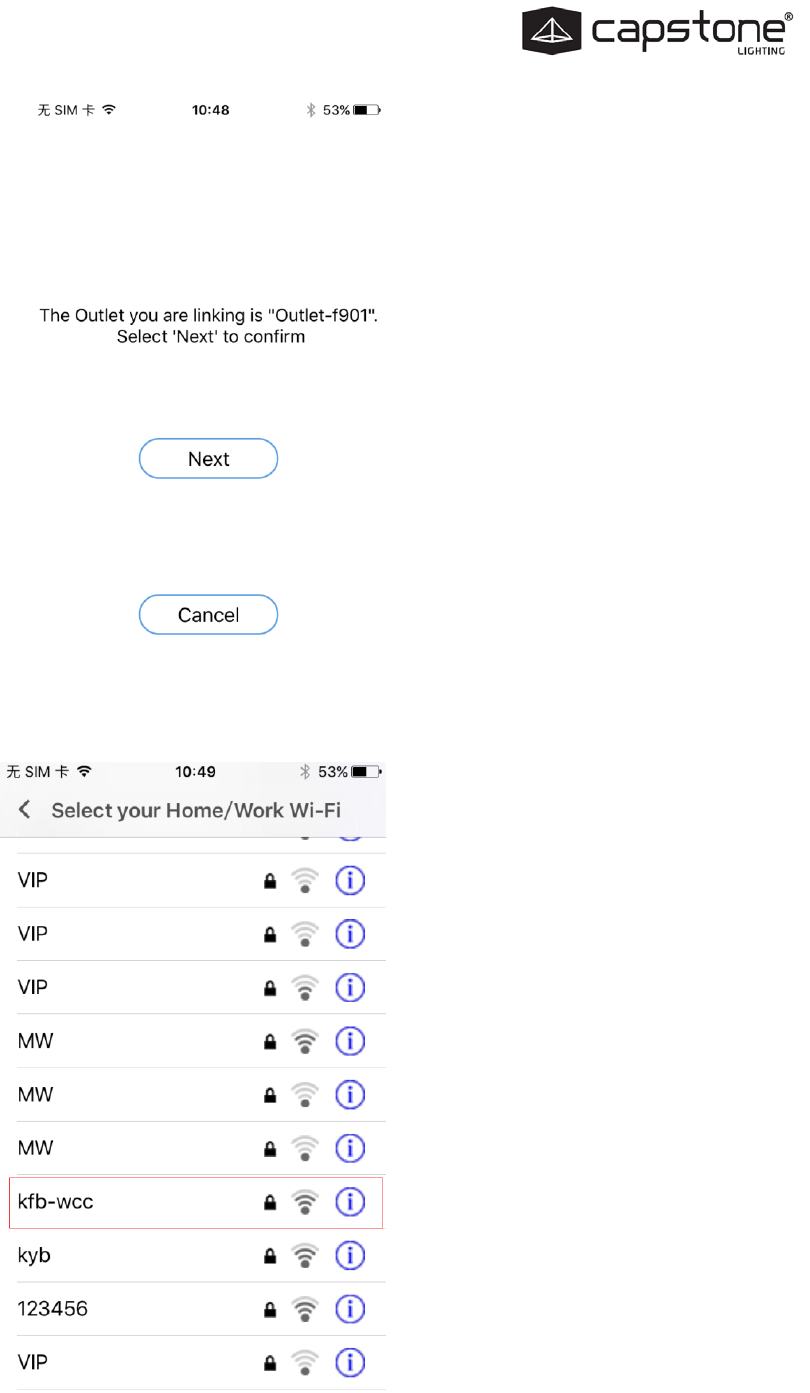

5) Click NEXT”.
6) Select your home wi-fi

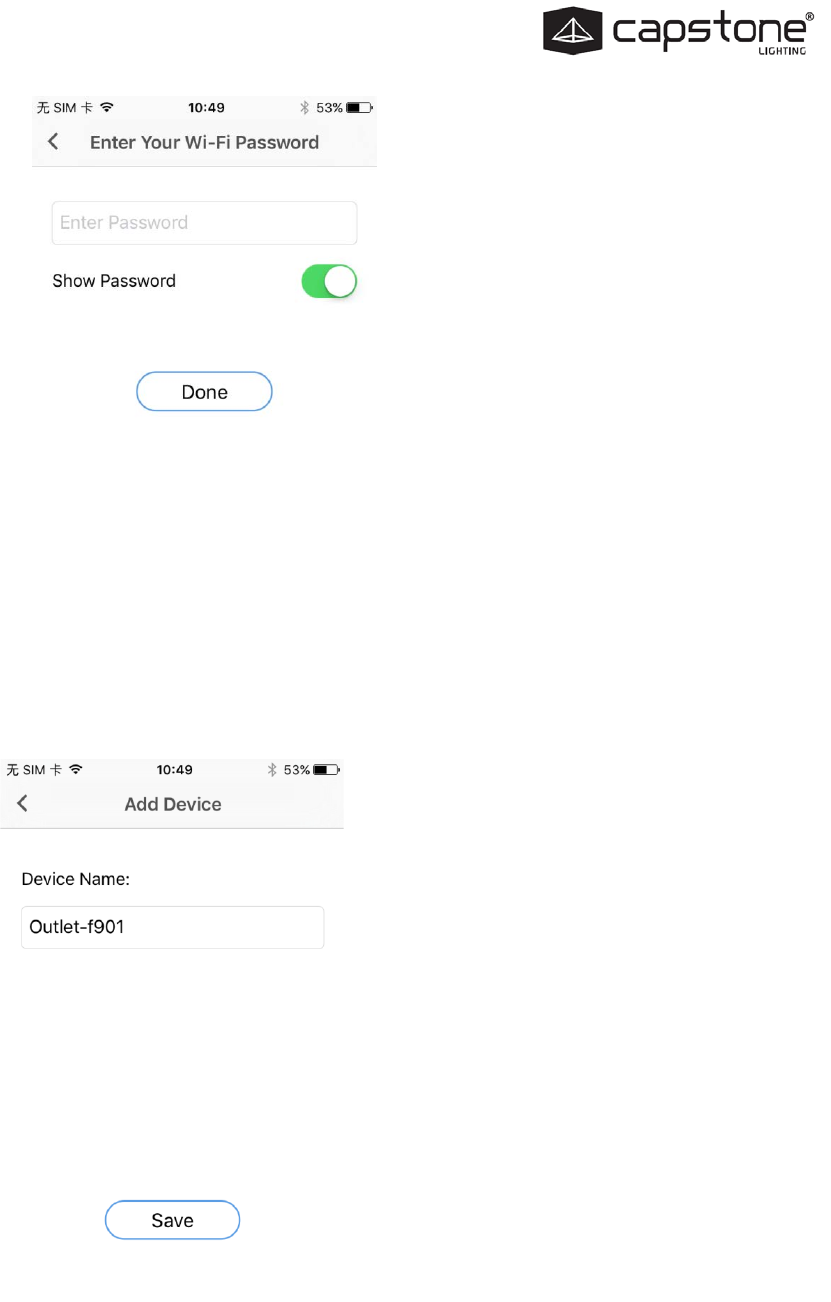

7) Input your pass word.
8) Name the smart switch, click Save”.
9) Then you connect the smart switch to your smart phone successful.
10) Add another smart switch, please repeat step 2 to 9.
How to restore factory setting
Press the power button over 5 seconds.
If you need connect to your smart phone again please repeat above steps.
APP function
1) It supports remote control, if you outside, you can control your equipment by smartphone
2) It supports electric expenditure calculation
3) If user has more than one of this product, it supports group working function. You can
control them with same function at the same time.
4) It supports checking the instance working power and the used energy.
Warning
Changes or modifications not expressly approved by the party responsible for compliance could
void the users authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction with any other antenna
or transmitter. End-users and installers must be provided with antenna installation instructions and
transmitter operating conditions for satisfying RF
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Mise en garde: Pour assurer la conformité aux directives relatives à l'exposition aux fréquences
radio, le jouet doit êtreplacé à au moins 20cm des personnes à proximité.
