CAPSTONE VANITY1 Vanity Light User Manual

CAPSTONE INDUSTRIES INC Vanity Light

User Manual

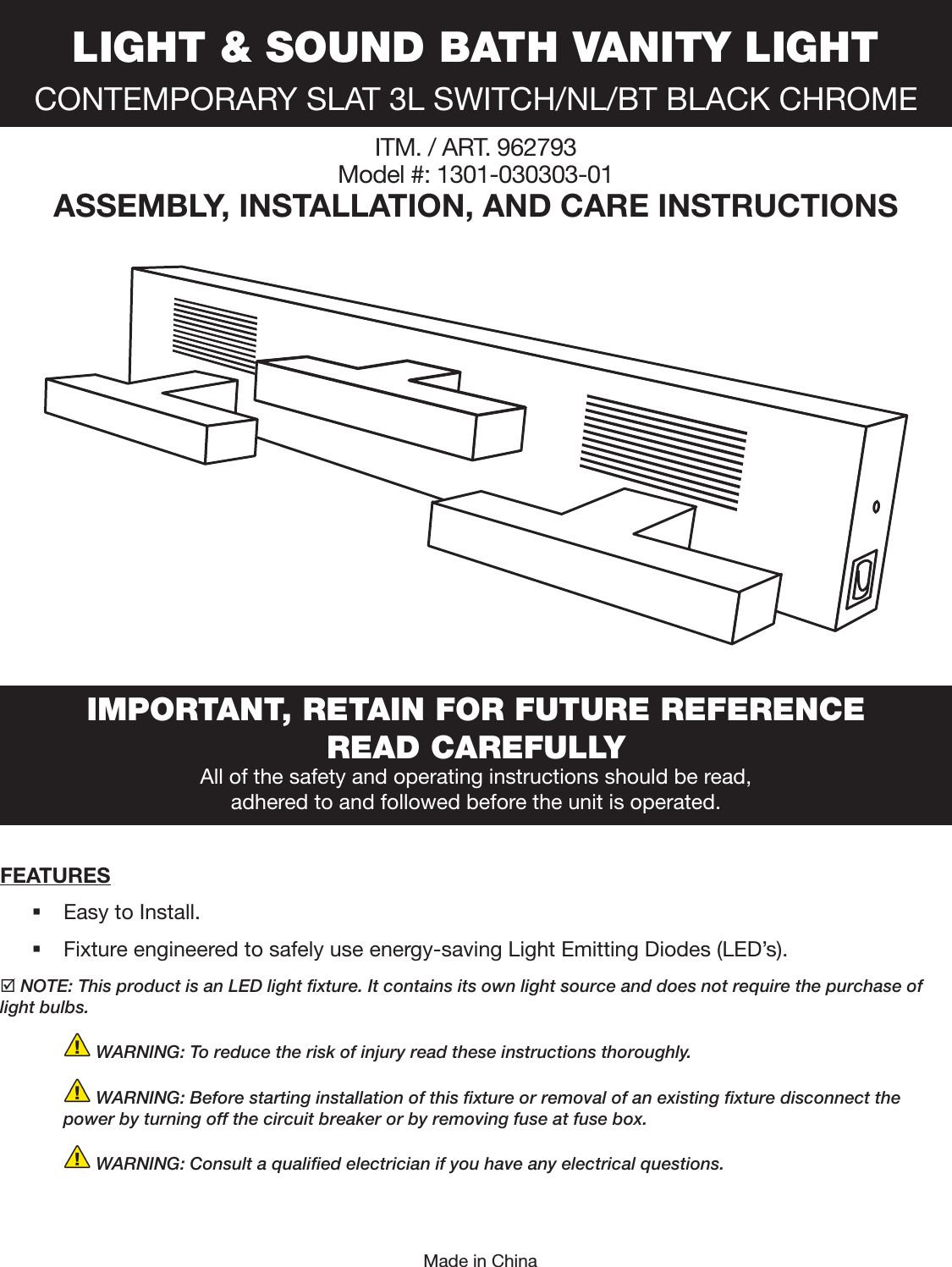

ITM. / ART. 962793Model #: 1301-030303-01ASSEMBLY, INSTALLATION, AND CARE INSTRUCTIONSFEATURESEasy to Install.Fixture engineered to safely use energy-saving Light Emitting Diodes (LED’s). NOTE: This product is an LED light fixture. It contains its own light source and does not require the purchase of light bulbs.  WARNING: To reduce the risk of injury read these instructions thoroughly. WARNING: Before starting installation of this fixture or removal of an existing fixture disconnect the power by turning off the circuit breaker or by removing fuse at fuse box. WARNING: Consult a qualified electrician if you have any electrical questions.LIGHT & SOUND BATH VANITY LIGHT CONTEMPORARY SLAT 3L SWITCH/NL/BT BLACK CHROMEIMPORTANT, RETAIN FOR FUTURE REFERENCEREAD CAREFULLYAll of the safety and operating instructions should be read,  adhered to and followed before the unit is operated.Made in China

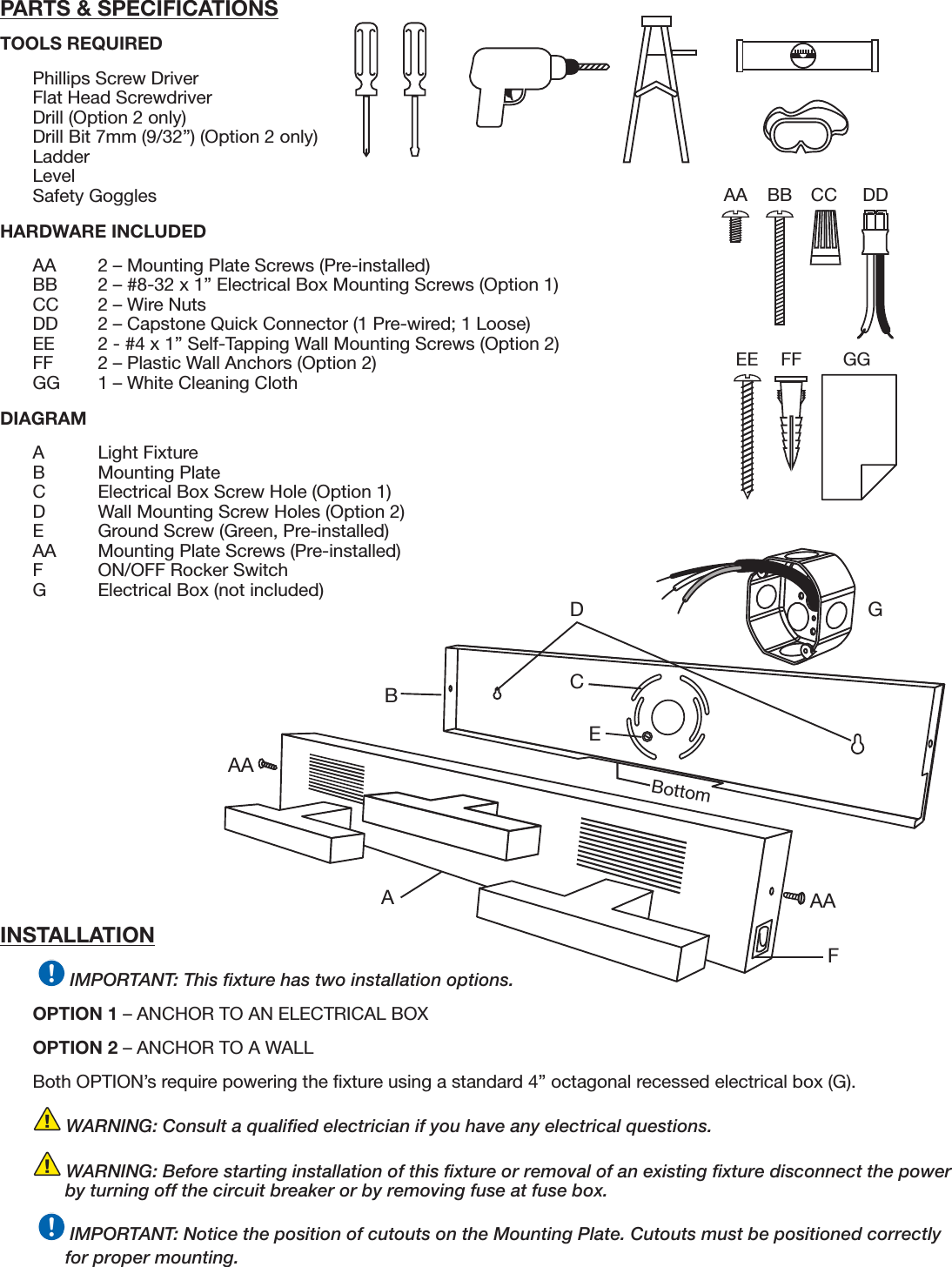

PARTS & SPECIFICATIONSTOOLS REQUIREDPhillips Screw DriverFlat Head ScrewdriverDrill (Option 2 only)Drill Bit 7mm (9/32”) (Option 2 only)LadderLevelSafety GogglesHARDWARE INCLUDEDAA  2 – Mounting Plate Screws (Pre-installed)BB    2 – #8-32 x 1” Electrical Box Mounting Screws (Option 1)CC  2 – Wire NutsDD  2 – Capstone Quick Connector (1 Pre-wired; 1 Loose)EE  2 - #4 x 1” Self-Tapping Wall Mounting Screws (Option 2)FF  2 – Plastic Wall Anchors (Option 2)GG  1 – White Cleaning ClothDIAGRAMA  Light FixtureB  Mounting PlateC  Electrical Box Screw Hole (Option 1)D  Wall Mounting Screw Holes (Option 2) E  Ground Screw (Green, Pre-installed) AA  Mounting Plate Screws (Pre-installed)F  ON/OFF Rocker SwitchG  Electrical Box (not included)AA BBEECCFFDDGGADBAAAAEFGINSTALLATION  IMPORTANT: This fixture has two installation options. OPTION 1 – ANCHOR TO AN ELECTRICAL BOXOPTION 2 – ANCHOR TO A WALLBoth OPTION’s require powering the xture using a standard 4” octagonal recessed electrical box (G).  WARNING: Consult a qualified electrician if you have any electrical questions. WARNING: Before starting installation of this fixture or removal of an existing fixture disconnect the power by turning off the circuit breaker or by removing fuse at fuse box.  IMPORTANT: Notice the position of cutouts on the Mounting Plate. Cutouts must be positioned correctly for proper mounting.BottomC

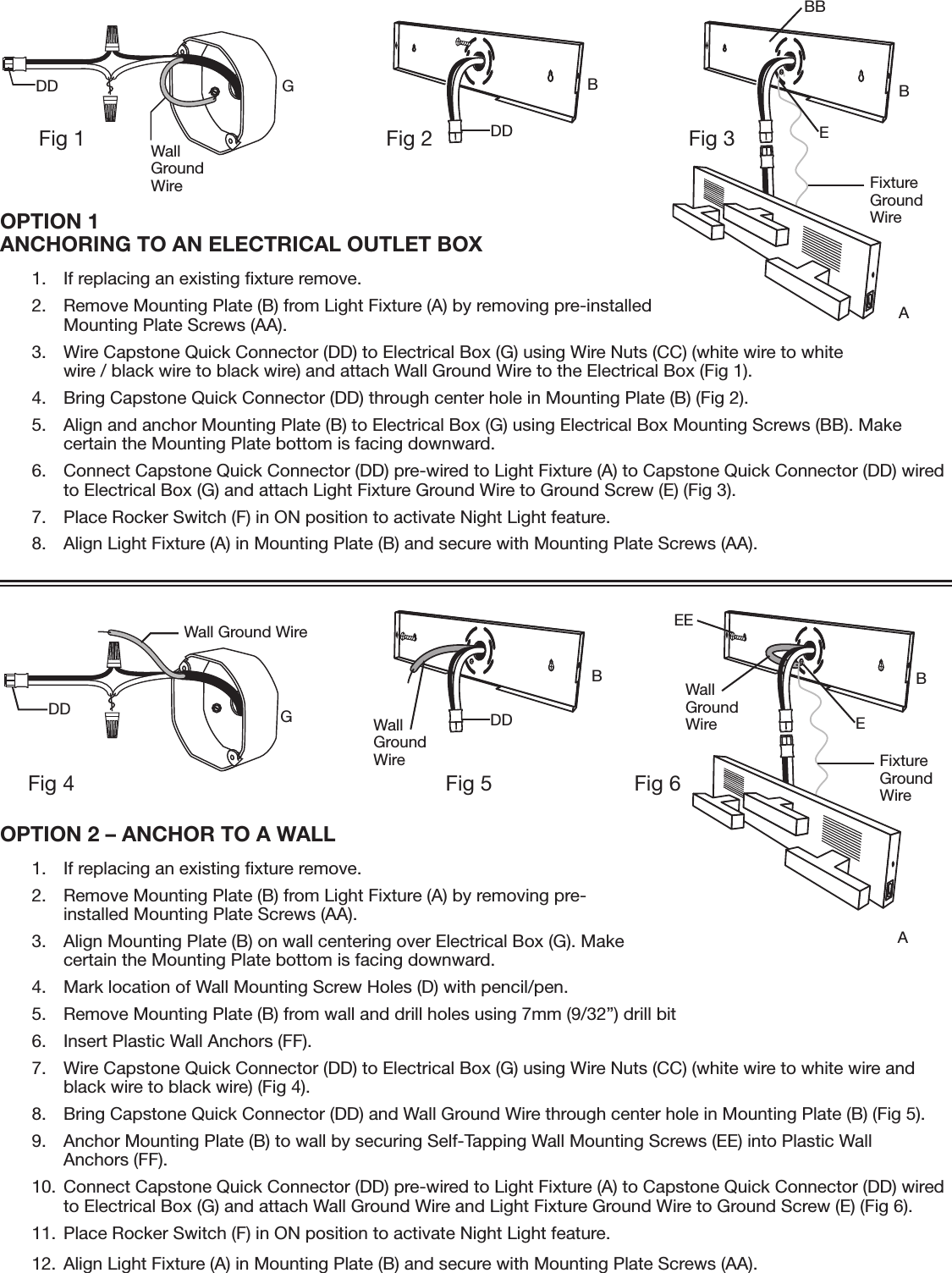

OPTION 1 ANCHORING TO AN ELECTRICAL OUTLET BOX1.  If replacing an existing xture remove.2.  Remove Mounting Plate (B) from Light Fixture (A) by removing pre-installed Mounting Plate Screws (AA).3.  Wire Capstone Quick Connector (DD) to Electrical Box (G) using Wire Nuts (CC) (white wire to white  wire / black wire to black wire) and attach Wall Ground Wire to the Electrical Box (Fig 1).4.  Bring Capstone Quick Connector (DD) through center hole in Mounting Plate (B) (Fig 2).5.  Align and anchor Mounting Plate (B) to Electrical Box (G) using Electrical Box Mounting Screws (BB). Make certain the Mounting Plate bottom is facing downward.6.  Connect Capstone Quick Connector (DD) pre-wired to Light Fixture (A) to Capstone Quick Connector (DD) wired to Electrical Box (G) and attach Light Fixture Ground Wire to Ground Screw (E) (Fig 3).7.  Place Rocker Switch (F) in ON position to activate Night Light feature.8.  Align Light Fixture (A) in Mounting Plate (B) and secure with Mounting Plate Screws (AA).OPTION 2 – ANCHOR TO A WALL1.  If replacing an existing xture remove.2.  Remove Mounting Plate (B) from Light Fixture (A) by removing pre-installed Mounting Plate Screws (AA).3.  Align Mounting Plate (B) on wall centering over Electrical Box (G). Make certain the Mounting Plate bottom is facing downward.4.  Mark location of Wall Mounting Screw Holes (D) with pencil/pen.5.  Remove Mounting Plate (B) from wall and drill holes using 7mm (9/32”) drill bit6.  Insert Plastic Wall Anchors (FF).7.  Wire Capstone Quick Connector (DD) to Electrical Box (G) using Wire Nuts (CC) (white wire to white wire and black wire to black wire) (Fig 4).8.  Bring Capstone Quick Connector (DD) and Wall Ground Wire through center hole in Mounting Plate (B) (Fig 5).9.  Anchor Mounting Plate (B) to wall by securing Self-Tapping Wall Mounting Screws (EE) into Plastic Wall  Anchors (FF). 10.  Connect Capstone Quick Connector (DD) pre-wired to Light Fixture (A) to Capstone Quick Connector (DD) wired to Electrical Box (G) and attach Wall Ground Wire and Light Fixture Ground Wire to Ground Screw (E) (Fig 6).11.  Place Rocker Switch (F) in ON position to activate Night Light feature.12.  Align Light Fixture (A) in Mounting Plate (B) and secure with Mounting Plate Screws (AA).Fig 3Fixture Ground WireEBBFig 4 Fig 5 Fig 6Fixture Ground WireDD EEEDDWall Ground WireGDDDDBBBBAAFig 2Fig 1Wall Ground WireWall Ground WireWall Ground WireG

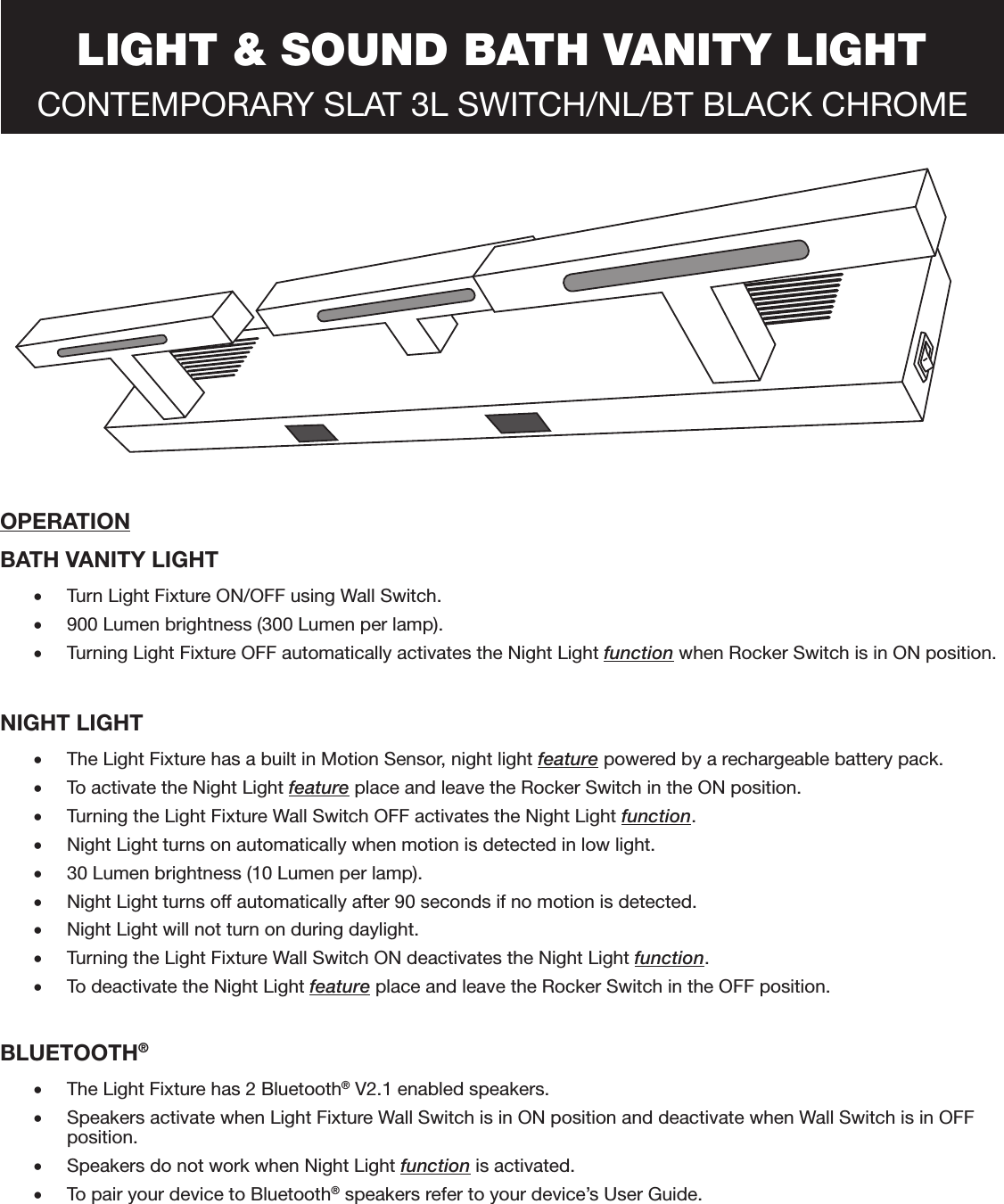

OPERATIONBATH VANITY LIGHT• Turn Light Fixture ON/OFF using Wall Switch.• 900 Lumen brightness (300 Lumen per lamp).• Turning Light Fixture OFF automatically activates the Night Light function when Rocker Switch is in ON position.NIGHT LIGHT• The Light Fixture has a built in Motion Sensor, night light feature powered by a rechargeable battery pack.• To activate the Night Light feature place and leave the Rocker Switch in the ON position. • Turning the Light Fixture Wall Switch OFF activates the Night Light function.• Night Light turns on automatically when motion is detected in low light.• 30 Lumen brightness (10 Lumen per lamp).• Night Light turns off automatically after 90 seconds if no motion is detected.• Night Light will not turn on during daylight. • Turning the Light Fixture Wall Switch ON deactivates the Night Light function.• To deactivate the Night Light feature place and leave the Rocker Switch in the OFF position. BLUETOOTH®• The Light Fixture has 2 Bluetooth® V2.1 enabled speakers.• Speakers activate when Light Fixture Wall Switch is in ON position and deactivate when Wall Switch is in OFF position.• Speakers do not work when Night Light function is activated.• To pair your device to Bluetooth® speakers refer to your device’s User Guide.LIGHT & SOUND BATH VANITY LIGHT CONTEMPORARY SLAT 3L SWITCH/NL/BT BLACK CHROME

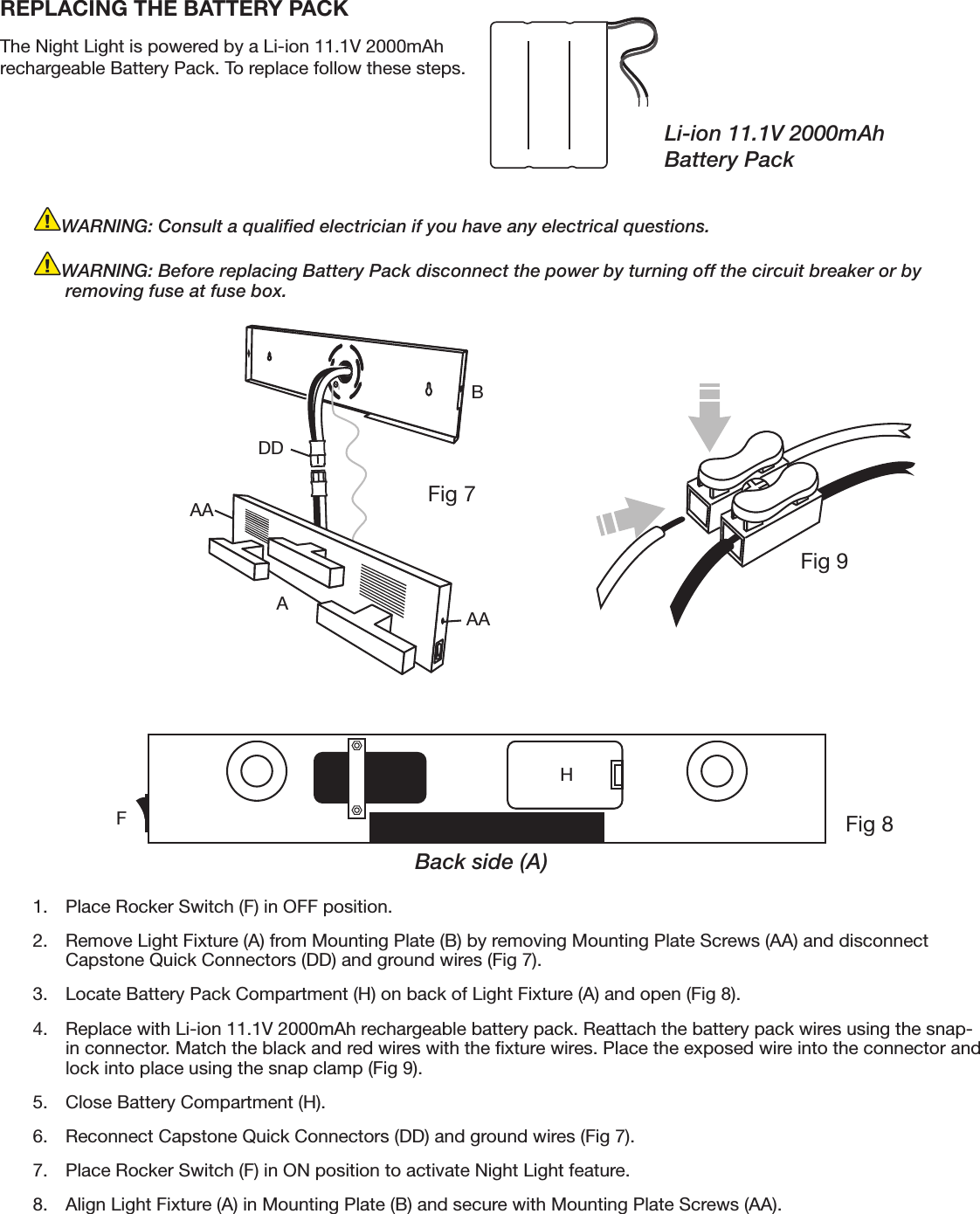

REPLACING THE BATTERY PACKThe Night Light is powered by a Li-ion 11.1V 2000mAh rechargeable Battery Pack. To replace follow these steps.WARNING: Consult a qualified electrician if you have any electrical questions.WARNING: Before replacing Battery Pack disconnect the power by turning off the circuit breaker or by removing fuse at fuse box.1.  Place Rocker Switch (F) in OFF position.2.  Remove Light Fixture (A) from Mounting Plate (B) by removing Mounting Plate Screws (AA) and disconnect Capstone Quick Connectors (DD) and ground wires (Fig 7).3.  Locate Battery Pack Compartment (H) on back of Light Fixture (A) and open (Fig 8).4.  Replace with Li-ion 11.1V 2000mAh rechargeable battery pack. Reattach the battery pack wires using the snap-in connector. Match the black and red wires with the xture wires. Place the exposed wire into the connector and lock into place using the snap clamp (Fig 9).5.  Close Battery Compartment (H).6.  Reconnect Capstone Quick Connectors (DD) and ground wires (Fig 7).7.  Place Rocker Switch (F) in ON position to activate Night Light feature.8.  Align Light Fixture (A) in Mounting Plate (B) and secure with Mounting Plate Screws (AA).Li-ion 11.1V 2000mAh Battery PackBack side (A)Fig 7Fig 8AFHDDBAAAAFig 9

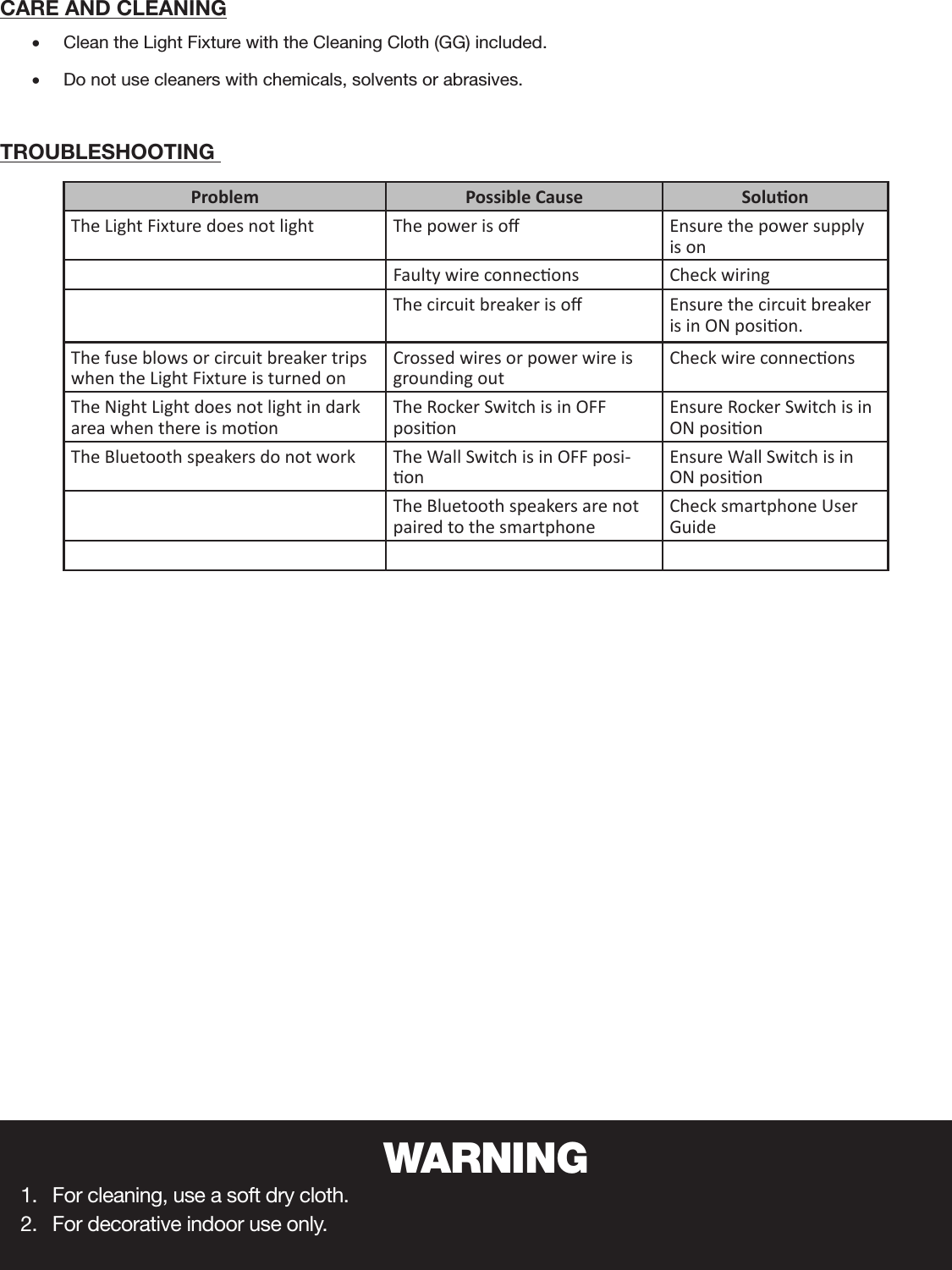

WARNING1.  For cleaning, use a soft dry cloth. 2.  For decorative indoor use only.CARE AND CLEANING• Clean the Light Fixture with the Cleaning Cloth (GG) included.• Do not use cleaners with chemicals, solvents or abrasives.TROUBLESHOOTING Problem Possible Cause SoluonThe Light Fixture does not light The power is o Ensure the power supply is onFaulty wire connecons Check wiringThe circuit breaker is o Ensure the circuit breaker is in ON posion.The fuse blows or circuit breaker trips when the Light Fixture is turned onCrossed wires or power wire is grounding outCheck wire conneconsThe Night Light does not light in dark area when there is moonThe Rocker Switch is in OFF posionEnsure Rocker Switch is in ON posionThe Bluetooth speakers do not work The Wall Switch is in OFF posi-onEnsure Wall Switch is in ON posionThe Bluetooth speakers are not paired to the smartphoneCheck smartphone User Guide

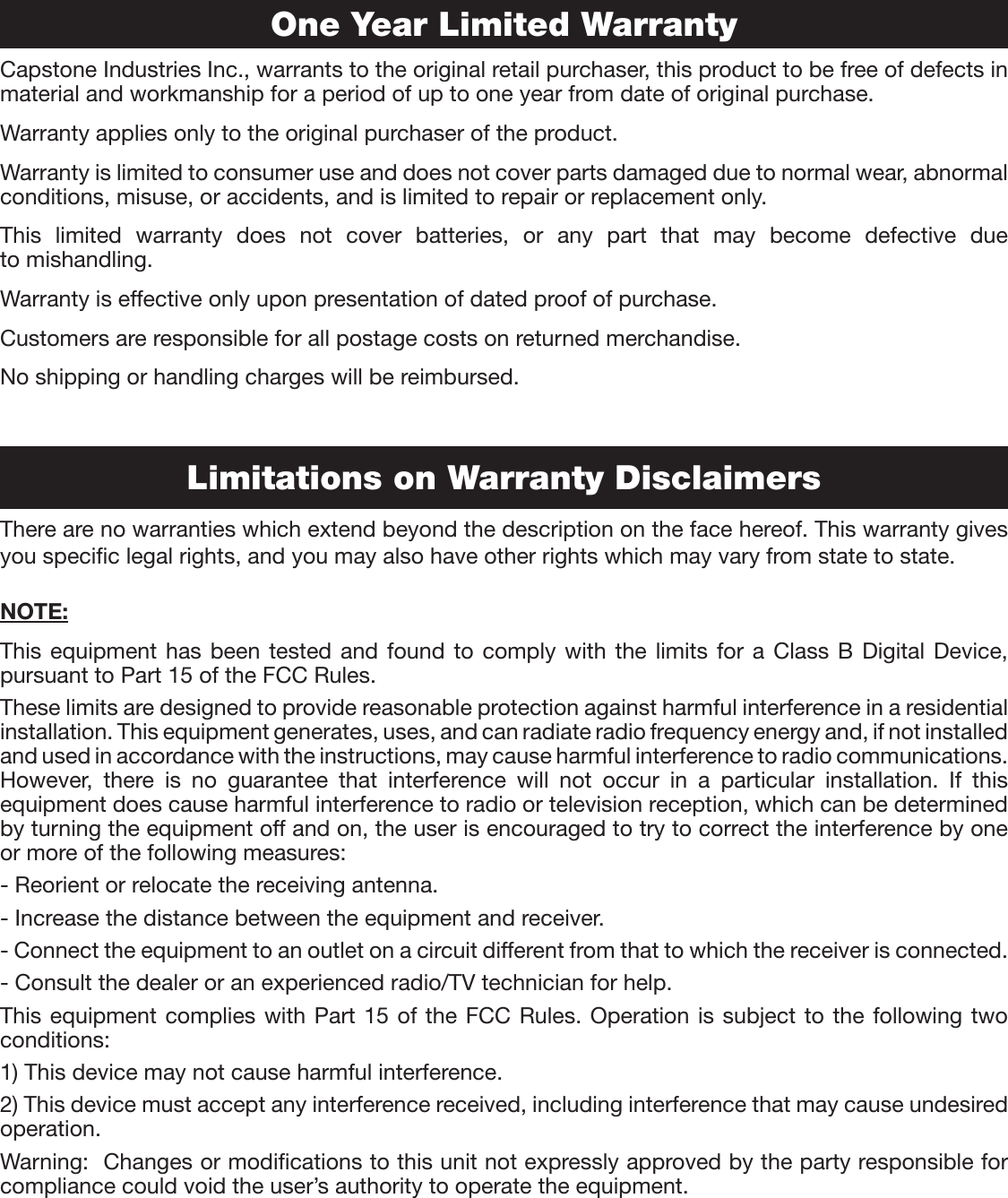

Capstone Industries Inc., warrants to the original retail purchaser, this product to be free of defects in material and workmanship for a period of up to one year from date of original purchase. Warranty applies only to the original purchaser of the product. Warranty is limited to consumer use and does not cover parts damaged due to normal wear, abnormal conditions, misuse, or accidents, and is limited to repair or replacement only.  This limited warranty does not cover batteries, or any part that may become defective due to mishandling.  Warranty is effective only upon presentation of dated proof of purchase.  Customers are responsible for all postage costs on returned merchandise. No shipping or handling charges will be reimbursed. NOTE:This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the distance between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1) This device may not cause harmful interference.2) This device must accept any interference received, including interference that may cause undesired operation.Warning:  Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.One Year Limited WarrantyThere are no warranties which extend beyond the description on the face hereof. This warranty gives you specic legal rights, and you may also have other rights which may vary from state to state.Limitations on Warranty Disclaimers

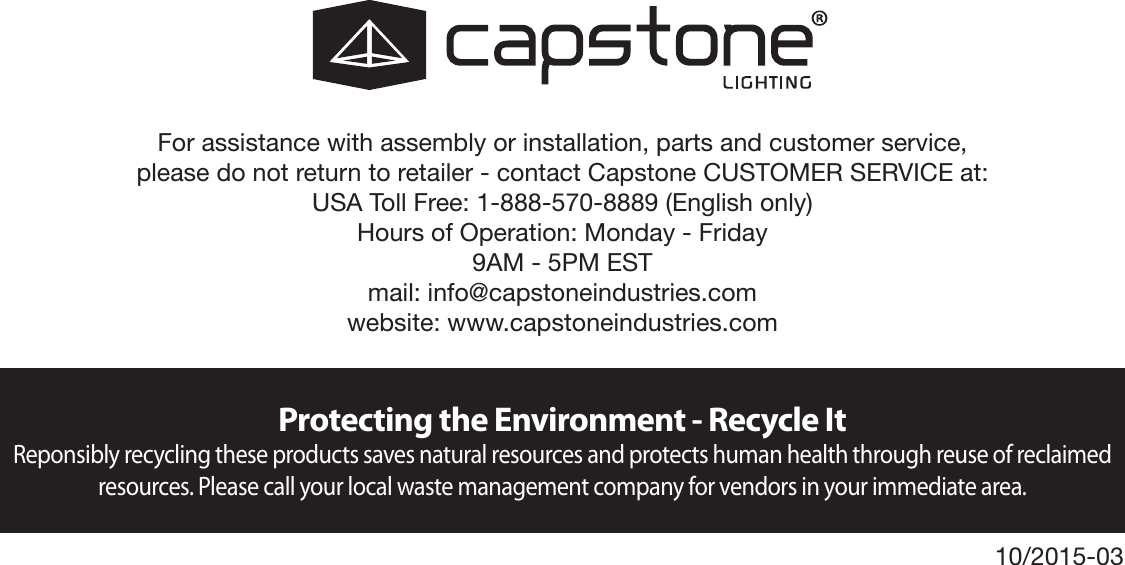

Protecting the Environment - Recycle ItReponsibly recycling these products saves natural resources and protects human health through reuse of reclaimed resources. Please call your local waste management company for vendors in your immediate area.For assistance with assembly or installation, parts and customer service,  please do not return to retailer - contact Capstone CUSTOMER SERVICE at:USA Toll Free: 1-888-570-8889 (English only)Hours of Operation: Monday - Friday9AM - 5PM ESTmail: info@capstoneindustries.comwebsite: www.capstoneindustries.com10/2015-03
