Manual 1
11Mbps Wireless LAN PC Card
User’s Guide
Version 1.3
INFORMATION TO USER
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment or device.
Connect the equipment to an outlet other than receiver’s.
Consult a dealer or an experienced radio/TV technician for assistance
FCC Caution: To assure continued compliance, (example - use only shielded interface cables
when connecting to computer or peripheral devices) any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE: FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End-users must follow the specific operating instructions for satisfying RF exposure
compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Regulatory
The wireless LAN PC Card must be installed and used in strict accordance with the manufacturer’s
instructions. This device complies with the following radio frequency and safety standards.
Europe - R&TTE Directive
This device complies with the specifications listed below:
⌧ ETS 300-826 General EMC requirements for Radio equipment.
⌧ ETS 300-328 Technical requirements for Radio equipment.
⌧ EN60950 Safety requirements for Radio equipment.
EU Countries not intended for use
The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark,
Finland, France (with Frequency channel restrictions). Germany, Greece, Ireland, Italy, Luxembourg,
Netherlands, Portugal, Spain, Sweden and United Kingdom.
The ETSI version of this device is also authorized for use in EFTA member states Iceland,
Liechtenstein, Norway and Switzerland.
1
Table of Contents
Chapter 1: Introduction.............................................................................................3
The 11Mbps Wireless LAN PC Card...................................................................3
Features..............................................................................................................3
Package Contents...............................................................................................4
System Requirements.........................................................................................4
Chapter 2: Network Configuration and Planning......................................................5
Wireless LAN Basic.............................................................................................5
Network Topology................................................................................................5
Roaming..............................................................................................................7
Chapter 3: Installing the Drivers and Configuration Utility for Windows 9X/ME/
2000..............................................................................................................8
Running the Auto Driver & Utility Installation.......................................................8
Inserting the adapter..........................................................................................10
Chapter 4: Configuration Utility...............................................................................12
Using the configuration utility.............................................................................12
Chapter 5: Installation Procedure Under Windows NT 4.0.....................................19
About Windows NT 4.0......................................................................................19
Installing the Driver............................................................................................19
Configuration / Uninstall....................................................................................22
Chapter 6: Installation Procedure Under WindowsXP............................................23
About Windows XP............................................................................................23
Installing the Driver / Utility................................................................................23
Configuration Under WinXP...............................................................................23
Uninstall Procedure Under WinXP.....................................................................24
Appendix A: Troubleshooting..................................................................................25
Appendix B: Glossary.............................................................................................26
Appendix C: Specifications.....................................................................................28
2
Chapter 1: Introduction
The 11Mbps Wireless LAN PC Card
The 11Mbps Wireless LAN PC Card now has a new , higher-powered antenna that provides a
greater range than ever. The increased sensitivity helps filter out interference and notice to keep
your signal clear. Improved error correction in the chipset keeps you operating at higher transmission
rates for longer distances. And since you only need one Type II or III PCMCIA slot, you’re free to use
your other slots for additional accessories.
Plug-and-Play device, Windows 98/ME/2000/XP will automatically recognize the wireless LAN
card and initiate the installation process. Upon successful installation, the wireless LAN card will
communicate seamlessly with other wireless home and office networking products.
Using radio frequency (RF) technology, WLANs transmit and receive data over the air,
minimizing the need for wired connections. Thus, WLANs combine data connectivity with user
mobility, and through simplified configuration, enable movable LANs. This wireless networking
solution has been designed for both large and small businesses, and it is scalable so that you can
easily add more users and new network features as your business grows.
This manual will assist you in the installing WLAN PC Card.
Feature
IEEE 802.11b Direct Sequence high rate compatible.
High data rate 11/5.5/2/1 Mbps.
Auto Rate fallback
IPX, NetBEUI, TCP/IP protocols supported.
Wired Equivalent Privacy Algorithm (WEP) (64 bits/128 bits)
802.11 Power save in infrastructure mode.
Passive/Active scan. Long/Short preamble.
RTS/CTS handshake.
Beacon and Probe response generation in an IBSS.
Plug-N-Play and easy setup
3

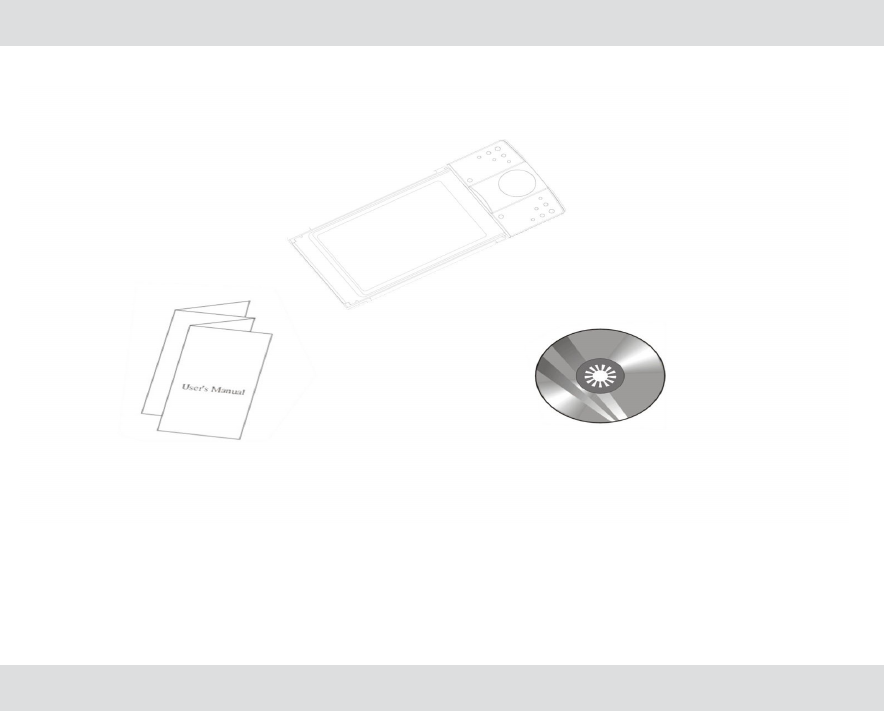

Package Contents
One 11Mbps Wireless LAN PC Card.
One setup Utility CD-ROM( User Guide on CD).
Quick Installation Guide.
System Requirements
One PCMCIA Type II or Type III slot.
PCMCIA revision 2.10 compliant card and socket services.
Operating System: Windows 98, ME, NT, 2000, or XP.
2M bytes free disk space for utility and driver installation.
4
Chapter 2: Network Configuration and
Planning
Network Topology
Wireless LAN Basic
5
An Ad-Hoc wireless LAN is a group of computers, each equipped with one WLAN adapter,
connected as an independent wireless LAN. Computers in a specific Ad-Hoc wireless LAN must be
configured to share the same radio channel.(Fig 2-1)

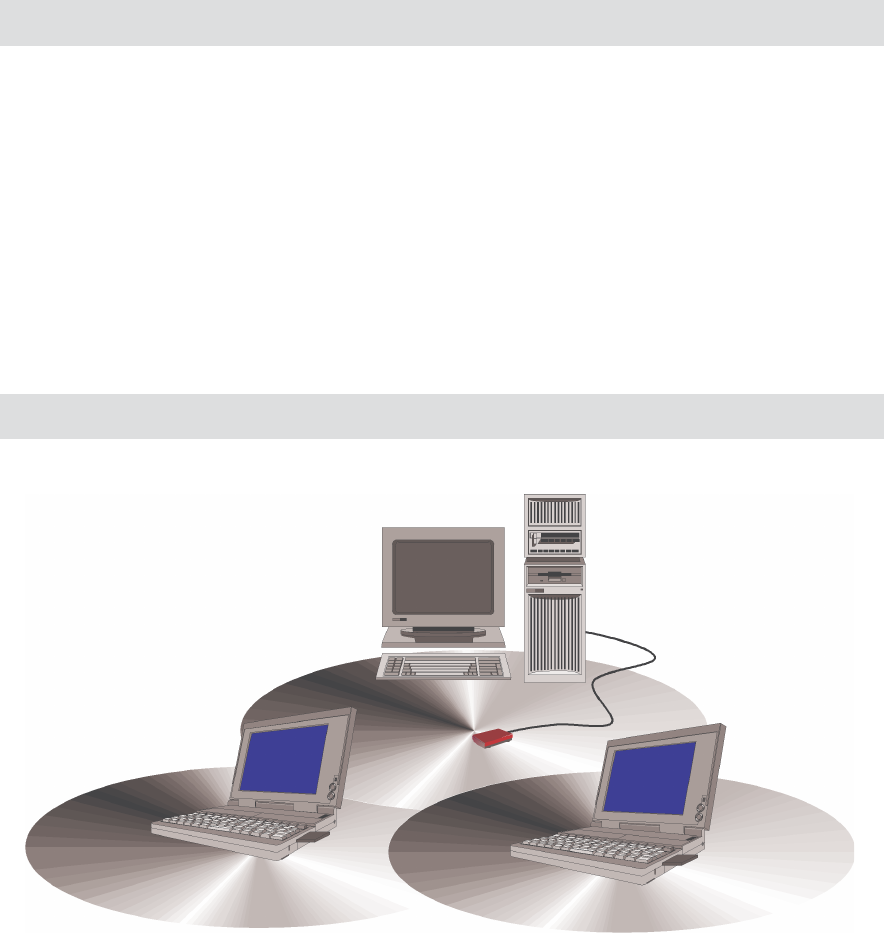

Fig 2-1 Ad-Hoc Wireless LAN
Notebook with PCMCIA WLAN Card
Notebook with PCMCIA WLAN Card
Desktop with USB WLAN Adapter
The WLANs supports legacy Ethernet LAN network configuration options as defined by the
IEEE 802.11b standards committee.
The WLAN Card can be configured as:
Ad-Hoc for departmental or SOHO LANs.
Infrastructure for enterprise LANs.
LAN-Interconnection for point-to-point link as campus backbone.
6
The adapter provides access to a wired LAN for wireless workstations. An integrated wireless
and wired LAN is called an infrastructure configuration. A group of WLAN PC users and an Access
Point compose a Basic Service Set (BSS). Each WLAN PC in a BSS can talk to any computer in the
wired LAN infrastructure via the Access Point.(Fig 2-2)
An infrastructure configuration extends the accessibility of a WLAN equipped PC to a wired
LAN, and doubles the effective wireless transmission range for 2 WLANs PCs. Since the Access
Point is able to forward data within its BSS, the effective transmission range in an infrastructure LAN
is double.(Fig 2-3)
The use of a unique ID in a BSS is essential. All WLAN equipped PCs configured without
roaming options in independent BSS must be configured with a BSS ID corresponding to the Access
Point used in the BSS. Check your Access Point for its BSS ID or use the Access Point Browser
Utility program to determine the BSS ID.(Fig 2-4)
The infrastructure wireless LAN configuration is appropriate for enterprise-scale wireless
access to a central database, or as a wireless application for mobile users.

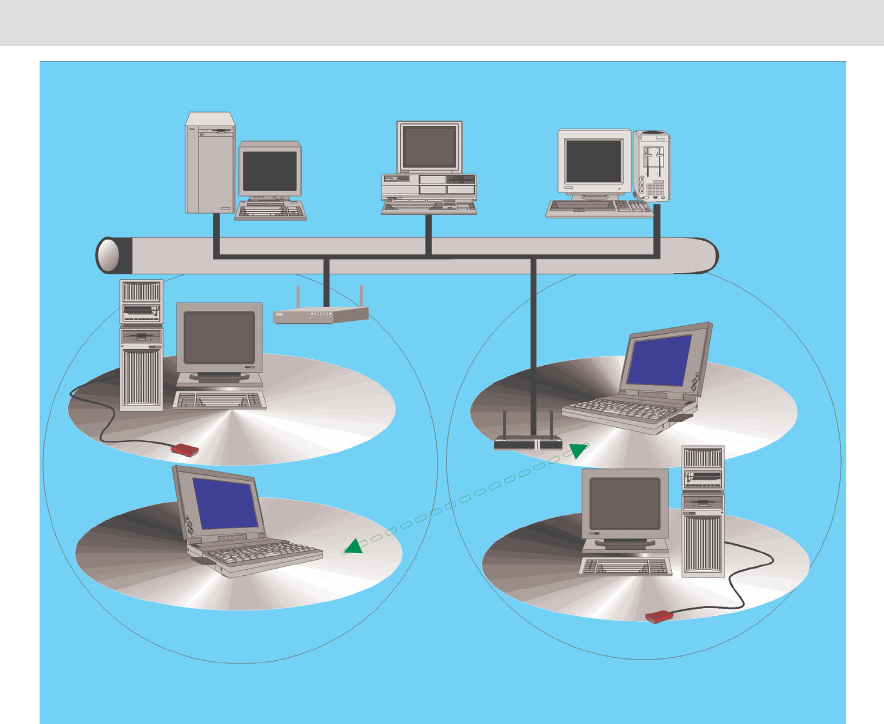

Fig 2-2 Infrastructure Wireless LAN
Notebook with PCMCIA WLAN Card
Desktop with USB WLAN Adapter
Access Point 1
Access Point 2
Server Desktop PC
Fig 2-3 The effective transmission range
Roaming
Infrastructure mode also supports roaming capabilities for mobile users. More than one BSS
can be configured as an Extended Service Set (ESS). The continuous network allows users to roam
freely within an ESS. All WLAN PCs and Access Point within one ESS must be configured with the
same ESS ID.
Before enabling an ESS with roaming capability, it is recommended to select a feasible radio
channel and optimum Access Point position. Proper Access Point positioning combined with a clear
radio signal will greatly enhance performance.
Fig 2-4 Roaming in an Extended Service Set (ESS)
Access Point 1
Access Point 2
Notebook I
Notebook I
BSS1 BSS2
ESS
USB WLAN Adapter
USB WLAN Adapter
Server Desktop PC
7
Chapter 3: Installing the Drivers and Con-
figuration Utility for Windows 9X, ME,
2000
Running the Auto Driver & Utility Installation

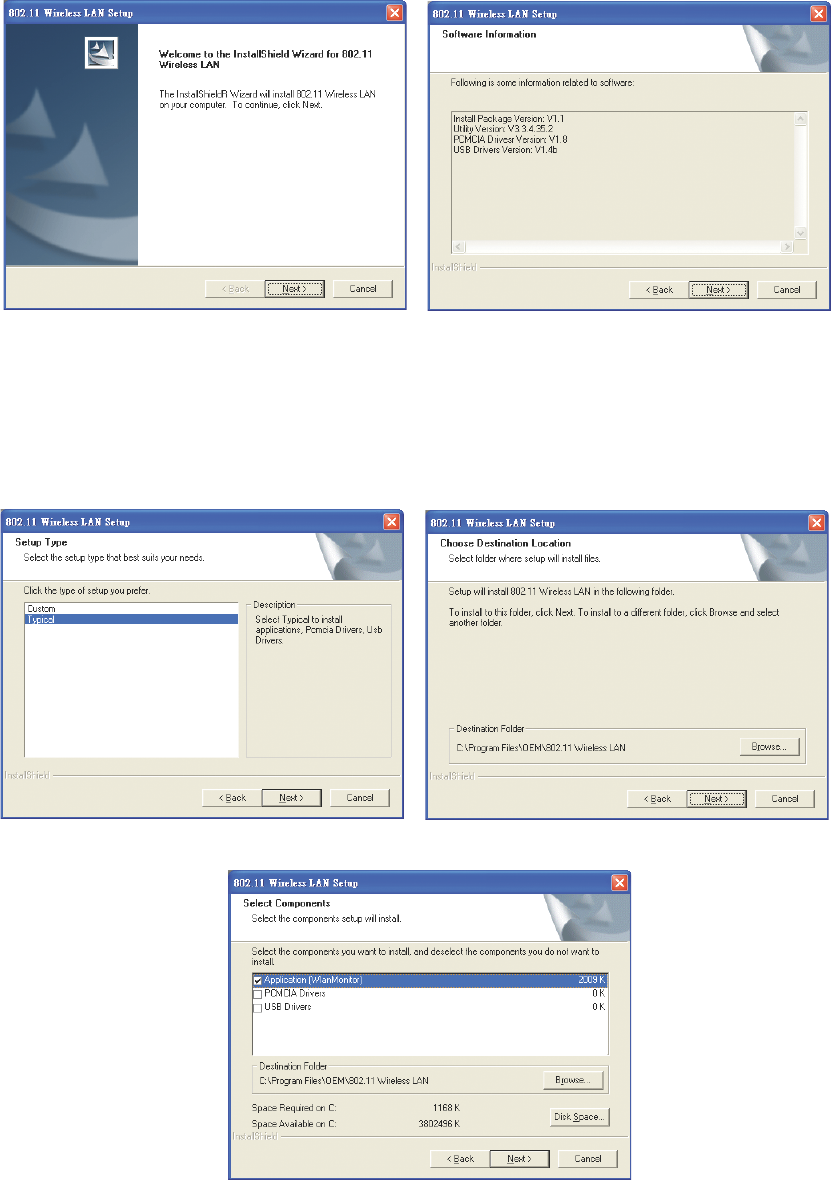

1. Click “Windows 95/98/ME/2000/XP Driver & Utility - PCMCIA” to install driver/utility for
your PCMCIA WLAN Card. You will see Welcome to the InstallShield Wizard for 802.11 Wireless
LAN. Click “Next >” (Fig 3-2).
2. After clicking “Next >”, components’ version of package will be shown on this screen. (Fig 3-
3).
8

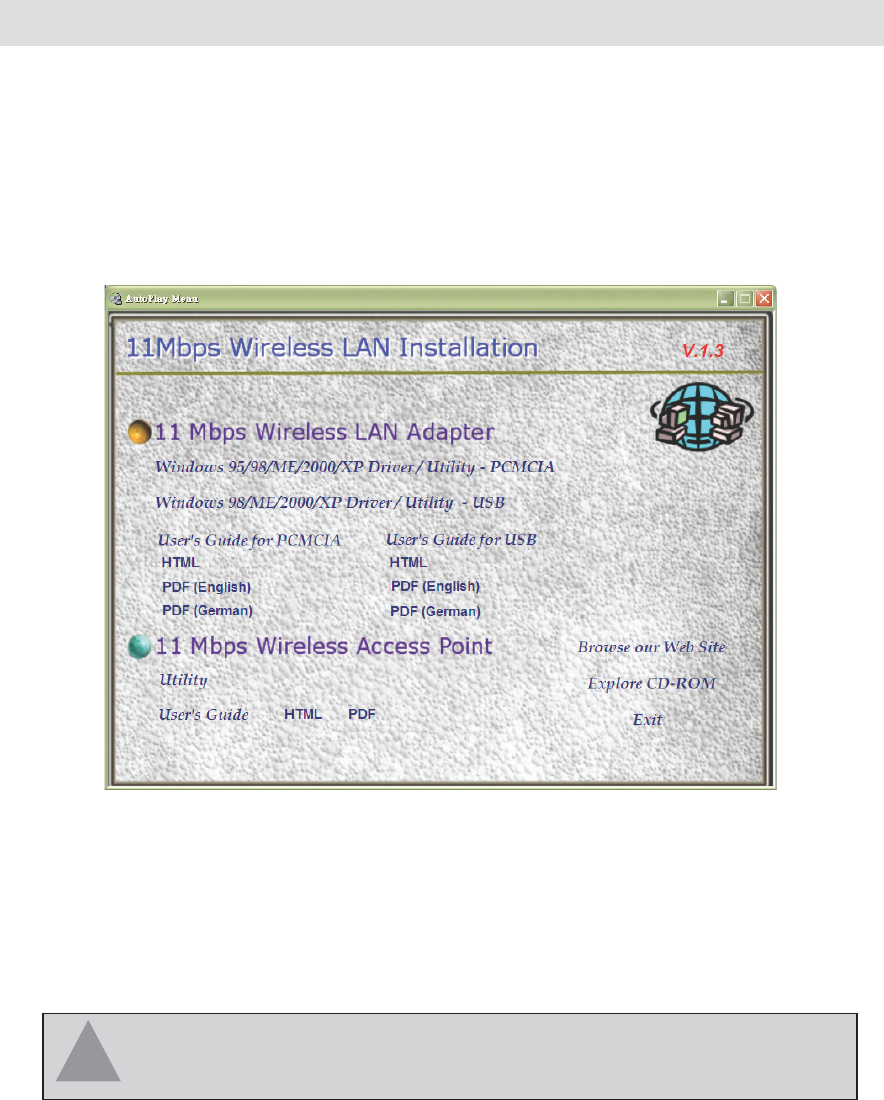

If this screen doesn’t appear automatically, you can access the installation by clicking the Start
button and choosing Run. In the drop-down box provided type D:\Setup.exe (where D: is the letter
of your CD-ROM drive). Alternately, double-click My Computer and double-click the Setup.exe icon
in the folder that appears.
Fig 3-1 Autorun feature of Windows
Before installing your card, insert the AutoInstall CD into your CD-ROM driver. Unless you have
deactivated the autorun feature of Windows, the screen shown in Fig 3-1 should appear automati-
cally.
NOTE: You must install this software before installation of the hardware
33
33
3
9
3. The installation provides you to install package Custom or Typical. (Fig 3-4)
4. If “Custom” be chosen, you can select package individually. If you choose “Typical”, The
3 packages will be installed in your system. (Fig 3-5)
The 3 packages mean Application, PCMCIA card driver, and USB adapter driver. (Fig 3-6).
Fig 3-2 Install WLAN Driver / Utility Fig 3-3 Componets Version
Fig 3-4 Setup Type
Fig 3-6 Custom Setup
Fig 3-5 Typical Setup
Fig 3-7 Select Program Folder
10

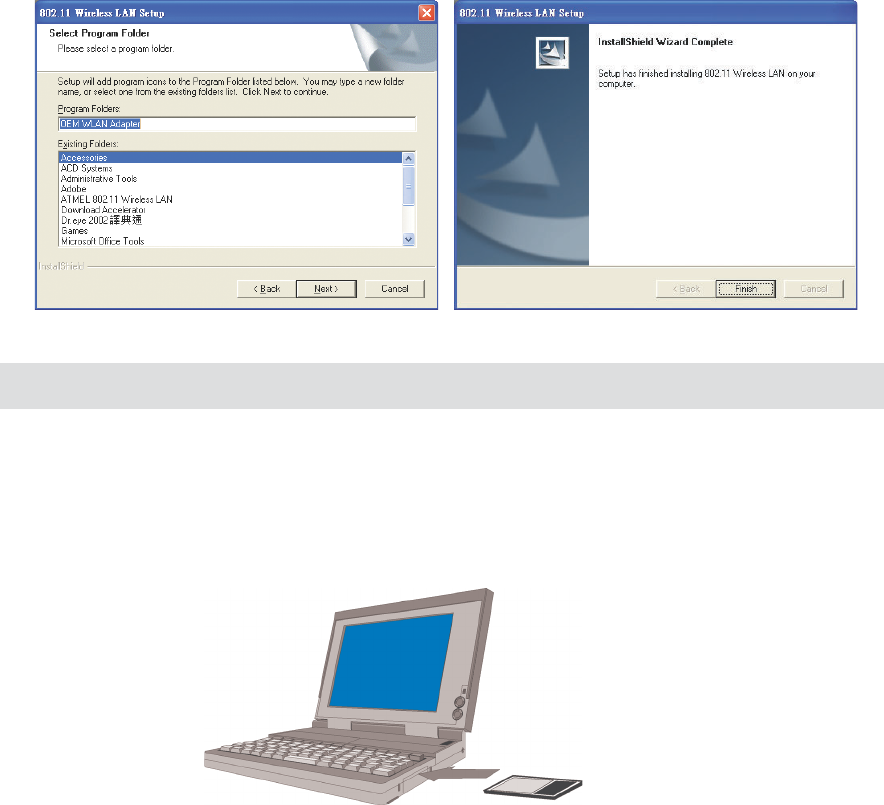

5. You can specify a folder name of this program. (Fig 3-7)
6. After copying files, you will finish the installation. (Fig 3-8)
Inserting the adapter
After properly inserting the Network Adapter into your notebook, continue with the WLAN driver
and configuration utility installation.(Fig 3-9)
NOTE: The PCMCIA slot allows “hot swap” of PCMCIA adapter. You may insert or remove the
WLAN PCMCIA adapter from the slot anytime, even when the power of your computer is on.
NOTE: Windows 98 requires that the Network card and socket services must be compliant with
the PCMCIA revision 2.10 specification. Please check the documentation of the PCMCIA driver
before installing the WLAN PCMCIA adapter.
To insert the wireless LAN Card into a notebook computer, do the following:
1. Locate an available Type II or Type III PCMCIA slot.
2. With the PCMCIA adapter’s 68-pin connector facing the PCMCIA slot and the “Brand Name of
PCMCIA” label facing up side the PCMCIA adapter completely into the PCMCIA slot.
Fig 3-9 Insert the Wireless LAN card into Notebook
Fig 3-8 Finish

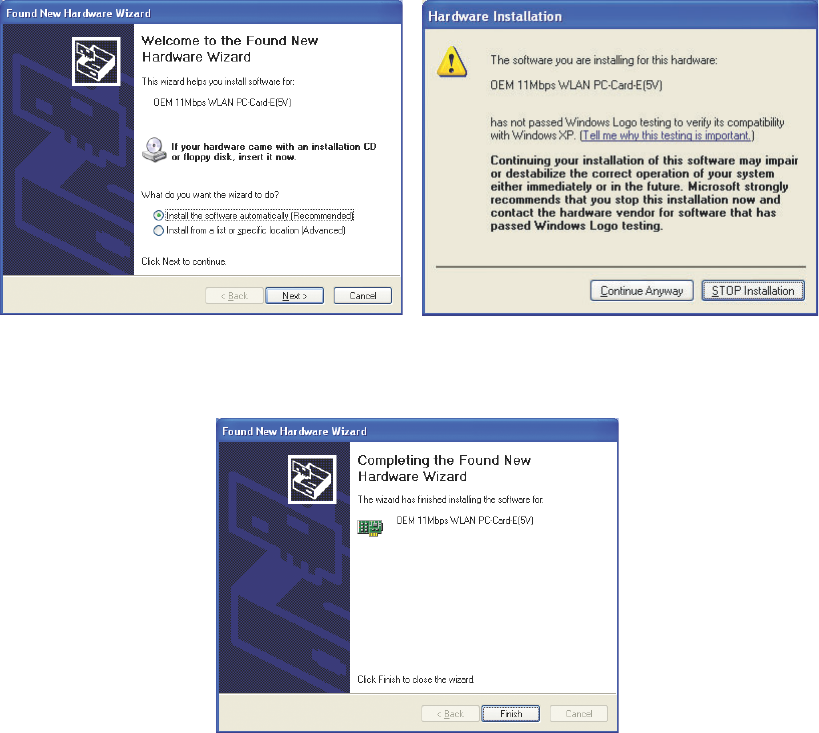

After installing PCMCIA WLAN Card driver and utility. Please insert the WLAN Card. You will
see Found New Hardware. Please select “Intall the software automatically” then click “Next>”
(Fig 3-10). The screen in Windows XP (Fig 3-11) will appear click “Countine Anyway”. The Win-
dows has finished installing software for the device. Click “Finish” to finish the installation.(Fig 3-

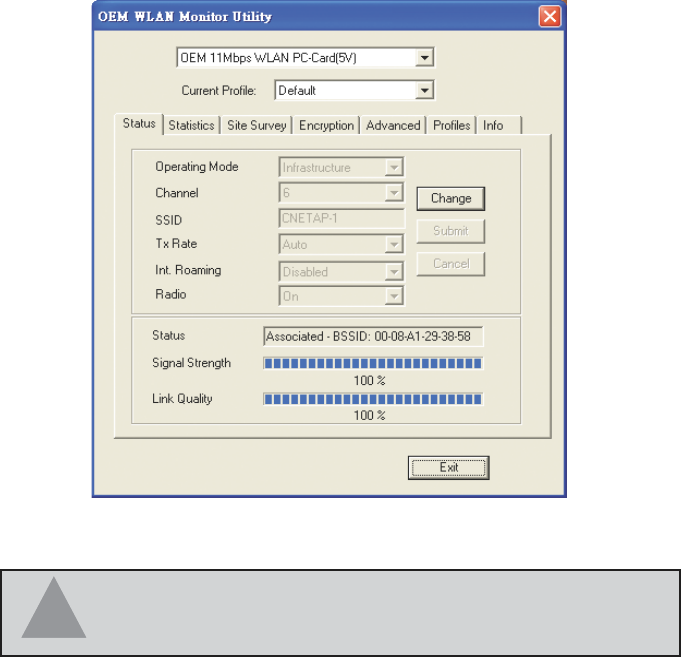

12). Configuration Utility please see Chapter 4
Fig 3-10 Found New Hardware
Fig 3-12 Finish the installation
11
Fig 3-11 Windows XP Screen
Chapter 4: Configuration Utility
Using the configuration Utility
The Configuration Utility is provided to allow you further customization of the WLAN PC Card
and your wireless network.

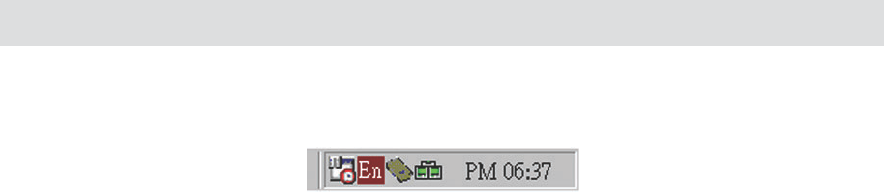

After the Configuration Utility has been installed, an icon will placed in the system tray (next to
click button of your screen) when the WLAN PC Card is inserted, as shown in Fig 4-1.
Fig 4-1
The utility is divided into six parts: Status, Statistics, Site Survey, Encryption, Advanced,
and Info. You should change all your configuration settings for your WLAN PC Card using this utility
and not with the Network Properties section in your Control Panel.
12
Status
The Status screen (Shown in Fig 4-2) provides information about the current link between the
Network PC Card and Wireless Access Point.
When in Infrastructure Mode, Status will display the connection statistics for the network
segment that you are on.
The Channel field shows to what channel the WLAN PC Card is set.
The SSID field shows the current SSID set fir the wireless network. This SSID can be modified
at you click Change bottom.
The Tx Rate field shows the transfer rate in megabits per second.
The Int. Roaming field shows to use this feature to allow your adapter to retrieve country
information from the access point and behave according to that country’s regulations.
The Radio field shows on / off radio signal
Fig 4-2
The Signal Strength field will display a bar indicating the percentage, between 0 and 100
percent, of the strength of the signal. The higher the percentage, the stronger the signal.
The Link Quality field will display a bar indicating the percentage, between 0 and 100 percent,
of the quality of the link. The higher the percentage, the better the link.
The Change bottom, allows you to customize the setting for the WLAN PC Card and your
wireless network.
The Operating Mode setting determines the architecture of your wireless network select Ad-
Hoc or Infrastructure Mode depending on your network type. The Ad-Hoc mode is used for sample
peer-to-peer network and allows the sharing of local resources only between Network PC Card
without needing a Wireless Access Point. The Infrastructure mode allows a wireless network to be
integrated into an existed, wired network through an Access Point. Infrastructure networks permit
roaming between Access Points while maintaining a connection to all network resources.
NOTE: When in Ad-Hoc mode, Signal Strength and Link
Quality indicators will not be available.
33
33
3
13
An acronym for Service Set Identifier, SSID is the unique name shared among all points in a
wireless network. The SSID must be identical for all points in the network. It is case sensitive and
must not exceed 32 characters.
The Tx Rate field shows the current transfer rate for the Network PC Card. To optimize perfor-
mance and range, the Tx Rate should be set to Auto, which will automatically adjust the transfer
speed for best performance and longest range.
The Channel setting specifies the channel used in wireless communication and should be set
to the same channel as the other points in the wireless network. The setting can only be adjusted in
Ad-Hoc mode.
Fig 4-3
Statistics

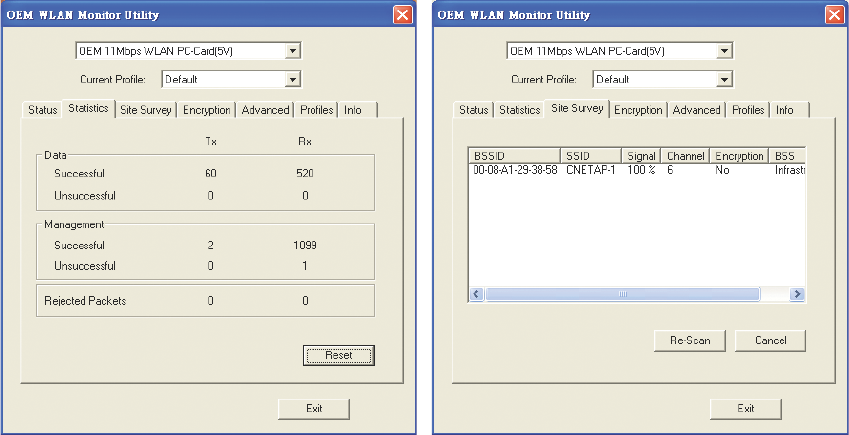

The Statistics screen (Shown in Fig 4-3) provides information about the Tx / Rx Data, Manage-
ment, and rejected Packets.
Site Survey
The Site Survey screen shows some features of the available access points or other stations.
Click on the desired access point / station. Then double click BSSID to connect or Re-Scan to
search for more access points. (Shown in Fig 4-4)
Fig 4-4
14
