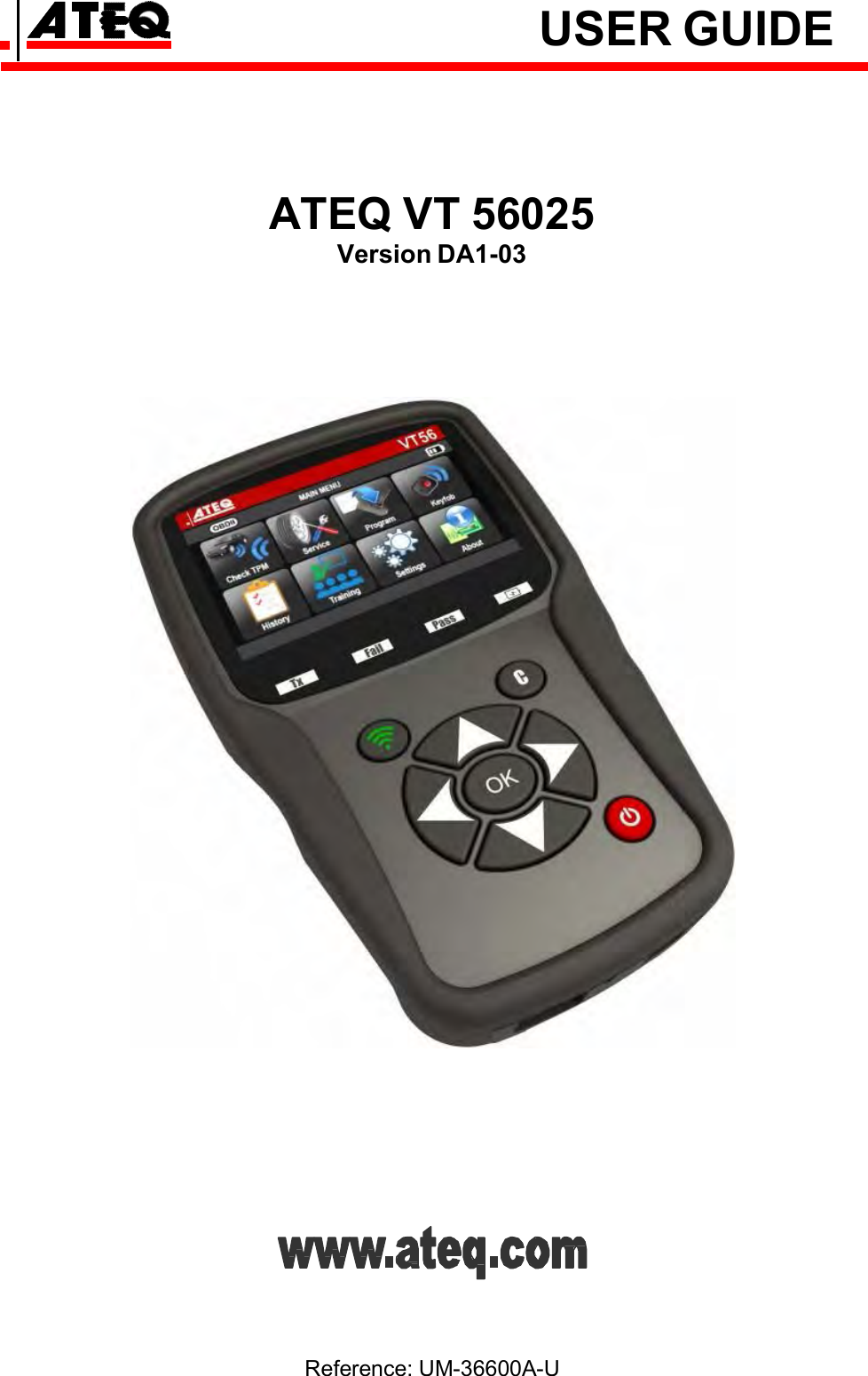

USER GUIDE ATEQ VT 56025 Version DA1-03 Reference: UM-36600A-U

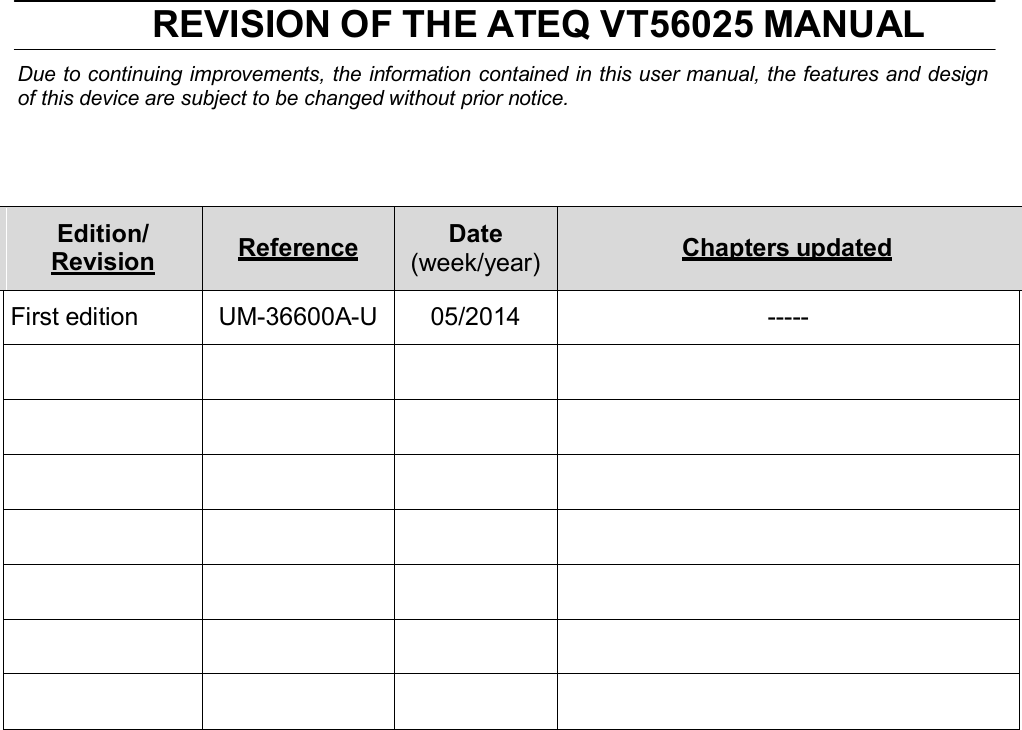

REVISION OF THE ATEQ VT56025 MANUAL Due to continuing improvements, the information contained in this user manual, the features and design of this device are subject to be changed without prior notice. Edition/ Revision Reference Date (week/year) Chapters updated First edition UM-36600A-U 05/2014 -----

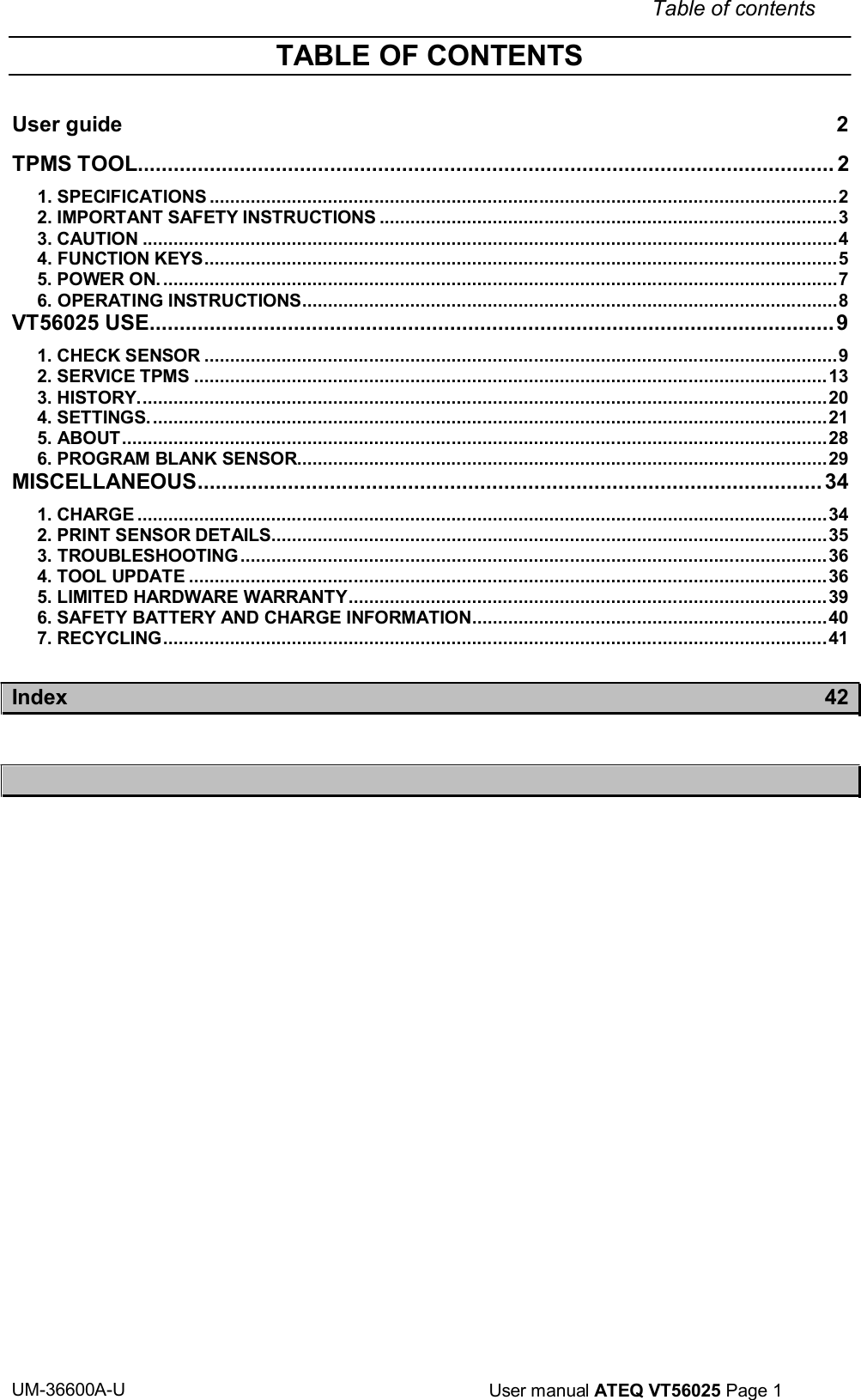

UM-36600A-U User manual ATEQ VT56025 Page 1 TABLE OF CONTENTS Table of contents User guide 2 TPMS TOOL.................................................................................................................... 2 1. SPECIFICATIONS .......................................................................................................................... 2 2. IMPORTANT SAFETY INSTRUCTIONS ......................................................................................... 3 3. CAUTION ....................................................................................................................................... 4 4. FUNCTION KEYS ........................................................................................................................... 5 5. POWER ON. ................................................................................................................................... 7 6. OPERATING INSTRUCTIONS ........................................................................................................ 8 VT56025 USE .................................................................................................................. 9 1. CHECK SENSOR ........................................................................................................................... 9 2. SERVICE TPMS ........................................................................................................................... 13 3. HISTORY. ..................................................................................................................................... 20 4. SETTINGS. ................................................................................................................................... 21 5. ABOUT ......................................................................................................................................... 28 6. PROGRAM BLANK SENSOR....................................................................................................... 29 MISCELLANEOUS ........................................................................................................ 34 1. CHARGE ...................................................................................................................................... 34 2. PRINT SENSOR DETAILS ............................................................................................................ 35 3. TROUBLESHOOTING .................................................................................................................. 36 4. TOOL UPDATE ............................................................................................................................ 36 5. LIMITED HARDWARE WARRANTY ............................................................................................. 39 6. SAFETY BATTERY AND CHARGE INFORMATION ..................................................................... 40 7. RECYCLING ................................................................................................................................. 41 Index 42

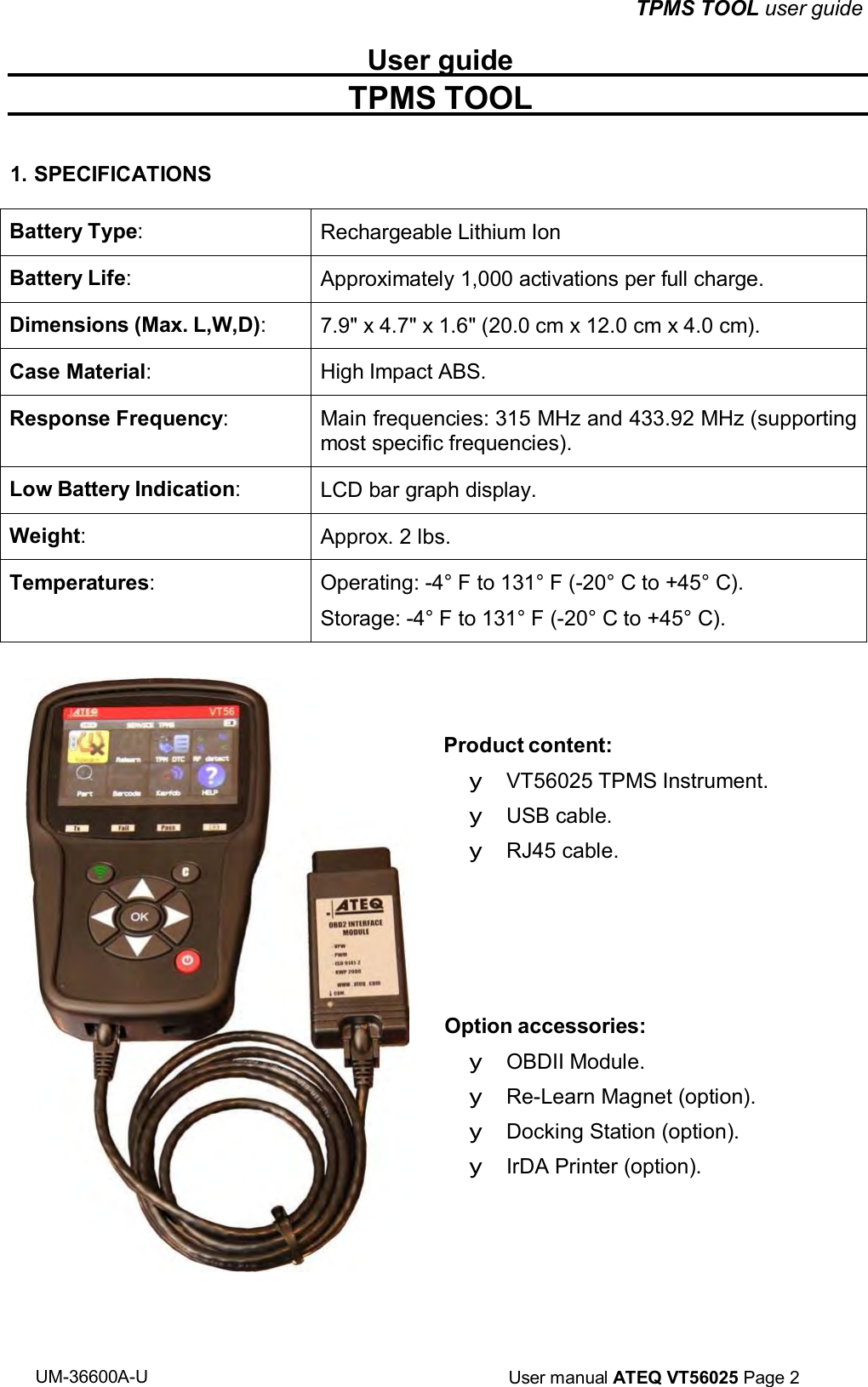

UM-36600A-U User manual ATEQ VT56025 Page 2 TPMS TOOL user guide User guide TPMS TOOL 1. SPECIFICATIONS Battery Type: Rechargeable Lithium Ion Battery Life: Approximately 1,000 activations per full charge. Dimensions (Max. L,W,D): 7.9" x 4.7" x 1.6" (20.0 cm x 12.0 cm x 4.0 cm). Case Material: High Impact ABS. Response Frequency: Main frequencies: 315 MHz and 433.92 MHz (supporting most specific frequencies). Low Battery Indication: LCD bar graph display. Weight: Approx. 2 lbs. Temperatures: Operating: -4° F to 131° F (-20° C to +45° C). Storage: -4° F to 131° F (-20° C to +45° C). Product content: y VT56025 TPMS Instrument. y USB cable. y RJ45 cable. Option accessories: y OBDII Module. y Re-Learn Magnet (option). y Docking Station (option). y IrDA Printer (option).

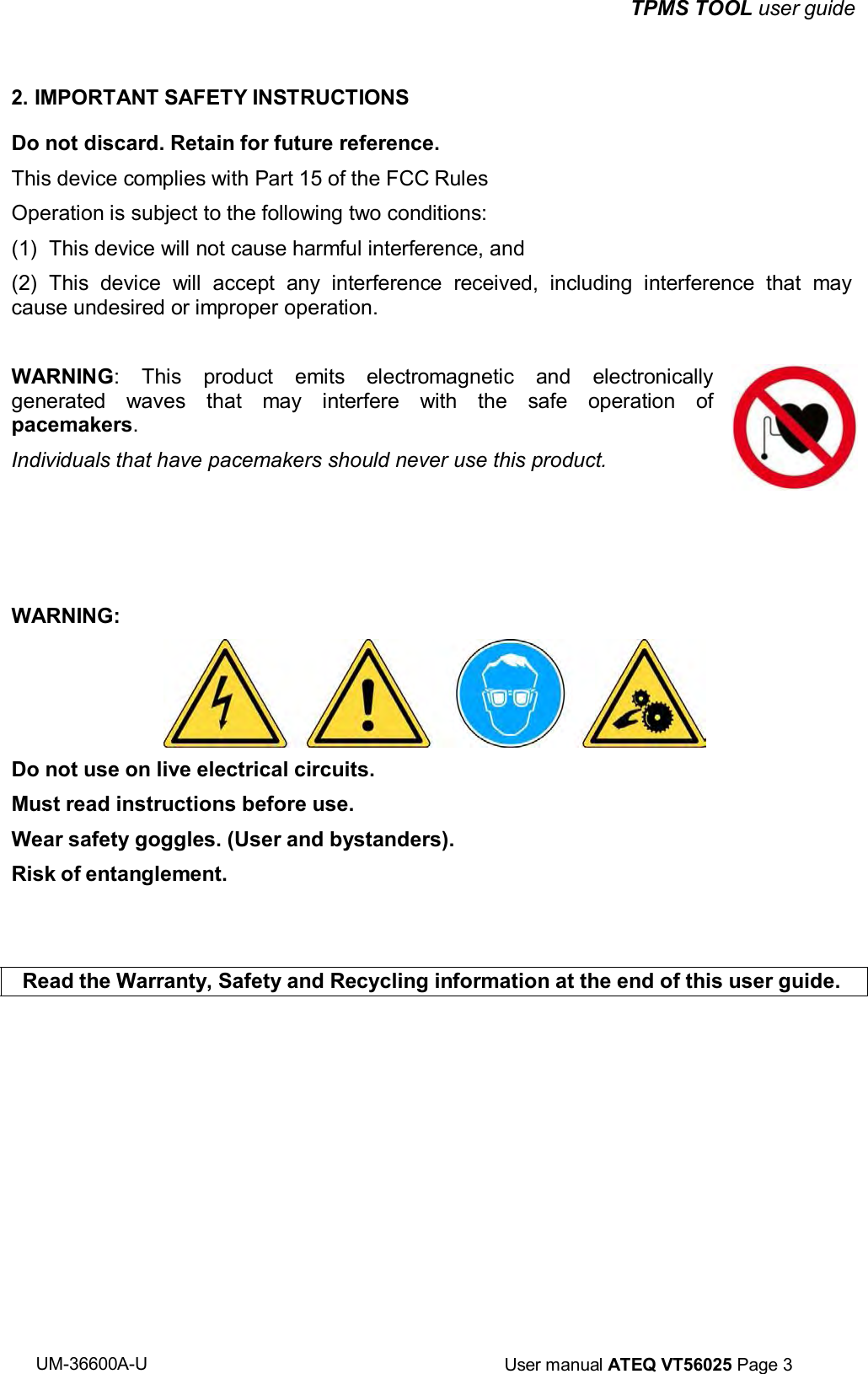

UM-36600A-U User manual ATEQ VT56025 Page 3 TPMS TOOL user guide 2. IMPORTANT SAFETY INSTRUCTIONS Do not discard. Retain for future reference. This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device will not cause harmful interference, and (2) This device will accept any interference received, including interference that may cause undesired or improper operation. WARNING: This product emits electromagnetic and electronically generated waves that may interfere with the safe operation of pacemakers. Individuals that have pacemakers should never use this product. WARNING: Do not use on live electrical circuits. Must read instructions before use. Wear safety goggles. (User and bystanders). Risk of entanglement. Read the Warranty, Safety and Recycling information at the end of this user guide.

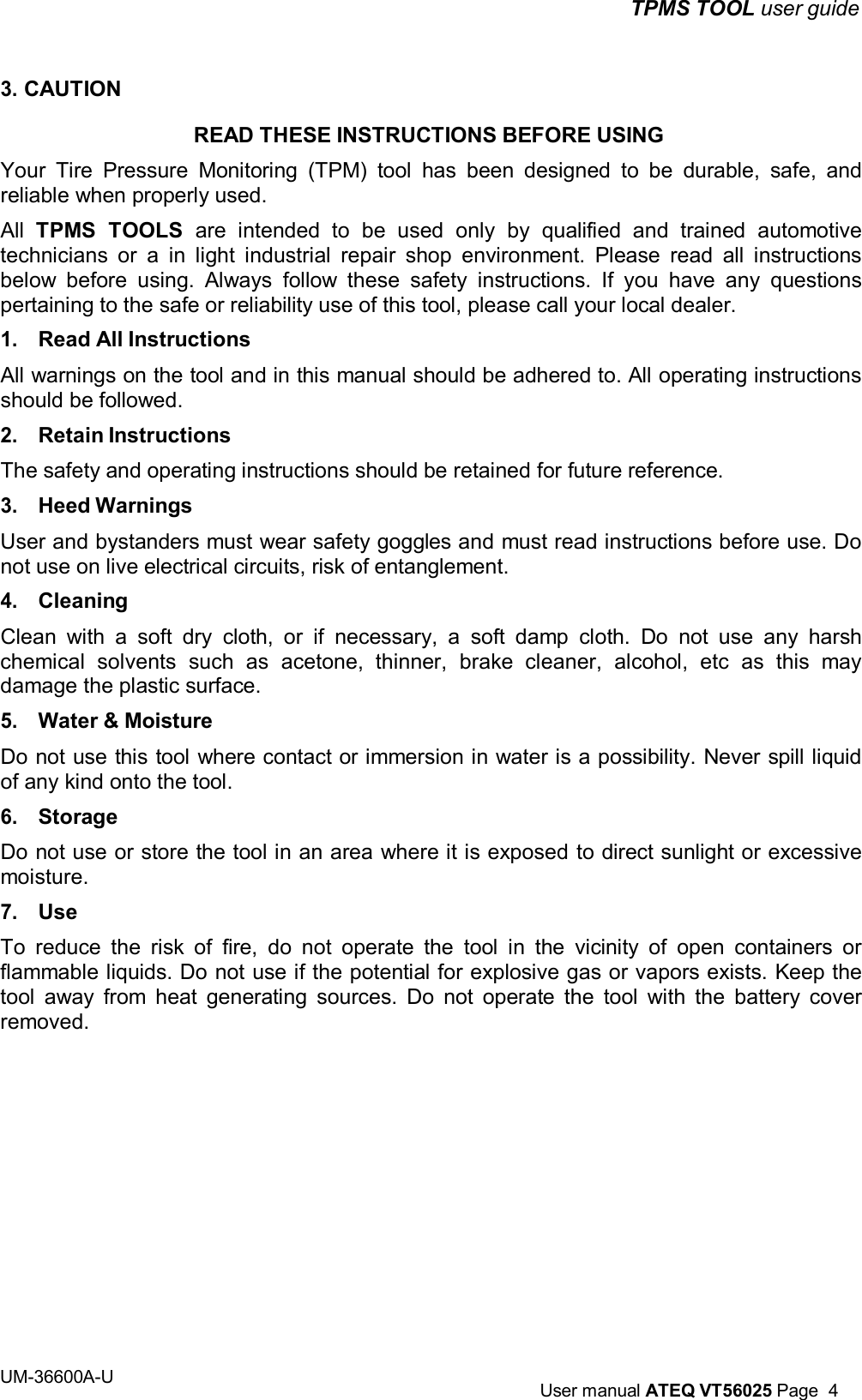

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 4 3. CAUTION READ THESE INSTRUCTIONS BEFORE USING Your Tire Pressure Monitoring (TPM) tool has been designed to be durable, safe, and reliable when properly used. All TPMS TOOLS are intended to be used only by qualified and trained automotive technicians or a in light industrial repair shop environment. Please read all instructions below before using. Always follow these safety instructions. If you have any questions pertaining to the safe or reliability use of this tool, please call your local dealer. 1. Read All Instructions All warnings on the tool and in this manual should be adhered to. All operating instructions should be followed. 2. Retain Instructions The safety and operating instructions should be retained for future reference. 3. Heed Warnings User and bystanders must wear safety goggles and must read instructions before use. Do not use on live electrical circuits, risk of entanglement. 4. Cleaning Clean with a soft dry cloth, or if necessary, a soft damp cloth. Do not use any harsh chemical solvents such as acetone, thinner, brake cleaner, alcohol, etc as this may damage the plastic surface. 5. Water & Moisture Do not use this tool where contact or immersion in water is a possibility. Never spill liquid of any kind onto the tool. 6. Storage Do not use or store the tool in an area where it is exposed to direct sunlight or excessive moisture. 7. Use To reduce the risk of fire, do not operate the tool in the vicinity of open containers or flammable liquids. Do not use if the potential for explosive gas or vapors exists. Keep the tool away from heat generating sources. Do not operate the tool with the battery cover removed.

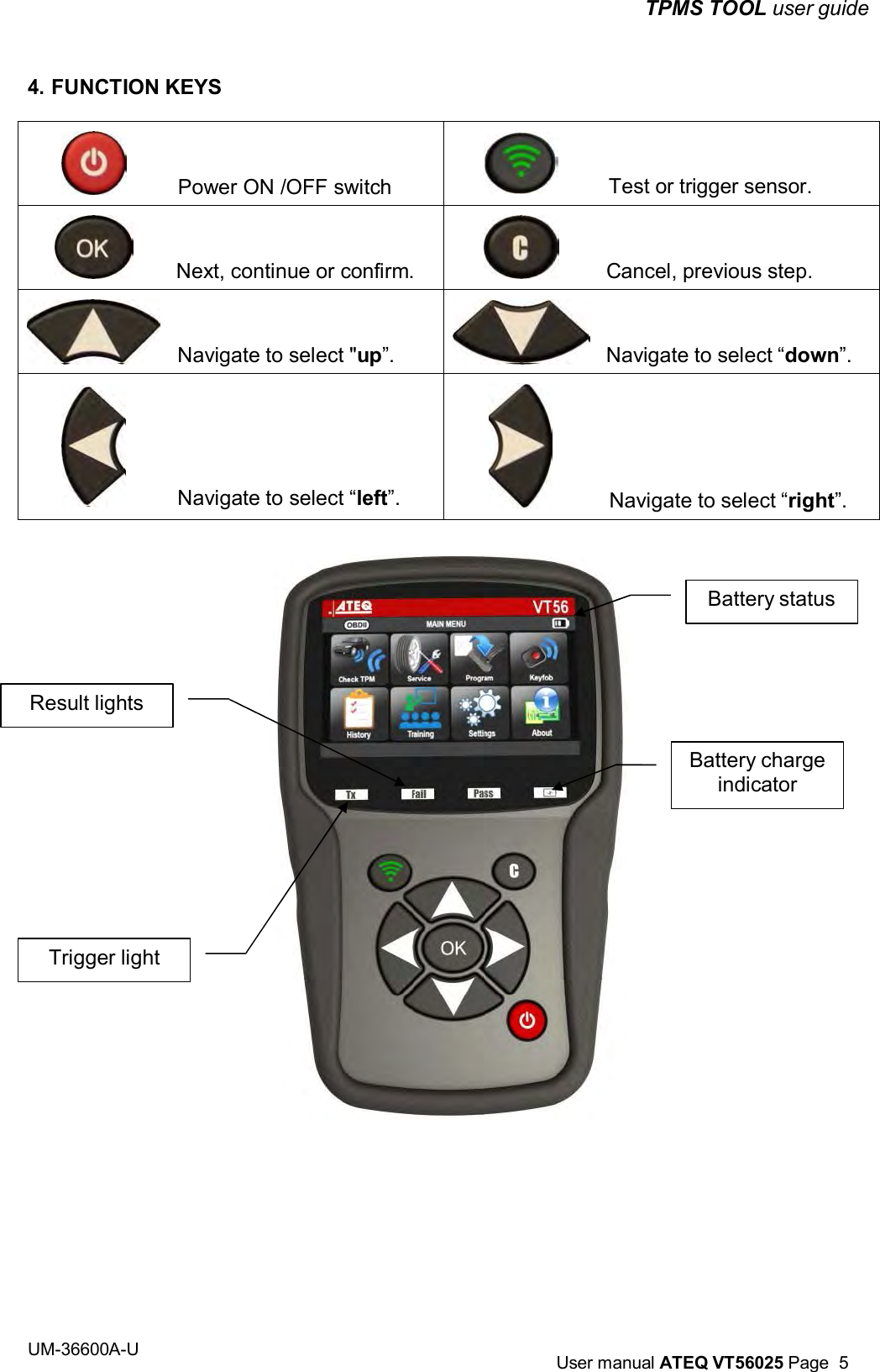

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 5 Power ON /OFF switch Test or trigger sensor. Next, continue or confirm. Cancel, previous step. Navigate to select "up”. Navigate to select “down”. Navigate to select “left”. Navigate to select “right”. 4. FUNCTION KEYS Battery status Result lights Battery charge indicator Trigger light

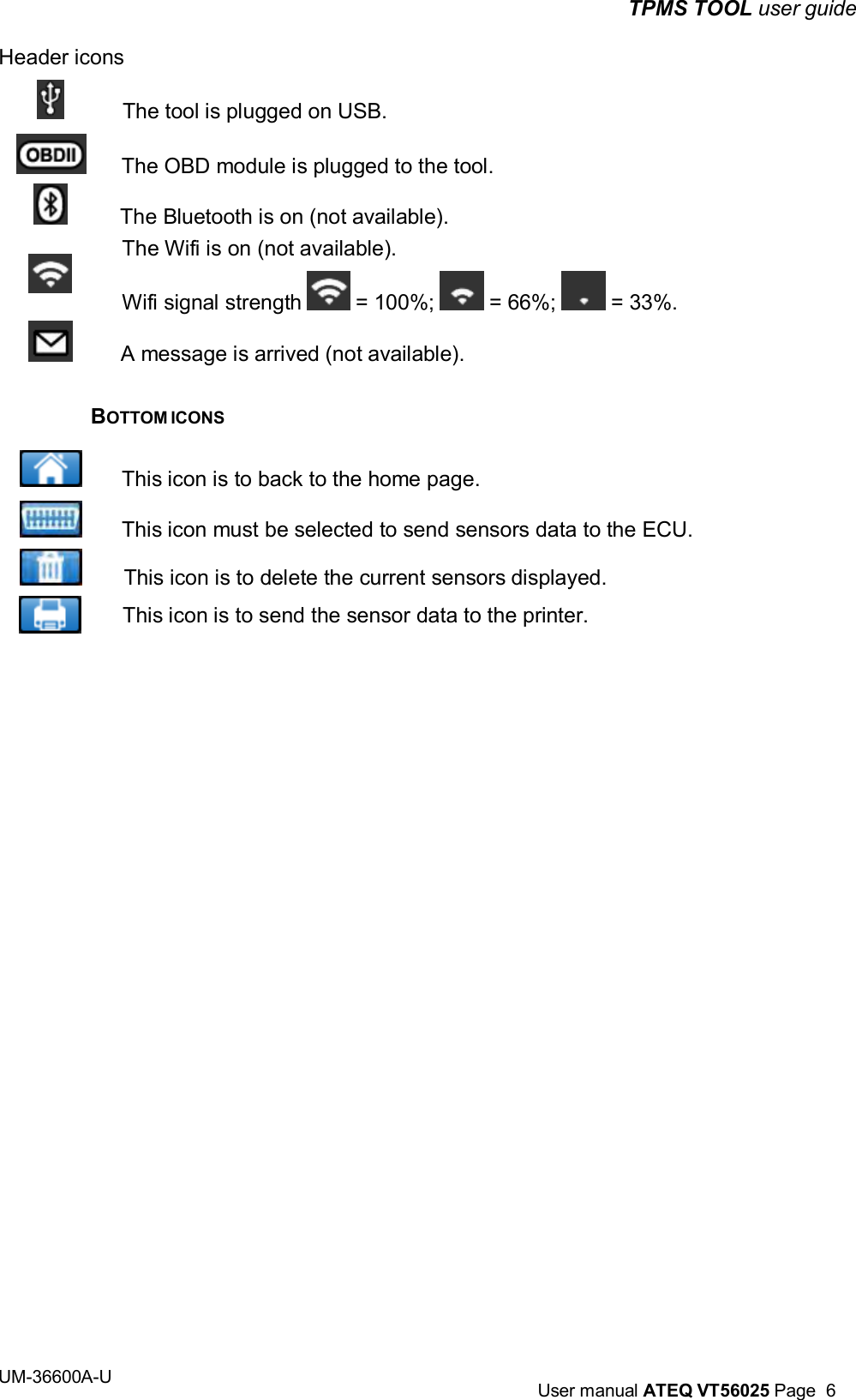

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 6 Header icons The tool is plugged on USB. The OBD module is plugged to the tool. The Bluetooth is on (not available). The Wifi is on (not available). Wifi signal strength = 100%; = 66%; = 33%. A message is arrived (not available). BOTTOM ICONS This icon is to back to the home page. This icon must be selected to send sensors data to the ECU. This icon is to delete the current sensors displayed. This icon is to send the sensor data to the printer.

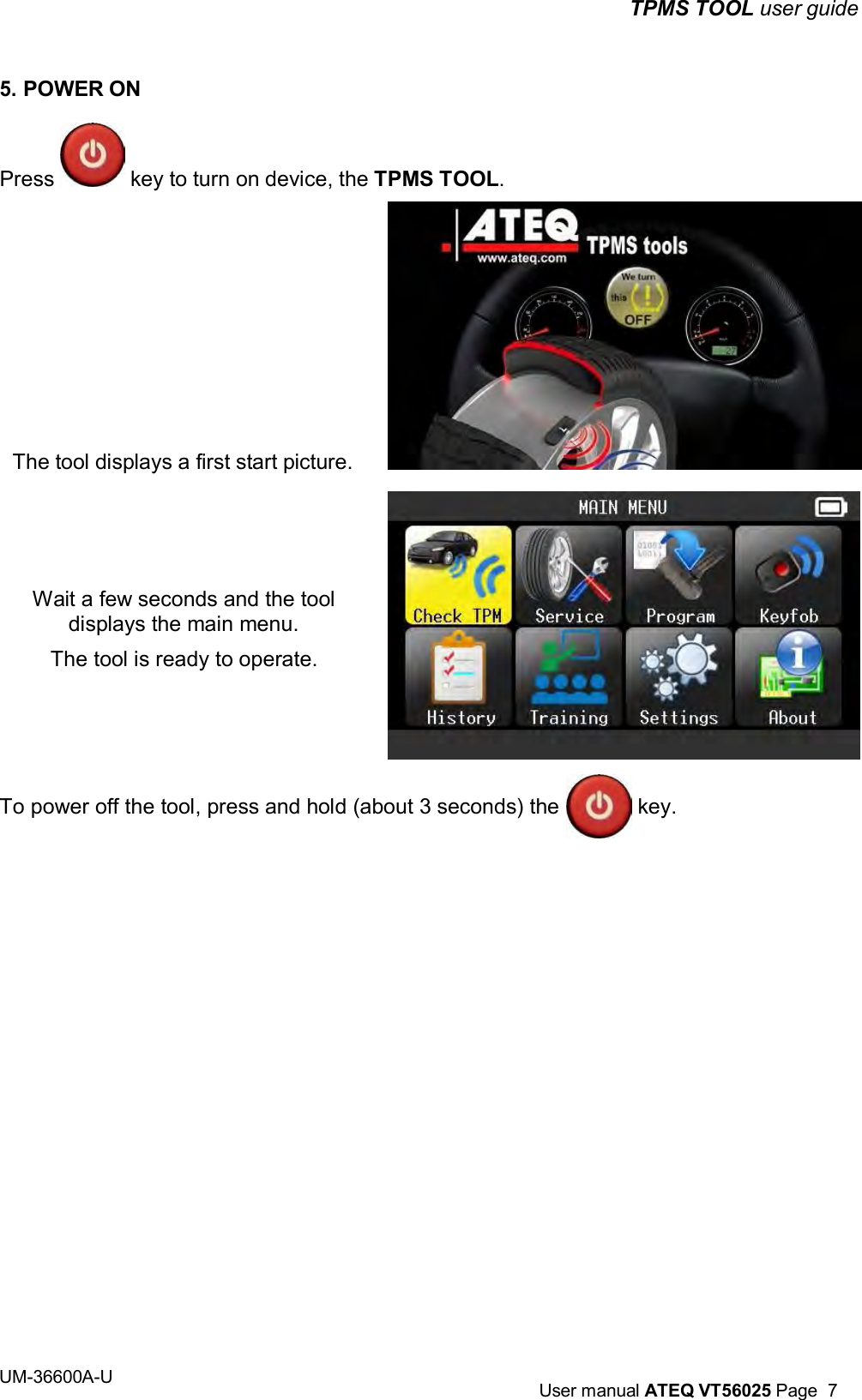

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 7 5. POWER ON Press key to turn on device, the TPMS TOOL. The tool displays a first start picture. Wait a few seconds and the tool displays the main menu. The tool is ready to operate. To power off the tool, press and hold (about 3 seconds) the key.

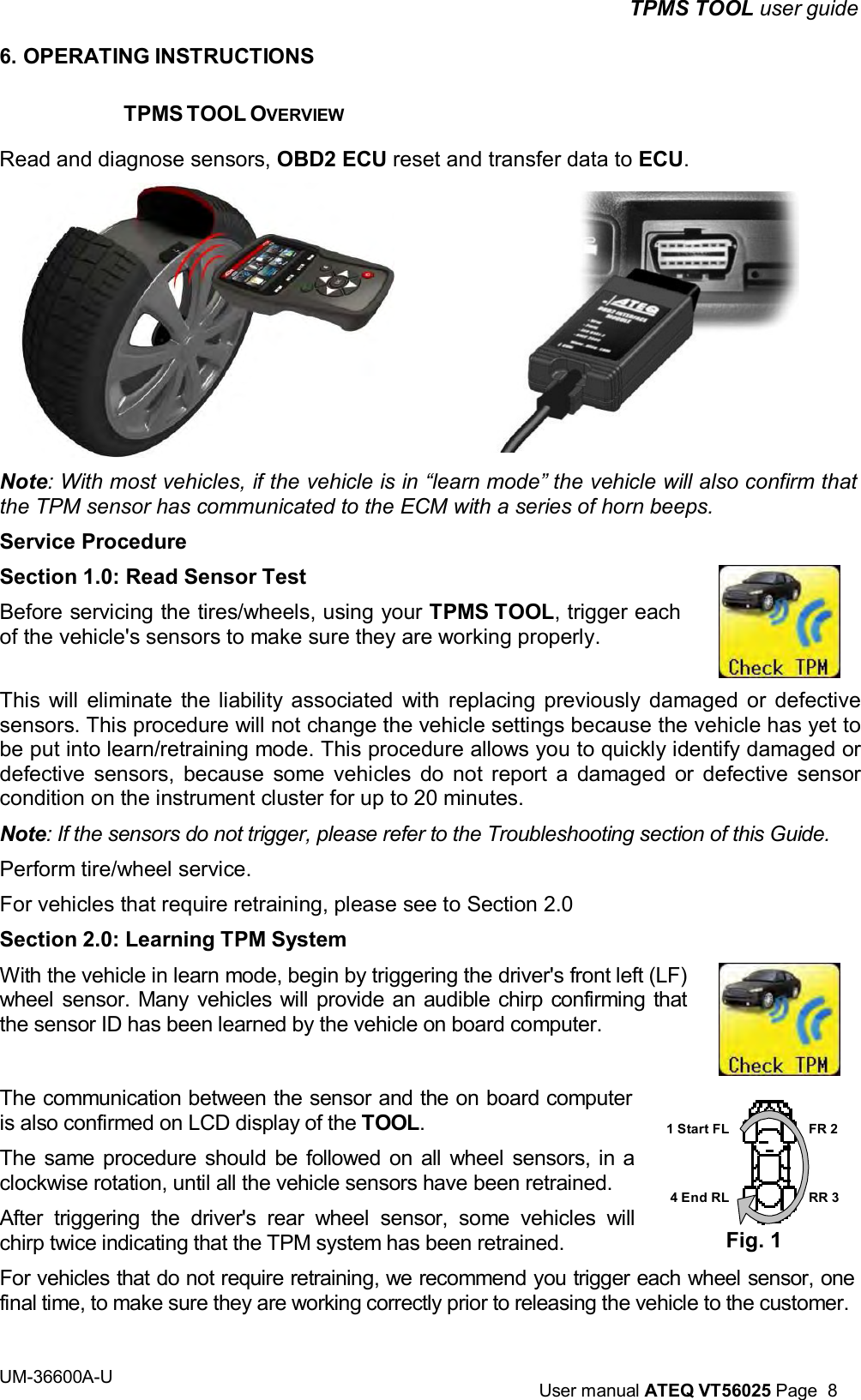

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 8 6. OPERATING INSTRUCTIONS TPMS TOOL OVERVIEW Read and diagnose sensors, OBD2 ECU reset and transfer data to ECU. Note: With most vehicles, if the vehicle is in “learn mode” the vehicle will also confirm that the TPM sensor has communicated to the ECM with a series of horn beeps. Service Procedure Section 1.0: Read Sensor Test Before servicing the tires/wheels, using your TPMS TOOL, trigger each of the vehicle's sensors to make sure they are working properly. This will eliminate the liability associated with replacing previously damaged or defective sensors. This procedure will not change the vehicle settings because the vehicle has yet to be put into learn/retraining mode. This procedure allows you to quickly identify damaged or defective sensors, because some vehicles do not report a damaged or defective sensor condition on the instrument cluster for up to 20 minutes. Note: If the sensors do not trigger, please refer to the Troubleshooting section of this Guide. Perform tire/wheel service. For vehicles that require retraining, please see to Section 2.0 Section 2.0: Learning TPM System With the vehicle in learn mode, begin by triggering the driver's front left (LF) wheel sensor. Many vehicles will provide an audible chirp confirming that the sensor ID has been learned by the vehicle on board computer. The communication between the sensor and the on board computer is also confirmed on LCD display of the TOOL. The same procedure should be followed on all wheel sensors, in a clockwise rotation, until all the vehicle sensors have been retrained. After triggering the driver's rear wheel sensor, some vehicles will chirp twice indicating that the TPM system has been retrained. 1 Start FL 4 End RL Fig. 1 FR 2 RR 3 For vehicles that do not require retraining, we recommend you trigger each wheel sensor, one final time, to make sure they are working correctly prior to releasing the vehicle to the customer.

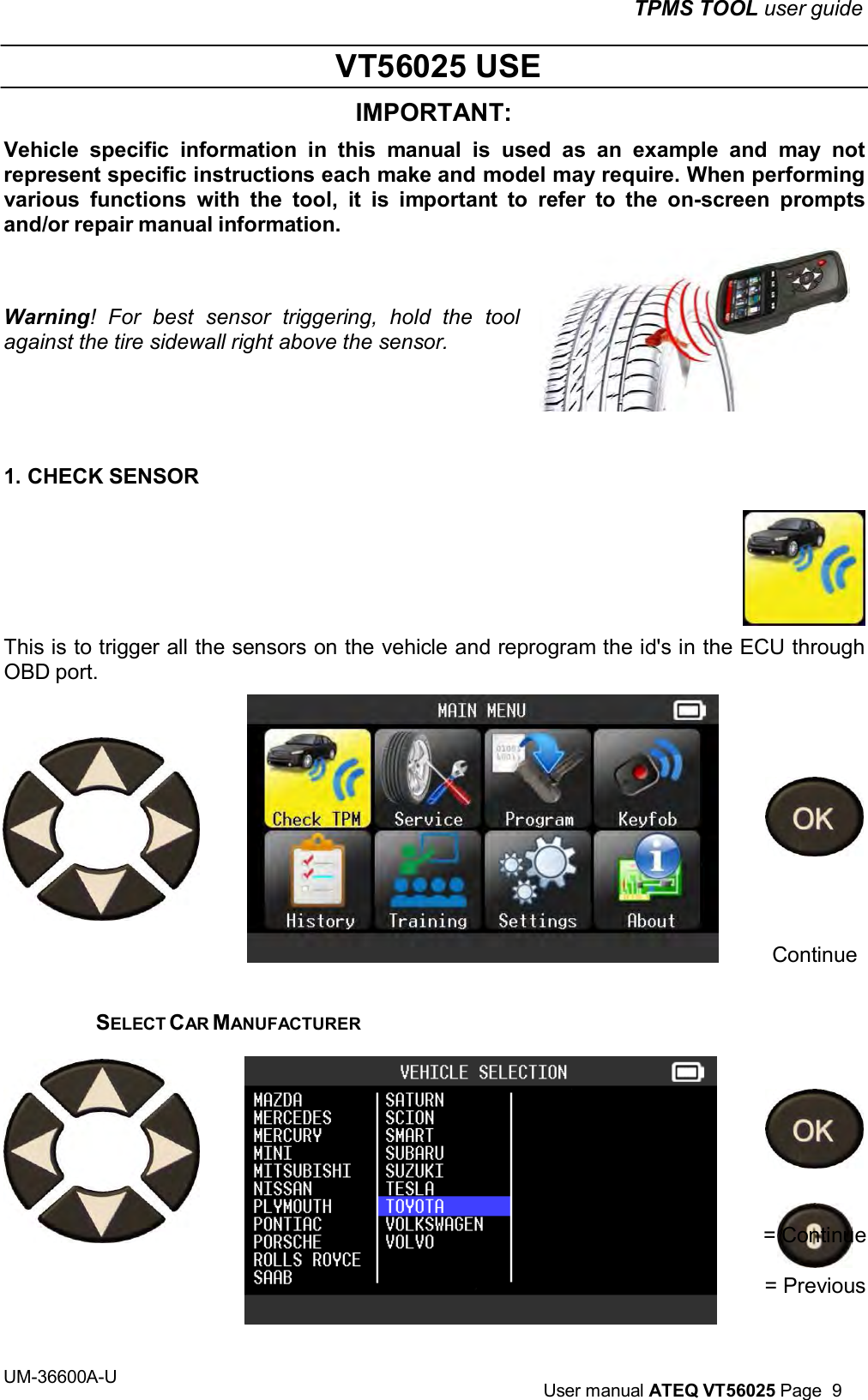

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 9 VT56025 USE IMPORTANT: Vehicle specific information in this manual is used as an example and may not represent specific instructions each make and model may require. When performing various functions with the tool, it is important to refer to the on-screen prompts and/or repair manual information. Warning! For best sensor triggering, hold the tool against the tire sidewall right above the sensor. 1. CHECK SENSOR This is to trigger all the sensors on the vehicle and reprogram the id's in the ECU through OBD port. Continue SELECT CAR MANUFACTURER = Continue = Previous

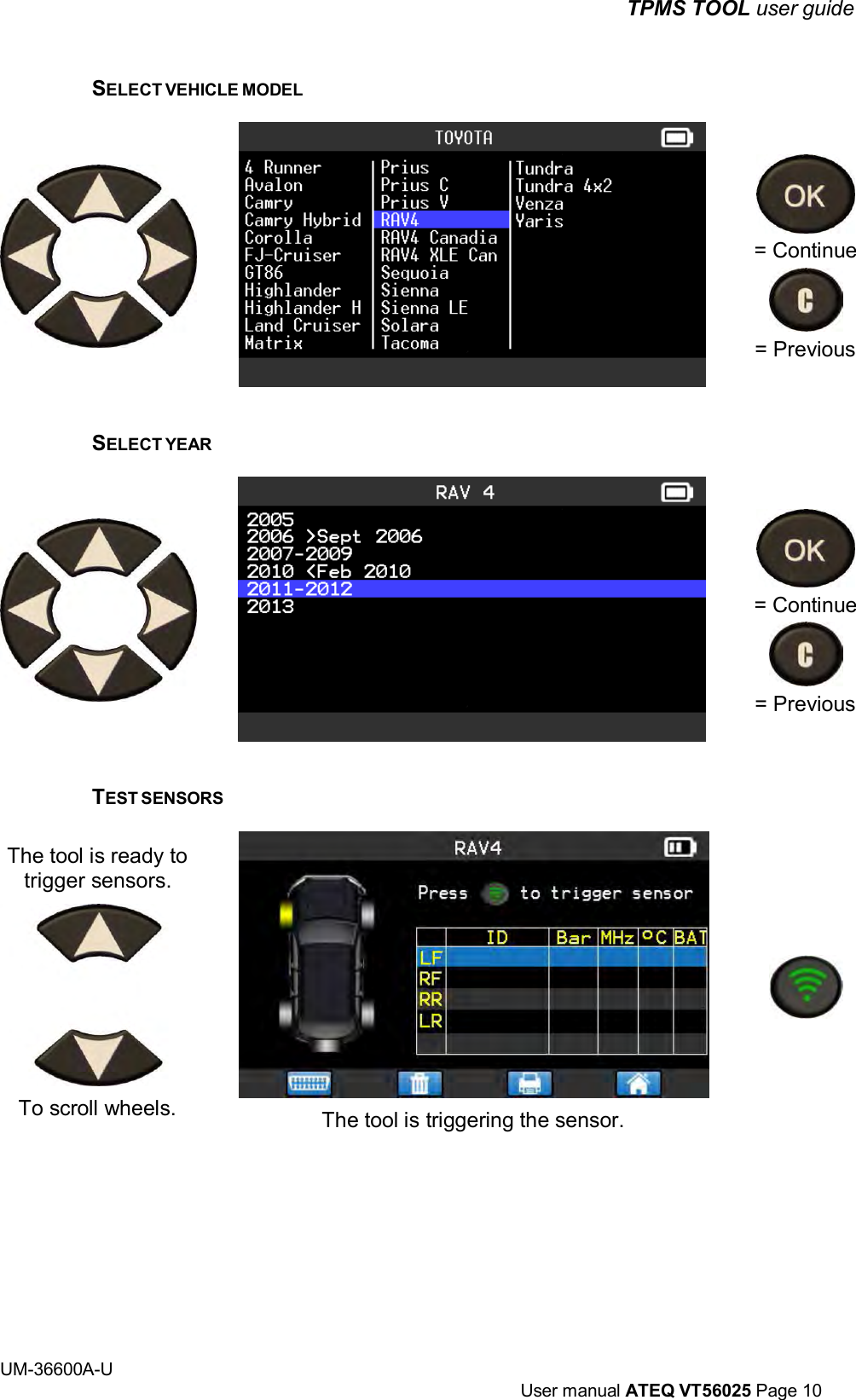

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 10 SELECT VEHICLE MODEL SELECT YEAR TEST SENSORS The tool is ready to trigger sensors. To scroll wheels. The tool is triggering the sensor. = Continue = Previous = Continue = Previous

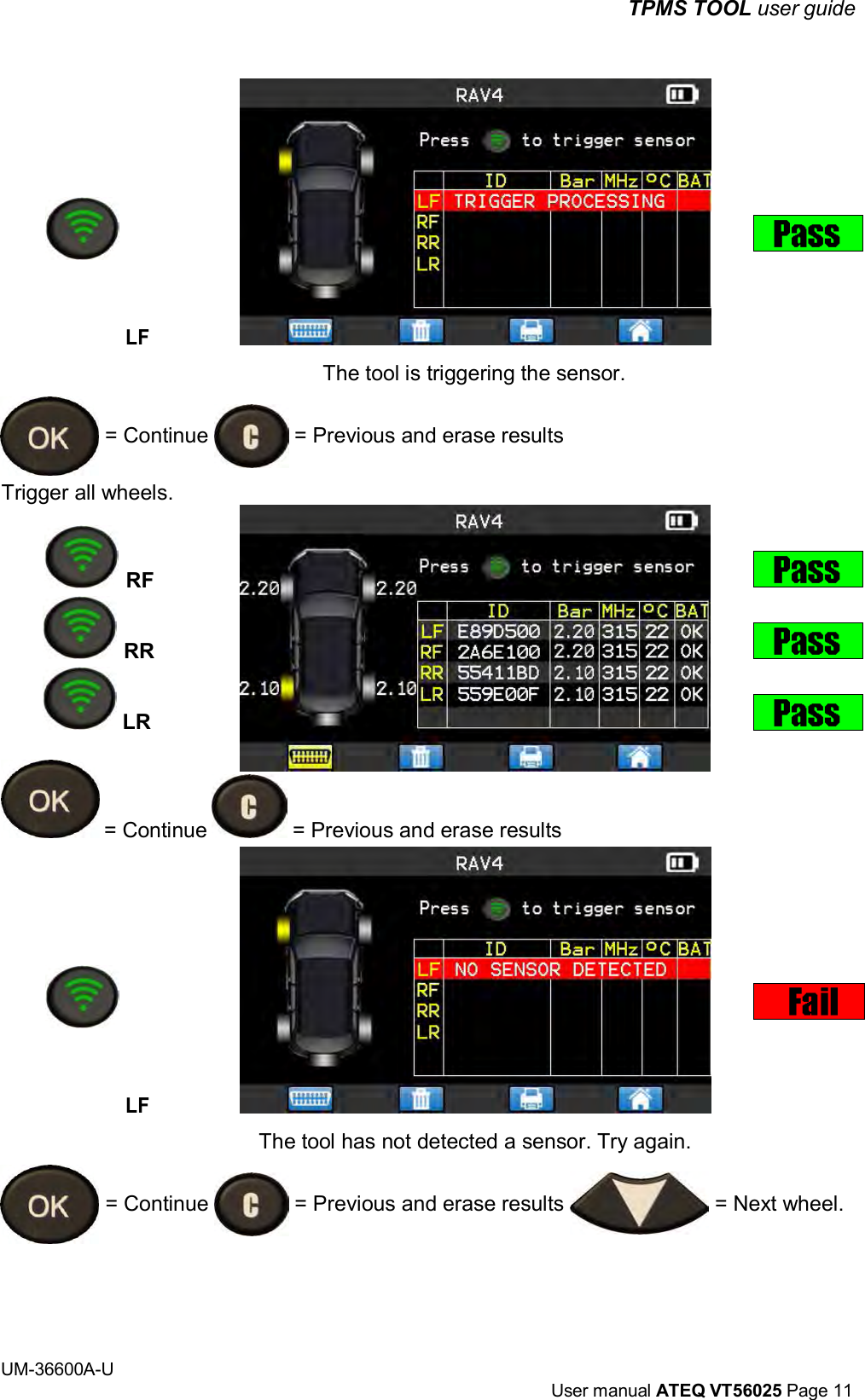

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 11 LF The tool is triggering the sensor. = Continue = Previous and erase results Trigger all wheels. RF RR LR = Continue = Previous and erase results LF The tool has not detected a sensor. Try again. = Continue = Previous and erase results = Next wheel.

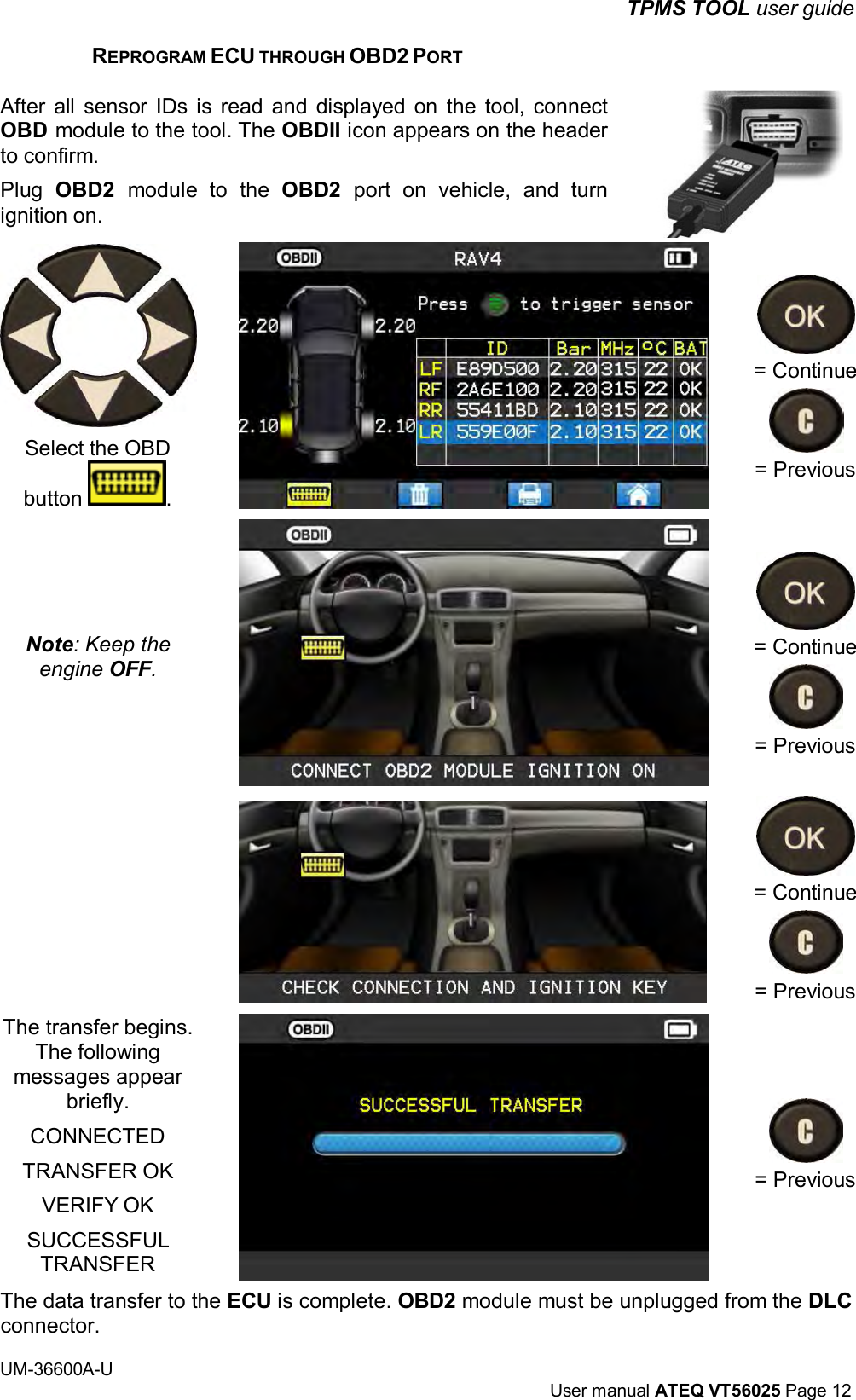

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 12 REPROGRAM ECU THROUGH OBD2 PORT After all sensor IDs is read and displayed on the tool, connect OBD module to the tool. The OBDII icon appears on the header to confirm. Plug OBD2 module to the OBD2 port on vehicle, and turn ignition on. Select the OBD button . Note: Keep the engine OFF. The transfer begins. The following messages appear briefly. CONNECTED TRANSFER OK VERIFY OK SUCCESSFUL TRANSFER = Continue = Previous = Continue = Previous = Continue = Previous = Previous The data transfer to the ECU is complete. OBD2 module must be unplugged from the DLC connector.

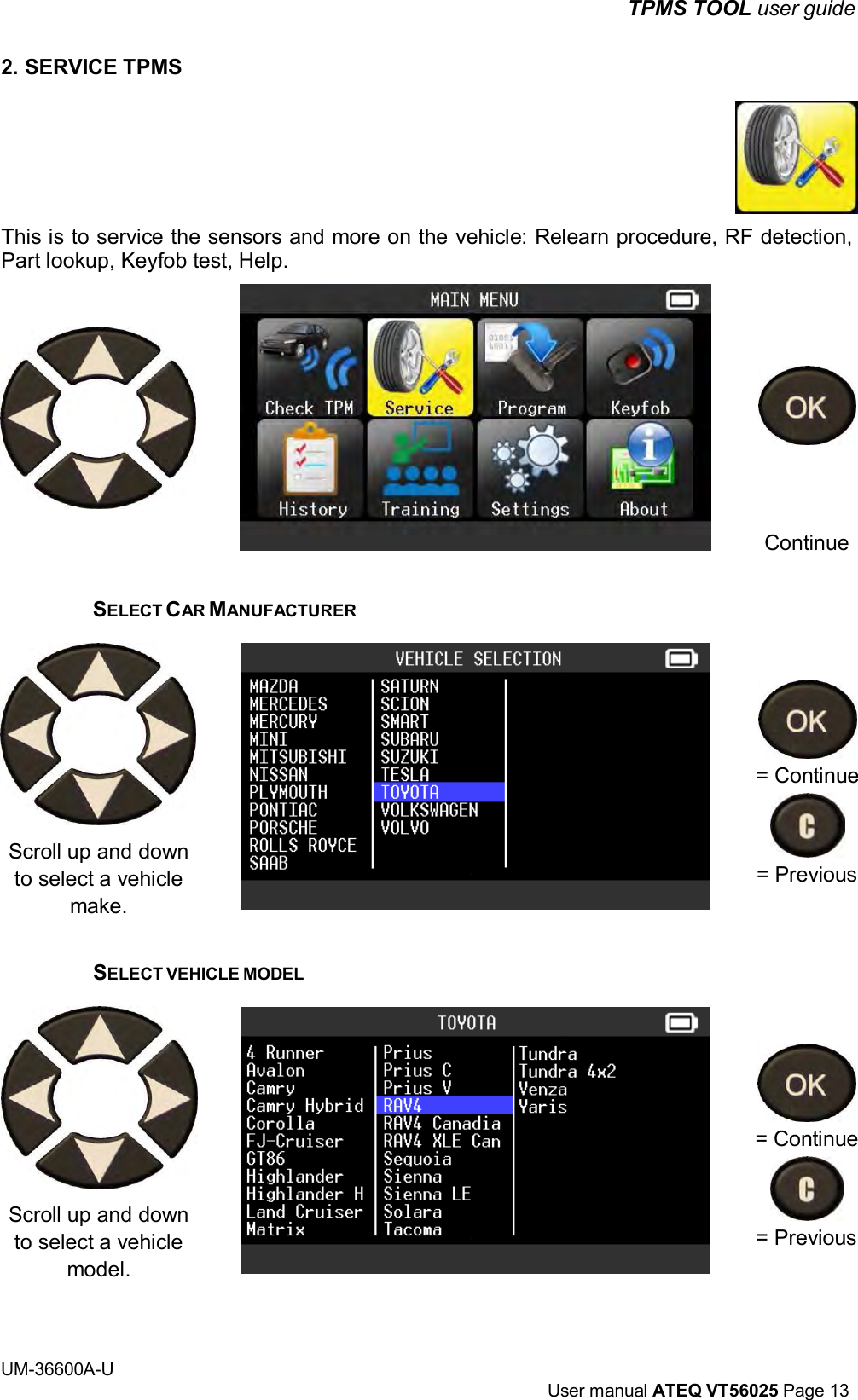

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 13 2. SERVICE TPMS This is to service the sensors and more on the vehicle: Relearn procedure, RF detection, Part lookup, Keyfob test, Help. Continue SELECT CAR MANUFACTURER = Continue Scroll up and down to select a vehicle make. = Previous SELECT VEHICLE MODEL Scroll up and down to select a vehicle model. = Continue = Previous

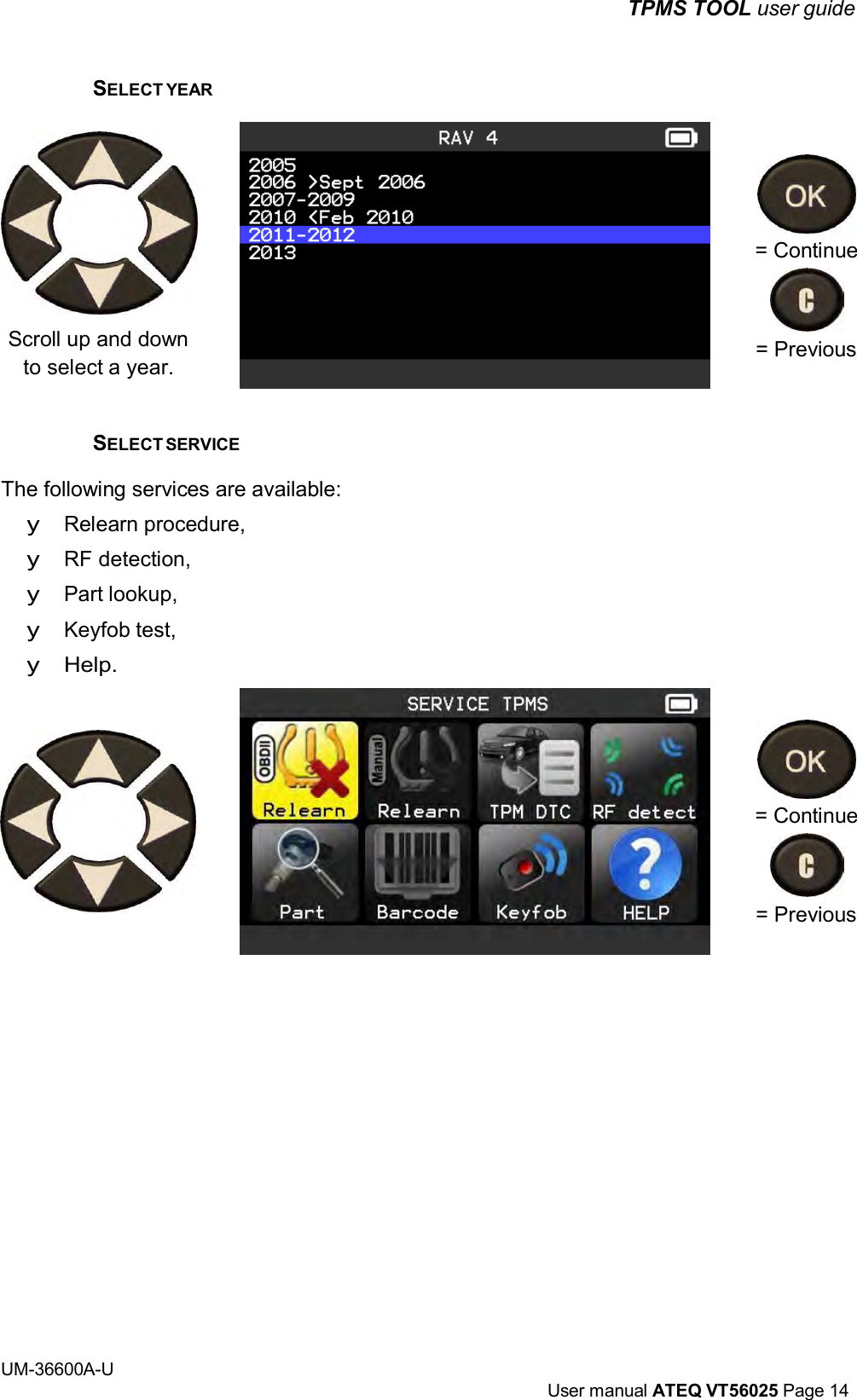

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 14 SELECT YEAR Scroll up and down to select a year. SELECT SERVICE The following services are available: y Relearn procedure, y RF detection, y Part lookup, y Keyfob test, y Help. = Continue = Previous = Continue = Previous

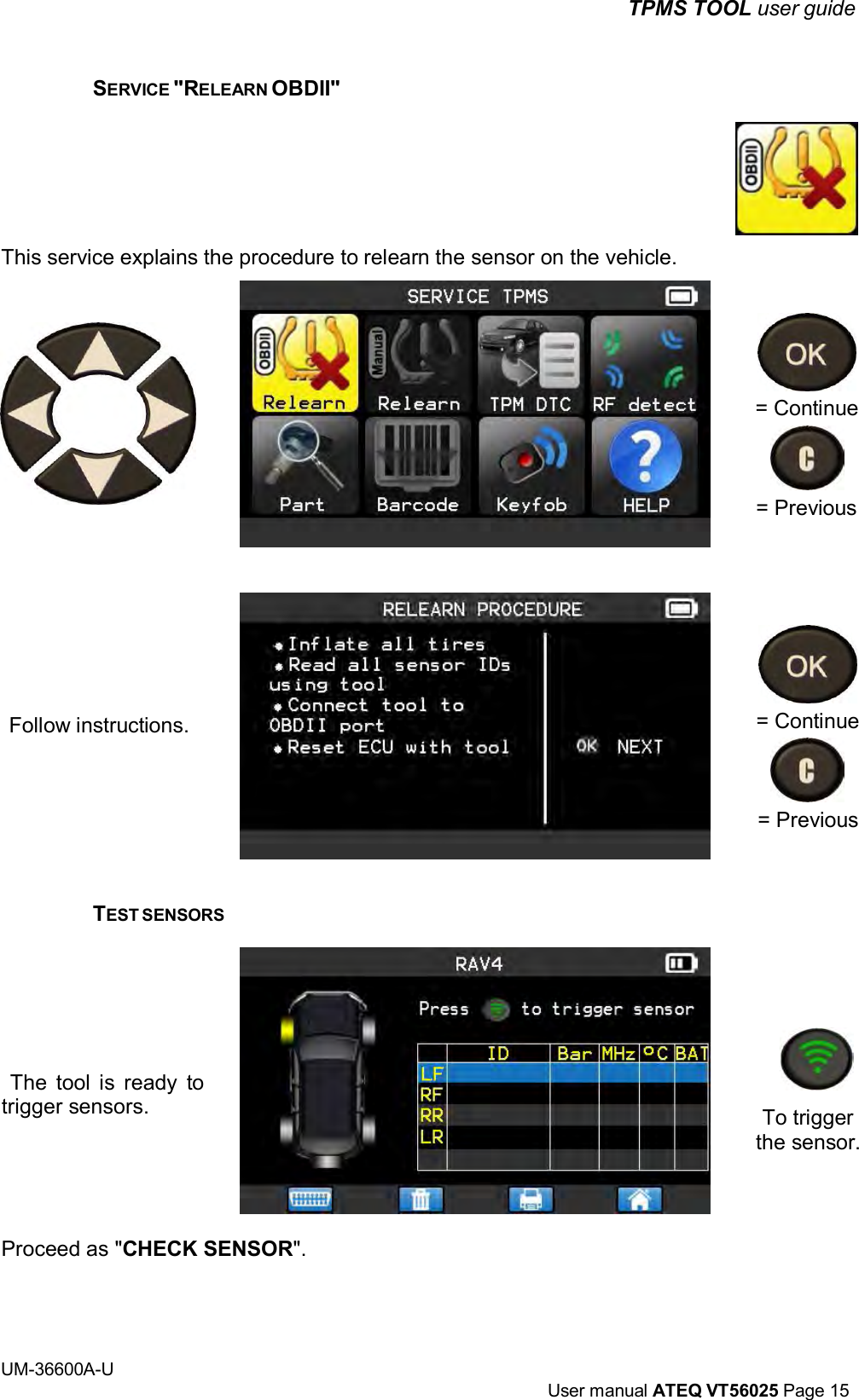

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 15 SERVICE "RELEARN OBDII" This service explains the procedure to relearn the sensor on the vehicle. = Continue = Previous Follow instructions. = Continue = Previous TEST SENSORS The tool is ready to trigger sensors. To trigger the sensor. Proceed as "CHECK SENSOR".

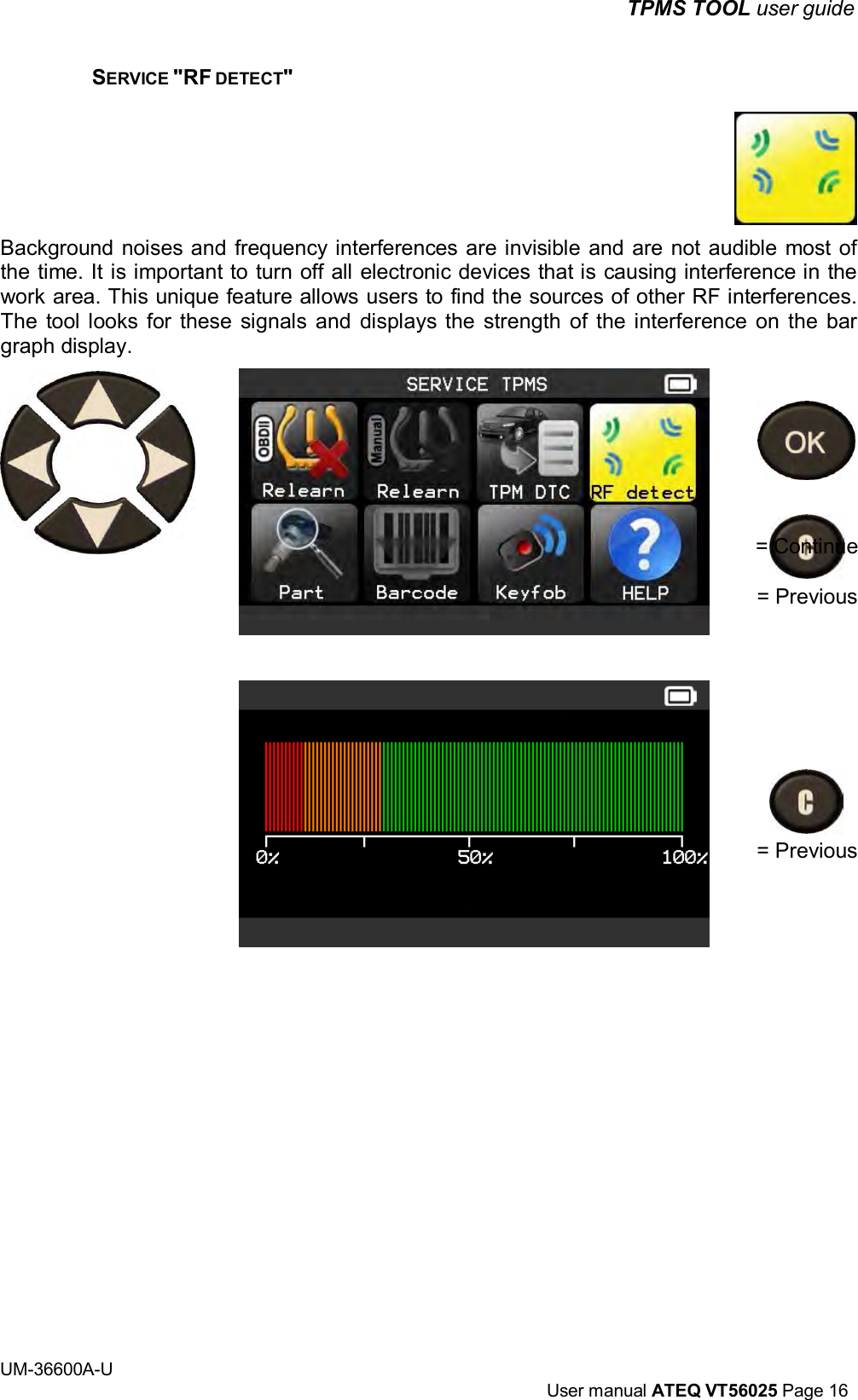

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 16 SERVICE "RF DETECT" Background noises and frequency interferences are invisible and are not audible most of the time. It is important to turn off all electronic devices that is causing interference in the work area. This unique feature allows users to find the sources of other RF interferences. The tool looks for these signals and displays the strength of the interference on the bar graph display. = Continue = Previous = Previous

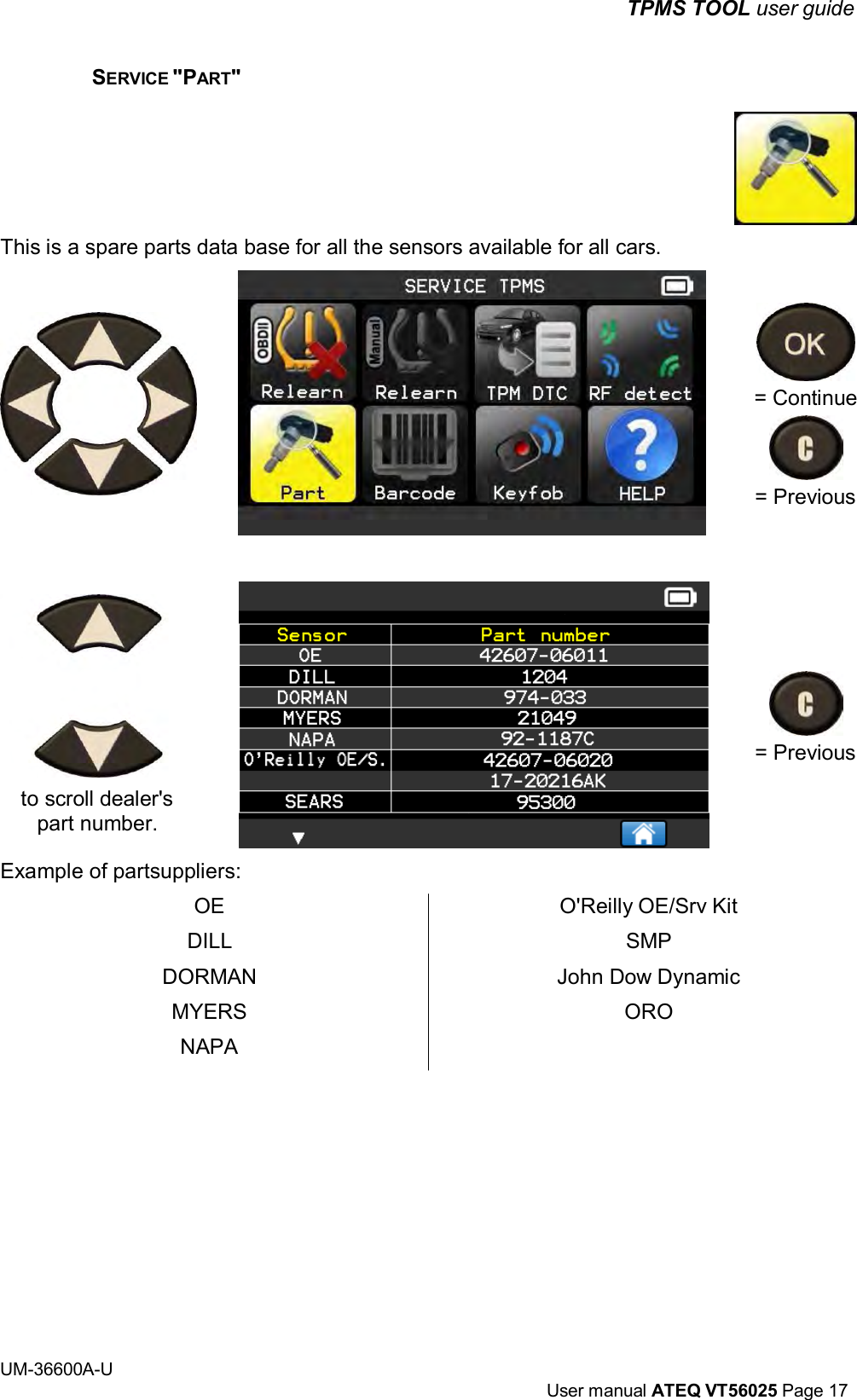

UM-36600A-U User manual ATEQ VT56025 Page 17 TPMS TOOL user guide SERVICE "PART" This is a spare parts data base for all the sensors available for all cars. to scroll dealer's part number. = Continue = Previous = Previous Example of partsuppliers: OE DILL DORMAN MYERS NAPA O'Reilly OE/Srv Kit SMP John Dow Dynamic ORO

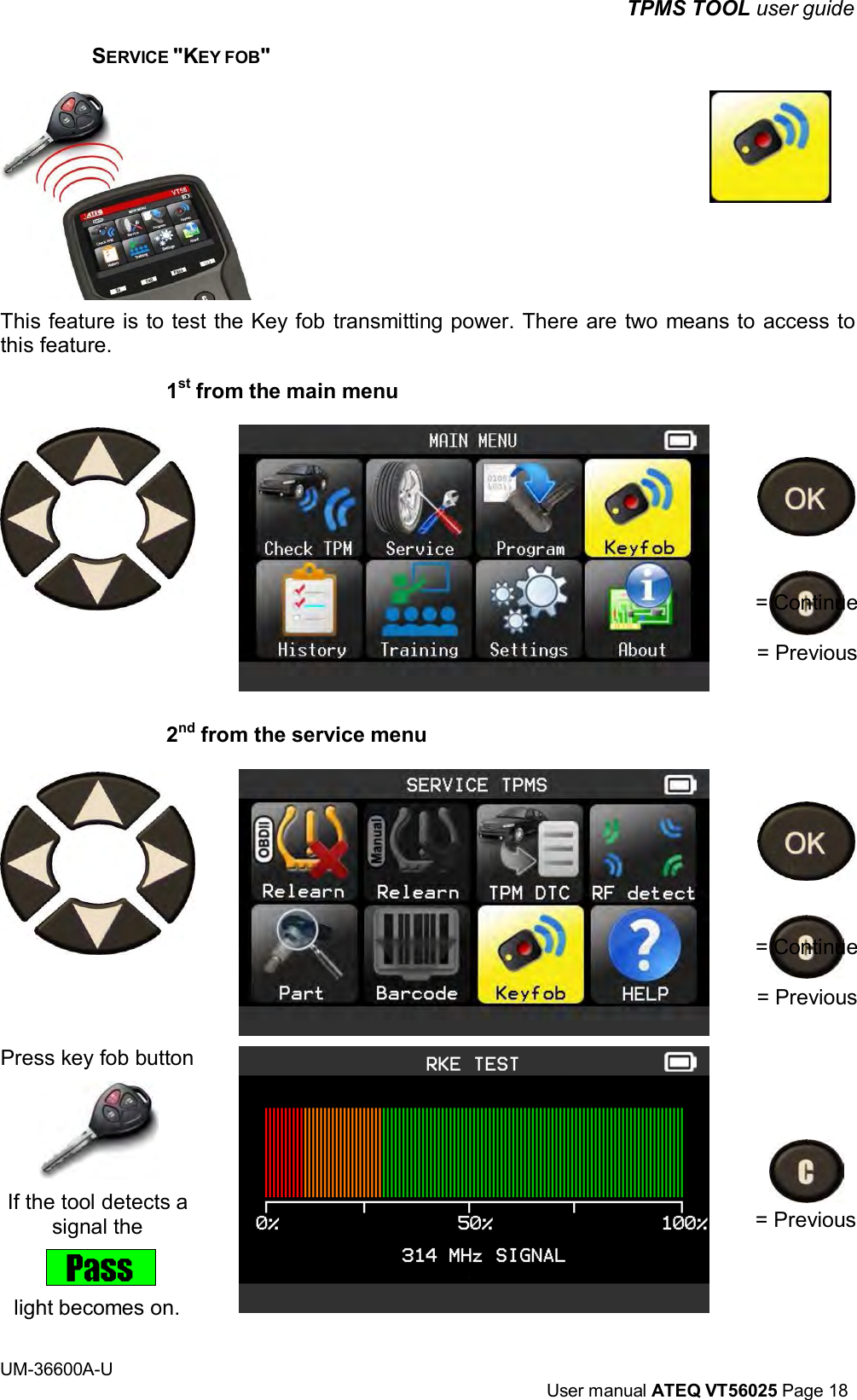

UM-36600A-U User manual ATEQ VT56025 Page 18 TPMS TOOL user guide SERVICE "KEY FOB" This feature is to test the Key fob transmitting power. There are two means to access to this feature. 1st from the main menu = Continue = Previous 2nd from the service menu = Continue = Previous Press key fob button If the tool detects a signal the light becomes on. = Previous

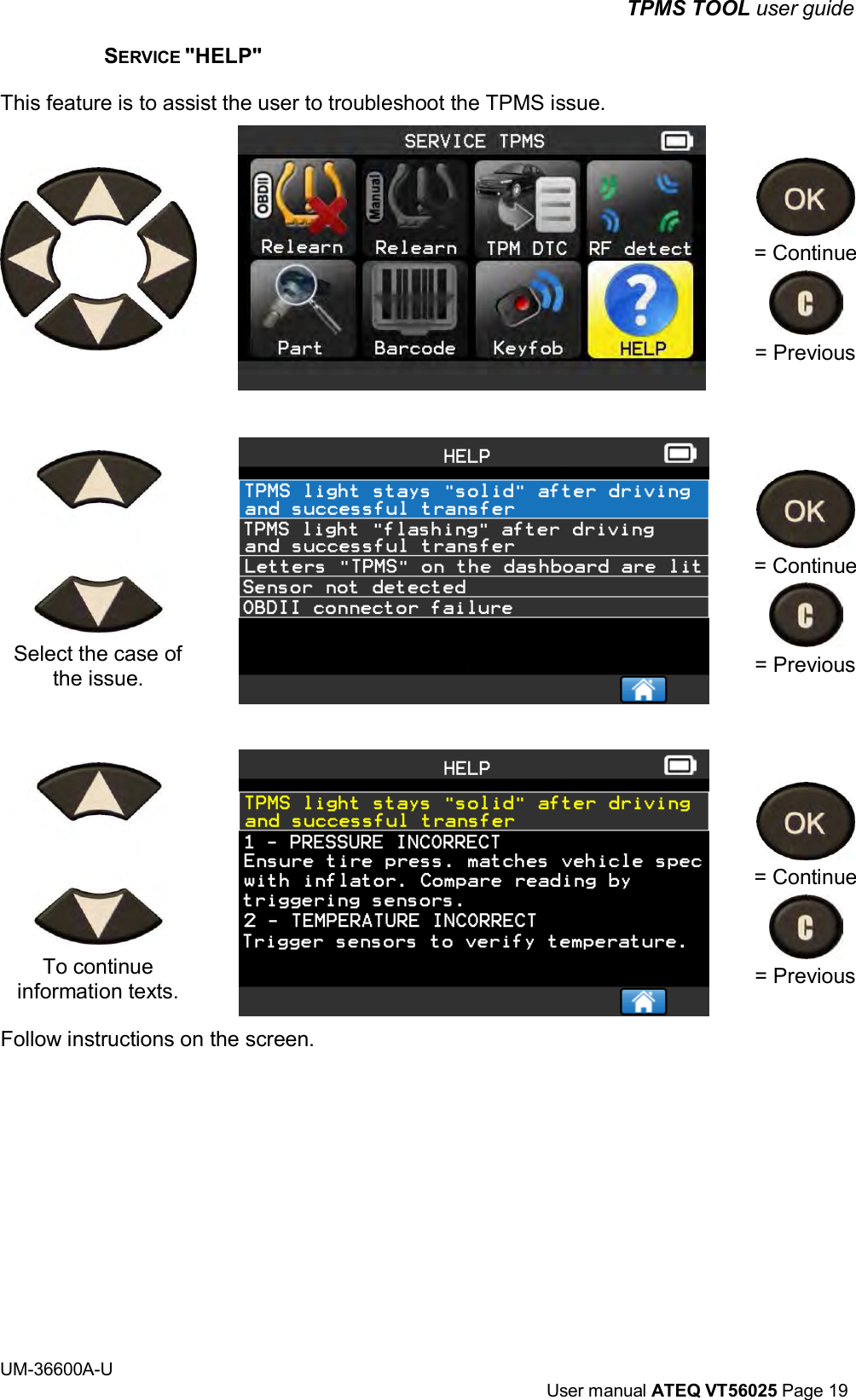

UM-36600A-U User manual ATEQ VT56025 Page 19 TPMS TOOL user guide SERVICE "HELP" This feature is to assist the user to troubleshoot the TPMS issue. Select the case of the issue. To continue information texts. Follow instructions on the screen. = Continue = Previous = Continue = Previous = Continue = Previous

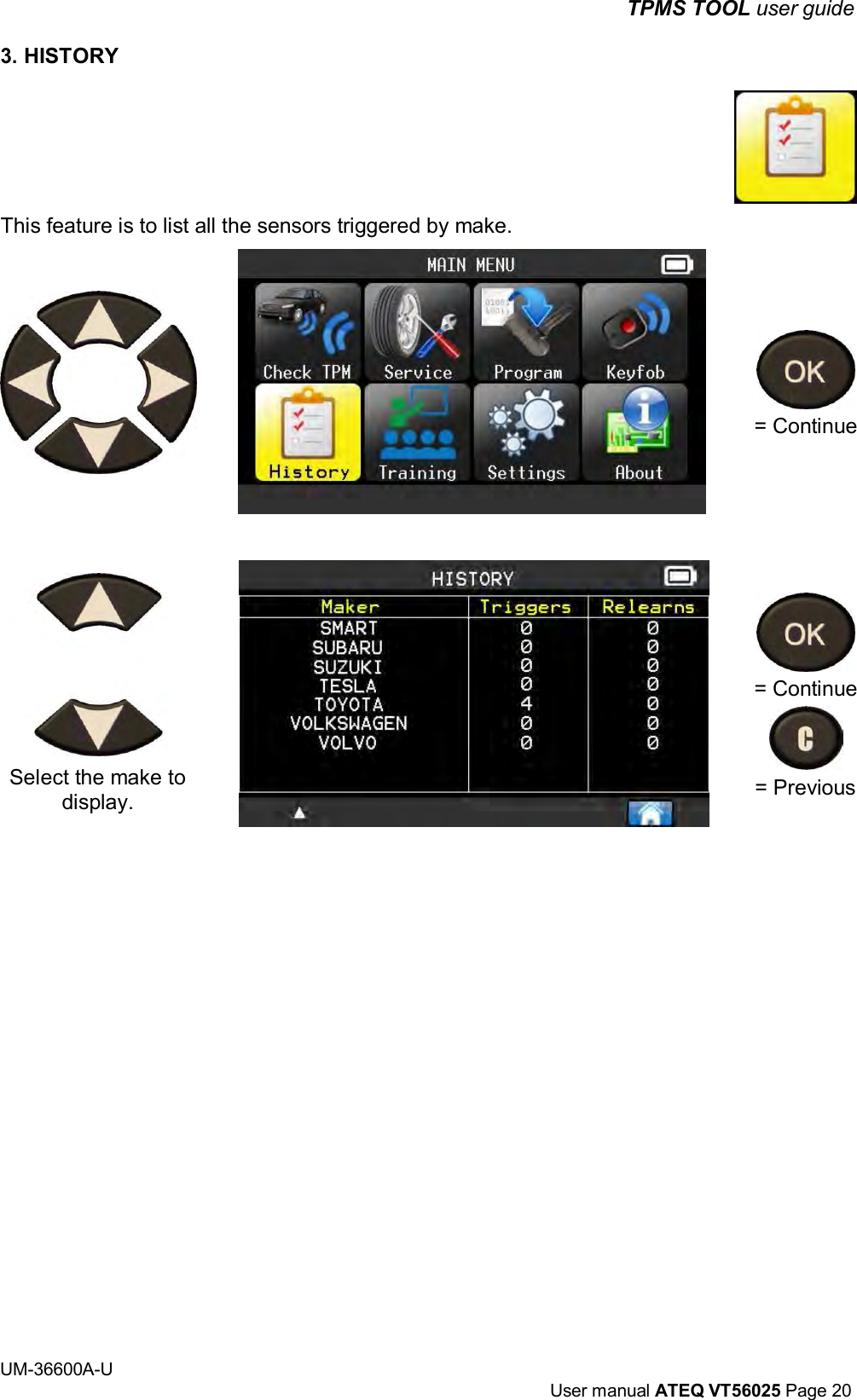

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 20 3. HISTORY This feature is to list all the sensors triggered by make. Select the make to display. = Continue = Continue = Previous

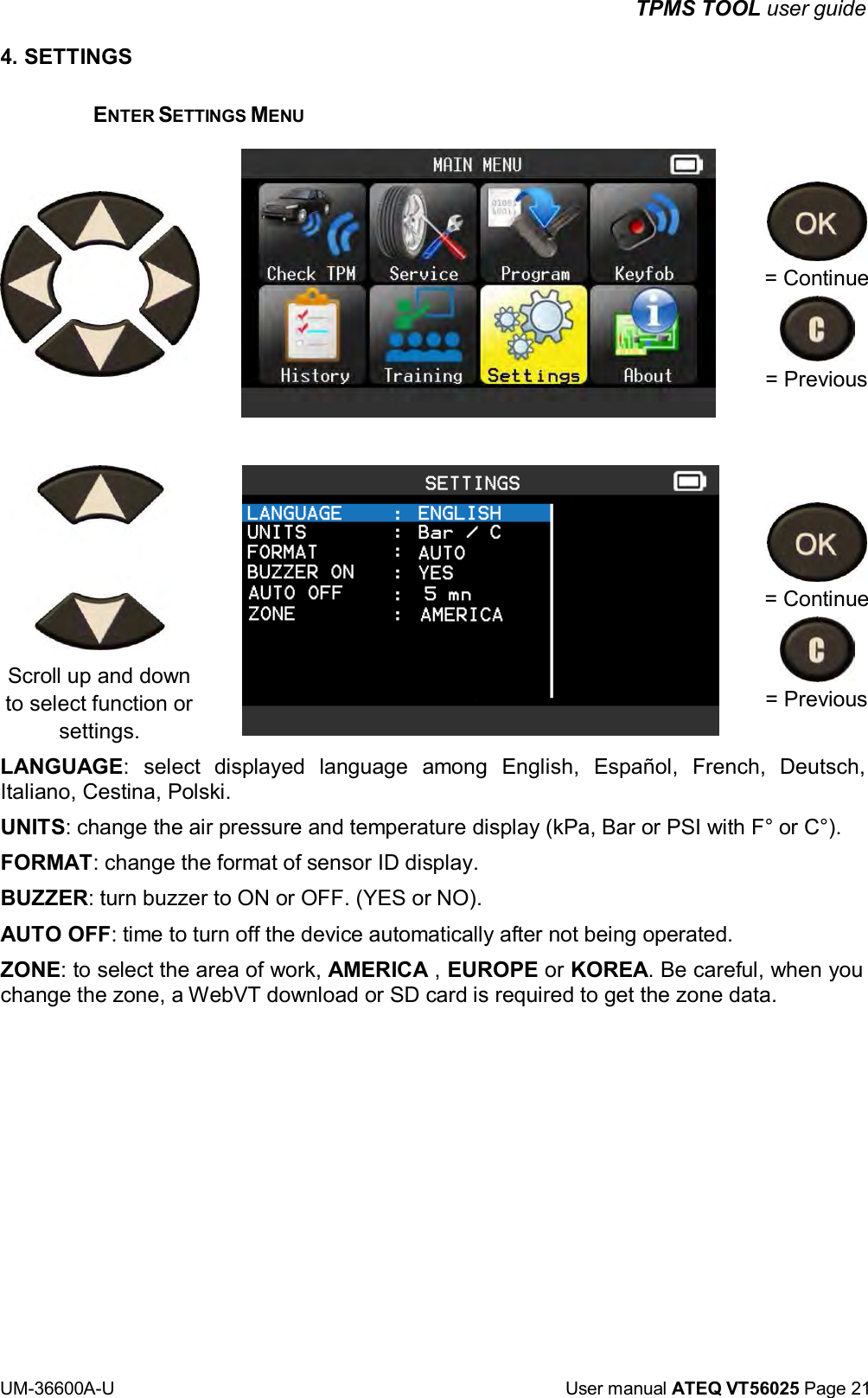

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 21 4. SETTINGS ENTER SETTINGS MENU Scroll up and down to select function or settings. = Continue = Previous = Continue = Previous LANGUAGE: select displayed language among English, Español, French, Deutsch, Italiano, Cestina, Polski. UNITS: change the air pressure and temperature display (kPa, Bar or PSI with F° or C°). FORMAT: change the format of sensor ID display. BUZZER: turn buzzer to ON or OFF. (YES or NO). AUTO OFF: time to turn off the device automatically after not being operated. ZONE: to select the area of work, AMERICA , EUROPE or KOREA. Be careful, when you change the zone, a WebVT download or SD card is required to get the zone data.

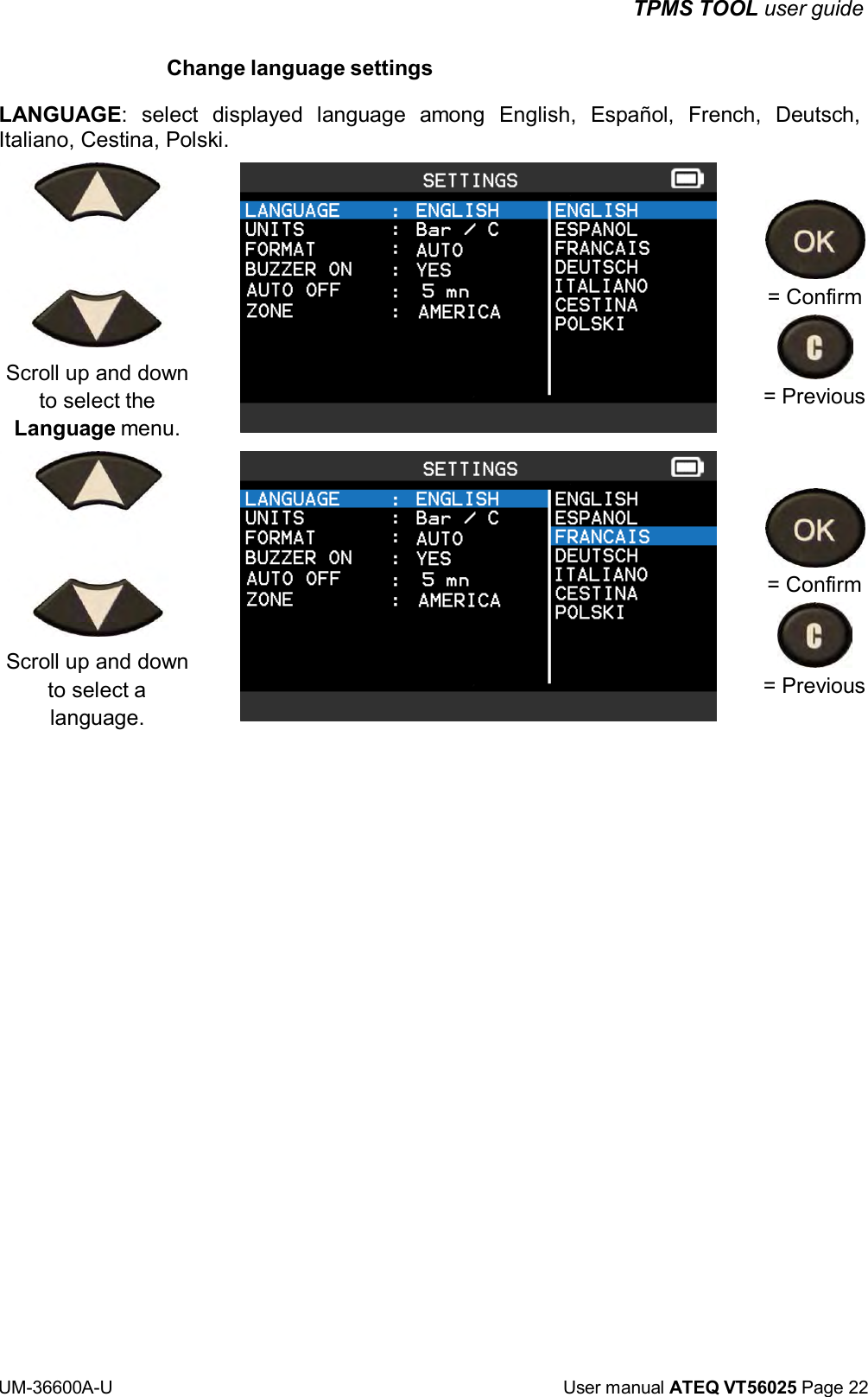

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 22 Change language settings LANGUAGE: select displayed language among English, Español, French, Deutsch, Italiano, Cestina, Polski. = Confirm Scroll up and down to select the Language menu. Scroll up and down to select a language. = Previous = Confirm = Previous

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 23 Change Units settings UNITS: change the air pressure and temperature display (kPa, Bar or PSI with F° or C°). = Confirm Scroll up and down to select the Units menu. Scroll up and down to select a unit. = Previous = Confirm = Previous

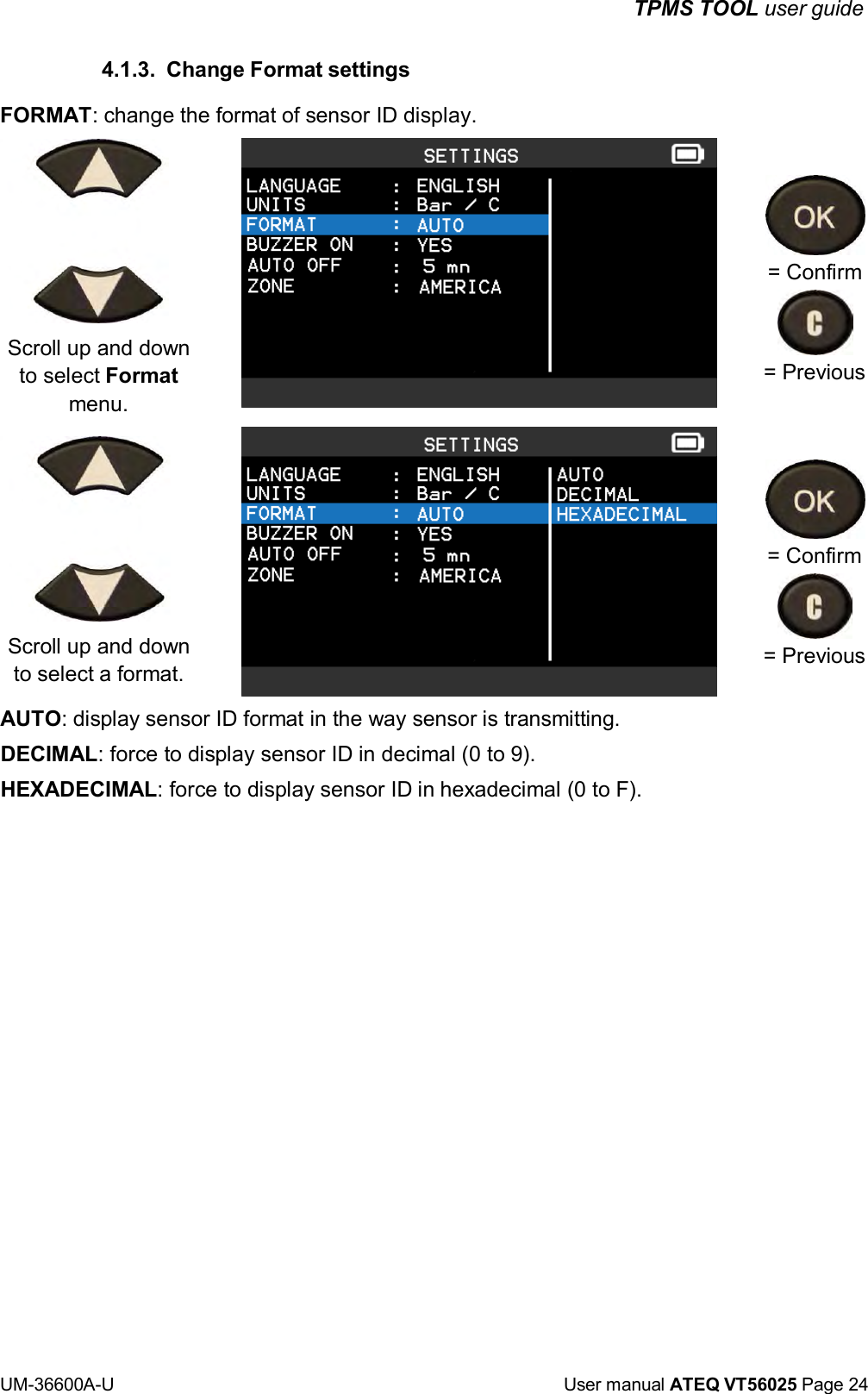

UM-36600A-U User manual ATEQ VT56025 Page 24 TPMS TOOL user guide 4.1.3. Change Format settings FORMAT: change the format of sensor ID display. = Confirm Scroll up and down to select Format menu. Scroll up and down to select a format. AUTO: display sensor ID format in the way sensor is transmitting. DECIMAL: force to display sensor ID in decimal (0 to 9). HEXADECIMAL: force to display sensor ID in hexadecimal (0 to F). = Previous = Confirm = Previous

UM-36600A-U User manual ATEQ VT56025 Page 25 TPMS TOOL user guide 4.1.4. Change Buzzer On settings BUZZER: turn buzzer to ON or OFF. (YES or NO). When buzzer on is set to YES, a beep is triggered when the sensor ID is detected. = Confirm Scroll up and down to select Buzzer On menu. Scroll up and down to select Yes or No. = Previous = Confirm = Previous

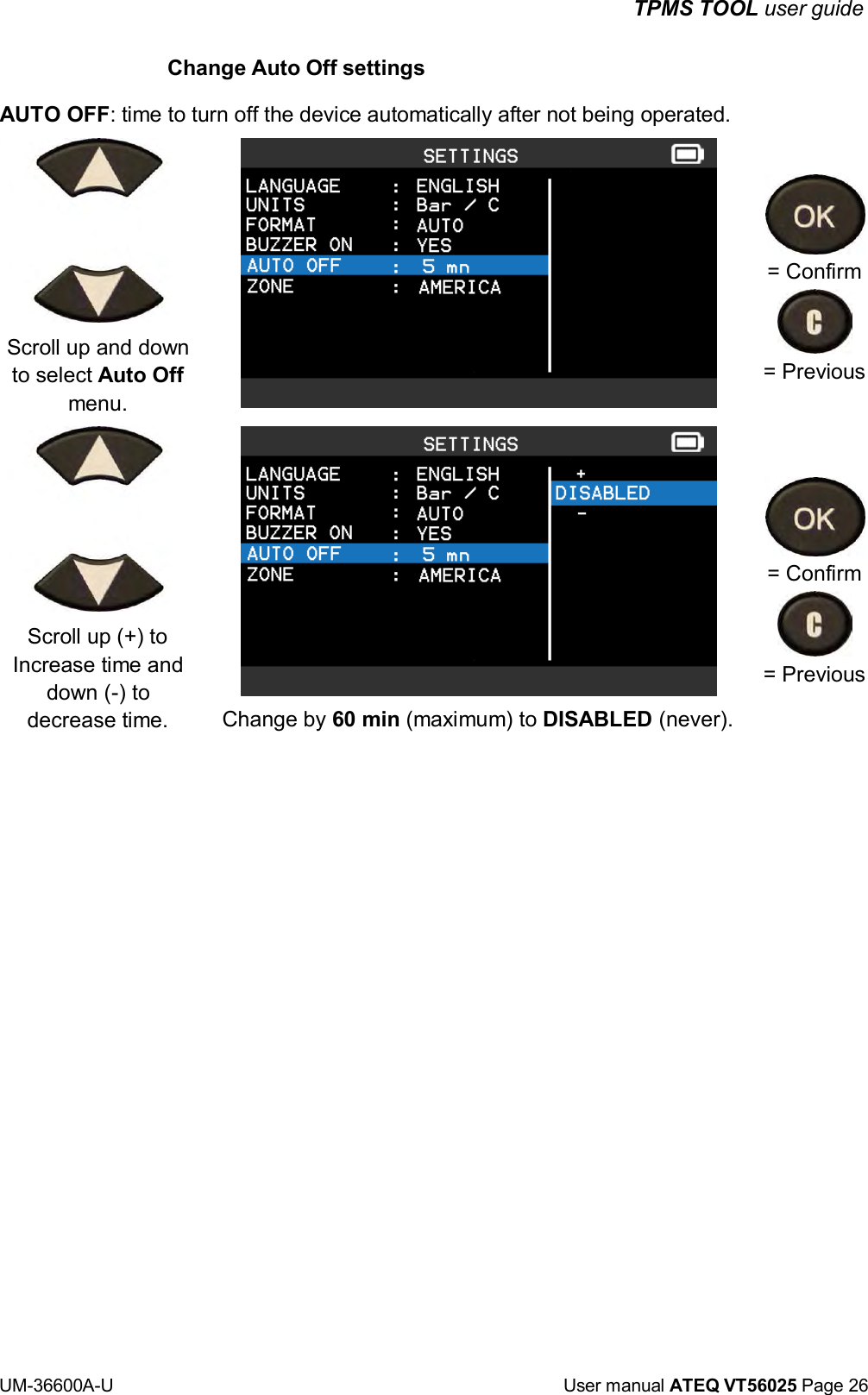

UM-36600A-U User manual ATEQ VT56025 Page 26 TPMS TOOL user guide Change Auto Off settings AUTO OFF: time to turn off the device automatically after not being operated. Scroll up and down to select Auto Off menu. Scroll up (+) to Increase time and down (-) to decrease time. Change by 60 min (maximum) to DISABLED (never). = Confirm = Previous = Confirm = Previous

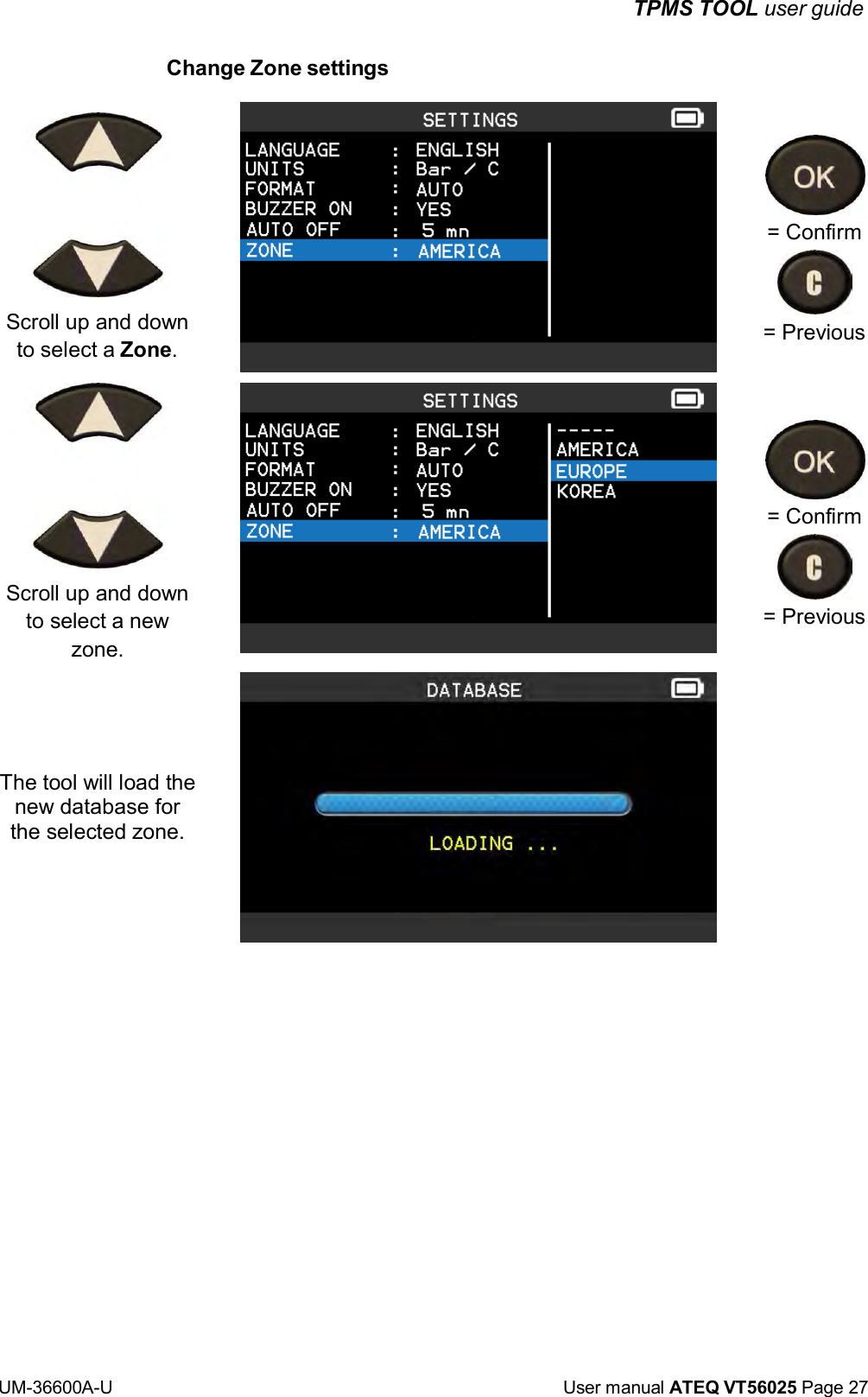

UM-36600A-U User manual ATEQ VT56025 Page 27 TPMS TOOL user guide Change Zone settings Scroll up and down to select a Zone. Scroll up and down to select a new zone. The tool will load the new database for the selected zone. = Confirm = Previous = Confirm = Previous

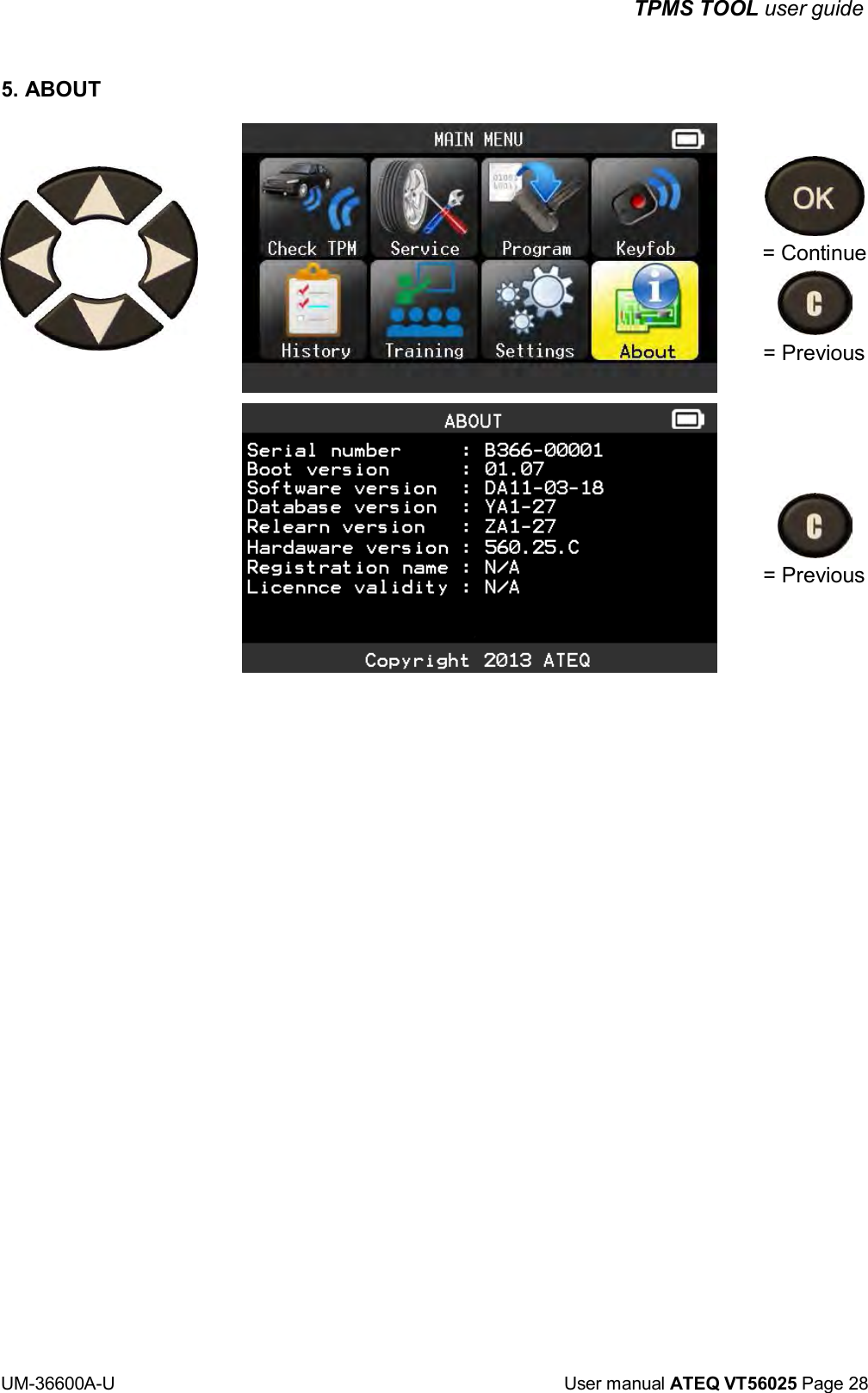

UM-36600A-U User manual ATEQ VT56025 Page 28 TPMS TOOL user guide 5. ABOUT = Continue = Previous = Previous

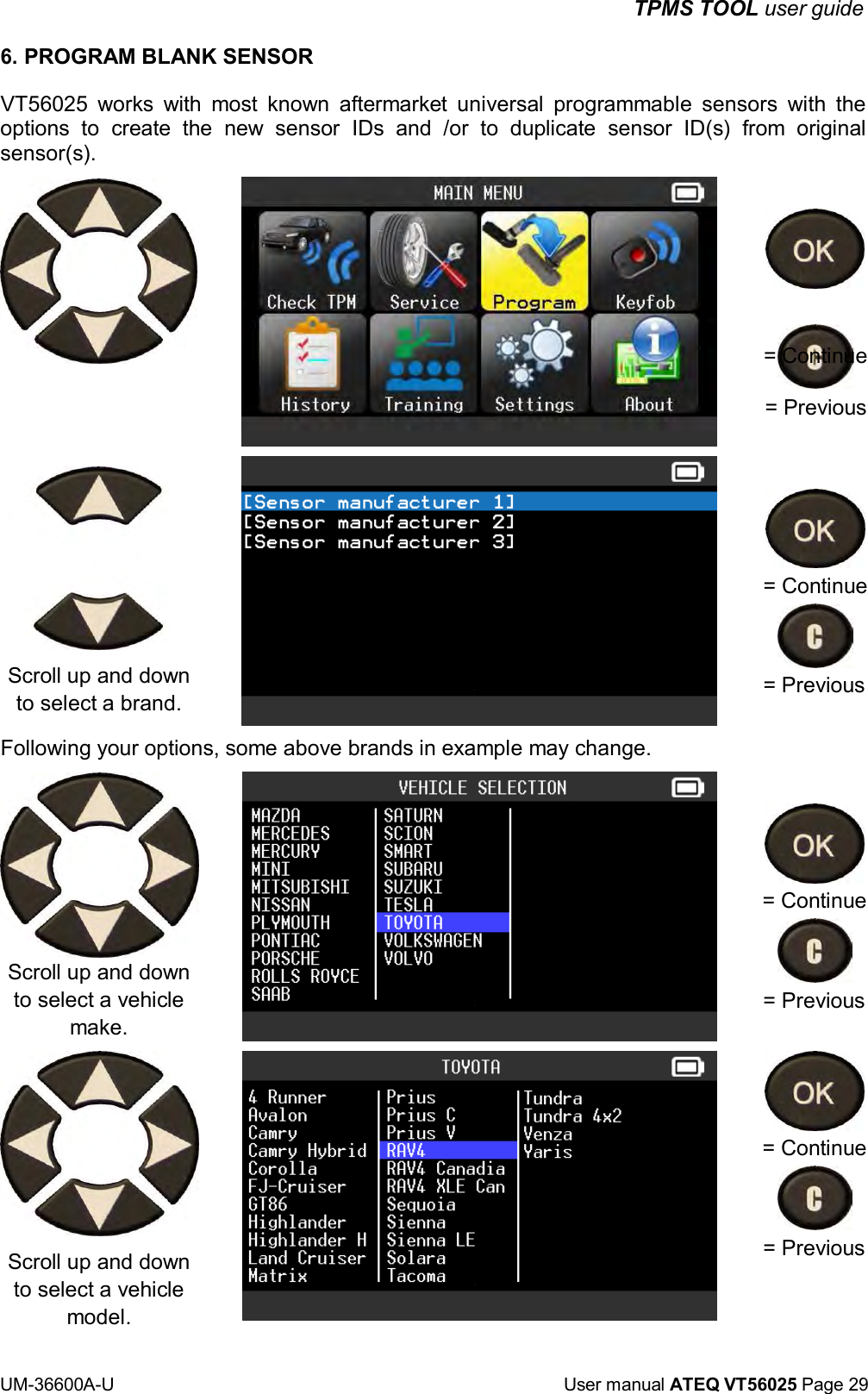

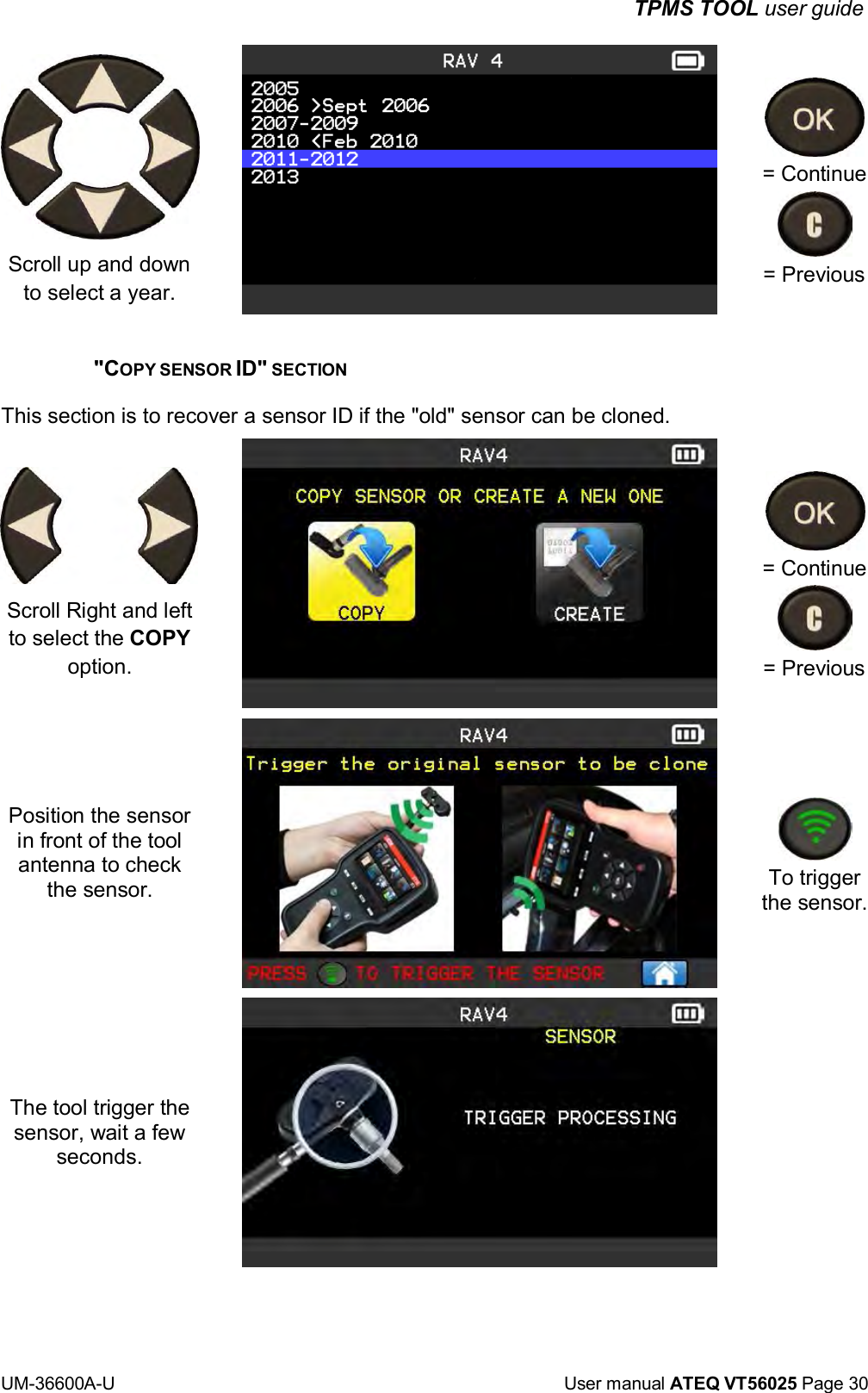

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 30 Scroll up and down to select a year. = Continue = Previous "COPY SENSOR ID" SECTION This section is to recover a sensor ID if the "old" sensor can be cloned. Scroll Right and left to select the COPY option. Position the sensor in front of the tool antenna to check the sensor. The tool trigger the sensor, wait a few seconds. = Continue = Previous To trigger the sensor.

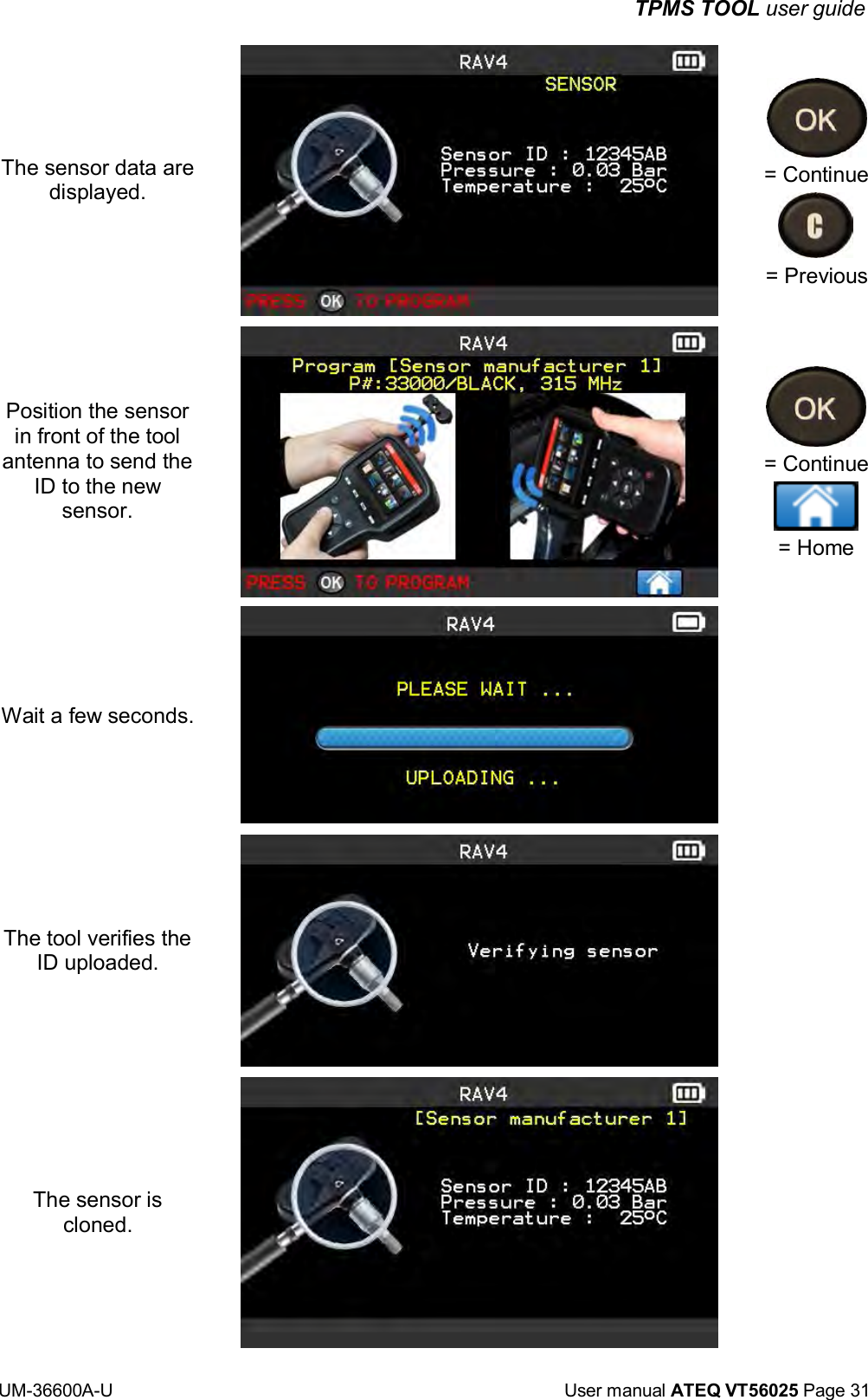

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 31 The sensor data are displayed. Position the sensor in front of the tool antenna to send the ID to the new sensor. Wait a few seconds. The tool verifies the ID uploaded. The sensor is cloned. = Continue = Previous = Continue = Home

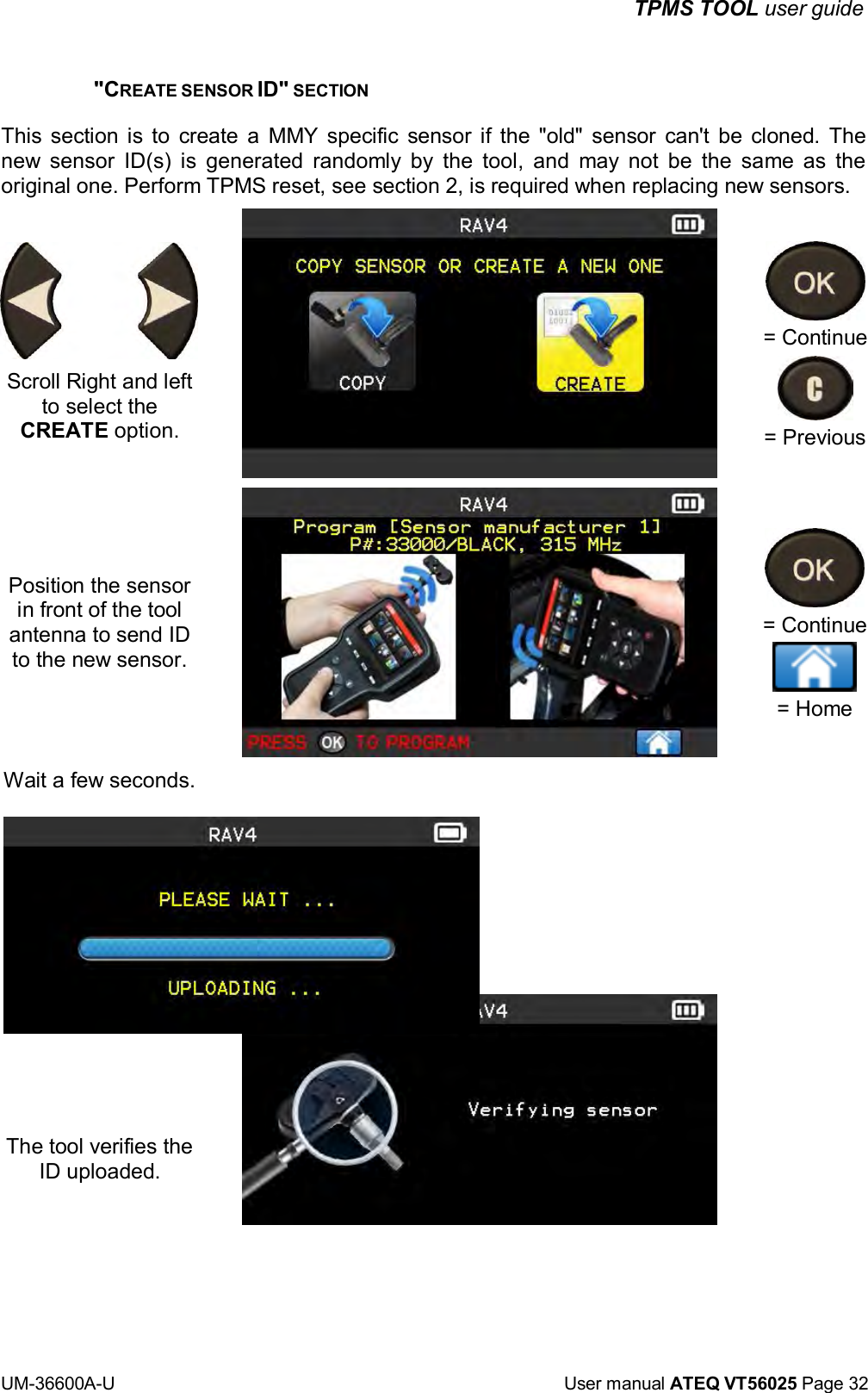

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 32 "CREATE SENSOR ID" SECTION This section is to create a MMY specific sensor if the "old" sensor can't be cloned. The new sensor ID(s) is generated randomly by the tool, and may not be the same as the original one. Perform TPMS reset, see section 2, is required when replacing new sensors. = Continue Scroll Right and left to select the CREATE option. Position the sensor in front of the tool antenna to send ID to the new sensor. Wait a few seconds. The tool verifies the ID uploaded. = Previous = Continue = Home

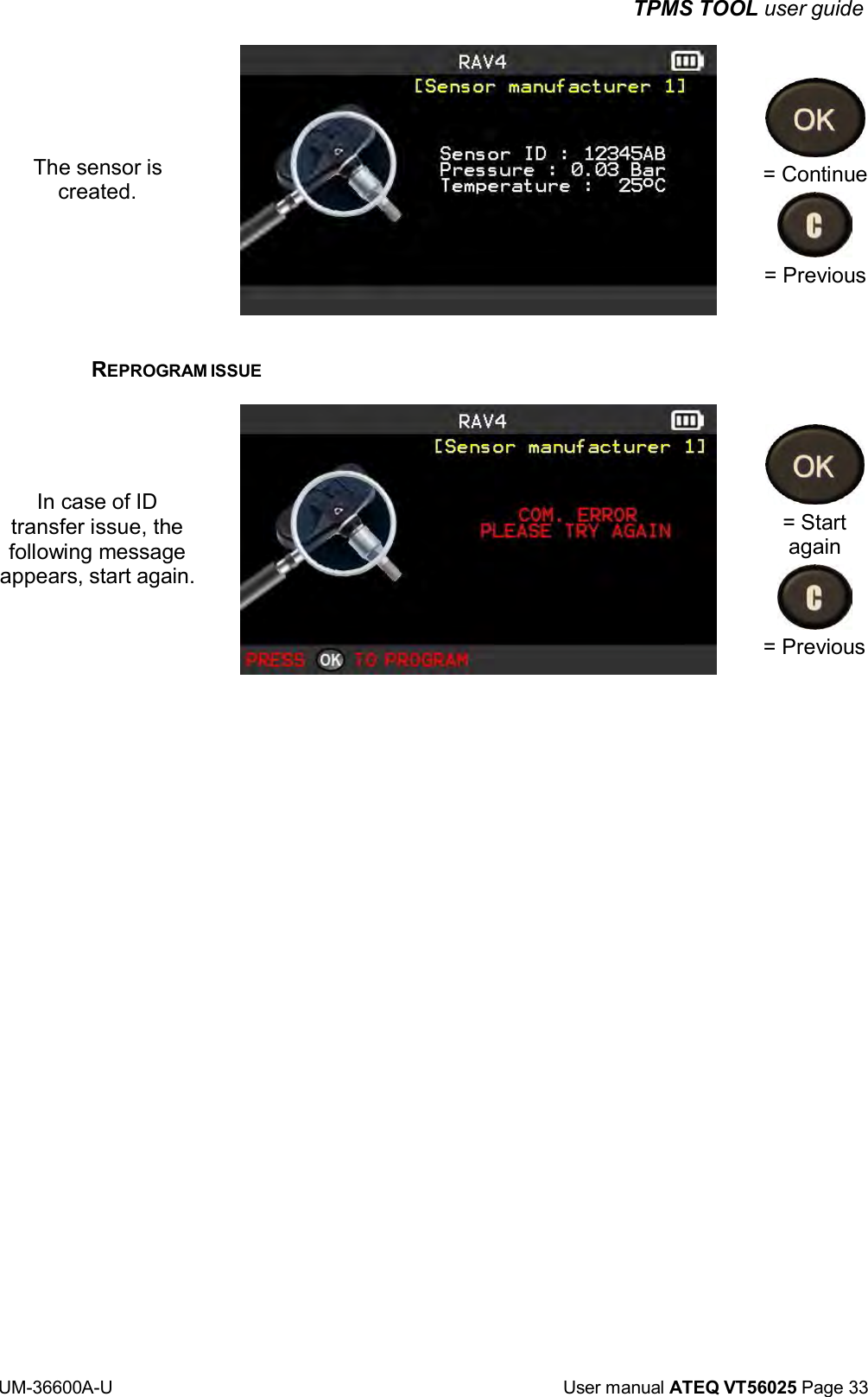

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 33 The sensor is created. = Continue = Previous REPROGRAM ISSUE In case of ID transfer issue, the following message appears, start again. = Start again = Previous

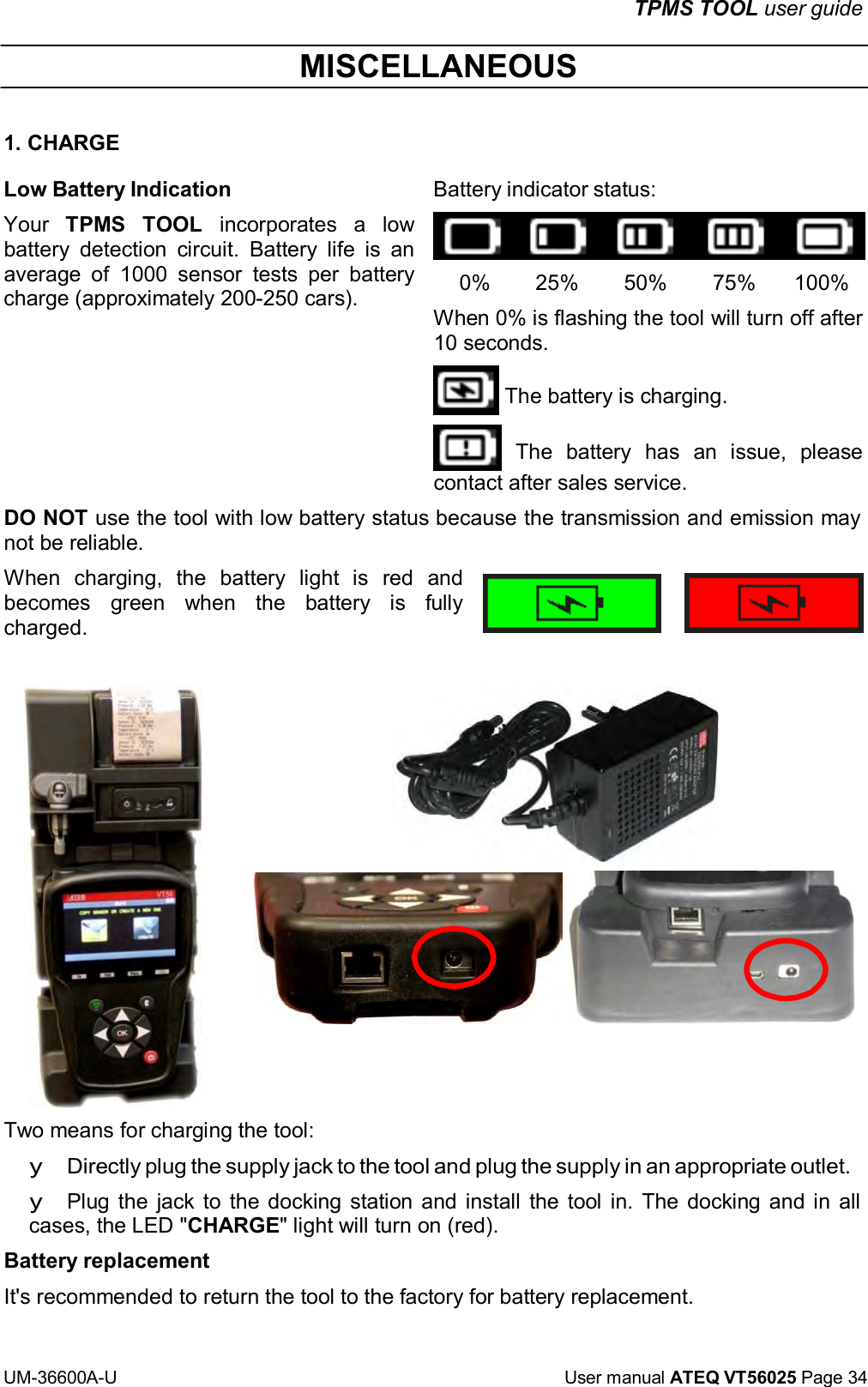

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 34 MISCELLANEOUS 1. CHARGE Low Battery Indication Your TPMS TOOL incorporates a low battery detection circuit. Battery life is an average of 1000 sensor tests per battery charge (approximately 200-250 cars). Battery indicator status: 0% 25% 50% 75% 100% When 0% is flashing the tool will turn off after 10 seconds. The battery is charging. The battery has an issue, please contact after sales service. DO NOT use the tool with low battery status because the transmission and emission may not be reliable. When charging, the battery light is red and becomes green when the battery is fully charged. Two means for charging the tool: y Directly plug the supply jack to the tool and plug the supply in an appropriate outlet. y Plug the jack to the docking station and install the tool in. The docking and in all cases, the LED "CHARGE" light will turn on (red). Battery replacement It's recommended to return the tool to the factory for battery replacement.

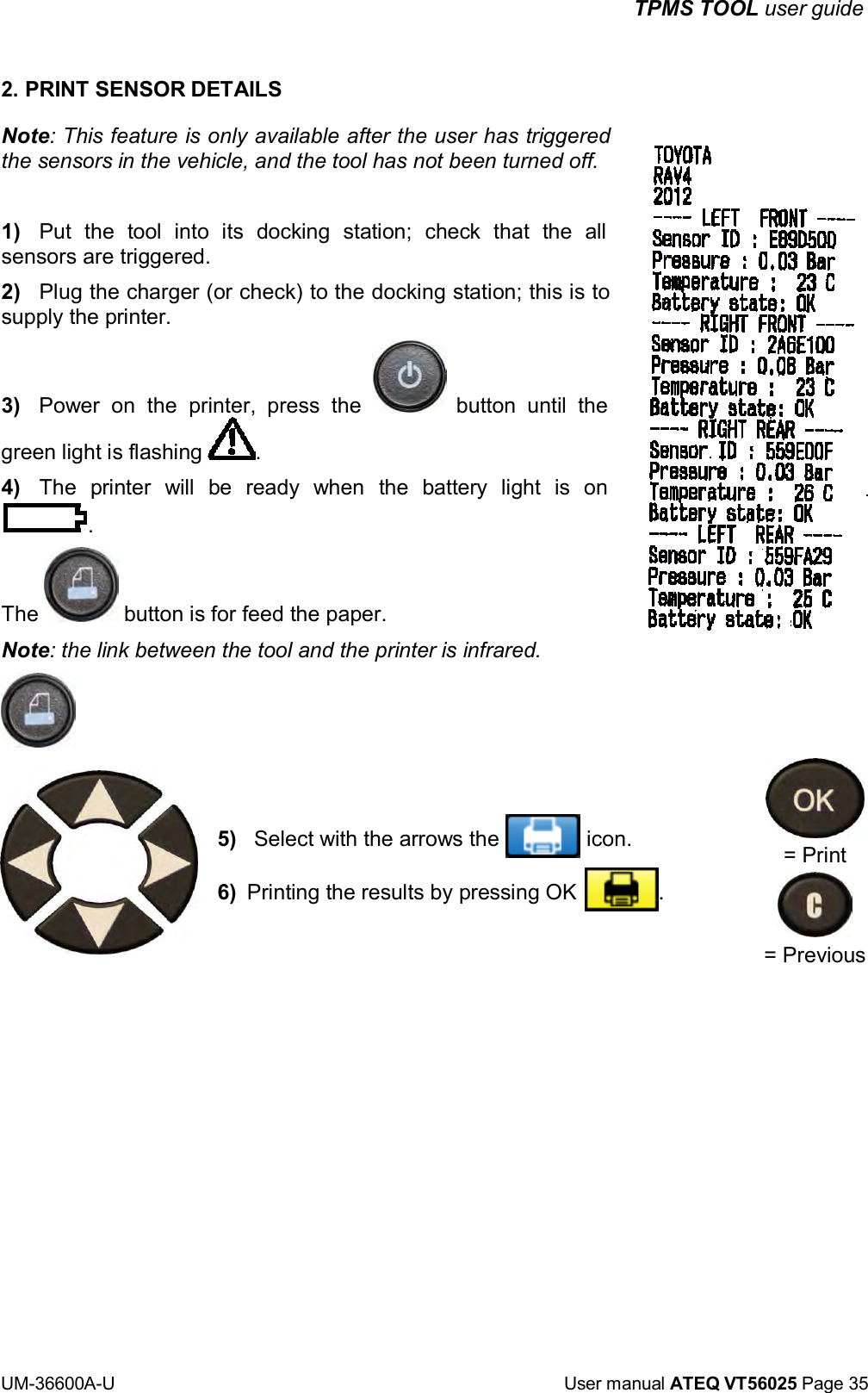

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 35 2. PRINT SENSOR DETAILS Note: This feature is only available after the user has triggered the sensors in the vehicle, and the tool has not been turned off. 1) Put the tool into its docking station; check that the all sensors are triggered. 2) Plug the charger (or check) to the docking station; this is to supply the printer. 3) Power on the printer, press the button until the green light is flashing . 4) The printer will be ready when the battery light is on . The button is for feed the paper. Note: the link between the tool and the printer is infrared. 5) Select with the arrows the icon. 6) Printing the results by pressing OK . = Print = Previous

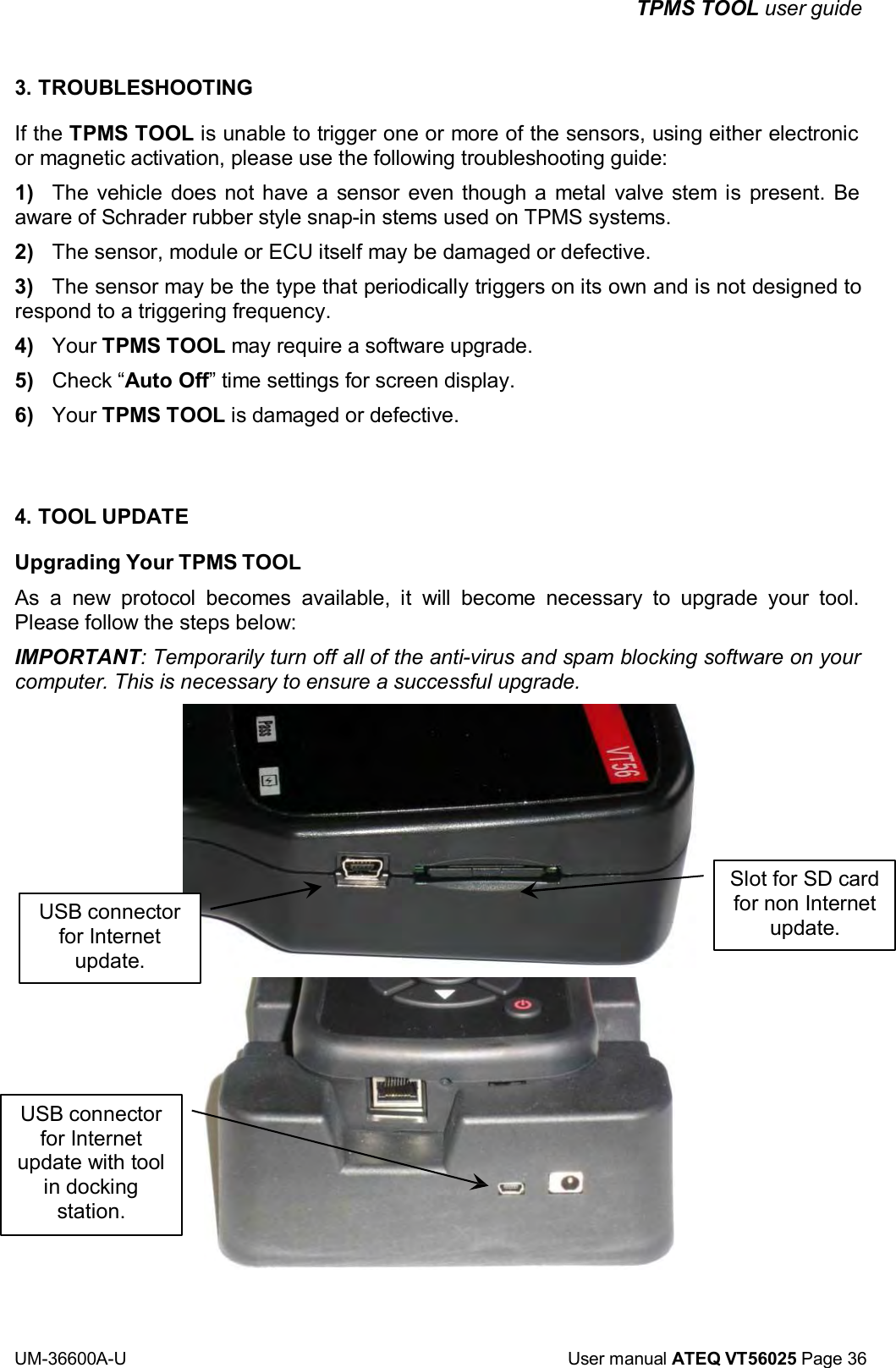

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 36 3. TROUBLESHOOTING If the TPMS TOOL is unable to trigger one or more of the sensors, using either electronic or magnetic activation, please use the following troubleshooting guide: 1) The vehicle does not have a sensor even though a metal valve stem is present. Be aware of Schrader rubber style snap-in stems used on TPMS systems. 2) The sensor, module or ECU itself may be damaged or defective. 3) The sensor may be the type that periodically triggers on its own and is not designed to respond to a triggering frequency. 4) Your TPMS TOOL may require a software upgrade. 5) Check “Auto Off” time settings for screen display. 6) Your TPMS TOOL is damaged or defective. 4. TOOL UPDATE Upgrading Your TPMS TOOL As a new protocol becomes available, it will become necessary to upgrade your tool. Please follow the steps below: IMPORTANT: Temporarily turn off all of the anti-virus and spam blocking software on your computer. This is necessary to ensure a successful upgrade. USB connector for Internet update. Slot for SD card for non Internet update. USB connector for Internet update with tool in docking station.

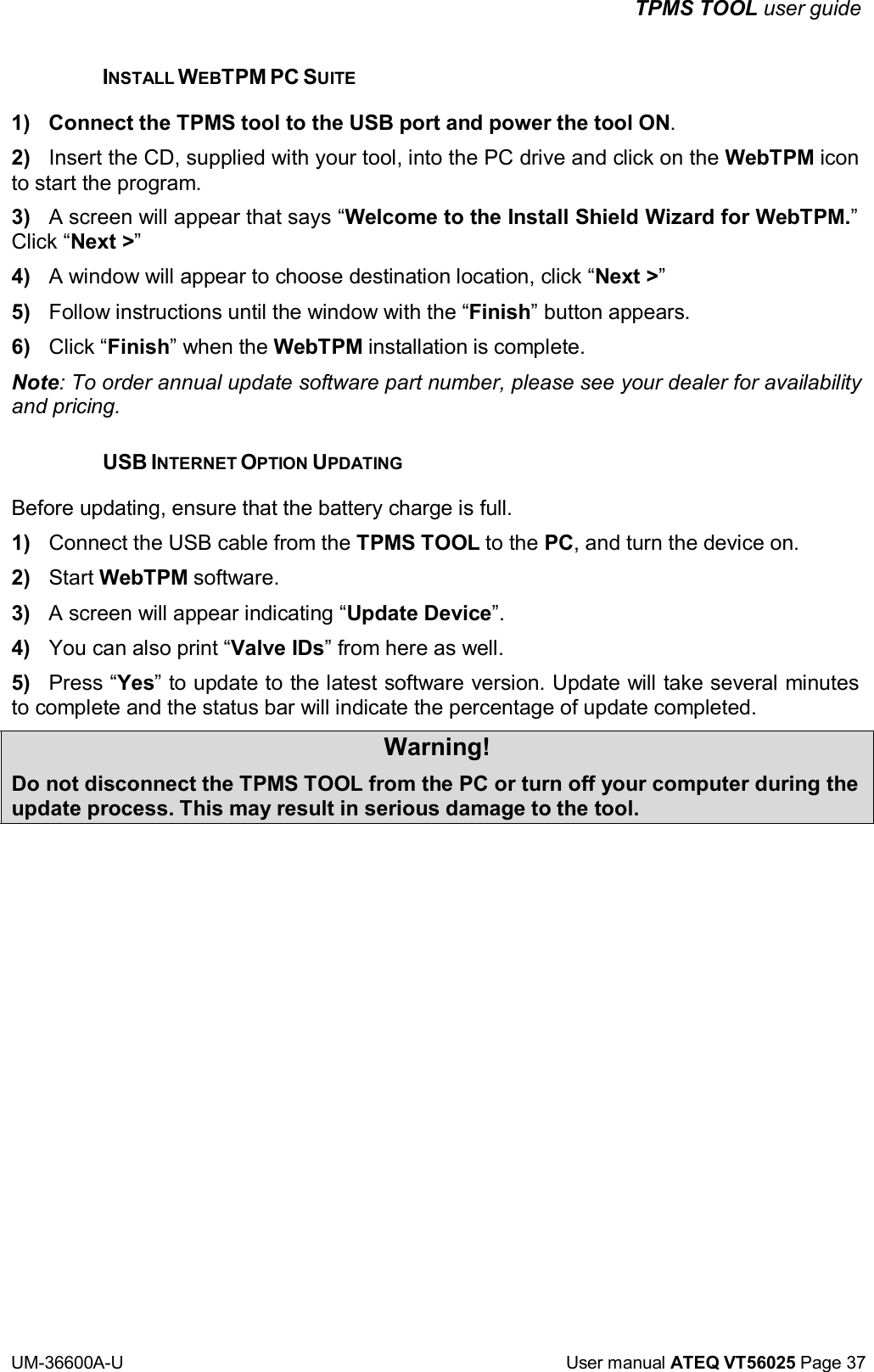

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 37 INSTALL WEBTPM PC SUITE 1) Connect the TPMS tool to the USB port and power the tool ON. 2) Insert the CD, supplied with your tool, into the PC drive and click on the WebTPM icon to start the program. 3) A screen will appear that says “Welcome to the Install Shield Wizard for WebTPM.” Click “Next >” 4) A window will appear to choose destination location, click “Next >” 5) Follow instructions until the window with the “Finish” button appears. 6) Click “Finish” when the WebTPM installation is complete. Note: To order annual update software part number, please see your dealer for availability and pricing. USB INTERNET OPTION UPDATING Before updating, ensure that the battery charge is full. 1) Connect the USB cable from the TPMS TOOL to the PC, and turn the device on. 2) Start WebTPM software. 3) A screen will appear indicating “Update Device”. 4) You can also print “Valve IDs” from here as well. 5) Press “Yes” to update to the latest software version. Update will take several minutes to complete and the status bar will indicate the percentage of update completed. Warning! Do not disconnect the TPMS TOOL from the PC or turn off your computer during the update process. This may result in serious damage to the tool.

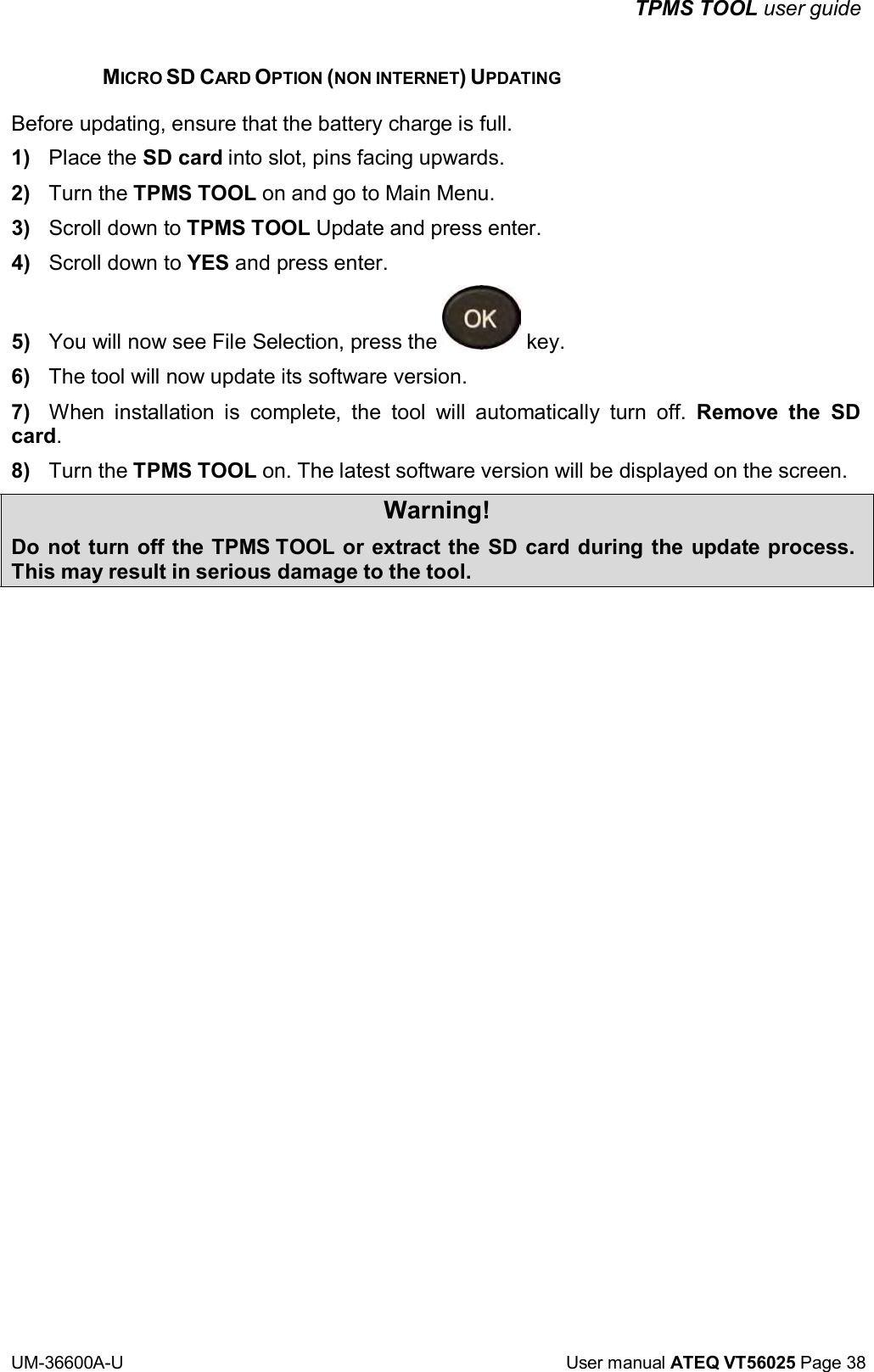

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 38 MICRO SD CARD OPTION (NON INTERNET) UPDATING Before updating, ensure that the battery charge is full. 1) Place the SD card into slot, pins facing upwards. 2) Turn the TPMS TOOL on and go to Main Menu. 3) Scroll down to TPMS TOOL Update and press enter. 4) Scroll down to YES and press enter. 5) You will now see File Selection, press the key. 6) The tool will now update its software version. 7) When installation is complete, the tool will automatically turn off. Remove the SD card. 8) Turn the TPMS TOOL on. The latest software version will be displayed on the screen. Warning! Do not turn off the TPMS TOOL or extract the SD card during the update process. This may result in serious damage to the tool.

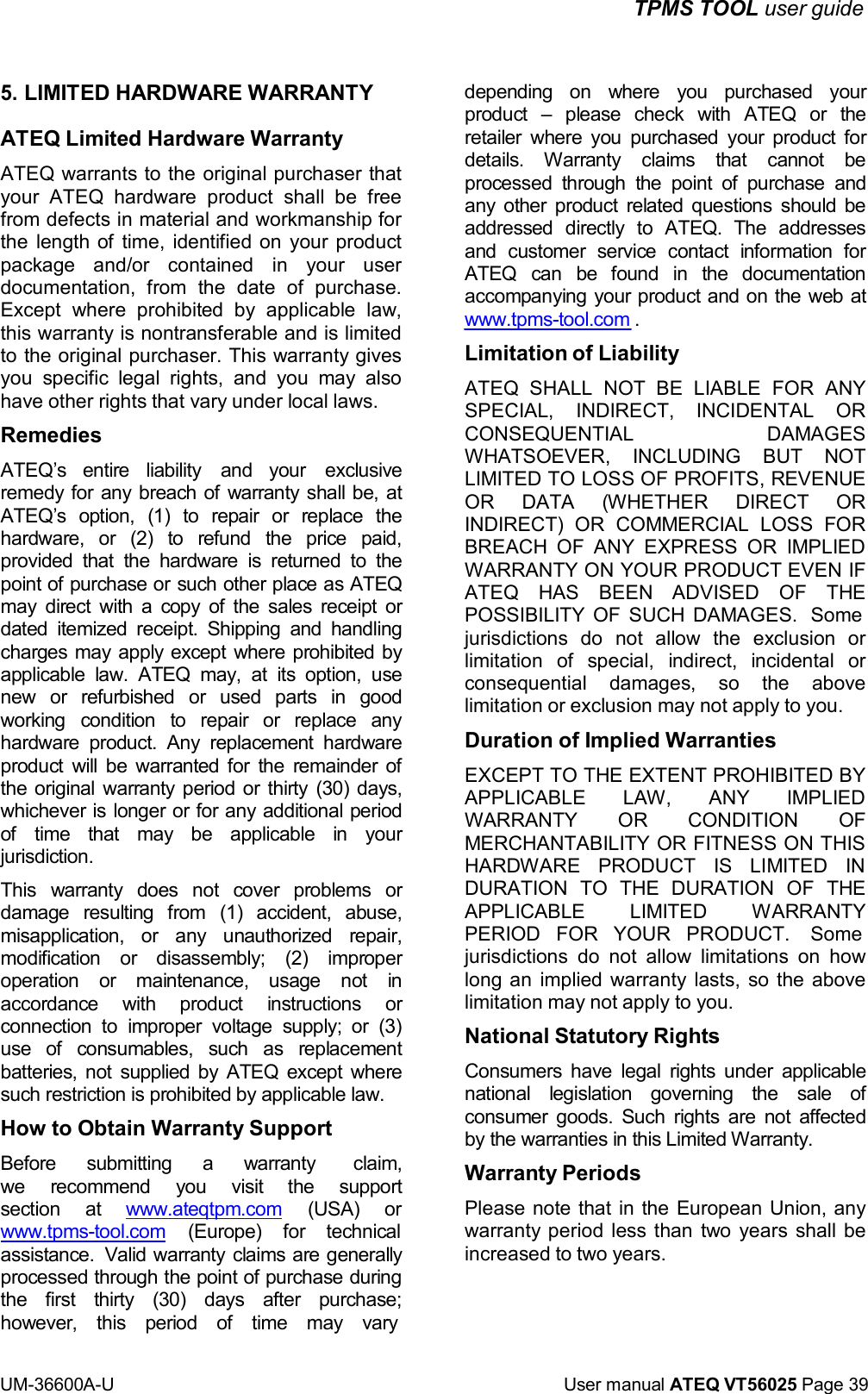

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 39 5. LIMITED HARDWARE WARRANTY ATEQ Limited Hardware Warranty ATEQ warrants to the original purchaser that your ATEQ hardware product shall be free from defects in material and workmanship for the length of time, identified on your product package and/or contained in your user documentation, from the date of purchase. Except where prohibited by applicable law, this warranty is nontransferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights that vary under local laws. Remedies ATEQ’s entire liability and your exclusive remedy for any breach of warranty shall be, at ATEQ’s option, (1) to repair or replace the hardware, or (2) to refund the price paid, provided that the hardware is returned to the point of purchase or such other place as ATEQ may direct with a copy of the sales receipt or dated itemized receipt. Shipping and handling charges may apply except where prohibited by applicable law. ATEQ may, at its option, use new or refurbished or used parts in good working condition to repair or replace any hardware product. Any replacement hardware product will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer or for any additional period of time that may be applicable in your jurisdiction. This warranty does not cover problems or damage resulting from (1) accident, abuse, misapplication, or any unauthorized repair, modification or disassembly; (2) improper operation or maintenance, usage not in accordance with product instructions or connection to improper voltage supply; or (3) use of consumables, such as replacement batteries, not supplied by ATEQ except where such restriction is prohibited by applicable law. How to Obtain Warranty Support Before submitting a warranty claim, we recommend you visit the support section at www.ateqtpm.com (USA) or www.tpms-tool.com (Europe) for technical assistance. Valid warranty claims are generally processed through the point of purchase during the first thirty (30) days after purchase; however, this period of time may vary depending on where you purchased your product – please check with ATEQ or the retailer where you purchased your product for details. Warranty claims that cannot be processed through the point of purchase and any other product related questions should be addressed directly to ATEQ. The addresses and customer service contact information for ATEQ can be found in the documentation accompanying your product and on the web at www.tpms-tool.com . Limitation of Liability ATEQ SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE OR DATA (WHETHER DIRECT OR INDIRECT) OR COMMERCIAL LOSS FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR PRODUCT EVEN IF ATEQ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some jurisdictions do not allow the exclusion or limitation of special, indirect, incidental or consequential damages, so the above limitation or exclusion may not apply to you. Duration of Implied Warranties EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS ON THIS HARDWARE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE APPLICABLE LIMITED WARRANTY PERIOD FOR YOUR PRODUCT. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. National Statutory Rights Consumers have legal rights under applicable national legislation governing the sale of consumer goods. Such rights are not affected by the warranties in this Limited Warranty. Warranty Periods Please note that in the European Union, any warranty period less than two years shall be increased to two years.

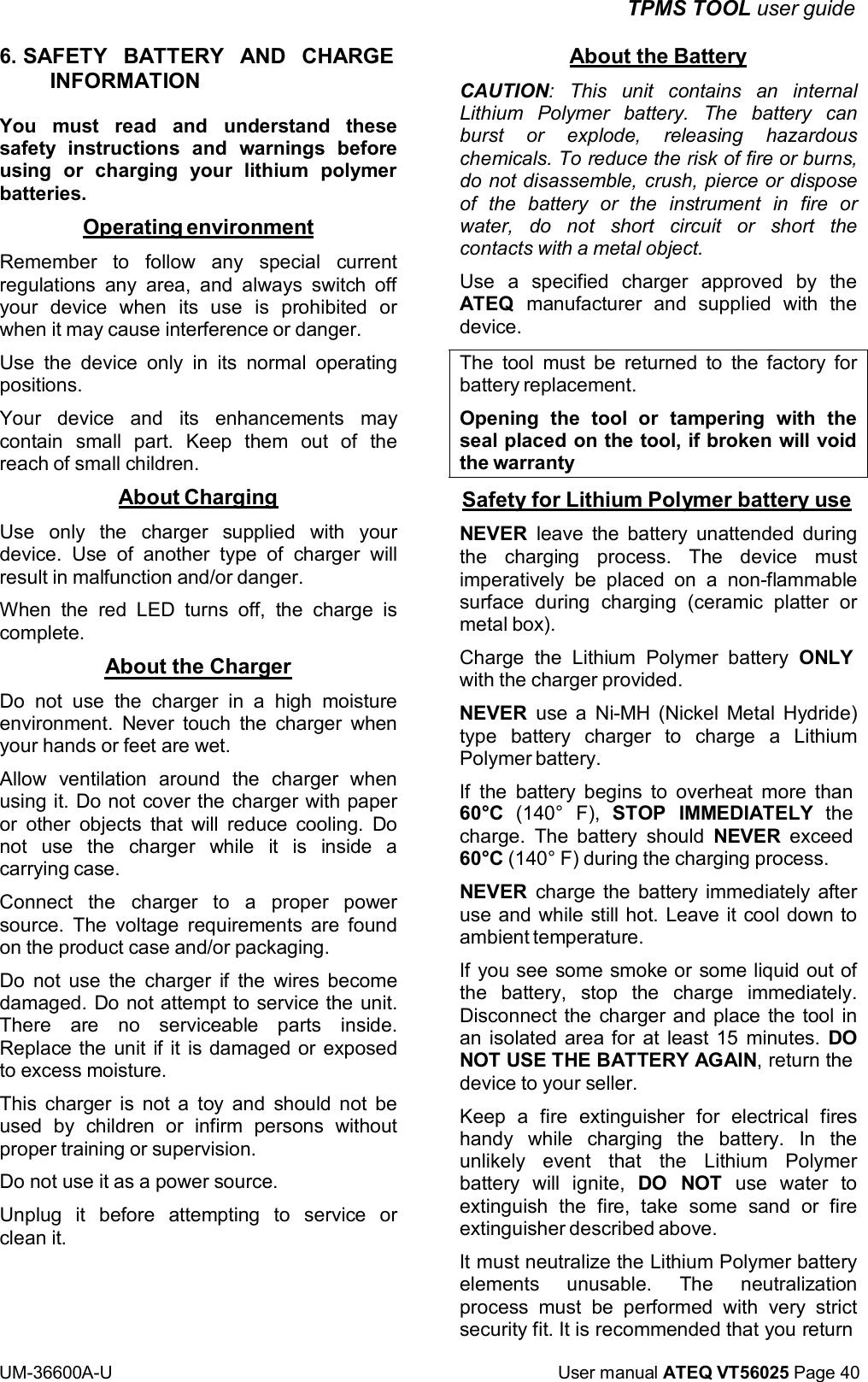

TPMS TOOL user guide UM-36600A-U User manual ATEQ VT56025 Page 40 6. SAFETY BATTERY AND CHARGE INFORMATION You must read and understand these safety instructions and warnings before using or charging your lithium polymer batteries. Operating environment Remember to follow any special current regulations any area, and always switch off your device when its use is prohibited or when it may cause interference or danger. Use the device only in its normal operating positions. Your device and its enhancements may contain small part. Keep them out of the reach of small children. About Charging Use only the charger supplied with your device. Use of another type of charger will result in malfunction and/or danger. When the red LED turns off, the charge is complete. About the Charger Do not use the charger in a high moisture environment. Never touch the charger when your hands or feet are wet. Allow ventilation around the charger when using it. Do not cover the charger with paper or other objects that will reduce cooling. Do not use the charger while it is inside a carrying case. Connect the charger to a proper power source. The voltage requirements are found on the product case and/or packaging. Do not use the charger if the wires become damaged. Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture. This charger is not a toy and should not be used by children or infirm persons without proper training or supervision. Do not use it as a power source. Unplug it before attempting to service or clean it. About the Battery CAUTION: This unit contains an internal Lithium Polymer battery. The battery can burst or explode, releasing hazardous chemicals. To reduce the risk of fire or burns, do not disassemble, crush, pierce or dispose of the battery or the instrument in fire or water, do not short circuit or short the contacts with a metal object. Use a specified charger approved by the ATEQ manufacturer and supplied with the device. The tool must be returned to the factory for battery replacement. Opening the tool or tampering with the seal placed on the tool, if broken will void the warranty Safety for Lithium Polymer battery use NEVER leave the battery unattended during the charging process. The device must imperatively be placed on a non-flammable surface during charging (ceramic platter or metal box). Charge the Lithium Polymer battery ONLY with the charger provided. NEVER use a Ni-MH (Nickel Metal Hydride) type battery charger to charge a Lithium Polymer battery. If the battery begins to overheat more than 60°C (140° F), STOP IMMEDIATELY the charge. The battery should NEVER exceed 60°C (140° F) during the charging process. NEVER charge the battery immediately after use and while still hot. Leave it cool down to ambient temperature. If you see some smoke or some liquid out of the battery, stop the charge immediately. Disconnect the charger and place the tool in an isolated area for at least 15 minutes. DO NOT USE THE BATTERY AGAIN, return the device to your seller. Keep a fire extinguisher for electrical fires handy while charging the battery. In the unlikely event that the Lithium Polymer battery will ignite, DO NOT use water to extinguish the fire, take some sand or fire extinguisher described above. It must neutralize the Lithium Polymer battery elements unusable. The neutralization process must be performed with very strict security fit. It is recommended that you return

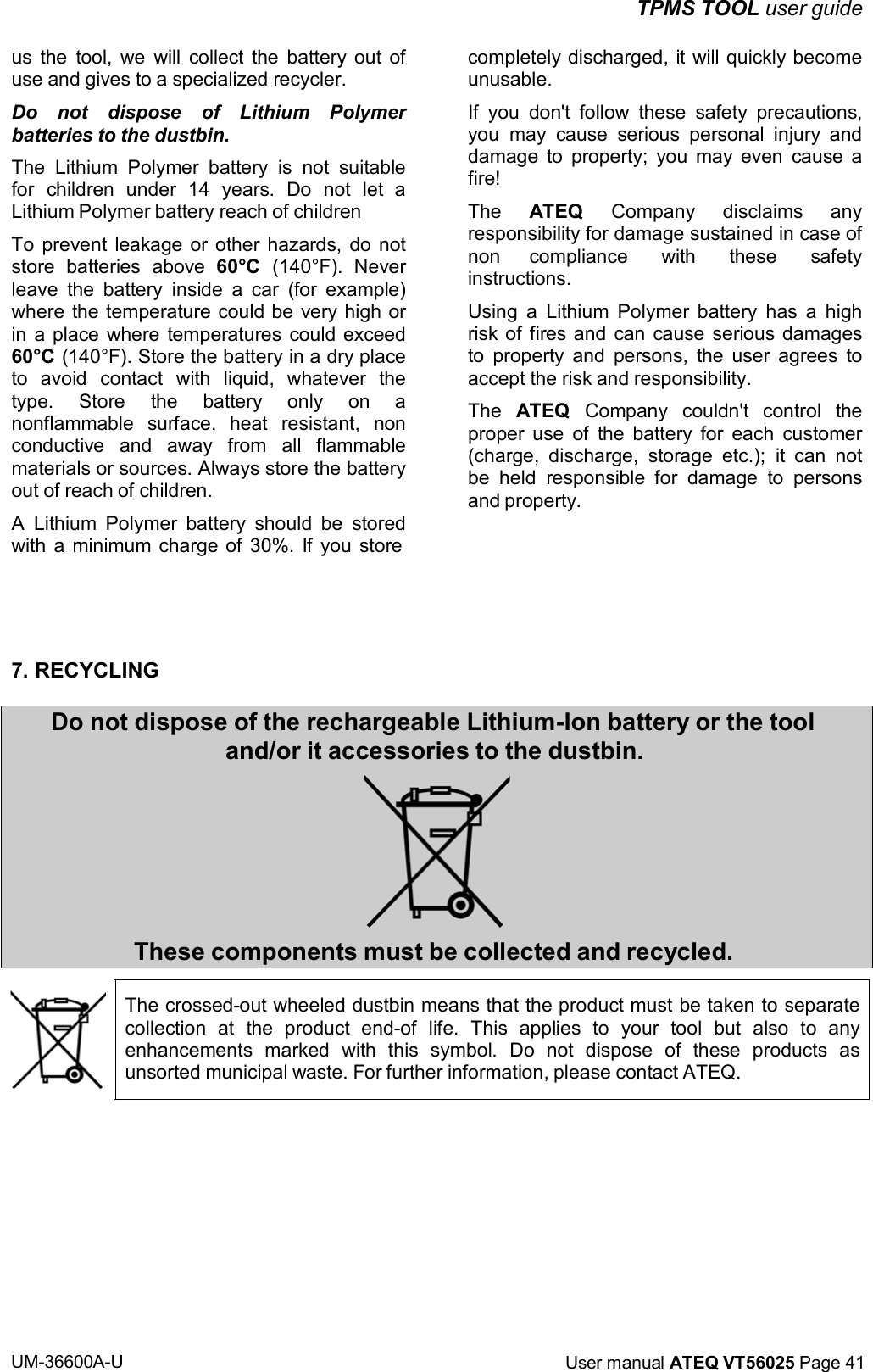

UM-36600A-U User manual ATEQ VT56025 Page 41 TPMS TOOL user guide us the tool, we will collect the battery out of use and gives to a specialized recycler. Do not dispose of Lithium Polymer batteries to the dustbin. The Lithium Polymer battery is not suitable for children under 14 years. Do not let a Lithium Polymer battery reach of children To prevent leakage or other hazards, do not store batteries above 60°C (140°F). Never leave the battery inside a car (for example) where the temperature could be very high or in a place where temperatures could exceed 60°C (140°F). Store the battery in a dry place to avoid contact with liquid, whatever the type. Store the battery only on a nonflammable surface, heat resistant, non conductive and away from all flammable materials or sources. Always store the battery out of reach of children. A Lithium Polymer battery should be stored with a minimum charge of 30%. If you store completely discharged, it will quickly become unusable. If you don't follow these safety precautions, you may cause serious personal injury and damage to property; you may even cause a fire! The ATEQ Company disclaims any responsibility for damage sustained in case of non compliance with these safety instructions. Using a Lithium Polymer battery has a high risk of fires and can cause serious damages to property and persons, the user agrees to accept the risk and responsibility. The ATEQ Company couldn't control the proper use of the battery for each customer (charge, discharge, storage etc.); it can not be held responsible for damage to persons and property. 7. RECYCLING Do not dispose of the rechargeable Lithium-Ion battery or the tool and/or it accessories to the dustbin. These components must be collected and recycled. The crossed-out wheeled dustbin means that the product must be taken to separate collection at the product end-of life. This applies to your tool but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste. For further information, please contact ATEQ.

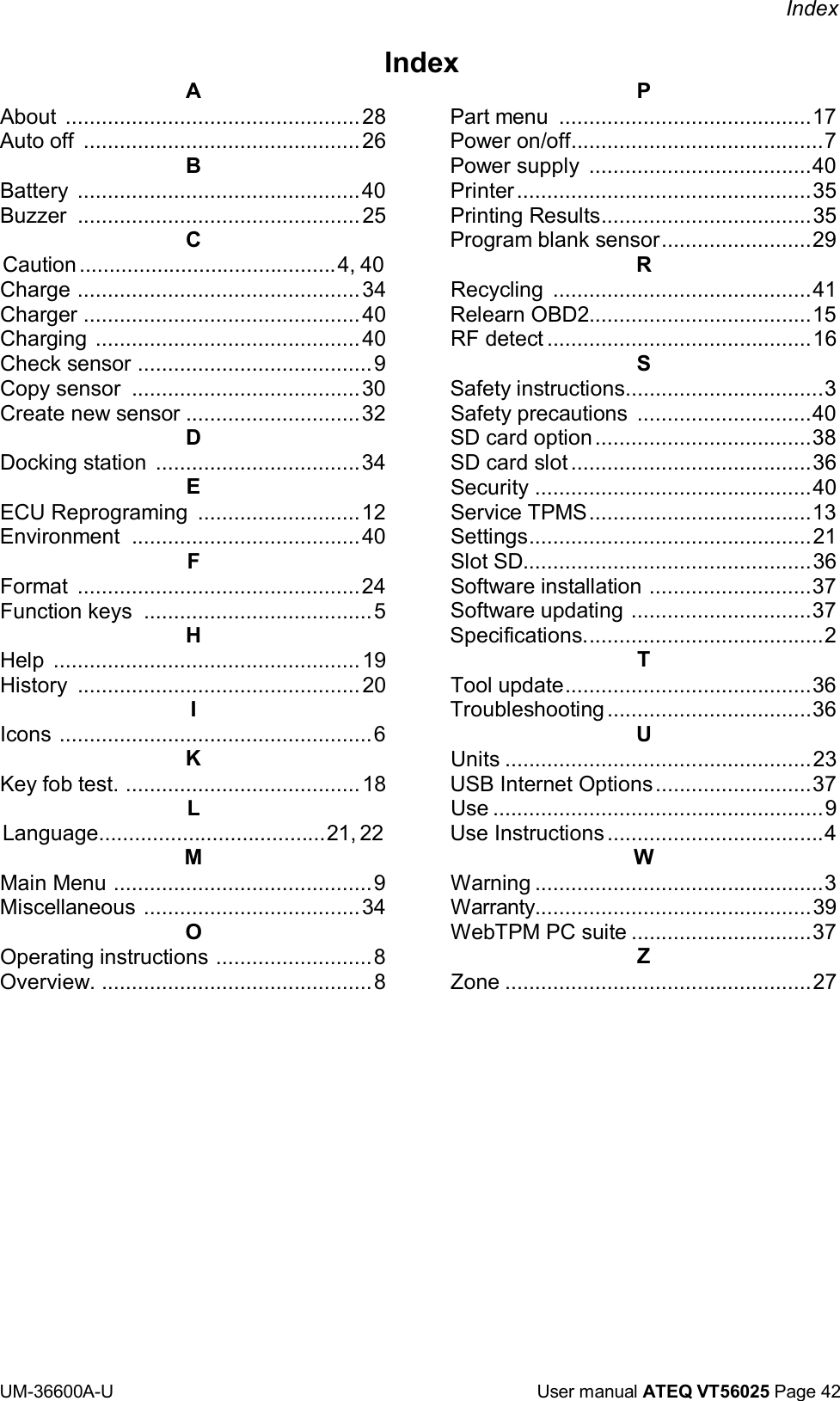

UM-36600A-U User manual ATEQ VT56025 Page 42 Index Index A P About ................................................. 28 Auto off .............................................. 26 B Battery ............................................... 40 Buzzer ............................................... 25 C Caution ........................................... 4, 40 Charge ............................................... 34 Charger .............................................. 40 Charging ............................................ 40 Check sensor ....................................... 9 Copy sensor ...................................... 30 Create new sensor ............................. 32 D Docking station .................................. 34 E ECU Reprograming ........................... 12 Environment ...................................... 40 F Format ............................................... 24 Function keys ...................................... 5 H Help ................................................... 19 History ............................................... 20 I Icons .................................................... 6 K Key fob test. ....................................... 18 L Language...................................... 21, 22 M Main Menu ........................................... 9 Miscellaneous .................................... 34 O Operating instructions .......................... 8 Overview. ............................................. 8 Part menu .......................................... 17 Power on/off .......................................... 7 Power supply ..................................... 40 Printer ................................................. 35 Printing Results ................................... 35 Program blank sensor ......................... 29 R Recycling ........................................... 41 Relearn OBD2..................................... 15 RF detect ............................................ 16 S Safety instructions ................................. 3 Safety precautions ............................. 40 SD card option .................................... 38 SD card slot ........................................ 36 Security .............................................. 40 Service TPMS ..................................... 13 Settings ............................................... 21 Slot SD................................................ 36 Software installation ........................... 37 Software updating .............................. 37 Specifications. ....................................... 2 T Tool update ......................................... 36 Troubleshooting .................................. 36 U Units ................................................... 23 USB Internet Options .......................... 37 Use ....................................................... 9 Use Instructions .................................... 4 W Warning ................................................ 3 Warranty.............................................. 39 WebTPM PC suite .............................. 37 Z Zone ................................................... 27

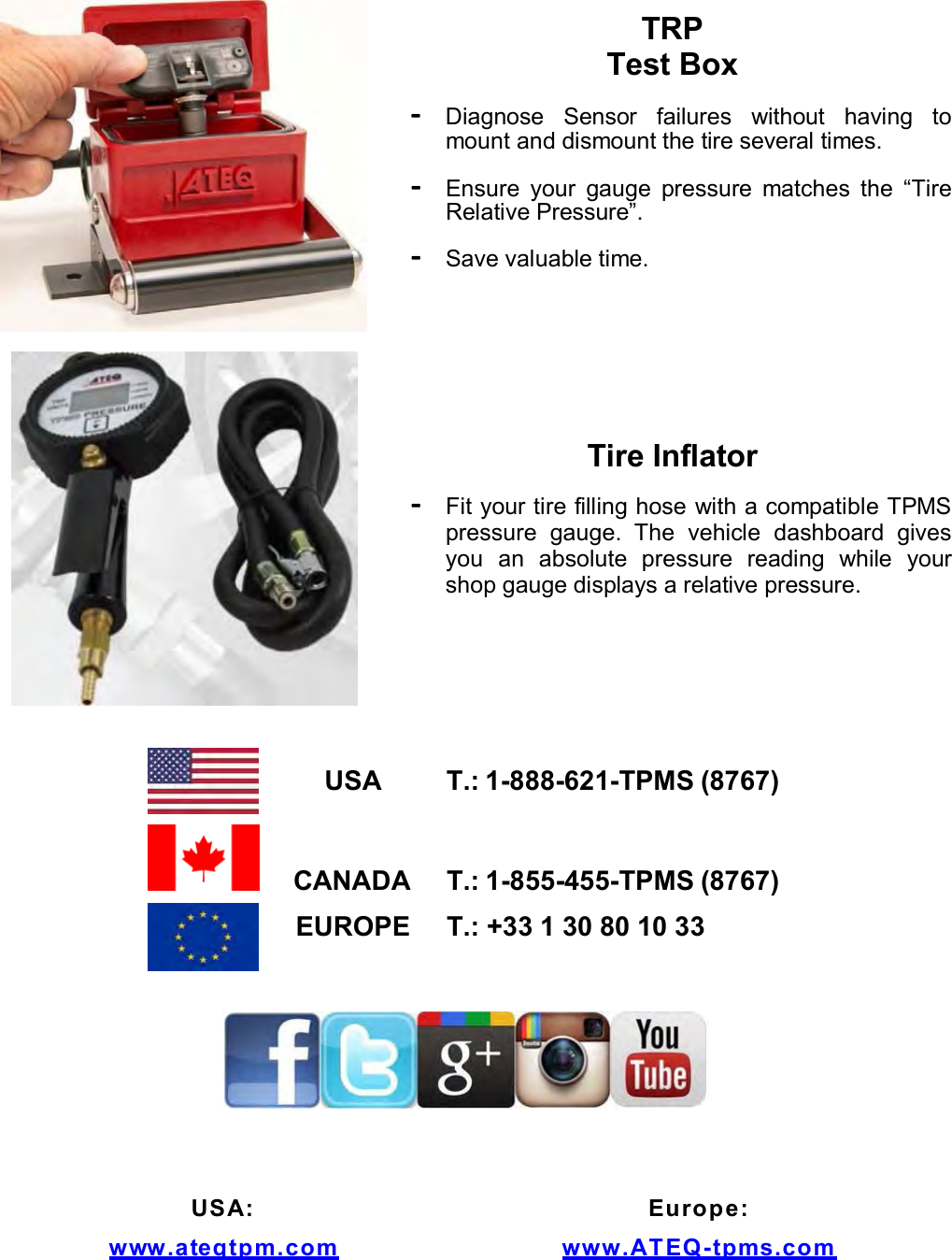

TRP Test Box - Diagnose Sensor failures without having to mount and dismount the tire several times. - Ensure your gauge pressure matches the “Tire Relative Pressure”. - Save valuable time. Tire Inflator - Fit your tire filling hose with a compatible TPMS pressure gauge. The vehicle dashboard gives you an absolute pressure reading while your shop gauge displays a relative pressure. USA T.: 1-888-621-TPMS (8767) CANADA T.: 1-855-455-TPMS (8767) EUROPE T.: +33 1 30 80 10 33 USA: www . ateqt pm. com Europe: www.ATEQ-t p m s . com
