1Introduction

Introduction

This Direct Photo Guide uses the following symbols to indicate important

information. Always observe the instructions indicated by these symbols.

Depending on your application program, operations may differ. For details, refer to the

instruction manual of your application. The steps described in this manual are in Windows

Vista™ operating system Ultimate Edition (hereafter referred to as “Windows Vista”) and

Mac® OS X v.10.4.x.

Exif Print

This printer supports ExifPrint.

Exif Print is a standard for enhancing the communication between digital

cameras and printers. By connecting to an Exif Print-compliant digital

camera, the camera’s image data at the time of shooting is used and

optimized, yielding extremely high quality prints.

International ENERGY STAR® Program

As an ENERGY STAR® Partner, Canon Inc. has

determined that this product meets the ENERGY

STAR guidelines for energy efficiency.

Power Requirements

Never use a power supply voltage other than that supplied in the country

of purchase. Using the incorrect voltage could cause a fire or electric

shock. The correct power supply voltages and frequencies are as

follows:

AC 100-240 V, 50/60 Hz

About Consumables

Consumables (ink tanks / FINE Cartridges) are available for 5 years

after production has stopped.

Safety Precautions

.

Warning

Instructions that, if ignored, could result in death or serious personal injury caused by

incorrect operation of the equipment. These must be observed for safe operation.

Caution

Instructions that, if ignored, could result in personal injury or material damage caused by

incorrect operation of the equipment. These must be observed for safe operation.

Important

Instructions that must be observed for safe operation.

Trademark Notices

z“Microsoft” is a registered trademark of Microsoft Corporation.

z“Windows” is a trademark of Microsoft Corporation, registered in the U.S. and other

countries.

z“Windows Vista” is a trademark of Microsoft Corporation.

z“Macintosh” and “Mac” are trademarks of Apple Inc., registered in the U.S. and other

countries.

z“Adobe” and “Adobe RGB (1998)” are either registered trademarks or trademarks of

Adobe Systems Incorporated in the United States and or other countries.

z“Memory Stick”, “Memory Stick PRO”, “Memory Stick Duo” and “Memory Stick PRO

Duo” are trademarks of Sony Corporation.

z“xD-Picture Card” is a trademark of Fuji Film Co. Ltd.

z“MultiMediaCard” is a trademark of the MultiMediaCard Association.

z“SD Card”, “miniSD Card”, and “microSD Card” are trademarks of SD Association.

z“IrDA Feature Trademark” is owned by the Infrared Data Association and used

under license therefrom.

z“Bluetooth” is a trademark of Bluetooth SIG, Inc.,U.S.A. and licensed to Canon Inc.

© CANON INC. 2007

All rights reserved. No part of this publication may be transmitted or copied in any form

whatsoever without the express written permission.

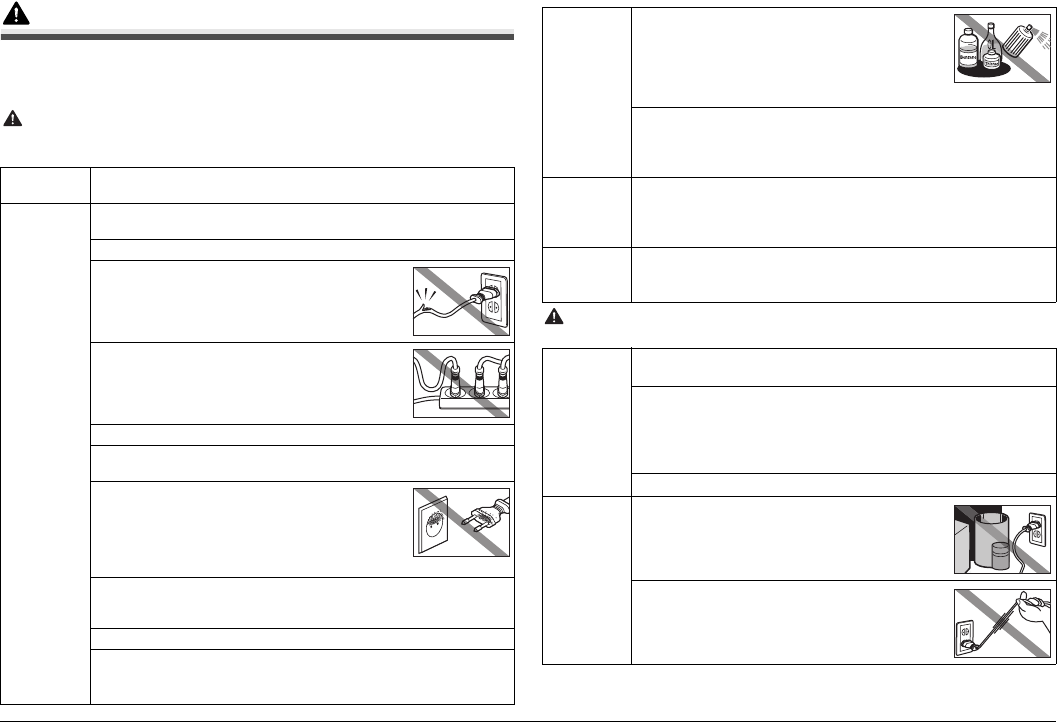

Warning

zNever attempt to plug the power cord into the power outlet or unplug the power cord

when your hands are wet.

zNever damage, modify, stretch, or excessively bend or twist the power cord. Do not

place heavy objects on the power cord.

zNever use any power supply other than the standard power supply available in the

country of purchase. Using the incorrect voltage and frequency could cause a fire or

electric shock.

zAlways push the plug all the way into the power outlet.

Caution

zFor safety reasons, store ink tanks out of the reach of small children.

zDo not drop or shake ink tanks as this may cause the ink to leak out and stain your

clothes and hands.

Also read the “Safety Precautions” on page 50. Observe the warnings and

cautions to avoid personal injury or damage to the printer.

2How to Use the Documentation Provided

How to Use the Documentation

Provided

.Printed Documentation

Setup Sheet

Be sure to read this sheet first.

This sheet explains how to setup the printer and the procedure to

install the printer driver.

Direct Photo Guide (This guide)

Read this guide when starting to use the printer.

This guide explains how to print photos while viewing them on the

LCD, and the procedure of doing the regular maintenance of the

printer.

On-screen Manuals

User’s Guide

Read this guide when starting to use the printer.

If you need further information about the printer, please refer to the

User’s Guide, which can be installed from the Setup CD-ROM. This

guide provides detailed instructions for printing from your computer.

Additional guides are also available for advanced features.

PC Printing Guide

Refer to this guide for full instructions on printer driver setting.

PC Photo Printing Guide (Windows® only)

Refer to this guide for full instructions on using the various application

software included on the Setup CD-ROM.

3Printer Parts and Their Functions

Printer Parts and Their Functions

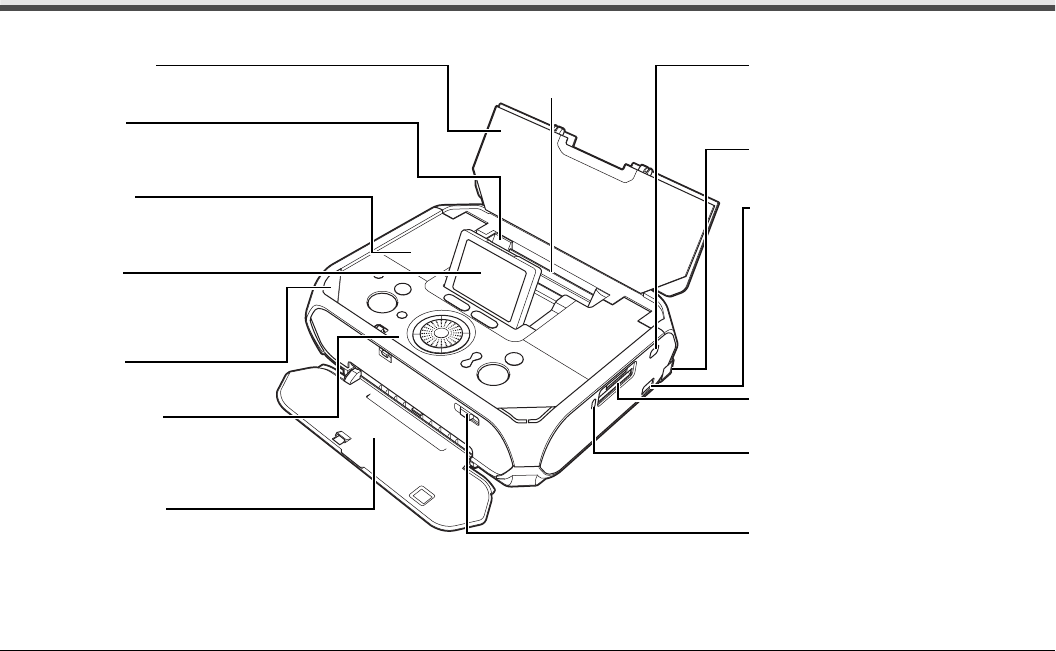

Main Components

Printer Cover

Open by sliding the Lock Switch to

replace the ink tank or remove

jammed paper.

Front View

Paper Feed Tray

Open and fold in half before printing

to support paper.

Paper Guide

Slide against the left side of the

paper stack to support paper so that

it feeds properly.

Operation Panel

Changes the settings and operates

the printer. See “Operation Panel” on

page 5.

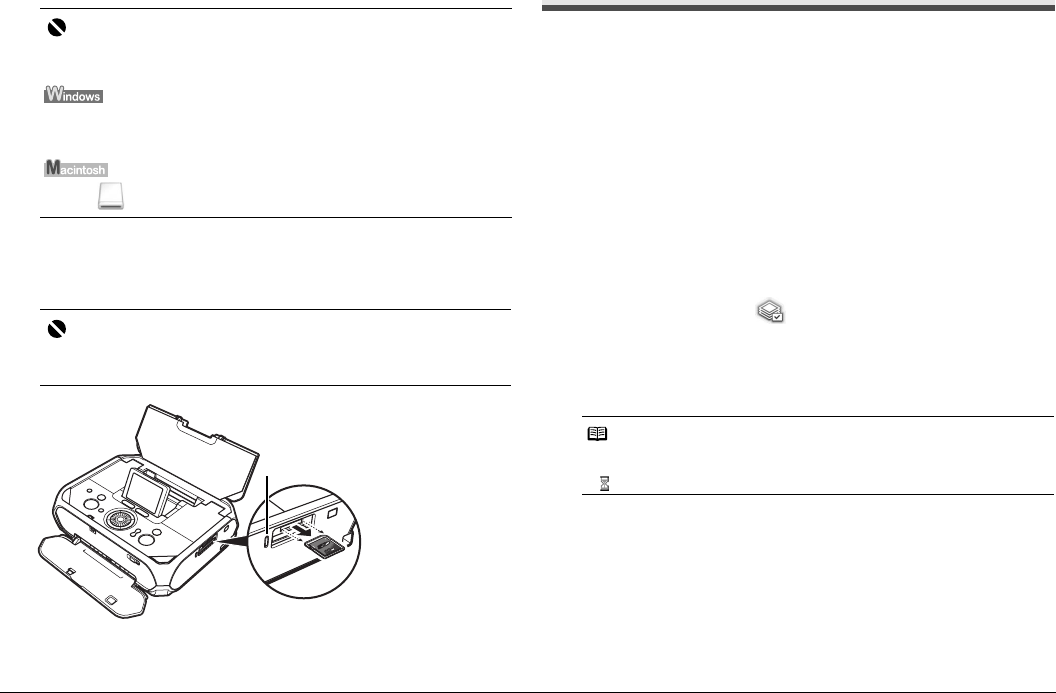

Card Slot

Set the memory card here. See “Using the

Memory Card” on page 10.

Access lamp

Lights or flashes to indicate the status of

the memory card. See “Inserting the

Memory Card” on page 11.

IrDA Port

Use this port to perform wireless printing

through infrared communication. See

“Printing Photographs from a Wireless

Communication Device” on page 25.

Direct Print Port

Connect your PictBridge compliant

device, such as a digital camera, here to

print directly from it. See “Printing

Photographs Directly from a Compliant

Device” on page 21.

You can also connect the Bluetooth Unit

BU-20* to perform wireless printing

through Bluetooth communication. For

details, refer to the User’s Guide on-

screen manual.

Rear Tray

Load paper here.

LCD Monitor

Displays menus, setting items, and

photos for printing. For information on

Screen-saver mode, see “Screen-

saver mode” on page 7.

Lock Switch

Slide to the right to open the Printer

Cover.

*The Bluetooth unit is not available in some countries or regions depending on the local laws and regulations. For details, contact your local Canon Service representative.

USB Connector (for computer)

Plug in the USB cable connecting the

printer to a computer here.

Open button

Press to open the Paper Feed Tray

and Paper Output Tray.

Paper Output Tray

The printed paper will be ejected.

4Printer Parts and Their Functions

Battery Connector Cover

Remove each cover to attach the

optional Portable Kit. To attach the

optional Portable Kit, refer to the

instruction manual provided with the

Portable Kit.

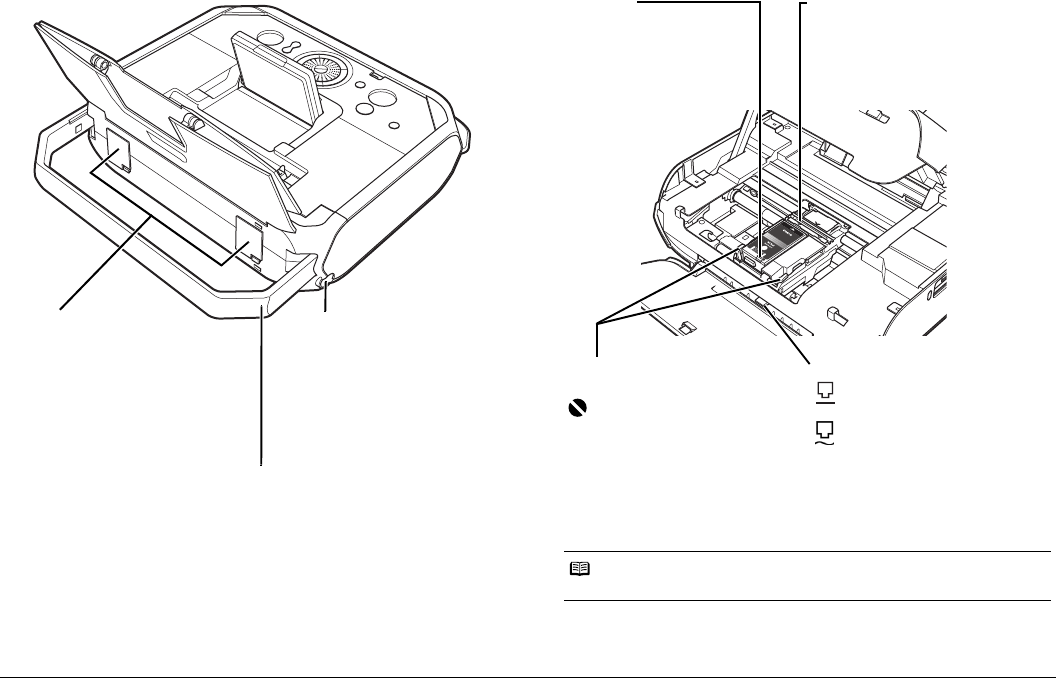

Rear View

Carrying Handle

Pull out this handle to carry

the printer.

AC Adapter Connector

Connector used to connect the

supplied AC Adapter plug.

Note

For information on how to install the ink tank, refer to your setup sheet.

 Interior

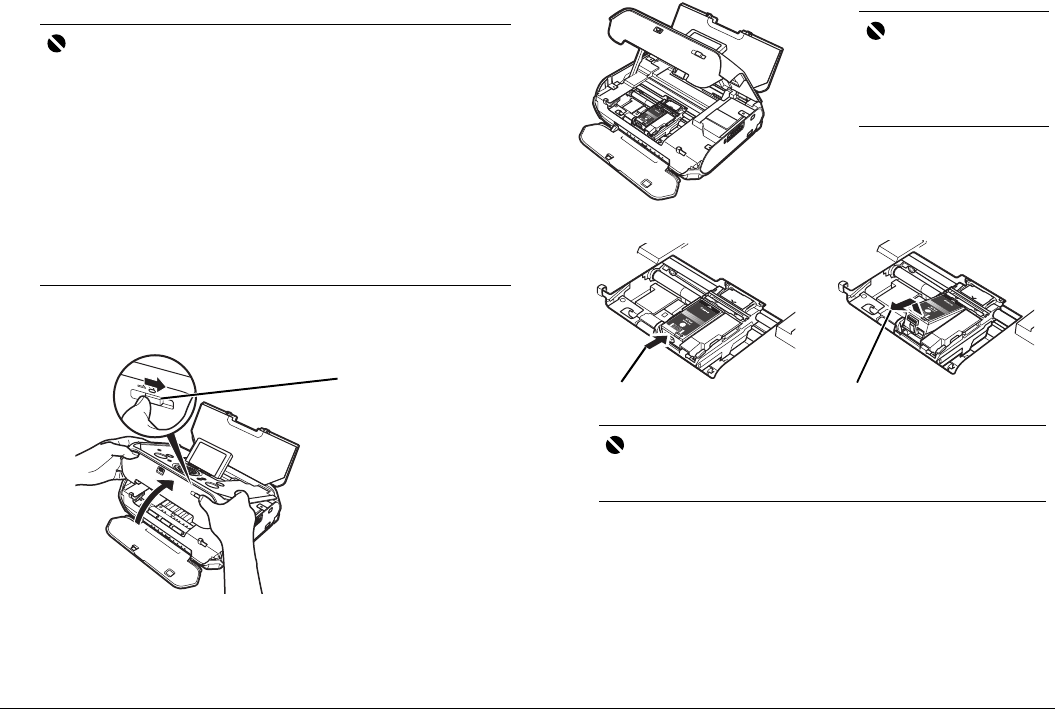

Print Head Lock Lever

Locks the Print Head.

Important

Do not pull this lever up.

If you have accidentally pulled

them up, adjust the print head

position.

See “Aligning the Print Head” on

page 29.

Paper Thickness Lever

Move to the right when printing.

Move to the left if ink smudges or

the printed surface is stained.

Return to the right after printing.

See “The Paper Thickness Lever

position is incorrect.” on page 42.

Print Head Holder

The print head is installed in

advance.

Ink lamp

Lights or flashes red to

indicate the status of the ink

tank.

See “Replacing an Ink

Tank” on page 31.

5Printer Parts and Their Functions

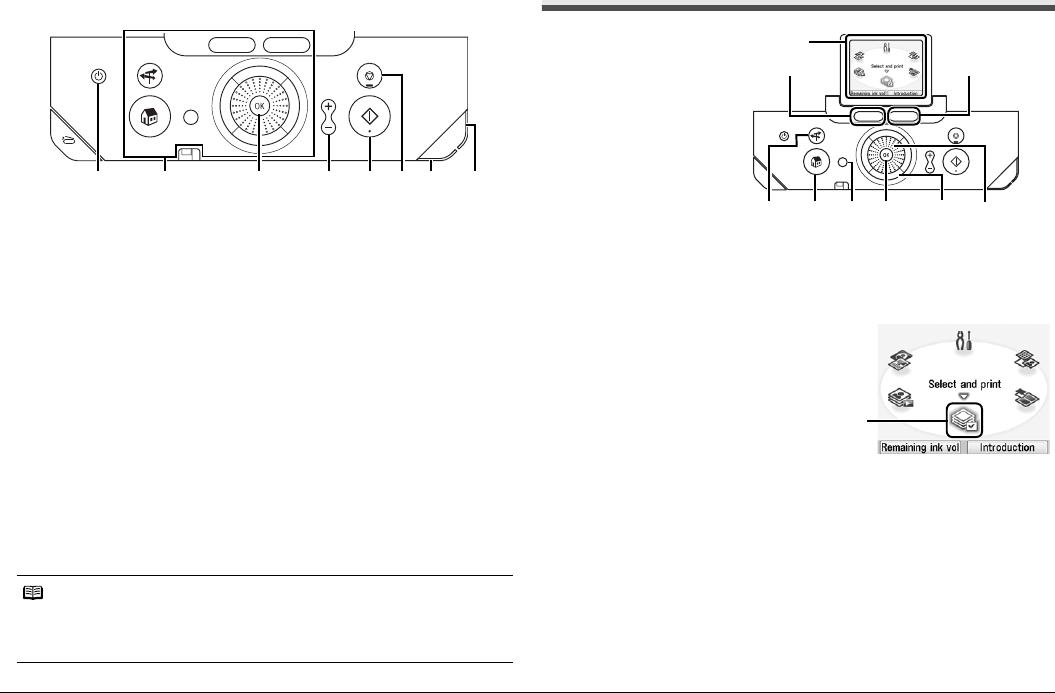

(1) ON/OFF button

Turns the printer on and off.

See “Turning On/Off the Printer” on page 6.

(2) Buttons to be used to navigate menus on the LCD

See “How to Navigate Menus on the LCD” on right column.

(3) OK button

Finalizes your selection for the menu or setting item. See “How to Navigate

Menus on the LCD” on right column.

Dismisses the error message and resumes the printer’s normal operation

after resolving a printing error or removing jammed paper.

(4) [+][-] buttons

Specifies the number of copies to print.

(5) Print button

Press to start printing according to the settings displayed on the LCD.

(6) Stop/Reset button

Cancels a print job in progress.

(7) Power lamp

Lights or flashes blue to indicate the power status.

(8) Alarm lamp

Lights or flashes orange when an error, such as paper-out or ink-out, occurs.

How to Navigate Menus on the LCD

Basic Operation

This section describes the operation to navigate menus with the Easy-Scroll

Wheel, {, }, [, and ] buttons, and the OK button, taking the HOME screen

as an example.

1Press the HOME button.

The HOME screen will appear.

2Turn the Easy-Scroll Wheel to

select the menu, then press the OK

button.

You can turn the Easy-Scroll Wheel left

or right. You can also use the [ or

]button to select setting items.

Move the icon of the desired menu to position (A).

The selected menu screen will appear.

You can select the following menus on the HOME screen:

Select and print:

You can print the photos saved on a memory card while displaying on the LCD,

and specify the number of copies for each photo listed. See “Selecting

Photographs to Print—Select and print” on page 12.

Layout print:

You can print your favorite photo in the specified layout. See “Printing Multiple

Photos on One Sheet of Media—Layout print” on page 13.

Note

Power lamp indicates the power status.

Off: The printer is turned off.

Lighting: The printer is ready to print, is currently printing, or is in operation.

Flashing: The printer is preparing to turn on or off.

Operation Panel

(1) (2) (5)(3) (4) (8)(7)(6)

(1) Home screen

(2) Left Function button

(3) Right Function button

(4) NAVI button

(5) HOME button

(6) Back button

(7) OK button

(8) {, }, [, and ] buttons

(9) Easy-Scroll Wheel

(2)

(9)(8)(7)(6)(5)(4)

(3)

(1)

(A)

6Printer Parts and Their Functions

Create item:

You can create your own items such as stickers or calendars using selected

photo, or print your favorite photo with a frame. See “Using Other Useful

Printing Function” on page 16.

Special photo print:

You can print all photos saved on a memory card and print photos according to

the settings on the camera. You can also print a list of all photos and the photo

information when you shot. See “Using Other Useful Printing Function” on page

16.

Settings:

You can perform the maintenance or change the various settings of the printer.

See “When Printing Becomes Faint or Colors Are Incorrect” on page 27 or

“Changing the Printer Settings” on page 33.

Slide show:

You can display photos saved on a memory card on the LCD sequentially.

Operation of Other Buttons

zFunction buttons (2), (3)

Two Function buttons enable you to select the menu displayed at the bottom of

the LCD.

The screen that appears when you press a Function button depends on the

screen that is displayed and which Function button you press.

When you press them on the other than the HOME screen, the operation

procedure or the menus is displayed.

zBack button (6)

You can return the LCD to the previous screen.

zNAVI button (4)

When you do not know how to use the print function for the frequent use or how

to load paper, you can easily get the explanation from the navigation menu.

Turning On/Off the Printer

This section describes the method to turn on/off the printer.

Turning On the Printer

1Plug in the AC Adapter and connect the other end to a power

outlet.

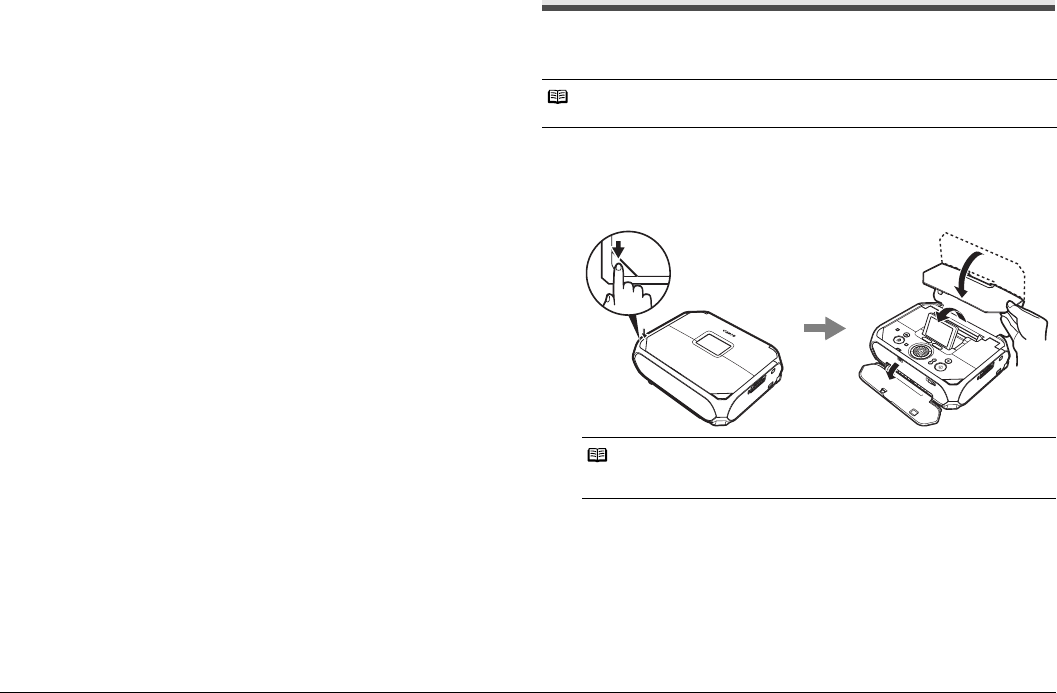

2Press the Open button, then open the Paper Feed Tray and the

Paper Output Tray, and then fold the Paper Feed Tray in half.

Left Function button (2): When you press the left Function button on the HOME

screen, the remaining ink volume screen is displayed.

Right Function button (3): When you press the right Function button on the

HOME screen, the introductions for the selected

menu functions are displayed.

Note

If the ink tank is not installed, refer to your setup sheet to install it.

Note

Pull the LCD Monitor up and adjust its angle to a position where you can see it

clearly.

7Printer Parts and Their Functions

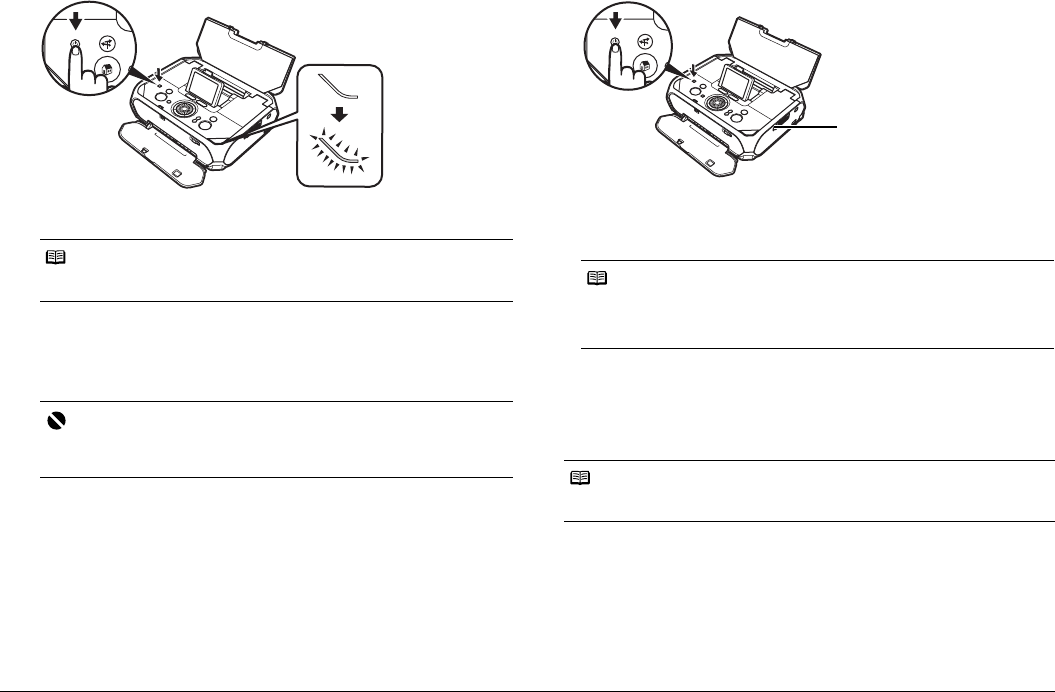

3Press the ON/OFF button to turn the printer on.

The Power lamp flashes, then changes to steady (non-flashing).

The HOME screen appears on the LCD.

Turning Off the Printer

Check the following before turning off the printer.

zThe Access lamp of the memory card is not flashing.

zThe printer is not operating.

1Turn off the printer by pressing the ON/OFF button.

The Power lamp goes out and the power will be turned off.

Push down the LCD Monitor.

2Close the Paper Feed Tray and then the Paper Output Tray.

Screen-saver mode

If you leave the printer more than about 5 minutes without using any button on

the operation panel when the printer is turned on, the LCD goes into Screen-

saver mode automatically.

Press the OK button to resume the LCD.

Note

If the Alarm lamp is lit orange and an error message is displayed on the LCD, see

“Error Message Is Displayed on the LCD” on page 35.

Important

The Access lamp flashes while the printer is reading or writing data from/to the

memory card. Removing the memory card or turning off the printer while the

Access lamp is flashing may damage the data saved on the memory card.

Note

Power cord

Before unplugging the power cord, turn off the printer and ensure that the Power

lamp has gone out. You may not be able to print afterward if you unplug the power

cord when the Power lamp is lit or flashing.

Note

When using the optional battery, the printer will be turned off automatically after

about 5 minutes from when the LCD goes into Screen-saver mode.

Access lamp

8Loading Printing Paper

Loading Printing Paper

This section describes the available page size and media type, and how to load

paper.

Loading paper

1Turn on the printer.

See “Turning On the Printer” on page 6.

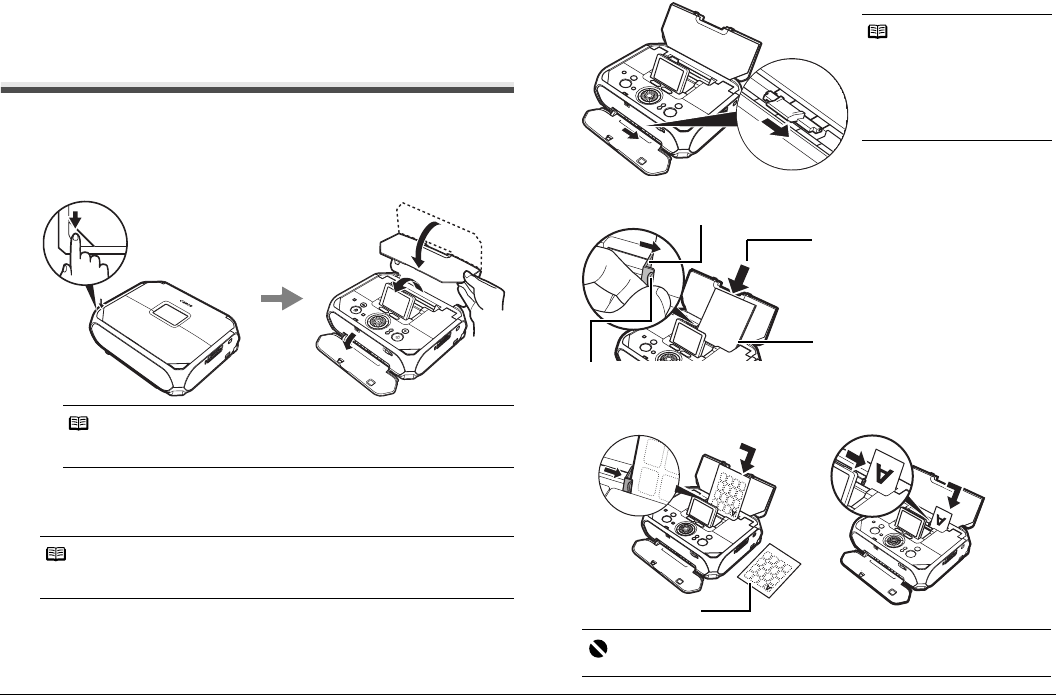

(1) Press the Open button, then open the Paper Feed Tray and

Paper Output Tray, and fold the Paper Feed Tray in half.

(2) Press the ON/OFF button.

2Flatten the four corners of the paper before loading it.

3Ensure that the Paper Thickness Lever is set to the right.

4Load the paper.

Do not load higher than the Paper Guide’s thickness.

Note

Pull up the LCD Monitor and adjust its angle in the position where you

can see it clearly.

Note

If paper is curled, gently bend the corners in the opposite direction until the paper

becomes flat. See “Paper is curled.” on page 42.

Important

Always load paper in portrait orientation.

Note

When printing, set the Paper

Thickness Lever to the right.

Set the Paper Thickness Lever

to the left only if ink smudges or

the printed surface is stained.

Return the Paper Thickness

Lever to the right after printing.

(3) Slide the Paper Guide against the

left side of the paper stack.

(1) Load the paper into the Rear Tray

with the print side facing up.

If you use Canon genuine 4" x 6" /

101.6 x 152.4 mm paper, up to 20

sheets of paper can be loaded.

(2) Align the paper stack with the

right edge of the Rear Tray.

zPhoto stickers z4" x 6" or Card

Shorter margin

9Loading Printing Paper

Printing Media

This section describes the available page size and media type for direct printing.

For informations of page size and media type when printing from a computer, refer

to the User’s Guide on-screen manual.

Compatible Media Type

*1When loading a stack of paper, the printed side may become marked as it is fed

in. In this case, load paper one sheet at a time.

*2When printing on sticker paper, select Sticker print on the Create item screen.

See “Printing Stickers with a Photo Saved on a Memory Card—Sticker print” on

page 17.

zPaper Support Load Limit

5" x 7" / 127.0 x 177.8 mm: 10 sheets

4" x 6" / 101.6 x 152.4 mm, Wide, and Credit card: 20 sheets

Photo Stickers: 1 sheet

zPaper Output Tray Load Limit

We recommend that you remove the previously printed sheet from the Paper

Output Tray before continuously printing to avoid blurs and discoloration.

Selectable Page Size

Paper Handling

Do not use the following types of paper. Using such paper will not only produce

unsatisfactory results, but can also cause the printer to jam or malfunction. Also,

do not use a cut paper or memo pad.

zFolded, curled, or wrinkled paper

zDamp paper

zPaper that is too thin (weighing less than 17 lb / 64 gsm)

zPicture postcards

zPostcards affixed with photos or stickers

zAny type of paper with holes

zPaper that is not rectangular

zPaper bound with staples or glue

zPaper with adhesives

zPaper decorated with glitter, etc.

Media Type and Model Printer Setting for Media Type

Glossy Photo Paper GP-401 Glossy Photo Paper

Glossy Photo Paper “Everyday Use” GP-501 Glossy Photo Paper

Photo Paper Glossy GP-502 Glossy Photo Paper

Photo Paper Plus Semi-gloss SG-101, SG-201*1 Photo Plus Glossy

Photo Paper Plus Glossy PP-101*1 Photo Plus Glossy

Photo Paper Pro PR-101*1 Photo Paper Pro

Matte Photo Paper MP-101 Matte Photo Paper

Photo Stickers PS-101*2 —

Important

zPut unused paper back into the package, and store them avoiding heat, humidity, and

direct sunlight.

zDo not touch the printed surface nor stack the printed sheets until the ink is fixed.

Note

zYou may not be able to purchase some Canon genuine papers depending on the

country or region of purchase.

zFor information on the page sizes available for each Canon genuine paper, visit our

website.

Printer Setting for Page Size Width x Height

Credit card 2.13 x 3.39 inches / 54.0 x 86.0 mm

4"x6"(101.6x152.4) 4.00 x 6.00 inches / 101.6 x 152.4 mm

5"x7"(127.0x177.8) 5.00 x 7.00 inches / 127.0 x 177.8 mm

Wide 4 x 7.1(101x180) 4.00 x 7.10 inches / 101.6 x 180.6 mm

10 Printing from a Memory Card

Printing from a Memory Card

Using the Memory Card

This section describes the memory cards compatible with this printer, and how to insert and remove them.

Memory Cards Supported by this Printer

The following memory cards are compatible with this printer.

Memory cards that can be directly inserted into the Card Slot: Memory cards that can be inserted in the Card Slot using the adapter:

z

SD Secure Digital memory card

z

SDHC memory card

z

MultiMediaCard

Important

If a memory card is inserted without an adapter, you may not be able to remove the card.

Be sure to attach it to the adapter before inserting to the Card Slot.

z

Compact Flash (CF) Card

Supports Type I/II (3.3 V)

z

Microdrive

z

miniSD Card

*1

z

microSD Card

*2

z

MEMORY STICK

z

MEMORY STICK PRO

z

xD-Picture Card

*3

z

MEMORY STICK Duo

*1

z

MEMORY STICK PRO Duo

*1

Important

zIf you shot or saved photos on a type of memory card that is not guaranteed operation

to be used on your digital camera, the image may be unreadable on this printer.

Attempting to read such data on this printer may damage the data. For information on

memory cards that your digital camera guarantees operation, refer to the manuals

supplied with your digital camera.

zFormat the memory card with a digital camera. The memory card may not be usable

with the printer if formatted on a computer.

zDo not insert more than one memory card at a time.

z

RS-MMC

*1

*1 Use the special adapter provided with the card.

*2 Use “SD Card Adapter” provided with the card.

*3 Requires purchase of a separate compact flash card adapter for xD-Picture

card.

11Printing from a Memory Card

Printable Image Data

This printer supports JPEG and TIFF images created by DCF ver. 1.0/2.0

standard compliant digital cameras (Exif ver. 2.2/2.21 compliant).

Inserting the Memory Card

This printer is equipped with two Card Slots to meet various types of memory

cards. Refer to the illustration on right column to find the Card Slot that

corresponds to your memory card. Check the card face and insert it gently until

it reaches the bottom and the Access lamp turns on. The card’s end protrudes

from the Card Slot even if it is correctly set.

You can also use the Card Slot as the memory card drive of the computer.

1Turn on the printer.

See “Turning On the Printer” on page 6.

2Attach a card adapter if your memory card requires one.

3Insert only one memory card into the Card Slot.

4Confirm that the Access lamp has lit up.

Important

Compatible image types are limited to JPEG and TIFF only. Other image or movie

types such as RAW images cannot be printed.

Note

zWhen Read/write mode is selected in Read/write attribute under Device

settings by using the Operation Panel on the printer, card direct printing

cannot be done. After using the Card Slot as the memory card drive of the

computer, remove the memory card, then be sure to set Read/write attribute

to Read-only mode. See “Changing the Printer Settings” on page 33.

zWhen you use a computer to edit or process photos saved on a memory card,

be sure to print them from the computer. If you print using the Operation Panel,

the data may not be printed correctly.

Caution

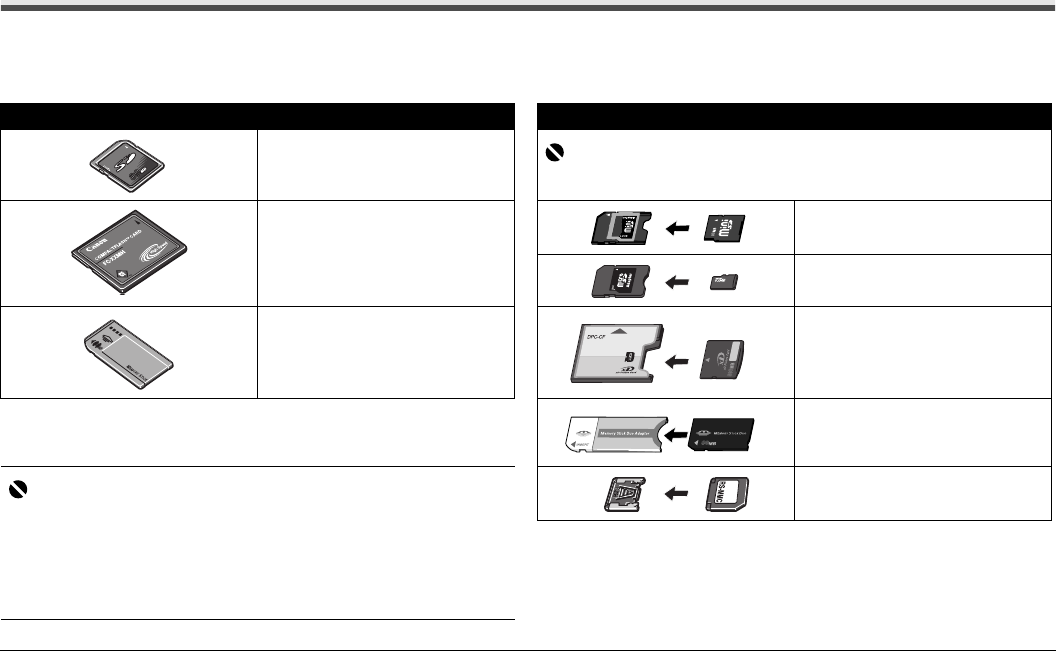

When using miniSD Card, microSD

Card, xD-Picture Card, MEMORY

STICK Duo, MEMORY STICK PRO

Duo, or RS-MMC, be sure to use a

card adapter when inserting these

cards into the Card Slot.

If one of these cards is inserted

without an adapter, you may not be

able to remove the card. In this

case, see “Cannot Remove a

Memory Card” on page 46.

Caution

zWhen a memory card is inserted into the Card Slot, the Access lamp is lit.

When this Access lamp is flashing, the printer is accessing to the memory

card. In this case, do not touch around the Card Slot.

zThe memory card will stick out of the Card Slot, but do not force it into the slot

any further. Doing so damages the printer and the memory card.

zMake sure that the memory card is correctly oriented and labeled side is facing

up before inserting it into the Card Slot. If you force the memory card into the

Card Slot in the wrong orientation, you may damage the memory card and/or

the printer.

For SD Secure Digital memory card,

SDHC memory card, miniSD Card,

microSD Card, MultimediaCard,

MEMORY STICK, MEMORY STICK

PRO, MEMORY STICK Duo,

MEMORY STICK PRO Duo, and RS-

MMC

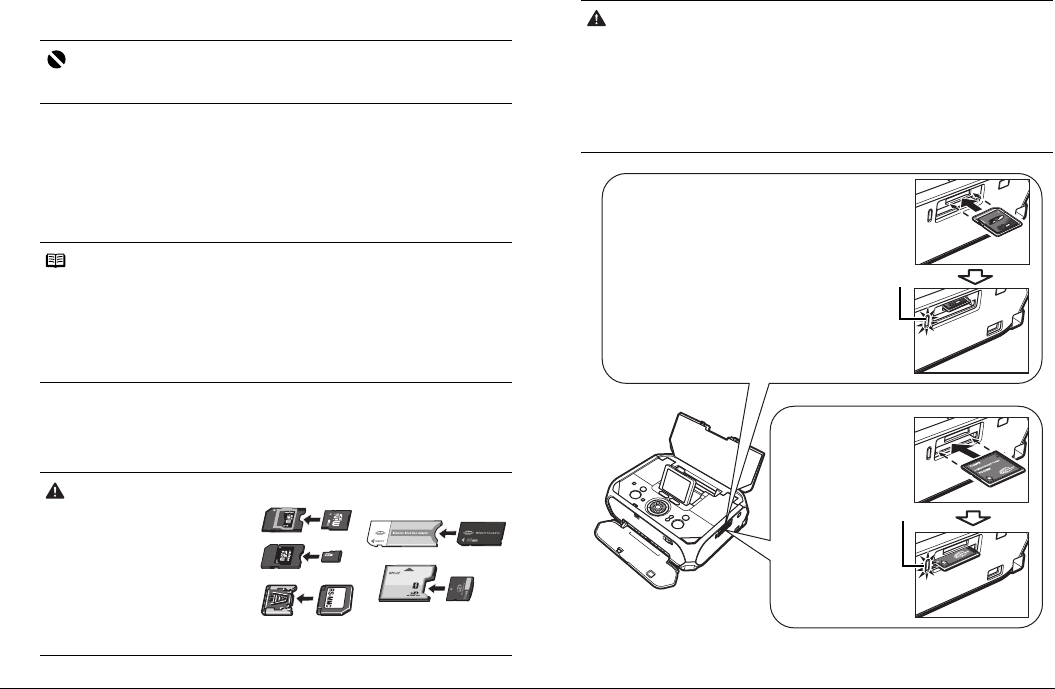

Insert the memory card into the upper

slot with the labeled side facing up.

Lights up

For Compact

Flash (CF) card,

Microdrive, and

xD-Picture Card

Insert the memory

card into the

downside slot with

the labeled side

facing up.

Lights up

12 Printing from a Memory Card

Removing the Memory Card

1Make sure that the Access lamp is lit, then remove the memory

card.

Do not remove the memory card while the Access lamp is flashing. Hold the

part of the memory card that is sticking out to remove it from the printer.

Printing Photographs Saved on a Memory Card

Photos saved on the memory card can be reviewed on the printer’s LCD. You can

select a photo and print a single copy of the photo, or specify the number of copies

to print.

Selecting Photographs to Print—Select and print

You can display the photos saved on the memory card on the LCD and print

them.

1Prepare for printing.

(1) Turn on the printer.

See “Turning On/Off the Printer” on page 6.

(2) Load paper.

See “Loading Printing Paper” on page 8.

(3) Insert the memory card into the Card Slot.

See “Inserting the Memory Card” on page 11.

2Select Select and print on the Home screen, then press the

OK button.

3Confirm the page size, media type, and other settings, then select

Next, and then press the OK button.

The photo selection screen is displayed.

Important

If you used the Card Slot as the memory card drive of the computer, you need to

do a “safe removal” operation on your computer before physically removing the

memory card from your printer.

Right-click the removable disk icon and click Eject. If Eject is not displayed on the

screen, make sure that the Access lamp is not flashing, and then remove the

memory card.

Drag the icon into the Trash.

Important

The Access lamp flashes while the printer is reading or writing data from/to the

memory card. Removing the memory card or turning off the printer while the

Access lamp is flashing may damage the data saved on the memory card.

Access lamp

Note

zTo change the settings, select the item and press the OK button.

See “Print Setting Screens” on page 15.

z may be displayed on the LCD while reading the photo.

13Printing from a Memory Card

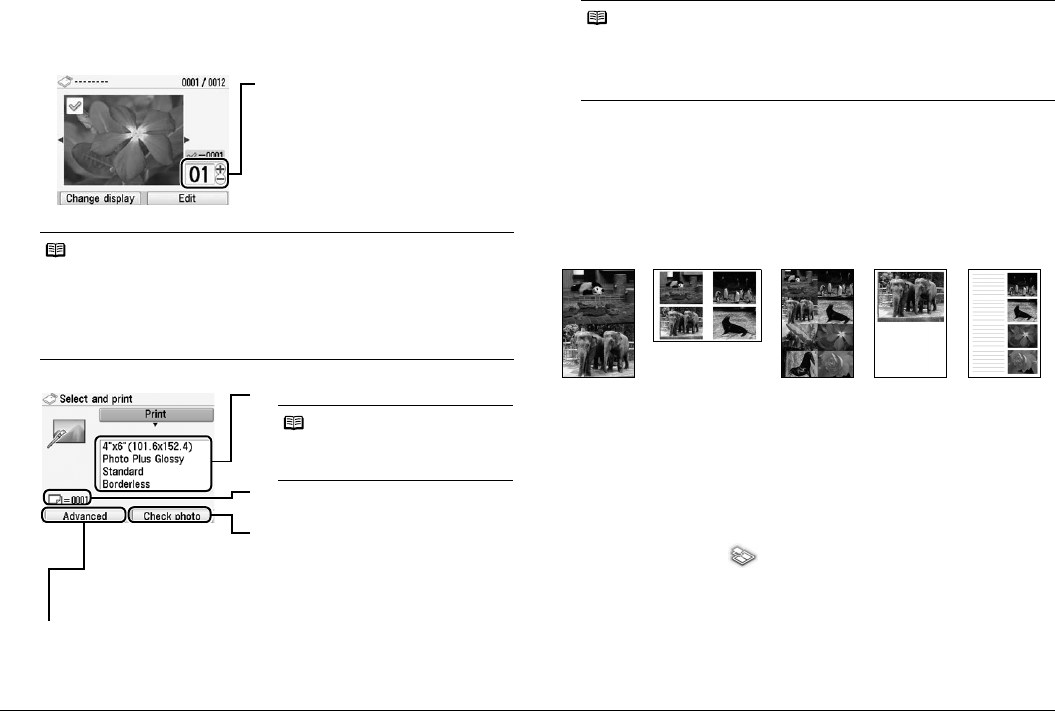

4Select the photo to print and specify the number of copies for each

photo.

(1) Use the Easy-Scroll Wheel or the [ or ] button to display the photo to

print.

5Start printing.

(4) Press the left Function button, and change the Advanced print settings.

See “Print Setting Screens” on page 15.

(5) Press the Print button.

The specified number of copies of each photo will be printed.

Printing Multiple Photos on One Sheet of Media—Layout

print

You can print the specified photos in the specified layout (Borderless or

Bordered ×2/×4/×8/Half, borderless/Half, bordered/Half, borderless (w/lines)/

Half, bordered (w/lines)/Album ×4 (photos on right)/Album ×4 (photos on left)).

Examples:

.

1Prepare for printing.

(1) Turn on the printer.

See “Turning On/Off the Printer” on page 6.

(2) Load paper.

See “Loading Printing Paper” on page 8.

(3) Insert the memory card into the Card Slot.

See “Inserting the Memory Card” on page 11.

2Select Layout print on the Home screen, then press the OK

button.

Note

You can do…

zYou can change the display for photos. See “Changing the Display—Change

display” on page 19.

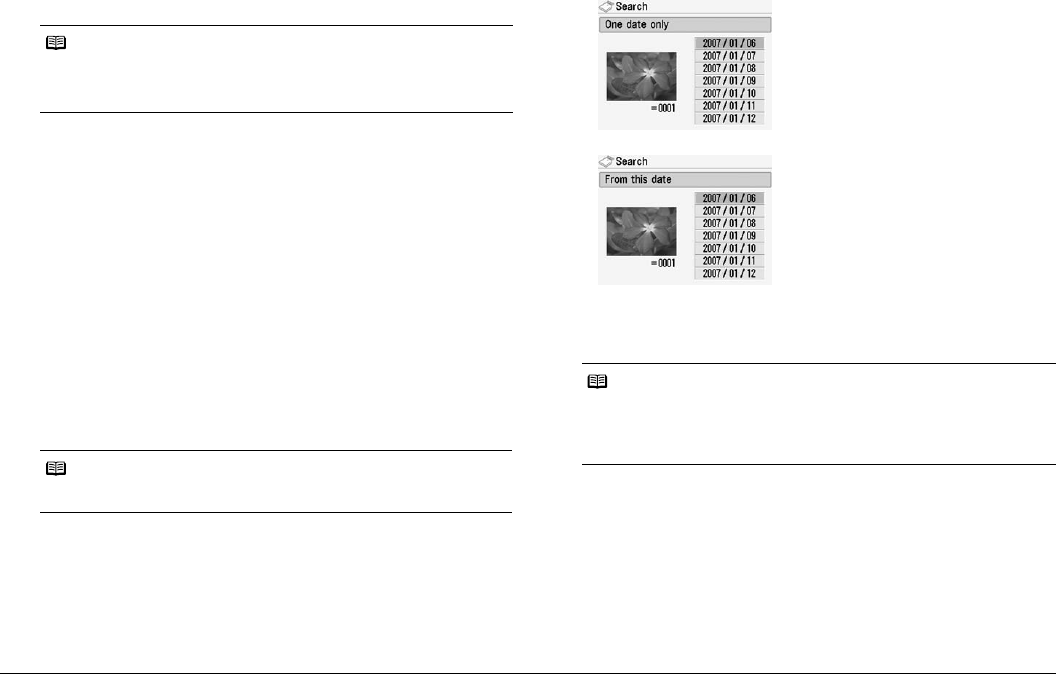

zYou can search for photos with the shooting date. See “Searching for Photos

with the Shooting Date—Search” on page 20.

zYou can print a specified area. See “Printing a Specified Area—Trimming” on

page 19.

(2) Use the [+] or [-] button to specify the

number of copies.

(3) Repeat steps (1) and (2) to specify

the number of copies for each photo.

(4) Press the OK button.

The print confirmation screen is

displayed.

(1) Confirm the print settings.

(2) Confirm the total number of copies for

the selected photos.

(3) Press the right Function button and

confirm the selected photos and

number of copies for each photo.

Then press the OK button to return to

the print confirmation screen.

Note

To change the print settings, select the

item and press the OK button. See

“Print Setting Screens” on page 15.

Note

zWhen the page size is Credit card:

Even if both Date ON and File no. ON are set, only the shooting date will be

printed. If you want to print the file no., select Date OFF. It is not possible to

print both the shooting date and the file no.

zTo cancel printing, press the Stop/Reset button.

Borderless

×2

Borderless

×8

Bordered

×4

Half

bordered

Album ×4

14 Printing from a Memory Card

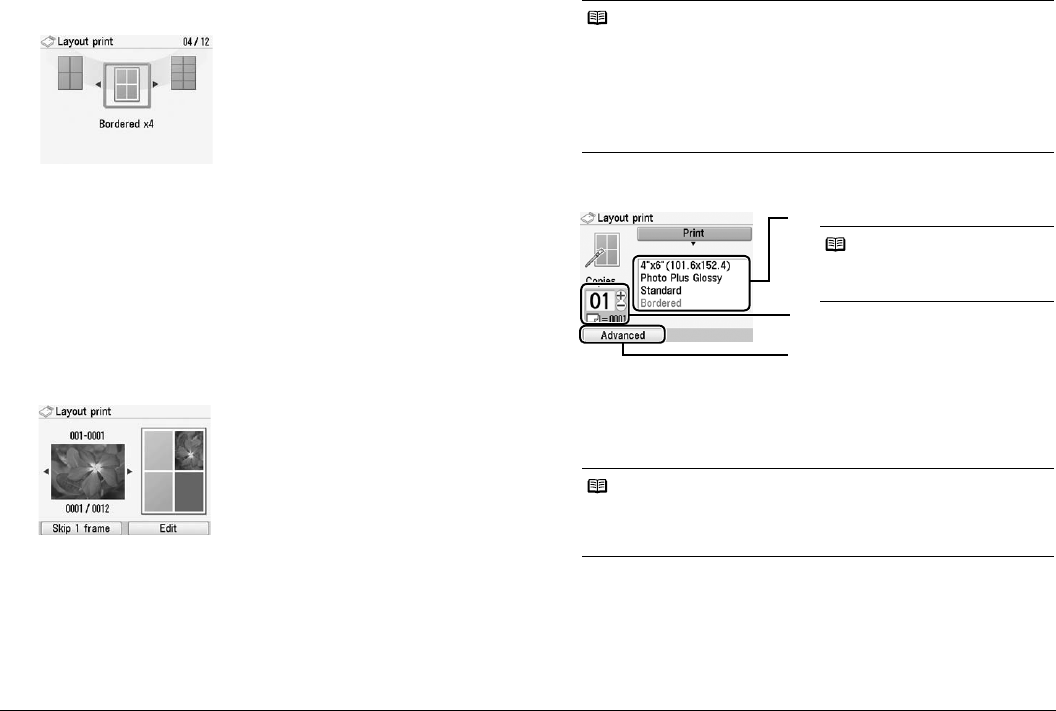

3Use the Easy-Scroll Wheel or the [ or ] button to select the

layout, then press the OK button.

4Confirm the page size, media type, and print quality, then select

Next, and then press the OK button.

5Select the paste method.

zPaste automatically

Select the Search or All photos on the following Layout print screen, and

proceed to Step 7.

All the photos are pasted automatically in the selected layout.

zPaste one by one

Specify to paste photos one by one on the specified layout. Proceed to

Step 6.

6Paste photos one by one.

(2) Repeat (1) for each photo you want to print.

(3) Confirm the layout and then press the OK button.

The print confirmation screen is displayed.

7Start printing.

(4) Press the Print button.

The specified number of copies will be printed.

(1) Use the Easy-Scroll Wheel or the [

or ] button to display the photo you

want to paste and press the OK

button.

The photo is pasted on the layout.

Note

zPress the Back button to cancel pasting the specified photo.

zPress the left Function button not to paste a photo in the selected frame.

zYou cannot paste photos on more than one page. Start printing once you have

pasted photos on one page.

You can do...

zYou can search for photos with the shooting date. See “Searching for Photos

with the Shooting Date—Search” on page 20.

zYou can print a specified area. See “Printing a Specified Area—Trimming” on

page 19.

Note

zEven if both Date ON and File no. ON are set, only the shooting date will be

printed. If you want to print the file no., select Date OFF. It is not possible to

print both the shooting date and the file no.

zTo cancel printing, press the Stop/Reset button.

(1) Confirm the print settings.

(2) Use [+] [-] buttons to change the

number of copies.

(3) Press the left Function button, and

change the Advanced print settings.

See “Print Setting Screens” on page

15.

Note

To change the print settings, select the

item and press the OK button. See

“Print Setting Screens” on page 15.

15Printing from a Memory Card

Print Setting Screens

This section describes about the print setting screen and the print confirmation

screen displayed during the operation to print photos on a memory card.

Note

When printing directly from a PictBridge compliant device, see “Setting Items” on page 24.

When printing from a wireless communication, see “Setting Items” on page 25.

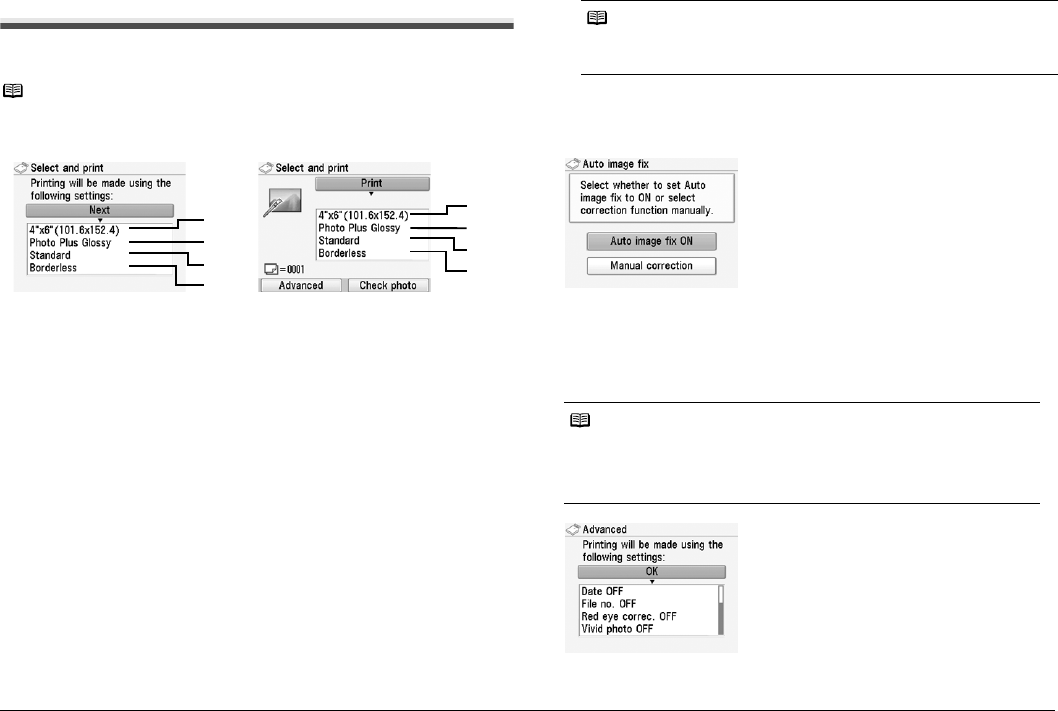

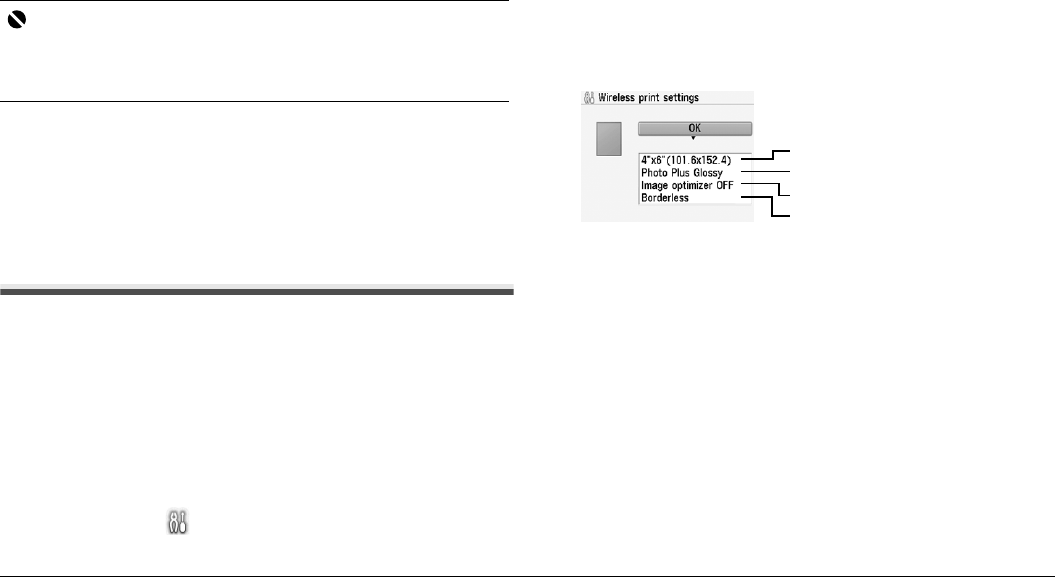

(1) Page size

Select the page size of the loaded paper.

(2) Media type

Select the media type of the loaded paper.

(3) Print quality

Adjust the print quality.

(4) Borderless print

Select bordered or borderless print.

Print Settings

1When the print setting screen or the print confirmation screen is

displayed, select the setting item, then press the OK button.

The setting screen for the selected item will be displayed.

2Select the page size and the media type, then press the OK button.

Advanced Print Settings Screen

When you press the left Function button in the print settings confirmation

screen, the Auto image fix screen is displayed.

When Auto image fix ON is selected, the scene or person’s face of a shot

photo is recognized and the most suitable correction for each photo is made

automatically. It makes a darkened face by backlight brighter to print. It also

analyzes a scene such as scenery, night scene, person, etc. and corrects each

scene with the most suitable color, brightness, or contrasts automatically to

print.

(1)

(2)

(3)

(4)

(1)

(2)

(3)

(4)

Print Setting Screen Print Confirmation Screen

Note

zFor the print setting screen, select Next to proceed to the next step.

zFor the print confirmation screen, press the Print button to start printing.

zThe print settings are retained even if the printer is turned off.

Note

zPhotos in a memory card are printed in Auto image fix as default. In Auto image

fix, you can specify only Date or File no. on the next page.

zIf you do not satisfy the print result in Auto image fix, you can select Manual

correction. If you select Manual correction, you can specify each advanced

setting item.

16 Printing from a Memory Card

zDate

Activate/deactivate to print the shooting date on a photo.

zFile no.

Activate/deactivate to print the file no. on a photo.

zRed eye correc.

Corrects red eyes in portraits caused by flash photography.

zVivid photo

Makes green and blue more lively.

zPhoto opt. pro

Automatically optimizes brightness and tone of a photo.

zNoise reduction

Reduces the noise on blue areas like the sky as well as on black areas.

zFace brightener

Brightens a darkened face on the photo taken against the light.

zImage optimizer

Corrects and smooths the jagged contours for printing.

zBrightness

Adjust brightness.

zContrast

Adjust contrast.

zColor hue

Adjust color hue.

For example, you can increase red or yellow to adjust the skin tone.

zEffects

Applies special effects to the photo, such as printing in sepia tones or with a

sketch illustration like effect.

Using Other Useful Printing Function

You can enjoy various printouts of photos in the memory card.

1Prepare for printing.

(1) Turn on the printer.

See “Turning On/Off the Printer” on page 6.

(2) Load paper.

See “Loading Printing Paper” on page 8.

(3) Insert the memory card into the Card Slot.

See “Inserting the Memory Card” on page 11.

2Select Create item or Special photo print on the Home

screen, then press the OK button.

Printing menus on the Create item screen:

Printing menus on the Special photo print screen:

Note

Under conditions listed below, even if both Date ON and File no. ON are set, only

the shooting date will be printed. If you want to print the file no., select Date OFF.

zLayout print or Calendar print is selected.

zCredit card is selected in Page size.

zCalendar print: See “Creating a Calendar—Calendar print” on page 17.

zSticker print: See “Printing Stickers with a Photo Saved on a Memory

Card—Sticker print” on page 17.

zFramed photo

print:

See “Printing Photographs with a Frame—Framed photo

print” on page 17.

zID photo size

print:

See “Printing ID Photo—ID photo size print” on page 17.

zPrint all photos: See “Printing all Photographs—Print all photos” on page

18.

zPhoto index print: See “Printing a Photo Index—Photo index print” on page

18.

zCaptured info

print:

See “Print Photograph Information—Captured info print”

on page 18.

zDPOF print: See “Printing Photographs from Your Camera—DPOF

print” on page 18.

Note

Depending on your selected printing menu, you can do…

zYou can change the advanced print setting. See “Advanced Print Settings

Screen” on page 15.

zYou can change the display for photos. See “Changing the Display—Change

display” on page 19.

zYou can search for photos with the shooting date. See “Searching for Photos

with the Shooting Date—Search” on page 20.

zYou can print a specified area. See “Printing a Specified Area—Trimming” on

page 19.

17Printing from a Memory Card

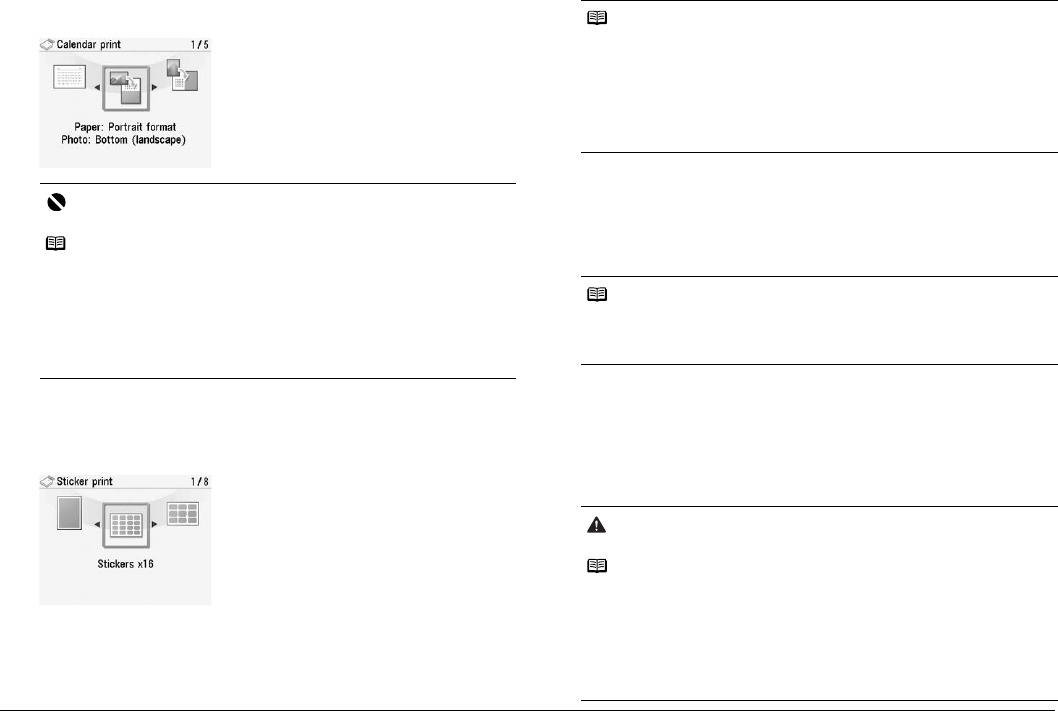

Creating a Calendar—Calendar print

You can create your own original calendar with your favorite photo printed on it.

Printing Stickers with a Photo Saved on a Memory Card—

Sticker print

You can print your favorite photo with a frame on the Canon genuine Photo

Stickers.

Printing Photographs with a Frame—Framed photo print

You can print your favorite photo with a frame.

1Select Framed photo print on the Create item screen.

2Select the frame and the photo to print, then press the Print button.

Printing ID Photo—ID photo size print

You can print ID size photos.

1Select ID photo size print on the Special photo print screen.

2Select the photo size and the photo to print, then press the Print

button.

Important

Always load paper in portrait orientation.

Note

zSelect the landscape format for a landscape-oriented photo or the portrait

format for a portrait-oriented photo.

If the photo is upside-down, you can use the { or } button to rotate the photo

180 degrees.

zTo change the start of the week on the printed calendar, press the left Function

button on the screen where Advanced is displayed.

zEven if both Date ON and File no. ON are set, only the shooting date will be

printed. If you want to print the file no., select Date OFF. It is not possible to print

both the shooting date and the file no.

1Select Calendar print on the

Create item screen.

2Select the format, the photo to

print, the background color,

etc., then press the Print

button.

1Select Sticker print on the

Create item screen.

2Select Stickers x16 layout,

the photo to print, the frame,

and the number of copies,

then press the Print button.

Note

zLoad a single sheet at a time.

zTo print without a frame, press the left Function button in the frame selection

screen.

zIf the photo is upside-down, you can use the { or } button to rotate the frame

180 degrees.

zIf you want to rotate a photo 90 degrees to match a frame, rotate the trimming

area. See “Printing a Specified Area—Trimming” on page 19.

zWhen printing stickers, be sure to load the media so that it faces in the correct

direction. See “Loading Printing Paper” on page 8.

Note

zIf the photo is upside-down, you can use the { or } button to rotate the frame

180 degrees.

zIf you want to rotate a photo 90 degrees to match a frame, rotate the trimming

area. See “Printing a Specified Area—Trimming” on page 19.

Caution

Print the photo on the larger-sized paper than your selected photo size.

Note

Choose the area to print by using the following buttons.

z{, }, [, and ] buttons: Position the printing area.

zEasy-Scroll Wheel: Sets the printing area.

Turn the Easy-Scroll Wheel clockwise to enlarge the size of the printing area or

counterclockwise to reduce it.

zRight Function button: Rotate the printing area.

To switch the printing area between portrait and landscape orientations, press

this button.

zOK button: Finalizes your selection of printing area.

18 Printing from a Memory Card

Printing all Photographs—Print all photos

You can print all photos saved on the memory card.

1Select Print all photo on the Special photo print screen.

2Specify the print range, then press the Print button.

Printing a Photo Index—Photo index print

You can print a list of all photos saved on the memory card.

1Select Photo index print on the Special photo print screen.

2Specify the print range, then press the Print button.

Print Photograph Information—Captured info print

You can print the Photograph information (Exif information) when you shot on

the white space of photo.

1Select Captured info print on the Special photo print screen.

2Select the photo to print, then press the Print button.

Printing Photographs from Your Camera—DPOF print

If DPOF (Digital Print Order Format) settings are made on the camera, photos

are printed automatically according to those settings.

1Select DPOF print on the Special photo print screen.

2Select Yes, then press the Print button.

Note

When using index printing, the number of images printed on a single sheet of

paper depends on the page size, as follows:

– 5"×7" / 127.0×177.8 mm: 35 photos

– 4"×6" / 101.6×152.4 mm: 24 photos

– Credit card: 6 photos

– Wide / 101 x 180 mm: 28 photos

Note

zThe printer supports the following DPOF functions:

Version:

Based on ver. 1.00

Supported image types:

CIFF, Exif (JPEG/TIFF), and JFIF

Print Style Standard Print:

Prints photos that were specified as “Standard Print” with DPOF

Print Style Index Print:

Prints an index of photos that were specified as “Index Print” with DPOF using

the printer's index printing layout

Print Photo Select:

Prints only photos specified with DPOF (cannot be specified from the Operation

Panel)

Number of copies:

Prints the number of copies specified with DPOF (cannot be specified from the

Operation Panel)

zPrints are automatically enlarged or reduced to match the page size. Edges of

the photo may be clipped off depending on the page size.

zThe shot date order setting by which photos are sorted follows that of DPOF.

zDPOF is a standard format to record the specified information regarding

images, such as which image or number of copies to print.

19Printing from a Memory Card

Using Useful Display Function

There are other useful functions to print the photo from memory card.

z“Changing the Display—Change display” below

z“Display photos sequentially—Slide show” below

z“Printing a Specified Area—Trimming” on right column

z“Searching for Photos with the Shooting Date—Search” on page 20

Changing the Display—Change display

When you press the left Function button when Change display is displayed on

the screen, you can change the way photos are displayed.

 Display photos sequentially—Slide show

You can display photos saved on the memory card on the LCD sequentially.

1Select Slide show on the HOME screen, then press the OK

button.

Press the Stop/Reset button to stop the slide show.

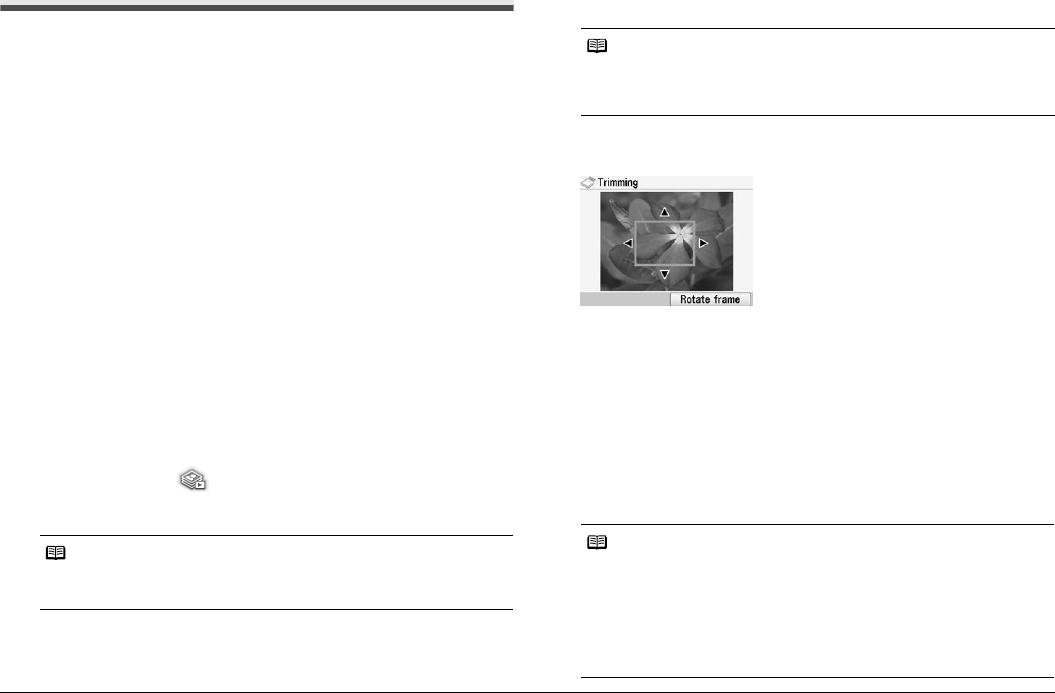

Printing a Specified Area—Trimming

You can edit images displayed on the LCD by cropping them.

1Select the photo to crop.

2Display the cropping edit screen.

3Choose the area to print.

z{, }, [, and ]buttons: Position the cropping frame.

zEasy-Scroll Wheel: Sets the cropping frame size.

Turn the Easy-Scroll Wheel clockwise to enlarge the size of the cropping

frame or counterclockwise to reduce it.

zRight Function button: Rotates the cropping frame.

To switch the cropping frame between portrait and landscape orientations,

press this button.

4Press the OK button to finalize your selection of cropping area.

The area to be cropped is specified, and the original photo is displayed.

Normal screen display: Shows one photo.

Thumbnail display: Shows nine photos at a time. Select the photo using

the Easy-Scroll Wheel or the {, }, [, or ] button,

then press the [+] [-] buttons to specify the number

of copies.

Full-screen display: Shows one photo at full-screen.

Enlarged display: Shows enlarged photo twice as much as the

original. Move the area to show using the {, }, [,

or ] button. Press the OK button to return to the

previous display mode.

Slide show: Shows next photos automatically. To stop the slide

show, press the Stop/Reset button.

Note

You can do…

You can specify the image quality of the slide show. See “Slide show setting” on

page 34.

Note

Crop images after specifying the page size, media type, and bordered or

borderless printing in the print setting screen. If you change the paper settings

after cropping, the cropped area may be adjusted to match the paper, or be

disabled completely.

Note

zThe cropped image cannot be newly saved on the memory card.

zThe cropping area is displayed only for photos which have been cropped.

zTo change the cropped area once it has been set, press the right Function

button again when Edit is displayed on the screen, select Trimming, then

press the OK button.

zTo cancel cropping after cropping has been set, press the right Function button

again when Edit is displayed on the screen, select Cancel trimming, then

press the OK button. Select Displayed images only or All images, then press

the OK button.

(1) Press the right Function button when

Edit is displayed on the screen.

(2) Select Trimming, then press the OK

button.

The cropping edit screen is

displayed.

20 Printing from a Memory Card

Searching for Photos with the Shooting Date—Search

You can choose to display and print only photos shot on the specified date or

within the specified range of dates.

1Display the search method screen.

zSetting in Edit

(1) Press the right Function button when Edit is displayed on the screen.

(2) Select Search, then press the OK button.

The Search screen is displayed.

zSetting in Search in the Specify print range screen (Layout print, Photo

index print, and Print all photos)

(1) Select Search, then press the OK button.

The Search screen is displayed.

2Set the search method.

(1) Select the search method.

To specify only one date for search, select One day only.

To specify the range for search, select Select date range.

(2) Press the OK button.

The date input screen is displayed.

3Specify the date range.

zIf you selected One date only

zIf you selected Select date range

4Press the OK button to start searching.

The printer starts searching and the photos within the specified date range

are displayed.

Note

If the number of copies to print is already specified for some photos before

searching with the shooting date, or if some photos are already pasted on a

layout, those photos will still be selected for printing even if they were not shot on

the specified date or within the specified date range.

Note

It may take a while for the date input screen to be displayed depending on the

number of photos saved on the memory card.

Note

zThe date that you specified is displayed according to the settings of Date

display in Other settings. See “Date display” on page 34.

zTo cancel the selected date range, press the right Function button when Edit is

displayed on the screen, select Cancel selected date, then press the OK

button.

(1) Specify the date to search for.

(1) Specify the start date to search, then

press the OK button.

(2) Specify the end date to search.

21Printing Photographs Directly from a Compliant Device

Printing Photographs Directly from a

Compliant Device

You can connect a PictBridge compliant device such as a digital camera,

camcorder, or mobile phone using a USB cable recommended by the device’s

manufacturer, and print recorded images directly without using a computer.

Connectable Devices

PictBridge is an industry standard enabling a range of digital photo solutions,

including the direct printing of photos from a digital still camera, camcorder or

mobile phone* without the need to use a computer. A device can be connected

to this printer for direct printing regardless of the manufacturer or the model as

long as it complies with the PictBridge standard.

* PictBridge compliant digital still cameras, digital camcorders, and camera-

equipped mobile phones are hereafter collectively referred to as “PictBridge

compliant device”.

A device with this mark is PictBridge compliant.

Printable Image Data Format

This printer prints images taken with a DCF (Design rule for Camera File

system) ver. 1.0/2.0-compatible digital camera (Exif ver. 2.2/2.21 compliant), as

well as PNG files.

Printing Photographs Directly from a Compliant Device

To connect a PictBridge compliant device to this printer, use a USB cable

recommended by the device’s manufacturer.

1Prepare for printing

(1) Turn on the printer.

See “Turning On/Off the Printer” on page 6.

(2) Load paper.

See “Loading Printing Paper” on page 8.

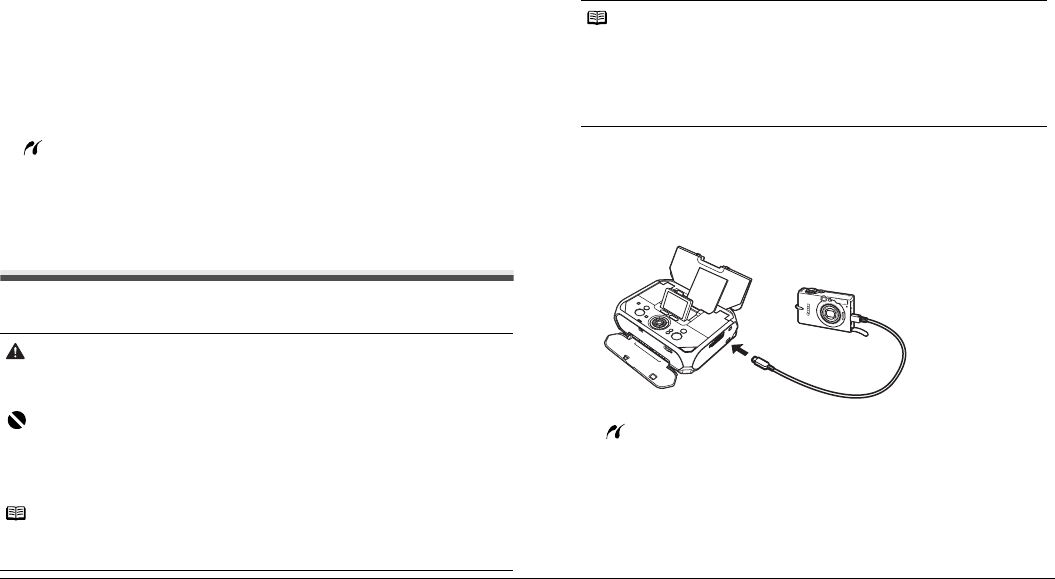

2Connect the PictBridge compliant device to the printer.

(1) Make sure that the PictBridge compliant device is turned off.

(2) Connect the PictBridge compliant device to the printer using a USB cable

recommended by the manufacturer of the device.

The device turns on automatically.

If your device does not turn on automatically, turn it on manually.

(3) Set up the PictBridge compliant device for direct printing.

will appear on the LCD of the device when the printer is correctly

connected.

Caution

Do not connect any equipment other than PictBridge compliant devices or the optional

Bluetooth unit BU-20 to the Direct Print Port of the printer. If you do so, electric shock,

fire, or damage to the printer could result.

Important

zSet up the printer according to your setup sheet before you start printing.

zNever disconnect the USB cable during printing unless when explicitly allowed to by

the PictBridge compliant device. When disconnecting the USB cable between the

PictBridge compliant device and printer, follow the instructions given in the device’s

instruction manual.

Note

When printing photos with the PictBridge compliant device connected to the printer, we

recommend the use of the AC adapter supplied with the device. If you are using the

device battery, be sure to charge it fully.

Note

Depending on the model or brand of your device, you may have to select a print

mode compliant with PictBridge before connecting the device. You may also

have to turn on the device or select Play mode manually after connecting the

device to the printer.

Perform necessary operations on the PictBridge compliant device before

connecting it to this printer according to instructions given in the device’s

instruction manual.

22 Printing Photographs Directly from a Compliant Device

3Specify the print settings such as paper type and layout.

See “About PictBridge Print Settings” below.

You can make settings using the menu on the LCD of your PictBridge

compliant device. Select the size and type of paper that you loaded in the

printer.

If your PictBridge compliant device does not have setting menu, change the

setting from the printer. For details, see “Settings on the Printer” on page 23.

4Start printing from your PictBridge compliant device.

About PictBridge Print Settings

Settings on a PictBridge Compliant Device

This section describes the print settings on a PictBridge compliant device.

When operating the device, be sure to follow the instructions given in the

instruction manual of your PictBridge compliant device.

zPaper Size and Paper Type Settings

The following sizes and types of printing paper can be used when printing from

a PictBridge compliant device.

zPaper size

4" x 6" / 101.6 x 152.4 mm, 5" x 7" / 127.0 x 177.8 mm*1, Credit card, Wide*1

zPaper type

The available page sizes vary depending on the media type. For details, visit

our website.

*1 Can be selected only on certain Canon-brand PictBridge compliant

devices.

*2 You may not be able to purchase some Canon genuine papers

depending on the country or region of purchase.

*3 Exclusively used to print photo stickers. When printing on sticker paper,

see “Layout Setting” below.

zLayout Setting

Various layout options are available.

zBordered/Borderless: You can select whether or not to print an image with a

border.

zWhen printing onto Photo Stickers (PS-101) (16-up), use the following

settings.

(1) Select 10x15cm/4"x6" for the Paper size, and Photo for the Paper

type.

(2) Select N-up for the Layout, then select 16.

Even though some PictBridge compliant devices display the Layout

option; 2-up, 4-up, 9-up, and 16-up, always select 16-up. If there are no

options on the PictBridge compliant device that correspond to 16-up,

printing on Photo Stickers (PS-101) is not possible.

zShooting Info (Exif Data): You can print shooting info (Exif Data) in the margin

of selected individual images.

Note

zIn the following description, names of setting items are given according to those

used in Canon-brand PictBridge compliant devices. Setting item names may be

different depending on the brand or model of your device.

zSome setting items explained below may not be available on some devices. In this

case, the settings made on the printer are applied. Also, when some items are set

to Default on a PictBridge compliant device, the printer settings for these items

are applied. For details, see “Settings on the Printer” on page 23.

Paper type setting Loadable paper*2

Photo Photo Paper Plus Glossy

Glossy Photo Paper

Glossy Photo Paper “Everyday Use”

Photo Paper Glossy

Photo Paper Plus Semi-gloss

Photo Stickers*3

Fast Photo Photo Paper Pro

23Printing Photographs Directly from a Compliant Device

zDate/File No. Print Setting

You can specify whether the date and/or file number will be printed.

zImage Optimize Setting

You can select the optimization method to obtain high print quality. When you

select Default, the most suitable correction for each photo is made using the

Auto image fix function of the printer. See “Setting on the Printer” on right

column.

When you select On, photos are optimized for printing using the Photo opt. pro

function.

If you are using a Canon-brand PictBridge compliant device, the following

additional options may be available, depending on the model.

zVIVID makes green and blue more lively.

zNR (Noise Reduction) reduces the noise on blue areas like the sky as well as

on black areas.

zFace brightens a darkened face on the photo taken against the light.

zRed-Eye corrects red eyes in portraits caused by flash photography.

zTrimming Setting

You can select an area to print.

 Settings on the Printer

This section describes how to change the print settings on the printer.

Set the print settings to Default on the PictBridge compliant device when you

want to print according to the settings on the printer.

zDisplaying the PictBridge Settings Screen and Specifying

the Settings:

1Turn on the printer.

See “Turning On the Printer” on page 6.

2Display the PictBridge settings screen.

(1) Select Settings on the HOME screen, then press the OK button.

(2) Select Device settings, then press the OK button.

(3) Select PictBridge settings, then press the OK button.

3Confirm and change the settings.

(1) Select the item to set, then press the OK button.

(2) Select the item, then press the OK button.

(3) Confirm the print settings, select Next, then press the OK button.

(4) Select Auto image fix ON or Manual correction, then press the OK

button.

When Auto image fix ON is selected, the scene or person’s face of a

shot photo is recognized and the most suitable correction for each photo

is made automatically. It makes a darkened face by backlight brighter to

print. It also analyzes a scene such as scenery, night scene, person, etc.

and corrects each scene with the most suitable color, brightness, or

contrasts automatically to print.

When Manual correction is selected, you can make each effect setting

described in “Setting Items” on page 24. Repeat steps (1) and (2) and

then specify each item. After finishing all settings you need, select OK

and then press the OK button. You can print from the PictBridge

compliant device with specified settings.

Note

zIf the images already have dates superimposed when shot, set this PictBridge

setting item to Off. If you select Date, File No., or Both, the date and/or file

number will be printed over the date printed by the device’s function.

zDepending on the paper size and layout, the date will only be printed even

when Both is selected.

24 Printing Photographs Directly from a Compliant Device

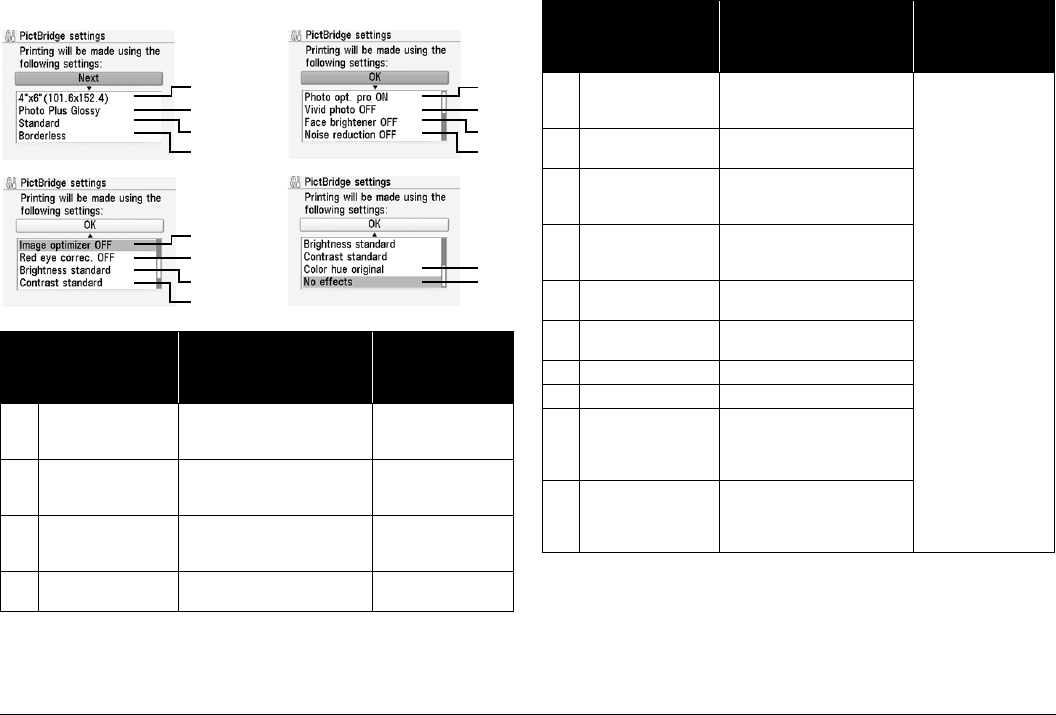

zSetting Items

* Set the items in this column to Default on the PictBridge compliant device when

you want to make settings on the printer.

Setting Item Description Corresponding

Setting of

PictBridge

Compliant Devices*

(1) Page size Select the page size, when

printing directly from a

PictBridge compliant device.

Paper size

(2) Media type Select the media type, when

printing directly from a

PictBridge compliant device.

Paper type

(3) Print quality Select the print quality, when

printing directly from a

PictBridge compliant device.

–

(4) Borderless print Select bordered or borderless

print.

Layout

(9)

(10)

(11)

(12)

(13)

(14)

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(5) Photo opt. pro Automatically optimizes

brightness and tone of a

photo.

Image optimize

(6) Vivid photo Makes green and blue more

lively.

(7) Face brightener Brightens a darkened face on

the photo taken against the

light.

(8) Noise reduction Reduces the noise on blue

areas like the sky as well as

on black areas.

(9) Image optimizer Corrects and smooths the

jagged contours for printing.

(10) Red eye correc. Corrects red eyes in portraits

caused by flash photography.

(11) Brightness Adjust brightness.

(12) Contrast Adjust contrast.

(13) Color hue Adjust color hue. For

example, you can increase

red or yellow to adjust the skin

tone.

(14) Effects Applies special effects to the

photo, such as printing in

sepia tones or with a sketch

illustration like effect.

Setting Item Description Corresponding

Setting of

PictBridge

Compliant Devices*

25Printing Photographs from a Wireless Communication Device

Printing Photographs from a Wireless

Communication Device

If you have a mobile phone or a PDA with an infrared port for wireless data

transmission, you can print photos through wireless connection with the printer. If

the optional Bluetooth unit BU-20 is connected to the printer, you can also print

photos through Bluetooth communication.

When printing photos through Infrared Communication:

zSee “Setting the Page Size, Media Type, and Layout When Printing from a

Mobile Phone or a PDA” below.

zSee “Printing via Infrared Communication” on page 26.

When printing photos through Bluetooth Communication:

Refer to the User’s Guide on-screen manual.

Setting the Page Size, Media Type, and Layout

When Printing from a Mobile Phone or a PDA

When printing from a mobile phone or PDA through Infrared communication or

Bluetooth communication, you can select the page size, media type, layout and

borderless printing on the Wireless print settings screen.

The default is borderless printing on 4" x 6" Photo Paper Plus Glossy.

Displaying the Wireless Print Settings Screen and

Specifying the Settings

1Turn on the printer.

See “Turning On/Off the Printer” on page 6.

2Display the Wireless print settings screen.

(1) Select Settings on the HOME screen, then press the OK button.

(2) Select Device settings, then press the OK button.

(3) Select Wireless print settings, then press the OK button.

The Wireless print settings screen is displayed.

3Confirm or change the settings.

(1) Select the item to set, then press the OK button.

(2) Change the setting, then press the OK button.

(3) After finishing all settings you need, select OK and then press the OK

button.

The photo in the mobile phone or PDA can be printed according to the

following settings.

Setting Items

(1) Select the page size for printing photos saved on a mobile phone or PDA.

(2) Select the media type for printing photos saved on a mobile phone or

PDA.

(3) Select Image optimizer ON to correct and smooth out the jagged

contours when printing.

(4) Select the layout of the photos as below.

Sticker print:

Stickers x 16

Printing on paper other than sticker:

Bordered x 1, x 2, x 4, x 8

Borderless x 1, x 2, x 4, x 8

Important

To perform printing correctly from a mobile phone or PDA through Infrared

communication, the following conditions should be satisfied.

– Compatible devices: A mobile phone or PDA with an IrDA port that supports image

data transmission through Infrared communication.

– Printable data: Images shot with a camera of the mobile phone or PDA.

(1)

(2)

(3)

(4)

26 Printing Photographs from a Wireless Communication Device

Printing via Infrared Communication

You can print photos stored in your mobile phone or PDA via infrared

communication.

When printing through infrared communication, also refer to the instruction manual

of your mobile phone or PDA.

1Prepare for printing.

(1) Turn on the printer.

See “Turning On/Off the Printer” on page 6.

(2) Load paper.

See “Loading Printing Paper” on page 8.

2Set the print setting and layout.

See “Setting the Page Size, Media Type, and Layout When Printing from a

Mobile Phone or a PDA” on page 25.

3Start Infrared Communication.

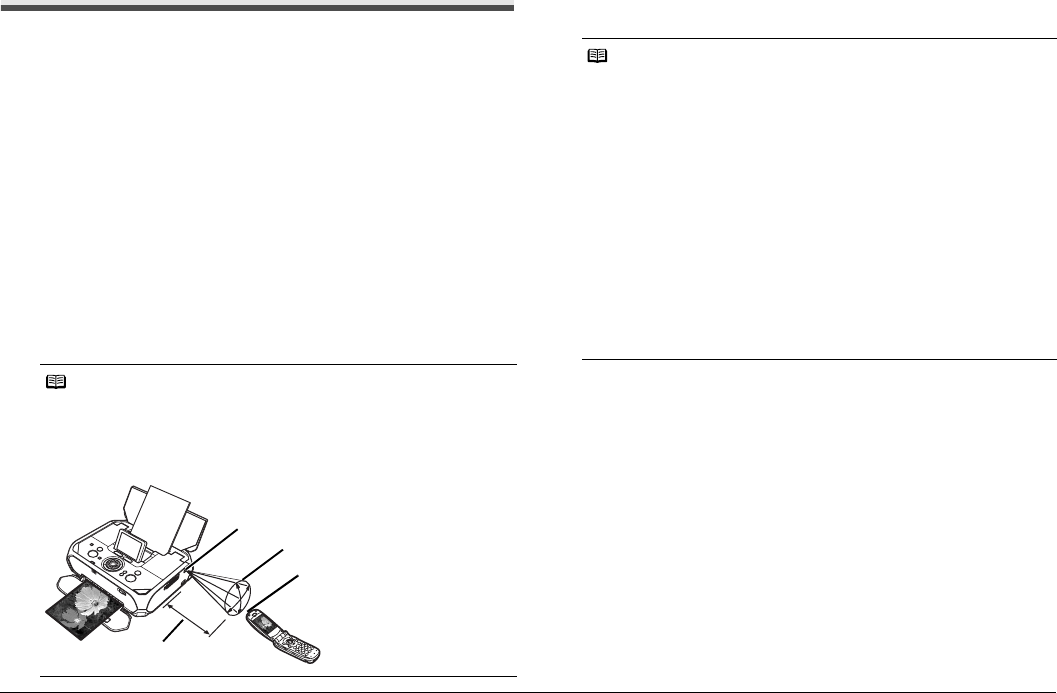

(1) Place the mobile phone or PDA so that its infrared port (A) comes face to

face to that of the printer (B) at a distance of less than approximately 8

inches / 20 cm (C).

(2) Select the photo to print and send the data to the printer using the

infrared communication function of the mobile phone or PDA.

Printing will start after receiving all data.

Note

zThe effective angle of the IrDA Port of the printer is about 10 degrees from the

central axis (D) in both vertical and horizontal directions.

zThe effective range of communication with the printer depends on the mobile

phone or PDA you are using. For details, refer the manual of your mobile phone

or PDA.

(B) IrDA Port of the printer

(C)

(D)

(A) Infrared Port

Note

zDo not place any obstacle between the infrared ports of the printer and mobile

phone or PDA it will block data transmission.

zDuring printing, be careful not to interrupt infrared communication with the

printer. If it is interrupted, send the data from the mobile phone or PDA again.

zDepending on your device, the print quality may be degraded due to the

restriction on the infrared transfer capacity.

zWe recommend printing on sticker or credit card-sized paper when the print

quality on other types of paper is not fine.

About transmittable data

zDue to security settings on the mobile phone or PDA, downloaded content or

photos downloaded from an URL attached to an E-mail cannot be printed.

zVideo files cannot be printed.

zDepending on the size of a photo, it may take a while for this printer to start to

print after starting the infrared communication.

zDepending on your device, data saved on a memory card may not be printed.

zPrinted quality and orientation (portrait or landscape) are determined

automatically according to the shot photo size.

zDepending on the photo size shot on the mobile phone, the edges of the image

may be cut off when performing borderless printing; the margin size may

change when printing with borders.

zIf the photo file is over 1.8 MB in size, it may not be possible to send the file.

27Routine Maintenance

Routine Maintenance

When Printing Becomes Faint or Colors Are

Incorrect

When printing becomes faint or colors are incorrect, the ink may have run out, or

the Print Head Nozzles are probably clogged. Follow the procedures below to clean

the nozzles.

If Print Head Deep Cleaning does not resolve the problem, the Print Head may be

damaged. Contact your Canon Service representative.

Printing the Nozzle Check Pattern

Print the nozzle check pattern to determine whether the ink ejects properly from

the Print Head Nozzles.

1Prepare for printing.

(1) Turn on the printer.

See “Turning On/Off the Printer” on page 6.

(2) Load one sheet of Canon genuine 4" x 6" / 101.6 x 152.4 mm paper or

Canon genuine 5" x 7" / 127.0 x 177.8 mm paper in the Rear Tray. See

“Loading Printing Paper” on page 8.

(3) Make sure that the Paper Thickness Lever is set to the right.

2Print the Nozzle Check Pattern.

(1) Select Settings on the Home screen, then press the OK button.

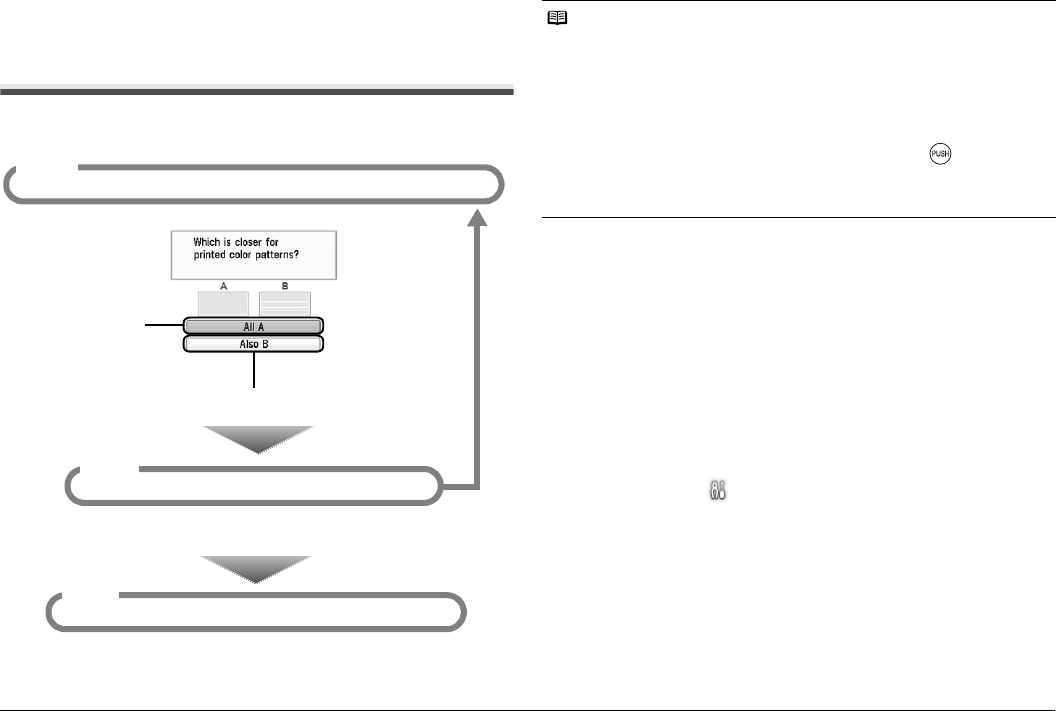

“Printing the Nozzle Check Pattern” on right column

Step 1

“Print Head Cleaning” on page 28

Step 2

If the problem remains after performing Print Head Cleaning twice.

“Print Head Deep Cleaning” on page 29

Step 3

If the pattern is printed

normally, select All A.

If the print quality is poor, perform Print Head Cleaning.

After Print Head

Cleaning,

print the nozzle

check pattern.

Note

Before performing maintenance

zOpen the Printer Cover and make sure that the ink lamp is lit red.

– If the ink lamp is flashing slowly, the ink tank is running low. If the printing is blurred,

replace the ink tank. See “Replacing an Ink Tank” on page 30.

If the printing is not blurred, you can continue printing for a while, but the printer may

not be able to print properly along the way. We recommend you to have a

replacement ink tank available.

– If the ink lamp is flashing fast, the ink tank is empty. Replace the ink tank.

See “Replacing an Ink Tank” on page 30.

– If the ink lamp is not lit, the tank is not set properly. Press the mark on the ink

tank until the tank clicks into place.

zIf the print result is not your expected one, for instance, the printed photo is rough,

performing the Print Head Alignment may resolve the problem.

See “Aligning the Print Head” on page 29.

28 Routine Maintenance

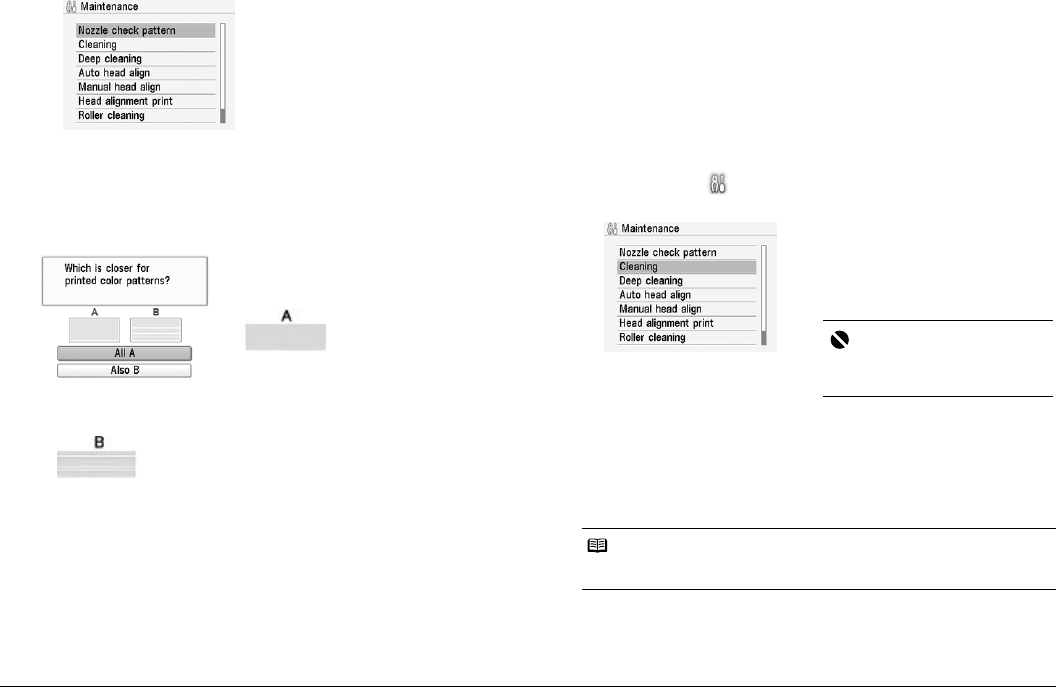

(2) Select Maintenance, then press the OK button.

(4) Select Yes, then press the OK button.

The nozzle check pattern is printed and the confirmation screen of

patterns is displayed.

3Examining the nozzle check pattern.

zWhen there is more than one white stripe on the print check patterns:

Select

Also B

, then press the

OK

button

The confirmation screen of Cleaning is displayed.

Select Yes to start the cleaning.

See “Print Head Cleaning” on right column.

Print Head Cleaning

Clean the Print Head if white streaks appear in the printed nozzle check pattern.

Cleaning unclogs the nozzles and restores the print head condition. Note that

cleaning the Print Head causes used ink to be absorbed in the ink absorber.

Cleaning the Print Head consumes ink, so perform Print Head Cleaning only

when necessary.

1Prepare for printing.

Turn on the printer.

See “Turning On/Off the Printer” on page 6.

2Start Print Head Cleaning.

(1) Select Settings on the Home screen, then press the OK button.

(2) Select Maintenance, then press the OK button.

3Print the nozzle check pattern to verify that the Print Head Nozzles

are clean.

When Print Head Cleaning finishes, the confirmation message is displayed.

Select Yes to print the Nozzle Check Pattern, and verify the Print Head

Nozzles.

See “Printing the Nozzle Check Pattern” on page 27.

(3) Select Nozzle check pattern, then

press the OK button.

The confirmation screen of Nozzle

check pattern is displayed.

zWhen all print check patterns are

successfully printed:

Select All A, then press the OK button.

When no white stripes appear

When white stripes appear

Note

If the problem remains after performing Print Head Cleaning twice, try Print Head

Deep Cleaning.

(3) Select Cleaning, then press the OK

button.

(4) Select Yes, then press the OK

button.

Print Head Cleaning starts.

Important

Do not perform any other operations

until the Print Head Cleaning finishes.

This takes about 1 minute.

29Routine Maintenance

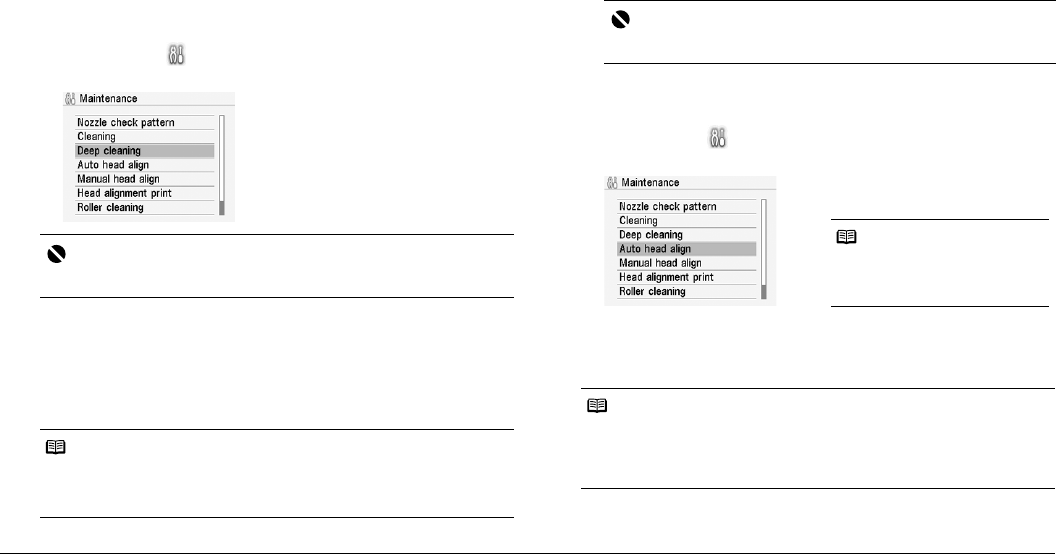

Print Head Deep Cleaning

If print quality does not improve by standard Print Head Cleaning, try Print Head

Deep Cleaning, which is a more powerful process. Note that cleaning the Print

Head causes used ink to be absorbed in the ink absorber. Print Head Deep

Cleaning consumes more ink than standard Print Head Cleaning, so perform

this procedure only when necessary.

1Prepare for printing.

Turn on the printer.

See “Turning On/Off the Printer” on page 6.

2Start Print Head Deep Cleaning.

(1) Select Settings on the Home screen, then press the OK button.

(2) Select Maintenance, then press the OK button.

3Print the nozzle check pattern to verify that the Print Head Nozzles

are clean.

When Print Head Deep Cleaning finishes, the confirmation message is

displayed. Select Yes to print the Nozzle Check Pattern, and verify the Print

Head Nozzles.

See “Printing the Nozzle Check Pattern” on page 27.

Aligning the Print Head

If print quality is poor, adjust the Print Head position. It may solve the problem.

1Prepare for printing.

(1) Turn on the printer.

See “Turning On/Off the Printer” on page 6.

(2) Load one sheet of the supplied 5" x 7" / 127.0 x 177.8 mm paper or

same-sized Canon genuine paper in the Rear Tray.

(3) Make sure that the Paper Thickness Lever is set to the right.

2Adjust the print head position.

(1) Select Settings on the Home screen, then press the OK button.

(2) Select Maintenance, then press the OK button.

(4) Select Yes, then press the OK button.

The pattern is printed and the Print Head is aligned automatically. This

takes about 3 minutes.

Important

Do not perform any other operations until the Print Head Deep Cleaning finishes.

This takes about 90 seconds.

Note

If the print head nozzles are still not clean, turn off the printer and perform another

Print Head Deep Cleaning after 24 hours.

If this does not resolve the problem, the Print Head may be damaged. Contact

your Canon service representative.

(3) Select Deep cleaning, then press

the OK button.

(4) Select Yes, then press the OK

button.

Print Head Deep Cleaning starts.

Important

Be sure to use the following paper.

Photo Paper Plus Glossy (PP-101) 5" x 7" / 127.0 x 177.8 mm

Note

zThe print head alignment pattern is printed in black and blue.

zIf adjustment was not done successfully, the “Auto head align has failed. Press

the OK button and repeat operation. <See manual>.” error message is

displayed on the LCD. For details, see “Error Message Is Displayed on the

LCD” on page 35.

(3) Select Auto head align, then press

the OK button.

Note

If you select Head alignment print,

the printer exits the process after

printing the current adjustment

values.

30 Routine Maintenance

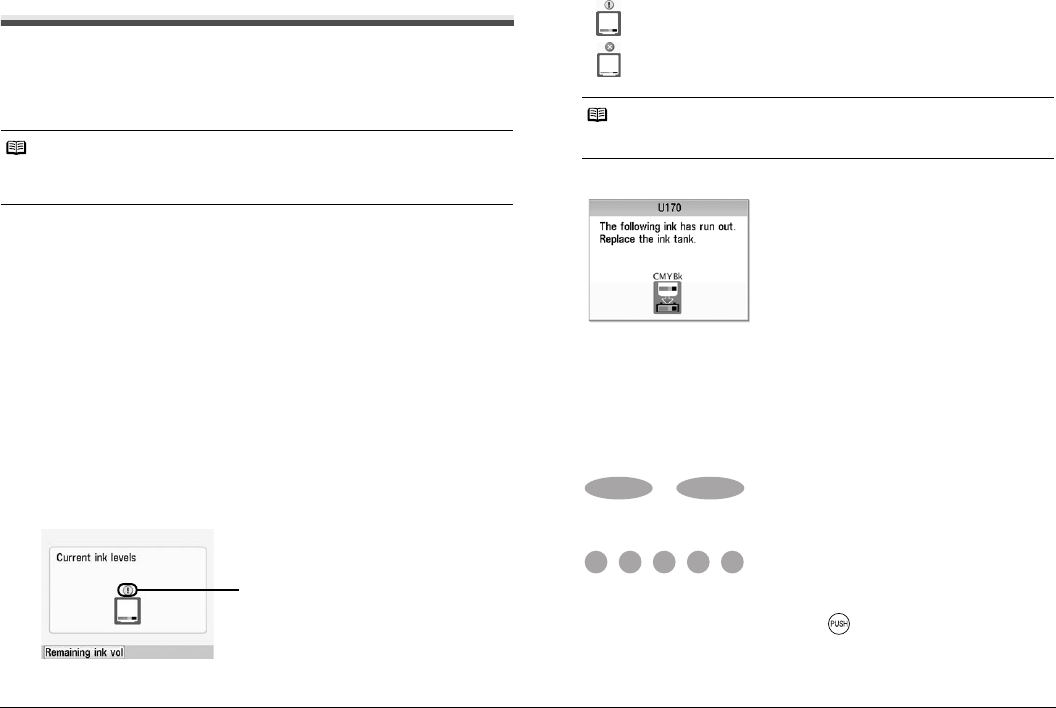

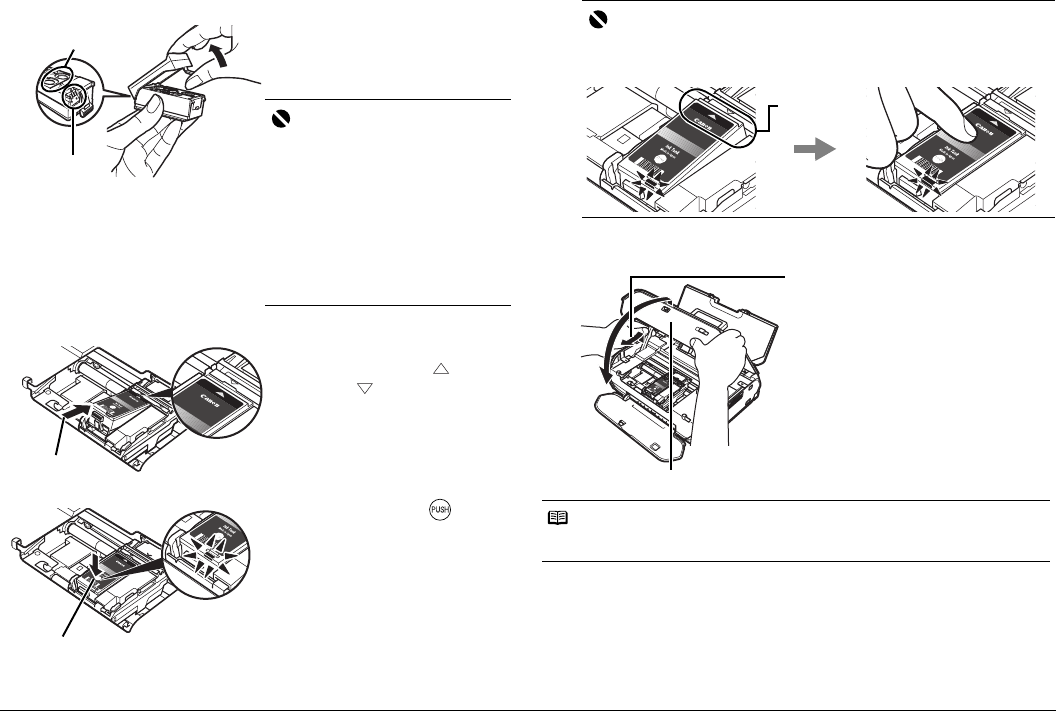

Replacing an Ink Tank

This section explains the way to confirm the ink status and the procedure to replace

an ink tank.

When ink runs out or other errors occur, an error message is displayed on the LCD

to inform you of the error. See “Error Message Is Displayed on the LCD” on page 35

and confirm how to handle it.

Getting the Ink Status Information

You can confirm the status of the ink tank in the following ways:

z“With the LCD of this Printer” below.

z“With the Ink Lamp” on right column.

When printing from your computer, error messages appear on your computer

screen as well.

zWith the LCD of this Printer

You can confirm the status of the ink tank in the remaining ink volume screen on

the LCD.

1Make sure that the printer is turned on, then press the HOME

button.

The HOME screen is displayed.

2Press the left Function button.

The screen as shown below will be displayed.

An error message may appear on the LCD during printing.

zWith the Ink Lamp

You can confirm the status of the ink tank by the ink lamp. Open the Printer

Cover of the printer to confirm how the ink lamp lights or flashes.

zInk lamp is on

The ink tank is correctly set and there is enough ink remaining to print.

zInk lamp is flashing

Flashing slowly (at around 3-second intervals)

......Repeats

Ink is low. You can continue printing for a while, but we recommend you to

have a new ink tank available.

Flashing quickly (at around 1-second intervals)

......Repeats

The ink tank is empty. Replace it with a new one.

zInk lamp is off

The tank is not set properly. Press the mark on the ink tank until the

tank clicks into place.

If the lamp is still off after reinserting the ink tank, there has been an error

and the printer cannot print.

Note

zFor information on the compatible ink tank, refer to the back cover of this manual.

zIf printing becomes faint or white streaks appear despite sufficient ink levels, see

“When Printing Becomes Faint or Colors Are Incorrect” on page 27.

Confirm whether any symbols are

displayed here.

Ink is low. You can continue printing for a while, but we

recommend you to have a new ink tank available.

Ink may have run out. See “The following ink may have run

out. Replacing the ink tank is recommended. U041” on

page 35 and take the appropriate action.

Note

The ink status information is also displayed in the screen that appears during

printing.

Ink has run out. See “The following ink

has run out. Replace the ink tank. U170”

on page 36 and take the appropriate

action.

31Routine Maintenance

Replacing an Ink Tank

1Make sure that the printer is turned on.

2Open the Printer Cover.

3Remove the empty ink tank.

Important

Handling Ink

zTo maintain optimal printing quality, we recommend the use of specified Canon

genuine ink tank.

Refilling ink is not recommended.

zOnce you remove an ink tank, replace it immediately. Do not leave the printer

with an ink tank removed.

zReplace an empty tank with a new one. Inserting a partially used ink tank may

cause the nozzles to clog. Furthermore, with such a tank, the printer will not be

able to inform you when to replace the tank properly.

zOnce an ink tank has been installed, do not remove it from the printer and

leave it out in the open.

This will cause the ink tank to dry out, and the printer may not operate properly

when it is reinstalled. To maintain optimal printing quality, use an ink tank within

six months of first use.

zColor ink is consumed in Print Head Cleaning and Print Head Deep Cleaning,

which may be necessary to maintain the printer's performance. When an ink

tank is out of ink, replace it immediately with a new one.

(1) Slide the Lock Switch

toward the right to

open the Printer

Cover.

The Print Head

Holder moves to the

center.

Important

If the Printer Cover is left open

for more than 10 minutes, the

Print Head Holder moves to the

right. Close and reopen the

Printer Cover to return the

holder to the center.

(1) Push the tab. (2) Remove the ink tank.

Important

zHandle ink tank carefully to avoid staining clothing or the surrounding area.

zDiscard empty ink tank according to the local laws and regulations

regarding disposal of consumables.

32 Routine Maintenance

4Prepare a replacement ink tank.

5Insert the ink tank.

6Close the Printer Cover.

(1) Unpack a new ink tank and remove

the orange protective cap.

Discard the cap once it is removed.

Important

zDo not touch the electrical contacts (A)

on the ink tank. Doing so can cause the

printer to malfunction or become

unable to print.

zDo not re-attach the protective cap

once you have removed it. Discard it

according to the local laws and

regulations regarding disposal of

consumables.

zDo not touch the open ink ports (B)

once the protective cap is removed, as

this may prevent the ink from being

ejected properly.

(A)

(B)

(1) Insert the new ink tank slightly

slanted to meet the on the ink

tank to on the printer.

(1)

(2) Push down on the mark on

the ink tank until it clicks into

place.

Ensure that the ink lamp is lit

red.

(2)

Important

If the front (innermost) part of the ink tank (A) is sticking up, push down on

the Canon logo on the ink tank as illustrated below. Do not remove the ink

tank forcibly.

Note

When you start printing after replacing the ink tank, Print Head Cleaning is performed

automatically. Do not perform any other operations until Print Head Cleaning finishes.

(A)

(1) Lift the Printer Cover and pull the

Lock Bar close.

(2) Close the Printer Cover firmly

until it clicks into place.

(2)

(1)

33Changing the Printer Settings

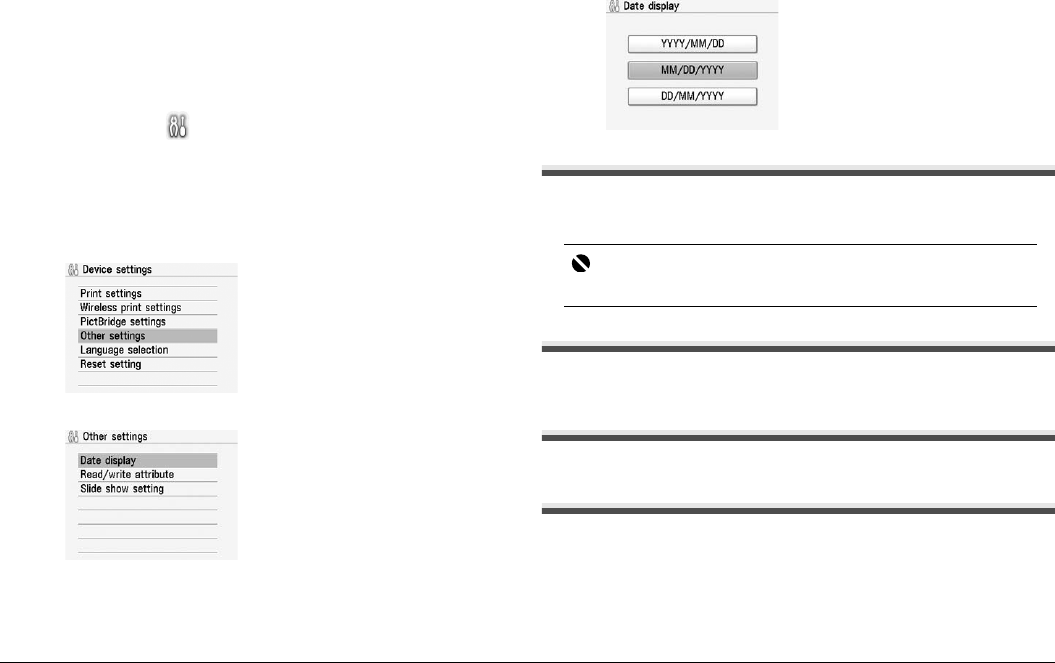

Changing the Printer Settings

This section describes the procedure to change the settings in the Device settings

screen, taking the steps to specify Date display as an example.

1Make sure that the printer is turned on, then press the HOME

button.

The HOME screen is displayed.

2Display the Device settings screen.

(1) Select Settings on the Home screen, then press the OK button.

(2) Select Device settings, then press the OK button.

The Device settings screen is displayed.

3Select the menu.

(1) Select the setting item, then press the OK button.

The setting screen for the selected item is displayed.

(2) Select the menu, then press the OK button.

4Change the settings.

(1) Select the setting item, then press the OK button.

Print settings

Ink drying wait time

Use this setting only if the print surface becomes smudged.

Wireless print settings

For details, see “Setting the Page Size, Media Type, and Layout When Printing

from a Mobile Phone or a PDA” on page 25.

Bluetooth settings

For details, refer to the User’s Guide on-screen manual.

PictBridge settings

For details, see “Settings on the Printer” on page 23.

Important

Be sure to set this back to Standard after printing since it takes longer than usual

for one printing.

34 Changing the Printer Settings

Other settings

Date display

Changes the display format of shooting dates when printed.

Read/write attribute

Selects whether to allow data to be written onto memory cards from a computer.

Slide show setting

Selects Image quality: Standard or Image quality: High for the image display

quality of the slide show.

Language selection

Changes the language for LCD messages and menus.

Reset setting

You can change the settings back to the default, except for the LCD language and

the position of the Print Head.

Note

zWhen Date ON is selected on the advanced print settings screen, the shooting

date is printed in the date display format you selected. For print setting, see

“Advanced Print Settings Screen” on page 15.

zThe shooting date format is as specified in the DPOF setting from DPOF

printing.

Important

zRemove the memory card before changing this setting. For details, refer to the

User’s Guide on-screen manual.

zWhen you write the data on the memory card, connect the printer with the AC

adapter. The printer cannot be set to the Read/write mode with using the

optional battery. The printer can be set to the Read/write mode when using

both the AC adapter and optional battery, but do not remove the AC adapter

when you write the data on the memory card.

zIf you set this setting to Read/write mode, card direct printing cannot be done.

After you finish operation of the memory card dedicated drive, be sure to set it

back to Read-only mode. And also, when you turn off the printer, the Read/

write mode will be canceled and the setting is returned to the Read-only

mode when you turn on the printer next time.

Note

When Image quality: High is selected, it may take time until images are

displayed.

35Troubleshooting

Troubleshooting

This section describes troubleshooting tips for problems you may encounter when

using the printer.

z“Error Message Is Displayed on the LCD” on page 35

z“LCD Cannot Be Seen At All” on page 38

z“An Unintended Language Is Displayed on the LCD” on page 38

z“Cannot Install the Printer Driver” on page 39

z“Cannot Connect to Computer Properly” on page 40

z“Print Results Not Satisfactory” on page 40

z“Printer Does Not Start” on page 43

z“Paper Does Not Feed Properly” on page 43

z“Paper Jam” on page 43

z“The Power Lamp (blue) and Alarm Lamp (orange) Flash Alternately” on page 44

z“Error Message Appears on a PictBridge Compliant Device” on page 44

z“Cannot Remove a Memory Card” on page 46

z“Cannot Print Properly through Wireless Communication” on page 46

Error Message Is Displayed on the LCD

Note

This section mainly describes the methods of printer operation for troubleshooting. To

handle problems using your computer, refer to “Troubleshooting” in the User’s Guide on-

screen manual. For details on how to view the on-screen manuals, “Reading the On-

screen Manuals” on page 47.

Cause Action

The following ink may

have run out.

Replacing the ink tank is

recommended.

U041

If the lamp on the ink tank is flashing, ink may have

run out.

Replacing the ink tank is recommended.

If printing is in progress and you want to continue

printing, press the OK button with the ink tank

installed. Then printing can continue. Replacing the

ink tank is recommended after the printing. The

printer may be damaged if printing is continued under

the ink out condition.

See “Replacing an Ink Tank” on page 30.

The print head lock lever

is not properly applied.

Open the cover and press

the lock buttons on both

ends of the lever.

z

The lock lever of the Print Head is not set properly

(there are two tabs of the lock lever). Push both tabs

(left and right) until each clicks into place.

z

The ink tank is not set properly. Push the ink tank until

it clicks into place.

The following ink tank

cannot be recognized.

U043

The ink tank is not set properly. Push the ink tank

until it clicks into place and ensure that the ink lamp is

lit red.

Print head is not installed.

Install the print head.

U051

The type of print head is

incorrect.

Install the correct print

head.

U052

Remove the Print Head and then reinstall it. If the

error is not resolved, the Print Head may be

damaged. Contact your Canon Service

representative.

The following ink tank

cannot be recognized.

U140

U150

z

The ink tank is not compatible with this printer. (The

lamp on the ink tank is off.)

Install an appropriate ink tank.

See “Replacing an Ink Tank” on page 30.

z

An Ink tank error has occurred. (The lamp on the ink

tank is off.) Replace the ink tank.

See “Replacing an Ink Tank” on page 30.

Cause Action

36 Troubleshooting

The following ink has run

out.

Replace the ink tank.

U170

Ink has run out. (The lamp on the ink tank flashes.)

Replace the ink tank and close the Printer Cover.

Printing under the current condition may damage the

printer.

If you want to continue printing in this condition, you

need to release the function for detecting the

remaining ink level. Press and hold the Stop/Reset

button for at least 5 seconds, and then release it.

* With this operation, releasing the function for

detecting the remaining ink level is memorized.

Please be advised that Canon shall not be liable for

any malfunction or trouble which may be caused by

continuation of printing under the ink out condition.

See “Replacing an Ink Tank” on page 30.

Note

If the function for detecting the remaining ink level is

disabled, the ink tank in gray is displayed in the remaining

ink volume screen on the LCD. See “Getting the Ink

Status Information” on page 30.

Printer detected ink out

condition of the following

ink.

Replace the ink tank.

U180

Printer detected ink out condition. (The lamp on the

ink tank flashes.)

Replace the ink tank and close the Printer Cover.

Printing with an ink tank that was once empty may

damage the printer.

If you want to continue printing in this condition, you

need to release the function for detecting the

remaining ink level. Press and hold the Stop/Reset

button for at least 5 seconds, and then release it.

* With this operation, releasing the function for

detecting the remaining ink level is memorized.

Please be advised that Canon shall not be liable for

any malfunction or trouble caused by continuation of

printing under the ink out condition or refilled ink tank.

See “Replacing an Ink Tank” on page 30.

Note

If the function for detecting the remaining ink level is

disabled, the ink tank in gray is displayed in the remaining

ink volume screen on the LCD. See “Getting the Ink

Status Information” on page 30.

Cause Action

There are no photos in

memory card.

z

There are no image data saved on the memory card

that can be read by this printer.

z

The printer may not recognize the file if the file name

or the folder path contains certain characters. Use only

alphanumeric characters.

z

Photo data edited or processed on a computer must

be printed from the computer.

The ink absorber is

almost full. Press [OK] to

continue printing. Contact

the service center.

The printer has a built-in ink absorber to hold the ink

used during Print Head Cleaning, for example.

This error message indicates that the ink absorber is

nearly full.

Press the OK button to cancel the error so you can

continue printing.

However, because printing is disabled once the ink

absorber becomes completely full and until the ink

absorber is replaced, you are recommended to

contact your Canon service representative as early

as possible (You will need to replace a particular part

of the printer).

The device may be

incompatible.

Remove the device and

check the manual

supplied with the

connected device.

z

A communication time out occurs if an operation takes

too long or if it takes too much time to send data. This

may cancel printing. In such cases, disconnect and

reconnect the USB cable.

When printing from a PictBridge compliant device,

depending on the model or brand of your device, you

may have to select a PictBridge compliant print mode

on the device before connecting it to the printer.

You may also have to turn on your device or select

Play mode manually after connecting the device to the

printer. Perform necessary operations before

connecting your device referring to its instruction

manual.

If the error is still not resolved, check if you can print

another photograph.

z

Check your device connected to the printer. Only

PictBridge compliant devices or the optional Bluetooth

Unit BU-20 can be connected to the printer for direct

printing.

Cause Action

37Troubleshooting

Printer error has

occurred.

Turn off power then back

on again. If problem

persists, see the manual.

Follow the procedure below to resolve the problem.

(1) Turn off the printer, and unplug the power cord of

the printer from the power supply.

If you are attaching the optional battery, remove it

once.

(2) After a while, plug the power cord of the printer

back in, and then turn on the printer.

If the same error occurs, make sure that the ink tank

is set properly.

If the ink tank is not set properly, do not remove it

forcibly. See Step 5 of “Replacing an Ink Tank” on

page 30 and set the ink tank properly. After that,

perform the steps (1) and (2) above once again.

No battery.

Turn printer off and use

the AC adapter or install a

charged battery.

The optional battery is running low.

(1) Turn off the printer.

(2) Connect the supplied AC adapter or attach the

charged battery, then turn on the printer.

For details on how to charge the battery, refer to the

manual supplied with the battery.

The card is currently

write-enabled.

Set to read-only mode

before performing

operation.

The Card Slot is set to Read/write mode.

You cannot print in this mode. After writing on the

memory card, set to Read-only mode again.

An unsupported USB hub

is connected.

Remove the hub.

If a PictBridge compliant device is connected via a

USB hub, remove the hub and connect it directly to

the printer.

Cause Action

Caution

If you cannot confirm that the ink tank is set

properly since the Print Head Holder moves to the

right, contact your Canon service representative.

Auto head align has

failed.

Press [OK] and repeat

operation. <See manual>

Possible causes are as follows:

z

Paper of size other than 5" x 7" / 127.0 x 177.8 mm is

loaded in the Rear Tray.

Press the

OK

button on the printer to dismiss the

error message, then load one sheet of the supplied 5"

x 7" / 127.0 x 177.8 mm paper or same-sized Canon

genuine paper* in the Rear Tray.

z

Paper is not loaded in the Rear Tray.

Press the

OK

button on the printer to dismiss the

error message, and then load paper in the Rear Tray.

z

Paper is loaded with the wrong side facing upwards.

Press the

OK

button on the printer to dismiss the

error message, then load one sheet of the supplied 5"

x 7" / 127.0 x 177.8 mm paper or same-sized Canon

genuine paper* with printing side up in the Rear Tray.

z

The Paper Guide is not touching the edge of paper.

If the Paper Guide is not touching the edge of paper,

the paper at a slant passes through inside the printer

and the Auto Head Alignment may be failed.

Press the

OK

button on the printer to dismiss the

error message, then load one sheet of the supplied 5"

x 7" / 127.0 x 177.8 mm paper or same-sized Canon

genuine paper* in the Rear Tray.

* Use the following paper.

Photo Paper Plus Glossy PP-101

z

Print Head nozzles are clogged.

Press the

OK

button on the printer to dismiss the

error message, and print the nozzle check pattern to

check the status of the Print Head. To print the nozzle

check pattern, see “Printing the Nozzle Check

Pattern” on page 27.

z

The Paper Output Slot is exposed to strong light.

Press the

OK

button on the printer to dismiss the

error message, and then adjust your operating

environment and/or the position of the printer so that

the Paper Output Slot is not exposed directly to

strong light.

After carrying out the above measures, if the problem

continues after aligning the Print Head again, press

the OK button to dismiss the error message, and

then perform Manual Print Head Alignment.

Cause Action

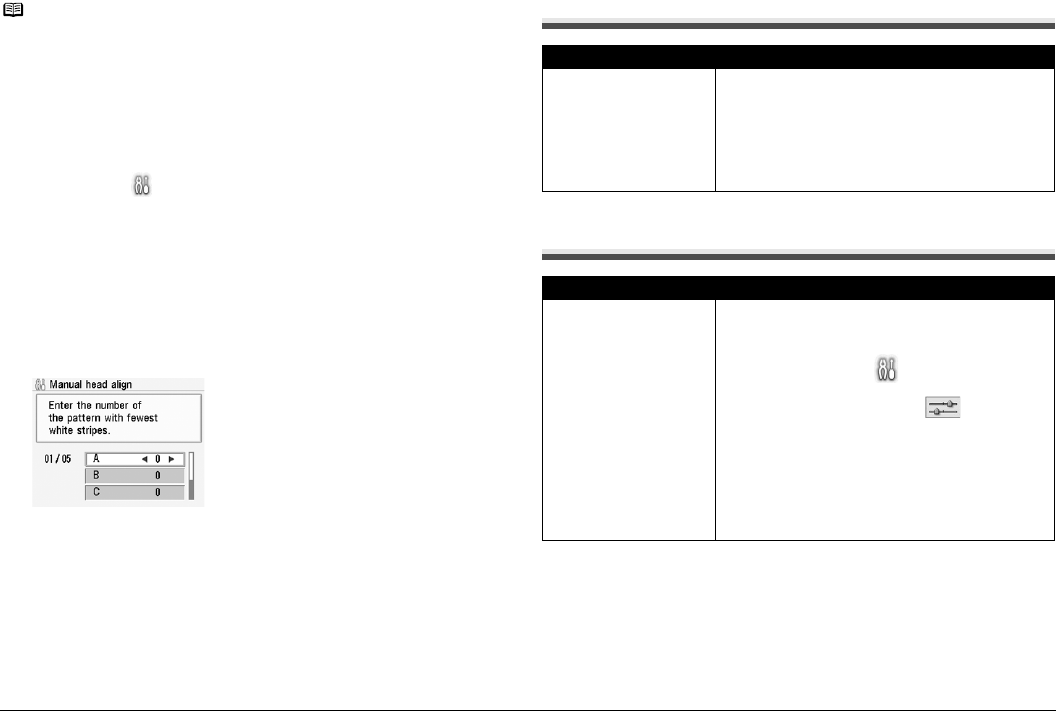

38 Troubleshooting

Note

Adjusting the Print Head Manually

If the Automatic Print Head Alignment does not work or if you wish to adjust the print head

manually, follow the procedure below.

1. Turn on the printer, and then load three sheets of Canon genuine 4" x 6" /

101.6 x 152.4 mm paper in the Rear Tray.

You can also load Canon genuine

5" x 7" / 127.0 x 177.8 mm

paper to perform

Manual Print Head Alignment.

* Slide the Paper Guide against the left side of the paper stack.

* Use the Canon genuine 4" x 6" / 101.6 x 152.4 mm paper or Canon genuine 5" x 7"

/ 127.0 x 177.8 mm paper.

2. Select Settings on the Home screen, then press the OK button.

3. Select Maintenance, then press the OK button.

4. Select Manual head align, then press the OK button.

5. Select Yes, then press the OK button.

The Print Head Alignment pattern is printed.

The pattern is printed in black and blue only.

6. When “Did the patterns print correctly?” is displayed, confirm that the

pattern is printed correctly, then select Yes, and then press the OK button.

7. Check the printed patterns and use the [ or ] to input the number of the

pattern in columns A to E that has the least noticeable streaks, then press the

OK button.

8. Make sure that the paper is loaded, then press the OK button.

The second Print Head alignment pattern is printed.

9. In the same way, select the best patterns for columns F to H, then press the

OK button.

10.In the same way, print the third sheet and select the best patterns for columns

I to N, then press the OK button.

LCD Cannot Be Seen At All

An Unintended Language Is Displayed on the

LCD

Cause Action

The Printer is not

powered on or the LCD is

in the screen-saver mode.

z

If the

Power

lamp is off

The printer is not powered on. Connect the power cord

and press the

ON/OFF

button. The printer will power

on and the LCD will display a message.

z

If the

Power

lamp is lit

On the Operation Panel, press a button the other than

the

ON/OFF

button.

Cause Action

The language you want to

be displayed is not

selected

Select the language you want to be displayed

following the procedure below.

(1) Press the HOME button. Wait for about 5

seconds, then select , and then press the OK

button.

(2) Press the ] button to select , then press

the OK button.

(3) Press the } button four times, then press the OK

button.

If the Bluetooth unit is connected to the printer,

press the } button five times, then press the OK

button.

(4) Press the { or } button to select the language

for the LCD, then press the OK button.

39Troubleshooting

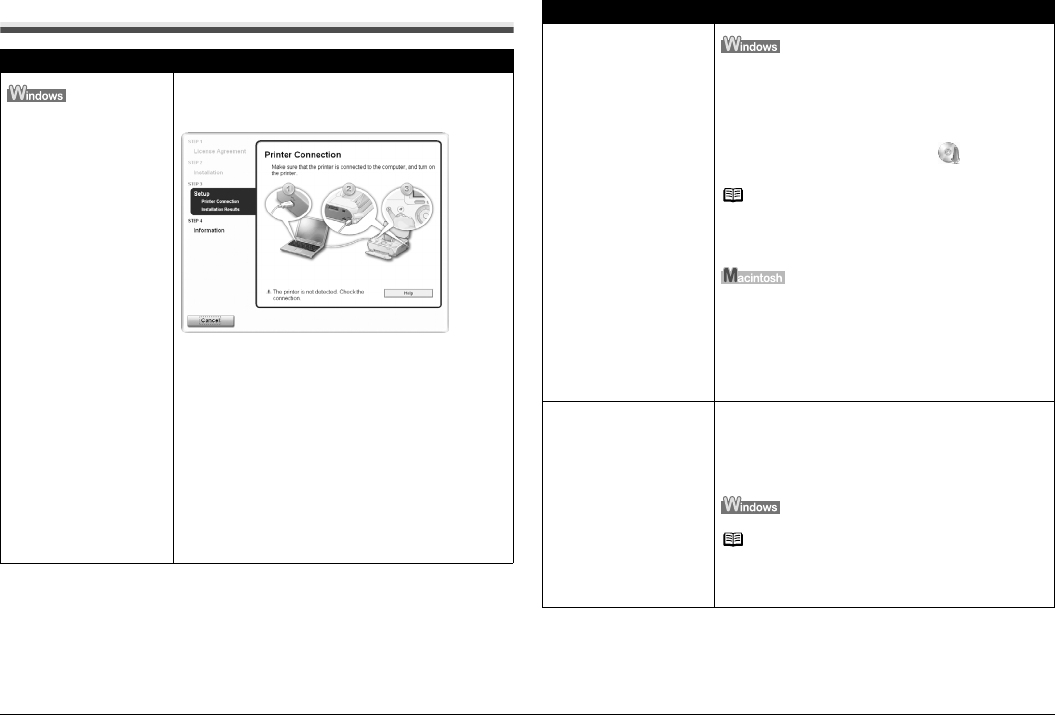

Cannot Install the Printer Driver

Cause Action

Unable to proceed

beyond the Printer

Connection screen.

If you were unable to proceed beyond the Printer

Connection screen, follow the procedure below to

reinstall the printer driver.

(1) Click Cancel on the Printer Connection screen.

(2) Click Start Over on the Installation Failure

screen.

(3) Click Back on the screen that appears next.

(4) Click Exit on the PIXMA XXX screen (where

“XXX” is your printer’s name), then remove the

CD-ROM.

(5) Turn the printer off.

(6) Restart your computer.

(7) Make sure you have no application software

running, including anti-virus software.

(8) Follow the procedure described in your setup

sheet to reinstall the printer driver.

Installation does not start

automatically when the

Setup CD-ROM is

inserted into your

computer’s disc drive.

(1) Click Start then Computer.

In Windows XP, Click

Start

then

My Computer

.

In Windows 2000, double-click the

My Computer

icon on the desktop.

(2) Double-click the CD-ROM icon on the

displayed window.

Note

To use the Run command to start the setup program,

specify your disc drive and then the name of the setup

program, MSETUP4.EXE. The drive letter of the disc

drive depends on your computer.

Double-click the CD-ROM icon on your desktop to start

installation.

If the CD-ROM icon is not displayed, restart your

computer. If the icon is still not displayed, try different

disks and see if they are displayed. If other disks are

displayed, there is a problem with the Setup CD-ROM.

Contact your Canon service representative.

Installation procedure not

followed correctly.

Follow the procedure described in your setup sheet for

proper installation.

If the printer driver was not installed correctly, uninstall

the printer driver, restart your computer, and then reinstall

the printer driver. Refer to the PC Printing Guide on-

screen manual.

Note

If the installer was forced to be terminated due to a

Windows error, the system may be in an unstable

condition and you may not be able to install the printer

driver. Restart your computer before reinstalling.

Cause Action

40 Troubleshooting

Cannot Connect to Computer Properly

Printing Speed Is Slow/USB2.0 Hi-Speed Connection

Does Not Work

“This device can perform faster” Message Is Displayed

Print Results Not Satisfactory

If the print result is not satisfactory such as white streaks, misaligned lines, and

uneven colors, confirm the paper and print quality settings first.

zCheck 1: Do the page size and media type settings match

the size and type of the loaded paper?

When these settings are incorrect, you cannot obtain a proper print result. If you

are printing a photograph or an illustration, incorrect paper type setting may

reduce the quality of printout color.

Also, if you print with an incorrect paper type setting, the printed surface may be

scratched. In borderless printing, uneven coloring may occur depending on the

combination of the paper type setting and the loaded paper.

zCheck 2: Did you set the print quality setting appropriately?

Select a print quality option suitable to the paper and image for printing. If you

notice blurs or uneven colors, increase the print quality setting and try printing

again.

* When printing from a PictBridge compliant device, set the print quality setting

by using the Operation Panel on the printer. You cannot make this setting from

a PictBridge compliant device.

* You cannot change the print quality setting when printing from a wireless

communication device.

The method to confirm the paper and print quality settings differs depending on

what you do with your printer.

zCheck 3: If the problem is not resolved, there may be other

causes.

See also the sections below.

Cause Action

Your system environment

is not fully compatible with

USB 2.0 Hi-Speed.

If your system environment is not fully compatible

with USB 2.0 Hi-Speed, the printer will operate at a

lower speed provided under USB 1.1. In this case,

the printer operates properly but printing speed may

slow down due to communication speed.

Check the following to ensure that your system

environment supports USB 2.0 Hi-Speed connection.

z

The USB port on your computer supports USB 2.0 Hi-

Speed connection.

z

The USB cable, and the USB hub if you are using

one, support USB 2.0 Hi-Speed connection.

Be sure to use a certified USB 2.0 Hi-Speed cable.

We recommend the cable to be no longer than

around 10 feet/3 meters.

z

The operating system of your computer supports

USB 2.0 Hi-Speed connection.

Obtain and install the latest update for your computer.

z

The USB 2.0 Hi-Speed driver operates properly.

Obtain the latest version of the USB 2.0 Hi-Speed

driver compatible with your hardware and install it on

your computer.

Important

For details on USB 2.0 Hi-Speed of your system

environment, contact the manufacturer of your computer,

USB cable, or USB hub.

Cause Action

Your system environment

is not fully compatible with

USB 2.0 Hi-Speed.

Your system environment is not compatible with USB

2.0.

See “Printing Speed Is Slow/USB2.0 Hi-Speed

Connection Does Not Work” above.

To print from your memory

card by operating the printer

Confirm by using the Operation Panel on the printer. See

“Print Setting Screens” on page 15.

To print from a PictBridge

compliant device

Confirm by using your PictBridge compliant device or the

Operation Panel on the printer. See “Printing Photographs

Directly from a Compliant Device” on page 21.

To print from a wireless

communication device

Confirm by using the Operation Panel on the printer.

When printing data through Infrared communication, see

“Printing Photographs from a Wireless Communication

Device” on page 25.

When printing data through Bluetooth communication,

refer to the User’s Guide on-screen manual.

To print from a computer Confirm by using the printer driver. Refer to the PC

Printing Guide on-screen manual.

41Troubleshooting

Printing Does Not Start/Printing Is Blurred/Colors Are

Wrong/Straight Lines Are Misaligned

White Streaks

Printed Paper Curls or Has Ink Blots

Printed Surface Is Scratched/Paper Is Smudged

Cause Action

Ink tank is empty. See “Error Message Is Displayed on the LCD” on

page 35 to identify the ink error, and then take the

appropriate action depending on the error condition.

Print Head nozzles are

clogged.

See “When Printing Becomes Faint or Colors Are

Incorrect” on page 27 and perform any necessary

maintenance operation.

The media is loaded with

the wrong side facing

upwards.

Many types of paper are made to be printed on only

a particular side of the paper.

Printing on the wrong side may cause unclear prints

or incorrect color.

For detailed information on the printable side, refer to

the instruction manuals supplied with the paper.

The Paper Thickness

Lever position is

incorrect.

Normally set the Paper Thickness Lever to the right.

Depending on the printing content, the printed

surface may become scratched. In this case, set the

Paper Thickness Lever to the left.

* Return the Paper Thickness Lever to the right after

printing. If you do not return the lever, the distance

between the Print Head and printing paper stays

broadened and the inside of the printer will easily get

dirty. The image quality also may be decreased.

Note

If the corners or edges of the printed paper are smudged,

try to print with the Paper Thickness Lever set to the left.

Print Head is misaligned. If you did not align the Print Head, straight lines may

be printed misaligned. If you unlocked the Print Head

Lock Lever accidentally, make sure to align the Print

Head after relocking the lock lever.

See “Aligning the Print Head” on page 29 and

perform Automatic Print Head Alignment. If this does

not solve the problem, see “Adjusting the Print Head

Manually” on page 38 and perform Manual Print

Head Alignment.

Cause Action

Print Head nozzles are

clogged.

See “When Printing Becomes Faint or Colors Are

Incorrect” on page 27 and perform any necessary

maintenance operation.

Cause Action

Paper is too thin. When printing data with high color saturation such as

photographs or images in deep color, we recommend

using Photo Paper Pro or other Canon genuine

paper.

Printed paper takes long

to dry.

In the Operation Panel, specify a longer Ink drying

wait time in Settings > Device settings > Print

settings. This makes dry faster, which helps prevent

curls and ink blots.

Cause Action

Paper Feed Roller is dirty. Clean the Paper Feed Roller. Cleaning the Paper

Feed Roller will wear the roller, so perform this

procedure only when necessary.

For details on cleaning, refer to “Cleaning the Paper

Feed Roller (Roller Cleaning)” of the User’s Guide

on-screen manual.

Inside of the printer is

dirty.

Performing many printings may leave some ink inside

the printer, causing printouts to be smudged. In this

case, perform Bottom Plate Cleaning to clean the

inside of the printer.

For details on cleaning, refer to “Cleaning the Inside

of the Printer (Bottom Plate Cleaning)” of the User’s

Guide on-screen manual.

Printing on inappropriate

type of paper.

z

Check to see if the paper you are printing on is not too

thick or curled. See “Printing Media” on page 9.

z

When performing Borderless Printing, print quality may

be reduced at the top and bottom edges of the paper.

42 Troubleshooting

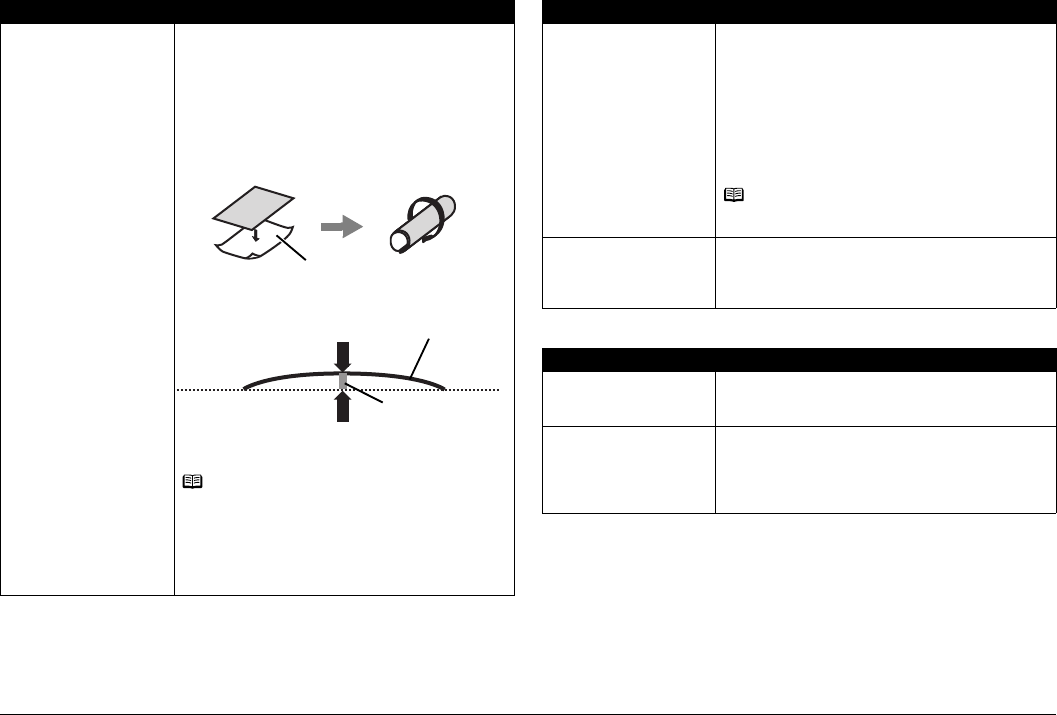

Colors Are Uneven or Streaked

Paper is curled. If you are using paper with either any of the corners

or the whole printing surface curled, the paper may

become dirty, not feed properly, or both. Use such

paper after correcting paper curl as follows.

(1) With the printing side (A) facing up, cover the

paper with a fresh sheet of plain paper to avoid

staining or scratching the surface.

(2) Roll up the paper in a direction opposite to paper

curl as seen below.

(3) Check to see that the paper curl is within

approximately 0.08 to 0.2 inches / 2 to 5 mm (B)

in height.

We recommend printing curl-corrected paper one

sheet at a time.

Note

Depending on the media type, the paper may be

smudged or may not be fed properly even if it is not

curled.

In such case, follow the procedure described above

to curl the paper before printing.

This may improve the print result.

Cause Action

(1) (2)

(A)

(A)

(B)

The Paper Thickness

Lever position is incorrect.

Normally set the Paper Thickness Lever to the right.

Depending on the printing content, the printed

surface may become scratched. In this case, set the

Paper Thickness Lever to the left.

* Return the Paper Thickness Lever to the right after

printing. If you do not return the lever, the distance

between the Print Head and printing paper stays

broadened and the inside of the printer will easily get

dirty. The image quality also may be decreased.

Note

If the corners or edges of the printed paper are smudged,

try to print with the Paper Thickness Lever set to the left.

Sheets of paper are

scratched

Depending on the media type, printed surface may

be scratched as it is fed into the Rear Tray, and

printing result is not satisfactory. In this case, load

one sheet at a time.

Cause Action

Print Head nozzles are

clogged.

See “When Printing Becomes Faint or Colors Are

Incorrect” on page 27 and perform any necessary

maintenance operation.

Print Head is misaligned. See “Aligning the Print Head” on page 29 to perform

Automatic Print Head Alignment. If this does not

solve the problem, see “Adjusting the Print Head

Manually” on page 38 to perform Manual Print Head

Alignment.

Cause Action

43Troubleshooting

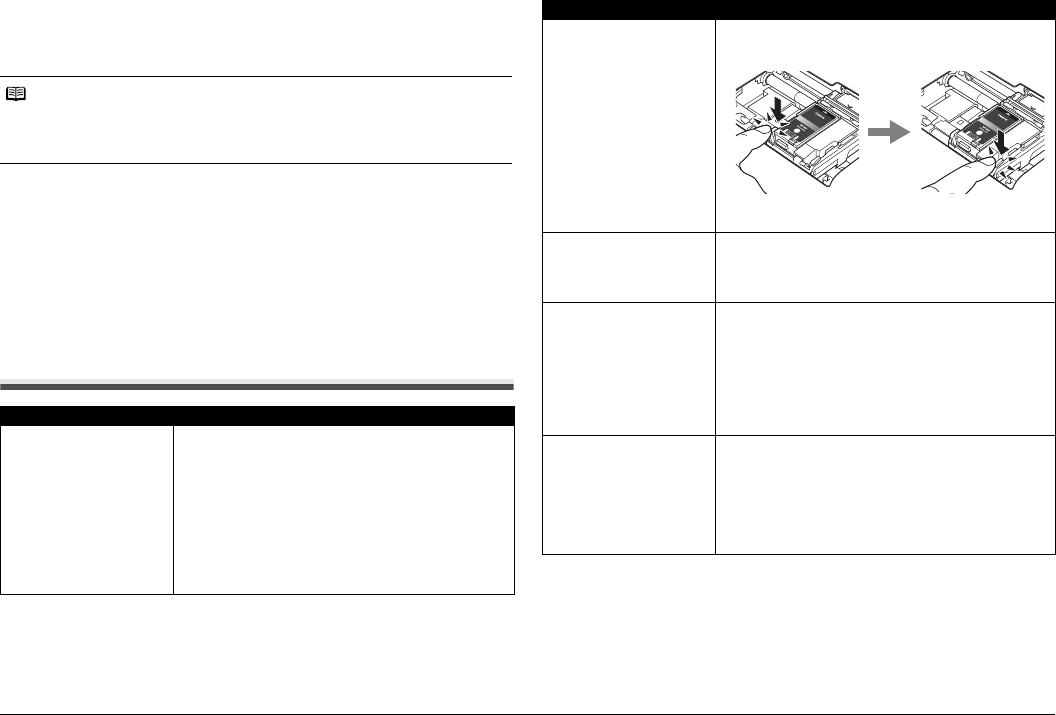

Printer Does Not Start

Printing Does Not Start

Paper Does Not Feed Properly

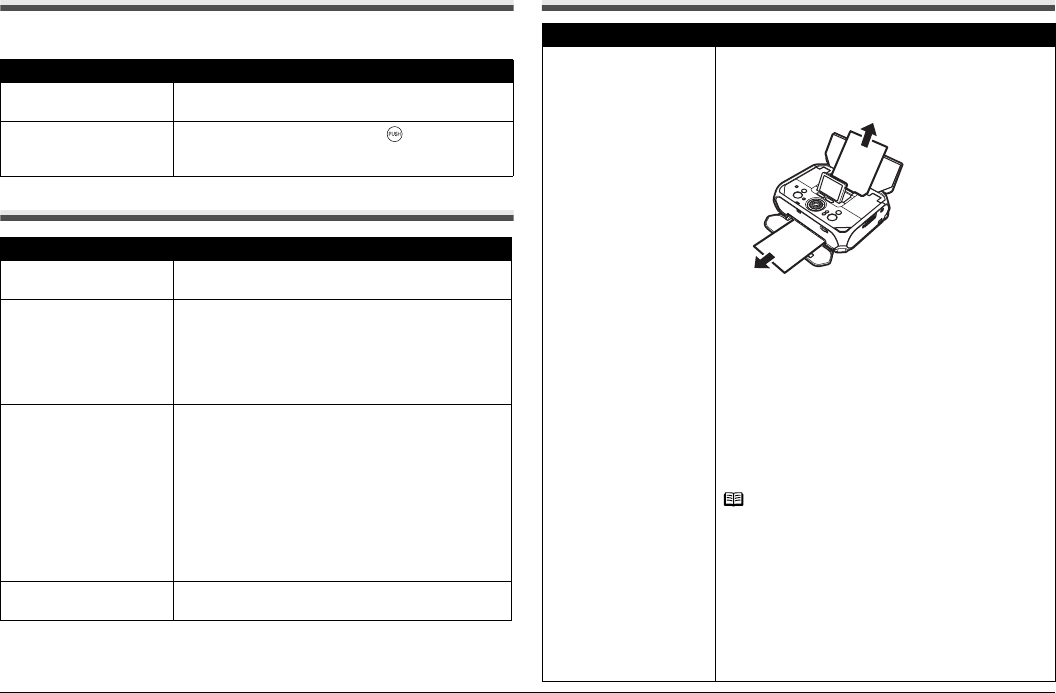

Paper Jam

Cause Action

Ink tank is empty. Confirm the error message displayed on the LCD

and take the appropriate action to resolve the error.

Ink tank is not installed

securely.

If the ink lamp is not lit, press the mark on the ink

tank until it clicks into place. The ink lamp lights up

red when the ink tank is fully inserted.

Cause Action

Printing on inappropriate

type of paper.

Check to see if the paper you are printing on is not

too thick or curled. See “Printing Media” on page 9.

Paper Feed Roller is dirty. Clean the Paper Feed Roller. Cleaning the Paper

Feed Roller will wear the roller, so perform this

procedure only when necessary.

For details on cleaning, refer to “Cleaning the Paper

Feed Roller (Roller Cleaning)” of the User’s Guide

on-screen manual.

Paper not loaded

properly.

Make sure of the following when you load paper in

the printer.

z

When loading two or more sheets of paper, align the

edges of the sheets before loading.

z

Always load the paper in portrait orientation in the

Rear Tray, regardless of the printing orientation.

z

Load the paper with the print side facing UP. Align the

paper stack against the right side of the Rear Tray

and slide the Paper Guide so that it just touches the

left edge of the stack.

Foreign object in the Rear

Tray.

Make sure that there are no foreign objects in the

Rear Tray.

Cause Action

Paper jammed in the

Paper Output Slot or the

Rear Tray.

Remove the paper following the procedure below.

(1) Slowly pull the paper out, either from the Rear

Tray or from the paper output slot, whichever is

easier.

z

If the paper tears and a piece remains inside the

printer, open the Printer Cover and remove it.

Be careful not to touch the components inside the

printer.

After removing all paper, close the Printer Cover, turn

the printer off, and turn it back on.

z

If you cannot pull the paper out, turn the printer off

and turn it back on. The paper will be ejected

automatically.

(2) Reload the paper in the printer, and press the OK

button on the printer.

If you turned off the printer in step (1), all print

jobs in queue are canceled. Reprint if necessary.

Note

z

For details on how to load paper, see “Loading

Printing Paper” on page 8.

z

When reloading the paper in the printer, see “Paper

Does Not Feed Properly” on left column to confirm

that you are using the correct paper and are loading it

into the printer correctly.

If you cannot remove the paper or the paper tears

inside the printer, or if the paper jam error continues

after removing the paper, contact your Canon Service

representative.

44 Troubleshooting

The Power Lamp (blue) and Alarm Lamp (orange)

Flash Alternately

Disconnect the USB cable from the printer, turn the printer off, and then unplug the

printer from the power supply. Plug the printer back in and turn the printer back on

after leaving it for a while.

If the problem is not resolved, contact your Canon Service representative.

Error Message Appears on a PictBridge

Compliant Device

The following are the possible errors that may occur when printing directly from a

PictBridge compatible device and the countermeasures to clear them.

Landscape credit card-

sized paper jammed

inside the printer.

Do not load credit card-sized paper in the landscape

orientation.

Remove the paper following the procedure below.

(1) Load a single sheet of the paper in the Rear Tray

in portrait orientation.

Do not load it in the landscape orientation.

(2) Start printing.

The paper is fed and then pushes out the jammed

paper as it ejects.

If you cannot remove the jammed paper, contact your

Canon Service representative.

Cause Action

Note

zThis section describes errors that are indicated on Canon-brand PictBridge compliant

devices. The error messages and operations may vary depending on the device you

are using.

For errors on non-Canon PictBridge compliant devices, check the error message on

the LCD and take the appropriate action to clear the error. For details, see “Error

Message Is Displayed on the LCD” on page 35.

zFor the errors indicated on the PictBridge compliant device and their solution, also

refer to the instruction manual of the device. For other troubles on the device, contact

the manufacturer.

Error Message on

PictBridge-Compliant

Device

Action

“Printer in use” Images are being printed from the computer.

Wait until printing ends.

If the printer is warming up, wait until warm-up ends.

When it is ready, the printer starts printing

automatically.

“No paper” Load the paper in the Rear Tray, and select

Continue* in the display on your PictBridge

compliant device.

* To resume printing, you can also press the OK

button on the printer instead of selecting Continue.

“Paper jam” Select Stop in the display on your camera to stop

printing.

Remove the jammed paper, load new paper, and

press the OK button on the printer and try printing

again.

45Troubleshooting

“Paper lever error” Normally set the Paper Thickness Lever to the right.

Depending on the printing content, the printed

surface may become scratched. In this case, set the

Paper Thickness Lever to the left.

* Return the Paper Thickness Lever to the right after

printing. If you do not return the lever, the distance

between the Print Head and printing paper stays

broadened and the inside of the printer will easily get

dirty. The image quality also may be decreased.

“Printer cover open” Close the Printer Cover on the printer.

“No print head” The Print Head is not installed or defective.

For details on how to resolve the error, see “Install the

print head. U051 The type of print head is incorrect.

Install the correct print head. U052” on page 35.

“Waste tank full”/

“Ink absorber full”

The ink absorber is nearly full. For details on how to

resolve the error, see “The ink absorber is almost full.

Press [OK] to continue printing. Contact the service

center.” on page 36.

“No ink”/“Ink cassette

error”

An ink tank is not installed properly, or is out of ink.

See the error message on the LCD and take the

appropriate action to resolve the error. See “Error

Message Is Displayed on the LCD” on page 35.

“Ink error” An ink tank that was once empty is installed.

For details on how to resolve the error, see “Printer

detected ink out condition of the following ink.

Replace the ink tank. U180” on page 36.

“Hardware Error” The optional battery has running short. Follow the

procedure below.

(1) Turn the Printer off.

(2) Connect the supplied AC adapter or attach the

charged battery.

(3) Turn the Printer on.

The ink tank error has occurred.

Replace the ink tank. See “Replacing an Ink Tank” on

page 30.

Error Message on

PictBridge-Compliant

Device

Action

“Printer error” An error requiring servicing might have occurred

(Power lamp and Alarm lamp flash alternately).

Disconnect the USB cable between the printer and

the PictBridge compliant device, turn off the printer,

and unplug the power cord of the printer from the

power supply. After a while, plug the power cord of

the printer back in, turn on the printer, and then

reconnect the camera to the printer.

If the same error occurs, contact your Canon service

representative.

Error Message on

PictBridge-Compliant

Device

Action

46 Troubleshooting

Cannot Remove a Memory Card Cannot Print Properly through Wireless

Communication

This section describes how to solve the problems occurred during printing data

through Infrared communication. As for the problems occurred during printing data

through Bluetooth communication, refer to the User’s Guide on-screen manual.

Cause Action

miniSD Card, microSD

Card, xD-Picture Card,

MEMORY STICK Duo,

MEMORYSTICK PRO

Duo, or RS-MMC is

attempted to insert into

the printer without

attaching to the special

adapter.

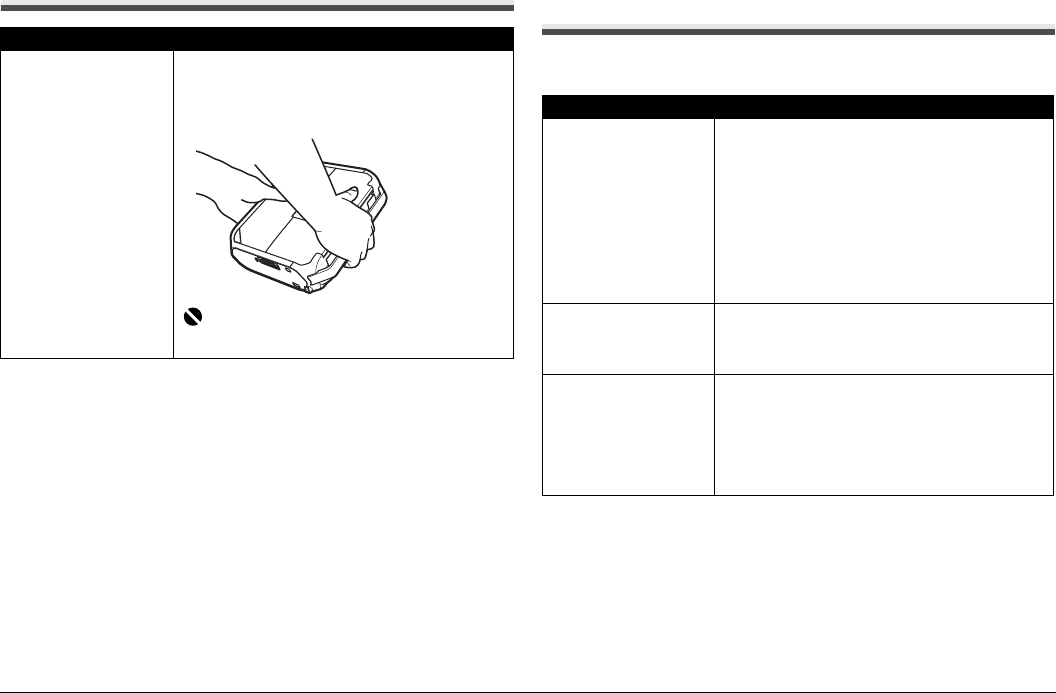

Remove the memory card with printer tilted slightly

downward. Tilt the printer on the wide table securely

placed, otherwise, the printer may drop and cause an

accident. If you cannot remove the memory card,

contact your Canon service representative.

Important

Never attempt to remove a memory card using a thin

stick or tweezers. Doing so may damage the printer.

Cause Action

Printer placement is

inadequate.

When printing through infrared communication,

confirm that the IrDA ports on the printer and the

mobile phone are placed face to face with each other

at a proper angle and distance, and that there is

nothing blocking them. Then, retry printing.

Operational distance and angle vary depending on

the specifications of your mobile phone and your

operating environment, but generally place the

printer within around 8 inches / 20 cm from the

mobile phone in a position that enables proper

communication.

During infrared

communication, infrared

rays were blocked.

During sending, be careful not to interrupt infrared

communication with the printer. If it is interrupted,

send the data from the mobile phone or the PDA

again.

The conditions to print

properly through the

infrared communication

are not met.

The infrared communication function of the printer is

only compatible with mobile phones with IrDA

compliant infrared communication ports. Printing

through infrared communication cannot be

performed by any other types of mobile phones.

See “Printing Photographs from a Wireless

Communication Device” on page 25.

47Appendix

Appendix

Reading the On-screen Manuals

For detailed instructions on installing the on-screen manuals, refer to your setup

sheet.

You can view the on-screen manuals in the following way:

To view the on-screen manual, double-click the XXX On-screen Manual shortcut

icon on the desktop, or click Start > All Programs (or Programs) > Canon XXX

Manual > XXX On-screen Manual (where “XXX” is your printer’s name).

System Requirements

Browser: Windows HTML Help Viewer

To view the on-screen manual, double-click the XXX On-screen Manual alias

(where “XXX” is your printer’s name) on the desktop.

System Requirements

Browser: Help Viewer

About Option

zPortable Kit LK-60 series

The Portable Kit LK-60 series is the kit to operate the printer with the battery,

and composed of a battery attachment and battery.

The battery is charged by connecting the AC adapter with connecting to the

printer.

For details on how to attach it to the printer, refer to the manual that comes

with the Portable Kit.

Printable number of pages when using the battery: Approx. 110 pages (PP-

101 4" x 6" (101.6 x 152.4 mm))

* Page number was measured under the following conditions:

Battery: New battery, fully charged

Printing method: Continuous printing from an SD card at 23°C (73°F)

The printable number depends on the size and content of the photo data.

zBluetooth Unit BU-20

The Bluetooth unit BU-20 is the unit which enables wireless printing from

Bluetooth compatible mobile phones or PDAs. For details on how to attach it

to the printer and print photos via Bluetooth communication, refer to the

User’s Guide on-screen manual.

Note

zMicrosoft® Internet Explorer 5.0 or later must be installed.

zThe on-screen manual may not be displayed properly depending on your

operating system or Internet Explorer version. We recommend that you keep

your system up to date with Windows Update.

Note

zThe on-screen manual may not be displayed properly depending on your

operating system. We recommend that you keep your system up to date.

zWe recommend using Safari as your Web browser to view the HTML format

on-screen manuals. If Safari is not installed on your computer, download it from

Apple Inc. website and install it.

48 Appendix

Specifications

Printer

Printing resolution

(dpi)

9600 (horizontal)* × 2400 (vertical)

* Ink droplets can be placed with a horizontal pitch of 1/

9600 inch at minimum. Supported only when printing

with a computer.

Interface USB 2.0 High Speed *1

IrDA ver.1.2 *2

Bluetooth 1.2 (Option) *2 *3

*

1

A computer that complies with USB 2.0 Hi-Speed

standard is required.

Since the USB 2.0 Hi-Speed interface is fully upwardly

compatible with USB Full-Speed (USB 1.1), it can be

used at USB Full-Speed (USB 1.1).

*2 JPEG only

*

3

Bluetooth connection is for printing only. This printer

cannot print data from a PC via Bluetooth

communication.

Print width 4.8 inches / 120.2 mm max.

(for Borderless Printing: 5 inches / 127 mm)

Acoustic noise level Approx. 35.5 dB (A)

* When printing in the highest print quality mode on Photo

Paper Pro.

Operating environment Temperature: 5 to 35°C (41 to 95°F)

Humidity: 10 to 90% RH (no condensation)

Storage environment Temperature: 0 to 40°C (32 to 104°F)

Humidity: 5 to 95% RH (no condensation)

Power supply AC adapter 100-240 V, 50/60 Hz

Power consumption Printing: Approx. 13 W

Standby: Approx. 2.2 W

OFF: Approx. 0.4 W

External dimensions Approx. 10.2 (W) × 8.9 (D) × 3.2 (H) inches /

Approx. 258 (W) × 225 (D) × 81 (H) mm

*

With the Paper Feed Tray and Paper Output Tray

retracted.

Weight Approx. 2.5 kg (Approx. 5.4 lb.)

*

With the Print Head and the ink tank installed.

Print Head Total 1,536 nozzles (C/M each 512 nozzles, Y/Dye BK

each 256 nozzles)

AC Adapter

External dimensions Approx. 4.7 (W) x 2.3 (D) x 1.3 (H) inches / Approx. 118

(W) x 58 (D) x 32 (H) mm (excluding protruding portion)

Approx. 5.2 (W) x 2.3 (D) x 1.3 (H) inches / Approx. 130

(W) x 58 (D) x 32 (H) mm (including protruding portion)

Weight Approx. 230 g (Approx. 8.2 oz.)

Rated input AC 100-240 V

Rated output DC 16 V, 2.0 A

Camera Direct Print (PictBridge)

Paper size 4" x 6" / 101.6 x 152.4 mm, 5" x 7" / 127.0 x 177.8 mm*,

Credit card, Wide*

* Can be selected only on certain Canon-brand PictBridge

compliant devices.

Paper type Default (Selections based on the printer setting), Photo

(Photo Paper Plus Glossy, Glossy Photo Paper, Glossy

Photo Paper

“Everyday Use”,

Photo Paper Glossy, Photo

Paper Plus Semi-gloss, Photo Stickers), Fast Photo

(Photo Paper Pro)

Layout Default (Selections based on the printer setting),

Borderless, Bordered, N-up (2, 4, 9, 16*)

* Layout compatible with Canon-brand sticker above. See

“About PictBridge Print Settings” on page 22.

You can print shooting Info (Exif Data) in the margins of

specified photos. Select Layout, then select the item

displayed with the [i] icon.

(Note that this print setting cannot be used for some

models.).

Image optimize Default (Selections based on the printer setting), On,

Off, “VIVID”*, “NR” (Noise Reduction)*, “Face”*, “Red

eye”*

* If using a Canon PictBridge compliant camera, you can

select it.

Print date/file no.

Default (Off: No printing), Date, File No., Both, Off

Trimming Default (Off: No trimming), On (follow camera’s setting),

Off

Printer

49Appendix

To upgrade from Windows XP to Windows Vista, first uninstall software bundled

with the Canon inkjet printer.

Specifications are subject to change without notice.

Minimum System Requirements

Note

Conform to the operating system’s requirements when higher than those given here.

Operating

System

Processor

RAM

Windows Vista

Pentium II (including

compatible processors)

300 MHz

128 MB

Windows XP SP1, SP2

Pentium II (including

compatible processors)

300 MHz

128 MB

Windows 2000 Professional

SP2, SP3, SP4

Pentium II (including

compatible processors)

300 MHz

128 MB

Note: Operation can only be

guaranteed on a PC

preinstalled

Windows Vista, XP or 2000.

Mac OS X v.10.4

Intel processor

PowerPC G3

256 MB

Mac OS X v.10.2.8 - v.10.3

PowerPC G3

128 MB

Note: Hard disk must be

formatted as Mac OS

Extended (Journaled) or Mac

OS Extended.

Browser Internet Explorer 6.0- Safari

Hard Disk Space 400 MB

Note: For bundled software

installation.

200 MB

Note: For bundled software

installation.

CD-ROM Drive Required

Other

restrictions

SVGA 800 x 600

Additional System Requirements for On-Screen Manuals

Browser: Windows HTML Help Viewer

Note: Microsoft Internet Explorer 5.0 or

later must be installed. The on-screen

manual may not be displayed properly

depending on your operating system or

Internet Explorer version. We

recommend that you keep your system

up to date with Windows Update.

Browser: Help Viewer

Note: The on-screen manual may not

be displayed properly depending on

your operating system or Help Viewer

version. We recommend that you keep

your system up to date with Software

Update.

50 Appendix

Safety Precautions

Please read the safety warnings and cautions provided in this manual to ensure

that you use the printer safely. Do not attempt to use the printer in any way not

described in this manual.

Warning

You may cause an electric shock, fire, or damage the printer if you ignore any of these

safety precautions.

Caution

You may cause injury or damage the printer if you ignore any of these safety precautions.

Choosing a

location

Do not place the printer close to flammable solvents such as alcohol or

thinners.

Power supply Never attempt to plug in or unplug the printer from the power supply

when your hands are wet.

Always push the plug all the way into the power outlet.

Never damage, modify, stretch or excessively bend

or twist the power cord. Do not place heavy objects

on the power cord.

Never plug the printer into a power socket that is

shared with other equipment (extension lead/cord, 2-

or 3-way adapter, etc.).

Never use the printer if the power cord is bundled or knotted.

If you detect smoke, unusual smells or strange noises around the printer,

immediately unplug the printer at the power supply and call for service.

Periodically, unplug the printer and use a dry cloth to

wipe off any dust or dirt collected on the plug and the

power outlet. If the printer is placed at a location

exposed to a lot of dust, smoke, or high humidity, the

dust collected on the plug absorbs moisture and may

cause insulation failure and fire.

If you hear thunder, disconnect the power supply of the printer and refrain

from using it. Leaving the printer plugged in may cause fire, electric

shock, or damage to the printer, depending on the thunder storm.

Use the power cable included with the printer.

Use only power supplies listed in the user instructions (Canon AC

Adapter: K30285 and/or Li-ion Battery Pack: Canon K30274).

Do not use them for other products.

Cleaning the

printer

Use a damp cloth to clean the printer. Never use

flammable solvents such as alcohol, benzene or

thinners.

If flammable solvents come in contact with electrical

components inside the printer, it could cause a fire or

electric shock.

Always unplug the printer from the power outlet before cleaning the

printer.

If you accidentally switch the printer on while cleaning it, you could injure

yourself or damage the printer.

Maintaining

the printer

Do not attempt to disassemble or modify the printer. There are no user

serviceable parts inside the printer.

The printer contains high-voltage components. Never attempt any

maintenance procedure not described in this guide.

Working

around the

printer

Do not use highly flammable sprays near the printer.

This could cause a fire or electric shock if the spray comes into contact

with electrical components inside the printer.

Choosing a

location

Do not install the printer in a location that is unstable or subject to

excessive vibration.

Do not install the printer in locations that are very humid or dusty, in direct

sunlight, outdoors, or close to a heating source.

To avoid the risk of fire or electric shocks, install the printer in a location

with an ambient temperature range of 5°C to 35°C (41°F to 95°F) and

humidity of 10% to 90% (condensation free).

Do not place the printer on a thick rug or carpet.

Power supply Ensure that the area around the power outlet is kept

clear at all times so you can easily unplug the power

cord if necessary.

Never remove the plug by pulling on the cord.

51Appendix

European Union (and EEA) only.

This symbol indicates that this product is not to be

disposed of with your household waste, according to the

WEEE Directive (2002/96/EC) and your national law. This

product should be handed over to a designated collection

point, e.g., on an authorized one-for-one basis when you

buy a new similar product or to an authorized collection

site for recycling waste electrical and electronic equipment

(EEE). Improper handling of this type of waste could have

a possible negative impact on the environment and human

health due to potentially hazardous substances that are

generally associated with EEE. At the same time, your

cooperation in the correct disposal of this product will

contribute to the effective usage of natural resources. For

more information about where you can drop off your waste

equipment for recycling, please contact your local city office, waste authority,

approved WEEE scheme or your household waste disposal service.

For more information regarding return and recycling of WEEE products, please

visit www.canon-europe.com/environment.

(EEA: Norway, Iceland and Liechtenstein)

For Customers in Europe, Middle-East, Africa

and Russia only

For Canon Customer Support contacts, please see the back cover of the European

Warranty Systems (EWS) Booklet or visit www.canon-europe.com.

Do not use an extension lead/cord.

Working

around the

printer

Never put your hands or fingers in the printer while it is printing.

Do not place any object on the printer.

Do not place metal objects (paper clips, staples, etc.) or containers of

flammable solvents (alcohol, thinners, etc.) on top of the printer.

If any foreign object (metal or liquid) fall into the printer, unplug the power

cord and call for service.

Do not transport or store the printer on a slant, vertically or upside-down,

as the ink may leak and damage the printer.

Print Head

and ink tank

For safety reasons, store Print Head and ink tank out of the reach of

small children.

If a child ingests any ink, consult a doctor immediately.

Do not shake Print Head or ink tank.

Ink may leak out and stain clothing or the surrounding area.

Never touch the electrical contacts on a Print Head

after printing. The metal parts may be very hot and

could cause burns.

During

printing

Do not touch the part around the ejecting paper during printing.

This could cause the printer to malfunction.

AC Adapter When you pack the AC adapter for travel or storage, never wrap the cord

around the body of AC adapter to prevent the cord from splitting or

separating from the body of the AC adapter and causing a short circuit.

Model Number: K10312 (mini320)

52 Appendix

Regulatory Information

FCC Notice (U.S.A. Only)

For 120V, 60Hz model

Model Number: K10312

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of a shielded cable is required to comply with Class B limits in Subpart B of

Part 15 of the FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise

specified in the manual. If such changes or modifications should be made, you

could be required to stop operation of the equipment.

Canon U.S.A., Inc.

One Canon Plaza

Lake Success, NY 11042

1-516-328-5600

Canon U.S.A., INC. LIMITED WARRANTY --- (USA

Only)

The limited warranty set forth below is given by Canon U.S.A., Inc. (“Canon USA”)

with respect to the new or refurbished Canonbrand product (“Product”) packaged

with this limited warranty, when purchased and used in the United States only.

The Product is warranted against defects in materials and workmanship under

normal use and service (a) for a period of one (1) year from the date of original

purchase when delivered to you in new condition in its original container or (b) for

90 days from the date of original purchase for refurbished Products. Product

returned to a Canon USA repair facility or a Canon USA Authorized Service Facility

(“ASF”), and proven to be defective upon inspection will be (a) repaired utilizing

new, remanufactured, repaired and/or recycled parts (b) exchanged for new or; (c)

exchanged for a refurbished Product, as determined by the Canon USA repair

facility or the ASF. Warranty repair or replacement shall not extend the original

warranty period of the Product. A dated proof of purchase is required at the time of

warranty service. A copy of your dated bill of sale will satisfy this requirement. This

warranty does not cover any accessories, or any consumables, such as paper or

ink cartridges, as to which there shall be no warranty or replacement.

This limited warranty shall only apply if the Product is used in conjunction with

compatible computers, peripheral equipment and software. Canon USA shall have

no responsibility for such items except for compatible Canon brand peripheral

equipment covered by a separate warranty (“Separate Warranty”). Repairs of such

Canon brand peripheral equipment shall be governed by the terms of the Separate

Warranty. Non-Canon brand equipment and software that may be distributed with

the Product are sold “as is” and without warranty of any kind by Canon USA,

including any implied warranty regarding merchantability or fitness for a particular

purpose, and all such warranties are disclaimed. The sole warranty, if any, with

respect to such non- Canon brand items is given by the manufacturer or producer

thereof.

This limited warranty covers all defects encountered in normal use of the Product

and does not apply in the following cases:

(a) Loss of or damage to the Product due to abuse, neglect, mishandling, improper

packaging by you, alteration, accident, electrical current fluctuations, improper

use, failure to follow operating or maintenance instructions in, or environmental

conditions prescribed in, Canon USA’s user’s manual or other documentation,

or services performed by someone other than a Canon USA repair facility or

ASF. Without limiting the foregoing, dropping the Product, scratches, and

abrasions will be presumed to have resulted from misuse, abuse or failure to

operate the Product as set forth in the user’s manual or other documentation for

the Product.

53Appendix

(b) Use of parts, media, software or supplies (other than those sold by Canon

USA), including non-Canon ink cartridges or refilled ink cartridges, that cause

damage to the Product or cause abnormally frequent service calls or service

problems.

(c) If the Product has had its serial number or dating defaced, altered or removed.

ANY SYSTEM SOFTWARE (WHETHER FACTORY LOADED ON THE PRODUCT

OR CONTAINED ON THE SOFTWARE DISKETTES OR CD-ROMS ENCLOSED

WITH, OR ACCOMPANYING, THE PRODUCT), AND ANY UTILITY SOFTWARE,

DISTRIBUTED WITH OR FOR THE PRODUCT, IS SOLD "AS IS" AND WITHOUT

WARRANTY BY CANON USA. THE SOLE WARRANTY WITH RESPECT TO

SUCH SOFTWARE IS CONTAINED IN THE SOFTWARE MANUFACTURER'S

LICENSE AGREEMENT DISTRIBUTED THEREWITH, INCLUDING ANY

LIMITATIONS AND DISCLAIMERS THEREON. PLEASE CONTACT CANON USA

IMMEDIATELY IF YOU HAVE NOT RECEIVED A COPY OF THE SOFTWARE

MANUFACTURER'S LICENSE AGREEMENT.

NO IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, APPLIES

TO THE PRODUCT AFTER THE APPLICABLE PERIOD OF THE EXPRESS

LIMITED WARRANTY STATED ABOVE, AND NO OTHER EXPRESS WARRANTY

OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON

OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BIND CANON USA, OR

ITS ASF. (SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN

IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY

TO YOU.) CANON USA SHALL NOT BE LIABLE FOR LOSS OF REVENUES OR

PROFITS, INCONVENIENCE, EXPENSE FOR SUBSTITUTE EQUIPMENT OR

SERVICE, STORAGE CHARGES, LOSS OR CORRUPTION OF DATA, OR ANY

OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY

THE USE, MISUSE, OR INABILITY TO USE THE PRODUCT REGARDLESS OF

THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF CANON

USA OR ITS ASF HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON USA OR

ITS ASF BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE

PRODUCT CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE

FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE

OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR

PROPERTY ARISING OUT OF THE POSSESSION, USE, MISUSE, OR

INABILITY TO USE THE PRODUCT SOLD BY CANON USA NOT CAUSED

SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON USA, OR ITS ASF.

(SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION

OR LIMITATION MAY NOT APPLY TO YOU.) THIS LIMITED WARRANTY SHALL

NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF

THE PRODUCT OR THE PERSON FOR WHOM IT WAS PURCHASED AS A

GIFT, AND STATES YOUR EXCLUSIVE REMEDY.

Canon USA offers a range of customer technical support* options:

zInteractive troubleshooting, e-mail technical support, the latest driver downloads

and answers to frequently asked questions (www.canontechsupport.com)

zToll-free live technical support Monday—Saturday (excluding holidays) at 1-800-

828-4040

zTelephone Device for the Deaf (TDD-1-866-251-3752)

zRepair or Exchange Service Options:

In the event service is required for the Product during the limited warranty period,

Canon USA offers two hardware support options:

Authorized Service Facility Carry-In / Mail-In Service

Canon USA’s Carry-In/Mail-In Service provides repair or exchange, at Canon

USA’s option, through Canon USA’s Authorized Service Facility (ASF) network.

The name and telephone number of the ASF(s) near you may be obtained from

Canon USA’s Web site at www.canontechsupport.com or by calling the Canon

USA Customer Care Center at 1-800-828-4040, or any time while speaking to a

technical support person. A Product covered by this limited warranty will be

repaired or exchanged, as determined by Canon USA, and returned without

charge by the ASF.

InstantExchange Service **

A Canon Customer Care Center or ASF technician will attempt to diagnose the

nature of the problem and, if possible, correct it over the telephone. If the problem

cannot be corrected over the telephone, and you elect the InstantExchange

option, a reference number will be issued to you. You will be asked for the

Product serial number and other information pertaining to your Product and for a

ship-to location for the replacement Product (must include street address).

The Canon USA repair facility will ship out the replacement Product prepaid by

Canon USA. After receipt of the replacement Product (with instructions and a

prepaid waybill), follow the enclosed instructions on how to ship your product to

the Canon USA repair facility. Your Product must be returned in the shipping

carton in which the replacement Product was packed and include the reference

number, A COPY OF YOUR DATED PROOF OF PURCHASE (BILL OF SALE),

and a complete explanation of the problem. DO NOT INCLUDE ANY OTHER

ITEMS WITH THE YOUR PRODUCT IN THE RETURN SHIPPING CARTON,

AND BE SURE TO RETAIN YOUR PRINTHEAD, INK CARTRIDGE(S) AND

TANK(S).

InstantExchange Service exchanges your Product with a replacement Product,

which will normally be shipped the same day if your request for this service is by

3 p.m. E.T. Monday through Friday, except holidays. Canon USA does not

guarantee same day shipment in the event of the occurrence of factors beyond

54 Appendix

its reasonable control. The replacement Product you receive may be a

refurbished or reconditioned unit and will be covered for the balance of the period

remaining on your original limited warranty. NOTE THAT BY USING THIS

SERVICE YOU WILL KEEP THE REPLACEMENT PRODUCT THAT IS SENT

TO YOU. CANON USA WILL RETAIN THE PRODUCT THAT YOU ORIGINALLY

PURCHASED, WHICH SHALL BECOME THE PROPERTY OF CANON USA.

InstantExchange warranty program service is available only during the express

limited-warranty period for your Product and only in the continental United States,

Alaska and Hawaii during such period.

This limited warranty gives you specific legal rights, and you may also have other

rights, which vary from state to state.

* Support program specifics are subject to change without notice.

** InstantExchange warranty service is subject to the availability of refurbished or

new replacement units.

Canon U.S.A., Inc.

One Canon Plaza

Lake Success, NY 11042

USA

Canon is a registered trademark of Canon Inc.

©2007 Canon U.S.A., Inc. Canon is a registered trademark of Canon Inc. in the

United States and may also be a registered trademark in other countries.

For California, USA only

This product contains an internal battery for backup purposes.

Included battery contains Perchlorate Material-special handling may apply.

See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/ for details.

For Canada only

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numerique de la classe B est conforme a la norme NMB-003 du

Canada.

Getting Help from Canon

Help Us Help You Better

Before you contact Canon, please record the following information.

Serial Number (located on the bottom of the product): ______________________________________________________________________________________________

Model Number (located on the top of the product): _________________________________________________________________________________________________

Setup CD-ROM number (located on the CD-ROM): ________________________________________________________________________________________________

Purchase Date: ____________________________________________________________________________________________________________________________

Customer Technical Support Sequence*

1. Internet — www.canontechsupport.com

For quick and comprehensive self-help in an intuitively guided interactive troubleshooting environment, the place to start is our helpful tech support web site. In addition,

the latest driver downloads, answers to frequently asked questions, product information, and “where to buy” instructions are found here.

2. Email Tech Support — www.canontechsupport.com

For individual attention to a special issue, try emailing our friendly technical support representatives, specially trained to communicate quick, easy, and logical solutions

to your inquiries within 24 hours.

3. Toll-Free Live Tech Support — (1-800-828-4040)

This option provides live telephone technical support, free of service charges, Monday-Saturday (excluding holidays), during your product’s 1 year limited warranty

period. Telephone Device for the Deaf (TDD) support is available at (1-866-251-3752).

4. Extended Service and Support — www.canonesp.com

Canon CarePAK Extended Service Plan is a cost-attractive and easy-to-use extended service program that provides up to three full years of service and support

coverage at a very attractive price. CarePAK offers toll-free Canon technical support and includes Canon’s superb InstantExchange product replacement program. For

further information about extending your Canon service and support, call (1-800-385-2155), or visit our Web site at www.canonesp.com. CarePAK must be purchased

during your product’s warranty period.

For more information and updated program specifics, please visit our web site at www.canontechsupport.com.

*Support program specifics are subject to change without notice.

Ordering Information

For additional supplies, use the following descriptions and order numbers.

Description Order #

Ink Tanks

CLI-36 Color 1511B002

Canon Specialty Papers

All Occasion Photo Cards (4" x 8"/ 50 sheets) 1029A069

Glossy Photo Paper Credit Card Size (100 sheets) 9157A023

Matte Photo Paper (4" x 6"/ 120 sheets) 7981A014

Photo Paper Glossy (4" x 6"/ 50 sheets) 0775B021

Photo Paper Glossy (4" x 6"/ 100 sheets) 0775B022

Photo Paper Plus Double Sided (5" x 7"/ 10 sheets) 9981A006

Photo Paper Plus Double Sided Album Kit (5" x 7") 0041B005

Photo Paper Plus Glossy (4" x 6"/ 20 sheets) 7980A007

Photo Paper Plus Glossy (4" x 6"/ 50 sheets) 7980A012

Photo Paper Plus Glossy (4" x 6"/ 120 sheets) 7980A022

Photo Paper Plus Glossy (5" x 7"/ 20 sheets) 7980A019

Photo Paper Plus Semi-gloss (4" x 6"/ 50 sheets) 1686B014

Photo Paper Pro (4" x 6"/ 20 sheets) 1029A014

Photo Paper Pro (4" x 6"/ 75 sheets) 1029A027

Photo Stickers (16 stickers/sheet, 5 sheets/pack) 0001C001

Call 1-800-OK-CANON to locate a dealer near you, or visit the Canon eStore at

www.estore.usa.canon.com.

© 2007 Canon U.S.A., Inc. Canon is a registered trademark of Canon Inc. in the United States and may be a registered trademark or trademarks in other countries. All other

product and brand names are trademarks of their respective owners. As an ENERGY STAR® partner, Canon U.S.A., Inc. has determined that this product meets the

ENERGY STAR® guidelines for energy efficiency.

series

QT5-1042-V01 XXXXXXXX © CANON INC. 2007 PRINTED IN XXXXXXXX

For information on product specifications, please visit our website at

www.usa.canon.com

Table of Contents

Introduction 1

How to Use the Documentation Provided 2

Printer Parts and Their Functions 3

Loading Printing Paper 8

Printing from a Memory Card 10

Printing Photographs Directly from a Compliant Device 21

Printing Photographs from a Wireless Communication Device 25

Routine Maintenance 27

Changing the Printer Settings 33

Troubleshooting 35

Appendix 47

Direct Photo Guide

The following ink tank is compatible with this printer.

Photo Printer
