Chengdu XGIMI Technology SLP LED Projector User Manual Pt 1
Chengdu XGimi Technology Co.,Ltd. LED Projector Pt 1
Contents
- 1. User Manual Pt 1
- 2. User Manual Pt 2
User Manual Pt 1

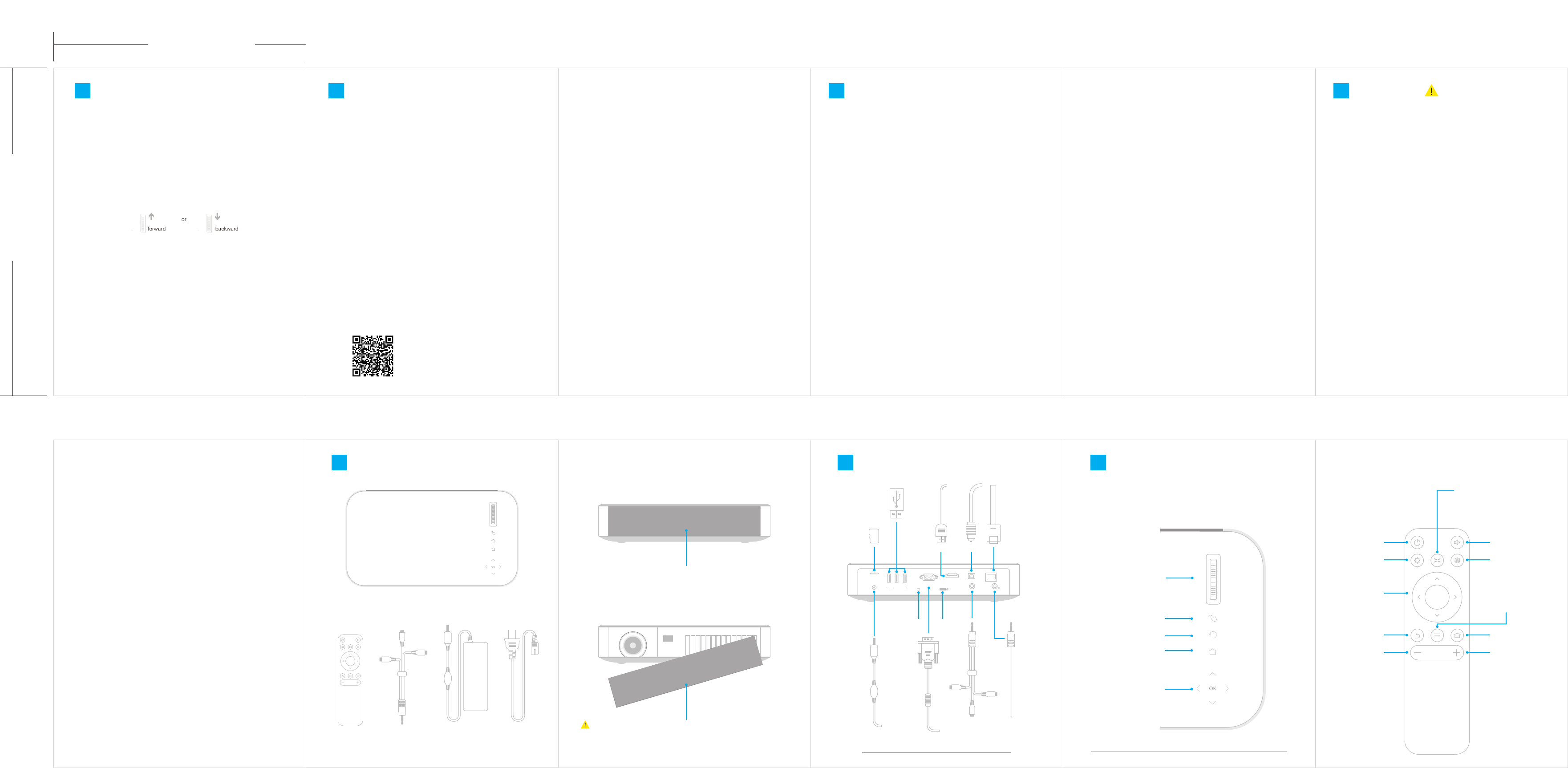

![](/img.php?id=2713884&img=bg1.png)
OK
2Interfaces
Flash disk/Portable hard drive/ Mouse/Keyboard/Bluetooth dongle
TF
DC IN SPDIF
AV
LAN
USB HDMI LAN
5
Scan left QR code to
download “SLP Assistant” app.
TF Card
Power adapter
Main functions
5.1 Media Player
5.2 Apps and Games
5.3 Multi-Screens Interaction
Select “Media Player” under the page “Local” to enjoy
pictures, videos and musics from internal storage, external
devices and shared resources from Network Neighborhood.
Under the pages of “Apps” and “Games”, the preloaded apps
and games can satisfy users' demand of basic functions.
Users can also download interested apps from Google play.
Install “SLP Assistant” app, users can push multimedia files
(photos, musics and videos) from smart phone to projector.
Users can miracast the projection screen to smart phone,
which can transfer the smart phone into a remote control.
6FAQ
6.1 Q: Why is the projection image fuzzy?
6.2 Q: Why the projection picture is inclined, trapezoidal or
reversed?
6.3 Q: Connect PC with projector, can't get a completed
projection picture of the PC screen.
6.4 Q: Methods of network connection?
6.5 Q: Projector can't approach the internet
A: You just need to adjust the focus.
A: Keep the projector horizontal (no matter in projection
mode of normal front, normal back, invert front or invert
back) and projector lens must be vertical with the
projection surface. If above operation is correct, please
adjust the sets according to the following steps
a.Projection picture is trapezoidal: Setting -->Image -->
Advanced image setting --> Switch on auto keystone;
b.Projection picture is reversed: Setting--> Image -->
Advanced image setting -->Projection mode set -->
Normal front
A: Please adjust the PC display resolution to make it
match the projector.
A: Supports cable, wireless WIFI and PPPOE connection.
A: Please try to solve this problem with the following ways
I. Check whether WIFI password is correct
II. Check and confirm there is no Chinese letter, special
symbol in WIFI SSID, the password length is longer than
8 digits and other devices can connect with this WIFI
successfully.
III. Check whether projector can connect with other WIFI,
eg. smart phone hotpot. If projector can connect with
smart phone hotpot successfully, please try to reset
your router.
6.6 Q: Device can’t be searched by “SLP Assistant” App.
6.7 Q: How to watch 3D videos? How to select comfortable
3D glasses?
A: Check whether the projector and smart phone are in
the same LAN.
A: When watching 3D videos, user can enter 3D mode from
the following 2 ways
I: Press “3D hot key” on remote control to enter 3D mode
directly
II: Menu --> 3D mode--> choose “up-down” or “left-right”
mode according to video source format to watch 3D
videos.
Note: This projector does not support 2D to 3D function. Please
use DLP-link 3D glasses to watch 3D videos. If the
pictures appeared in double or in reversed image, press
the power button to return to normal image.
5.4 WIFI
5.5 Bluetooth
5.6 More functions
Switch on WIFI under “Settings” page, connect to available
Wifi network to enjoy online videos.
Projector can be connected with bluetooth devices, eg.
bluetooth earphone, bluetooth handle. Switch on and match
bluetooth in projector and device, then you can enjoy the
audio wirelessly.
Remark: Some models do not have built-in bluetooth, user
need to add an external bluetooth dongle.
Please refer the preloaded “User’s Guide” in TF card to learn
more functions.
3D hot button
Shortcut button
Define the shortcut button from the
personalized setting. Then you can
press this shortcut button to enter
the pre-defined function directly.
Power
on/off
Directions
& Enter
Home
Functions
Back
Volume- Volume+
Mute
Menu
USB
VGA
Smart LED Projector
User’s Guide
1Product Overview
Smart LED Projector x 1
Remote Control x 1 AV cable x 1 Power Adapter x 1 Plug x1
Front cover
Warning: You must remove the front cover before turning on the device,
otherwise the lens temperature will rise up very quickly!
Focus wheel
Virtual mouse
Back
Home
3Focus wheel and Touch keys
Keys on device panel
Directions
& Enter
4
4.1 Place the equipment on a flat surface.
4.2 Plug in power supply adapter. See the “power supply on”
indicator light at the back side of the device will be turned
on.
4.3 Press ‘Power on/off’ key on the remote controller. The lens
will be lightened. You will see the start pages on the screen
in 3-5 seconds.
4.4 After the main function pages appear, scroll the fous wheel
forward and backward several times to get the most clear
picture on the screen.
4.5 Internet connection:
The projector support cable or WIFI network connection.
a. cable connection: plug in cable into ‘LAN’ port on the
back of the device.
b. WIFI concction: On the main page, use remote controller
to choose ”Settings/Network settings/ WIFI” to connect a
WIFI network.
4.6 Now you can start:
a. You can choose “youtube” on the first page to start watch
video on the internet.
b. You can plug in a flash-dive or portable hard drive into
the USB port, then choose “local/media player” to play
local video files.
c. or you can connect your PC or Mac or iPhone/iPad
through HDMI cable, then choose “local/HDMI”. Your
screen of PC or Mac or iPhone/iPad will be projected on
the projection screen.
Quick start
Keys on remote controller
I. Do not block the vent(eg. place the projector in sofa or bed),
to ensure the cooling effect.
II. Do not locate the projector on moving object
III. Do not locate the projector near the vessel with liquid
IV. Do not project to eyes directly. The strong light may hurt
your eyes.
V. In the following cases, please unplug the adapter and
contact the distributor.
a. Power cable or adapter is broken,
b. Liquid (water, rain, etc) into projector, which make the
projector work abnormally.
VI. Do not disassemble projector by non-professional person.
7Cautions!
AC 110-240V/50-60Hz
AV in 3.5mm Audio out
SPDIF out
Power
on/off
Power supply
on indicator
OK
VGA
PC
Desktop
Remark: Some models do not have VGA interface. Remark: Some models only have focus wheel, without touch keys.
100.00 mm
130.00 mm
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: to the following two conditions:
to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference
that may cause undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device,pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help
RF Exposure: A distance of 20 cm shall be maintained between the antenna
and users, and the transmitter may not be co-located with any other
transmitter or antenna.
