900 MHz Cordless Telephone
with Clarity®Power™Technology
Clarity 435 User Guide
E
N
G
L
I
S
H
E
S
P
A
Ñ
O
L
F
R
A
N
Ç
A
I
S
CLARITY 435 PHOTO HERE
NEW CLARITY
LOGO HERE
W435Gd_repro 7/6/03 12:41 PM Page 1
2
Table of Contents
Safety Instructions . . . . . . . . . . . . . . . . . .3
Getting Started . . . . . . . . . . . . . . . . .6
Features . . . . . . . . . . . . . . . . . . . . . . . . .6
Connecting Your Telephone . . . . . . . . .9
Choosing a Location . . . . . . . . . . . . .9
Installation . . . . . . . . . . . . . . . . . . .10
Battery Installation . . . . . . . . . . . . . .10
Handset Battery Charging . . . . . . . . .11
Battery Life . . . . . . . . . . . . . . . . . . .12
Operating Your Telephone . . . . . . . . . . .12
Clarity Power Technology . . . . . . . . .12
Clarity Power On/Off . . . . . . . . . . .12
Volume Dial . . . . . . . . . . . . . . . . . .12
Boost On/Off . . . . . . . . . . . . . . . . .12
Base Ringer . . . . . . . . . . . . . . . . . .13
Visual Ringer . . . . . . . . . . . . . . . . . .13
Headset Jack . . . . . . . . . . . . . . . . . .13
Flash . . . . . . . . . . . . . . . . . . . . . . .13
Mute . . . . . . . . . . . . . . . . . . . . . . .13
Redial/Pause . . . . . . . . . . . . . . . . .13
Lighted Key Pad . . . . . . . . . . . . . . .14
Page/Handset Locator . . . . . . . . . . .14
40 Channel Operation . . . . . . . . . . .14
Security Code . . . . . . . . . . . . . . . . .14
Hearing Aid Compatibility . . . . . . . .15
Memory Storage . . . . . . . . . . . . . . . . . .15
Memory Storage Locations . . . . . . . . . .15
Storing Numbers Into Memory . . . . .15
Changing Numbers Stored
In Memory . . . . . . . . . . . . . . . . . .15
Deleting Numbers from Memory . . . . . . .15
Making and Receiving Calls . . . . . . . . . .15
Placing a Phone Call . . . . . . . . . . . . . . .15
Temporary Tone . . . . . . . . . . . . . . . .16
Receiving a Phone Call . . . . . . . . . . . . .16
Receiving a Call . . . . . . . . . . . . . . .16
Ending a Call . . . . . . . . . . . . . . . . . . . .16
Maintenance and Care . . . . . . . . . . . . .16
Troubleshooting . . . . . . . . . . . . . . . . . .17
Regulatory Compliance . . . . . . . . . . . . .19
Warranty and Service . . . . . . . . . . . . . .22
W435Gd_repro 7/6/03 12:41 PM Page 2
E
N
G
L
I
S
H
Important Safety Instructions
3
When using your telephone equipment,basic
safety precautions should always be followed
to reduce the risk of fire, electric shock and
injury to persons including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions
marked on the telephone.
3. Do not use this telephone near a bath
tub, wash basin, kitchen sink or laundry
tub, in a wet basement, near a swimming
pool or anywhere else there is water.
4. Avoid using a telephone (other than a
cordless type) during a storm. There may
be a remote risk of electrical shock from
lightning.
5. Do not use the telephone to report a gas
leak in the vicinity of the leak.
6. Unplug this telephone from the wall out
lets before cleaning. Do not use liquid
cleaners or aerosol cleaners on the tele
phone. Use a damp cloth for cleaning.
7. Place this telephone on a stable surface.
Serious damage and/or injury may result
if the telephone falls.
8. Do not cover the slots and openings on
this telephone. This telephone should
never be placed near or over a radiator
or heat register. This telephone should
not be placed in a built-in installation
unless proper ventilation is provided.
9. Operate this telephone using the electrical
voltage as stated on the base unit or the
owner’s manual. If you are not sure of the
voltage in your home, consult your dealer
or local power company.
10.Do not place anything on the power
cord. Install the telephone where no one
will step or trip on the cord.
11.Do not overload wall outlets or extension
cords as this can increase the risk of fire
or electrical shock.
12.Never push any objects through the
slots in the telephone. They can touch
dangerous voltage points or short out
parts that could result in a risk of fire or
electrical shock. Never spill liquid of
any kind on the telephone.
13.To reduce the risk of electrical shock,
do not take this phone apart. Opening
or removing covers may expose you
to dangerous voltages or other risks.
Incorrect reassembly can cause
electric shock when the appliance is
subsequently used.
14.Unplug this product from the wall outlet
and refer servicing to the manufacturer
under the following conditions:
A. When the power supply cord or
plug is frayed or damaged.
B. If liquid has been spilled into
the product.
C. If the telephone has been exposed
to rain or water.
D. If the telephone does not operate
normally by following the operating
instructions. Adjust only those controls
SAVE THESE INSTRUCTIONS
W435Gd_repro 7/6/03 12:41 PM Page 3
17.Never touch uninsulated telephone
wires or terminals unless the telephone
line has been disconnected at the network
interface.
18.Use caution when installing or modifying
telephone lines
19.Use only the power cord and batteries
indicated in the manual. Do not dispose
of batteries in a fire. They may explode.
Check with local codes for possible
special disposal instructions.
4
Important Safety Instructions
Caution: Risk of explosion if battery is
replaced by an incorrect type. Dispose of
used batteries according to the instructions.
1. Use only the approved battery pack in
the handset of your cordless phone.
For Handset Unit: 3.6 V 700mAHr
NiCd Rechargeable Battery
GP70AAS3BMJZ
GPI International Ltd
2. Do not dispose of the battery in a fire
as it may explode. Check with local
codes for possible special disposal
instructions.
3. Do not open or mutilate the battery.
Released electrolyte is corrosive and
that are covered by the operating
instructions. Improper adjustment may
require extensive work by a qualified
technician to restore the telephone to
normal operation.
E. If the telephone has been dropped
or the case has been damaged.
F. If the telephone exhibits a distinct
change in performance.
15.Never install telephone wiring during
a lightning storm.
16.Never install telephone jacks in wet
locations unless the jack is specifically
designed for wet locations.
Safety Instructions For Batteries
may cause damage to the eyes and
skin. It may be toxic if swallowed.
4. Exercise care in handling batteries in
order not to short the battery with con
ducting materials such as rings, bracelets
and keys. The battery or conduction
material may overheat and cause burns.
5. Charge the battery (ies) provided with or
identified for use with this product only in
accordance with the instructions and limi
ta tions specified in this manual.
6. Observe proper polarity orientation
between the battery pack and the
battery charger.
SAVE THESE INSTRUCTIONS
SAVE THESE INSTRUCTIONS
W435Gd_repro 7/6/03 12:41 PM Page 4
E
N
G
L
I
S
H
Important Safety Instructions
5
The following items are included as part of
the CS-03 Requirements. The standard con-
necting arrangement code for the equipment
is CA11A. This product meets the applicable
Industry Canada technical specifications.
NOTICE: THE CANADIAN DEPARTMENT
OF COMMUNICATIONS LABEL
IDENTIFIES CERTIFIED
equipment. This certification means that the
equipment meets certain telecommunications
network protective operational and safety
requirements. The Department does not guar-
antee that the equipment will operate to the
user’s satisfaction. Before installing this equip-
ment, users should ensure that it is permissible
to be connected to the facilities of the local
telecommunications company. The equipment
must also be installed using an acceptable
method of connection. In some cases, the
company’s inside wiring associated with a
single line individual service may be extend-
ed by means of a certified connector assem-
bly (telephone extension cord). The customer
should be aware that compliance with the
above conditions may not prevent degrada-
tion of service in some situations. Repairs to
certified equipment should be made by an
authorized Canadian maintenance facility
designated by the supplier. Any repairs or
alterations made by the user to this equip-
ment, or equipment malfunctions, may give
the telecommunications company cause
to request the user disconnect the equipment.
Users should ensure for their own protection
that the electrical ground connections of the
power utility, telephone lines and internal
metallic water pipe system, if present, are
connected together. This precaution may be
particularly important in rural areas. Caution:
Users should not attempt to make such
connections themselves, but should contact
the appropriate electric inspection authority,
or electrician, as appropriate. The Ringer
Equivalent Number is an indication of the
maximum number of termianls allowed to
be connected to a telephone interface. The
termination on an interface may consist of
any combination of devices subject only to
the requirement that the sum of the Ringer
Equivalent Number of all the devices not
exceed five.
SAVE THESE INSTRUCTIONS
W435Gd_repro 7/6/03 12:41 PM Page 5
OFF ONOFF ON
RINGERRINGER
VOLUMEVOLUME
CHNMEM
FLASHMUTE
TALK
RD/P
1
456
78 9
*
0#
23
ABC
GHI
PQRS TUVWXYZ
JKLMNO
DEF
BOOST
CLARITY POWER
CLARITY POWER
12
3
4
5
67
8
9
10
11
12
13
14
15
16
6

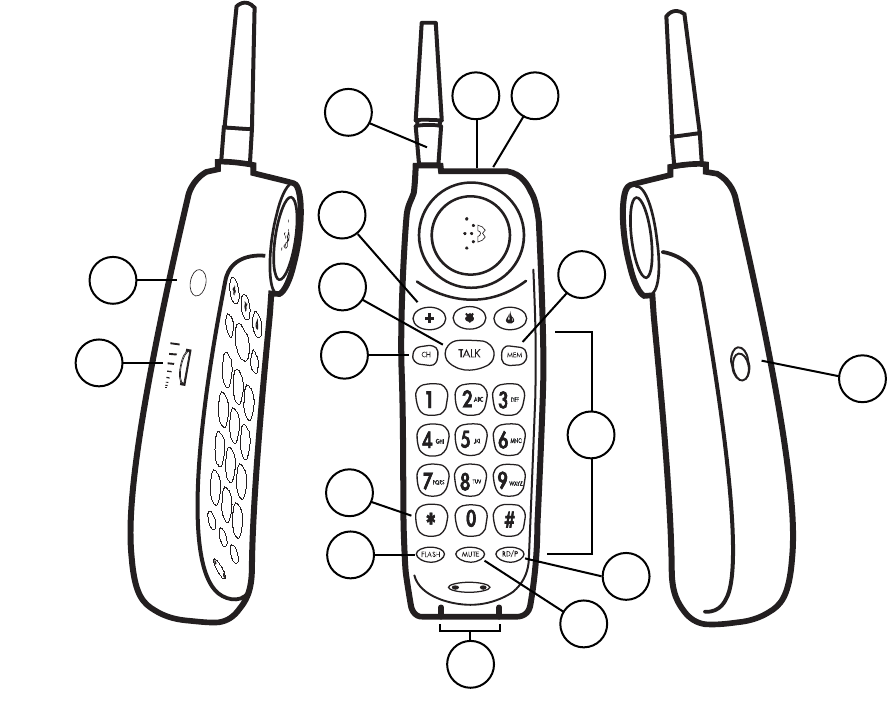

CLARITY 435 FEATURES
Handset
1. Antenna/Handset Visual Ringer
2. Headset Jack
3. Dial Pad
4. Handset Charging Contacts
5. Channel Button (CH)
6. Talk Button (TALK)
7. Memory Button (MEM)
8. Emergency Memory Storage Buttons
9. Flash Button (FLASH)
10. Mute Button (MUTE)
11. Redial/Pause Button (RD/P)
12. Temporary Tone Button (*)
13. Handset Ringer Off/On
14. BOOST Clarity Power
15. Volume Dial
16. Headset Port
Getting Started
W435Gd_repro 7/6/03 12:41 PM Page 6
E
N
G
L
I
S
H

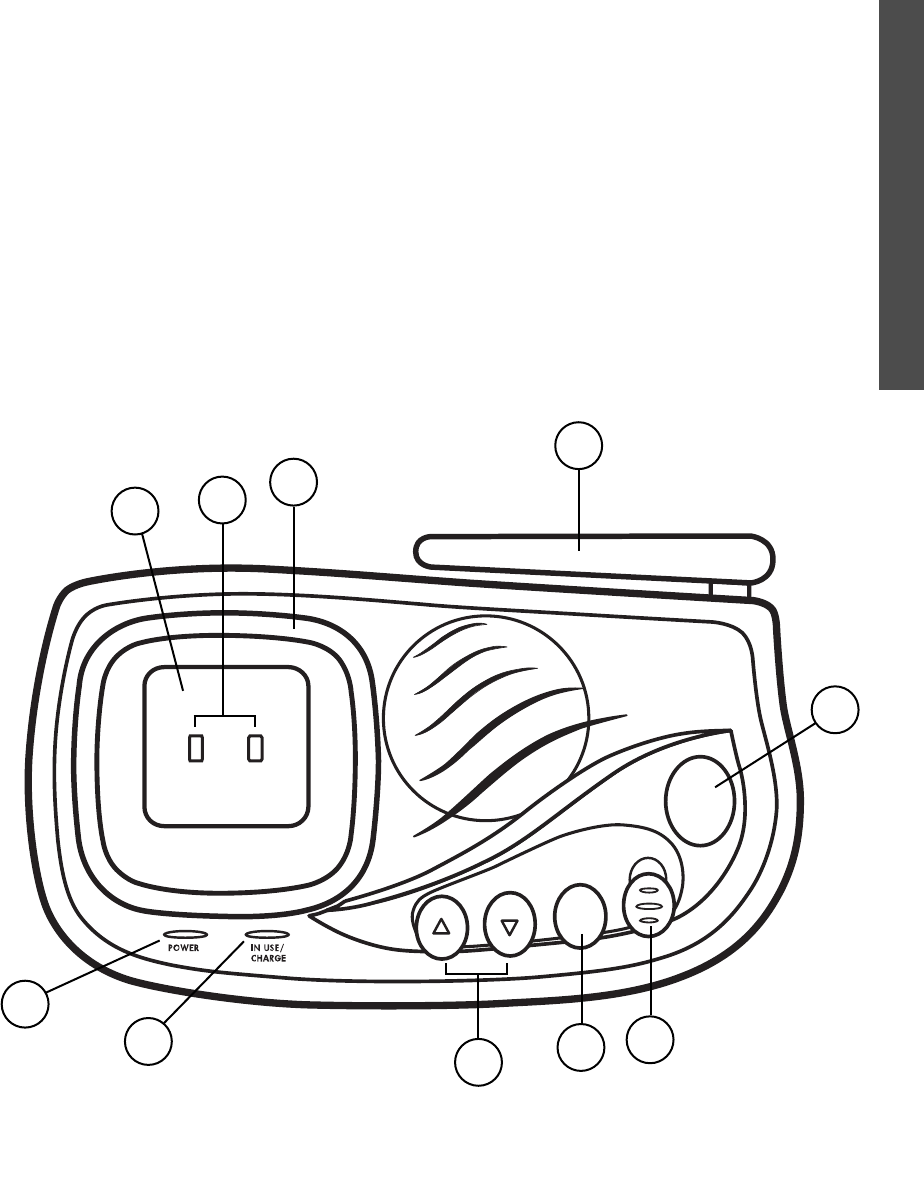

BASE FRONT
1. Visual Ringer
2. Charging Contacts
3. Handset Tab
4. Base Antenna
5. Power LED (RED)
6. In Use/Charge LED (RED)
7. Base Ringer Volume Up/Down
8. Base Ringer Style
9. Base Ringer On/Off
10. Page
Getting Started
7
RINGER
ON
VOLUME
TONES
PAGE
1
5
2
3
4
6789
10
W435Gd_repro 7/6/03 12:41 PM Page 7
8

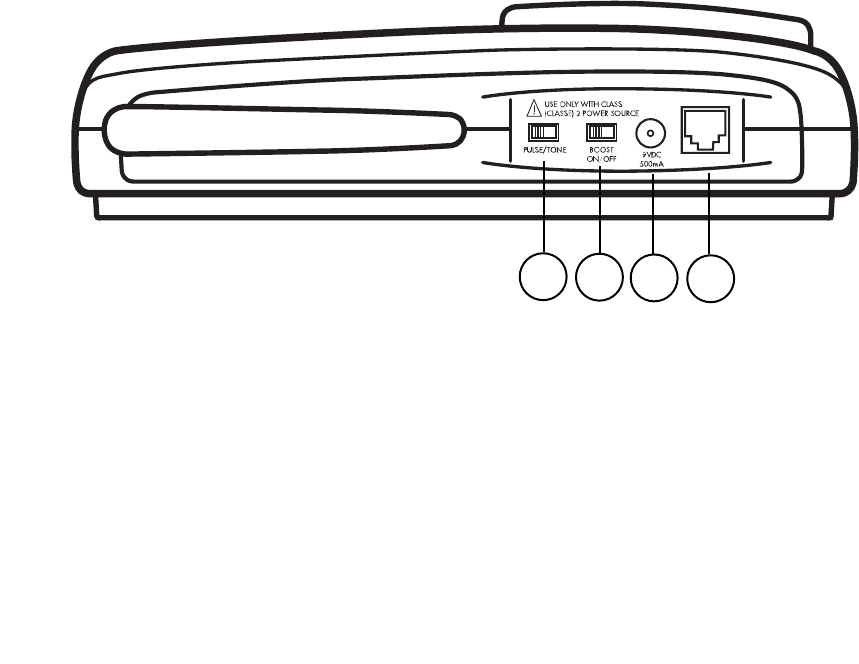

BASE TOP END
1. Pulse/Tone
2. BOOST On/Off
3. AC (Electrical) Adapter Jack
4. Telephone Line Jack
Getting Started
TEL
1234
W435Gd_repro 7/6/03 12:41 PM Page 8
E
N
G
L
I
S
H
Connecting Your Telephone
Carefully remove your cordless telephone
from its box. If there is any visible damage,
do not attempt to operate this equipment.
Return it to the place of purchase.
Check to be sure that you have all items that
come with your telephone. You should have a
HANDSET, BASE UNIT, AC ADAPTER, TELE-
PHONE LINE CORD, BELT CLIP and OWN-
ERS MANUAL.
If at any time you have questions about your
telephone please contact our Customer
Service Department at: 1-800-552-3368 or
423-622-7793
Choosing a Location
1. This phone requires a modular phone
jack (RJ11) and a standard 120V AC
wall outlet.
2. Plug the AC adapter directly
into outlet.
3. Do not plug other appliances into out
let or have outlet controlled by a
wall switch.
4. Chose a location that is out of the way
of normal activities.
CAUTION: USE ONLY WITH CLASS 2
POWER SOURCE 9V DC, 500mA.
Always connect the AC Adapter to the phone
before you connect it to the AC power. When
you finish, disconnect the AC power before
you disconnect it from the phone.
Installation
Follow these instructions to place the base on
a desk or tabletop.
1. Plug one end of the supplied modular
telephone line cord into the jack
marked TEL located on the back of
the telephone base.
2. Plug the modular telephone line cord’s
other end into a modular phone jack.
3. Insert the supplied AC adapter’s
plug into the jack marked DC 9 V
500 mA located on the back of the
telephone base.
Getting Started
9
PULSE/TONE BOOST
ON/OFF 9VDC
500mA TEL
!
USE ONLY WITH CLASS
(CLASSE) 2 POWER SOURCE
W435Gd_repro 7/6/03 12:41 PM Page 9
BATTERY
CONNECTOR
BATTERY
PACK PLUG
BATTERY
BATTERY
COMPARTMEN
T
COVER

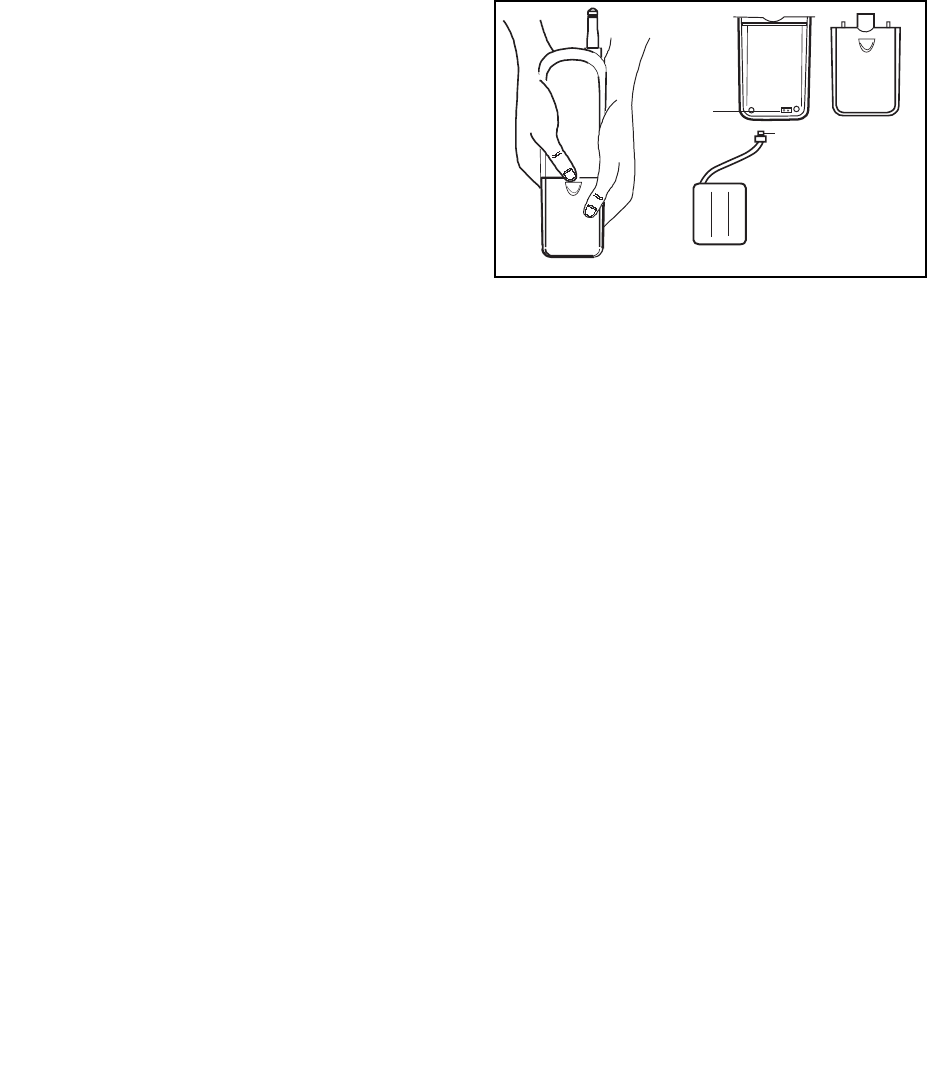

Diagram A
The battery in the handset must be fully
charged for 12 hours before using the
telephone for the first time.
Instructions
1. Remove battery cover
2. Install new battery
3. Connect battery pack
4. Replace battery cover
5. Charge for 12 hours before first use
10
4. Plug the adapter into a standard 120
AC power (electrical) outlet.
5. Lift the base’s antenna to a vertical
position.
6. Set the TONE/PULSE switch located
on the back of the base to correct dial
ing mode. Please check with your
local Phone Company if uncertain of
the type of service.
7. Place handset in the cradle to begin
initial charging.
Remember, you must charge the phone for at
least 12 hours before you use the phone for
the first time.
BATTERY INSTALLATION
The Clarity 435 uses a 3.6Volt 700mAhr
NiCd Rechargeable 3 cell (AA Type) battery
that is included with your unit.
HANDSET BATTERY MUST BE CONNNECT-
ED BEFORE BEING INITIAL CHARGING.
1. Plug one end of the supplied modular
telephone line cord into the jack
marked TEL located on the back of the
telephone base.
2. Remove battery compartment cover
and connect battery pack plug into the
battery connector (Diagram A).
Getting Started
W435Gd_repro 7/6/03 12:41 PM Page 10
E
N
G
L
I
S
H
HANDSET BATTERY CHARGING
1. Place the handset in the base. The
CHARGE LED on the base will
light RED
2. After the batteries are fully charged,
check for dial tone by pressing TALK
on the handset.
3. When the handset battery gets low,
there will be 2 beeps every 30
seconds and the TALK button will
flash. If the battery becomes low
while you are on a call, you will be
disconnected after about two (2)
minutes. Terminate the call and
recharge the battery.
Getting Started
11
To recharge battery pack, place the handset
in the base.
1. Make sure the contact points are
touching and the CHRGE LED is lit.
2. Be careful not to short battery with
conducting materials such as rings,
bracelets and keys.
BATTERY LIFE
Talk Time: 4 hours
Standby: 8 days without usage
Actual amounts will vary depending on
the amplifier settings used.
Replace battery every two (2) years.
W435Gd_repro 7/6/03 12:41 PM Page 11
12
Clarity Power Technology
With the Clarity Power feature, the high
frequency sounds are amplified more than
the low frequency sounds so that words are
not just louder, but clearer and easier
to understand.
Clarity Power On/Off Button
The Clarity 435 has a CLARITY POWER
button that controls the loudness of the receiv-
er. Once the CLARITY POWER button is
pressed, an extra level of amplification is
added over the entire range of the Volume
Control. The default state of this button is
determined by the Boost On/Off switch
(back of base of unit, see below). During a
call, the CLARITY POWER button can toggle
the Clarity Power function on or off according
to the user’s needs.
The TALK button will light ORANGE to indi-
cate the CLARITY POWER feature is activated.
WARNING: When the TALK button is lit
ORANGE volume may be at a high level. To
protect hearing, lower the volume control to
minimum before using.
Volume Dial
The dial controls the level of volume the hand-
set and headset receive. The volume dial pro-
vides up to 15 db of volume before the
Clarity Power button is activated. Once the
Clarity Power button is pressed, the Clarity
435 will provide up to 30db of gain.
Boost On/Off Switch
This switch will disable the reset feature of the
Clarity Power button as follows:
ON- When the BOOST ON/OFF switch is set
to “ON”, the Boost function will be ON
every time a call starts, and will default to
ON every time the phone hangs up for more
than 5 seconds. During a call, the Clarity
Power button can toggle the Clarity Power
ON or OFF according to the user’s needs.
OFF- When the BOOST ON/OFF switch is set
to “OFF”, the Boost function (Clarity Power)
will be OFF every time a call starts, and the
user needs to press the Clarity Power button
in order to gain the extra level of amplifica-
tion. If the phone hangs up for at least 5
seconds, the Clarity Power will reset to OFF.
During a call, the Clarity Power button can
toggle the Clarity Power function on or off
according to the user’s needs.
Ringer Controls
Ringers and ringer controls are located in
both the handset and the base of the
Clarity 435.
Handset Ringer
Set the switch marked RINGER On/Off locat-
ed on the side of the handset. The ringer
switch must be set to ON for the handset to
ring signaling an incoming call.
Operating Your Telephone
W435Gd_repro 7/6/03 12:41 PM Page 12
E
N
G
L
I
S
H

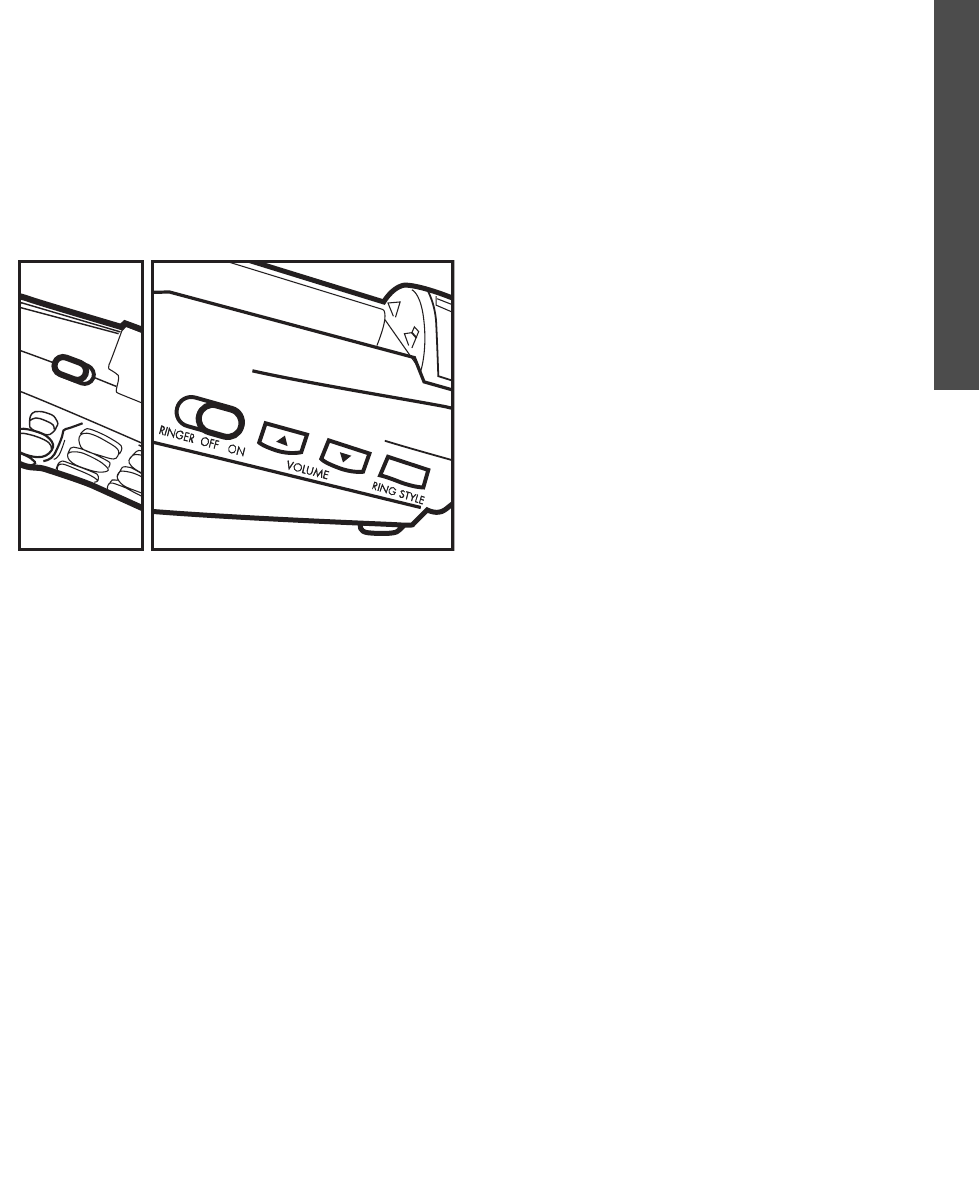

Base Ringer
The base ringer includes ringer volume and
ring style adjustments located on the top of
the telephone base.
Adjust the volume of ring by pressing the
VOLUME UP OR DOWN switch until the
desired ring volume is achieved.
The style of ring or cadence can also be
adjusted by pressing the RING STYLE button.
Six (6) styles are available allowing you to
customize your ring. The ringer will sound for
2 seconds while choosing a ringer style, to
allow the user to make a choice.
NOTE: If both handset and base ringer’s are
set to OFF, the visual ringer will flash to indi-
cate there is an incoming call.
Visual Ringer
Visual ringers are located in both the handset
antenna and the base of the telephone.
When an incoming call is received, these
lights will flash. The handset visual ringer will
also light while the phone is in use.
Headset Jack
A 2.5 mm jack is located on the top of the
of the telephone handset that can be used in
conjunction with a headset.
While in headset mode, the volume of
headset is controlled by the telephone and
the handset’s earpiece and microphone
are disabled.
Ordering a Headset
In the event you wish to purchase a headset
for your Clarity 435, please contact
Plantronics at 1-800-544-4660 for location
near you. We recommend using the
Plantronics M110 headset
Flash
The FLASH button is activated to use custom
calling services such as Call Waiting or
Three Way Calling. Please contact your local
telephone company for information on these
services.
Mute
The mute MUTE button allows the user to
conduct a private conversation that you do
not want the person on the other end to hear.
While in the mute mode, the TALK button will
alternately flash RED/ORANGE and the
microphone in the handset is disabled.
Pressing the MUTE button again will disen-
gage the MUTE feature.
Redial/Pause
The RD/P button operates both the last
number redial and the pause feature.
Operating Your Telephone
13
RINGER
OFF ONOFF ON
W435Gd_repro 7/6/03 12:41 PM Page 13
14
Last Number Redial:
The last number dialed (up to 22 digits) is
stored in the redial memory until another
number is dialed.
To use this feature:
1. Press the TALK button
2. When you hear the dial tone, press
the RD/P button
3. The phone will automatically dial
for you
Pause Feature:
Programming in a pause will cause the
phone to wait four (4) seconds before dialing
additional numbers. This feature may be used
when it is necessary to dail an access code
(9, for example) and wait for a second dial
tone before you can dial an outside number.
Press the RD/P button at the required point
during the memory storage process.
Lighted Key Pad
The key pad will light for fifteen (15) seconds
after removing from the base. To reactivate
the feature while in standby, press the TALK
or the MEM button. To activate while the
phone is in use, press any key.
Page / Handset Locator
To send a page signal from the base to the
handset, press the PAGE button located on
the base of the telephone. A series of rings
will sound from the handset.
To locate the handset if it is away from the
base, press and hold the PAGE button for
approximately five (5) seconds. A series of
rings will sound for approximately six (6) sec-
onds. Return the handset to the base or press
the TALK button to cancel the page.
40 Channel Operation
The Clarity 435 cordless telephone automati-
cally searches and selects the clearest of 40
channels when it is being used.
Security Code
The security code prevents your cordless
phone conversations from being accessed
by a phone on a different line. Once the
handset battery is fully charged, the handset
will automatically select the code from
over 65,000 combinations. The code is
changed every time the handset is placed
in the cradle.
If you have trouble with placing or receiving
calls, a lost security code may be the cause
of the problem. When this occurs, the hand-
set can no longer communicate with the
base. Reset by placing the handset on the
base for 5-10 seconds. If that does not work,
unplug the AC adapter from the wall outlet.
Disconnect the handset battery for
5-10 seconds, and then reconnect. Place
handset back on the base and then reinsert
the AC adapter. Place the handset back on
the base and then reinsert the AC adapter.
Operating Yout Telephone
W435Gd_repro 7/6/03 12:41 PM Page 14
E
N
G
L
I
S
H
Hearing Aid Compatibility
The handset has a special coil inside of it to
couple the sound to hearing aids equipped
with T-Switches/T-Coils.
MEMORY STORAGE
Memory Storage Locations
The Clarity 435 also has 10 indirect or two
touch memory locations on the telephone (0-
9) that can be programmed to dial frequently
called numbers of up to 16 digits.
Three (3) emergency buttons are located on
the handset. These storage buttons can be
programmed with numbers of up to 16 digits.
To Store numbers into memory:
1. Press the MEM button.
2. Dial the number you wish to store.
3. Press the MEM button again.
4. Press either the emergency button or
the number on the dial pad that you
wish to store the number to.
5. A long beep will indicate the pro-
gramming process is complete.
To Change a Number Stored into Memory
Replace a stored number by programming a
new number in its place.
To Delete a Number Stored into Memory
1. Press and Release the MEM button.
2. Press the #key once.
3. Press the MEM button again.
4. Press the button for the memory
location you want to delete the
number from.
5. A long beep will indicate the process
is complete.
During the memory storage process the TALK
button will flash GREEN.
In the event of a power outage memory is
retained of at least six (6) hours.
MAKING AND RECEIVING PHONE CALLS
Placing a Phone Call:
1. Press the TALK button. (TALK button
will illuminate green)
2. Dial the number you wish to call.
3. Adjust the rotary VOLUME CONTROL
to desired level.
4. Press the CLARITY POWER Button
(activate the Clarity Power
Technology) to gain the extra level of
amplification, if needed.
Refer to Clarity Power ON/OFF and BOOST
ON/OFF for additional information on
volume controls.
Operating Your Telephone
15
W435Gd_repro 7/6/03 12:41 PM Page 15
16
To Dial from Memory:
1. Press the TALK button.
2. Press the MEM button.
3. Press the number on the dial pad
where the desired number has
been stored.
4. The call will automatically dial.
5. Adjust volume and Clarity Power
as needed.
To Dial From Emergency Storage Location:
1. Press the TALK button.
2. Press the desired emergency button.
3. The call will automatically dial.
4. Adjust volume and Clarity Power
as needed.
To use a TONE service on a Pulse Line
(Temporary Tone):
1. Dial the number you wish to call
2. When the call is answered, press the *
key. Additional numbers you dial are
sent as tone signals.
3. After completing the call, press TALK
or return the handset to the base. The
phone will automatically reset.
Receiving a Call
Handset in Base of Telephone:
Lift the handset. Do not press TALK.
You will automatically be connected.
Handset out of Base:
1. Press the TALK button.
Ending a Call
Place the handset in the base cradle or press
the TALK button to disconnect the line.
MAINTENANCE AND CARE
The Clarity 435 has been designed to give
you years of dependable service with a mini-
mum of care.
To ensure the utmost in performance, follow
these guidelines in caring for the unit:
1. Avoid dropping or knocking the unit.
2. Dust the unit regularlyregularly. Wipe
the unit with a soft damp cloth. Do
not use detergents and avoid
excess moisture.
3. The Clarity 435 is an electrical
device. Avoid electric shock by keep
ing the phone away from water (i.e.
bathroom, kitchen sink, etc..)
Operating Your Telephone
W435Gd_repro 7/6/03 12:41 PM Page 16
E
N
G
L
I
S
H
The unit will not operate/no dial tone:
•Verify the TALK Button is lit.
•Verify the AC Adapter is securely
plugged into the base of the
telephone.
•Verify the telephone line cord is
securely plugged into the wall jack
and the telephone.
•Make sure the base antenna is in an
upright position.
•Make sure the handset battery is
fully charged.
•Verify the telephone is in the correct
dialing mode, tone (touch) or
pulse (rotary).
•Make sure you are in the usable
range of the base station.
•Reset the security code by placing the
handset in the base for 5-10 seconds.
The phone does not ring when you
receive a call:
•Make sure the RINGER switch on the
handset and base are set to ON.
•Verify the AC Adapter is securely
plugged into the base of the
telephone.
•Verify the telephone line cord is
securely plugged into the wall jack
and the telephone.
•Make sure you are in the usable
range of the base station.
•You may have too many extensions
on your line. Try unplugging a
few devices.
Noise, Static, Interference or Other Calls
Heard while Using the Handset:
•Try changing channels.
•Make sure the base antenna is in an
upright position.
•Make sure you are in the usable
range of the base station.
•Make sure the handset battery is
fully charged.
•Try relocating the base unit to
another location.
•Make sure the AC adapter is not
plugged into the wall outlet with
other appliances.
•Try relocating the base unit to
another location.
Troubleshooting
17
W435Gd_repro 7/6/03 12:41 PM Page 17
18
Phone Will Not Hold Charge:
•Make sure the charging contacts on
the handset and base are free of dust
and dirt. Clean the contacts with a
soft cloth.
•Make sure CHARGE LED on the base
is lit when handset is in the cradle.
•If necessary, replace the handset
battery. (See Handset Battery
Charging)
Difficulty in Placing or Receiving Calls:
•Move closer to the base and
try again.
•If moving closer does not work, you
may have lost the security code.
•Reset code by placing the handset
back on the base for 5-10 seconds.
(See Security Code Section)
•Make sure you have selected the
correct dialing mode, tone or pulse.
•Make sure the AC adapter is not
plugged into a wall outlet with other
appliances. Disconnect for 5-10
seconds then reconnect. Place the
handset back on the base and rein
sert the AC adapter.
•Make sure the handset battery is
fully charged.
Troubleshooting
W435Gd_repro 7/6/03 12:41 PM Page 18
E
N
G
L
I
S
H
Part 68 of FCC Rules Information
a) This equipment complies with Part 68 of
the FCC rules and the requirements
adopted by the ACTA. On the bottom of this
equipment is a label that contains, among
other information, a product identifier in the
format US:AAAEQ##TXXXX. If requested, this
number must be provided to the telephone
company.
b) A plug and jack used to connect this
equipment to the premises wiring and tele-
phone network must comply with the applica-
ble FCC Part 68 rules and requirements
adopted by the ACTA. A compliant telephone
cord and modular plug, RJ11 USOC, is pro-
vided with this product. It is designed to be
connected to a compatible modular jack that
is also compliant. See installation instructions
for details.
c) The REN is used to determine the number
of devices that may be connected to a tele-
phone line. Excessive RENs on a telephone
line may result in the devices not ringing in
response to an incoming call. In most but not
all areas, the sum of RENs should not exceed
five (5.0). To be certain of the number of
devices that may be connected to a line, as
determined by the total RENs, contact the
local telephone company. For products
approved after July 23, 2001, the REN for
this product is part of the product identifier
that has the format US:AAAEQ##TXXXX.
The digits represented by ## are the REN
without a decimal point (e.g., 03 is a REN
of 0.3). For earlier products, the REN is
separately shown on the label.
d) If this telephone equipment causes harm to
the telephone network, the telephone compa-
ny will notify you in advance that temporary
discontinuance of service may be required.
But if advance notice isn’t practical, the tele-
phone company will notify the customer as
soon as possible. Also, you will be advised
of your right to file a complaint with the FCC
if you believe it is necessary.
e) The telephone company may make
changes in its facilities, equipment, opera-
tions or procedures that could affect the
operation of the equipment. If this happens
the telephone company will provide
advance notice in order for you to make
necessary modifications to maintain uninter-
rupted service.
f) If trouble is experienced with this telephone
equipment, for repair or warranty informa-
tion, please contact Walker Ameriphone,
1-800-552-3368. If the equipment is causing
harm to the telephone network, the telephone
company may request that you disconnect the
equipment until the problem is resolved.
g) This telephone equipment is not intended
to be repaired and it contains no repairable
parts. Opening the equipment or any attempt
to perform repairs will void the warranty. For
service or repairs, call 1-800-552-3368.
Regulatory Compliance
19
IMPORTANT INFORMATION FOR CUSTOMERS
W435Gd_repro 7/6/03 12:41 PM Page 19
20
h) Connection to party line service is subject
to state tariffs. Contact the state public utility
commission, public service commission or
corporation commission for information.
i) If your home has specially wired alarm
equipment connected to the telephone line,
ensure the installation of this telephone equip-
ment does not disable your alarm equipment.
If you have questions about what will disable
alarm equipment, consult your telephone
company or a qualified installer.
j) This telephone equipment is hearing aid
compatible.
Customer-Owned Coin/Credit Card Phones:
To comply with state tariffs, the telephone
company must be given notification prior to
connection. In some states, the state public
utility commission, public service commission
or corporation commission must give prior
approval of connection.
Part 15 of FCC Rules Information
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received,
including interference that may cause unde-
sired operation.
Your equipment has been tested and found to
comply with the limits of a Class B digital
device, pursuant to Part 15 of FCC rues.
These limits are designed to provide reason-
able protection against harmful interference
in residential installation.
This equipment generates, uses and can radi-
ate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation; if this equipment
does cause harmful interference to radio or
television reception, which can be deter-
mined by turning the equipment off and on,
you are encouraged to try to correct the inter-
ference by one of the following measures:
1. Where it can be done safely, reorient
the receiving television or radio
antenna.
2. To the extent possible, relocate the
television, radio or other receiver with
respect to the telephone equipment.
(This increases the separation
between the telephone equipment and
the receiver.)
3. Connect the telephone equipment into
an outlet on a circuit different from
that to which the television, radio, or
other receiver is connected.
4. Consult the dealer or an experienced
Radio/TV Technician for help.
Regulatory Compliance
IMPORTANT INFORMATION FOR CUSTOMERS
W435Gd_repro 7/6/03 12:41 PM Page 20
E
N
G
L
I
S
H
CAUTION: Changes or modifications not
expressly approved by the manufacturer
responsible for compliance could void the
userís authority to operate the equipment.
Industry Canada Technical Specifications
This product meets the applicable Industry
Canada technical specifications.
Before installing this equipment, users should
ensure that it is permissible to be connected
to the facilities of the local telecommunica-
tions company. The equipment must also be
installed using an acceptable method of con-
nection. In some cases, the companyís inside
wiring associated with a single line individual
service may be extended by means of a
certified connector assembly (telephone exten-
sion cord). The customer should be aware
that compliance with the above conditions
may not prevent degradation of service in
some situations.
Repairs to certified equipment should be
made by an authorized Canadian mainte-
nance facility designated by the supplier.
Any repairs or alterations made by the
user to this equipment, or equipment malfunc-
tions, may give the telecommunications com-
pany cause to request the user to disconnect
the equipment.
Users should ensure for their own protection
that the electrical ground connections of the
power utility, telephone lines and internal
metallic water pipe system, if present, are
connected together. This precaution may be
particularly important in rural areas.
CAUTION: Users should not attempt to make
such connections themselves, but should con-
tact the appropriate electrical inspection
authority, or electrician, as appropriate.
The Ringer Equivalence Number is an indica-
tion of the maximum number of terminals
allowed to be connected to a telephone inter-
ference. The termination on an interference
may consist of any combination of devices
subject only to the requirement that the sum
of the Ringer Equivalence Numbers of all the
devices does not exceed five.
(The term ìIC:î before the certification/regis-
tration number only signifies that the Industry
Canada technical specifications were met.)
The party responsible for regulatory
compliance:
Walker, A Division of Plantronics, Inc.
4289 Bonny Oaks Drive, Suite 106
Chattanooga, TN 37406
Phone: 1-800-552-3368
The following warranty and service informa-
tion applies only to products purchased and
Regulatory Compliance
21
IMPORTANT INFORMATION FOR CUSTOMERS
W435Gd_repro 7/6/03 12:41 PM Page 21
22
used in the U.S. and Canada. For warranty
information I n other countries, please contact
your local retailer or distributor.
Limited Warranty
Walker, a division of Plantronics, Inc.
(“Walker”) warrants to the original consumer
purchaser that, except for limitations and
exclusions set forth below, this product shall
be free from defects in materials and work-
manship for a period of one (1) year from the
date of original purchase (“Warranty
Period”). The obligation of Walker under this
warranty shall be at Walker’s option, without
charge, of any part or unit that proves to be
defective in material or workmanship during
the Warranty Period.
Exclusions from Warranty
This warranty applies only to defects in facto-
ry materials and factory workmanship.
Any condition caused by accident, abuse,
misuse or improper operation, violation of
instructions furnished by Walker, destruction
or alteration, improper electrical voltages or
currents, or repair or maintenance attempted
by anyone other than Walker or an author-
ized service center, is not a defect covered
by this warranty. Telephone companies manu-
facture different types of equipment and
Walker does not warrant that its equipment is
compatible with the equipment of a particular
phone company.
Implied Warranties
Under state law, you may be entitled to the
benefit of certain implied warranties. These
implied warranties will continue in force only
during the warranty period. Some states do
allow limitations on how long an implied
warranty lasts, so the above limitation may
not apply to you.
Incidental or Consequential Damages
Neither Walker nor your retail dealer or sell-
ing distributors has any responsibility for any
incidental or consequential damages includ-
ing without limitation, commercial loss or
profit, or for any incidental expenses, expens-
es, loss of time, or inconvenience. Some
states do not allow exclusion or limitation of
incidental or consequential damage, so the
above limitation or exclusion may not apply
to you.
Other Legal Rights
This warranty gives you specific legal rights
and you may also have other rights which
vary from state to state.
Warranty & Service
W435Gd_repro 7/6/03 12:41 PM Page 22
E
N
G
L
I
S
H
How to Obtain Warranty Service
To obtain warranty service, please prepay
shipment and return the unit to the appropri-
ate facility listed below.
In the United States
Walker Service Center
4289 Bonny Oaks Drive, Suite 106
Chattanooga, Tennessee 37406
Tel. (423) 622-7793 or
(800) 426-3738
Fax: (423) 622-7646 or
(800) 325-8871
In Canada
Plantronics Service Center
1455 Pitfield Boulevard
Saint-Laurent
Quebec H4S 1G3
Tel: (800) 540-8363
(514) 956-8363
Fax: (514) 956-1825
Please use the original container, or pack the
unit(s) in a sturdy carton with sufficient pack-
ing material to prevent damage. Include the
following information:
1. A proof-of-purchase indicating model
number and date of purchase.
2. Bill-to address.
3. Ship-to address.
4. Number and description of
units shipped.
5. Name and telephone number of
person to call, should contact be
necessary.
6. Reason for return and description of
the problem.
Damage occurring during shipment is
deemed the responsibility of the carrier,
and claims should be made directly with
the carrier.
Warranty & Service
23
W435Gd_repro 7/6/03 12:41 PM Page 23
