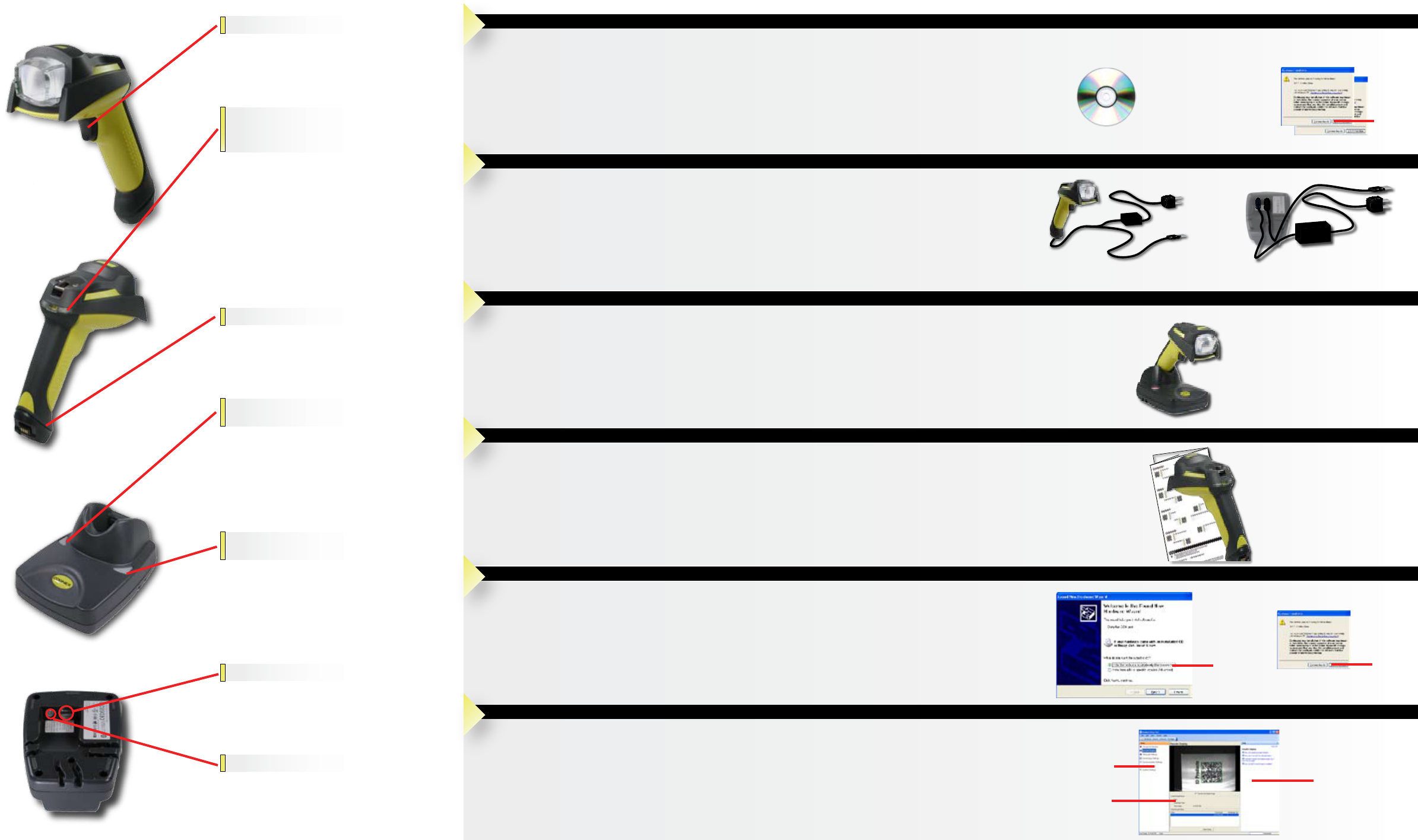

7500 7550
7550
1
2
3
4
5
6
1
Status: Red: read failed
Green: read succeeded
Blue: cordless link up
Blinking red: low battery
Trigger (press and hold to read)
Charge: Steady green: fully charged
Blinking green: charging
Status: Steady red: connected to power
Blinking red: data transfer
Power
Data (RS-232, USB, PS/2 Keyboard)
Cable release (corded unit) Inserting device in base establishes Bluetooth® link and charges
battery.
Scan USB Serial or RS-232 Serial configuration code from the
back of this document.
Allow the Windows Found New Hardware Wizard to run.
Select Automatic driver installation.
When prompted during driver load, click Continue Anyway.
1.
2.
Use setup tool to configure reader (shortcut on desktop)
Common tasks
Controls and information
Question and Answer help
1.
2.
3.
2
2
1
2
3
Install Software
Connect Device
Place in Base (Cordless Only)
Load USB Driver (USB Only)
Scan Connection Code
Start Setup Tool
1
USB: 42206416-01
RS-232: 42206139-04
USB: 42206161-01
RS-232: 42203758-03S
Insert CD-ROM and install software (follow prompts).
Run setup.exe if installer does not start automatically.
You must have Administrator privileges to install.
.NET Framework is installed if required.
When prompted, click Continue Anyway.
1.
•
•
•
2.
Connect base or device to PC using USB or Serial cable (PS/2
keyboard cable is not supported by setup tool.)
Connect base or device to power supply.
1.
2.
![](/img.php?id=626586&img=bg2.png)
i
Copyright © 2006 Cognex Corporation All Rights Reserved This document may not be copied in whole or in part, nor transferred to any
other media or language, without the written permission of Cognex Corporation. The hardware and portions of the software described
in this document may be covered by one or more of the U.S. patents listed on the Cognex web site http://www.cognex.com/patents.
asp. Other U.S. and foreign patents are pending. Cognex, the Cognex logo, and DataMan are trademarks, or registered trademarks, of
Cognex Corporation.
DataMan
590-6608
7500 ID Reader
7550 Cordless ID Reader
Quick Reference
7500 Corded 7550 Cordless
Product support: http://support.cognex.com
RS-232 Serial
Weight 270g (9.5 oz) 330g (11.6 oz)
Base: 250g (8.8 oz)
Operating Temperature -10ºC — 50ºC (14ºF — 122ºF) 0ºC — 50ºC (32ºF — 122ºF)
Storage Temperature -40ºC — 70ºC (-40ºF — 158ºF) -40ºC — 60ºC (-40ºF — 140ºF)
Charging Temperature 0ºC — 40ºC (32ºF — 104ºF)
Maximum Humidity 95% (non-condensing)
Environmental IP52 IP52
Base: IP41
Drop (Impact) 50 drops from 2m (6.5’) to concrete 25 drops from 2m (6.5’) to concrete
Codes Data MatrixTM (ECC 0, 50, 80, 100, 140, and 200)
QR Code
UPC/EAN/JAN
Interleaved 2 of 5
Code 39, Code 128, and Code 93
Power Consumption 1000 mA @ 5 VDC Base: 800 mA @ 9 VDC
Battery Life at 25ºC (77ºF) 8h (normal use)
PS/2 Keyboard Wedge
USB Serial
USB Keyboard
Soft reset (save settings) Hard reset (discard settings)
US English French
German
Connection
Keyboard
Commands
Setups
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. The battery should
be disposed of by a qualified recycler or hazardous materials handler. Do not incinerate the battery
or dispose of the battery with general waste materials.
NOTE: Any modifications to this device not expressly approved by COGNEX CORPORATION may void
your authority to operate it.
Unlink base station
Enable Setup 3 only Enable Setup 4 only
Enable Setup 1 only Enable Setup 2 only
See Configuration Codes in setup tool for more languages.
5 mil
10 mil
20 mil
0 - 35 mm (0 - 1.4 in)
13 mil 0 - 62mm (0 - 2.4 in)
0 - 55 mm (0 - 2.1 in)
0 - 85 mm (0 - 3.3 in)
20
1 2 3
40 60 80 mm
in
Notes
Reading Distance
1D Codes
2D Codes
