Computime RCB Basic On/Off Remote Control (Transmitter) User Manual

Computime Limited Basic On/Off Remote Control (Transmitter) Users Manual

Users Manual

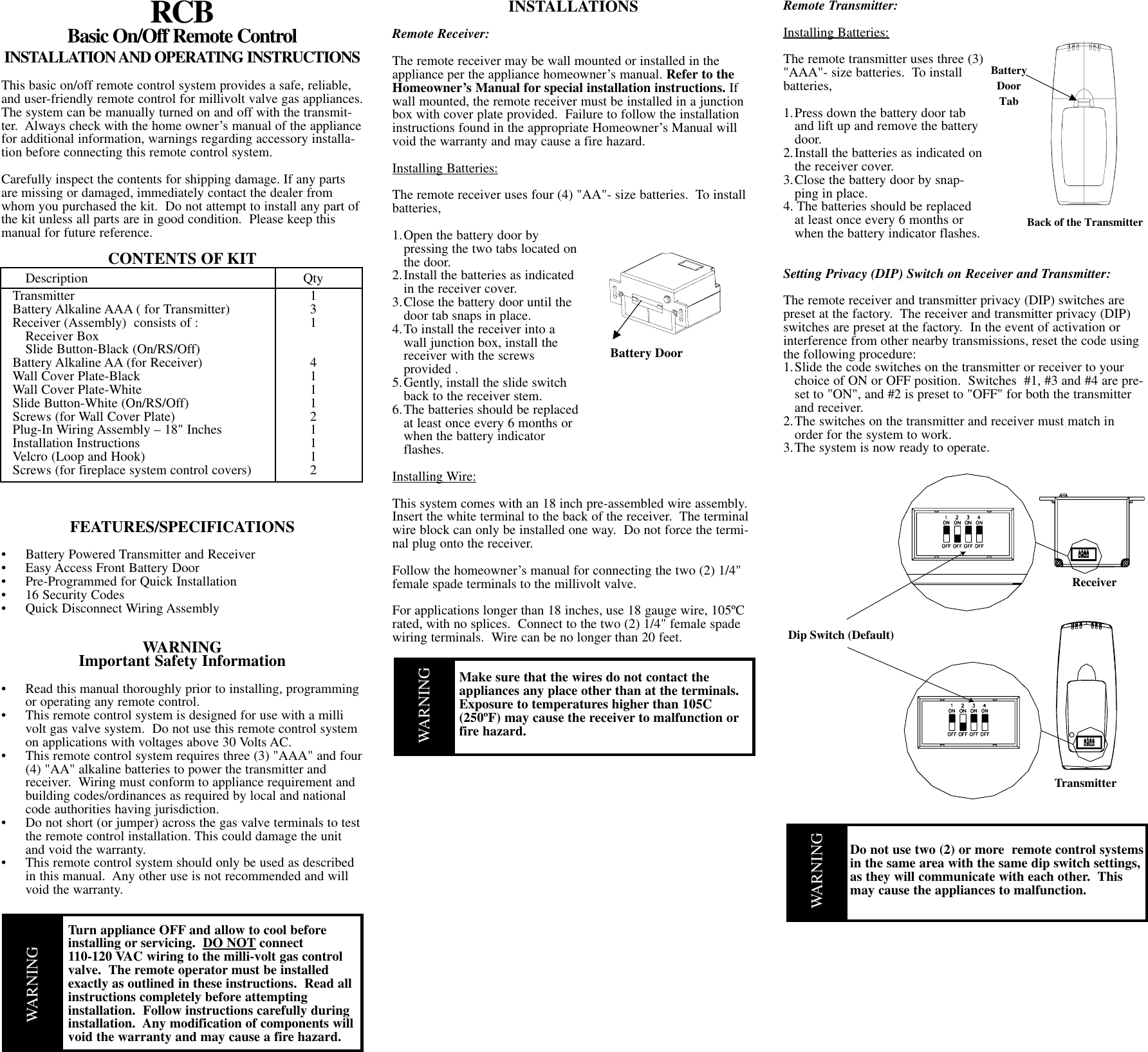

RCBBasic On/Off Remote ControlINSTALLATION AND OPERATING INSTRUCTIONSThis basic on/off remote control system provides a safe, reliable,and user-friendly remote control for millivolt valve gas appliances.The system can be manually turned on and off with the transmit-ter.  Always check with the home owner’s manual of the appliancefor additional information, warnings regarding accessory installa-tion before connecting this remote control system.Carefully inspect the contents for shipping damage. If any partsare missing or damaged, immediately contact the dealer fromwhom you purchased the kit.  Do not attempt to install any part ofthe kit unless all parts are in good condition.  Please keep thismanual for future reference.CONTENTS OF KITDescription QtyTransmitter 1Battery Alkaline AAA ( for Transmitter) 3Receiver (Assembly)  consists of : 1Receiver BoxSlide Button-Black (On/RS/Off)Battery Alkaline AA (for Receiver) 4Wall Cover Plate-Black 1Wall Cover Plate-White 1Slide Button-White (On/RS/Off) 1Screws (for Wall Cover Plate) 2Plug-In Wiring Assembly – 18" Inches 1Installation Instructions 1Velcro (Loop and Hook) 1Screws (for fireplace system control covers)  2FEATURES/SPECIFICATIONS•  Battery Powered Transmitter and Receiver•  Easy Access Front Battery Door•  Pre-Programmed for Quick Installation•  16 Security Codes• Quick Disconnect Wiring AssemblyWARNINGImportant Safety Information•  Read this manual thoroughly prior to installing, programming or operating any remote control.•  This remote control system is designed for use with a millivolt gas valve system.  Do not use this remote control system on applications with voltages above 30 Volts AC.•  This remote control system requires three (3) "AAA" and four(4) "AA" alkaline batteries to power the transmitter and receiver.  Wiring must conform to appliance requirement and building codes/ordinances as required by local and national code authorities having jurisdiction.•  Do not short (or jumper) across the gas valve terminals to testthe remote control installation. This could damage the unit and void the warranty.•  This remote control system should only be used as described in this manual.  Any other use is not recommended and will void the warranty.Turn appliance OFF and allow to cool before installing or servicing.  DO NOT connect110-120 VAC wiring to the milli-volt gas control valve.  The remote operator must be installed exactly as outlined in these instructions.  Read all instructions completely before attempting installation.  Follow instructions carefully during installation.  Any modification of components will void the warranty and may cause a fire hazard.INSTALLATIONSRemote Receiver:The remote receiver may be wall mounted or installed in theappliance per the appliance homeowner’s manual. Refer to theHomeowner’s Manual for special installation instructions. Ifwall mounted, the remote receiver must be installed in a junctionbox with cover plate provided.  Failure to follow the installationinstructions found in the appropriate Homeowner’s Manual willvoid the warranty and may cause a fire hazard.Installing Batteries:The remote receiver uses four (4) "AA"- size batteries.  To installbatteries,1.Open the battery door by pressing the two tabs located onthe door.2.Install the batteries as indicated in the receiver cover.3.Close the battery door until the door tab snaps in place. 4.To install the receiver into a wall junction box, install the receiver with the screws provided .5.Gently, install the slide switch back to the receiver stem.6.The batteries should be replacedat least once every 6 months or when the battery indicator flashes.Installing Wire:This system comes with an 18 inch pre-assembled wire assembly.Insert the white terminal to the back of the receiver.  The terminalwire block can only be installed one way.  Do not force the termi-nal plug onto the receiver.  Follow the homeowner’s manual for connecting the two (2) 1/4"female spade terminals to the millivolt valve.  For applications longer than 18 inches, use 18 gauge wire, 105ºCrated, with no splices.  Connect to the two (2) 1/4" female spadewiring terminals.  Wire can be no longer than 20 feet.Make sure that the wires do not contact the appliances any place other than at the terminals.  Exposure to temperatures higher than 105C (250ºF) may cause the receiver to malfunction orfire hazard.Remote Transmitter:Installing Batteries:The remote transmitter uses three (3)"AAA"- size batteries.  To installbatteries,1.Press down the battery door tab and lift up and remove the battery door.2.Install the batteries as indicated onthe receiver cover.3.Close the battery door by snap-ping in place.4. The batteries should be replaced at least once every 6 months or when the battery indicator flashes.Setting Privacy (DIP) Switch on Receiver and Transmitter:The remote receiver and transmitter privacy (DIP) switches arepreset at the factory.  The receiver and transmitter privacy (DIP)switches are preset at the factory.  In the event of activation orinterference from other nearby transmissions, reset the code usingthe following procedure:1.Slide the code switches on the transmitter or receiver to your choice of ON or OFF position.  Switches  #1, #3 and #4 are pre-set to "ON", and #2 is preset to "OFF" for both the transmitter and receiver.2.The switches on the transmitter and receiver must match in order for the system to work.3.The system is now ready to operate.Do not use two (2) or more  remote control systemsin the same area with the same dip switch settings,as they will communicate with each other.  This may cause the appliances to malfunction.WARNINGBattery DoorWARNINGWARNINGBack of the TransmitterBatteryDoorTabDip Switch (Default)ReceiverTransmitter

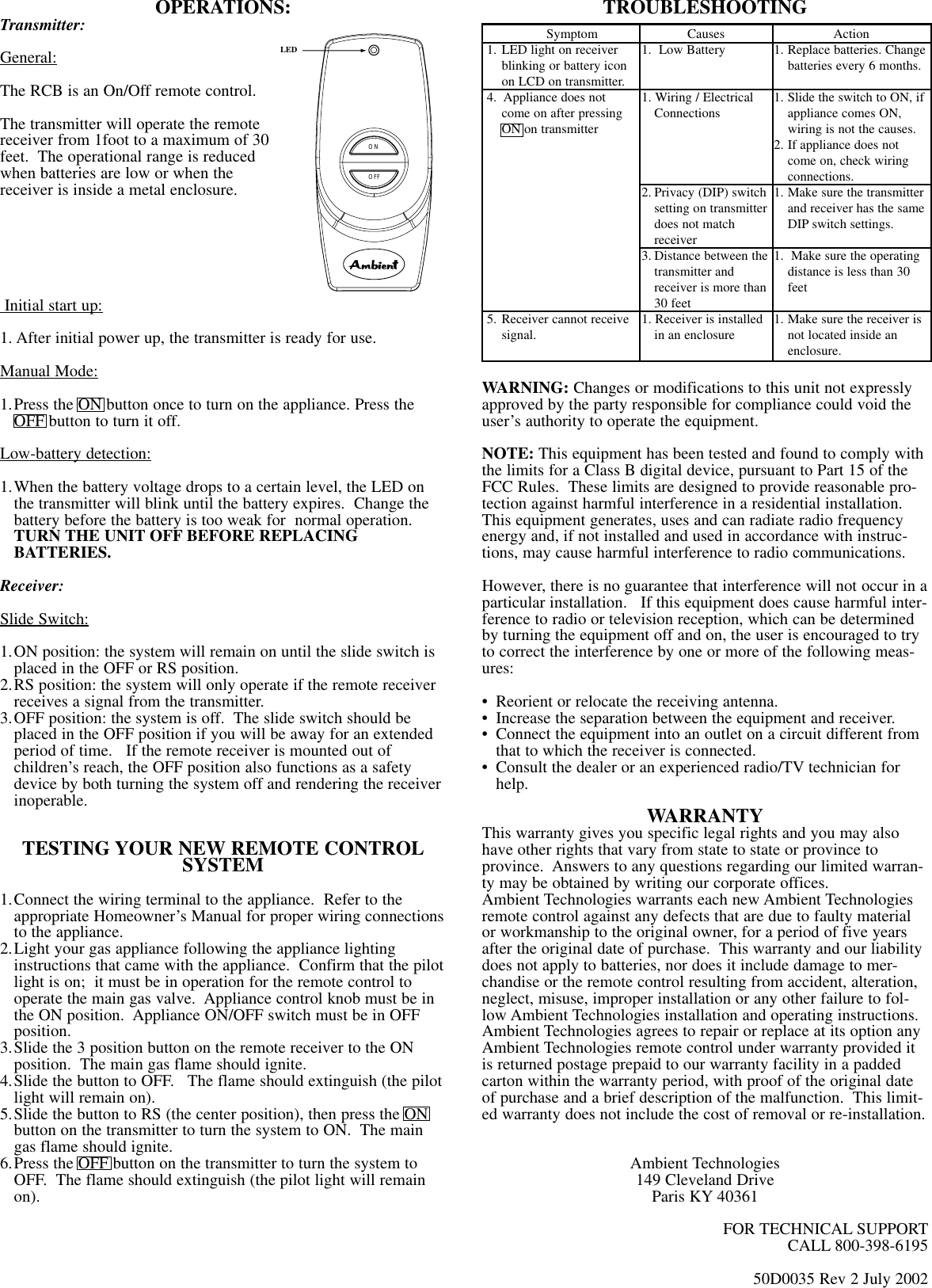

OPERATIONS:Transmitter:General:The RCB is an On/Off remote control. The transmitter will operate the remotereceiver from 1foot to a maximum of 30feet.  The operational range is reducedwhen batteries are low or when thereceiver is inside a metal enclosure. Initial start up:1. After initial power up, the transmitter is ready for use.Manual Mode:1.Press the ON button once to turn on the appliance. Press the OFF button to turn it off. Low-battery detection:1.When the battery voltage drops to a certain level, the LED on the transmitter will blink until the battery expires.  Change the battery before the battery is too weak for  normal operation. TURN THE UNIT OFF BEFORE REPLACING BATTERIES.Receiver:Slide Switch:1.ON position: the system will remain on until the slide switch is placed in the OFF or RS position.2.RS position: the system will only operate if the remote receiver receives a signal from the transmitter.3.OFF position: the system is off.  The slide switch should be placed in the OFF position if you will be away for an extended period of time.   If the remote receiver is mounted out of children’s reach, the OFF position also functions as a safety device by both turning the system off and rendering the receiver inoperable.TESTING YOUR NEW REMOTE CONTROLSYSTEM1.Connect the wiring terminal to the appliance.  Refer to the appropriate Homeowner’s Manual for proper wiring connectionsto the appliance.2.Light your gas appliance following the appliance lighting instructions that came with the appliance.  Confirm that the pilotlight is on;  it must be in operation for the remote control to operate the main gas valve.  Appliance control knob must be in the ON position.  Appliance ON/OFF switch must be in OFF position.3.Slide the 3 position button on the remote receiver to the ON position.  The main gas flame should ignite.4.Slide the button to OFF.   The flame should extinguish (the pilotlight will remain on).5.Slide the button to RS (the center position), then press the ON button on the transmitter to turn the system to ON.  The main gas flame should ignite. 6.Press the OFF button on the transmitter to turn the system to OFF.  The flame should extinguish (the pilot light will remain on).TROUBLESHOOTINGWARNING: Changes or modifications to this unit not expresslyapproved by the party responsible for compliance could void theuser’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply withthe limits for a Class B digital device, pursuant to Part 15 of theFCC Rules.  These limits are designed to provide reasonable pro-tection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with instruc-tions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in aparticular installation.   If this equipment does cause harmful inter-ference to radio or television reception, which can be determinedby turning the equipment off and on, the user is encouraged to tryto correct the interference by one or more of the following meas-ures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.WARRANTYThis warranty gives you specific legal rights and you may alsohave other rights that vary from state to state or province toprovince.  Answers to any questions regarding our limited warran-ty may be obtained by writing our corporate offices.Ambient Technologies warrants each new Ambient Technologiesremote control against any defects that are due to faulty materialor workmanship to the original owner, for a period of five yearsafter the original date of purchase.  This warranty and our liabilitydoes not apply to batteries, nor does it include damage to mer-chandise or the remote control resulting from accident, alteration,neglect, misuse, improper installation or any other failure to fol-low Ambient Technologies installation and operating instructions.Ambient Technologies agrees to repair or replace at its option anyAmbient Technologies remote control under warranty provided itis returned postage prepaid to our warranty facility in a paddedcarton within the warranty period, with proof of the original dateof purchase and a brief description of the malfunction.  This limit-ed warranty does not include the cost of removal or re-installation.Ambient Technologies149 Cleveland DriveParis KY 40361FOR TECHNICAL SUPPORTCALL 800-398-619550D0035 Rev 2 July 2002Symptom1. LED light on receiver blinking or battery icon on LCD on transmitter.4.  Appliance does not come on after pressing ON on transmitter5. Receiver cannot receive signal.Causes1.  Low Battery 1. Wiring / Electrical Connections2. Privacy (DIP) switch setting on transmitterdoes not match receiver3. Distance between thetransmitter and receiver is more than 30 feet1. Receiver is installed in an enclosureAction1. Replace batteries. Changebatteries every 6 months.1. Slide the switch to ON, if appliance comes ON, wiring is not the causes.2. If appliance does not come on, check wiring connections.1. Make sure the transmitter and receiver has the same DIP switch settings.1.  Make sure the operating distance is less than 30 feet1. Make sure the receiver is not located inside an enclosure.ONOFFLED
