User manual

Kenmore™Assurelink SmartplugModel: 105.20002410P/N: SAU6691 Sears Brands Management Corporation, s, IL 60179www.kenmore.comwww.sears.comwww.kmart.comUse & Care Guide
KENMORE LIMITED WARRANTYFOR ONE YEAR from the date of sale this product is warranted against defects in material or workmanship when it is correctly connected, operated and maintained according to all supplied instructions. WITH PROOF OF SALE, return a defective product to the retailer from which it was purchased for free replacement. This warranty is void if this product is ever used for other than private household purposes. This warranty covers ONLY defects in material and workmanship, and will NOT pay for:1. 2. 3. Disclaimer of implied warranties; limitation of remediesCustomer’s sole and exclusive remedy under this limited warranty is product replacement as provided herein. one year or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential or limitations may not apply to you. state to state. WARRANTYCONTENTASSURELINK INFORMATIONASSURELINK INFORMATION - WARRANTY        P 1IMPORTANT SAFETY INSTRUCTIONS    P 2FEATURES /  OPERATIONS     P 3CLEANING / MAINTENANCE INSTRUCTIONS      P 4SPECIFICATIONS / FCC INFORMATION        P 5TROUBLESHOOTING      P 6Refer to the Quick Start / Installation Guide that came with your Kenmore Smart Plug for detailed installation instructions. Also refer to it for information on creating an Assurelink Connected account, setting up your gateway, and setting up your Smart Plug for connected operation from your phone or web browser.  This Use & Care Guide contains more detailed information, and instructions for operating the smart Plug from the front panel controls. Damage to or failure of this product if it is not correctly connected, operated or maintained according to all supplied instructions. Damage to or failure of this product resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.  
IMPORTANT SAFETY INSTRUCTIONS1.2.3.4.5.6.7.8.9.10.11.12.13.14.                Read all of the instructions listed here and/or in the user manual before you operate the device. Give particular attention to all safety precautions. Retain the instructions for future reference.This device must be installed and used in strict accordance with the installation manual and/or use and care guide.Comply with all warning and caution statements in the instructions.Only connect the Smart Plug to a 120V AC power source with circuit breaker or over current protection device.Do not install this Smart Plug at an altitude of over 6500 feet (2000 meters).The Smart Plug should only be used in dry and clean environment. Do not place the unit in bathroom or other area with excessive moisture.This device should not be used in an environment that is below 14°F (-10°C) and above 104°F (40°C), humidity above 80%.Clean the Smart Plug with a dry, soft cloth. Do not use solvents or aggres-furniture polish, paint thinner, or other household solvents to clean any part of the Smart Plug.This device is designed for household usage only, not suitable for commer-cial and industrial use. If there are any malfunctions appeared during the operation of the Smart Never drop any liquid or chemical inside of the Smart Plug.DO NOT use outdoors.DO NOT attempt to repair or adjust any electronic or mechanical functions on this Smart Plug. Doing so will void your warranty. The inside of the unit contains no user serviceable parts.When using your equipment, basic safety precautions should always be followed 
KEY    Key      AssureLink LED    Power LED FEATURES / OPERATIONFUNCTIONThe assurelink LED will turn ON, when successful connected to CloudThe assurelink LED will turn OFF, when connection to Cloud failed.enabled router. When Network is not available, Press and Hold the Key for 5 seconds will allow the Smartplug to seek for WPS enable router for 2 minutes. When Network is available, Press and Hold the Key for 5 seconds will remove all paired network information. Press the key 5 times within 10 seconds will request the cloud to do a factory reset.The LED will turn ON, when power output from Plug.The LED will turn OFF, when no power output from Plug.Key Power LEDNEMA 5-15RAssureLink LED
CLEANING / MAINTENANCE INSTRUCTIONSAssurelink smartplug provides electricity control and monitoring for your appliances system. It can also be controlled through your mobile smart phone or website remotely. After installation, the smartplug doesn’t need any special handling or attention.In order to maintain the accuracy of the smartplug, you have to clean it regularly. Don’t use any chemical or detergent to clean the smartplug. Just use the wet cloth with water to clean the surface and also the air vent once a month is good enough to maintain the samrtplug working properly.Power on the PlugPlug the Smartplug into 120V AC outlet.-tively for 2 seconds, and then user can operate the Plug.-tion to router is successful.Quick Change of Power OuputTo Toggle the Power output, press and release the key.Connect the Plug to router and cloudPush the WPS key of your router.FEATURES / OPERATION

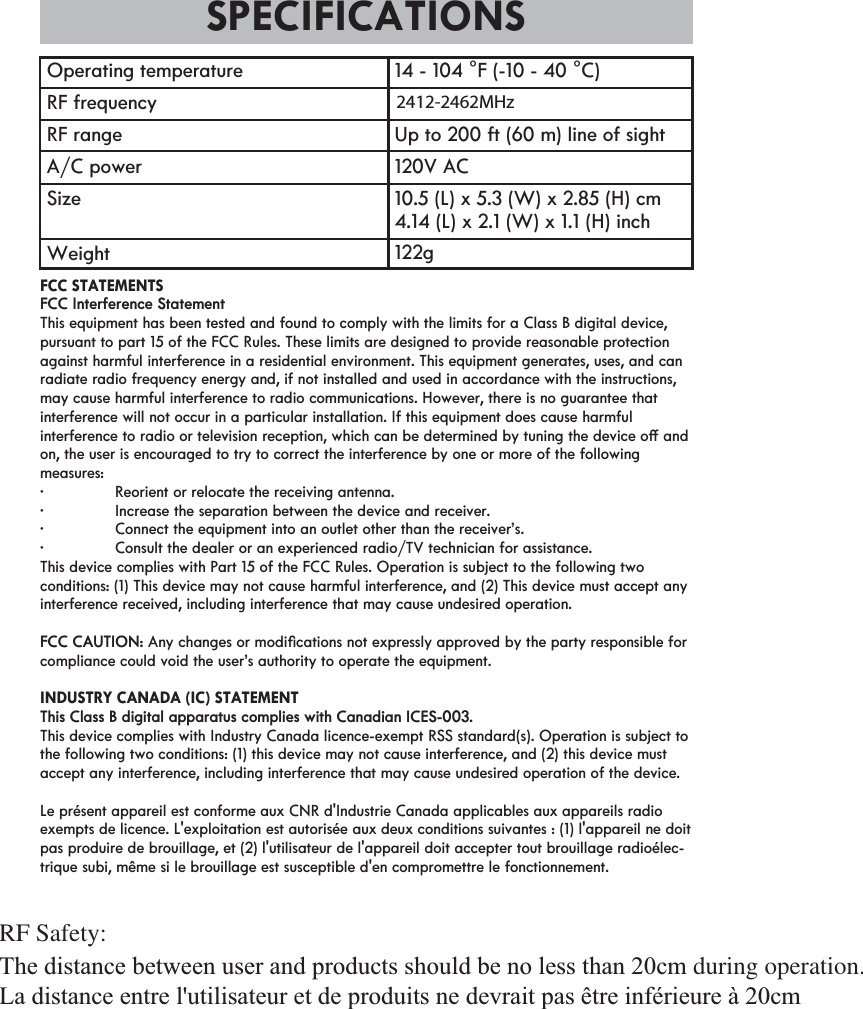

SPECIFICATIONSFCC STATEMENTSFCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, whichon, the user is encouraged to try to correct the interference by one or more of the following measures:·  Reorient or relocate the receiving antenna.·  Increase the separation between the device and receiver.·  Connect the equipment into an outlet other than the receiver’s.·  Consult the dealer or an experienced radio/TV technician for assistance.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.FCC CAUTION:compliance could void the user’s authority to operate the equipment.INDUSTRY CANADA (IC) STATEMENTThis Class B digital apparatus complies with Canadian ICES-003.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélec-trique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.Operating temperature      14 - 104 °F (-10 - 40 °C)RF frequency        2.40 - 2.48 GHzRF range        Up to 200 ft (60 m) line of sightA/C power    120V ACSize          10.5 (L) x 5.3 (W) x 2.85 (H) cm          4.14 (L) x 2.1 (W) x 1.1 (H) inch122gWeight     2412-2462MHzRF Safety:The distance between user and products should be no less than 20cm during operation.La distance entre l'utilisateur et de produits ne devrait pas être inférieure à 20cm

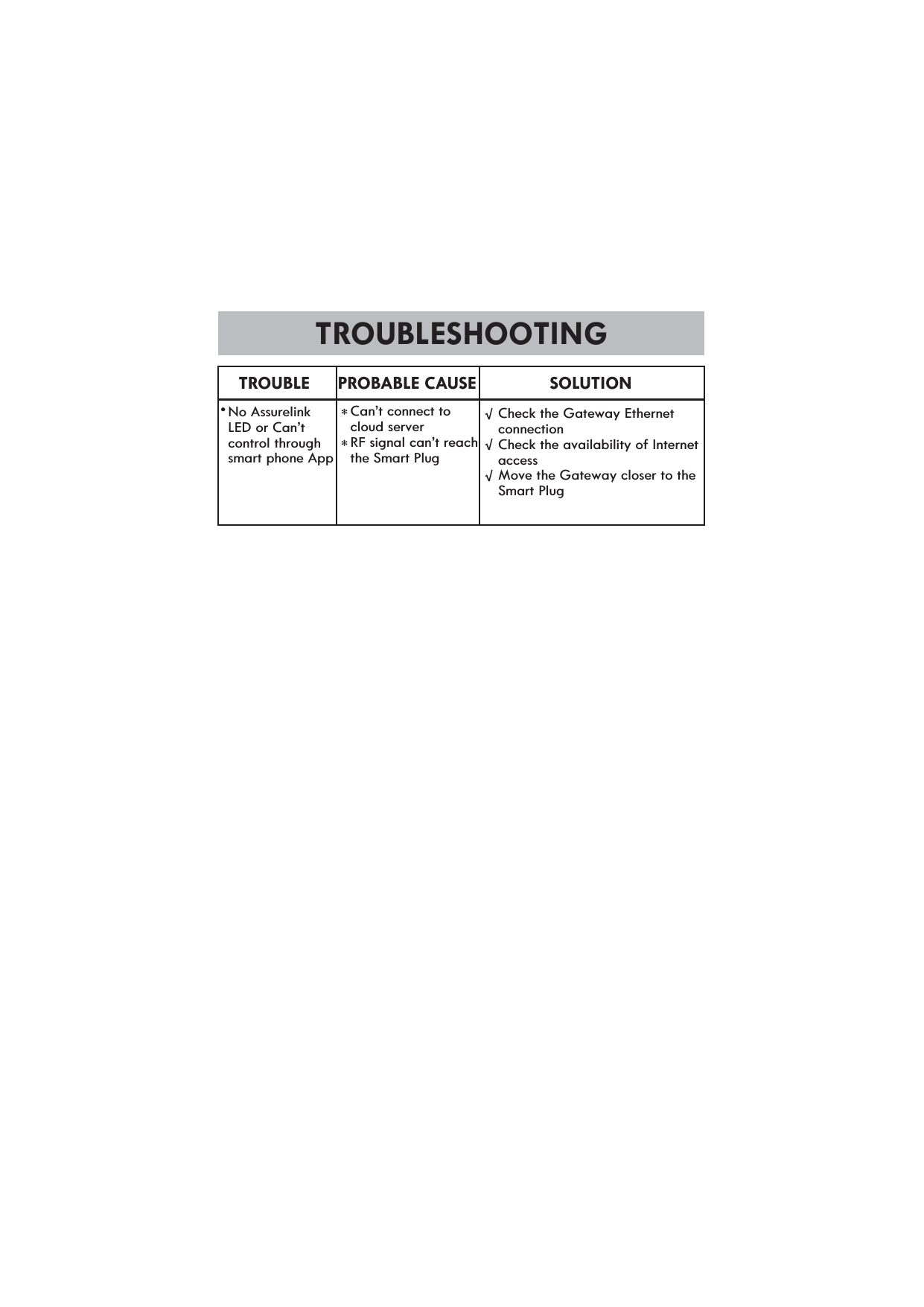

Can’t connect to cloud serverRF signal can’t reach the Smart Plug *No Assurelink control through smart phone App * connection  Check the availability of Internet access  Move the Gateway closer to the Smart PlugTROUBLESHOOTINGTROUBLE PROBABLE CAUSE SOLUTION
