Installation manual

IEEE802.11a/b/g Wireless LAN MiniPCI Module
FX-DS540-MPCI4W
User’s Manual (Installation Manual)
CONTEC CO., LTD.
Chapter 1: General Description
This document contains the specifications pertinent to the wireless LAN module (FX-DS540-MPCI4W),
which comply with IEEE802.11a, IEEE802.11b and IEEE802.11g.
FX-DS540-MPCI4W is used attaching in the wireless LAN access point.
Features
2.4GHz Wireless LAN module
IEEE802.11b and IEEE802.11g compatible
BPSK, QPSK, CCK, and DSSS modulation schemes supported Data rates 1, 2, 5.5 and 11Mbps
BPSK, QPSK, 16QAM, 64QAM and OFDM modulation shemes supported Data rate 6, 9, 12, 18, 24,
36, 48 and 54Mbps
Coax. RF Connectors : JST AYU3 equivalent
5GHz Wireless LAN module
 IEEE802.11a compatible
BPSK, QPSK, 16QAM, 64QAM and OFDM modulation shemes supported Data rate 6, 9, 12, 18, 24,
36, 48 and 54Mbps
Coax. RF Connectors : JST AYU3 equivalent
System Functions
Low power sleep mode control
 MiniPCI Interfase
Radio circuit ON/OFF (RF Disable)
Chapter 2: Characteristics
Table1 : Mechanical Characteristics
Dimensions 39.65 x 59.6 x 2.4 (mm)
Weight 12g max.
Figure1 : FX-DS540-MPCI4W
Table2 : Electrical Characteristics
Supply voltage Vcc Nomial : 3.3V
Extreme : 3.3V +/- 0.3V
Strage temperature
Humidity
-25 to 70 deg.C
20 to 95%
Operating Temperature
Humidity
0 to 60 deg.C
20 to 95% (no-condensing)
Chapter 3: Setup
FX-DS540-MPCI4W is used attaching in the wireless LAN access point. The wireless LAN access point
is restricted only to CONTEC products.
As an example, the case where it attaches in FX-DS540-APDL-U is introduced.

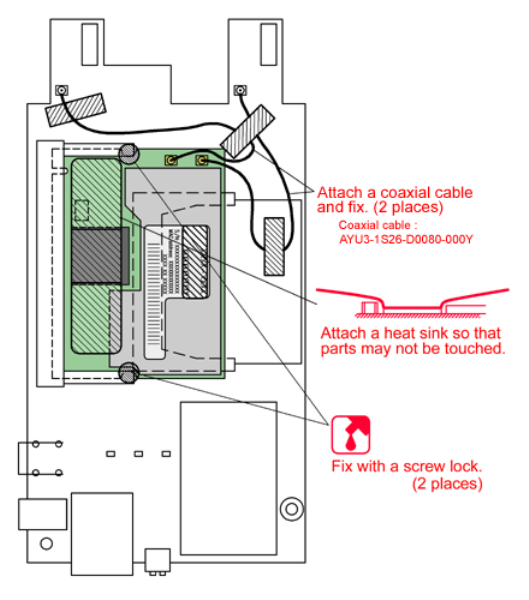

Figure2 : How to attach in FX-DS540-APDL-U
Chapter 4: Notes
When FX-DS540-MPCI4W is installed in the wireless LAN access point, the following remarks are
to be considered:
1. FX-DS540-MPCI4W is designated its own FCC ID Number: PQRDS540-MPCI4W; therefore,
the FCC ID Number should be appeared on the label on the exterior of the wireless LAN access
point unless it is visible from outside. Such label on the exterior should include a statement,
either “Contains Wireless LAN Module FCC ID: PQRDS540-MPCI4W” or “Contains FCC
ID: PQRDS540-MPCI4W”.
2. FX-DS540-MPCI4W is in compliance with the requirements of sub-sections 15.203, 15.205,
15.207, 15.209, 15.247 and 15.407 of FCC Rules Part 15. FX-DS540-MPCI4W is to be
installed in accordance with their requirements.
3. User Manual of the wireless LAN access point, in which is FX-DS540-MPCI4W installed, will
include the following statements required by FCC.
- FCC WARNING: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment
- This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
- In according with 47 CFR Part15.407 (e) U-NII devices operating in 5.15-5.25GHz
frequency bands are restricted to indoor operations only.
- This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
- This equipment complies with FCC radiation exposure limits set forth for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65. This equipment should be installed and
operated with at least 20cm and more between the radiator and person’s body
(excluding extremities: hands, wrists, feet and legs).
4. The installers must ensure that the public is not exposed to radio frequency energy levels in
excess of FCC guidelines in accordance with FCC Rules: Part 15 and FCC OET Bulletin 65,
Supplement C.
