Continental Automotive 37924100 Remote Transceiver for Car Access User Manual Functional description

Continental Automotive GmbH Remote Transceiver for Car Access Functional description

Contents

User manual

Continental AG I BS PG3 CFRF WM
User Manual
of the
Continental
Radio Frequency Bidirectional Key Fob
Type
Acura Bidir Fob MY13.5
A2C37924100
Continental AG I BS PG3 CFRF WM
GENERAL DESCRIPTION OF THE RF TRANSMITTER
The Acura Bidir Fob is a bidirectional RF key designed to provide remote
engine start with feedback, remote keyless entry, passive entry, passive
engine start, and immobilization functionality.

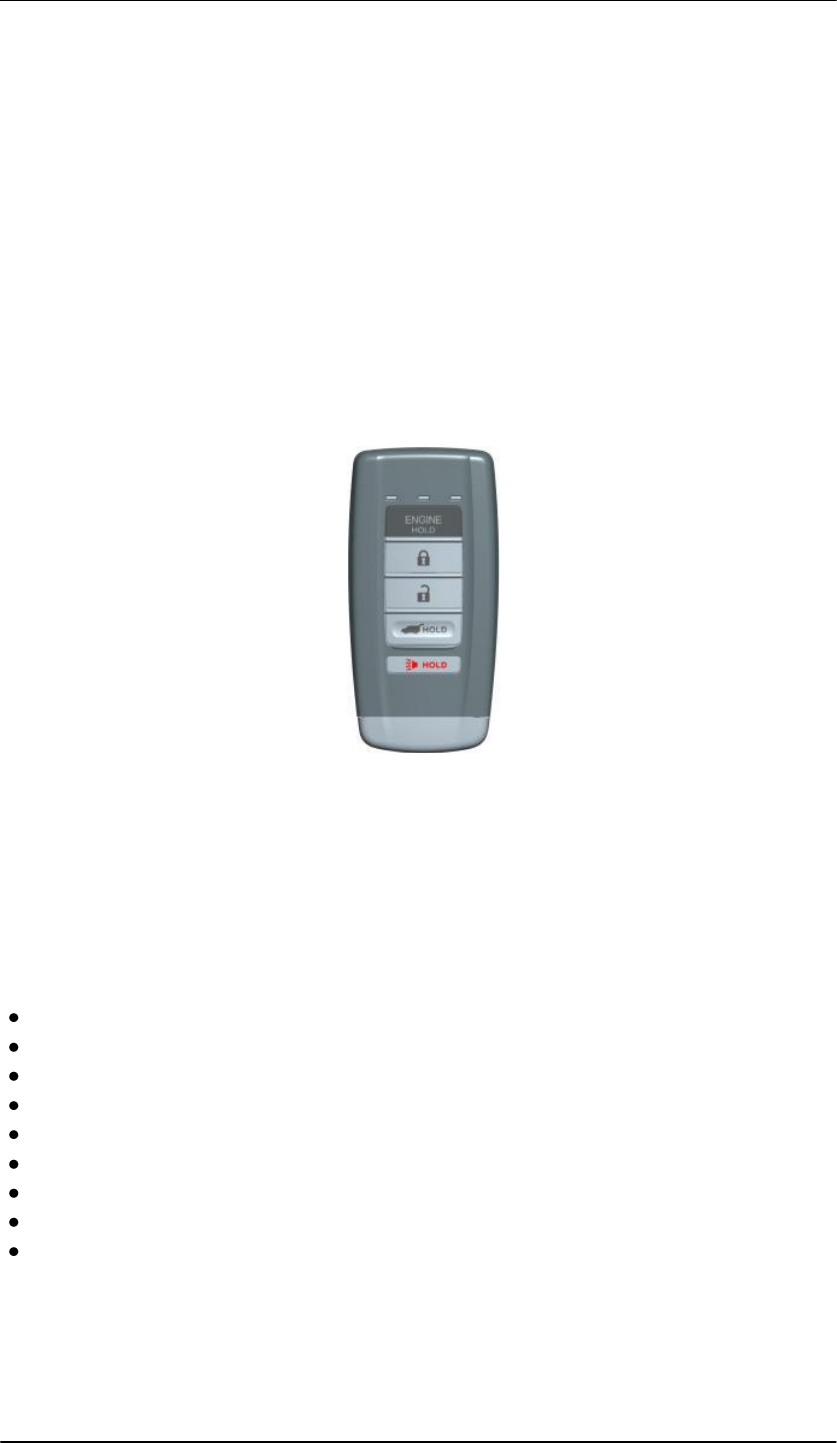

The Acura Bidir Fob has a housing, which may have variants in the pictogram
“Trunk”, alternatively “Power-Tail-Gate”(PTG):
Continental AG I BS PG3 CFRF WM

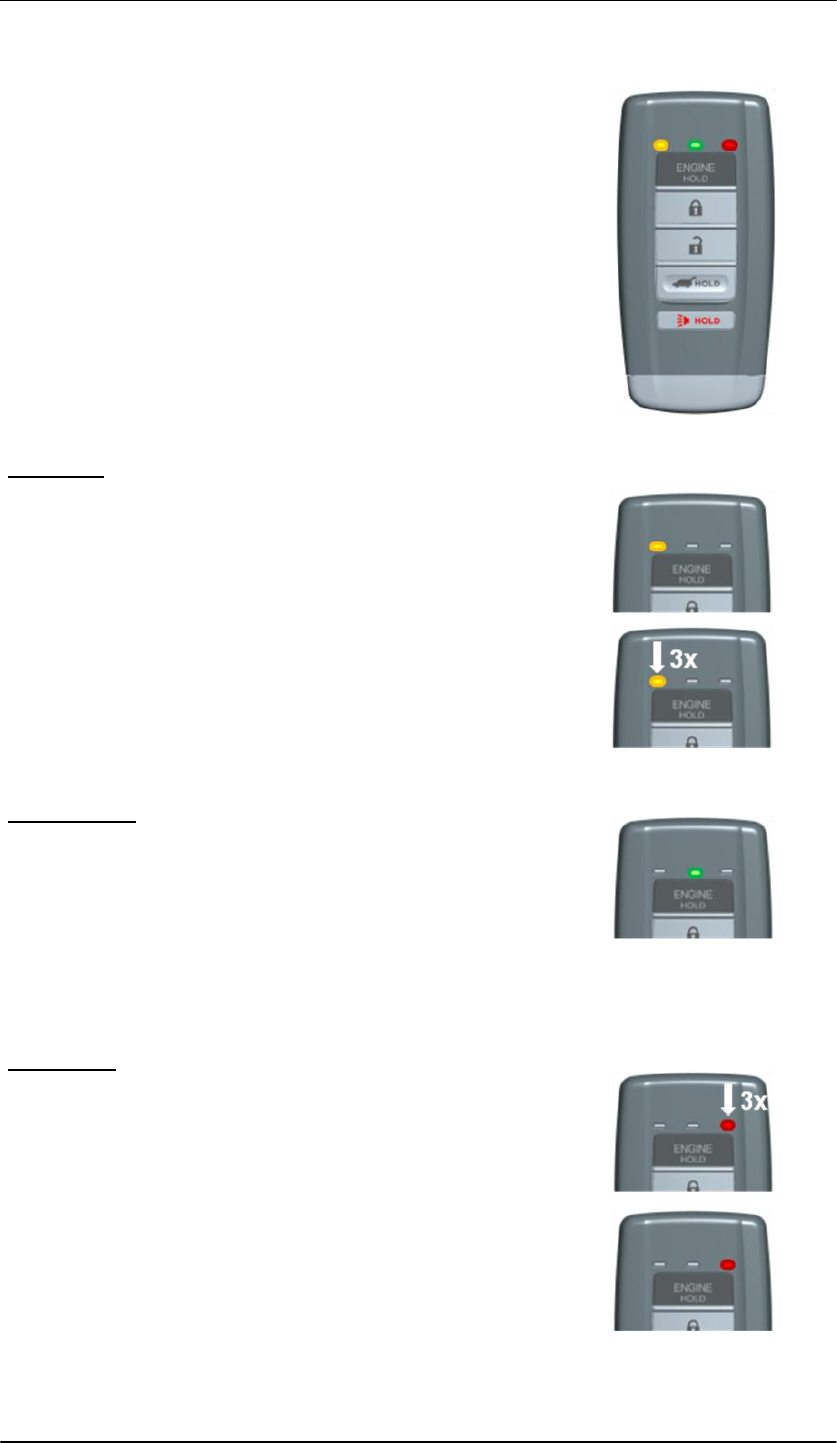

Feedback on Bidir Fob
There exist 3 LEDs for all feedback, at the top of the fob,
out of the way of the hand that is holding it.
LEFT LED Color : AMBER
Function: To show RF communication, or that 2-way
communication is taking place.
Example: LEFT/AMBER LED flashes 1x in response to a
button being pressed when the RF command is sent,
and/or it can flash while communicating with the vehicle, or
waiting for response (example: while engine is cranking) .
Also this LED will blink in response to SMART entry
authentication.
For other cases, generally the Amber LED should operate
in a manner that is respective of the "Base SMART key".
CENTER LED Color: GREEN.
Function: Used to show positive feedback for a given
command.
Example: CENTER/GREEN LED is on for 1 second, to
provide status feedback for a given operation. It means:
Doors were locked, or engine was started, or engine is ON.
RIGHT LED Color: RED.
Function: Used to show negative feedback for a given
command.
There are 2 modes.
1. Out of range. In this case the red LED blinks distinctly
3 times,
Example: 3 times in 1 second. It means the fob could
not get acknowledgement from the car for 2-way
communication, or the vehicle battery is dead and
cannot respond.
2. Cannot Lock or Engine not running. In this case the red
LED is on for 1 second.
Continental AG I BS PG3 CFRF WM

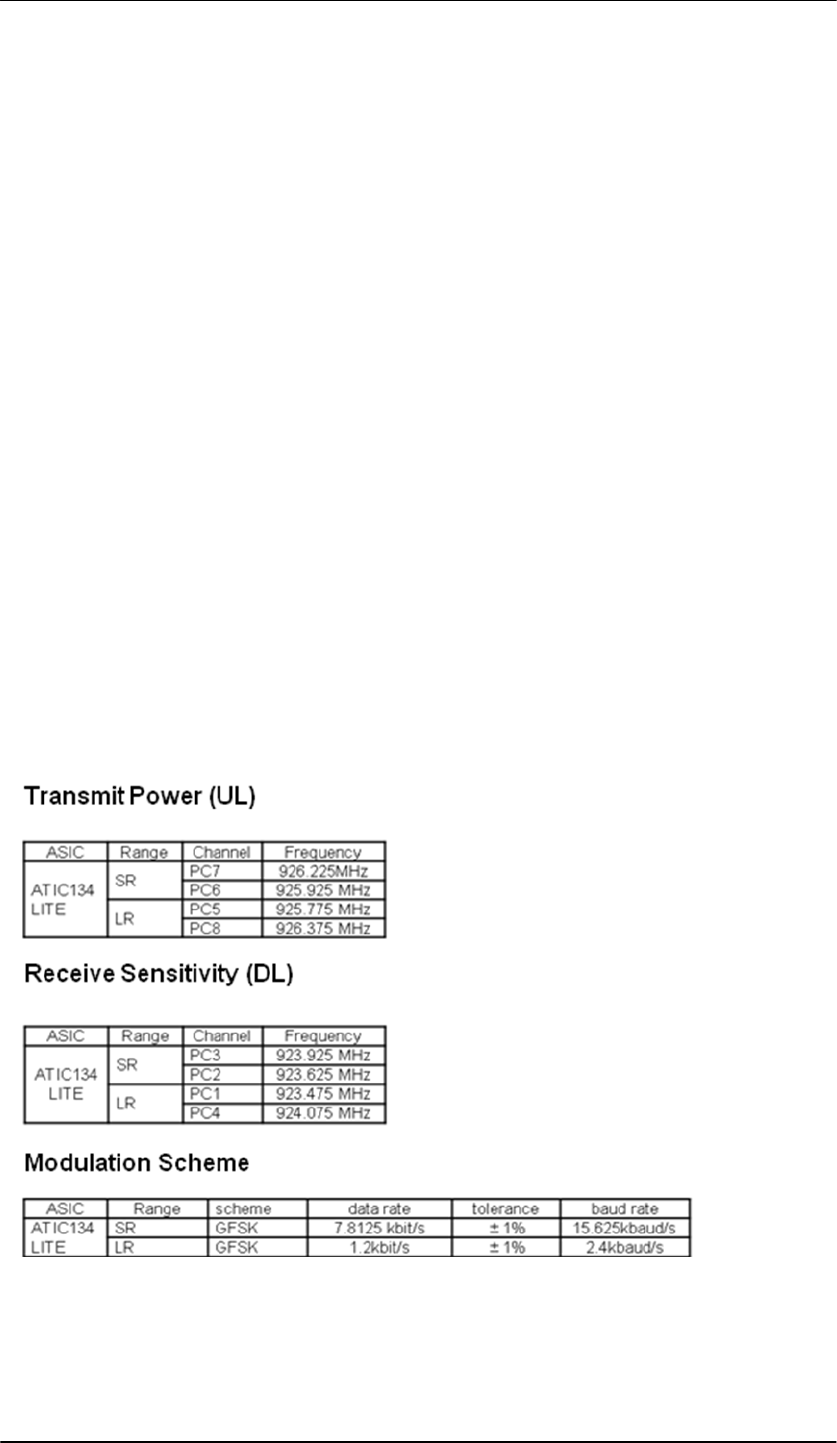

POWER MANAGEMENT
The Power Supply comprises a coin cell battery CR2032, filter capacitors,
diodes, and FETs, that provides power to the microcontroller, the power-
management with charger and the RF circuit. A rechargeable battery (accu) of
the type LiFePO4 is included to supply higher currents in case of long range
transmission.
The accu type LiFePO4 is of the class Li-Ion cell, but with a safe chemistry.
There exists a certificate, that it is not dangerous / harmfull in the sense of
UN3480 and "Transportation without Class 9 is allowed".
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
.
NOTE:
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Continental AG I BS PG3 CFRF WM
6. TESTMODE FUNCTION
The testmode function is only available by EEPROM settings, which could
provided only in specially programmed samples for measuring purpose.
Button functions
Button description
red LED
green LED
amber LED
ENG.START
no function
LOCK
TX CW Modes
X
X
UNLOCK
TX Modulated Modes
X
X
TRUNK
RX Modes
X
X
X
PANIC
another inner function
X
X
X

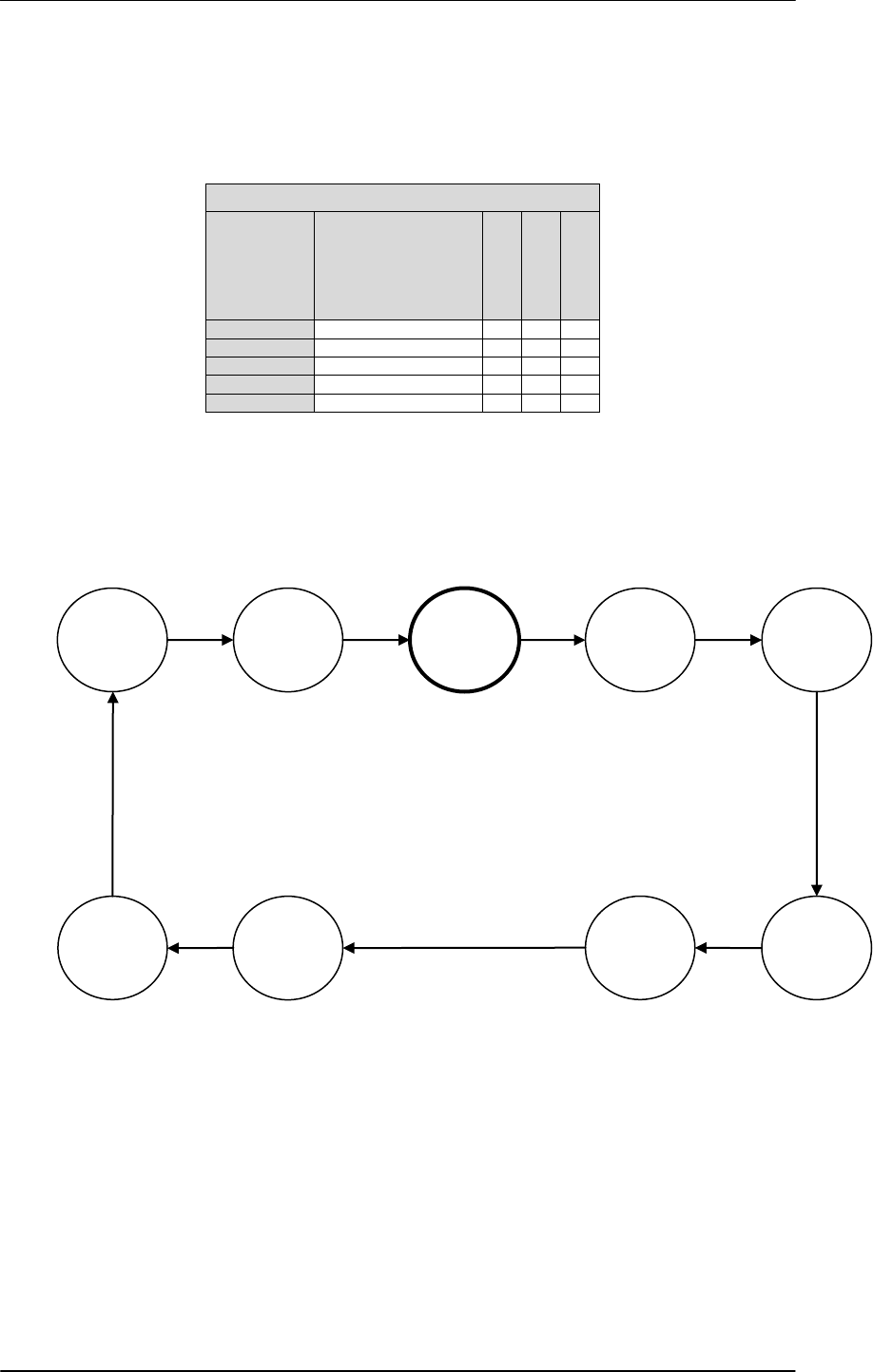

By pressing the specified button, the previously defined channels are
revolving.
The Lock button revolves the 8 Channels CW-mode till TX-off
3x red
LED
flash1,
TX OFF
all LEDs
OFF
TX-SR-CH1,
CW-f_high
TX-SR-CH2,
CW-f_low
switch to
accu-supply,
TX-LR-CH1,
CW-f_low2
TX-LR-CH1,
CW-f_high2
TX-LR-CH2,
CW-f_low2
Notes:
1: 3x red flash: 200ms on, 200ms off, 200ms on, 200ms off, 200ms on, off
2: ATIC134 Lite option only
Continental AG I BS PG3 CFRF WM

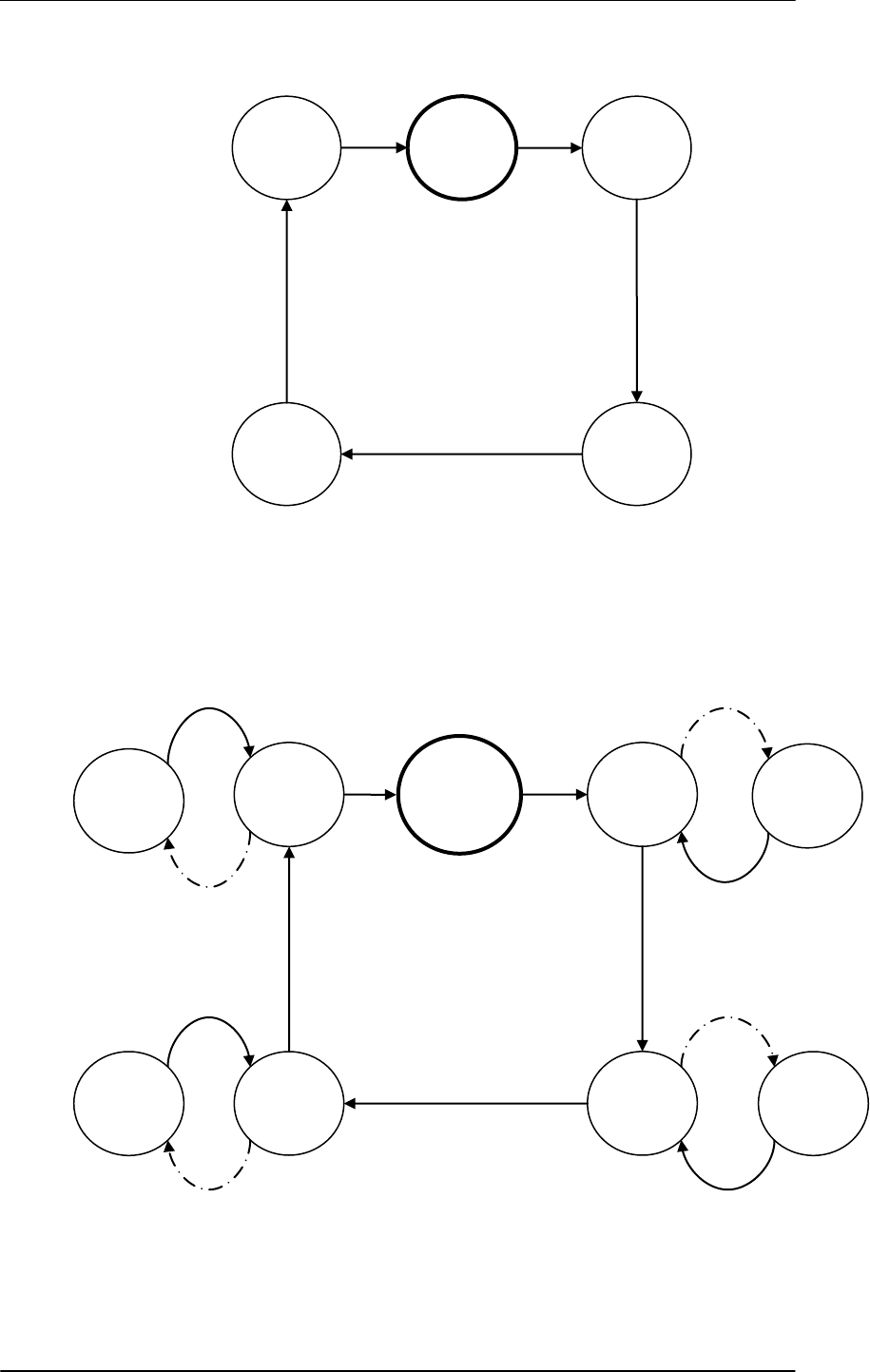

The Unock button revolves the 4 modulated channels till TX-off
The Trunk button revolves the 2 Receive-Channels till RX-off
3x red LED
flash1,
RX OFF
all LEDs
OFF
switch to
bat-supply,
RX ON, 1x
green&red
LED flash,
RX-SR-CH1
2x
green&red
LED flash,
RX-SR-CH2
3x
green&red
LED flash,
RX-LR-CH1
4x
green&red
LED flash
RX-LR-CH2
Notes:
1: 3x red flash: 200ms on, 200ms off, 200ms on, 200ms off, 200ms on, off
1x amber
LED flash
1x amber
LED flash
1x amber
LED flash
1x amber
LED flash
3x red LED
flash1,
TX OFF
all LEDs
OFF
switch to bat-
supply, TX
ON, TX-SR-
CH1, mod.
TX-SR-CH2,
mod.
switch to accu-
supply, TX-
LR-CH1,
mod. 2
TX-LR-CH2,
mod.2
Notes:
1: 3x red flash: 200ms on, 200ms off, 200ms on, 200ms off, 200ms on, off
2: ATIC134 Lite, test signal data content: zeros
Continental AG I BS PG3 CFRF WM
7. LABEL DESIGN
CANADA
IC:7812D-37924100
USA
FCC ID:KR537924100
The print is visible after opening the
Fob like for battery change.

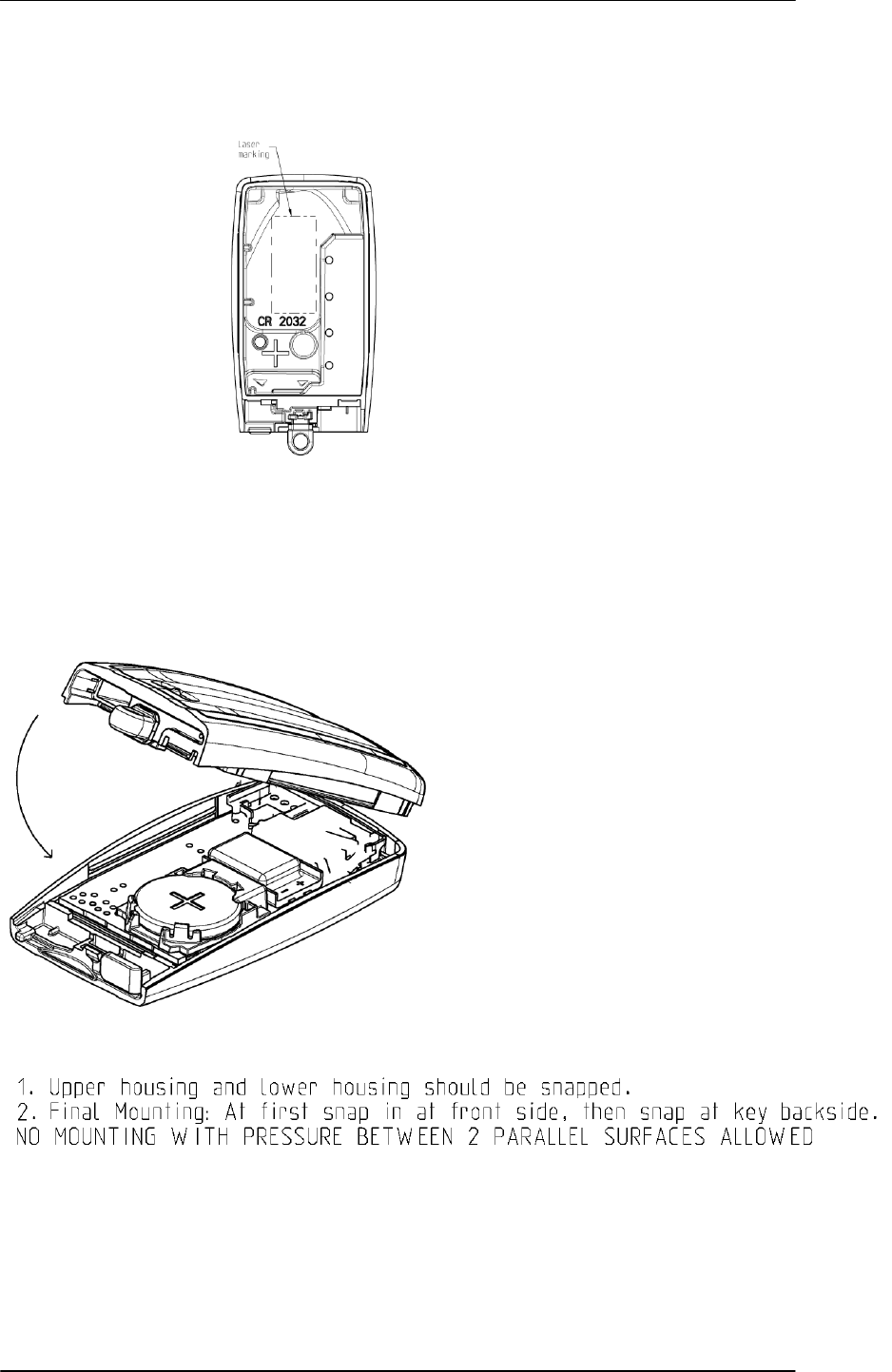

How to open the Bidir Fob for Battery Change
Take a coin (best fit: 2€, or a Quarter Dollar), press it into the groove and turn
it against the metallic eyelet counterclockwise.
For closing follow the instruction:
