Crave Interactive A1008 TABLET PC User Manual

Crave Interactive Ltd TABLET PC

Contents

User manual part 1

Content
Content .............................................................................................................................................. 1
1 Introduction .................................................................................................................................... 2
1.1 Acknowledgement ............................................................................................................... 2
1.2 Announcements ................................................................................................................... 2
1.3 Safety Instruction ................................................................................................................ 3
1.4 Abbreviation/Terminology .................................................................................................. 4
2 MID Introduction ........................................................................................................................... 4
2.1 MID Operation and Preparation .......................................................................................... 4
2.2MID Status and Reminder ............................................................................................. 4
3 Quick Start Guide ........................................................................................................................... 5
3.1 Keys Function ..................................................................................................................... 5
3.2 Startup and Shutdown button ........................................................................................... 6
3.3 Open and Close of the Screen ............................................................................................. 6
3.4 Usage of Touch Screen ........................................................................................................ 6
3.5 Home Page .......................................................................................................................... 7
3.6 Visit Application Procedures ............................................................................................... 7
3.7 USB Connection ................................................................................................................. 8
3.8 Typing words ....................................................................................................................... 9
3.9 Operation Technique ......................................................................................................... 10
4 Basic Setting ................................................................................................................................ 10

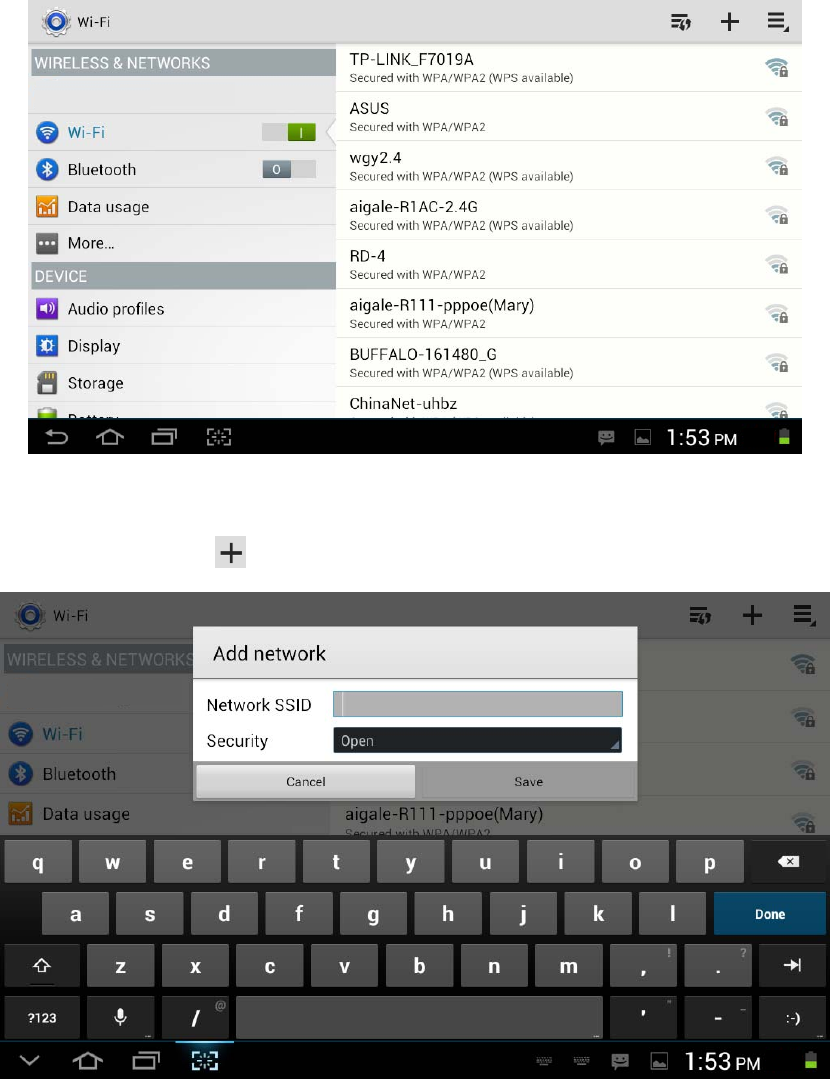

4.1 Wireless and Internet ......................................................................................................... 10

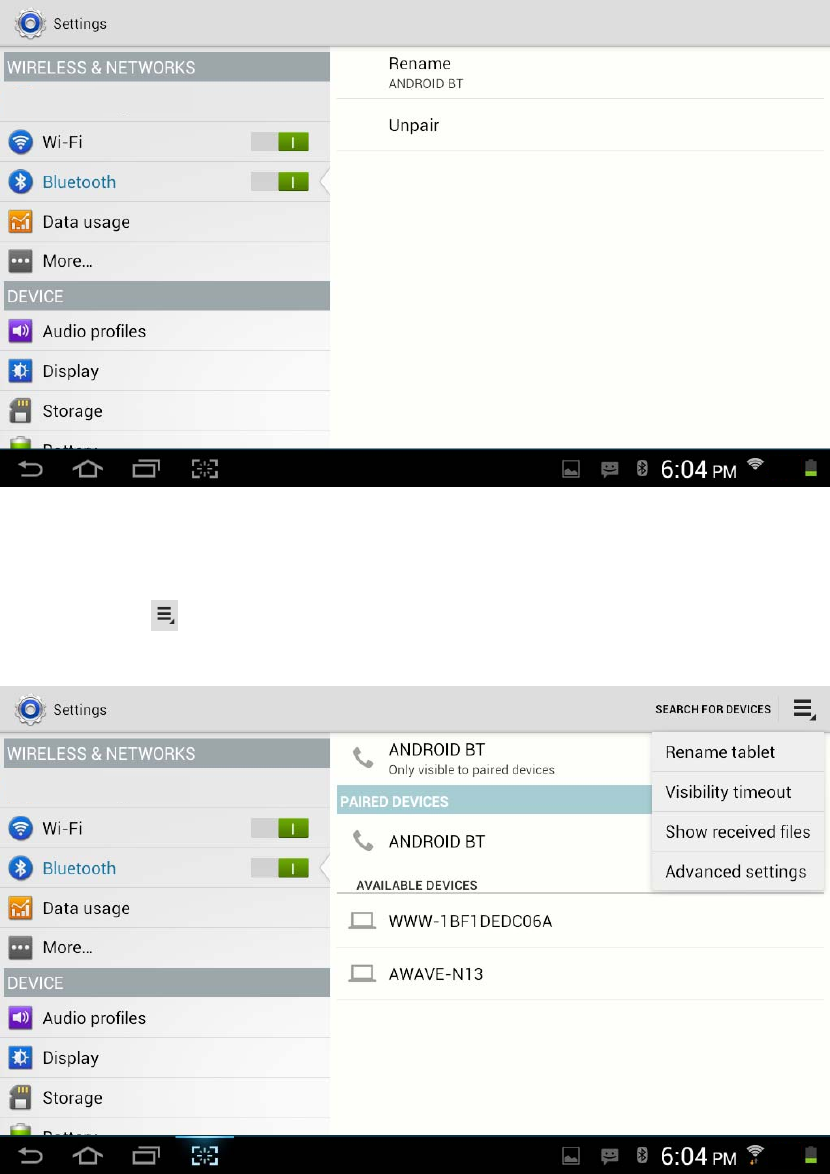

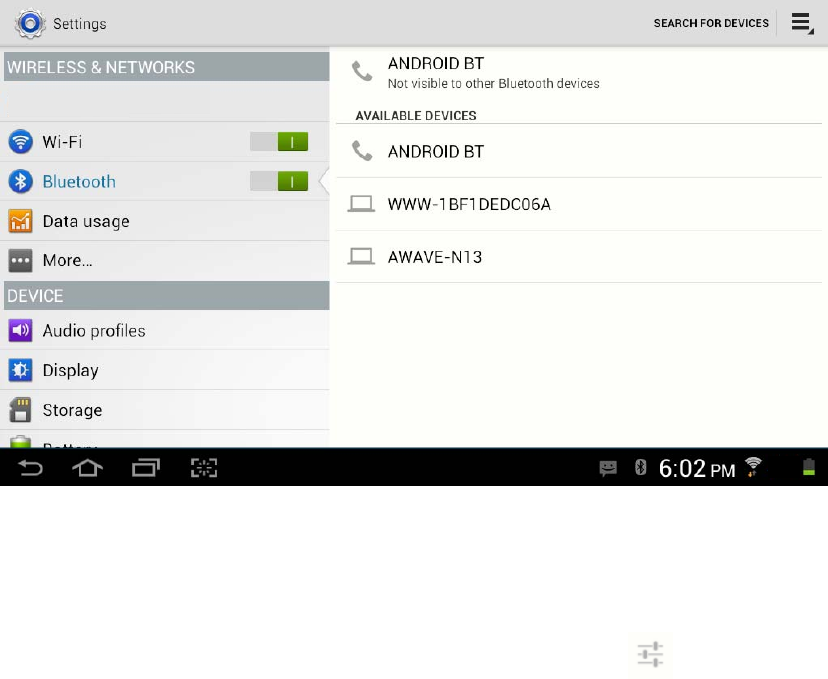

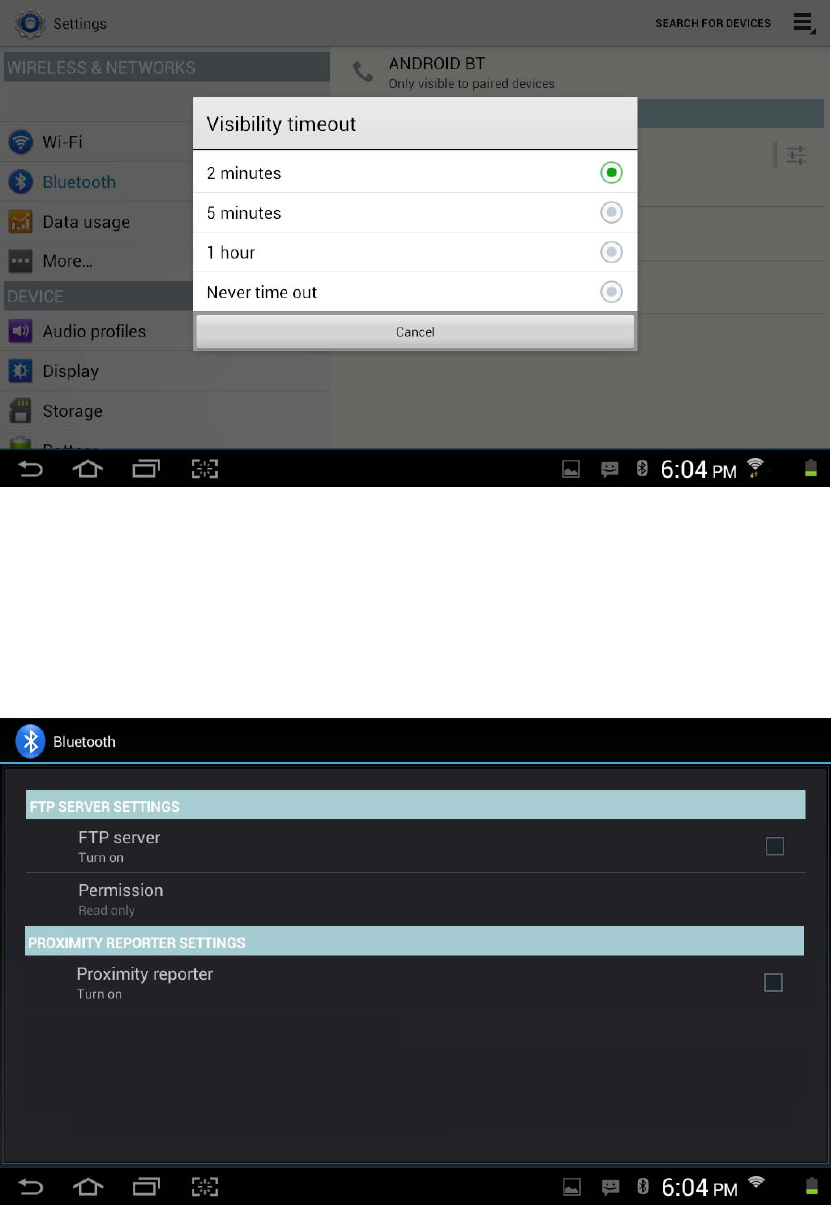

4.2 Bluetooth function operation .......................................................................................... 13

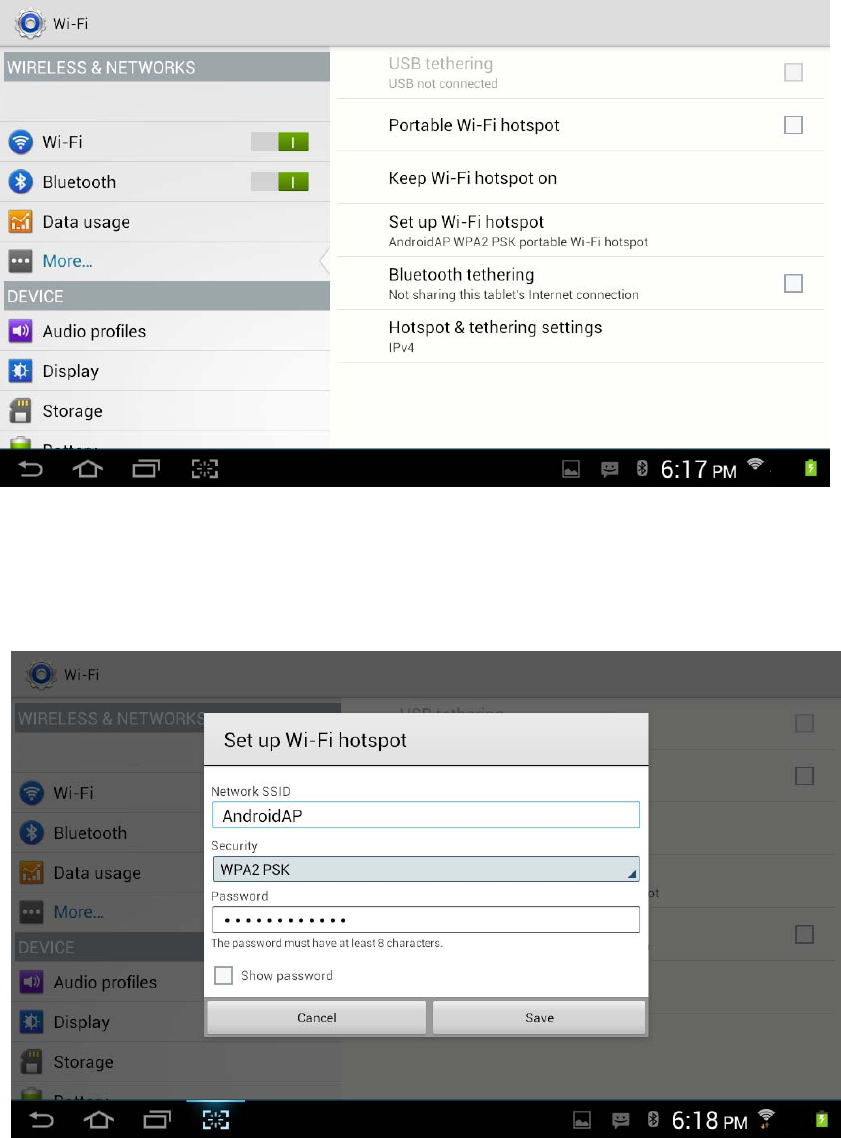

4.3 More .................................................................................................................................. 16
4.4 Contextual Model .............................................................................................................. 19

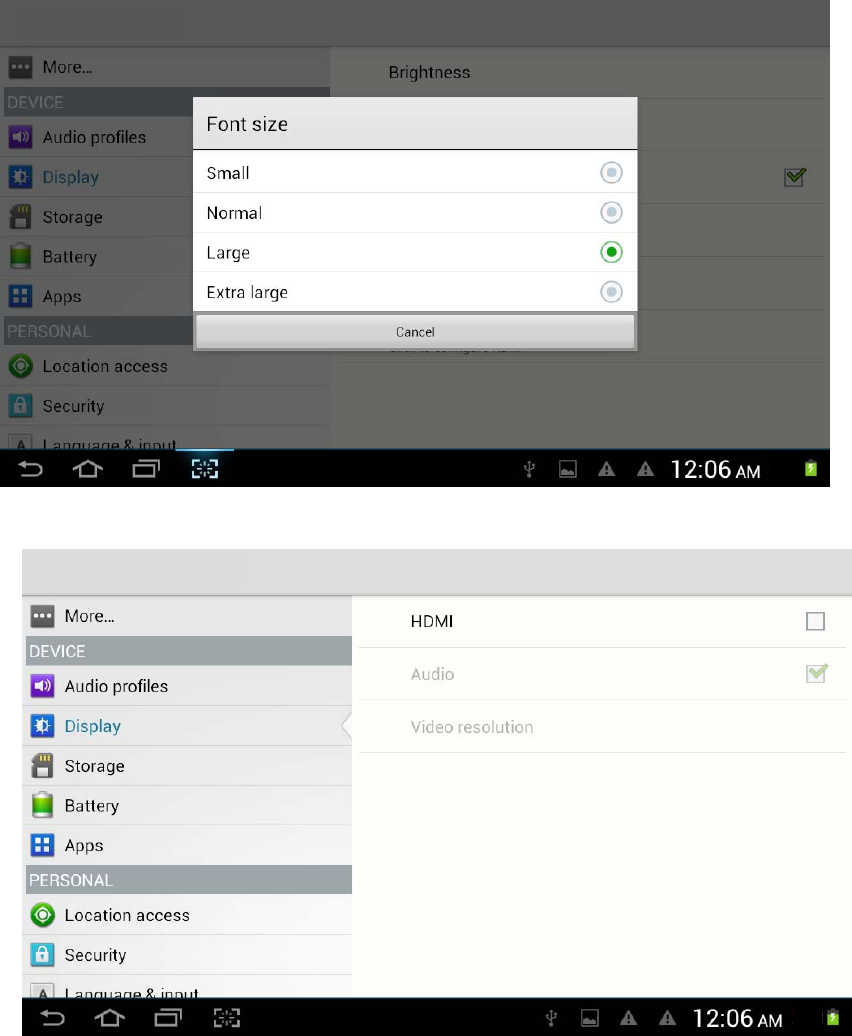

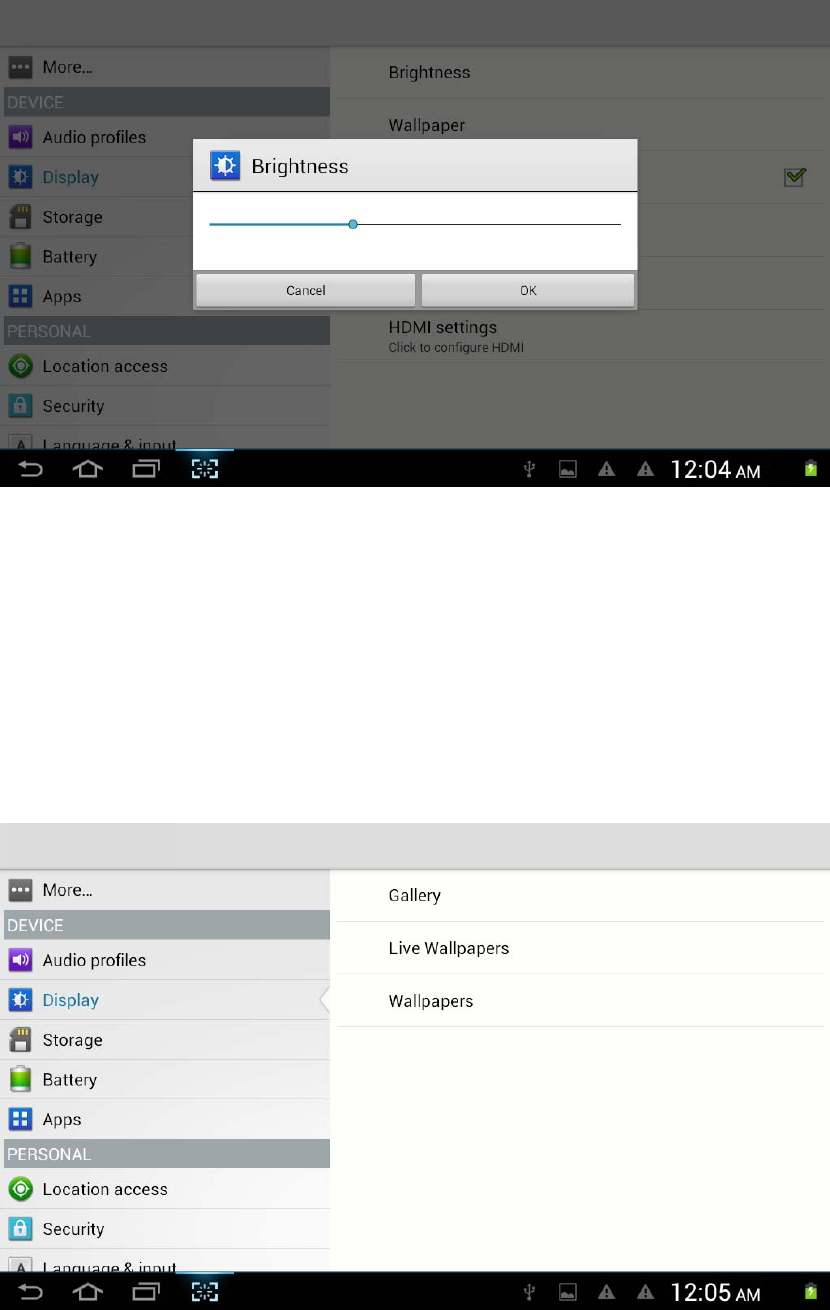

4.5 Display .............................................................................................................................. 20
4.6 Storage .............................................................................................................................. 23
4.7 Battery ............................................................................................................................... 25
4.8 Application program ......................................................................................................... 26
4.9 Security ............................................................................................................................. 29
4.10 Language and Input Method ........................................................................................... 30
4.11 Backup and Reset ............................................................................................................ 32
4.12 Date and Time ................................................................................................................. 33
4.13 Accessibility .................................................................................................................... 34
4.14 Developer options ........................................................................................................... 35
4.15 About Tablet .................................................................................................................... 36
5 Multi-Media ................................................................................................................................. 36
5.1 Music ................................................................................................................................. 36
5.2 Video ................................................................................................................................. 37
5.3 Photo Gallery .................................................................................................................... 38
6.1 Browser ............................................................................................................................. 39
6.2 Email ................................................................................................................................. 41
7 Other Application Procedures ...................................................................................................... 42
7.1 Clock ................................................................................................................................. 42
7.2 Calculator .......................................................................................................................... 43
7.3 File Manager ..................................................................................................................... 43
7.4 Recorder ............................................................................................................................ 46
8 Installation of Procedures ............................................................................................................. 47
8.1 Installation ......................................................................................................................... 47
8.2 Uninstall ............................................................................................................................ 47
9 Troubles Shooting ........................................................................................................................ 49
FCC Statement ................................................................................................................................ 50
1 Introduction
1.1 Acknowledgement
Thanks for your purchase of our product. Cherry is high definition tablet PC. Its CPU is Intel
Z3735F, dominant frequency is 1.33GHz-1.8GHz, it is based on Android 4.4.2 operation system,
and easy to expand the third application procedure.
The product is designed with various functions, including WIFI, BT, It is easy to achieve
wireless communication and internet, you have access to surf the internet anytime and anywhere;
There are many sensors which offer you brand-new operation and entertainment.
The manual systemically introduces the functions, use techniques and announcements, please
read this manual carefully before your operation.
1.2 Announcements
Preventive maintainance
z Please always keep the MID dry. To avoid the device short trouble, corrosion fault and
electric short, please prevent the device, battery and charger from water and moisture,
and don’t operate the device or charger by wet hand.
z To avoid failure of device, battery and charger, please prevent the device, battery,
charger from violent shock or shake.
z To avoid failure of device, battery and charger, please prevent the device, battery,
charger of all over heating or too cold circumstance
z Never shock, throw, prod the MID, or drop, extrude, bend the MID.
z Never disassemble the device and accessories arbitrarily, otherwise the device and
accessories are not in our company warranty scope.
1.3 Safety Instruction
Before the operation of the MID, please read this chapter and teach your kids about these
information. For further details, please refer to the safety instructions and announcement.
z Never use the MID when driving car, in order to ensure safe driving.
z In the medical area, please abide by related rules and regulations. Please shut
down the MID when it is near to the medical area.
z To avoid the wireless signal to interrupt the plane- controlled signal, please shut
down the MID or using airplane mode when you are boarding a flight,
z To avoid electronic equipment failure, please shut down the MID in the vicinage
of high-accuracy electronic equipments.
z Please don’t disassemble the MID and accessories. Only authorized agent has
access to service the MID.
z Please keep the MID far away from magnetic equipments, the radiation of MID
may erase the data stored in the magnetic equipments.
z Never use the MID in the vicinage of high temperature, inflammable gas ( gas
station).
z Protect the MID and accessories from kids reach scope, and avoid the kids to use
the MID without parents’ supervision.
z Please comply with related rules and regulations, and respect others’ privacy and
legal rights while using the MID.
z Please strictly adhere to related instructions in the manual when using USB cable
to ensure the safety of the MID or PC.
z Never use the MID in bathroom or other humid environment, and please protect
the MID from liquid wash or wet.
1.4 Abbreviation/Terminology
Abbreviation/Terminology Full Name Description
MID Mobile Internet Device Mobile Internet Terminal
WIFI Wireless Fidelity Base on IEEE 802.11bgn standard
wireless LAN
T F TransFlash Alternative name Micro SD,super
miniature memory card
2
MID Introduction
2.1 MID Operation and Preparation
Battery Charging
If this navigator is first used, please use AV adaptor to fully charge it.
Apply the power adaptor to charge for MID.
2.2 MID Status and Reminder
Reminder icons
When some remind message appears in your reminder window, please click column and slip
the screen to open the reminder list. Choose the menu you need, and confirm the information.
Then you can close the reminder window through clicking the column to slide up. Please refer to
below status icons:
New email Airplane Mode on
USB connected USB debugging connected
Return button
Downloading
Display recently-used
application
Home button
Current electric
volume.
WIFI connected, internet is
available
Reminder board
Reminder icons will work while receiving emails, WIFI is open, you can open the reminder
board to view the detailed information.
Open the reminder board
When the reminder column shows new reminder icon, please hold the column and slip down
your finger, then the reminder board is opened.
3 Quick Start Guide
3.1 Keys Function
Keys Funcction Description：
Power button Short press to sleep/wake up, long press to startup
and shutdown.
Volume +（up） increase the volume
Volume -（down） decrease the volume
HOM（home）
Click it in any interface will return to main interface.
Back button（back） click it in any interface will return to previous menu
Menu button This button will display in menu interface.
Display recently-used application
display recently browsed history
3.2 Startup and Shutdown button
Startup
Long press POWER key for three seconds, you can enter into startup picture. The system enters
into screen lock status, please unlock it
Notice: When the MID has crashed,long press POWER key for eleven seconds to reset.
Shutdown
1． Long press POWER, it will popoup shutdown window.
2． Shutdowm window contains Power off, Airplane mode and Audio profiles three
options.
3． Click Power off is the last step.
3.3 Open and Close of the Screen
Screen will be closed on its own when no operation happens.
1. Screen will be closed on its own if no operation happens for some time to save battery
power
2. When screen is open, press POWER key, the screen will be closed immediately.
Open the screen when it is closed.
If the screen is closed, short press POWER to open the screen. The screen will be locked open it, it
will show the picture as below picture, swipe screen to unlock.
3.4 Usage of Touch Screen
MID operating methods
There are below methods to view the main screen, menu and application procedure in your MID.
Click
When you want to use the screen keyboard typing or choose application in the main interface, you
only need to touch it by your finger.
Press on
If you want to open some item( textbox or the link in the webpage), or shortcut and main
procedure move, you can press on this item.
Quickly slide or slide
Quickly slide or slide indicates make quick vertical or horizoncial movement by finger.
Pull
Before you pull, you need to hold the it with strenghth until you pull it into the position you want.
Rotate
For most pictures, you only need to retate the MID sidewise to change the screen direction from
horizontal to vertical. For instance, when you are typing wods, and watching movies.
3.5 Home Page
Main interface as below picture 3.2, long press the blank and it will popup windows to set
wallpaper.
The extended home page
The home page can be extended beyond the wideness of screen to provide more space,
which you can put new-added shortcuts and widgets. Click the blank space in home page
then slide right or left to extend to the right or left of the screen. In the home page, there are
two extended pictures
The shortcut icons management in desktop application
Remove the icons in desktop

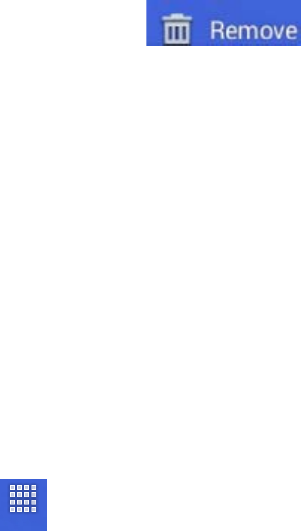

1. Long press the icons need to be remove, then on the right above of the screen, it
will appear icons.
2. Drag the icon to the above of the remove icon, till the icon become red, then move
your finger to delete the icon.
Change the wallpaper of desktop
1． In home page, long press any blank space in main screen, it will popup a window
to change the wallpaper.
2． Click the gallery or wallpaper gallery to select the wallpaper.
3.6 Visit Application Procedures
Click in right top , enter into main interface ,choose the application procedure
you want to visit.
3.7 USB Connection
MID storage configuration
Before transmitting documents, you have to conduct storage configuration for your MID:
1. Connect the MID and computer by USB cable, the reminder column will show the
remind information.
2. Open the reminder board; please view the MID status and reminder to learn how to
open the board.

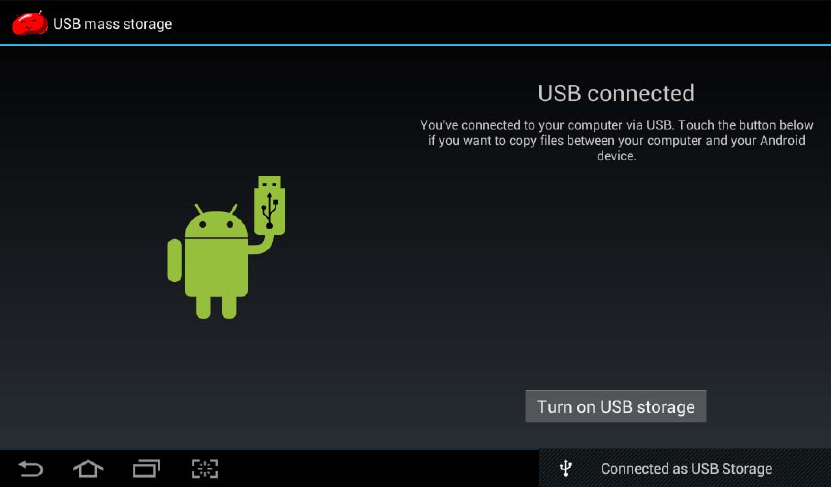

3. In the reminder board, click the “USB Connected”, it will as below Picture 3.7, then
click “open USB storage configuration”.
4. Now the USB is connected successfully.
Picture 3.7
Copy the document into memory card
1. Connect the MID to computer with USB cable.
2. As MID storage configuration, it is connected with computer successfully.
3. Open the “My computer” in your computer, check the items in “removable disc”.
4. Copy the documents you need into “removable disc”.
5. After copying finishes, click “shutdown the USB storage configuration” to uninstall.
Notice: When the MID is connected with USB cable, and you open the USB storage
configuration, you can’t view the memory card through the MID. Only after you detach the
USB cable, you can view the memory card in the MID.
3.8 Typing words
Use the screen keyboard
When you start the procedure or choose the words or numbers edition, it will show the screen
keyboard. The keyboard contains below typing options:
Android keyboard
Choose the typing method you want
1.Click setting application in main menu interface.
2.Click Language and Keyboard.
3.In the text setting area will reveal all the installed words-typing methods in your MID.
4.Tick the typing method you want.
Use and switch of input method
Picture 3.8
1 switch the capital and small letter
2 Input options
3 click to insert the space
4 click input to execute
5 delete the character in the left of cursor, click and hold to delete all the
characters in the left og the cursor.
①
②③
⑤
④
3.9 Operation Technique
Enter widgets interface
In the application interface,click widgets on the above of screen, or slide the screen, it
will swtich into widgets interface. Long press any widget to create its shortcut, then
you can enter into the application through the shortcut icon.
Create application shortcut icons in the desktop
In the application interface or widgets interface, long press any icon to switch into
desktop automatically, drag and hold the icon, you can move to any position in the
desktop.
Remind: If the target position has no space, the widget won’t be add in the main
screen.
4
Basic Setting
4.1 Wireless and Internet
1. Connect Wi-Fi
1) In the main menu or interface, choose setting application procedure.
2) Click WLAN, open wifi, MID will automatically search the available Wifi
wireless internet. As Picture 4.6
3) Choose the Wi-Fi internet you want to connect, if it has password, it will popup the
password window, enter password, click connect.
Picture 4.6
2. Add Network
1) Click icon in right top, as Picture 4.7
Pictur e 4.7
2) Input network SSID, the wireless network name, click save.
3) Click user name already saved, click connect to use network, as Picture 4.8
Picture 4.8
3. Network Notice
If you open Network Notice, when WIFI signal appears, the right bottom will
remind you available WLAN network, as Picture 4.6
4. Keep WI-FI on during sleep..
1. Click icon in right top of Picture 4.8, select advanced.
2. Click Keep WI-FI on during sleep, as Picture 4.9
Picture 4.9
4.2 Blu etooth function operation
1. Click setting application in main menu interface
2. Click bluetooth and open it.
3. If somebody open bluetooth in your surroudings, click search device in right above,
then MID will automatically search the bluetooth device nearby. As picture 4.10
Picture 4.10
4. Click the available Bluetooth device, it will popup request window, enter into related
password, and match the device to connect.
5. After match successfully, choose the operation you want to, click to enter into
Picture 4.11.
Picture 4.11
Bluetooth setting
1. Rename tablet
Click icon in right top of Picture 4.10, as Picture 4.12, select rename tablet, you
can rename it as you want
Picture 4.12
2. Check visibility timeout
Select visibility timeout setting in Picture 4.12, choose the time you want to
set, as Picture 4.13(Note: check overtime setting is the time setting when
Bluetooth is checked)
Pictur e 4.13
3 Display the file you received
Choose display the file you received in Picture 4.12, you can view download
and upload files.
4. Bluetooth advanced setting
Choose Bluetooth advanced setting in Picture 4.12, enter into Picture 4.14
Picture 4.14
1. File transmission,
Open file transmission service, Connect Bluetooth FTP and customer device to visit and operate
the file.
2. Bluetooth distance induction device
Open Bluetooth distance induction device, when two Bluetooth devices distance is quite
far or connection is cut off, the Bluetooth will remind you with sound.
4.3 More
4.3-1 Airplane Mode
Airplane Mode can turn off WIFI function quickly, when airplane mode is turned on, WIFI
can’t get any signal, then airplane mode is turned off, WIFI will recover to previous state.
4.3-2 VPN
Open VPN, click add VPN network, as Picture 4.17. Input name and server address, then save.
Picture 4.17
Click VPN, as Picture 4.18, input VPN user name and password, click connect.
Picture 4.18
4.3-3 Network sharing and portable hotspots
Portable WI-FI hotspots
1. Click setting application in main menu.
2. Click more when wifi is well connected, open Tethering & portable hotspot
Picture 4.18
Pi cture 4.20
3. Click keep WI-FI hotspots on, choose open time.
4. Return to previous menu, open portable WLAN hotspots, click configure WI-FI
hotspots.
Picture 4.21
5. Set passwords you want to, password should be more than 8 numbers.
P icture 4.22
2. Access Point Name( APN)
Click mobile network, as Picture 4.23
Picture 4.25
4.4 Contextual Model
1. Open settings, click contextual model, as Picture 4.26,
P icture 4.26
2. Click General to enter into Picture 4.27
P icture 4.27
1. Vibrate
In picture 4.27, click vibrate, MID will vibrate when someone calls you.
2. Volume
In picture 4.27, click volume, you can set ringtone, notice, and alarm volume, as Picture 4.28
4.5 Display
4.5-1 Adjust the screen brightness
1 . Click Setting application procedure.
2. Click display, choose brightness,
3. Drag the portlito to adjust the brightness volume.As Picture 4.31
Picture 4.31
4. Click OK after brightness is adjusted.
4.5-2 Wallpapers
1. Click setting application.
2. Click display, click wallpaper.
3. You can choose different wallpapers as you like---gallery(user defined)---Live
wallpapers---wallpaper, as Picture 4.32
Picture 4.32
4.5-3 Auto rotation
System is defaulted as open auto rotation, when it is turned off, system won’t rotate MID
screen by G-sensor.
4.5-4 Sleep
1. Click setting appliation.
2. Click display.
3. Click sleep.
4. Set the sleep time as you want, as Picture 4.33
Picture 4.33
4.5-5 Font size
Click font size to adjust the font size, as Picture 4.34
Picture 4.34
P icture 4.35
4.6 Storage
Open setting function, click memory, click preferred install loca tion, you can
choose isntall new application to choose preferred install location.
Check SD card and MID storage space.
1. Enter into setting application.
2. Click storage, check storage space.
1. Internal storage
(1) System storage
System storage is the spcae MID leave for system file, as
Picture 4.36. it can’t be viewed.
Picture 4.36
(2)Internal storage
Internal storage is MID local NAND storage, as Picture 4.37, if you need to check the storage
content, you can check it in main menu.
Picture 4.37
2. SD card
You can check storage space, SD card available space, unmount SD card and erease
SD card, as Picture 4.38
Picture 4.38
Safely remove SD card
1. Click setting application.
2. Click memory.
3. Click uninstall SD card.
4. Now you can remove SD card safely.
Note: Removing SD card safely can protect SD card and increase its lifetime.
4.7 Battery
Click setting function, select battery, you can view the battery situation, as Picture 4.39

Navigation menu
