Dayton Audio Division of Parts Express WF150A Wi-Fi INTEGRATED AMPLIFIER User Manual TI 435 AMP QSG

Dayton Audio Division of Parts Express Wi-Fi INTEGRATED AMPLIFIER TI 435 AMP QSG

User Manual

1 2 3VOL+VOL-PLAYALLEQ/BALWIFIBTOPTLINE 1 LINE 2PHO1 234 56Smart Integrated AmplifierPLAYAL L4 5 6LINE2LINE1OPTPHON OWF150AWi-Fi INTEGRATED AMPLIFIER

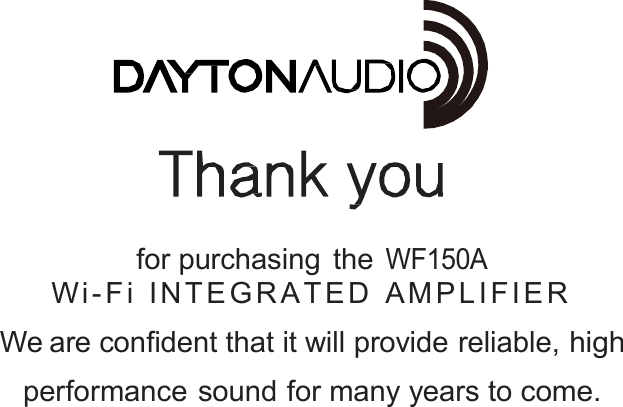

for purchasing theWF150AW i - F i I N T E G R A T E D A M P L I F I E RWe are confident that it will provide reliable,highperformance sound for many years tocome.
To set up, please...Download the DaytonAudioapp:Follow the instructions on screenSignup for news and softwareupdates:http://Daytonaudio.comPlay &Enjoy!

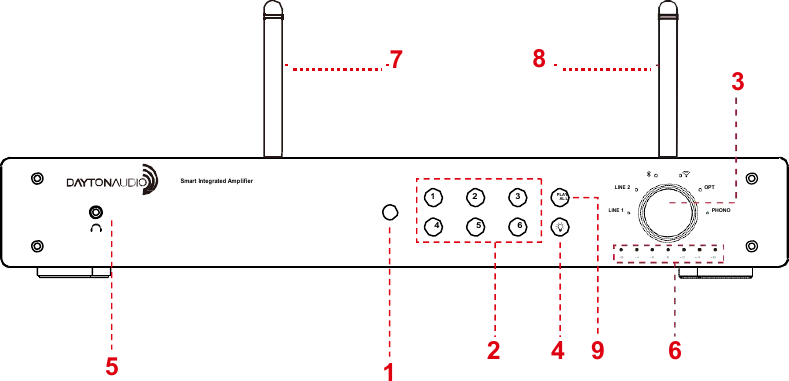

312783Smart Integrated AmplifierPLAYAL LLINE2OPT4 5 6LINE1PHONO512 4 9 6

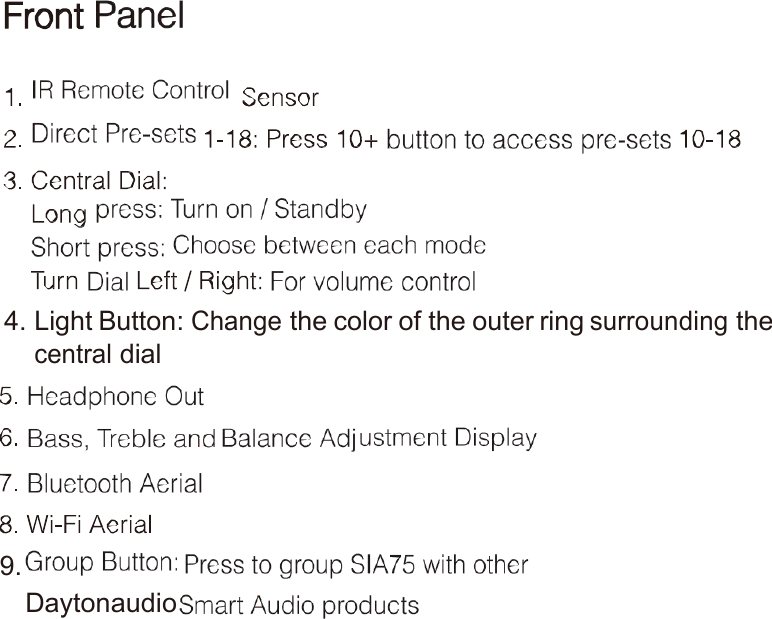

4. Light Button:Changethe color of the outer ringsurroundingthecentraldial9.Daytonaudio

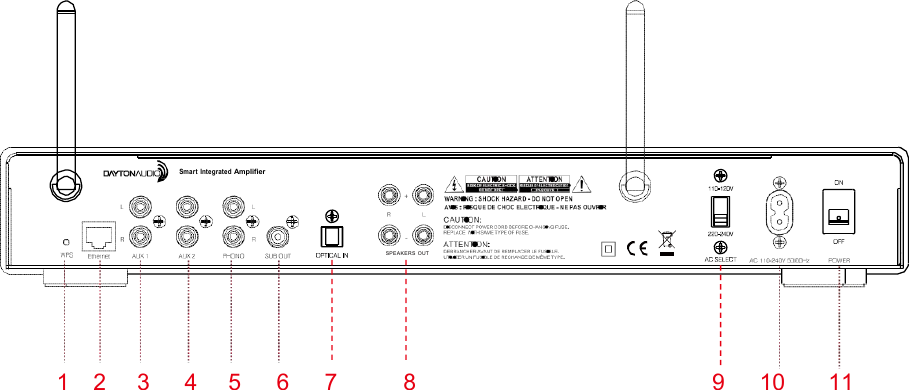

Smart IntegratedAmplifierSPE AK ER S OU T1 2 3 4 5 6 7 8 9 10 11

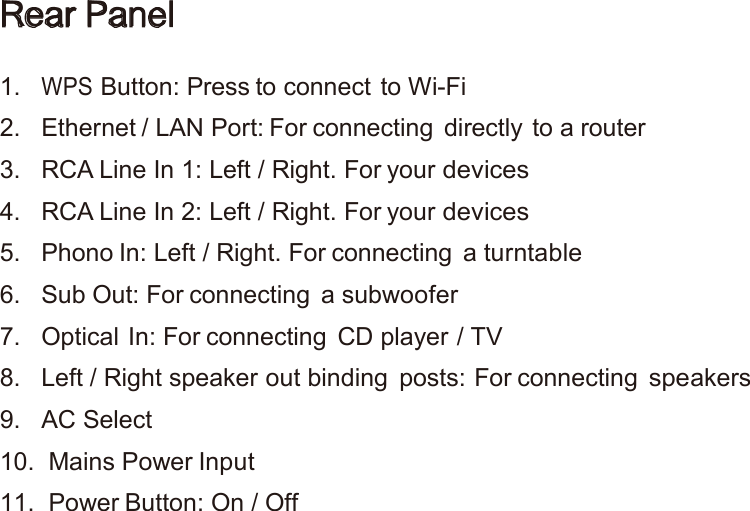

Rear Panel1.WPSButton: Press to connect to Wi-Fi2. Ethernet / LAN Port: For connecting directly to a router3. RCA Line In 1: Left / Right. For yourdevices4. RCA Line In 2: Left / Right. For yourdevices5. Phono In: Left / Right. For connecting a turntable6. Sub Out: For connecting a subwoofer7. Optical In: For connecting CD player / TV8. Left / Right speaker out binding posts: For connectingspeakers9. AC Select10. Mains Power Input11. Power Button: On / Off

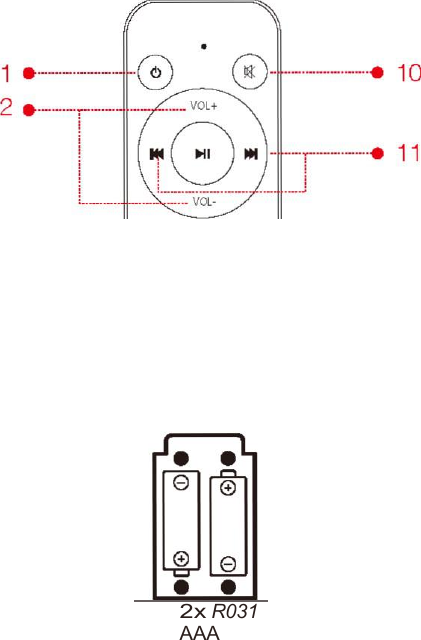

2xR031AAA

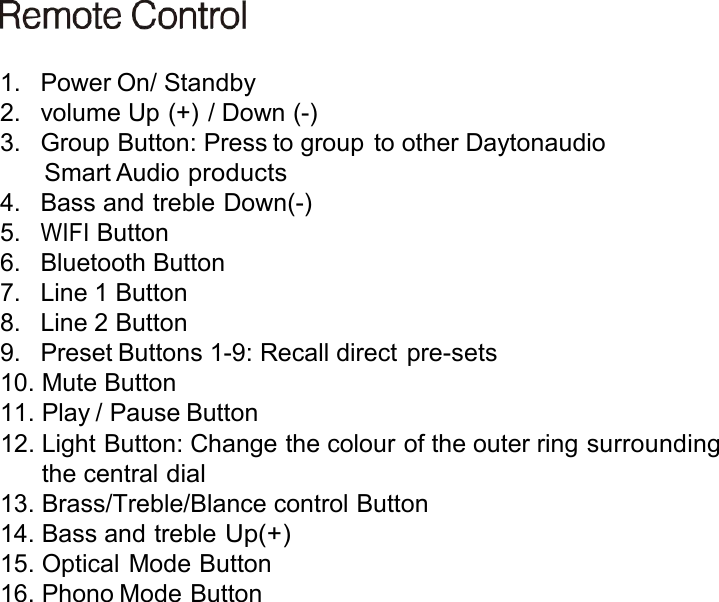

1. Power On/ Standby2. volume Up (+) / Down (-)3. Group Button: Press to group to other DaytonaudioSmart Audioproducts4. Bass and treble Down(-)5.WIFIButton6. Bluetooth Button7. Line 1 Button8. Line 2 Button9. Preset Buttons 1-9: Recall direct pre-sets10. Mute Button11. Play / Pause Button12. Light Button: Change the colour of the outer ring surroundingthe centraldial13. Brass/Treble/Blance control Button14. Bass and trebleUp(+)15. Optical Mode Button16. Phono Mode Button

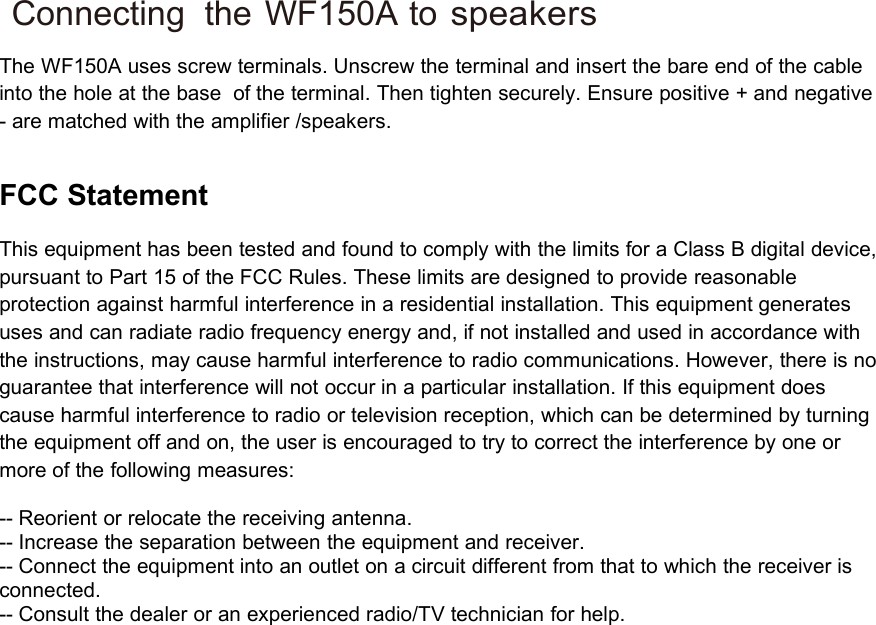

Connecting the WF150A tospeakersThe WF150A uses screw terminals. Unscrew the terminal and insert the bare end of the cableinto the hole at the base of the terminal. Then tighten securely. Ensure positive + and negative- are matched with the amplifier /speakers.FCC StatementThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generatesuses and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined by turningthe equipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions:(1) This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliancecould void the user's authority to operate the equipment.This equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with minimum distance20cm between the radiator & your body.
daytonaudio.com tel +937.743.8248info@daytonaudio.com705 PleasantValleyDr.Springboro,OH 45066USA
