Dayton Audio Division of Parts Express WF60PA AMPLIFIER User Manual

Dayton Audio Division of Parts Express AMPLIFIER

User Manual

Model: WF60PA User Manual60W CLASS D FULL RANGE 2.1 PLATE AMPLIFIER with Wi-Fi and BLUETOOTH

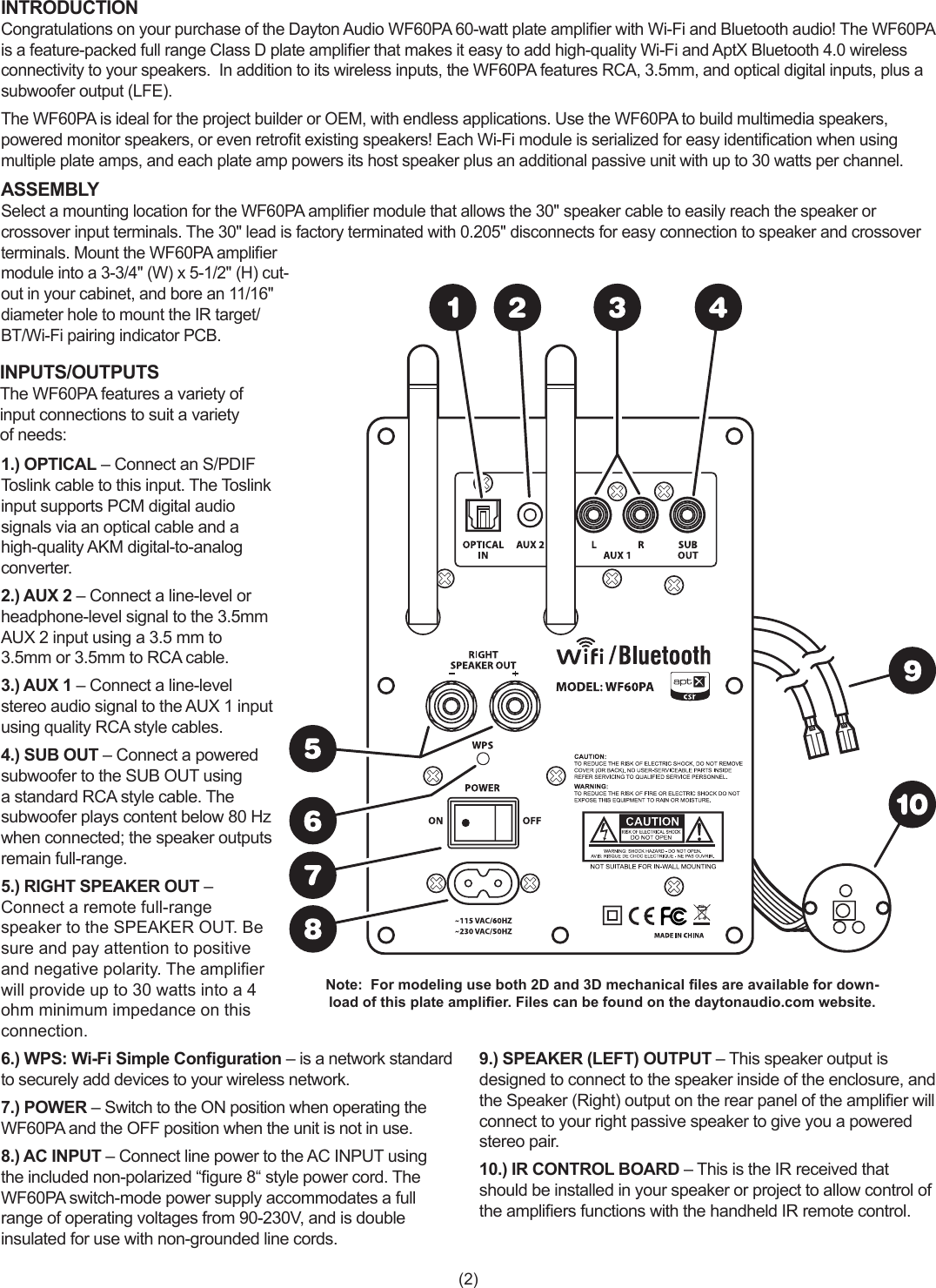

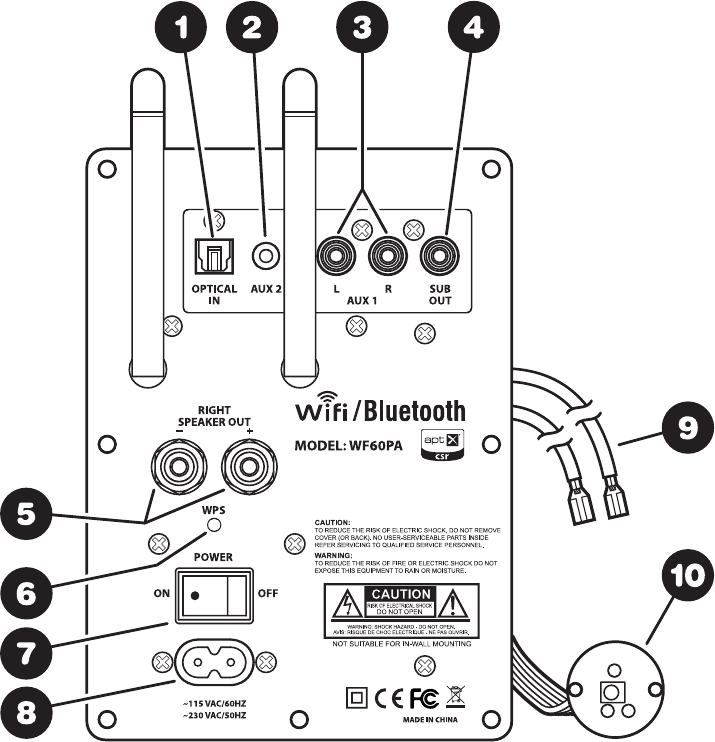

(2)INTRODUCTIONCongratulations on your purchase of the Dayton Audio WF60PA 60-watt plate amplier with Wi-Fi and Bluetooth audio! The WF60PA is a feature-packed full range Class D plate amplier that makes it easy to add high-quality Wi-Fi and AptX Bluetooth 4.0 wireless connectivity to your speakers.  In addition to its wireless inputs, the WF60PA features RCA, 3.5mm, and optical digital inputs, plus a subwoofer output (LFE). The WF60PA is ideal for the project builder or OEM, with endless applications. Use the WF60PA to build multimedia speakers, powered monitor speakers, or even retrot existing speakers! Each Wi-Fi module is serialized for easy identication when using multiple plate amps, and each plate amp powers its host speaker plus an additional passive unit with up to 30 watts per channel.ASSEMBLYSelect a mounting location for the WF60PA amplier module that allows the 30" speaker cable to easily reach the speaker or crossover input terminals. The 30" lead is factory terminated with 0.205" disconnects for easy connection to speaker and crossover terminals. Mount the WF60PA amplier module into a 3-3/4" (W) x 5-1/2" (H) cut-out in your cabinet, and bore an 11/16" diameter hole to mount the IR target/BT/Wi-Fi pairing indicator PCB.1.) OPTICAL – Connect an S/PDIF Toslink cable to this input. The Toslink input supports PCM digital audio signals via an optical cable and a high-quality AKM digital-to-analog converter.2.) AUX 2 – Connect a line-level or headphone-level signal to the 3.5mm AUX 2 input using a 3.5 mm to 3.5mm or 3.5mm to RCA cable.3.) AUX 1 – Connect a line-level stereo audio signal to the AUX 1 input using quality RCA style cables.4.) SUB OUT – Connect a powered subwoofer to the SUB OUT using a standard RCA style cable. The subwoofer plays content below 80 Hz when connected; the speaker outputs remain full-range.5.) RIGHT SPEAKER OUT – Connect a remote full-range speaker to the SPEAKER OUT. Be sure and pay attention to positive and negative polarity. The amplier will provide up to 30 watts into a 4 ohm minimum impedance on this connection.INPUTS/OUTPUTSThe WF60PA features a variety of input connections to suit a variety of needs:Note:  For modeling use both 2D and 3D mechanical les are available for down-load of this plate amplier. Files can be found on the daytonaudio.com website.6.) WPS: Wi-Fi Simple Conguration – is a network standard to securely add devices to your wireless network.7.) POWER – Switch to the ON position when operating the WF60PA and the OFF position when the unit is not in use.8.) AC INPUT – Connect line power to the AC INPUT using the included non-polarized “gure 8“ style power cord. The WF60PA switch-mode power supply accommodates a full range of operating voltages from 90-230V, and is double insulated for use with non-grounded line cords.9.) SPEAKER (LEFT) OUTPUT – This speaker output is designed to connect to the speaker inside of the enclosure, and the Speaker (Right) output on the rear panel of the amplier will connect to your right passive speaker to give you a powered stereo pair.10.) IR CONTROL BOARD – This is the IR received that should be installed in your speaker or project to allow control of the ampliers functions with the handheld IR remote control.

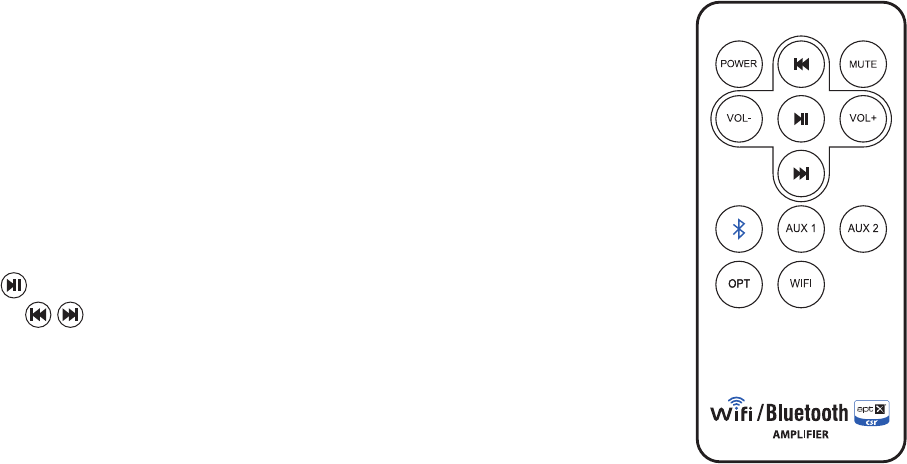

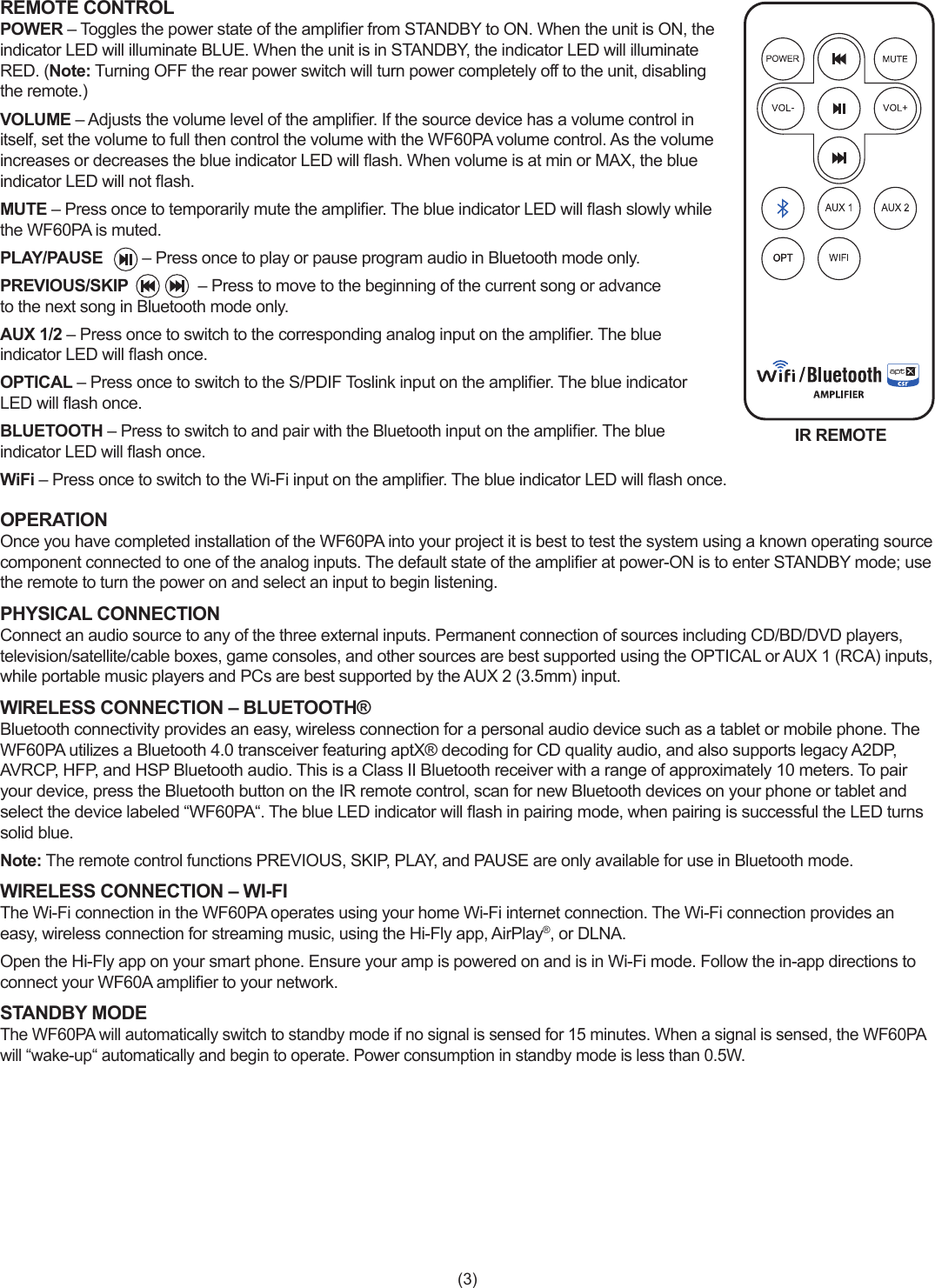

(3)REMOTE CONTROL POWER – Toggles the power state of the amplier from STANDBY to ON. When the unit is ON, the indicator LED will illuminate BLUE. When the unit is in STANDBY, the indicator LED will illuminate RED. (Note: Turning OFF the rear power switch will turn power completely off to the unit, disabling the remote.)VOLUME – Adjusts the volume level of the amplier. If the source device has a volume control in itself, set the volume to full then control the volume with the WF60PA volume control. As the volume increases or decreases the blue indicator LED will ash. When volume is at min or MAX, the blue indicator LED will not ash.MUTE – Press once to temporarily mute the amplier. The blue indicator LED will ash slowly while the WF60PA is muted.PLAY/PAUSE         – Press once to play or pause program audio in Bluetooth mode only.PREVIOUS/SKIP                – Press to move to the beginning of the current song or advance  to the next song in Bluetooth mode only.AUX 1/2 – Press once to switch to the corresponding analog input on the amplier. The blue indicator LED will ash once.OPTICAL – Press once to switch to the S/PDIF Toslink input on the amplier. The blue indicator LED will ash once.BLUETOOTH – Press to switch to and pair with the Bluetooth input on the amplier. The blue indicator LED will ash once.WiFi – Press once to switch to the Wi-Fi input on the amplier. The blue indicator LED will ash once.OPERATIONOnce you have completed installation of the WF60PA into your project it is best to test the system using a known operating source component connected to one of the analog inputs. The default state of the amplier at power-ON is to enter STANDBY mode; use the remote to turn the power on and select an input to begin listening.PHYSICAL CONNECTIONConnect an audio source to any of the three external inputs. Permanent connection of sources including CD/BD/DVD players, television/satellite/cable boxes, game consoles, and other sources are best supported using the OPTICAL or AUX 1 (RCA) inputs, while portable music players and PCs are best supported by the AUX 2 (3.5mm) input.WIRELESS CONNECTION – BLUETOOTH® Bluetooth connectivity provides an easy, wireless connection for a personal audio device such as a tablet or mobile phone. The WF60PA utilizes a Bluetooth 4.0 transceiver featuring aptX® decoding for CD quality audio, and also supports legacy A2DP, AVRCP, HFP, and HSP Bluetooth audio. This is a Class II Bluetooth receiver with a range of approximately 10 meters. To pair your device, press the Bluetooth button on the IR remote control, scan for new Bluetooth devices on your phone or tablet and select the device labeled “WF60PA“. The blue LED indicator will ash in pairing mode, when pairing is successful the LED turns solid blue.Note: The remote control functions PREVIOUS, SKIP, PLAY, and PAUSE are only available for use in Bluetooth mode.WIRELESS CONNECTION – WI-FIThe Wi-Fi connection in the WF60PA operates using your home Wi-Fi internet connection. The Wi-Fi connection provides an easy, wireless connection for streaming music, using the Hi-Fly app, AirPlay®, or DLNA.Open the Hi-Fly app on your smart phone. Ensure your amp is powered on and is in Wi-Fi mode. Follow the in-app directions to connect your WF60A amplier to your network.STANDBY MODEThe WF60PA will automatically switch to standby mode if no signal is sensed for 15 minutes. When a signal is sensed, the WF60PA will “wake-up“ automatically and begin to operate. Power consumption in standby mode is less than 0.5W.IR REMOTE

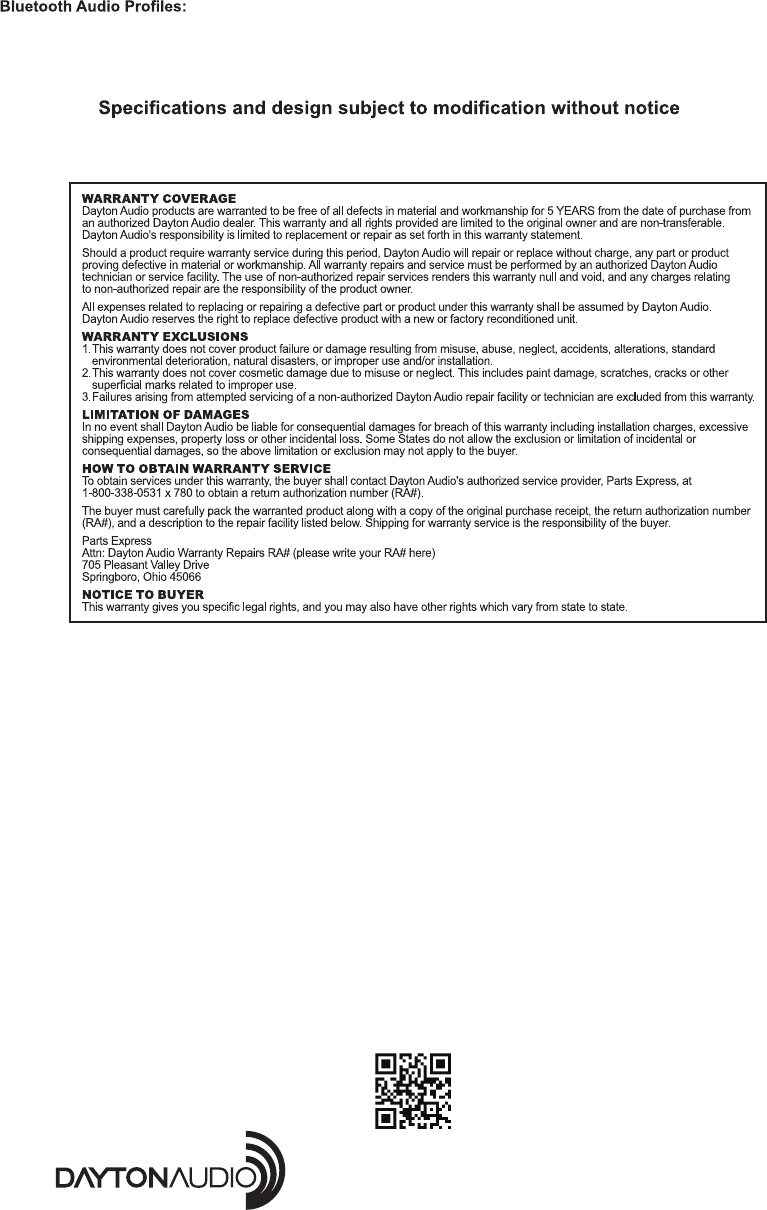

(4)Dayton Audio® SPECIFICATIONSPower:Inputs:Outputs: Frequency response:Operating power:Standby power:Bluetooth module:Bluetooth range:Wi-Fi:Signal to noise ratio:2 x 30 Watts RMS (Class D)AUX 1: 2 x RCA, AUX 2: 3.5mm Stereo, S/PDIF Optical: Toslink30" lead with 0.205" disconnects, Dual 5-way binding posts,  RCA LFE Output (80 Hz Xover)45-20,000 Hz90 ~ 230 Vac, 50/60 Hz, 80Watts<0.5WattsV4.0 , Class IIaptX, A2DP, AVRCP, HFP, and HSP10 meters2.4 GHz,  Apple AirPlay® DLNA, Hi-Fly App compatible>95dB  Apple and  AirPlay are trademarks of Apple Computer, Inc. Registered in the US and other countries.Last Revised:  1/4/2017daytonaudio.comtel + 937.743.8248info@daytonaudio.com705 Pleasant Valley Dr.Springboro, OH 45066 USAFCC StatementThis equipment has been tested and found to comply with the limits for a Class Bdigital device,pursuant to Part 15 of the FCC Rules. theselimits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates usesand can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference toradio communications. However, there is no garantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined by ruming the equipment off and on, the user isencouraged to try to correct the interference by one or more of the following measures;-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following tow conditions:(1) This device may not causeharmful interference, and(2) this device must accept any interference recived, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authonty to operate theequipment.This equipment complies with FCC radiation exposure limits set forht for an uncontrolled environment. This equipment should be installedand operated with minimum distance 20cm between the radiator & your body.
