Dell™ XPS 18

User’s Manual

Computer Model: XPS 1820

Regulatory Type : W01A

Regulatory Model: W01A002

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss

of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

Copyright © 2014 Dell Inc. All rights reserved. This product is protected

by U.S. and international copyright and intellectual property laws. Dell™

and the Dell logo are trademarks of Dell Inc. in the United States and/or

other jurisdictions. All other marks and names mentioned herein may be

trademarks of their respective companies.

2014 - 04

Rev. A00

Contents │ 3

Contents

Features � � � � � � � � � � � � � � � � � � � � � � � � � � � 5

Accessories � � � � � � � � � � � � � � � � � � � � � � � � � 9

Setting Up Your Computer � � � � � � � � � � � � � � � � �11

Charging Your Computer . . . . . . . . . . . . . . . . 11

Turning On Your Computer . . . . . . . . . . . . . . . 13

Enabling/Disabling Wi-Fi . . . . . . . . . . . . . . . . 14

Connecting to a Network . . . . . . . . . . . . . . . . 14

Inserting a Memory Card (Sold Separately)

— Optional . . . . . . . . . . . . . . . . . . . . . . 15

Removing the Memory Card . . . . . . . . . . . . . . 16

Using Your Computer � � � � � � � � � � � � � � � � � � �17

Screen Orientation . . . . . . . . . . . . . . . . . . . 17

Windows Start Screen . . . . . . . . . . . . . . . . . 17

Gestures. . . . . . . . . . . . . . . . . . . . . . . . 18

Using Headphone/Microphone . . . . . . . . . . . . . 23

Turning Off the Screen . . . . . . . . . . . . . . . . . 24

Turning Off Your Computer . . . . . . . . . . . . . . . 24

Synchronizing Your Computer using

a Microsoft account � � � � � � � � � � � � � � � � � � � 26

4 │ Contents

Powered Stand � � � � � � � � � � � � � � � � � � � � � � 27

Features . . . . . . . . . . . . . . . . . . . . . . . . 27

Using the Powered Stand . . . . . . . . . . . . . . . . 29

Docking Your Computer . . . . . . . . . . . . . . . . 30

Undocking Your Computer . . . . . . . . . . . . . . . 31

Cleaning Your Computer � � � � � � � � � � � � � � � � � 32

Troubleshooting � � � � � � � � � � � � � � � � � � � � � 33

Locating Your Service Tag and Express

Service Code . . . . . . . . . . . . . . . . . . . . . 39

Specifications � � � � � � � � � � � � � � � � � � � � � � � 40

Features │ 5

Features

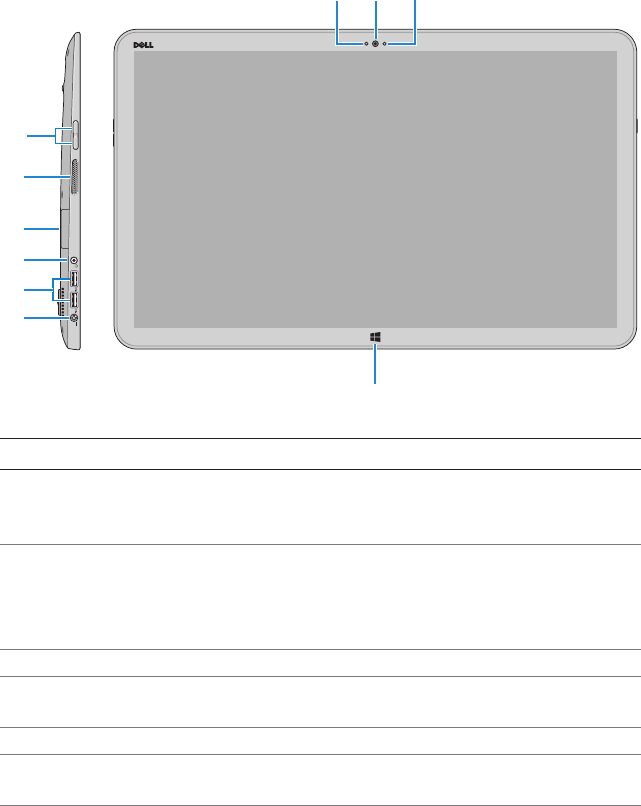

This section provides information about the features available on your

computer.

9

8

7

6

5

4

1

23

10

Feature Functionality

1 Ambient-light sensor Detects the ambient light and

automatically adjusts the display

brightness.

2 Front-facing camera Capture a front-view picture or

record videos.

Make video calls with web

applications, such as Skype.

3 Camera-status light Turns on when the camera is in use.

4 Volume-control buttons (2) Press to increase or decrease the

volume.

5 Left speaker Provides audio output.

6 Media-card reader Reads from and writes to media

cards

6 │ Features

Feature Functionality

7 Headset/speaker port Connect a headphone, a headset

(headphone and microphone

combo), or speakers.

8 USB 3.0 ports (2) Connect peripherals such as

storage devices, printers, and so on.

Provides data transfer speeds up to

5 Gbps.

9 Power-adapter port Connect a power adapter to provide

power to your computer and

charge the battery.

10 Windows button Press to go to the Start screen while

an app is active.

Press for quick access to the most

recently used app or most recently

viewed screen.

Features │ 7

6

5

2

1

3

4

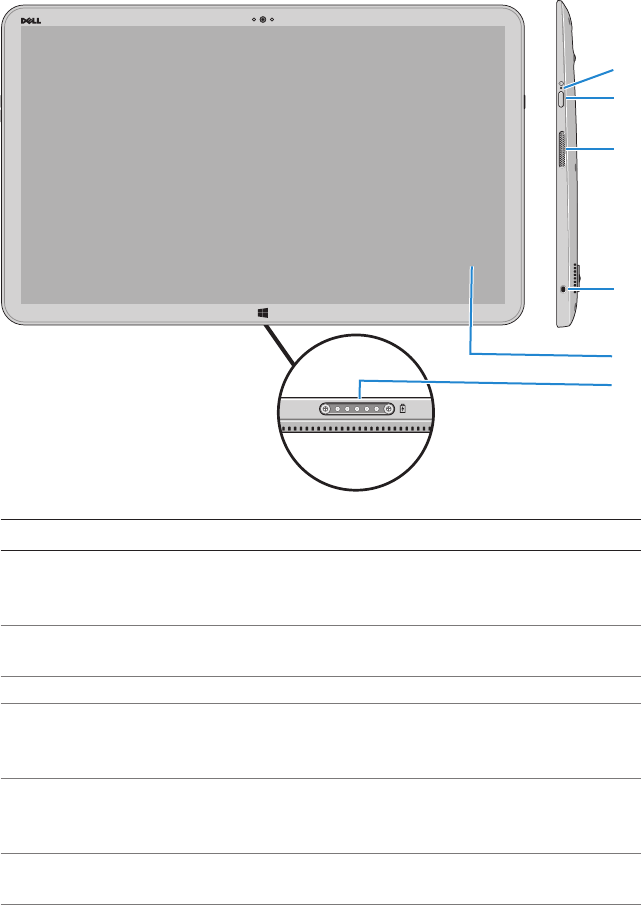

Feature Functionality

1 Power/Battery-status

light

Indicates the power/battery-charge status.

(For more information, see “Battery-status

light:”).

2 Power button Turn on your computer or change the

power state of your computer.

3 Right speaker Provides audio output.

4 Security-cable slot Connect a security cable to prevent

unauthorized movement of your

computer.

5 Touchscreen display Touch the display to use on-screen

controls including buttons, menu items,

and the on-screen keyboard

6 Docking port Connect to a Dell Powered-Stand

(sold separately).

8 │ Features

1

Feature Functionality

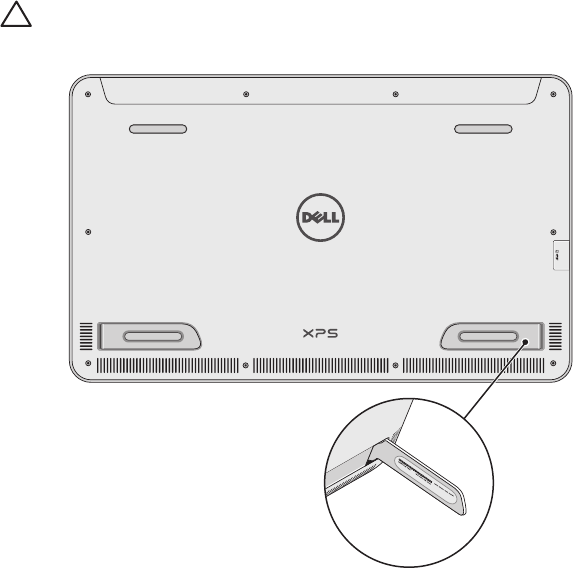

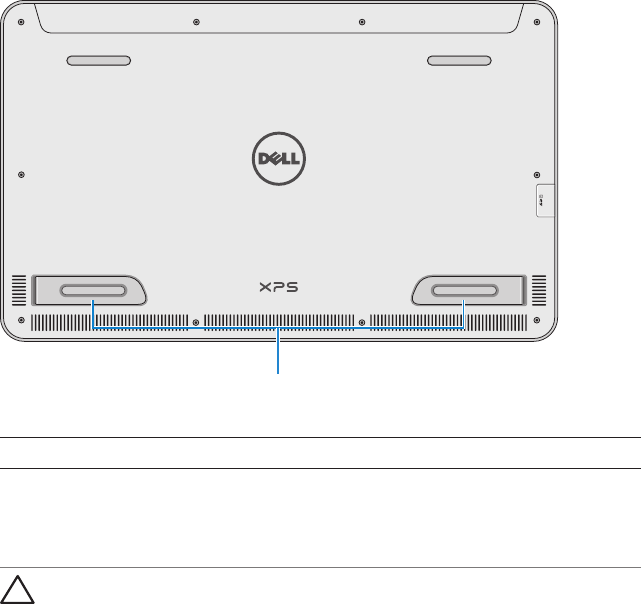

Left and right feet Fold the feet outward to allow your

computer to stand upright in landscape

mode. Fold inward to allow your computer

to lay flat.

CAUTION: Do not place or use the computer in portrait mode.

Accessories │ 9

Accessories

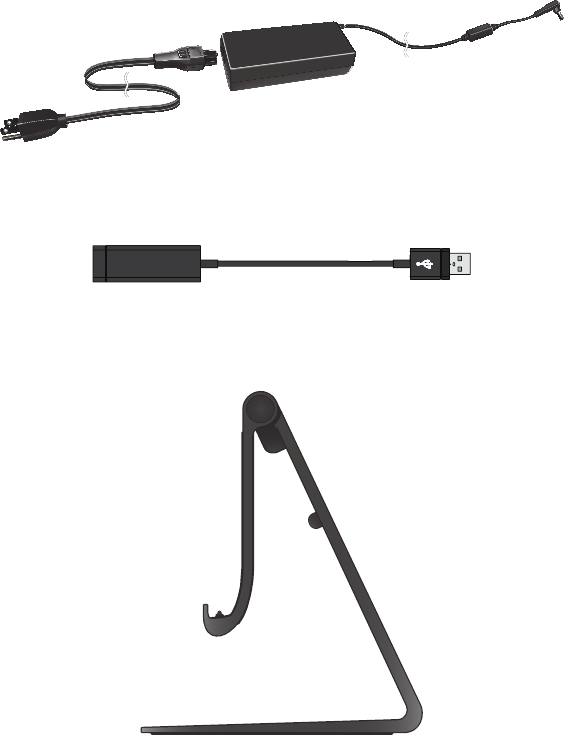

∞ Power adapter and cable — Provides power to your computer

and charges the battery.

∞ USB to ethernet adapter (sold separately) — Allows you to

connect a RJ45 (network) cable to your computer using a

USBport.

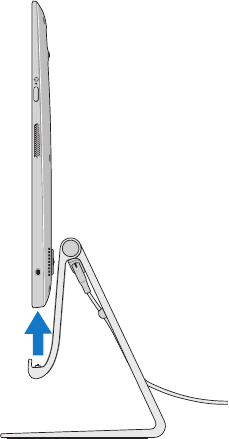

∞ Powered stand (sold separately) — Allows your computer to be

placed upright. It also allows adjusting the viewing angle and

charges the battery.

10 │ Accessories

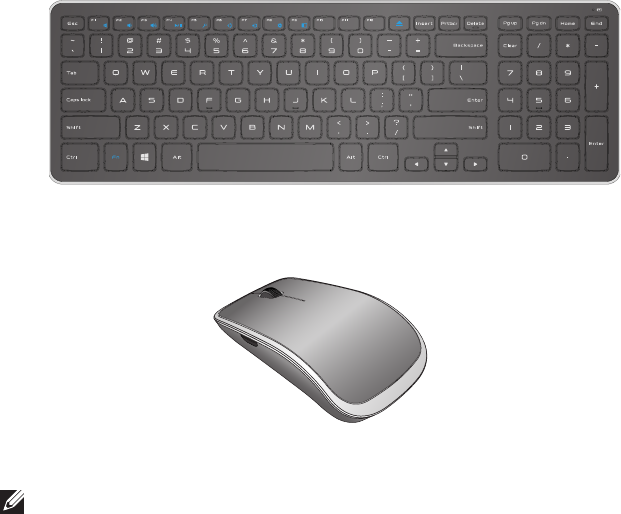

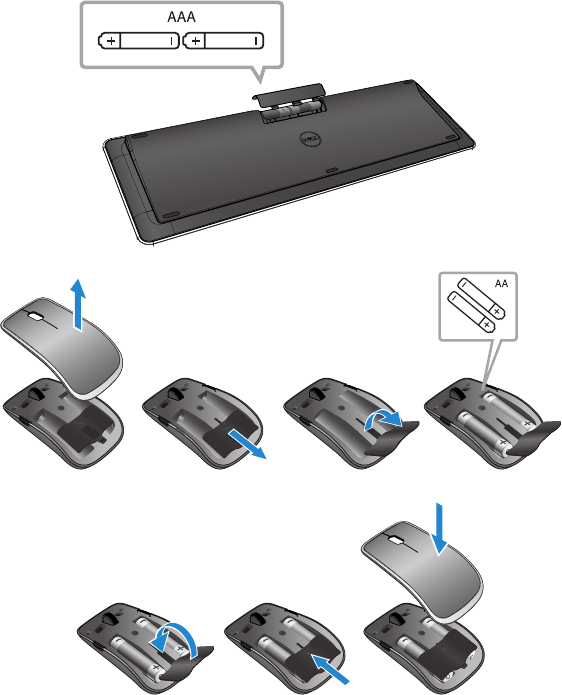

∞ Wireless keyboard and mouse (sold separately) - Inputs text and

controls the cursor.

NOTE: If you order the keyboard and mouse along with your

computer, they are already paired when you receive them. If you

purchase the keyboard and mouse separately, or if you need to

pair them again, see “Pairing the wireless keyboard and mouse”.

Setting Up Your Computer │ 11

Setting Up Your Computer

WARNING: Before you begin any of the procedures in this

section, read the safety information that shipped with your

computer. For more best practices information, see

dell.com/regulatory_compliance.

NOTE: You receive your computer in shipping mode to prevent

it from accidentally turning on during shipping. To turn on your

computer for the first time, connect the power adapter and then

press the power button.

Charging Your Computer

NOTE: The battery is not fully charged when you first receive your

computer. Your computer cannot be charged using a USB cable.

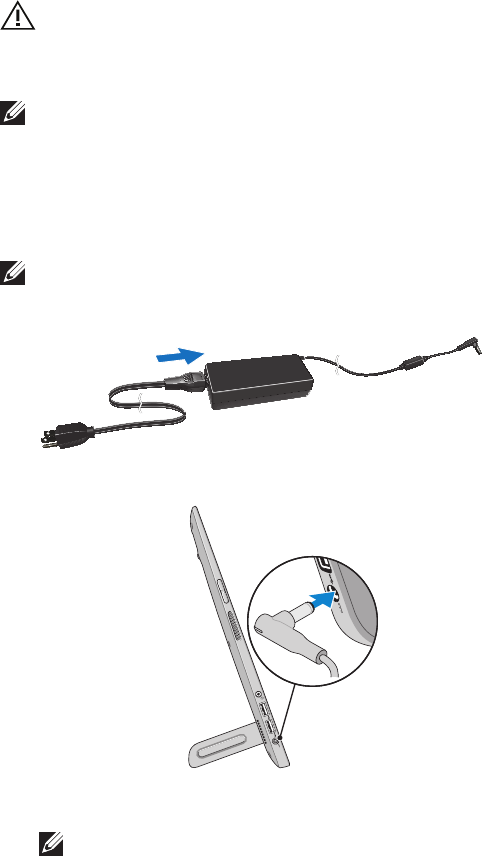

1 Connect the power cable to the power adapter.

2 Connect the power adapter to your computer.

3 Connect the power adapter into an electrical outlet and charge

your computer until the battery is fully charged.

NOTE: A completely discharged battery takes 4-5 hours to

charge fully while the computer is turned off. The battery

charge light on the right side of your computer turns off once

the battery is fully charged.

12 │ Setting Up Your Computer

Battery-status light:

You can check the charge/power status of your computer by

checking the battery-status light on the side of your computer or the

icon on the screen when your computer is turned on.

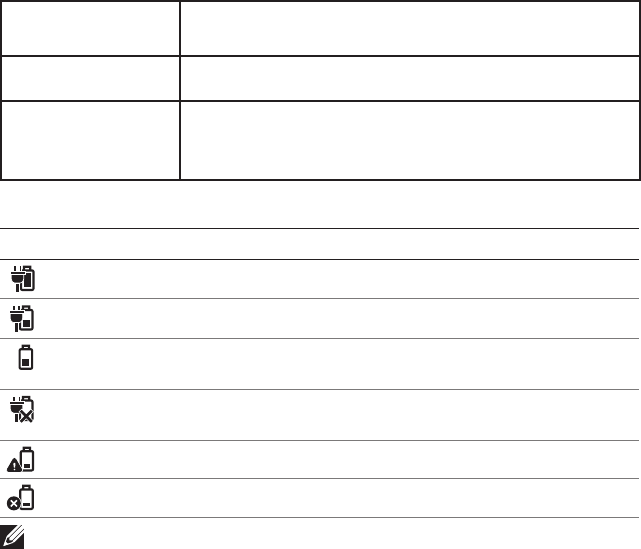

Solid white light Power adapter is connected to the computer

and the battery is being charged.

Solid amber light Battery charge is low or critical.

Off Power adapter is connected to the computer

and battery is fully charged or power adapter is

not connected to the computer.

Battery icon displayed on the screen:

Battery icon Description

Battery is fully charged

Battery is charging

Computer is running on battery power and the

battery is discharging.

Computer is plugged in, and either no battery is

detected, or the battery isn’t working correctly.

Battery is low

Battery is critically low

NOTE: You can check exact battery charge by hovering the mouse

pointer over the battery icon.

Setting Up Your Computer │ 13

Turning On Your Computer

CAUTION: Use your computer in an ambient temperature

between 0°C and 35°C (32°F and 95°F).

1 Press and release the Power and Sleep/Wake button .

NOTE: After the button is pressed, there is a slight delay before

your computer turns on or off.

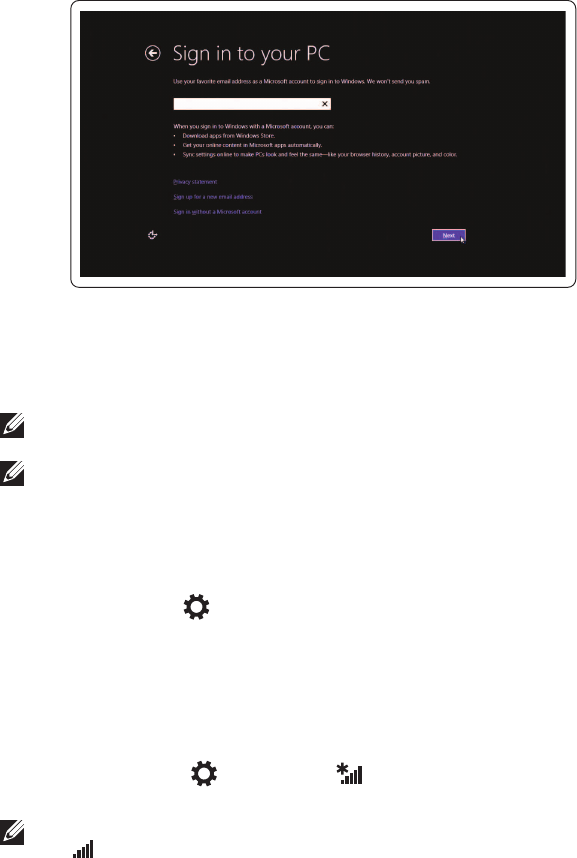

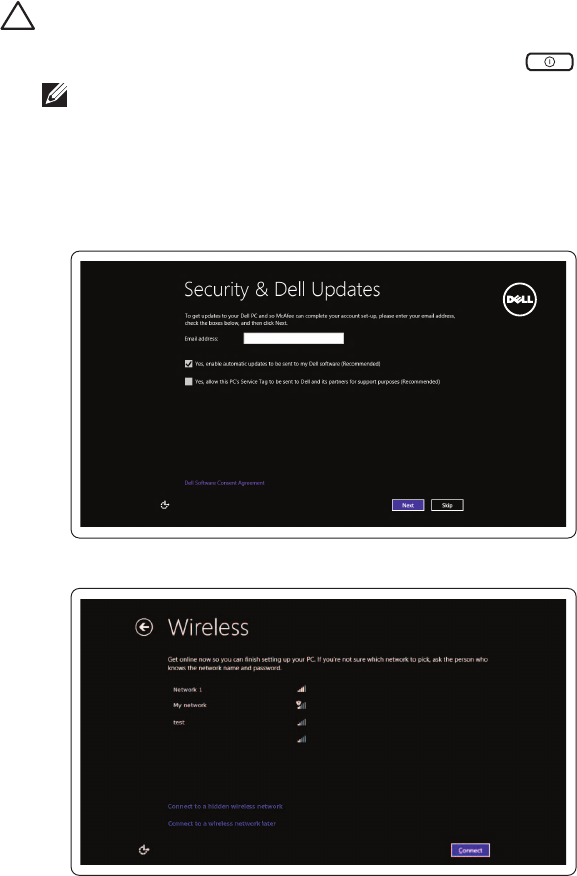

2 Finish Windows setup by selecting your options for

personalization, signing into your Microsoft account or creating a

local account, and so on.

a. Enable security and updates.

b. Connect to your wireless network.

14 │ Setting Up Your Computer

c. Sign in to your computer.

Your computer is ready for use when the Windows Start screen is

displayed.

NOTE: A lock screen may be displayed when your computer

wakes up from a sleep state.

NOTE: If the login screen is not enabled, the Start screen appears

after you swipe-up on the lock screen.

Enabling/Disabling Wi-Fi

1 Swipe from the right edge of the display to access Charms.

2 Touch Settings → Change PC settings→ Wireless.

3 Move the slider to the right to enable Wi-Fi. Move the Wi-Fi slider

to the left to disable Wi-Fi.

Connecting to a Network

1 Swipe from the right edge of the display to access Charms.

2 Touch Settings → Available → Select an available

network→ Connect.

NOTE: If you need to connect to another network later,

tap in the Charms sidebar and select the network you want

toconnectto.

Setting Up Your Computer │ 15

Inserting a Memory Card (Sold Separately)

— Optional

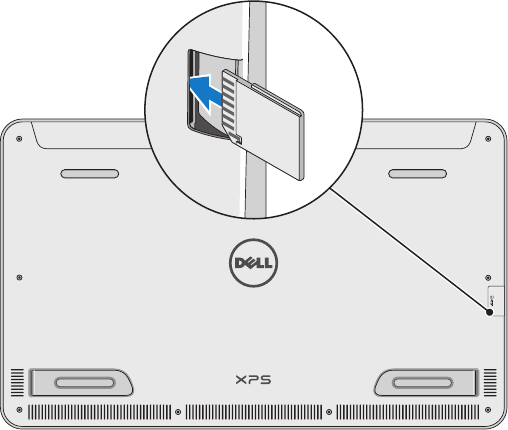

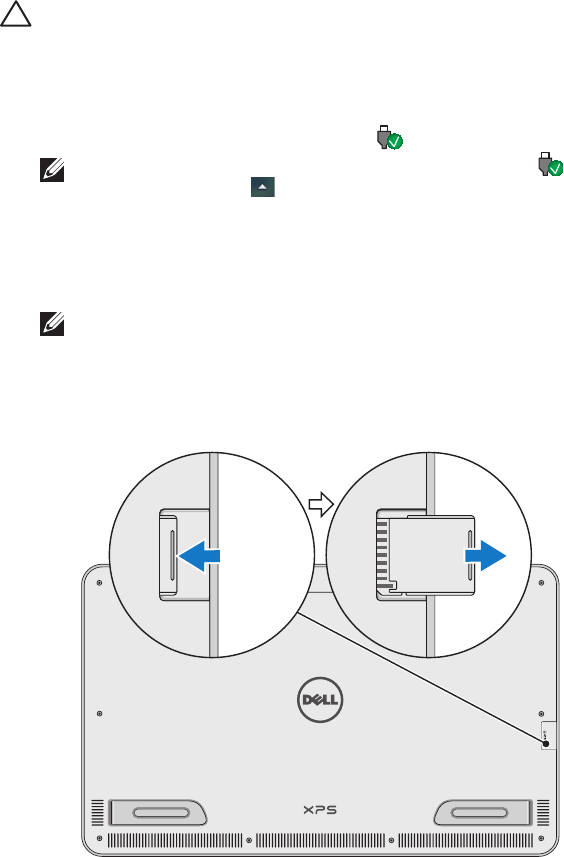

1 Orient the SD card so that the pins on the card are facing the rear

when inserted.

2 Push the slot cover down.

3 Push the SD card into the slot until it clicks into place.

For more information, see “Media-card reader” in Specifications.

16 │ Setting Up Your Computer

Removing the Memory Card

CAUTION: To avoid data loss, ensure all read/write operations

to the memory card are complete before removing it from the

computer.

1 Tap the Desktop tile to access the Desktop mode.

2 In the notification area at the bottom-right corner of the screen ,

tap the safely remove hardware icon .

NOTE: If you don not see Safely Remove Hardware , tap

Show Hidden Icons to display all icons in the notification

area.

3 Tap the memory card name in the list.

A message appears confirming that the memory card can be

safely removed.

NOTE: If a warning message appears stating the memory card

cannot be removed, make sure all data transfers to and from

the memory card are complete and try again.

4 Push the memory card inward to release it from the slot.

5 Pull the memory card out of the slot.

Using Your Computer │ 17

Using Your Computer

Screen Orientation

For optimal viewing experience, the screen orientation changes

automatically to portrait or landscape mode depending on your

computer’s orientation. Automatic screen rotation is enabled by

default.

NOTE: Some applications may not support automatic screen

rotation.

Disabling or enabling automatic screen rotation:

1 Swipe from the right edge of the display to access Charms.

2 Tap Settings → Screen .

3 Tap or to toggle automatic screen rotation.

Windows Start Screen

The Windows Start screen displays a list of default and custom Live

Tiles, which act as shortcuts to various installed applications.

Live Tiles on your Start screen update in real time with information

on news, sports, weather, stocks, social networks, and so on. The

tile-based user interface gives you direct access to your most recently

used applications, emails, photos, music, videos, contacts, social

media updates, and frequently viewed websites. You can pin your

favorite apps as tiles for easy access.

NOTE: You can add or remove Live Tiles by using Pin or

Unpin options.

Accessing the desktop

To access the desktop interface — like in the previous versions of

Windows — tap or click the Desktop tile on the Start screen.

Accessing the Start screen

∞ Press the Windows button

∞ Swipe from the right edge of the display to access Charms, and

then tap the Start icon .

NOTE: The Start icon in the Charms sidebar and the Windows

button on your computer have the same functionality.

18 │ Using Your Computer

Getting more information on Windows

You can get more information on Windows and the new features

using any of the following resources:

∞ dell.com/windows8

∞ dell.com/support

∞ Help+Tips tile

Gestures

Your computer has a multi-point touch display that allows you to

perform common tasks using gestures.

Finger gestures Allows you to:

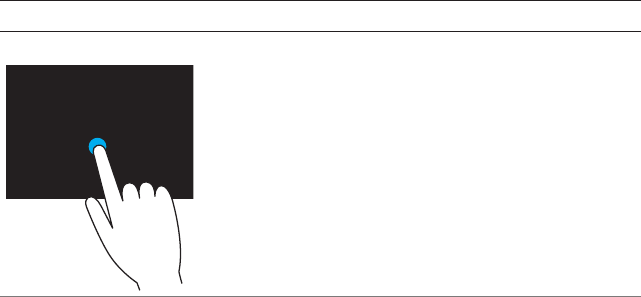

Tap/Dwell

Tap gently on the screen with your

fingertip to select an item, launch apps,

and so on.

Touch and hold the item on the screen to

open the context menu.

Using Your Computer │ 19

Finger gestures Allows you to:

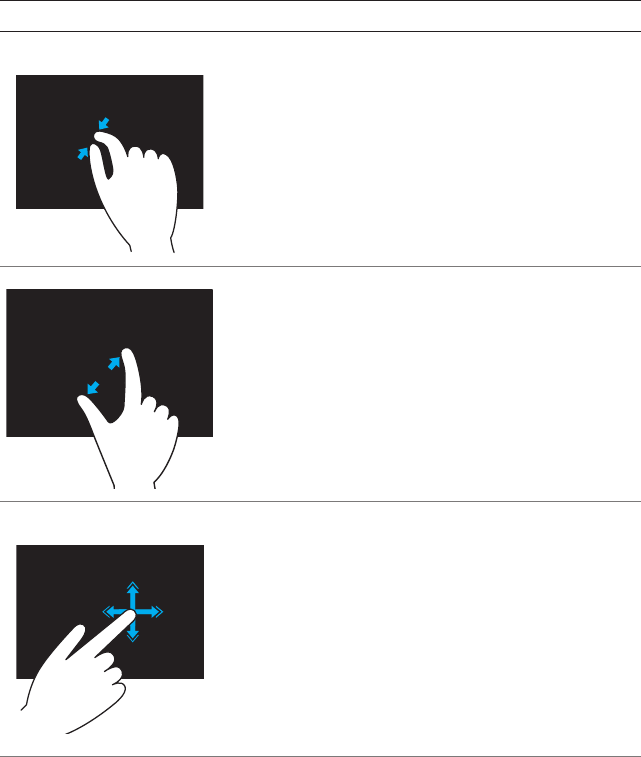

Zoom

Place two fingers on the touchscreen

and then move them apart to zoom-in.

Place two fingers on the touchscreen

and then move them apart to zoom-out.

Flick

Move a finger quickly in the desired

direction to flip through content in the

active window like pages in a book.

Flick also works vertically when

navigating content such as images or

songs in a play-list.

20 │ Using Your Computer

Finger gestures Allows you to:

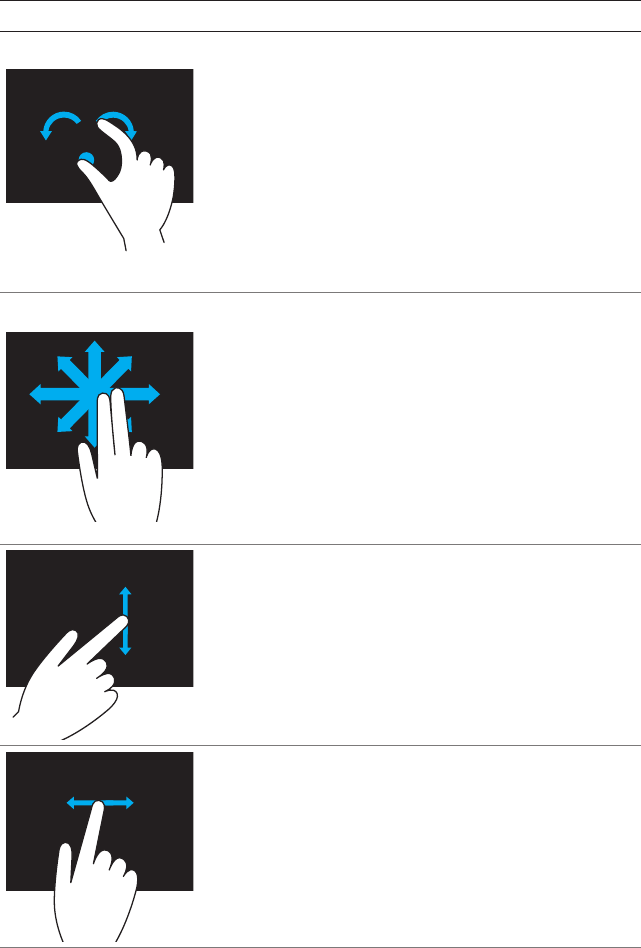

Rotate

Rotate clockwise — Keeping a finger or

thumb in place, move the other finger in

an arched direction to the right

Rotate counter-clockwise — Keeping a

finger or thumb in place, move the other

finger in an arched direction to the left

You can also rotate the active content

by moving both the fingers in a circular

motion.

Scroll

Pan – Move the focus on the selected

object when the entire object is not

visible.

Move two fingers in the desired direction

to pan the selected object.

Scroll Vertical – Scroll up or scroll down

on the active window.

Move a finger up or down to start

verticalscrolling.

Scroll Horizontal – Scroll right or left on

the active window.

Move a finger to the right or left to start

horizontalscrolling.

Using Your Computer │ 21

Using Keyboard and Mouse

If you purchased a wireless keyboard and mouse with your computer,

they will be already paired. To use the keyboard and mouse, make sure

the batteries are installed in both devices and they are poweredon.

22 │ Using Your Computer

Pairing the wireless keyboard and mouse

If the keyboard and mouse do not work automatically or if the pairing

is lost for some reason, manually pair them with your computer. To

pair the keyboard and mouse:

1 Swipe from the right edge of the display to access Charms.

2 Touch Settings → Change PC Settings→ Devices→ Add a

device.

3 Select the keyboard and tap Pair.

4 Once the keyboard has paired, select the mouse and tap Pair.

NOTE: The wireless keyboard and mouse may ship with a USB

dongle. You do not need to install the dongle to use the wireless

keyboard and mouse on this computer.

Using Your Computer │ 23

Using Headphone/Microphone

Your computer has a headset port that supports a headphone, a

microphone, or a headset device to listen to music, record audio, or

make voice calls.

WARNING: Listening to loud music for extended periods of time

can lead to hearing loss.

NOTE: It is recommended to keep the volume level low before

connecting the headphones to your computer.

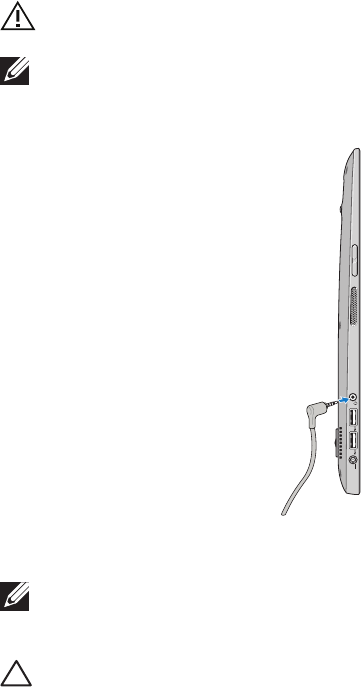

1 Connect headphones to the headset port.

2 Insert the headphones in your ears and adjust the volume level to

a comfortable level.

NOTE: The integrated speakers on your computer are muted

automatically when you connect an audio device to the headset

port.

CAUTION: To prevent damage to the headphones when

disconnecting them from your computer, pull the connector

and not the cable.

24 │ Using Your Computer

Turning Off the Screen

Using the power button:

Press and release the Power and Sleep/Wake button to turn off

the screen.

Using Charms:

Swipe from the right edge of the display to access Charms.

Touch Settings → Power → Sleep to turn off the screen.

NOTE: If your computer is in a sleep state (computer is on, but

screen is off), press the Power and Sleep/Wake button or

Windows button once to turn on the screen.

Turning Off Your Computer

Swipe from the right edge of the display to access Charms.

Touch Settings → Power → Shut down to turn off the

computer.

Using Your Computer │ 25

Hotkeys

You can access various menus on your computer using the following

hotkeys:

Menu Key combination

Boot menu Press and release the volume-up and

the power button.

BIOS/System setup Press and release the volume-down

and the power button.

ePSA menu Press and hold down the volume up

and power buttons for 2 seconds then

release the volume-up and the power

button.

LCD BIST menu Press and hold down the volume down

and power buttons for 2 seconds then

release the volume-down and the

power button.

Menu descriptions:

∞ Boot menu — A special menu that allows you to run ePSA

diagnostics or boot from a device other than the internal hard

drive.

∞ BIOS / System setup menu — Allows you to access the BIOS

setup mode to review more advanced system information and

configure system settings.

∞ ePSA menu — Starts the Enhanced Pre-Boot System Assessment.

It allows you to access detailed system information and perform

diagnostics on the computer hardware.

∞ LCD BIST menu — Launches the Built-in Self Test (BIST) that

allows you to diagnose a display-related problem.

NOTE: For more information on the tools available to keep your

computer running properly, see dell.com/support.

26 │ Synchronizing Your Computer using a Microsoft account

Synchronizing Your Computer

using a Microsoft account

When you sign-in to your computer using a Microsoft account, you

can automatically synchronize your settings, such as installed apps,

theme, wallpaper, internet browser history, application settings,

personal files, and so on, with other Windows 8/8.1 computers that

use the same Microsoft account.

1 Swipe from the right edge of the display to access Charms, then

click Settings → Change PC Settings→ Users→ Switch to a

Microsoft account to switch to your Microsoft account.

2 Click Settings → Change PC Settings→ Sync your settings to

configure synchronization options.

Powered Stand │ 27

Powered Stand

Features

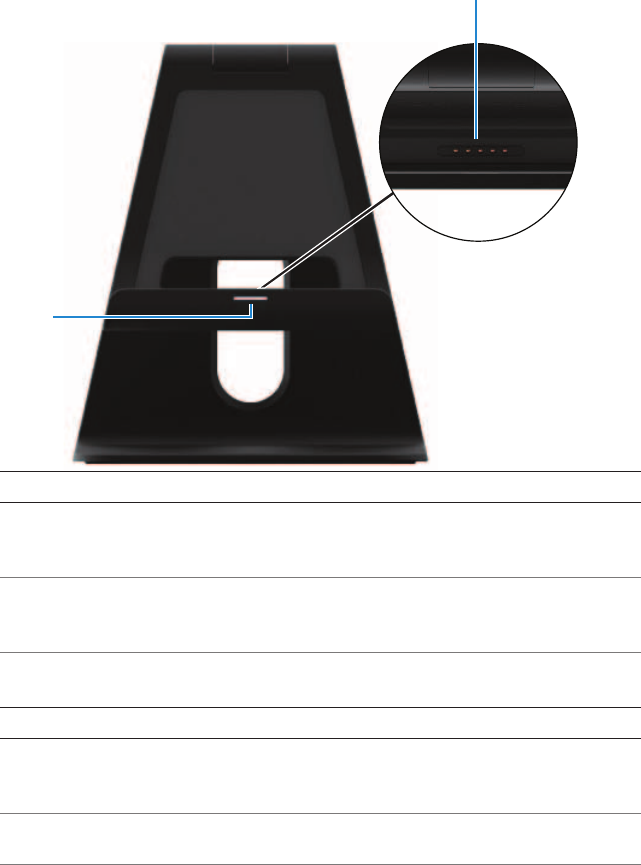

Feature Functionality

1 Docking-status light Turns on when your computer is

successfully docked (if the power adapter is

attached to the powered stand).

2 Docking connector Connects the computer to the docking port

to provide power to your computer and

charge the battery.

Docking-Status Light Behavior

Behavior Description

White Computer is docked in the powered stand

and the power adapter is connected to the

stand.

Off Computer is not docked, or the power

adapter is not connected to the stand.

1

2

28 │ Powered Stand

10°

70°

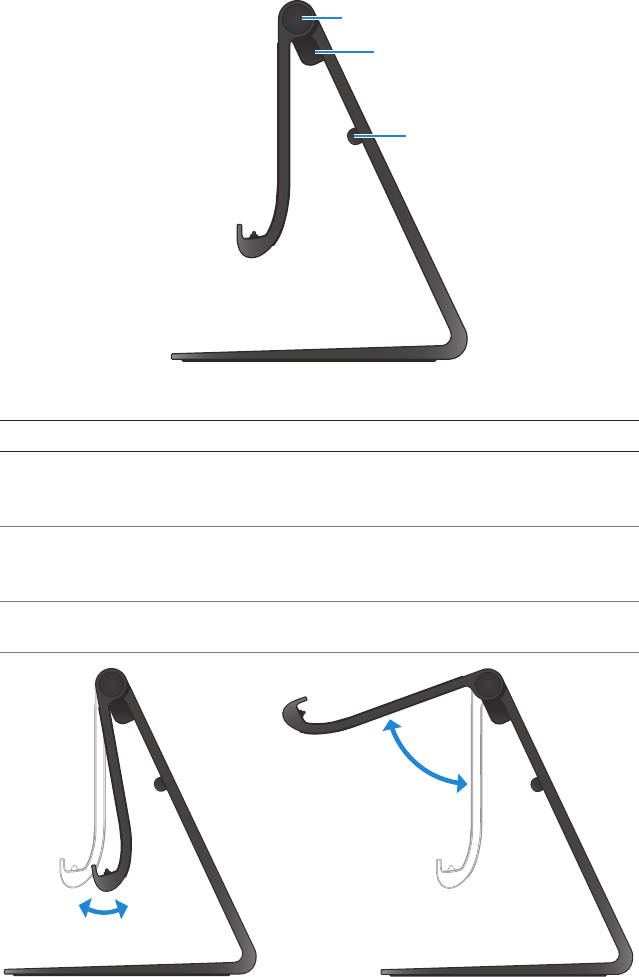

Feature Functionality

1 Hinge Allows you to adjust the angle

of your computer between

10degrees and 70degrees.

2 Power-adapter port Connect the power adapter to

provide power to the computer,

and charge the battery.

3 Cable clip Holds the power-adapter cable

in place.

3

2

1

Powered Stand │ 29

Using the Powered Stand

Connecting the Power Adapter to the Stand

CAUTION: Use only the supplied power adapter and power

cable. Using unauthorized adapters or cables may severely

damage your computer and stand.

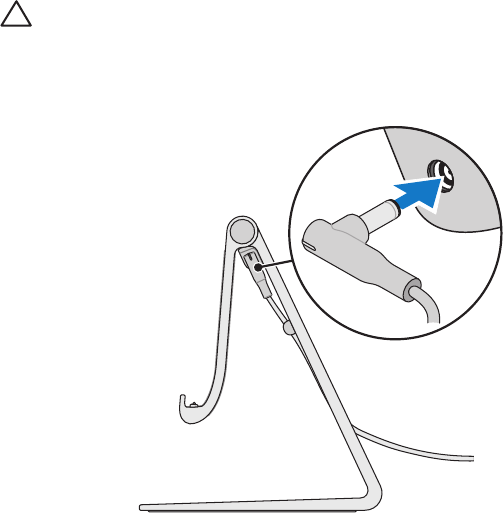

1 Connect the power adapter to the power-adapter port on

thestand.

2 Connect the power adapter to an electrical outlet.

30 │ Powered Stand

Docking Your Computer

1 Connect power adapter to the stand.

2 Connect the power adapter to an electrical outlet.

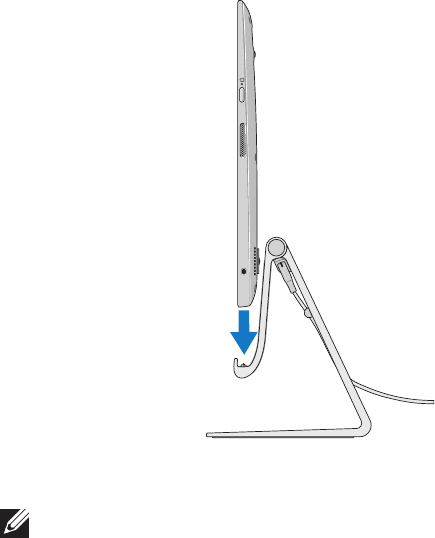

3 Align the docking port on your computer to the docking

connector on the powered stand.

4 Place your computer on the powered stand.

NOTE: The docking status light turns on when your computer is

correctly seated on the powered stand and the powered stand

is connected to a power source. For more information, see

“Docking-Status Light Behavior”.

Powered Stand │ 31

Undocking Your Computer

Lift the computer from the powered stand.

32 │ Cleaning Your Computer

Cleaning Your Computer

CAUTION: Disconnect all cables from your computer before

cleaning it. Clean your computer with a soft cloth slightly

moistened with water or an approved display cleaner. Do not

use liquid or aerosol cleaners that may contain flammable

substances.

1 Turn off your computer. For more information on turning off your

computer, see Turning Off Your Computer.

2 Moisten a soft, lint-free cloth with either water or a display

cleaner, and wipe the surface of the computer until it is clean. Do

not allow liquid from the cloth to seep into the computer ports.

NOTE: Do not spray cleaning solution directly onto the computer.

Only use specifically-designed cleaning products, and follow the

instructions that are included with the product.

Troubleshooting │ 33

Troubleshooting

Windows Troubleshooting and Recovery

Refreshing your computer

Refreshing your computer restores Windows to the original factory

settings without deleting any of your personal files, installed

applications, or personalization settings.

CAUTION: Refreshing your computer removes all third-party

applications.

1 Swipe from the right edge of the display to access Charms.

2 Touch Settings → Change PC settings→ General→ Refresh

your PC without affecting your files.

3 Touch Get started.

4 Read the instructions on the screen and touch Next.

Resetting your computer

Resetting your computer returns Windows to original factory settings

and removes any settings, files, and applications you installed after

you received your computer.

CAUTION: Resetting your computer erases all data from your

computer, including your apps, account configuration, music,

pictures, files, and so on. Ensure that you back up all the

required data before you proceed.

1 Swipe from the right edge of the display to access Charms.

2 Touch Settings → Change PC settings→ General→ Remove

everything and reinstall Windows.

3 Touch Get started.

4 Read the instructions on the screen and touch Next.

34 │ Troubleshooting

Using advanced startup

Use advanced startup if you have problems starting up your computer

or if you want to change the computer’s startup settings, such as

allowing your computer to start up from a USB device or an optical

media.

1 Swipe from the right edge of the display to access Charms.

2 Touch Settings → Change PC settings→ General→ Advanced

startup→ Restart now.

3 Touch the Troubleshoot option to configure various startup

settings.

Troubleshooting │ 35

Battery Problems

Problems Possible causes Possible solution

Battery does not

charge

•Your computer

is not properly

plugged into a

power source.

•You are using an

incorrect power

adapter/cable.

•The power outlet is

not working.

•The power adapter/

cable is loose.

•Use the supplied

power adapter and

power cable.

•Unplug the power

adapter from the wall

and verify that the

outlet is functioning.

•Unplug the cables

from the wall

outlet and the

computer, check all

connections,then plug

the cables back to the

wall outlet and then to

the computer.

•Verify that the light

on the power adapter

is on. If it is not on,

unplug and re-plug

the power adapter

and/or try another

outlet that is known to

work. If the light still

does not turn on, try

replacing the power

adapter

The computer

temperature is lower

than 0 °C or higher

than 35°C.

Charge the battery in an

ambient temperature

between 0°C and 35°C.

The battery or power

adapter is damaged.

Contact Dell or the

manufacturer to

replace the damaged

parts.

36 │ Troubleshooting

System problem

Problems Possible causes Possible solution

Computer does

not turn on

The battery

is completely

discharged.

Connect your computer

to a power source using

the power adapter.

Your computer could

be in an unresponsive

or locked state.

Press and hold the power

button for 11 seconds

to perform a hard shut-

down, then press the

power button to turn the

computer back on.

Your computer may

be in shipping mode.

This is to avoid the

computer from being

accidentally turned

on during shipping

and draining the

battery.

Computers shipped from

the factory are set in

shipping mode. To get

out of this mode, plug

the power adapter to a

wall outlet and then to

computer and press the

power button to turn

on the computer. After

the initial power up, the

computer behaves as

normal.

Computer is

not responding

or behaving

unexpectedly

Your computer could

be in an unresponsive

or locked state.

1 Reboot the computer.

See Turning Off Your

Computer and Turning

On Your Computer.

2 Refresh your

computer. See

Refreshing your

computer.

3 Reset your computer.

See Resetting your

computer.

4 Contact Dell’s support

service. Go to dell.

com/support or

dell.com/ContactDell.

Troubleshooting │ 37

Problems Possible causes Possible solution

Software or

feature is not

working as

expected

The application or

feature could be in an

unresponsive state.

Software updates may

have been downloaded

in the background.

Restart your computer.

Touchscreen problem

Problems Possible causes Possible solution

Touchscreen

responds slowly or

improperly

The display may be

dirty or you may

need to adjust display

settings.

•Clean the display.

See “Cleaning your

computer”.

•Adjust display settings

in Windows Desktop,

Control Panel→

Appearance and

Personalization→

Display.

38 │ Troubleshooting

Network problem

Problems Possible causes Possible solution

No wireless

connection

Your computer is

not able to properly

access a wireless

signal.

1 Check if the wireless

radio is on. See

Enabling/Disabling

Wi-Fi.

2 Move closer to the

wireless access point.

3 Reset the wireless

router if using a private

network.

4 Open the browser

to view the landing

page if using a public

network, and follow the

instructions given by

the public network.

5 Try another wireless

connection.

Slow Internet

connections

The signal strength is

not strong enough.

1 Move your computer to

a different location for

better signal reception.

2 Contact your Internet

Service Provider.

Troubleshooting │ 39

Locating Your Service Tag and Express

Service Code

You need your computer’s Service Tag/Express Service Code when

you contact Dell for technical support or other queries. The Express

Service Code helps the automated telephone support system redirect

your call to the appropriate support department.

The Service Tag and Express Service Code for your computer are

located on a label at the back of your computer.

CAUTION: Lay your computer face-down on a soft, clean

surfacedown before you look for the Service Tag and

ExpressService Code.

40 │ Specifications

Specifications

System Information

Computer model XPS 1820

Physical dimensions

Height 283.70 mm (11.17 in)

Width 463.60 mm (18.25 in)

Depth 17.70 mm (0.70 in)

Weight:

Weight (maximum) 2.41 kg (5.31 lb)

Stand weight 2.05 kg (4.52 lb)

Hardware

Processor •Intel Core i3 ULV (4th generation)

•Intel Core i5 ULV (4th generation)

•Intel Core i7 ULV (4th generation)

Chipset Multi-chip technology with integrated

LynxPoint-LP PCH

Graphics Intel HD 4400

Internal Memory (RAM):

Type DDR3L

Speed 1600 MHz

Configurations supported 4 GB, 8 GB, and 12 GB

Internal Storage •2.5 inch HDD SATA 6 Gbps

•32 GB SSD

Speaker Power 2 Watt

Camera Resolution

Still image 0.92 megapixel

Video 1280 x 720 (HD)

Specifications │ 41

Display

Type 18.4-inch full-HD with multi-point

capacitive touch

Resolution (maximum) 1920 × 1080

Aspect ratio 16:9

Brightness (maximum) 350 nits

Viewing angle 89 degrees

Contrast ratio 1000:1

Color depth 262.144 bits

Ports and connectors

Audio One 3.5 mm headset port

Dock One docking port

USB •Two USB 3.0 ports

•One internal USB 2.0 port for wireless

keyboard and mouse receiver

Media-card reader

Type One 8-in-1 slot

Capacity Up to 2 TB

Cards supported •SD card

•SD High Capacity (SDHC) card

•SD Extended Capacity (SDXC) card

•MultiMediaCard (MMC)

•Memory Stick

•Memory Stick Pro

•Memory Stick XC

42 │ Specifications

Power Adapter

Input voltage 90 VAC-240 VAC

Input current (maximum) 1.60 A

Input frequency 50 Hz-60 Hz

Output power 65 W

Output current 3.34 A (maximum)

Rated output voltage 19.5 VDC

Temperature range:

Operating 0°C to 35°C (32°F to 104°F)

Storage -40°C to 65°C (-40°F to 149°F)

Computer Environment

Airborne contaminant

level

G1 as defined by ISA-S71.04-1985

Operating Storage

Temperature range 0°C to 35°C

(32°F to 104°F)

–40°C to 65°C

(–40°F to 149°F)

Relative humidity

(maximum)

10% to 90%

(non-condensing)

0% to 95%

(non-condensing)

Vibration (maximum)*0.66 GRMS 1.30 GRMS

Shock (maximum) 110 G†160 G‡

* Measured using a random vibration spectrum that simulates user environment.

† Measured using a 2 ms half-sine pulse when the hard drive is in use.

‡ Measured using a 2 ms half-sine pulse when the hard-drive head is in parked

position.
