Dimplex North America 00006 Transceiver for Heating Control User Manual 11853 1 3

Dimplex North America Limited Transceiver for Heating Control 11853 1 3

Contents

Installation guide

- 6 -

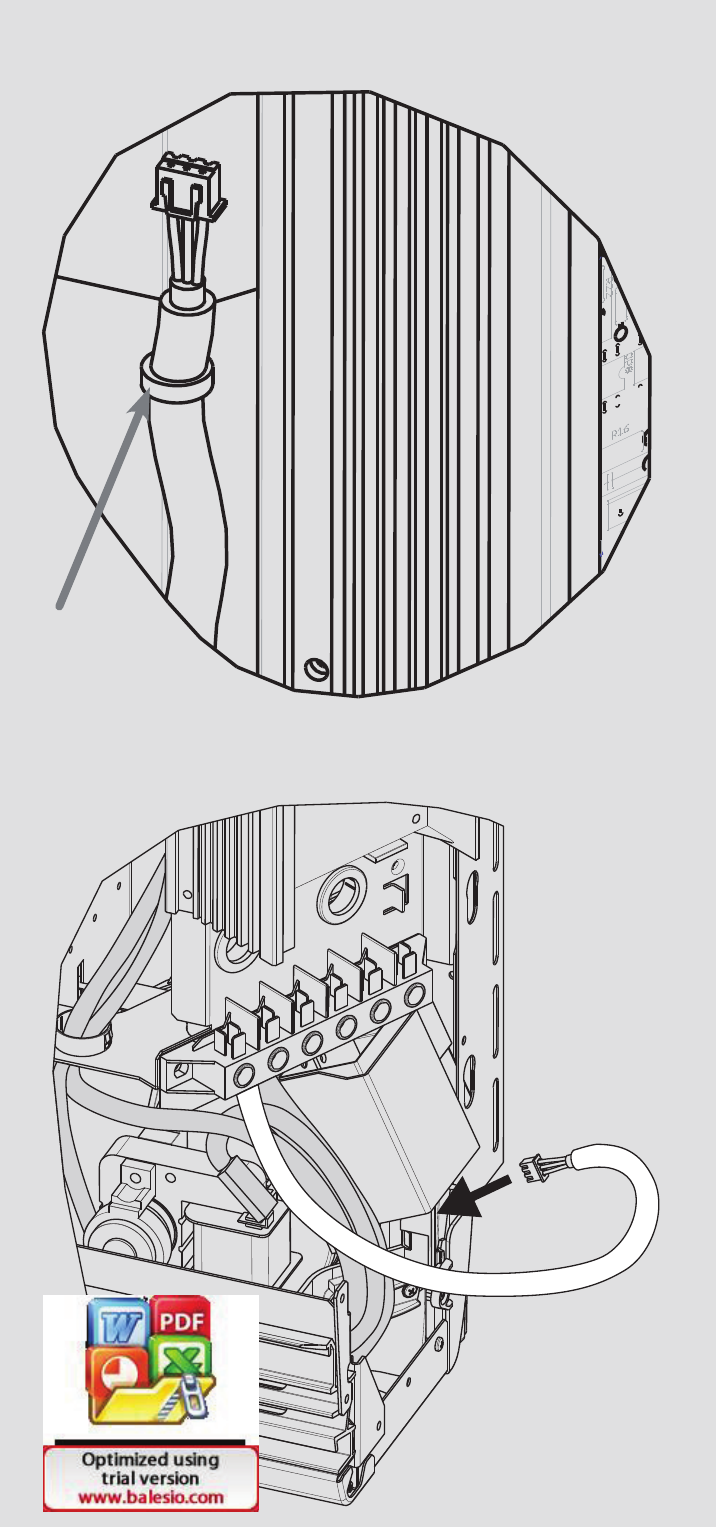

Fig. 1
Fig. 2
Zip-tie to be cut.
Installing the
Transceiver
Transceiver must be
installed before the
heater is secured to a
wall.
1. Using a pair of ‘cutter’
pliers cut the zip-tie to release
the transceiver cable.
2. Re-route the transceiver
cable as shown by the arrow
down towards the rectangular
hole in the base of the
heater. Making sure that the
transceiver cable is on the
outside of all other cables.
- 7 -
3. Pull the transceiver cable
through the rectangular hole in
the base of the heater.
4. Plug the transceiver
cable into the socket of the
transceiver housing.
Fig. 3
Fig. 4
- 8 -
5. Hook the transceiver
housing through the oval
shaped slots in the base of the
heater.
6. Check that the location
hooks of the transceiver
housing are located as shown
in the picture.
Fig. 5
Fig. 6
Location
Hooks
- 9 -

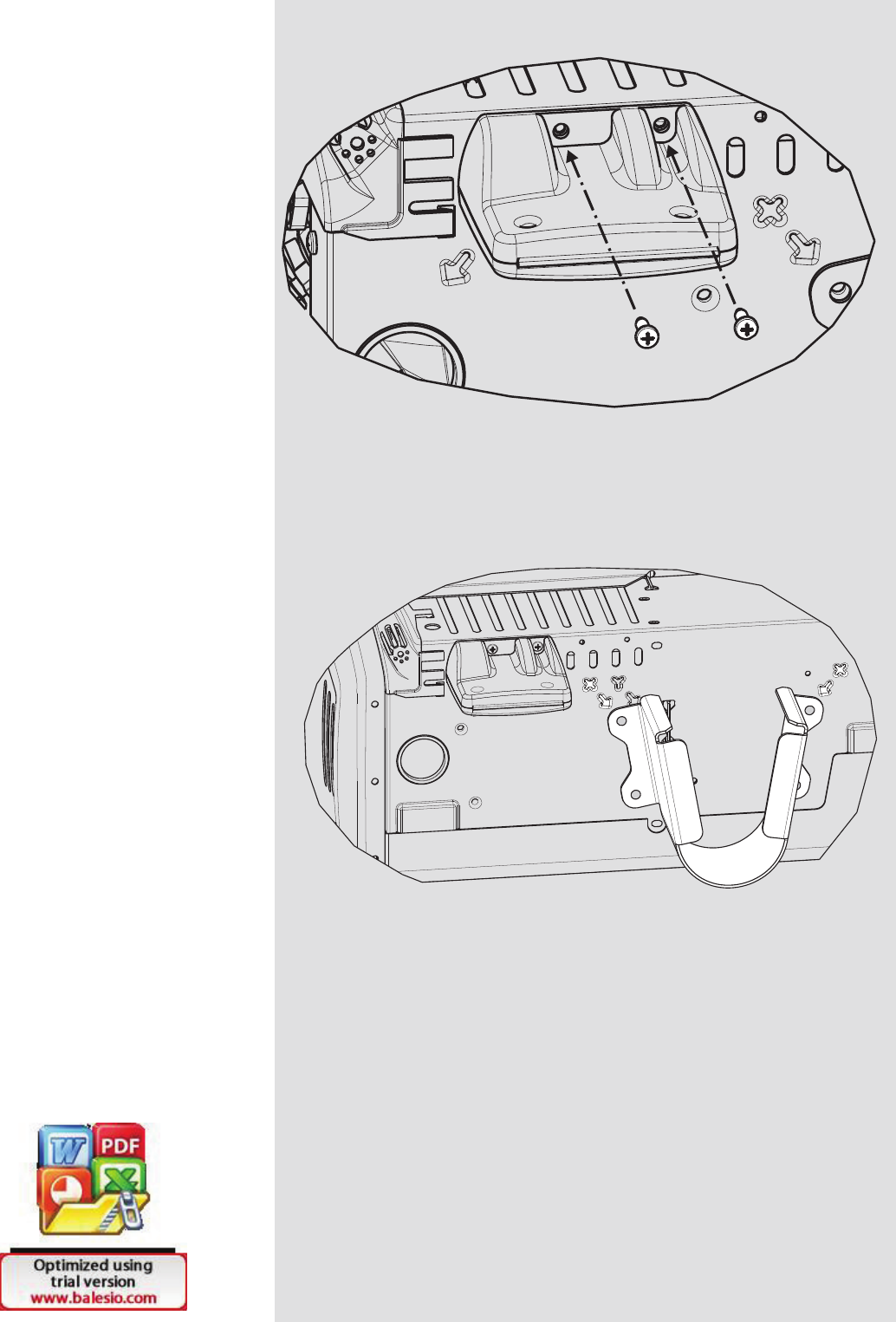

Fig. 7
7. Using the supplied screws
securely screw the transceiver
housing into place.
8. On Quantum Size 100
Heater the leg must be
attached using the ‘X’ screw
holes to allow the transceiver
housing to be accessible for
maintenance.
Fig. 8
 12!3-$%%
!4#55
&%
67!!
(
8912
 
8/912
2 

4:#%
;&%#
#4;#
:##2(
89; 

8/9;;
:< =
;

>0&?(%@
#22
2;
<1&%(
@@
&%@!

