C2108 Rp2 007 5837 001

User Manual: 007-5837-001

Open the PDF directly: View PDF PDF.
Page Count: 74

SGI® Rackable™ RP2 Standard-Depth Servers
User Guide
C2108-RP2, ISS3112-RP2, and ISS3124-RP2
007-5837-001
COPYRIGHT
© 2012 Silicon Graphics International Corp. All rights reserved; provided portions may be copyright in third parties, as indicated elsewhere herein. No
permission is granted to copy, distribute, or create derivative works from the contents of this electronic documentation in any manner, in whole or in part,
without the prior written permission of SGI.
LIMITED RIGHTS LEGEND
The software described in this document is “commercial computer software” provided with restricted rights (except as to included open/free source) as specified
in the FAR 52.227-19 and/or the DFAR 227.7202, or successive sections. Use beyond license provisions is a violation of worldwide intellectual property laws,
treaties and conventions. This document is provided with limited rights as defined in 52.227-14.
The electronic (software) version of this document was developed at private expense; if acquired under an agreement with the USA government or any
contractor thereto, it is acquired as “commercial computer software” subject to the provisions of its applicable license agreement, as specified in (a) 48 CFR
12.212 of the FAR; or, if acquired for Department of Defense units, (b) 48 CFR 227-7202 of the DoD FAR Supplement; or sections succeeding thereto.
Contractor/manufacturer is SGI, 46600 Landing Parkway, Fremont, CA 94538.
TRADEMARKS AND ATTRIBUTIONS
Silicon Graphics, SGI, and the SGI logo, and Rackable are trademarks or registered trademarks of Silicon Graphics International Corp. in the United States
and/or other countries worldwide.
InfiniBand is a registered trademark of the InfiniBand Trade Association. Intel and Xeon are trademarks or registered trademarks of Intel Corporation or its
subsidiaries in the United States and other countries. Linux is a registered trademark of Linus Torvalds, used with permission by SGI. MegaRAID and LSI
Logic are trademarks or registered trademarks of LSI Logic Corporation. PCIe and PCI-X are registered trademarks of PCI SIG.
All other trademarks mentioned herein are the property of their respective owners.
Adaptec, HostRAID, and the Adaptec logo are registered trademarks of Adaptec Inc.
007-5837-001 iii
Record of Revision
Version Description
001 June 2012
Original printing.
007-5837-001 v
Contents
Record of Revision . . . . . . . . . . . . . . . . . . . . . . . iii
About This Guide . . . . . . . . . . . . . . . . . . . . . . . xi
1 System Overview . . . . . . . . . . . . . . . . . . . . . . . 1
System Features and Configuration Options . . . . . . . . . . . . . . . . 2
Server Components . . . . . . . . . . . . . . . . . . . . . . . 4
Hard Disk Drive Bays . . . . . . . . . . . . . . . . . . . . . . 5
Front Control Panel . . . . . . . . . . . . . . . . . . . . . . . 6
Back Panel Components. . . . . . . . . . . . . . . . . . . . . . 8
Peripheral Devices . . . . . . . . . . . . . . . . . . . . . . . 9
Hard Drive Support. . . . . . . . . . . . . . . . . . . . . . 10
Slimline Optical Drive Support . . . . . . . . . . . . . . . . . . 10
Solid State Disk (SSD) Support . . . . . . . . . . . . . . . . . . 11
2 System Safety . . . . . . . . . . . . . . . . . . . . . . . . 13
Electrical Safety Precautions . . . . . . . . . . . . . . . . . . . . 13
General Safety Precautions . . . . . . . . . . . . . . . . . . . . . 15
ESD Precautions. . . . . . . . . . . . . . . . . . . . . . . . 16
3 System Operation and Monitoring . . . . . . . . . . . . . . . . . . 17
Front Panel Controls and LEDs . . . . . . . . . . . . . . . . . . . . 18
Hard Disk Drive (HDD) LEDs . . . . . . . . . . . . . . . . . . . . 20
Power Supply LED . . . . . . . . . . . . . . . . . . . . . . . 22
4 Chassis Maintenance . . . . . . . . . . . . . . . . . . . . . . 23
Removing the System Top Cover . . . . . . . . . . . . . . . . . . . 25
Replacing the System Cover . . . . . . . . . . . . . . . . . . . . 27
Removing and Installing the Air Duct . . . . . . . . . . . . . . . . . . 28
Removing the Air Duct . . . . . . . . . . . . . . . . . . . . . 28
vi 007-5837-001
Contents
Installing the Air Duct . . . . . . . . . . . . . . . . . . . . . 29
Replacing the Power Supply . . . . . . . . . . . . . . . . . . . . . 30
Installing and Removing Hot-Swap Hard Drives . . . . . . . . . . . . . . . 33
Installing 3.5” Hard Disk Drive into 3.5” Hard Drive Carrier . . . . . . . . . . . 33
Installing 2.5” Hard Disk Drive in 3.5” HDD Carrier . . . . . . . . . . . . . 35
Installing Hard Disk Drive into 2.5” Hard Drive Carrier . . . . . . . . . . . . 38
Installing and Removing a Slimline Optical Drive . . . . . . . . . . . . . . . 40
Installing a Slimline Optical Drive . . . . . . . . . . . . . . . . . . 41
Removing a Slimline Optical Drive . . . . . . . . . . . . . . . . . . 42
Installing and Removing a Solid State Drive (SSD) . . . . . . . . . . . . . . . 43
Installing an SSD . . . . . . . . . . . . . . . . . . . . . . 43
Removing an SSD . . . . . . . . . . . . . . . . . . . . . . 44
Replacing a System Fan . . . . . . . . . . . . . . . . . . . . . . 45
Replacing the Backup Battery . . . . . . . . . . . . . . . . . . . . 46
Mounting the Chassis to a Rack . . . . . . . . . . . . . . . . . . . . 47
Removing the Chassis from a Rack . . . . . . . . . . . . . . . . . . . 50
A Power and Environmental Specifications . . . . . . . . . . . . . . . . . 51
Power Supply Input Voltages . . . . . . . . . . . . . . . . . . . . 51
Power Supply Output Voltages . . . . . . . . . . . . . . . . . . . . 51
Environmental Specifications . . . . . . . . . . . . . . . . . . . . 52
B Regulatory Compliance Information . . . . . . . . . . . . . . . . . . 53
C Rail Kit Installation. . . . . . . . . . . . . . . . . . . . . . . 55
D BMC Error Codes . . . . . . . . . . . . . . . . . . . . . . . 59
007-5837-001 vii
Figures

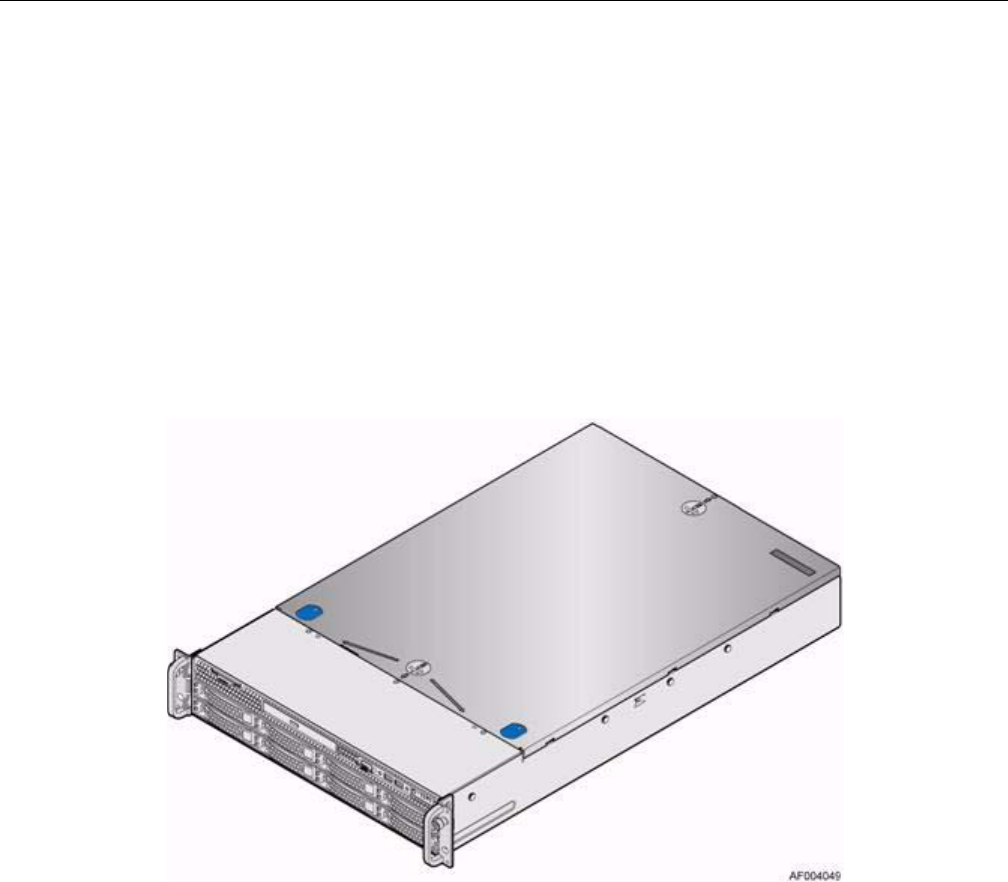

Figure 1-1 SGI Rackable C2108-RP2 Server . . . . . . . . . . . 1

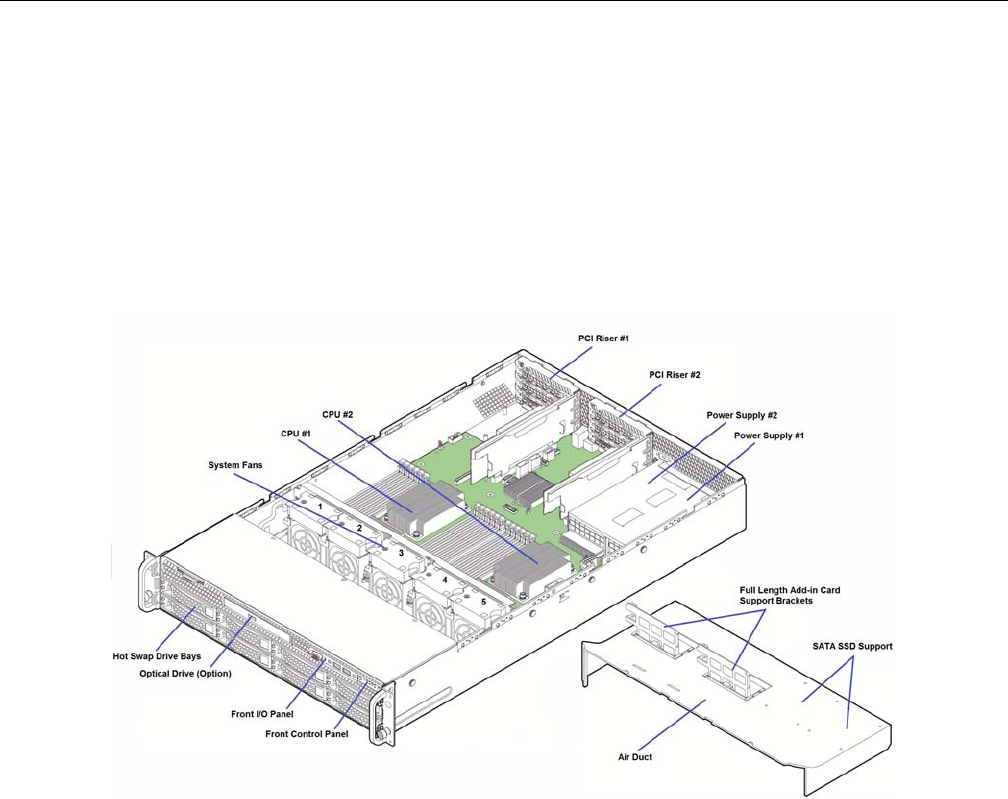

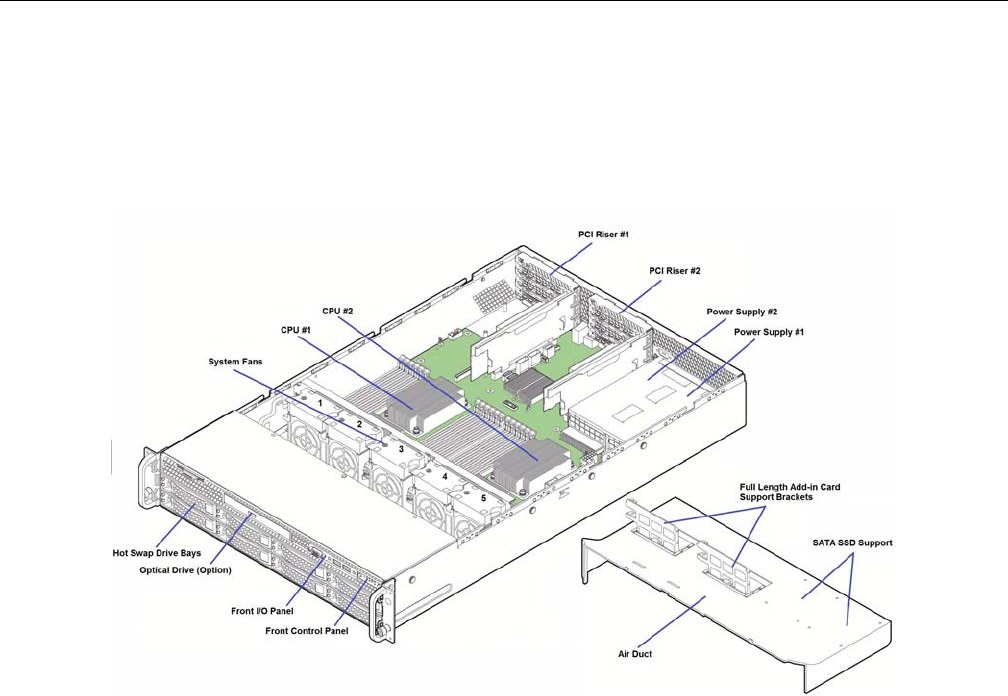

Figure 1-2 Overhead View of Server with the Top Cover Removed . . . . . 4

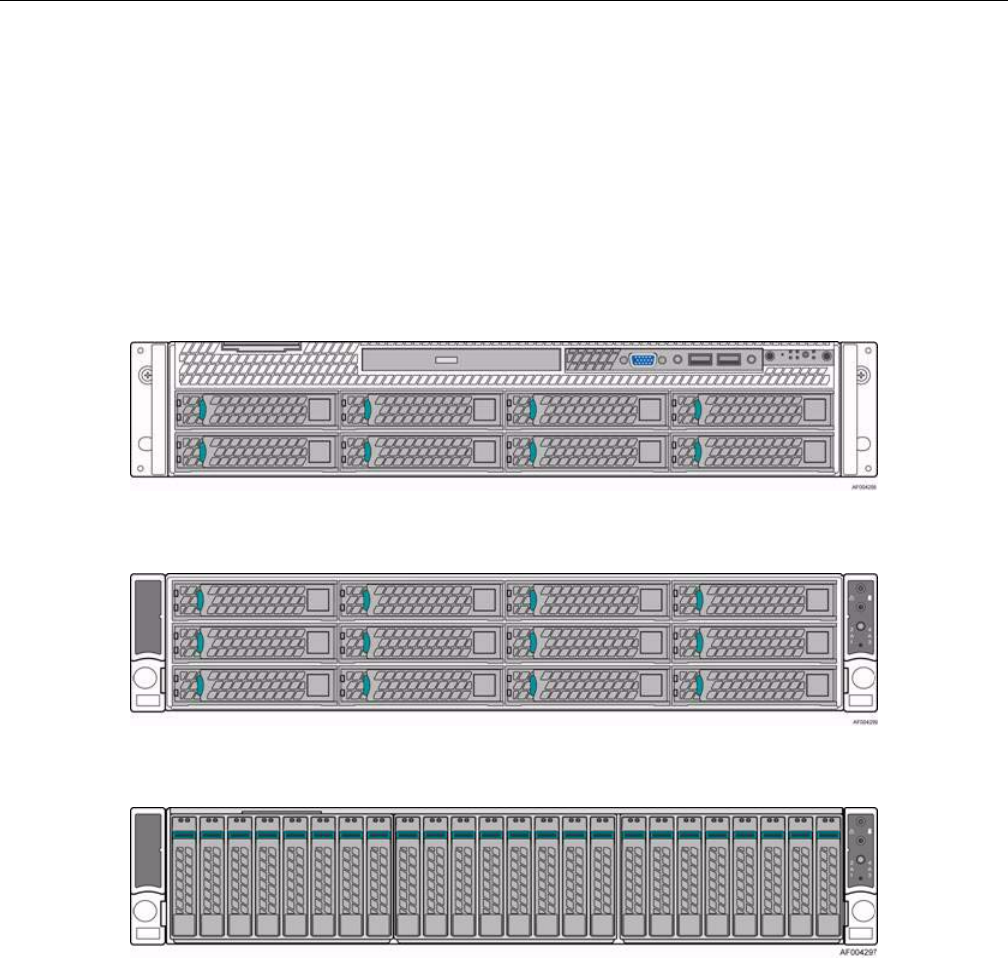

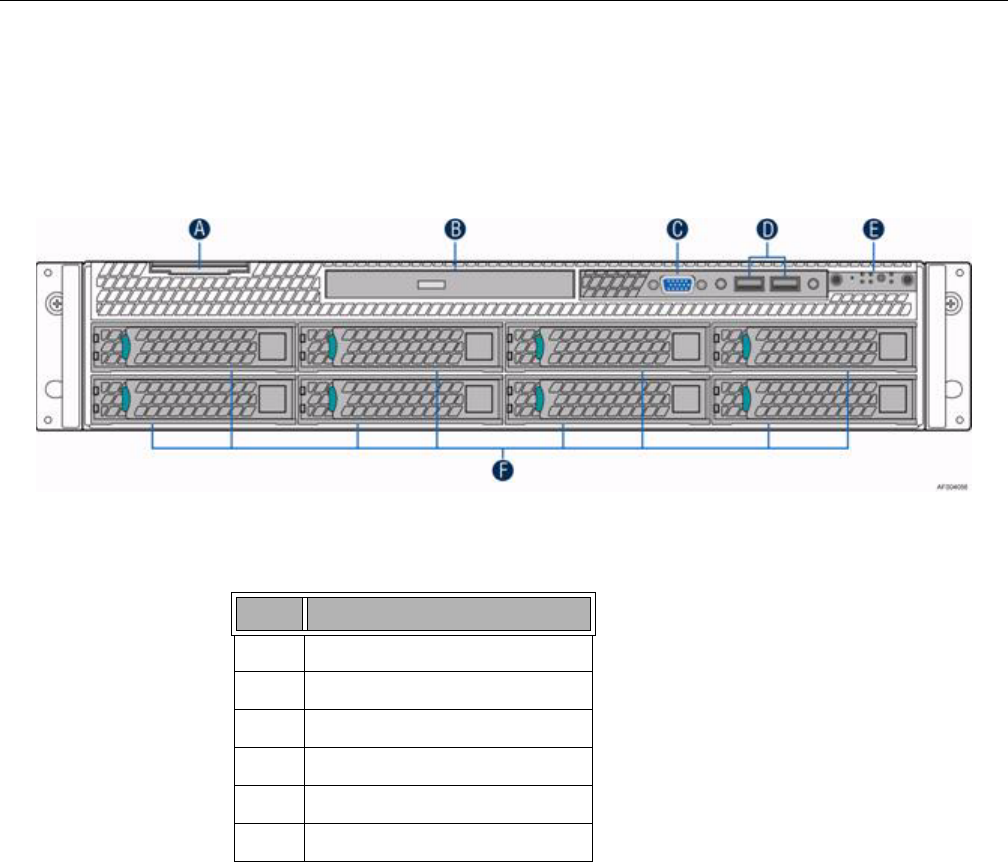

Figure 1-3 8-HDD Configuration . . . . . . . . . . . . . . 5
Figure 1-4 12-HDD Configuration . . . . . . . . . . . . . . 5
Figure 1-5 24-HDD Configuration . . . . . . . . . . . . . . 5
Figure 1-6 Front Control Panel—Horizontal Layout . . . . . . . . . 6
Figure 1-7 Front Control Panel—Vertical Layout . . . . . . . . . . 6
Figure 1-8 Typical Back Panel of Server. . . . . . . . . . . . . 8
Figure 1-9 Peripheral Devices . . . . . . . . . . . . . . . 9
Figure 1-10 Overhead View of Server with the Top Cover Removed . . . . . 11

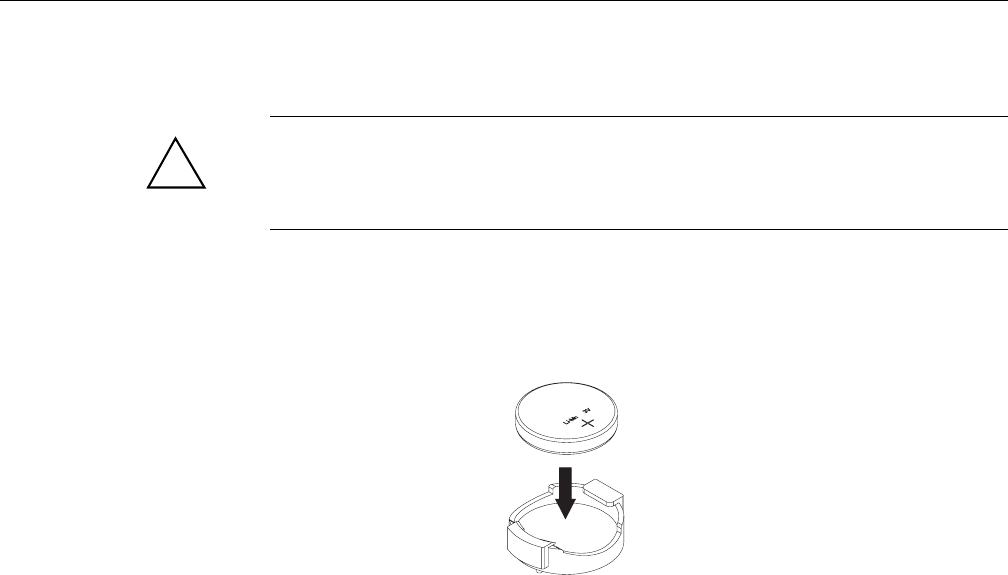

Figure 2-1 Installing the Onboard Battery . . . . . . . . . . . . 14
Figure 3-1 Front Control Panel . . . . . . . . . . . . . . . 17
Figure 3-2 Control Panel—Horizontal . . . . . . . . . . . . . 18
Figure 3-3 Control Panel—Vertical . . . . . . . . . . . . . . 18
Figure 3-4 HDD Carrier LEDs . . . . . . . . . . . . . . . 20

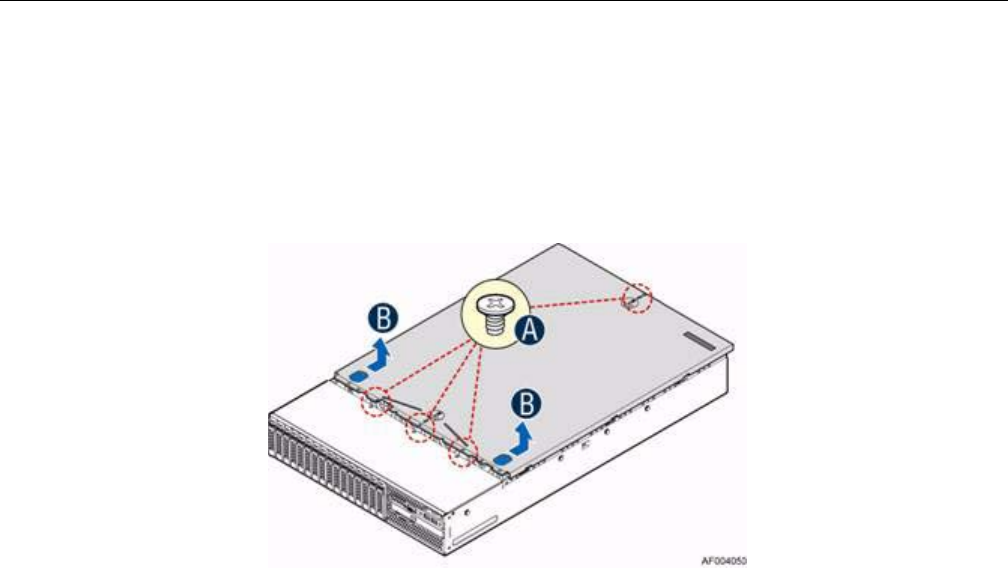

Figure 4-1 Removing the System Top Cover . . . . . . . . . . . 26

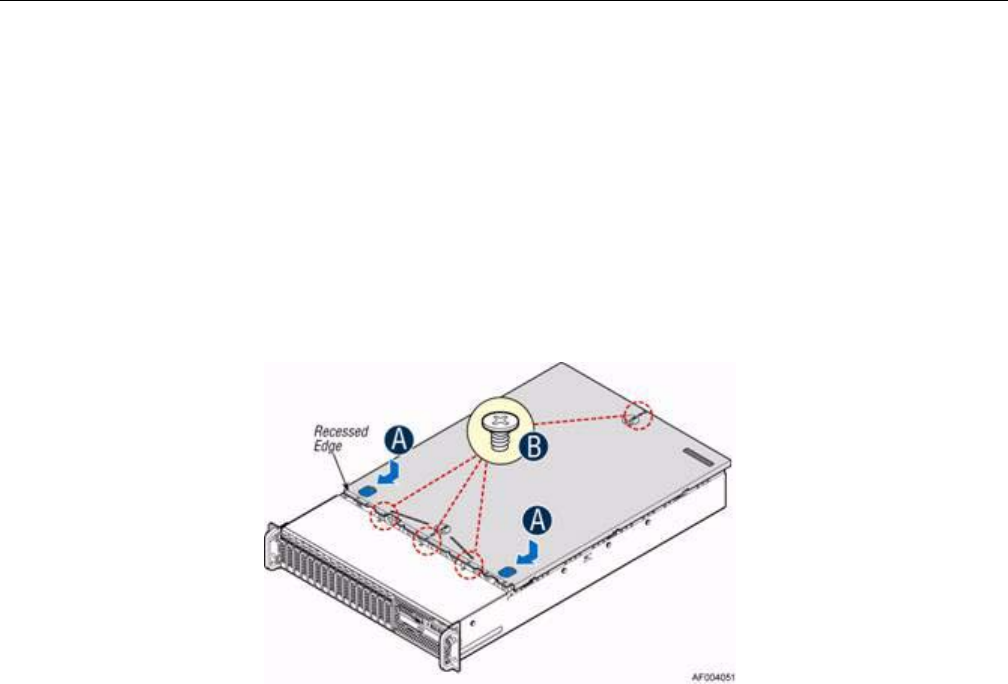

Figure 4-2 Installing the System Cover . . . . . . . . . . . . . 27

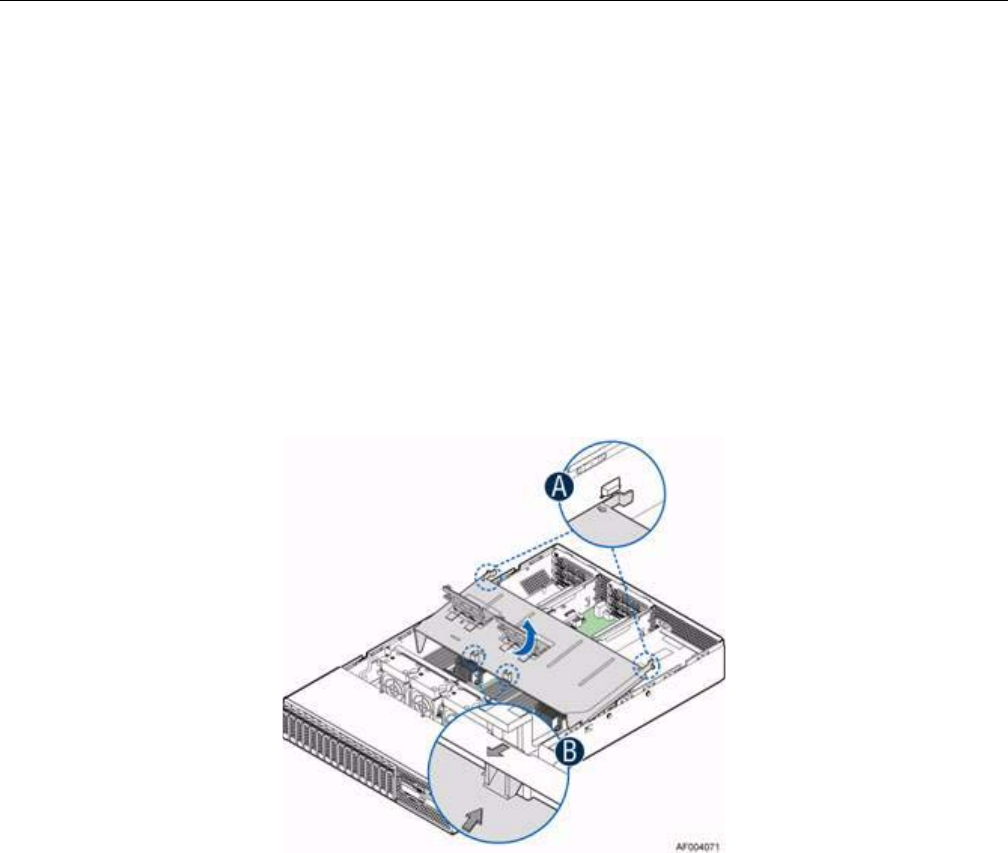

Figure 4-3 Removing the Air Duct . . . . . . . . . . . . . . 28
Figure 4-4 Installing the Air Duct . . . . . . . . . . . . . . 29

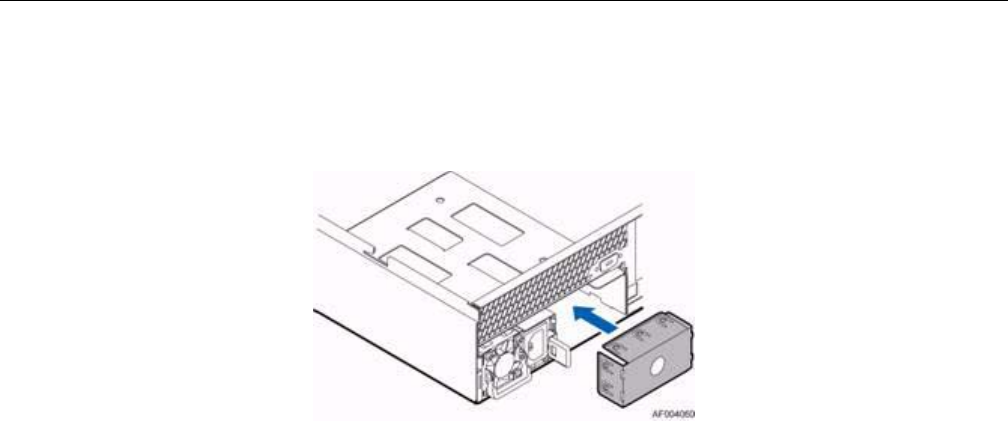

Figure 4-5 Removing the Filler Panel . . . . . . . . . . . . . 30

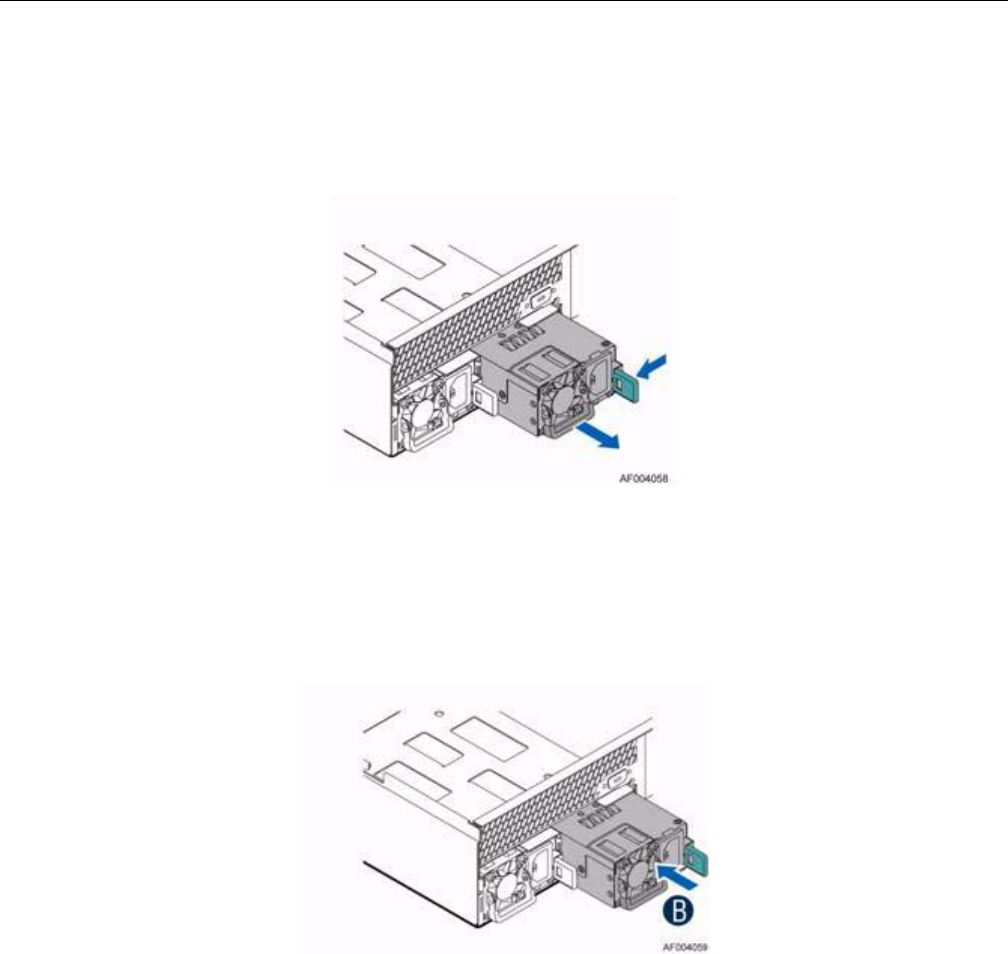

Figure 4-6 Removing the Power Supply Module . . . . . . . . . . 31
Figure 4-7 Installing the Power Supply Module . . . . . . . . . . . 31
Figure 4-8 Installing the Filler Panel. . . . . . . . . . . . . . 32

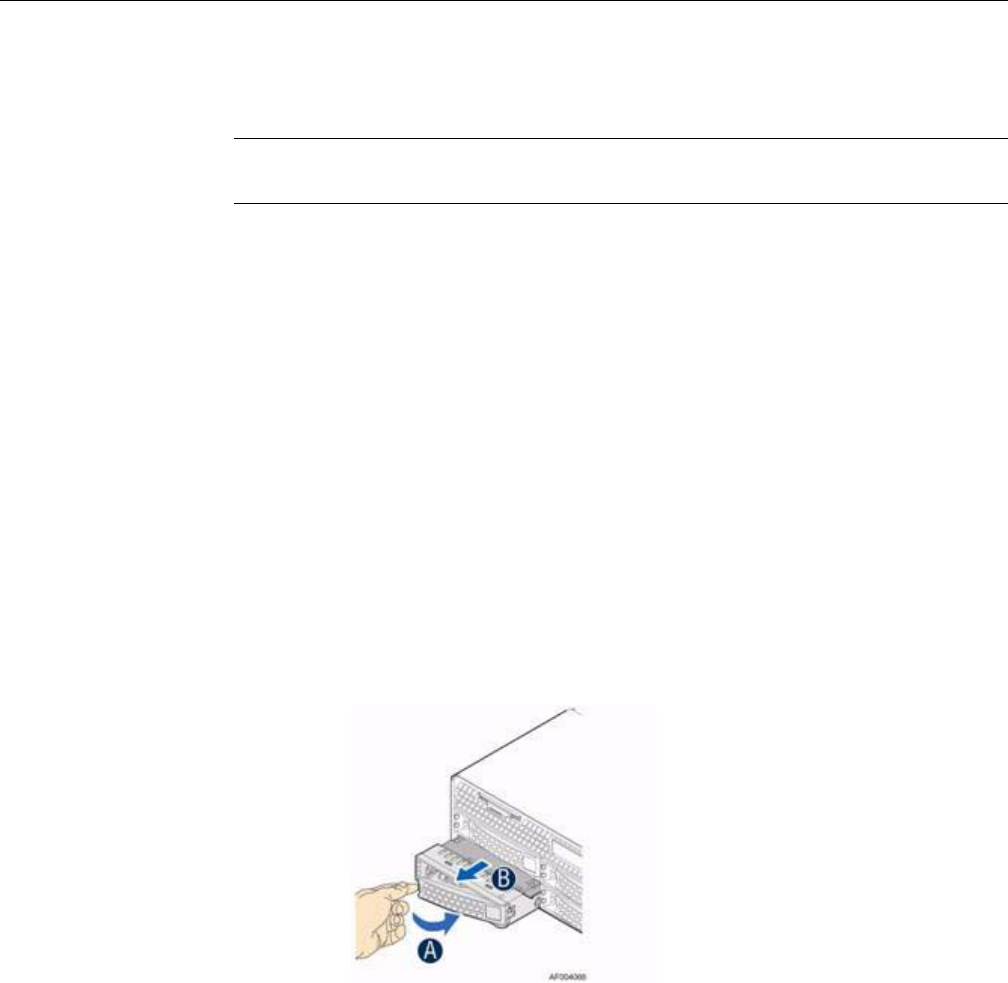

Figure 4-9 Removing 3.5” HDD Carrier. . . . . . . . . . . . . 33
Figure 4-10 Removing 3.5” HDD or Interface Bracket . . . . . . . . . 34
Figure 4-11 Inserting 3.5” HDD . . . . . . . . . . . . . . . 34
Figure 4-12 Inserting 3.5” HDD Carrier . . . . . . . . . . . . . 35
Figure 4-13 Breaking Tab on HDD Interface Bracket . . . . . . . . . 36

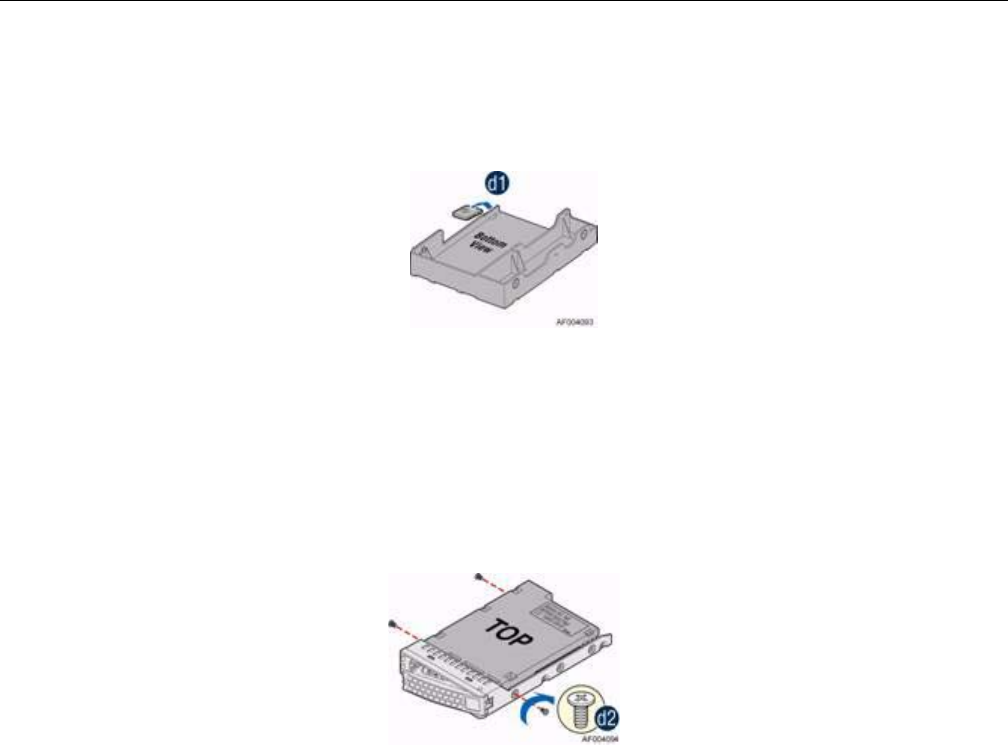

viii 007-5837-001
Figures
Figure 4-14 Inserting HDD Interface Bracket . . . . . . . . . . . . 36
Figure 4-15 Sliding 2.5” HDD into Interface Bracket . . . . . . . . . . 37
Figure 4-16 Securing 2.5” HDD in Interface Bracket . . . . . . . . . . 37

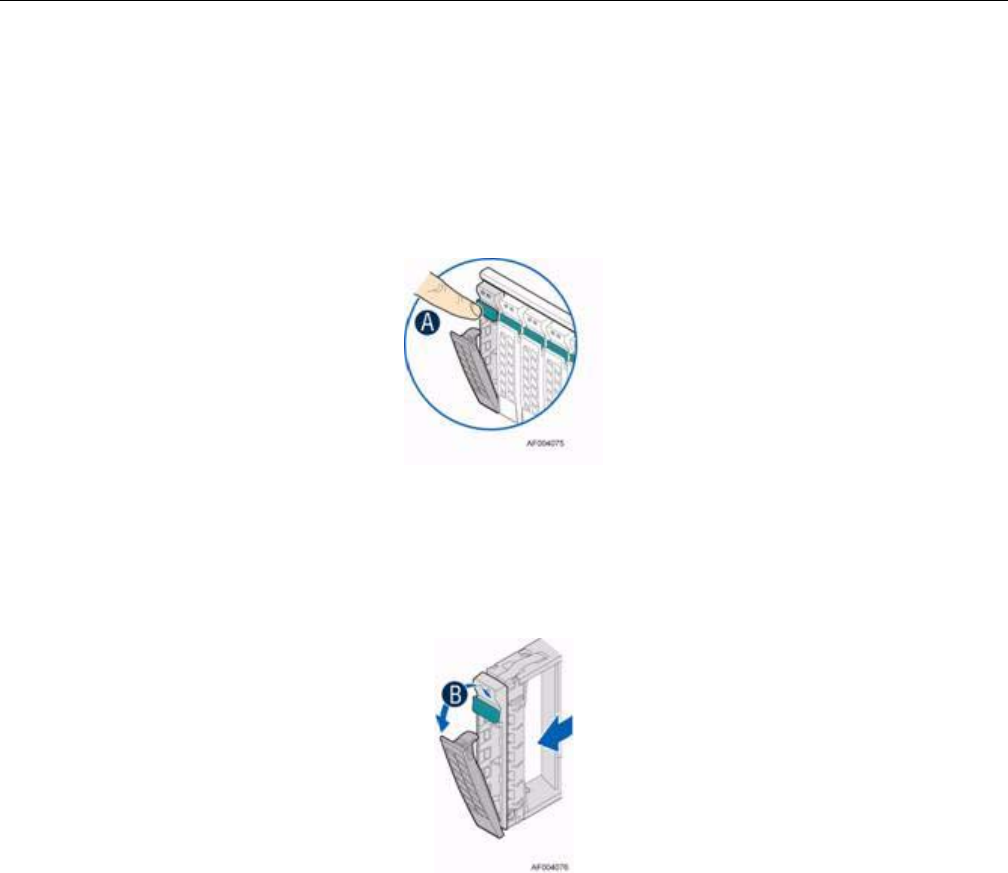

Figure 4-17 Unlatching 2.5” HDD Carrier. . . . . . . . . . . . . 38
Figure 4-18 Removing 2.5” HDD Carrier . . . . . . . . . . . . . 38
Figure 4-19 Removing 2.5” HDD from Carrier . . . . . . . . . . . 39
Figure 4-20 Inserting 2.5” HDD . . . . . . . . . . . . . . . 39
Figure 4-21 Inserting 2.5” HDD Carrier . . . . . . . . . . . . . 40
Figure 4-22 Installing the Plastic Guide to the Optical Drive . . . . . . . . 41
Figure 4-23 Installing an Optical Drive . . . . . . . . . . . . . 41

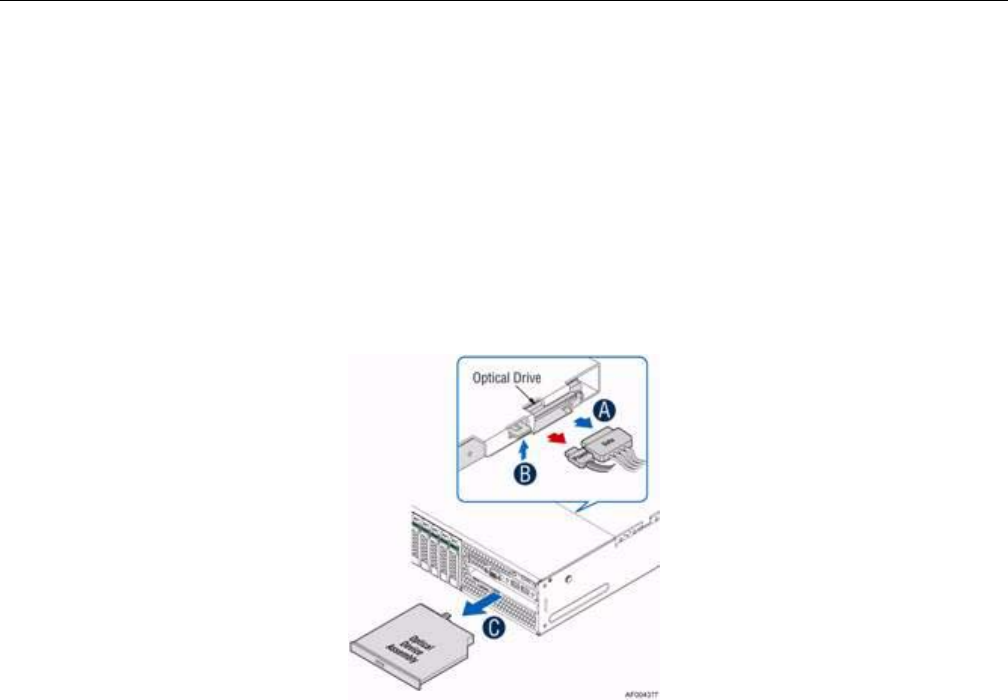

Figure 4-24 Removing the Optical Drive . . . . . . . . . . . . . 42

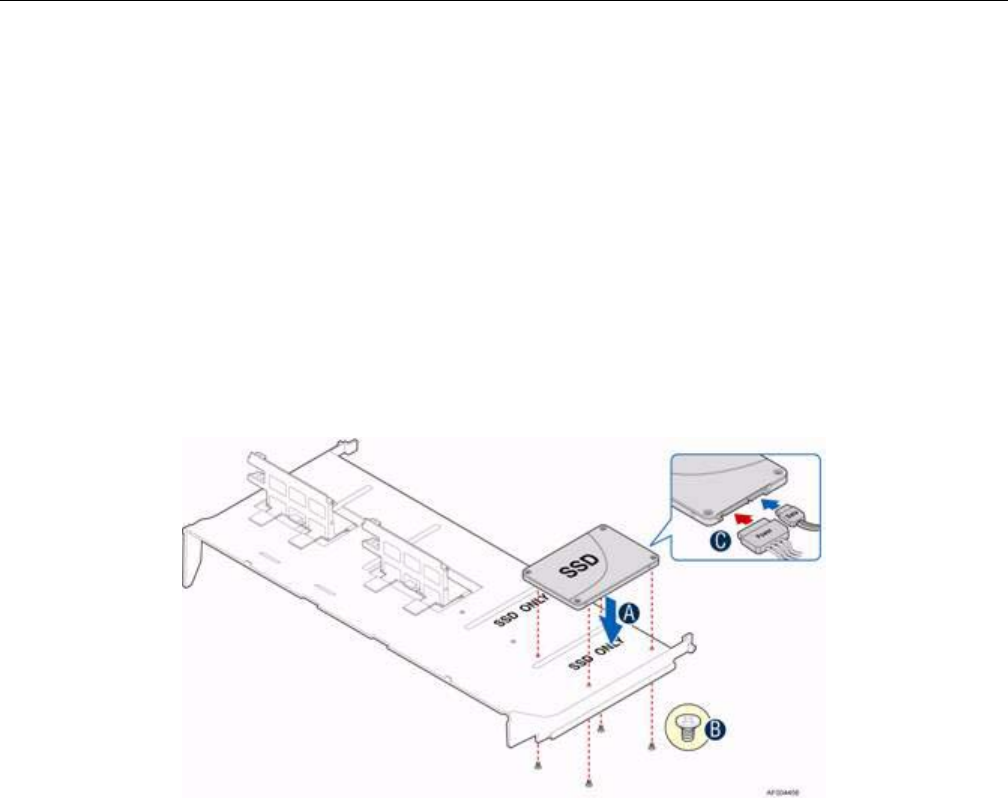

Figure 4-25 Installing an SSD . . . . . . . . . . . . . . . . 43
Figure 4-26 Removing an SSD. . . . . . . . . . . . . . . . 44
Figure 4-27 Replacing a Fan . . . . . . . . . . . . . . . . 45

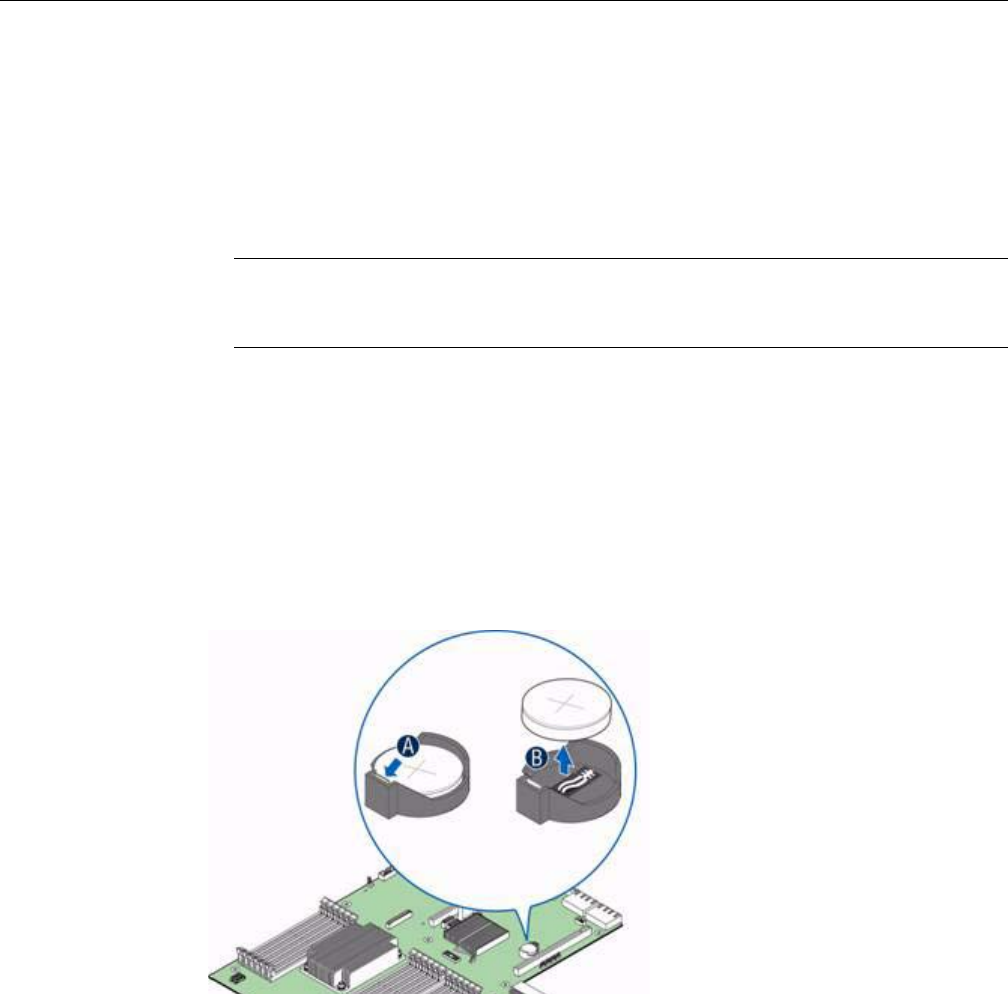

Figure 4-28 Replacing the Backup Battery . . . . . . . . . . . . 46

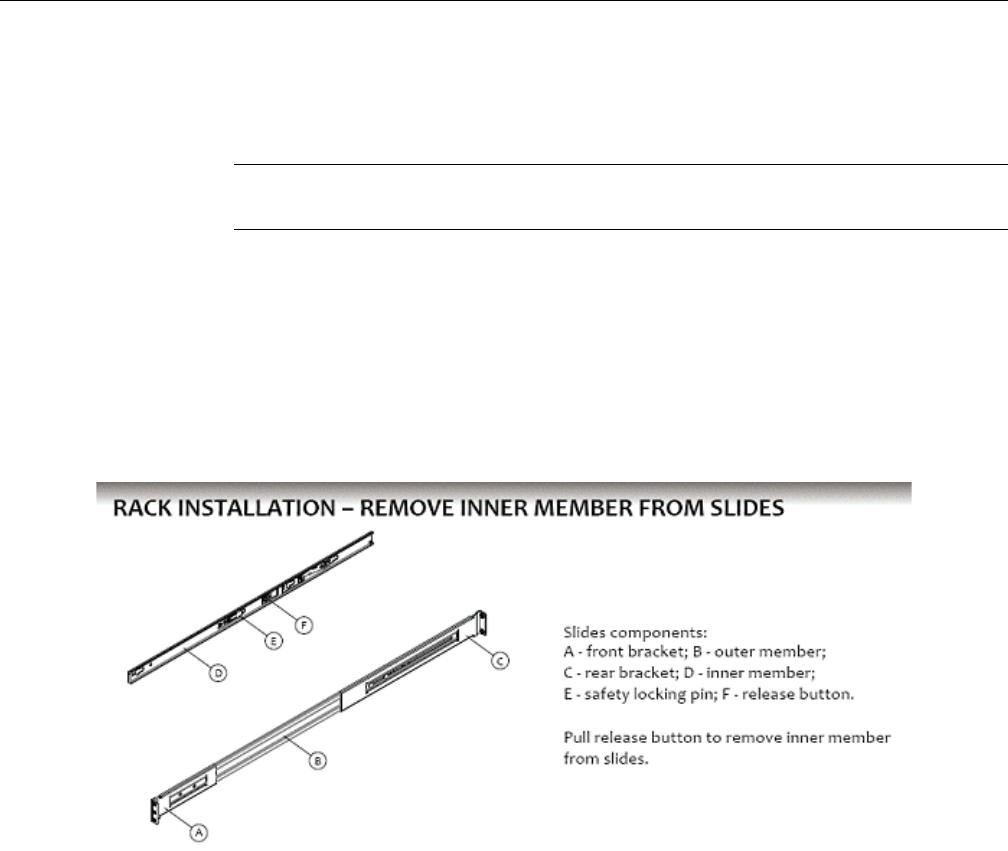

Figure 4-29 Removing Inner Member from Slides . . . . . . . . . . 47
Figure 4-30 Attaching Slides to the Rack . . . . . . . . . . . . . 48
Figure 4-31 Installing the Inner Members to the Chassis . . . . . . . . . 49
Figure 4-32 Installing the Chassis in the Rack. . . . . . . . . . . . 49

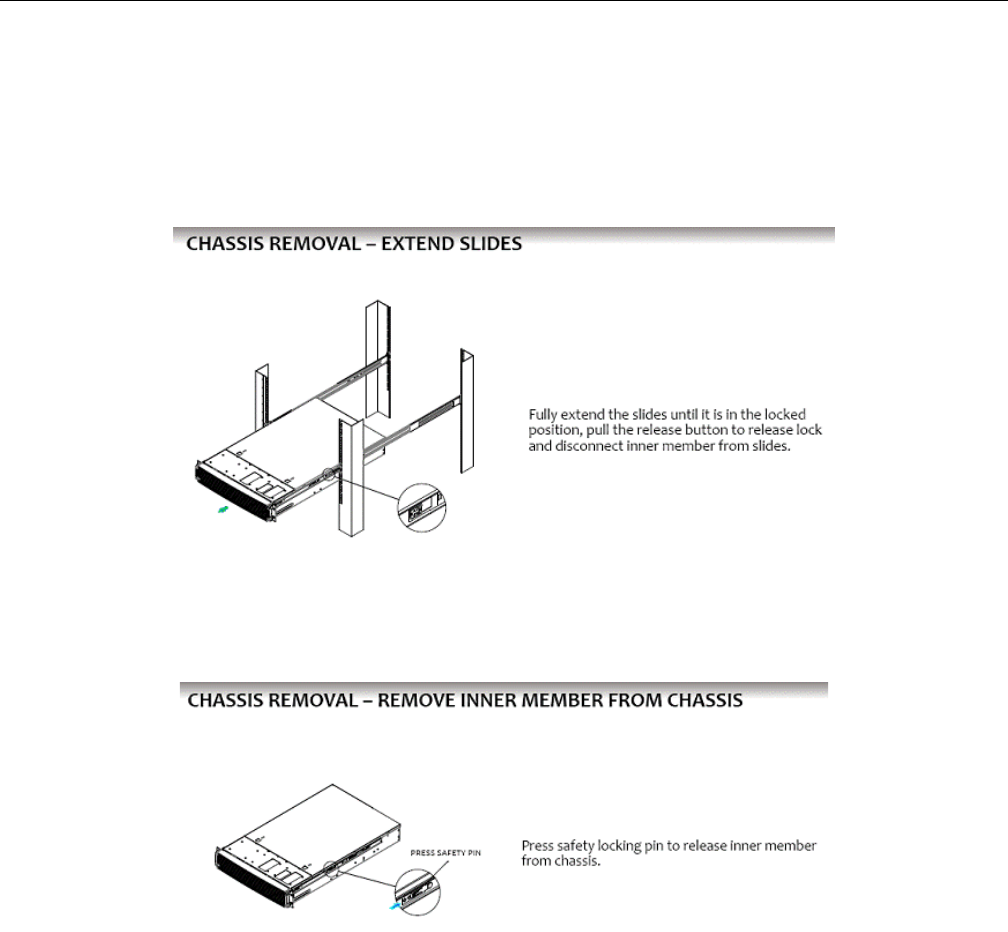

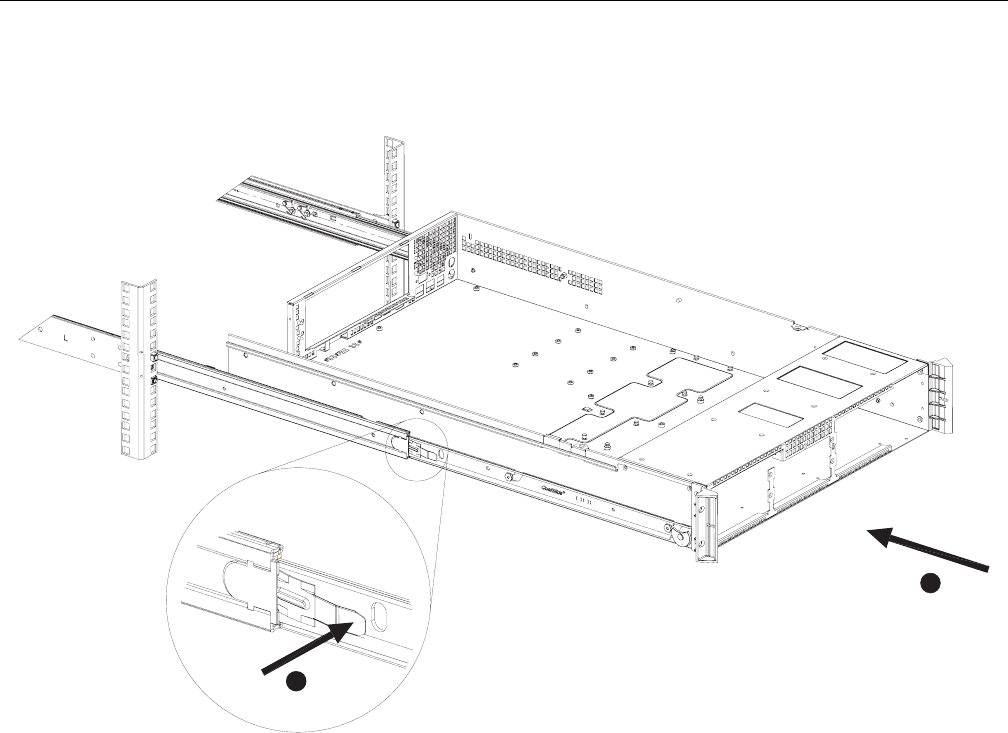

Figure 4-33 Extending Slides to Remove the Chassis . . . . . . . . . . 50
Figure 4-34 Removing the Inner Member from the Chassis . . . . . . . . 50

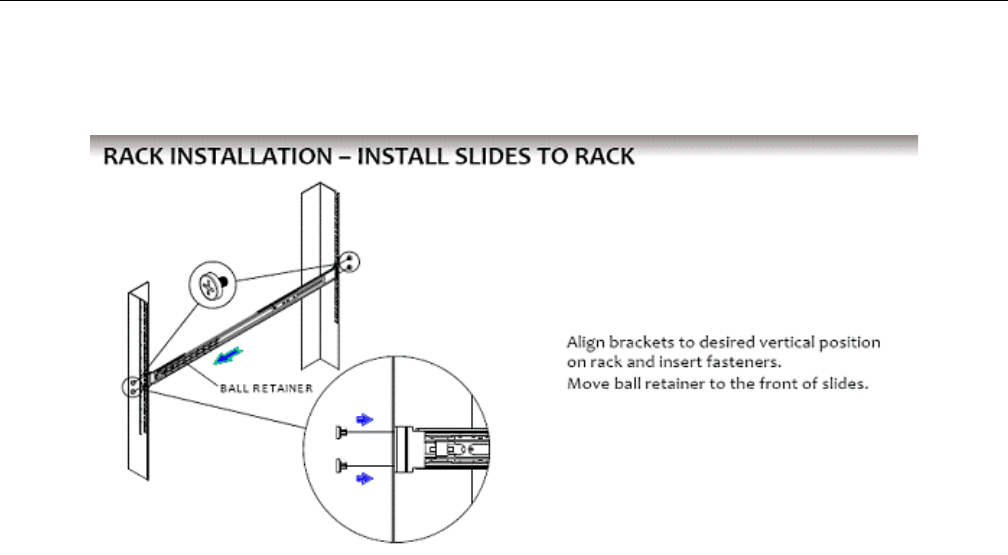

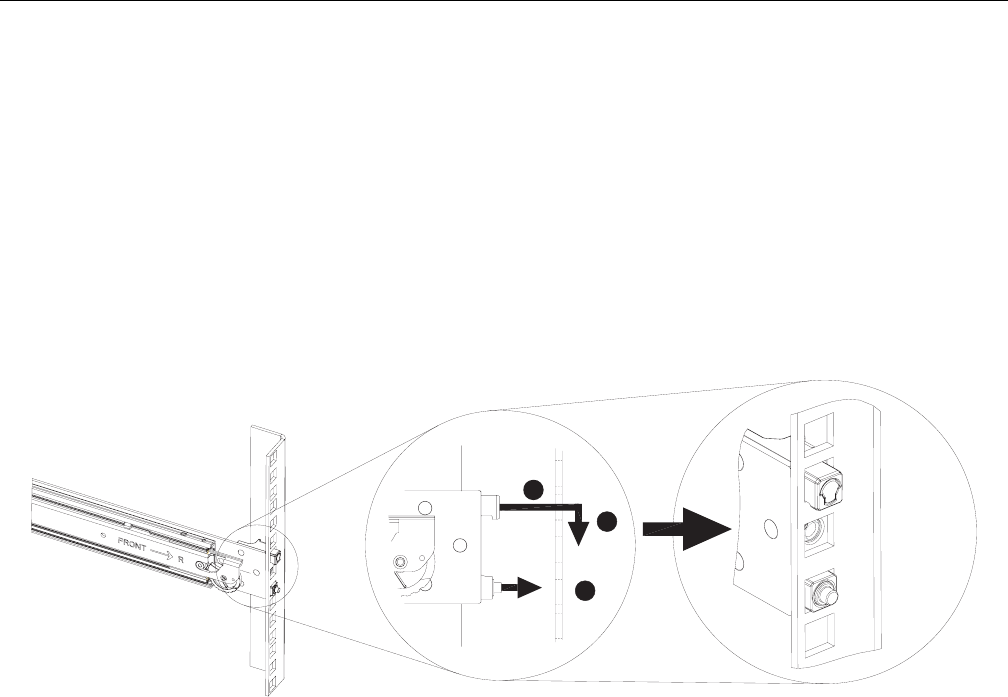

Figure C-1 Attaching Rail Slides to Rack. . . . . . . . . . . . . 55
Figure C-2 Extending Rail Slides . . . . . . . . . . . . . . . 56
Figure C-3 Attaching Chassis to Rail Slides . . . . . . . . . . . . 57
Figure C-4 Rail Slide Release Tab . . . . . . . . . . . . . . 58
Tables
007-5837-001 ix
Tables
Table 1-1 System Features and Configuration Options. . . . . . . . . 2
Table 1-2 Control Panel Components . . . . . . . . . . . . . 7
Table 1-3 Back Panel Components . . . . . . . . . . . . . . 8
Table 1-4 Peripheral Devices . . . . . . . . . . . . . . . 9
Table 1-5 Maximum Number of Hard Drives . . . . . . . . . . . 10
Table 3-1 Control Panel Components and Functions . . . . . . . . . 19
Table 3-2 HDD Status LED Functions . . . . . . . . . . . . . 21
Table 3-3 HDD Activity LED Functions . . . . . . . . . . . . 21
Table 3-4 Power Supply LED States . . . . . . . . . . . . . 22
Table A-1 Power Supply Output Capability. . . . . . . . . . . . 51
Table A-2 Environmental Specifications . . . . . . . . . . . . 52
Table B-1 Product Regulatory Compliance . . . . . . . . . . . . 53
Table D-1 BMC Beep Codes . . . . . . . . . . . . . . . 59
007-5837-001 xi
About This Guide
This guide provides an overview of the features and the major components of
SGI®RackableRP2 standard-depth servers. It also provides system monitoring and maintenance
information as well as important safety and regulatory specifications.
Audience
This guide is written for owners, installers, system administrators, and users of the RP2 server. It
is written with the assumption that the reader has a good working knowledge of computers and
computer systems.
Chapter Descriptions
The following topics are covered in this guide:
Chapter 1, “System Overview”
Provides an overview of the server features and components.
Chapter 2, “System Safety”
Provides system safety information.
Chapter 3, “System Operation and Monitoring”
Describes control buttons and LEDs on the control panel as well as LEDs on the disk drive
carriers.
Chapter 4, “Chassis Maintenance”
Describes procedures for replacing system components.
xii 007-5837-001
About This Guide
Appendix A, “Power and Environmental Specifications,”
Lists input/output voltage specifications for the power supplies and also environmental
specifications for operating the system.
Appendix B, “Regulatory Compliance Information,”
Summarizes the product regulatory information.
Appendix C, “Rail Kit Installation,”
Describes the steps to install the rail kit.
Appendix D, “BMC Error Codes,”
Describes the BMC beep codes associated with failure conditions.
Related Publications
The following SGI and LSI documents are relevant to RP2 servers:
MegaRAID® SAS Software Users Guide, publication number, publication number
860-0488-xxx
MegaRAID® 6GB/s SAS RAID Controllers User Guide, publication number 860-0502-xxx
LSI Integrated SAS for RAID Users Guide, publication number 860-0476-xxx
SGI Foundation Software Start Here, publication number 007-5641-xxx
SGI Performance Suite Start Here, publication number 007-5680-xxx
SGI InfiniteStorage series documentation
Man pages (online)
You can obtain SGI documentation (as well as the pertinent LSI books), release notes, or man
pages in the following ways:
Refer to the SGI Technical Publications Library at http://docs.sgi.com. Various formats are
available. This library contains the most recent and most comprehensive set of online books,
release notes, man pages, and other information.
You can also view man pages by typing man <title> on a command line.
About This Guide
007-5837-001 xiii
Conventions
The following conventions are used throughout this document:
Product Support
SGI provides a comprehensive product support and maintenance program for its products. SGI
also offers services to implement and integrate Linux applications in your environment.
Refer to http://www.sgi.com/support/
If you are in North America, contact the Technical Assistance Center at
+1 800 800 4SGI or contact your authorized service provider.
If you are outside North America, contact the SGI subsidiary or authorized distributor in
your country.
Convention Meaning
Command This fixed-space font denotes literal items such as commands, files,
routines, path names, signals, messages, and programming language
structures.
variable The italic typeface denotes variable entries and words or concepts being
defined. Italic typeface is also used for book titles.
user input This bold fixed-space font denotes literal items that the user enters in
interactive sessions. Output is shown in nonbold, fixed-space font.
[ ] Brackets enclose optional portions of a command or directive line.
... Ellipses indicate that a preceding element can be repeated.
man page(x) Man page section identifiers appear in parentheses after man page names.
GUI element This font denotes the names of graphical user interface (GUI) elements such
as windows, screens, dialog boxes, menus, toolbars, icons, buttons, boxes,
fields, and lists.
xiv 007-5837-001
About This Guide
Reader Comments
If you have comments about the technical accuracy, content, or organization of this document,
contact SGI. Be sure to include the title and document number of the manual with your comments.
(Online, the document number is located in the front matter of the manual. In printed manuals, the
document number is located at the bottom of each page.)
You can contact SGI in any of the following ways:
Send e-mail to the following address: techpubs@sgi.com
Contact your customer service representative and ask that an incident be filed in the SGI
incident tracking system.
Send mail to the following address:
SGI
Technical Publications
46600 Landing Parkway
Fremont, CA 94538
SGI values your comments and will respond to them promptly.
007-5837-001 1
Chapter 1
1. System Overview
The SGI Rackable RP2 standard-depth servers are 2U rackmount servers. The servers have two
main subsystems: the 2U server chassis and a dual-processor serverboard. There are three models
of RP2 servers based on the disk configurations:
C2108-RP2 (8 hard disk drives as shown in Figure 1-1 )
ISS3112-RP2 (12 hard disk drives)
ISS3124-RP2 (24 hard disk drives)
Figure 1-1 SGI Rackable C2108-RP2 Server
This chapter describes the main features and configuration options of an RP2 server as well as the
components pertinent to monitoring and maintaining your server.
2007-5837-001
1: System Overview
System Features and Configuration Options
Table 1-1 summarizes the features and configuration options of an RP2 server.
Table 1-1 System Features and Configuration Options
Feature Description
Motherboard Intel Server Board S2600GZ
Processor support Support for one or two Intel® Xeon® processors E5-2600 product family with
a Thermal Design Power (TDP) of up to 130 W. A 135-watt CPU is available
with product warranty contingencies.
Memory – 24 DIMM slots, 3 DIMMs per channel, 4 memory channels per processor
– Unbuffered DDR3 (UDIMM), Registered DDR3 (RDIMM), and Load
Reduced DDR3 (LRDIMM)
– Memory DDR3 data transfer rates of 800, 1066, 1333 MT/s, and 1600 MT/s
– DDR3 standard I/O voltage of 1.5V and DDR3 low voltage of 1.35V
Chipset Intel C600-A chipset with support for optional Storage Option Select keys
External I/O connections – Video (back panel + front panel on non-max hard drive SKUs)
– RJ-45 Serial- A Port
– Four RJ-45 Network Interface Connectors supporting 10/100/1000Mb
– USB 2.0 connectors (three on back panel and two on front panel on non-max
hard drive SKUs)
Internal I/O
connectors/headers
– One Type-A USB 2.0 connector
– One DH-10 Serial-B port connector
Optional I/O module
support
The following I/O modules utilize a single proprietary on-board connector. An
installed I/O module can be supported in addition to standard on-board features
and any add-in expansion cards.
– Quad port 1 GbE based on Intel Ethernet Controller I350
– Dual port 10GBase-T Ethernet module based on Intel Ethernet Controller
X540
– Dual SFP+ port 10GbE module based on Intel 82599 10 GbE controller
– Single port FDR speed InfiniBand module with QSFP connector
System fans – Five system fans
– One power supply fan for each installed power supply module
System Features and Configuration Options
007-5837-001 3
Riser cards Support for two riser card slots. Each riser card slot has support for the
following riser card options:
– 3-Slot PCIe riser card
Slots 1 & 2: PCIe x16 slot, x8 lanes
Slot 3: PCIe x8 slot, x8 lanes
– 2-Slot PCIe riser card
Slot 1: PCIe x16 slot, x16 lanes
Slot 2: PCIe x8 slot, x8 lanes
Video Integrated 2D video controller, 16 MB DDR3 memory
On-board storage
controllers and options
– One eUSB 2x5 pin connector to support 2mm low-profile eUSB solid state
devices
– Two 7-pin single port AHCI SATA connectors capable of supporting up to
6 GB/sec
– Two SCU 4-port mini-SAS connectors capable of supporting up to 3 GB/sec
SAS/SATA
Server management Integrated baseboard management controller (BMC), IPMI 2.0-compliant
Power supply options The server system has two power supply modules installed, providing support
for the following power configurations:
– 1+1 redundant power
– 2+0 combined power
Power supply type: AC 750W Platinum
Storage bay options – 8x 3.5 SATA/SAS hot-swap hard drive bays + optical drive support
– 12x 3.5 SATA/SAS hot-swap hard drive bays
– 24x 2.5 SATA/SAS hot-swap hard drive bays
Rack mount kit options Value rack mount rail kit
Table 1-1 System Features and Configuration Options (continued)
Feature Description
4007-5837-001
1: System Overview
Server Components
This section describes the server components pertinent to monitoring and maintaining your server.
There are also quick reference labels inside of the chassis cover to assist you in identifying
components.
The RP2 server has one serverboard in the chassis. Figure 1-2 provides an overhead view of the
server with the top cover removed.
Figure 1-2 Overhead View of Server with the Top Cover Removed
Hard Disk Drive Bays
007-5837-001 5
Hard Disk Drive Bays
There are three configurations of hard disk drives (HDDs) for the RP2 server:
8 x 3.5” HDD bays (model C2108-RP2)
12 x 3.5” HDD bays (model ISS3112-RP2)
24 x 2.5” HDD bays (model ISS3124-RP2)
Figure 1-3, Figure 1-4, and Figure 1-5 show the front view of these three configurations.
Figure 1-3 8-HDD Configuration
Figure 1-4 12-HDD Configuration
Figure 1-5 24-HDD Configuration
6007-5837-001
1: System Overview
Front Control Panel
Dependent upon your configuration, the control panel may have a horizontal or vertical
orientation. Figure 1-6 and Figure 1-7 show the two layouts of the control panel.

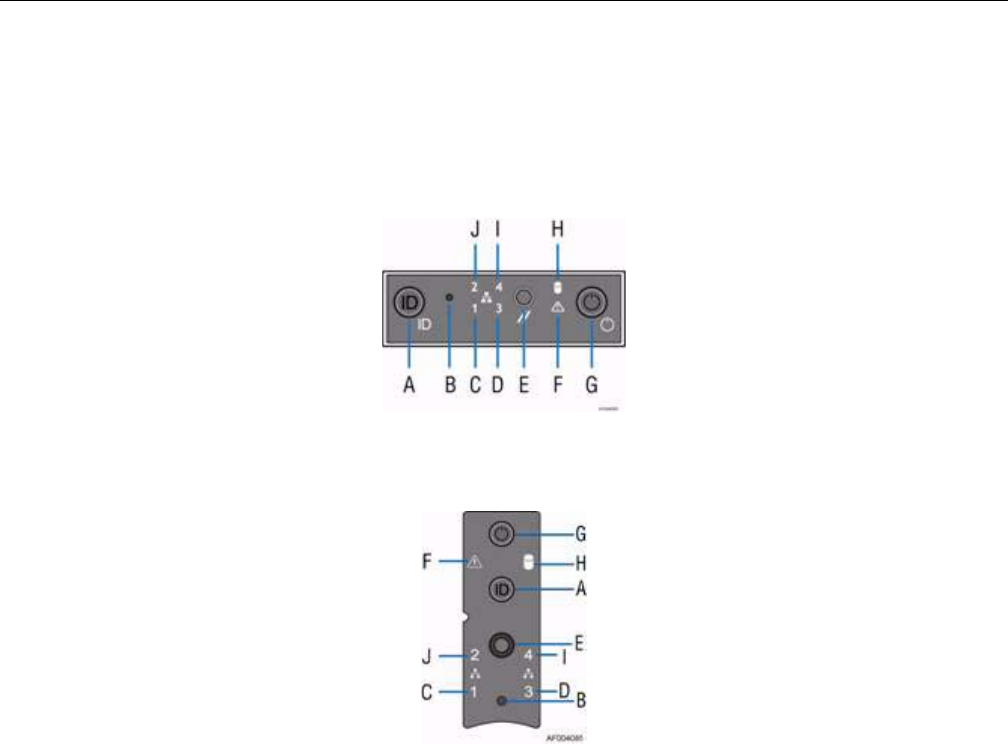

Figure 1-6 Front Control Panel—Horizontal Layout
Figure 1-7 Front Control Panel—Vertical Layout
Front Control Panel
007-5837-001 7
Table 1-2 identifies the components of the control panel. For a description of the function of these
buttons and LEDs, see Chapter 3, “System Operation and Monitoring.”
Table 1-2 Control Panel Components
Label Description
ASystem ID button with integrated LED
BNMI button (recessed, tool required for use)
CNIC-1 Activity LED
DNIC-3 Activity LED
ESystem Cold Reset button
FSystem Status LED
GPower button with integrated LED
HHard Drive Activity LED
INIC-4 Activity LED
JNIC-2 Activity LED
8007-5837-001
1: System Overview
Back Panel Components
Figure 1-8 and Table 1-3 identify the components on the back panel of the server.

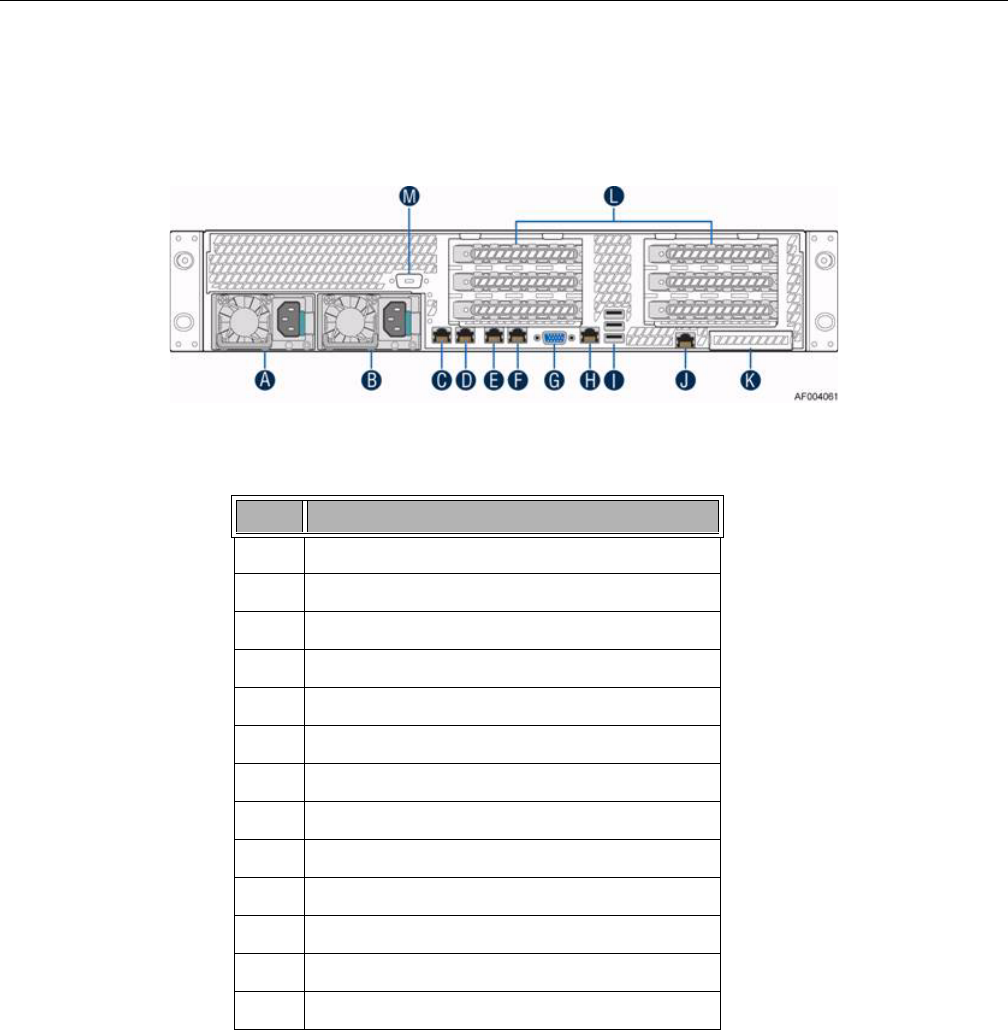

Figure 1-8 Typical Back Panel of Server.
Table 1-3 Back Panel Components
Label Description
APower Supply Module #1
BPower Supply Module #2
CNIC 1
DNIC 2
ENIC 3
FNIC 4
GVideo connector
HRJ45 Serial-A port
IUSB ports
JRMM4 NIC port
KI/O module ports/connectors (optional)
L Add-in adapter slots via Riser Card 1 and Riser Card 2
M Serial-B port (optional)
Peripheral Devices
007-5837-001 9
Peripheral Devices
The server supports hard drives and an optical drive (CD-ROM or DVD-ROM). Figure 1-9 and
Table 1-4 identify the various drive locations along with other IO ports.
Figure 1-9 Peripheral Devices
Table 1-4 Peripheral Devices
Label Description
ASystem label pull-out
BSlimline optical drive bay
CVideo port
DUSB ports
EFront control panel
FHard disk drive bays
10 007-5837-001
1: System Overview
Hard Drive Support
As shown in Table 1-5, the server supports both 2.5” and 3.5” hard drives.
Special Notes:
The 3.5-inch HDD carriers support a hardware interface bracket that allows the use of
2.5-inch drives.
Drives can consume up to 17 watts of power each. Drives must be specified to run at a
maximum ambient temperature of 45ºC.
Not all SATA and SAS drives are supported. Contact your local SGI representative for a list
of supported hard drives.
Slimline Optical Drive Support
The system has support for a single optical drive. The optical drive is NOT hot-swappable. The
system power must be turned off to insert or remove the slimline optical drive.
SGI makes accessory kits available for the following optical drives:
Slimline DVD-ROM Drive
Slimline DVD-RW Drive
Table 1-5 Maximum Number of Hard Drives
Supported Hard Drive Type Maximun Hard Drive Number
3.5-inch or 2.5-inch 8
3.5-inch or 2.5-inch 12
2.5-inch 24
Peripheral Devices
007-5837-001 11
Solid State Disk (SSD) Support
In addition to the support of the 2.5” and 3.5” HDDs in the conventional storage bays, the RP2
servers support SATA SSDs. As indicated in Figure 1-10, you place an SSD on top of the air duct.

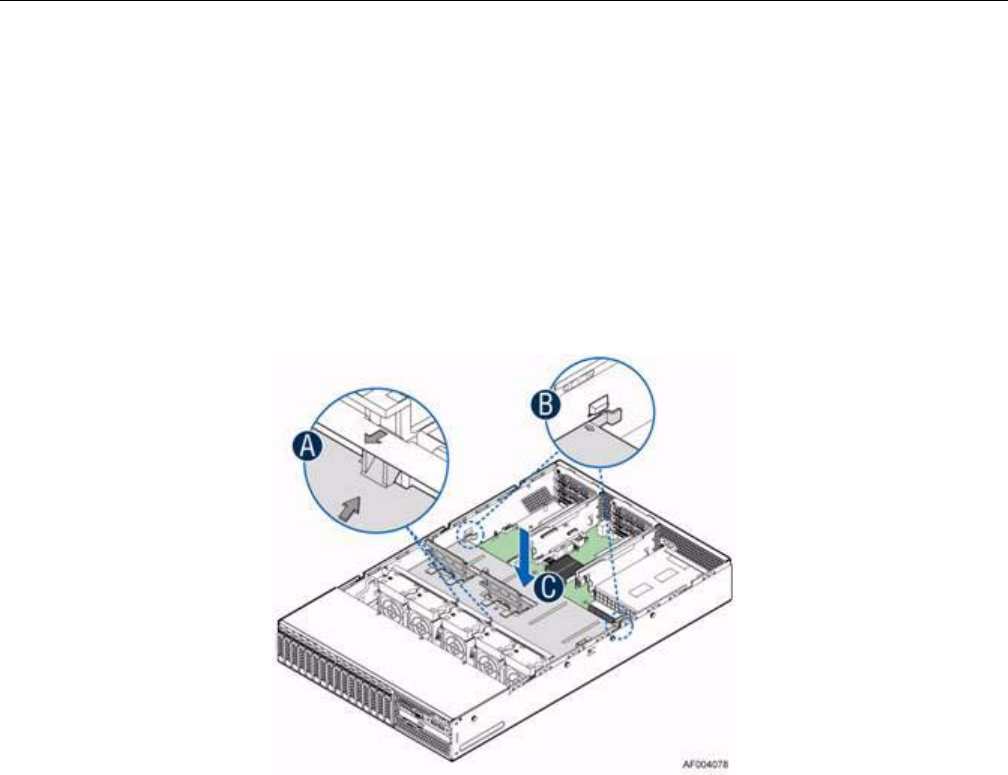

Figure 1-10 Overhead View of Server with the Top Cover Removed
007-5837-001 13
Chapter 2
2. System Safety
This chapter describes basic safety precautions.
Electrical Safety Precautions
Basic electrical safety precautions should be followed to protect yourself from harm and the RP2
system from damage, as follows:
• Be aware of the locations of the power on/off switch on the chassis as well as the room's
emergency power-off switch, disconnection switch or electrical outlet. If an electrical accident
occurs, you can then quickly remove power from the system.
• Do not work alone when working with high voltage components.
• Power should always be disconnected from the system when removing or installing main system
components, such as the serverboard, memory modules and disk drives. When disconnecting
power, you should first power down the operating system first and then unplug the power cords.
The unit has more than one power supply cord. Disconnect two power supply cords before
servicing to avoid electrical shock.
• When working around exposed electrical circuits, another person who is familiar with the
power-off controls should be nearby to switch off the power if necessary.
• Use only one hand when working with powered-on electrical equipment. This is to avoid making
a complete circuit, which will cause electrical shock. Use extreme caution when using metal tools,
which can easily damage any electrical components or circuit boards they come into contact with.
• Do not use mats designed to decrease static electrical discharge as protection from electrical
shock. Instead, use rubber mats that have been specifically designed as electrical insulators.
• The power supply power cords must include a grounding plug and must be plugged into
grounded electrical outlets.
14 007-5837-001
2: System Safety
• Serverboard Battery
Caution: There is a danger of explosion if the onboard battery is installed upside down,
which will reverse its polarites (see Figure 2-1). This battery must be replaced only with the
same or an equivalent type recommended by the manufacturer. Dispose of used batteries
according to the manufacturer's instructions.
• Mainboard replaceable soldered-in fuses: Self-resetting PTC (Positive Temperature Coefficient)
fuses on the mainboard must be replaced by trained service technicians only. The new fuse must
be the same or equivalent as the one replaced. Contact technical support for details and support.
Figure 2-1 Installing the Onboard Battery
!
Lithium battery
Battery holder
General Safety Precautions
007-5837-001 15
General Safety Precautions
Follow these rules to ensure general safety:
Keep the area around the RP2 system clean and free of clutter.
The RP2 system might approach 100 lbs (45 kg) when fully loaded. When lifting the system,
two people at either end should lift slowly with their feet spread out to distribute the weight.
Always keep your back straight and lift with your legs.
Place the chassis top cover and any system components that have been removed away from
the system or on a table so that they won't accidentally be stepped on.
While working on the system, do not wear loose clothing such as neckties and unbuttoned
shirt sleeves, which can come into contact with electrical circuits or be pulled into a cooling
fan.
Remove any jewelry or metal objects from your body, which are excellent metal conductors
that can create short circuits and harm you if they come into contact with printed circuit
boards or areas where power is present.
After accessing the inside of the system, close the system back up and secure it to the rack
unit with the retention screws after ensuring that all connections have been made.
16 007-5837-001
2: System Safety
ESD Precautions
Caution: Electrostatic discharge (ESD) is generated by two objects with different electrical
charges coming into contact with each other. An electrical discharge is created to neutralize this
difference, which can damage electronic com ponents and printed circuit boards.
The following measures are generally sufficient to neutralize this difference before contact is
made to protect your equipment from ESD:
Use a grounded wrist strap designed to prevent static discharge.
Keep all components and printed circuit boards (PCBs) in their antistatic bags until ready for
use.
Touch a grounded metal object before removing the board from the antistatic bag.
Do not let components or PCBs come into contact with your clothing, which may retain a
charge even if you are wearing a wrist strap.
Handle a board by its edges only; do not touch its components, peripheral chips, memory
modules or contacts.
When handling chips or modules, avoid touching their pins.
Put the serverboard and peripherals back into their antistatic bags when not in use.
For grounding purposes, make sure your computer chassis provides excellent conductivity
between the power supply, the case, the mounting fasteners and the serverboard.
!
007-5837-001 17
Chapter 3
3. System Operation and Monitoring
Depending on your hard drive configuration, your control panel may be on the top row of the front
panel components or may be the right-most panel on the front. Figure 3-1 shows the possible
locations.
There are several LEDs on the control panel as well as others on the hard drive carriers and power
supplies. The LEDs keep you constantly informed of the overall status of the system as well as the
activity and health of specific components. There are also control buttons on control panel. This
chapter describes the buttons and LEDs.
Figure 3-1 Front Control Panel
Control panel
Control pan
el
18 007-5837-001
3: System Operation and Monitoring
Front Panel Controls and LEDs
Each control panel contains control buttons and status LEDs. Figure 3-2 and Figure 3-3 show the
components of a control panel.
Figure 3-2 Control Panel—Horizontal
Figure 3-3 Control Panel—Vertical
Front Panel Controls and LEDs
007-5837-001 19
Table 3-1 describes the control panel components and their functions.
Table 3-1 Control Panel Components and Functions
Label Button/LED Color Condition Function
ASystem ID button
with LED
Blue On Highlights targeted system. Can be activated by the
button or software.
BNMI button Used for diagnostics. Recessed (tool required for
use).
C, D, I, J NIC-x
Link/Activity
LED
Green
On Network link to NIC-x detected.
Blink NIC-x activity detected.
Off No link.
ESystem Cold
Reset button
When pressed, this button reboots and re-initializes
the server.
FSystem Status
LED
Green
On System ready/No alarm.
Blink System ready, but degraded:
– Redundancy lost such as the power supply or fan
failure.
– Non-critical temp/voltage threshold.
– Battery failure.
– Predictive power supply failure.
Amber
On Critical Alarm: critical power modules failure,
critical fans failure, voltage (power supply), critical
temperature and voltage
Blink Non-Critical Alarm: Redundant fan failure,
redundant power module failure, non-critical
temperature and voltage
Off – Power off: System unplugged.
– Power on: System powered off and in standby, no
prior degraded\non-critical\critical state.
GSystem Power
button with LED Green
On Power On/ACPI S0 state
Blink Sleep/ACPI S1 state
Off Power Off/ACPI S5 state
20 007-5837-001
3: System Operation and Monitoring
Notes:
Blink rate is ~1 Hz at 50% duty cycle.
It is also off when the system is powered off (S5) or in a sleep state (S1).
The power LED sleep indication is maintained on standby by the chipset. If the system is
powered down without going through the BIOS, the LED state in effect at the time of power
off is restored when the system is powered on until the BIOS clear it.
If the system is not powered down normally, it is possible the Power LED will blink at the
same time the system status LED is off due to a failure or configuration change that prevents
the BIOS from running.
Hard Disk Drive (HDD) LEDs
Figure 3-4 shows the location of the LEDs for both the 2.5” and 3.5” HDD carriers.
Figure 3-4 HDD Carrier LEDs
HHard Drive
Activity LED Amber
On Hard drives are available.
Blink Hard drive activity detected.
Off No hard drives are available.
Table 3-1 Control Panel Components and Functions (continued)
Label Button/LED Color Condition Function
Hard Disk Drive (HDD) LEDs
007-5837-001 21
Table 3-2 describes the functions of the Status LED.
Table 3-3 describes the functions of the Activity LED.
Table 3-2 HDD Status LED Functions
LED Color LED
Behavior Drive Status
Amber
Off No access and no fault.
Solid On Hard drive fault has occurred.
Blink – RAID rebuild in progress (1Hz).
– Identify (2Hz).
Table 3-3 HDD Activity LED Functions
LED
Color Drive Condition Drive
Type LED Behavior
Green
Power on with no drive activity. SAS LED stays on.
SATA LED stays off.
Power on with drive activity.
SAS LED blinks off when
processing a command.
SATA LED blinks off when
processing a command.
Power on and drive spun down. SAS LED stays off.
SATA LED stays off.
Power on and drive spinning up. SAS LED blinks.
SATA LED stays off.
22 007-5837-001
3: System Operation and Monitoring
Power Supply LED
There is a single bi-color LED (green/amber) to indicate the power supply status. Table 3-4
describes the different states of the LED.
Table 3-4 Power Supply LED States
LED State Power Supply (PS) State
Off No AC power to any PS.
Green Output on and Ok.
Green, 1Hz blink AC present (only 12VSB on). PS off or PS in cold redundant state.
Green, 2Hz blink PS firmware updating.
Amber – PS critical event causing a shutdown/failure (OCP, OVP, fan failure)
– AC cord unplugged or AC power lost. A second power supply in
parallel still has AC input power.
Amber, 1Hz blink PS warning events where the power supply continues to operate (high
temperature, high power,high current, slow fan).
007-5837-001 23
Chapter 4
4. Chassis Maintenance
This chapter describes the following chassis maintenance activities:
“Removing the System Top Cover” on page 25
“Replacing the System Cover” on page 27
“Removing and Installing the Air Duct” on page 28
“Replacing the Power Supply” on page 30
“Installing and Removing Hot-Swap Hard Drives” on page 33
“Installing and Removing a Slimline Optical Drive” on page 40
“Installing and Removing a Solid State Drive (SSD)” on page 43
“Replacing a System Fan” on page 45
“Replacing the Backup Battery” on page 46
“Mounting the Chassis to a Rack” on page 47
“Removing the Chassis from a Rack” on page 50
24 007-5837-001
4: Chassis Maintenance
Before working with your server product, read the safety information in Chapter 2, “System
Safety.”
Note: Whenever you service the system, you must first power down the server and unplug all
peripheral devices and the AC power cord.
Tools and Supplies Needed:
Phillips (cross head) screwdriver (#1 bit and #2 bit)
Needle-nosed pliers
Anti-static wrist strap and conductive foam pad (recommended)
Left-Right and User Position
All references to left, right, front, top, and bottom assume you are facing the front of the chassis
as it would be positioned for normal operation.
Removing the System Top Cover
007-5837-001 25
Removing the System Top Cover
The server system must be operated with the system cover in place to ensure proper cooling. You
will need to remove the top cover to add or replace components inside of the server. Before
removing the top cover, power down the server and unplug all peripheral devices and the power
cable(s).
Note: A non-skid surface or a stop behind the server system may be needed to prevent the server
system from sliding on your work surface.
To remove the system cover, use the following steps:
1. Observe the safety and ESD precautions in Chapter 2, “System Safety.”.
2. Turn off all peripheral devices connected to the server.
3. Turn off the server.
4. Disconnect the power cord.
26 007-5837-001
4: Chassis Maintenance
5. Remove the four screws.
See A in Figure 4-1.
6. Slide the cover back and lift upwards.
See B in Figure 4-1.
Figure 4-1 Removing the System Top Cover
Replacing the System Cover
007-5837-001 27
Replacing the System Cover
To replace the system cover, use the following steps:
1. Place the system cover onto the chassis and slide the cover forward to engage the recessed
edge at the front of the cover.
See A in Figure 4-2.
2. Tighten the four screws.
See B in Figure 4-2.
Figure 4-2 Installing the System Cover
28 007-5837-001
4: Chassis Maintenance
Removing and Installing the Air Duct
Always operate your server system with the air duct in place. The air duct is required for proper
airflow within the server system.
Removing the Air Duct
1. Carefully push in the two latches on the air duct.
See A in Figure 4-3.
2. Rotate the back edge of the air duct up to disengage the two tabs from fan bulkhead.
See B in Figure 4-3.
Figure 4-3 Removing the Air Duct
Removing and Installing the Air Duct
007-5837-001 29
Installing the Air Duct
1. Lower the front edge of the air duct to engage the two tabs on the fan bulkhead.
See A in Figure 4-4.
2. Carefully push in the two latches on the air duct.
See B in Figure 4-4.
3. Push down the air duct into place.
See C in Figure 4-4.
Figure 4-4 Installing the Air Duct
30 007-5837-001
4: Chassis Maintenance
Replacing the Power Supply
Caution: The power supply is only hot-swappable if you have a redundant system with two
power supplies installed. If you only have one power supply installed, before removing or
replacing the power supply, you must first take the server out of service and turn off all peripheral
devices connected to the system. Turn off the system by pressing the power button and unplug the
power cord from the system or wall outlet.
This section describes how to replace the power supply.
1. If a filler panel is installed, use the finger hole to remove the filler panel.
See A in Figure 4-5.
Figure 4-5 Removing the Filler Panel
Replacing the Power Supply
007-5837-001 31
2. If a power supply is installed, push the green latch in the direction shown while pulling out
of the system by the handle.
See Figure 4-6.
Figure 4-6 Removing the Power Supply Module
3. Insert the power supply module into the power supply cage and push it in until it clicks into
place.
See B Figure 4-7.
Figure 4-7 Installing the Power Supply Module
32 007-5837-001
4: Chassis Maintenance
4. If no power supply is to be installed, install the filler panel into the power supply cage.
See Figure 4-8.
Figure 4-8 Installing the Filler Panel
Installing and Removing Hot-Swap Hard Drives
007-5837-001 33
Installing and Removing Hot-Swap Hard Drives
Caution: To maintain proper system cooling, use drive carriers with plastic drive blanks to
populate drive days that would be otherwise empty.
You can install either a 2.5” or a 3.5” drive into a 3.5” drive carrier. This section describes the
three cases of drive replacements:
3.5” drive into 3.5” drive carrier
2.5” drive into 3.5” drive carrier
2.5” drive into 2.5” drive carrier
Installing 3.5” Hard Disk Drive into 3.5” Hard Drive Carrier
To install a 3.5” drive into a 3.5” drive carrier, use the following steps.
1. Remove the drive carrier by pressing the green button and opening the lever.
See A in Figure 4-9.
2. Slide the carrier out.
See B in Figure 4-9.
Figure 4-9 Removing 3.5” HDD Carrier
34 007-5837-001
4: Chassis Maintenance
3. Remove the four screws securing the HDD to the carrier and remove the HDD or HDD
interface bracket (in the case where there is a 2.5” drive in place).
See C in Figure 4-10.

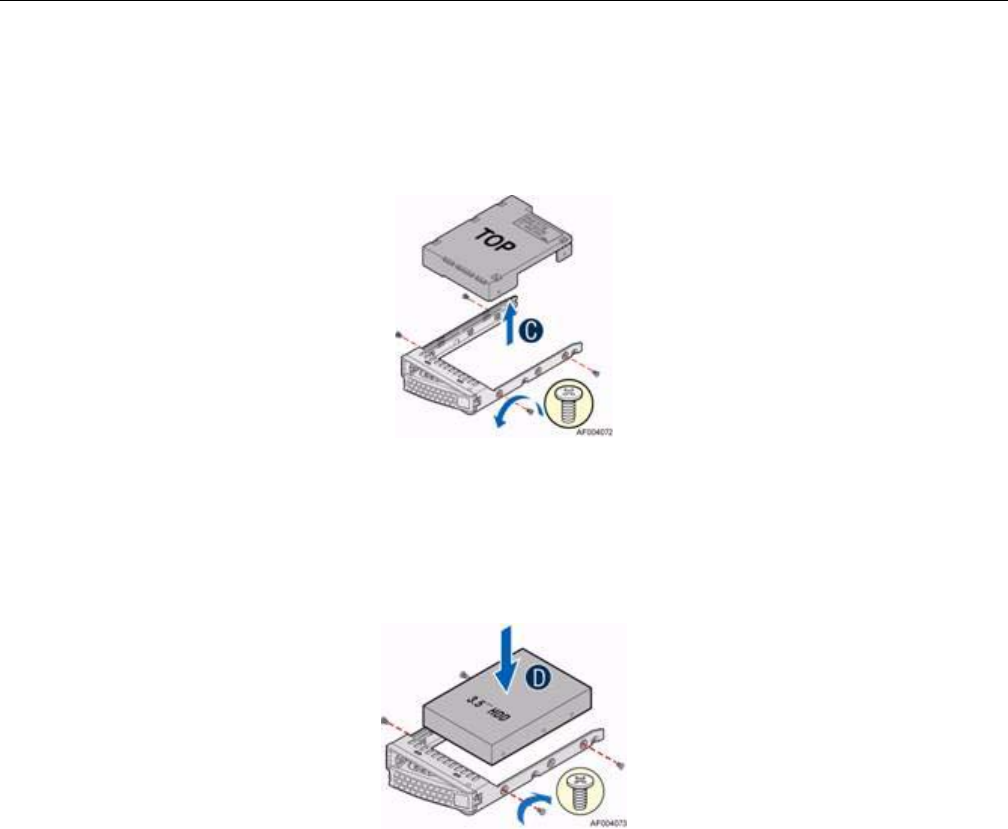

Figure 4-10 Removing 3.5” HDD or Interface Bracket
4. Install the hard disk drive using the same four screws.
See D in Figure 4-11.
Figure 4-11 Inserting 3.5” HDD
5. Ensure that the connector end of the drive matches the backplane connector. With the lever
open, insert the hard disk drive assembly into the chassis.
See E in Figure 4-12.
6. Push in the lever to lock it into place.
See F in Figure 4-12.
Installing and Removing Hot-Swap Hard Drives
007-5837-001 35

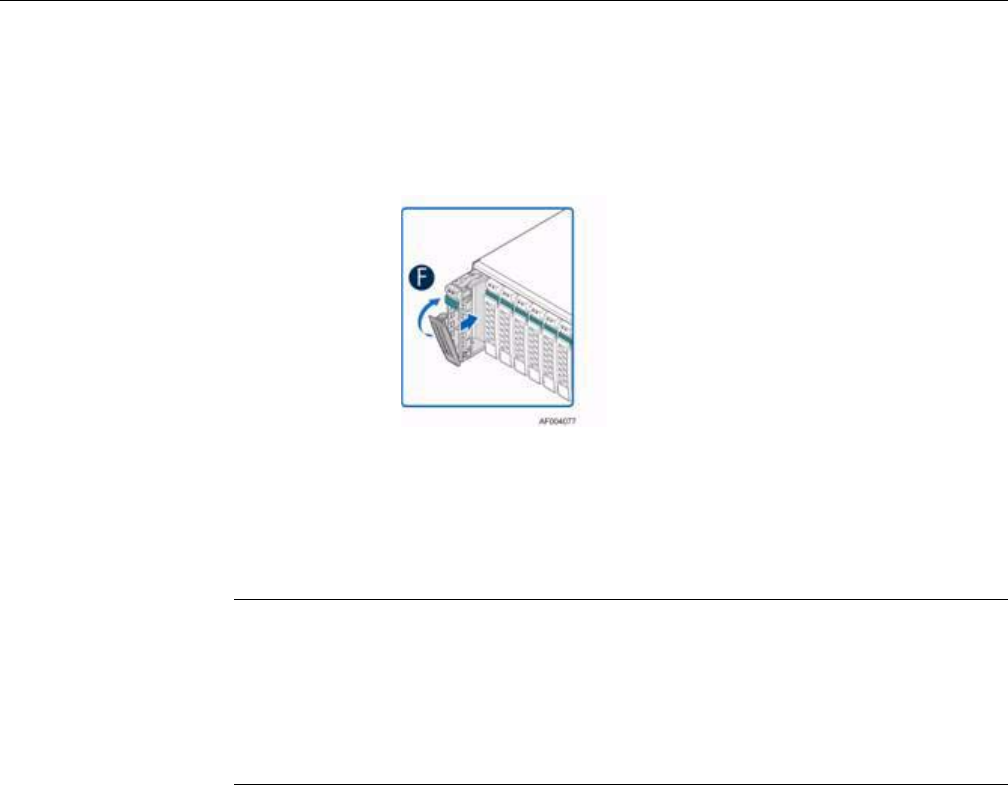

Figure 4-12 Inserting 3.5” HDD Carrier
Installing 2.5” Hard Disk Drive in 3.5” HDD Carrier
To install a 2.5” drive into a 3.5” drive carrier, use the following steps.
1. Remove the drive carrier by pressing the green button and opening the lever.
See A in Figure 4-9.
2. Slide the carrier out.
See B in Figure 4-9.
3. Remove the four screws securing the HDD to the carrier and remove the HDD or HDD
interface bracket (in the case where there is a 2.5” drive in place).
See C in Figure 4-10.
36 007-5837-001
4: Chassis Maintenance
4. Break off the tab on the HDD interface bracket.
See d1 in Figure 4-13.
Figure 4-13 Breaking Tab on HDD Interface Bracket
5. Install the HDD interface bracket from the top.
See Figure 4-14.
6. Secure the bracket with three screws.
See d2 in Figure 4-14.
Figure 4-14 Inserting HDD Interface Bracket
7. Slide the HDD into the bracket to align the screw holes with the right and left rail.
See d3 in Figure 4-15.
Installing and Removing Hot-Swap Hard Drives
007-5837-001 37

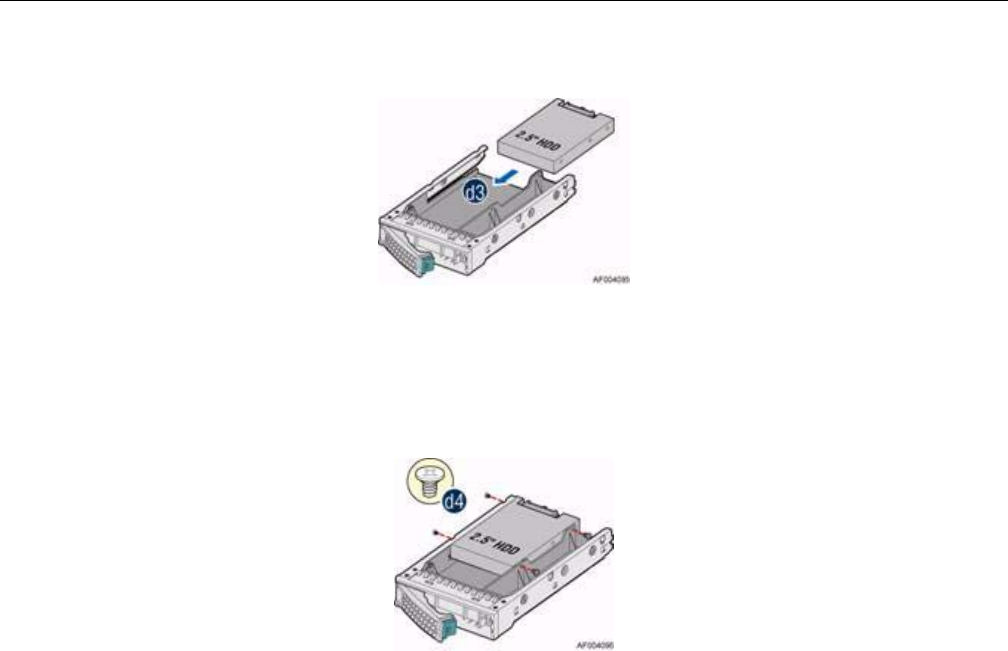

Figure 4-15 Sliding 2.5” HDD into Interface Bracket
8. Secure the hard disk drive using the four screws for HDD.
See d4 in Figure 4-16.
Figure 4-16 Securing 2.5” HDD in Interface Bracket
9. With the lever open, insert the hard disk drive assembly into the chassis.
See E in Figure 4-12.
10. Push in the lever to lock it into place.
See F in Figure 4-12.
38 007-5837-001
4: Chassis Maintenance
Installing Hard Disk Drive into 2.5” Hard Drive Carrier
To install a 2.5” drive into a 2.5” drive carrier, use the following steps.
1. Remove the drive carrier by pressing the green latch to unlock.
See A in Figure 4-17.
Figure 4-17 Unlatching 2.5” HDD Carrier
2. Pull out the black lever and slide the carrier out.
See B in Figure 4-18.
Figure 4-18 Removing 2.5” HDD Carrier
Installing and Removing Hot-Swap Hard Drives
007-5837-001 39
3. Remove the four screws securing the HDD or drive blank from the HDD carrier.
See C in Figure 4-19.
4. Remove the drive from the HDD carrier.
See D in Figure 4-19.

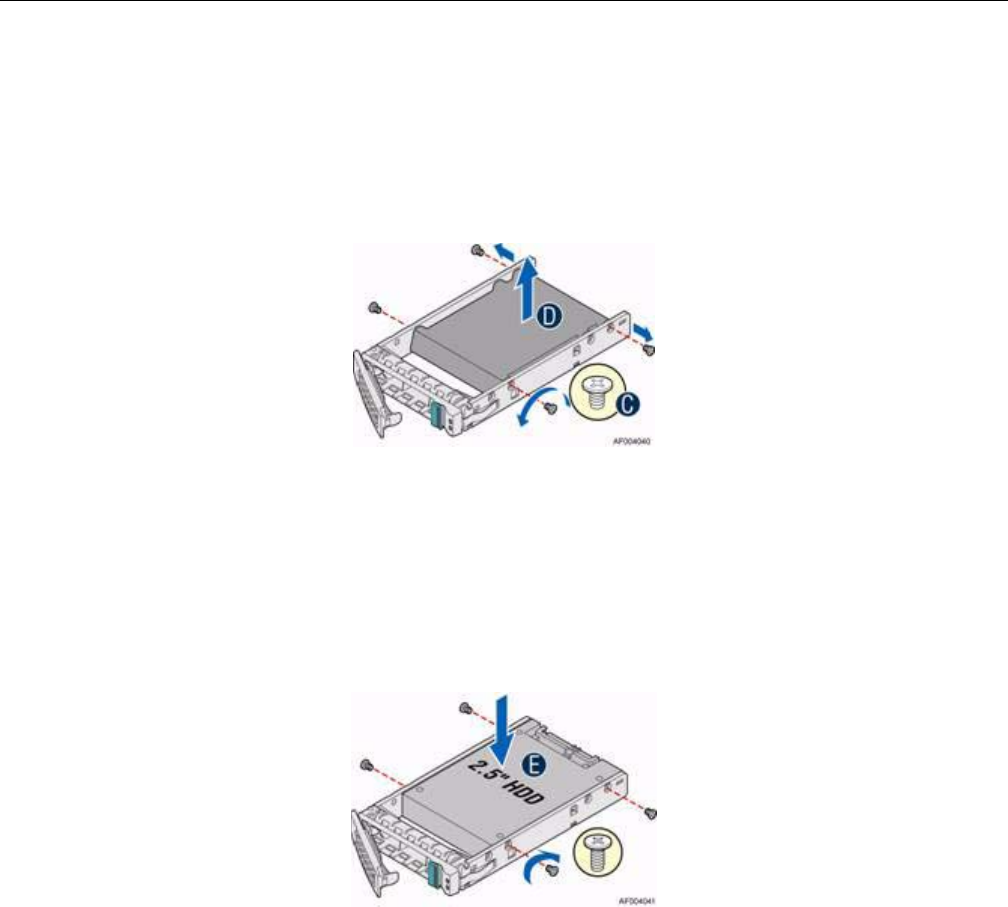

Figure 4-19 Removing 2.5” HDD from Carrier
5. Install the hard disk drive using the same four screws removed earlier.
See Figure 4-20.
6. Ensure that the connector end of the drive matches the backplane connector.
See E in Figure 4-20.
Figure 4-20 Inserting 2.5” HDD
40 007-5837-001
4: Chassis Maintenance
7. With the lever open, insert the hard disk drive assembly into the chassis and push in the lever
to lock it into place.
See F in Figure 4-21.

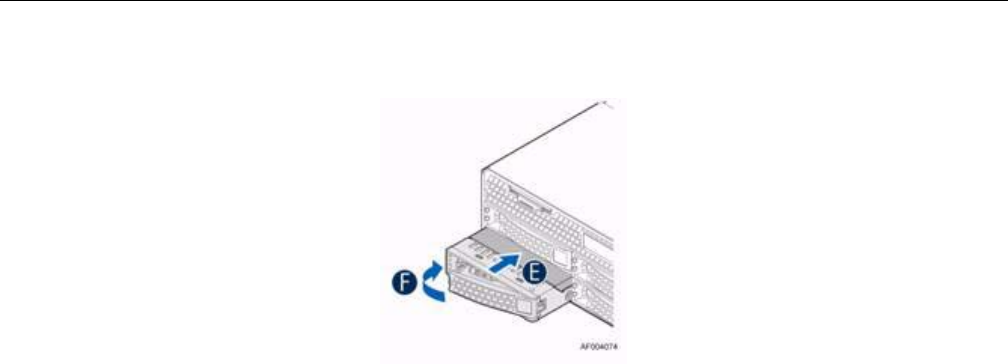

Figure 4-21 Inserting 2.5” HDD Carrier
Installing and Removing a Slimline Optical Drive
Caution: The slimline optical drive is not hot-swappable. Before removing or replacing the drive,
you must first take the server out of service: turn off all peripheral devices connected to the system,
turn off the system by pressing the power button, and unplug the power cord from the system or
wall outlet.
To maintain proper system cooling, a filler panel must be installed if you do not install a device at
this location.
Installing and Removing a Slimline Optical Drive
007-5837-001 41
Installing a Slimline Optical Drive

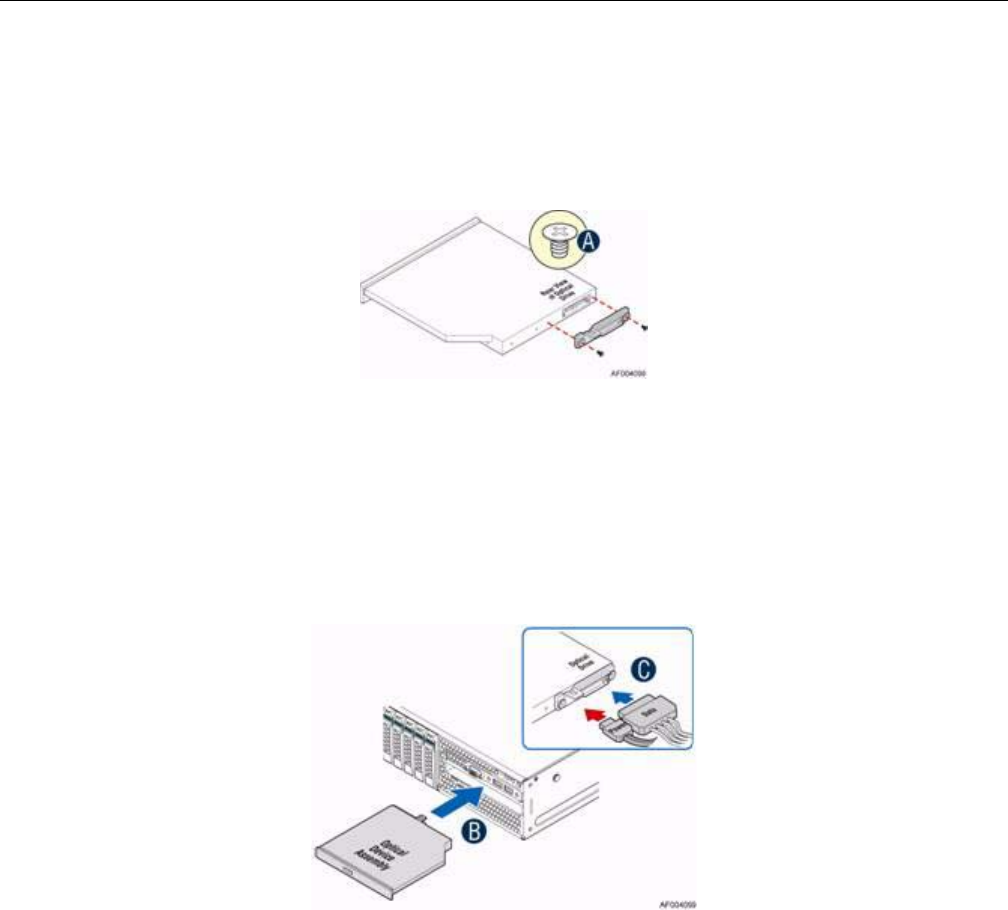

1. Install the plastic guide onto the back of the drive and attach with two screws.
See A in Figure 4-22
Figure 4-22 Installing the Plastic Guide to the Optical Drive
2. Insert the optical drive into chassis opening and push until it stops.
See B in Figure 4-23.
3. Connect the cables.
See C in Figure 4-23.
Figure 4-23 Installing an Optical Drive
42 007-5837-001
4: Chassis Maintenance
Removing a Slimline Optical Drive
1. Remove the cables.
See A in Figure 4-24.
2. Lift up the blue tab to release the optical drive.
See B in Figure 4-24.
3. Slide the optical drive out.
See C in Figure 4-24.
Figure 4-24 Removing the Optical Drive
4. If no device will be installed in this location, install a filler panel in this location.
Installing and Removing a Solid State Drive (SSD)
007-5837-001 43
Installing and Removing a Solid State Drive (SSD)
Installing an SSD
1. Place the SSD on the air duct.
See A in Figure 4-25.
2. Secure the SSD with four screws.
See B in Figure 4-25.
3. Connect the cables.
See C in Figure 4-25.
Figure 4-25 Installing an SSD
44 007-5837-001
4: Chassis Maintenance
Removing an SSD
1. Disconnect the cables.
See A in Figure 4-26.
2. Remove the four screws to release the SSD.
See B in Figure 4-26.
3. Pull the SSD up to remove it from the air duct.
See C in Figure 4-26.

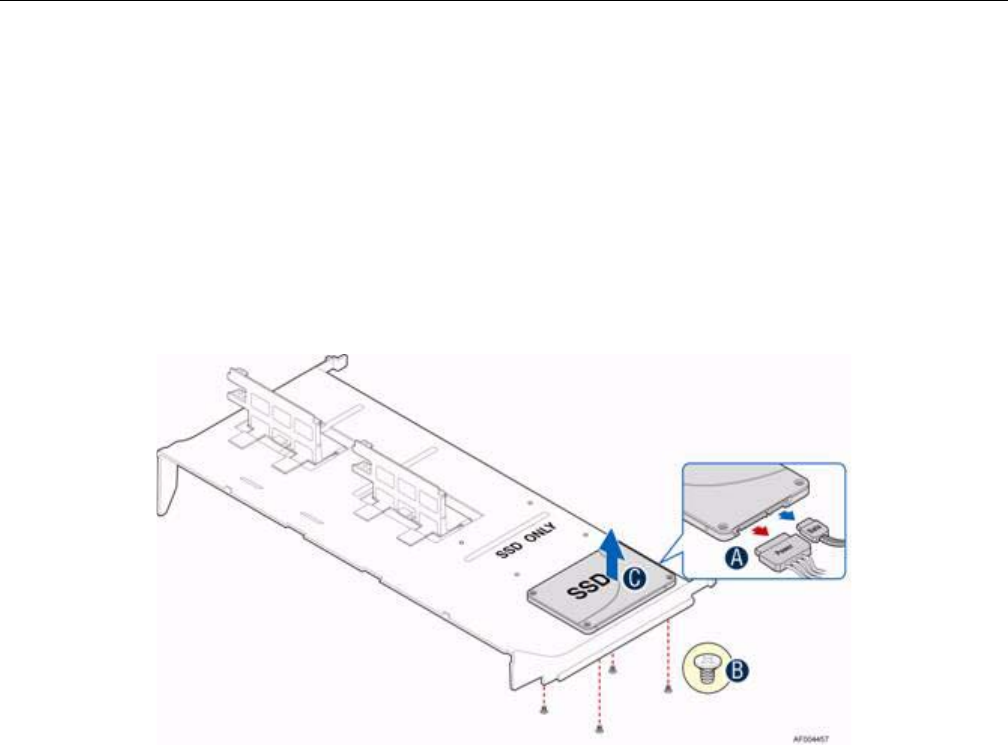

Figure 4-26 Removing an SSD
Replacing a System Fan
007-5837-001 45
Replacing a System Fan

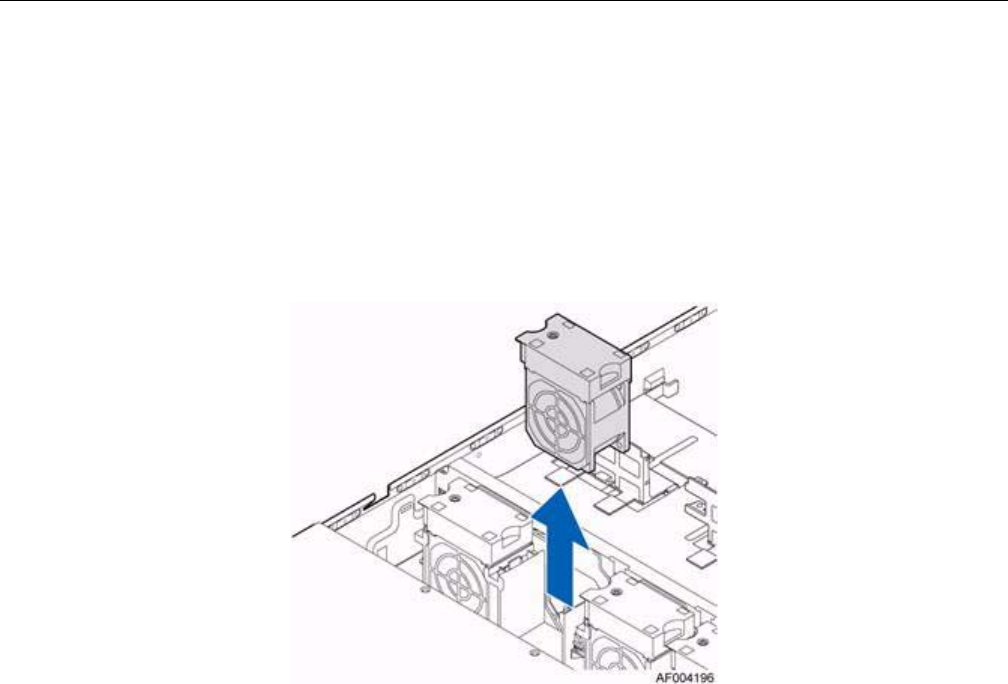

Use the following steps to replace a system fan.
1. Pull the system fan straight up to remove it from the fan holder.
See Figure 4-27.
2. Replace the system fan.
Figure 4-27 Replacing a Fan
46 007-5837-001
4: Chassis Maintenance
Replacing the Backup Battery
The lithium battery on the serverboard powers the RTC for up to 10 years in the absence of power.
When the battery starts to weaken, it loses voltage and the server settings stored in CMOS RAM
in the RTC (for example, the date and time) may be wrong. Contact your customer service
representative or dealer for a list of approved devices.
Warning: There is a danger of explosion if the battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the equipment manufacturer.
Discard used batteries according to the manufacturer’s instructions.
To replace the backup battery, use the following steps:
1. Locate the battery on the server board.
2. Gently press the metal clip as shown to release the battery.
See A Figure 4-28.
3. Remove the battery from the plastic socket.
See B in Figure 4-28.
Figure 4-28 Replacing the Backup Battery
Mounting the Chassis to a Rack
007-5837-001 47
4. Dispose of the battery according to local ordinance.
5. Using the correct polarity, insert the new lithium battery in the battery socket.
Note: You will need to run the BIOS setup to restore the configuration settings to the real-time
clock (RTC).
Mounting the Chassis to a Rack
A slide rail kit is bundled with the server and is packed in the same shipping box with the chassis.
Use the following steps to install the chassis in the rack.
1. Remove the inner member from the slides as shown in Figure 4-29.
Figure 4-29 Removing Inner Member from Slides
48 007-5837-001
4: Chassis Maintenance
2. Attach the slides to the rack as shown in Figure 4-30.
Figure 4-30 Attaching Slides to the Rack
Mounting the Chassis to a Rack
007-5837-001 49
3. Install the inner members to the chassis as shown in Figure 4-31.
Figure 4-31 Installing the Inner Members to the Chassis
4. Install the chassis to the fixed slides as shown in Figure 4-32.
Figure 4-32 Installing the Chassis in the Rack
50 007-5837-001
4: Chassis Maintenance
Removing the Chassis from a Rack
To remove the chassis from a rack, use the following steps:
1. Extend the slides as shown in Figure 4-33.
Figure 4-33 Extending Slides to Remove the Chassis
2. Remove the inner members from the chassis as shown in Figure 4-34.
Figure 4-34 Removing the Inner Member from the Chassis
007-5837-001 51
Appendix A
A. Power and Environmental Specifications
This appendix describes the following:
“Power Supply Input Voltages” on page 51
“Power Supply Output Voltages” on page 51
“Environmental Specifications” on page 52
Power Supply Input Voltages
For a 750W power supply module, the following are the input specifications:
100 - 127 V at 50/60 Hz 8.2 A
200 - 240 V at 50/60 Hz 4.4 A
Power Supply Output Voltages
Table A-1 lists the total wattage available from the power subsystem for each voltage.
Table A-1 Power Supply Output Capability
Voltage Maximum Current
12V 62.0A
12VSB 2.1A
52 007-5837-001
A: Power and Environmental Specifications
Environmental Specifications
Table A-2 lists the system-level operation and non-operating environmental limits.
Table A-2 Environmental Specifications
Attribute Limits
Operating temperature +10ºC to +35ºC with the maximum rate of change not to exceed 10ºC per hour
Non-operating
temperature
-40ºC to +70ºC
Operating humidity range 20%–80%, non-condensing
Non-operating humidity 8%–80%, non-condensing at 35ºC
Acoustic noise Sound power:
7.0 BA in operating condition at typical office ambient temperature
(23ºC +/– 2ºC).
Shock, operating Half sine, 2 g peak, 11 milliseconds
Shock, unpackaged Trapezoidal, 25 g, velocity change 136 inches/second (40 lbs to less than 80
lbs)
Shock, packaged Non-palletized free fall in height 24 inches (40 lbs to less than 80 lbs)
Vibration, unpackaged 5 Hz to 500 Hz, 2.20 g RMS random
ESD +/-12 KV, except I/O port +/- 8 KV per test specification
System cooling
requirement in BTU/Hr
460 Watt Max – 1570 BTU/hour
750 Watt Max – 2560 BTU/hour
007-5837-001 53
Appendix B
B. Regulatory Compliance Information
Table B-1summarizes the product regulatory compliance.
Table B-1 Product Regulatory Compliance
Category Compliance Information
Electromagnetic
Emissions
FCC Class A, EN 55022 Class A, EN 61000-3-2/-3-3, CISPR 22 Class A
Electromagnetic
Immunity
EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN
61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)
Safety CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and
Canada), CE Marking (Europe)
Perchlorate Materials California Best Management Practices Regulations for Perchlorate
Materials:
”This Perchlorate warning applies only to products containing CR
(Manganese Dioxide) Lithium coin cells. Special handling for perchlorate
material may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.”
007-5837-001 55
Appendix C
C. Rail Kit Installation
If the chassis for your server does not have pre-installed rail slides, SGI provides a rail kit. Use the
following steps to install the rail kit.
1. Attach the slide rails to the racks as shown in Figure C-1.
Figure C-1 Attaching Rail Slides to Rack
1
2
3
56 007-5837-001
C: Rail Kit Installation

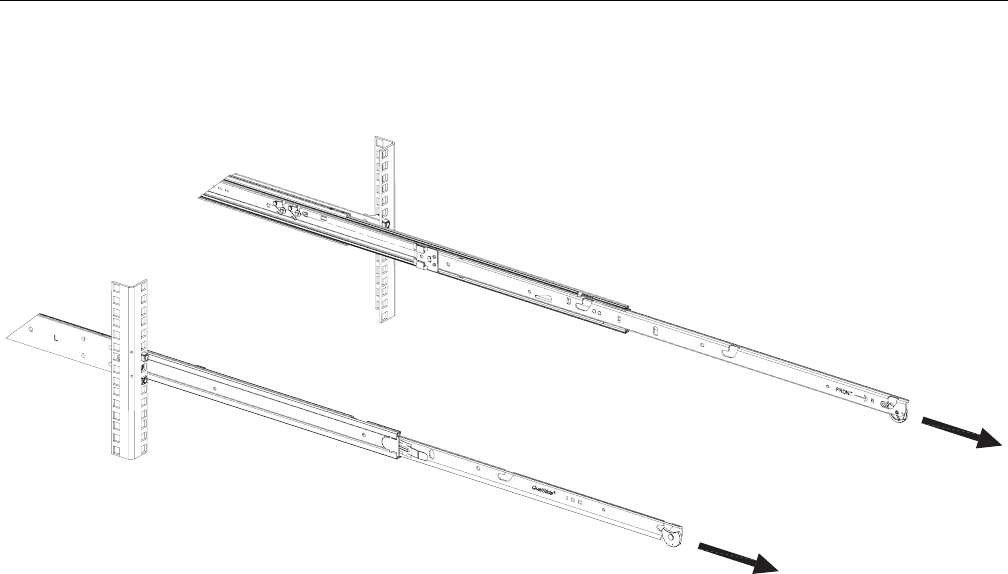

2. Fully extend the rail slides as shown in Figure C-2.
Figure C-2 Extending Rail Slides
007-5837-001 57

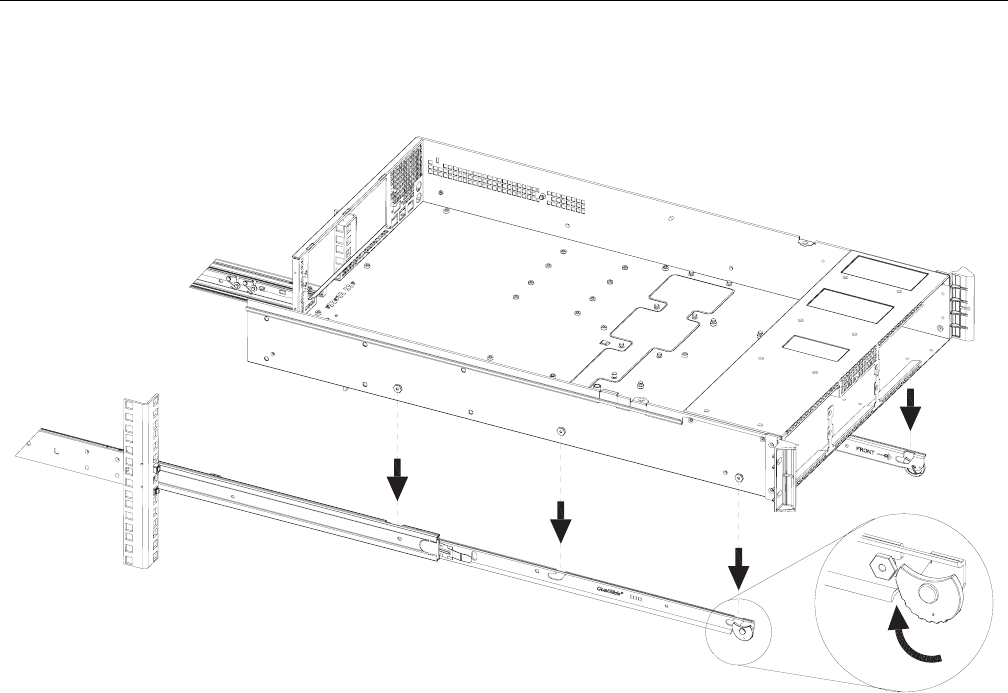

3. Attach the chassis to the rail slides as shown in Figure C-3.
Figure C-3 Attaching Chassis to Rail Slides
58 007-5837-001
C: Rail Kit Installation
4. Push the release tab and push the chassis into the rack as shown in Figure C-4.
Figure C-4 Rail Slide Release Tab
2
1
007-5837-001 59
Appendix D
D. BMC Error Codes
The BMC may generate beep codes upon detection of failure conditions. Beep codes are sounded
each time the problem is discovered (for example, on each power-up attempt) but are not sounded
continuously. Common supported codes are listed in Table D-1.
In Table D-1, each digit in the code is represented by a sequence of beeps whose count is equal to
the digit.
Table D-1 BMC Beep Codes
Beep Code Reason for Beep Associated
Sensors Supported
1-5-2-1 No CPUs installed or first CPU socket is
empty.
CPU Missing sensor Yes
1-5-2-4 MSID Mismatch. MSID Mismatch
sensor.
Yes
1-5-4-2 Power fault: DC power is unexpectedly
lost (power good dropout).
Power unit—power
unit failure offset.
Yes
1-5-4-4 Power control fault (power good assertion
timeout).
Power unit—soft
power control failure
offset.
Yes
1-5-1-2 VR Watchdog Timer sensor assertion VR Watchdog timer
1-5-1-4 The system does not power on or
unexpectedly powers off and a power
supply unit (PSU) is present that is an
incompatible model with one or more
other PSUs in the system.
PSU status

Navigation menu
