Fujitsu PC Corporation has made every effort to ensure

the accuracy and completeness of this document.

However, as ongoing development efforts are continually

improving the capabilities of our products, we cannot

guarantee the accuracy of the contents of this document.

We disclaim liability for errors, omissions, or future

changes.

Fujitsu, the Fujitsu logo, and LifeBook are registered

trademarks of Fujitsu Limited.

The following are registered trademarks of Microsoft

Corporation: MS, MS-DOS, Windows.

PCMCIA is a trademark of the Personal Computer

Memory Card International Association.

Intel and Pentium are registered trademarks of Intel

Corporation.

Adobe Acrobat Reader is a registered trademark of

Adobe System Inc.

LapLink is a registered trademark of LapLink.com, Inc.

PowerQuest and Drive Image are registered trademarks

of PowerQuest Corporation.

Netscape is a registered trademark of Netscape

Communications Corporation.

McAfee is a registered trademark of Network Associates/

McAfee.com, Inc.

All other trademarks mentioned herein are the property

of their respective owners.

reserved. No part of this publication may be copied,

reproduced, or translated, without prior written consent

of Fujitsu PC Corporation. No part of this publication

may be stored or transmitted in any electronic form

without the written consent of Fujitsu PC Corporation.

B5FH-6571-01EN-00

DECLARATION OF CONFORMITY

according to FCC Part 15

Responsible Party Name: Fujitsu PC Corporation

Address: 5200 Patrick Henry Drive

Santa Clara, CA 95054

Telephone: (408) 982-9500

Declares that product: Model Configuration:

LifeBook B2620

Complies with Part 15 of the FCC Rules.

This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions:

(1) This device must not be allowed to cause harmful interference, (2) This device must accept any interference

received, including interference that may cause undesired operation.

B Series.book Page 1 Thursday, September 26, 2002 11:01 AM

LifeBook B Series

B Series.book Page 2 Thursday, September 26, 2002 11:01 AM

Table of Contents

Fujitsu LifeBook B Series Notebook

Table of Contents

PREFACE

Preface

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . .3

FPC Contact Information . . . . . . . . . . . . . . . . . . .3

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

GETTING STARTED WITH

YOUR LIFEBOOK NOTEBOOK

Overview

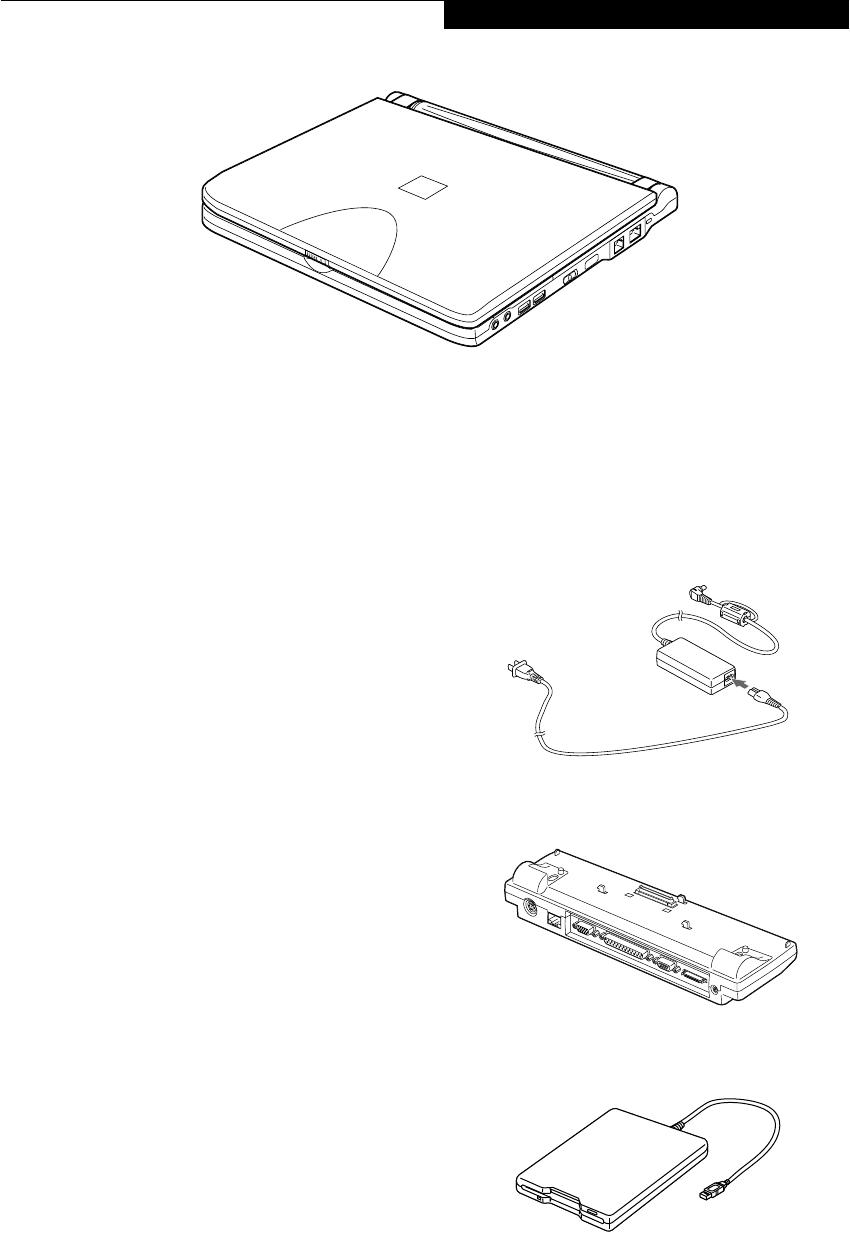

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Locating the Controls

and Connectors

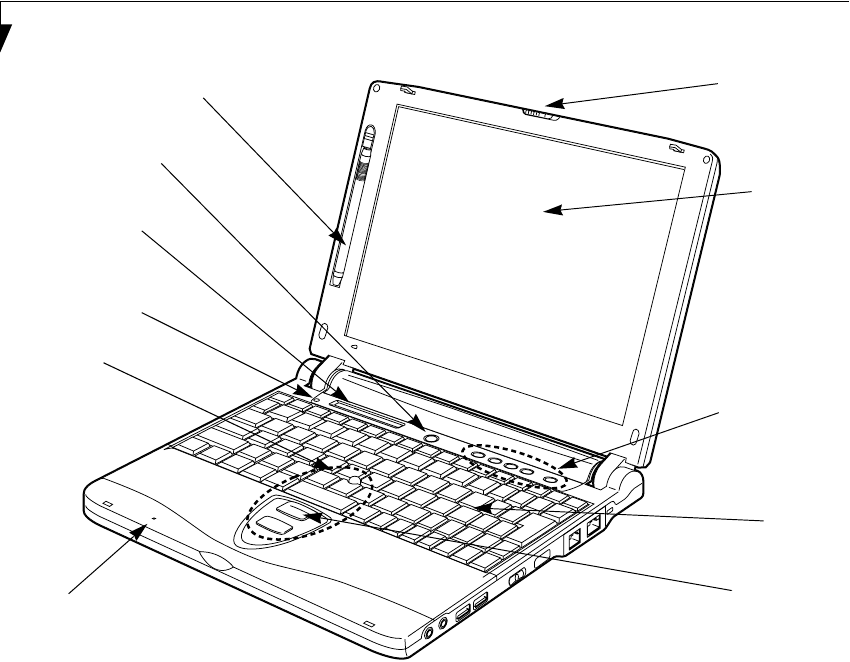

Top and Front Components . . . . . . . . . . . . . . . . .8

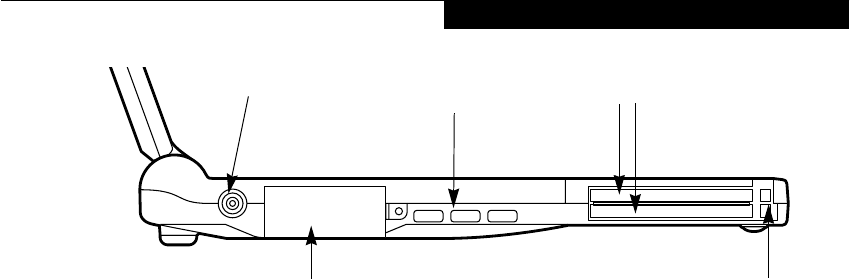

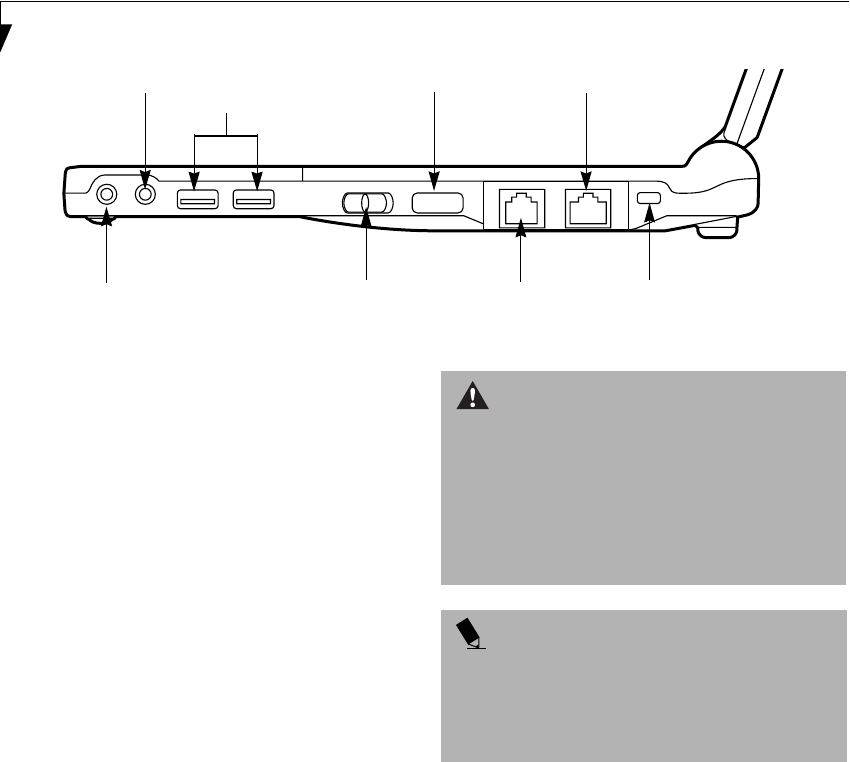

Left-Side Panel Components . . . . . . . . . . . . . . . .9

Right-Side Panel Components . . . . . . . . . . . . . .10

Bottom Components . . . . . . . . . . . . . . . . . . . . .11

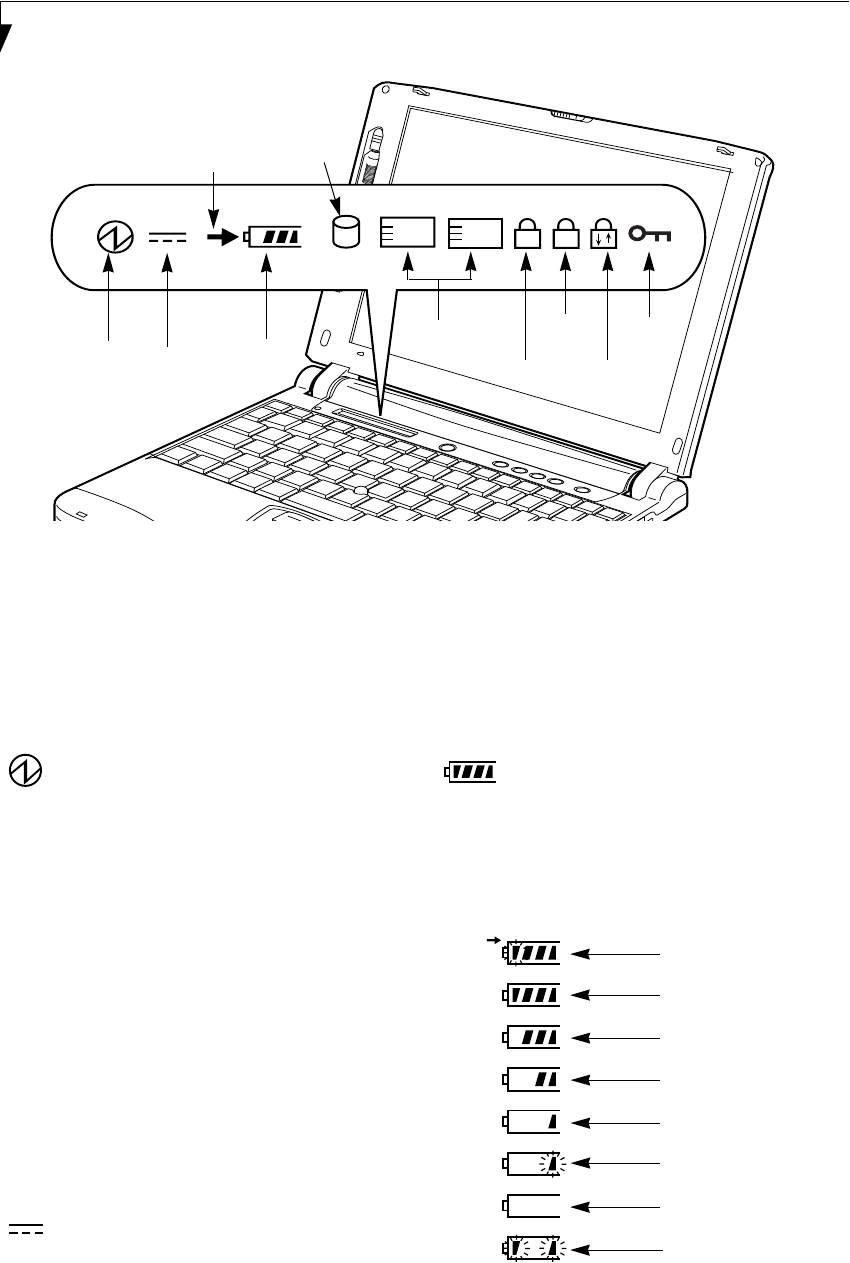

Status Indicator Panel

Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . .12

AC Adapter Indicator . . . . . . . . . . . . . . . . . . . . .12

Battery Level Indicators . . . . . . . . . . . . . . . . . . .12

Battery Charging Indicators . . . . . . . . . . . . . . . .13

Hard Drive or Removable

Media Drive Access Indicator. . . . . . . . . . . . .13

PC Card Access Indicators . . . . . . . . . . . . . . . . .13

NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . .13

CapsLock Indicator. . . . . . . . . . . . . . . . . . . . . . .13

ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . .13

Security Indicator. . . . . . . . . . . . . . . . . . . . . . . .13

Keyboard

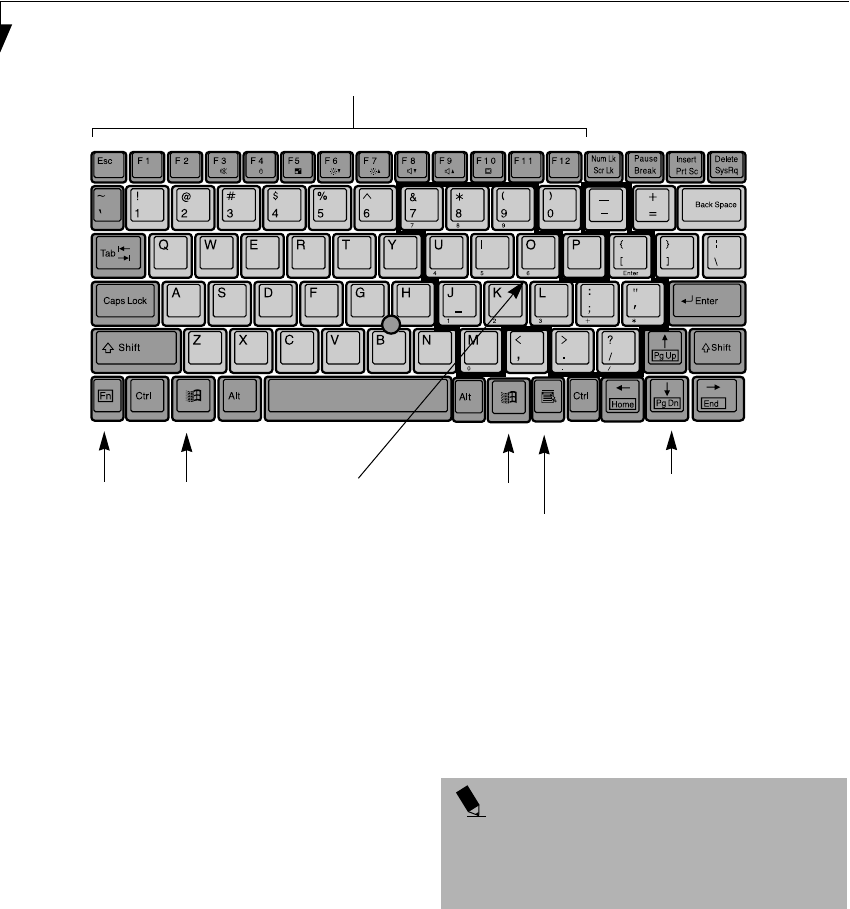

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . .14

Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . .14

Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . .14

Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Function Keys. . . . . . . . . . . . . . . . . . . . . . . . . . .15

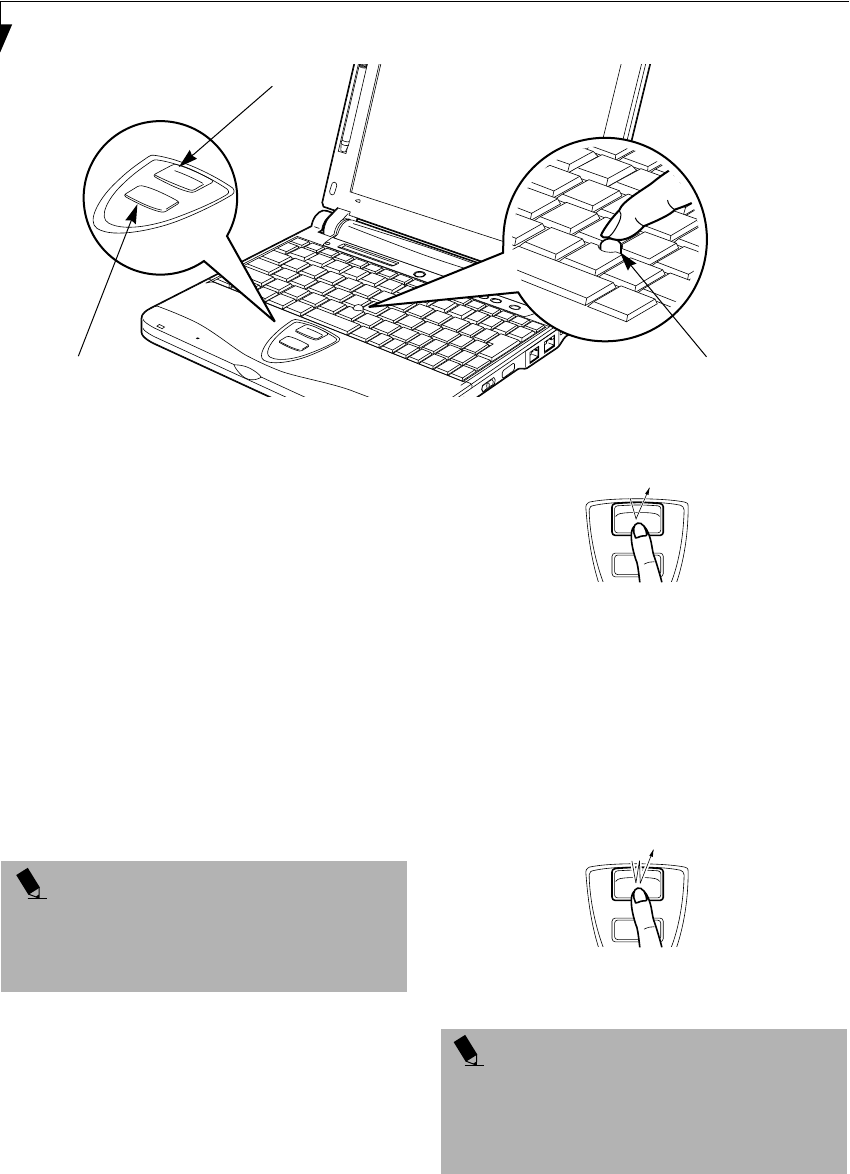

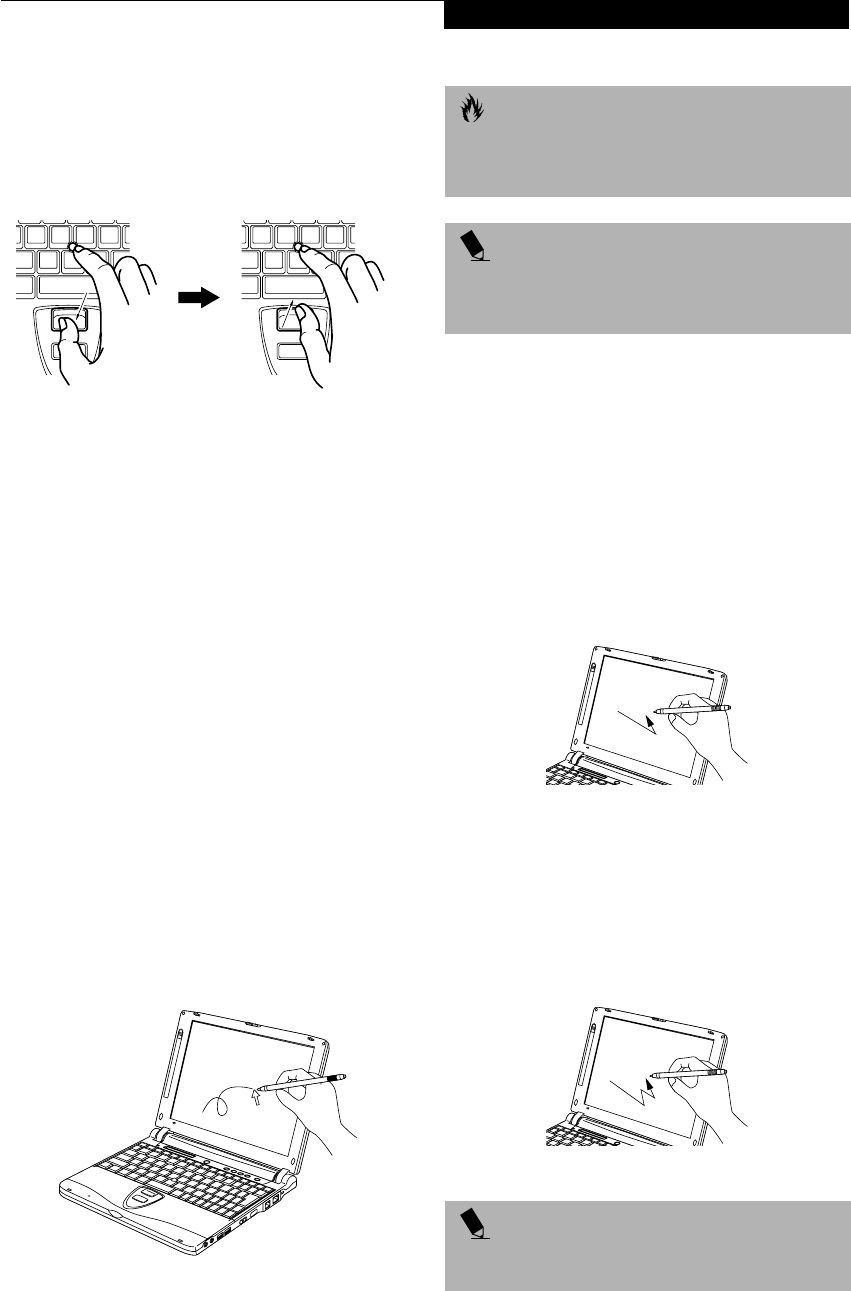

Quick Point Pointing Device

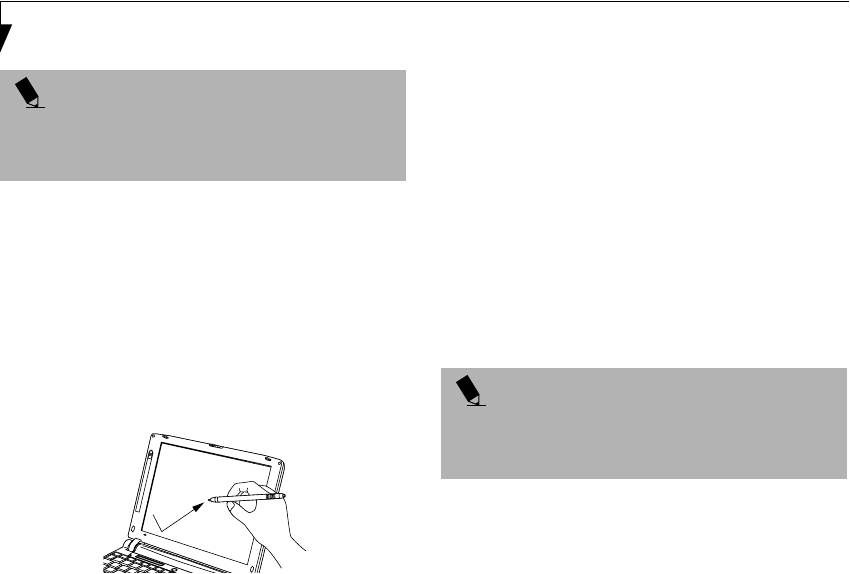

Touch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Volume Control

Controlling the Volume . . . . . . . . . . . . . . . . . . .19

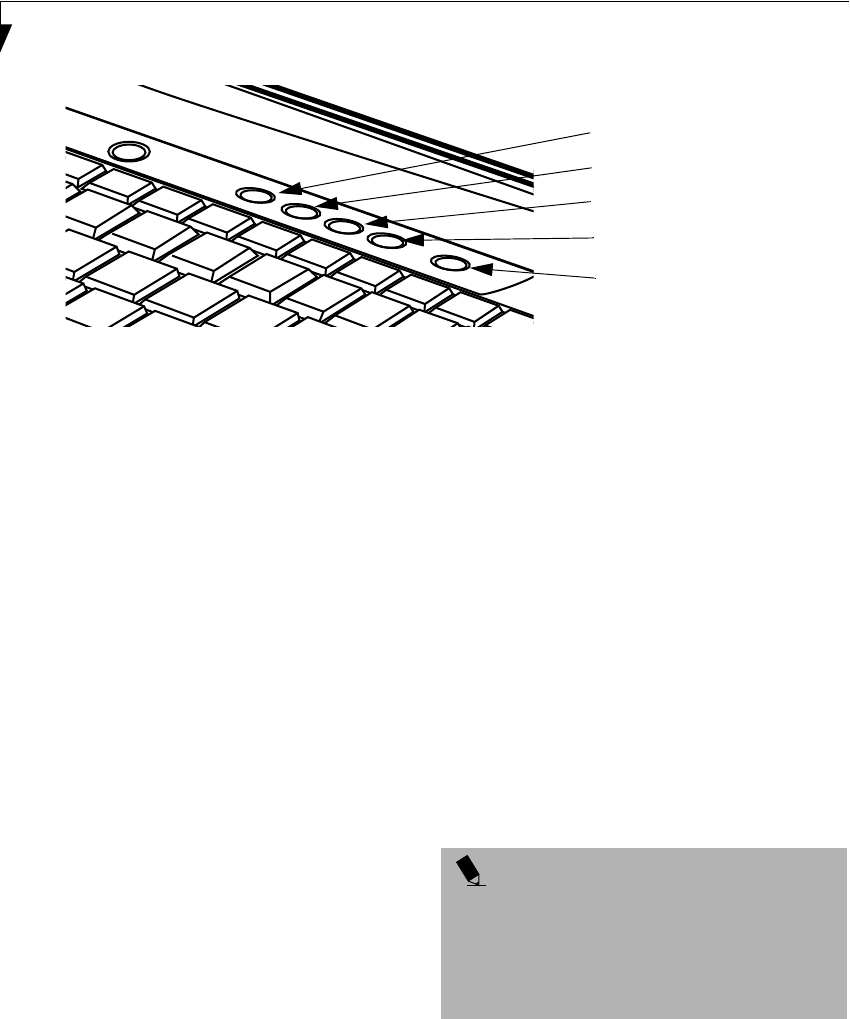

LifeBook Security/Application Panel

Setting up Your LifeBook Security Panel . . . . . . .20

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Operating Your LifeBook Security/

Application Panel. . . . . . . . . . . . . . . . . . . . . .21

Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Uninstalling the Security Panel Application . . . . . 21

Launching Applications with

the Security/Application Panel . . . . . . . . . . . .22

USING YOUR

LIFEBOOK NOTEBOOK

Power Sources

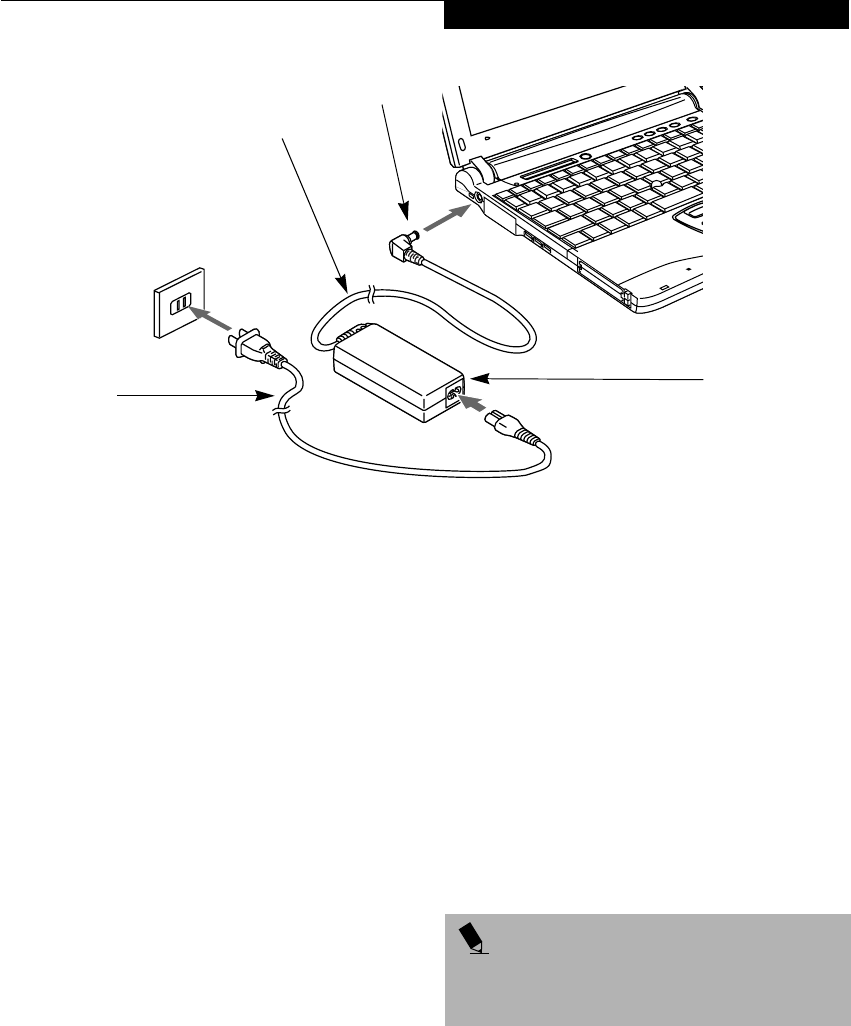

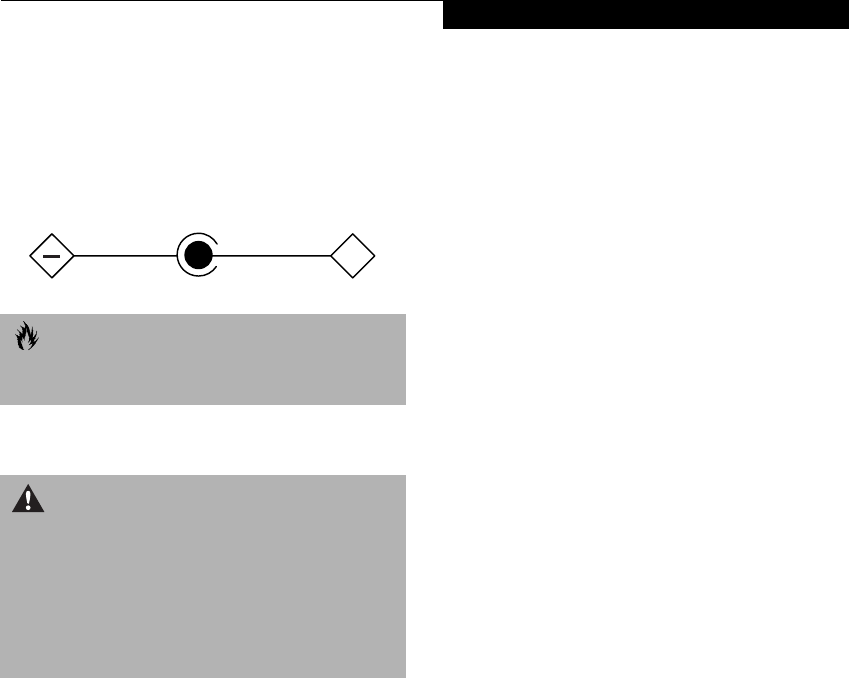

Connecting the Power Adapters . . . . . . . . . . . . .27

Display Panel

Opening the Display Panel . . . . . . . . . . . . . . . . .28

Adjusting Display Panel Brightness . . . . . . . . . . .28

Closing the Display Panel . . . . . . . . . . . . . . . . . .28

B Series.book Page 3 Thursday, September 26, 2002 11:01 AM

LifeBook B Series

Starting Your LifeBook Notebook

Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . 29

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . 29

Booting the System . . . . . . . . . . . . . . . . . . . . . . 30

Activating Additional Utilities . . . . . . . . . . . . . . . 30

Registering Your LifeBook notebook . . . . . . . . . 31

Power Management

Suspend/Resume Button . . . . . . . . . . . . . . . . . . 32

Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Hibernate Mode. . . . . . . . . . . . . . . . . . . . . . . . . 33

Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . . 34

Hard Disk Timeout . . . . . . . . . . . . . . . . . . . . . . . 34

Windows Power Management. . . . . . . . . . . . . . 34

Restarting the System. . . . . . . . . . . . . . . . . . . . . 34

Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

USER-INSTALLABLE FEATURES

Lithium ion Battery

Recharging the Batteries. . . . . . . . . . . . . . . . . . . 37

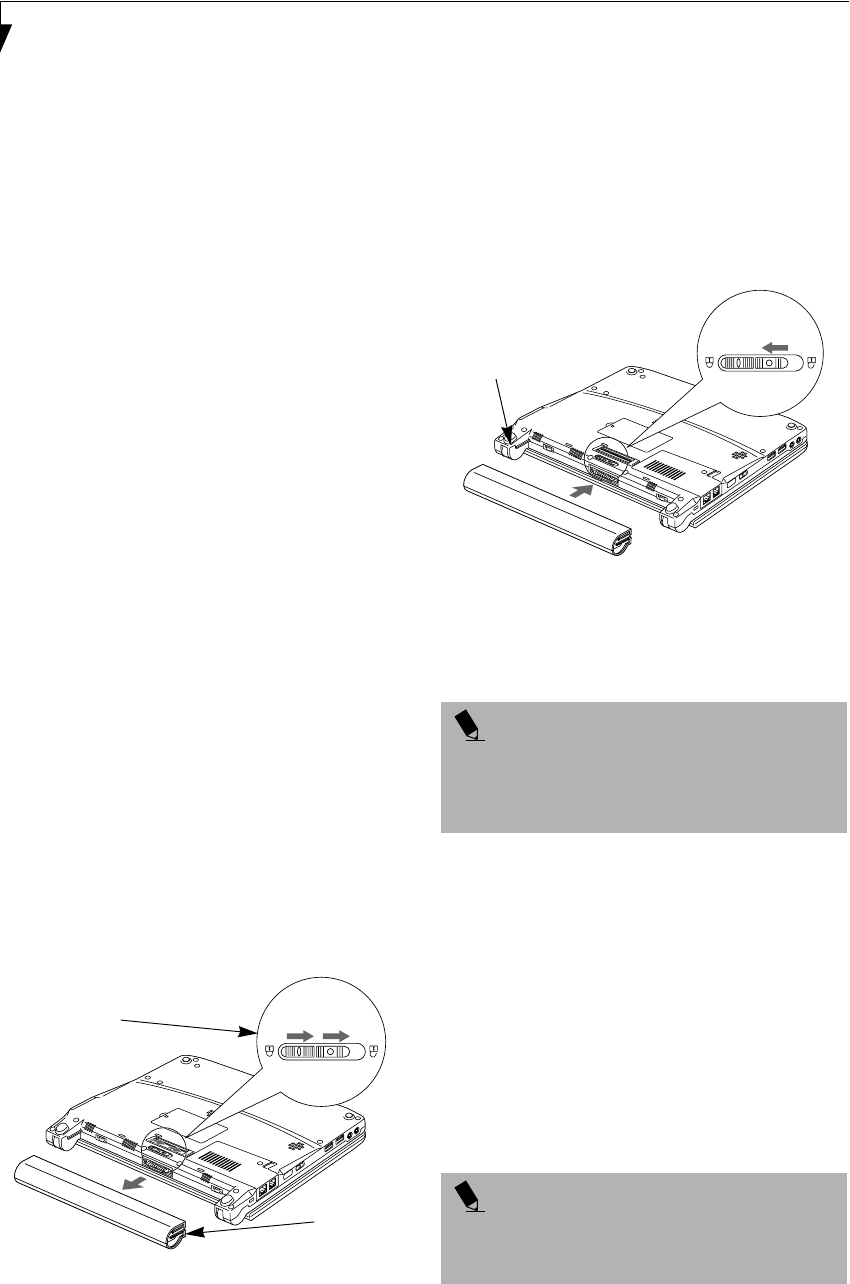

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . 38

External Floppy Disk Drive

Connecting an External Floppy Disk drive. . . . . . 39

Loading a Disk . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Ejecting a Disk . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Preparing a Disk for Use. . . . . . . . . . . . . . . . . . . 39

PC Cards

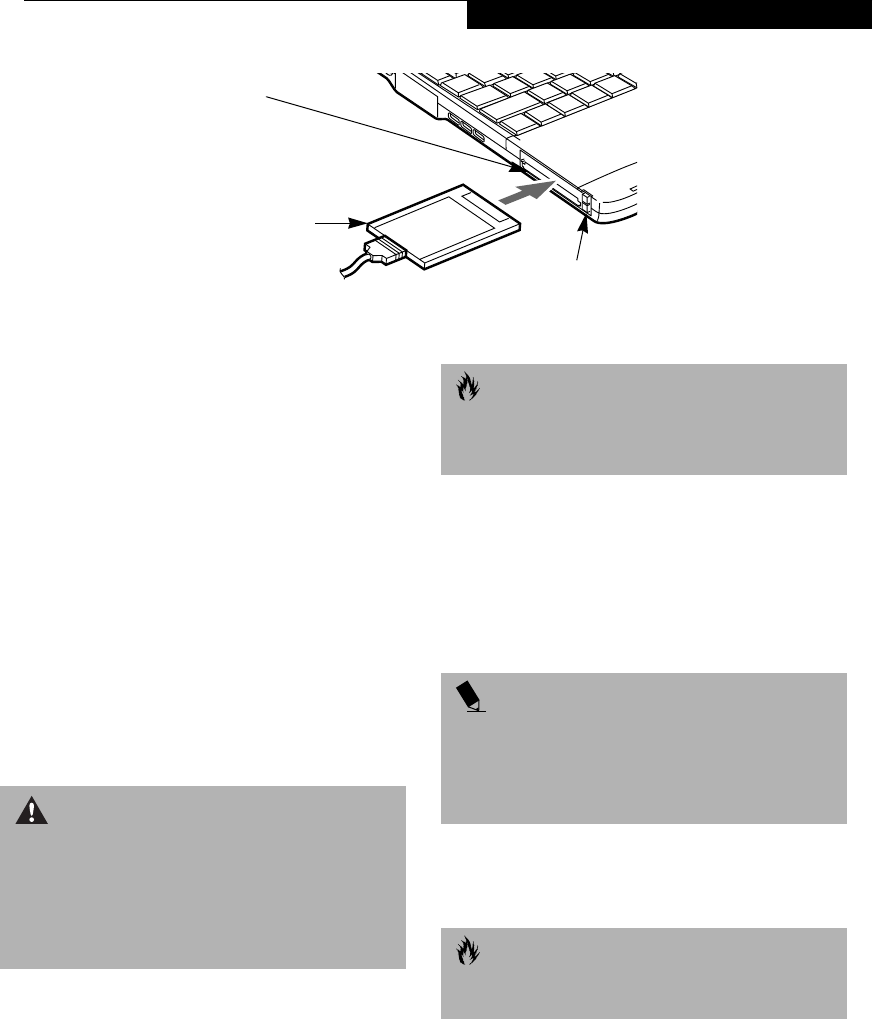

Installing PC Cards . . . . . . . . . . . . . . . . . . . . . . . 41

Removing PC Cards . . . . . . . . . . . . . . . . . . . . . . 41

Smart Card Reader. . . . . . . . . . . . . . . . . . . . . . . 41

Memory Upgrade Module

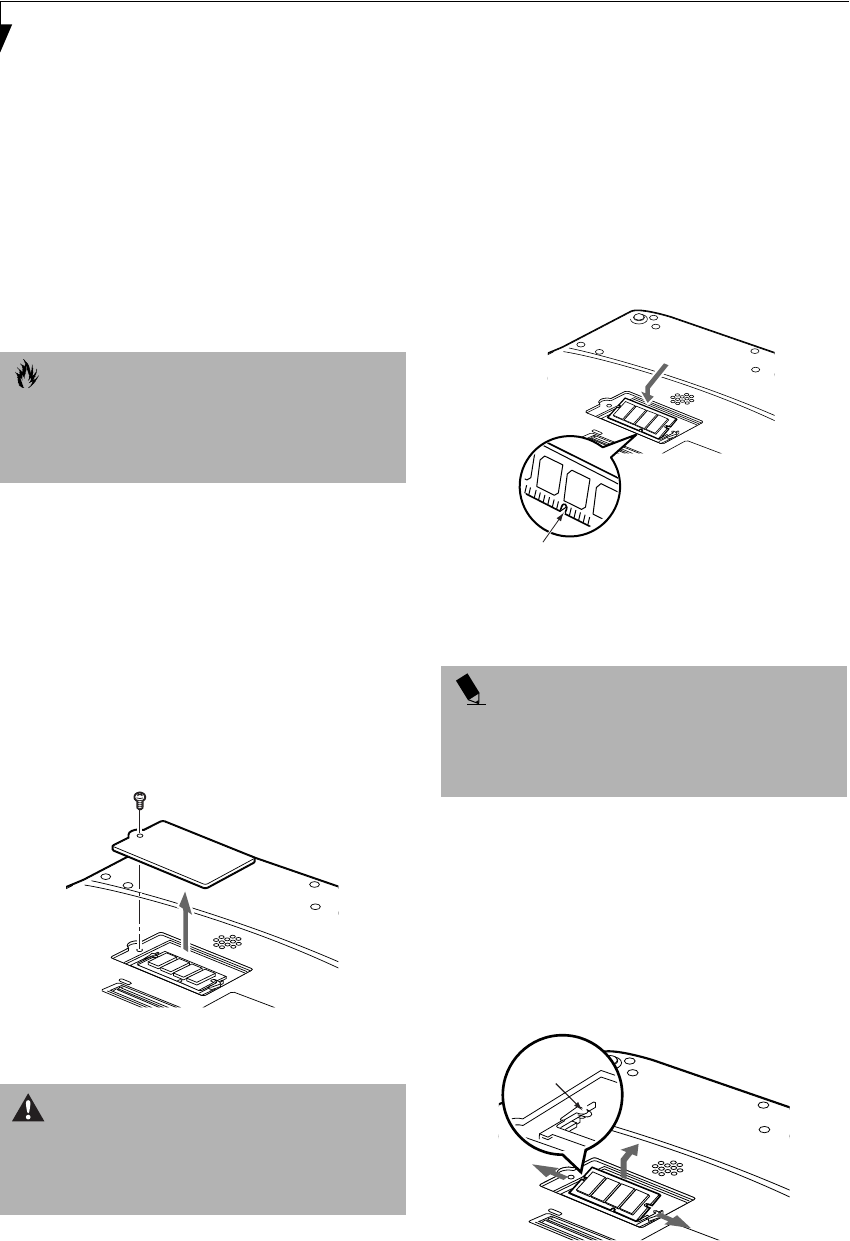

Installing a Memory Upgrade Module . . . . . . . . 42

Removing a Memory Upgrade Module . . . . . . . 42

Checking the Computer Recognition

of New Memory Capacity . . . . . . . . . . . . . . . 43

Port Replicator

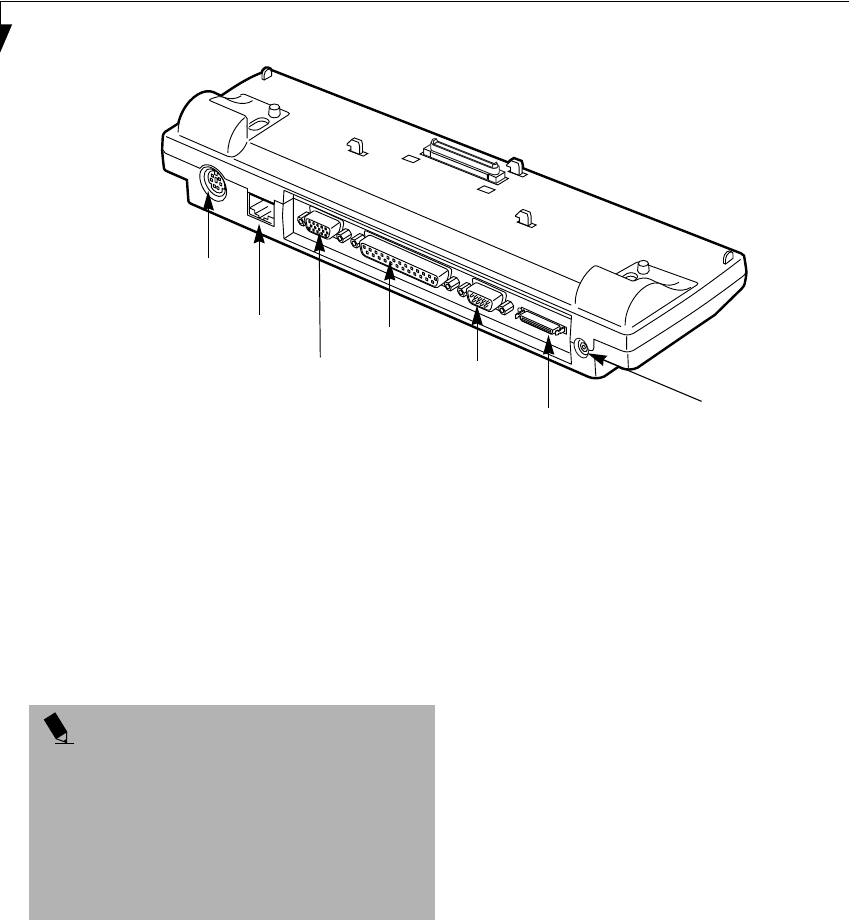

Rear Panel Components. . . . . . . . . . . . . . . . . . . 44

Front Panel Components . . . . . . . . . . . . . . . . . . 45

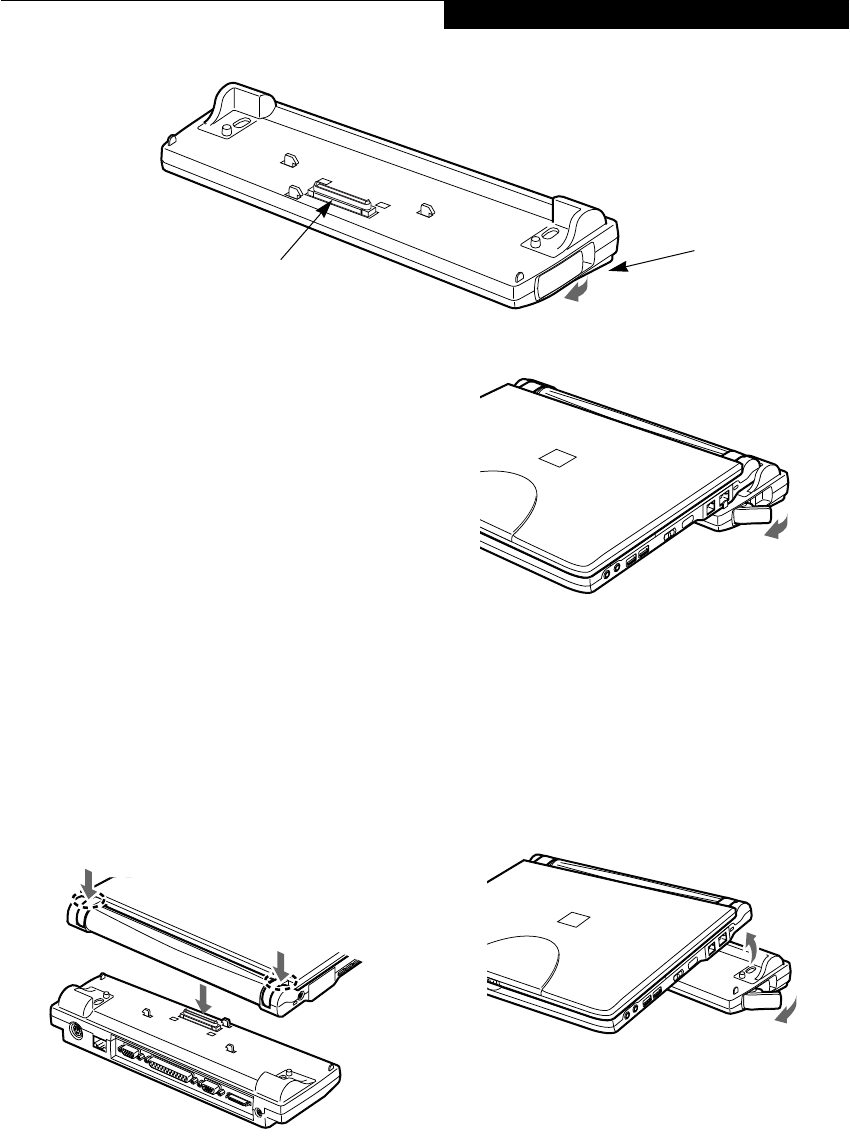

Attaching the Port Replicator . . . . . . . . . . . . . . . 45

Detaching the Port Replicator. . . . . . . . . . . . . . . 45

Device Ports

Modem (RJ-11) Jack . . . . . . . . . . . . . . . . . . . . . 46

Internal LAN (RJ-45) jack (LAN model only). . . . 46

Parallel Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

PS/2 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Docking Port . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

External Floppy Disk Drive Port . . . . . . . . . . . . . 47

Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . 47

Infrared Port . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . 47

Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . 47

External Monitor Port . . . . . . . . . . . . . . . . . . . . 48

TROUBLESHOOTING

Troubleshooting

Identifying the Problem . . . . . . . . . . . . . . . . . . . 51

Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . 51

Troubleshooting Table . . . . . . . . . . . . . . . . . . . . 52

Power On Self Test Messages . . . . . . . . . . . . . . 60

Modem Result Codes. . . . . . . . . . . . . . . . . . . . . 61

Restoring Your

Pre-installed Software

Drive Image Special Edition (DISE) . . . . . . . . . . . 62

Using DISE with Windows 2000/XP. . . . . . . . . . 62

Installing and Using DISE With

Windows 98 Systems . . . . . . . . . . . . . . . . . . 63

Care and Maintenance

LifeBook Notebook . . . . . . . . . . . . . . . . . . . . . . 67

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Floppy Disks and Drives . . . . . . . . . . . . . . . . . . . 68

CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

B Series.book Page 4 Thursday, September 26, 2002 11:01 AM

Table of Contents

SYSTEM SPECIFICATIONS

Specifications

Configuration Label . . . . . . . . . . . . . . . . . . . . . .73

Microprocessor. . . . . . . . . . . . . . . . . . . . . . . . . .73

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Mass Storage Device Options. . . . . . . . . . . . . . .73

Integrated Pointing Device . . . . . . . . . . . . . . . . .73

LifeBook Security/Application Panel . . . . . . . . . .73

Theft Prevention Lock SLot. . . . . . . . . . . . . . . . .74

Communications . . . . . . . . . . . . . . . . . . . . . . . .74

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Dimensions and Weight . . . . . . . . . . . . . . . . . . .74

Environmental Requirements . . . . . . . . . . . . . . .74

Popular Accessories . . . . . . . . . . . . . . . . . . . . . .75

Pre-Installed Software . . . . . . . . . . . . . . . . . . . .75

Learning About Your Application Software. . . . .75

GLOSSARY

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Appendix - Wireless

LAN User’s Guide

FCC Regulatory Information . . . . . . . . . . . . . . .91

Before Using This Device . . . . . . . . . . . . . . . . . .92

Connecting Windows 98/2000 Systems. . . . . . .93

Network Connection: Windows 98. . . . . . . . . . .94

Network Connection: Windows 2000. . . . . . . . .96

Connecting Windows XP Systems . . . . . . . . . . .99

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .103

If a Second LAN Device is Installed. . . . . . . . . .109

About IP Addresses . . . . . . . . . . . . . . . . . . . . .109

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .110

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

B Series.book Page 5 Thursday, September 26, 2002 11:01 AM

LifeBook B Series

B Series.book Page 6 Thursday, September 26, 2002 11:01 AM

Preface

B Series.book Page 1 Thursday, September 26, 2002 11:01 AM

LifeBook B Series

B Series.book Page 2 Thursday, September 26, 2002 11:01 AM

Preface

ABOUT THIS GUIDE

The LifeBook® B Series notebook from Fujitsu PC

Corporation is a powerful mini-notebook computer. It

is powered by an Intel® Pentium™ III microprocessor,

has a built-in color touch screen display, and brings the

computing power of desktop personal computers (PCs)

to a portable environment.

This manual explains how to operate your LifeBook

notebook’s hardware and built-in system software. Your

LifeBook notebook is compatible with the IBM® PC AT.

It comes with Windows® 98 Second Edition, Windows®

2000 Professional, Windows XP Home, or Windows XP

Professional pre-installed.

Your notebook is a completely self-contained unit with

an active-matrix (TFT) color LCD display. It has a

powerful interface that enables it to support a variety of

optional features.

Conventions Used in the Guide

Keyboard keys appear in brackets.

Example: [Fn], [F1], [Esc], [Enter] and [Ctrl].

Pages with additional information about a specific topic

are cross-referenced within the text.

Example: (See page xx.)

On screen buttons or menu items appear in bold

Example: Click OK to restart your notebook.

DOS commands you enter appear in Courier type.

Example: Shutdown the computer?

FPC CONTACT INFORMATION

Service and Support

You can contact FPC Service and Support the following

ways:

■Toll free: 1-800-8Fujitsu (1-800-838-5487)

■Fax: 1-901-259-5700

■E-mail: 8fujitsu@fujitsupc.com

■Web site: http://www.fujitsupc.com

Before you place the call, you should have the

following information ready so that the customer

support representative can provide you with the

fastest possible solution:

■Product name

■Product configuration number

■Product serial number

■Purchase date

■Conditions under which the problem occurred

■Any error messages that have occurred

■Hardware configuration

■Type of device connected, if any

Fujitsu Online

You can go directly to the online Fujitsu Product catalog

for your notebook by clicking on the LifeBook Accesso-

ries Web site URL link, located in the Windows

Start menu.

You can also reach Fujitsu Service and Support online by

clicking on the Fujitsu Service and Support Web site

URL link, located in the Service and Support Software

folder of the Windows Start menu.

WARRANTY

Your LifeBook notebook is backed by a three year Inter-

national Limited Warranty and includes toll-free tech-

nical support. Check the service kit that came with your

notebook for warranty terms and conditions.

POINT

The point icon highlights information that will enhance

your understanding of the subject material.

CAUTION

The caution icon highlights information that is

important to the safe operation of your computer, or to

the integrity of your files. Please read all caution

information carefully.

WARNING

The warning icon highlights information that can be

hazardous to either you, your LifeBook notebook, or

your files. Please read all warning information carefully.

POINT

You must have an active internet connection to use the

online URL links.

B Series.book Page 3 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section One

B Series.book Page 4 Thursday, September 26, 2002 11:01 AM

Getting to Know

Your LifeBook

B Series.book Page 5 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Two

B Series.book Page 6 Thursday, September 26, 2002 11:01 AM

Getting to Know Your LifeBook

Figure 2-1 Fujitsu LifeBook B Series notebook (LAN model shown)

Overview

This section describes the components of your Fujitsu

LifeBook B Series notebook. We strongly recommend

that you read it before using your LifeBook notebook,

even if you are already familiar with notebook

computers.

UNPACKING

When you receive your LifeBook notebook, unpack it

carefully, and compare the parts you have received with

the items listed below.

For a pre-configured model you should have:

■LifeBook B Series notebook (Figure 2-1)

■AC adapter with AC power cord (Figure 2-2)

■Phone/Modem (RJ-11) telephone cable

■Stylus (located in stylus holder)

■Two additional pointer caps

■Driver and Application Restore CD

■Getting Started Guide

■User’s Guide (this document)

■International Limited Warranty Brochure

■Microsoft Windows Manual and

Certificate of Authenticity

■Premium Care Registration card and envelope

Depending upon the configuration of your notebook,

you will have one of the following battery

configurations:

■One main Lithium ion battery pre-installed,

or,

■One main high-capacity Lithium ion battery (pre-

installed),

or,

■One main Lithium ion battery pre-installed and one

spare main high-capacity Lithium ion battery

You may also have one or more of the following devices

in the box:

■External USB Floppy Disk Drive (Figure 2-4),

and/or,

■Port Replicator (Figure 2-3)

Figure 2-2 AC Adapter

Figure 2-3 Optional Port Replicator (LAN model shown)

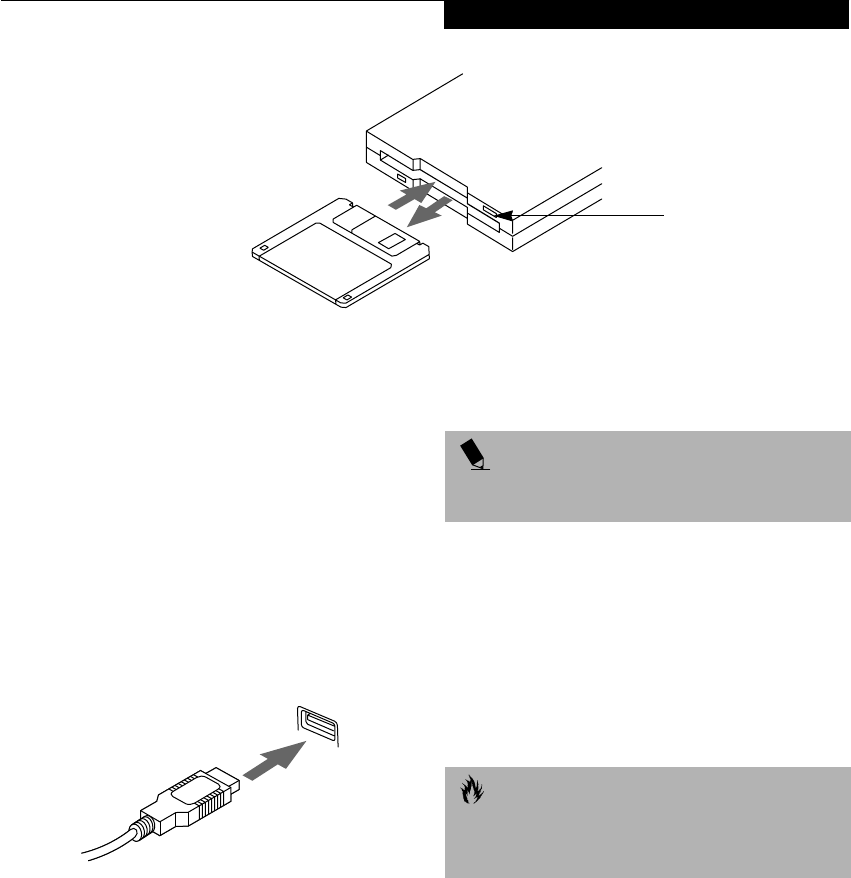

Figure 2-4 External USB Floppy Disk Drive

B Series.book Page 7 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Two

Figure 2-5 LifeBook notebook with display open

Locating the Controls

and Connectors

TOP AND FRONT COMPONENTS

The following is a brief description of your LifeBook

notebook’s top and front components. (Figure 2-5)

Touch Screen Stylus

The stylus is used as the pointing device for the touch

screen.

Closed Cover Switch

The closed cover switch turns off the LCD back

lighting when the display panel is closed.

Suspend/Resume Button

The Suspend/Resume button allows you to suspend

notebook activity without powering off, resume your

notebook from standby mode, and power on your note-

book when it has been shut down from the Windows

operating system. See “Suspend/Resume Button” on

page 32.

Display Panel Latch

The display panel latch locks and releases the display

panel.

Status Indicator Panel

The Status Indicator Panel displays symbols that corre-

spond with a specific component of your LifeBook note-

book. See “Status Indicator Panel” on page 12.

LifeBook Security/Application Panel

The LifeBook Security/Application Panel provides

hardware security and one-touch application launch

capability. See “LifeBook Security/ Application Panel”

on page 20.

Quick Point Pointing Device

The Quick Point pointing device consists of two mouse-

like buttons and one cursor control button. See “Quick

Point Pointing Device” on page 16.

Keyboard

A full-function keyboard with dedicated Windows

keys. See “Keyboard” on page 14.

Built-in Microphone

The built-in microphone allows mono audio input.

Display Panel

The display panel is a color LCD panel with back

lighting for the display of text and graphics and Touch

Screen functionality.

Display Panel Latch

Display Panel

Status Indicator Panel

Closed Cover Switch

Keyboard

LifeBook Security/

Quick Point

Pointing Device

Suspend/Resume Button

Touch Screen Stylus

Application Panel

Cursor Control

Built-in

Microphone

B Series.book Page 8 Thursday, September 26, 2002 11:01 AM

Getting to Know Your LifeBook

Figure 2-6 LifeBook notebook left-side panel

LEFT-SIDE PANEL COMPONENTS

Following is a brief description of your LifeBook note-

book’s left-side components.

DC Power Jack

The DC power jack allows you to plug in the AC adapter

or the optional Auto/Airline adapter to power your

notebook and charge the internal Lithium ion Battery.

(Figure 2-6)

External Monitor Port

The external monitor port allows you to connect an

external VGA or SVGA CRT monitor. Note that when

the optional Port Replicator is attached to the system,

you must use the external monitor port on the Port

Replicator rather than the port on the system. (Figure 2-

6) See “External Monitor Port” on page 48.

PC Card Slots

The PC Card Slots allow you to install two Type II or

one Type III PC Card. (Figure 2-6) See “PC Cards” on

page 41.

DC Power Jack PC Card Slots

PC Card Eject/Lock Button

External Monitor Port

(behind cover)

Air Vents

B Series.book Page 9 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Two

Figure 2-7 LifeBook notebook right-side panel

RIGHT-SIDE PANEL COMPONENTS

Following is a brief description of your LifeBook note-

book’s right-side components.

Headphone Jack

The headphone jack allows you to connect headphones

or powered external speakers. (Figure 2-7) See “Head-

phone Jack” on page 47.

Microphone Jack

The microphone jack allows you to connect an external

mono microphone. (Figure 2-7) See “Microphone Jack”

on page 47.

Power Switch

This switch is the main power switch for your notebook.

(Figure 2-7)

USB Ports

The two USB ports allow you to connect Universal Serial

Bus devices. (Figure 2-7) See “Universal Serial Bus Ports”

on page 47.

Infrared Port

The fast IrDA compatible port allows you to communi-

cate with another IrDA compatible infrared device

without a cable. (Figure 2-7)

Modem (RJ-11) Telephone Port

The Modem (RJ-11) telephone port is for attaching

a telephone line to the internal multinational 56K

modem. (Figure 2-7)

LAN (RJ-45) Jack

The optional internal LAN (RJ-45) port is used for an

internal Fast Ethernet (10/100 Base-T/Tx) connection.

(Figure 2-7) See “Internal LAN (RJ-45) jack (LAN model

only)” on page 46.

Anti-theft Lock Slot

The anti-theft lock slot allows you to attach a optional

physical lock down device. (Figure 2-7)

Headphone Jack

Microphone Jack

Power Switch

USB Ports

Anti-theft Lock Slot

Infrared Port

Modem (RJ-11) Port

Optional LAN (RJ-45)

WARNING

The internal multinational modem is not intended for

use with Digital PBX systems. Do not connect the

internal modem to a Digital PBX as it may cause serious

damage to the internal modem or your entire LifeBook

notebook. Consult your PBX manufacturer’s

documentation for details. Some hotels have Digital

PBX systems. Be sure to find out BEFORE you connect

your modem.

POINT

The internal modem is designed to the ITU-T V.90

standard. Its maximum speed of 53000bps is the

highest allowed by FCC, and its actual connection

rate depends on the line conditions. The maximum

speed is 33600bps at upload.

B Series.book Page 10 Thursday, September 26, 2002 11:01 AM

Getting to Know Your LifeBook

Figure 2-8 LifeBook notebook bottom panel

BOTTOM COMPONENTS

Following is a brief description of your LifeBook note-

book’s bottom panel components.

Lithium ion Battery Bay

The battery bay contains the internal Lithium ion

battery. It can be opened for the removal of the battery

when stored over a long period of time or for swapping

a discharged battery with a charged Lithium ion battery.

(Figure 2-8) See “Lithium ion Battery” on page 37.

Stereo Speakers

The built-in dual speakers allow for stereo sound.

(Figure 2-8)

Docking Port Connector

This connector allows you to connect the optional Port

Replicator. (Figure 2-8)

Main Unit and Configuration Label

The configuration label shows the model number and

other information about your LifeBook notebook. In

addition, the configuration portion of the label has the

serial number and manufacturer information that you

will need to give your support representative. It identi-

fies the exact version of various components of your

notebook. (Figure 2-8)

Memory Upgrade Compartment

Your LifeBook notebook comes with high speed

Synchronous Dynamic RAM (SDRAM). The memory

upgrade compartment allows you to expand the system

Memory Upgrade

Compartment

Lithium ion

Battery Bay

Main Unit and

Configuration

Label (approximate

Speaker

Battery Pack Lock Battery Pack Latch

Docking Port

Connector

location)

B Series.book Page 11 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Two

Figure 2-9 Status Indicator Panel

Status Indicator Panel

The Status Indicator displays symbols that correspond

with a specific component of your LifeBook notebook.

These symbols tell you how each of those components

are operating. (Figure 2-9)

POWER INDICATOR

The Power indicator symbol states whether your system

is operational. It has several different states, each of

which tells you what mode your notebook is in at that

time.

■Steady On: This means that there is power to your

notebook and that it is ready for use.

■Flashing: This means that your notebook is in Standby

mode.

■Steady Off: This means that your system is either in

Hibernate mode, or that your notebook has been

turned off with the power switch.

If you are charging your battery, the Power indicator

symbol will remain on even if your LifeBook notebook is

shut off. The Power indicator symbol will also remain on

if you have either adapter connected and are shut down

from Windows, but have not turned off the power

switch.

AC ADAPTER INDICATOR

The AC Adapter indicator states whether your notebook

is operating from the AC adapter, the Auto/Airline

adapter or the batteries. This icon has two different

states that can tell you what power source your notebook

is using.

■On: This means that either of the adapters are

currently in use.

■Off: Power is only coming from the batteries, and

you do not have an adapter connected.

BATTERY LEVEL INDICATORS

The Battery Level indicators state whether or not the

primary Lithium ion battery is installed. In addition,

this symbol states how much charge is available within

the installed battery. The symbol will only be displayed

for a battery that is currently installed in your notebook.

(Figure 2-10)

Figure 2-10 Battery Level Indicator

1A1

Battery

Level

Hard Drive

Access

Battery

Charging

PC Card

Access

NumLk ScrLk

Security

Indicator

CapsLk

Power AC Adapter

76%–100% Charging

76%–100%

51%–75%

26%–50%

11%–25%

Low Warning <11%

Critical Low or

Dead Battery

Shorted Battery

B Series.book Page 12 Thursday, September 26, 2002 11:01 AM

Getting to Know Your LifeBook

BATTERY CHARGING INDICATORS

Located to the left of the Battery Level indicator is a

small arrow symbol. This symbol states whether the

battery is charging. This indicator operates whether the

power switch is in the On or Off position, and will flash

if the battery is too hot or cold to charge.

HARD DRIVE OR REMOVABLE

MEDIA DRIVE ACCESS INDICATOR

The Hard Drive Access indicator states whether your

internal hard drive.

PC CARD ACCESS INDICATORS

The PC Card Access indicator states whether or not your

notebook is accessing a PC Card. The indicator will flash

if your software tries to access a PC Card even if there is

no card installed. See “PC Cards” on page 41.

NUMLK INDICATOR

The NumLk indicator states that the integral keyboard is

set in ten-key numeric keypad mode.

CAPSLOCK INDICATOR

The CapsLock indicator states that your keyboard is set

to type in all capital letters.

SCRLK INDICATOR

The ScrLk indicator states that your scroll lock is active.

SECURITY INDICATOR

The Security Indicator flashes (if a password was set)

when the system resumes from Off or Standby modes.

You must enter the password that was set in the Security

Panel before your system will resume operation.

CAUTION

A shorted battery is damaged and must be replaced.

(Figure 2-10)

POINT

If there is no battery activity, the power adapters are not

connected, and the power switch is Off, the Battery

Level indicators will also be off.

CAUTION

Batteries subjected to shocks, vibration or extreme

temperatures can be permanently damaged.

POINT

If you are using the optional external numerical keypad,

pressing the [NumLk] key will activate the external

keypad. The indicator will come on, however it will not

change any of the functionality of your keyboard keys.

1 2

B Series.book Page 13 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Two

Figure 2-11 Keyboard

Keyboard

USING THE KEYBOARD

Your LifeBook notebook has an integral 83-key

keyboard. The keys perform all the standard functions of

a 101-key keyboard, including the Windows keys and

other special function keys. This section describes the

following keys. (Figure 2-11)

■Numeric keypad: Your notebook allows certain keys to

serve dual purposes, both as standard characters and

as numeric and mathematical keys. The ability to

toggle between the standard character and numerical

keys is controlled through the [NumLk] key.

■Cursor keys: Your keyboard contains four arrow

keys for moving the cursor or insertion point to the

right, left, up, or down within windows, applications

and documents.

■Function keys: The keys labeled [F1] through [F12],

are used in conjunction with the [Fn] key to produce

special actions that vary depending on what program

is running.

■Windows keys: These keys work with your Windows

operating system and function the same as the

onscreen Start menu button, or the right button on

your pointing device.

NUMERIC KEYPAD

Certain keys on the keyboard perform dual functions as

both standard character keys and numeric keypad keys.

NumLk can be activated by pressing the [NumLk] keys.

Turning off the NumLk feature is done the same way.

Once this feature is activated you can enter numerals 0

through 9, perform addition ( + ), subtraction ( - ),

multiplication ( * ), or division ( / ), and enter decimal

points ( . ) using the keys designated as ten-key function

keys. The keys in the numeric keypad are marked on the

front edge of the key to indicate their secondary func-

tions. (Figure 2-11)

WINDOWS KEYS

Your LifeBook notebook has three Windows keys: two

Start keys and an Application key. The two Start keys

display the Start menu. This button functions the same

as your onscreen Start menu button. The Application

key functions the same as your right mouse button and

displays shortcut menus for the selected item. (Please

refer to your Windows documentation for additional

information regarding the Windows keys.) (Figure 2-11)

CURSOR KEYS

The cursor keys are the four arrow keys on the keyboard

which allow you to move the cursor up, down, left and

right in applications. In programs such as Windows

Explorer, it moves the “focus” (selects the next item up,

down, left, or right). (Figure 2-11)

Fn Key Start Key

Function Keys

Numeric Keypad

Application Key

Cursor Keys

Start Key

POINT

If you are using the optional external numerical keypad,

pressing the [NumLk] key will activate the external

keypad. The indicator will come on, however it will not

change any of the functionality of your keyboard keys.

B Series.book Page 14 Thursday, September 26, 2002 11:01 AM

Getting to Know Your LifeBook

FUNCTION KEYS

Your LifeBook notebook has 12 function keys, F1

through F12. The functions assigned to these keys differ

for each application. You should refer to your software

documentation to find out how these keys are used.

(Figure 2-11)

[Fn] Key

The [Fn] key provides extended functions for the

notebook and is always used in conjunction with

another key.

■[Fn+F3]: Pressing [F3] while holding [Fn] will toggle

the Audio Mute on and off.

■[Fn+F4]: Pressing [F4] while holding [Fn] will toggle

the Quick Point feature on and off. Note that the

[Fn+F4] combination only works if Manual Setting is

selected in the BIOS. (See “Entering the BIOS Setup

Utility” on page 29)

■[Fn +F5]: Pressing [F5] while holding [Fn] allows

you to toggle between video compensation and no

compensation. (Video compensation controls spacing

on the display. When it is enabled, displays with less

than 1024 x 768 or 800 x 600 pixel resolution will still

cover the entire screen.)

■[Fn+F6]: Pressing [F6] repeatedly while holding [Fn]

will lower the brightness of your display.

■[Fn+F7]: Pressing [F7] repeatedly while holding [Fn]

will increase the brightness of the display.

■[Fn+F8]: Pressing [F8] repeatedly while holding [Fn]

will decrease the volume of your LifeBook notebook.

■[Fn+F9]: Pressing [F9] repeatedly while holding [Fn]

will increase the volume of your LifeBook notebook.

■[Fn+F10]: Pressing [F10] while holding [Fn] allows

you to change your selection of where to send your

display video. Each time you press the combination

of keys you will step to the next choice. The choices,

in order, are: built-in display panel only, both built-in

display panel and external monitor or external moni-

tor only.

B Series.book Page 15 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Two

Figure 2-12 Quick Point pointing device

Quick Point Pointing

Device

The Quick Point is built into your LifeBook notebook. It

is used to control the movement of the cursor to select

items on your display panel. The Quick Point is

composed of a cursor control at the center of the

keyboard and two buttons on the palm rest of your

notebook. The cursor control works the same way a

mouse ball does, and moves the cursor around the

display. It only requires light pressure with the tip of

your finger, and the more pressure you use, the faster the

cursor will move. The upper button functions the same

as a left mouse button while the lower button has the

same function as a right mouse button. The actual func-

tionality of the buttons may vary depending on the

application that is being used. (Figure 2-12)

Clicking

Clicking means pushing and releasing a button. To left-

click, move the cursor to the item you wish to select,

press the top button once, and then immediately release

it. To right-click, move the cursor to the item you wish

to select, press the bottom button once, and then imme-

diately release it. (Figure 2-13)

Figure 2-13 Clicking

Double-Clicking

Double-clicking means pushing and releasing the top

button twice in rapid succession. This procedure does

not function with the right button. To double-click,

move the cursor to the item you wish to select, press

and release the top button twice. (Figure 2-14)

Figure 2-14 Double-clicking

Cursor Control

Left Button

Right Button

POINT

You have the option of using any two of the following

pointing devices at any given time; Quick Point, touch

screen or external PS/2 mouse. See “BIOS Setup

Utility” on page 29.

POINT

■If the interval between clicks is too long, the

double-click will not be executed.

■Parameters for the Quick Point can be adjusted from

the Mouse Properties dialog box located in the

Windows Control Panel.

B Series.book Page 16 Thursday, September 26, 2002 11:01 AM

Getting to Know Your LifeBook

Dragging

Dragging means pressing and holding the top button,

while moving the cursor. To drag, move the cursor to

the item you wish to move. Press and hold the top

button while moving the item to its new location

and then release it. (Figure 2-15)

Figure 2-15 Dragging

Quick Point Device Control Adjustment

The Windows Control Panel allows you to customize

your Quick Point with selections made from within the

Mouse Properties dialog box. There are three aspects of

Quick Point operation, which you can adjust:

■Buttons: This tab lets you set up the buttons for

right or left handed operation, in addition to

setting up the time interval allowed between

clicks in double-clicking.

■Pointers: This tab lets you set up the scheme for

the cursor depending on its functionality.

■Motion: This tab lets you set up a relation between

the speed of your finger motion and the speed of the

cursor. It also allows you to enable a Pointer Trail for

the cursor arrow.

TOUCH SCREEN

The integrated Touch Screen allows you to use either the

included stylus, or your fingertip, as a pointing device.

You can use the stylus to click, double-click, drag items

and icons, or to draw like a pen or pencil in applications

that support this behavior, such as drawing or painting

programs. See the documentation that came with your

application for details. (Figure 2-16)

Figure 2-16 Using the Stylus with the Touch Screen

Clicking

To left-click, touch the object you wish to select and then

lift the stylus tip immediately. You also have the option

to perform the left-click operation by tapping lightly

with your finger on the Touch Screen once. (Figure 2-17)

To right-click, go to Start --> Programs --> Fujitsu

Touch Panel. From that window, you can specify a right

button tool by using the Touch Panel Configuration

Control button prior to the desired right mouse click. It

can be used two ways: by holding down the key or by

pressing the key once.

Figure 2-17 Clicking the Touch Screen

Double-Clicking

To double-click, touch the item twice, and then immedi-

ately remove the stylus tip. You also have the option to

perform the double-click operation by tapping lightly

with your finger on the Touch Screen twice. (Figure 2-

18)

Figure 2-18 Double-clicking the Touch Screen

CAUTION

To avoid potential scratching and damage, never

use anything but the included stylus or your finger

with the Touch Screen.

POINT

To purchase additional or replacement styluses,

visit Fujitsu’s accessories web site at:

http://www.fujitsupc.com.

POINT

If the interval between taps is too long, the

double-click will not be executed.

B Series.book Page 17 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Two

Dragging

Dragging means touching the screen with the stylus,

moving and then lifting the stylus. To drag, tap the

Touch Screen twice with your stylus over the item you

wish to move, making sure to leave your finger on the

screen after the final tap. Next, move the item to its new

location by moving the stylus across the screen, and then

lifting the stylus to release it. Dragging can also be done

using your fingertip. (Figure 2-19)

Figure 2-19 Dragging on the Touch Screen

Right-clicking

It is possible for you to perform right-click functions

with the stylus.

1. Click Start -> Programs -> Fujitsu Touch Panel

-> Touch Panel Configuration.

2. When the Right Button Tool screen appears, select

either "Hold [Ctl] key down and touch the screen"

or "Press [Ctl] key and touch the screen".

When you select "Hold [Ctl]...", the stylus will act as

a right mouse button when you hold down the

control key while touching the screen.

When you select "Press [Ctl]...", pressing the control

key before touching the screen will cause the stylus

to act as a right mouse button.

3. Click [Apply] to complete your selection.

Calibrating the Touch Screen

In order to ensure accurate tracking between the stylus

and cursor, you must run the Touch Screen Calibration

Utility before you use the Touch Screen for the first time,

or after you change the display resolution.

To run the calibration utility:

1. On the Start menu, point to Programs. Point to

Fujitsu Touch Panel/CTouch Screen Calibration

Utility. This will open the Calibration Utility.

2. Adjust the display of your notebook to a comfortable

angle and find the red (+) symbol in the upper-left

corner of the display.

3. Using the stylus, firmly touch the screen directly on

the (+) symbol, then pause for a moment. When you

lift the stylus tip, the (+) symbol will move to the

next location.

4. Repeat step 3 until you have selected a total of twelve

symbols. This is the minimum number of points

necessary to calibrate your touch screen.

5. Once you have selected the twelve symbols, press

[ENTER], then press [ENTER] again.

POINT

Parameters for the Touch Screen can be adjusted from

the Mouse Properties dialog box located in the

Windows Control Panel.

POINT

If you receive an error message at this point, you

selected fewer than twelve symbols. Click [OK] and

begin again at Step 2.

B Series.book Page 18 Thursday, September 26, 2002 11:01 AM

Getting to Know Your LifeBook

Volume Control

Your Fujitsu LifeBook notebook has multiple volume

controls which interact with each other.

CONTROLLING THE VOLUME

The volume can be controlled in several different ways:

■Volume can be set from within the Volume Control on

the Taskbar.

■Volume can be controlled with the F8 and F9 func-

tions keys. Pressing [F8] repeatedly while holding [Fn]

will decrease the volume of your notebook. Pressing

[F9] repeatedly while holding [Fn] will increase the

volume of your notebook.

■Volume can be controlled by many volume controls

that are set within individual applications.

■Certain external audio devices you might connect to

your system may have hardware volume controls.

Each source discussed above puts an upper limit on the

volume level that must then be followed by the other

sources.

We recommend that you experiment with the various

volume controls to discover the optimal sound level.

POINT

Any software that contains audio files will also contain

a volume control of its own. If you install an external

audio device that has an independent volume control,

the hardware volume control and the software volume

control will interact with each other. It should be noted

that if you set your software volume to Off, you will

override the external volume control setting.

POINT

There are seventeen levels through which the function

keys cycle.

B Series.book Page 19 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Two

Figure 2-20 LifeBook Security/Application Panel

LifeBook Security/

Application Panel

A unique feature of your LifeBook notebook is the Secu-

rity/Application Panel that allows you to secure your

notebook from unauthorized use. The Security/Applica-

tion Panel also allows you to launch applications with the

touch of a button when your system is on.

If the security system is activated, upon starting your

notebook or resuming from Standby mode the security

system requires you to enter a password code using the

buttons on the Security/Application Panel. After entering

a correct password, your notebook resumes system

operation. (Figure 2-20)

SETTING UP YOUR LIFEBOOK SECURITY

PANEL

When you receive your LifeBook notebook, the security

panel application is pre-installed without any passwords.

The following sections provide detailed information on

your security panel, how to set, change or remove pass-

words.

Numbered Buttons

Use these buttons to enter your password.(Figure 2-20)

Enter Button

After entering the button strokes, push this button to

enter the password into the LifeBook notebook.

(Figure 2-20)

PASSWORDS

The user and supervisor password may be set on this

notebook. A supervisor password is typically the same

for all LifeBook notebooks in a working group, office, or

company to allow for system management. Individual

LifeBook notebooks in a group environment should not

use a common password. A password consists of one to

five button strokes plus the enter button. A valid stroke

consists of pushing one or up to four buttons simulta-

neously. The following are valid button strokes:

■Pushing [4] by itself

■Pushing [2] and [3] at the same time

■Pushing [1], [2], and [4] at the same time

■Pushing [1], [2], [3], and [4] at the same time

The following are valid passwords. The numbers

within braces ({ }) are button strokes using more

than one button.

■{[2]+[3]}, [1], [enter]

■[4], [enter]

■{[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [enter]

Setting Passwords

When shipped from the factory, no passwords are set.

You have a choice of having no password or setting a

supervisor and user password. You must set the super-

visor password before the user password.

Setting Supervisor Password

You must have set a supervisor password before setting

any user passwords. The supervisor password can bypass

the user password.

1. Go to the Start menu.

2. Click on Run.

3. Type in:

C:\Program Files\Fujitsu\

Security Panel Application\

Supervisor\FJSECS.EXE,

then press [Enter]

(1) Application A Button

(3) Internet Button

(2) Application B Button

(4) E-Mail Button

Enter Button

POINT

■The purpose of supervisor password is to be able to

bypass the user password in case the user password

is forgotten. The supervisor password alone will not

lock the system.

■You have to set both the supervisor and user pass-

words for the security panel to work.

B Series.book Page 20 Thursday, September 26, 2002 11:01 AM

Getting to Know Your LifeBook

4. Follow the on-screen instructions to set the

Supervisor password.

Setting User Password

1 Go to the Start menu.

2. Click on Programs.

3. Click on Security Panel Application and

Set User Password.

4. Follow the on-screen instructions to set the

user password.

OPERATING YOUR LIFEBOOK SECURITY/

APPLICATION PANEL

The security lock feature is in effect both when the system

resumes from Off or Standby state. You always need to

push the Suspend /Resume button to input the user pass-

word. Your system will not begin the boot sequence

without entering your supervisor/user password.

From Off State

1. Turn on your system.

2. When the Security Indicator flashes, enter the pass-

word and press Enter button.

For example, if the password is 22222,

Press Button Number 2 five times and press Enter

button.

The LifeBook notebook will boot to normal opera-

tion.

From Standby State

1. Press your Suspend/Resume button.

2. When the Security Indicator flashes, enter the pass-

word and press Enter button.

The notebook should resume normal operation.

Incorrect Password Entry

If an invalid supervisor or user password is entered three

times in succession, the system will “beep” for about one

minute. If a valid password is entered within a minute

(while system beeps), the beeping will stop and the note-

book will resume normal operation. If no or an invalid

password is entered while the system beeps, the system

will return to its previous locked state (standby or off)

and the Security Indicator will go off. To reactivate the

notebook after a password failure, you must press the

Suspend/Resume button, then enter a correct password.

PRECAUTIONS

Opening and Closing the Cover

Closing the cover automatically places the notebook

into Standby mode. Opening the cover does not auto-

matically place the notebook into normal operation.

Instead, you must enter the proper security password

after pushing the Suspend/Resume button.

Low Battery Operations

If your LifeBook notebook has low battery, pushing the

suspend/resume button only turns on the Security Indi-

cator. Your notebook does not unlock, the Security Indi-

cator turns off after one minute. To resume normal

operation, first attach a power supply to the notebook.

Then you may unlock the notebook.

UNINSTALLING THE SECURITY

PANEL APPLICATION

You have two options when uninstalling the security

panel application:

■Uninstall the security panel application software.

This will disable all security feature.

■Uninstall the security panel application with password

still active. This will not allow any changes to the

password.

Uninstalling the Security Panel

Application Software

Remove passwords when User wants no password

protection whatsoever and doesn’t want to give anybody

the utility to set a password on their computer. In this

case, if passwords (supervisor, user, or both) are set, the

passwords must first be cleared BEFORE removing the

application. To clear passwords, follow same procedure

in SETTING PASSWORD CODES except this time,

select REMOVE, enter current password then click Next.

When asked to confirm select Ye s .

Removing Security Panel Application with

Passwords Still Active

Using this feature will not allow any changes to

the password.

POINT

You may change or remove the supervisor or user

password by repeating the steps defined above.

POINT

Remember the user password you specified on the

Security Panel Application. If you forget the password

you will not be able to use your computer. The super-

visor password can override the user password.

B Series.book Page 21 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Two

User:

1. Go to Start Menu, Click on Control Panel.

2. Open Add/Remove Programs Properties in the

Control Panel.

3. Select the Security Panel Application in the list, and

click Add/Remove.

4. When the Confirm File Deletion box appears,

click Ye s .

Supervisor:

1. Go to Start Menu, Click on Control Panel.

2. Open Add/Remove Programs Properties in the

Control Panel.

3. Select the Security Panel Application for

Supervisor in the list, and click Add/Remove.

4. When the Confirm File Deletion box appears,

click Ye s .

Reinstalling the Security/Application Panel

To reinstall supervisor or user security application, you

will need your Drivers and Applications CD. The

Utilities\Security Application Panel folder contains two

separate folders: Supervisor and User. The setup files for

supervisor and user security applications are contained

in those folders.

1. Go to the Utilities\Security Application

Panel\Supervisor folder on the CD and double-click

the setups.exe file. The Installing Security Panel

Application window will appear. Follow the instruc-

tions on the screen.

2. Go to the Utilities\Security Application Panel\User

folder on the CD and double-click the setup.exe file.

The Installing Security Panel Application window

will appear. Follow the instructions on the screen.

Supervisor and user passwords can be set via Windows

software using the FJSECS.exe and FJSECU.exe files,

respectively. FJSECU.exe for the user password cannot

run without first setting a supervisor password. You

need to run FJSECS.exe first to set the supervisor pass-

word. Follow instructions under Setting Passwords on

page 20.

If you forget both passwords, please contact Fujitsu PC

Corporation Service and Support at 1-800-8FUJITSU

(1-800-838-5487). Fujitsu PC Corporation charges a

service fee for unlocking a password restricted LifeBook

notebook. When calling please have a valid credit card

and provide proof of ownership. You will then be given

instructions on where to ship your notebook.

LAUNCHING APPLICATIONS WITH

THE SECURITY/APPLICATION PANEL

The security panel also enables you to launch applications

with the touch of a button when your system is on.

Pressing any of the buttons will launch a user-defined

application. Your notebook is pre-installed with software

utilities that let you operate and configure your LifeBook

Security /Application Panel. These utilities are found

under the Start menu, under Programs, then under Life-

Book Application Panel. They include Application Panel

Setup, Application Panel Guide, Activate Panel and Deac-

tivate Panel.

Configuring your LifeBook Application Panel

When you start Windows, the LifeBook Application

Panel is automatically activated. An icon resembling a

finger pressing a button will appear on the system tray

(the indented portion of the status bar where the clock is

displayed). When you see this icon you will know that

LifeBook Application Panel is active.

As an application launcher, the LifeBook Application

Panel is very flexible, giving you a variety of options. To

set up the Panel to best suit your needs, we have

provided the Application Panel Setup utility that quickly

and easily helps you make the most of this valuable

feature.

To configure your LifeBook Application Panel with

Application Panel Setup:

1. Click on Start.

2. Click on Programs.

3. Click on LifeBook Application Panel.

4. Click on Application Panel Setup.

The Application Panel Setup utility will appear. There

are tabs that correspond to the application buttons on

the LifeBook Application Panel. When you receive your

notebook, these buttons are pre-configured to launch

specific programs, as referenced in Chapter 7 of this

document.

To change an application associated with the Applica-

tion buttons, click on the tab for the button you would

like to reconfigure – for example, Application A. Click

on Browse from Start Menu, scroll down the list of

applications, click on the application you wish to launch

with this button, and then click OK. The button will

now launch the new application.

POINT

Removing the applications does not remove the

password. It simply removes the utility to change/add/

remove passwords. To change your password you must

reinstall the application.

POINT

The tabs in Application Panel Setup may not be in the

same order as the buttons on your LifeBook notebook,

please select the tab you wish to change carefully.

B Series.book Page 22 Thursday, September 26, 2002 11:01 AM

Getting to Know Your LifeBook

The Internet tab is different. It comes set to launch your

Windows default Internet browser (Internet Explorer),

unless you have changed this in Windows. In order to

reconfigure it to launch another program follow these

easy steps:

1. Click on Other from the Internet browser box.

2. Click on Browse from Start Menu.

3. Scroll down the list of applications, and then click

on the application you wish to launch with this

button.

4. Click OK.

The button will now launch the new application. If you

want to return to launching your Windows default

Internet browser with this button, you need only click

on “Default Internet Browser” from the Internet

browser box. Be aware that you will erase the settings for

the “other application”. If you wish to go back to

launching the “other application” from this button, you

will need to reconfigure it as described above.

When you have finished with Application Panel Setup

click OK, and the new settings will take effect. You can

reconfigure your LifeBook Application Panel as often as

you like.

Deactivating and Activating the LifeBook

Application Panel

To deactivate the LifeBook Application Panel, follow

these easy steps:

1. Click on Start.

2. Click on Programs.

3. Click on LifeBook Application Panel.

4. Click on Deactivate Panel.

To reactivate, follow the same procedure, except for

step 4. Click on Activate Panel instead.

POINT

If your system has dedicated one of the application

launcher buttons to be an Internet launcher, the button

can still be configured to launch any application you

wish, not just an Internet browser.

POINT

Every time you start Windows the LifeBook Application

Panel is activated, even if you deactivated it before you

shut down.

B Series.book Page 23 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Two

B Series.book Page 24 Thursday, September 26, 2002 11:01 AM

Getting Started

B Series.book Page 25 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Three

B Series.book Page 26 Thursday, September 26, 2002 11:01 AM

Getting Started

Figure 3-1 Connecting the AC Adapter

Power Sources

Your LifeBook notebook has three possible power

sources: a primary Lithium ion battery, an AC adapter

or an optional Auto/Airline adapter.

CONNECTING THE POWER ADAPTERS

The AC adapter or optional Auto/Airline adapter

provides power for operating your notebook and

charging the batteries.

Connecting the AC Adapter

1. Plug the DC output cable into the DC power jack

of your notebook.

2. Plug the AC adapter into an AC electrical outlet.

(Figure 3-1)

Connecting the Optional Auto/Airline Adapter

1. Plug the DC output cable into the DC power jack

on your notebook.

2. Plug the Auto/Airline adapter into the cigarette

lighter of an automobile with the ignition key in

the On or Accessories position.

3. Plug the Auto/Airline adapter into the DC power

jack on an airplane seat.

Switching from AC Adapter Power or the

Auto/Airline Adapter to Battery Power

1. Be sure that you have at least one charged

battery installed.

2. Remove the AC adapter or the Auto/Airline adapter.

DC Power Jack

DC Output Cable

AC Adapter

AC Cable

POINT

The Lithium ion battery is not charged upon purchase.

Initially, you will need to connect either the AC adapter

or the Auto/Airline adapter to use your notebook.

B Series.book Page 27 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Three

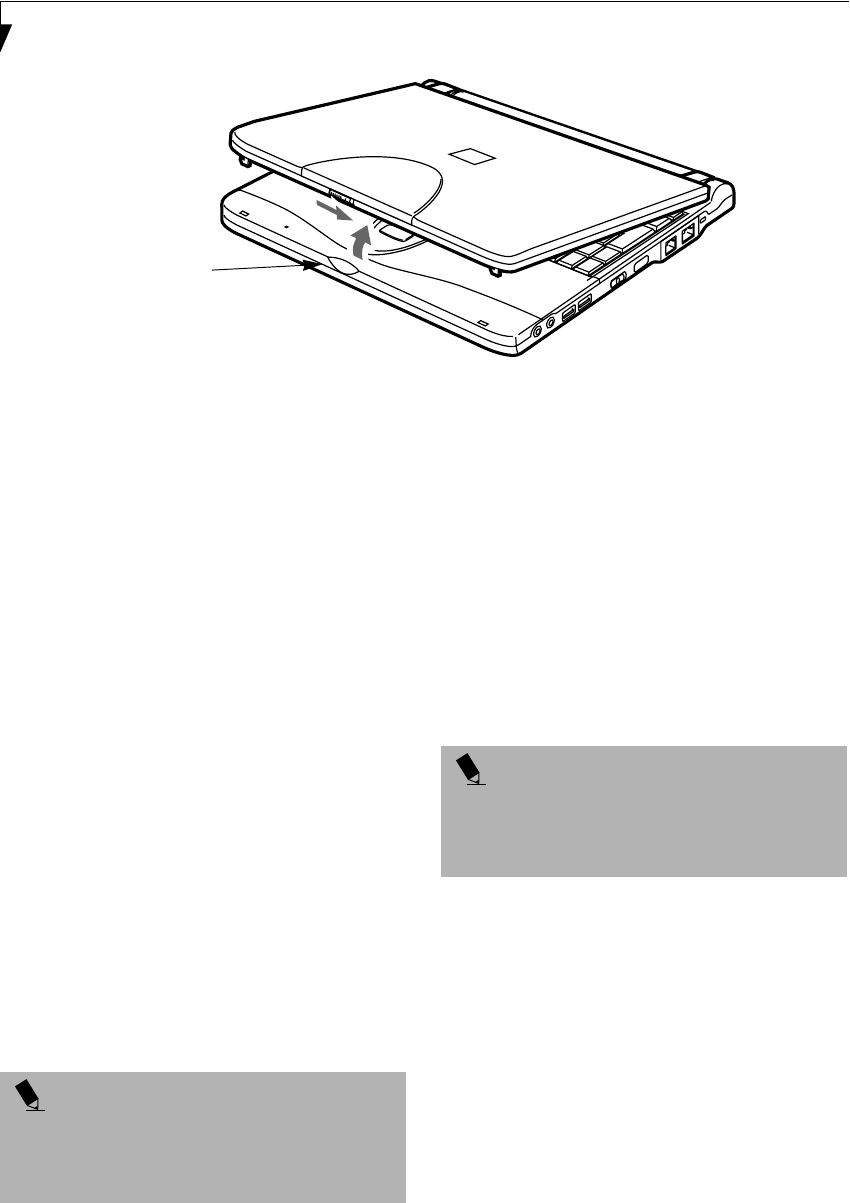

Figure 3-2 Opening the Display Panel

Display Panel

Your LifeBook notebook contains a display panel that is

backlit for easier viewing in bright environments and

maintains top resolution through the use of active-

matrix technology.

OPENING THE DISPLAY PANEL

1. Slide the Display Panel latch. This releases the

locking mechanism and raises the display slightly.

2. Lift the display backwards, being careful not to

touch the screen, until it is at a comfortable

viewing angle. (Figure 3-2)

ADJUSTING DISPLAY PANEL BRIGHTNESS

Once you have turned on your notebook, you may want

to adjust the brightness level of the screen to a more

comfortable viewing level. There are two ways to adjust

the brightness, keyboard and power management utility.

Keyboard

Adjusting the brightness using the keyboard changes the

setting only temporarily.

■[Fn+F6]: Pressing repeatedly will lower the

brightness of your display.

■[Fn+F7]: Pressing repeatedly will increase the

brightness of the display.

Power Management Utility

(Windows 98 and WIndows 2000 models only)

Adjusting the brightness using the Power Management

Utility changes the setting permanently.

1. Double-click the BatteryAid icon in the lower right

corner of your display. This will open the BatteryAid

Properties dialog box.

2. Select the Fujitsu BatteryAid (2/2) tab and adjust

your LCD Backlighting to the desired level.

3. Click OK or Apply to permanently change

the settings.

You may need to readjust the brightness level periodi-

cally depending on your operating environment.

CLOSING THE DISPLAY PANEL

1. Holding the edge of your display panel, pull it

forward until it is flush with the body of your note-

book.

2. Push down until you hear a click. This will

engage the locking mechanism and prevent

your display panel from opening unexpectedly.

Display Panel Latch

POINT

If using AC power your brightness setting is set to its

highest level by default. If using battery power your

brightness settings is set to approximately mid-level by

default.

POINT

The higher the brightness level, the more power the

LifeBook notebook will consume and the faster your

batteries will discharge. For maximum battery life, make

sure that the brightness is set as low as possible.

B Series.book Page 28 Thursday, September 26, 2002 11:01 AM

Getting Started

Starting Your

LifeBook Notebook

POWER ON

Power Switch

The power switch is used to turn on your LifeBook note-

book from its off state. Once you have connected your

AC adapter or charged the internal Lithium ion battery,

you can power on your notebook. (See figure 2-7 on

page 10 for location)

Facing the right-side panel of your notebook, move the

power switch to the right, this is the On position. The

power switch moved to the left is the Off position. When

you are done working you can either leave your note-

book in Standby mode, See “Standby Mode” on

page 32., or you can turn it off. See “Power Off” on

page 34.

When you Power On your LifeBook notebook, it will

perform a Power On Self Test (POST) to check the

internal parts and configuration for correct function-

ality. If a fault is found, your notebook will emit an

audio warning and/or an error message will be

displayed. See “Power On Self Test Messages” on

page 60. Depending on the nature of the problem, you

may be able to continue by starting the operating system

or by entering the BIOS setup utility and revising the

settings.

After satisfactory completion of the Power On Self Test

(POST), your notebook will load your operating system.

BOOT SEQUENCE

The procedure for starting-up your notebook is termed

the Bootup sequence and involves your LifeBook note-

book’s BIOS. When your notebook is first turned on, the

main system memory is empty, and it needs to find

instructions to start up your notebook. This informa-

tion is in the BIOS program. Each time you power up or

restart your notebook, it goes through a boot sequence

which displays a Fujitsu logo until your operating

system is loaded. During booting, your notebook is

performing a standard boot sequence including a Power

On Self Test (POST). When the boot sequence is

completed without a failure and without a request for

the BIOS Setup Utility, the system displays the operating

system’s opening screen.

The boot sequence is executed when:

■You turn on the power to your notebook.

■You restart your notebook from the Windows

Shut Down dialog box.

■The software initiates a system restart. Example:

When you install a new application.

■You reset the system by pressing the three keys

[CTRL+ALT+DEL].

BIOS SETUP UTILITY

The BIOS Setup Utility is a program that sets up the

operating environment for your notebook. Your BIOS

is set at the factory for normal operating conditions,

therefore there is no need to set or change the BIOS’

environment to operate your notebook.

The BIOS Setup Utility configures:

■Device control feature parameters, such as changing

I/O addresses and boot devices.

■System Data Security feature parameters, such

as passwords.

Entering the BIOS Setup Utility

To enter the BIOS Setup Utility do the following:

1. Turn on or restart your notebook.

2. Press the [F2] key once the Fujitsu logo appears

on the screen. This will open the main menu

of the BIOS Setup Utility with the current

settings displayed.

3. Press the [RIGHT ARROW] or [LEFT ARROW] key

to scroll through the other setup menus to review or

alter the current settings.

BIOS Guide

A guide to your notebook’s BIOS is available online.

Please visit our service and support Web site at

www.fujitsupc.com. Once there, select Support, then

seelct Notebooks under User’s Guides. Select LifeBook

BIOS Guides from the pull-down menu for your Life-

Book series. If you are unsure of your notebook’s BIOS

number, refer to your packing slip.

POINT

When you turn on your notebook be sure you have a

power source. This means that at least one battery is

installed and charged, or that the AC or Auto/Airline

adapter is connected and has power.

CAUTION

Do not carry your notebook around with the power on

or subject it to shocks or vibration, as you risk damaging

your notebook.

POINT

Never turn off your LifeBook notebook during the

Power On Self Test (POST) or it will cause an error

message to be displayed when you turn your notebook

on the next time. See “Power On Self Test Messages” on

page 60.

B Series.book Page 29 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Three

BOOTING THE SYSTEM

We strongly recommend that you not attach any external

devices until you have gone through the initial power-on

sequence.

When you turn on your LifeBook notebook for the first

time, it will display a Fujitsu logo on the screen. If you

do nothing the system will load the operating system,

and then the Windows Welcome will begin.

Designed to accommodate the needs of many users, in

many different countries, Windows needs to be config-

ured the first time you use them. Windows has three

parts:

■Getting Started: You have the opportunity to enter

custom information for your configuration file and

setup your modem so that your LifeBook notebook

will be prepared to dial out.

■Windows License Agreement and Final Settings:

You have the opportunity to review the Windows

License Agreement.

Getting Started

Read the instructions on the screens carefully and fill

in the information as directed. You will be asked for such

items as the language you wish to use, the country in

which you live, your first and last name, and about

how you dial out from where you will be using your Life-

Book notebook. For the modem settings, enter your

current location information where you will be using

your LifeBook notebook. If you are not connected to a

phone line and plan to register at a later time, you may

click the Skip button, and you will go directly to the

condition of use page.

Once you have set up your LifeBook notebook to dial

out, Windows will make a free telephone call to test the

settings. If the call is unsuccessful, you will be returned

to the phone settings page where you may try to fix

them. If you are unable to fix the settings please contact

Fujitsu Service and Support. See “FPC Contact Informa-

tion” on page 3. If you would simply like to move on, and

and you will go directly to the Condition of Use page.

Registration

If your connection is successful, you will go to the

Registration Confirmation page. On this page simply

enter the requested information, and then check the box

at the bottom to register your copy of Windows with

Microsoft. Once you have finished, click the Next button

to continue.

You will then go through the Fujitsu registration process.

Follow the instructions on the screens, and enter all of

the necessary information. Be as specific as possible so

that if you need help the service and support team will

be able to serve you better.

Final Settings

The first part of your final settings is the Windows End

User License Agreement. Read the agreement carefully.

When you finish reading you must accept or reject the

terms of the agreement and then click on the Next button.

ACTIVATING ADDITIONAL UTILITIES

The first time you boot up a WIndows 98 or Windows

2000 system, you will see an icon on the desktop called

Click Me! In Windows XP systems, the Click Me! icon is

in the Start menu.

When you click the Click Me! icon, your system will

automatically build the icon tray in the bottom right of

the screen. These icons provide links to utilities that you

will frequently access.

Although the icon remains on the screen, you need

invoke it only once.

POINT

If your data security settings require it, you may be

asked for a password before the BIOS main menu

will appear.

POINT

You may click Cancel at any time within this process to

shut down Windows. You may restart this process at

any time in the future, but you must complete it in

order to use your computer.

POINT

If you do not register at this time you can do it later

simply by double-clicking on the LifeBook Registration

icon on your desktop and following the instructions.

POINT

■If you reject the terms of the license agreement you

will be asked to review the license agreement for

information on returning Windows or to shut down

your LifeBook notebook.

■You cannot use your LifeBook notebook until you

have accepted the License Agreement. If you stop

the process your notebook will return to the begin-

ning of the Windows Welcome Process, even if you

shut your notebook down and start it up again.

B Series.book Page 30 Thursday, September 26, 2002 11:01 AM

Getting Started

REGISTERING YOUR LIFEBOOK NOTEBOOK

What are the benefits of registering?

You will receive an identification label for your LifeBook

notebook, which, if your notebook is ever lost, may help

in getting it returned to you. You will also receive tech-

nical support access and useful product mailings.

How do I register?

With Windows, just follow the on-screen instructions

during the Welcome process. If you do not register

during the Welcome process you can double-click on the

LifeBook Registration icon on your desktop at any time

and follow the instructions.

You may also complete the pre-printed registration form

and either:

■Fax to 1-800-577-9989

■Mail to:

Fujitsu PC Corporation

750 139th Ave.

San Leandro, CA 94578

Attn: Warranty Department

You may also register on our Web site:

■www.fujitsupc.com/support

You will need to be set up with an Internet Service

Provider (ISP) to use this option.

POINT

Make sure you have connected a phone line to your

modem before you use E-Registration.

B Series.book Page 31 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Three

Power Management

Your LifeBook notebook has many options and features

for conserving battery power. Some of these features are

automatic and need no user intervention, such as those

for the internal modem. However, others depend on the

parameters you set to best suit your operating condi-

tions, such as those for the display brightness. Internal

power management for your notebook may be

controlled from settings made in your operating system,

pre-bundled power management application, or from

settings made in BIOS setup utility.

Besides the options available for conserving battery

power, there are also some things that you can do to

prevent your notebook battery from running down as

quickly. For example, you can create an appropriate

power saving profile, put your notebook into Standby

mode when it is not performing an operation, and you

can limit the use of high power devices. As with all

mobile, battery powered computers, there is a trade-off

between performance and power savings.

Table 1. System Power States

SUSPEND/RESUME BUTTON

When your LifeBook notebook is active, the Suspend/

Resume button can be used to manually put your Life-

Book into Standby mode. Push the Suspend/Resume

button when your notebook is active, but not actively

accessing anything, and immediately release the button.

You will hear two short beeps and your system will enter

Standby mode. (See figure 2-5 on page 8 for location).

If your notebook is suspended, pushing the Suspend/

Resume button will return your notebook to active oper-

ation. You can tell whether or not your system is in

Standby mode by looking at the Power indicator. See

“Power Indicator” on page 12. If the indicator is visible

and not flashing, your notebook is fully operational. If

the indicator is both visible and flashing, your notebook

is in Standby mode. If the indicator is not visible at all,

the power is off or your notebook is in Hibernate mode

(See Hibernate Mode)

STANDBY MODE

Standby mode in Windows saves the contents of your

notebook’s system memory during periods of inactivity

by maintaining power to critical parts. This mode will

turn off the CPU, the display, the hard drive, and all of

the other internal components except those necessary to

maintain system memory and allow for restarting. Your

notebook can be put in Standby mode by:

■Pressing the Suspend/Resume button when your

system is turned on.

■Selecting Standby from the Windows Shut Down

menu.

■Timing out from lack of activity.

■Allowing the battery to reach the Dead Battery

Warning condition.

Your notebook’s system memory typically stores the

file(s) on which you are working, open application(s)

information, and any other data required to support the

Power Mode System Activity Events causing system to enter mode state

Fully On Mode System is running. CPU, system bus, and

all other interfaces operate at full speed.

■From Standby mode: System operation resumed

(Suspend/Resume button pressed, resume on

modem ring, resume on time).

■From Hibernation mode: Suspend/Resume

button pressed.

■From Off mode: Suspend/Resume button

pressed.

Standby Mode

(Suspend-to-RAM)

Resume system logic remains powered and

RAM remains powered to maintain active

data. All other devices are turned off.

■Standby timeout occurs.

■Suspend request issued by software or by

pressing the Suspend/Resume button.

■Low battery.

Hibernation Mode

(Suspend-to-Disk)

Windows saves desktop state (including

open files and documents) to hard disk.

CPU stops. All other devices are turned

off.

■Suspend timeout occurs.

■Clicking Start -> Shut Down -> Hibernate

(It may be necessary to Enable Hibernate

Support from Windows Power Options.)

■Low battery condition

Power Off System is fully powered off except for logic

components required for Suspend/Resume

button and real-time clock operation.

■System shutdown.

■Low battery condition

B Series.book Page 32 Thursday, September 26, 2002 11:01 AM

Getting Started

operation(s) in progress. When you resume operation

from Standby mode, your notebook will return to the

point where it left off. To resume operation, you must

use the Suspend/Resume button to resume operation,

and there must be an adequate power source available,

or your notebook will not resume.

HIBERNATE MODE

The Hibernate mode saves the contents of your

notebook’s system memory to the hard drive as a part of

the Suspend/Resume mode. Your notebook is pre-

configured to perform this function. The Hibernate

mode can also be configured through the system BIOS

to run in other ways depending on what you need to

accomplish. See “BIOS Setup Utility” on page 29.

Using Hibernate Mode with Windows 98 Systems

The default method for using Hibernate Mode in

Windows 98 follows:

1.Press the [Fn] button together with the Suspend/

Resume button. This will open a Hibernate dialog box

and begin the process.

Customer-configured BIOS Methods

for using Hibernate Mode:

1. Enable Hibernate in the BIOS setup utility. (See

“Entering the BIOS Setup Utility” on page 29). Click

on [Start], click Shut Down and then Standby.

2. Enable Hibernate mode from within the Power

Management Properties window. Go to Start ->

Settings -> Control Panel, and double-click on the

Power Management icon. In the Power Management

Properties window, click on the Hibernate tab, and

ensure that the "Enable hibernate support" box is

checked, then click [OK].

Using Hibernate Mode with Windows 2000 and

Windows XP Systems

The Hibernate default setting is enabled for Windows

XP and disabled for Windows 2000.

To enable or disable the Hibernation feature follow

these easy steps:

1. From the Start menu, select Settings, and then select

Control Panel --> Power Management.

2. Select Hibernation, and then select the box to

enable or disable this feature.

To use Hibernate mode with Windows 2000 and

Windows XP systems:

1. Click on the Start button, click Shut Down.

2. Select Hibernate option from the “What do you

want the computer to do” list.

CAUTION

If you are running your LifeBook notebook on battery

power, be aware that the battery continues to discharge

while your notebook is in Standby mode, though not as

fast as when fully operational.

POINT

The Standby or Hibernate modes should not be used

with certain PC Cards. Check your PC Card

documentation for more information.

POINT

■Disabling the Suspend/Resume button prevents it

from being used to put your notebook in Standby

or Hibernate mode. The resume function of the

button cannot be disabled.

■If your notebook is actively accessing information

when you enter the Standby or Hibernate mode,

changes to open files are not lost. The files are left

open and memory is kept active during Standby

mode or the memory is transferred to the internal

hard drive during Hibernate mode.

■When PC Cards or external devices are in use, Save-

to-Disk mode cannot return to the exact state prior

to suspension, because all of the peripheral devices

will be re-initialized when the system restarts.

■The main advantage of using the Hibernate function

is that power is not required to maintain your data.

This is particularly important if you will be leaving

your notebook in a suspended state for a prolonged

period of time. The drawback of using Hibernate

mode is that it lengthens the power down and power

up sequences and resets peripheral devices.

■Hibernate mode requires allocating a significant

amount of hard drive capacity for saving all system

memory, which reduces your usable disk space. When

you purchase your notebook it will have space allo-

cated for the memory installed. If you upgrade the

original system by adding a memory upgrade module

without changing the size of your Hibernate alloca-

tion you will get an error message when you try to

activate Hibernate mode and it will not work. Use the

PHDISK Utility to increase the size of the Hibernate

file, SAVE2DSK.BIN. You can download the Hibernate

File Allocation information from our Web site at

www.fujitsupc.com. If you need help, contact your

support representative for recommendations.

B Series.book Page 33 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Three

DISPLAY TIMEOUT

The Video Timeout is one of the power management

parameters. This feature saves power by turning off the

display if there is no keyboard or pointer activity for the

user selected timeout period. Any keyboard or pointer

activity will cause the display to restart automatically.

This feature is independent of the Suspend/Resume

button and can be enabled and disabled in Windows

Power Management and BIOS setup utility (APM only).

See “BIOS Setup Utility” on page 29.

HARD DISK TIMEOUT

The Hard Disk Timeout is another one of the power

management parameters. This feature saves power by

turning off the hard drive if there is no hard drive

activity for the user selected timeout period. Any

attempt to access the hard drive will cause it to restart

automatically. This feature is independent of the

Suspend/Resume button and can be enabled and

disabled in Windows and BIOS setup utility (APM

only). See “BIOS Setup Utility” on page 29.

WINDOWS POWER MANAGEMENT

The Power Management icon located in the Windows

Control Panel allows you to configure some of the power

management settings. For example, you can use the

Power Management to set the timeout values for turning

off the display and hard disks whether you are running

the notebook on battery power or one of the adapters.

The settings may also be changed in the BIOS (APM

only). See “BIOS Setup Utility” on page 29.

RESTARTING THE SYSTEM

If your system is on and you need to restart it, be sure

that you use the following procedure.

1. Click the Start button, and then click Shut Down.

2. Select the Restart option from within the Windows

Shut Down dialog box.

3. Click OK. Your notebook will shut down and then

reboot.

POWER OFF

Before turning off the power by choosing Shut Down

from the Windows Start menu, check that the Hard

Drive, CD-ROM, PC Card and the Floppy Disk Drive

Access indicators are all Off. (See Figure 2-5 on page 8) If

you turn off the power while accessing a disk or PC Card

there is a risk of data loss. To assure that your notebook

shuts down without error, use the Windows shut down

procedure.

Using the correct procedure to shut down from

Windows, allows your notebook to complete its opera-

tions and turn off power in the proper sequence to avoid

errors. The proper sequence is:

1. Click the Start button, and then click Shut Down.

2. Select the Shut Down option from within the

Windows Shut Down dialog box.

3. Click OK.

4. Move the power switch to the off position.

If you are going to store your notebook for a month or

more see the Care and Maintenance section.

POINT

Turning off your LifeBook notebook without exiting

Windows or turning on your notebook within 10

seconds of the notebook being shut off may cause an

error when you start the next time.

CAUTION

Be sure to close all files, exit all applications, and shut

down your operating system prior to turning off the

power with the power switch. If files are open when

you turn the power off, you will lose any changes that

have not been saved, and may cause disk errors.

B Series.book Page 34 Thursday, September 26, 2002 11:01 AM

User-Installable

Features

B Series.book Page 35 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Four

B Series.book Page 36 Thursday, September 26, 2002 11:01 AM

User Installable Features

Lithium ion Battery

Your LifeBook notebook has a Lithium ion battery that

provides power for operating your notebook when no

external power source is available. The battery is durable

and long lasting, but should not be exposed to extreme

temperatures, high voltages, chemicals or other hazards.

The Lithium ion battery operating time may become

shorter if it is used under the following conditions:

■When used at temperatures that exceeds a low of

40°F (5°C) or a high of 95°F (35°C). Extreme tempera-

tures not only reduce charging efficiency, but can also

cause battery deterioration. The Charging icon

on the Status Indicator panel will flash when you try

to charge a battery that is outside its operating temp-

erature range. See “Battery Charging Indicators” on

page 13.

■When using a high current device such as a modem,

CD-ROM drive, or the hard drive, using the AC

adapter will conserve your battery life.

RECHARGING THE BATTERIES

If you want to know the condition of the primary

Lithium ion battery, check the Battery Level indicator

located on the Status Indicator panel. The indicator

changes as the battery level changes.

The Lithium ion battery is recharged internally using

the AC adapter or Auto/Airline adapter. To recharge the

battery make sure the battery that needs to be charged

is installed in your notebook and connect the AC or

Auto/Airline adapter.

There is no memory effect on the Lithium ion battery

therefore you do not need to discharge the battery

completely before recharging. The charge times will be

significantly longer if your notebook is in use while the

battery is charging. If you want to charge the battery

more quickly, put your notebook into Standby mode,

or turn it off while the adapter is charging the battery.

See “Power Management” on page 32.

Low Battery State

When the battery is running low, your LifeBook note-

book will beep every 15 seconds and the Battery Level

indicator will flash. If you do not respond to the low

battery alarm, the batteries will continue to discharge

until they are too low to operate. When this happens

there will be a multiple beep alarm and the Battery Level

indicator will show a dead battery. Your LifeBook will

then go into Standby mode to try and protect your data

for as long as possible. There is no guarantee that your

data will not be lost once the notebook reaches this

point.

CAUTION

■Do not leave a faulty battery in your notebook. It

may damage your AC adapter, optional Auto/Airline

adapter, another battery or your notebook itself. It

may also prevent operation of your notebook by

draining all available current into the bad battery.

■Under federal, state, or local law it may be illegal to

dispose of batteries by putting them in the trash.

Please take care of our environment and dispose of

batteries properly. Check with your local government

authority for details regarding recycling or disposing

of old batteries. If you cannot find this information

elsewhere, contact your support representative at

1-800-8Fujitsu.

POINT

Actual battery life will vary based on screen brightness,

applications, features, power management settings,

battery condition and other customer preferences.

CD-ROM drive or hard drive usage may also have a

significant impact on battery life. The battery charging

capacity is reduced as the battery ages. If your battery is

running low quickly, you should replace it with a new

one.

POINT

Make sure that the Battery Charging indicator and the

percentage charge is shown inside the Battery Level

icon on the Status Indicator Panel.

POINT

Using heavy current devices such as Modem or

frequent CD-ROM and PCMCIA powered external

devices accesses may prevent charging completely.

CAUTION

■You may not be able to hear the audio alarm if the

volume control is set too low or is turned off by either

the hardware or software. However, you will still be

able to see the Battery Level indicator flash. Once the

low battery alarm occurs you must save all your active

data and put your notebook into Standby mode until

you can provide a new power source. You should

provide a charged battery, an AC power adapter, or

Auto/Airline as soon as possible.

■When you are in Standby mode there must always be

at least one power source active. If you remove all

power sources while your notebook is in Standby

mode, any data that has not been saved to the hard

drive will be lost.

B Series.book Page 37 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Four

Dead Battery Suspend mode shows on the Status indi-

cator just like the normal Standby mode. Once your

notebook goes into Dead Battery Suspend mode you

will be unable to resume operation until you provide

a source of power either from an adapter, or a charged

battery. Once you have provided power, you will need to

press the Suspend/Resume button to resume operation.

In the Dead Battery Suspend mode, your data can be

maintained for some time, but if a power source is not

provided promptly, the Power indicator will stop

flashing and go out, meaning that you have lost the data

that was not stored. Once you provide power, you can

continue to use your notebook while an adapter is

charging the battery.

Shorted Batteries

The Status Indicator panel uses a symbol inside the

battery outline of the Battery Level indicator to display

the operating level available in that battery.

(See figure 2-10 on page 12) If this display shows a

Shorted Battery, it means that the battery is damaged

and must be replaced so it does not damage any other

parts of your notebook.

REPLACING THE BATTERY

Your LifeBook B Series notebook comes with two

battery packs: one installed and one spare. By keeping

the spare battery fully charged, you can immediately

swap with one that is not charged. There are two ways to

swap batteries: cold-swapping and warm-swapping.

Cold swapping means swapping batteries when the

system has been powered down; warm swapping is

performed when the system is in Standby mode.

Cold-swapping Batteries

To cold-swap batteries in your battery bay follow these

easy steps: (Figure 4-1)

1. Have a charged battery ready to install.

2. Shut down your notebook and disconnect

the AC adapter.

Figure 4-1 Removing the Battery

3. Slide the Battery Bay Lock to the right, then slide the

battery release button in the same direction.

4. Slide the battery away from the battery bay and

remove it from the bay.

5. Position the new battery on the tray slides and care-

fully slide it fully into the tray. (Figure 4-2)

6. Slide the Battery Bay Lock to the left to lock the pack

into position.

7. Turn the power on.

Figure 4-2 Installing the Battery

Warm-swapping Batteries

To warm-swap batteries in your battery bay follow these

easy steps: (Figure 4-1)

1. Close any open files and put your notebook into

Standby mode.

3. Slide the Battery Bay Lock to the right, then slide the

Battery Release Button in the same direction.

4. Slide the battery away from the battery bay and

remove it from the bay.

5. Position the new battery on the tray slides and care-

fully slide it fully into the tray. (Figure 4-2)

6. Slide the Battery Bay Lock to the left to lock the pack

into position.

7. Press the Suspend/Resume button to return your

notebook to normal operation.

Battery Bay Lock/

Release Button

Battery

1 - Battery Lock

2 - Battery Release

Button

POINT

You have only a few minutes to perform a warm-

swapping before the internal bridge battery runs out of

power. Have the charged battery nearby when

performing a warm battery swap.

POINT

If the Lithium ion battery connector is not fully seated,

you may not be able to use your notebook or charge

your battery.

Battery Slides

(both sides)

B Series.book Page 38 Thursday, September 26, 2002 11:01 AM

User Installable Features

Figure 4-3 Loading/Ejecting a 3.5” Floppy Disk

External Floppy

Disk Drive

CONNECTING AN

EXTERNAL FLOPPY DISK DRIVE

Your LifeBook notebook has an external floppy disk

drive which can read and write information on remov-

able 1.44MB and 720KB floppy disks.

Your USB floppy disk drive can be installed while your

system is in a suspended state (“warm” connection),

while the system is running (“hot” connection), or when

the system is off (“cold” connection).

Figure 4-4 USB floppy disk drive cable and computer connection

Attach the external USB floppy disk drive by inserting

the end of the cable connector into the USB port. See the

figure above.

See your computer’s User’s Guide to determine the loca-

tion of the USB floppy disk drive port.

Your computer will automatically detect the floppy disk

drive and activate it within your system. The drive letters

associated with the floppy disk drive will be created and

listed under My Computer and Windows Explorer.

LOADING A DISK

To load a disk into your disk drive, follow these easy

steps:

1. Orient the disk so that its label is facing upwards

and the shutter side is pointing towards the drive.

(Figure 4-3)

2. Push the disk into the drive until the Eject button

pops out and you hear a click.

EJECTING A DISK

To eject a disk from the disk drive, follow these easy

steps:

1. Check that the Floppy Disk Drive Access indicator

is inactive.

2. Press the Eject button. This will push your disk

partially out of the drive.

3. Remove the disk.

PREPARING A DISK FOR USE

Before you can use a new disk, it needs to be prepared

so your notebook knows where to store information.

This preparation is called formatting or initializing a

disk. You will need to format new disks, unless they are

preformatted. (Please refer to your operating system

manual for step-by-step instructions on formatting a disk)

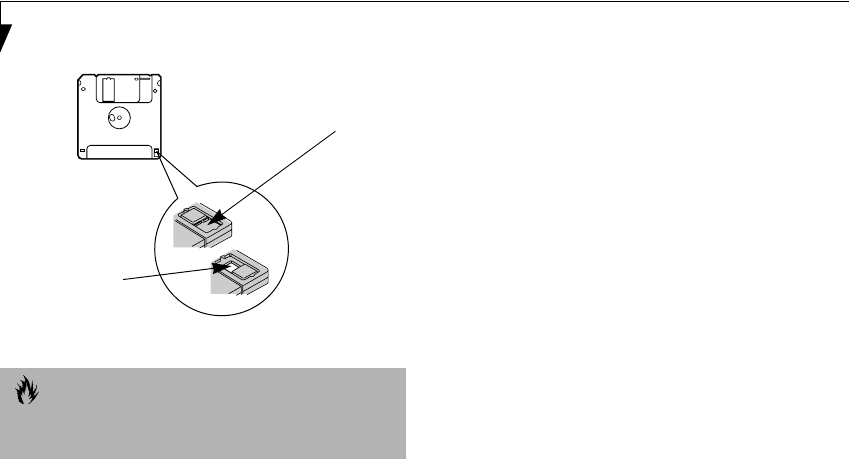

To prevent accidental erasure of the data stored on a

disk, slide the “write protect” tab until a small hole is

exposed. This sets the disk into a protected state where

nothing can be added or removed. If you want to add or

remove data on a protected disk, slide the “write

protect” tab to close the small hole. (Figure 4-5)

Eject Button

POINT

When there is no disk in the drive, the Eject button is

flush with your LifeBook notebook.

CAUTION

If you eject the disk while the Floppy Disk Drive Access

indicator is active, there is a risk of damaging the data

on the disk, the disk itself or even the disk drive.

B Series.book Page 39 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Four

Figure 4-5 Floppy Disk Write Protect

CAUTION

Formatting a floppy disk that already contains data will

erase all of the information on the disk.

Write Protected

Write Enabled

B Series.book Page 40 Thursday, September 26, 2002 11:01 AM

User Installable Features

Figure 4-5 Installing/Removing PC Cards

PC Cards

Your LifeBook notebook supports Type I, II, and Type

III PC Cards, which can perform a variety of functions.

Some available PC Cards:

■Fax/data modem cards.

■Local area network (LAN) cards.

■IDE solid-state disk cards.

■SCSI cards.

■Other PC Cards that conform to PCMCIA 2.1 or

CardBus standards.

■Optional SmartCard adapter

For further information, refer to the instructions

supplied with your PC Card.

INSTALLING PC CARDS

PC Cards are installed in the PC Card slot. To install a

PC Card, follow these easy steps: (Figure 4-5)

1. See your PC Card manual for specific instructions

on the installation of your card. Some PC Cards

may require your notebook to be Off while

installing them.

2. Make sure there is no PC Card currently in the slot.

If there is, see Removing PC Cards.

3. Insert your PC Card into the slot, with the product

label facing up.

4. Push the card into the slot firmly until it is seated in

the opening.

REMOVING PC CARDS

To remove a PC Card, follow these easy steps:

1. See your PC Card manual for specific instructions

on removing your card. Some PC Cards may require

your notebook to be in Standby Mode or Off while

removing them.

2. Push the Eject button until it pops out, and then

push it in to eject the card. This will allow you to

remove the card.

SMART CARD READER

An embedded Smart Card Reader is provided on your

LifeBook notebook. Smart Cards are the same size and

shape as credit cards, but they contain an integrated

microprocessor chip. The chip can hold a variety of

information, and provides the user with many possible

options, such as allowing them to make secure

purchases, pay for phone calls, store security informa-

tion, and provide identification and information.

In order to use the embedded Smart Card Reader, you

must purchase an optional Smart Card holder for instal-

lation into an available Type II PC Card slot.

Eject Button

PC Card Slot

PC Card

WARNING

■Installing or removing a PC Card during your note-

book’s shutdown or bootup process may damage the

card and/or your notebook.

■Do not insert a PC Card into a slot if there is water or

any other substance on the card as you may perma-

nently damage the card, your notebook, or both.

CAUTION

Windows has a shutdown procedure for PC Cards that

must be followed before removing a card. (Review your

operating system manual for the correct procedure)

POINT

If the dialog box states that the device cannot be

removed, you must save all of your open files, close

any open applications and shut down your LifeBook.

Once your LifeBook has been shut down, you must turn

Off the power using the power switch.

CAUTION

If the PC Card has an external connector and cable, do

not pull the cable when removing the card.

B Series.book Page 41 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Four

Memory Upgrade

Module

Your LifeBook notebook has been configured with

128MB or 256MB of high speed Synchronous Dynamic

RAM (SDRAM) factory installed. If your system is config-

ured with 128MB of SDRAM, you canTo increase your

notebook’s memory capacity, you must replace the orig-

inal memory module with a higher capacity module. The

memory upgrade must be a dual-in-line (DIMM) 100

MHz SDRAM module.

INSTALLING A MEMORY UPGRADE

MODULE

1. Turn off power to your notebook using the power

switch, and remove any attached power adapter

(AC or auto/airline).

2. Make sure that all connector covers are closed.

3. Turn the notebook bottom side up, with the front

panel toward you.

4. Remove the screws of the memory upgrade module

compartment. (Figure 4-6)

5. Remove the cover.

Figure 4-6 Opening the Memory Upgrade Compartment

6. Remove the memory upgrade module from the

static guarded sleeve.

7. Align the memory upgrade module with the part

side up. Align the connector edge of the memory

upgrade module with the connector slot in the

compartment. The connector will be pointing

toward the rear of the notebook.

8. Insert the memory upgrade module at a 45° angle.

Press the connector edge of the module firmly down

and into the connector until it lodges under the

retaining clip. You will hear a click when it is prop-

erly in place. (Figure 4-7)

Figure 4-7 Installing a Memory Upgrade Module

9. Replace the cover.

10. Replace the screws.

REMOVING A MEMORY UPGRADE MODULE

1. Perform steps 1 through 5 of Installing a Memory

Upgrade Module.

2. Pull the clips sideways away from each side of the

memory upgrade module at the same time.

3. While holding the clips out, remove the module

from the slot by lifting it up and pulling towards the

rear of your notebook. (Figure 4-8)

Figure 4-8 Removing a Memory Upgrade Module

CAUTION

Do not remove any screws from the memory upgrade

module compartment except those specifically shown in

the directions for installing and removing the memory

upgrade module.

WARNING

The memory upgrade module can be severely damaged

by electrostatic discharge (ESD). Be sure you are

properly grounded when handling and installing the

module.

POINT

The memory upgrade module is not something you

routinely remove from your notebook. Once it is

installed, you should leave it in place unless you want

to change system memory capacity.

B Series.book Page 42 Thursday, September 26, 2002 11:01 AM

User Installable Features

4. Store the memory upgrade module in a static

guarded sleeve.

5. Replace the cover by following steps 9 and 10 of

Installing a Memory Upgrade Module.

CHECKING THE COMPUTER RECOGNITION

OF NEW MEMORY CAPACITY

Once you have changed the system memory capacity, be

sure to check that your notebook has recognized the

change.

You can check the memory capacity by looking at the

main menu of the BIOS setup:

1. Turn on the power to your notebook using the

power switch.

2. Allow the system to start booting and press the [F2]

key once the Fujitsu logo appears on the screen. This

will open the main menu of the BIOS setup with the

current settings displayed. See “BIOS Setup Utility”

on page 29.

The System Memory and the Extended Memory

capacity, as detected by your notebook during the Power

On Self Test (POST), are displayed at the bottom of the

main menu screen.

POINT

After installing your new memory module, you must

complete the Resetting the Hibernate Parameters

procedure in order for the Hibernate mode to operate

properly on your notebook. See “Hibernate Mode” on

page 33.

POINT

If the total memory displayed is incorrect, check that

your memory upgrade module is properly installed. If

the module is properly installed and the capacity is still

not correctly recognized, see “Troubleshooting” on

page 51.

B Series.book Page 43 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Four

Figure 4-9 Port Replicator rear panel (LAN model shown)

Port Replicator

An optional Port Replicator is available from Fujitsu to

support your LifeBook notebook. The Port Replicator

extends the functionality of your notebook by providing

ports to connect PS/2 devices, a parallel device, a serial

device, and an external floppy disk drive. The Port

Replicator connects to the bottom of your notebook. See

“Device Ports” on page 46.

REAR PANEL COMPONENTS

Following is a brief description of the optional Port

Replicator’s rear panel components.

PS/2 Mouse Port

The PS/2 mouse port allows you to connect an external

PS/2 Mouse. (Figure 4-9)

Serial Port

The serial port allows you to connect serial (RS-232C)

devices. (This is also sometimes referred to as a COM

port.) (Figure 4-9)

Parallel Port

The parallel port allows you to connect parallel devices.

(This is also sometimes referred to as an LPT port.)

(Figure 4-9)

External Monitor Port

The external monitor port allows you to connect an

external VGA or SVGA monitor. Note that if a Port

Replicator is attached, you must use the external

monitor port on the Port Replicator. (Figure 4-9)

External Floppy Disk Drive Port

The external floppy disk drive port allows you to attach

an optional external legacy floppy disk drive. Note that if

you are connecting the standard USB floppy disk drive,

you must use the USB port on the system. (Figure 4-9)

LAN (RJ-45) Jack (LAN model only)

The LAN jack allows you to connect a LAN to the Port

Replicator. Note that when the system is attached to the

Port Replicator, the LAN Jack on the Port Replicator

should be used, not the one on the system.

DC Power Jack

The DC power jack allows you to plug in the AC adapter

to power your notebook and charge the internal Lithium

ion battery.

PS/2 Mouse Port

Parallel Port

Serial Port

Legacy External Floppy Disk Drive Port

External Monitor Port

LAN (RJ-45) Jack

DC Power Jack

(LAN model only)

POINT

There are two optional Port Replicators available for this

LifeBook series. The correct model is determined by the

configuration of your system:

■Systems with Modem LAN option:

Port Replicator FPCPR22

■Systems with Modem/Wireless LAN option:

Port Replicator FPCPR23.

B Series.book Page 44 Thursday, September 26, 2002 11:01 AM

User Installable Features

Figure 4-10 Port Replicator front panel (LAN model shown)

FRONT PANEL COMPONENTS

Following is a brief description of the optional Port

Replicator’s front panel components

Docking Port

The docking port connects the Port Replicator to your

LifeBook notebook. (Figure 4-10)

Port Replicator Release Latch

Pull the Port Replicator Release latch away from the Port

Replicator to remove the Port Replicator from your

notebook. (Figure 4-10)

ATTACHING THE PORT REPLICATOR

To attach the Port Replicator follow these easy steps:

1. Power off your notebook.

2. Align the Port Replicator connector on the bottom

of your notebook with the connector on the

Port Replicator and push together at the two

corners. (Figure 4-11)

Figure 4-11 Attaching the Port Replicator

Figure 4-12 Unlatching the Port Replicator

DETACHING THE PORT REPLICATOR

To detach the Port Replicator follow these easy steps:

1. Power off your notebook.

2. Pull the Port Replicator’s release latch away from the

Port Replicator to release it from your notebook.

(Figure 4-12)

3. Pull away the Port Replicator to detach it from

your notebook. (Figure 4-13)

Figure 4-13 Removing the Port Replicator

Docking Port

Port Replicator

Release Latch

B Series.book Page 45 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Four

Device Ports

Your LifeBook notebook and the optional Port Repli-

cator come equipped with multiple ports to which you

can connect an external device including: disk drives,

keyboards, modems, printers, etc.

MODEM (RJ-11) JACK

The modem (RJ-11) jack is used for an internal modem.

To connect the telephone cable follow these easy steps:

(See figure 2-7 on page 10 for location)

1. Align the connector with the jack opening.

2. Push the connector into the jack until it is seated.

3. Plug the other end of the telephone cable into a

telephone outlet.

INTERNAL LAN (RJ-45) JACK

(LAN MODEL ONLY)

The internal LAN (RJ-45) jack is used for an internal

Fast Ethernet (10/100 Base-T/Tx) connection. If your

notebook has been configured with internal LAN

capability you will need to configure your notebook

to work with your particular network. (Please refer to

your network administrator for information on your

network configuration.) To connect the LAN cable

follow these easy steps: (See figure 2-7 on page 10 for loca-

tion)

1. Align the connector with the jack opening.

2. Push the connector into the jack until it is seated.

3. Plug the other end of the cable into a LAN outlet.

PARALLEL PORT

The parallel port, or LPT port, located on the optional

Port Replicator allows you to connect parallel devices,

such as a printer to your notebook. In order to connect a

parallel interface device follow these easy steps: (See

figure 4-9 on page 44 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

3. Tighten the two hold-down screws, located on

each end of the connector.

SERIAL PORT

The serial port, or COM port, located on the optional

Port Replicator allows you to connect serial devices, such

as printers or scanners. In order to connect a serial

interface device follow these easy steps:

(See figure 4-9 on page 44 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

3. Tighten the two hold-down screws, located on each

end of the connector.

WARNING

The internal modem is not intended for use with Digital

PBX systems. Do not connect the internal modem to a

Digital PBX as it may cause serious damage to the

internal modem or your entire LifeBook notebook.

Consult your PBX manufacturer’s documentation for

details. Some hotels have Digital PBX systems. Be sure

to find out BEFORE you connect your modem.

POINT

■The internal modem is designed to the ITU V.90

standard. Its maximum speed of 53000bps is the

highest allowed by FCC, and its actual connection

rate depends on the line conditions. The maximum

speed is 33600bps at upload.

■The internal modem on all LifeBook notebooks from

Fujitsu PC Corporation are certified for use in the

United States and Canada.

■Depending upon the configuration of your system,

your LifeBook notebook may have either a LAN jack

or an IEEE 1394 jack.

POINT

Note that the optional Port Replicator is designed to

cover the LAN jack located on the system. This design

ensures that the LAN jack on the Port Replicator is the

only one used when the Port Replicator is installed.

B Series.book Page 46 Thursday, September 26, 2002 11:01 AM

User Installable Features

PS/2 PORT

The PS/2 port located on the optional Port Replicator

allows you to connect an external keyboard, and/or

numeric keypad and mouse. In order to connect a PS/2

interface device follow these easy steps: (See figure 4-9 on

page 44 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

DOCKING PORT

The docking port is used for the connection of your

LifeBook notebook to an optional port replicator. In

order to connect your notebook to one of these devices

follow the instructions that came with your docking

port. (See figure 2-8 on page 11 for location)

EXTERNAL FLOPPY DISK DRIVE PORT

The external floppy disk drive port is used for attaching

an optional external legacy floppy disk drive. In order to

connect an external floppy disk drive to your notebook

follow the instructions that came with the drive. If you

are using the standard external USB drive, connect it to

a USB port. (See figure 4-9 on page 44 for location)

UNIVERSAL SERIAL BUS PORTS

The Universal Serial Bus ports (USB) allow you to

connect USB devices such as external floppy disk drives,

game pads, pointing devices, keyboards and/or speakers.

In order to connect a USB device follow these easy steps:

(See figure 2-7 on page 10 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

INFRARED PORT

The Infrared IrDA 1.1 (4Mbps) port allows for wireless

data transfer between your LifeBook notebook and

other IrDA-compatible devices, such as another

computer or a printer, without the use of a cable. (See

figure 2-7 on page 10 for location)

It is important to keep in mind that while carrying out

this form of communication, both devices must be

placed so their infrared ports are directly facing each

other without obstruction. The devices must also be

separated by at least 6" but no more than 36" for

maximum performance.

The following conditions may interfere with infrared

communications:

■A television, radio remote control unit, or a wireless

headphone is being used nearby.

■Direct sunlight, fluorescent light, or incandescent light

shines directly on the port.

MICROPHONE JACK

The microphone jack allows you to connect an external

mono microphone. Your microphone must be equipped

with a 1/8"(3.5 mm) mono mini-plug in order to fit into

the microphone jack of your notebook. In order to

connect a microphone follow these easy steps: (See

figure 2-7 on page 10 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

HEADPHONE JACK

The headphone jack allows you to connect headphones

or powered external speakers to your notebook. Your

headphones or speakers must be equipped with a 1/8"

(3.5 mm) stereo mini-plug. In order to connect head-

phones or speakers follow these easy steps: (See figure 2-

7 on page 10 for location)

1. Align the connector with the port opening.

2. Push the connector into the port until it is seated.

POINT

■A mouse, keyboard, or keypad may be installed and

automatically recognized by your notebook without

restarting or changing setups.

■The use of two PS/2 devices simultaneously from the

port requires a PS/2 splitter.

POINT

Although there is a USB port on the system that will

accommodate a floppy disk drive, and a standard floppy

disk drive connector on the optional Port Replicator,

only one drive should be connected at any time.

CAUTION

■Do not move either device while communication is

active as it may interrupt data transmission.

■Be careful not to scratch the infrared port lens.

Scratches, dirt, or other surface marks can

degrade operation.

POINT

With Windows 98 Second Edition, you can use the

Infrared Recipient application for infrared file transfers.

POINT

If you plug headphones into the headphone jack, the

built-in stereo speakers will be disabled.

B Series.book Page 47 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Four

EXTERNAL MONITOR PORT

The external monitor port allows you to connect an

external monitor. In order to connect an external

monitor follow these easy steps: (See figure 2-6 on page 9

for location)

1. Remove the cover from the port opening, if present.

2. Align the connector with the port opening.

3. Push the connector into the port until it is seated.

4. Tighten the two hold-down screws, located on

each end of the connector.

POINT

When a Port Replicator is attached and an external

monitor is plugged in, pressing the [Fn] + [F10] keys

allows you to change your selection of where to send

your display video. Each time you press the key

combination, you will step to the next choice, starting

with the built-in display panel only, moving to the

external monitor only, finally moving to both the built-

in display panel and an external monitor.

B Series.book Page 48 Thursday, September 26, 2002 11:01 AM

Troubleshooting

B Series.book Page 49 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Five

B Series.book Page 50 Thursday, September 26, 2002 11:01 AM

Troubleshooting

Your LifeBook notebook is sturdy and subject to few

problems in the field. However, you may encounter

simple setup or operating problems that you can solve

on the spot, or problems with peripheral devices, that

you can solve by replacing the device. The information

in this section helps you isolate and resolve some of

these straightforward problems and identify failures that

require service.

IDENTIFYING THE PROBLEM

If you encounter a problem that you are having diffi-

culty in solving, go through the following procedure

before pursuing further troubleshooting:

1. Turn off your LifeBook notebook.

2. Make sure the AC adapter is plugged into your note-

book and to an active AC power source.

3. Make sure that any card installed in the PC Card slot

is seated properly. You can also remove the card

from the slot, thus eliminating it as a possible cause

of failure.

4. Make sure that any devices connected to the external

connectors are plugged in properly. You can also

disconnect such devices, thus eliminating them as

possible causes of failure.

5. Turn on your notebook. Make sure it has been off at

least 10 seconds before you turn it on.

6. Go through the boot sequence.

7. If the problem has not been resolved, refer to the

Troubleshooting Table, that follows, for more

detailed troubleshooting information.

8. If you have tried the solutions suggested in the Trou-

bleshooting Table without success, contact your

support representative:

Toll free: 1-800-8Fujitsu

Fax: 1-901-259-5700

E-mail: 8fujitsu@fujitsupc.com

Web site: http://www.fujitsupc.com.

Before you place the call, you should have the following

information ready so that the customer support repre-

sentative can provide you with the fastest possible solu-

tion:

■Product name

■Product configuration number

■Product serial number

■Purchase date

■Conditions under which the problem occurred

■Any error messages that have occurred

■Hardware configuration

■Type of device connected, if any

See the Configuration Label on the bottom of your

LifeBook notebook for configuration and serial

numbers. (See figure 2-8 on page 11 for location)

SPECIFIC PROBLEMS

Using the Troubleshooting Table

When you have problems with your notebook, try to

find the symptoms under the Problem column of the

troubleshooting table for the feature giving you diffi-

culty.

You will find a description of common causes for that

symptom under the column Possible Cause and what, if

anything, you can do to correct the condition under

Possible Solutions. All possible causes or solutions may

not apply to your notebook.

POINT

■If you keep notes about what you have tried, your

support representative may be able to help you

more quickly by giving additional suggestions

over the phone.

■Do not return a failed LifeBook notebook to your sup-

plier until you have talked to a support representative.

B Series.book Page 51 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Five

TROUBLESHOOTING TABLE

Problem Page

Audio Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 52

Docking Problems . . . . . . . . . . . . . . . . . . . . . . . . page 52

Floppy Disk Drive Problems . . . . . . . . . . . . . . . . page 52

Hard Drive Problems . . . . . . . . . . . . . . . . . . . . . . page 53

Keyboard or Mouse Problems. . . . . . . . . . . . . . . page 53

Memory Problems . . . . . . . . . . . . . . . . . . . . . . . . page 54

Problem Page

Modem Problems. . . . . . . . . . . . . . . . . . . . . . . . . page 54

Parallel, Serial and USB Device Problems . . . . . page 54

PC Card Problems . . . . . . . . . . . . . . . . . . . . . . . . page 54

Power Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . page 55

Shutdown and Startup Problems . . . . . . . . . . . . page 56

Video Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 57

Miscellaneous Problems . . . . . . . . . . . . . . . . . . . page 59

Problem Possible Cause Possible Solutions

Audio Problems

There is no sound coming

from the built-in speakers.

The volume is turned too low. Adjust the volume control on your notebook.

The software volume control is

set too low.

Adjust the sound volume control settings in your

software, operating system and applications.

Headphones are plugged into

your notebook.

Plugging in headphones disables the built-in

speakers, remove the headphones.

BIOS audio settings

are incorrect.

Set the BIOS setup utility to the default values

within the Multimedia Device Configuration menu.

See “BIOS Setup Utility” on page 29.

Software driver is not config-

ured correctly.

Refer to your application and operating system

documentation for help.

Sound could have been muted

with function keys.

Press [F3] while holding the [Fn] key to toggle the

sound on and off.

Port Replicator Problems

LifeBook notebook does

not turn on when installed

in optional Port Replicator

Port Replicator AC adapter is

not plugged in.

Provide power to the Port Replicator.

Notebook is not properly

seated in the Port Replicator.

Remove and re-dock your notebook.

Floppy Disk Drive Problems

You cannot access your

floppy disk.

You tried to write to a write

protected floppy disk.

Eject the floppy disk and set it to write enable.

See “Preparing a Disk for Use” on page 39.

Floppy disk is not

loaded correctly.

Eject floppy disk, check orientation and re-insert.

See “Ejecting a Disk” on page 39.

BIOS setup utility states

Diskette Controller:

Disabled.

Revise the setup utility Main menu settings to

enable Diskette Controller. See “BIOS Setup Utility”

on page 29.

The floppy disk drive may not

be properly installed.

Remove and re-install your floppy disk drive.

Security is set to protect access

to floppy disk data.

Verify your password and security settings.

The USB floppy disk drive is

not selected in the BIOS.

Verify that the USB Support is enabled in the BIOS

Advanced menu. See “BIOS Setup Utility” on

page 29.

B Series.book Page 52 Thursday, September 26, 2002 11:01 AM

Troubleshooting

Hard Drive Problems

You cannot access your

hard drive.

The setup utility is incorrectly

set for your internal (Primary

Master) or optional second

hard drive (Primary Slave).

Revise BIOS settings to set both Primary Master

and Primary Slave correctly. See “BIOS Setup

Utility” on page 29.

The wrong drive designator

was used by an application

when a bootable CD-ROM was

used to start the notebook.

Verify drive designator used by application is in

use by the operating system. When the operating

system is booted from a CD, drive designations

are automatically adjusted.

Security is set so your oper-

ating system cannot be started

without a password.

Verify your password and security settings.

Keyboard or Mouse Problems

The built-in keyboard does

not seem to work.

The notebook has gone into

Standby mode.

Push the Suspend/Resume button.

Your application has locked

out your keyboard.

Try to use your integrated pointing device to restart

your system. If this fails, turn your notebook off

using the power switch, wait 10 seconds or more,

and then turn it back on.

You have installed an

external keyboard or

mouse, and it does not

seem to work.

Your external device is not

properly installed.

Re-install your device. See “Device Ports” on page 46.

Your operating system

software is not setup with

the correct software driver

for that device.

Check your device and operating system docu-

mentation and activate the proper driver.

Your mouse or keyboard is

connected to the wrong PS/2

port on the LAN dock.

Plug the mouse into the PS/2 Mouse port and

the external keyboard or numeric key pad into the

PS/2 Keyboard port. See “PS/2 Port” on page 47.

The external mouse is disabled

in the BIOS.

Revise the setup utility Advanced menu settings to

disable the Internal Pointing Device, thus enabling

the external pointing device. See “BIOS Setup

Utility” on page 29.

You have connected an

external keyboard or a

mouse and it seems to be

locking up the system.

Your operating system

software is not setup with

the correct software driver

for that device.

Check your device and operating system

documentation and activate the proper driver.

Your system has crashed. Try to restart your notebook. If that fails, turn off

the power using the power switch, wait at least 10

seconds, and then power on.

Problem Possible Cause Possible Solutions

B Series.book Page 53 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Five

Memory Problems

Your Power On screen, or

Main menu of the BIOS

setup utility information,

does not show the correct

amount of installed

memory.

Your memory upgrade module

is not properly installed.

Turn off your notebook. Remove and re-install your

memory upgrade module. See “Memory Upgrade

Module” on page 42.

You have a memory failure. Check for Power On Self Test (POST) messages.

See “Power On Self Test Messages” on page 60.

Modem Problems

Messages about modem

operation.

Messages about modem

operation are generated by

whichever modem application

is in use.

See your application software documentation for

additional information.

Parallel, Serial, and USB Device Problems

You have installed a parallel

port device, a serial port

device or a USB device.

Your LifeBook notebook

does not recognize the

device, or the device does

not seem to work properly.

The device is not properly

installed.

Remove and re-install the device. See “Device Ports”

on page 46.

The device may have been

installed while an application

was running, so your notebook

is not aware of its installation.

Close the application and restart your notebook.

Yo u r s o f t w a re m ay n ot

have the correct software

driver active.

See your software documentation and activate the

correct driver.

Yo u may h a v e t he w r o n g

I/O address selected for

your device.

See your device documentation and software docu-

mentation to determine the required I/O address.

Change the settings in the BIOS setup utility. See

“BIOS Setup Utility” on page 29.

Yo u r de v i c e a n d a n ot h e r

device are assigned the same

I/O address.

Check all I/O addresses located within the BIOS

setup utility and any other installed hardware or

software to make sure there are no duplications.

Parallel port is set to

output only.

Check parallel port setting in the BIOS and set to

bi-directional or ECP.

PC Card Problems

A card inserted in the PC

Card slot does not work or

is locking up the system.

The card is not properly

installed.

Remove and re-install the card. See “PC Cards” on

page 41.

The card may have been

installed while an application

was running, so your notebook

is not aware of its installation.

Close the application and restart your notebook.

Yo u r s o f t w a re m ay n ot h av e

the correct software driver

active.

See your software documentation and activate the

correct driver.

You may have the wrong I/O

address selected for your PC

Card device.

See your PC Card documentation to determine

the required I/O address. Change the settings in

the BIOS. See “BIOS Setup Utility” on page 29.

Problem Possible Cause Possible Solutions

B Series.book Page 54 Thursday, September 26, 2002 11:01 AM

Troubleshooting

A card inserted in the PC

Card slot does not work or

is locking up the system.

(continued)

Your PC Card device and

another device are assigned the

same I/O address.

Check all I/O addresses located within the BIOS

setup utility and any other installed hardware or

software to make sure there are no duplications.

Power Failures

You turn on your LifeBook

notebook and nothing

seems to happen.

The installed primary battery

is completely discharged, there

is no optional second battery

installed or there is no power

adapter (AC or Auto/Airline)

installed.

Check the Status Indicator Panel to determine the

presence and condition of the battery. See “Status

Indicator Panel” on page 12. Install a charged

battery or a Power adapter.

The primary battery is

installed but is faulty.

Use the Status Indicator Panel to verify the presence

and condition of the battery. See “Status Indicator

Panel” on page 12. If a battery is indicating a short,

remove that battery and operate from another

power source or replace that battery.

The battery is low. Check the Status Indicator Panel to determine the

presence and condition of the battery. See “Status

Indicator Panel” on page 12. Use a Power adapter to

operate until a battery is charged or install a charged

battery.

The AC or auto/airline adapter

is not plugged in properly.

Verify that your adapter is connected correctly. See

“Power Sources” on page 27.

The Power adapter (AC or

auto/airline) has no power

from the AC outlet, airplane

seat jack, or the car’s cigarette

lighter.

Move the AC cord to a different outlet, check for a

line switch or tripped circuit breaker for the AC

outlet. If you are using an auto/airline adapter in a

car make sure the ignition switch is in the On or

Accessories position.

The Power adapter (AC or

auto/airline) is faulty.

Try a different Power adapter or install a charged

optional second battery.

Power switch is not in the

On position.

Slide the power switch firmly to the Off position,

pause 10 seconds or more and then firmly to the

On position.

Your LifeBook notebook

turns off all by itself.

The power management

parameters are set for auto

timeouts which are too short

for your operating needs.

Press any button on the keyboard, or move the

mouse to restore operation. If that fails, push the

Suspend/Resume button. Check your power

management settings, or close your applications

and go to the Power Savings menu of the setup

utility to adjust the timeout values to better suit

your operation needs.

You are operating on battery

power only and have ignored a

low battery alarm until the

battery is at the dead battery

state and your machine has

gone into Dead Battery

Suspend mode.

Install a power adapter and then push the Suspend/

Resume button. See “Power Sources” on page 27.

Problem Possible Cause Possible Solutions

B Series.book Page 55 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Five

Your LifeBook notebook

turns off all by itself.

(continued)

You have a battery failure. Verify the condition of the battery using the

Status Indicator panel, and replace or remove

any battery that is shorted. See “Status Indicator

Panel” on page 12.

Your power adapter has failed

or lost its power source.

Make sure the adapter is plugged in and the outlet

has power.

Your LifeBook notebook

will not work on battery

alone.

The installed battery is dead. Replace the battery with a charged one or install

a Power adapter.

No battery is installed. Install a charged battery.

The battery is improperly

installed.

Verify that the battery is properly connected

by re-installing them.

Your installed battery is faulty. Verify the condition of the battery using the

Status Indicator panel and replace or remove

any battery that is shorted. See “Status Indicator

Panel” on page 12.

The battery seems to

discharge too quickly.

You are running an application

that uses a great deal of power

due to frequent hard drive

access or CD-ROM access, use

of a modem card or a LAN PC

card.

Use both the primary battery and an optional

second battery and/or use a power adapter for this

application when at all possible.

The power savings features

may be disabled.

Check the power management and/or setup utility

settings in the Power Savings menu and adjust

according to your operating needs.

The brightness is turned all

the way up.

Turn down the brightness adjustment. The higher

the brightness the more power your display uses.

The battery is very old. Replace the battery.

The battery has been exposed

to high temperatures.

Replace the battery.

The battery is too hot or too

cold.

Restore the notebook to normal operating tempera-

ture. The Charging icon on the Status Indicator

panel will flash when the battery is outside its

operating range.

Shutdown and Startup Problems

The Suspend/Resume

button does not work.

The Suspend/Resume button

is disabled from the Advanced

submenu of the Power menu

of the setup utility.

Enable the button from the setup utility.

You did not hold the button

in long enough.

Hold the button longer. This may need to be a few

seconds if your application is preventing the CPU

from checking for button pushes.

There may be a conflict with

the application software.

Close all applications and try the button again.

Problem Possible Cause Possible Solutions

B Series.book Page 56 Thursday, September 26, 2002 11:01 AM

Troubleshooting

The system powers up, and

displays power on informa-

tion, but fails to load the

operating system.

The boot sequence settings

of the setup utility are not

compatible with your

configuration.

Set the operating source by pressing the [ESC] key

while the Fujitsu logo is on screen or use the [F2]

key and enter the setup utility and adjust the source

settings from the Boot menu. See “BIOS Setup

Utility” on page 29.

You have a secured system

requiring a password to load

your operating system.

Make sure you have the right password. Enter the

setup utility and verify the Security settings and

modify them as accordingly. See “BIOS Setup

Utility” on page 29.

An error message is

displayed on the screen

during the LifeBook note-

book boot sequence.

Power On Self Test (POST) has

detected a problem.

See the Power On Self Test (POST) messages to

determine the meaning and severity of the problem.

Not all messages are errors; some are simply status

indicators. See “Power On Self Test Messages” on

page 60.

Your system display won’t

turn on when the system is

turned on or when the

system has resumed.

The system may be password-

protected.

Check the status indicator panel to verify that the

Security icon is blinking. If it is blinking, enter your

password.

Your notebook appears to

change setup parameters

when you start it.

BIOS setup changes were not

saved when you made them

and exited the BIOS setup

utility returning it to

previous settings.

Make sure you select Save Changes And Exit when

exiting the BIOS setup utility.

The BIOS CMOS back-up

battery has failed.

Contact your support representative for repairs.

This is not a user serviceable part but has a normal

life of 3 to 5 years.

Video Problems

The built-in display is

blank when you turn on

your notebook.

Something is pushing on the

Closed Cover switch.

Clear the Closed Cover switch. (See figure 2-5 on

page 8 for location)

The optional Port Replicator is

attached, an external monitor

is plugged in, and the note-

book is set for an external

monitor only.

Pressing [F10] while holding down the [Fn] key

allows you to change your selection of where to

send your display video. Each time you press the

combination of keys you will step to the next

choice. The choices, in order are: built-in display

only, external monitor only, both built-in display

and external monitor.

The angle of the display and

the brightness settings are not

adequate for your lighting

conditions.

Move the display and the brightness control until

you have adequate visibility.

The power management

timeouts may be set for very

short intervals and you failed

to notice the display come on

and go off again.

Press any button the keyboard, or move the mouse

to restore operation. If that fails, push the Suspend/

Resume button. (The display may be shut off by

Standy mode, Auto Suspend or Video Timeout)

Problem Possible Cause Possible Solutions

B Series.book Page 57 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Five

The notebook turned on

with a series of beeps and

your built-in display is

blank.

Power On Self Test (POST)

has detected a failure which

does not allow the display

to operate.

Contact your support representative.

Your system display won’t

turn on when the system is

turned on or when the

system has resumed.

The system may be password-

protected.

Check the status indicator panel to verify that the

Security icon is blinking. If it is blinking, enter your

password.

The display goes blank by

itself after you have been

using it.

The notebook has gone into

Video Timeout, Standby

Mode, or Hibernate Mode

because you have not used it

for a period of time.

Press any button on the keyboard, or move the

mouse to restore operation. If that fails, push the

Suspend/Resume button. Check your power

management settings, or close your applications

and go to the Power Savings menu of the setup

utility to adjust the timeout values to better suit

your operation needs. See “BIOS Setup Utility” on

page 29.

Something is pushing on the

Closed Cover switch.

Check the Closed Cover switch. (See figure 2-5 on

page 8 for location)

The power management time-

outs may be set for very short

intervals and you failed to

notice the display come on

and go off again.

Press any button on the keyboard, or move the mouse

to restore operation. If that fails, push the Suspend/

Resume button. (The display may be shut off by

Standby Mode, Auto Suspend or Video Timeout)

The Built-in Display does

not close.

A foreign object, such as a

paper clip, is stuck between the

display and the keyboard.

Remove all foreign objects from the keyboard.

The Built-in Display has

bright or dark spots.

If the spots are very tiny and

few in number, this is normal

for a large LCD display.

This is normal; do nothing.

If the spots are numerous or

large enough to interfere with

your operation needs.

Display is faulty; contact your support representa-

tive.

The application display

uses only a portion of your

screen and is surrounded

by a dark frame.

You are running an application

that does not support 800 x

600/1024 x 768 pixel resolution

display and display compres-

sion is enabled.

Display compression gives a clearer but smaller

display for applications that do not support 800 x

600/1024 x 768 pixel resolution. You can fill the

screen but have less resolution by changing your

display compression setting, (See the Video Features

submenu, located within the Advanced menu of the

BIOS. See “BIOS Setup Utility” on page 29.

The Display is dark when

on battery power.

The BatteryAid default is set

on low brightness to

conserve power.

Press [Fn] + [F7] to increase brightness or double-

click on BatteryAid battery gauge and adjust Power

Control under battery settings.

Problem Possible Cause Possible Solutions

B Series.book Page 58 Thursday, September 26, 2002 11:01 AM

Troubleshooting

You have connected an

external monitor and it

does not display any

information.

Your BIOS setup is not set to

enable your external monitor.

Try toggling the video destination by pressing [Fn]

and [F10] together, or check your BIOS setup and

enable your external monitor. (See the Video

Features submenu, located within the Advanced

Menu of the BIOS. See “BIOS Setup Utility” on

page 29.

Your external monitor is not

properly installed.

Reinstall your device. See “External Monitor Port” on

page 48.

Your operating system soft-

ware is not setup with the

correct software driver for

that device.

Check your device and operating system

documentation and activate the proper driver.

You have connected an

external monitor and it

does not come on.

Your external monitor

is not compatible with

your notebook.

See your monitor documentation and the

External Monitor Support portions of the

Specifications section. See “Specifications” on

page 73.

Miscellaneous Problems

An error message is

displayed on the screen

during the operation of

an application.

Application software often

has its own set of error

message displays.

See your application manual and help displays

screens for more information. Not all messages are

errors some may simply be status.

Problem Possible Cause Possible Solutions

B Series.book Page 59 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Five

POWER ON SELF TEST MESSAGES

The following is an alphabetic list of error-and-status

messages that Phoenix BIOS and/or your operating

system can generate and an explanation of each message.

Error messages are marked with an *. If an error message

is displayed that is not in this list, write it down and

check your operating system documentation both on

screen and in the manual. If you can find no

reference to the message and its meaning is not clear,

contact your support representative for assistance.

nnnn Cache SRAM Passed

Where nnnn is the amount of system cache in kilobytes

successfully tested by the Power On Self Test. (This can

only appear if you have an SRAM PC Card installed.)

*Diskette drive A error or Diskette drive B error

Drive A: or B: is present but fails the BIOS Power On Self

Test diskette tests. Check to see that the drive is defined

with the proper diskette type in the Setup Utility, See

“BIOS Setup Utility” on page 29. and that the diskette

drive is installed correctly. If the disk drive is properly

defined and installed, avoid using it and contact your

support representative.

*Extended RAM Failed at offset: nnnn

Extended memory not working or not configured prop-

erly. If you have an installed memory upgrade module,

verify that the module is properly installed. If it is prop-

erly installed, you may want to check your Windows

Setup to be sure it is not using unavailable memory

until you can contact your support representative.

nnnn Extended RAM Passed

Where nnnn is the amount of memory in kilobytes

successfully tested.

*Failing Bits: nnnn The hex number nnnn

This is a map of the bits at the memory address (in

System, Extended, or Shadow memory) which failed the

memory test. Each 1 (one) in the map indicates a failed

bit. This is a serious fault that may cause you to lose data

if you continue. Contact your support representative.

*Fixed Disk x Failure or Fixed Disk Controller

Failure (where x = 1-4)

The fixed disk is not working or not configured properly.

This may mean that the hard drive type identified in

your setup utility does not agree with the type detected

by the Power On Self Test. Run the setup utility to check

for the hard drive type settings and correct them if

necessary. If the settings are OK and the message appears

when you restart the system, there may be a serious fault

which might cause you to lose data if you continue.

Contact your support representative.

*Incorrect Drive A type – run SETUP

Type of floppy drive A: not correctly identified in Setup.

This means that the floppy disk drive type identified in

your setup utility does not agree with the type detected

by the Power On Self Test. Run the setup utility to

correct the inconsistency.

*Incorrect Drive B type – run SETUP

Type of floppy drive B: not correctly identified in Setup.

This means that the floppy disk drive type identified in

your setup utility does not agree with the type detected

by the Power On Self Test. Run the setup utility to

correct the inconsistency.

*Invalid NVRAM media type

Problem with NVRAM access. In the unlikely case that

you see this message you may have some display prob-

lems. You can continue operating but should contact

your support representative for more information.

*Keyboard controller error

The keyboard controller test failed. You may have to

replace your keyboard or keyboard controller but may

be able to use an external keyboard until then. Contact

your support representative.

*Keyboard error

Keyboard not working. You may have to replace your

keyboard or keyboard controller but may be able to

use an external keyboard until then. Contact your

support representative.

*Keyboard error nn

BIOS discovered a stuck key and displays the scan code

for the stuck key. You may have to replace your keyboard

but may be able to use an external keyboard until then.

Contact your support representative.

*Monitor type does not match CMOS – Run SETUP

Monitor type not correctly identified in Setup. This

error probably means your BIOS is corrupted, run the

setup utility and set all settings to the default conditions.

If you still get this error, contact your support represen-

tative.

*Operating system not found

Operating system cannot be located on either drive A: or

drive C: Enter the setup utility and see if both the fixed

disk, and drive A: are properly identified and that the

boot sequence is set correctly. Unless you have changed

your installation greatly, the operating system should be

on drive C:. If the setup utility is correctly set, your hard

drive may be corrupted and your system may have to be

re-installed from your back up media.

*Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to

locate the address and display it on the screen. If it

B Series.book Page 60 Thursday, September 26, 2002 11:01 AM

Troubleshooting

cannot locate the address, it displays????. This is a

potentially data destroying failure. Contact your

support representative.

*Parity Check 2 nnnn

Parity error found in the I/O bus. BIOS attempts to

locate the address and display it on the screen. If it

cannot locate the address, it displays ????. This is a

potentially data destroying failure. Contact your

support representative.

*Press <F1> to resume, <F2> to SETUP

Displayed after any recoverable error message. Press

the [F1] key to continue the boot process or the [F2]

key to enter Setup and change any settings.

*Previous boot incomplete –

Default configuration used

Previous Power On Self Test did not complete success-

fully. The Power On Self Test will load default values and

offer to run Setup. If the previous failure was caused by

incorrect values and they are not corrected, the next

boot will likely fail also. If using the default settings does

not allow you to complete a successful boot sequence,

you should turn off the power with the Power Switch

and contact your support representative.

*Real time clock error

Real-time clock fails BIOS test. May require board

repair. Contact your support representative.

*Shadow RAM Failed at offset: nnnn

Shadow RAM failed at offset nnnn of the 64k block at

which the error was detected. You are risking data

corruption if you continue. Contact your support repre-

sentative.

nnnn Shadow RAM Passed

Where nnnn is the amount of shadow RAM in kilobytes

successfully tested.

*System battery is dead – Replace and run SETUP

The BIOS CMOS RAM memory hold up battery is dead.

This is part of your BIOS and is a board mounted

battery which requires a support representative to

change. You can continue operating but you will have to

use setup utility default values or reconfigure your setup

utility every time you turn off your notebook. This

battery has an expected life of 2 to 3 years.

System BIOS shadowed

System BIOS copied to shadow RAM.

*System CMOS checksum bad – run SETUP

BIOS CMOS RAM has been corrupted or modified

incorrectly, perhaps by an application program that

changes data stored in BIOS memory. Run Setup and

reconfigure the system.

*System RAM Failed at offset: nnnn

System memory failed at offset nnnn of in the 64k block

at which the error was detected. This means that there is

a fault in your built-in memory. If you continue to

operate, you risk corrupting your data. Contact your

support representative for repairs.

nnnn System RAM Passed

Where nnnn is the amount of system memory in

kilobytes successfully tested.

*System timer error

The timer test failed. The main clock that operates the

computer is faulty. Requires repair of system board.

Contact your support representative for repairs.

UMB upper limit segment address: nnnn

Displays the address of the upper limit of Upper

Memory Blocks, indicating released segments of the

BIOS memory which may be reclaimed by a virtual

memory manager.

Video BIOS shadowed

Video BIOS successfully copied to shadow RAM.

MODEM RESULT CODES

The operating system and application software that is

factory installed detects the modem characteristics and

provides the necessary command strings to operate the

modem. The internal modem operation is controlled by

generic AT commands from the operating system and

application software. The standard long form result

codes may, in some cases, be displayed on your screen to

keep you informed of the actions of your modem. The

operating system and application software may suppress

display of the result codes.

Examples of result codes are:

■OK

■NO CARRIER

■NO DIALTONE

■CONNECT 53000 (Connection complete

at 53,000 bps.)

■ERROR

■FAX

■RING (This means an incoming call.)

■BUSY

■NO ANSWER

When using the internal modem with applications that

are not factory installed refer to the application

documentation.

B Series.book Page 61 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Five

Restoring Your

Pre-installed Software

Your system has been loaded with a valuable utility that

allows you to restore your LifeBook notebook’s disk

drive contents as they were originally shipped from the

factory. Most often this is necessary if files or software

programs (only those files/programs that came pre-

installed) become corrupt or accidentally erased.

DRIVE IMAGE SPECIAL EDITION (DISE)

PowerQuest Drive Image Special Edition® (DISE)

provides a way to restore your computer if you experi-

ence a hard disk crash or other system failure. Fujitsu has

used DISE to create an image of everything installed on

the computer at the time you purchased it. The image is

saved on a separate partition on the hard disk. You can

use DISE to restore the factory image and return your

computer to the state in which it shipped from Fujitsu.

NOTE: Systems with the Windows 98 operating system

installed have the DISE directory structure in place, but

without the disk image or the DISE software installed.

(See Installing and Using DISE With Windows 98 Systems

on page 63 for more information)

Although it is not necessary, you can use DISE to store

additional image files that you create. For example, if

you install several applications and save data files on

your hard disk, you can create a new image file that

includes them and then save that image file on the hard

disk. Then, in the event of a hard disk failure, you can

restore the image that includes the applications and data

files you use.

Fujitsu recommends that you create a Drive Image SE

floppy boot diskette as a “rescue disk.” If your computer

fails, you can boot and run DISE from the rescue disk.

USING DISE WITH WINDOWS 2000/XP

Creating a Drive Image SE Diskette

You can use a DISE disk to boot your machine and run

DISE if your machine is unbootable or if you do not

have access to Windows.

Insert a formatted floppy disk in your machine.

From the Drive Image Special Edition main window,

click Options > Create Drive Image SE Diskette.

Running DISE from Diskettes

1. Insert the Drive Image SE Disk 1 in the floppy drive.

2. Reboot your computer.

3. Insert Disk 2, type DISE, then press <Enter>.

Creating a Backup Image

You can create a backup image of your C:\ drive at any

time. The C:\ partition must be a FAT, FAT32, or NTFS

partition, and it must be directly before the backup

partition on your hard disk.

1. At the Drive Image Special Edition main screen,

click Options> Create New Backup.

There is also a button on the main DISE screen that

performs the same function.

2. You will be prompted to type a password. Type a

password (or leave the password fields blank), then

click OK. DISE displays a warning that it must go to

DOS to create the image.

3. Click Yes.

DISE creates an image file in the backup partition. If

you created a backup image previously, the new

image overwrites the old one.

Enlarging the Backup Partition

If there is not enough unused space in the backup parti-

tion on your hard disk, DISE will resize the partition.

DISE will display the minimum, maximum, and recom-

mended sizes for the backup partition. You choose the

size you want.

DISE takes the space from the FAT, FAT32, or NTFS

partition that you are backing up. If there is not enough

unused space in that partition to take, you will not be

able to resize the backup partition and create an image

file. You can delete files from the FAT, FAT32, or NTFS

partition to create more unused space on the hard disk.

Restoring a Backup Image

You can restore either a factory image or a backup image

you created. Be aware that restoring a backup image will

replace the contents of the C:\ partition with the image

you restore.

1. Disable virus protection software. If virus protection

software is enabled, DISE will hang.

2. From the DISE main window, click Options >

Restore Factory Backup to restore the factory image.

DISE exits to DOS and restores the image file.

Drivers and Applications Restore CD

The Drivers and Application CD can be used to selec-

tively re-install drivers and/or applications that may have

been un-installed or corrupted. Please refer to installa-

tion instructions located in the Drivers and Applications

Restore CD.

POINT

Using the DISE feature will reduce the amount of usable

disk space on your hard disk drive.

B Series.book Page 62 Thursday, September 26, 2002 11:01 AM

Troubleshooting

INSTALLING AND USING DISE WITH

WINDOWS 98 SYSTEMS

Systems with Windows 98 installed have the DISE direc-

tory structure in place, but without the disk image or the

DISE software installed.

When DISE is completely installed, the DISE backup

partition requires approximately 1.8GB of hard disk

space in Windows 98 systems. This number reflects the

size of the original Fujitsu Factory Image; if additional

applications are added by the reseller, the amount of

space required will be proportionately greater.

Factory Backup Image: This is the image that is origi-

nally delivered from the factory or the reseller.

User Backup Image: This is the modified Factory Image

containing any applications or changes that have been

added by the user.

This document outlines the procedure for creating the

Factory Backup Image on the hard drive using the DISE

utility. (The User Backup Image is designed for the end-

user, and can be invoked from the desktop using the

DISE icon.)

Creating the Backup Partition

and Installing DISE on Windows 98

In order to provide a dedicated area on the hard disk to

store the image, you must first partition the disk.

1. Go to the C:\FPC\INSTALL\POWERQUEST direc-

tory and double-click on SETUP.EXE. The Welcome

screen appears.

2. Click Next.

3. Depending upon whether you are creating a Factory

Backup Image, a User Backup Image, or both, check

the applicable box(es). Be aware that the numbers

displayed represent Megabytes of disk space that will

be reserved to store the image. The following list

indicates the approximate size of the partition

required for Windows 98 systems:

One image - 1024MB

Two images - 1.8GB

4. Click [Next]. If the information displayed is correct,

click Finish to create the partition. The system will

automatically reboot and complete the operation.

5. When the message “The operation completed

successfully” appears, click [OK]. The system will

reboot.

Creating a Factory Backup Image

To create a Factory Backup Image, first partition the

disk, as outlined above. After the disk is partitioned,

proceed with the following steps.

1. Boot the system up into DOS.

2. From the DISE directory, type and enter the

following command (Note the spaces after “DISE”,

“.TX T ”, a nd “.P Q I”) :

DISE /CMD=CREATE.TXT /IMG=FACTORY.PQI /SEC

3. After the Factory Backup Image is created, an

“Operation completed successfully” message

appears. Click [OK]. The system will reboot auto-

matically.

Creating Drive Image SE Diskettes

It is recommended that you create DISE diskettes for the

system. You can use a DISE disk to boot the machine and

run DISE in the event the machine is unbootable or if

you do not have access to Windows.

1. Insert a formatted floppy disk in the drive.

2. From the Drive Image Special Edition main window,

click Options > Create Drive Image SE Diskette.

Follow the instructions displayed.

3. After diskettes have been created, label them Disk 1

and Disk 2.

Running Drive Image SE from Diskettes

1. Insert Drive Image SE Disk 1 in the drive.

2. Reboot the computer.

3. Insert Disk 2, type DISE, then press <Enter>.

Additional information about DISE is contained in the

following location on the hard drive:

C:\DISE\dise_end.pdf. There is also a shortcut icon on

the desktop to access the DISE readme file.

POINT

Look for and open files with the extensions .WRI,

.DOC, .PDF and/or .TXT.

POINT

If a DISE backup partition is not created for Master and/

or User backups, the Factory Backup Image may not be

recoverable.

POINT

The following step may require a bootable DOS

diskette.

B Series.book Page 63 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Five

B Series.book Page 64 Thursday, September 26, 2002 11:01 AM

Care and Maintenance

B Series.book Page 65 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Six

B Series.book Page 66 Thursday, September 26, 2002 11:01 AM

Care and Maintenance

If you use your LifeBook notebook carefully, you will

increase its life and reliability. This section provides

some tips for looking after the notebook and its devices.

LIFEBOOK NOTEBOOK

Caring for your LifeBook notebook

■Your LifeBook notebook is a durable but sensitive

electronic device. Treat it with care.

■Make a habit of transporting it in a suitable

carrying case.

■Do not attempt to service the computer yourself.

Always follow installation instructions closely.

■Keep it away from food and beverages.

■If you accidentally spill liquid on your notebook:

1. Turn it off.

2. Position it so that the liquid can run out.

3. Let it dry out for 24 hours, or longer if needed.

4. If your notebook will not boot after it has dried

out, call your support representative.

■Do not use your notebook in a wet environment (near

a bathtub, swimming pool).

■Always use the AC adapter and batteries that are

approved for your notebook.

■Avoid exposure to sand, dust and other

environmental hazards.

■Do not expose your notebook to direct sunlight for

long periods of time as temperatures above

140° F (60° C) may damage your notebook.

■Keep the covers closed on the connectors and slots

when they are not in use.

■Do not put heavy or sharp objects on the computer.

■If you are carrying your notebook in a briefcase, or

any other carrying case, make sure that there are no

objects in the case pressing on the lid.

■Do not drop your notebook.

■Do not touch the screen with any sharp objects.

Cleaning your LifeBook notebook

■Always disconnect the power plug. (Pull the plug,

not the cord.)

■Clean your notebook with a damp, lint-free cloth. Do

not use abrasives or solvents.

■Use a soft cloth to remove dust from the screen.

Never use glass cleaners.

Storing your LifeBook notebook

■If storing your notebook for a month or longer, turn

the notebook off, fully charge the battery, then remove

and store all Lithium ion batteries.

■Store your notebook and batteries separately. If you

store your notebook with a battery installed, the bat-

tery will discharge, and battery life will be reduced. In

addition, a faulty battery might damage the notebook.

■Store your notebook in a cool, dry location.

Temperatures should remain between -25ºC (13ºF)

and 60ºC (140ºF).

Traveling with your LifeBook notebook

■Do not transport your notebook while it is turned on.

■Do not check your notebook as baggage. Carry it with

you.

■When traveling with the hard drive removed, wrap the

drive in a non-conducting materials (cloth or paper).

If you have the drive checked by hand, be ready to

install the drive if needed. Never put your hard drive

through a metal detector. Have your hard drive hand-

inspected by security personnel. You can however, put

your hard drive through a properly tuned X-ray

machine.

■Take the necessary plug adapters if you're traveling

overseas. Check the following diagram to determine

which adapter you'll need or ask your travel agent.

KEYBOARD

Caring for your Keyboard

The keyboard of your computer is a very sensitive

instrument. It is made up of many switches that are

activated when you press on the keys. The keyboard is a

major component of the heat dissipation system in a

notebook. Due to heat and size considerations the

keyboard is not sealed. Because the keys are so close

WARNING

Electrical equipment may be hazardous if misused.

Operations of this product or similar products, must

always be supervised by an adult. Do not allow children

access to the interior of any electrical products and do

not permit them to handle any cables.

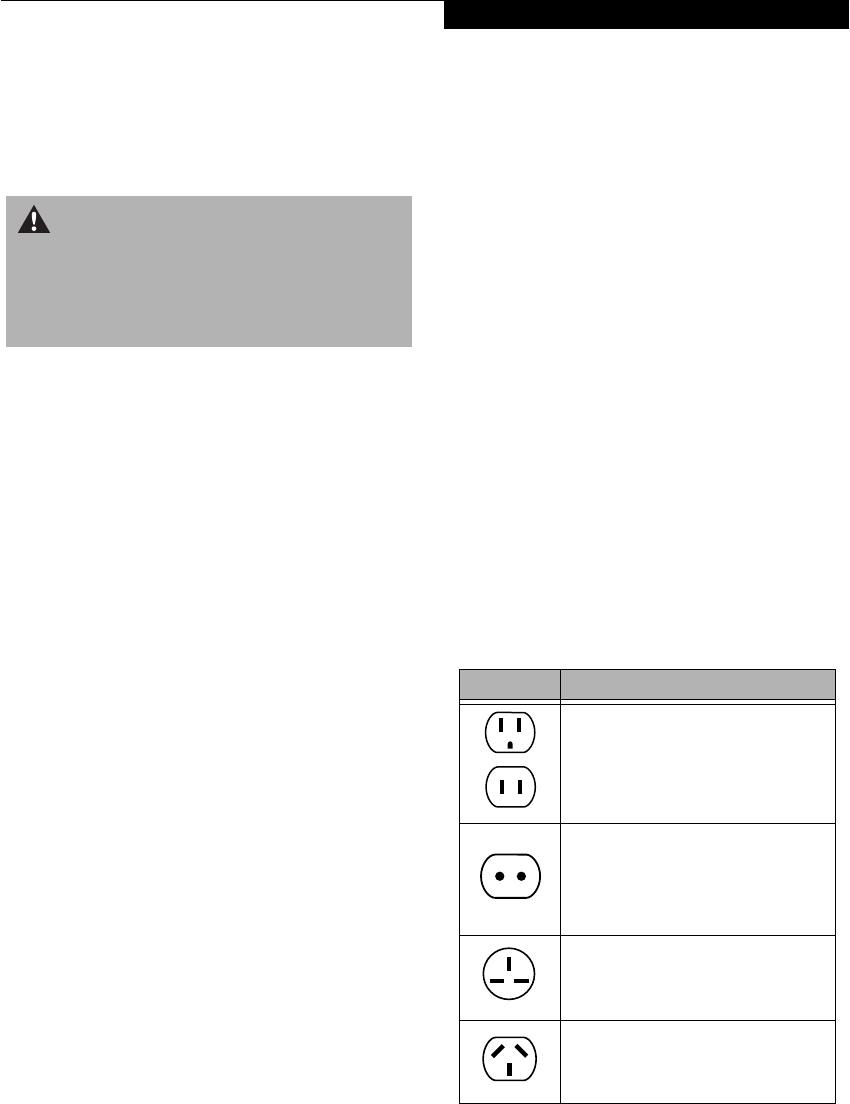

Outlet Type Location

United States, Canada, Mexico, parts

of Latin America, Japan, Korea, the

Philippines, Taiwan

Russia and the Commonwealth of

Independent States (CIS), most of

Europe, parts of Latin America, the

Middle East, parts of Africa, Hong

Kong, India, most of South Asia

United Kingdom, Ireland, Malaysia,

Singapore, parts of Africa

China, Australia, New Zealand

B Series.book Page 67 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Six

together, it is not easy for the user to see when liquids

have fallen onto the circuitry below the keys.

Attempting to clean the keyboard with a spray on

cleaner or rag soaked with cleaner the liquid can drip

onto the circuitry sight unseen. Once the liquid seeps

between the layers of circuitry, it can cause corrosion or

other damage to the circuits. This can result in keys

which no longer operate, or which, when pressed, record

the wrong characters and other similar failures.

There is no repair for this problem other than replace-

ment. The solution is to become aware of the issue and

take appropriate steps to protect your keyboard.

Cleaning should be done with a rag dampened (but not

soaking) with cleaning solution. Use extreme care to

prevent liquid from dripping between the keys. Spraying

directly on the keys should be avoided. The spray should

be applied first to the cloth, and then the cloth wiped

over the keys.

BATTERIES

Caring for your Batteries

■Always handle batteries carefully.

■Do not short-circuit the battery terminals (that is, do

not touch both terminals with a metal object). Do not

carry lose batteries in a pocket or purse where they

may mix with coins, keys, or other metal objects.

Doing so may cause an explosion or fire.

■Do not drop, puncture, disassemble, mutilate or incin-

erate the battery.

■Recharge batteries only as described in this manual

and only in ventilated areas.

■Do not leave batteries in hot locations for more than a

day or two. Intense heat can shorten battery life.

■Do not leave a battery in storage for longer than 6

months without recharging it.

Increasing Battery Life

■Keep brightness to the lowest level comfortable.

■Set the power management for maximum battery life.

■Put your notebook in Standby mode when it is turned

on and you are not actually using it.

■Limit your CD-ROM access.

■Disable the Windows CD auto insert function.

■Always use fully charged batteries.

■Eject PCMCIA cards when not in use.

FLOPPY DISKS AND DRIVES

Caring for your Floppy Disks

■Avoid using the floppy disks in damp and

dusty locations.

■Never store a floppy disk near a magnet or

magnetic field.

■Do not use a pencil or an eraser on a disk or

disk label.

■Avoid storing the floppy disks in extremely hot or cold

locations, or in locations subject to severe temperature

changes. Store at temperatures between 50º F (10ºC)

and 125ºF (52ºC).

■Do not touch the exposed part of the disk

behind the metal shutter.

Caring for your Floppy Disk Drive

■To clean, wipe the floppy disk drive clean with a dry

soft cloth, or with a soft cloth dampened with water or

a solution of neutral detergent. Never use benzene,

paint thinner or other volatile material.

■Avoid storing the floppy disk drive in extremely hot or

cold locations, or in locations subject to severe tem-

perature changes. Store at temperatures between

50º F (10ºC) and 125ºF (52ºC).

■Keep the floppy disk drive out of direct sunlight and

away from heating equipment.

■Avoid storing the floppy disk drive in locations subject

to shock and vibration.

■Never use the floppy disk drive with any liquid, metal,

or other foreign matter inside the floppy disk

drive or disk.

■Never disassemble or dismantle your floppy disk drive.

CDs

Caring for your CDs

CDs are precision devices and will function reliably if

given reasonable care.

■Always store your CDs in its case when it is not in use.

■Always handle CDs by the edges and avoid touching

the surface.

■Avoid storing any CDs in extreme temperatures.

■Do not bend CDs or set heavy objects on them.

■Do not spill liquids on CDs.

■Do not scratch CDs.

■Do not put a label on CDs.

■Do not get dust on CDs.

■Never write on the label surface with a ballpoint pen

or pencil. Always use a felt pen.

■If a CD is subjected to a sudden change in tempera-

ture, cold to warm condensation may form on the sur-

face. Wipe the moisture off with a clean, soft, lint free

B Series.book Page 68 Thursday, September 26, 2002 11:01 AM

Care and Maintenance

cloth and let it dry at room temperature. DO NOT use

a hair dryer or heater to dry CDs.

■If a CD is dirty, use only a CD cleaner or wipe it with a

clean, soft, lint free cloth starting from the inner edge

and wiping to the outer edge.

Caring for your CD-ROM Drive

Your CD-ROM drive is durable but you

must treat it with care. Please pay attention to the

following points:

■The drive rotates the compact disk at a very high

speed. Do not carry it around or subject it to shock

or vibration with the power on.

■Avoid using or storing the drive where it will be

exposed to extreme temperatures.

■Avoid using or storing the drive where it is damp or

dusty.

■Use of a commercially-available lens cleaner kit is

recommended to maintain the drive lens.

■Avoid using or storing the drive near magnets or

devices that generate strong magnetic fields.

■Avoid using or storing the drive where it will be

subjected to shock or vibration.

■Do not disassemble or dismantle the CD-ROM drive.

PC CARDS

Caring for your PC Card Slots

PC Cards are durable, but you must treat them with

care. The documentation supplied with your PC Cards

provides specific information for caring for the cards.

When you don’t have a PC Card installed in your

system, you should be sure to install the PC Card slot

inserts that came with your system. These will help to

keep dust and dirt out of your system.

B Series.book Page 69 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Six

B Series.book Page 70 Thursday, September 26, 2002 11:01 AM

Specifications

B Series.book Page 71 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Seven

B Series.book Page 72 Thursday, September 26, 2002 11:01 AM

Specifications

This section provides the hardware and environmental

specifications for your Fujitsu LifeBook B Series note-

book. Specifications of particular configurations will

vary.

CONFIGURATION LABEL

Your LifeBook notebook contains a configuration label

located on the bottom. (See figure 2-8 on page 11 for

location) This label contains specific information

regarding the options you’ve chosen for your notebook.

Following is an example label and information on how

to read your own configuration label.

Figure 7-1 Configuration Label

MICROPROCESSOR

850MHz ultra-low-voltage Pentium III processor

featuring Intel SpeedStep technology

MEMORY

System Memory

128MB or 256MB SDRAM (one slot)

Cache Memory

512K On-die L2

BIOS Memory

512KB Flash ROM

256 Bytes CMOS RAM with back-up battery

VIDEO

Built-in color flat-panel TFT active matrix LCD display

with touch screen capability.

Graphics Card

ATI® Rage® Mobility-M1

Video Color and Resolution

10.4" XGA TFT

■Internal: 1024 x 768 pixel resolution, 16M colors.

■External: 1280 x 1024 pixel resolution, 16M colors.

Simultaneous Video = Yes (1024 x 768, 16M colors)

XGA, SVGA and VGA compatible.

Video RAM

8MB Embedded VRAM.

AUDIO

■SigmaTel STAC9723 codec

■Stereo headphone jack, 1 Vrms, or less, minimum

impedance 32 Ohms.

■Mono microphone jack, 125 mVp-p or less, minimum

impedance 10K Ohms.

■Two built-in speakers, 28 mm diameter (Stereo).

■One built-in monaural microphone.

MASS STORAGE DEVICE OPTIONS

Floppy Disk Drive

External USB 3.5" Floppy Disk Drive, which

accommodates 1.44MB or 720KB floppy disks.

Optional legacy Floppy Disk Drive, which

accommodates 1.44MB or 720KB floppy disks.

Hard Disk Drive

30G or 40G fixed hard drive, Ultra DMA 33 type.

INTEGRATED POINTING DEVICE

Quick Point pointing device.

LIFEBOOK SECURITY/APPLICATION PANEL

Application Launcher buttons default to the following:

B2620, PIII 850, 10.4T, 2K, 30G, 128M

Configuration P/N: ABEXXXXXXXXXXXX

FPC P/N: FPCXXXXXX

Operating

Hard Drive

Configuration ID

Part Number

Processor

Model

Screen

Memory

Size

System

Label Button Function Default Application

1 Application A Notepad

2 Application B Calculator

3 Internet Internet Explorer

4 E-Mail Netscape Messenger

B Series.book Page 73 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Seven

THEFT PREVENTION LOCK SLOT

Lock slot for use with physical restraining security

systems. The locking system by Kensington is

recommended.

COMMUNICATIONS

Modem: Internal Multinational V.90 standard 56K fax/

modem (ITU V.90, 56K data, 14.4K fax.), and

LAN: 10/100 base-Tx Ethernet or IEEE 1394, depending

upon the configuration of your system.

* Actual data transfer rate over U.S. telephone lines

varies and is less than 56Kbps due to the current FCC

regulations and line conditions.

DEVICE PORTS

On the LifeBook notebook:

■PC Card slot for two Type II or one Type III cards:

PCMCIA Standard 2.1 with CardBus support

■One 15-pin D-SUB connector for VGA external

monitor (see Video specifications)

■Two USB (Universal Serial Bus) connectors for

input/output devices.

■One modem (RJ-11) connector.

■One LAN (RJ-45) jack (option with LAN models only)

■One stereo headphone jack. (See Audio specifications)

■One mono microphone jack.

(See Audio specifications)

■One IrDA port for infrared devices.

■One 100-pin connector for docking devices.

■One embedded SmartCard Reader (requires an

optional SmartCard holder and a third-party

application)

On the Optional Port Replicator:

■One 6-pin mini DIN PS/2 compatible connector for

external keyboard, external mouse, or external

numeric keypad.

■One 15-pin D-SUB connector for VGA external

monitor (see Video specifications).

■One 25-pin D-SUB connector for parallel input/

output devices; Bi-directional, output only or ECP.

■One 9-pin D-SUB connector for RS-232C serial

input/output devices.

■One 25-pin special connector for legacy external

floppy disk drive connection.

■One RJ-45 port for LAN connectivity (LAN model

only).

KEYBOARD

Built-in keyboard with all functions of 101 key PS/2

compatible keyboards.

■Total number of keys: 83.

■Function keys: F1 through F12.

■Feature extension key: Fn.

■Two Windows keys: one Start key and one

application key

■Key pitch: 17 mm.

■Key stroke: 2 mm.

■Built-in Quick Point pointing device with

left and right buttons.

■Built-in Palm Rest.

External Keyboard Support

PS/2-compatible.

External Numeric Keypad Support

PS/2-compatible.

External Mouse Support

PS/2-compatible.

POWER

Batteries

One 6-cell Lithium ion battery, rechargeable, 10.8V,

3600mAh. An optional 3-cell, 10.8V, 1800mAh battery

is also available.

Bridge Battery

Your LifeBook notebook comes equipped with a bridge

battery. A bridge battery allows a charged Lithium ion

battery to be replaced while the system is in Standby

mode ("warm-swapping"). The bridge battery capacity is

not large and can vary with the condition of your note-

book, so you will have three minutes at the most to make

the change.

AC Adapter

Autosensing 100-240V AC, 40W, supplying 16V DC,

2.5A, to the LifeBook notebook, Fujitsu Model

FPCAC28AP, which includes an AC cable.

Power Management

Conforms to ACPI (Advanced Configuration and Power

Interface) standards.

DIMENSIONS AND WEIGHT

Overall Dimensions

Approximately 9.92"(w) x 8.5"(d) x 1.24"(h).

Wei gh ts

Approximately 2.96 lbs with 3-cell battery.

Optional Port Replicator approximately 0.6 lbs.

ENVIRONMENTAL REQUIREMENTS

Temp erature

Operating: 41° to 95° F (5° to 35° C)

Non-operating: 5° to 140° F (–15° to 60° C)

Humidity

Operating: 20% to 85%, relative, non-condensing.

Non-operating; 8% to 85%, relative, non-condensing.

Altitude

Operating: 10,000 feet (3,048 m) maximum.

B Series.book Page 74 Thursday, September 26, 2002 11:01 AM

Specifications

POPULAR ACCESSORIES

For ordering or additional information on Fujitsu

accessories please visit our Web site at

www.fujitsupc.com or call 1-800-733-0884.

Memory Upgrades

■256MB SDRAM

Docking/Expansions

■Port Replicator

Power

■6-cell Lithium ion battery pack

■Battery Charger

■Auto/Airline Adapter

■AC Adapter

Storage

■External CD-ROM drive

PC Cards

■SmartCard holder

Additional Accessories

■Wireless Keyboard and Mouse

■Numeric Keypad

■Presentation Audio system

■TeleAdapt 16' TeleCord

■IBM Modem Saver

■Notebook Guardian Lock

■Stylus Five Pack

Carrying Cases

■Duo Carrying Case

■Diplomat Carrying Case

PRE-INSTALLED SOFTWARE

Your LifeBook notebook comes with pre-installed

software for playing audio and video files of various

formats. The software configuration installed is

dependent upon the operating system that is

pre-installed on your system. In addition, there is file

transfer software, virus protection software and Power

Management software.

LEARNING ABOUT YOUR

APPLICATION SOFTWARE

Tutorials

All operating systems and most application software

have tutorials built-into them upon installation. We

highly recommend that you step through the tutorial

before you use an application.

Manuals

Included with your LifeBook notebook you will find

manuals for your operating system and other pre-

installed software. Manuals that are not included are

available online through the help system of the software.

We recommend that you review these manuals for

general information on the use of these applications.

Microsoft Windows

Depending upon the configuration of your notebook,

Microsoft Windows 98 Second Edition, Microsoft

Windows 2000 Professional, Microsoft Windows XP

Home, or Microsoft Windows XP Professional is

installed as your operating system.

Microsoft Works (with Windows XP Home only)

Microsoft Works is a suite of software containing the

basic tools to write letters and reports, track family and

friends address books, manage home finances, and

create a home inventory.

Quicken New User Edition

(Windows XP Home only)

Quicken New User Edition by Intuit is a personal money

management program. It has features such as portfolio

management, account registries, on-line banking

and bill paying features. This application is for new users

who are using Quicken software for the first time. Full

version upgrade information is available on line.

McAfee.com, Inc. VirusScan

VirusScan, by McAfee.com, is an antivirus program that

can be run after loading data or programs onto your

notebook. It assists in protecting the data currently

residing on your hard disk from contamination and

destruction. (See your VirusScan online help or manual

for more information on how and when to run this

program)

Drive Image Special Edition (DISE) by PowerQuest

DISE by PowerQuest provides a way to restore your

computer if you experience a hard disk crash or other

system failure. DISE is used to restore the factory image

and restore the system to its original state. Note that on

systems with Windows 98 installed, the DISE directory

structure is in place, but the drive image and DISE soft-

ware have not yet been installed. See “Drive Image

Special Edition (DISE)” on page 62.

BatteryAid by Fujitsu Limited (Microsoft Windows

98 SE and Windows 2000 Professional only)

BatteryAid allows you to control the display brightness

of your notebook in order to maximize battery life. (See

your BatteryAid online help for more information on the

correct way to use this program)

POINT

Since your notebook does not support the CPU Clock

control, the option is not active within the Power Control

menu of BatteryAid.

B Series.book Page 75 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Seven

Fujitsu HotKey Utility (Microsoft Windows XP only)

Utility for displaying the brightness and volume levels

on your LifeBook screen.

Microsoft Internet Explorer

Internet Explorer is installed as your default internet

browser.

Netscape

Netscape is installed as an alternative browser.

Adobe Acrobat Reader

The Adobe Acrobat Reader, located in the Service and

Support Software folder, allows you to view, navigate,

and print PDF files from across all of the major

computing platforms.

LifeBook Security/Application Panel Software

Your LifeBook notebook is pre-installed with software

utilities that let you operate and configure your LifeBook

Application Panel. These utilities are found under the

Start menu, under Programs, then under LifeBook

Application panel. They include a CD Player, Applica-

tion Panel Setup, Application Panel Guide, Activate

Panel and Deactivate Panel.

Intel SpeedStep

(Windows 98 and 2000 models only)

Intel SpeedStep allows your Lifebook notebook to

operate in dual mode by default. When connected to

AC source, the system operates in Maximum

Performance mode. When powered by battery, the

system switches to Battery Optimized mode to

conserve battery life. SpeedStep software is

automatically loaded when you start your system and

appears on the system tray as one of the two flags. A

checker flag indicates that the system is set for

Maximum Performance mode. A blue flag with a

green center square indicates that the system is set for

Battery Optimized mode. You can change the setting

or disable the software by double-clicking the flag icon

and changing the settings in the Intel SpeedStep

Technology window.

B Series.book Page 76 Thursday, September 26, 2002 11:01 AM

Glossary

B Series.book Page 77 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Eight

B Series.book Page 78 Thursday, September 26, 2002 11:01 AM

Glossary

AC Adapter

A device which converts the AC voltage from a

wall outlet to the DC voltage needed to power

your LifeBook notebook.

ACPI

Advanced Configuration and Power Interface

Active-Matrix Display

A type of technology for making flat-panel displays

which has a transistor or similar device for every pixel

on the screen.

AdHoc

A name of a wireless LAN configuration.

It is a type of communication using wireless cards only.

Another type of communication is called Infrastructure

(using a wireless card and an access point).

ADSL

Asymmetric Digital Subscriber Line

Technology for transporting high bit-rate services over

ordinary phone lines.

Auto/Airline Adapter

A device which converts the DC voltage from an auto-

mobile cigarette lighter or aircraft DC power outlet to

the DC voltage needed to power your LifeBook note-

book.

BIOS

Basic Input-Output System. A program and set of

default parameters stored in ROM which tests and

operates your LifeBook notebook when you turn it on

until it loads your installed operating system from disk.

Information from the BIOS is transferred to the

installed operating system to provide it with informa-

tion on the configuration and status of the hardware.

Bit

An abbreviation for binary digit. A single piece of

information which is either a one (1) or a zero (0).

bps

An abbreviation for bits per second. Used to describe

data transfer rates.

Boot

To start-up a computer and load its operating system

from disk, ROM or other storage media into RAM.

Bus

An electrical circuit which passes data between the CPU

and the sub-assemblies inside your LifeBook notebook.

Byte

8 bits of parallel binary information.

Cache Memory

A block of memory built into the micro-processor

which is much faster to access than your system RAM

and used in specially structured ways to make your

overall data handling time faster.

CardBus

A faster, 32-bit version of the PC Card interface which

offers performance similar to the 32-bit PCI

architecture.

CD-ROM

Compact disk read only memory. This is a form of

digital data storage which is read optically with a laser

rather than a magnetic head. A typical CD-ROM can

contain about 600MB of data and is not subject to heads

crashing into the surface and destroying the data when

there is a failure nor to wear from reading.

Channel

A radio frequency band used for communication

between wireless cards and access points.

CMOS RAM

Complementary metal oxide semiconductor random

access memory. This is a technology for manufacturing

random access memory which requires very low levels of

power to operate.

COM Port

Abbreviation for communication port. This is your

serial interface connection.

Command

An instruction which you give your operating system.

Example: run a particular application or format a floppy

disk.

Configuration

The combination of hardware and software that makes

up your system and how it is allocated for use.

CRT

Cathode Ray Tube. A display device which uses a beam

of electronic particles striking a luminescent screen. It

produces a visual image by varying the position and

intensity of the beam.

Data

The information a system stores and processes.

Direct current. A voltage or current that does not

fluctuate periodically with time.

B Series.book Page 79 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Eight

Default Value

A pre programmed value to be used if you fail to set your

own.

DHCP

Dynamic Host Configuration Protocol

A protocol used to automatically acquire parameters

required for the communication, such as IP address.

The sender of IP address is called a DHCP server, and

the receiver is called a DHCP client.

DIMM

Dual-in-line memory module.

DISE

Drive Image Special Edition.

A utility that allows you to restore the original factory

image on your hard drive in the event of corruption or

accidental erasure of files or applications.

Disk

A spinning platter of magnetic data storage media. If the

platter is very stiff it is a hard drive, if it is highly flexible

it is a floppy disk, if it is a floppy disk in a hard housing

with a shutter it is commonly called a diskette.

Disk Drive

The hardware which spins the disk and has the heads

and control circuitry for reading and writing the data

on the disk.

Diskette

A floppy disk in a hard housing with a shutter.

DMA

Direct Memory Access. Special circuitry for memory

to memory transfers of data which do not require

CPU action.

DMI

Desktop Management Interface. A standard that

provides PC management applications with a common

method of locally or remotely querying and configuring

PC computer systems, hardware and software compo-

nents, and peripherals.

DNS

Domain Name System

A function to control the association between the IP

address and the name assigned to the computer.

If you do not know the IP address but if you know the

computer name, you can still communicate to that

computer.

DOS

Disk Operating System (MS-DOS is a Microsoft Disk

Operating System).

Driver

A computer program which converts application and

operating system commands to external devices into the

exact form required by a specific brand and model of

device in order to produce the desired results from that

particular equipment.

ECP

Extended Capability Port. A set of standards for high

speed data communication and interconnection

between electronic devices.

Encryption Key (Network Key)

Key information used to encode data for data transfer.

This device uses the same encryption key to encode and

decode the data, and the identical encryption key is

required between the sender and receiver.

ESD

Electro-Static Discharge. The sudden discharge of elec-

tricity from a static charge which has built-up slowly.

Example: the shock you get from a doorknob on a dry

day or the sparks you get from brushing hair on a dry

day.

Extended Memory

All memory more than the 640KB recognized by

MS-DOS as system memory.

FCC

Federal Communication Commission.

Floppy Disk

A spinning platter of magnetic data storage media which

is highly flexible.

Gigabyte.

Hard drive

A spinning platter of magnetic data storage media where

the platter is very stiff.

I/O

Input/Output. Data entering and leaving your notebook

in electronic form.

I/O Port

The connector and associated control circuits for data

entering and leaving your notebook in electronic form.

B Series.book Page 80 Thursday, September 26, 2002 11:01 AM

Glossary

IDE

Intelligent Drive Electronics. A type of control interface

for a hard drive which is inside the hard drive unit.

IEEE 1394

Industry standard that allows you to connect between

your notebook and a peripheral device such as a digital

camera. Also known as "Firewire" or "iLINK".

Infrared

Light just beyond the red portion of the visible light

spectrum which is invisible to humans.

Infrastructure

A name of a wireless LAN configuration. This type of

communication uses an access point.

Another type of communication is called AdHoc.

IP Address

An address used for computers to communicate in the

TCP/IP environment.

Current IPv4 (version 4) uses four values in the range

between 1 and 255. (Example: 192.168.100.123).

There are two types of IP address: global address and

private address.

The global address is an only address in the world. It is

controlled by JPNIC (Japan Network Information

Center). A private address is an only address in the

closed network.

An abbreviation for infrared.

IrDA

Infrared Data Association. An organization which

produces standards for communication using infrared

as the carrier.

IRQ

Interrupt Request. An acronym for the hardware signal

to the CPU that an external event has occurred which

needs to be processed.

Kilobyte.

LAN

Local Area Network. An interconnection of computers

and peripherals within a single limited geographic

location which can pass programs and data amongst

themselves.

LCD

Liquid Crystal Display. A type of display which makes

images by controlling the orientation of crystals in a

crystalline liquid.

Lithium ion Battery

A type of rechargeable battery which has a high power-

time life for its size and is not subject to the memory

effect as Nickel Cadmium batteries.

LPT Port

Line Printer Port. A way of referring to parallel interface

ports because historically line printers were the first and

latter the most common device connected to parallel

ports.

MAC Address

Media Access Control Address

A unique physical address of a network card. For

Ethernet, the first three bytes are used as the vendor

code, controlled and assigned by IEEE. The remaining

three bytes are controlled by each vendor (preventing

overlap), therefore, every Ethernet card is given a unique

physical address in the world, being assigned with a

different address from other cards. For Ethernet, frames

are sent and received based on this address.

Megabyte.

Megahertz

1,000,000 cycles per second.

Memory

A repository for data and applications which is readily

accessible to your LifeBook notebook’s CPU.

MHz

Megahertz.

MIDI

Musical Instrument Digital Interface. A standard

communication protocol for exchange of information

between computers and sound producers such

as synthesizers.

Modem

A contraction for MOdulator-DEModulator. The

equipment which connects a computer or other data

terminal to a communication line.

Monaural

A system using one channel to process sound from all

sources.

MPU-401

A standard for MIDI interfaces and connectors.

MTU

Maximum Transmission Unit

The maximum data size that can be transferred at a time

through the Internet or other networks. You can set a

smaller MTU size to obtain successful communication,

B Series.book Page 81 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Eight

if you have difficulty transferring data due to the fact

that the maximum size is too large.

NTSC

National TV Standards Commission. The standard for

TV broadcast and reception for the USA.

Operating System

A group of control programs that convert application

commands, including driver programs, into the exact

form required by a specific brand and model of micro-

processor in order to produce the desired results from

that particular equipment.

Partition

A block of space on a hard drive which is set aside and

made to appear to the operating system as if it were a

separate disk, and addressed by the operating system

accordingly.

PCI

Peripheral Component Interconnect

Self-configuring PC local bus. Designed by Intel, PCI has

gained wide acceptance as a standard bus design.

PCMCIA

PCMCIA is a trademark of the Personal Computer

Memory Card International Association. The Personal

Computer Memory Card International Association is an

organization that sets standards for add-in cards for

personal computers.

Peripheral Device

A piece of equipment which performs a specific

function associated with but not integral to a computer.

Examples: a printer, a modem, a CD-ROM.

Pitch (keyboard)

The distance between the centers of the letter keys of a

keyboard.

Pixel

The smallest element of a display, a dot of color on your

display screen. The more pixels per area the clearer your

image will appear.

POST

Power On Self Test. A program which is part of the BIOS

which checks the configuration and operating condition

of your hardware whenever power is applied to your

notebook. Status and error messages may be displayed

before the operating system is loaded. If the self test

detects failures that are so serious that operation can not

continue, the operating system will not be loaded.

PPPoE

Point to Point Protocol over Ethernet.

A protocol for Ethernet, using a Point-to-Point Protocol

(PPP), which is used for connection on the phone line.

Program

An integrated set of coded commands to your

computers telling your hardware what to do and how

and when to do it.

Protocol

Procedures and rules use to send and receive data

between computers.

- Method of sending and receiving data

- Process used to handle communication errors

Conditions required for communication are organized

in procedures for correct transfer of information.

RAM

Random Access Memory. A hardware component of

your LifeBook notebook that holds binary information

(both program and data) as long as it has the proper

power applied to it.

RAM Module

A printed circuit card with memory and associated

circuitry which allows the user to add additional

memory to the computer without special tools.

Reset

The act of reloading the operating system. A reset erases

all information stored in RAM.

Restart

See Reset.

Resume

To proceed after interruption. In your notebook this

refers to returning to active operation after having been

in one of the suspension states.

ROM

Read Only Memory. A form of memory in which infor-

mation is stored by physically altering the material. Data

stored in this way can not be changed by your notebook

and does not require power to maintain it.

SDRAM

Synchronous Dynamic Random Access Memory.

Serial Port

A connection to another device through which data is

transferred one bit at a time on a single wire with any

other wires only for control of the device not for transfer

of data.

B Series.book Page 82 Thursday, September 26, 2002 11:01 AM

Glossary

SMART

Self-Monitoring, Analysis and Reporting Technology

(SMART) is an emerging technology that provides near-

term failure predictions for hard drives. When SMART

is enabled the hard drive monitors pre-determined drive

attributes that are susceptible to degradation over time.

If a failure is likely to occur, SMART makes a status

report available so that the LifeBook notebook can

prompt the user to back up the data on the drive. Natu-

rally not all failures are predictable. SMART predict-

ability is limited to those attributes which the drive can

self-monitor. In those cases where SMART can give

advance warning, a considerable amount of precious

data can be saved.

SRAM

Static random access memory. A specific technology of

making RAM which does not require periodic data

refreshing.

SSID

Service Set Identifier

Specifies which network you are joining. Some systems

allow you to specify any SSID as an option so you can

join any network.

Standby

To make inoperative for a period of time. Your LifeBook

notebook uses various suspension states to reduce

power consumption and prolong the charge of your

battery.

Status Indicator

A display which reports the condition of some portion

of your hardware. On your LifeBook notebook this is an

LCD screen just above the keyboard.

Stereo (audio)

A system using two channels to process sound from two

different sources.

SVGA

Super VGA.

S-Video

Super Video. A component video system for driving a

TV or computer monitor.

System Clock

An oscillator of fixed precise frequency which synchro-

nizes the operation of the system and is counted to

provide time of day and date.

TCP/IP

Transmission Control Protocol/Internet Protocol.

A standard Internet protocol that is most widely used.

TFT

Thin Film Transistor – A technology for flat display

panels which uses a thin film matrix of transistors to

control each pixel of the display screen individually.

Underwriters Laboratories – An independent organiza-

tion that tests and certifies the electrical safety of

devices.

USB

Universal Serial Bus.

Standard that allows you to simultaneously connect up

to 127 USB devices such as game pads, pointing devices,

printers, and keyboards to your computer.

VGA

Video Graphics Array. A video display standard

originally introduced by IBM with the PS/2 series of

personal computers.

VRAM

Video Random Access Memory. A memory dedicated to

video display data and control.

WFM

Wired for Management is Intel’s broad-based initiative

to reduce the total cost of ownership (TCO) of business

computing without sacrificing power and flexibility.

Wi-Fi Compatible

Wi-Fi (Wireless Fidelity) Identifies that the product has

passed the interoperability test, supplied by the WECA

(Wireless Ethernet Compatibility Alliance), which guar-

antees the interoperability of wireless IEEE 802.11 LAN

products. For more information on the Wi-Fi standard,

go to the WECA website at: www.wirelessethernet.com.

WLAN

Wireless Local Area Network. A wireless interconnec-

tion of computers and peripherals within a single

limited geographic location which can pass programs

and data amongst themselves.

Write Protect

Prevent alteration of the binary state of all bits in a

storage media. Example: all information on a device

such as a floppy diskette; a block of space in a storage

media such as a partition of a hard drive; a file or direc-

tory of floppy diskette or hard drive.

XGA

Extended VGA.

Zip Drive

A 100MB or 250MB read/write removable media disk

drive.

B Series.book Page 83 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Section Eight

B Series.book Page 84 Thursday, September 26, 2002 11:01 AM

Regulatory Information

FCC NOTICES

Notice to Users of Radios and Television

These limits are designed to provide reasonable protec-

tion against harmful interference in a residential installa-

tion. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a partic-

ular installation. If this equipment does cause harmful

interference to radio or television reception, which can

be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by

one or more of the following measures:

nReorient or relocate the receiving antenna.

nIncrease the separation between the equipment and

receiver.

nConnect the equipment into an outlet that is on a

different circuit than the receiver.

nConsult the dealer or an experienced radio/TV

technician for help.

Shielded interconnect cables must be employed with this

equipment to ensure compliance with the pertinent RF

emission limits governing this device.

Notice to Users of the US Telephone Network

This equipment complies with Part 68 of the FCC rules.

On the bottom of this equipment is a label that contains,

among other information, the FCC registration number

and ringer equivalence number (REN) for this equip-

ment. If requested, this information must be provided to

the telephone company.

This equipment is designed to be connected to the tele-

phone network or premises wiring using a standard jack

type USOC RJ11C. A plug and jack used to connect this

equipment to the premises wiring and telephone

network must comply with the applicable FCC Part 68

rules and requirements adopted by the ACTA. A

compliant telephone cord and modular plug is provided

with this product. It is designed to be connected to a

compatible modular jack that is also compliant.

The ringer equivalent number (REN) of this equipment

is 0.0B as shown on the label. The REN is used to deter-

mine the number of devices that may be connected to a

telephone line. Excessive RENs on a telephone may

result in the devices not ringing in response to an

incoming call. In most but not all areas, the sum of

RENs should not exceed five (5.0). To be certain of the

number of devices that may be connected to a line, as

determined by the total RENs, contact the local tele-

phone company.

If this equipment causes harm to the telephone network,

the telephone company will notify you in advance that

temporary discontinuance of service may be required.

But if advance notice isn’t practical, the telephone

company will notify the customer as soon as possible.

Also, you will be advised of your right to file a complaint

with the FCC if you believe it is necessary.

The telephone company may make changes in its facili-

ties, equipment, operations or procedures that could

effect the operation of the equipment. If this happens

the telephone company will provide advance notice in

order for you to make necessary modifications to main-

tain uninterrupted service.

If trouble is experienced with this equipment, for repair

or warranty information, please refer to the manual or

contact Fujitsu PC Corporation, Customer Service. If

the equipment is causing harm to the telephone

network, the telephone company may request that you

disconnect the equipment until the problem is resolved.

The equipment cannot be used on public coin service

provided by the telephone company. Connection to

party line service is subject to state tariffs. (Contact the

state public utility commission, public service commis-

sion or corporation commission for information).

If your home has specially wired alarm equipment

connected to the telephone line, ensure the installation

of this computer does not disable your alarm equip-

ment. If you have any questions about what will disable

alarm equipment, consult your telephone company or a

qualified installer.

The Telephone Consumer Protection Act of 1991 makes

it unlawful for any person to use a computer or other

electronic device to send any message via a telephone fax

machine unless such message clearly contains in a

margin at the top or bottom of each transmitted page or

on the first page of the transmission, the date an time it

is sent and an identification of the business or other

entity, or other individual sending the message and the

telephone number of the sending machine or such busi-

ness, other entity, or individual.

CAUTION

Changes or modifications not expressly approved by

Fujitsu could void this user’s authority to operate the

equipment

B Series.book Page 85 Thursday, September 26, 2002 11:01 AM

LifeBook B Series

DOC (INDUSTRY CANADA) NOTICES

Notice to Users of Radios and Television

This Class B digital apparatus meets all requirements of

Canadian Interference-Causing Equipment Regulations.

CET appareil numérique de la class B respecte toutes les

exigence du Réglement sur le matérial brouilleur du

Canada.

Notice to Users of the Canadian Telephone Network

NOTICE: This equipment meets the applicable Industry

Canada Terminal Equipment Technical Specifications.

This is confirmed by the registration number. The

abbreviation, IC, before the registration number signi-

fies that registration was performed based on a Declara-

tion of Conformity indicating that Industry Canada

technical specifications were met. It does not imply that

Industry Canada approved the equipment.

Before connecting this equipment to a telephone line the

user should ensure that it is permissible to connect this

equipment to the local telecommunication facilities. The

user should be aware that compliance with the certifica-

tion standards does not prevent service degradation in

some situations.

Repairs to telecommunication equipment should be

made by a Canadian authorized maintenance facility.

Any repairs or alterations not expressly approved by

Fujitsu or any equipment failures may give the telecom-

munication company cause to request the user to

disconnect the equipment from the telephone line.

NOTICE: The Ringer Equivalence Number (REN) for

this terminal equipment is 0.0. The REN assigned to

each terminal equipment provides an indication of the

maximum number of terminals allowed to be connected

to a telephone interface. The termination on an interface

may consist of any combination of devices subject only

to the requirement that the sum of the Ringer Equiva-

lence Numbers of all the devices does not exceed five.

Avis Aux Utilisateurs Du Réseau

Téléphonique Canadien

AVIS: Le présent matériel est conforme aux spécifica-

tions techniques d’Industrie Canada applicables au

matériel terminal. Cette conformité est confirmée par le

numéro d’enregistrement. Le sigle IC, placé devant le

numéro d’enregistrement, signifie que l’enregistrement

s’est effectué conformément à une déclaration de

conformité et indique que les spécifications techniques

d’Industrie Canada ont été respectées. Il n’implique pas

qu’Industrie Canada a approuvé le matériel.

Avant de connecter cet équipement à une ligne télépho-

nique, l’utilisateur doit vérifier s’il est permis de

connecter cet équipement aux installations de télécom-

munications locales. L’utilisateur est averti que même la

conformité aux normes de certification ne peut dans

certains cas empêcher la dégradation du service.

Les réparations de l’équipement de télécommunications

doivent être eVectuées par un service de maintenance

agréé au Canada. Toute réparation ou modification, qui

n’est pas expressément approuvée par Fujitsu, ou toute

défaillance de l’équipement peut entraîner la compagnie

de télécommunications à exiger que l’utilisateur décon-

necte l’équipement de la ligne téléphonique.

AVIS: L’indice d’équivalence de la sonnerie (IES) du

présent matériel est de 0.0. L’IES assigné à chaque

dispositif terminal indique le nombre maximal de

terminaux qui peuvent être raccordés à une interface

téléphonique. La terminaison d’une interface peut

consister en une combinaison quelconque de dispositifs,

à la seule condition que la somme d’indices d’équiva-

lence de la sonnerie de tous les dispositifs n’excède pas 5.

CAUTION

For safety, users should ensure that the electrical

ground of the power utility, the telephone lines and the

metallic water pipes are connected together. Users

should NOT attempt to make such connections

themselves but should contact the appropriate electric

inspection authority or electrician. This may be

particularly important in rural areas.

AVERTISSEMENT

Pour assurer la sécurité, les utilisateurs doivent vérifier

que la prise de terre du service d’électricité, les lignes

télphoniques et les conduites d’eau métalliques sont

connectées ensemble. Les utilisateurs NE doivent PAS

tenter d’établir ces connexions eux-mêmes, mais

doivent contacter les services d’inspection d’installations

électriques appropriés ou un électricien. Ceci peut être

particulièrement important en régions rurales.

B Series.book Page 86 Thursday, September 26, 2002 11:01 AM

Regulatory Information

UL Notice

This unit requires an AC adapter to operate. Use only UL

Listed Class 2 Adapters with an output rating of 16 Vdc,

with a current of 2.5 A.

AC Adapter output polarity:

For Authorized Repair Technicians Only

CAUTION

The modem-to-telephone network connection must be

a line cord using a minimum #26 AWG wire.

WARNING

nFor continued protection against risk of fire, replace

only with the same type and rating fuse.

nDanger of explosion if Lithium (clock) battery is incor-

rectly replaced. Replace only with the same or equiva-

lent type recommended by the manufacturer. Dispose

of used batteries according to the manufacturer’s

instruction.

B Series.book Page 87 Thursday, September 26, 2002 11:01 AM

LifeBook B Series

B Series.book Page 88 Thursday, September 26, 2002 11:01 AM

Appendix

Integrated Wireless

LAN* User’s Guide

*Optional Device

B Series.book Page 89 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Appendix

B Series.book Page 90 Thursday, September 26, 2002 11:01 AM

WIreless LAN User’s Guide

FCC REGULATORY INFORMATION

Please note the following regulatory information related

to the optional wireless LAN device.

Regulatory Notes and Statements

Wireless LAN, Health and Authorization for use

Radio frequency electromagnetic energy is emitted from

Wireless LAN devices. The energy levels of these emis-

sions, however, are far much less than the electromag-

netic energy emissions from wireless devices such as

mobile phones. Wireless LAN devices are safe for use by

consumers because they operate within the guidelines

found in radio frequency safety standards and recom-

mendations. The use of Wireless LAN devices may be

restricted in some situations or environments, such as:

• On board an airplane, or

• In an explosive environment, or

• In situations where the interference risk to other

devices or services is perceived or identified as

harmful.

In cases in which the policy regarding use of Wireless

LAN devices in specific environments is not clear (e.g.,

airports, hospitals, chemical/oil/gas industrial plants,

private buildings), obtain authorization to use these

devices prior to operating the equipment.

Regulatory Information/Disclaimers

Installation and use of this Wireless LAN device must be

in strict accordance with the instructions included in the

user documentation provided with the product. Any

changes or modifications made to this device that are

not expressly approved by the manufacturer may void

the user’s authority to operate the equipment. The

Manufacturer is not responsible for any radio or televi-

sion interference caused by unauthorized modification

of this device, or the substitution or attachment of

connecting cables and equipment other than those spec-

ified by the manufacturer. It is the responsibility of the

user to correct any interference caused by such unautho-

rized modification, substitution or attachment. The

Manufacturer and its authorized resellers or distributors

will assume no liability for any damage or violation of

government regulations arising from failure to comply

with these guidelines.

Federal Communications Commission statement

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause interference, and, (2) This

device must accept any interference, including interfer-

ence that may cause undesired operation of this device.

FCC Interference Statement

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interfer-

ence in a residential installation. This equipment gener-

ates, uses, and can radiate radio frequency energy. If not

installed and used in accordance with the instructions, it

may cause harmful interference to radio communica-

tions. However, there is no guarantee that interference

will not occur in a particular installation.

If this equipment does cause harmful interference to

radio or television reception, which can be determined

by turning the equipment off and on, the user is encour-

aged to try and correct the interference by one or more

of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the distance between the equipment and

the receiver.

3. Connect the equipment to an outlet on a circuit

different from the one the receiver is connected to.

4. Consult the dealer or an experienced radio/TV

technician for help.

FCC Radio Frequency Exposure statement

This Wireless LAN radio device has been evaluated

under FCC Bulletin OET 65C and found compliant with

the requirements as set forth in CFR 47 Sections 2.1091,

2.1093, and 15.247 (b) (4) addressing RF Exposure from

radio frequency devices. The radiated output power of

this Wireless LAN device is far below the FCC radio

frequency exposure limits. Nevertheless, this device shall

be used in such a manner that the potential for human

contact during normal operation is minimized. When

using this device, a certain separation distance between

antenna and nearby persons must be maintained to

ensure RF exposure compliance. In order to comply with

RF exposure limits established in the ANSI C95.1 stan-

dards, the distance between the antennas and the user

should not be less than 20 cm (8 inches).

Export restrictions

This product or software contains encryption code

which may not be exported or transferred from the US

or Canada without an approved US Department of

Commerce export license. This device complies with

Part 15 of FCC Rules., as well as ICES 003 B / NMB 003

B. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesirable oper-

ation. Modifications not expressly authorized by Fujitsu

PC Corporation may invalidate the user's right to

operate this equipment.

B Series.book Page 91 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Appendix

BEFORE USING THIS DEVICE

The Integrated Wireless LAN is an optional device avail-

able for the LifeBook laptops. This manual describes the

basic operating procedures for the Wireless LAN

(referred to as the “device” in this manual) and how to

set up a wireless LAN network. Before using this device,

read this manual carefully to ensure correct operation of

the device. Keep this manual in a safe place for reference

while using the device.

Characteristics of the Device

This device consists of a wireless LAN card that is

attached to the computer via a mini-PCI slot.

The main characteristics are as follows:

■It uses the power saving communications system in

the 2.4 GHz band, and does not require any license for

radio communication.

■It uses Direct Sequence Spread Spectrum (DS-SS),

which is resistant to noise.

■This device complies with Wi-Fi, and is able to com-

municate at the maximum transfer rate of 11 Mbps.

■The maximum communication range is approxi-

mately 80 feet (25 meters) inside a building. The

range may be shorter depending upon the installation

factors, such as walls and columns.

■Unauthorized access can be prevented with the use of

SSID and encryption key.

Wireless LAN Modes Using this Device

AdHoc Mode

The “AdHoc Mode” refers to the network connecting

two computers using wireless LAN cards. This connec-

tion is called an “AdHoc network.”

Using an AdHoc network, you can obtain a network

connection easily and at a low cost.

In the AdHoc mode, you can use the function supported

by Microsoft Network, such as File and Print Sharing to

exchange files and share a printer or other peripheral

devices.

To use the AdHoc Mode, you must set the same SSID

and the same encryption key for all the computers that

are connected. All connected computers can communi-

cate with each other within the communication range.

Infrastructure Mode

If a number of computers are connected simultaneously

in the AdHoc mode, the transfer rate may be reduced,

communications may become unstable, or the network

connection could fail. This is because all wireless LAN

cards are using the same radio frequency in the network.

To improve this situation, you can use a wireless LAN

access point, which is sold separately. The wireless LAN

network is in the “Infrastructure mode” when it uses an

access point, and such a connection is called the “Infra-

structure Network.”

By using an access point, you can set and use a different

communication channel for each network group. Each

channel is given a different radio frequency, and it

eliminates the collision of communications and provides

a more stable communications environment. Infrastruc-

ture mode is most suitable when you are configuring

multiple wireless LAN networks on the same floor.

To connect a wireless LAN network to a wired LAN, you

need an access point.

How to Handle This Device

The Integrated Wireless LAN device is already installed

in your LifeBook computer. Under normal circum-

stances, it should not be necessary for you to remove or

re-install it. The LAN has been configured to support the

operating system with which your system shipped.

B Series.book Page 92 Thursday, September 26, 2002 11:01 AM

WIreless LAN User’s Guide

CONNECTING WINDOWS 98/2000 SYSTEMS

This chapter describes how to set the wireless LAN

connection for computers running Windows 98 or

Windows 2000.

Workflow

The proper setup of the wireless LAN requires several

steps which must be performed in the proper order.

Following is a general outline of the steps that must be

performed. Each step is detailed later in this procedure.

1. Setting parameters

■Setting the profile

■Setting the encryption

2. Network settings

■Setting the protocol and checking the network

■Setting file and printer sharing

■Checking the connection

Setting Parameters

1. Click [Start]-> [Settings] -> [Control Panel].

2. Double-click the [PRISM Settings] icon. The

[PRISM Wireless Settings] appears.

3. Set the profile as specified in Table 8. Ask your

network administrators to check the setting.

4. When you finish your entry, click [Apply].

Table 8: Profile Parameters

5. Click the [Encryption] tab.

6. Set the encryption items in accordance with Table 9.

■AdHoc Network: Specify the same value for all the

computers for which the encryption key is used for

connection.

■Infrastructure Network: Specify the identical

encryption keys to the encryption keys set for the

access point. For instructions on how to check the

encryption keys set for the access point, refer to the

access point manual.

POINT

If you purchased a LifeBook with the optional wireless

LAN, the integrated wireless LAN device and drivers

have already been installed. This procedure outlines the

steps for setting the device parameters.

Updated drivers and/or utilities may become available

after this manual is printed; see any addenda or fliers

that may be included in the system packaging.

Item Description

Profile Enter the system file name in which the

parameter information is to be saved.

Mode Ad Hoc Network: Click the down arrow

and select “802.11 AdHoc”.

Infrastructure Network: Click the down

arrow and select “Infrastructure”.

SSID Enter the network name to which you

want to connect

Transmit

Rate

Obtain the information from your

network administrator. If you do not

have a network administrator, select

“Fully Automatic”.

Power

Save

Enabled

Not supported.

AdHoc

Channel

AdHoc Network: Select the same

channel, 1-11, for all connected

computers. If there is more than one

wireless LAN nearby (such as on the

same floor), we recommend that the

channels for each LAN be 5 numbers

apart (e.g., if there are two other LANs

nearby, the channels used should be 1,

6, and 11).

Infrastructure Network: Not an option.

POINT

Make sure that you specify the encryption keys. If you

do not specify the keys, any computer with a wireless

LAN card can be connected. This presents a risk that

your data may be stolen or destroyed.

Item Description

B Series.book Page 93 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Appendix

Table 9: Encryption Key Setup

7. When you finish your entry, click [Apply].

8. Click [OK]. [PRISM Wireless Settings] closes.

You have completed the parameter settings.

* 40 bit and 104 bit encryption is the wireless LAN

equivalent of 64 bit and 128 bit encryption, as set by

Microsoft and wireless LAN manufacturers. This is the

same encryption rate that is used by the Windows XP

operating system, and was selected in order to align it

closer to the wireless LAN standard. For consistency, the

Windows 98 and 2000 utilities reflect the same modes.

Outside of wireless LAN environments, encryption is

generally set at either 64 bit or 128 bit. However, the

wireless LAN standard requires that 24 bits be reserved

for fixed data. As a result, the user can only use 40 bits

(64 minus 24 ) or 104 bits (128 minus 24) for encryp-

tion. This requirement also fixes the number of charac-

ters used for 128 bit encryption to 13 which is calculated

as (13 x 8 bits = 104).

NETWORK CONNECTION: WINDOWS 98

The section describes how to set the network connection

if your computer running Windows 98.

Network Settings

In this section, you set “TCP/IP Settings,” and complete

“Checking Computer Name and Workgroup” required

for the network connection.

TCP/IP Settings

1. Click [Start]-> [Settings]->[Control Panel].

2. Double-click the [Network] icon. [Network]

appears.

3. Perform the following steps.

■Click [TCP/IP].

■Click [Properties].

4. Set an IP address. (When you are done, ask your

network administrator to check the setting).

Item Description

Encryption

(WEP)

Click the down arrow and select an

encryption option.

■Disable: Disables the encryption. In

this case, “Create keys with

Passphrase” and subsequent items

are greyed out, and you cannot

enter anything.

■40 bit*: The encryption is set.

Select either “Create keys with

Passphrase”, “Create keys manu-

ally”, or “ASCII Input”, and enter

the encryption keys.

■104 bit*: The encryption is set.

Select either “Create keys with

Passphrase”, “Create keys manu-

ally”, or “ASCII Input”, and enter

the encryption keys.

Create Keys

with

Passphrase

Not supported.

Passphrase Not supported.

Create Keys

Manually

(Hexadecimal

Input)

Select this to use hexadecimal

character codes to set the encryption

keys (Keys 1 - 4).

Enter a 10-digit value when you have

selected [40 bit]* for the encryption.

Enter a 26-digit value when you have

selected [104 bit]* for encryption.

Select if the network contains a card

that is set with the encryption key

using the character code. Specify the

encryption keys with the same value

used for other wireless LAN cards

that are already set.

ASCII Input Select to use the ASCII codes to set

encryption keys (Keys 1 - 4). Select

this if network does not contain other

wireless LAN cards that are set with

encryption key using character codes.

Enter a 5-digit value when you have

selected [40 bit]* for the encryption.

Enter a 13-digit value when you have

selected [104 bit]* for encryption.

You can use the following characters:

0 - 9, A - Z, a - z, _ (underscore).

For example, to set “ABC12” for the

encryption key, enter “ABC12.”

Default Key Click the down arrow, and select a

key from Keys 1 - 4.

POINT

When using ADSL (PPPoE) with the infrastructure

network to connect to the Internet, you must change

the computer’s MTU size set. To change MTU size, refer

to the manual that comes with the access point.

POINT

If you have more than one [TCP/IP...] entry, select

[TCP/IP -> Intersil PRISM Wireless LAN PCI Card].

[TCP/IP Properties] appears.

B Series.book Page 94 Thursday, September 26, 2002 11:01 AM

WIreless LAN User’s Guide

■AdHoc Network: Select [IP address], and enter a

value for [IP address] and [Subnet Mask]. Refer to

“About IP Addresses” on page 27 to set an IP address

and subnet mask.

■Infrastructure Network: Select [Obtain an IP

address automatically].

5. Click [OK]. [Network] appears again.

In the next step, you will check the computer name and

workgroup.

Checking the Computer Name and Workgroup

1. Click the [Identification] tab on the [Network]

window.

2. Check the entry for [Computer name] and [Work-

group]. Ask your network administrator and check

the setting, if you have a network administrator.

Table 10: Computer Name and Workgroup

3. Click [OK]. When a message appears prompting you

to restart the computer, click [Yes].

Sharing

In this section, you set sharing of the drive, folder, and

printer.

You need to set this only when you are sharing files or a

printer with other computers on the network. When you

share a drive, folder, or printer, you can use these from

any computer on the network.

Setting File and Printer Sharing for Networks

1. Click [Start] -> [Settings] -> [Control Panel].

2. Double-click the [Network] icon. The [Network]

window appears.

3. Click [File and Print Sharing...]. [File and Print

Sharing] appears.

4. Click and check one or both of the options.

5. Click [OK]. [File and Printer Sharing for Microsoft

Networks] is added under [The following network

components are installed] on [Configuration] tab.

6. Click [OK]. [Network Properties] closes. Follow the

instructions on the screen.

7. When a message appears prompting you to restart

the computer, click [Yes].

Sharing Files

The following example shows how to set sharing the

“Work” folder on the c drive.

1. Double-click [My Computer] -> [C: drive] on the

desktop.

2. Right-click the “Work” folder, then click [Sharing]

from the menu that appears. The [Work Properties]

window appears.

3. Click [Sharing], and select items, as specified below.

Table 11: Password Setup

4. Click [OK]. The folder is set for sharing, and the

“Work” folder icon changes.

POINT

If this tab is not found on the [Network] window, click

[Start] -> [Settings] -> [Control Panel], and double-

click the [Network] icon.

Item Description

Computer

Name

A name to identify the computer on

the network. You can specify any

name for any computer. Use up to 15

single-byte characters. For easiest

identification, use the model name or

user name.

Workgroup The name of the network group. Use

up to 15 single-byte characters.

■AdHoc Network: Specify the same

name to all computers within the

same network.

■Infrastructure Network: Specify a

workgroup name to connect to.

Computer

Description

Additional description for the

computer. This is not necessary.

POINT

Including a period or other special characters may

prevent you from connecting to the network.

Item Description

Share Name Specify a share name for the drive or

folder that you want to share.

Access Type Limits the read/write permission for the

drive to be shared.

■Read-Only Password: Specifies read-

only for the drive to be shared.

■Full Access Password: Allows read

and write for the drive to be shared.

■Depends On Password: Identifies

either Read-Only or Full, depending

upon the password.

Passwords A password used for [Access Type].

■Read-Only Password: Specify a pass-

word to allow read.

■Full Access Password: Specify a pass-

word to allow read and write.

B Series.book Page 95 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Appendix

Printer Sharing

1. Click [Start] -> [Settings] -> [Printers]. [Printers]

appears, showing the printers that are connected.

2. Right click the printer that you want to share, and

then click [Sharing] from the menu that appears.

3. Click [Sharing], and select necessary items.

Table 12: Printer Sharing

4. Click [OK]. The printer is set for sharing, and the

printer icon changes.

Checking the Connection

After the network setting is completed, access the shared

drive on another computer to check the connectivity of

the wireless LAN network.

Accessing Another Computer

1. Double-click the [Network Neighborhood] on the

desktop. The computers that are connected to the

network are displayed.

2. Double-click the computer that you want to access.

The drive that you set with “Sharing” is displayed.

The drive is not displayed unless it is set for sharing,

even if it exists.

3. Double-click the drive that you want to access. The

drive is displayed showing its contents and made

available to you.

If you have a question or problem, refer to “Trouble-

shooting” on page 19.

Checking the Connectivity

1. Click [Start] -> [Settings] -> [Control Panel].

2. Double-click the [PRISM Settings] icon. [PRISM

Wireless Settings] appears.

3. Check the connectivity on the [Link] tab. The

current condition of connection is displayed.

Table 13: Connectivity Condition

NETWORK CONNECTION: WINDOWS 2000

The section describes how to set the network connection

for a computer with Windows 2000.

Network Settings

In this section, you set “TCP/IP Settings,” and complete

“Checking Computer Name and Workgroup,” required

for the network connection.

TCP/IP Settings

1. Click [Start] -> [Settings] -> [Control Panel].

Item Description

Not Shared Disables printer sharing.

Shared as Enables printer sharing

Share Name Specifies a share name for the

printer to be shared.

Comment Enter a description of the printer

to be shared.

Passwords Specify passwords. If you specify a

password, you need to enter it

when using the printer.

Item Description

State Shows the current condition of

connection.

The MAC address of the other

computer that you are connected

to is displayed, when the connec-

tion is successfully made. If you

are connected to more than one

computer, the computer that has

the best connectivity is displayed.

Current Channel Shows the current channel used

for the connection.

Current Tx Rate Shows the current transfer rate in

Mbits/sec.

[Radio Off]/

[Radio On]

Click [Radio Off] to disconnect.

Click [Radio On] to connect to

network.

Rescan Click to search for others to

connect to.

Throughput

(Bytes/sec)

Shows the actual transfer rate of

the transfer data for send (Tx) and

receive (Rx).

Link Quality Shows [Excellent], [Good], [Fair],

[Poor], or [Not Connected],

depending on the link quality. This

is not shown for the AdHoc

connection.

Signal Strength Shows [Excellent], [Good], [Fair],

[Poor], or [Not Connected],

depending on the signal strength.

This is not shown for the AdHoc

connection.

B Series.book Page 96 Thursday, September 26, 2002 11:01 AM

WIreless LAN User’s Guide

2. Double-click the [Network and Dial-up

Connections] icon. The [Network and Dial-up

Connections] window appears.

3. Right click the [Local Area Connection], then click

[Properties] from the menu that appears. The [Local

Area Connection Properties] window appears.

4. Perform the following steps.

■Click [Internet Protocol (TCP/IP)].

■Click [Properties]. The [Internet Protocol (TCP/IP)

Properties] window appears.

5. Set an IP address as indicated in Table 14. Ask your

network administrator to check the setting.

Table 14: Setting an IP Address

6. Click [OK]. The [Local Area Connection Properties]

window appears again.

7. Click [OK]. When a message appears prompting you

to restart the computer, click [Yes].

Checking the full computer name and workgroup

1. Click [Start] -> [Settings] -> [Control Panel].

2. Double-click the [System] icon. [System Properties]

appears.

3. Click the [Network Identification] tab.

4. Check [Full computer name] and [Workgroup]. Ask

your network administrator and check the setting.

Table 15: Checking computer name and workgroup

5. Click [OK]. When a message appears prompting you

to restart the computer, click [Yes].

Sharing

In this section, you set sharing of the drive, folder, and

printer.

You only need to set this when you are sharing files or a

printer with other computers on the network.

When you share a drive, folder, or printer, you can use

them from any computer on the network.

Setting [File and Printer Sharing for Microsoft

Networks]

1. Click [Start] -> [Settings] -> [Control Panel].

2. Double-click the [Network and Dial-up

Connections] icon. The [Network and Dial-up

Connections] windows appears.

3. Right click the [Local Area Connection], then click

[Properties] from the menu that appears. [Local

Area Connection Properties] appears.

POINT

More than one network adapter is installed in your

system if more than one [Local Area Connection] entry

is displayed. In this case, select the [Local Area

Connection] entry with [Intersil PRISM Wireless LAN

PCI Card] displayed under [Device Name].

Item Description

For AdHoc

Network

Set the IP address and subnet mask:

Click [Use the following IP address],

and enter a value for [IP address] and

[Subnet mask].

Refer to “Setting IP Addresses” on

page 109 to set an IP address and

subnet mask.

For

Infrastructure

Network

Select [Obtain an IP address

automatically]:

For the DNS server, select [Obtain

DNS server address automatically].

For the IP address, DNS server, and

default gateway, follow the network

administrator's instructions, if any.

Item Description

Full

Computer

Name

A name to identify the computer on

the network. You can specify any

name to each computer.

For easier identification, use the model

name or user name.

Workgroup A name for the network group:

■AdHoc Network:

Specify the same name to all com-

puters within the same network.

■Infrastructure Network: Specify a

workgroup name to connect to.

To change the setting, click

[Properties], and follow the instruc-

tions on the screen. [System Proper-

ties] appears again.

POINT

More than one network adapter is installed in your

system if more than one [Local Area Connection] entry

is displayed. In this case, select the [Local Area Connec-

tion] entry with [Intersil PRISM Wireless LAN PCI Card]

displayed under [Device Name].

B Series.book Page 97 Thursday, September 26, 2002 11:01 AM

LifeBook B Series – Appendix

4. If [File and Printer Sharing for Microsoft Networks]

is displayed in the list, make sure that it is checked. If

it is not checked, check it and click [OK]. You do not

have to perform the following steps. Go to the next

section, entitled “Sharing Files.”

If [File and Printer Sharing for Microsoft Networks]

is not found in the list, click [Install], and perform

Step 5 and subsequent steps. When you click

[Install], the [Select Network Component Type]

window appears.

5. Perform the following steps.

■Click [Service].

■Click [Add]. The [Select Network Service] window

appears.

6. Perform the following steps.

■Click [File and Printer Sharing for Microsoft

Networks].

■Click [OK]. You will go back to [Local Area Connec-

tion Properties], and [File and Printer Sharing for

Microsoft Networks] is added to the list.

7. Click [OK].

Sharing Files

The following example shows how to set sharing the

“Work” folder on the c: drive.

1. On the desktop, double-click [My Computer]->

C: drive.

2. Right-click the “Work” folder, then click [Sharing]

from the menu. The [Work Properties] window

appears.

3. Click [Share this folder] and set necessary items, as

indicated in the following table.

Table 16: Sharing files

4. Click [OK]. The folder is set shared, and the “Work”

folder icon changes.

Printer Sharing

1. Click [Start] -> [Settings] -> [Printers]. The Printers

window appears, showing the printers that are

connected.

2. Right click the printer that you want to share, then

click [Sharing] from the menu that appears.

3. Click [Sharing], and select necessary items.

Table 17: Printer Sharing

4. Click [OK]. The printer sharing is set, and the icon

changes.

Checking the Connection

After the network setting is completed, access the shared

drive on another computer to check the connectivity of

the wireless LAN network.

Accessing Another Computer

1. Double-click the [My Network Places] icon on the

desktop. [My Network Places] appears.

2. Double-click [Computers near me]. The computers

that are connected to the network are displayed.

3. Double-click the computer that you want to access.

The drive that you set with “Sharing” are displayed.

4. Double-click the drive that you want to access. The

drive is displayed showing its contents and made

available to you. If you have any questions or prob-

lems, refer to “Troubleshooting Table” on page 103.

Checking the Connectivity

1. Click [Start] -> [Settings] -> [Control Panel].

2. Double-click the [PRISM Settings] icon. [PRISM

Wireless Settings] appears.

3. Check the connectivity on the [Link] tab. The

current condition of connection is displayed.

POINT

If you have changed the setting, [Close] is shown

instead. Click [Close].

Item Description

Share name You can specify a share name for the

drive or folder that you want to share.

Comment You can enter the description for the

drive or folder that you want to share.

User limit Specifies the limit for the number of

sharing users.

Permissions Specifies the folder access privileges.

Caching Specifies the caching for the folder.

Item Description

Not Shared Disables printer sharing.

Shared As Enables printer sharing.

Share Name Specifies a share name of the

printer to be shared.

Comment Enter the description of the printer

to be shared.

Passwords If you specify a password, you

need to enter it when using the

printer.

B Series.book Page 98 Thursday, September 26, 2002 11:01 AM

WIreless LAN User’s Guide

Table 18: Checking connectivity

CONNECTING WINDOWS XP SYSTEMS

This chapter describes how to set up the wireless LAN

connection for computers that are running Windows XP.

Workflow

The proper setup of the wireless LAN connection

requires that several steps be performed in the proper

order. Following is a general outline of the steps to be

performed. Each step is detailed later in this procedure.

1. Setting parameters

■Setting the profile

■Setting the encryption

2. Network settings

■Setting the protocol and checking the network

■Setting file and printer sharing

■Checking the connection

Setting Parameters

1. Click [Start] -> [Control Panel].

2. Click [Network and Internet connection].

3. Click [Network connection]. A list of networks that

are currently installed is displayed.

4. Right click [Intersil PRISM Wireless LAN PCI Card]

in the list, and click [Properties] from the menu that

is displayed. [Wireless Network Connection 2 Prop-

erties] appears.

5. Click the [Wireless Networks] tab. The [Wireless

Networks] tab appears.

6. Perform the following steps.

■Make sure that [Use Windows to configure my wire-

less network settings] is checked.

■Click [Add] under [Preferred networks]. [Wireless

Network Properties] appears.

7. Set parameters.

■For the AdHoc network, specify the same value to all

the computers, for which the encryption key is used

for connection.

■For the infrastructure network, specify the encryp-

tion key (network key) with the same value to the

encryption key of the access point. For how to check

the encryption keys set for the access point, refer to

the manual supplied with the access point.

Item Description

State Shows the current condition of

connection.

The MAC address of the other

computer to which you are

connected is displayed when the

connection is successful. If you are

connected to more than one

computer, the computer that has

the best connectivity is displayed.

Current Channel Shows the current channel used

for the connection.

Current Tx Rate Shows the current transfer rate in

Mbits/sec.

[Radio Off]/

[Radio On]

Click [Radio Off] to disconnect.

Click [Radio On] to connect to the

network.

[Rescan] button Click this button to search for

others to connect to.

Throughput

(Bytes/sec)

Shows the actual transfer rate of

the data transfer for send (Tx) and

receive (Rx).

Link Quality Shows either [Excellent], [Good],

[Fair], [Poor], or [Not Connected],

depending on the link quality.

Not shown for AdHoc connection.

Signal Strength Shows either [Excellent], [Good],

[Fair], [Poor], or [Not Connected],

depending on the signal strength.

Not shown for AdHoc connection.

POINT

If you purchased a LifeBook with the optional wireless

LAN, the integrated wireless LAN device and drivers

have already been installed. This procedure outlines the

steps for setting the device parameters.

Updated drivers and/or utilities may become available

after this manual is printed; see any addenda or fliers

that may be included in the system packaging.

POINT

Be sure to specify the encryption keys. If you do not

specify the keys, any computer with a wireless LAN card

can be connected. This presents a risk that other users

may steal or destroy your data.

B Series.book Page 99 Thursday, September 26, 2002 11:01 AM

100

LifeBook B Series – Appendix

Table 19: Setting parameters

8. When you finish your entry, click [OK]. [Wireless

Network Connection 2 Properties] appears again.

9. Make sure the network name you specified for the

SSID in Step 7 is added under [Preferred networks].

Network Connection

The section describes how to set the network connection

for a computer running Windows XP.

Network Settings

In this section, you set “TCP/IP Settings,” and complete

“Checking Computer Name and Workgroup” required

for the network connection.

TCP/IP Settings

1. On [Wireless Network Connection Properties], click

[General].

2. Perform the following steps.

■Click [Internet Protocol (TCP/IP)].

■Click [Properties]. [Internet Protocol (TCP/IP)

Properties] appears.

3. Set an IP address. Ask your network administrator

and check the setting.

Table 20: Setting an IP address

5. Click [OK].

6. Close [Network Connection].

Checking the Full Computer Name and Workgroup

1. Click [Start] -> [Control Panel]. Make sure the

Classic View is selected.

2. Double-click the [System] icon. [System Properties]

appears.

3. Click the [Computer Name] tab.

Item Description

Network

Name

SSID

Enter the network name to which you

want to connect. This is a required item.

For the network name, ask your LAN

administrator.

AdHoc network: Set the same name for all

of the computers that are to be connected.

Infrastructure network: Specify the same

name as that specified on the access point

that is to be connected. For access point

instructions, refer to the manual that

comes with the access point.

Key

Format

Click the down arrow and select the input

for the Network key.

ASCII

characters

Select this when using

ASCII characters for the

Network Key. Characters

that can be used follow:

0-9, A-Z, a-z, and

_ (underscore)

Example: To set the key to

“ABC12”, input “ABC12”.

Hexa-

decimal

characters

Select this when using

hexadecimal characters for

the Network Key.

Use this if there is a wireless

LAN card in the network

that has the Network Key

set to a character code. In

’Network Key’, input the

same value as the other

wireless LAN card.

POINT

If [Wireless Network Connection 2 Properties] is not

displayed, click [Start] -> [Settings] -> [Control Panel],

and double-click the [Network Connection] icon.

Right click the [Wireless Network Connection], and

then click [Properties] from the menu that appears.

Item Description

AdHoc

Network

Set the IP address and subnet mask.

Click [Use the following IP address].

Enter a value for [IP address] and

[Subnet mask]. See “Setting IP

Addresses” on page 109 to set IP

address and subnet mask.

For

Infrastructure

Network

Select [Obtain an IP address

automatically]. For the DNS server,

select [Obtain DNS server address

automatically]. For the IP address,

DNS server, and default gateway,

follow the network administrator's

instructions, if any.

POINT

If you have changed the setting, [Close] is shown

instead. Click [Close].

B Series.book Page 100 Thursday, September 26, 2002 11:01 AM

101

WIreless LAN User’s Guide

4. Check [Full computer name] and [Workgroup]. Ask

your network administrator and check the setting.

Table 21: Setting computer name and workgroup

To change the setting, click [Change], and follow the

instructions on the screen. [System Properties] appears

again.

5. Click [OK]. When a message appears prompting you

to restart the computer, click [Yes].

Sharing

In this section, you set sharing of the drive, folder, and

printer.

You need to set this only when you are sharing files or a

printer with other computers on the network.

When you share a drive, folder, or printer, you can use

these from any computer on the network.

Setting [File and Printer Sharing for Microsoft

Networks]

1. Click [Start] -> [Control Panel]. Make sure the

Classic View is selected.

2. Double-click the [Network Connection] icon.

3. Right click the [Wireless Network Connection], and

then click [Properties] from the menu that appears.

[Wireless Network Connection Properties] appears.

4. If [File and Printer Sharing for Microsoft Networks]

is displayed in the list:

Make sure that it is checked. If it is not checked,

check it, and click [OK]. You do not have to perform

the following steps. Go to the next section, “Sharing

Files.”

If [File and Printer Sharing for Microsoft Networks]

is not found in the list, click [Install], and perform

Step 5 and the subsequent steps. When you click

[Install], [Select Network Component Type]

appears.

5. Perform the following steps.

■Click [Service].

■Click [Add]. [Select Network Service] appears.

6. Perform the following steps.

■Click [File and Printer Sharing for Microsoft

Networks].

■Click [OK]. You will go back to [Wireless Network

Connection 2 Properties], and [File and Printer

Sharing for Microsoft Networks] is added to the list.

7. Click [Close].

Sharing Files

The following example shows how to set sharing the

“Work” folder on the c: drive.

1. Click [Start] -> [My Computer].

2. Double-click the [Local Disk (c:)] icon.

3. Right click the “Work” folder, and then click

[Sharing and Security] from the menu that appears.

[Work Properties] appears.

4. Click [If you understand the security risks but want

to share files without running the wizard, click

here].

In the [Work Properties] window, the description under

[Network Sharing and security] changes.

5. Check [Share this folder on the network].

Uncheck [Allow network users to change my files], if

the shared folder is for read only.

6. Click [OK]. The folder is set shared, and the “Work”

folder icon changes.

Printer Sharing

1. Press [Start]->[Control Panel] (or [Settings], if

viewing in Classic mode)-> [Printers and Faxes].

The Printers and Faxes display will appear and the

connected printers will be displayed.

2. Right-click the printer to be shared, and click

[Sharing] from the menu that appears. The proper-

ties of the printer to be shared will be displayed. Set

printer sharing.

On the display, the printer sharing setting is recom-

mended by the Network Setup Wizard, but for the wire-

less LAN network, security is maintained by network

Item Description

Computer

Name

A name to identify the computer on

the network. You can specify any

name to each computer. Use up to 15

single-byte characters. For easier

identification, use the model name or

user name.

Workgroup A name of the network group. Use up

to 15 single-byte characters.

AdHoc Network: Specify the same

name to all computers within the

same network.

Infrastructure Network:

Specify workgroup name to connect

to.

POINT

If you have already clicked [If you understand the

security risks but want to share files without running the

wizard, click here], this window does not appear.

B Series.book Page 101 Thursday, September 26, 2002 11:01 AM

102

LifeBook B Series – Appendix

name (SSID) or network key. The following steps allow

you to set up printer sharing without using the Network

Setup Wizard.

3. Click 'If you understand the security risks but want

to share printers without running the wizard, click

here. 'Enable Printer Sharing' will be displayed.

4. Select 'Just enable printer sharing'.

5. Click 'OK'. The printer properties will be indicated.

6. Select 'Share this printer'.

7. Enter the sharing printer name in 'Share name'.

8. Click OK. The printer will be shared, and the printer

icon will become a sharing icon.

Checking the Connection

After the network setting is completed, access the shared

drive on another computer to check the connectivity of

the wireless LAN network.

Accessing Another Computer

1. Click [Start] -> [My Computer].

2. From the left menu in [Other Places], click [My

Network Places].

3. From the left menu in [Network Tasks], click [View

workgroup computers]. The workgroup in which

you are participating will appear.

4. Double click the computer to which you want to

connect. The drive that you set in [Computer

Sharing] appears.

5. Double click the drive to which you want to connect.

The contents of the drive will appear, and is available

for use.

If you have a question or problem, refer to “Trouble-

shooting Table” on page 103.

Checking the Connectivity

1. Click [Start] -> [Control Panel].

2. Double-click the [PRISM Settings] icon. [PRISM

Wireless Setting] appears.

3. Check the connectivity on the [Link] tab. The

current condition of connection is displayed

Table 22: Checking connectivity

Item Description

State Shows the current condition of

connection.

The MAC address of the other

computer that you are connected to is

displayed, when the connection is

successfully made. If you are

connected to more than one

computer, the computer that has the

best connectivity is displayed.

Current

Channel

Shows the current channel used for

the connection.

Current Tx

Rate

Shows the current transfer rate in

Mbits/sec.

Radio Off/

Radio On

Click [Radio OFF] to disconnect.

Click [Radio On] to connect to the

network.

Rescan Click this button to search for others

to connect to.

Throughput

(Bytes/sec)

Shows the actual transfer rate of the

transfer data for send (Tx) and receive

(Rx).

Link Quality Shows the link quality. This is not

shown for the AdHoc connection.

Signal

Strength

Shows the signal strength.

This is not shown for the AdHoc

connection.

B Series.book Page 102 Thursday, September 26, 2002 11:01 AM

103

WIreless LAN User’s Guide

TROUBLESHOOTING

This section contains troubleshooting information, including causes and actions, for problems you may find while

using this device.

Troubleshooting Table

Problem Possible Cause Possible Solution

An exclamation mark

(!) or cross (x) is

attached to [Intersil

PRISM Wireless LAN

PCI Card].

A failure to

recognize the device.

Restart the computer.

A failure in installing

the driver.

Restart the computer.

Other computers are

not displayed when

the [Network

Computer] icon is

double-clicked.

You did not enter the

password when

Windows 98 started.

You clicked [Cancel]

or [ESC] when User

Name/Password

window was shown.

Make sure that you enter user name and password and click [OK]

when starting Windows 98. If you forget your password, enter

another user name. A new user name and password is registered in

the computer.

The network has not

been set up correctly.

Check the setting for the protocol, workgroup, and sharing.

To check this, you need a different procedure, depending upon the

operating system that you use. Refer to the appropriate section of

this chapter.

It takes time before

the network is

searched and the

computer connected

is displayed.

Perform the following steps to search for the computer.

■Click [Start] -> [Search] -> [Other Computers].

■Enter the computer name that you are connecting to in [Name],

and click [Search].

■Double-click the icon of the computer that has been searched.

A failure in installing

the driver.

Make sure that the driver is correctly installed.

The TCP/IP protocol

is not installed, or,

the IP address is not

set correctly.

Make sure that the TCP/IP protocol is installed. To check this, you

need a different procedure, depending on the operating system that

you use. Refer to the appropriate section of this manual.

B Series.book Page 103 Thursday, September 26, 2002 11:01 AM

104

LifeBook B Series – Appendix

Other computers are

not displayed when

the [Network

Computer] icon is

double-clicked.

The TCP/IP protocol

is not installed, or,

the IP address is not

set correctly.

If the TCP/IP protocol is installed, do the following to check the IP

address:

1. Windows 98:

Click [Start] -> [Programs] -> [MS-DOS Prompt].

Windows 2000:

Click [Start] -> [Programs] -> [Accessories] -> [Command

Prompt].

Windows XP:

Click [Start] -> [All Programs] -> [Accessories] -> [Command

Prompt].

2. Enter “IPCONFIG” command, and press [Enter].

(If your hard disk is C drive, enter

C:\>ipconfig)

Check that the IP address is correctly displayed under the IP Address.

Example:

IP address: 10.0.1.3

Subnet Mask: 255.255.255.0

Default Gateway: 10.0.1.1

No communication

due to poor radio

signal.

Shorten the distance between computers or remove visible obstacles

between them, and retry the connection.

Problem Possible Cause Possible Solution

B Series.book Page 104 Thursday, September 26, 2002 11:01 AM

105

WIreless LAN User’s Guide

IP packet isn’t reach-

ing its destination

Run the PING

command to check

the connection

Perform the following steps to run the PING command to check if the

IP packet is correctly delivered to the destination.

To run the PING command, the TCP/IP protocol must be installed.

First you will determine your IP address, then you will make sure your

IP address can respond, and then you will make sure other computers

can be addressed.

1. Windows 98: Click [Start] -> [Programs] -> [MS-DOS Prompt].

Windows 2000: Click [Start] -> [Programs] -> [Accessories] ->

[Command Prompt].

Windows XP: Click [Start] -> [All Programs] -> [Accessories] ->

[Command Prompt].

2. Type: ipconfig > directory\filename

where directory and filename represent the location at which you

want to find the IP address.

3. Click [Enter], then go to the location you specified above. The IP

address for your system will be contained in the file.

4. To check that your IP address is functioning properly, go back to

the DOS prompt and type: ping <IP address>, then press [Enter].

You will receive several replies, followed by the PING statistics

(similar to below).

5. To check that your system is communicating with other systems,

go to the DOS prompt and type:

\>ping XXX.XXX.XXX.XXX. (With the destination IP address in

place of XXX.XXX.XXX.XXX).

Example: if the destination IP address is 10.0.1.3:

C:\>ping 10.0.1.3

A message similar to the following appears if the connection is

successful.

Pinging 10.0.1.3 with 32 bytes of data:

Reply from 10.0.1.3: bytes=32 time=1ms TTL=32

Reply from 10.0.1.3: bytes=32 time<10ms TTL=32

Reply from 10.0.1.3: bytes=32 time=4ms TTL=32

Reply from 10.0.1.3: bytes=32 time<10ms TTL=32

If the connection fails, [Request timed out], [Destination host

unreachable], or a similar message appears. In this case, refer to the

“Other computers are not displayed” portion of this chapter.

Cannot connect to

the network

There are several

possible causes, as

listed to the right.

Refer to the

specific section of this

manual or your user’s

manual.

The following causes are possible. Check each one of them.

■The network name or encryption key is not right.

■The driver has not correctly started.

■The destination computer is not turned on.

■You do not have the access privilege to the destination computer.

■The card has failed.

■Hardware conflict.

Problem Possible Cause Possible Solution

B Series.book Page 105 Thursday, September 26, 2002 11:01 AM

106

LifeBook B Series – Appendix

I want to remove the

driver.

(Windows 98)

Windows 98:

When removing the driver, make sure that the device is attached to

the computer. If you try to remove the driver while the device is

detached from the computer, the driver is not removed.

1. Right click the [My Computer] icon on the desktop, and then

click [Properties] from the menu that appears. [System Proper-

ties] appears.

2. Click the [Device Manager] tab.

3. Click [+] beside [Network adapters].

4. Perform the following steps.

■Click [Intersil PRISM Wireless LAN PCI Card].

■Click [Remove]. [Confirm Device Removal] appears.

5. Click [OK]. The device is removed, and [System Settings

Change] appears.

6. Click [No].

7. Close [System Properties].

8. Make sure that the icon has disappeared from the task tray in the

lower right corner of the screen.

9. Click [Start] -> [Settings] -> [Control Panel]. [Control Panel]

appears.

10. Double-click [Add/Remove Programs]. [Add/Remove

Programs Properties] appears.

11. Double-click [PRISM 11Mbps Wireless LAN for

Windows]. A window appears asking you if you really want to

remove the driver.

12. Click [Yes]. When the driver is removed, a window appears

showing that the driver has been removed.

13. Click [OK].

14. Close [Add/Remove Programs Properties] and [Control Panel].

15. Shut down Windows, and turn off the computer.

Problem Possible Cause Possible Solution

B Series.book Page 106 Thursday, September 26, 2002 11:01 AM

107

WIreless LAN User’s Guide

I want to remove the

driver

(Windows 2000)

Windows 2000:

When removing the driver, make sure that the device is attached to

the computer. If you try to remove the driver while the device is

detached from the computer, the driver is not removed.

1. Right click the [My Computer] icon on the desktop, and then click

[Properties] from the menu that appears. [System Properties]

appears.

2. Click the [Hardware] tab.

3. Click [Device Manager...]. The [Device Manager] window

appears.

4. Click [+] beside [Network adapters].

5. Right click [Intersil PRISM Wireless LAN PCI Card], and

click [Uninstall] from the menu that is displayed. [Confirm Device

Removal] appears.

6. Click [OK].

7. Close [System Properties].

8. Make sure that the icon has disappeared from the task tray in the

lower right corner of the screen.

9. Click [Start] -> [Settings] -> [Control Panel].

10. Double-click [Add/Remove Programs]. [Add/Remove Programs]

appears.

11. Perform the following steps.

■Click [PRISM 11Mbps Wireless LAN for Windows].

■Click [Change/Remove].

A window appears asking you if you really want to remove the driver.

12. Click [Yes].

When the driver is removed, a window appears showing that the

driver has been removed.

13. Click [OK].

14. Close [Add/Remove Programs] and [Control Panel].

15. Shut down Windows, and turn off the computer.

Problem Possible Cause Possible Solution

B Series.book Page 107 Thursday, September 26, 2002 11:01 AM

108

LifeBook B Series – Appendix

Problem Possible Cause Possible Solution

I want to remove

the driver

(Windows XP)

Windows XP:

When removing the driver, make sure that the device is attached to

the computer. If you try to remove the driver while the device is

detached from the computer, the driver is not removed.

1. Click [Start], right click [My Computer], and then click [Properties]

from the menu that appears. [System Properties] appears.

2. Click the [Hardware] tab.

3. Click [Device Manager].

4. Click [+] beside [Network adapters].

5. Right click [Intersil PRISM Wireless LAN PCI Card], and

click [Uninstall] from the menu that is displayed. [Confirm Device

Removal] appears.

6. Click [OK].

7. Close [System Properties].

8. Make sure that the icon has disappeared from the task tray in the

lower right corner of the screen.

9. Click [Start] -> [Control Panel]. [Control Panel] appears.

10. Double-click [Add/Remove Programs]. [Add/Remove Programs]

appears.

11. Perform the following steps.

■Click [PRISM 11Mbps Wireless LAN for Windows].

■Click [Change/Remove].

A window appears asking you if you really want to remove the driver.

12. Click [Yes].

When the driver is removed, a window appears showing that the

driver has been removed.

13. Click [OK].

14. Close [Add/Remove Programs] and [Control Panel].

15. Shut down Windows, and turn off the computer.

B Series.book Page 108 Thursday, September 26, 2002 11:01 AM

109

WIreless LAN User’s Guide

IF A SECOND LAN DEVICE IS INSTALLED

Instructions for disabling another LAN device

If you have another LAN card on your computer

running Windows 98, perform the following steps to

disable that LAN card before installing the driver.

For Windows 98

1. Click [Start] -> [Settings] -> [Control Panel].

2. Double-click [System]. [System Properties] appears.

3. Click [+] beside [Network adapters], and double-

click the standard built-in LAN device.

The following devices appear depending on your

computer model.

■[Intel(R) 82559 Fast Ethernet LOM with Alert on

LAN 2*]

■[Intel(R) 8255x-based PCI Ethernet Adapter(10/

100)]

■[Realtek RTL8139(A/B/C/8130)PCI Fast Ethernet

NIC]

■or others.

The LAN Card Properties window appears.

4. Check [Set disable with this hardware profile], and

click [OK]. An [x] mark is added to the LAN card

icon.

5. Click [OK].

6. Restart the system.

ABOUT IP ADDRESSES

Setting IP Addresses

If you are not sure how to set the IP address, refer to the

following procedure.

If you have an access point (DHCP server) on the

network, set the IP address as follows:

Windows 98: [Obtain an IP address automatically]

Windows 2000: [Obtain an IP address automatically]

Windows XP: [Obtain an IP address automatically]

If the IP address is already assigned to the computer in

the network, ask the network administrator to check the

IP address to be set for the computer.

If no access point is found in the network:

An IP address is expressed with four values in the range

between 1 and 255.

Set the each computer as follows: The value in paren-

theses is a subnet mask.

Computer A: 192.168.100.2 (255.255.255.0)

Computer B: 192.168.100.3 (255.255.255.0)

Computer C: 192.168.100.4 (255.255.255.0)

Computer X: 192.168.100.254 (255.255.255.0)

POINT

A DHCP server is a server that automatically assigns IP

addresses to computers or other devices in the network.

There is no DHCP server for the AdHoc network.

B Series.book Page 109 Thursday, September 26, 2002 11:01 AM

110

LifeBook B Series – Appendix

SPECIFICATIONS

Technical Specifications for the Optional Integrated Wireless LAN Device

Item Description

Network Type IEEE 802.11b

Transfer Rate 11/5.5/2/1Mbps (auto change)

Frequency Range 2,400 - 2,473 MHz

Channels One of 11 channels is used

Card Type Non-intelligent

VCC Class B

Security Network name, encryption key

Supported Operating Systems Windows 98, Windows 2000, Windows XP

Power Current Max: 350mA

Maximum number of units recommended for

wireless LAN (AdHoc network)

10 or less

B Series.book Page 110 Thursday, September 26, 2002 11:01 AM

111

Index

adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27, 79

indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

plug adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

ACPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Active-Matrix Display . . . . . . . . . . . . . . . . . . . . . . . . . 79

Adobe Acrobat Reader . . . . . . . . . . . . . . . . . . . . . . . . . 76

Anti-theft Lock Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Application

See Pre-installed Software

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Auto/Airline Adapter . . . . . . . . . . . . . . . . . . . . . . .27, 79

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

charging indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 13

cold-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

conserving power . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

dead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

increasing life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

level indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

lithium ion battery . . . . . . . . . . . . . . . . . . . . . . . 37, 81

low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

recharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

shorted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

suspend mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

warm-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

BatteryAid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

setup utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Built-in Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Cache Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

CardBus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Closed Cover Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CMOS RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

COMM Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Conventions used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

CRT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DC Output Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

DC Power Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 27

Default Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . 74

DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42, 80

DISE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62, 75

Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

adjusting brightness . . . . . . . . . . . . . . . . . . . . . . . . . 28

brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

power management . . . . . . . . . . . . . . . . . . . . . . . . . 28

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57, 58

Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

DMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

DMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Docking Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Docking Port Connector . . . . . . . . . . . . . . . . . . . . . . . 11

Drive Image Special Edition . . . . . . . . . . . . . . . . . . . . 62

Drivers and Application CD . . . . . . . . . . . . . . . . . . . . 62

ECP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Extended Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

External Monitor Port . . . . . . . . . . . . . . . . . . . . . . . 9, 48

B Series.book Page 111 Thursday, September 26, 2002 11:01 AM

112

LifeBook B Series

Floppy Disk

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

ejecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

initializing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

preparing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

write protect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Floppy Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44, 47

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Function Key

F10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

F3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

F4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

F6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

F7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

F8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

F9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

FN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Fn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Hard Disk Drive

access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Hard Disk Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 47

Hibernate Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Hibernation Feature . . . . . . . . . . . . . . . . . . . . . . . . . . 33

IDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Infrared Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 47

Integrated Pointing Device . . . . . . . . . . . . . . . . . . . . 73

Internal LAN Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

IrDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47, 81

IRQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 14

cursor keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

windows keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

LAN (RJ-45) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

LifeBook

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

traveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

LifeBook Security Application Panel . . . . . . . . . . . . .76

buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

configuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

deactivating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

deactivating and activating . . . . . . . . . . . . . . . . . . .23

launching applications . . . . . . . . . . . . . . . . . . . . . . .22

operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

uninstalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

LifeBook Security/Application Panel . . . . . . . . . . .8, 73

Mass Storage Device Options . . . . . . . . . . . . . . . . . . .73

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42, 73

capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

compartment . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 42

extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

upgrade module . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . .10, 47

microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Microsoft Internet Explorer . . . . . . . . . . . . . . . . . . . . .76

Microsoft Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

MIDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Modem (RJ-11) Port . . . . . . . . . . . . . . . . . . . . . . . . . .10

Modem Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Modem Result Codes . . . . . . . . . . . . . . . . . . . . . . . . . .61

Mouse

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

See Quick Point

MPU-401 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Netscape 6.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

NTSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

B Series.book Page 112 Thursday, September 26, 2002 11:01 AM

113

Index

Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

NumLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Parallel Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46, 82

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

PC Card

access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54, 55

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

PCMCIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Popular Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Port Replicator

attaching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

detaching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

POST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Power

AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Auto/Airline adapter . . . . . . . . . . . . . . . . . . . . . . . . 27

failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Power Management . . . . . . . . . . . . . . . . . . . . . . . .32, 34

Power On Self Test . . . . . . . . . . . . . . . . . . . . . . . . .29, 60

Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Pre-Installed Software . . . . . . . . . . . . . . . . . . . . . . . . . 75

Intel SpeedStep . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

tutorials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

PS/2 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Quick Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

control adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 17

double-clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Quick Point Pointing Device . . . . . . . . . . . . . . . . . . . . . 8

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30, 31

Restarting the system . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Restoring your hard disk . . . . . . . . . . . . . . . . . . . . . . . 62

RJ-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

RJ-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

SDRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 42

Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46, 82

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

SMART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Smart Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Software

See Pre-installed Software

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . . . 8, 12

Stereo Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Suspend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Suspend Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Suspend/Resume Button . . . . . . . . . . . . . . . . . . . . . 8, 32

S-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Theft Prevention Lock . . . . . . . . . . . . . . . . . . . . . . . . . 74

Touch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

calibrating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

double-clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
