CONTENTS PAGE
Safety Instructions 3
Technical Specifications 4

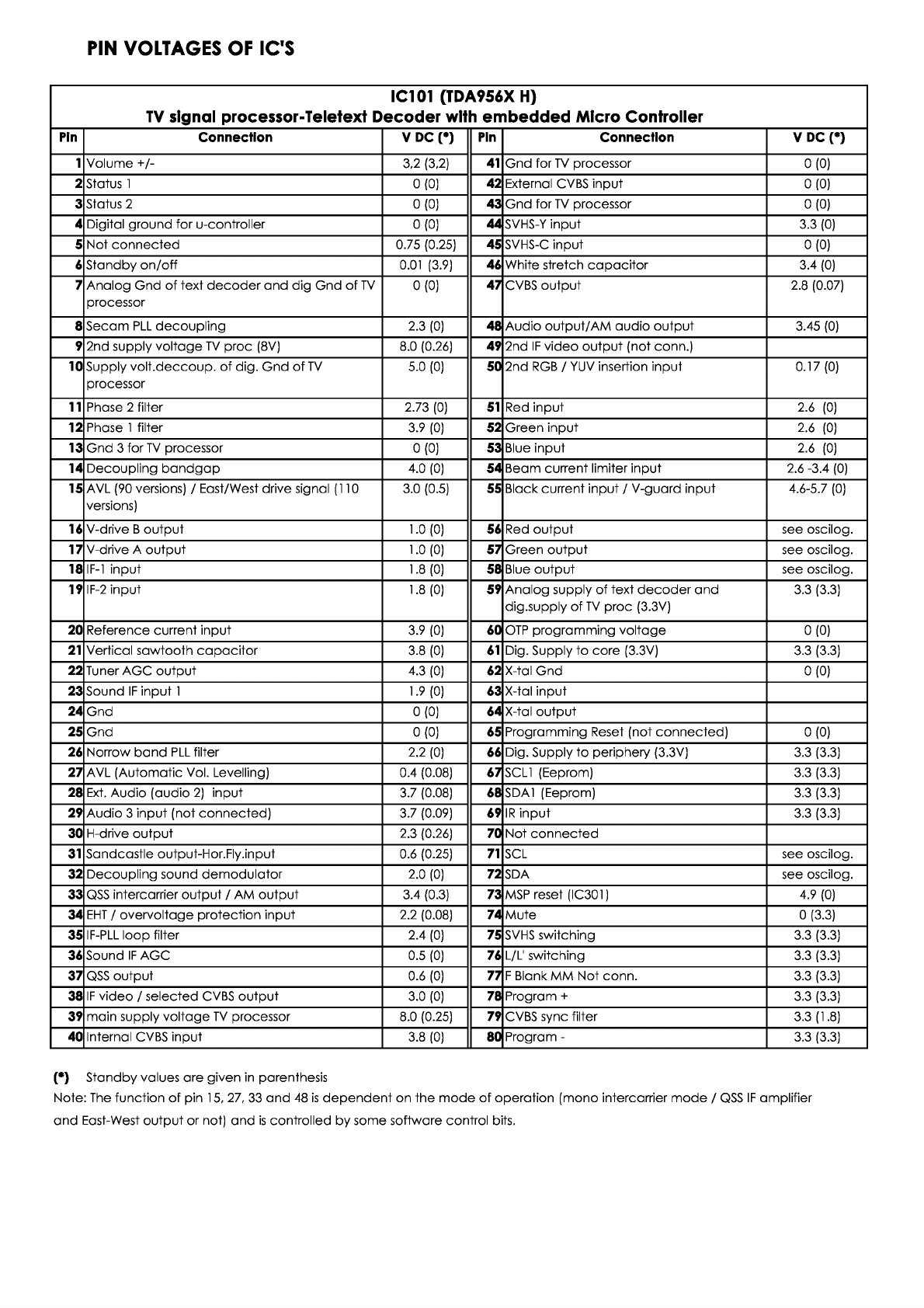

Pin Voltages of IC’s 5
Pin Voltages of Some Transistors 8
Oscillograms 9
Electrical and Service Adjustments 12
Trouble Shooting Guide 16
Parts List 23

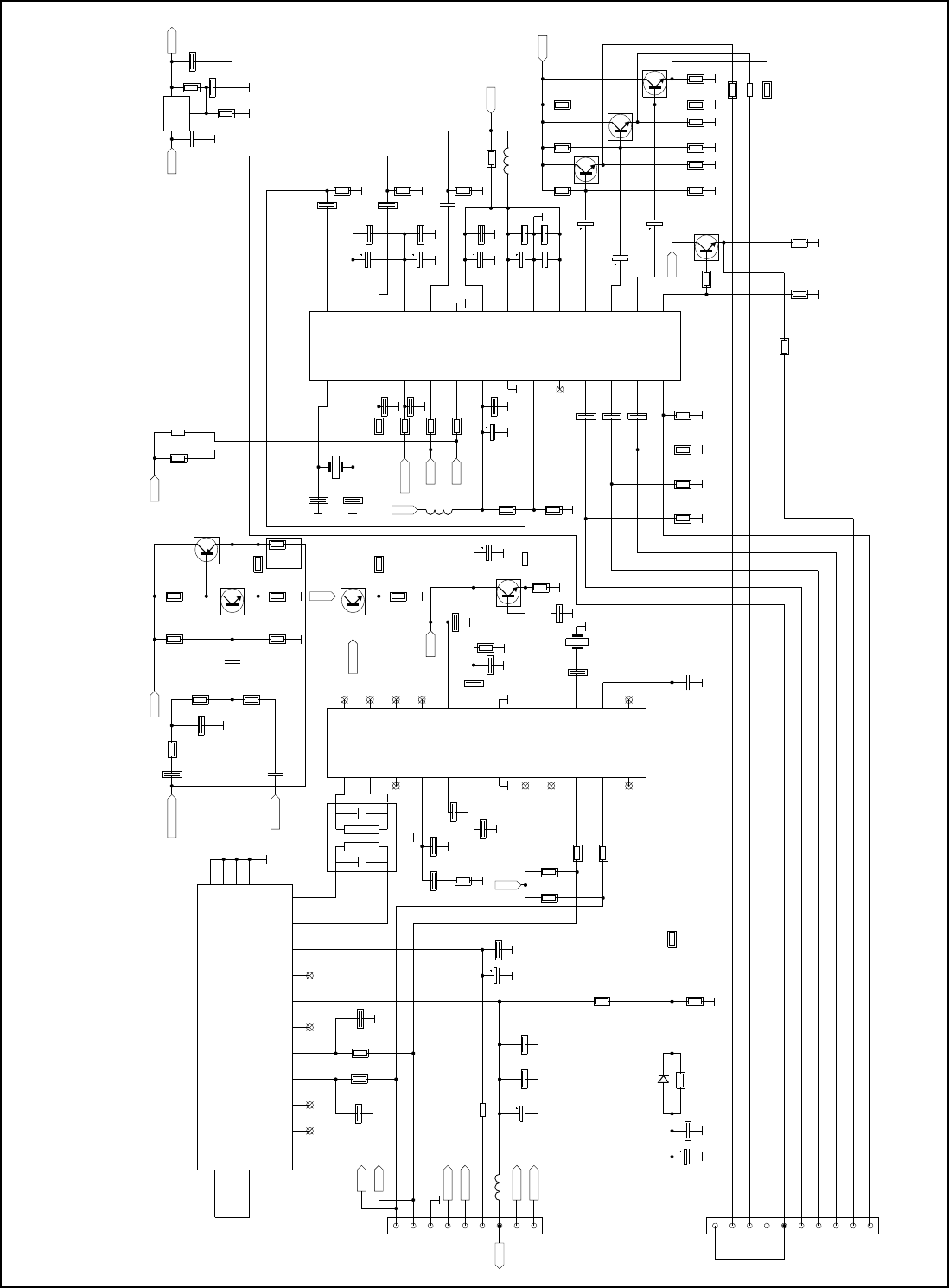

Circuit Diagram PIP Module 30

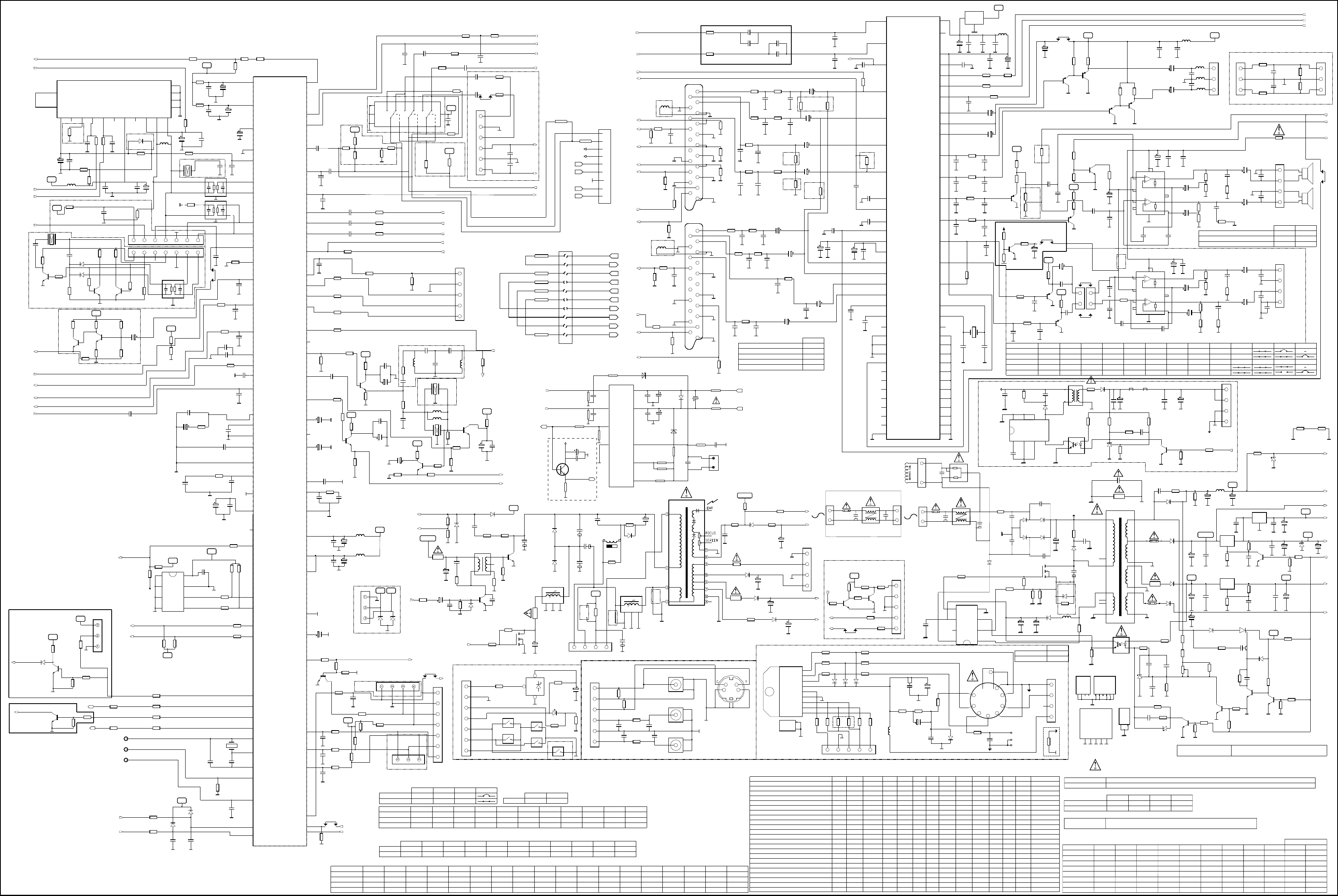

Circuit Diagrams Attached
27/05/2002, Version 2
SAFETY INSTRUCTIONS
GENERAL GUIDELINES
1. It is advised to insert an isolation transformer
in the AC supply before servicing a hot
chassis.
2. Potentials as high as 33KV are present when
this receiver is in operation. Operation of the
receiver without the rear cover involves the
danger of a shock hazard from the receiver
power supply. Servicing should not be
attempted by any one who is not
competent with the precautions necessary
when working on the high voltage
equipment. Always discharge the anode of
the tube.
3. When servicing observe the original lead
dress in the high voltage circuits. If a short
circuit is found, replace all the parts which
have been overheated or damaged by the
short circuit.
4. Always use the manufacturer’s replacement
safety components. The critical safety
components marked with on the
schematics diagrams should not be
replaced by other substitutes. Other
substitute may create the electrical shock,
fire or other hazards. Take attention to
replace the spacers with the originals.
Furthermore where a short circuit has
occurred, replace those components that
indicate evidence of overheating.
5. After servicing, see that all the protective
devices such as insulation barriers, insulation
papers, shields and isolation R-C
combinations are correctly installed.
6. When the receiver is not being used for a
long time of period of time, unplug the
power cord from the AC outlet.
7. After servicing make the following leakage
current checks to prevent the customer
from being exposed to shock hazard.
LEAKAGE CURRENT COLD CHECK
1. Unplug the AC cord and connect a jumper
between the two prongs of the plug.
2. Turn the receiver’s power switch on.
3. Measure the resistance value with an
ohmmeter, between the jumpered AC plug
and each exposed metallic cabinet part on
the receiver, such as screw heads, aerials,
connectors, control shafts etc. When the
exposed metallic part a return path to the
chassis the reading should be between
4Mohm and the 20Mohm. When the
exposed metal does not have a return path
to the chassis, the reading must be infinite.
LEAKAGE CURRENT HOT CHECK
1. Plug the AC cord directly in to the AC
outlet. Do not use an isolation transformer
for this check.
2. Connect a 2Kohm 10W resistor in series with
an exposed metallic part on the receiver
and an earth, such as a water pipe.
3. Use an AC voltmeter with high impedance
to measure the potential across the resistor.
4. Check each exposed metallic part and
check the voltage at the each point.
5. Reverse the AC plug at the outlet and
repeat each of the above measurements.
6. The potential at the any point should not
exceed 1.4 Vrms. In case a measurement is
outside the limits specified, there is the
possibility of a shock hazard, and the
receiver should be repaired and rechecked
before it is returned to the customer.
HOT CHECK CIRCUIT AC-Voltmeter
TO INSTRUMENTS
EXPOSED
METALLIC PARTS Water pipe
(earth)
2 K Ohm
Figure 1
X-RAY RADIATION WARNING
The primary source of X-ray radiation in this receiver
is the picture tube. The chassis is specially
constructed to limit X-ray radiation. For continued
X-ray radiation protection, replace the tube with
the same type of the original one.
CAUTION
AFTER REMOVAL OF THE ANODE CAP, DISCHARGE
THE ANODE OF THE PICTURE TUBE AND THE ANODE
CAP TO THE METAL CHASSIS, CRT SHIELD, OR THE
CARBON PAINTED ON THE CRT WITH A HIGH
VOLTAGE PROBE AND MULTIMETER (SELECT VDC)
AND THEN SHORT CIRCUIT DIRECTLY TO DISCHARGE
COMPLETELY.
TECHNICAL SPECIFICATIONS
Power source: 220-240 VAC, 50-60Hz
Power consumption (max.) 1: 120 W 21” Pure Flat
125 W 25”, 28” Mono
145 W 25”, 28” 4/3, 29” Pure Flat
140 W 29” Super Flat
150 W 28” 16/9 Super Flat
155 W 28” 16/9 Pure Flat, 32” Super Flat
165 W 32” Pure Flat
160 W 33”
Standby power consumption : 3 W
Aerial impedance : 75Ohm, coaxial type
Receiving system 2: PAL BG
PAL SECAM BG
PAL SECAM BG DK
PAL SECAM BG LL’
PAL I
Receiving channels: VHF BAND I , CH2-4
VHF BAND III , CH5-12
CABLE TV S1-41
UHF BAND CH21-69
NTSC Playback Frequencies: 3.58&4.43 MHz
Audio outputs : Stereo : 2 x 10W RMS at %10 THD (Except 21” Pure Flat)
2 x 7W RMS at %10 THD (21” Pure Flat)
+ 20W RMS at %10 THD (if subwoofer available)
Mono : 2 x 7W RMS at %10 THD
High Voltage : 28.5 ± 0.5 KV 25”, 28”4/3
29.0 ± 0.5 KV 28”16/9, 29”, 32” Super Flat
29.5 ± 0.5 KV 32” Pure Flat, 33”
Focus voltage : %25.6 ± %38 of EHT
Grid 2 voltage : 0-1400 V
Heater voltage : 6.2 ± 0.2 Vrms
Video/Audio Terminals : AV1/2 IN Video : 1 Vpp,75 Ohm
Audio : 0.5 Vrms, >10 Kohm
AV1 IN RGB
AV1/2 OUT Video : 1 Vpp, 75 Ohm
Audio : 0.5 Vrms, <1 Kohm
AV2 IN (RCA) Video : 1 Vpp, 75 Ohm
Audio : 0.5 Vrms, >10 Kohm
Operating temperature : 0-45 Degrees
Safety : IEC 65 /BS P2N
X-Ray radiation : ACC. IEC 65/BS P2N
1 : 20W should be added to find the max. power consumption of the models with subwoofer.
2 : TV set is produced to receive “one” of these colour and sound systems.
12

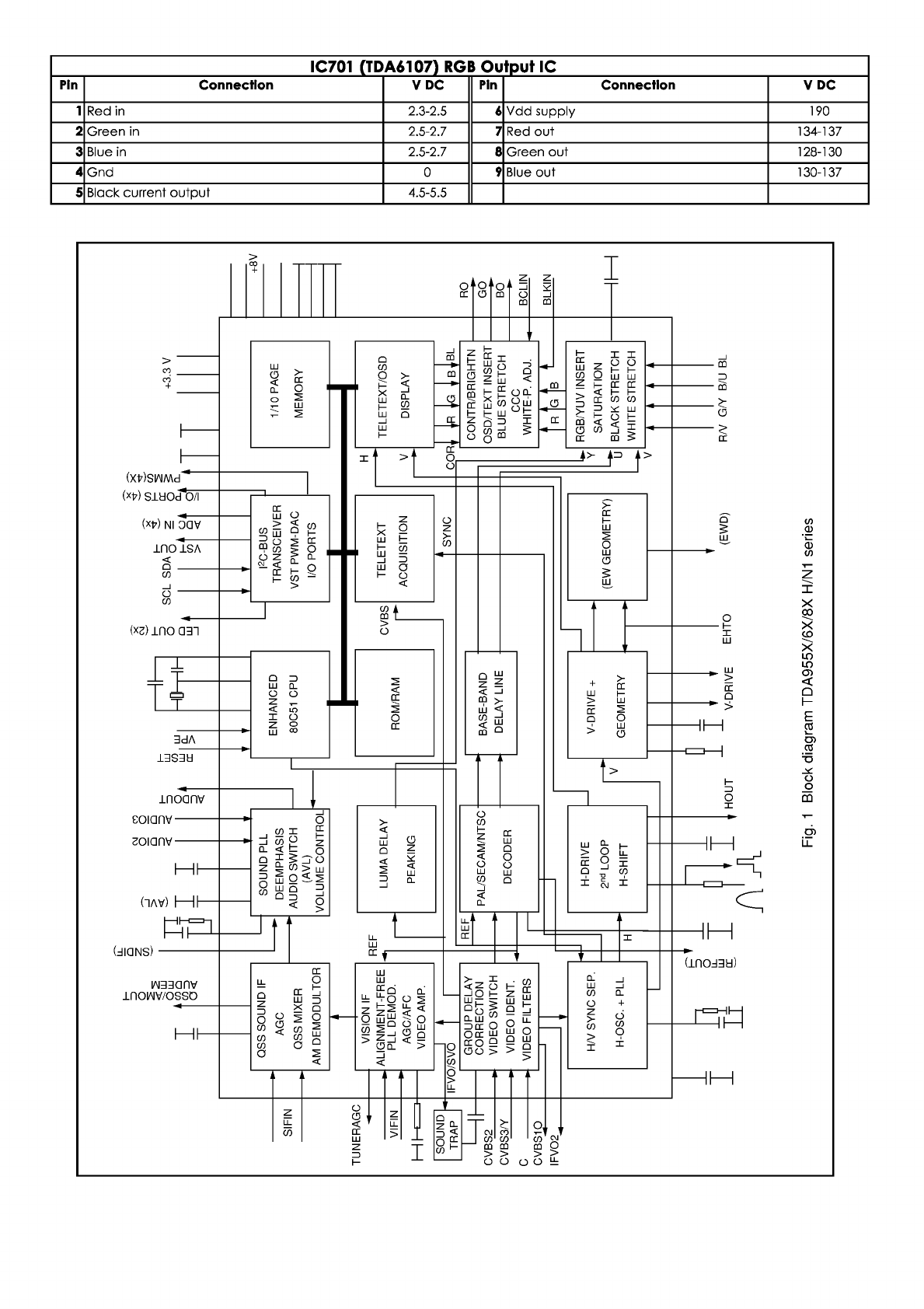

Pin Connection V DC Pin Connection V DC
1Not connected 33 Scart 2 sound output (R) 3.7
2Gnd 034 Scart 2 sound output (L) 3.7
3Gnd 035 Reference analog ground 0
4Digital control input/output 036 Scart 1 sound output (R) 3.7
5Digital control input/output 037 Scart 1 sound output (L) 3.7
6Gnd 038 Volume capacitor Headphone
7Standby (in normal operation it must be high) 4.9 39 Analog Supply High Voltage (8V) 8
8Not connected 4.9 40 Volume capacitor Speaker
9SCL 2.4-2.6 41 Ground for Analog Power Supply High
Voltage
0
10 SDA 1.8-2.1 42 Internal Analog Reference Voltage 3.7
11 Not connected 2.4 43 Scart 4 input (L) 3.7
12 Not connected 2.4 44 Scart 4 input (R) 3.7
13 Not connected 2.4 45 Analog Shield Ground 0
14 Not connected 4.9 46 CINCH - sound input (L) 3.7
15 Not connected 0.7 47 CINCH - sound input (R) 3.7
16 Not connected 0.7 48 Analog Shield Ground 0
17 ADR Bus Clock Output 0.7 49 Scart 2 sound input (L) 3.7
18 Digital Circuitry Supply Voltage 4.9 50 Scart 2 sound input (R) 3.7
19 Digital Circuitry Supply Ground 051 Analog Shield Ground 0
20 Not connected 0.7 52 Scart sound 1 input (R) 3.7
21 Not connected (Ground) 053 Scart 1 sound input (L) 3.7
22 Not connected (Ground) 054 A/D converter ref. Voltage 2.5
23 Not connected (Ground) 055 Mono sound input 3.7
24 MSP RESET input 4.9 56 Ground for Analog Power Supply Voltage 0
25 Headphone sound output (R) 2.1 57 Analog Power Supply Voltage (5V) 4.9
26 Headphone sound output (L) 2.1 58 IF input 1 1.5
27 Reference analog ground 059 IF Common reference for IF IN1/IN2 1.5
28 Speaker output (R) 0.1-2.1 60 IF input 2 0
29 Speaker output (L) 0.1-2.1 61 Factory test mode enable (ground) 0
30 Not connected 0.1-2.1 62 Crystal oss. input 2.3
31 Not connected 0.1-2.1 63 Crystal oss. output 2.3
32 Not connected 064 Not connected (Ground) 0
Pin Connection V DC Pin Connection V DC
1Left In 1.6 70,5-0,9
2Left In V 1.6 8Right out 14.2
3Mute 15.3 9VS 28
4Right In V 1.6 10 Left out 13.9
5Right In 1.6 11 0,5-0,9
6Gnd 012 Left In 0.6
Pin Connection V DC Pin Connection V DC
1Input A 0,98 (0) 6Vertical Flyback Supply Voltage 45,6 (10,9)
2Input B 0.94 (0) 7Output A 7,64 (0,1)
3Supply voltage 14,7 (1.0) 8Guard Output 0,3 (0)
4Output B 7,55 (0,4) 9Feedback Input 7,9 (0)
5Gnd 0 (0)
Pin Connection V DC Pin Connection V DC
1Demag 0.85 (0.0) 5Driver 2.1 (0.14)
2I sense 0.1 (0.32) 6VCC 12.3 (8.8)
3Control input 5 (5.5) 7Not connected -
4Gnd 08VI 116 (117)
(*) Standby values are given in parenthesis
IC303, IC304 (TDA7263) Audio Output IC
IC 301 (MSP 3400G) MULTI STANDARD SOUND PROCESSOR
IC601 (MC44608 AP) Power Supply IC
IC501 (TDA835X) Vertical Deflection Output IC
14
1. PH601 (PC127FY) PHOTOCOUPLER 2. T603 (BC848) NPN
Pin
Standby VDC
TV ON VDC
1BCE B CE
2T603 0.6 0.02 00.1 0.3 0
3
4
3. T604 (BC848) NPN 4. T605 (BC848) NPN
Standby VDC TV ON VDC Standby VDC TV ON VDC
BCE B CE B CE B CE
T604 0.02 12.7 00.7 0.05 0T605 0.6 0.02 00.1 0.7 0
5. T606 (BC848) NPN 6. T607 (BC848) NPN
Standby VDC TV ON VDC Standby VDC TV ON VDC
BCE B CE B CE B CE
T606 0.6 0016.8 0T607 0.6 0 0 0.1 2.5 0
7. T307 (BC848) NPN
Standby VDC
TV ON VDC
BCE B CE
T307 0.6 0 0 0.1 15 0
PIN VOLTAGES OF SOME TRANSISTORS
10
5
12.3
ON VDC
11
Standby VDC
12.5
11.5
5.5
8.8
Note:
TV is connected to a patern generator (Colour bar, sound 1 kHz).

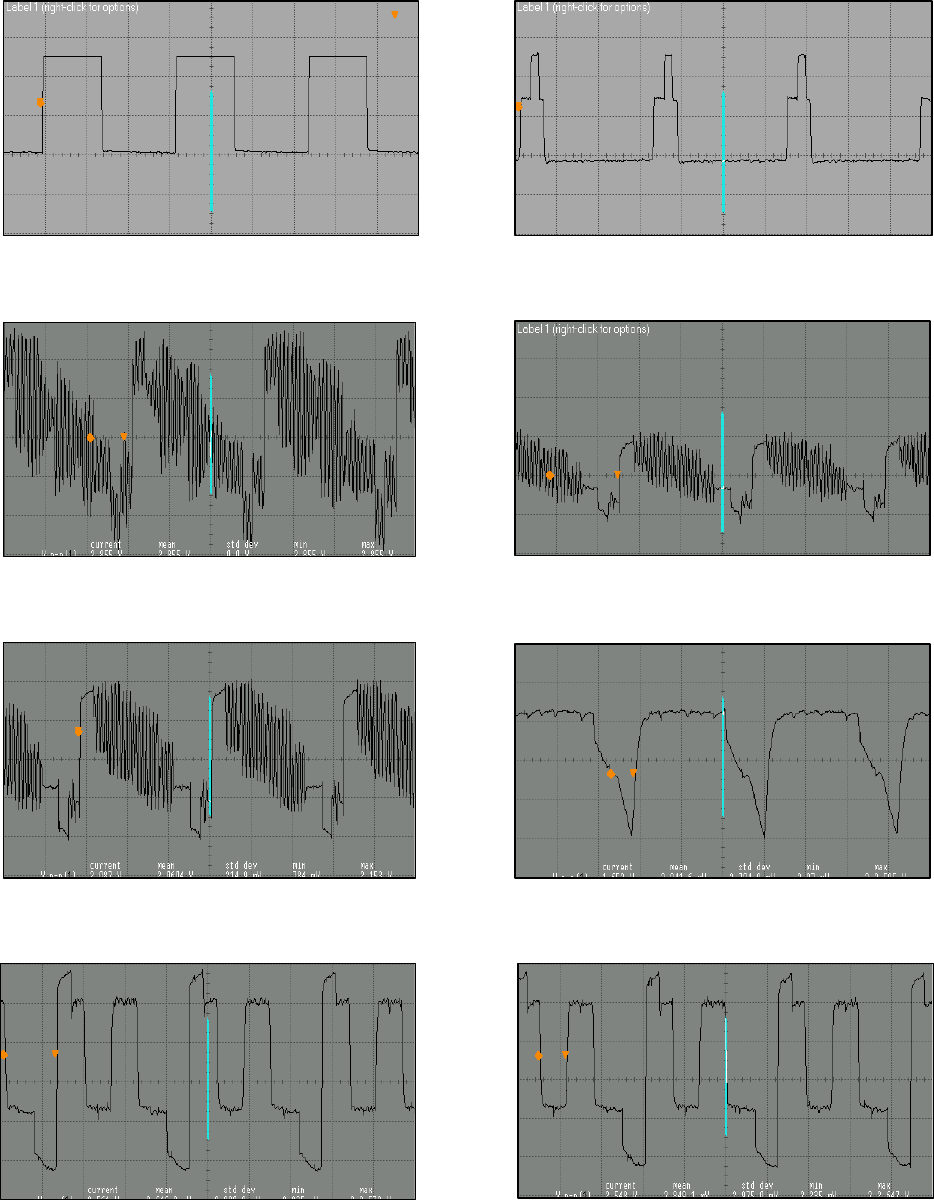

1. IC101 (TDA956X)
OSCILLOSGRAPHS OF SOME IC PINS
Pin 30
2V/div, 20 usn/div, Vpp=4.9 V, 15625 kHz Pin 31
2V/div, 20 usn/div, Vpp=5.6 V, 15625 kHz
Pin 38
2V/div, 20 usn/div, Vpp=2.9 V, 15625 kHz Pin 40
500 mV/div, 20 usn/div, Vpp=1.2 V, 15625 kHz
500 mV/div, 20 usn/div, Vpp=2.1 V, 15625 kHz
Pin 55
500 mV/div, 20 usn/div, Vpp=1.65 V, 15625 kHz
Pin 56 Pin 57
Pin 47
500 mV/div, 20 usn/div, Vpp=2.7 V, 15625 kHz
500 mV/div, 20 usn/div, Vpp=2.6 V, 15625 kHz

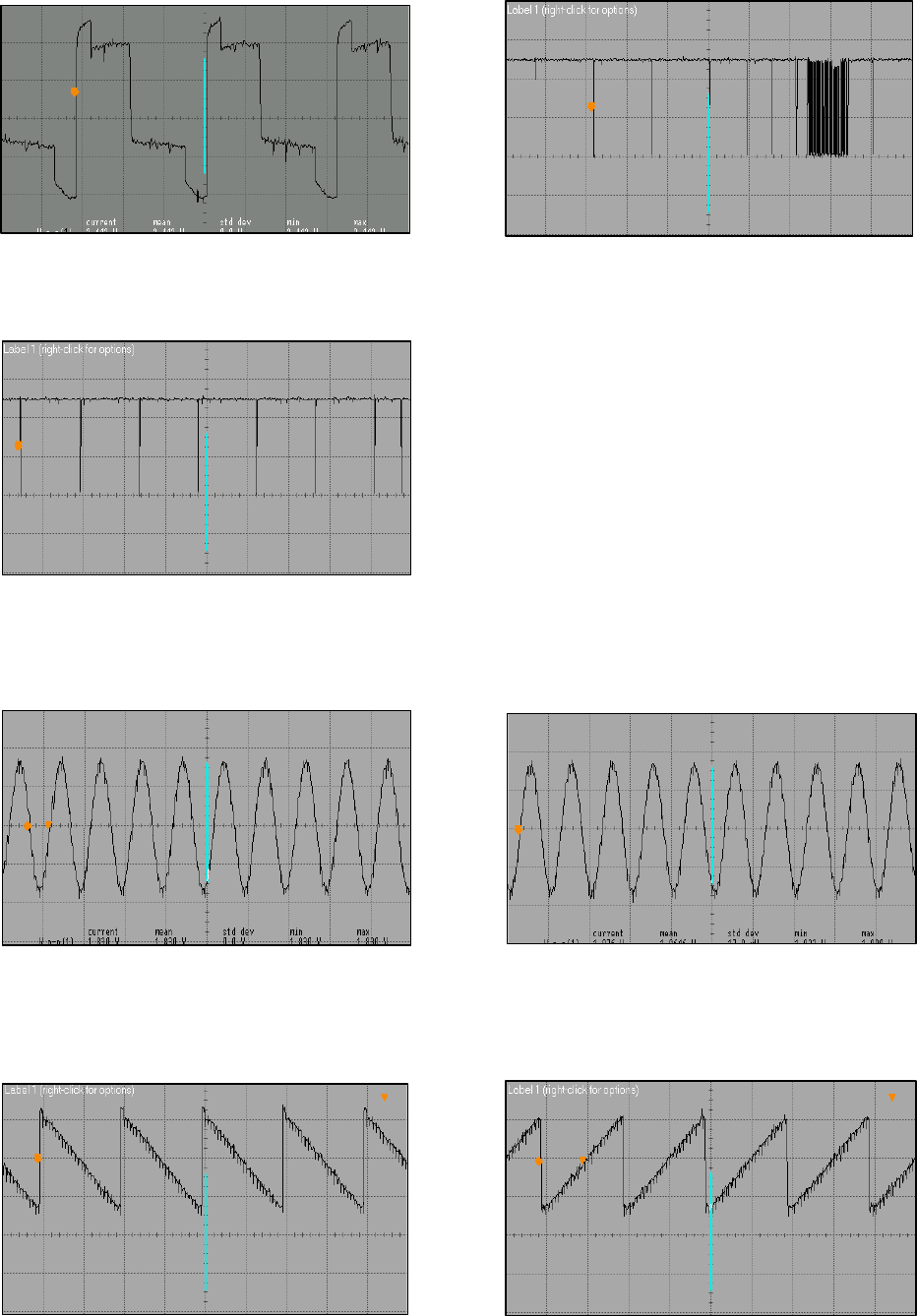

2. IC301 (MSP34XX)
3. IC501 (TDA835X)
Pin 58 Pin 71
500 mV/div, 20 usn/div, Vpp=2.4 V, 15625 kHz
2 V/div, 1 msn/div, Vpp=5.2 V
Pin 72
2 V/div, 1 msn/div, Vpp=5.2 V
Pin 28
500 mV/div, 1 msn/div, Vpp=1.8 V Pin 29
500 mV/div, 1 msn/div, Vpp=1.8 V
Pin 1
500 mV/div, 10 msn/div, Vpp=1.4 V, 50Hz Pin 2
500 mV/div, 10 msn/div, Vpp=1.4 V, 50Hz

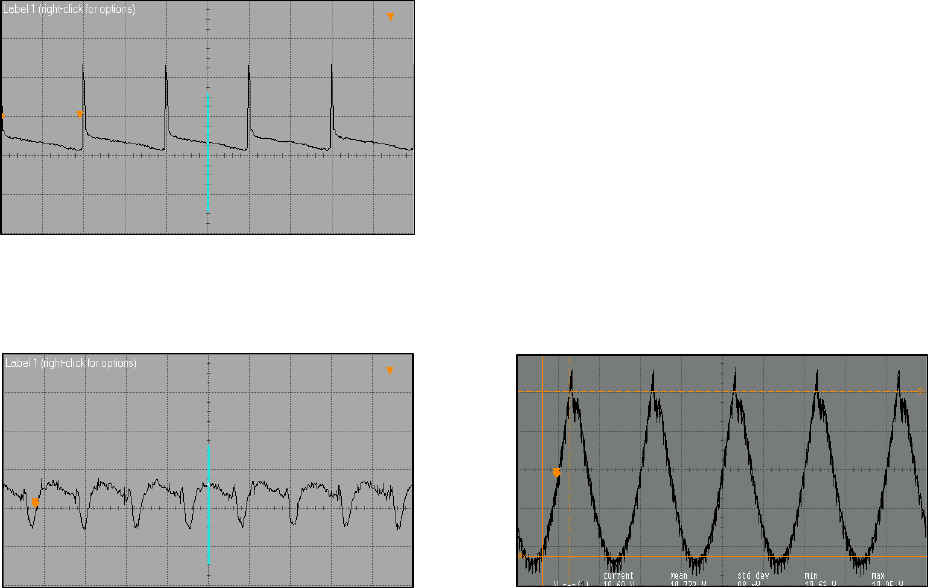

4. T501 (2SK2381)
Drain (EW drive)
2 V/div, 10 usn/div, Vpp=10.7 V, 50 Hz
Pin 7
500 mV/div, 10 msn/div, Vpp=44.6 V, 50Hz
Gate (EW drive)
200 mV/div, 50 usn/div, Vpp=268 mV, 15625 Hz
1. ELECTRICAL ADJUSTMENTS
1.1. Supply Voltage Adjustment
Connect a digital voltmeter to the cathode of diode D611 at the AV1 mode of the TV and set the
screen voltage to the minimum with the screen potentiometer. Adjust the main supply voltage (B+)
with P601 potentiometer to the following value (after adjustment, readjust Screen voltage).
21” Pure Flat : 132 VDC
25” : 145 VDC
28” : 145 VDC (147 VDC for A66EAK071X11)
28” Pure Flat 16/9 : 140 VDC
28” Super Flat 16/9 : 140 VDC
29” Pure Flat : 125 VDC
29” Super Flat : 125 VDC
32” Pure Flat 16/9 : 140 VDC
32” Super Flat 16/9 : 131 VDC
33” : 158 VDC
2. SERVICE ADJUSTMENTS

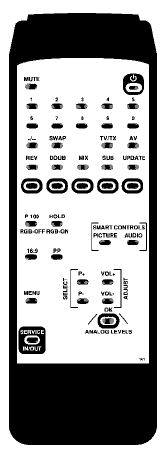

You need the special service remote control to enter and exit the service menu of the TV (you can
order it from the manufacturer). All buttons of the Service RC are same with the user remote control,
only service menu In / Out is added to it (please see the picture below).
Navigation
Service In/Out : Enters to / exits from the Service Menu
P+ / P- : Moves upward / downward inside the menu
V+ / V- : Changes the values or options
2.1. AGC Adjustment
• Apply an RF signal with amplitude 70±1 dBuV to the antenna input of TV with a pattern
generator (switch sound carrier to Off and switch “Video Ext” to On).
• Switch on the Service Menu with the Service RC and find the AGC with P+ / P- buttons.
Measure the 38.9 MHz signal on pin 11 (IF) of Tuner with an oscilloscope.
• Adjust “AGC” to get following values:
PAL BG, PAL SECAM BG, PAL SECAM BG-DK, PAL I versions : 840 ± 20 mVpp
PAL SECAM BG-LL version : 600 ± 20 mVpp
PAL BG MONO, PAL SECAM BG MONO : 750 ± 20 mVpp
PAL I MONO : 900 ± 20 mVpp
• Substract 5 from “AGC” value and change “TEST” to this value.
• Exit from the service menu with the Service RC.
2.2. Screen Adjustment
Adjustment is change according to SW versions. New SW versions start from SB8643_A05,
SB8643_B04, SB8643_C04, SB8643_D04, SB8645_A05, SB8645_B04, SB8645_C03 and SB8645_D04.
• If CRT brand is Philips and SW is old version, then Set Brightness value to “00” in the Picture
menu and store.
• Enter the Service Menu with the Service RC and select “SCRN” option with P+ / P- buttons and
switch to ON with V+ / V- button.
For new SW versions (or Philips CRT) “BRI 00” is shown on the screen.
For old SW versions “BRI 32” is shown on the screen.
• Adjust the screen potentiometer to the level where the screen is just black.
• By pressing one of V+ / V- buttons, get the picture (SCRN is switched to Off).
• Exit from the Service menu.
• If CRT brand is Philips and SW is old version, Set Brightness value to “32” in the Picture menu
and store.
2.3. Geometry Adjustments
• Apply a Cross Hatch Test pattern.
• Enter Service Menu with Service RC and select “VSLP” option with P+ / P- buttons (In this option,
the upper half part of the pattern is shown and lower half part is blanked).
• Adjust VSLP such that middle line of the pattern is cut.
• For 16/9 sets, adjust VZOM to 25. On 4/3 sets, when VZOM is selected, set switches to 16/9
mode. In this case, adjust the circle of the pattern just touches to the upper and lower edges.
Re adjust the VSLP if required.
• Adjust vertical position with VSHT, vertical linearity with SCOR and vertical height with VAMP.
• For 4/3 sets, adjust the horizontal amplitude with EWW.
For 16/9 sets, adjust the 16/9 horizontal amplitude with EWW1 and 4/3 horizontal amplitude with
EWW (EWW value is 21 lower than EWW1 value).
• For 16/9 sets, find the VZM1 option and adjust such that second lines from top and bottom just
touches to the edges.
• Adjust horizontal centering with HSHT, parabola with EWPW and trapezium with EWT.
• For 4/3 sets, adjust the 16/9 general parabola with EWP1.
• Adjust the upper corner parabola with EWCU and lower corner parabola with EWCL, vertical
parallelogram with HPAR, horizontal bow with HBOW.
For PIP versions : Select “PIP PRESS OK” and press “OK” button in the service menu. Adjust
“HORPOS0” for horizontal shift of PIP window, “VERPOS0” for vertical shift of PIP window (press
“POS” button to place PIP to the left-top corner), “HORPOS1” for 12-window PIP horizontal shift,
“HORPOS2” for 11-window PIP horizontal shift, “HORPOS4” for right PIP horizontal shift.
2.4. White Balance Adjustment
• Enter the Service Menu with the Service RC and select “GRN” option with P+ / P- buttons and
adjust it to “32” V+ / V- button.
• Adjust RED and BLUE for white balance. If white balance can not be adjusted properly
change GRN value.
• Adjust BLOR and BLOG for red and green cut off.
• Exit from the Service menu.
2.5. Feature Options
Tuner : Panasonic, Phillips, Sharp, Temic
STD : STBY-On (Default, Automatic switch off is active), STBY-Off (can be used during repair)
Head : Yes (Headphone available), No
SCRN : Off, On (used for screen adjustment)
AV : 01 (1 Scart), 03 (2 Scarts), 04 (2 Scarts + Front AV), 05 (2 Scarts + Front AV+ SVHS)
SSTD : BG only, I only, BG+DK, BG + LL’, All SYS
STYP : NICAM On (available), NICAM Off
Toptext : Yes (available), No
Fasttext : Yes (available), No
TXT table : West (West Europe), East (East Europe), Cyrillic, Arabic, Hebrew, Greek
A type SW includes East, West, Greek. B type SW includes East, West, Cyrillic, Arabic.
C type SW includes East, West, Cyrillic, Hebrew. D type SW includes East, West, Cyrillic.
Hotel : On (Hotel Mode), Off (TV Mode)
Subwoofer : Yes (available), No
CRT : 4/3, 16/9
Peak1 : Yes (16/9 sets), No (4/3 sets)
AVV : Yes (Auto AV switching is active), No (Deactive).
PAL : Yes (PAL only versions), No (Other versions)
SAWF 1) : 01 (PAL BG, PAL-SECAM BG, PAL I or PAL-SECAM BG-DK without FTZ)
02 (SECAM LL’ or PAL-SECAM BG-DK with FTZ)
1) Available in only SW versions of Mono versions.
2.6. Factory Settings for Service Mode
1. Values given in Table 1 are typical values and can vary according to the CRT type.
2. PF means Pure Flat and SF means Super Flat.
3. The values in the table are decimal and shown in paranthesis on the OSD of TV.
21”
PF 25" 28" 28"
16/9
PF
28"
16/9
SF
29"
PF 29"
SF
32"
16/9
PF
32"
16/9
SF 33"
AGC Automatic gain control 14 14 14 14 14 14 14 14 14
EEPE Reset the eeprom, all values lost 00 00 00 00 00 00 00 00 00
PEAK Peaking 32 32 32 32 32 32 32 32 32
GRN Green level 32 32 32 32 32 32 32 32 32
RED Red level 40 40 35 35 32 35 40 40 42
BLUE Blue level 34 34 32 33 26 33 34 34 34
BLOG Black level offset green 32 30 28 30 25 30 31 31 27
BLOR Black level offset red 40 36 41 40 33 40 41 41 37
YDLY Luminance delay 04 04 04 04 04 04 04 04 04
SAT Saturation 20 20 20 20 20 20 20 20 20
HUE Sharpness 32 32 32 32 32 32 32 32 32
CON Contrast 40 40 40 40 40 40 40 40 40
CDR Cathode Drive Level 04 05 04 04 05 05 04 04 05
BRI Brightness 32 32 32 32 32 32 32 32 32
EWT East West Trapezium 28 28 17 24 28 27 24 24 26
EWCU EW upper corner 40 32 22 14 32 39 07 07 27
EWCL EW lower corner 55 32 48 38 38 42 22 22 37
EWPW EW parabola width 04 17 08 08 14 12 12 12 20
HSHT Horizontal shift 38 35 35 40 31 29 29 29 35
EWW East West Width 60 60 37 36 55 57 39 39 62
VAMP Vertical amplitude 48 46 42 42 43 45 45 45 48
SCOR S correction 30 25 25 17 31 25 17 17 25
VSHT Vertical shift 24 29 27 28 28 26 31 31 25
VSLP Vertical slope 27 32 32 32 34 29 35 35 32
RGB 1) OSD brightness level 01 01 10 10 01 01 10 10 01
VZOM Vertical zoom 39 39 39 39 39 39 39 39 39
PWLT Peak white limiting 06 11 06 06 11 11 06 06 11
IFOF Offset IF demodulator 32 32 32 32 32 32 32 32 32
HPAR Horizontal parallelogram 48 32 32 32 32 32 32 32 32
HBOW Horizontal bow 32 32 32 32 32 32 32 32 32
TEST Added for EMC purposes (=AGC-5) 09 09 09 09 09 09 09 09 09
EWP1 16/9 EW parabola width (for only 4/3 sets) 02 08 05 05 09 09 05 05 13
EWW1 East West Width (for only 16/9 sets) - - 58 57 - - 60 60 -
VZM1 Vertical Zoom (for only 16/9 sets) - - 58 59 - - 59 59 -
Table 1
1) For old SW versions (see section 2.2) RGB value is “01”. For new SW, RGB is “01” for 4/3 and “10” for 16/9 sets.
2.7 Software Versions
During exit from service menu, the software version and feature options (hexadecimal number) are
shown on the screen. For example: SB8643_X05, C697H.
Stereo software versions of 14.2 are named as follows:
SB8643_X.. for TDA9563 (intercarrier)
SB8645_X.. for TDA9565 (QSS)
Mono Software versions are named as follows:
SC3325-X.. for TDA9555H (only QSS)
PIP Software versions are names as follows:
SB8963_X.. for TDA9563 (intercarrier)
SB8965_X.. for TDA9565 (QSS)
“..” shows version number (for example 05).
”X” shows OSD language group.
OSD Languages per group are given below:
GROUP A GROUP B GROUP C GROUP D
1. ENGLISH ENGLISH ENGLISH ENGLISH
2. GERMAN FRENCH GERMAN RUSSIAN
3. FRENCH POLISH TURKISH SERBIAN
4. ITALIAN HUNGARY SWISS BULGARIAN
5. SPANISH SLOVAK DANISH ROMANIAN
6. PORTUGAL CZECH NORWEGIAN MACEDONIAN
7. DUTCH IRAN FINNISH CROATIAN
8. GREEK ARABIAN HEBREW SLOVENIAN
POWER SUPPLY DEFECTS (I)
Note:
1. All values in the diagrams are for 230 VAC mains supply.
2. Before replacing T601, check following components: R640, R604, R605, R609, C615.
3. Burst type standby mode was designed (Fixed frequency is 21.5 kHz for standby and 38.8 kHz
for normal operation) . In standby the output voltages drop to about 1/10 of the normal
operation values (except +12V which stays same), i.e. from +145V to 14.7V, from 15V to 1.1V,
from 28V to 2.5V. In standby, Standby signal from IC101 is high. Then, T605 conducts, T604
blocks and thristor TH601 conducts. Therefore, +145 line which is now14.7V is connected to
12V. The regulation is done by ZD603 in standby and by ZD602 (TL431) in normal mode.
Check 300V DC on C613
No operation
Stand-by LED is off
No SMPS Voltages
Check Fuse ST601 Check power switch, L601,
Diode SD602, D605, D604,
Capacitor C603, P603
Check transistor T601 is OK.
Drain 300 VDC, 2.3-2.8 VAC
Gate 1.2 VDC
Check and replace
Fuse ST601 If C613 has a voltage lover
than 300 VDC replace it
NO
NO
YES
NO
YES
YES
Check 120 VDC at pin 8 of
IC601, MC44608
Check 8.8 VDC at pin 6 of
IC601
D601 and 602 are open
circuit
C610 is open or capacitor
value is low. D6107 is short
or IC601 is defective.
Check 1.2 VDC at pin 5 of
IC601
Check and replace T601,
2SK2545
If R639 is OK, replace IC601
NO
NO
NO
YES
YES
YES
YES
POWER SUPPLY DEFECTS (II)
POWER SUPPLY DEFECTS (III)
Check 4.2 VDC at pin 6 of IC101
No operation
Stand-by Voltages OK
Check connection to R409 and R641
Switch on the TV set. Check voltage 0.05 V pin
6 of IC101 and 0.28 V at R439
NO
NO
YES
Check and replace IC101
Stand-by Voltages are
abnormal
Check the voltage 3.3 V
at pins 59, 66 of IC101 and pin 8 of IC402
YES
Check the standby voltage (it should be
14.7V). This voltage is 20V-50V.
Check and replace R617, R641, R626, T603,
ZD603, T604, T605, T607, C621, C623
Standby voltage is around 160 V instead of
14.7V
YES
YES
NO
Check the voltage 4 VDC at the cathode of
D615. Check and replace T605 and PH601
POWER SUPPLY DEFECTS (IV)
When TV is on, voltages
145V,15V,11.8V, 3.3V, 8V,
5V, 28V are not at their
proper values
+B voltage is around 160V instead of 145V.
Check and replace T607, R625, R645, PH601,
ZD602.
YES
NO
+B voltage is 20-80V instead of 145V.
There should be 14 VAC at R612 and 11.8
VDC at cathode of D614.
YES
NO
Voltages 15V, 8V, 5V are missing. Other
voltages are OK.
Check the voltage 16 VAC at fuse S602. If it is
missing check and replace S602 and D613
YES
NO
Voltages 8V, 5V are missing. Other voltages
are OK.
Check and replace IC603, R631, R627, T606,
C638, IC602, C637.
YES
PICTURE AND COLOUR DEFECTS
Check video out signal at pin 38 of IC101 Check the tuner pin voltages. Check the
voltage 3.6-4.6 V at pin 18, 19 of IC101.
Check and replace F101, IC101.
NO
YES
Only white raster visible on screen Check CVBS signal with an oscilloscope. The
video signal goes through R103, T104, R154,
F104, T105, C150 to pin 40 of IC101
YES
NO
There are flyback lines on the screen Check Hor. Flyback signal at pin 31 of IC101.
Check and replace C129 which is connected
to pin 11 of IC101.
YES
There are black drops on the screen.
Check and replace C139
YES
No picture
Raster OK
NO
No picture. There is a Red, Green or Blue raster
on the screen.
Check and replace R167, R206, R118, R136,
R137, R135, IC101.
NO
NO
HORIZONTAL DEFLECTION CIRCUIT DEFECTS
Check 15V at the collector of T503.
Check and replace R503 and TR501 Hor.
Driver transformer
NO
YES
Check the voltages 1.42 VDC and 0.92 VAC at
+ pin of C502
Check voltage 8V at pin 9, 39 of IC101. If
present replace IC101.
NO
YES
Check the voltages 0.28 VDC, 0.92 VAC and
15625 Hz signal at the base of T503.
Check and replace D505 and C503.
NO
Remove T504. Check the voltage 145 VDC at
the collector point.
Check and replace R525 and Line Output
Transformer.
NO
Power supply voltages are
OK. There is no high voltage
YES
Check 2 VAC at the base of T504.
Check and replace T503, TR501 and R513.
NO
YES
Check and replace D507, D508, C518, C519,
C521. Place T504 to its position. Check the
operation of Line Output Transformer.
Replace Line Output Transformer.
NO
YES
There is a noise heard from Line Output
Transformer. Check and replace T501, R516
and C520.
YES
VERTİCAL DEFLECTION CIRCUIT DEFECTS
Check 16 VDC at pin 3 of IC501. Check and replace R127 (at pin 20 of IC101),
C126 (at pin 21 of IC101), R526, D513, C527,
R521.
NO
YES
Check 35 VDC at pin 6 of IC501.
Flyback lines are visible. Check and replace
R527, D512, C526, R522, C517.
NO
YES
Check 2.2 VDC at pin 1 of IC501. If R122 is open IC501 becomes defective and
16 VDC components fail. Check them before
replacing IC501.
NO
Check 2.2 VDC at pin 2 of IC501.
Lower half of the screen is black. Check and
replace R123 and IC101.
NO
There is a horizontal line on
the screen
Check 7.4 VDC at pin 7 of IC501.
Check 7.2 VDC at pin 4 of IC501.
A Horizontal line is visible. Check and replace
R518, R519 and IC501.
NO
YES
Replace IC501
YES
YES
AUDIO DEFECTS (I)
AUDIO DEFECTS (II)
Check 28 VDC at pin 9 of IC304.
Check and replace components R341, D612,
S603.
NO
NO
Audio signal at pins 1,5 of IC304 are OK.
No sound.
Check signals at pins 8, 10 of IC304.
Check and replace IC304.
YES
NO
Audio signal at pins 28,29 of IC301 are OK.
No sound.
Check and replace R307, T301, R310, C326,
C332, R308, T305, R319.
YES
Audio signal at R150 Trap Filter is OK.
No sound.
Check and replace C230 and IC301.
YES
Volume decreases to minimum. Check and replace R437 and R444.
Check 3.3 VDC at pin 80 of IC101.
YES
NO
Volume increases to maximum. Check and replace R436 and R445.
Check 3.3 VDC at
p
in 78 of IC101.
YES
NO
Volume Up/Down buttons change programme
numbers. Check and replace R438 and R441.
Check 3.3 VDC at pin 1 of IC101.
YES
Pop sound is heard when switch off. Check and replace R429, R317, C335.
Standby voltages of T307: B(0.6V), C(0V)
Operation voltages of T307: B(0.1V), C(15.5V)
YES
No sound.
Picture is OK.
NO
NO
Check and replace components R156, L105,
L106, C158, C159, C160, R150.
NO
Check and replace R321, R318, T307.
Check and replace IC304.
NO
PARTS LIST
PART NO DESCRIPTION NOTES
291103 CC-CHIP 100PF J 50V /0805 N C101 C111
293108 CC-CHIP 10NF K 50V /0805 X7 C103 C149
290473 CC-CHIP 47PF J 50V /0805 NP C104 C107
252112 EC 100UF 16V 11*6 R:5 C105
250113 C-ELA 1UF 25V 11*5 R:5 MONO SOUND C108
292334 CC-CHIP 3.3NF K 50V /0805 X7R 1. MONO SOUND C109
250111 EC 1UF 16V 11*5 R:5 C110
292479 CC-CHIP 4.7NF K 50V /1206 X C112
293230 CC-CHIP 22NF K 50V /0805 X7 C118 C120
250470 C-ELA 4.7UF 16V 11*5 R:5 MONO SOUND C123
259223 EC 2.2UF 63V 11*5 R:5 C124 C139 C507
294231 CC-CHIP 220NF K 16V /0805 X C125
274107 C-PEM 100NF J 100V R:5 C126
290561 CC-CHIP 56PF J 50V NPO 0805 C131 C165
290222 CC-CHIP 22PF J 50V /0805 NP C136
250111 C-ELA 1UF 16V 11*5 R:5 MONO SOUND C142 C166
291822 CC-CHIP 820PF J 50V /0805 NP0 MONO SOUND C144
294476 CC-CHIP 470NF K 16V /0805 X C145
251107 EC 10UF M 16V 11*5 R:5 C146 C148 C162 C167 C638
294475 CC-CHIP 470NF M 25V /1206 Z C151
291822 CC-CHIP 820PF J 50V /0805 N C158 C160
292479 CC-CHIP 4.7NF K 50V /1206 X7R MONO SOUND C178
290684 CC-CHIP 68PF J 50V /0805 NP C186
291225 CC-CHIP 220PF K 50V /0805 X C202 C203
291473 CC-CHIP 470PF K 50V /0805 X C209 C366
291474 CC-CHIP 470PF J 50V /1206 N C214 C210
251478 EC 47UF 16V 11*5 R:5 C217 C221 C224 C302 C314
250470 EC 4.7UF 16V 11*5 R:5 C220 C222 C226 C225
294111 CC-CHIP 100NF K 25V /0805 X C229 C235
294331 CC-CHIP 330NF K 16V /0805 X C239 C241
299152 CC-CHIP 1.5PF C 25V/0805 C308 C313
292110 CC-CHIP 1NF K 50V /0805 X7R C322 C324
250227 EC 2.2UF 16V 11*5 R:5 EXT.SPEAK. C330A
292105 CC-CHIP 1NF K 50V /1206 X7R C332 C334
253101 EC 1000UF 35V 25*13 R:5 C338 C340
252229 EC 220UF 16V 11*8 R:5 EXT.SPEAK. C344 C346
252112 EC 100UF 16V 11*6 R:5 C352 C353 C337 C401 C402
253106 EC 1000UF 25V 20*13 R:5 C354 C355 C620
291477 CC-CHIP 470PF J 50V /0805 N C405 C406
290334 CC-CHIP 33PF J 50V /0805 NP C413
272101 C-PEM 1NF K 50V R:5 C503
251478 EC 47UF 16V 11*5 R:5 C504 C639
274230 C-PEM 220NF J 100V R:5 C505 C524 C523
200680 CC 68PF J 500V NPO R:5 C506
292223 CC-CHIP 2.2NF K 50V /0805 X C508 C509
252476 EC 470UF 25V 11*10 R:5 C512 C527
272154 C-PPM 1.5NF J 1600V R:15 25",28"4/3 C513
272103 C-PPM 1NF J 2KV R:15 28"16/9 C513
271331 C-PPM 330PF J 1500V/1600V R 21"PF, 32" C513
294109 CC-CHIP 100NF K 50V /0805 X C515 C516
273104 C-PPM 10NF J 1.5/1.6KV R:22 25",28"4/3 C518
273114 C-PPM 10NF J 1.5/1.6KV R:15 21" PF C518
273119 C-PPM 11NF J 1.5/1.6KV R:22 33" C518
273120 C-PPM 12NF J 1.5/1.6KV R:22 28"16/9 C518
273131 C-PPM 13.1NF J 1.5/1.6KV R: 29",32" C518
273151 C-PPM 15NF J 1KV R:15 16/9 sets C519
273228 C-PPM 22NF J 1KV R:15 4/3 sets C519
273331 C-PPM 33NF J 1KV R:15 21" PF C519
274563 C-PPM 560NF J 250V R:15 C520 C521
274563 C-PPM 560NF J 250V R:15 21",25",32",28"4/3 C521
POSITION NUMBERS
PARTS LIST
PART NO DESCRIPTION NOTES
274684 C-PPM 680NF J 250V R:15 33" C521
274684 C-PPM 680NF J 250V R:15 28"16/9 C521
250100 EC 1UF 160V 11*6.3 R:5 C522
251225 EC 22UF 16V 11*5 R:5 C528
272110 C-PEM 1NF J 100V R:5 C529
274224 C-PEM 220NF K 275V-AC R22. C601 C602
274105 C-PEM 100NF J 250V R:10 C603 C701
202105 CC 1NF K 1KV Y5P R:5 C604 C605 C607 C608
274102 C-PEM 100NF J 63V R:5 C606
252150 EC 150UF 400V 40*22 R:10 C613
201471 CC 470PF 2KV C614 C619
203330 C-PPM 33NF J 630V R:15 C615
202220 CC 2.2NF M 250VAC Y5U R:10 C616
253101 EC 1000UF 35V 25*13 R:5 C621
293681 CC-CHIP 68NF K 25V /0805 X7 C624
293474 CC-CHIP 47NF K 50V /0805 X7 C625 C626
252104 EC 100UF 200V 25*16 R:7.5 C629 C627
251228 EC 22UF 200V 11.5*8 R:5 C629
201108 CC 100PF 500V NPO R:5 C631
294108 CC-CHIP 100NF K 50V /1206 X C632 C326
293332 CC-CHIP 33NF K 50V /0805 X7 C634
293475 CC-CHIP 47NF K 50V /1206 X7 C636
251120 EC 10UF 10V 5*4 R:5 C637 C901
251109 EC 10UF 250V 16*10 R:5 C702 C703
273225 C-PEM 22NF J 63V R:5 C704
202221 C-CE 2.2NF K 2KV Y5P R:7.5 C705
202106 CC 1NF K 50V Y5P R:5 SVHS C920 C921 C922 C923
273471 C-PEM 47NF K 63V R:5 C940 C941
201472 CC 470PF K 50V SL R:5 EXT.SPEAK. C962 C963
291101 CC-CHIP 100PF J 50V /1206 N C981 C982
303195 DIODE 4148 MELF LL' D102
303223 DIODE-CHIP BA682 SOD80 LL' D103 D104
302296 DIODE 1N4148 26MM D401 D402
302289 DIODE 1N4148 52MM D401 D402 D505
303195 DIODE 4148 MELF D503 D504
303109 DIODE ERC06-1500 D507
303244 DIODE RGP30K D508
302948 DIODE 1N4007 D509 D701
300305 DIODE BA157 D510 D511 D512
303227 DIODE RGP15J D513
303209 DIODE BAV21 D515 D702 D703 D704
303217 DIODE RGP10J D601 D615
303308 DIODE RF2007 D602 D603 D604 D605
303215 DIODE RGP10G D607 D614
303214 DIODE UF4006 D608 D609
303206 DIODE RGP30MS D611
303228 DIODE RGP30D D612 D613
303988 LED LTL 4224 RED (SHORT LEG 28" D901
303942 LED LTL4224 RED 25" D901
303900 LED ROT 21",29",32",33" D901
303993 LED LTL4221N D:3 R/D RED D980
303991 LED IR SIR563SB3F 23/940 D981
056749 SAW FILTER OFW G1985M PAL BG F101
056760 SAW FILTER OFW J1956M PAL I F101
056709 SAW FILTER OFW K3953M PAL SECAM DK F101
056708 SAW FILTER OFW K3958M SECAM LL' F101
056767 SAW FILTER OFW K9456M SECAM LL' F102
056721 SER.FILTER TPS5.5MWA PAL SECAM BG DK F104
POSITION NUMBERS
PARTS LIST
PART NO DESCRIPTION NOTES
56709 SAW FILTER OFW K3953M PIP F801
056745 SER.FILTER TPS6.0MB P I F104
053740 COIL 1UH K LAL03 F105
056640-01 SER.FILTER MKT40.4MA110P-TF DK F105
056744 SAW FILTER OFW G9353M DK F106
056640-01 SER.FILTER MKT40.4MA110P-TF LL' F108
458642 IC-CHIP TDA9563H/N1/3 BG,I (STEREO INTERCARRIER) IC101
458643 IC-CHIP TDA9565H/N1/3 BG/DK, LL' (STEREO QSS) IC101
458321 IC-CHIP TDA9555H/N1/1I (32K MONO QSS IC101
458964 IC-CHIP TDA9563/H/N1/I/4 PIP (INTERCARIER) IC101
458965 IC-CHIP TDA9565/H/N1/I/4 PIP (QSS) IC101
452510 IC 4053B CMOS 16SOIC IC102
452575-01 IC MSP3400G NON VIRTUAL DOLBY IC301
452800 IC MSP3410G PSDIP64 AUDIO P NON VIRTUAL DOLBY, NICAM IC301
452595 IC MSP3411G VIRTUAL DOLBY IC301
452374 IC L78L05 ACZ TR IC302
452368 IC TDA7262 PWR AMP SGS THOM 33" IC304
452482 IC TDA7263 IC304
452784 IC-CHIP M24C08-WMN6 (EEPROM IC401
452976 IC TDA8359 J IC501
452487-01 IC MC44608P40 IC601
451517 IC TDB7805CT T0220CASE IC602
451518 IC KA317TU T0220CASE IC603 IC604
50S310 INSULATER BUZ90 17*12*.15 IC603
452520 IC TDA6108JF IC701
451569 IC-CHIP TDA9886T/V3 118(SO24) PIP IC801
451570 IC-CHIP SDA9489X SOP28 PIP IC802
451518 IC KA317TU T0220CASE PIP IC803
452521 IR RECEIVER TSOP 1838 IC901
452382 IC-CHIP S3C1840DA9/SMB1 IC980
053711 COIL 10UH K (TAIYO) LAL03 L101 L301 L302 L401 L402
053719 COIL CHIP 1UH L102 L105 L106
053794 COIL CHIP 330NH /0805 L102
053737 COIL-CHIP 8.2UH K /1206 L104
053735 COIL-CHIP 18UH K /12 L201 L303
051707 COIL 6MH E/W 11.1 L501
051585 COIL H-LIN 70UH 21" PF L502
051605 COIL H.LINEARITE 39UH 25",29" L502
053330 COIL H.LINEARITE 45UH 28" 16/9 L502
052692 COIL LINEARITY 30UH (TERMAL 28" 4/3, 32", 33" L502
051729 BRIDGE COIL 1.5MH 25",28"4/3,33" L503
051798-01 BRIDGE COIL 1.8MH 28"16/9,32" L503
051813 BRIDGE COIL 850UH 29" L503
051737 LINE FILTRE 2*18MH E-TYPE L601
053734 COIL 4.7UH LAL03 L603
053739 COIL CHOKE 50UH L604
053352 COIL- CHOKE 10UH R0814 14.1 L701
053500 BOBIN 10UH K AXIAL LAL04 PIP L801 L803
055139 CHOKE COIL 50MHZ 600R PH-WB L962 L963
055127 CORE FERRIT
055597 FERRITE BEAD 12*8
133118 R-VAR 10K V(2.5MM) 5*3 P601
452408 IC PC123FY2PHOTO COUPLER PH601
056952 CRYSTAL 18.432MHZ +-30PPM Q301
056946 CRYSTAL 12MHZ Q401
056013 CRYSTAL 4 MHZ PIP Q801
56161 CRYSTAL 20.25MHZ PIP Q802
POSITION NUMBERS
PARTS LIST
PART NO DESCRIPTION NOTES
056210 CER.RESONATOR GSB455E Q980
172335 RC-CHIP 3.3K J 1/10W /0805 MONO SOUND R103 R106
172683 RC-CHIP 6.8K J 1/10W /0805 MONO SOUND R107
171471 RC-CHIP 470R J 1/10W /0805 MONO SOUND R104
174151 RC-CHIP 150K J 1/10W /0805 MONO SOUND R109
174473 RC-CHIP 470K J 1/10W /0805 MONO SOUND R110
173154 RC-CHIP 15K J 1/10W /0805 R112
174104 RC-CHIP 100K J 1/10W /0805 R114
101683 CFR 680R J 1/4W /6 52MM R124
172274 RC-CHIP 2.7K J 1/8W/1206 (T R126
173392 RC-CHIP 39K %1 1/10W/0805 R127
171393 RC-CHIP 390R J 1/10W /0805 R129
172273 RC-CHIP 2.7K J 1/10W /0805 MONO SOUND R130
173479 RC-CHIP 47K J 1/10W /0805 R139 R142
171182 RC-CHIP 180R J 1/10W /0805 R147 R163
179001 RC-CHIP 0R /0805 2*1.25 MONO SOUND R149
171150 RC-CHIP 150R J 1/10W /0805 R154
171102 RC-CHIP 100R J 1/10W /0805 R158 R105
171221 RC-CHIP 220R J 1/10W /0805 R164 R429
173273 CFR-CHIP 27K J 1/10W /0805 R165
171332 RC-CHIP 330R J 1/10W /0805 R170 R425
179001 RC-CHIP 0R /0805 2*1.25 R176 R151
172333 RC-CHIP 3.3K J 1/8W /1206 R201 C336
170750 RC-CHIP 75R J 1/10W /0805 R209 R213
171334 RC-CHIP 330R J 1/8W /1206 R214 R215
172101 RC-CHIP 1K J 1/10W /0805 R216 R217
171104 CFR-CHIP 100R J 1/8W /1206 R220 R221
172335 RC-CIHP 3.3K J 1/10W /0805 R314 R310
173104 RC-CHIP 10K J 1/8W /1206 R317 R633
172123 RC-CHIP 1.2K J 1/8W /1206 R326 R330
171821 RC-CHIP 820R J 1/8W /1206 R328 R332
170473 CFR-CHIP 47R J 1/8W /1206 R329 R162
129150 RWF 1.5R J 1.5W 21",25",28",29",32" R341
119104 RWF 1R J 1.5W (UFLB) 73MM 33" R341
179002 RC-CHIP 0R /1206 R342 R228
170332 RC-CHIP 33R J 1/10W /0805 R401 R412
170390 RC-CHIP 39R J 1/8W /1206 R404
170101 RC-CHIP 10R J 1/10W /0805 R421
172474 RC-CHIP 4.7K J 1/8W /1206 R434
172475 RC-CHIP 4.7K J 1/10W /0805 R435 R440
170472 RC-CHIP 47R J 1/10W /0805 R437 R438
171471 RC-CHIP 470R J 1/10W /0805 R439 R218
120234 RMF 22R J 1/2W R503
110270 RMF 27R J .75W 52MM R503
174180 RC-CHIP 180K J 1/10W /0805 R504
173333 RC-CHIP 33K J 1/10W /0805 R505 R102
173276 RC-CHIP 27K J 1/8W /1206 R506
114110 RM 100K %1 1/4W 26MM R508
121182 RW 180R J 2W 73MM R510
109472 CFR 0.47R J 1/2W /9 52MM 21", 25", 28" 4/3, 33" R513
114151 RM 150K J 1/2W R514 R517
119476 RMF 4.7R J 1W 21",25",28" 16/9, 29",32",33" R516 R527
119271 RM 2.7R J 1/2W 25" R518 R519
119271 RM 2.7R J 1/2W R518 R519
119181 RMF 1.8R J 1W 52MM 28" 4/3 R518
119220 RM 2.2R J 1/2W 28"16/9 R519
119221 RM 2.2R J 1W 21" R519
129395 RMF 3.9R J 0.5W 52MM 32" R519
129395 RMF 3.9R J 0.5W 52MM R519
119476 RMF 4.7R J 1W 28"4/3 R519 R527
POSITION NUMBERS
PARTS LIST
PART NO DESCRIPTION NOTES
111224 RMO 220R J 1W R520
119480 RM 0.47R J 1/2W 21", 25" R521 R606 R607
129471 RF 4.7R J 0.25W 52MM R522
122114 RWF 1K J 1.5W 73MM R523
113113 RMF 10K J 1/2W R524
119152 RMO 1.5R J 2W 21" R525
119184 RMO 1.8R K 3W R:20 R525
129475 RW 4.7R J 7W (YATIK) 29" R525
129109 RWF 0.1R J 0.75W 73MM R526
103116 CFR 10K J 1/4W /6 52MM R528
119684 RMF 0.68R J 1W 25" R529
119122 RMF 1.2R J 1W 28" 16/9 R529
119155 RMF 1.5R J 1W 21", 32", 33" R529
119110 RMF 1R J 1W 28" 4/3 R529
129109 RWF 0.1R J 0.75W 73MM 29" R529
113335 RMO 33K J 1W R531
154216 NTC 5.1R M (S234R) R601
154225 PTC 18R/3 PIN 28"16/9, 29",33" R602
154234 PTC 9R/2 PIN - 3CYCLE 21" R602
112393 RM 3.9K %1 1/4W 52MM R605
119336 RM 0.33R %1 1W R607
111101 RMO 1K J 1W R608
113681 RMO 68K J 2W R609
115470 RM 4.7M J 1/2W 52MM R610
102105 CFR 1K J 1/2W /6 52MM R611
119109 RNF 0.1R J 0.4W (UFLB) 52MM R612
100473 CFR 47R J 1/4W /6 52MM R617 R333
110476 RMO 47R J 3W R618
113475 RMO 47K J 1W R621 R629
173101 RC-CHIP 10K J 1/10W /0805 R622 R626
172273 RC-CHIP 2.7K J 1/10W /0805 R623
114115 RM 115K %1 1/4W 21", 28" 16:9, 29", 32" R625
114152 RM 150K F 1/4W 52MM 25, 28" 4/3, 33" R625
112131 RM 1.3K %1 1/4W 26MM R627
111391 RM 390R %1 1/4W 26MM R628
172105 RC-CHIP 1K J 1/8W /1206 R630 R236
111241 RM 240R %1 1/4W 26MM R631 R632
100154 CFR 15R J 1/2W 52MM R639
103273 CFR 27K J 1/4W /6 52MM R645
103475 CFR 47K J 1/4W /6 52MM R705
102159 CFR 1.5K J 1/2W /9 52MM PS 29" HHOP U44 R711 R713 R715 R716
102166 CFR 1.5K J 1/4W /6 26MM EXT.SPEAK. R903
054261 FUSE 2.5AT (215 SER.) S601
054280 FUSE 3.15AT (215) PAL I 32" S601
054263 FUSE T2A S602
054264 FUSE T4A S603
010760 SLIDE SWITCH 4P2P/4PST 32" 29" S960
031251 SCART SOCKET 14.1 SK202 SK201
010861 ON/OFF SWITCH BK98 25" SW601
010712-03 POWER SWITCH S40 4/100A-250 28",29",32" SW601
010971 MAIN SWITCH GDE S40 4/100A- 33" SW601
010840-01 TACT SW LONG STEN 2LEG 33" SW901 SW902
010840-01 TACT SW LONG STEN 2LEG 28" SW901 SW902
010845 TACT SW WITH GREEN LED 32" 29" SW901 SW902
010844 TACT SWITCH 2 LEG (MTSB) 25" SW901 SW902
401141 TRN-CHIP BC848B SOT23 MONO SOUND T101 T102
401141 TRN-CHIP BC848B SOT23 T103 T104 T105 T106
401142 TRN-CHIP BC858B SOT23 T301 T302 T303 T305 T308
POSITION NUMBERS
PARTS LIST
PART NO DESCRIPTION NOTES
400989 TRN BC558B T306 T309
401141 TRN-CHIP BC848B SOT23 T307 T403
401279 TRN 2SK2381 T501
401218 TRN BC618 T503
401215 TRN BU508DF T504
401216-02 TRN 2SK2545 T601
401047 TRN BC337-25
401142 TRN-CHIP BC858B SOT23 T980
401141 TRN-CHIP BC848B SOT23 T603 T604
410026 THRYSTOR MCR22-8 TH601
051709 DRIVER TRANSFORMER 11.1 TR501
057138-EL1 FBT 21" 14:2 21" PF TR502
057834-TR2 FBT 28" 16:9 14.1 28" 16:9 TR502
058934-TR1 FBT 29" 14.1 (C-TYPE) 29" TR502
057534-EL2 FBT 2528 14.1 25", 28"4/3 TR502
057334-EL1 FBT 33' 14.1 33" TR502
059138-EL1 SMPS 21" 14.2 P.FLAT 21" TR601
059834-TR1 SMPS 28" 16:9/SLOT TR/..... 32" TR601
059934-TR1 SMPS 29" 14.1 29" TR601
059534-TR1 SMPS 2528 14.1 25", 28" TR601
059834-TR1 SMPS 28" 16:9 14.1 28" 16:9 TR601
059334-TR1 SMPS 33" 14.1 33" TR601
051805 COIL PFC 56MH DTH30563H ELI TR602
7RZ136-PH3 TUNER PH ASIMETRIK UV1316/A TU101
S99136-PH1 TUNER PH SPL ASIMETRIK UV1316 T PIP TU101
7RZ136-PH4 TUNER PH ASIMET. UV1316/ALG-3 SV22 PIP TU201
031866 CONN.HOUSING X2006 GREY X102
031035 PIN HEADETR 2.5MM 7.PC.MOLE LL' X104
031854 CONN.HOUSING X2003 GREY X301 X405 X940
031858 CONN.HOUSING X2004 GREY X302 X402
031780 CONN.HOUSING 2'LI GREY X303 X501
031872 CONN.HOUSING X2007 BLACK X403
031856 CONN.HOUSING X2003 BLACK X404
031794 CONN.MALE HOR. 4.PIN PLUG X502
031821 CON.HOUSING X2.5TMK 2204 GR X503
031675 CON.HOUSING 2P MALE X601 X602 X604 X605
031727 CON.MALE. 2.5TMK 2009S PIP X662
031882 CON.MALE X2.5TMK 2010G PIP X663
031530-01 INCHANG/CRT SOCKET ISHM05S- Non Pure Flat X703
031530-02 INCHANG/CRT SOCKET ISHM23S- 21" Pure Flat X703
031541 CRT SOCKET 29" DOUBLE FOCUS Pure Flat X703
031413 CONN.FEMALE 9 PIN X801
31323 CON.MKF19400-6-0-1010 X802
031165 KONN. CINCH ........... YEL SVHS X921
031164 KONN. CINCH ........... RED SVHS X922
031163 KONN. CINCH ........ WHITE SVHS X923
031784 KONN.S-VHS B10B MONAKOR SVHS X924
031423 HEADPHONE JACK YKB21-5103 X941
031357 CON.HOUSING X2.5TMK 2904 G EXT. SPEA. X962
031021 PIN HEADETR 2.54MM 3.PC.MOL 29" 32" X964
031020 PIN HEADETR 2.54MM 4.PC.MOL 29" 32" X965
303826 DIODE Z. BZX55C 15V ZD501
302782 DOIDE Z. MTZJ18B 21" Pure Flat ZD501
303771 DIODE Z. UZT33V ZD502
451885-01 IC TL431CLP (ON SEMICONDUCT ZD602
303799 D- ZENER MTZJ12B ZD603
POSITION NUMBERS
PARTS LIST
PART NO DESCRIPTION NOTES
300193 DIODE Z. BZX55C9V1-GPS(VISH ZD606
S99170 PIP MODULE KPL.14.2 PIP
056321-PH7 CPT PH A51ERF135*70 P.FLAT 21" Pure Flat
056325-VC4 CPT VC A59EHJ13X38 25"
056428-SB1 CPT SEB W66QDE893X286 (P.FLAT) 28"16/9 Pure Flat
056428-PS1 CPT PS W66EHK51X36 28"16/9 Super Flat
056328-VC6 CPT VC A66EHJ13X62 28"4/3
056329-SB1 CPT SEB A68QCP891X404 29" Pure Flat
056329-VC2 CPT VC A68EGD049X30 (S.FLAT 29" Super Flat
056432-PS2 CPT PS W76EKW10X21 P.FLAT 32" Pure Flat
056432-VC2 CPT VC W76EGV023X015 S FLAT 32" Super Flat
056333-VC3 CPT VC A80AEJ15X04 33"
525167-AS DEGAUSSING COIL ASSY 25" BA 25"
628167-AS DEGAUSSING COIL ASSY 28" BA 28"4/3
528166-AS DEGAUSSING COIL ASSY 28"16/9 Pure Flat
621167-AS DEGAUSSING COIL ASSY 21" BA 21" Pure Flat
528169-AS DEGAUSSING COIL ASSY 28"16/9 Super Flat
629167-AS DEGAUSSING COIL 29" 29"
532168-AS DEGAUSSING COIL ASSY 32" Pure Flat
532169-AS DEGAUSSING COIL ASSY 32" Super Flat
533167-AS DEGAUSSING COIL 33" 33"
7P3187 RC A TYPE PRINTED SIL
6VM187 RC A TYPE SILVER 14.1
7UK187 RC A TYPE GREY 14.1
7TK187 RC B TYPE FUME 14.1
7PE187 RC B TYPE M.GREY 14.1
5T1187 RC B TYPE SILV.14.1
7UB109-AS SPE.SUB 4R/20W(NOM)21T04/25 29"
7UB107-AS SPEAKER 8R/15W(MAX)21T04/25 29"
6X1107-AS SPK.8R/15W(MAX) 32"T20/T21 EXT.SPEAK.
7UB108-AS TWEETER 10R/10W(N)21T04/25T 29"
7VA108-AS TWEETER DYNAMIC D=52 8R/15W 33"
Please note that Product Part List Files should be investigated for the mechanical parts like cabinets, etc.
POSITION NUMBERS
C180 A
R180 A
table
C181 A
9.1V
ZD606
R2
43
Others
+35V
+35V
R608
-
JP622
33" & 29"
+45V & +35V
1k 1W
D608
-
UF4006
SVHS-PIP
NON SVHS-PIP
-
R151
R169
R171
R173
NON PIP
X662 X663 R235
R168 R197 R167 R199
-
CON9
CON10
---
0R
----
-
- -
-
-
- -
CON9
-
CON10
-
47K
-
R125
29"&90°
R239
12K
0R 0R 0R 0R 0R
0R
0R
0R
0R
CRT MODULE
2
G_in
8
G_out
3
R_in
7
R_out
VDD
6
B_in
1
B_out
9
Black
5
GND
4
Black
1
table
1k
220R
RGB
IC701
D702
R714
R710
R712
R701
R702
HS701
X701
2
GND
3
Red
4
Green
Blue
5
1.5k
1.5k
BAV21
1.5k
BAV21
100R
BAV21
100R
100R
220R
220R
220R
220R
L701
R715
R713
D704
R711
D703
R706
R703
R707
R704
G2
GREEN
G1
1N4007
220R
2.2M
22n/63V
47k
100n/250V
10u/250V
10u
10u/250V
1.5k
D701
R709
R708
C704
R705
C701
C703
C702
HEATER
BLUE
HEATER
RED
G2
AQUA
SMPS
N.C. 3
220V
4
Heater
2
***
CRT SOKET
4.7n/1.5kV
R717
R716
C705
GND
GND
table
Others
29" & 32"
X703
X703
031.530
031.541
GND
1
CRT
X702
1
IR
GND
2
LED
3
KEYBOARD
KEYBOARD MODULE
-
7
Key1
+3.3V
4
Key3
5
6
Key2
GND
OUT
Vs
150R
PHOTO_SENSOR
X901
PR
VOL+
VOL
R901
IC901
-
GND
SVHS_C
3
4
CINCH_R
5
GND
CINCH_L
6
1
SVHS_Y
2
75R
75R
1n
470R
470R
1n
1n
1n
CINCH L
6-WAY PLUG
VIDEO
CINCH R
LED1
470R
150R
270R
10u/10V
29" ONLY
STANDBY
R921
R920
C923
R923
R922
C920
C921
C922
X923
X920
X921
X922
PR+
D901
R903
R902
R904
C901
SVHS MODULE
SVHS_SOKET
X924
HS101
HS601
table
HS501HS301
Components designated by the safety symbol should only be replac ed by original parts produced and proofed by the manufacturer
.
Sicherheitsbautelle im Sinn der sicherheitsbestimmung. Diese T eile durfen nur durch Originalteile ersetzt werden.
Contrassegno di sicurezza. I componenti devono, corrispondere a ricambi originali e devono essere montati a regola d’arte.
R156
220R 118W
NON L_L'
NON L_L' MONO
L_L' /BC-DK
L_L' MONO
-
-
-
L105
1u
-
-
-
820p
C158
-
-
-
C159
3.9n
-
-
-
L106
1u
-
-
-
C160
820p
-
-
-
C185
-
-
-
R149
-
0R
0R
-
-
-
-
R150
0R
4.7n 50V
0R
C178
-
4.7n 50V
2.7K 1110W
2.7K 1110W
-
R130
-
-
820p 50V
C144
-
820p 50V
C139
-
2,2u 63V
-
-
1uF 16V
C142
-
1uF 16V
1uF 16V
C123
4.7u 16V
-
4.7u 16V
-
10uF 16V
10uF 16V
-
-
C166
3.3n 50v
3.3n 50V
-
-
C109
TU101
1n
R119 R114 R115
IC501
R502 R508
T501
C507
R516
D507 D508
90
110
-
100R 118W
- -
100K 1/10W
33K 1110W
TDA8357J
TDA8359J
-
1K 114W
-
100K 114W
25K2381
-
2.2u 63W
- -
4.7R 114W
-
ERC06-1500
-
RGP30K
Headphone
R302, R303,
R316,
R320,
R323, R325,
X301,
JP310
C317, C318,
C352, C353, C358, C359,
T303, T306, T308,
T309
Only Components
IC101
8.2u
ONLY
A2
BG
A2+NICAM
L/L’
DK
I
BG
8.2u
8.2u
L104
G1985M
-
-
-
K3958M
J1980M
G1985M
-
L104A
F101
TPS6.0MB
TPS5.5MWA
K9456M
-
-
-
F104
-
F102 F105
TDA9561
TDA9567
TDA9567
TDA9561
TDA9561
F106
90°
TDA9563
TDA9565
TDA9565
TDA9563
TDA9563
110°
DOLBY PROLOGIC BG/DK
DOLBY PROLOGIC I
DOLBY PROLOGIC L/L'
-
-
8.2u
J1956M
-
TPS6.0MB
TDA9561
TDA9563
K3958M
K9456M
TDA9567
TDA9565
C186
TPS5.5MWA
TPS5.5MWA
8.2u
K3953M
40.40 MHz
G9353M
68 pF
8.2u
-
K3953M
-
TPS5.5MWA
40.40 MHz
G9353M
68 pF
TDA9567
TDA9565
R166
-
-
8.2u
TPS5.5MWA
TPS5.5MWA
8.2u
0R
0R
Non-Front SVHS
Front SVHS
C145 C157 R148 R152
470n
47n
- -
0R 0R 0R 0R
Front
SVHS
Only Components
R218,219,R433,R443,T401,R139,R141,R142,R145,C179,R153,R157,IC10
2,X102,C163,C164,C151,C153,R158,R159,C152,CAB2,C239,C240,C241,C2
42
Optional Components
R434,
R507,
R613,
R614,
R642,
R717
C171,
C510,
C617,
C640,
C641,
(***)
AUDIO_SCAR
CINCH_R
CINCH_L
CVBS_OUT_SCAR
A
1u/160V
C522
100n 50V
C516
100n 63V
C515
BZX79C 15V
ZD501
Subject to change without notice
SCL
SDA
4
Vss
3
A2
6
SCL
5
SDA
72
SCL1
67
SCL
71
SDA1
68
SDA
3.3k
3.3k
100R
100R
100R
100R
R405
R406
R427
R428
R418
R417
+5V
STATUS_1
STATUS_2
+3.3V
10n
1k
10n
1N4148
1N4148
1k
C407
R431
C408
D401
D402
R432
P0.6
64
XTALGND
XTALIN
XTALOUT
3
P2.5
78
P3.0
80
1
P3.1
63
2
62
P1.2
69
P0.5
5
70
P1.3
6
+3.3V
1n
47R
4.7k
330R
4.7k
470 p
470R
X402
29" ONLY
C409
R436
R434
R425
R435
R439
C405
TV_INT
ONLINE
1n
47R
47R
4.7k
10R
(10k WEB)
X405
29" ONLY
C411
C410
R438
R437
R440
R421
+8V
IR_PIN
F_BLANK_MM
1
2
3
H_DRIVE
2.2k
1k
BC848
12V
12V
1n
4.7u/50V
KEYBOARD
***
29" FLAT ONLY
X661
R441
R666
T402
ZD405
ZD404
C503
C502
R507
5
6
7
4
EW_DRIVE
***
table
table
1N4148
table
C510
X403
R508
R502
D505
T503
T501
1
2
3
4
HORIZONTAL YOKE
330n/250V
table
table
table
table
JP514
JP515
X502
R525
C523
C507
TR502
R516
0.1R
47u/63V
4.7R
RGP15J
BA157
R526
C526
R527
D513
+15V(F)
+35V
470u/25V
C527
X503
2
3
BC848
15k
BC848
T661
R662
T660
R660
ONLINE
TV_INT
1k
1k
470k
R664
R665
10k
10k
BC848
***
10k
10k
10k
BC848
12V
***
***
R643
R644
T607
R613
T605
R634
R626
R622
T603
C617
ZD603
R614
4
5
1
2
3
4
5
6
7
8
table
100n/63V
15u/25V
MC44608
R606
C610
C606
IC601
23
4
1
5
6
7
17
4.7u/25V
0R
***
***
8.2k
4A
TL431C
47R
PC123FY
1k
table
130k
RGP10G
4.7uH
table
C642
R620
C641
C640
R640
S603
ZD602
R617
PH601
R608
R607
R604
D607
L603
TR601
+12V
+28V
table
***
4.7k
MCR22-8
BC848
10k
10k
100n
100p/500V
1k
table
47k
10k
BC848
2.7k %1
68n
1000u/35V
47u/16V
33n
390R %1
47n
47n
2200u/25V
RGP10J
1N4148
RGP30D
R645
R642
R641
R636
TH601
R633
R630
C632
C631
R629
P601
R625
R623
C624
T604
C621
C639
C634
C633
R628
C626
D616
D615
D612
R410
XTL
TCK
VPE
RES
MUTE
L_L'
C412
Q401
56p
33p
C413
12MHz
60
VPE
10k
R430
65
RESET
C406
470p
R401
R404
R413
33R
R412
77
76
75
74
P2.1
P2.2
P2.3
P2.4
R424
R429
220R
R409
BC848
T403
R415 R414
100R
10k
10k
STAND-BY
SVHS_SOURCE
T401
10k
BC848
R443
R433
10k
R407
10k
+3.3V
10k
R416
79
SYNC FILTER
100u/16V
C404
4
VSSC/P
1n
33R
39R 1/W
33R
P3.3
P3.2
1N4148
D403
R241
0R
CAB3
CAB2
CAB12
CAB11
CAB12
OPTION -WEB
(220R LL'& mono LL')
H_DRIVE
R128
+33V
+8V
TUNE
GND3
14
GND4
15
10
IF1
11
IF2
NC
6
SCL
4
5
SDA
2
33V
9
7
5V
8
ADC
1
AGC
AS
3
12
GND1
GND2
13
1R
22n
1R
TUNER14_1
R116
R113
C120
R117
C118
TU101
39
31
30
54
2.7k
100R
100u/16V
100u/16V
22n
R126
C128
C127
+5V
table
0R
100p
1n
1k
47p
47p
100R 100R
10u
100u/16V
680R
4.7u/63V
table
33k
3.9k
table
D102
L102
R176
R172
C111
C106
C107
C104
R105 R108
L101
C103
R124
C105
C114
F105
R102
R101
C102
6
7
L_L’
+5V
1
2
3
4
5
1
2
3
4
5
6
7
SCL
SDA
40.4MHz
table
1n
L/L’
BA682
68p
3.3k 3.3k
100p
10n
table
F108
R196
C180
X103
D103
C181
C174
R187 R188
R183
R179
C101
F101
(QSS)
(Intercarrier)
SECAM L/L’ MODULE
SC.OUT_MONO
+8V
EHT_COMP
+8V
VDRIVEB
VDRIVEA
EW_DRIVE
CVBS_IN_SCART1
AUDIO_SCART_IN_MONO
L/L’
100R
BA682
BC848 BC848
BC848
10k
10k
10k
2.2k
100R
table
BC848
470R
3.3k
BC848
table
3.3k
470k
150k
1u/16V
6.8k
table
100n
4.7n/50V
15k
1u/100V
X104
R194
D104
T108 T107
T109
R189
R185
R180
R181
F102
R103
T101
R104
T102
R115
R106 R109
R110
C108
R107
R114
C116 C112
R112
C110
V_IREF
20
23
SIF_IN1
SIF_IN2
24
SVHS_C
45
44
SVHS_Y
18
PIF1
PIF2
19
R_IN
51
36
I_BLANK
55
34
EHT
F_BLANK
50
52
G_IN
53
B_IN
25
AGC
22
AUDIO_OUT
48
1n
22n
39k %1
table
C133
R127
IC101
CROMA_SC2
CVBS_SC2
+8V
X1
13
Y0
2
1
Y1
5
Z0
Z1
3
6
INH
16
VDD
7
VEE
X0
12
BEAM_CURRENT
H_FLYBACK
2.2n
table
100R
47R
100R
table
47R
470n/25V
47n
MC14053B
27k
R152
C157
R155
R158
R159
C151
C153
X102
IC102
R160
C168
R165
+8V
+8V
R_SCART
G_SCART
B_SCART
15
Y
Z
4
11
A
10
B
9
C
8
VSS
14
X
56p
220R
10k
table
SVHS
4.7k
47k
4k7
47k
100n
1n
22n
22n
22n
C131
R153 R157
R148
R139
R141
R145
C138
R142
C137
C140
C155
C156
C154
VDRIVE_A
17
16
VDRIVE_B
VIDEO_OUT
38
21
VSAWTOOTH
AUDIO2
R_OUT
56
57
G_OUT
15
EW_AVL
58
B_OUT
table
100p
100R
100R
100R
100R
1k
table
1n
1n
table
100n %5
C178
C169
R143
R123
R122
R136
R135
R137
R133
C109
C135
C134
R119
C126
CINCH_R
B_SCRT
STATUS_1
1n
C163
CINCH_L
SVHS_SOURCE
MONO_LOUDSPKR
G_SCRT
R_SCRT
F_BLANK_SCART
CVBS_OUT_SCART1
CVBS_IN_SCRT1
1n
C164
1
2
3
4
ST
10k
table
R138
R130
5
+8V
+8V
+8V
PHI_2
PHI_1
12
11
EXT_CVBS
42
13
VSSA
7
CVBS_IN
40
CVBS_OUT
47
10
DIGIDEC
table
56p
3.3k
table
47R
220n
table
47R
BC848
table
table
table
150R
10u/63V
10n
180R
47R
BC848
47n
10n
BC848
OR
2.2n
C113
C165
C144
R140
C125
C159
R156
C158
L105
R162
T105
R161
F104
L104
R154
C148
C149
R147
R146
T104
C150
C146
C147
R198
C129
+8V
CVBS_OUT_SCART1
CVBS_OUT_SCART2
PLL_IF
35
SEC_PLL
26
14
BANDGAP
100R
10u/16V
47R
BC848
1k
330
22p
10u/63V
10n
220R
180R 1/10W
10u/63V
2.2uF 16V
100n
390R
100n
220n
R121
C167
R177
T106
R178
R170
C136
C162
C161
R164
R163
T103
C132
C124
C143
R129
C141
+5V
7
WP
1
A0
A1
2
Vcc
8
P2.0
73
10k
1k
47n
3.3k 3.3k
IC401
R402
R403
C403
R422 R426
BR24C08F
VDDP
66
VDDA
59
100u
10u
47u/16V
100u/16V
47n
47n
L402
L401
C415
C402
C414
C401
+15V(S)
+3.3V
+3.3V
+5V
22R
47u/16V
220n/100V
180R
1N4148
33k
27k
X404
R503
C504
C505
R510
R506
R505
D504
+8V
68p/500V
0.47R
150k
120R
150k
1N4148
BC618
H-DRIVE
C506
R515
R513
R517
R514
D503
TR501
+145V
BA157
10k
table
1k
table
table
table
RGP
30K
table
table
table
BU508DF
table
table
R524
D510
R523
C521
C520
C519
D508
C518
D507
C513
L501
T504
L502
L503
(10k MM)
+3.3V
GUARD
10k
R512
5
9
FEEDB
TABLE
OUTB 4
VGND OUTA 7
V-GUARD
R540
2.2k %1 C509
2.2n
8
2
2.2k %1
R511
2.2n
C508
1
R504
INB VFB 6
INA
IC501
180k
VP 3
V DRIVEA
V DRIVEB
C139
table
FBISO
HOUT
BCLIN
VP2
VP1
SIF AGC
GND2
100n
C115
10u/16V
C117
+8V
VSYNC
4.7k
R111
BC848
T110
tableR173
9
10 CVBS-IN-SC1
8
7
6
5
G-SCART
R-SCART
CVBS-IN-SCRT1
B-SCART
CHROMA
CVBSIN2
X663
table
table
table
R169
R171
table
R151
R167
SDA
SCL
F-BLANK-SCART
4
3
2
1
G-SCRT
R-SCRT
F-BLANK
B-SCRT
table
1
2
V-SYNC
H-SYNC
+33V
table
R168
+5V
4
5
6
3
9
7
8
X662
F_BLANK
table
28
37
R149
QSSO
table
F103
table
8
GND3
27
AVL
C123
table
41
GND
32
DECS DEM
table
C166
33
AUDEEM
C130
1n
VDDC
61
49
IFVO2
46
WHSTR
100n
C122
43
GND
R408
100R
MSP RESET
29
AUDIO3
100R
C152
47nF
R131
R132
R174
47
R118
1k
X101
C145
table
9
1
2
3
4
5
6
47k
R197
F_BLANK_MM
R199 0R
R235
0R
R237
0R
1k
R134
R240
OR
CAB4
CAB15
CAB4
CAB2
table
L104A
(47R LL'& mono LL')
(470n LL'& mono LL')
(1N4148 LL'& mono LL')
0R(12K LL'& mono LL')
OPTION PIP
ONLY MONO
CAB9
47
47
C160
L106
C185
R241
0R
H_SYNC
H_FLYBACK
R150
table
R236
0R
H-SYNC
CAB13
C186
table
table
table table
table table
table
0R
R239
table
F106
R166
table
OUT
IN
(QSS)
(Intercarrier)
SC.OUT_MONO
T_IN_MONO
4
5
6
7
8
9
2
3
1
10
330n
330n
3.3u
0R
470R
3.3k
10k
75R
1n/50V
100R
47u/16V
330R
1n
1n
0R
47u/16V
100R
330R
1n
330n
330n
C242
L202
R205
R219
R202
C201
R211
C219
C224
R224
R226
C216
R231
C218
C223
R227
C215
R225
C240
C239
C241
2
3
1
14
15
16
17
18
19
20
21
11
12
13
100R
330R
220p
0R
47u/16V
220p
1n
75R
220p
68R
75R
75R
75R
1k
470p
22k
0R
4.7u/16V
4.7u/16V
10k
470p
1k
SCART
R220
R214
C213
C206
R232
R233
C221
C205
C228
R208
R206
R207
R212
R210
R217
C210
R230
R228
C226
C225
R229
R216
C209
SK201
8
9
4
5
6
7
10
11
12
13
14
15
16
17
T2
TUS_2
3.3u
220p
10k
3.3k
L201
C202
R204
R201
JP512
18
19
20
21
CROMA_SC2
CVBS_SC2
75R
68R
SCART
R209
R203
SK202
220p
100R
1k
330R
1n
1n
1n
1n
4.7u/16V
47u/16V
3.3u/50V
C204
R222
R215 R221
C208
C212
C207
C217
C222
C227
A2 ONLY
A2+NICAM
IC301
MSP3400D
MSP3410D
A2, VIRTUAL DOLBY
MSP3401G
MSP3411G
DOLBY PROLOGIC
MSP34X2G
1k
470p
220p
470p
75R
4.7u/16V
C203
R223
C214
C211
R213
C220
1
CRT
22u/250V
table
BA157
C525
R529
D511
D512
4
3
2
IR_PIN
1
+5V
220R
15k 2.2k
R663
X660
R668
R661
15R
3.9k %1
R639
R605
CABLE.9a
4
8
13
14
15
16
2
3
11
12
1k
2A
0.1R
4.7M
2SK2545
UF4006
470p/2kV
33n/630V
UF4006
68k
table
JP622
R611
S602
R612
R610
T601
C614
D608
C615
D609
R609
C613
+15V(S)
1 Stand by
0 On
+15V(S)
+12V
+3.3V
+5V
+8V
+3.3V
ADJ
IN
OUT
+5V
IN
OUT
+8V
STAND_BY
ADJ
IN
OUT
47n
10u/16V
240R %1
LM317
10u/10V
47n
47n
10k
7805
10k
240R %1
47n
BC848
1.3k %1
47n
LM317
1000u/25V
22u/200V
100u/200V
RGP10G
RGP15D
RGP30M
C638
C636
R632
IC604
C623
C635 C637
C628
IC602
R635
R637
T606
R631
C630
R627
C625
IC603
C620
D614
D613
D611
CABLE.9b
FROM SMT
XTAL_IN
62
63
XTAL_OUT
SC4_IN_L
43
44
SC4_IN_R
TESTEN
61
35
VREF1
27
VREF2
49
SC2_IN_L
SC2_IN_R
50
34
SC2_OUT_L
8
NC3
NC4
21
NC5
22
23
NC6
NC7
64
14
I2S_DA_IN1
20
I2S_DA_IN2
13
I2S_DA_OUT
I2S_WS
12
NC1
2
3
NC2
31
DAC_SUB
DVSS
19
11
I2S_CL
56
AVSS
ASG1
51
48
ASG2
ASG4
45
1
AUD_CL_OUT
ADR_CL
17
ADR_DA
15
6
ADR_SEL
16
ADR_WS
41
AHVSS
0R
1.5p 1.5p
18.432MHz
2.2n
2.2n
R301
C308
C313
Q301
C238
C232
VREFTOP
54
SCL
9
SDA
10
37
SC1_OUT_L
SC1_OUT_R
36
SC2_OUT_R
33
SC3_IN_R
47
24
RESETQ
52
SC1_IN_L
SC1_IN_R
53
MONO_IN
55
30
DAC_S
32
5
D_CTR_OUT0
D_CTR_OUT1
4
57
AVSUP
38
CAPL_A
CAPL_M
40
26
DACA_L
DACA_R
25
DACM_L
29
28
DACM_R
DAC_C
39
ANA_IN-
59
ANA_IN1+
58
ANA_IN2+
60
AGNDC
42
AHVSUP
SC3_IN_L
46
DVSUP
STANDBYQ
18
7
0R
100p
10u/63V
100n
100n
10n
10n
1n
1n
2.2n
table
R2
43
C230
C231
C235
C229
C237
C236
C234
C301
C302
IC301
C233
+8V
+8V
0R
0R
1n
220p
220R
10u/63V
10u/63V
0R
10k
2.2n
47u/16V
47n
100R
100n
100R
1n1n
1k
1n
10n
47u/16V
1n
1k
1n
1n
100n
1k
1n
1n
BC858
1.5k
1n
1n
1k
10u
78L05
R342
R339
C311
C315
R305
C312
C310
R313
R312
C303
C307
R306
C304
R304
C317
C305
R302
C322
C309
C314
C318
C306
R303
C326
C327
R308
C321
C316
T301
R348
C320
C319
R307
L301
IC302
STAND_BY
6
5
8
4
7
1
2
3
4
1
2
3
+145V
+145V
+33V
10k
10k %1
10k
470R
11k %1
100n
47R 1/4W
1000u/16V
50uH
RGP10J
100n
100k 2W
2.2n/1kV
4.7n/1kV
BC848
SMT(+5V)
10R
60R
TNY254P
TL431
RGP15D
PC123FY
220u/16V
Multimedia Module
0R
47k
0R
50uH
470p/2kV
47R
2.2n/4kV
33V
33k
R657
R655
R656
R652 R653
C655
R651
C653
FB650
D650
C652
R650
C651
C650
T650
TR650
R654
FB651
IC650
ZD650
D651
PH650
C654
X650
R338
R621
R343
C629
C627
L604
R618
C619
C616
ZD502
R531
Right
Left
1
2
3
HEADPHONE MODULE
1
2
3
L
GND
R
L
GND
R
MONO_LOUDSPKR
MUTE
1
2
3
+8V +8V
MSP_RESET
SDA
SCL
HEADPHONE JACK
47n/100V
HEADPHONE
330R
39R
39R
47n/100V
330R
47n
BC858
BC858
BC558
BC558
1n
1n
10n
100u/16V
100u/16V
330R
3.3k
100u/16V
HEADPHONE
3.3k
330R
10u
X941
C941
X940
R940
R942
R941
C940
R943
C342
T308
T309
T303
T306
C359
C358
C337
C352
C339
R320
R316
C353
X301
R325
R323
L302
Right
Left
C335
22u 35V
470u 35V
Non-Subwoofer
&
Non-Dolby
Pro.
Subwoofer
Dolby Prologic
R322
3.3k 1/8W
100R 1/8W
1.8k 1/8W
22u 35V
+8V
2
3
4
1
14
8
9
Vs
16
3
13
7
15
11
17
5
4
6
1
2
12
10
MUTE
470p 470p
table
table
table
4.7k
BC848
10k
47u/16V
1000u/25V
1000u/25V
4.7R
47u/16V
4.7R
1n
47R
100n
table
LOUDSPEAKER
100n
1n
table
47R
100n
1000u/35V
TDA7263
100n
1n
1.5k
BC858
C364
C365
R341
C335
R322
R318
T307
R317
C343
C355
C354
C345
R334
R336
C348
C362
R329
R328
X302
C350
C363
R333
C341
R332
C338
C340
IC304
C333
C332
T305
R349
+28V
1
2
1
2
+8V"
+8V"
table
table
3.3k
3.3k
BC858
1k
1n
CABLE.6
C330A
X304
X305
R315
C330
R311
R314
C324
T302
R309
DOLBY
SUBWOOFER
DOLBY
C344
47u 16V
C330
100n
C336
1n
C340
1000u 35V
SUBWOOFER
-
3.3k 1/8W
1000u 35V
R326
1.5k 1/8W
1.2k 1/8W
R327
47R 1/8W
18R 1/8W
R330
1.5k 1/8W
1.2k 1/8W
R331
R335
4.7R 1/2W
1R 1/2W
47R 1/8W
18R 1/8W
C330A
-
2.2u 16V
5
14
1
12
MUTE
3
13
7
15
470p
0R
100n
table
1n
BC858
1k
1n
1n
CABLE.7
C366
R324
C329
C336
C334
T304
C325
C323
or
Surround
HS301
X303
4pin CONN
7PZ.304
2pin CONN
C356
470u 25V
220u 16V
2200u 25V
C346
47u 16V
220u 16V
C347
-
100n 25V
R337
4.7R 1/2W
1R 1/2W
7VA.304
CABLE.6 CABLE.7
Centre
Subwoofer
R341
0.47R 2W
R607
0.33R 1W
0.68R 2W
0.33R 1W
IC303
TDA7263
TDA7262
JP303
JP304
JP305
17
4
8
Vs
91
6
2
10
11
6
1
2
3
4
470p
1n
table
table
table
470u/25V
table
table
table
table
table
table
100n
table
table
100n
1n
table
table
C367
C360
C344
C347
C357
C356
R337
C346
R335
IC303
C349
R326
R327
X303
C361
R331
C351
R330
CABLE.13
CABLE.14
(820R MM)
(820R MM)
(47u MM)
R343
10k
CAB.14
OPTION - PROLOGIC
T310
BC848
R619
0,1R
C657
220n
100n
C656
OPTION.-WEB
RF2007
RF2007
D603
D602
1n/1kV
RF2007
RF2007
R601
D605
D604
C605
C604
1n/1kV
5.1R
1n/1kV
D601
1n/1kV
RGP10J
C608
C607
DEGAUSS
1
2
table
100n/250V
X602
R602
C603
1
2
C602
AC
INPUT
ST601
2x18mH
PFC coil
of 56mH
or 70mH
on 110 chassis
2.5A
MAINS
C601
X601
L601
220n/275V
C602
AC
INPUT
ST601
table
220n/275V
2.5A
MAINS
C601
X604
X605
+15V(S)
BEAM_CURRENT
EHT_COMP
table
table
10k 10k
220n/100V
1N4148
R532
R530
R533
R528
C528
C524
D514
22uF/16V
1
2
1
2
LINE FILTER MODUL - 110 Degree only
table table
BAV21
D515
R509
2.7k
table
R519
220R RMO 1W
table
R518
R520
47u 63V
C517
470u 25V
C512
VYOKE
X501
1n /100V
C529
1
2
4.7R RF1/4W
R522
0.47R RM 1/2W
R521
+35V
+15V(F)
D509 C530
22u 63V
1N4007
R218
470R
CAB8
CAB4
CAB3
CAB5
CAB11
0R
R242
OPTION-WEB
A2, NICAM,VIRTUAL DOLBY
18uH
L303
R345
10k
table
C184
R344
JP305
CAB13
CAB14
1.8k
R310
1.8k
R319
TR602
18uH
L304
18uH
L305
1n
C370
S99.820-01
C1 17
10u/25V
1.5R 1/2W
R501 C51 1
10n
100n
C431A
U1 C513 C518 C519 R529 R518 R519 L502
L503
C521 R625 R645 R513
25" PHILIPS A59EAK071x1 1 147 V 1,5 nF 10 nF 22 Nf 2,7 R 2,2 R 2,2 R 052692
051729
560 nF 150K 2,7 K 0,47 R
25" VIDEOCOLORA59EHJ13X38 147 V 1,5 nF 10 nF 22 Nf 0,68 R 1,8 R 4,7 R 051605
051729
560 nF 150 K 2,7 K 0,47 R
28" PHILIPS A66EAK071x1 1 147 V 1,5 nF 10 nF 22 Nf 2,7 R 2,2 R 2,2 R 051605
051729
560 nF 150K 2,7 K 0,47 R
28" PHILIPS A66EAK075x1 1 147 V 1,5 nF 10 nF 22 Nf 2,7 R 2,2 R 2,2 R 051605
051729
560 nF 150K 2,7 K 0,47 R
28" PHILIPS A66EAK081x1 1 147 V 1,5 nF 10 nF 22 Nf 2,7 R 2,2 R 2,2 R 051605
051729
560 nF 150K 2,7 K 0,47 R
28" VIDEOCOLORA66EHJ43x62 145 V 1,5 nF 10 nF 22 Nf 1 R 1.8 R 4,7 R 052692
051729
560 nF 150 K Shor t 0,47 R
28" VIDEOCOLORA66EHJ13x62/38 145 V 1,5 nF 10 nF 22 Nf 1 R 1.8 R 4,7 R 052692
051729
560 nF 150 K Shor t 0,47 R
28" P ANASONIC W66EHK51X36 140 V 1 nF 12 nF 18 nF 1,2 R 2,2 R 3,3 R 053330
051798-
01
680 nF 150 K 33 K 0,47 R
28" THOMSON W66EJU023X015 138 V 1,8 nF 13,1 nF 15 Nf 1 R 3,3 R 3,3 R 052692
051798-
01
820 nF 150 K 27 K 0,47 R
28" GOLDST AR W66QBD240X1 1 140 V 1.5 Nf 13,1 nF 18 nF 2,2 R 3,3 R 1,5 R 051605
051798-
01
820 nF 150 K 33 K 0,47 R
28" PHILIPS W66ECK001X13 138 V 1.8 nF 12 nF 15 Nf 2,7 R 3,3 R 3,3 R 051605
051798-
01
750 Nf 150 K 27 K 0,47 R
28" VIDEOCOLORW66EJY01 1X101 140 V 1 nF 13,1 nF 15 Nf 1,2 R 3,3 R 2,2 R 052692
051798-
01
820 nF 150 K 33 K 0,47 R
28" SAMSUNG W66QDE893X286 125 V 1,5 nF 13,1 nF 18 nF 0,47 R 2,7 R 3,3 R 061605
051814
1 uF 1 15 K 15 K Shor t
28" SAMSUNG W66QDE993X286 125 V 1,5 nF 13,1 nF 18 nF 0,47 R 2,7 R 3,3 R 061605
051814
1 uF 1 15 K 15 K Shor t
29" VIDEOCOLORA68EGD038X30 125 V 1,8 nF 13,1 nF 22 Nf 0,1 R 3,3 R 3,3 R 051605
051813
1,5 uF 1 15 K 15 K Shor t
29" VIDEOCOLORA68EGD049X30/70 125 V 1,8 nF 13,1 nF 22 Nf 0,1 R 3,3 R 3,3 R 051605
051813
1,5 uF 1 15 K 15 K Shor t
29" SAMSUNG A68QCP891X001/404/230 125 V 1 nF 13,1 nF 22 Nf 0,47 R 3,3 R 1,2 R 052692
051729
820 nF 1 15 K 15 K 0,47 R
32" VIDEOCOLORW76EGV023X015/315 133 V 1,5 nF 13,1 nF 15 Nf 0,1 R 3,3 R 3,3 R 052692
051798-
01
1 uF 150 K 22 K 0,47 R
32" P ANASONIC W76EKW10X21 138 V 330 pF 13,1 nF 15 Nf 1,5 R 3,9 R 3,3 R 052692
051798-
01
560 nF 150 K 27 K Shor t
32" P AN.(BUSH) W76EKW10X21 138 V 680 pF 13,1 nF 15 Nf 0,47 R 3,9 R 3,3 R 052692
051798-
01
560 nF 150 K 27 K Shor t
33" VIDEOCOLORA80EJA33x96/104 158 V 1,8 nF 1 1 nF 22 Nf 1,5 R 3,3 R 3,3 R 052692
051729
680 nF 150 K 15 K 0,47 R
33" VIDEOCOLORA80AEJ15x04/96 158 V 1,8 nF 1 1 nF 22 Nf 1,5 R 3,3 R 3,3 R 052692
051729
680 nF 150 K 15 K 0,47 R
33" VIDEOCOLORA80AEJ10x96 158 V 1,8 nF 1 1 nF 22 Nf 1,5 R 3,3 R 3,3 R 052692
051729
680 nF 150 K 15 K 0,47 R
057934/059934
058234-TR3/059234
057334/059334
057334/059334
057334/059334
058234-TR4/059834-TR1
057234-EL2/059834-TR1
058934-TR4/059934
058934-TR4/059934
058834-TR4/059934
058834-TR4/059934
058834/059834
058834/059834
058834/059834
058834/059834
058834/059834
058534-TR2/059534
058534-TR2/059534
058534-TR2/059534
058534-TR2/059534
058534-TR2/059534
058534-TR2/059534
058534-TR2/059534
FBT /SMT
14.2 CTV CHASSIS
AGC
1
TUNE
2
AS
3
SCL
4
SDA
5
NC
6
5V
7
ADC
8
33V
9
IFIN1
10
IFIN2
11
GND4 15
GND3 14
GND2 13
GND1 12
TU202
TUNER
1
2
3
4
5
F801
K3953M
C812
390pF
C813
10nF C811
10nF
C810
10nF
C820
22nF
C807
100pF
C804
100pF
C802
47pF
C801
47pF
R810
5K6
R809
100R
R808
100R
R801
100R
R802
100R
C803
4.7uF
R803
1K
L801
10uH
C805
100uF
C806
10nF
16V
16V
VIF1
1
VIF2
2
OP1
3
FMPLL
4
DEEM
5
AFD
6
DGND
7
AUD
8
SIF2 24
SIF1 23
OP2 22
AFC 21
Vp 20
VPLL 19
AGND 18
CVBS 17
TOP
9
SDA
10
SCL
11
SIOMAD
12 n.c. 13
TAGC 14
REF 15
VAGC 16
IC801
TDA9886
R804
3K9
R806
12K R805
33K
R812
75R
R807
680R
D801 1N4148
C809
1nF
C808
47uF
C819
22pF
Q801
4.43 MHz
C818
470nF
T801
BC848 C817
10uF
R813
220R
C815
220nF
C816
1.5nF
R811
330R
C814 10nF
XIN
1
XQ
2
HSP
3
VSP
4
SDA
5
SCL
6
VDD
7
VSS
8
CVBS1 28
VREFM 27
CVBS2 26
VREFL 25
CVBS3 24
VSSA1 23
VDDA1 22
VREFH 21
I2C
9
INT
10
IN1
11
IN2
12 OUT2 17
OUT1 18
VDDA2 19
VSSA2 20
IN3
13
FSW
14
OUT3 16
SEL 15
IC802
SDA9489X
Q802
20.25 MHz
C828
27pF
C829
27pF
R821
100R
R820
100R
C824
10uF
C825
10nF
16V
R819
4K7
R818
0R
R815
75R
R816
75R
R817
75R
R814
75R
C823
10nF
C822
10nF
C821
10nF
R823
100R
R822
100R
C827
100pF
C826
100pF
C830
220nF R824
75R
C832
10nF
C831
1uF
C835
10nF
C834
1uF
C833
220nF R825
75R
C836
220nF R826
75R
C838
10nF
C837
1uF
C842 10nF
C841
10uF
C840 10nF
C839
1uF L804
10uH
R855 1R
C843
100uF 16V
C844
100uF 16V
C845
100uF 16V
R827
10K
R828
10K
R842
75R
R829
10K
R830
1K
R834
220R
R832
220R
R831
10K
R833
10K
R840
220R
R841
1K
R835
10K
R836
220R
T802
BC848 T803
BC848 T804
BC848
R837
75R
R838
75R
R839
75R
T805
BC848
CVBSsc2/Y
CHROMA
CVBSsc2/Y
CHROMA
+33V
1
2
3
4
5
6
7
8
9X801
PIP_9
VSYNC
HSYNC
VSYNC
HSYNC
CVBS1_out
Rpip
Gpip
Bpip
CVBSsc1
Rsc1
Gsc1
Bsc1
FBLpip
FBLsc1
1
2
3
4
5
6
7
8
9
10
X802
PIP_10
SCL
SDA
SCL
SDA
T806
BC848B
C846
470nF
C848
47nF
R850
330R
R848
1K
R844
680R
R845
6K2
R849
1K
+5V
+5V
C849
470nF
R846
47K
R847
33K
R843
330R
C847
330pF
+5V +3.3V
+3.3V
+3.3V
+5V
+5V
+5V
R853
47K R854
47K
+5V
T808
BC848B
R852
330R
R851
1K
+5V
OUT
IN
ADJ
IC803 LM317
C850
47nF
C851
47nF
C852
33nF
R857
390R
R856
240R
L803
10uH
T807
BC858B
R859
0R
OPT
R860
47K
R861
47K
+5V
SCL
SDA
+5VTUNER
+33V
CVBSIN3
CVBSIN2
CVBSIN1
+5V
+3.3V
GND
CVBSINSC2
CHROMAIN
PIP MODUL (PICTURE IN PICTURE OPTIONAL)
