Dandere2x Installation and Usage (Windows)
thatweeblife
February 2019
What is Dandere2x?
Dandere2x implements some elementary compression functions, such as interpo-
lated frame compression as well as predictive frame compression to allow waifu2x
to upscale videos faster. While results may vary, it is consistently faster when
upscaling most1anime videos.
1 System Requirements
1. CUDNN compatible graphics card (i.e Nvidia)
2 Pre-Recs
2.1 Java
You will need java for this to run. One can test java is properly installed by typ-
ing into the command prompt,‘java -version’ to ensure Java is properly running.
https://www.wikihow.com/Install-the-Java-Software-Development-Kit
If Java is not working, the program will not run.
2.2 Waifu2x-Caffe
You will need Waifu2x-Caffe with the CUDNN DLL working as well.
You can download this here
Waifu2xCaffe https://github.com/lltcggie/waifu2x-caffe/releases/
download/1.2.0.1/waifu2x-caffe.zip
1High movement frames can be slower when using Dandere2x, however, most of the time
not.
1
Cudnn https://developer.nvidia.com/rdp/form/cudnn-download-survey
Found in the bin folder of the CUDNN download, place the cudnn64_7.dll
into your waifu2x-cafe folder. You can verify your waifu2x-Caffe is working
properly by pressing the ”check cudnn” button within waifu2x-caffe.exe ex-
ecutable.

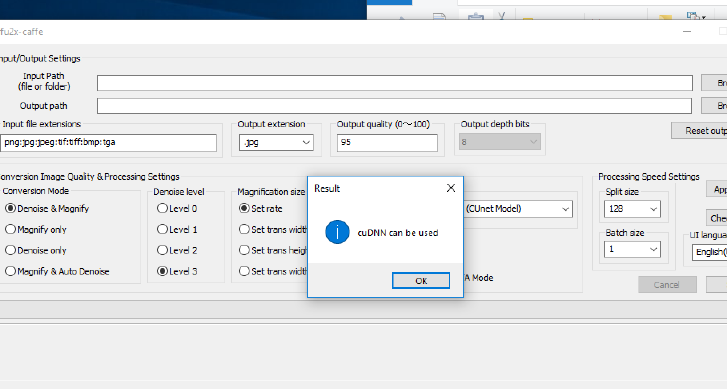

Figure: CUDNN working properly within waifu2x-Caffe.exe.
2.3 Dandere2x
Download Dandere2x and extract it somewhere.
https://github.com/CardinalPanda/dandere2x/releases
3 Pre-Setup
Open the folder you extracted dandere2x to. Inside there is a file named config.
txt, whose contents vaguely resemble the following
#waifu2xstuff
waifu2xCaffeCUIDir=C:\\Users\\windwoz\\Desktop\\AllInOne\\waifu2x
,→-caffe\\waifu2x-caffe-cui.exe
#file locations
workspace=C:\\Users\\windwoz\\Desktop\\yourname\\
fileDir=C:\\Video\\yn\\yn.mkv
2
frameRate=24
timeFrame=00:18:29
duration=00:02:00
audioLayer=0:1
dandere2xCppDir=danderecppmodule.exe
#customization
blockSize=30
tolerance=16
stepSize=8
noiseLevel=3
processType=cudnn
#ignore this if ur on windows
dandereDir=/home/linux/Documents/waifu2x/dandere.lua
Replace waifu2xCaffeCUIDir with the absolute path if your waifu2x-caffee.
cui.exe executable.
YOU MUST INCLUDE two \instead of instead just one \or the code
will not work.
Valid:
waifu2xCaffeCUIDir=C:\\Users\\windwoz\\Desktop\\AllInOne\\waifu2x
,→-caffe\\waifu2x-caffe-cui.exe
Invalid:
waifu2xCaffeCUIDir=C:\Users\windwoz\Desktop\AllInOne\waifu2x-
,→caffe\waifu2x-caffe-cui.exe
4 Upscaling Video
Let us isolate the parts required to upscale a video
#waifu2xstuff
#file locations
workspace=C:\\Users\\windwoz\\Desktop\\yourname\\
fileDir=C:\\Video\\yn\\yn.mkv
frameRate=24
timeFrame=00:18:29
duration=00:02:00
audioLayer=0:1
dandere2xCppDir=danderecppmodule.exe
3
Create a folder somewhere which will act as your workspace. Remember to
include two
as well. Replace ‘fileDir’ with wherever your file is located. Framerate can be
assumed to be 24, although videos may vary.
Timeframe and duration are intuitive.
When ready, double click run.bat. Doing so will start the scripts necessary
for Dandere2x to upscale the video.
5 Runtime
Many processes open up after pressing run.bat, each performing various ac-
tions. You may monitor the progress, or click log.txt inside of the workspace
folder to see what Dandere2x is doing. At the moment the commands are un-
developed.

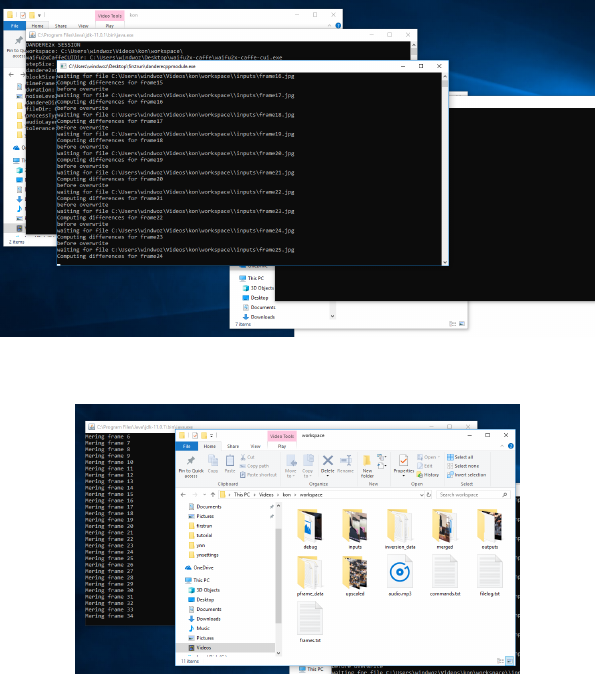

Figure: An example of what Dandere2x looks like when it is running.
Figure: This picture shows what a workspace should look like.
4
There are various folders inside of the workspace folder. The most important
is the ‘merged’ folder, as it is the final result. Keep an I on this folder - if it
stops upscaling but should be upscaling, Dandere2x may have crashed or had
an error. I would recommend clearing the workspace or starting a new session.
This is a known glitch on windows. To fix it, close all the windows, delete
the contents of the workplace folder, then run run.bat again. The origin of this
bug is unknown.
6 Post Runtime
If Dandere2x successfully upscaled all the frames, check the commands.txt file.
Inside, there are commands to merge your frames into an mp4 video. I do not
recommend opening this file with notepad, WordPad or Atom or any other text
editor would be better.
5
