DONG GUAN BINSHI ELECTRONIC TECHNOLOGY 008 Bluethooth Adapter User Manual

Dongguan Binshi Electronic Technology Co., Ltd Bluethooth Adapter Users Manual

User Manual

1.1 （PRODUCT OVERVIEWAL） BTA007 is a Bluetooth adapter (Bluetooth receiver &transmitter two-in-one device), which supports receivingmode and transmitting mode. In receiving mode, you canchange the Bluetooth adapter into a Bluetooth speaker or a Bluetooth earphone by connecting it with a speaker or a wired earphone via AUX port. In transmitting mode, you can send the audio program of your cellphone, computer and TV to other Bluetooth player by wireless connecting. It supports the devices with 3.5mm earphone plug 1.2（PREPARATION BEFORE USE） AL MBCDEFGHIJK1.3（RODUCT PICTURE AND FUNCTION DEFINITION） (AUX) and audio fiber optic interface (SPDIF). A:Audio interface choice is 3.5mm earphone port. B:Audio interface choice is fiber optic port.C:power supply button (multi-functional button) D: Mode choice transmitting modeE: Mode choice is receiving modeF: Reset buttonG: 3.5mm audio input portH: Audio fiber optic input port I: Audio fiber optic output portJ:3.5mm audio output portK: Charging portL:Volume - (short press)/ last song (long press) K: Volume + (short press)/ next song (long press) When you are ready to use BTA007, you need to prepare fully charged BTA007, Walkman，cellphone, TV or computer which supports 3.5mm audio output interface or audio fiber optic port(SPDIF)BTA007 BLUETOOTH ADAPTER
1.4（RODUCT PICTURE AND FUNCTION DEFINITION） Bluetooth version V4.1，C lass IICSR 8670The Bluetooth chipMulti-points supportedAPTX use tipsDimensionsSupport RX and TX mode. In TX mode, you can send your audio program to two Bluetooth devices simultaneously.One-connection, it will connect APTX(based on your earphone and speaker support APTX too), two connections, it change to the SBC CODEC automatically.Frequency range 2.402G H z-2.480G H zAbout 12 hoursAbout 13 hoursAbout 2 hoursWorking time (RX mode)Working time (TX mode)Charging timeBluetooth protocol A2DP, AVRCPCODEC SBC ,APTX,APTX-LLBattery capacity 250m Ah rechargeable lithium battery.Charging supply5VD C ,100-240V AC adapter,≥300MAWorking temperature -10-55℃72*60*16m m2.1（PRODUCTS INSTRUCTIONS） 2.1（PRODUCTS INSTRUCTIONS） 1、Power OnWhen it is off, long press the “MFB button” for two seconds and the blue light blinks.2、Power OffLong press "MFB" for three seconds until red light is off after flashes twice.3、Mode changePress the button to the TX to enter TX modePress the button to the RX to enter RX mode4、Pairing modeIt can enter into the pairing mode if you double click the “MFB” after you turn it on. It can enter into the pairing mode automatically after it is power on for the first use. It can pair the devices which have been connected before automatically after it is power on. If it cannot find the devices connected before within eight seconds, it will enter into the pairing mode automatically. Several seconds (the more devices connected before, the longer it needs and every device need about eight seconds)

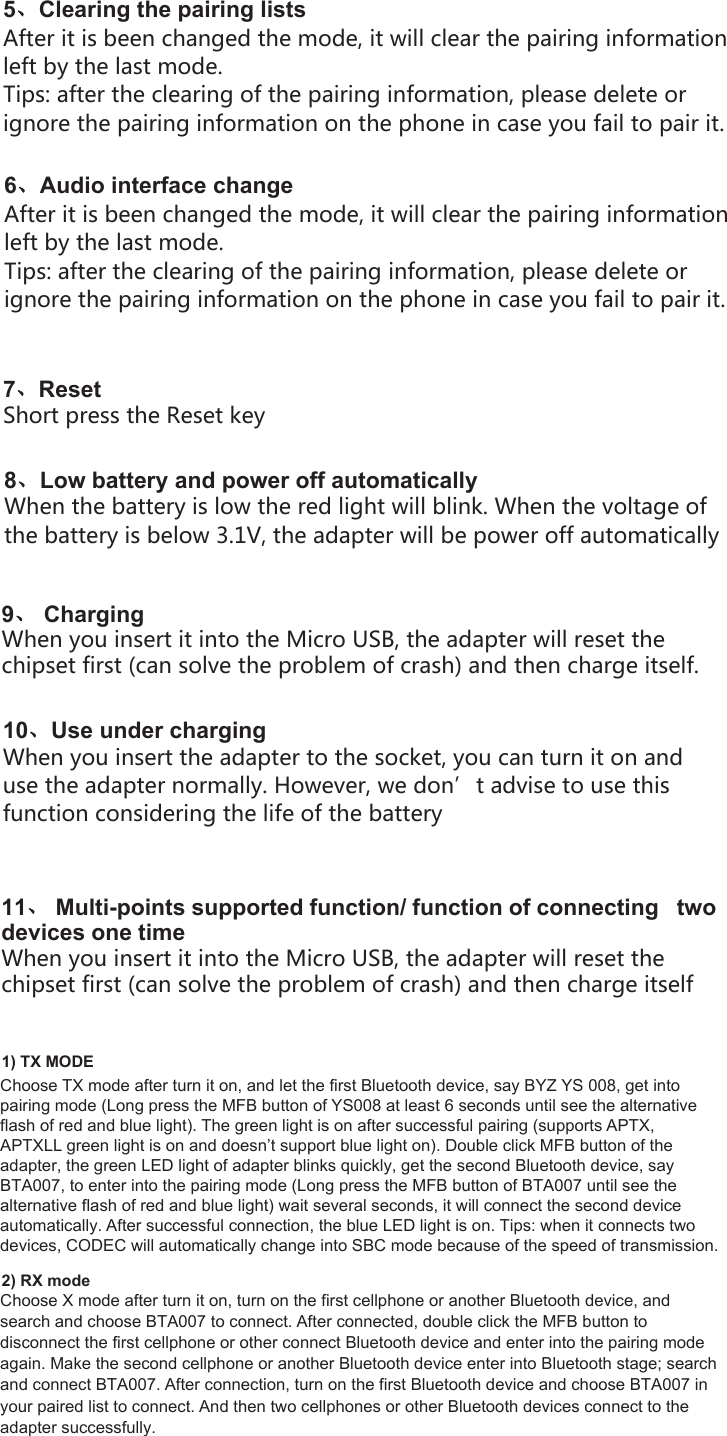

5、Clearing the pairing lists After it is been changed the mode, it will clear the pairing information left by the last mode.Tips: after the clearing of the pairing information, please delete or ignore the pairing information on the phone in case you fail to pair it.6、Audio interface changeAfter it is been changed the mode, it will clear the pairing information left by the last mode.Tips: after the clearing of the pairing information, please delete or ignore the pairing information on the phone in case you fail to pair it.7、ResetShort press the Reset key8、Low battery and power off automaticallyWhen the battery is low the red light will blink. When the voltage of the battery is below 3.1V, the adapter will be power off automatically9、 ChargingWhen you insert it into the Micro USB, the adapter will reset the chipset first (can solve the problem of crash) and then charge itself.10、Use under chargingWhen you insert the adapter to the socket, you can turn it on and use the adapter normally. However, we don’t advise to use this function considering the life of the battery1) TX MODEChoose TX mode after turn it on, and let the first Bluetooth device, say BYZ YS 008, get into pairing mode (Long press the MFB button of YS008 at least 6 seconds until see the alternative flash of red and blue light). The green light is on after successful pairing (supports APTX, APTXLL green light is on and doesn’t support blue light on). Double click MFB button of the adapter, the green LED light of adapter blinks quickly, get the second Bluetooth device, say BTA007, to enter into the pairing mode (Long press the MFB button of BTA007 until see the alternative flash of red and blue light) wait several seconds, it will connect the second device automatically. After successful connection, the blue LED light is on. Tips: when it connects two devices, CODEC will automatically change into SBC mode because of the speed of transmission.2) RX modeChoose X mode after turn it on, turn on the first cellphone or another Bluetooth device, andsearch and choose BTA007 to connect. After connected, double click the MFB button todisconnect the first cellphone or other connect Bluetooth device and enter into the pairing modeagain. Make the second cellphone or another Bluetooth device enter into Bluetooth stage; searchand connect BTA007. After connection, turn on the first Bluetooth device and choose BTA007 inyour paired list to connect. And then two cellphones or other Bluetooth devices connect to theadapter successfully.711、 Multi-points supported function/ function of connecting two devices one timeWhen you insert it into the Micro USB, the adapter will reset the chipset first (can solve the problem of crash) and then charge itself

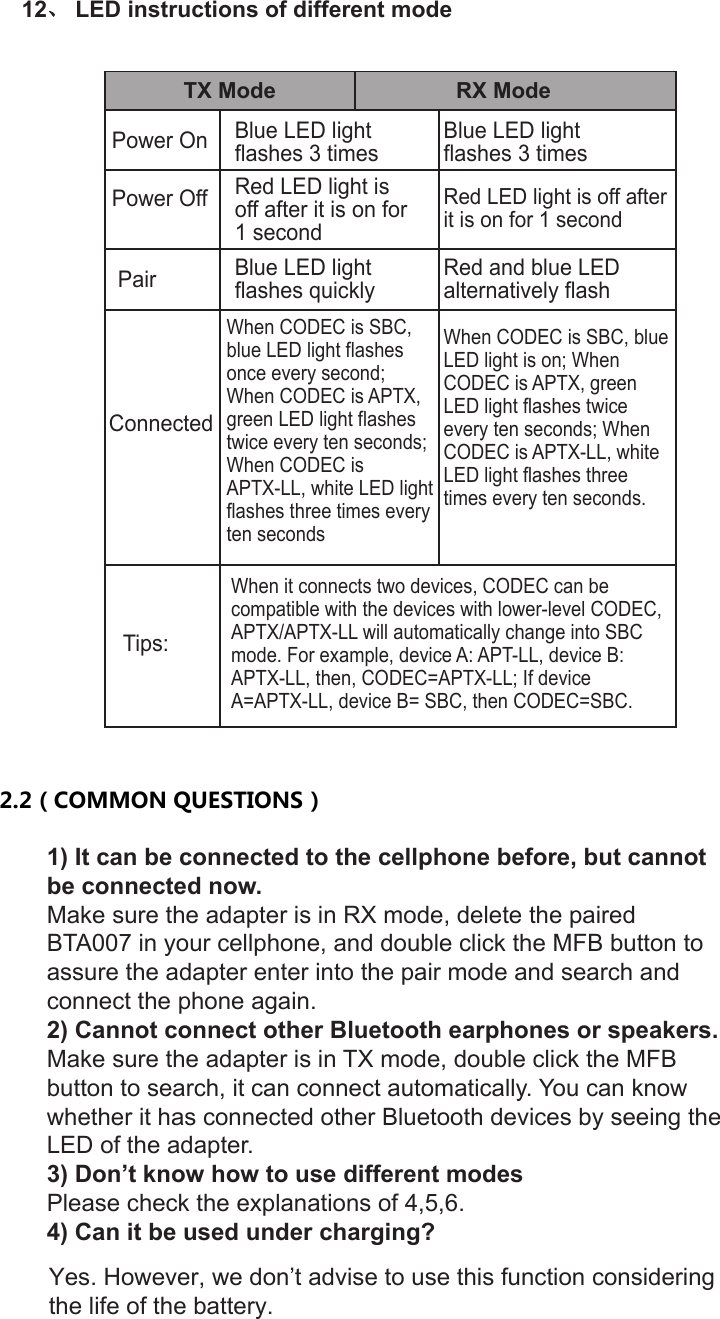

12、 LED instructions of different modeTX ModePower On Blue LED light flashes 3 timesRed LED light is off after it is on for 1 secondBlue LED light flashes quicklyRed and blue LED alternatively flashRed LED light is off after it is on for 1 secondBlue LED light flashes 3 timesPower OffPairConnectedTips:RX ModeWhen CODEC is SBC, blue LED light flashes once every second; When CODEC is APTX, green LED light flashes twice every ten seconds; When CODEC is APTX-LL, white LED light flashes three times every ten secondsWhen it connects two devices, CODEC can be compatible with the devices with lower-level CODEC, APTX/APTX-LL will automatically change into SBC mode. For example, device A: APT-LL, device B: APTX-LL, then, CODEC=APTX-LL; If device A=APTX-LL, device B= SBC, then CODEC=SBC.When CODEC is SBC, blue LED light is on; When CODEC is APTX, green LED light flashes twice every ten seconds; When CODEC is APTX-LL, white LED light flashes three times every ten seconds.Yes. However, we don’t advise to use this function considering the life of the battery.1) It can be connected to the cellphone before, but cannotbe connected now.Make sure the adapter is in RX mode, delete the pairedBTA007 in your cellphone, and double click the MFB button toassure the adapter enter into the pair mode and search andconnect the phone again.2) Cannot connect other Bluetooth earphones or speakers.Make sure the adapter is in TX mode, double click the MFBbutton to search, it can connect automatically. You can knowwhether it has connected other Bluetooth devices by seeing theLED of the adapter.3) Don’t know how to use different modesPlease check the explanations of 4,5,6.4) Can it be used under charging?2.2（COMMON QUESTIONS）

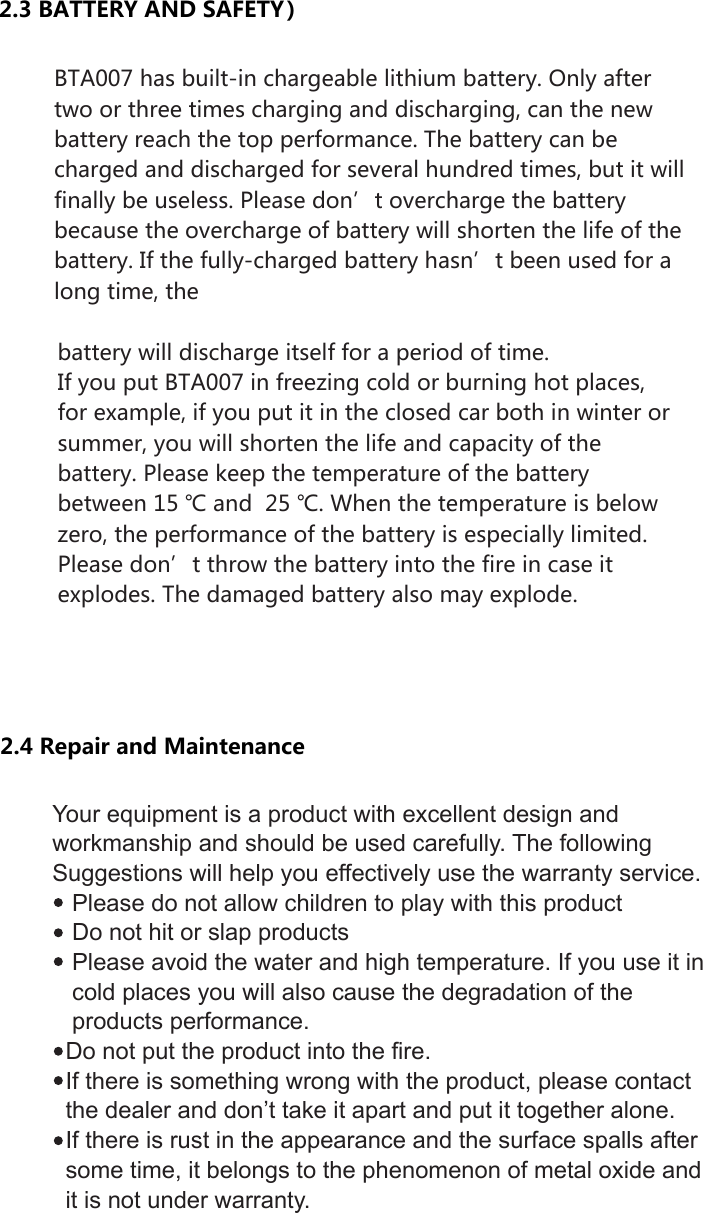

2.3 BATTERY AND SAFETY） BTA007 has built-in chargeable lithium battery. Only after two or three times charging and discharging, can the new battery reach the top performance. The battery can be charged and discharged for several hundred times, but it will finally be useless. Please don’t overcharge the battery because the overcharge of battery will shorten the life of the battery. If the fully-charged battery hasn’t been used for a long time, the9battery will discharge itself for a period of time. If you put BTA007 in freezing cold or burning hot places, for example, if you put it in the closed car both in winter or summer, you will shorten the life and capacity of the battery. Please keep the temperature of the battery between 15 ℃ and 25 ℃. When the temperature is below zero, the performance of the battery is especially limited. Please don’t throw the battery into the fire in case it explodes. The damaged battery also may explode.Your equipment is a product with excellent design and workmanship and should be used carefully. The following Suggestions will help you effectively use the warranty service. Please do not allow children to play with this product Do not hit or slap products Please avoid the water and high temperature. If you use it in cold places you will also cause the degradation of the products performance. Do not put the product into the fire. If there is something wrong with the product, please contact the dealer and don’t take it apart and put it together alone. If there is rust in the appearance and the surface spalls after some time, it belongs to the phenomenon of metal oxide and it is not under warranty.2.4 Repair and Maintenance

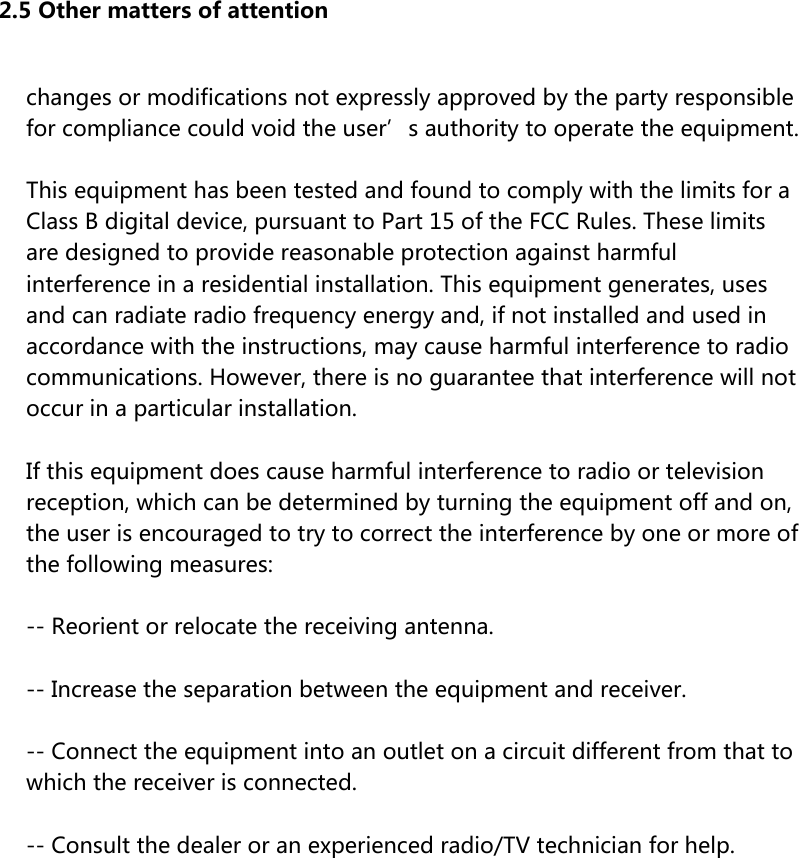

2.5 Other matters of attention changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.
