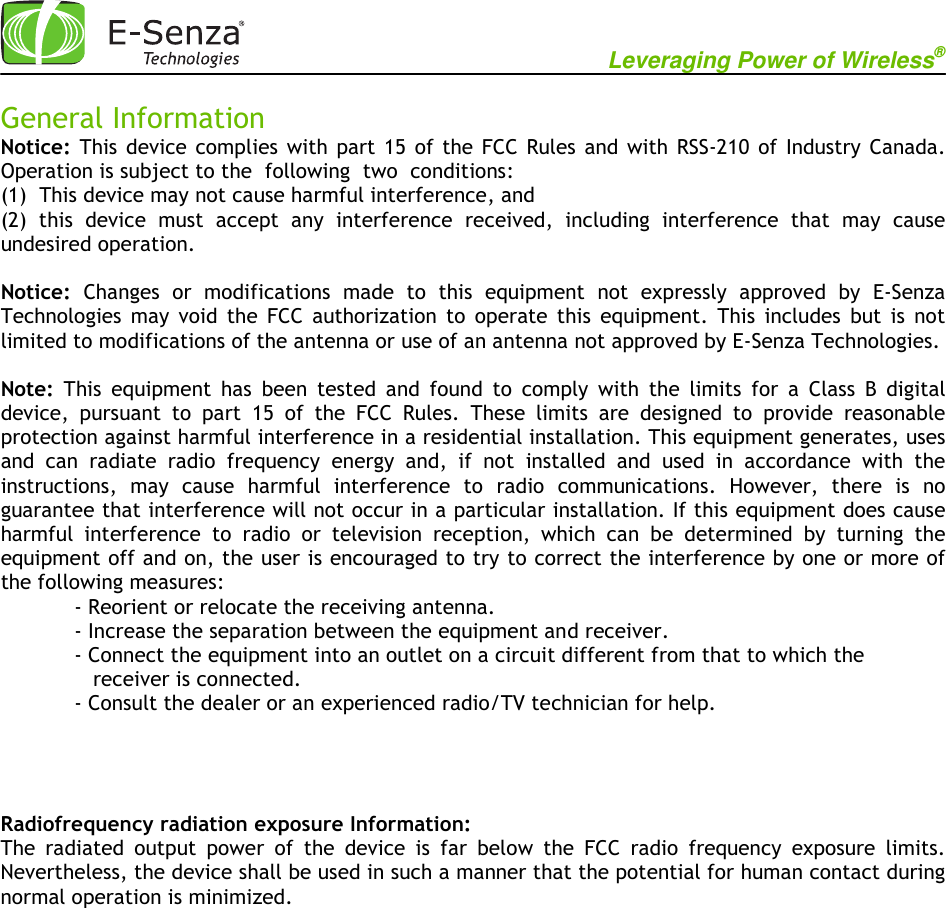

                                                          Leveraging Power of Wireless®             General Information Notice:  This  device  complies  with  part 15  of the FCC  Rules  and  with  RSS-210  of Industry  Canada. Operation is subject to the  following  two  conditions: (1)  This device may not cause harmful interference, and (2)  this  device  must  accept  any  interference  received,  including  interference  that  may  cause undesired operation.  Notice:  Changes  or  modifications  made  to  this  equipment  not  expressly  approved  by  E-Senza Technologies  may  void  the  FCC  authorization  to  operate  this  equipment.  This  includes  but  is  not limited to modifications of the antenna or use of an antenna not approved by E-Senza Technologies.  Note:  This  equipment  has  been  tested  and  found  to  comply  with  the  limits  for  a  Class  B  digital device,  pursuant  to  part  15  of  the  FCC  Rules.  These  limits  are  designed  to  provide  reasonable protection against harmful interference in a residential installation. This equipment generates, uses and  can  radiate  radio  frequency  energy  and,  if  not  installed  and  used  in  accordance  with  the instructions,  may  cause  harmful  interference  to  radio  communications.  However,  there  is  no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful  interference  to  radio  or  television  reception,  which  can  be  determined  by  turning  the   equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:   - Reorient or relocate the receiving antenna.   - Increase the separation between the equipment and receiver.   - Connect the equipment into an outlet on a circuit different from that to which the       receiver is connected.   - Consult the dealer or an experienced radio/TV technician for help.    Radiofrequency radiation exposure Information: The  radiated  output  power  of  the  device  is  far  below  the  FCC  radio  frequency  exposure  limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized.

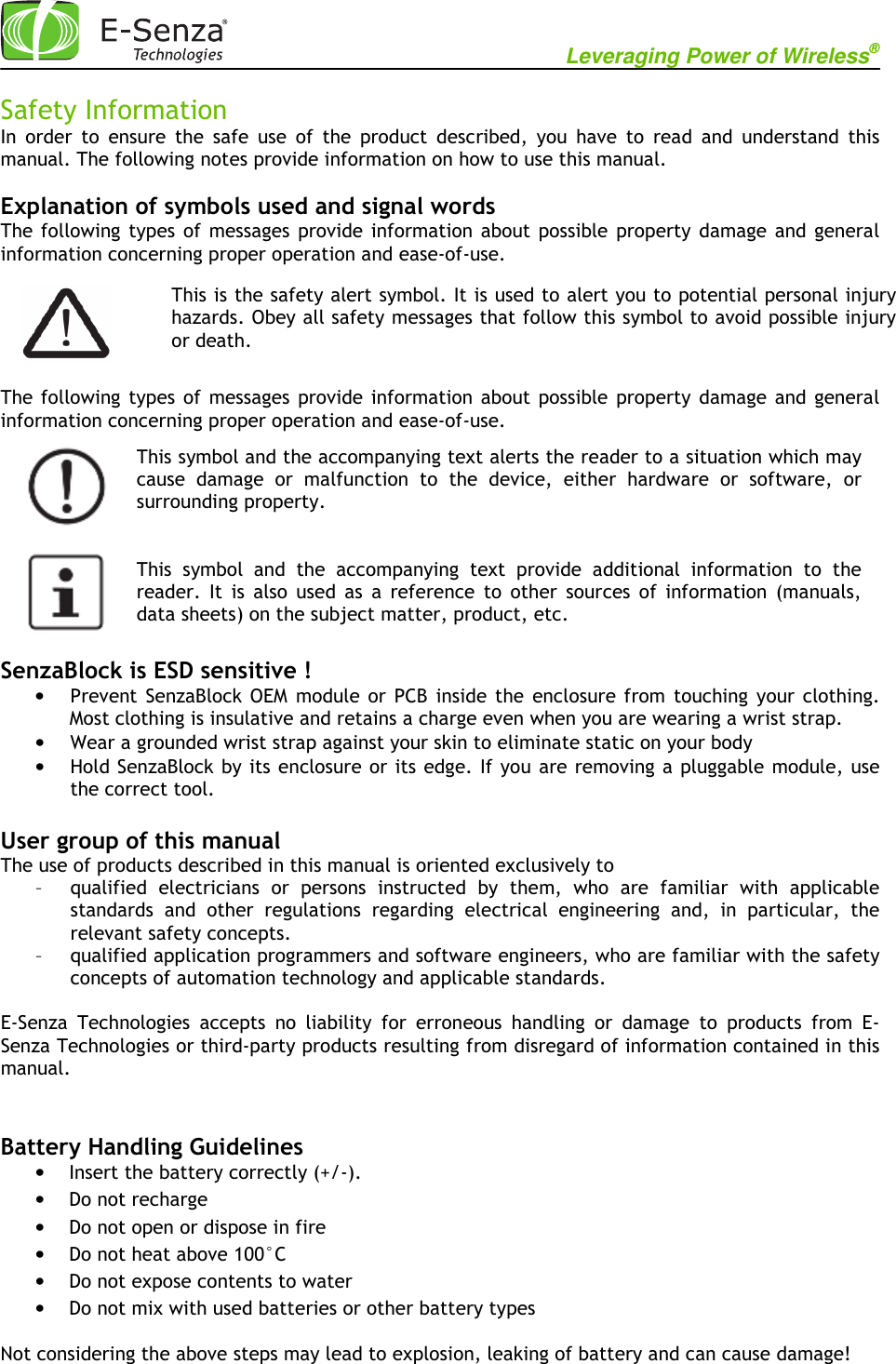

                                                          Leveraging Power of Wireless®             Safety Information In  order  to  ensure  the  safe  use  of  the  product  described,  you  have  to  read  and  understand  this manual. The following notes provide information on how to use this manual.  Explanation of symbols used and signal words The following  types  of  messages  provide  information  about  possible  property  damage  and  general information concerning proper operation and ease-of-use.    The following  types  of  messages  provide  information  about  possible  property  damage  and  general information concerning proper operation and ease-of-use.       SenzaBlock is ESD sensitive ! • Prevent  SenzaBlock OEM  module or  PCB  inside  the  enclosure from  touching  your  clothing. Most clothing is insulative and retains a charge even when you are wearing a wrist strap.  • Wear a grounded wrist strap against your skin to eliminate static on your body • Hold SenzaBlock by its enclosure or its edge. If you are removing a pluggable module, use the correct tool.  User group of this manual The use of products described in this manual is oriented exclusively to – qualified  electricians  or  persons  instructed  by  them,  who  are  familiar  with  applicable standards  and  other  regulations  regarding  electrical  engineering  and,  in  particular,  the relevant safety concepts. – qualified application programmers and software engineers, who are familiar with the safety concepts of automation technology and applicable standards.  E-Senza  Technologies  accepts  no  liability  for  erroneous  handling  or  damage  to  products  from  E-Senza Technologies or third-party products resulting from disregard of information contained in this manual.   Battery Handling Guidelines • Insert the battery correctly (+/-). • Do not recharge • Do not open or dispose in fire • Do not heat above 100°C • Do not expose contents to water • Do not mix with used batteries or other battery types Not considering the above steps may lead to explosion, leaking of battery and can cause damage!   This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.  This symbol and the accompanying text alerts the reader to a situation which may cause  damage  or  malfunction  to  the  device,  either  hardware  or  software,  or surrounding property.   This  symbol  and  the  accompanying  text  provide  additional  information  to  the reader.  It  is  also  used  as  a  reference  to  other  sources  of  information  (manuals, data sheets) on the subject matter, product, etc.

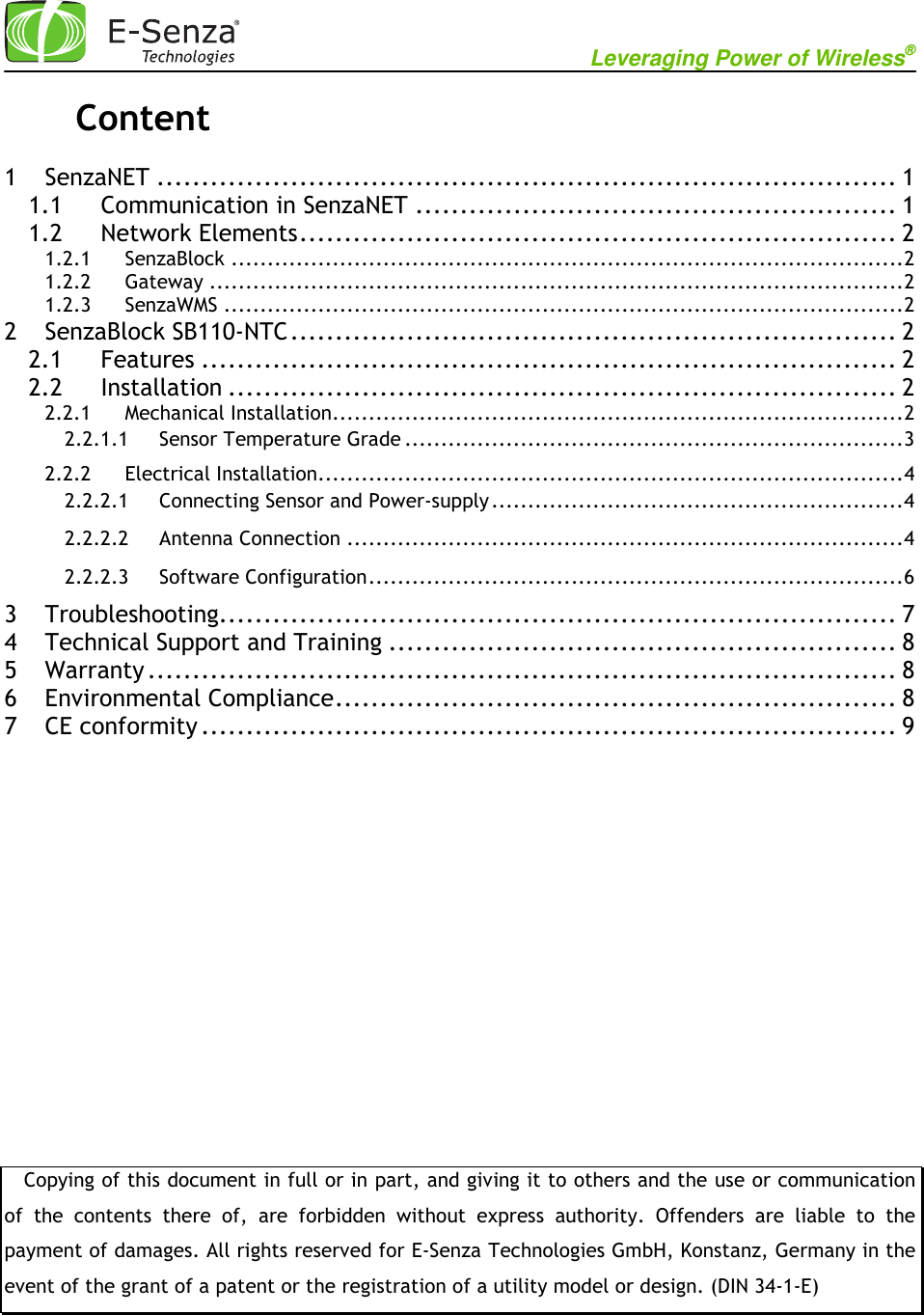

                                                          Leveraging Power of Wireless®             Content  1 SenzaNET ................................................................................... 1 1.1 Communication in SenzaNET ...................................................... 1 1.2 Network Elements ................................................................... 2 1.2.1 SenzaBlock ............................................................................................. 2 1.2.2 Gateway ................................................................................................ 2 1.2.3 SenzaWMS .............................................................................................. 2 2 SenzaBlock SB110-NTC .................................................................... 2 2.1 Features .............................................................................. 2 2.2 Installation ........................................................................... 2 2.2.1 Mechanical Installation............................................................................... 2 2.2.1.1 Sensor Temperature Grade ..................................................................... 3 2.2.2 Electrical Installation................................................................................. 4 2.2.2.1 Connecting Sensor and Power-supply ......................................................... 4 2.2.2.2 Antenna Connection ............................................................................. 4 2.2.2.3 Software Configuration .......................................................................... 6 3 Troubleshooting ............................................................................ 7 4 Technical Support and Training ......................................................... 8 5 Warranty .................................................................................... 8 6 Environmental Compliance ............................................................... 8 7 CE conformity .............................................................................. 9                   Copying of this document in full or in part, and giving it to others and the use or communication of  the  contents  there  of,  are  forbidden  without  express  authority.  Offenders  are  liable  to  the payment of damages. All rights reserved for E-Senza Technologies GmbH, Konstanz, Germany in the event of the grant of a patent or the registration of a utility model or design. (DIN 34-1-E)

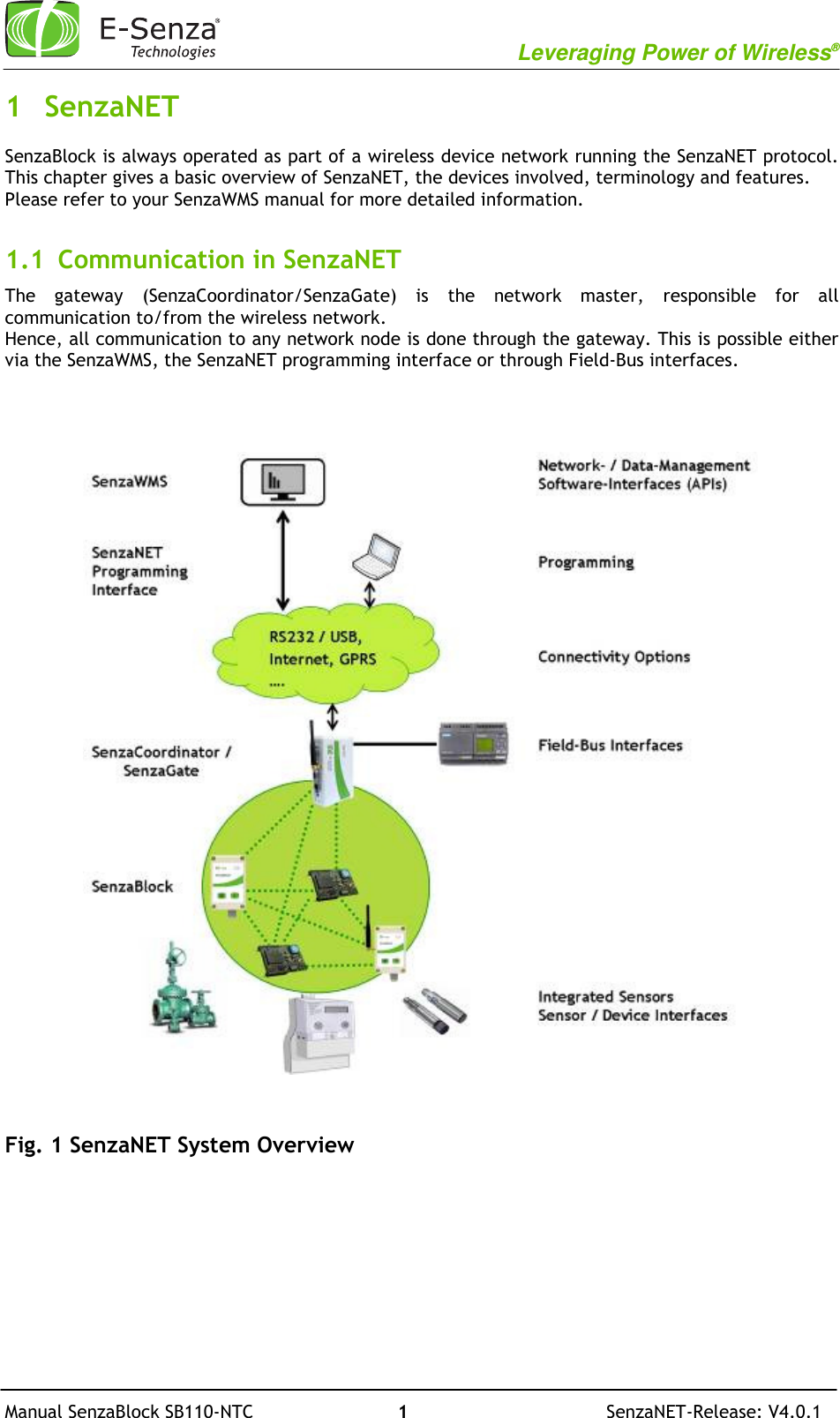

     Leveraging Power of Wireless®       Manual SenzaBlock SB110-NTC                          1                                    SenzaNET-Release: V4.0.1 1 SenzaNET SenzaBlock is always operated as part of a wireless device network running the SenzaNET protocol. This chapter gives a basic overview of SenzaNET, the devices involved, terminology and features. Please refer to your SenzaWMS manual for more detailed information.  1.1 Communication in SenzaNET The  gateway  (SenzaCoordinator/SenzaGate)  is  the  network  master,  responsible  for  all communication to/from the wireless network. Hence, all communication to any network node is done through the gateway. This is possible either via the SenzaWMS, the SenzaNET programming interface or through Field-Bus interfaces.                                Fig. 1 SenzaNET System Overview
                                                          Leveraging Power of Wireless®              Manual SenzaBlock SB110-NTC                            2                                   SenzaNET-Release: V4.0.1 1.2 Network Elements 1.2.1 SenzaBlock SenzaBlock  represents  the  basic  component  of  SenzaNET.  SenzaBlock  has  mesh  networking capabilities and can interface with devices (e.g. sensors, actuators) at the same time.  SenzaBlocks  are  available  from  E-Senza  Technologies  in  different  variations  for  a  multitude  of applications. As adapter-devices or built-in modules, they enable  all kinds of sensor and actuator devices to be controlled wirelessly and exchange data through a self-organizing wireless mesh network with ultra-low power consumption.  1.2.2 Gateway SenzaNET  supports  integration  of  the  Wireless  Network  with  existing  systems  or  products  through the gateway. You always need a network master to communicate to or from the SenzaBlock. It can be a SenzaCoordinator or a SenzaGate. They not only support Network Layer functionality but also provide interfacing to upper layers.  The  gateways  are  available  for  a  multitude  of  industrial  interfaces:  Ethernet,  Serial,  Modbus, Profibus etc.  1.2.3 SenzaWMS SenzaWMS is  the software-suite accompanying SenzaNET. It  provides a very friendly user-interface for a comfortable administration of the wireless network and monitoring of each individual node. With  SenzaWMS,  multiple  networks  can  be  managed  in  parallel,  networked  devices  can  be  re-configured, alarm messaging and data acquisition are automated. Comprehensive software-APIs and data-export options allow seamless integration into existing IT-infrastructures.    2 SenzaBlock SB110-NTC SenzaBlocks of the SB1x0 product family are integrated measurement transducers and wireless data transmitters.  They  provide  interfaces  to  standard  sensors  and  field  devices  allowing  them  to communicate wirelessly using SenzaNET.  2.1 Features SenzaBlock SB110-NTC is designed for Temperature measurements using a Thermistor sensor.   2.2 Installation 2.2.1 Mechanical Installation SenzaBlock’s  standard  enclosure  can  be  wall-mounted  using  two  screws  of  4  mm  diameter.  See photo and drawings below to locate the screw holes. After mounting SenzaBlock and completion of electrical  installation,  make  sure  the  cable  gland  is  properly  closed  and  the  front  cover  is  fixed firmly using its four screws.       Important: Check cable gland, front screws and proper sealing of enclosure to      ensure adequate closure !    If no cable is used out of the SenzaBlock, the cable gland will not close properly.       Therefore a blanking plug MUST be fitted into the Cable Gland to obtain                       ingress protection !

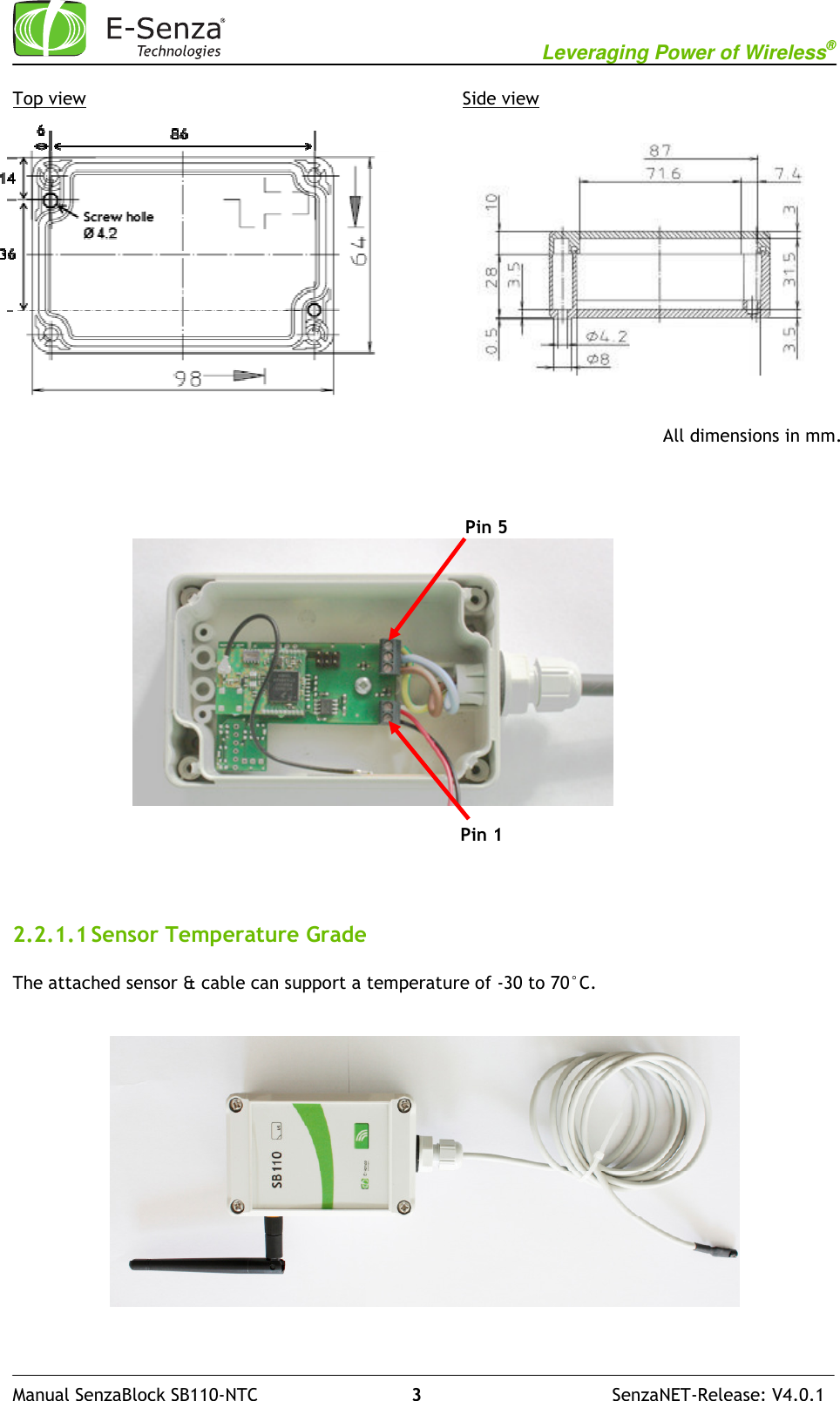

                                                          Leveraging Power of Wireless®              Manual SenzaBlock SB110-NTC                            3                                   SenzaNET-Release: V4.0.1 Top view      Side view                                  2.2.1.1 Sensor Temperature Grade  The attached sensor & cable can support a temperature of -30 to 70°C.       All dimensions in mm.  Pin 1 Pin 5
                                                          Leveraging Power of Wireless®              Manual SenzaBlock SB110-NTC                            4                                   SenzaNET-Release: V4.0.1 2.2.2 Electrical Installation 2.2.2.1 Connecting Sensor and Power-supply SB110-NTC  must  be  powered  with  2  x  1,5V  “AA”-type  batteries.  Battery  holder  and  sensor  are connected to SenzaBlocks pins as in table below. Sensor connection cables have to be lead through the enclosures cable glands before being connected.  Pin No Pin Name Pin Type Description Comments 1 GND GND Battery Ground  2  Batt_In Battery Input Battery  Supply  Positive (+3V). Battery  Voltage  must  not exceed 3V 3 Sensor - VCC Output VCC for Sensor Red strand of sensor cable 4  Data  Input  NTC Input Brown strand  of  sensor-cable 5  GND – Sensor  Output  GND for Sensor Black strand  of  sensor-cable                                                     Table 1 Connector Details       2.2.2.2 Antenna Connection 2.2.2.2.1 SB110-NTC OEM-module (order-code SB110-NTC-O)       2.2.2.2.2 SB110-NTC with IP54-enclosure (order-code SB110-NTC-E54)   SenzaBlock’s IP54-enclosure comes with a reverse-SMA antenna connector (“male”) and an applicable IP54  Antenna.  Just  plug  antenna  onto  connector and  turn  it  in  clockwise  direction  until  it  is  fixed tightly.  Loose  fixing  of  the  Antenna  might  affect RF-performance of SenzaBlock.       An  Antenna  cable  (not  included)  is connected  to  the  onboard  U.FL connector  located  on  radio  board. Avoid  mechanical  stress  to  the  cable connection, since RF-performance will be  affected  in  case  connector  is  not fixed properly.

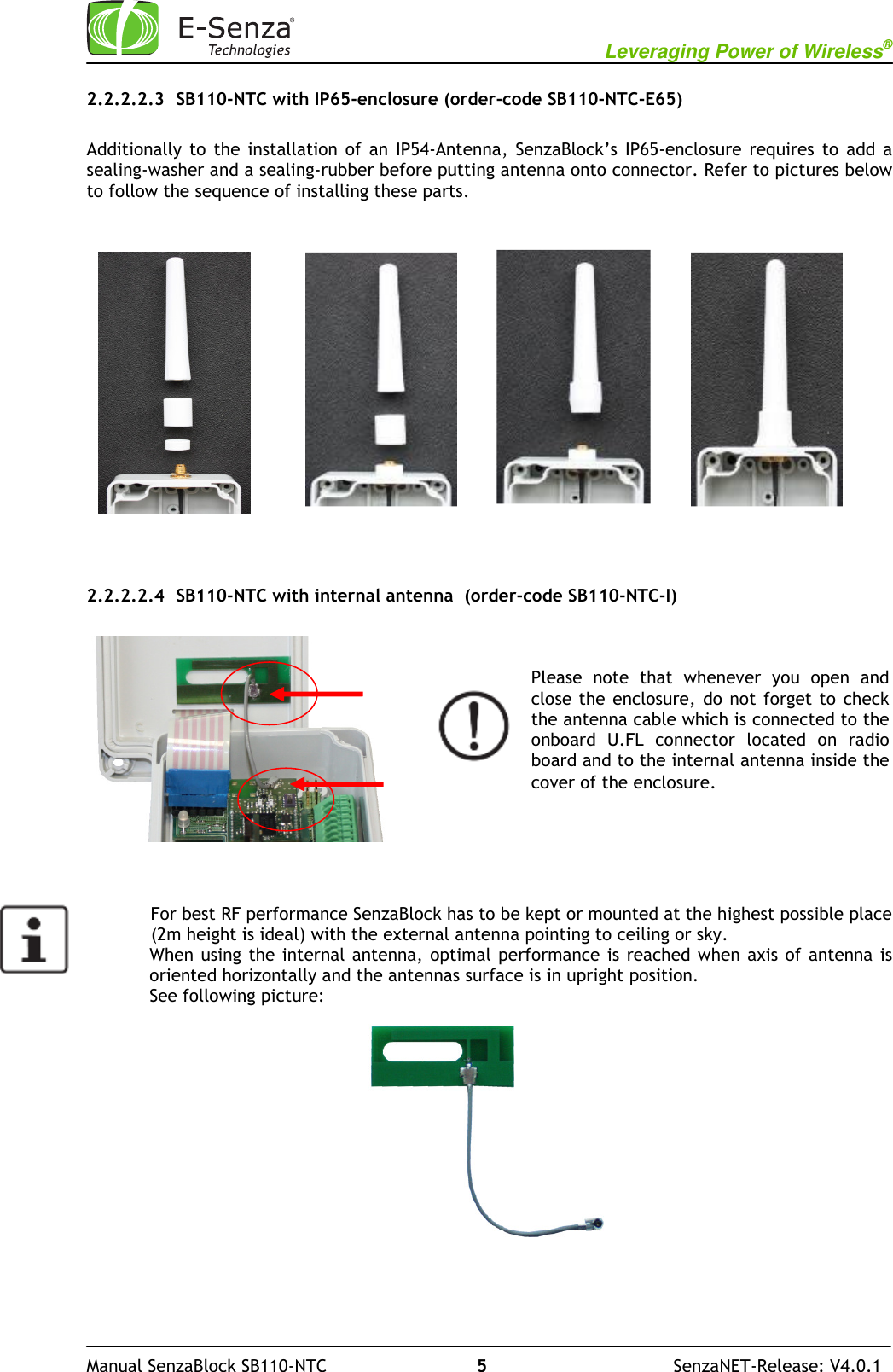

                                                          Leveraging Power of Wireless®              Manual SenzaBlock SB110-NTC                            5                                   SenzaNET-Release: V4.0.1 2.2.2.2.3 SB110-NTC with IP65-enclosure (order-code SB110-NTC-E65)  Additionally  to  the  installation  of  an  IP54-Antenna,  SenzaBlock’s  IP65-enclosure  requires  to  add  a sealing-washer and a sealing-rubber before putting antenna onto connector. Refer to pictures below to follow the sequence of installing these parts.                2.2.2.2.4 SB110-NTC with internal antenna  (order-code SB110-NTC-I)                   For best RF performance SenzaBlock has to be kept or mounted at the highest possible place             (2m height is ideal) with the external antenna pointing to ceiling or sky. When using  the internal antenna, optimal  performance  is reached  when  axis of antenna is oriented horizontally and the antennas surface is in upright position.  See following picture:                   Please  note  that  whenever  you  open  and close the enclosure,  do not  forget  to  check the antenna cable which is connected to the onboard  U.FL  connector  located  on  radio board and to the internal antenna inside the cover of the enclosure.

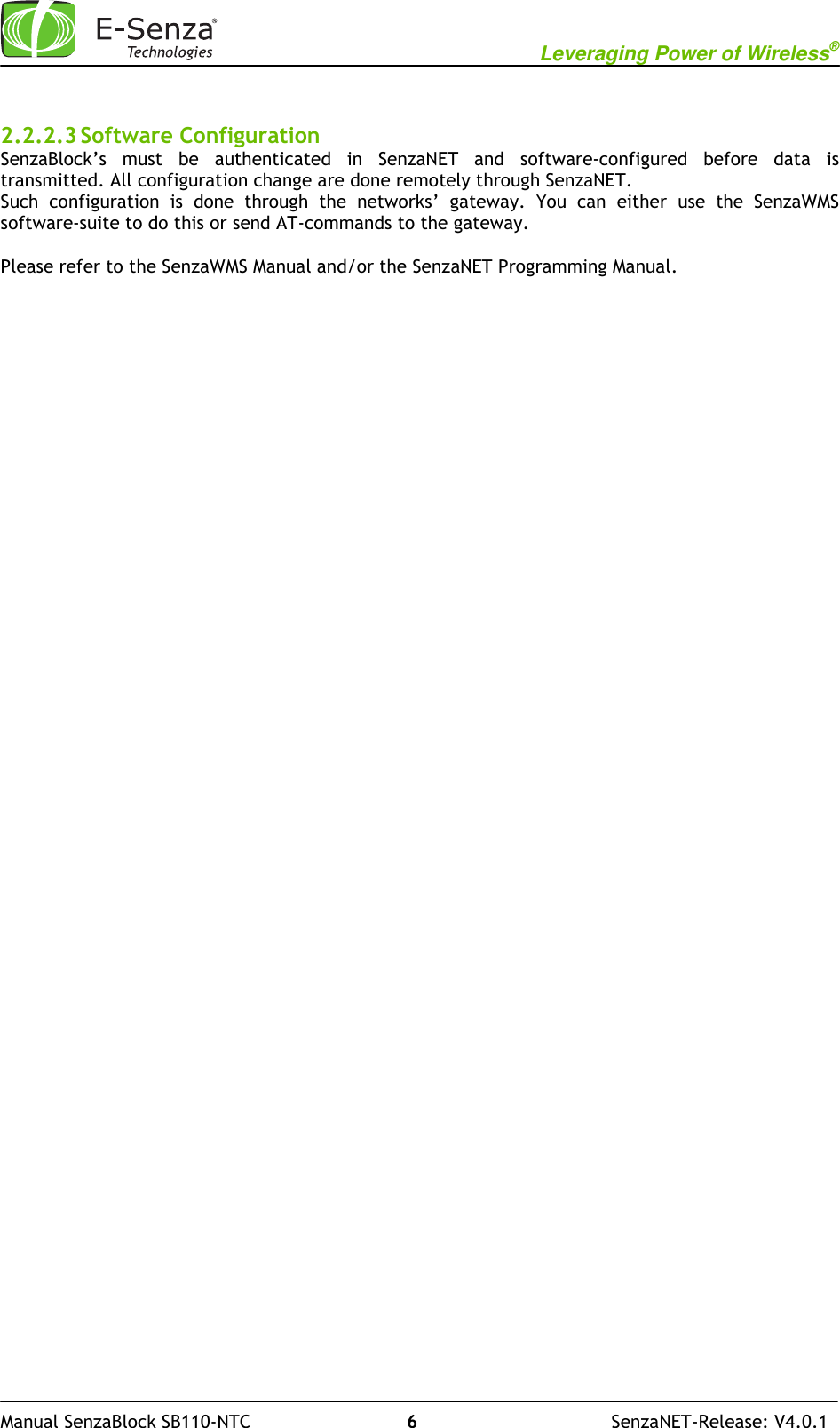

                                                          Leveraging Power of Wireless®              Manual SenzaBlock SB110-NTC                            6                                   SenzaNET-Release: V4.0.1  2.2.2.3 Software Configuration SenzaBlock’s  must  be  authenticated  in  SenzaNET  and  software-configured  before  data  is transmitted. All configuration change are done remotely through SenzaNET. Such  configuration  is  done  through  the  networks’  gateway.  You  can  either  use  the  SenzaWMS software-suite to do this or send AT-commands to the gateway.  Please refer to the SenzaWMS Manual and/or the SenzaNET Programming Manual.
                                                          Leveraging Power of Wireless®              Manual SenzaBlock SB110-NTC                            7                                   SenzaNET-Release: V4.0.1 3 Troubleshooting Problem Possible Reason Possible cause Remarks SenzaBlock not powered Low Battery Check Battery Voltage Nominal  battery  voltage is  3V,  minimal  battery voltage is 2,4V. In case of empty  battery  use Energizer  L91  1.5V  AA Batteries  for  best performance.  No  Connection  to SenzaBlock  or Reverse  Polarity or  Connections  at the Wrong Pins Check  connection  as  per Table 1 Connecting  the power supply  at  the  wrong  Pins can  damage  the SenzaBlock!!  Battery level dropping very fast SenzaBlock  not  in Network Check network connection SenzaBlock  will  consume battery faster, if it has to scan for the Network. See  Below  to  section SenzaBlock  not connecting  to Coordinator  No Sensor Value No  Sensor Connected Check  the  Sensor Connection as per Table 1    Wrong software-configuration Select  the  right  Sensor Type  for  the  SenzaBlock from  the  Edit  Window  in the  Status  Tab  of SenzaWMS  or  re-send  AT-Command (AT+1)   SenzaBlock not connecting to Coordinator Antenna Connection  not proper Check antenna connection   No  power  or  low Battery Voltage Check Battery   SenzaBlock  is denied  to  access the network. The  user  has  denied  the access  of  that  specific block  into  one  specific network (for one gateway) via  SenzaWMS  or  with  AT Commands.  Delete  SenzaBlock  from the network, then re-try

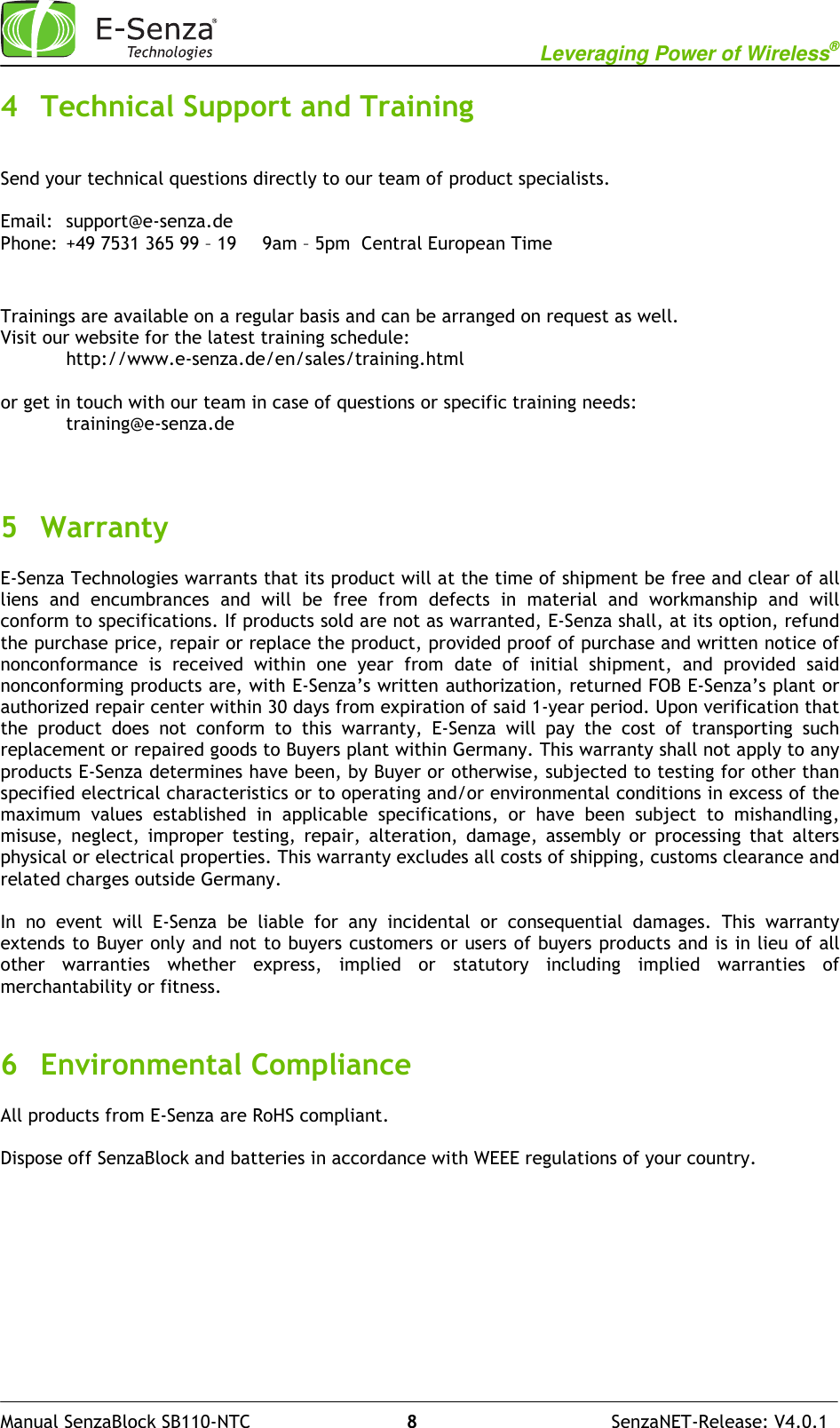

                                                          Leveraging Power of Wireless®              Manual SenzaBlock SB110-NTC                            8                                   SenzaNET-Release: V4.0.1 4 Technical Support and Training  Send your technical questions directly to our team of product specialists.  Email:  support@e-senza.de Phone:  +49 7531 365 99 – 19  9am – 5pm  Central European Time   Trainings are available on a regular basis and can be arranged on request as well. Visit our website for the latest training schedule: http://www.e-senza.de/en/sales/training.html  or get in touch with our team in case of questions or specific training needs:   training@e-senza.de    5 Warranty E-Senza Technologies warrants that its product will at the time of shipment be free and clear of all liens  and  encumbrances  and  will  be  free  from  defects  in  material  and  workmanship  and  will conform to specifications. If products sold are not as warranted, E-Senza shall, at its option, refund the purchase price, repair or replace the product, provided proof of purchase and written notice of nonconformance  is  received  within  one  year  from  date  of  initial  shipment,  and  provided  said nonconforming products are, with E-Senza’s written authorization, returned FOB E-Senza’s plant or authorized repair center within 30 days from expiration of said 1-year period. Upon verification that the  product  does  not  conform  to  this  warranty,  E-Senza  will  pay  the  cost  of  transporting  such replacement or repaired goods to Buyers plant within Germany. This warranty shall not apply to any products E-Senza determines have been, by Buyer or otherwise, subjected to testing for other than specified electrical characteristics or to operating and/or environmental conditions in excess of the maximum  values  established  in  applicable  specifications,  or  have  been  subject  to  mishandling, misuse,  neglect,  improper  testing,  repair,  alteration,  damage,  assembly  or  processing  that  alters physical or electrical properties. This warranty excludes all costs of shipping, customs clearance and related charges outside Germany.  In  no  event  will  E-Senza  be  liable  for  any  incidental  or  consequential  damages.  This  warranty extends to Buyer only and not to buyers customers or users of buyers products and is in lieu of all other  warranties  whether  express,  implied  or  statutory  including  implied  warranties  of merchantability or fitness.   6 Environmental Compliance All products from E-Senza are RoHS compliant.   Dispose off SenzaBlock and batteries in accordance with WEEE regulations of your country.
                                                          Leveraging Power of Wireless®              Manual SenzaBlock SB110-NTC                            9                                   SenzaNET-Release: V4.0.1 7 CE conformity SenzaBlock SB110-NTC is authorized for use in Europe.
