Elk ELK-6011 REMOTE CONTROL TRANSMITTER User Manual 6011 Single Button Keychain Remote pmd

ELK Products, Inc. REMOTE CONTROL TRANSMITTER 6011 Single Button Keychain Remote pmd

Users Manual

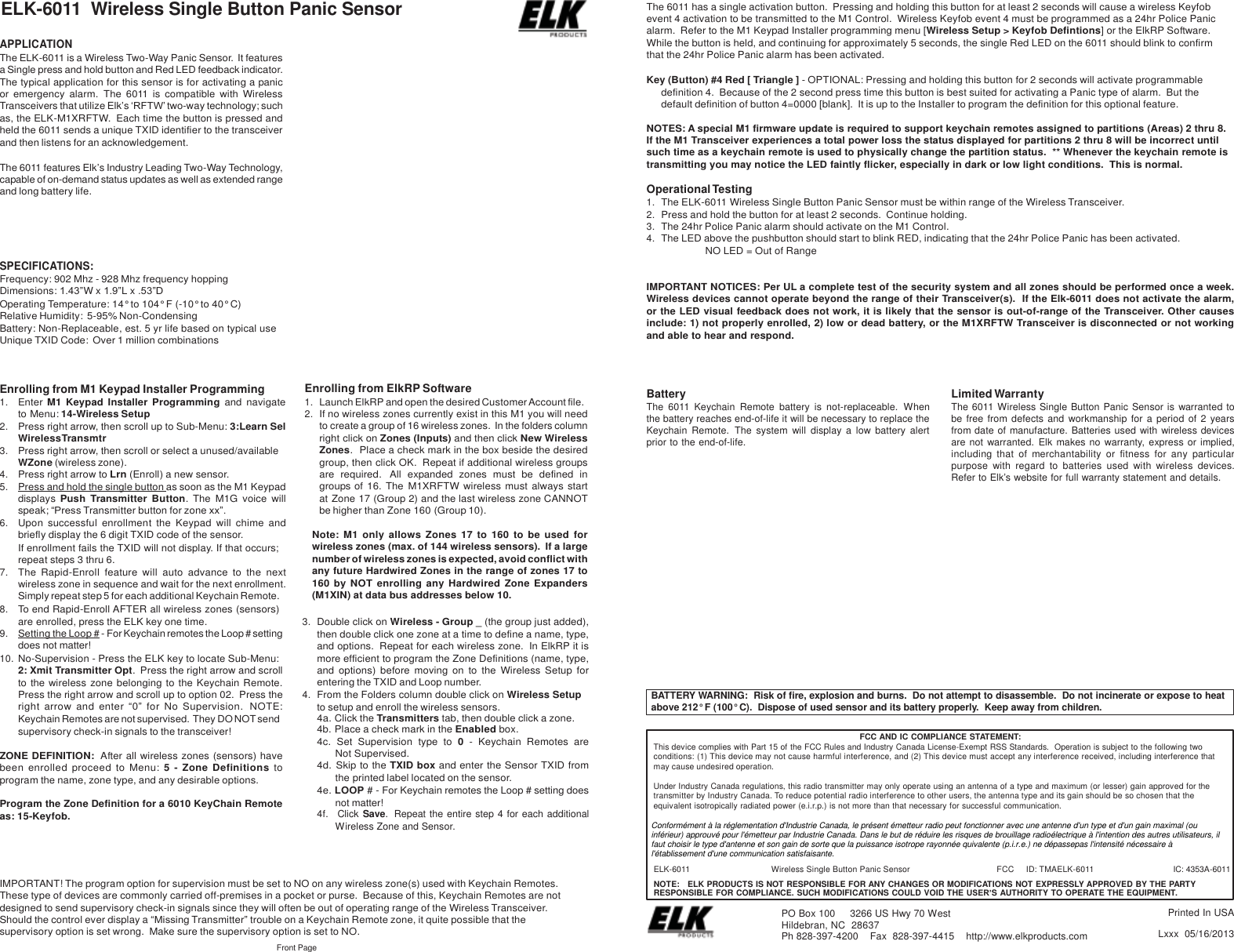

 ELK-6011  Wireless Single Button Panic Sensor  APPLICATION The ELK-6011 is a Wireless Two-Way Panic Sensor. It features a Single press and hold button and Red LED feedback indicator. The typical application for this sensor is for activating a panic or  emergency  alarm.  The 6011  is  compatible  with  Wireless Transceivers that utilize Elk’s ‘RFTW’ two-way technology; such as, the ELK-M1XRFTW.  Each time the button is pressed and held the 6011 sends a unique TXID identifier to the transceiver and then listens for an acknowledgement.  The 6011 features Elk’s Industry Leading Two-Way Technology, capable of on-demand status updates as well as extended range and long battery life.     SPECIFICATIONS: Frequency: 902 Mhz - 928 Mhz frequency hopping Dimensions: 1.43”W x 1.9”L x .53”D Operating Temperature: 14° to 104° F (-10° to 40° C) Relative Humidity: 5-95% Non-Condensing Battery: Non-Replaceable, est. 5 yr life based on typical use Unique TXID Code: Over 1 million combinations  The 6011 has a single activation button.  Pressing and holding this button for at least 2 seconds will cause a wireless Keyfob event 4 activation to be transmitted to the M1 Control.  Wireless Keyfob event 4 must be programmed as a 24hr Police Panic alarm.  Refer to the M1 Keypad Installer programming menu [Wireless Setup > Keyfob Defintions] or the ElkRP Software. While the button is held, and continuing for approximately 5 seconds, the single Red LED on the 6011 should blink to confirm that the 24hr Police Panic alarm has been activated.  Key (Button) #4 Red [ Triangle ] - OPTIONAL: Pressing and holding this button for 2 seconds will activate programmable definition 4.  Because of the 2 second press time this button is best suited for activating a Panic type of alarm.  But the default definition of button 4=0000 [blank].  It is up to the Installer to program the definition for this optional feature.  NOTES: A special M1 firmware update is required to support keychain remotes assigned to partitions (Areas) 2 thru 8. If the M1 Transceiver experiences a total power loss the status displayed for partitions 2 thru 8 will be incorrect until such time as a keychain remote is used to physically change the partition status.  ** Whenever the keychain remote is transmitting you may notice the LED faintly flicker, especially in dark or low light conditions.  This is normal.  Operational Testing 1. The ELK-6011 Wireless Single Button Panic Sensor must be within range of the Wireless Transceiver. 2. Press and hold the button for at least 2 seconds.  Continue holding. 3. The 24hr Police Panic alarm should activate on the M1 Control. 4. The LED above the pushbutton should start to blink RED, indicating that the 24hr Police Panic has been activated. NO LED = Out of Range   IMPORTANT NOTICES: Per UL a complete test of the security system and all zones should be performed once a week. Wireless devices cannot operate beyond the range of their Transceiver(s).  If the Elk-6011 does not activate the alarm, or the LED visual feedback does not work, it is likely that the sensor is out-of-range of the Transceiver. Other causes include: 1) not properly enrolled, 2) low or dead battery, or the M1XRFTW Transceiver is disconnected or not working and able to hear and respond.   Enrolling from M1 Keypad Installer Programming 1. Enter M1  Keypad  Installer  Programming and  navigate to Menu: 14-Wireless Setup 2. Press right arrow, then scroll up to Sub-Menu: 3:Learn Sel WirelessTransmtr 3. Press right arrow, then scroll or select a unused/available WZone (wireless zone). 4. Press right arrow to Lrn (Enroll) a new sensor. 5. Press and hold the single button as soon as the M1 Keypad displays Push  Transmitter  Button. The  M1G  voice  will speak; “Press Transmitter button for zone xx”. 6. Upon  successful  enrollment  the  Keypad  will  chime  and briefly display the 6 digit TXID code of the sensor. If enrollment fails the TXID will not display. If that occurs; repeat steps 3 thru 6. 7. The  Rapid-Enroll  feature  will  auto  advance  to  the  next wireless zone in sequence and wait for the next enrollment. Simply repeat step 5 for each additional Keychain Remote. 8. To end Rapid-Enroll AFTER all wireless zones (sensors) Enrolling from ElkRP Software 1. Launch ElkRP and open the desired Customer Account file. 2. If no wireless zones currently exist in this M1 you will need to create a group of 16 wireless zones. In the folders column right click on Zones (Inputs) and then click New Wireless Zones.  Place a check mark in the box beside the desired group, then click OK.  Repeat if additional wireless groups are  required. All  expanded  zones  must  be  defined  in groups of 16. The M1XRFTW wireless  must always start at Zone 17 (Group 2) and the last wireless zone CANNOT be higher than Zone 160 (Group 10).  Note:  M1  only  allows  Zones  17  to  160  to  be  used  for wireless zones (max. of 144 wireless sensors).  If a large number of wireless zones is expected, avoid conflict with any future Hardwired Zones in the range of zones 17 to 160 by  NOT  enrolling any  Hardwired Zone  Expanders (M1XIN) at data bus addresses below 10.   Battery The  6011  Keychain  Remote  battery  is  not-replaceable.  When the battery reaches end-of-life it will be necessary to replace the Keychain  Remote.  The  system  will  display  a  low  battery  alert prior to the end-of-life.  Limited Warranty The 6011 Wireless Single Button  Panic Sensor is warranted to be free  from defects and  workmanship for  a  period of  2 years from date of manufacture. Batteries used with wireless devices are not warranted.  Elk  makes no warranty, express or implied, including  that  of  merchantability  or  fitness  for  any  particular purpose  with  regard  to  batteries  used  with  wireless  devices. Refer to Elk’s website for full warranty statement and details. are enrolled, press the ELK key one time. 9. Setting the Loop # - For Keychain remotes the Loop # setting does not matter! 10. No-Supervision - Press the ELK key to locate Sub-Menu: 2: Xmit Transmitter Opt.  Press the right arrow and scroll to the wireless zone belonging to the Keychain Remote. Press the right arrow and scroll up to option 02.  Press the right  arrow  and  enter  “0” for  No  Supervision.  NOTE: Keychain Remotes are not supervised. They DO NOT send supervisory check-in signals to the transceiver!  ZONE DEFINITION: After all wireless zones (sensors) have been  enrolled  proceed  to  Menu: 5  -  Zone  Definitions to program the name, zone type, and any desirable options.  Program the Zone Definition for a 6010 KeyChain Remote as: 15-Keyfob. 3. Double click on Wireless - Group _ (the group just added), then double click one zone at a time to define a name, type, and options.  Repeat for each wireless zone.  In ElkRP it is more efficient to program the Zone Definitions (name, type, and  options)  before  moving  on  to  the  Wireless  Setup  for entering the TXID and Loop number. 4. From the Folders column double click on Wireless Setup to setup and enroll the wireless sensors. 4a. Click the Transmitters tab, then double click a zone. 4b. Place a check mark in the Enabled box. 4c.  Set  Supervision  type  to 0 -  Keychain  Remotes  are Not Supervised. 4d. Skip to the TXID box and enter the Sensor TXID from the printed label located on the sensor. 4e. LOOP # - For Keychain remotes the Loop # setting does not matter! 4f.    Click  Save.  Repeat the entire step 4 for each additional Wireless Zone and Sensor.     BATTERY WARNING:  Risk of fire, explosion and burns.  Do not attempt to disassemble.  Do not incinerate or expose to heat above 212° F (100° C).  Dispose of used sensor and its battery properly.  Keep away from children.  FCC AND IC COMPLIANCE STATEMENT: This device complies with Part 15 of the FCC Rules and Industry Canada License-Exempt RSS Standards.  Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.  Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.  Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée quivalente (p.i.r.e.) ne dépassepas l'intensité nécessaire à l'établissement d'une communication satisfaisante.  IMPORTANT! The program option for supervision must be set to NO on any wireless zone(s) used with Keychain Remotes. These type of devices are commonly carried off-premises in a pocket or purse.  Because of this, Keychain Remotes are not ELK-6011  Wireless Single Button Panic Sensor    FCC     ID: TMAELK-6011    IC: 4353A-6011 NOTE:    ELK PRODUCTS IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. designed to send supervisory check-in signals since they will often be out of operating range of the Wireless Transceiver. Should the control ever display a “Missing Transmitter” trouble on a Keychain Remote zone, it quite possible that the supervisory option is set wrong.  Make sure the supervisory option is set to NO. Front Page PO Box 100     3266 US Hwy 70 West Hildebran, NC  28637 Ph 828-397-4200    Fax  828-397-4415    http://www.elkproducts.com Printed In USA Lxxx  05/16/2013
