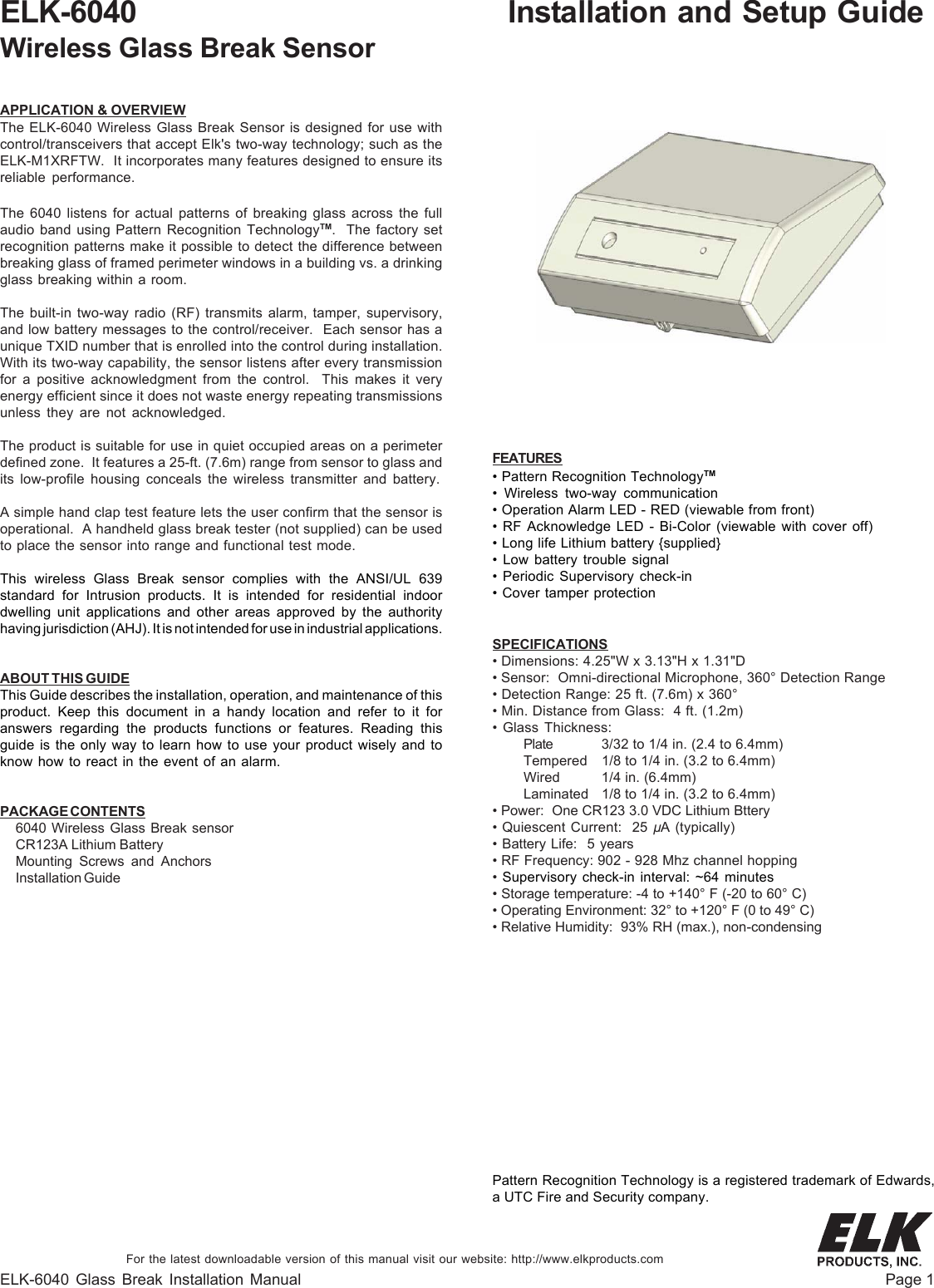

ELK-6040 Glass Break Installation Manual Page 1ELK-6040Wireless Glass Break SensorFor the latest downloadable version of this manual visit our website: http://www.elkproducts.comInstallation and Setup GuideAPPLICATION & OVERVIEWThe ELK-6040 Wireless Glass Break Sensor is designed for use withcontrol/transceivers that accept Elk's two-way technology; such as theELK-M1XRFTW.  It incorporates many features designed to ensure itsreliable performance.The 6040 listens for actual patterns of breaking glass across the fullaudio band using Pattern Recognition TechnologyTM.  The factory setrecognition patterns make it possible to detect the difference betweenbreaking glass of framed perimeter windows in a building vs. a drinkingglass breaking within a room.The built-in two-way radio (RF) transmits alarm, tamper, supervisory,and low battery messages to the control/receiver.  Each sensor has aunique TXID number that is enrolled into the control during installation.With its two-way capability, the sensor listens after every transmissionfor a positive acknowledgment from the control.  This makes it veryenergy efficient since it does not waste energy repeating transmissionsunless they are not acknowledged.The product is suitable for use in quiet occupied areas on a perimeterdefined zone.  It features a 25-ft. (7.6m) range from sensor to glass andits low-profile housing conceals the wireless transmitter and battery.A simple hand clap test feature lets the user confirm that the sensor isoperational.  A handheld glass break tester (not supplied) can be usedto place the sensor into range and functional test mode.This wireless Glass Break sensor complies with the ANSI/UL 639standard for Intrusion products. It is intended for residential indoordwelling unit applications and other areas approved by the authorityhaving jurisdiction (AHJ). It is not intended for use in industrial applications.ABOUT THIS GUIDEThis Guide describes the installation, operation, and maintenance of thisproduct. Keep this document in a handy location and refer to it foranswers regarding the products functions or features. Reading thisguide is the only way to learn how to use your product wisely and toknow how to react in the event of an alarm.PACKAGE CONTENTS6040 Wireless Glass Break sensorCR123A Lithium BatteryMounting Screws and AnchorsInstallation GuideFEATURES• Pattern Recognition TechnologyTM• Wireless two-way communication• Operation Alarm LED - RED (viewable from front)• RF Acknowledge LED - Bi-Color (viewable with cover off)• Long life Lithium battery {supplied}• Low battery trouble signal• Periodic Supervisory check-in• Cover tamper protectionSPECIFICATIONS• Dimensions: 4.25"W x 3.13"H x 1.31"D• Sensor:  Omni-directional Microphone, 360° Detection Range• Detection Range: 25 ft. (7.6m) x 360°• Min. Distance from Glass:  4 ft. (1.2m)• Glass Thickness:Plate 3/32 to 1/4 in. (2.4 to 6.4mm)Tempered 1/8 to 1/4 in. (3.2 to 6.4mm)Wired 1/4 in. (6.4mm)Laminated 1/8 to 1/4 in. (3.2 to 6.4mm)• Power:  One CR123 3.0 VDC Lithium Bttery• Quiescent Current:  25 µA (typically)• Battery Life:  5 years• RF Frequency: 902 - 928 Mhz channel hopping• Supervisory check-in interval: ~64 minutes• Storage temperature: -4 to +140° F (-20 to 60° C)• Operating Environment: 32° to +120° F (0 to 49° C)• Relative Humidity:  93% RH (max.), non-condensingPattern Recognition Technology is a registered trademark of Edwards,a UTC Fire and Security company.

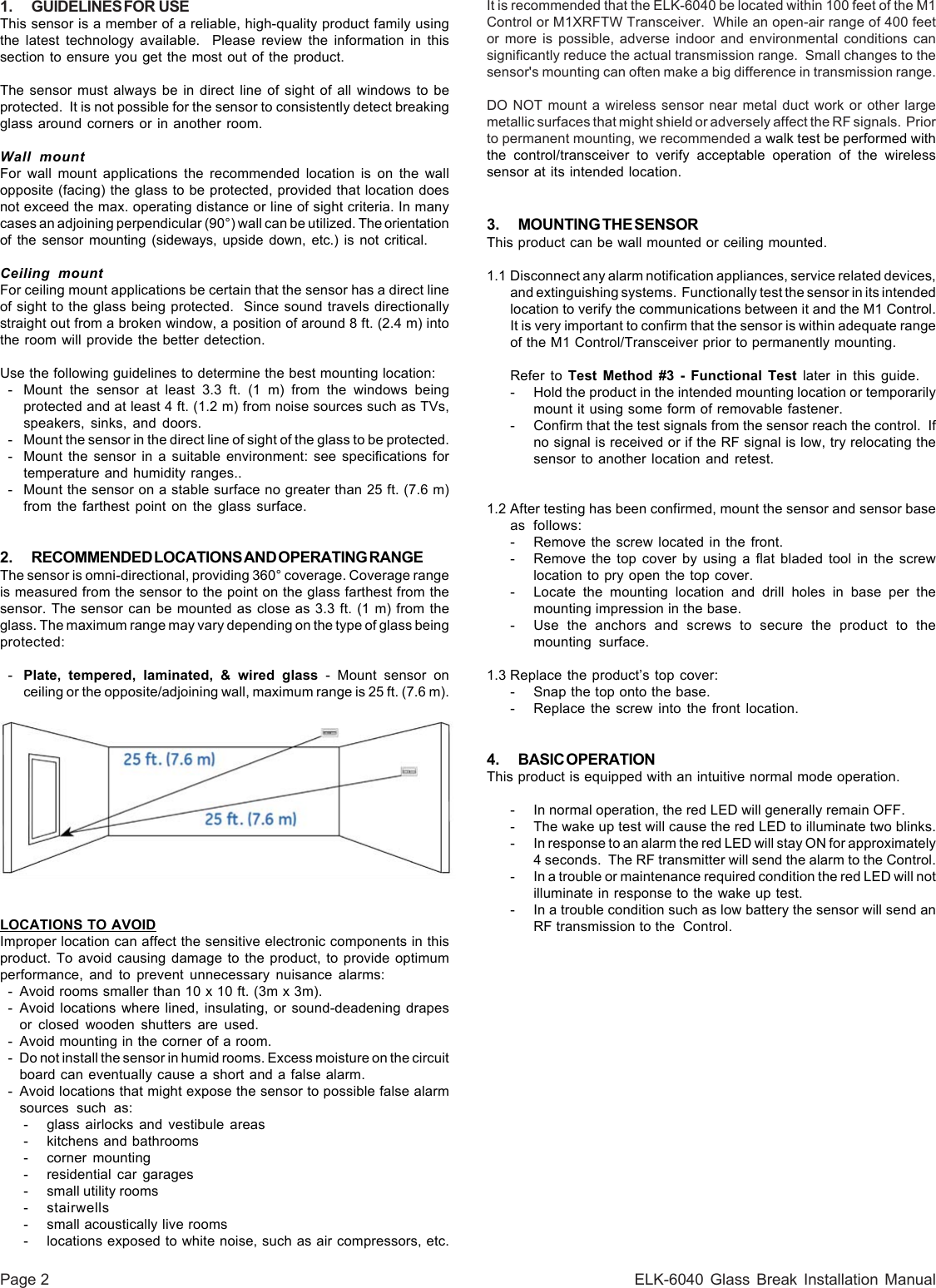

Page 2 ELK-6040 Glass Break Installation Manual1. GUIDELINES FOR  USEThis sensor is a member of a reliable, high-quality product family usingthe latest technology available.  Please review the information in thissection to ensure you get the most out of the product.The sensor must always be in direct line of sight of all windows to beprotected.  It is not possible for the sensor to consistently detect breakingglass around corners or in another room.Wall mountFor wall mount applications the recommended location is on the wallopposite (facing) the glass to be protected, provided that location doesnot exceed the max. operating distance or line of sight criteria. In manycases an adjoining perpendicular (90°) wall can be utilized. The orientationof the sensor mounting (sideways, upside down, etc.) is not critical.Ceiling mountFor ceiling mount applications be certain that the sensor has a direct lineof sight to the glass being protected.  Since sound travels directionallystraight out from a broken window, a position of around 8 ft. (2.4 m) intothe room will provide the better detection.Use the following guidelines to determine the best mounting location:- Mount the sensor at least 3.3 ft. (1 m) from the windows beingprotected and at least 4 ft. (1.2 m) from noise sources such as TVs,speakers, sinks, and doors.- Mount the sensor in the direct line of sight of the glass to be protected.- Mount the sensor in a suitable environment: see specifications fortemperature and humidity ranges..- Mount the sensor on a stable surface no greater than 25 ft. (7.6 m)from the farthest point on the glass surface.2. RECOMMENDED LOCATIONS AND OPERATING RANGEThe sensor is omni-directional, providing 360° coverage. Coverage rangeis measured from the sensor to the point on the glass farthest from thesensor. The sensor can be mounted as close as 3.3 ft. (1 m) from theglass. The maximum range may vary depending on the type of glass beingprotected:-Plate, tempered, laminated, & wired glass - Mount sensor onceiling or the opposite/adjoining wall, maximum range is 25 ft. (7.6 m).LOCATIONS TO AVOIDImproper location can affect the sensitive electronic components in thisproduct. To avoid causing damage to the product, to provide optimumperformance, and to prevent unnecessary nuisance alarms:- Avoid rooms smaller than 10 x 10 ft. (3m x 3m).- Avoid locations where lined, insulating, or sound-deadening drapesor closed wooden shutters are used.- Avoid mounting in the corner of a room.- Do not install the sensor in humid rooms. Excess moisture on the circuitboard can eventually cause a short and a false alarm.- Avoid locations that might expose the sensor to possible false alarmsources such as:- glass airlocks and vestibule areas- kitchens and bathrooms- corner mounting- residential car garages- small utility rooms- stairwells- small acoustically live rooms- locations exposed to white noise, such as air compressors, etc.It is recommended that the ELK-6040 be located within 100 feet of the M1Control or M1XRFTW Transceiver.  While an open-air range of 400 feetor more is possible, adverse indoor and environmental conditions cansignificantly reduce the actual transmission range.  Small changes to thesensor's mounting can often make a big difference in transmission range.DO NOT mount a wireless sensor near metal duct work or other largemetallic surfaces that might shield or adversely affect the RF signals.  Priorto permanent mounting, we recommended a walk test be performed withthe control/transceiver to verify acceptable operation of the wirelesssensor at its intended location.3. MOUNTING THE SENSORThis product can be wall mounted or ceiling mounted.1.1 Disconnect any alarm notification appliances, service related devices,and extinguishing systems.  Functionally test the sensor in its intendedlocation to verify the communications between it and the M1 Control.It is very important to confirm that the sensor is within adequate rangeof the M1 Control/Transceiver prior to permanently mounting.Refer to Test Method #3 - Functional Test later in this guide.- Hold the product in the intended mounting location or temporarilymount it using some form of removable fastener.- Confirm that the test signals from the sensor reach the control.  Ifno signal is received or if the RF signal is low, try relocating thesensor to another location and retest.1.2 After testing has been confirmed, mount the sensor and sensor baseas follows:- Remove the screw located in the front.- Remove the top cover by using a flat bladed tool in the screwlocation to pry open the top cover.- Locate the mounting location and drill holes in base per themounting impression in the base.- Use the anchors and screws to secure the product to themounting surface.1.3 Replace the product’s top cover:- Snap the top onto the base.- Replace the screw into the front location.4. BASIC OPERATIONThis product is equipped with an intuitive normal mode operation.- In normal operation, the red LED will generally remain OFF.- The wake up test will cause the red LED to illuminate two blinks.- In response to an alarm the red LED will stay ON for approximately4 seconds.  The RF transmitter will send the alarm to the Control.- In a trouble or maintenance required condition the red LED will notilluminate in response to the wake up test.- In a trouble condition such as low battery the sensor will send anRF transmission to the  Control.
ELK-6040 Glass Break Installation Manual Page 35. INSTALLING / REPLACING BATTERYThe 6040 sensor uses a single CR123A Lithium battery.  The estimatedservice life is 5 years in a typical residential installation.The Battery is supervised for low voltage.  When the sensor detects thevoltage has reached 2.6 VDC or less (under load), a Sensor Low Batterytrouble will be transmitted to the control/transceiver.  This trouble will beattached to all future transmissions until fresh new batteries are installed.When the Control indicates that it is time to replace the sensor battery,remove the old battery and WAIT AT LEAST 20 seconds before installingnew battery.  This time is necessary to clear and reset the low batterycondition from the sensor memory.  After the new battery has beeninstalled, trip the sensor a couple of times.  This should send an "all good"to the Control and clear the low battery trouble.Use only approved 3V Lithiums.  Replacements can be obtained from anylocal Alarm Distributor.Note: Place the control panel into sensor test mode prior to replacing thebatteries. If the control panel is not in sensor test mode during batteryreplacement, an alarm/tamper condition may be indicated.1. Remove the product top cover.2. Remove the old battery and properly dispose of it as recommendedby the battery manufacturer.3. WAIT AT LEAST 20 SECONDS before installing new battery.4. Observe correct polarity when installing the new battery.  Insertbattery + to Red + sign next to battery well. Be careful not to bendor damage the metal battery holder contacts.5. Replace the top cover.6. Replace the front screw.7. Re-test sensor operation with the control.Approved 3.0 Lithium Batteries are:- Panasonic CR123A- Duracell DL123A- Varta CR123A.CR123 Lithium BatteryTamperRF Ack (Status)ELK-6040RF ACKNOWLEDGE LEDThis bi-color LED IS located on the bare circuit board near the upper leftside.  It provides visual confirmation of the two-way acknowledge(response) from the control/transceiver and can only be viewed byremoving the sensor cover.GREEN blink = Sensor successfully transmitted a violation (alarm) andthat signal was received and acknowledged by the transceiver.  Agreen blink is not provided for a sensor restore transmission..ORG/RED blink = Sensor was not successful and did not getacknowledged by the transceiver. POSSIBLE CAUSES: a) the Controlor M1XRFTW is powered off.  b) the M1XRFTW is not enrolled withcontrol.  c) the sensor is not enrolled.  d) the distance between thesensor and the transceiver is too great.   Check the following:A. Verify that the M1 Control is powered on.B. Verify that the M1XRFTW Transceiver is powered on and that it isenrolled with the M1.C. Verify that the sensor is properly enrolled.D. Trip another wireless sensor to see it can successfully communicate.E. If above steps are OK, temporarily move the failed sensor closerto the transceiver and retest.  If sensor successfully communicatesat the closer range then it may be necessary to:1. Relocate the transceiver to a closer and more central location to thisand all other sensors.OR2. Purchase and install an additional “remote” transceiver to cover thearea where this sensor was mounted.TAMPER SWITCHThis switch detects the separation of the front housing from the backplate,resulting in a signal being transmitted to the control/transceiver that willcause the associated zone to become violated.  Snapping the front housingback onto the backplate will transmit a restoral.RF ACKnowledge LEDCover Tamper SwitchSensor MicrophoneLithium BatteryAlarm / Activity LED

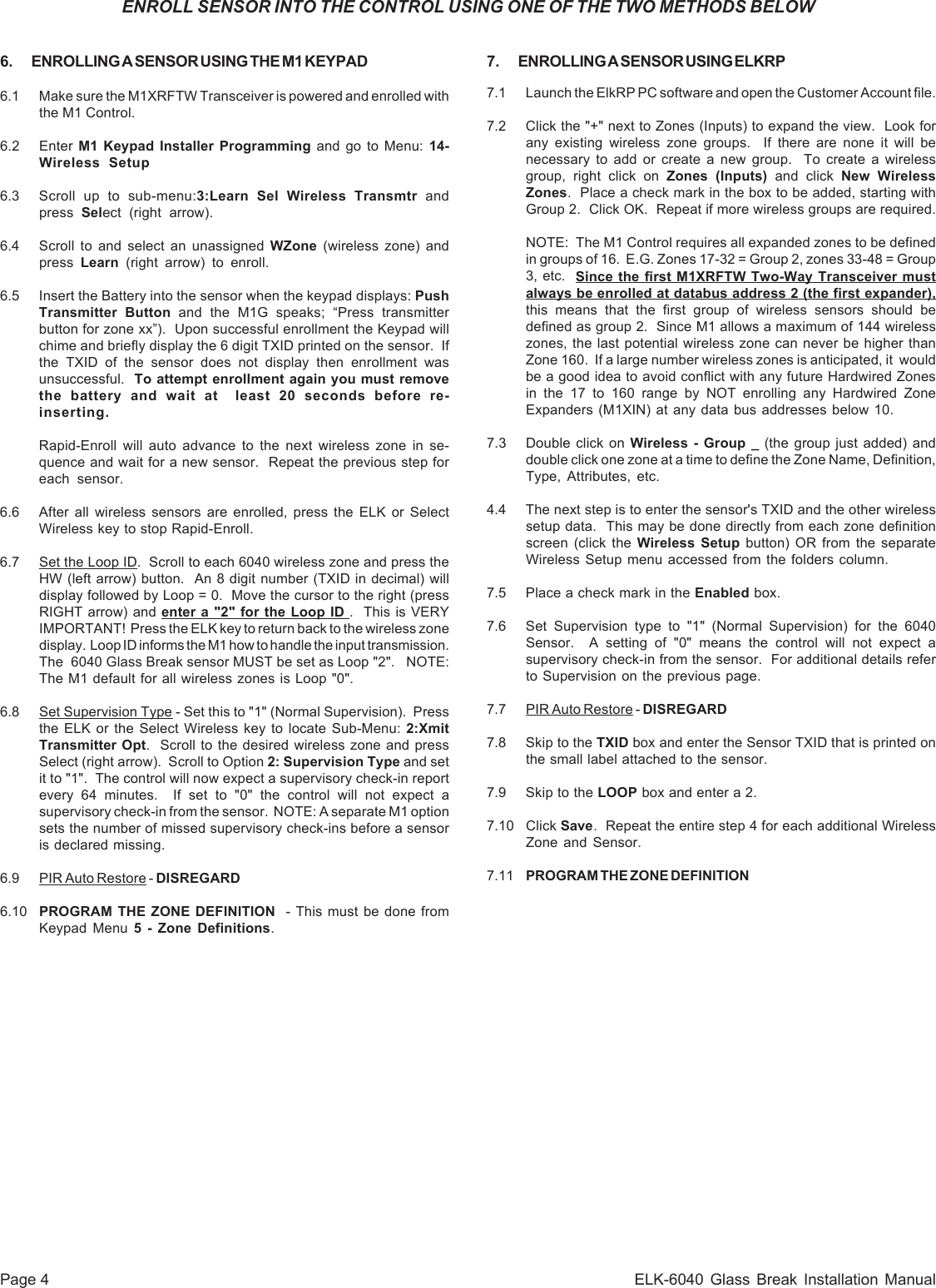

Page 4 ELK-6040 Glass Break Installation Manual6. ENROLLING A SENSOR USING THE M1 KEYPAD6.1 Make sure the M1XRFTW Transceiver is powered and enrolled withthe M1 Control.6.2 Enter  M1 Keypad Installer Programming and go to Menu: 14-Wireless Setup6.3 Scroll up to sub-menu:3:Learn Sel Wireless Transmtr andpress  Select (right arrow).6.4 Scroll to and select an unassigned WZone (wireless zone) andpress  Learn (right arrow) to enroll.6.5 Insert the Battery into the sensor when the keypad displays: PushTransmitter Button and the M1G speaks; “Press transmitterbutton for zone xx”).  Upon successful enrollment the Keypad willchime and briefly display the 6 digit TXID printed on the sensor.  Ifthe TXID of the sensor does not display then enrollment wasunsuccessful.  To attempt enrollment again you must removethe battery and wait at  least 20 seconds before re-inserting.Rapid-Enroll will auto advance to the next wireless zone in se-quence and wait for a new sensor.  Repeat the previous step foreach sensor.6.6 After all wireless sensors are enrolled, press the ELK or SelectWireless key to stop Rapid-Enroll.6.7 Set the Loop ID.  Scroll to each 6040 wireless zone and press theHW (left arrow) button.  An 8 digit number (TXID in decimal) willdisplay followed by Loop = 0.  Move the cursor to the right (pressRIGHT arrow) and enter a "2" for the Loop ID .  This is VERYIMPORTANT!  Press the ELK key to return back to the wireless zonedisplay.  Loop ID informs the M1 how to handle the input transmission.The  6040 Glass Break sensor MUST be set as Loop "2".   NOTE:The M1 default for all wireless zones is Loop "0".6.8 Set Supervision Type - Set this to "1" (Normal Supervision).  Pressthe ELK or the Select Wireless key to locate Sub-Menu: 2:XmitTransmitter Opt.  Scroll to the desired wireless zone and pressSelect (right arrow).  Scroll to Option 2: Supervision Type and setit to "1".  The control will now expect a supervisory check-in reportevery 64 minutes.  If set to "0" the control will not expect asupervisory check-in from the sensor.  NOTE: A separate M1 optionsets the number of missed supervisory check-ins before a sensoris declared missing.6.9 PIR Auto Restore - DISREGARD6.10 PROGRAM THE ZONE DEFINITION  - This must be done fromKeypad Menu 5 - Zone Definitions.ENROLL SENSOR INTO THE CONTROL USING ONE OF THE TWO METHODS BELOW7. ENROLLING A SENSOR USING ELKRP7.1 Launch the ElkRP PC software and open the Customer Account file.7.2 Click the "+" next to Zones (Inputs) to expand the view.  Look forany existing wireless zone groups.  If there are none it will benecessary to add or create a new group.  To create a wirelessgroup, right click on Zones (Inputs) and click New WirelessZones.  Place a check mark in the box to be added, starting withGroup 2.  Click OK.  Repeat if more wireless groups are required.NOTE:  The M1 Control requires all expanded zones to be definedin groups of 16.  E.G. Zones 17-32 = Group 2, zones 33-48 = Group3, etc.  Since the first M1XRFTW Two-Way Transceiver mustalways be enrolled at databus address 2 (the first expander),this means that the first group of wireless sensors should bedefined as group 2.  Since M1 allows a maximum of 144 wirelesszones, the last potential wireless zone can never be higher thanZone 160.  If a large number wireless zones is anticipated, it  wouldbe a good idea to avoid conflict with any future Hardwired Zonesin the 17 to 160 range by NOT enrolling any Hardwired ZoneExpanders (M1XIN) at any data bus addresses below 10.7.3 Double click on Wireless - Group _ (the group just added) anddouble click one zone at a time to define the Zone Name, Definition,Type, Attributes, etc.4.4 The next step is to enter the sensor's TXID and the other wirelesssetup data.  This may be done directly from each zone definitionscreen (click the Wireless Setup button) OR from the separateWireless Setup menu accessed from the folders column.7.5 Place a check mark in the Enabled box.7.6 Set Supervision type to "1" (Normal Supervision) for the 6040Sensor.  A setting of "0" means the control will not expect asupervisory check-in from the sensor.  For additional details referto Supervision on the previous page.7.7 PIR Auto Restore - DISREGARD7.8 Skip to the TXID box and enter the Sensor TXID that is printed onthe small label attached to the sensor.7.9 Skip to the LOOP box and enter a 2.7.10 Click Save.  Repeat the entire step 4 for each additional WirelessZone and Sensor.7.11 PROGRAM THE ZONE DEFINITION

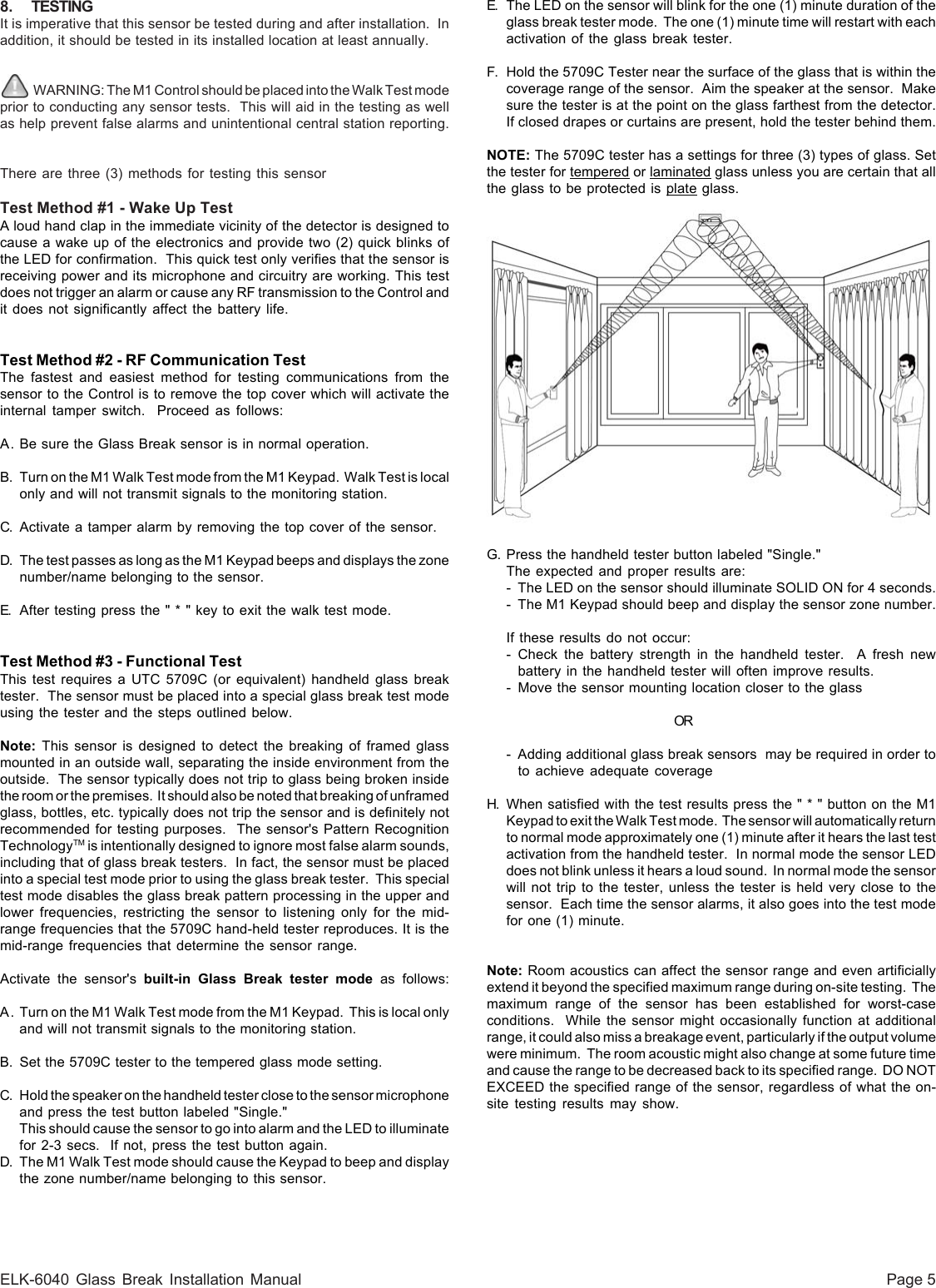

ELK-6040 Glass Break Installation Manual Page 58. TESTINGIt is imperative that this sensor be tested during and after installation.  Inaddition, it should be tested in its installed location at least annually.   WARNING: The M1 Control should be placed into the Walk Test modeprior to conducting any sensor tests.  This will aid in the testing as wellas help prevent false alarms and unintentional central station reporting.There are three (3) methods for testing this sensorTest Method #1 - Wake Up TestA loud hand clap in the immediate vicinity of the detector is designed tocause a wake up of the electronics and provide two (2) quick blinks ofthe LED for confirmation.  This quick test only verifies that the sensor isreceiving power and its microphone and circuitry are working. This testdoes not trigger an alarm or cause any RF transmission to the Control andit does not significantly affect the battery life.Test Method #2 - RF Communication TestThe fastest and easiest method for testing communications from thesensor to the Control is to remove the top cover which will activate theinternal tamper switch.  Proceed as follows:A. Be sure the Glass Break sensor is in normal operation.B. Turn on the M1 Walk Test mode from the M1 Keypad.  Walk Test is localonly and will not transmit signals to the monitoring station.C. Activate a tamper alarm by removing the top cover of the sensor.D. The test passes as long as the M1 Keypad beeps and displays the zonenumber/name belonging to the sensor.E. After testing press the " * " key to exit the walk test mode.Test Method #3 - Functional TestThis test requires a UTC 5709C (or equivalent) handheld glass breaktester.  The sensor must be placed into a special glass break test modeusing the tester and the steps outlined below.Note: This sensor is designed to detect the breaking of framed glassmounted in an outside wall, separating the inside environment from theoutside.  The sensor typically does not trip to glass being broken insidethe room or the premises.  It should also be noted that breaking of unframedglass, bottles, etc. typically does not trip the sensor and is definitely notrecommended for testing purposes.  The sensor's Pattern RecognitionTechnologyTM is intentionally designed to ignore most false alarm sounds,including that of glass break testers.  In fact, the sensor must be placedinto a special test mode prior to using the glass break tester.  This specialtest mode disables the glass break pattern processing in the upper andlower frequencies, restricting the sensor to listening only for the mid-range frequencies that the 5709C hand-held tester reproduces. It is themid-range frequencies that determine the sensor range.Activate the sensor's built-in Glass Break tester mode as follows:A. Turn on the M1 Walk Test mode from the M1 Keypad.  This is local onlyand will not transmit signals to the monitoring station.B. Set the 5709C tester to the tempered glass mode setting.C. Hold the speaker on the handheld tester close to the sensor microphoneand press the test button labeled "Single."This should cause the sensor to go into alarm and the LED to illuminatefor 2-3 secs.  If not, press the test button again.D. The M1 Walk Test mode should cause the Keypad to beep and displaythe zone number/name belonging to this sensor.E. The LED on the sensor will blink for the one (1) minute duration of theglass break tester mode.  The one (1) minute time will restart with eachactivation of the glass break tester.F. Hold the 5709C Tester near the surface of the glass that is within thecoverage range of the sensor.  Aim the speaker at the sensor.  Makesure the tester is at the point on the glass farthest from the detector.If closed drapes or curtains are present, hold the tester behind them.NOTE: The 5709C tester has a settings for three (3) types of glass. Setthe tester for tempered or laminated glass unless you are certain that allthe glass to be protected is plate glass.G. Press the handheld tester button labeled "Single."The expected and proper results are:- The LED on the sensor should illuminate SOLID ON for 4 seconds.- The M1 Keypad should beep and display the sensor zone number.If these results do not occur:- Check the battery strength in the handheld tester.  A fresh newbattery in the handheld tester will often improve results.- Move the sensor mounting location closer to the glassOR- Adding additional glass break sensors  may be required in order toto achieve adequate coverageH. When satisfied with the test results press the " * " button on the M1Keypad to exit the Walk Test mode.  The sensor will automatically returnto normal mode approximately one (1) minute after it hears the last testactivation from the handheld tester.  In normal mode the sensor LEDdoes not blink unless it hears a loud sound.  In normal mode the sensorwill not trip to the tester, unless the tester is held very close to thesensor.  Each time the sensor alarms, it also goes into the test modefor one (1) minute.Note: Room acoustics can affect the sensor range and even artificiallyextend it beyond the specified maximum range during on-site testing.  Themaximum range of the sensor has been established for worst-caseconditions.  While the sensor might occasionally function at additionalrange, it could also miss a breakage event, particularly if the output volumewere minimum.  The room acoustic might also change at some future timeand cause the range to be decreased back to its specified range.  DO NOTEXCEED the specified range of the sensor, regardless of what the on-site testing results may show.

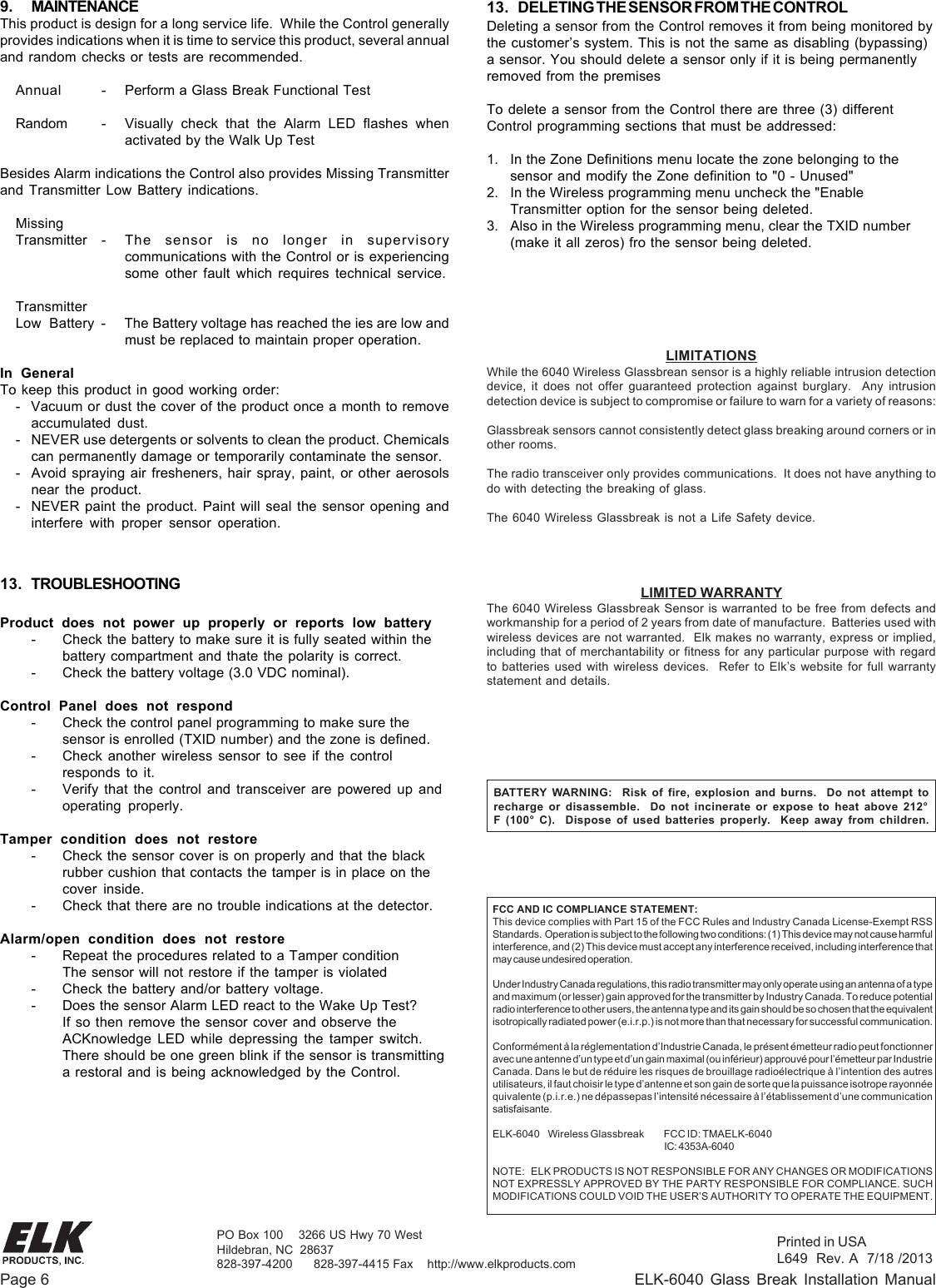

Page 6 ELK-6040 Glass Break Installation ManualLIMITATIONSWhile the 6040 Wireless Glassbrean sensor is a highly reliable intrusion detectiondevice, it does not offer guaranteed protection against burglary.  Any intrusiondetection device is subject to compromise or failure to warn for a variety of reasons:Glassbreak sensors cannot consistently detect glass breaking around corners or inother rooms.The radio transceiver only provides communications.  It does not have anything todo with detecting the breaking of glass.The 6040 Wireless Glassbreak is not a Life Safety device.PO Box 100    3266 US Hwy 70 WestHildebran, NC  28637828-397-4200      828-397-4415 Fax    http://www.elkproducts.comPrinted in USAL649  Rev. A  7/18 /2013BATTERY WARNING:  Risk of fire, explosion and burns.  Do not attempt torecharge or disassemble.  Do not incinerate or expose to heat above 212°F (100° C).  Dispose of used batteries properly.  Keep away from children.FCC AND IC COMPLIANCE STATEMENT:This device complies with Part 15 of the FCC Rules and Industry Canada License-Exempt RSSStandards.  Operation is subject to the following two conditions: (1) This device may not cause harmfulinterference, and (2) This device must accept any interference received, including interference thatmay cause undesired operation.Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a typeand maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potentialradio interference to other users, the antenna type and its gain should be so chosen that the equivalentisotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionneravec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par IndustrieCanada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autresutilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnéequivalente (p.i.r.e.) ne dépassepas l’intensité nécessaire à l’établissement d’une communicationsatisfaisante.ELK-6040     Wireless Glassbreak FCC ID: TMAELK-6040IC: 4353A-6040NOTE:   ELK PRODUCTS IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONSNOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCHMODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.LIMITED WARRANTYThe 6040 Wireless Glassbreak Sensor is warranted to be free from defects andworkmanship for a period of 2 years from date of manufacture.  Batteries used withwireless devices are not warranted.  Elk makes no warranty, express or implied,including that of merchantability or fitness for any particular purpose with regardto batteries used with wireless devices.  Refer to Elk’s website for full warrantystatement and details.9. MAINTENANCEThis product is design for a long service life.  While the Control generallyprovides indications when it is time to service this product, several annualand random checks or tests are recommended.Annual - Perform a Glass Break Functional TestRandom - Visually check that the Alarm LED flashes whenactivated by the Walk Up TestBesides Alarm indications the Control also provides Missing Transmitterand Transmitter Low Battery indications.MissingTransmitter - The sensor is no longer in supervisorycommunications with the Control or is experiencingsome other fault which requires technical service.TransmitterLow Battery - The Battery voltage has reached the ies are low andmust be replaced to maintain proper operation.In GeneralTo keep this product in good working order:- Vacuum or dust the cover of the product once a month to removeaccumulated dust.- NEVER use detergents or solvents to clean the product. Chemicalscan permanently damage or temporarily contaminate the sensor.- Avoid spraying air fresheners, hair spray, paint, or other aerosolsnear the product.- NEVER paint the product. Paint will seal the sensor opening andinterfere with proper sensor operation.13. TROUBLESHOOTINGProduct does not power up properly or reports low battery- Check the battery to make sure it is fully seated within thebattery compartment and thate the polarity is correct.- Check the battery voltage (3.0 VDC nominal).Control Panel does not respond- Check the control panel programming to make sure thesensor is enrolled (TXID number) and the zone is defined.- Check another wireless sensor to see if the controlresponds to it.- Verify that the control and transceiver are powered up andoperating properly.Tamper condition does not restore- Check the sensor cover is on properly and that the blackrubber cushion that contacts the tamper is in place on thecover inside.- Check that there are no trouble indications at the detector.Alarm/open condition does not restore- Repeat the procedures related to a Tamper conditionThe sensor will not restore if the tamper is violated- Check the battery and/or battery voltage.- Does the sensor Alarm LED react to the Wake Up Test?If so then remove the sensor cover and observe theACKnowledge LED while depressing the tamper switch.There should be one green blink if the sensor is transmittinga restoral and is being acknowledged by the Control.13. DELETING THE SENSOR FROM THE CONTROLDeleting a sensor from the Control removes it from being monitored bythe customer’s system. This is not the same as disabling (bypassing)a sensor. You should delete a sensor only if it is being permanentlyremoved from the premisesTo delete a sensor from the Control there are three (3) differentControl programming sections that must be addressed:1. In the Zone Definitions menu locate the zone belonging to thesensor and modify the Zone definition to "0 - Unused"2. In the Wireless programming menu uncheck the "EnableTransmitter option for the sensor being deleted.3. Also in the Wireless programming menu, clear the TXID number(make it all zeros) fro the sensor being deleted.
