final version - User manual

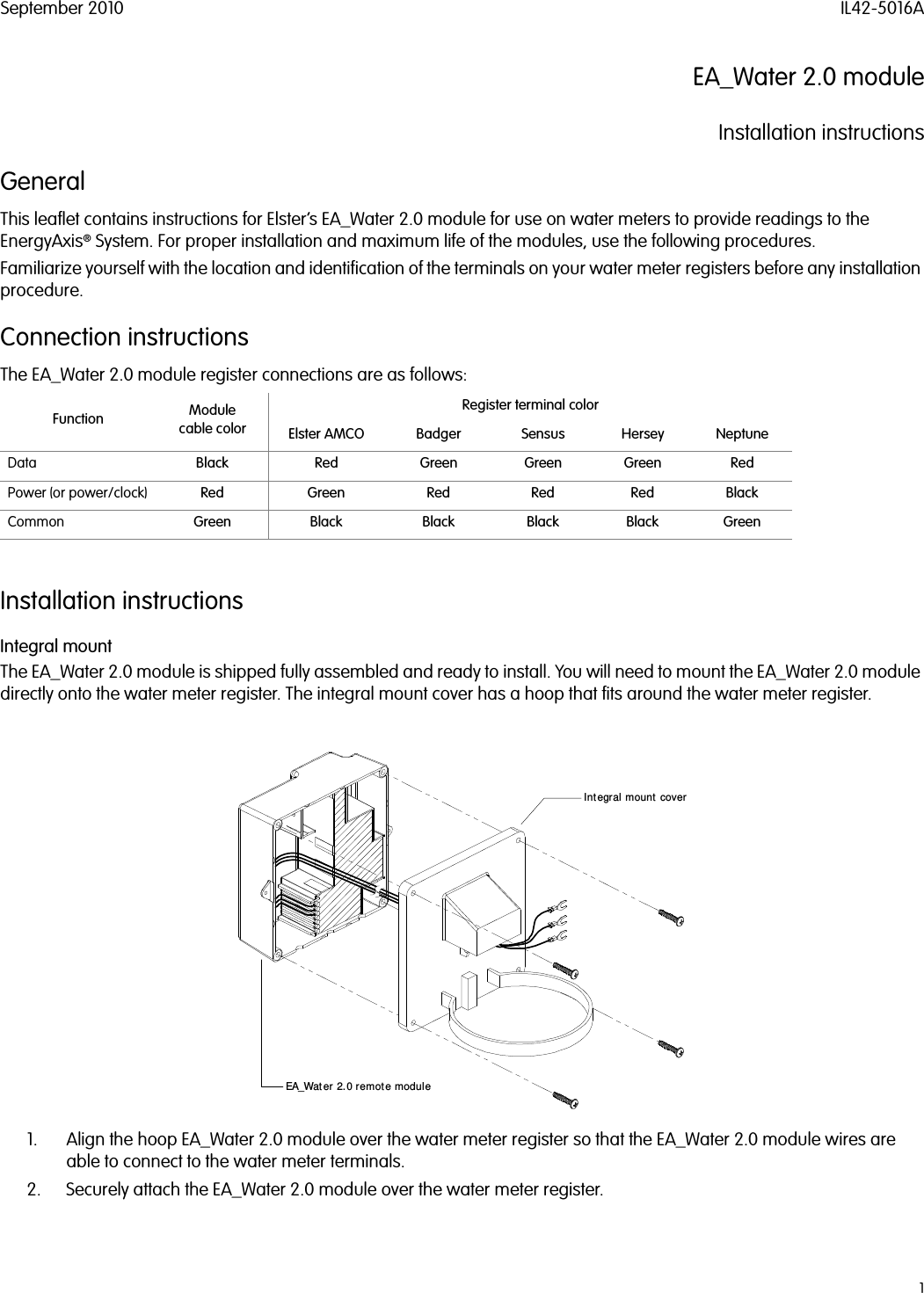

September 2010 IL42-5016A1EA_Water 2.0 moduleInstallation instructionsGeneralThis leaflet contains instructions for Elster’s EA_Water 2.0 module for use on water meters to provide readings to the EnergyAxis® System. For proper installation and maximum life of the modules, use the following procedures.Familiarize yourself with the location and identification of the terminals on your water meter registers before any installation procedure.Connection instructionsThe EA_Water 2.0 module register connections are as follows:Installation instructionsIntegral mountThe EA_Water 2.0 module is shipped fully assembled and ready to install. You will need to mount the EA_Water 2.0 module directly onto the water meter register. The integral mount cover has a hoop that fits around the water meter register.1. Align the hoop EA_Water 2.0 module over the water meter register so that the EA_Water 2.0 module wires are able to connect to the water meter terminals.2. Securely attach the EA_Water 2.0 module over the water meter register.Function Modulecable colorRegister terminal colorElster AMCO Badger Sensus Hersey NeptuneData Black Red Green Green Green RedPower (or power/clock) Red Green Red Red Red BlackCommon Green Black Black Black Black GreenEA_Water 2.0 remote moduleIntegral mount cover
