HigH Horsepower performance in tHe
top-of-tHe-line, Heavy-duty commercial Z.

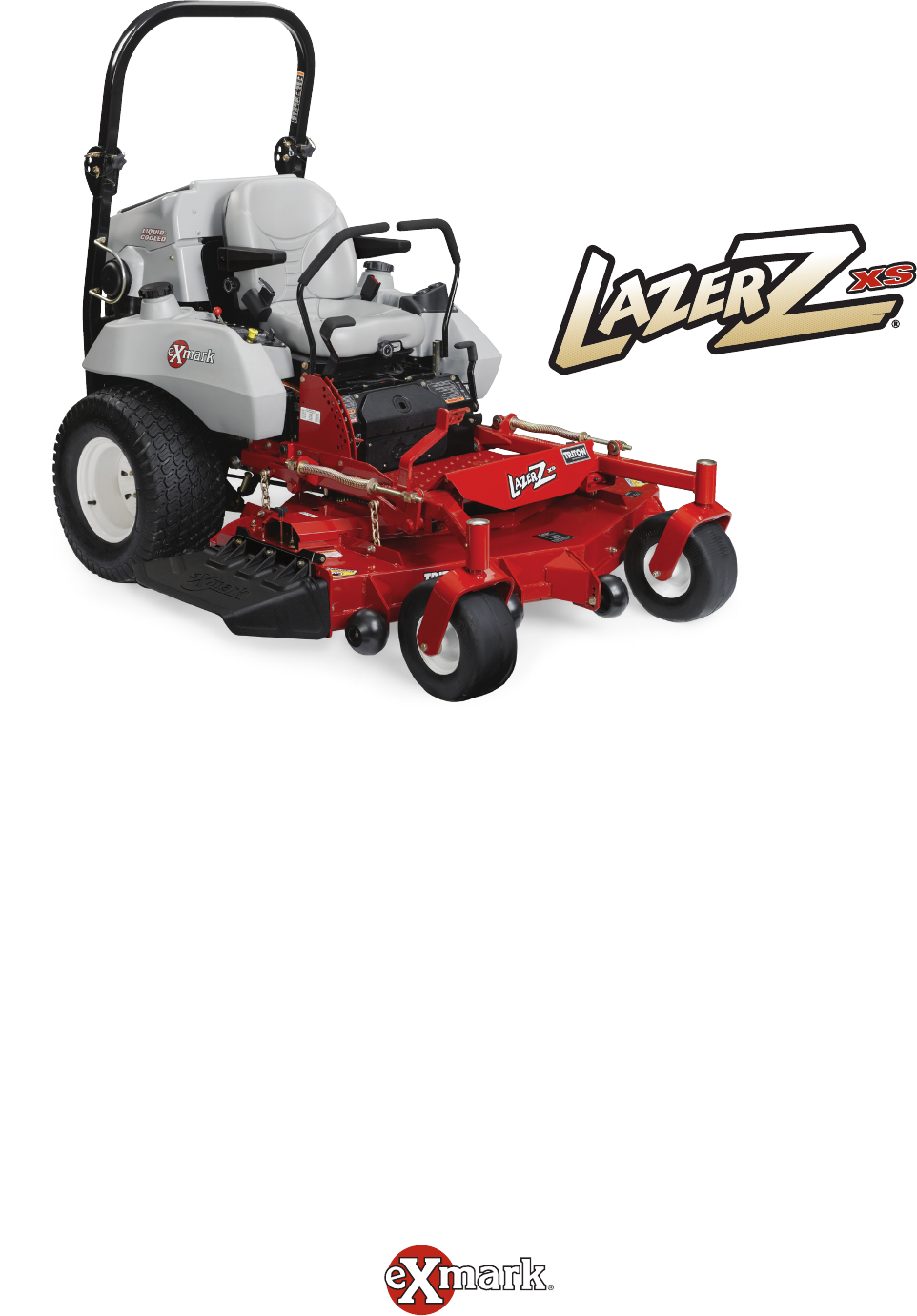

THE EXMARK LAZER Z® XS
• 29 hp Liquid-Cool Kawasaki® DFI
• 25 hp Kubota® Diesel
• 35 hp Vanguard™ V-Twin
• Triton® High-Capacity Cutting Deck
• Twin 21cc Hydro-Gear variable displacement pumps:
High performance mechanical cooling fans located on front
of each pump
• Hydro-Gear high-torque wheel motors for
increased performance
• Easy access hood release for liquid-cooled and
diesel models
Best-selling Brand of mowing equipment for the landscape professional.
www.exmark.com
engines available
29 hp Kawasaki® Liquid-Cooled V-Twin w/digital fuel injection, 35 hp
air-cooled Vanguard™ V-Twin, governed to 3750 rpm; 25 hp Kubota®
3-Cylinder Liquid-Cooled Diesel, governed to 3850 rpm.
drive system
Two Hydro-Gear 21cc/rev pumps with integral SCR (System Check Relief)
valves (in forward), powering two Hydro-Gear wheel motors with
1.25” (3.18 cm) diameter tapered shafts.
speed
Infinitely variable speed selection from 0-12 mph (19.3 kmph) forward,
0-8.0 mph (12.9 kmph) reverse.
pto engagement
MagStop Electromagnetic 200 ft-lbs clutch with spot brake on 29 hp.
MagStop Electromagnetic 250 ft-lbs clutch with spot brake on 35 hp and 25 hp
diesel models. 2-year warranty.
fuel capacity
15.5-gal. (58.7-L) twin fuel tanks.
decKs
STYLE — Triton® High-Capacity Cutting Deck side-discharge standard with
option to bag or mulch.
widths available
60”, 66” and 72” 10-gauge top that is formed and continuously seam welded,
with 10-gauge top reinforcement plate, 7-gauge side skirt and 7-gauge
reinforcement rings at spindle assembly. 6” deep, 4-point suspension full-
floating deck with 6 adjustable cone-shaped anti-scalp rollers.
cutting heights
1.0” (2.5 cm) to 5” (12.7 cm) in 0.25” (0.64 cm) increments and adjustable from
operator’s seat.
tractor frame
Welded, heavy-duty tubular steel.
steering & motion control
Hydraulically dampened twin levers adjust fore and aft.
front caster tires
13 x 6.50-6, smooth tread, semi-pneumatic tires.
drive tires
26 x 12-12, 4-ply Multi-Trac®
.
turning radius
True zero-turn.
parKing braKe
Lever-actuated drum and band integrated with transmission-neutral interlock.
se at
Deluxe, low-profile, full-suspension seat adjusts to individual operator weight
and features padded armrests.
LAZER Z® XS
model engine cutting width
lXs29lKa605 29 hp Kawasaki DFI 60" Triton
lXs29lKa725 29 hp Kawasaki DFI 72" Triton
lXs25Kd605 25 hp Kubota Diesel 60" Triton
lXs25Kd665 25 hp Kubota Diesel 66" Triton
lXs25Kd725 25 hp Kubota Diesel 72" Triton
lXs35bv605 35 hp Vanguard 60" Triton
lXs35bv665 35 hp Vanguard 66" Triton
lXs35bv725 35 hp Vanguard 72" Triton
EXMARK MANUFACTURING COMPANY INC. • 2101 ASHLAND AVENUE • P.O. BOX 808 • BEATRICE, NE 68310-0808 • CALL 402.223.6300 • FAX 402.223.6384
Products depicted in this literature are for demonstration purposes only. Actual products
offered for sale may vary in use, design, required attachments and safety features. We
reserve the right to improve our products and make changes in specifications, designs
and standard equipment without notice and without incurring obligations. See your dealer
for details on all of our warranties. Exmark® and Lazer Z® are registered trademarks, and
TritonTM is a trademark of Exmark Mfg. Co., Inc. ©2007 Exmark Manufac turing Company, Inc.
All Rights Reserved. Printed in the U.S.A. 2007
