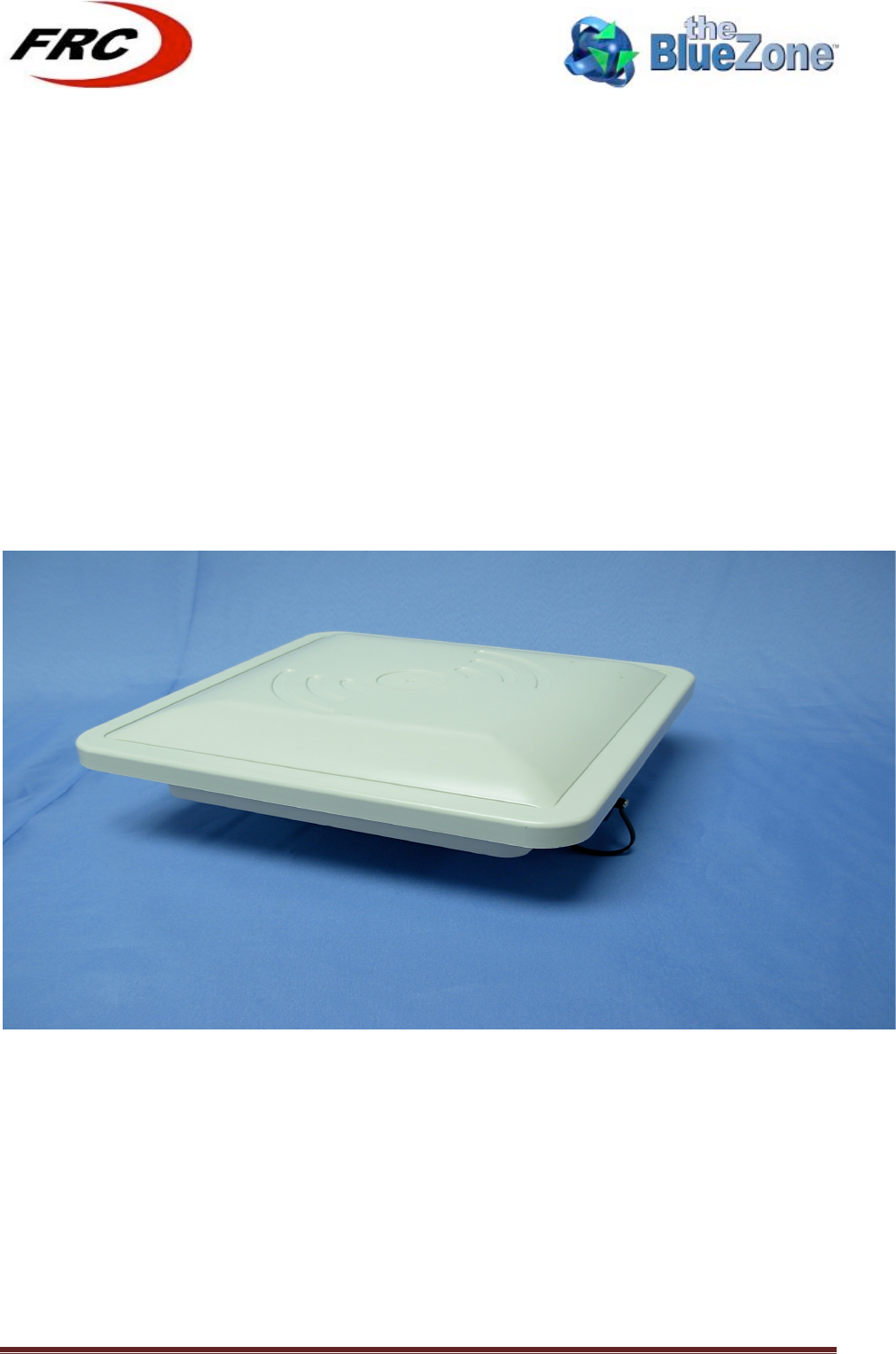

WiMAX Outdoor CPE
CPEMAX-OD500
User Manual
Rev. 3
!
!
!
!
!
!
Legal Rights
© Copyright 2010 FRC Internet Products, LLC. All rights reserved.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
2!
The material contained herein is proprietary, privileged, and confidential and owned by FRC
Internet Products, LLC (“FRC”), its affiliates or its third party licensors. No disclosure
thereof shall be made to third parties without the express written permission of FRC.
FRC reserves the right to alter the equipment specifications and descriptions in this
publication without prior notice. No part of this publication shall be deemed to be part of any
contract or warranty unless specifically incorporated by reference into such contract or
warranty.
Trade Names
FRC®, The Blue Zone®, The BlueZone™, CPEMax™, BSMax™ and/or other products
and/or services referenced here in are either registered trademarks or service marks of FRC
Group.
All other names are or may be the trademarks of their respective owners. “WiMAX Forum”
is a registered trademark of the WiMAX Forum. “WiMAX,” the
WiMAX Forum logo, “WiMAX Forum Certified,” and the WiMAX Forum Certified logo
are trademarks of the WiMAX Forum.
Statement of Conditions
The information contained in this manual is subject to change without notice.
FRC shall not be liable for errors contained herein or for incidental or consequential damages
in connection with the furnishing, performance, or use of this manual or equipment supplied
with it.
Warranties and Disclaimers
All FRC products purchased from FRC or through any of FRC's authorized resellers are
subject to the following warranty and product liability terms and conditions.
Exclusive Warranty
(a) FRC warrants that the Product hardware it supplies and the tangible media on which any
software is installed, under normal use and conditions, will be free from significant defects in
materials and workmanship for a period of twelve (12) months from the date of shipment of a
given Product to Purchaser (the "Warranty Period"). FRC will, at its sole option and as
Purchaser's sole remedy, repair or replace any defective Product in accordance with FRC'
standard R&R procedure.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
3!
(b) With respect to the Firmware, FRC warrants the correct functionality according to the
attached documentation, for a period of twelve (12) month from invoice date (the "Warranty
Period")". During the Warranty Period, FRC may release to its Customers firmware updates,
which include additional performance improvements and/or bug fixes, upon availability (the
"Warranty"). Bug fixes, temporary patches and/or workarounds may be supplied as Firmware
updates.
Additional hardware, if required, to install or use Firmware updates must be purchased by the
Customer. FRC will be obligated to support solely the two (2) most recent Software major
releases.
FRC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT
DOES NOT EXIST OR WAS CAUSED BY PURCHASER'S OR ANY THIRD PERSON'S
MISUSE, NEGLIGENCE, IMPROPER INSTALLATION OR IMPROPER TESTING,
UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE
RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER
HAZARD.
Disclaimer
(a) The Software is sold on an "AS IS" basis. FRC, its affiliates or its licensors
MAKE NO WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED,
WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING
DOCUMENTATION FRC SPECIFICALLY DISCLAIMS ALL IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NON-
INFRINGEMENT WITH RESPECT TO THE SOFTWARE.
UNITS OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO
PURCHASER HEREUNDER ARE NOT FAULT-TOLERANT AND ARE NOT
DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE IN
APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF
PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE
PHYSICAL OR ENVIRONMENTAL DAMAGE ("HIGH RISK ACTIVITIES"). HIGH
RISK ACTIVITIES MAY INCLUDE, BUT ARE NOT LIMITED TO, USE AS PART OF
ON-LINE CONTROL SYSTEMS IN HAZARDOUS ENVIRONMENTS REQUIRING
FAIL-SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR
FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR
TRAFFIC CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR OTHER
APPLICATIONS REPRESENTING A SIMILAR DEGREE OF POTENTIAL HAZARD.
FRC SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF
FITNESS FOR HIGH RISK ACTIVITIES.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
4!
(b) PURCHASER'S SOLE REMEDY FOR BREACH OF THE EXPRESS
WARRANTIES ABOVE SHALL BE REPLACEMENT OR REFUND OF THE
PURCHASE PRICE AS SPECIFIED ABOVE, AT FRC'S OPTION. TO THE
FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND REMEDIES SET
FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY
OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT
LIMITED TO WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY,
CORRESPONDENCE WITH DESCRIPTION, NON-INFRINGEMENT, AND
ACCURACY OF INFORMATION GENERATED. ALL OF WHICH ARE EXPRESSLY
DISCLAIMED. FRC' WARRANTIES HEREIN RUN ONLY TO PURCHASER, AND ARE
NOT EXTENDED TO ANY THIRD PARTIES. FRC NEITHER ASSUMES NOR
AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY
IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF
ITS PRODUCTS.
Limitation of Liability
(a) FRC SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD
PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF
BUSINESS OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR
CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER ARISING UNDER
BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY
OR OTHERWISE AND WHETHER BASED ON THIS AGREEMENT OR OTHERWISE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
(b) TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
THE LIABILITY FOR DAMAGES HEREUNDER OF FRC OR ITS EMPLOYEES OR
AGENTS EXCEED THE PURCHASE PRICE PAID FOR THE PRODUCT BY
PURCHASER, NOR SHALL THE AGGREGATE LIABILITY FOR DAMAGES TO ALL
PARTIES REGARDING ANY PRODUCT EXCEED THE PURCHASE PRICE PAID FOR
THAT PRODUCT BY THAT PARTY (EXCEPT IN THE CASE OF A BREACH OF A
PARTY'S CONFIDENTIALITY OBLIGATIONS).
Electronic Emission Notices
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
5!
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC and to EN 301 489-1 rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1 This device may not cause harmful interference.
2 This device must accept any interference received, including interference that may cause
undesired operation.
Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC rules and to EN 301 489-1 rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is
operated in a residential environment notwithstanding use in commercial, business and
industrial environments. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
FCC Radiation Hazard Warning
To comply with FCC and ETSI RF exposure requirement, this equipment must be installed
and operated in accordance with provided instructions and the antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provided with antenna installation instructions
and transmitter operating conditions for satisfying RF exposure compliance.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
6!
R&TTE Compliance Statement
This equipment is confirmed to comply with the requirements set in the Council Directive of
the Approximation of the laws of the Member States relating to R&TTE Directive
(1999/5/EC) that include the Electromagnetic Compatibility Directive (2004/108/EC) and
Low Voltage Directive (73/23/EEC).
Caution
To avoid electrical shock, do not perform any servicing unless you are qualified to do so.
Line Voltage
Before connecting this instrument to the power line, make sure that the voltage of the power
source matches the requirements of the instrument. The unit must be connected to an earthed
(grounded) outlet to comply with international safety standards.
Radio
The instrument transmits radio energy during normal operation. To avoid possible harmful
exposure to this energy, do not stand or work for extended periods of time in front of its
antenna. The long-term characteristics or the possible physiological effects of Radio
Frequency Electromagnetic fields have not been yet fully investigated.
Outdoor Unit and Antenna Installation and Grounding
Ensure that outdoor units, antennas and supporting structures are properly installed to
eliminate any physical hazard to either people or property. Make sure that the installation of
the outdoor unit, antenna and cables is performed in accordance with all relevant national and
local building and safety codes. Even where grounding is not mandatory according to
applicable regulation and national codes, it is highly recommended to ensure that the outdoor
unit and the antenna mast (when using external antenna) are grounded and suitable lightning
protection devices are used so as to provide protection against voltage surges and static
charges. In any event, FRC, The Supplier, is not liable for any injury, damage or regulation
violations associated with or caused by installation, grounding or lightning protection.
Disposal of Electronic and Electrical Waste
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
7!
Pursuant to the WEEE EU Directive electronic and electrical waste must not be disposed of
with unsorted waste. Please contact your local recycling authority for disposal of this product.
Important Notice
This user manual is delivered subject to the following conditions and restrictions:
 This manual contains proprietary information belonging to FRC. Such information is
supplied solely for the purpose of assisting properly authorized users of the respective FRC
products.
 No part of its contents may be used for any other purpose, disclosed to any person or firm
or reproduced by any means, electronic and mechanical, without the express prior written
permission of FRC.
 The text and graphics are for the purpose of illustration and reference only.
The specifications on which they are based are subject to change without notice.
 The software described in this document is furnished under a license. The software may be
used or copied only in accordance with the terms of that license.
 Information in this document is subject to change without notice.
 FRC reserves the right to alter the equipment specifications and descriptions in this
publication without prior notice. No part of this publication shall be deemed to be part of any
contract or warranty unless specifically incorporated by reference into such contract or
warranty.
 The information contained herein is merely descriptive in nature, and does not constitute
an offer for the sale of the product described herein.
 Any changes or modifications of equipment, including opening of the equipment not
expressly approved by FRC will void equipment warranty and any repair thereafter shall be
charged for. It could also void the user's authority to operate the equipment.
Some of the equipment provided by FRC and specified in this manual, is manufactured and
warranted by third parties. All such equipment must be installed and handled in full
compliance with the instructions provided by such manufacturers as attached to this manual
or provided thereafter by FRC or the manufacturers. Non-compliance with such instructions
may result in serious damage and/or bodily harm and/or void the user's authority to operate
the equipment and/or revoke the warranty provided by such manufacturer.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
8!
IMPORTANT!NOTICE:!
This document describes in details the steps and procedure required to install and operate FRC
WiMAX Outdoor CPE. The document also lists the different available CLI/Web commands to
interact with the CPE with a detailed list of the parameters.
AUDIENCE!
This user guide is intended for system administrators and operators responsible for managing and
operating the WiMAX CPE.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
9!
TABLE!OF!CONTENTS!
Chapter One: Product Overview ______________________________________________________ 11!
1.1 INtroduction ________________________________________________________________________________ 11!
1.1.1 Router Mode ______________________________________________________________________________ 11!
1.1.2 Bridge Mode ______________________________________________________________________________ 11!
1.2 Product OVERVIEW: WiMAX Transmission Features ______________________________________________ 12!
1.2.1 Dynamic Adaptation ________________________________________________________________________ 12!
1.2.2 Adaptive Coding ___________________________________________________________________________ 12!
1.2.3 Adaptive Modulation _______________________________________________________________________ 12!
1.2.4 Traffic Classification _______________________________________________________________________ 12!
1.3 System Tour ________________________________________________________________________________ 13!
1.3.1 Main Features _____________________________________________________________________________ 13!
1.3.2 Package Contents Checklist __________________________________________________________________ 14!
Chapter Two: Basic Installation ______________________________________________________ 15!
2.1 Safety Measures _____________________________________________________________________________ 15!
2.2 System Requirements ________________________________________________________________________ 15!
2.3.1 Point to Point (PTP) ________________________________________________________________________ 16!
Point to Point deployment uses frequencies in the 5 GHz range and requires that the transmission medium is line of
sight and tightly beamed from transmitter to receiver. The diagram shows a typical PTP scenario. _______________ 16!
2.3.2 Point to Multipoint (PTM) ___________________________________________________________________ 17!
2.4 Hardware Installation _________________________________________________________________________ 18!
2.4.1 Choosing a Location ________________________________________________________________________ 18!
2.4.2 POLE installation steps ______________________________________________________________________ 19!
2.4.3 Wall installation steps _______________________________________________________________________ 22!
2.4.4 installation Check up _______________________________________________________________________ 23!
Chapter Three: Web Configuration ___________________________________________________ 24!
3.1 Logging In _________________________________________________________________________________ 25!
3.2 System Settings _____________________________________________________________________________ 27!
3.2.1 Changing system Configuration _______________________________________________________________ 27!
3.2.2 Upgrade system firmware ____________________________________________________________________ 27!
3.2.3 CPE Configuration Parameters ________________________________________________________________ 30!
3.2.4 IP address assignment and Configuration file retrieval _____________________________________________ 34!
3.2.5 Changing configuration file after initialization ___________________________________________________ 35!
3.2.6 SNMP Configuration Tool ___________________________________________________________________ 35!
3.2.7 Factory Reset procedure _____________________________________________________________________ 35!
3.2.8 Status LED _______________________________________________________________________________ 35!
3.2.9 Authentication support ______________________________________________________________________ 36!
Chapter Four: Cli Commands ________________________________________________________ 37!
4.1 loadImage _________________________________________________________________________________ 37!
4.2 upgradeSw _________________________________________________________________________________ 38!
4.3 showVersions _______________________________________________________________________________ 38!
4.4 showSysConfiguration ________________________________________________________________________ 39!
4.5 setSysConfiguration __________________________________________________________________________ 39!
4.6 saveSysConfiguration ________________________________________________________________________ 41!
4.7 downloadConfigFile _________________________________________________________________________ 41!
4.8 uploadConfigFile ____________________________________________________________________________ 42!
4.9 addToScanList ______________________________________________________________________________ 42!
4.10 removeFromScanList ________________________________________________________________________ 43!
4.11 addToPreferredNspList ______________________________________________________________________ 43!
4.12 removeFromPreferredNspList _________________________________________________________________ 44!
4.13 updateAccount _____________________________________________________________________________ 44!
4.14 getMIB ___________________________________________________________________________________ 45!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
10!
4.15 setMIB ___________________________________________________________________________________ 46!
4.16 GETNEXTMIB ____________________________________________________________________________ 47!
4.17 getBulk ___________________________________________________________________________________ 48!
4.18 restoreFactorySettings ______________________________________________________________________ 49!
4.19 downloadDeviceCert ________________________________________________________________________ 49!
4.20 uploadDeviceCert __________________________________________________________________________ 50!
4.21 showCurrentNetworkDeployment ______________________________________________________________ 51!
4.22 setCurrentNetworkDeployment ________________________________________________________________ 52!
4.23 configurePPPoE ____________________________________________________________________________ 53!
4.24 configureBridge ____________________________________________________________________________ 54!
4.25 configureRouter ____________________________________________________________________________ 54!
4.26 configureVlan _____________________________________________________________________________ 55!
4.27 removeVlanConfiguration ____________________________________________________________________ 56!
Chapter Five: Typical Usage Scenarios ________________________________________________ 57!
5.1 Bridge Setup _______________________________________________________________________________ 57!
5.2 Router Setup _______________________________________________________________________________ 58!
5.3 DHCP Server Setup __________________________________________________________________________ 58!
Glossary ______________________________________________________________________________________ 59!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
11!
!
!
CHAPTER!ONE:!PRODUCT!OVERVIEW!
!
1.1!INTRODUCTION!!
The WiMAX Outdoor CPE with router/Bridge functionality provides WiMAX connectivity to wired
LAN networks. The CPE functions as a WiMAX gateway providing wired and wireless broadband
Internet access services through connection with a WiMAX base station. The CPE is easily installed,
utilizing Plug and Play functionality. In addition to web-based configuration, users can update
firmware, simplifying installation and operation of the device. The CPE operates in Router mode and
Bridge mode, both providing Internet access:
1.1.1!ROUTER!MODE!
In Router mode, the internal IP address is acquired through dynamic host configuration protocol
(DHCP), static IP address, or PPPoE connection to the WiMAX base station. With enabled DHCP
service, connected PCs and notebooks can acquire addresses from the CPE.
A CPE deployed for operation in the router mode is basically used to provide a gateway to hosts on a
local area network where the CPE hides all the traffic originating from the LAN behind its IP address
which is assigned from the public domain, which makes the traffic appear as if it’s originating from
the CPE itself. A router CPE implements Network Address Port Translation protocol (NAPT).
1.1.2!BRIDGE!MODE!
This mode requires minimal presetting, with the internal IP address configured in the same or
different network segment as the WiMAX base station. Bridging is a forwarding technique used in
packet-switched computer networks.
A CPE deployed for operation in the bridge mode is basically used to provide Ethernet service to
enterprise customer locations. An enterprise location has a CPE with an Ethernet interface that could
support one or many user hosts in the local network through a switch. CPE supports both IP and
Ethernet CS. If Ethernet CS is supported by the network then Layer 2 connectivity can be established
between SS and CSN. In this case, the network service to the enterprise customer is an Ethernet
service from the core network all the way to the enterprise MS.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
12!
1.2!PRODUCT!OVERVIEW:!WIMAX!TRANSMISSION!FEATURES!
!
The following transmission features are supported by the WiMAX Outdoor CPE to provide stable
and error-free connection.
1.2.1!DYNAMIC!ADAPTATION!
Dynamic adaptation enables the CPE to maintain a high data rate while taking into account current
link conditions like half-loss, interference, and seasonal foliage changes. The CPE monitors wireless
link conditions on a burst-by-burst basis and uses dynamic adaptive modulation control, based on the
measured CINR (Carrier/(Interference + Noise) Ratio), to regulate the link.
1.2.2!ADAPTIVE!CODING!
!
Each data transmission to or from the CPE contains extra, redundant information to reduce the errors
introduced during transmission. A coding rate is the ratio of meaningful data to this extra padding
(including error correction data). Adaptive coding enables the CPE to dynamically change the coding
rate depending on this ratio. This CPE supports coding rates of 1/2, 2/3, and 3/4.
1.2.3!ADAPTIVE!MODULATION!
Adaptive Modulation is used to specify what modulation technique is coded in to carriers composing
orthogonal frequency-division multiplexing (OFDM) symbols. This CPE supports QPSK, 16 QAM,
and 64 QAM modulation techniques.
1.2.4!TRAFFIC!CLASSIFICATION!
Traffic Classification categorizes transmission bursts by searching for pattern matches within the
data. Classifications (for example, burst destination, source MAC address, and Virtual LAN tags) are
defined and managed by the base station and transmitted to the CPE.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
13!
1.3!SYSTEM!TOUR!
! !!
1.3.1!MAIN!FEATURES!
! WiMAX Forum IEEE 802.16e-2005 compliance
! Frequency is 3.65 GHz – 3.675 GHz
! Supports TDD Duplexing mode
! Convolutional code: 1/2, 2/3, 3/4, 5/6
! Supports 5, 7 and 10 MHz bandwidth
! 26 dBm output power
! OFDMA modulation, 512/1024 FFT points, QPSK, 16QAM, 64QAM
! LAN /WAN port with IP Filtering Support.
! Supports DHCP Server/ Client/Relay, PPPoE, VPN pass-through (IPSEC/PPTP), NAT/PAT
! Ease-of-use web-based interface for managing and configuring
! Software features: Dual Image, Automatic/Manual Software Upgrade, Manual/Automatic
Configuration file Support, Factory Reset and Status LED, Standard and Private MIBs, CLI
support.
! Support both IP-CS and ETH-CS operation.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
14!

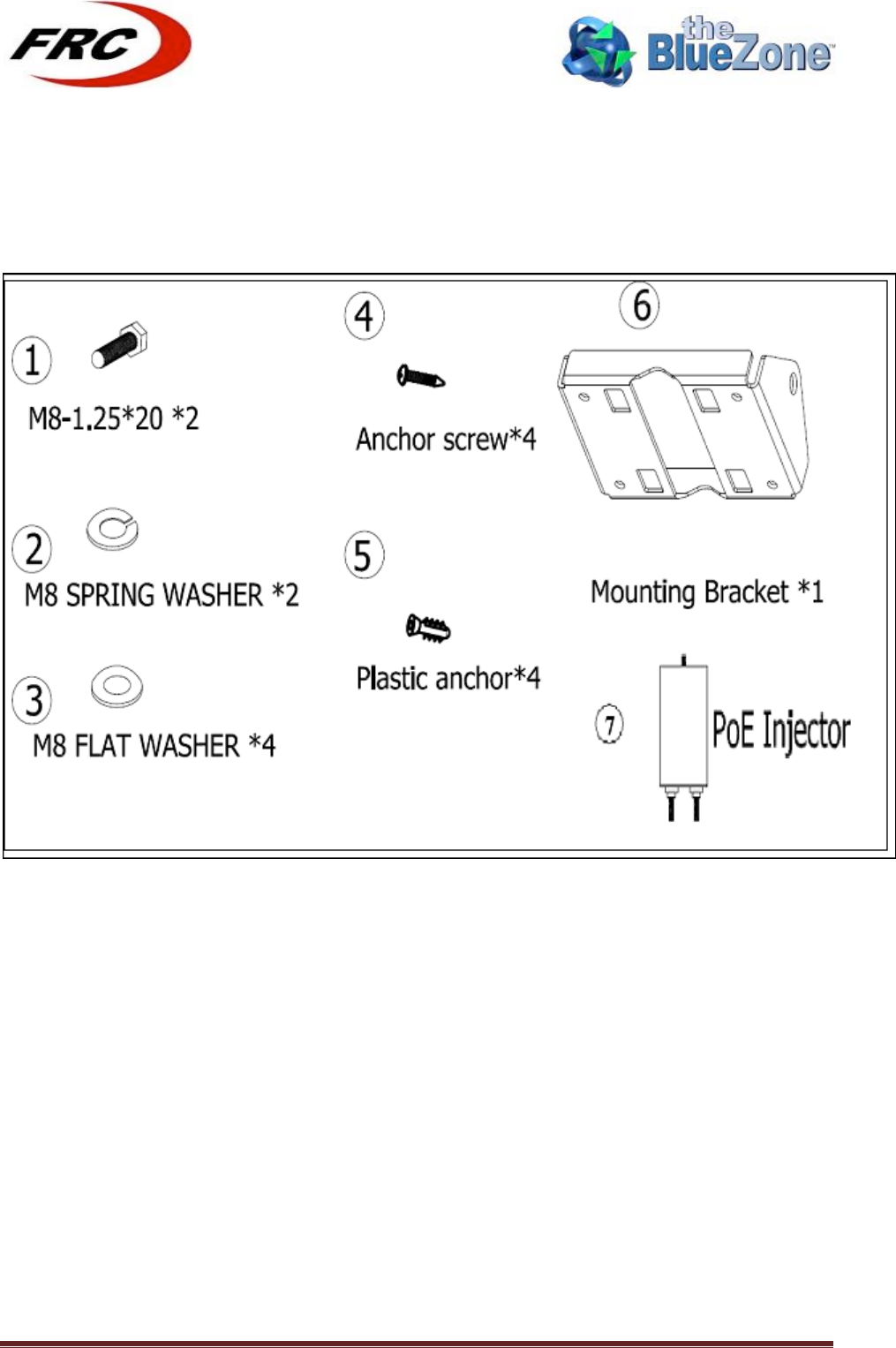

1.3.2!PACKAGE!CONTENTS!CHECKLIST!
!
Once unpacked, ensure that all contents are included. Refer to the list below for the materials list.
List
!
Figure 1: CPE package contents
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
15!
!
!
CHAPTER!TWO:!BASIC!INSTALLATION!!
This chapter contains information on safety and installation procedures for the WiMAX Outdoor
CPE. Follow the recommendations outlined in this chapter to ensure the correct operation of the CPE
and reduce the risk of damage to the device or personal injury.
2.1!SAFETY!MEASURES!
Before installing and using the CPE, take note of the following precautions:
• Read all instructions carefully
• Use only the Power over Ethernet adapter supplied
• Follow all warnings and cautions in this manual and on the unit case
2.2!SYSTEM!REQUIREMENTS!
Proper installation of the CPE requires the following minimal configuration:
• A PC with a 10/100Base-TX adapter
• A Web browser installed such as Microsoft Internet Explorer® version 8.0, Firefox®version 3.0, or
Safari® version 3.0.3.
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
16!
2.3!Deployment!Models!
This section describes the different deployment models supported by the CPE.

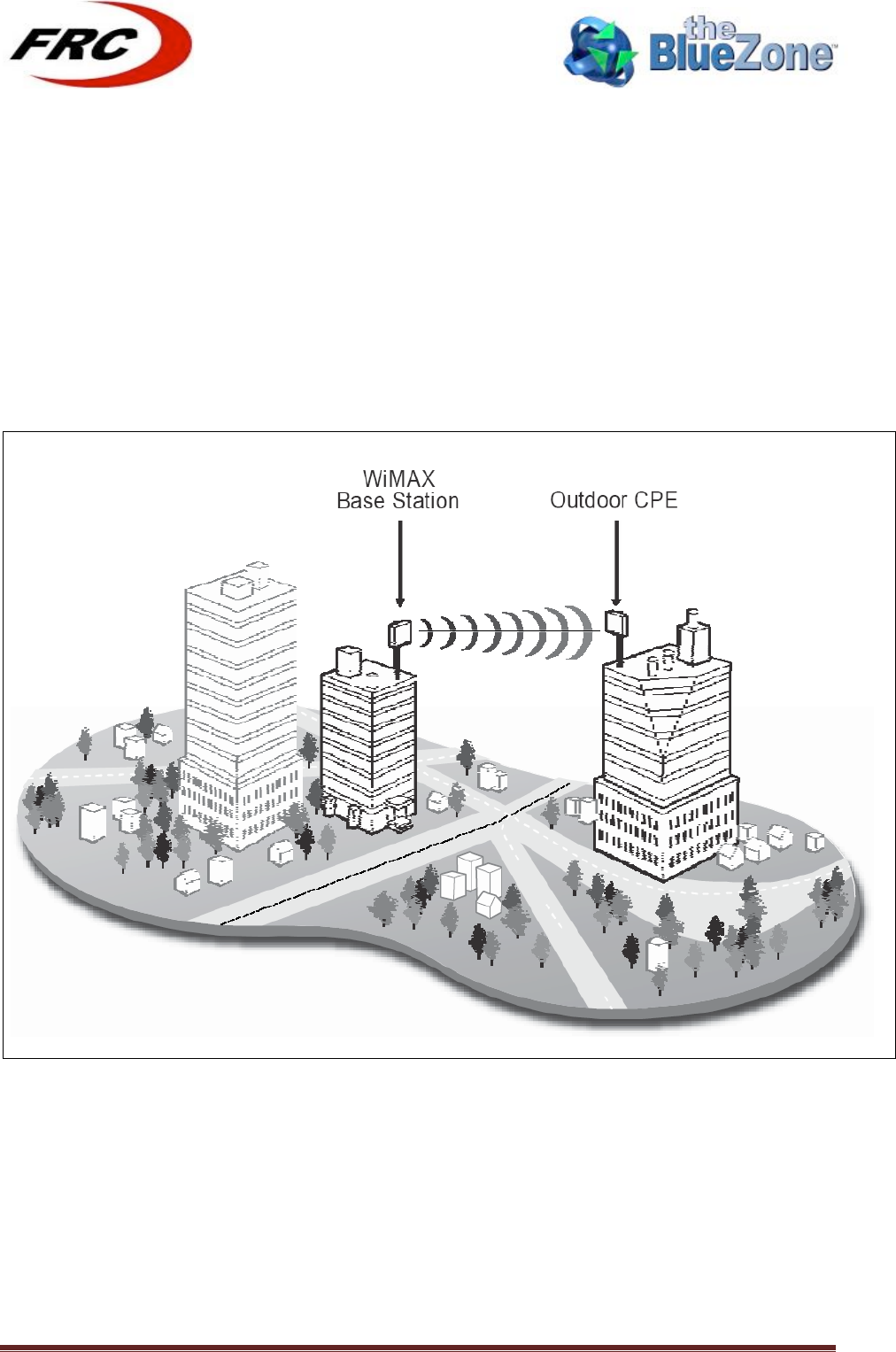

2.3.1!POINT!TO!POINT!(PTP)!
!
Point to Point deployment uses frequencies in the 5 GHz range and requires that the transmission
medium is line of sight and tightly beamed from transmitter to receiver. The diagram shows a typical
PTP scenario.
!
Figure 2: PTP Setup
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
17!
2.3.2!POINT!TO!MULTIPOINT!(PTM)!
!
Point to Multipoint (PTM) is an extension of PTP deployment where a greater number of receivers
are deployed. This CPE supports both PTP and PTM deployment.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
18!
2.4!HARDWARE!INSTALLATION!
!
This section describes the proper steps required to install the CPE, and to align the antenna.
2.4.1!CHOOSING!A!LOCATION!
!
To make optimal use of the CPE, a suitable location is important. The range of the CPE largely
depends upon the position of the antenna. It is recommended that CPE is within 2Km from the BS
and an overall survey performed, observing the following requirements, before installing the CPE:
• Do not place the CPE near the floor or near metal objects, such as drain pipes.
• The location must allow easy disconnection of power to the CPE if necessary.
• Air must be able to flow freely around the hardware.
• The CPE unit must be kept away from vibration and excessive heat.
• The installation must conform to national and local electrical codes
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
19!
2.4.2!POLE!INSTALLATION!STEPS!
!
To pole mount the CPE, perform the following steps:
1. Ensure that the pole intended for installation is securely attached to a solid base.

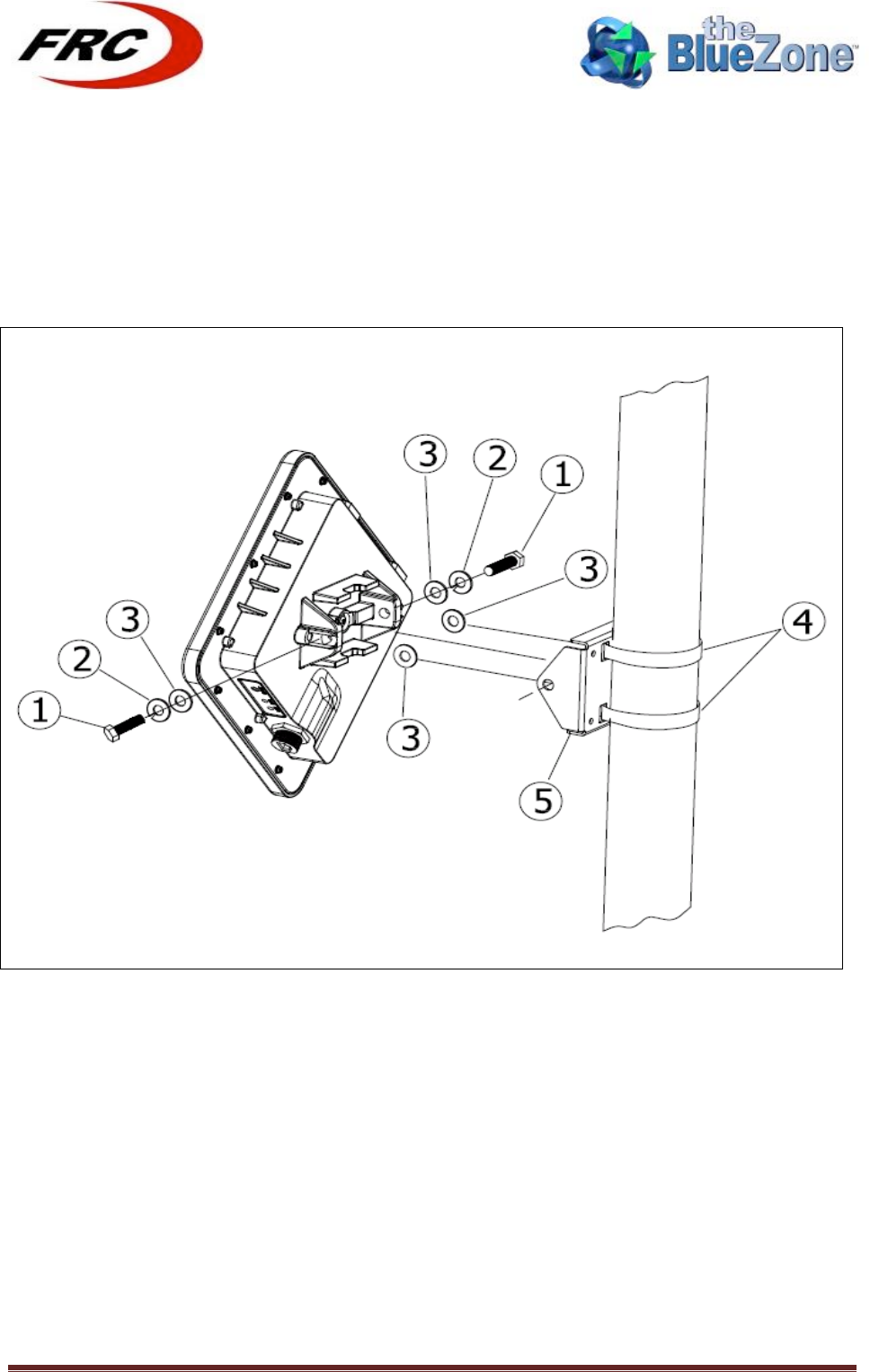

2. Fasten the CPE on the pole with Mounting Bracket and bolt as shown below.
!
Figure3: CPE Pole Mounting
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
20!

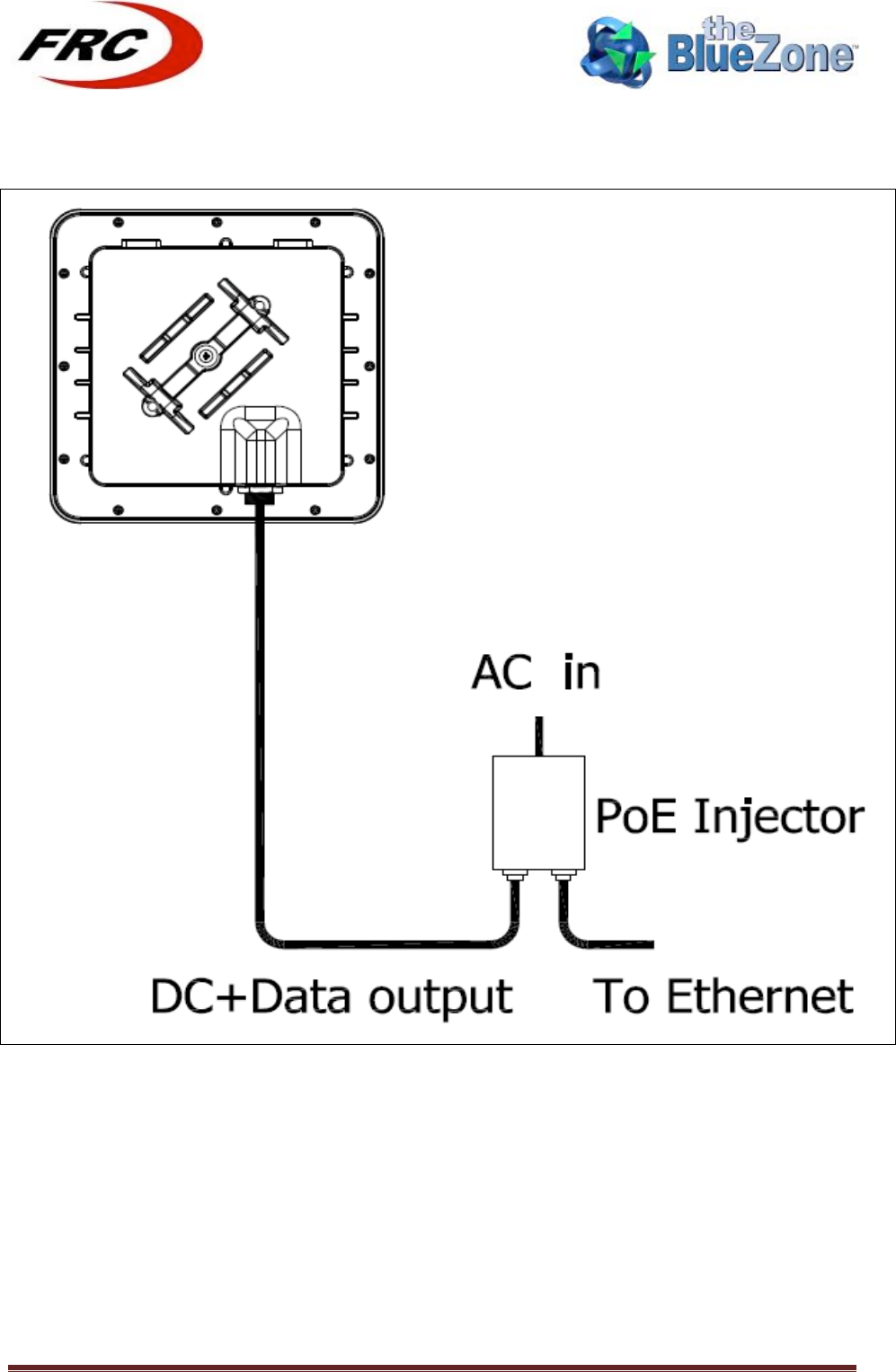

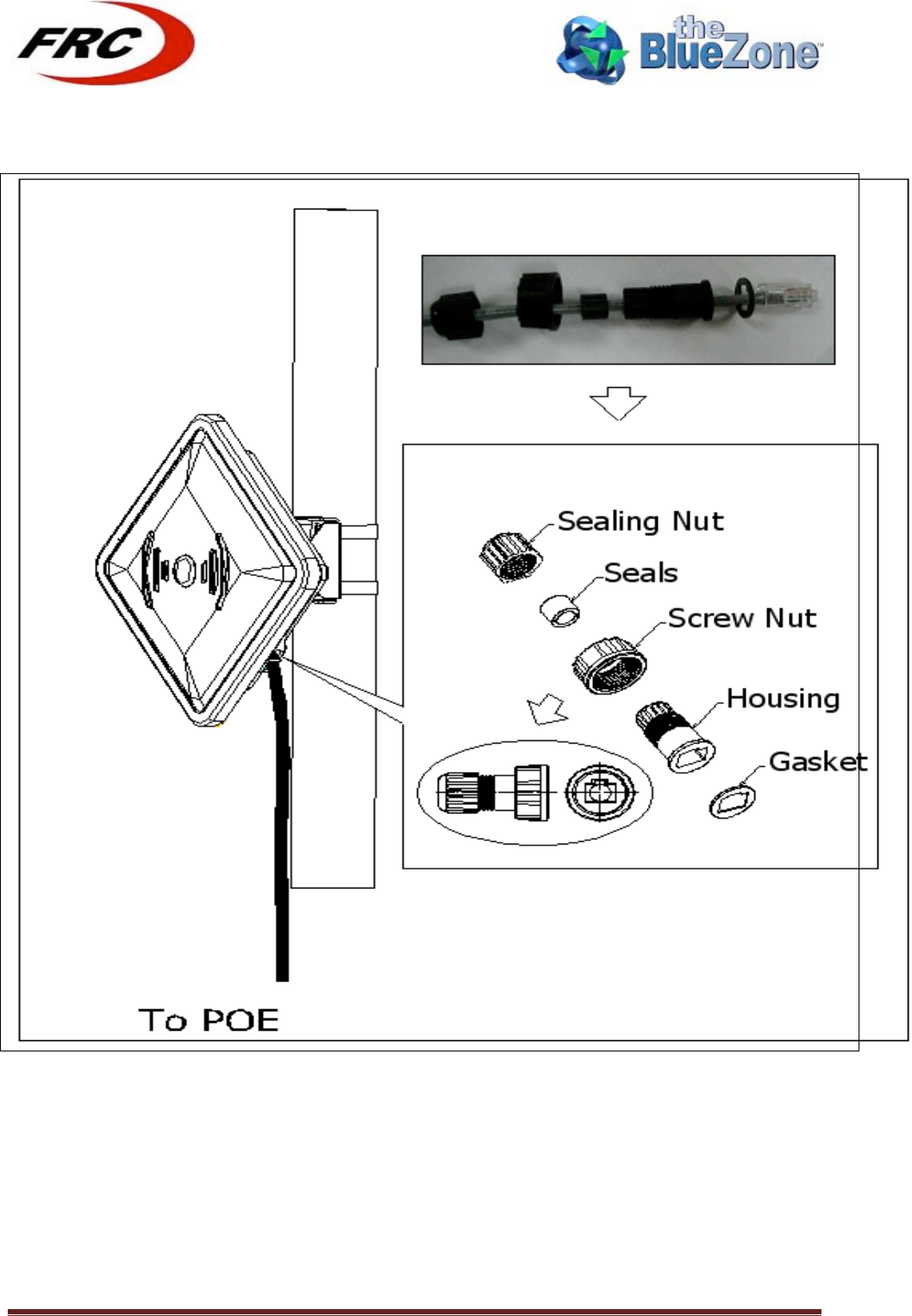

3.!Install!weatherJproof!CATJ5e!cable!between!Ethernet!port!of!CPE!and!“DC+Data!output”!port!
of!POE!injector!as!shown!in!Figure!4.!
!
!
Figure 4: POE Connection Setup
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
21!
4.!Install!CATJ5e!cable!to!“To!Ethernet”!port!of!POE!Injector!as!shown!in!Figure!5.!
!
!
Figure 5: Ethernet installation
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
22!
2.4.3!WALL!INSTALLATION!STEPS!
!
To wall mount the CPE, perform the following steps:
1. Ensure that the wall intended for installation is securely solid base.
2. Fasten the CPE on the wall with Mounting Bracket and bolt as shown below.

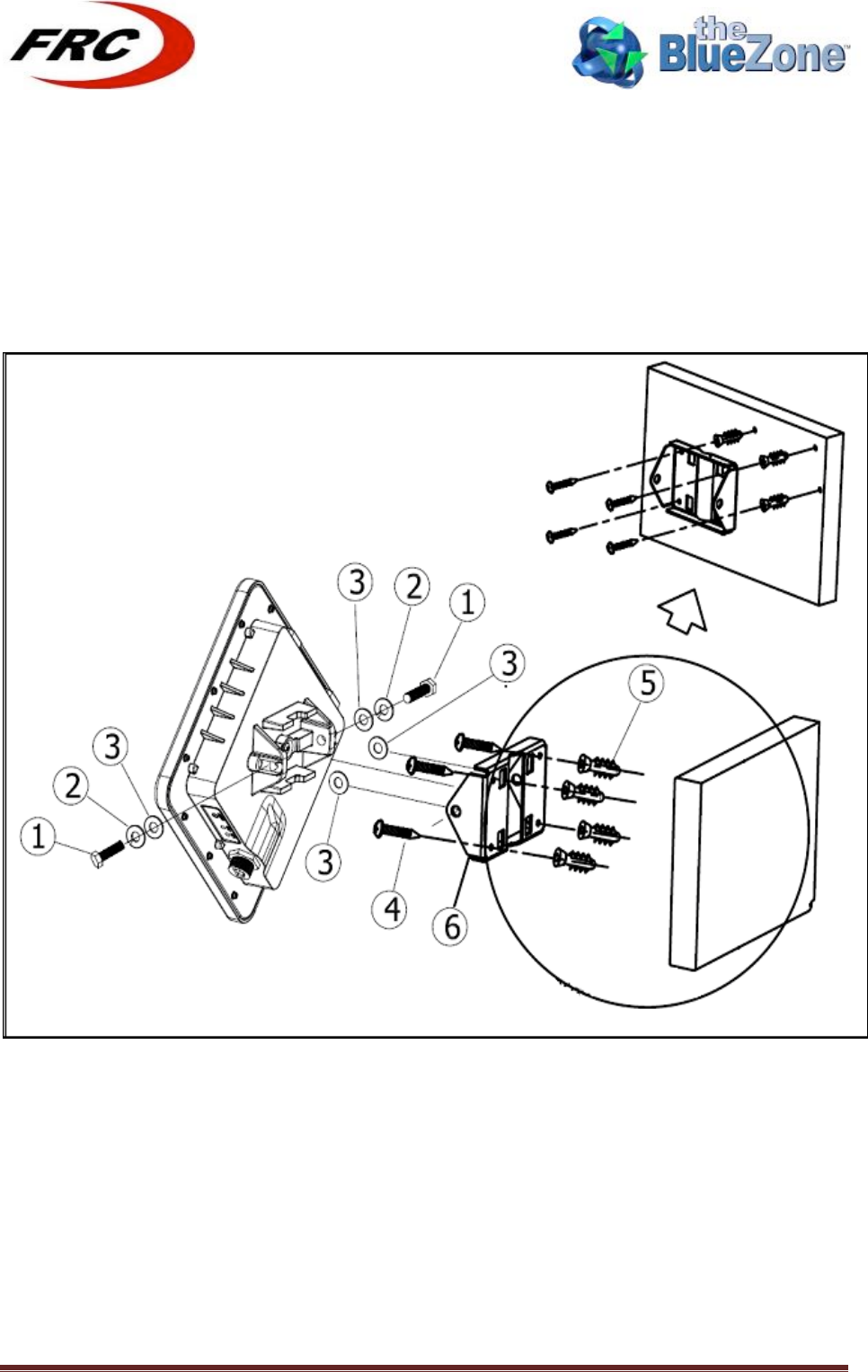

Figure6: CPE Wall Mounting
3. Install weather-proof CAT-5e cable between Ethernet port of CPE and “DC+Data output” port of POE
injector as shown in Figure 4.
4. Install CAT-5e cable to “To Ethernet” port of POE Injector as shown in Figure 5.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
23!
2.4.4!INSTALLATION!CHECK!UP!
The CPE is equipped with a green LED that indicates the status of the CPE software. The LED
flashes with different speeds thus indicating three modes:
1. Before firmware loading "!Off!
2. During!Firmware!loading!"!!Rapid!flashing!
3. Scanning!for!BS!"!Slow!flashing!
4. Connected!to!a!BS!" On!
!
For!correct!installation,!you!need!to!do!the!following:!!!
!
I. Ensure the CPE is directed towards the WiMAX Base Station specified in the Work
Order.
II. Access the CPE webpage by entering the default IP address http://192.168.0.25 in the
browser address field. Click on the RF-STAT button to continuously read the RSSI level
from the CPE.
III. Adjust the direction of the CPE in small increments (both horizontally and vertically)
until the best RSSI level is achieved.
IV. Tighten all mounting hardware screws and clamps. Record the best achieved RSSI value
on the Work Order.
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
24!
!
!
CHAPTER!THREE:!WEB!CONFIGURATION!!
A secure web page with multiple tabs is deployed on an embedded web server available on the CPE
and is accessible from any web browser. The WiMAX Outdoor CPE’s Web-based Graphical User
Interface (GUI) enables quick and simple setup, and the configuration of the following options:
• Current settings and status display
• Connection of the configured CPE to WiMAX base stations
• Network setting changes, such as internal IP address, IP address pool, DHCP settings and more
• Wireless security setup
• Internal password change
• Configuration settings backup
• Default settings reset
• Firmware updates
The system configuration parameters are maintained in the configuration file saved on flash.
If the CPE is connected to the BS, then it will get an IP from DHCP and the default IP will no longer
be accessible.
!
!
!
!
!
!
!
!
!
