FTR System CT-2000-HS Intelligent Tracking Robot Handset User Manual

FTR System (Shanghai), Inc. Intelligent Tracking Robot Handset

User Manual

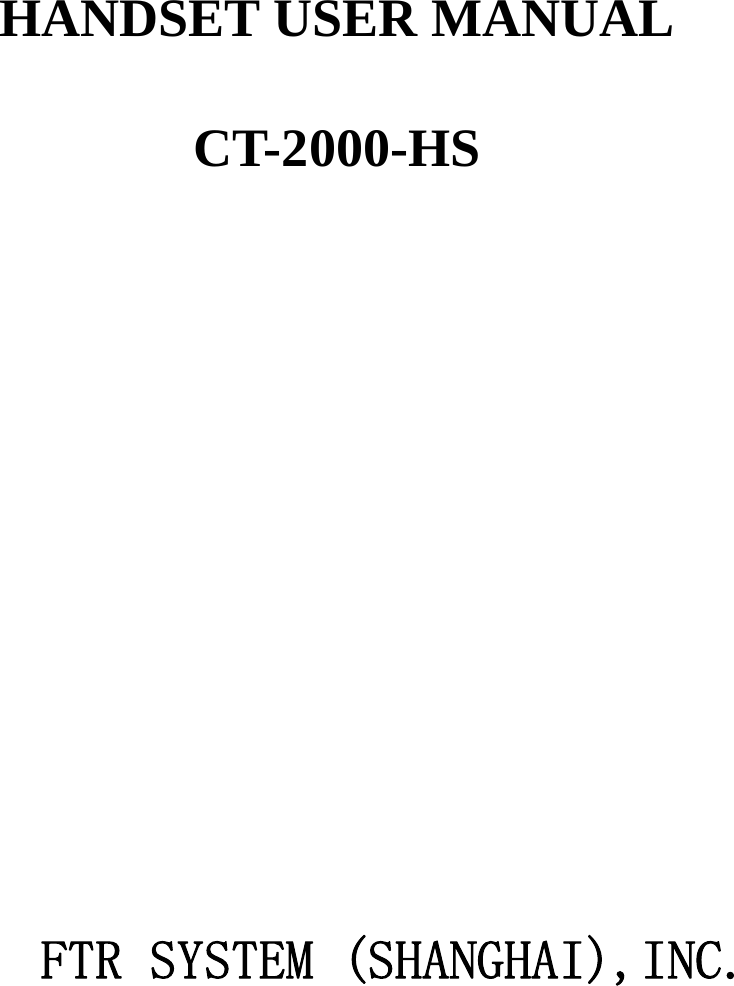

                       HANDSET USER MANUAL  CT-2000-HS                                                                                                               FTR SYSTEM (SHANGHAI),INC.

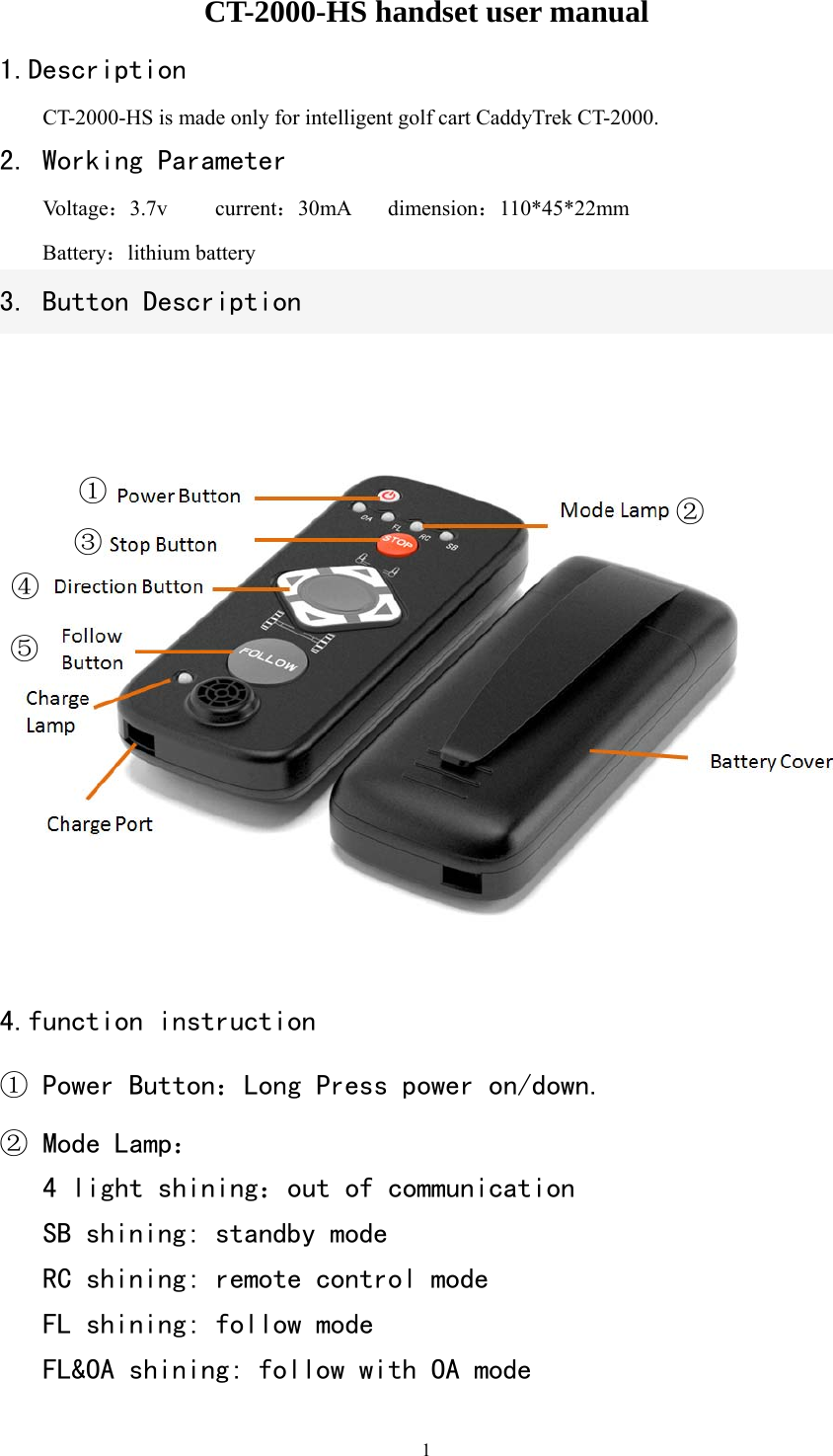

  1CT-2000-HS handset user manual 1.Description CT-2000-HS is made only for intelligent golf cart CaddyTrek CT-2000. 2. Working Parameter  Voltage:3.7v   current:30mA dimension:110*45*22mm  Battery:lithium battery     3. Button Description  4.function instruction ① Power Button:Long Press power on/down. ② Mode Lamp:   4 light shining:out of communication   SB shining: standby mode  RC shining: remote control mode   FL shining: follow mode   FL&OA shining: follow with OA mode ①②③④⑤

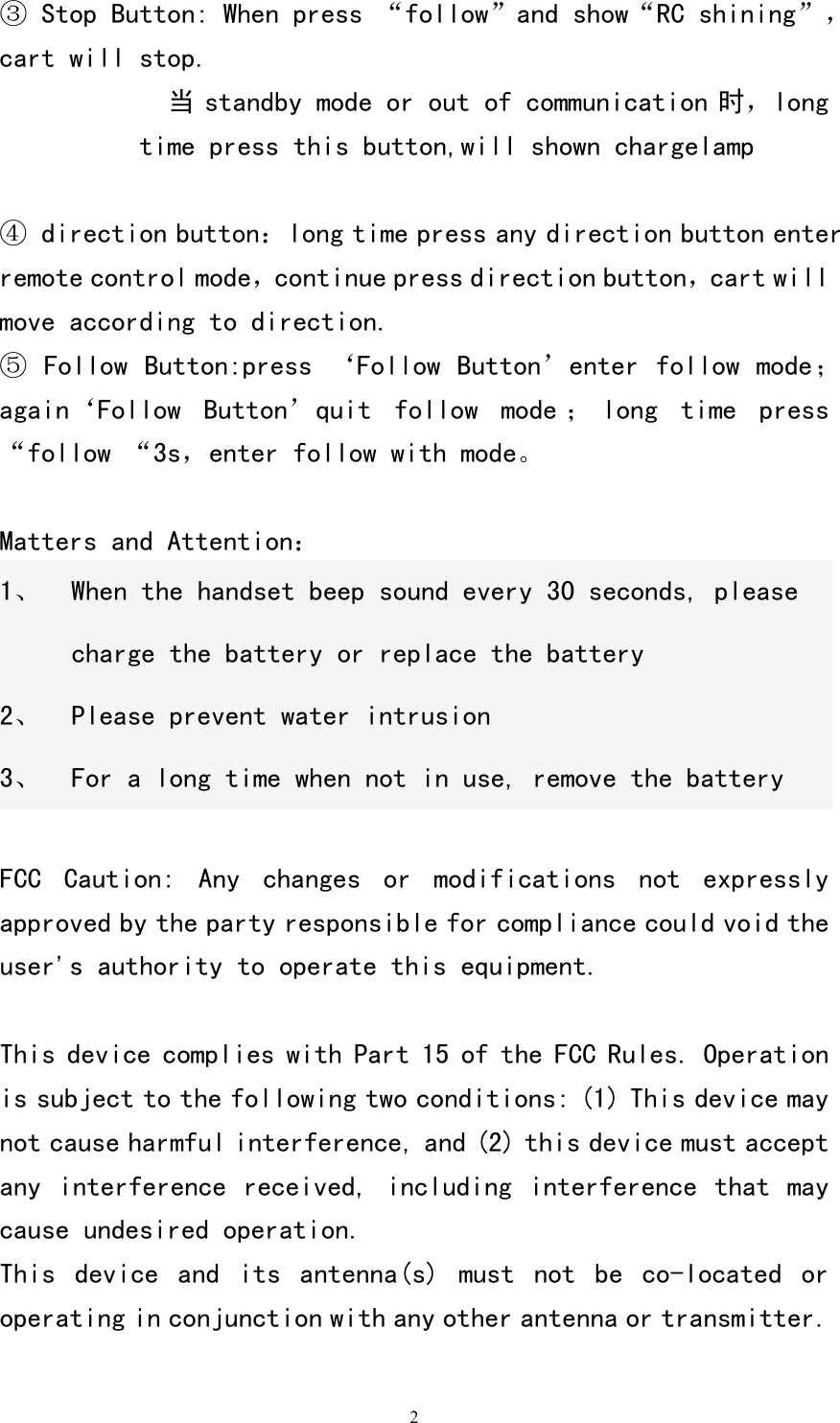

  2③ Stop Button: When press “follow”and show“RC shining”,cart will stop. 当 standby mode or out of communication 时,long time press this button,will shown chargelamp       ④ direction button:long time press any direction button enter remote control mode,continue press direction button,cart will move according to direction. ⑤ Follow Button:press ‘Follow Button’enter follow mode;again‘Follow  Button’quit  follow  mode ; long  time  press “follow “3s,enter follow with mode。  Matters and Attention: 1、 When the handset beep sound every 30 seconds, please charge the battery or replace the battery 2、 Please prevent water intrusion 3、 For a long time when not in use, remove the battery  FCC  Caution:  Any  changes  or  modifications  not  expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,  including interference  that may cause undesired operation. This  device  and  its  antenna(s)  must  not  be  co-located  or operating in conjunction with any other antenna or transmitter.
