GIANT ALARM SYSTEM JJRCF Remote control& receiver for car User Manual

GIANT ALARM SYSTEM CO., LTD Remote control& receiver for car

User Manual

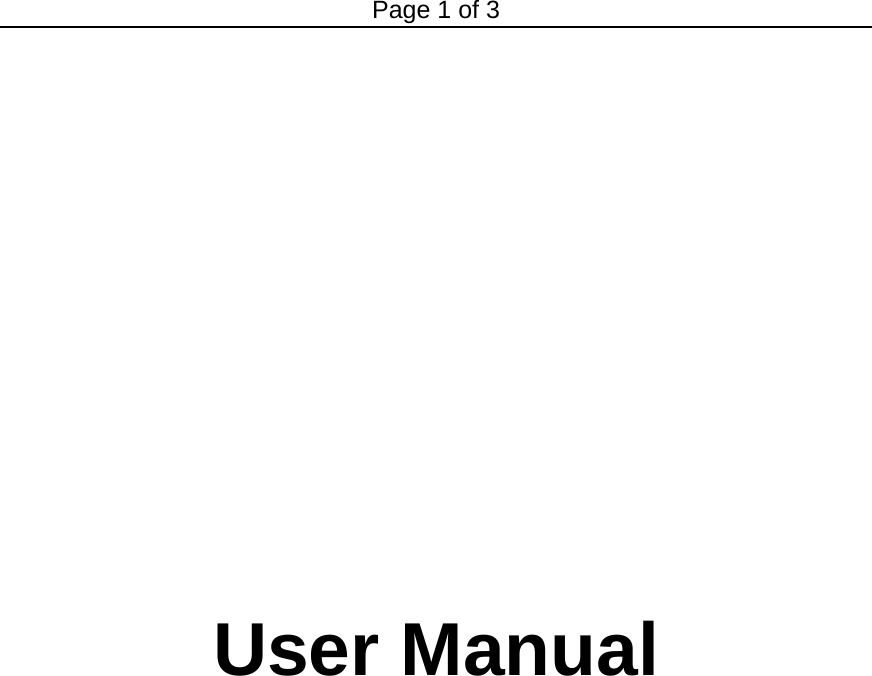

Page 1 of 3 User Manual

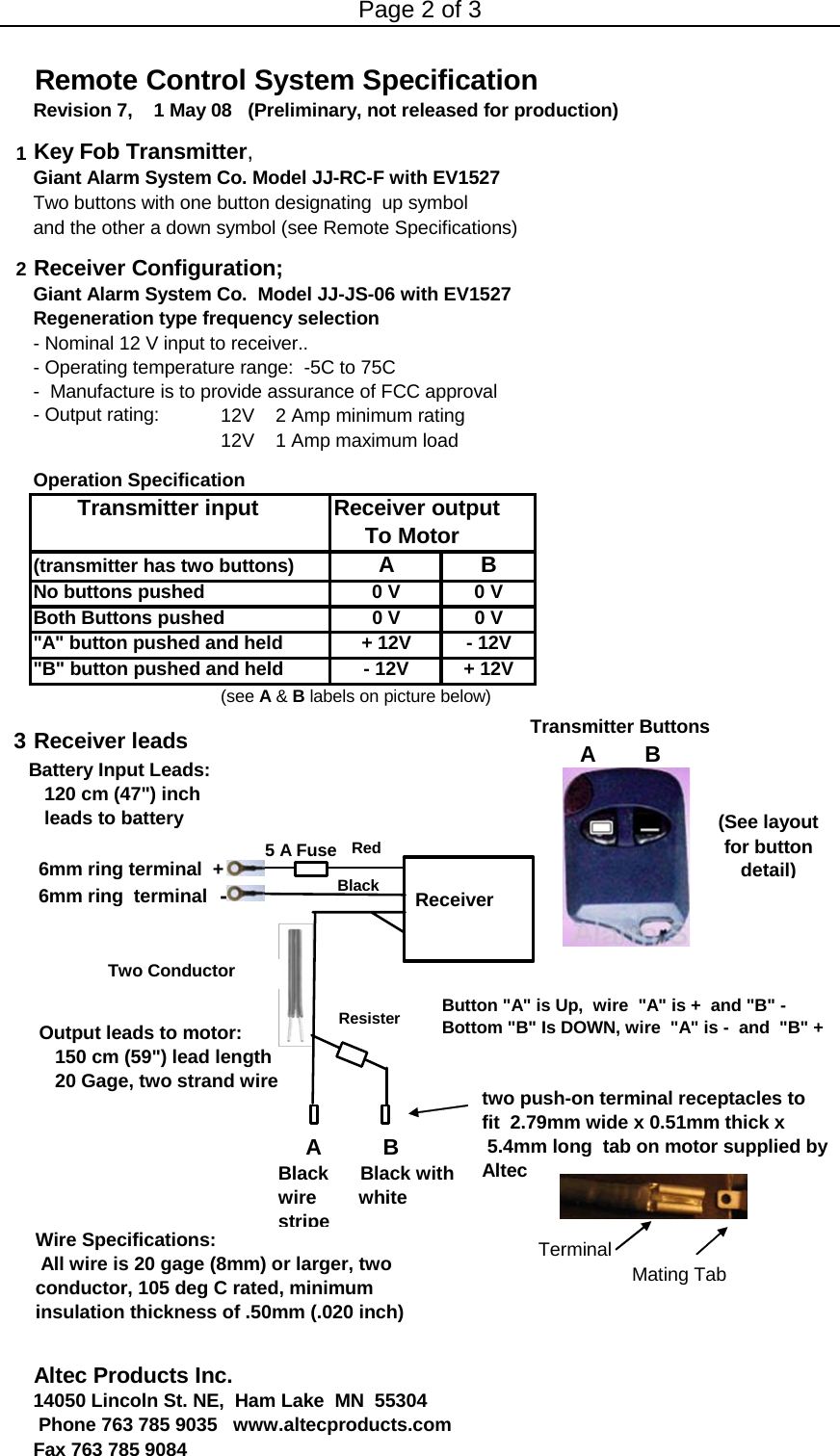

Page 2 of 3 Remote Control System SpecificationRevision 7, 1 May 08 (Preliminary, not released for production)1Key Fob Transmitter,Giant Alarm System Co. Model JJ-RC-F with EV1527Two buttons with one button designating up symbol and the other a down symbol (see Remote Specifications)2Receiver Configuration;Giant Alarm System Co. Model JJ-JS-06 with EV1527 Regeneration type frequency selection- Nominal 12 V input to receiver.. - Operating temperature range: -5C to 75C- Manufacture is to provide assurance of FCC approval - Output rating: 12V 2 Amp minimum rating12V 1 Amp maximum loadOperation Specification Transmitter input Receiver output To Motor(transmitter has two buttons) ABNo buttons pushed 0 V 0 VBoth Buttons pushed 0 V 0 V"A" button pushed and held + 12V - 12V"B" button pushed and held - 12V+ 12V(see A & B labels on picture below)3 Receiver leads 6mm ring terminal + 6mm ring terminal -TerminalMating TabAltec Products Inc. 14050 Lincoln St. NE, Ham Lake MN 55304 Phone 763 785 9035 www.altecproducts.com Fax 763 785 90845 A FuseBattery Input Leads: 120 cm (47") inch leads to batteryOutput leads to motor: 150 cm (59") lead length 20 Gage, two strand wire ReceiverRedBlackTransmitter ButtonsA B Resister Button "A" is Up, wire "A" is + and "B" -Bottom "B" Is DOWN, wire "A" is - and "B" + A BBlack Black withwire white stripe Wire Specifications: All wire is 20 gage (8mm) or larger, two conductor, 105 deg C rated, minimum insulation thickness of .50mm (.020 inch)Two Conductor (See layout for button detail)two push-on terminal receptacles to fit 2.79mm wide x 0.51mm thick x5.4mm long tab on motor supplied by Altec

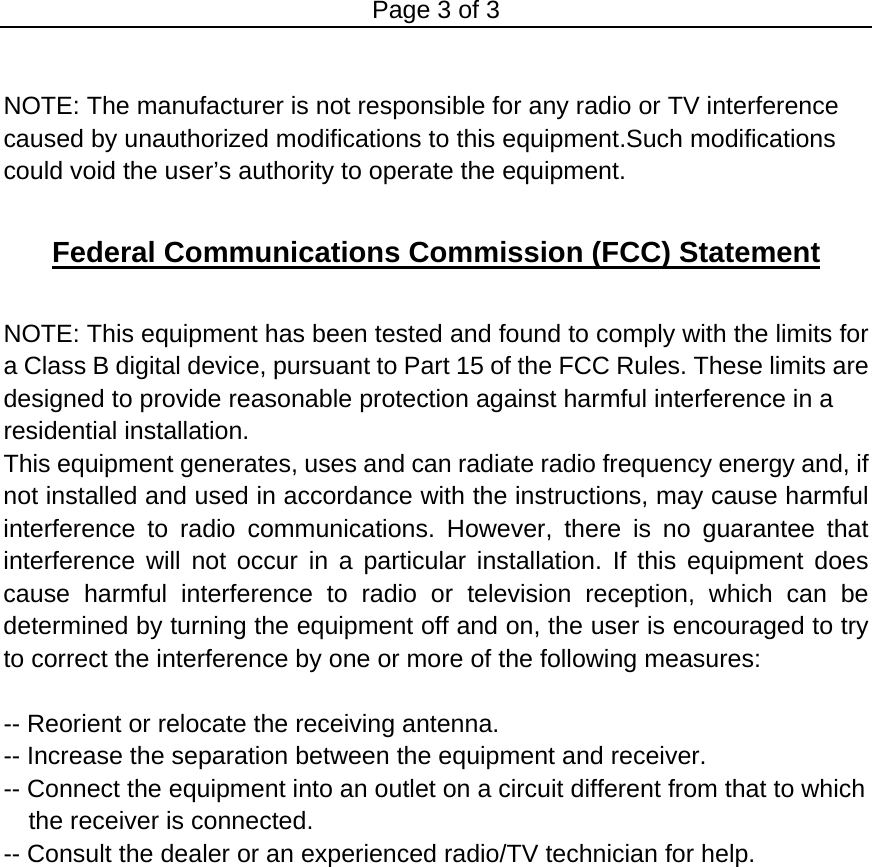

Page 3 of 3 NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.Such modifications could void the user’s authority to operate the equipment. Federal Communications Commission (FCC) Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
