GTU 10 Owner's
Manual
© 2010 Garmin Ltd. or its subsidiaries
All rights reserved. Except as expressly provided
herein, no part of this manual may be reproduced,
copied, transmitted, disseminated, downloaded
or stored in any storage medium, for any purpose
without the express prior written consent of
Garmin. Garmin hereby grants permission to
download a single copy of this manual onto a
hard drive or other electronic storage medium to
be viewed and to print one copy of this manual
or of any revision hereto, provided that such
electronic or printed copy of this manual must
contain the complete text of this copyright notice
and provided further that any unauthorized
commercial distribution of this manual or any
revision hereto is strictly prohibited.
Information in this document is subject to change
without notice. Garmin reserves the right to
change or improve its products and to make
changes in the content without obligation to notify
any person or organization of such changes or
improvements. Visit the Garmin Web site (www
.garmin.com) for current updates and
supplemental information concerning the use and
operation of this and other Garmin products.
Garmin
®
, the Garmin logo are trademarks of
Garmin Ltd. or its subsidiaries, registered in the
USA and other countries. These trademarks may
not be used without the express permission of
Garmin.
Owner’s Manual 1
See the Important Safety and
Product Information guide in the
product box for product warnings
and other important information.
When using the device the rst time,
complete these tasks.
1. Charge the device (page 1).
2. Connect the device to your
computer.
3. Register and activate your device.
4. Set up geofences.
5. Turn on the device.
6. Place the device.
notice
To prevent corrosion, thoroughly dry
the contacts and the surrounding area
before charging or connecting to a
computer.
The device will not charge when the
battery is outside the temperature
range from 32°F to 113°F (0°C to
45°C)
1. Plug the USB end of the cable
into the USB port on your
computer.
2. Plug the mini-USB end of the
cable into the device.
You must activate and register your
device before you can use it.
2 Owner’s Manual
1. Connect the device to your
computer (XX).
2. Go to www.my.garmin.com.
3. Follow the onscreen instructions
to set up an account and register
your device.
A geofence is a safe area you set.
You can set alerts to notify you
when the device is outside of your
geofence. To set alerts, go to www.
my.garmin.com.
Press and hold .

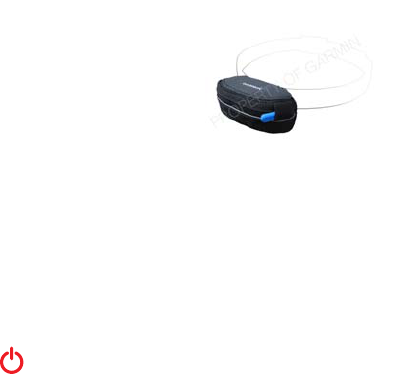

NOTE: This unit should only be
used with the provided case.
1. Turn on the device.
2. Place the device in the case.
3. Use the velcro strap to thread
the collar through the case and
secure.
4. Attach the collar to your pet.
NOTE: Do not use the carabiner clip
to attach the device to your pet.
1. XXX
2. XXX
Owner’s Manual 3
3.XXX
Battery 675 mAh rechargeable
lithium-ion
Battery life See page 3
Operating
temperature
range
From -4°F to 140°F
(from -20°C to 60°C)
Battery
charging
temperature
range
from 32°F to 113°F (0°C
to 45°C
This product contains a lithium-ion
battery. See the Important Safety and
Product Information guide in the
product box for product warnings
and other important information.
4 Owner’s Manual
*The actual battery life of a fully
charged battery depends on how
much time you use GPS, the
backlight, and power save mode.
Exposure to extremely cold
temperatures will also reduce battery
life.
After a period of inactivity, the
device goes into power save mode.
The device displays the time and
date but does not use GPS. You can
press OK to exit power save mode.
If the keys or screen stop responding,
you may need to reset the device.
1. Press and hold power until the
screen goes blank.
2. Press and hold power until the
screen turns on.
Press and hold menu and down
simultaneously.
Owner’s Manual 5
Help us better support you by
completing our online registration
today:
• Go to http://my.garmin.com.
• Keep the original sales receipt, or
a photocopy, in a safe place.
You can nd more information about
this product on the Garmin Web site.
• Go to www.garmin.com
/intosports.
• Go to www.garmin.com
/learningcenter.
• Go to http://buy.garmin.com,
or contact your Garmin dealer
for information about optional
accessories and replacement
parts.
You can contact Garmin Product
Support if you have any questions
about this product.
• In the USA, go to www.garmin
.com/support, or contact Garmin
USA by phone at (913) 397.8200
or (800) 800.1020.
• In the UK, contact Garmin
(Europe) Ltd. by phone at 0808
2380000.
• In Europe, go to www.garmin
.com/support and click Contact
Support for in-country support
information, or contact Garmin
(Europe) Ltd. by phone at +44 (0)
870.8501241.
6 Owner’s Manual
notice
Do not store the device where
prolonged exposure to extreme
temperatures can occur, because it
can cause permanent damage.
Avoid chemical cleaners and solvents
that can damage plastic components.
1. Use a cloth dampened with a
mild detergent solution.
2. Wipe it dry.
© 2010 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151st Street, Olathe, Kansas 66062, USA
Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9LR UK
Garmin Corporation
No. 68, Jangshu 2nd Road, Sijhih, Taipei County, Taiwan
February 2011 Part Number 190-01293-00 Rev. A Printed in Taiwan
