Document #: WLP22070601-R1

GO Metro Broadband Wireless

Getting Started

Technical Guide for WLP

Wireless LAN Pico Base Station

Version 2.2

GO WLP Getting Started Guide

Trademarks and Licensing Agreement

All information contained in this document is protected by international

express written consent of GO Networks Inc.

GO Metro Broadband Wireless, Go MBW, WLAN Sector Base Station, WLS, GO

WLAN Pico Base Station, WLP, GO Wireless Network Controller, and WNC are all

trademarks of GO Networks Inc.

Any duplication, transmission by any method, or storage in an information

retrieval system of any part of this publication for other purposes other than

those stated above is strictly prohibited without the specific written permission

of GO Networks, Inc. This includes, but is not limited to, transcription into any

form of computer system for audio, text, print, or visual retrieval. All rights

under federal copyright laws and international laws will be strictly enforced.

All other trademarks and registered trademarks are the property of their

respective owners.

GO Networks Inc.

1943 Landings Drive • Mountain View, CA 94043 • USA

Tel +1.650.962.2000 • Fax +1.650.962.2010

Email support@gonetworks.com

Version 1.00

- Page 1 of 31-

FCC Compliance Status

The following information is for FCC compliance:

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a residential environment, this

equipment generates, uses, and radiates radio frequency energy, and if

not installed and used in accordance with the instructions, may cause

harmful interference. However, there is no guarantee that interference will

not occur.

To meet regulatory restrictions, the outdoor access point must be

professionally installed.

The Part 15 radio device operates on a non-interference basis with other

devices operating at this frequency when using its antennas. Any changes

or modifications not expressly approved by GO Networks could void the

user's authority to operate the equipment.

The antennas used for this transmitter must not be co-located or operating

in conjunction with any other antenna or transmitter.

- Page 2 of 31-

Table of Contents

Introduction ........................................................................................................................................3

Key Product Features ............................................................................................................................3

Organization ..............................................................................................................................................4

GO WLAN Pico Base Station (WLP)..................................................................................................5

WLP Package Components.........................................................................................................................5

WLP Safety Information...............................................................................................................................5

RF Exposure..............................................................................................Error! Bookmark not defined.

WLP Lightning Protector............................................................................................................................6

Installation ..........................................................................................................................................7

Installation Process......................................................................................................................................7

Site Survey ................................................................................................................................................7

Assembling and Mounting...........................................................................................................................8

Mounting the Antenna................................................................................................................................11

Cable Connections.....................................................................................................................................11

Grounding Cable......................................................................................................................................13

Ethernet Connection................................................................................................................................13

Power Connection ...................................................................................................................................13

Console Connection ................................................................................................................................13

Hardware and Connectors Installation Tools...........................................................................................13

Power Up and Software Configuration.....................................................................................................14

Post-installation Testing Procedure.........................................................................................................14

Configuring the WLP........................................................................................................................15

Connect and Access the WLP .................................................................................................................15

Configuring the Management Connectivity..............................................................................................17

Configuring the Radio Settings................................................................................................................17

Setting the Radio Data Rates ..................................................................................................................17

Configuring Multiple SSIDs......................................................................................................................18

Enabling the Radio Interface....................................................................................................................19

Configuring the WDS...............................................................................................................................19

Configuring Authentication Types............................................................................................................22

Configuring the Radius Client in the WLP................................................................................................22

Configuring Privacy Methods...................................................................................................................23

Saving the Configuration..........................................................................................................................24

WLP Configuration Example....................................................................................................................24

Upgrading the WLP Software..........................................................................................................25

Appendix A: List of Acronyms........................................................................................................27

Appendix B: Wiring Specifications.................................................................................................29

- Page 3 of 31-

Introduction

GO Networks’ WLP device is the key enabler for the Metro Broadband

Wireless (MBW) Solution. Go Pico Cellular WiFi architecture offers a novel

topology for metro WiFi networks which relies on the strengths of

innovative XRF™ architectures. This architecture provides the coverage,

capacity, and scalability required to deliver next-generation services and

overcome the limitations of existing metro WiFi solutions.

The Go Networks’ Pico Cellular WiFi architecture is a highly scalable

Micro/Pico topology which provides unprecedented flexibility to service

providers deploying Metro WiFi networks.

Key Product Features

a. Robust Pico cellular WiFi solution

b. Separate accesses & backhaul radios delivering unmatched

bandwidth

c. xRF™ smart antenna engine for unmatched (360o) coverage and

capacity enhancements

d. Advanced automatic mesh

e. Designed for streetlight, wall, or pole deployment

- Page 4 of 31-

Organization

The GO Metro Broadband Getting Started Guide for the Wireless LAN Pico

Base Station (WLP) offers information and instructions for quickly installing

and configuring the WLP. The instructions and information are presented in

one volume as follows:

Introduction

Contains introductory information about the WLP.

GO WLAN Pico Base Station

Presents a general description and overview of

the WLP including content and safety procedures.

Installation Process

Describes the installation process for the WLP.

WLP Component and Cable

Connections

Describes the WLP component and cable

connections.

Configuring the WLP

Describes how to configure the WLP.

Upgrading the WLP Software

Explains how to update the WLP software.

Appendix A

Lists the acronyms that appear in the manual.

Appendix B

Details the wiring specifications.

- Page 5 of 31-

GO WLAN Pico Base Station (WLP)

The GO WLAN Pico Base Station (WLP) complements the WLAN Sector

Base Station (WLS) by delivering street-level coverage and providing

capacity enhancements in dense metro areas over a single 802.11b/g

channel, while backhauling traffic over multiple 802.11a/b/g radios.

The WLP Base Station delivers omni-directional (360o) coverage while

retaining full xRF smart antenna engine functionality for enhanced capacity

and range.

WLP Package Components

The WLP package items are listed in Table 1:

DESCRIPTION REV QTY

Wall/Poll Mount Kit Assembly (new) 1.0 1

Connectors Kit for WLP Package 1.0 1

WLP unit 1.0 1

WLP Access Antenna 2.4GHz 7.4dBi Gain,

Omni 4

802.11a 10dBi Omni Antenna (Backhaul) 2

Streetlight Power Tap Adapter 1

Table 1: WLP package contents

Deployments of gateway devices connected by wire to an indoor

switch/router would include installation of a lightning protector. A lightning

protector is not supplied as part of the standard package. It can be

ordered from GO Networks as an accessory.

Specific installation may require different Power/Ethernet connections. See

WLP Component and Cable Connections for more details.

- Page 6 of 31-

WLP Safety Information

RF Exposure

The WLP, an outdoor access point, is compliant with the requirements

set forth in CFR 47 section 1.1307, addressing RF Exposure from radio

frequency devices as defined in OET Bulletin 65. The outdoor access

point antennas should be installed to provide a separation distance of at

least 3 feet (1 meter) from humans

WLP Lightning Protector

A lightning protector is required when the WLP unit is installed in an

outdoor location and the Ethernet cable connects to an indoor network

device. The purpose of the lightning protection is to protect people and

equipment located indoors from lightning that might strike the WLP or its

outdoor cables. Therefore, the lightning protector device should be

installed indoors, as close as possible to the point where the cables enter

the building.

The lightning protector can also be installed outdoors, as long as the

cables that go from the lightning protector to the indoors are well

protected from lightning between the box and the building entrance.

Verify that you have shared grounding. GO Networks offers a lightning

protector that can be ordered separately.

- Page 7 of 31-

Installation

Installation Process

Installing the WLAN Pico Base Station involves the following steps:

1. Performing a Site Survey

2. Assembling and Mounting

3. Mounting the WLP unit

4. Connecting the Antennas

5. Connecting the cables

6. Powering up the unit and configuring the software

7. Performing a Post-installation Testing Procedure to verify

connectivity and operation

Site Survey

Most wireless LANs include many access points installed in various

locations in an overlapping radio-cell pattern. It is important to carefully

position each access point’s positioning and the assignment of its radio

channels. Therefore, a site survey becomes an essential first step before

physically deploying the GO MBW WLP Pico Cellular Base Station solution.

Installation of the access points requires a backhaul to interface the

corporate network or Internet. This backhaul connection can be a mesh

configuration, an Ethernet-wired connection, or a third-party solution.

When using any method other then a wired connection, keep in mind the

WLP has to have a good reception on its BH side so it will not limit the

access-channel performance.

Conclude the site survey with a detailed plan of the MBW system

deployment. The system deployment plan should include WLP mounting

points and the routes for the power and backhaul cables.

Note: When mounting the WLP on a pole (or wall mount), the pole

should be able to support four times the weight of the WLP, as

well as the wind loading created by the WLP.

Since the mounting structure itself is a potential source of

interference, the cell should be mounted with at least 4 feet of

clearance between the antennas and the mounting structure.

- Page 8 of 31-

Assembling and Mounting

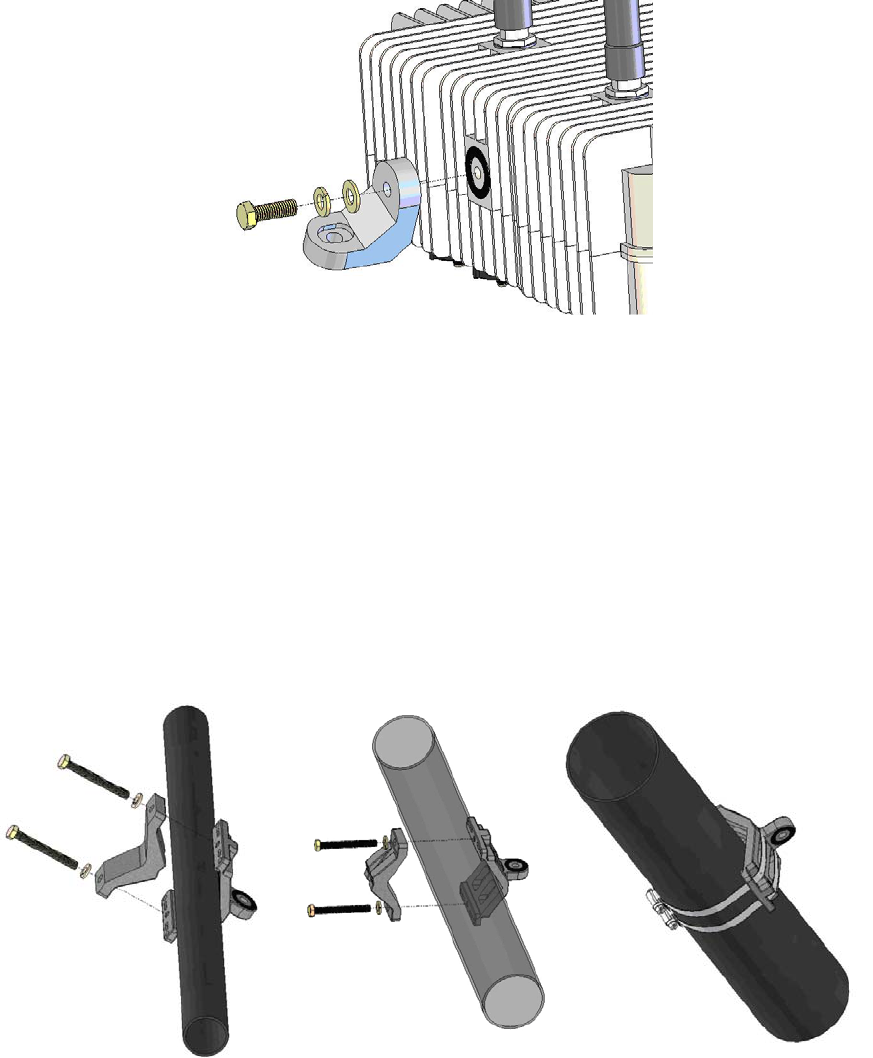

The universal mount is used to attach and secure the WLP to a wall, a

lamppost, or a variety of poles.

The WLP mounting consists of the following stages:

a. Securing the mounting brackets to a wall, lamp post, or pole.

b. Connecting the WLP unit to the brackets using the ‘L’ adaptor.

c. Aligning the WLP unit.

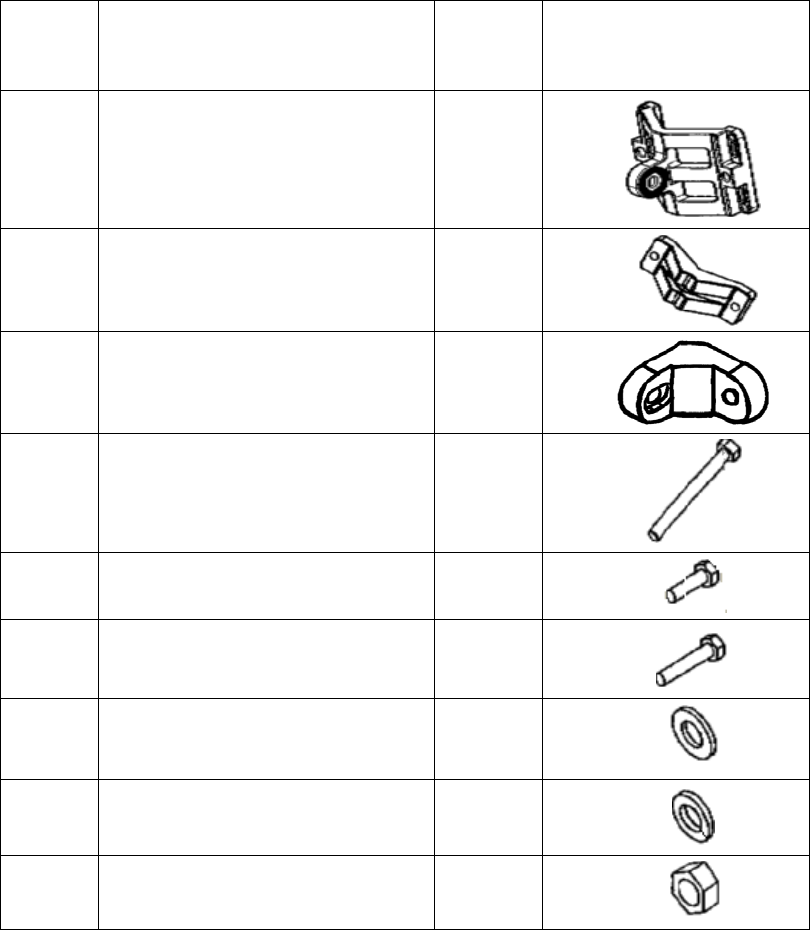

Table 2 lists the universal mount parts:

Item

No. Description Qty Picture

A Wall/poll bracket 1

B Clamping bracket 1

C WLP ‘L’ adapter wall/poll

mount 1

D Bolt M8x70 2

E Screw Hex Cap M8 x25 1

F Bolt M8x40 1

G Washer flat M8 3

H Washer spring M8 4

I Nut M8 1

- Page 9 of 31-

Table 2: Mounting Kit Part List

First connect the ‘L’ adaptor [C] to the WLP unit. As seen in Figure 1, the

‘L’ adapter is connected using an M8 [E] bolt, a washer spring [H], and a

flat washer [G]. You must connect the ‘L’ adaptor on its normal-hole side

and not on it grooved side.

Figure 1: Mount ‘L’ Assembly

After preparing the unit with the ‘L’ adaptor, install the brackets. Assembly

of the mounting brackets in a lamppost or a pole installation differs

according to the width of the pole. Use two M8 bolts [D] with spring

washers [H] to install the brackets onto narrow (1”–1.75”) and normal

(1.75”–3”) poles, as illustrated in Figure 2. For poles larger than 3” in

diameter, install the bracket using 13 mm width hose clamps (not supplied

with the unit).

Narrow pole

1"-1.75" Normal pole

1.75"-3" large pole

Grater then 3"

- Page 10 of 31-

Figure 2: Pole Bracket Assembly

When mounting the WLP unit to a wall, use four 5 mm bolts to secure the

bracket [A], using the holes seen in Figure 3. Wall-mounting bolts are not

supplied with the unit.

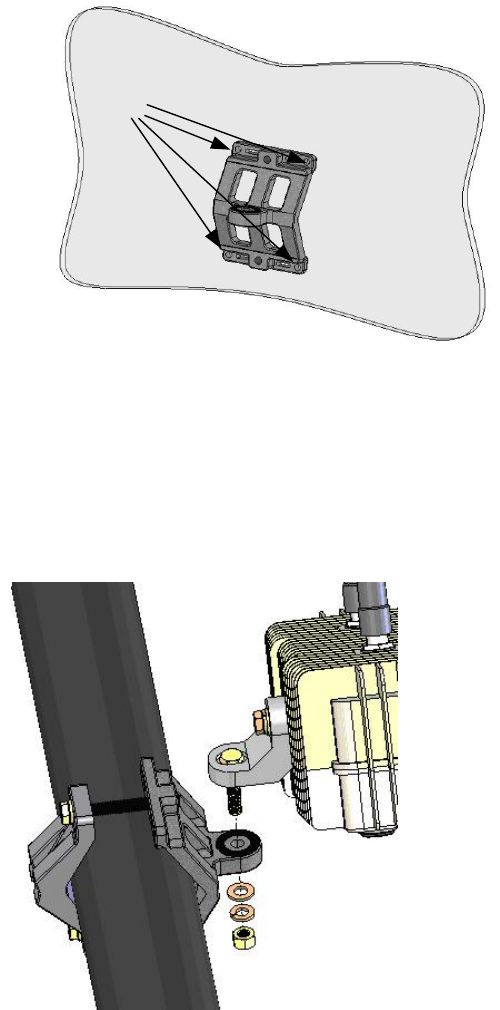

Wall mounting holes

Figure 3: Bracket Wall Mounting

After assembling the brackets, mount the WLP unit on to the bracket as

seen in Figure 45. To accomplish this, use an M8 bolt [F] inserted to the

grooved side of the ‘L’ adaptor, a flat washer [G], a spring washer [H] and

a nut [I].

Figure 4: WLP Unit Mounting

- Page 11 of 31-

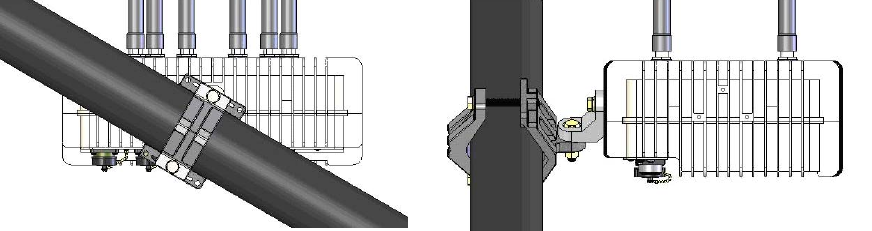

Once the WLP unit is mounted, release the bolts slightly and align the WLP

unit horizontally, as seen in Figure 56. When the unit is perfectly aligned,

firmly close all bolts, applying 120 lbs-inch of tilting torque.

Figure 5: Aligning the WLP

Mounting the Antenna

Integral N-male connectors are used to mount the antennas on top of the

WLP. The WLP holds four WiFi antennas for user access, operating on the

2.4 GHz band marked A1 to A4, and two antennas used for the mesh

networking connections, operating on the 5.8 GHz band marked B1 and

B2.

Screw all antennas into place by hand. Do not apply excessive force while

using any tools as this may damage the unit.

Cable Connections

The WLP unit connections are very simple and can be accomplished in only

a few minutes. When aligned, the WLP connecters are at the bottom of the

unit.

Cable requirements are often unique to the location and deployment

topology of each installation. As a result of this limitation, the Ethernet and

grounding cables are not included in the installation kit.

The following cables are required to install the WLP unit and should be

connected in the following order:

1. Grounding Cable:

Provides the necessary safety functions.

2. Ethernet Cable (required only in units connected to the wired

network):

CAT5 shielded; maximum length: up to 100 meters

- Page 12 of 31-

3. Power Cable:

The supplied AC power cable is deigned to connect directly to a

lamppost power-tap feed.

4. RS-232 Console Cable: (The device might be pre-configured, so

console connection isn’t required in the installation site.)

To connect the WLP to a console (laptop computer) for

configuration.

- Page 13 of 31-

Grounding Cable

The grounding cable should be connected to the grounding screw at the

bottom of the unit. Use a 1 mm / 18 awg grounding cable.

Note: Connect the grounding cables before connecting any other cables.

Do not remove the grounding cable when other cables are

connected.

Ethernet Connection

Ethernet connection is used for wired backhaul connection or an

interface to a third party wireless BH solution.

Power Connection

Figure 6 illustrates how the WLP unit is connected to main outlet via the

Auxiliary Power Adapter.

Figure 6: Power Connection

Release the photo-cell (also called the photo-control) installed on the pole.

Insert the Auxiliary Power Adapter instead of the photo-cell. Connect the

Auxiliary Power Adapter cable to the power connector of the WLP.

Console Connection

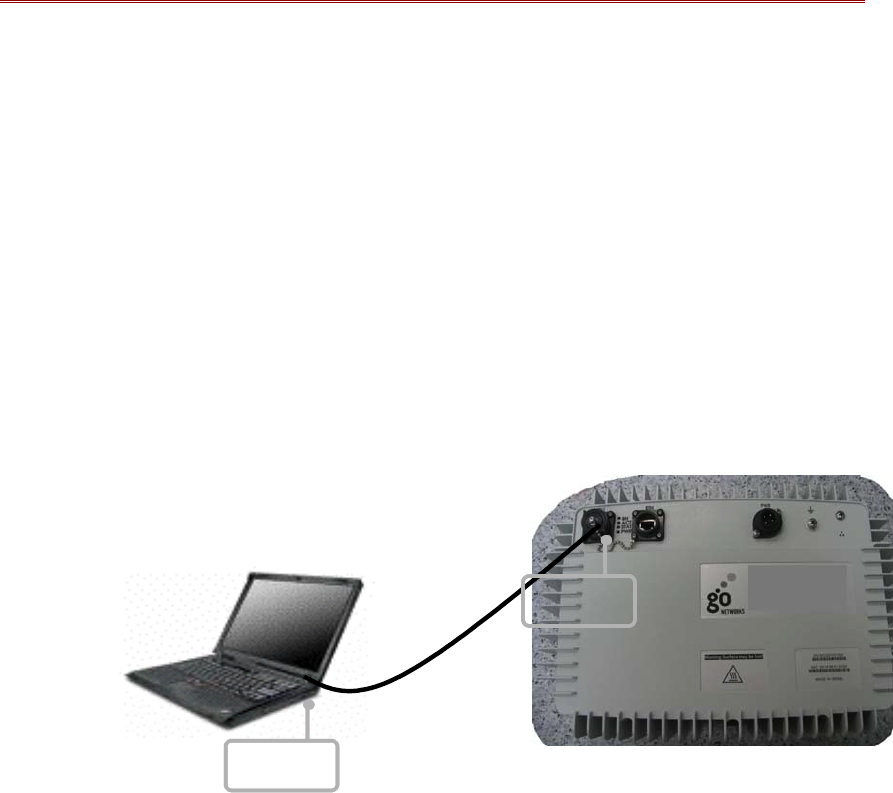

Figure 7 illustrates the RS-232 cable connections used to connect the WLP

to a console (notebook computer to configure the WLP).

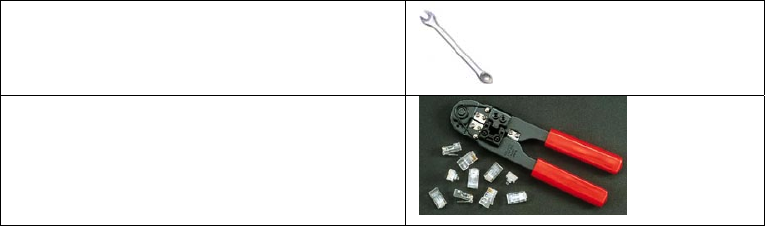

Hardware and Connectors Installation Tools

The following tools and equipment are required to mount the WLP on a pole.

Table 3: Mounting Tools and Equipment

Ratchet (13 mm.)

13 mm.

RJ45 crimp tool

HT-210A

- Page 14 of 31-

Power Up and Software Configuration

The WLP unit is normally mounted on a high pole (or wall) where it is

inconvenient to configure. However minimal connectivity must be verified

so the unit can later be configured and monitored from the ground. In

order to verify connectivity when installing the device, root devices must

be installed and powered up first.

The connectivity of the root device can be verified by the Ethernet ACT

LED. The root device MESH LED should also be on, indicating the device is

ready to connect wirelessly. When powering up a non-root device, the

MESH LED should be lit to indicate the device is connected wirelessly. WLP

boot time is about 2.5 minutes. The MESH LED indicator will light up after

the boot is completed.

Post-installation Testing Procedure

The purpose of the post-installation testing procedure is to verify

connectivity between the WLP and the network.

It is recommended that you perform the following tests:

1. Ping the device.

2. Establish telnet access and ping the access controller or the network

from the WLP unit CLI.

- Page 15 of 31-

Configuring the WLP

Following is a brief overview of the main CLI commands that are used to

configure the WLP. A configuration example follows the detailed list of

configuration commands. These and other CLI commands are detailed in

the GO MBW CLI Reference Guide.

Connect and Access the WLP

Initial configuration of the WLP is done using a serial cable. A standard

RS232-interface DB-9 cable is connected to the COM port of a laptop or a

PC to the WLP unit’s console port. For more information regarding the

serial cable, see Appendix B, Wiring Specifications.

Once the WLP IP address is configured, the rest of the configuration can be

done using Telnet via the network.

Figure 7: Connect and Access the WLP

Notebook PC

Consol Port:

RS232

Consol Port:

RS232

Consol Port:

RS232

Consol Port:

RS232

WLP

- Page 16 of 31-

Once the cable is connected, you can then operate a terminal program,

such as HyperTerminal. The PC port should be configured as follows:

d. Baud rate = 9600

e. Data bits = 8

f. Parity = none

g. Stop bits = 1

h. Flow control = None

To use HyperTerminal:

From the Start menu:

1. Select All Programs > Accessories > Communications >

HyperTerminal.

2. Define a new connection.

3. Right-click and select Properties. Set or verify the above values.

4. Click OK.

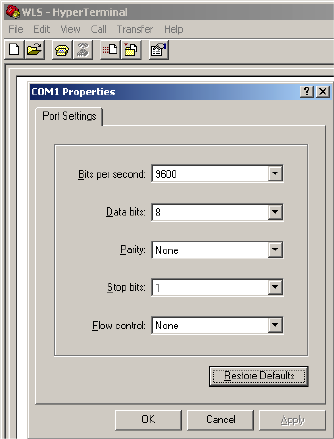

Figure 8: HyperTerminal

5. Establish the connection between the WLP and the laptop (or PC).

6. Log in using the predefined “super” user (user: super; password:

super).

The user name determines what authorization level the operator has and,

- Page 17 of 31-

in turn, determines whether you can view configuration and operation

parameters, or implement changes. A new user and password name

should be added; however this default name and password can be used for

the initial configuration.

The default system name for the unit is set to WLS.

Configuring the Management Connectivity

Configuring the management connectivity involves setting the Fast

Ethernet connection as well as defining the default gateway. These

procedures are detailed in the following section.

Define the static IP address and the subnet mask on the same network

through which you connect to the WLP. You can use the CLI command:

configure ip address <ip address>, as shown below:

configure ip address 192.168.30.102 255.255.255.0

The default is IP is fixed on 192.168.0.10

Note: If you are using DHCP client on the first gateway, you do not

need to configure the default gateway.

Default Gateway

Define the default gateway by using the Configure mode (consult with your

network administrator). You can use the CLI command:

configure ip default-gateway <ip address> disable/enable, as

shown below:

configure ip default-gateway 192.168.30.254

Note: If you are using DHCP client on the first gateway, you do not

need to configure the default gateway.

Configuring the Radio Settings

By default, the channel is configured to channels 1 (2.412 GHz). You can

define different configurations for each channel by using the following CLI

command:

configure interface dot11Radio 0 channel 6

Setting the Radio Data Rates

- Page 18 of 31-

By default, the channels are defined for use in a mixed mode. You can

select a rate per channel for one of two states: g or mixed (a combination

of g and b). The following CLI command syntax is used:

configure interface dot11Radio 0 mode [g | mixed]

Configuring Multiple SSIDs

The SSID is a unique identifier that wireless networking devices use to

establish and maintain wireless connectivity. Multiple access points on a

network or sub-network can use the same SSID. Configuring the same

SSID across multiple APs will enable the users to roam between them

seamlessly. SSIDs are case sensitive and can contain up to 32

alphanumeric characters.

You can configure up to 16 SSIDs on your WLS. Each SSID has its

unique privacy configuration and unique VLAN ID. VLAN-ID 0 represents

no VLAN tag.

Each SSID can be defined as either a Broadcast SSID (BSSID) or a

hidden one. Passive scanning clients will not detect a hidden SSID,

since it doesn’t transmit any beacon frames. Configuring multiple

BSSIDs on the same interface is known as creating a Virtual Access

Point. A Virtual Access Point is a logical entity that exists within a

physical access point. When a single Physical AP supports multiple

Virtual APs, each Virtual AP appears to stations to be an independent

Physical AP, even though only a single Physical AP is present.

Note: SSIDs, VLANs, and encryption schemes are mapped together

on a one-to-one-to-one basis. One SSID can be mapped to one

VLAN, and one VLAN can be mapped to one encryption

scheme.

Define the SSID parameters. This configuration stage is common to SSID

to be used as primary (broadcast) or hidden. In the following example,

three SSID’s are defined as GO-WLS1, GO-WLS2, and GO-HIDDEN, each

with its own VLAN-ID, and no privacy.

WLS> configure ssid 1 name GO-WLS1 vlan 0 privacy-method none

type bssid

WLS> configure ssid 2 name GO-WLS2 vlan 0 privacy-method none

type bssid

WLS> configure ssid 3 name GO-HIDDEN vlan 1 privacy-method

none type hidden

The next step is to apply the defined SSIDs for the interface:

WLS> configure interface dot11Radio 0 ssid add 1

WLS> configure interface dot11Radio 0 ssid add 2

WLS> configure interface dot11Radio 0 ssid add 3

- Page 19 of 31-

Enabling the Radio Interface

By default, the WLP radio is disabled. You can, however, choose to enable

it using the following CLI command syntax:

configure interface Dot11Radio 0 [disable | enable ]

Note: You can’t enable the wireless interface until at least one BSSID

is attached to it.

Configuring the WDS

WDS protocol is used to support wireless backhauling and meshing of WLP

and CPE units. WDS is supported over both the 2.4 GHz access radio and

the 5 GHz backhaul radio.

In the section below, the following terms will be used:

i. Peer — A WDS unit. An AP, which support the WDS feature.

j. Root — A peer that is connected to the Ethernet.

k. Hop1 — A “non-root” peer that is connected to a root.

l. Hop2/3 … — A “non-root” peer that is connected to a Hop1/2 …

m. Parent-Child — Two peers which are defined by the WDS

connection. The parent is the peer giving Ethernet access to the child

peer.

The WDS topology is based on a tree structure as illustrated in Figure 9,

meaning, in a given time each peer has one Parent. Root has no Parent

since it is the head of the tree. WMG and third party CPEs will normally

connect at the bottom of the tree. Clients may connect to any AP in the

tree.

- Page 20 of 31-

ROOT /FATHER

HOP1/SON HOP1/SON/FATHER

Hop2/son

Domain

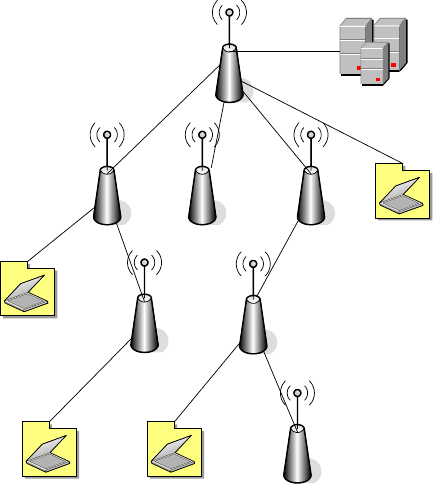

Figure 9: WDS Tree

The WLP supports two modes of WDS operation: Manual and automatic

topology detection.

Manual Mode — Connection between two peers is done by manually

entering each peer MAC address. Once the MAC address has been entered,

the two peers are WDS-connected.

Automatic Mode (AWDS) — Connection between two peers is done by

automatically discovering the father and establishing the connection

between the two peers.

In automatic mesh topology detection (AWDS) mode, the WLP will route

the traffic using the best route when more then one route exists. In a

similar way, the AWDS will recover from a fault by selecting an

alternate route when needed.

A non-root WDS WLP is not connected to the wired LAN. A non-root device

relies on the WDS mesh network for connectivity. A non-root WDS WLP

routes to the root WDS WLP with which it has the best connectivity.

However, you can manually override the AWDS by specifying the path to

which the WDS routes.

It is important to note that the number and quality of hops will determine

the network performance. In most cases, the physical deployment of the

devices is the limiting factor in route selection.

- Page 21 of 31-

WDS root configuration is controlled by:

configure wds root [ true | false ]

To display the current WDS configuration use:

show wds params

WDS is always used on the BH radio while the access radio can be

configured to use as Access-only, pure backhauled, or mixed operation by

the following command:

configure interface dot11Radio 0 service [access | backhaul |

both]

To activate the automatic topology detection mode (meshing mode) the

user has to enable this mode at both devices he wishes to connect and

configure them to the same radio channel. Automatic WDS topology

detection is currently supported on the BH radio or the access radio. Trying

to configure both radios to automatic mode will result in an error message.

To enable automatic mode use:

configure interface [dot11radio | BHRadio ] 0 wds-auto-

discovery enable

Once automatic mode has been enabled, the route candidates can be

viewed using:

show WDS candidates

The current parent, active children, and static-defined peers can be viewed

using:

show WDS nodes

- Page 22 of 31-

To configure the WDS connection manually, use:

configure wds add peer <MAC Address>

Note: This command is used only for non-root WLP.

Note: Manual configuration can result in network loops.

The WDS connection can be protected by configuring the WDS privacy. The

user must configure all the units he wishes to connect with identical

privacy settings. WDS privacy is configured by:

configure interface [BHRadio | Dot11radio] 0 wds-privacy {

none | { wep key { 40 | 104 } < key hex(10|26) > } | { wpa

passphrase < passphrase string(8-63) > } }

For example, configuring WEP privacy for the BHRadio will use:

configure interface BHRadio wds-privacy wep key 40

11:22:33:44:55

Configuring Authentication Types

In the most common 802.1X WLAN environments, the WLP units defer to

the Radius server to authenticate users and to support particular EAP

authentication types. The Radius server handles these functions, and

provides crucial authentication and data-protection capabilities according

to the requirements of the EAP authentication type in use. The Radius

client runs on the WLP device and sends authentication requests to a

central Radius server, which contains all user authentication and network

service access information. The Radius server is normally a multi-user

system running Radius server software (such as developed by Microsoft or

other software vendors).

The wireless client device and Radius server on the wired LAN use 802.1x

and EAP to perform mutual authentication through the WLP.

1. The Radius server sends an authentication challenge to the client.

2. The client uses a one-way encryption of the user-supplied password

to generate a response to the challenge and sends that response to

the Radius server.

3. Using information from its user database, the Radius server creates

its own response and compares that to the response from the client.

When the Radius server authenticates the client, the process repeats in

reverse, and the client authenticates the Radius server.

Configuring the Radius Client in the WLP

- Page 23 of 31-

Your WLP must be configured to support the Radius server communication.

At a minimum, you must identify the Radius server software and define

the method lists for Radius authentication. Alternatively, you can define

method lists for Radius authorization and accounting.

Identifying the Radius Server

WLP-to-Radius server communication involves several components:

a. IP address

b. Authentication destination port

c. Accounting destination port

d. Key string

You should identify the Radius security server’s IP address and specific

UDP port numbers. The combination of the IP address and the UDP port

number creates a unique identifier.

A Radius server and the access point use a shared secret text (key) string

to encrypt passwords and exchange responses.

You can configure the Radius client in the WLP by using the following

command:

configure radius-server [primary | secondary] [authentication |

accounting] <port 1 – 65535> host <IP address> key <secret 5 –

64 string> enable

Configuring Privacy Methods

The privacy (encryption) scheme is configured per ESSID.

Using WPA Key Management

WiFi Protected Access (WPA) is a standards-based, interoperable security

enhancement that strongly increases the level of data protection and

access control for existing and future wireless LAN systems. It is derived

from and will be forward-compatible with the upcoming IEEE 802.11i

standard. It includes two new data-confidentiality protocols (TKIP and

AES-CCMP).

WPA leverages TKIP and AES-CCMP (Temporal Key Integrity Protocol and

Cipher Block Chaining Message Authentication Code Protocol) for data

protection and 802.1X for authenticated key management.

WPA1 and WPA2 offer a high level of assurance for end users and network

administrators that their data will remain private and that access to their

networks will be restricted to authorized users.

WPA key management supports two mutually exclusive management

types:

- Page 24 of 31-

e. WPA-Extensible-Authentication-Protocol (WPA-EAP): Using

WPA-EAP key management, the client and the authentication server

authenticate each other using an EAP authentication method, and

the client and server generate a Pairwise Master Key (PMK).

f. WPA-Pre-shared key (WPA-PSK): Using WPA, the server

generates the PMK dynamically and passes it to the WLP. Using

WPA-PSK, however, you configure a pre-shared key on both the

client and the WLP, and that pre-shared key is used as the PMK.

You can configure the WPA key management in the WLP using the

following command.

configure privacy wpa { { < ssid integer(1-16) > [ passphrase <

passphrase string(8-63)> ] [ key-mngmnt { eap | psk } ] } | { [

gtk-interval < interval integer(30-42949672) > ] [ data-

encryption { tkip | aes } ] [ protocol { wpa1 | wpa2 | wpa2only

} ] [ preauthentication { enable | disable } ] } }

Saving the Configuration

Once you have modified the existing configuration file, you should save it

for future use. To do this, issue the following CLI command:

copy running-configure startup-configure

WLP Configuration Example

WLP > configure ip address 192.168.30.102 255.255.255.0

WLP > configure ip default-gateway 192.168.30.254

WLP > configure interface dot11Radio 0 channel 1

WLP > configure ssid 1 name GO-WLP vlan 0 privacy-method none type

bssid

WLP > configure interface dot11Radio 0 ssid 1 add

WLP > configure interface dot11Radio 0 mode mixed

WLP > configure interface dot11Radio 0 enable

WLP > copy running-config startup-config

- Page 25 of 31-

Upgrading the WLP Software

Periodically, new software upgrades are released in order to provide

feature enhancements and maintenance. Following is one method you can

use to update the software:

g. Initiate the network download using a TFTP download server.

Note: The WLP unit has two banks in the Flash memory (sw0, sw1).

By default, the WLP will startup the software image from the

sw1 bank.

Initially, when you download the new software image, the older version is

automatically transferred to sw0 bank, and the new software image is

transferred to sw1 bank.

Upgrade Example

WLP>

WLP> import image from tftp [IP ADDRESS] [File Name]

WLP> show messages software-download

Software download started.

Verifying server and path.

TFTP path OK.

Flash erase started.

Flash erase finished.

Download started from 192.168.30.103 gapsw-1.3.5.11995-Beta-

28.02.2006@180244.img.

Download finished.

Verification started.

Verification passed.

Writing to environment.

Software download finished.

Note: It is important to reload the system after upgrading the WLP

software for the changes to be applied and the new software to

become operational.

You may need to copy a new image to the Flash memory whenever a new

image or maintenance release becomes available.

- Page 26 of 31-

To copy a new image into Flash memory (write to Flash

memory):

a. Use the import image from tftp command.

b. The system is now ready to be reloaded. After reload, the system

will operate with the new image.

- Page 27 of 31-

Appendix A: List of Acronyms

Acronym Explanation

802.11 A family of specifications related to wireless networking,

including: 802.11a, 802.11b, and 802.11g.

AP Access Point. The hub of a wireless network. Wireless

clients connect to the access point, and traffic between

two clients must travel through the access point. Access

points are often abbreviated to AP

BSSID Broadcast Service Set Identifier

DHCP Dynamic Host Configuration Protocol. A protocol which

enables a server to automatically assign an IP address to

clients so that the clients do not have to configure the IP

addresses manually.

EAP Extensible Authentication Protocol. A standard form of

generic messaging used in 802.1X.

ESSID EGOed Service Set Identifier

PMK Pairwise Master Key

SSID Service Set Identifier, a set of characters that give a

unique name to a WLAN.

TKIP Temporal Key Integrity Protocol

VLAN Virtual Local Access Network

WDS Wireless Distribution System

WEP Wired Equivalent Privacy. An encryption system created to

prevent eavesdropping on wireless network traffic.

WLP Wireless Base Station. Access point of the GO Networks MB

solution.

WNC Wireless Network Controller of the GO Networks MBW

solution.

WPA WiFi Protected Access. A modern encryption system created

to prevent eavesdropping on wireless network traffic. It is

considered more secure than WEP.

- Page 28 of 31-

Acronym Explanation

WPA-EAP WPA-Extensible Authentication Protocol

WPA-PSK WPA-Pre-shared key

- Page 29 of 31-

Appendix B: Wiring Specifications

Table 4: Console Port Signaling and Cabling with a

DB-9 Adapter for the WLP Unit

RTS 7 8 8 No connection

DTR 4 7 7 No connection

RxD 2 6 6 TxD

TxD 3 5 5 RxD

GND 5 4 4 GND

GND 5 3 3 No connection

DSR 6 2 2 No connection

CTS 8 1 1 No connection

Signal DB-9 Pin RJ-45 Pin RJ-45 Pin Signal

Console

Device

RJ-45 to

DB-9

Terminal

Adapter

RJ-45-to-RJ-45

Straight Cable

Console Port

(DTE)

Go Networks WLP-1100F-000 Outdoor Wireless LAN Access Point User Manual WHITE PAPER

Go Networks Inc. Outdoor Wireless LAN Access Point WHITE PAPER

users manual

Navigation menu

Namespaces

Views

Navigation
