AP699E8N.8U31H-4
Product Specifications

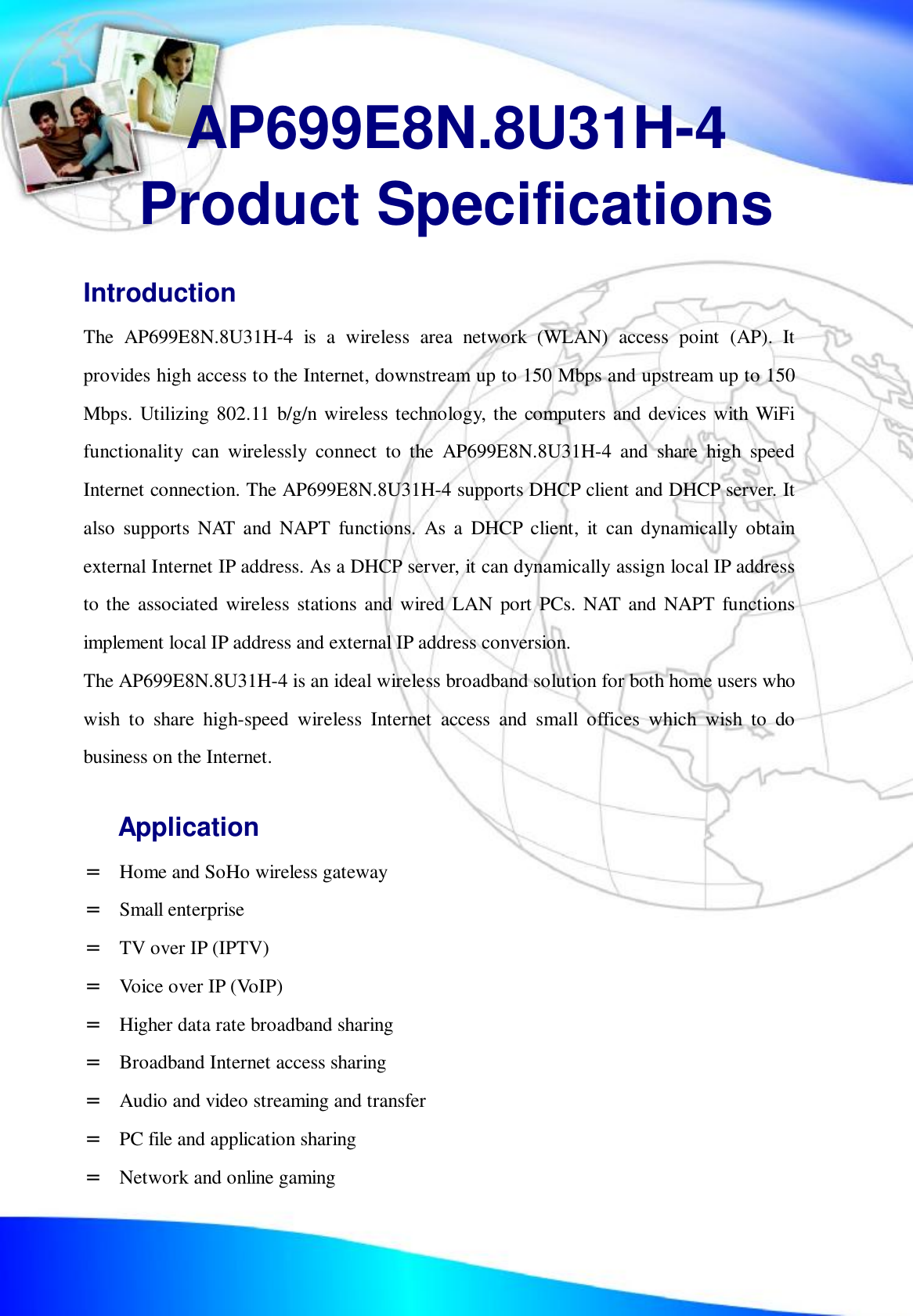

Introduction
The AP699E8N.8U31H-4 is a wireless area network (WLAN) access point (AP). It
provides high access to the Internet, downstream up to 150 Mbps and upstream up to 150
Mbps. Utilizing 802.11 b/g/n wireless technology, the computers and devices with WiFi
functionality can wirelessly connect to the AP699E8N.8U31H-4 and share high speed
Internet connection. The AP699E8N.8U31H-4 supports DHCP client and DHCP server. It
also supports NAT and NAPT functions. As a DHCP client, it can dynamically obtain
external Internet IP address. As a DHCP server, it can dynamically assign local IP address
to the associated wireless stations and wired LAN port PCs. NAT and NAPT functions
implement local IP address and external IP address conversion.
The AP699E8N.8U31H-4 is an ideal wireless broadband solution for both home users who
wish to share high-speed wireless Internet access and small offices which wish to do
business on the Internet.
Application
= Home and SoHo wireless gateway
= Small enterprise
= TV over IP (IPTV)
= Voice over IP (VoIP)
= Higher data rate broadband sharing
= Broadband Internet access sharing
= Audio and video streaming and transfer
= PC file and application sharing
= Network and online gaming

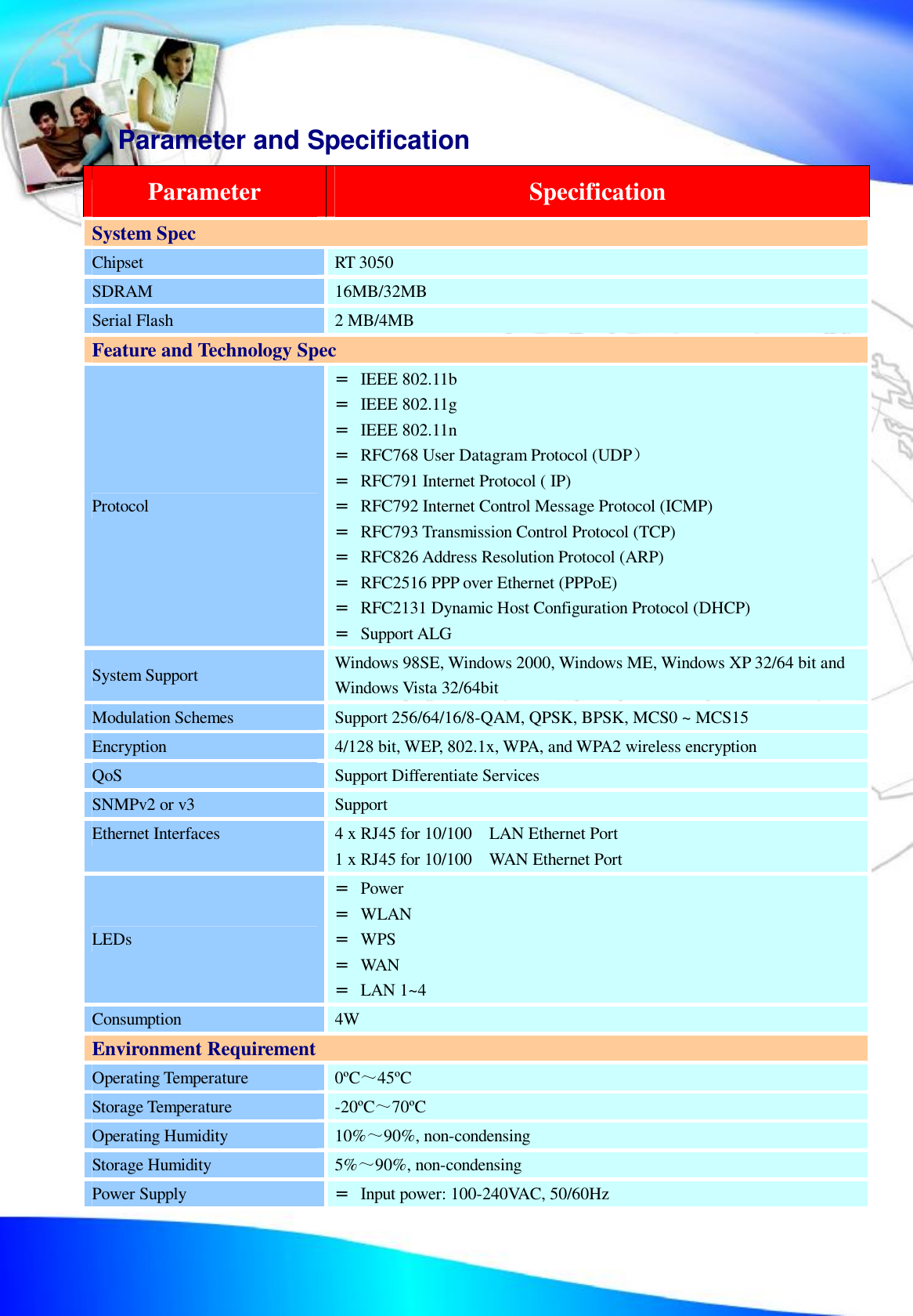

Parameter and Specification
Parameter Specification
System Spec
Chipset RT 3050
SDRAM 16MB/32MB
Serial Flash 2 MB/4MB
Feature and Technology Spec
Protocol
= IEEE 802.11b
= IEEE 802.11g
= IEEE 802.11n
= RFC768 User Datagram Protocol (UDP）
= RFC791 Internet Protocol ( IP)
= RFC792 Internet Control Message Protocol (ICMP)
= RFC793 Transmission Control Protocol (TCP)
= RFC826 Address Resolution Protocol (ARP)
= RFC2516 PPP over Ethernet (PPPoE)
= RFC2131 Dynamic Host Configuration Protocol (DHCP)
= Support ALG
System Support Windows 98SE, Windows 2000, Windows ME, Windows XP 32/64 bit and
Windows Vista 32/64bit
Modulation Schemes Support 256/64/16/8-QAM, QPSK, BPSK, MCS0 ~ MCS15
Encryption 4/128 bit, WEP, 802.1x, WPA, and WPA2 wireless encryption
QoS Support Differentiate Services
SNMPv2 or v3 Support
Ethernet Interfaces 4 x RJ45 for 10/100 LAN Ethernet Port
1 x RJ45 for 10/100 WAN Ethernet Port
LEDs
= Power
= WLAN
= WPS
= WAN
= LAN 1~4
Consumption 4W
Environment Requirement
Operating Temperature 0ºC～45ºC
Storage Temperature -20ºC～70ºC
Operating Humidity 10%～90%, non-condensing
Storage Humidity 5%～90%, non-condensing
Power Supply = Input power: 100-240VAC, 50/60Hz

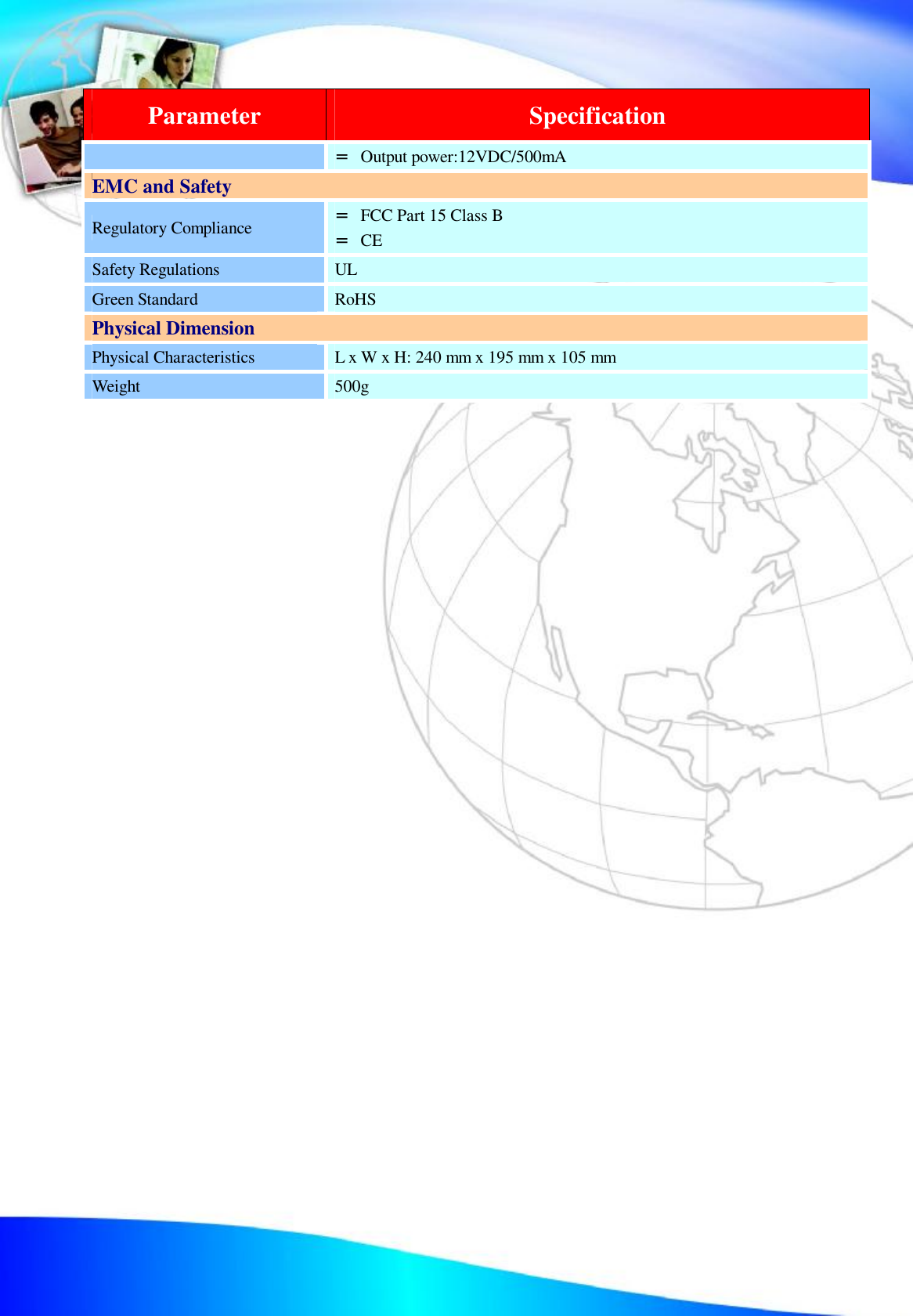

Parameter Specification
= Output power:12VDC/500mA
EMC and Safety
Regulatory Compliance = FCC Part 15 Class B
= CE
Safety Regulations UL
Green Standard RoHS
Physical Dimension
Physical Characteristics L x W x H: 240 mm x 195 mm x 105 mm
Weight 500g
