Gongjin Electronics WNA699P5G6 BCM4312 User Manual 1

Shenzhen Gongjin Electronics Co., Ltd BCM4312 Users Manual 1

Contents

Users Manual 1

深圳共进电子有限公司

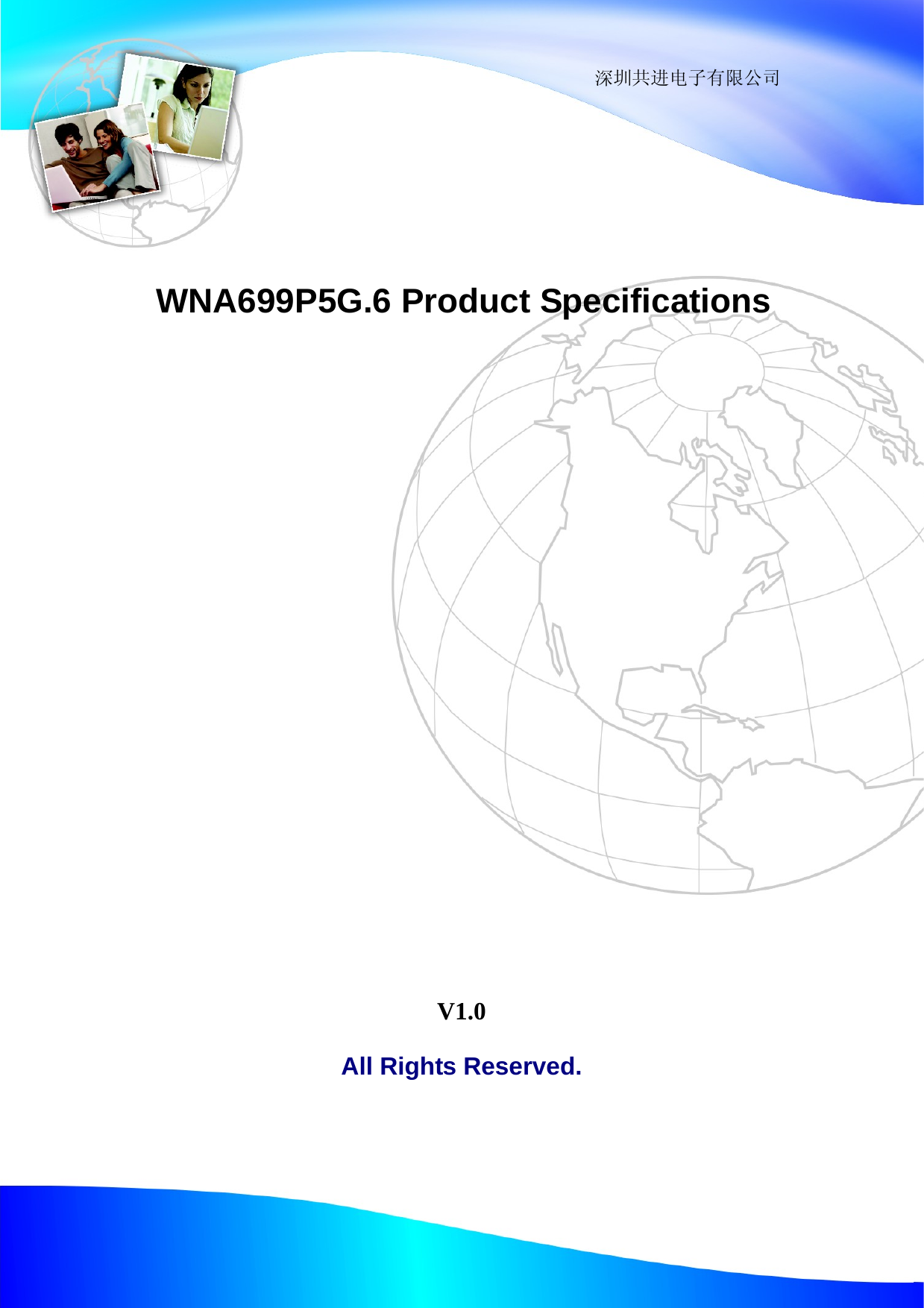

WNA699P5G.6 Product Specifications
V1.0
All Rights Reserved.
深圳共进电子有限公司

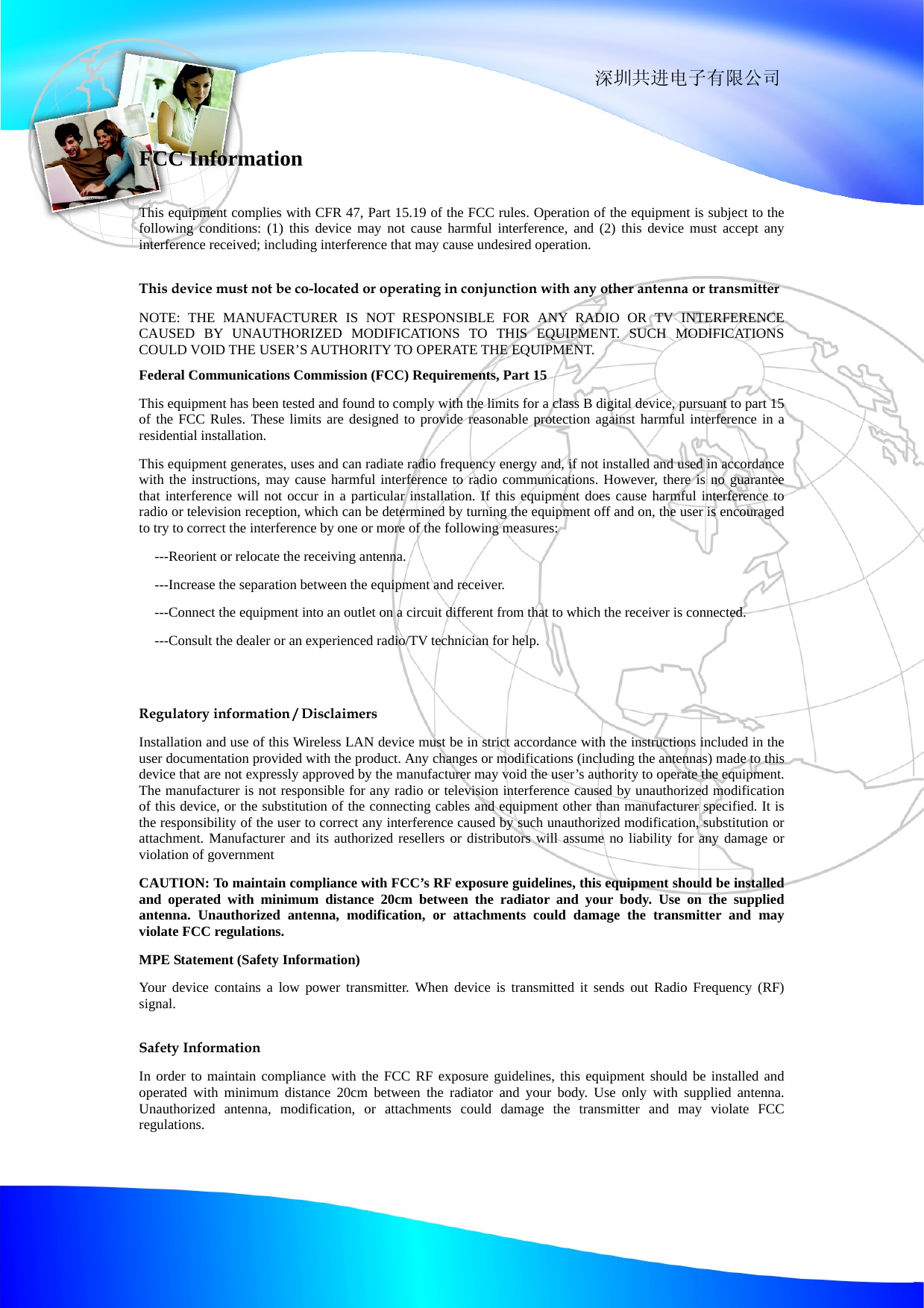

FCC Information
This equipment complies with CFR 47, Part 15.19 of the FCC rules. Operation of the equipment is subject to the
following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received; including interference that may cause undesired operation.
This device must not be co-located or operating in conjunction with any other antenna or transmitter
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
Federal Communications Commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
Regulatory information / Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the
user documentation provided with the product. Any changes or modifications (including the antennas) made to this
device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.
The manufacturer is not responsible for any radio or television interference caused by unauthorized modification
of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is
the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or
attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or
violation of government
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed
and operated with minimum distance 20cm between the radiator and your body. Use on the supplied
antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may
violate FCC regulations.
MPE Statement (Safety Information)
Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF)
signal.
Safety Information
In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and
operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna.
Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC
regulations.
深圳共进电子有限公司

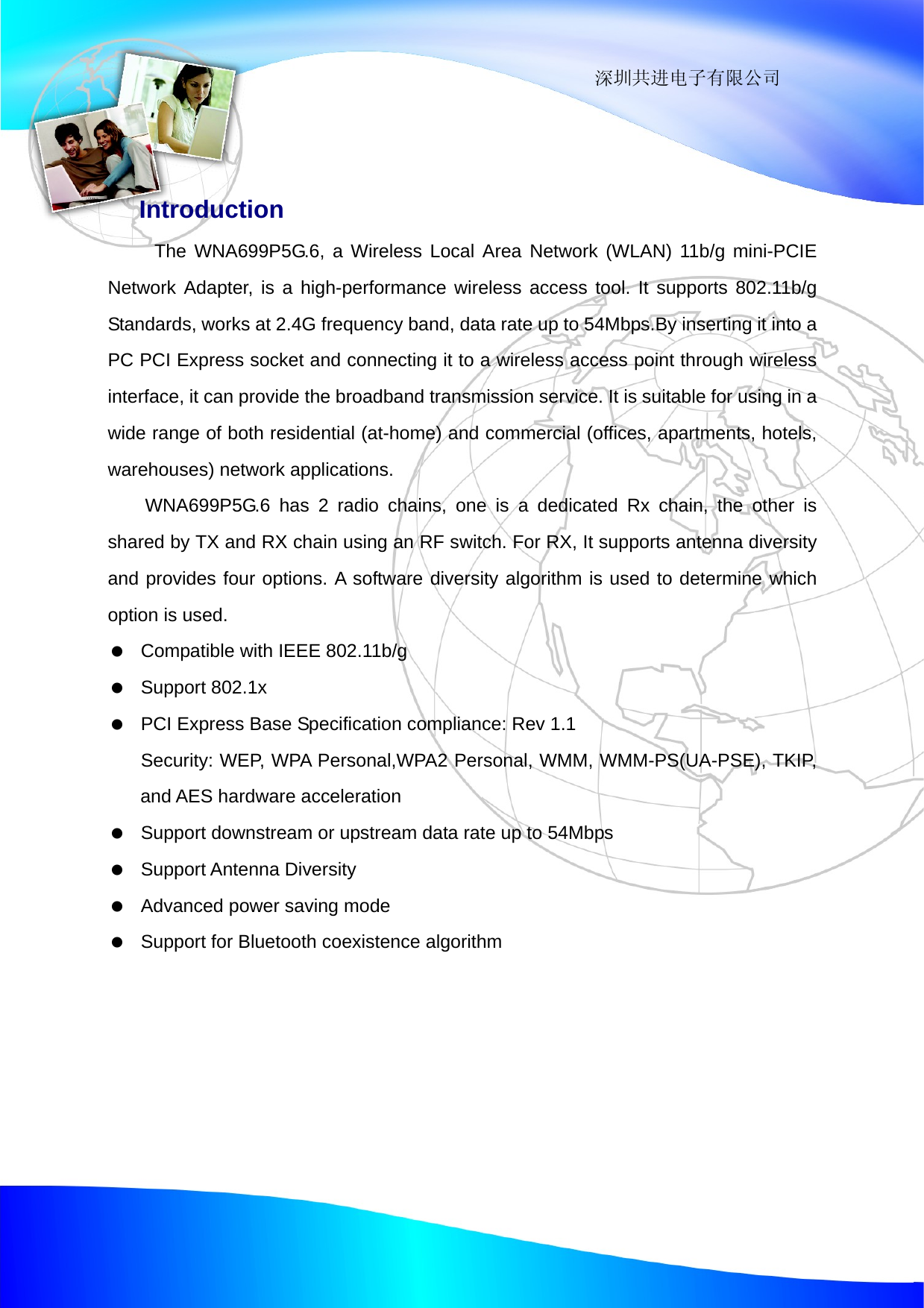

Introduction
The WNA699P5G.6, a Wireless Local Area Network (WLAN) 11b/g mini-PCIE
Network Adapter, is a high-performance wireless access tool. It supports 802.11b/g
Standards, works at 2.4G frequency band, data rate up to 54Mbps.By inserting it into a
PC PCI Express socket and connecting it to a wireless access point through wireless
interface, it can provide the broadband transmission service. It is suitable for using in a
wide range of both residential (at-home) and commercial (offices, apartments, hotels,
warehouses) network applications.
WNA699P5G.6 has 2 radio chains, one is a dedicated Rx chain, the other is
shared by TX and RX chain using an RF switch. For RX, It supports antenna diversity
and provides four options. A software diversity algorithm is used to determine which
option is used.
Compatible with IEEE 802.11b/g
Support 802.1x
PCI Express Base Specification compliance: Rev 1.1
Security: WEP, WPA Personal,WPA2 Personal, WMM, WMM-PS(UA-PSE), TKIP,
and AES hardware acceleration
Support downstream or upstream data rate up to 54Mbps
Support Antenna Diversity
Advanced power saving mode
Support for Bluetooth coexistence algorithm
深圳共进电子有限公司

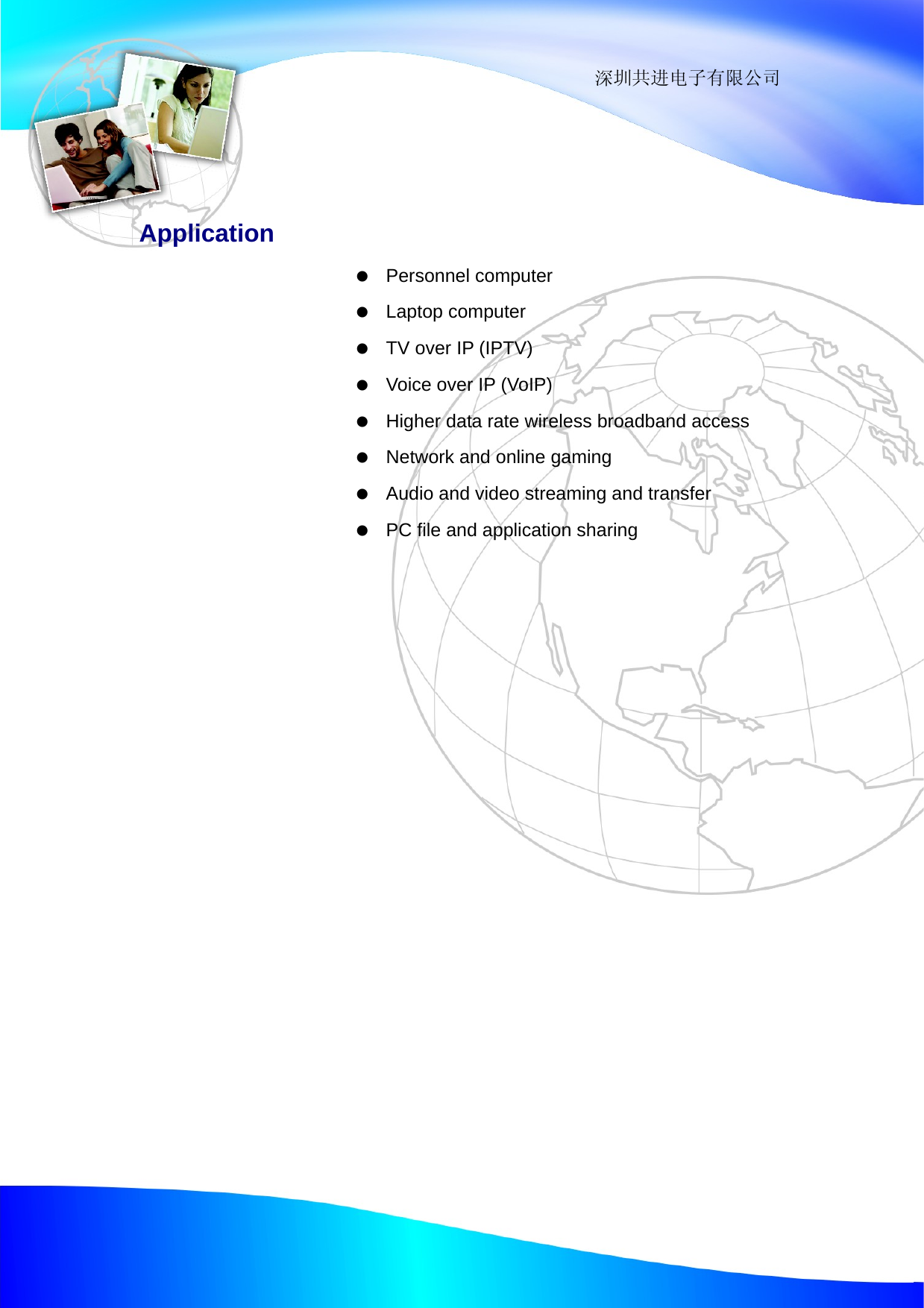

Application
Personnel computer
Laptop computer
TV over IP (IPTV)
Voice over IP (VoIP)
Higher data rate wireless broadband access
Network and online gaming
Audio and video streaming and transfer
PC file and application sharing
深圳共进电子有限公司

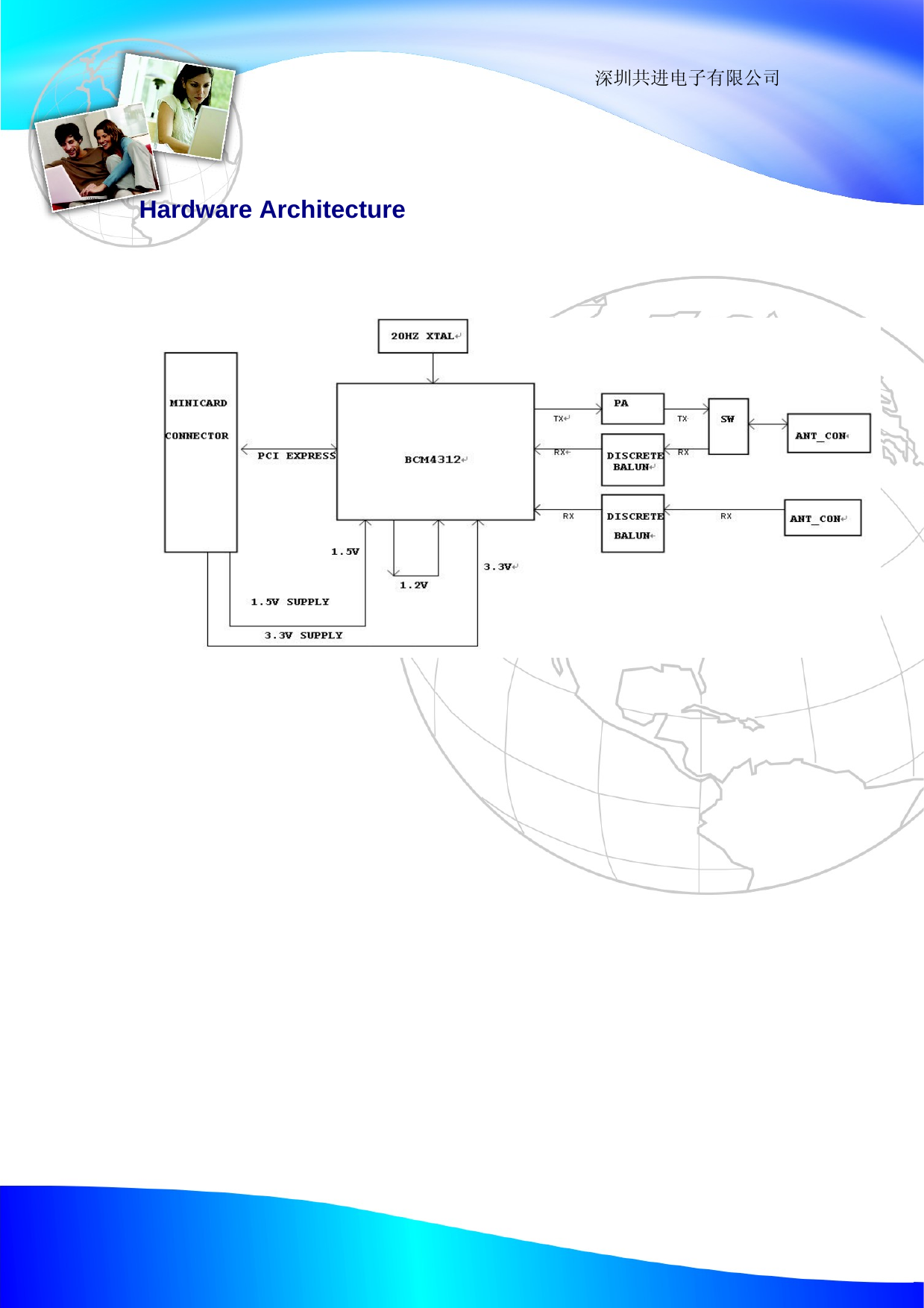

Hardware Architecture
深圳共进电子有限公司

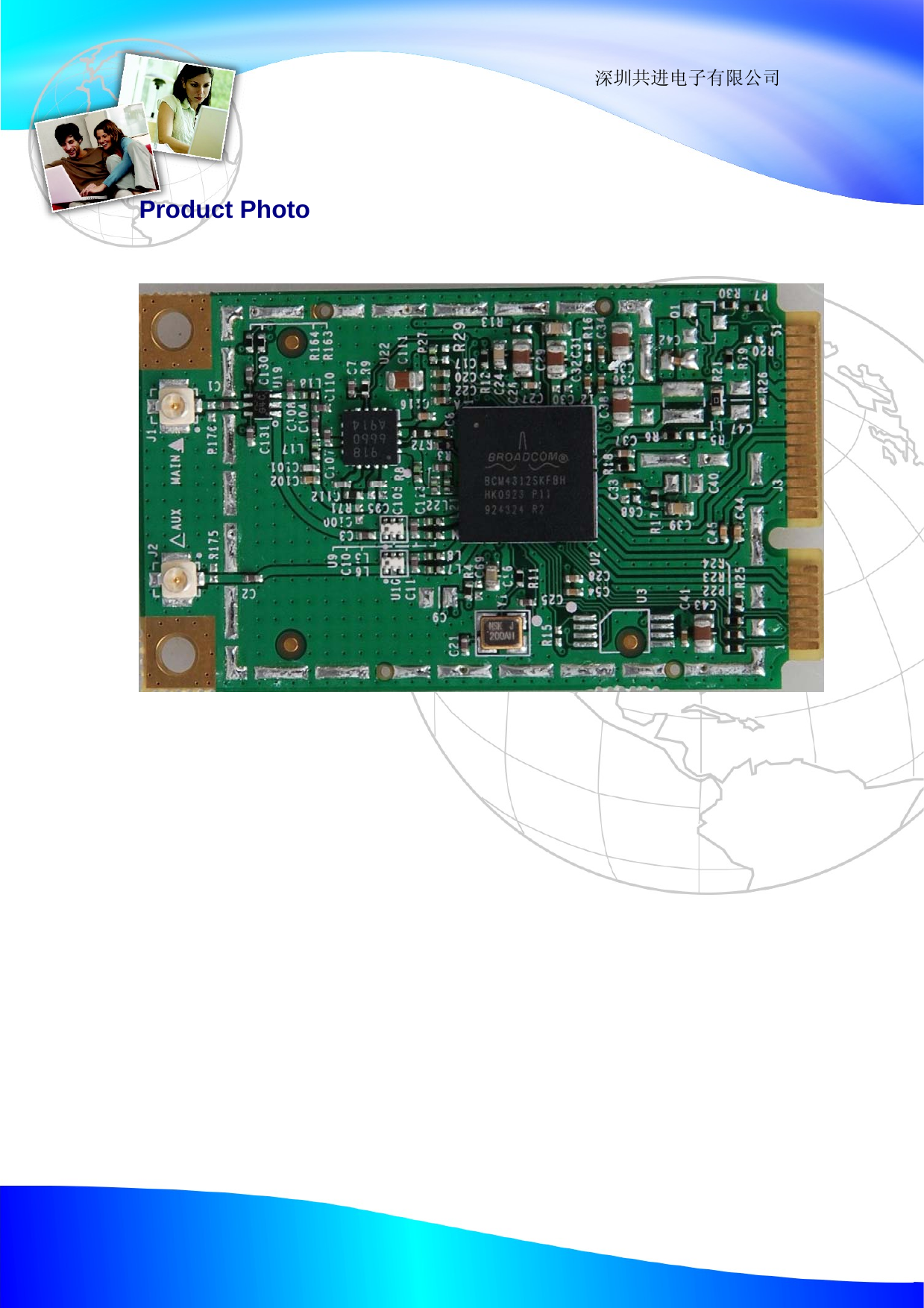

Product Photo
深圳共进电子有限公司

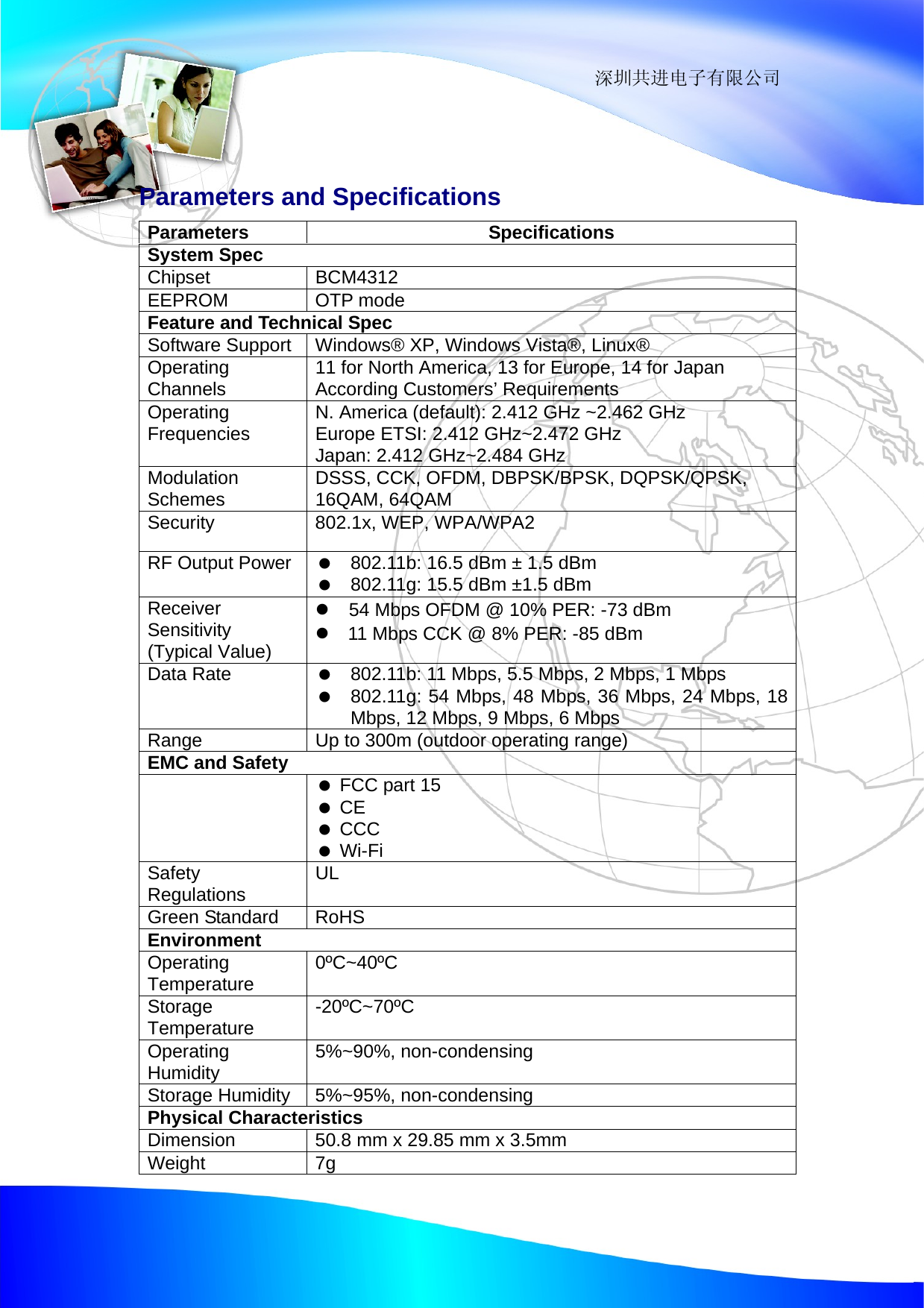

Parameters and Specifications
Parameters Specifications
System Spec
Chipset BCM4312
EEPROM OTP mode
Feature and Technical Spec
Software Support Windows® XP, Windows Vista®, Linux®
Operating
Channels 11 for North America, 13 for Europe, 14 for Japan
According Customers’ Requirements
Operating
Frequencies N. America (default): 2.412 GHz ~2.462 GHz
Europe ETSI: 2.412 GHz~2.472 GHz
Japan: 2.412 GHz~2.484 GHz
Modulation
Schemes DSSS, CCK, OFDM, DBPSK/BPSK, DQPSK/QPSK,
16QAM, 64QAM
Security 802.1x, WEP, WPA/WPA2
RF Output Power 802.11b: 16.5 dBm ± 1.5 dBm
802.11g: 15.5 dBm ±1.5 dBm
Receiver
Sensitivity
(Typical Value)
z 54 Mbps OFDM @ 10% PER: -73 dBm
z 11 Mbps CCK @ 8% PER: -85 dBm
Data Rate 802.11b: 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps
802.11g: 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18
Mbps, 12 Mbps, 9 Mbps, 6 Mbps
Range Up to 300m (outdoor operating range)
EMC and Safety
FCC part 15
CE
CCC
Wi-Fi
Safety
Regulations UL
Green Standard RoHS
Environment
Operating
Temperature 0ºC~40ºC
Storage
Temperature -20ºC~70ºC
Operating
Humidity 5%~90%, non-condensing
Storage Humidity 5%~95%, non-condensing
Physical Characteristics
Dimension 50.8 mm x 29.85 mm x 3.5mm
Weight 7g
深圳共进电子有限公司

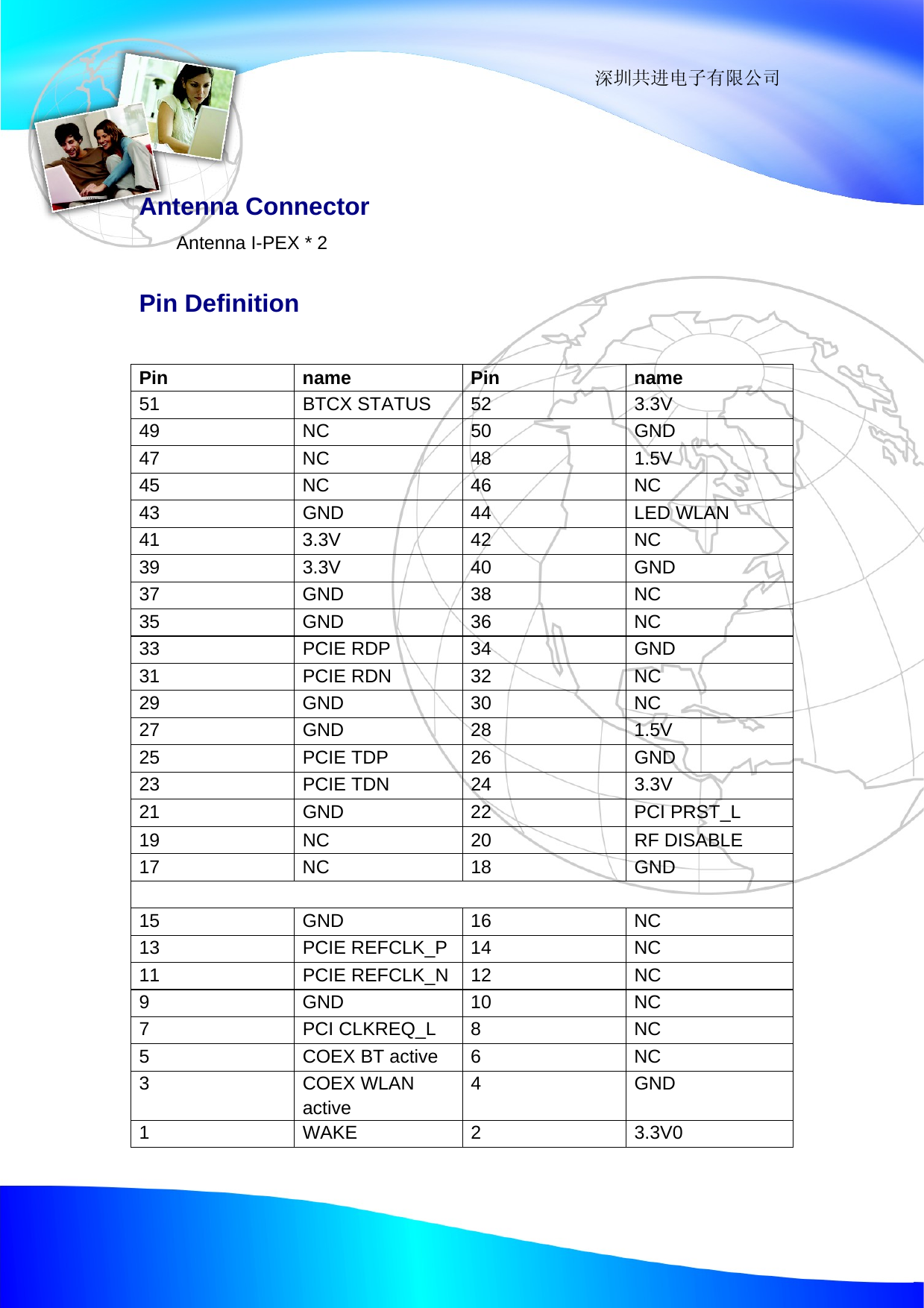

Antenna Connector
Antenna I-PEX * 2
Pin Definition
Pin name Pin name
51 BTCX STATUS 52 3.3V
49 NC 50 GND
47 NC 48 1.5V
45 NC 46 NC
43 GND 44 LED WLAN
41 3.3V 42 NC
39 3.3V 40 GND
37 GND 38 NC
35 GND 36 NC
33 PCIE RDP 34 GND
31 PCIE RDN 32 NC
29 GND 30 NC
27 GND 28 1.5V
25 PCIE TDP 26 GND
23 PCIE TDN 24 3.3V
21 GND 22 PCI PRST_L
19 NC 20 RF DISABLE
17 NC 18 GND
15 GND 16 NC
13 PCIE REFCLK_P 14 NC
11 PCIE REFCLK_N 12 NC
9 GND 10 NC
7 PCI CLKREQ_L 8 NC
5 COEX BT active 6 NC
3 COEX WLAN
active
4 GND
1 WAKE 2 3.3V0
深圳共进电子有限公司

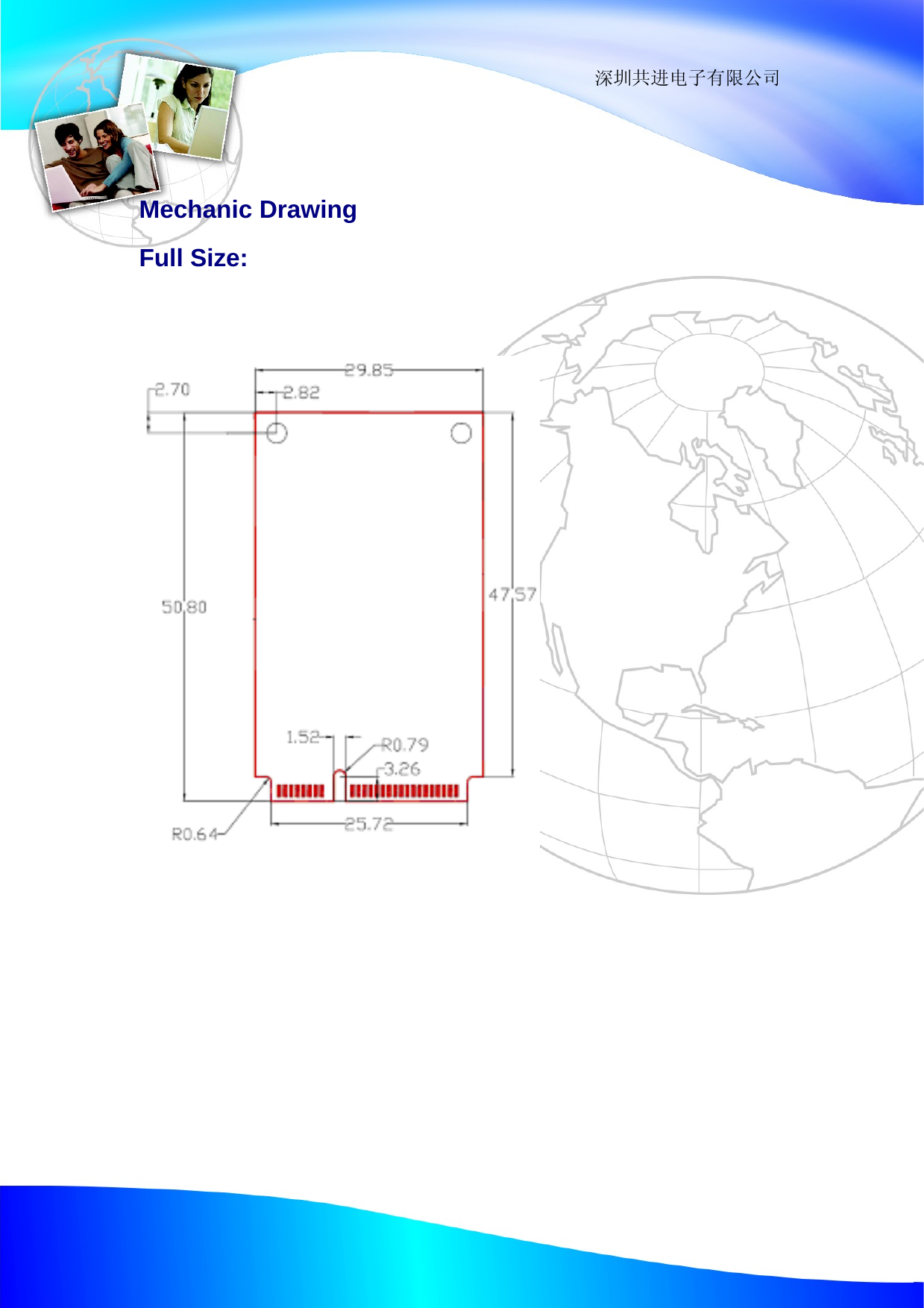

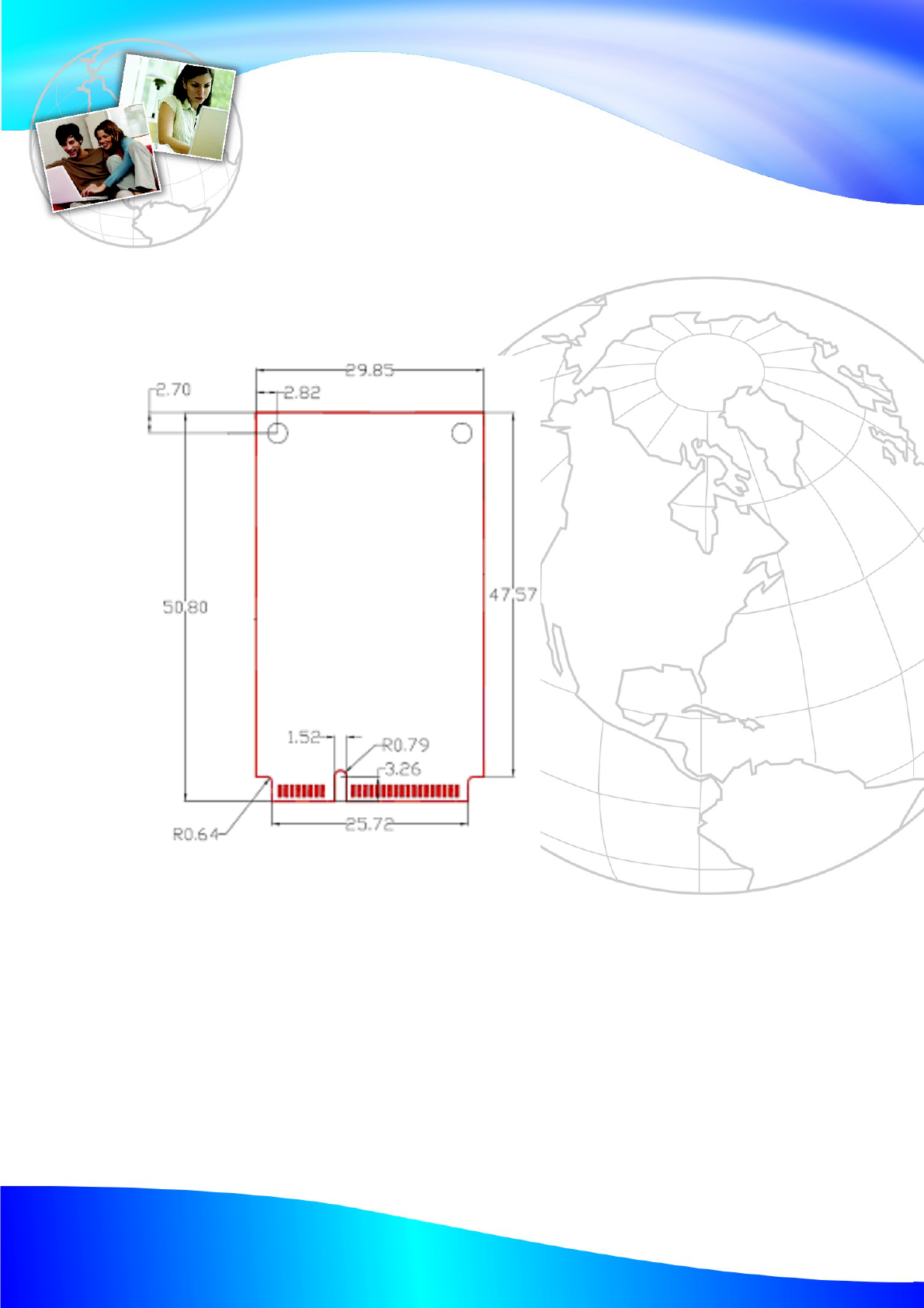

Mechanic Drawing
Full Size:
