HACH LANGE ZBA987 RFID Module User Manual Serviceanleitung DR 3900

HACH LANGE GmbH RFID Module Serviceanleitung DR 3900

Contents

Installation Instructions

Instruction manual
RFID module ZBA987
09/2012 Edition feck/1.1
SIP 10
Service instructions
xx/2011 Edition 0.0
This page intentionally left blank.
Content
1 GENERAL ............................................................................................................ 5
1.1 Product description ................................................................................................................................... 5
1.2 Specifications ............................................................................................................................................. 5
1.3 Compliance ................................................................................................................................................ 5
2 HW INTEGRATION .............................................................................................. 6
2.1 Connector P101 ......................................................................................................................................... 6
2.2 EMC filtering ............................................................................................................................................. 6
2.3 FCC/IC Compliance.................................................................................................................................. 6
3 PHOTOS .............................................................................................................. 8
This page intentionally left blank.
General
- 5 -
1 General
1.1 Product description
The RFID Module ZBA987 is an easy to use RFID module which can be integrated into HACH LANGE
electronics without big effort. This allows us to equip a HACH LANGE product with RFID functionality
without designing extra RF board. Thanks to the tested and extremely flexible firmware
we can read and write data to any tag that follows the ISO 15693 standard in no time. The rfid module
is equipped with a internal PCB antenna.
1.2 Specifications
Supply voltage
5 V DC
Dimensions
57 x 67 mm
RFID protocol
ISO 15693
Transmit frequency
13.56 MHz
Operating temperature
0…50 °C
Storage temperature
-40…60°C
Communication Interface
SPI Bus
1.3 FCC/IC Compliance
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
NOTICE:
This device complies with Part 15 of the FCC Rules [and with RSS-210 of Industry Canada].
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications made to this equipment not expressly approved by HACH LANGE GmbH
may void the FCC authorization to operate this equipment.
.
- 6 -
HW Integration
2 HW Integration
2.1 Connector P101
Function
GND
5 V DC
SPI Bus
2.2 EMC filtering
The RFID Module contains an RF generator at 13.56 Mhz which generates harmonics.
These will be radiated from the module below all official limits. When integrating the
module into host device with long cables or big ground planes, this effect might
increase. It might be advisable to add additional EMC filtering to comply with all relevant
norms.
2.3 FCC/IC Compliance for host device
The use of the transceiver module is authorized in mobile or fixed host devices taking into account the
conditions listed below:
OEM Integrator must ensure that the end user manual may not contain any information about
the way to install or remove the module from the final product.
Depending on the final host device additional authorization requirements for the non-
transmitter functions of the transmitter module may be required (i.e., Verification, or
Declaration of Conformity) The OEM integrator is responsible for ensuring that after the
module is installed and operational the host continues to be compliant with the Part 15B
unintentional radiator requirements.
The information on the label and in the user manual is required to be incorporated in the user
manual of the final host. see 47 CFR15 requirements for more details (e.g. 15.19 / 15.21 /
15.101 / 15.105 / RSS-GEN / ICES)
Additional label with the words ‘Contains FCC ID: YCB-ZBA987’ and ‘Contains IC:5879A-
ZBA987’ shall be applied and visible from the outside of the host product.
The module must be installed and used in strict accordance with the manufacturer’s
instructions as described in the user documentation that comes with the module.
The end user manual for the final host product operating with this transmitter must include
operating instructions to satisfy RF exposure compliance requirements.
Radiofrequency radiation exposure Information:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20
cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
HW Integration
- 7 -
The antenna of the module may not be removed, replaced nor modified. The antenna must
not be co-located or operating in conjunction with any other antenna or transmitter. No
additional antenna must be used.
When the final host product operating with this transmitter deviate from above, installation of
this module into specific final hosts may require the submission of a Class II permissive
change application containing data pertinent to RF Exposure, spurious emissions, ERP/EIRP,
and host/module authentication, or new application if appropriate.
Feel free to contact us if additional guidance is required.
- 8 -

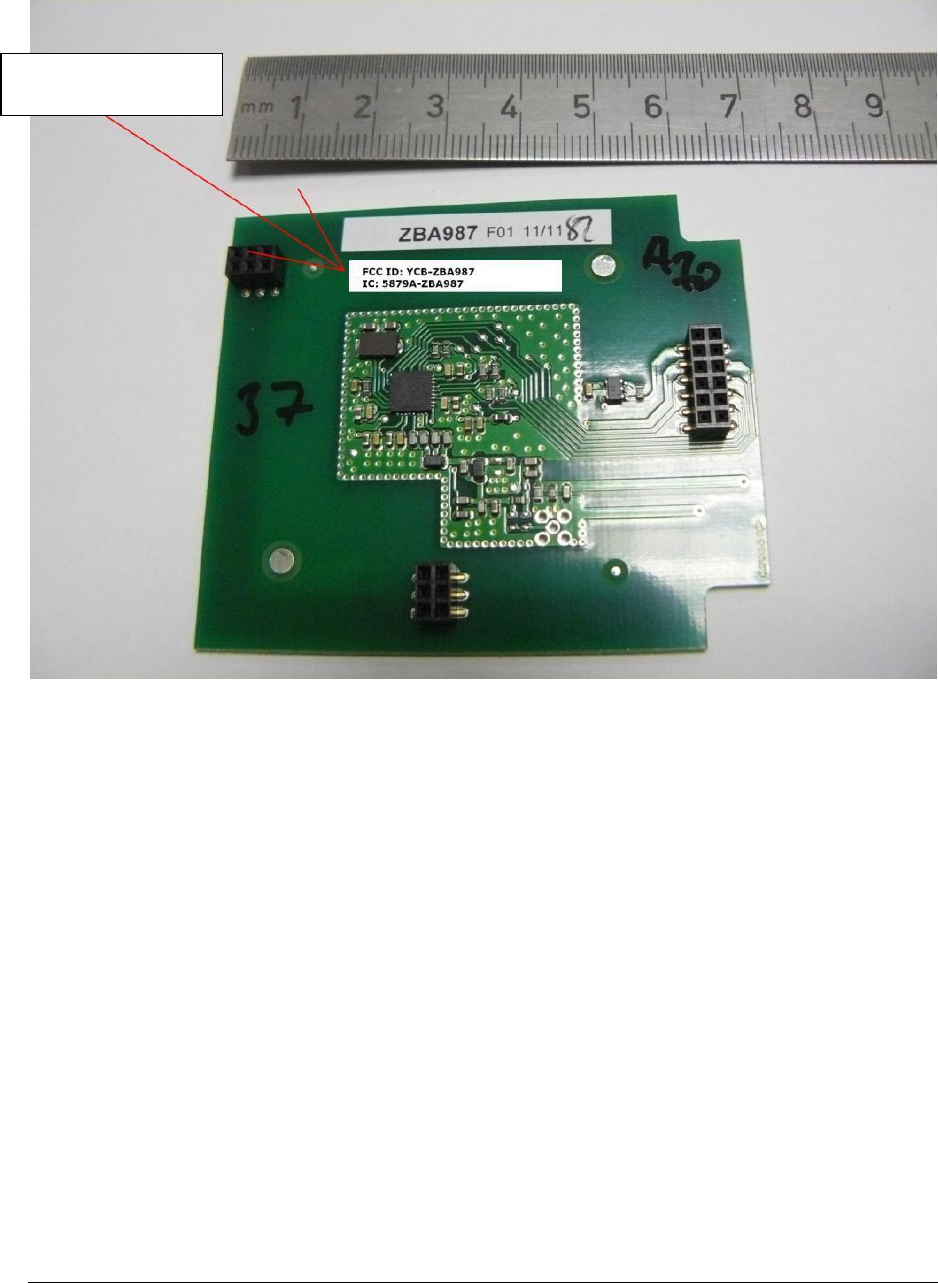

3 Photo
FCC/IC Label
location
