HON HAI PRECISION IND J20H066 Bluetooth Module User Manual of J20H066 V0
HON HAI Precision Ind. Co., Ltd. Bluetooth Module of J20H066 V0
Contents
- 1. User Manual
- 2. User Manual - Statements
User Manual
![](/img.php?id=1765091&img=bg1.png)
Confidential 1
J20H066 Bluetooth Module User Manual
Revision History
Date Revision Description
2012/07/09 0.0 Initial released
![](/img.php?id=1765091&img=bg2.png)
Confidential 2
Content
1. PRODUCT OVERVIEW........................................................................................................................................3
2. INTERFACE PIN DEFINE....................................................................................................................................4
2.1
A
NALOG
A
UDIO
I/F
MODULE PIN DEFINE
.............................................................................................................4
2.2
D
IGITAL
A
UDIO
I/F
MODULE PIN DEFINE
.............................................................................................................5
3. ELECTRICAL SPECIFICATION ........................................................................................................................5
3.1
A
BSOLUTE
M
AXIMUM
R
ATING
............................................................................................................................5
3.2
B
LUETOOTH
RF
S
PECIFICATION
.......................................................................................................................5
4.
BLUETOOTH TOOL UTILITY AND INSTALL @ WINDOW XP................................................................7
4.1
I
NSTALL
B
LUESUITE TOOL
...................................................................................................................................7
4.2
R
UN
B
LUE
T
EST
..................................................................................................................................................7
4.3
S
ET
P
ROTOCOL
.................................................................................................................................................8
4.4
T
X COMMAND
......................................................................................................................................................8
4.5
R
X COMMAND
.....................................................................................................................................................9
![](/img.php?id=1765091&img=bg3.png)
Confidential 3
1.Product overview
This documentation outlines the Bluetooth Module. It is designed for Bluetooth 2.4GHz
systems. The module provides a fully compliant Bluetooth v2.1/ v3.0+ EDR specification
system for data and voice. And it support below function:
1. Bluetooth
1.1 Operating Frequency: 2402MHz ~ 2480 MHz
1.2 Carrier Spacing: 1.0MHz
1.3 Duplexing: TDD
1.4 Modulation: FHSS
GFSK BT=0.5, π/4-DQPSK, 8DPSK
1.5 Symbol Rate: 1Mbps (GFSK), 2Mbps (π/4-DQPSK), 3Mbps (8DPSK)
2. This project includes 4 Foxconn part numbers, and they have different feature in
Bluetooth specification version.This is realized by software.
Customer Part No. Foxconn Part No. Feature
1-490-558-11 J20H066.00 Analog Audio Bluetooth v2.1 + EDR
1-490-558-21 J20H066.01. Digital Audio Bluetooth v2.1 + EDR
1-490-558-31 J20H066.02 Analog Audio Bluetooth v3.0 + EDR
1-490-558-41 J20H066.03 Digital Audio Bluetooth v3.0 + EDR
3. Below figure1 shows function block diagram of the Bluetooth module.
Figure 1: Module Functional Block Diagram
2
![](/img.php?id=1765091&img=bg4.png)
Confidential 4
2. Interface Pin define
This module has 2 different signal interfaces for supporting analog signal and digital signal.

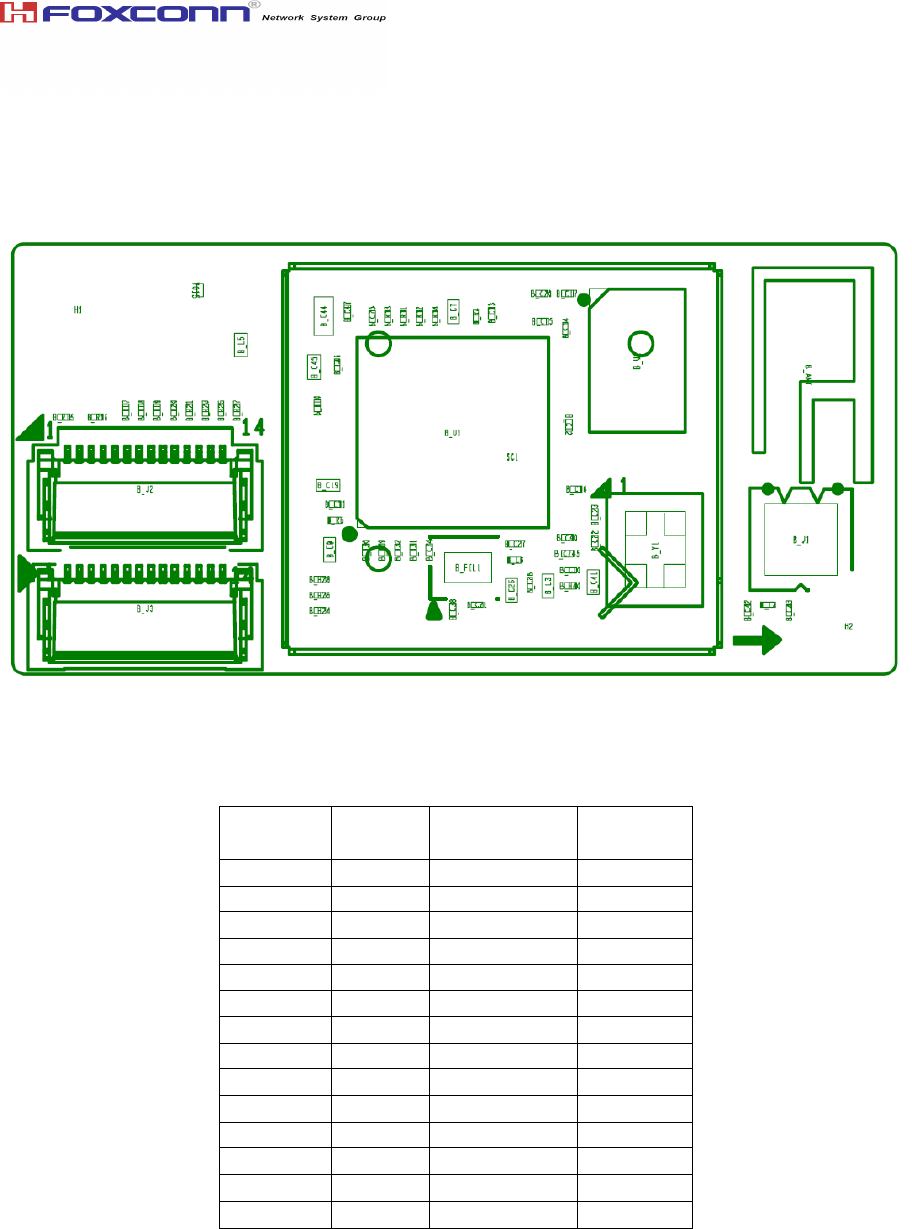

Figure 2: Key component is shown as below marks
2.1 Analog Audio I/F module pin define
Pin NO. Pin
Type Description Remark
1 - Ground B_J2
2 I BT_RST B_J2
3 Power BT_VDD33 B_J2
4 I
URT_CTS B_J2
5 O
URT_RTS B_J2
6 I
URT_RX B_J2
7 O
URT_TX B_J2
8 O
MUTE B_J2
9 -
Ground B_J2
10 O
LCH_N B_J2
11 O
LCH_P B_J2
12 O
RCH_P B_J2
13 O
RCH_N B_J2
14 - Ground B_J2
![](/img.php?id=1765091&img=bg5.png)
Confidential 5
2.2 Digital Audio I/F module pin define
Pin NO. Pin Type
Description Remark
1 - Ground B_J3
2 I BT_RST B_J3
3 Power BT_VDD33 B_J3
4 I
URT_CTS B_J3
5 O
URT_RTS B_J3
6 I
URT_RX B_J3
7 O
URT_TX B_J3
8 O
MUTE B_J3
9 -
Ground B_J3
10 -
Ground B_J3
11 O
PCM_SYNC B_J3
12 O
PCM_CLK B_J3
13 O
PCM_OUT B_J3
14 - Ground B_J3
3. Electrical Specification
3.1 Absolute Maximum Rating
Symbol Condition Min. Typ.
Max
.
Unit
VDD33 VDD33 Respect to GND 3.0 3.3 3.6 V
Operating Temperature -- -10 25 70
Storage Temperature -- -40 25 85
3.2 Bluetooth RF Specification
Test
station
Test item Test Condition Test Spec and Comments
Program Customer Specific FW N/A Pass
Write BD Address N/A Pass
Standby 0.0005~0.005A
Current Consumption Max Consumption
(Continuous Tx ) 0.036~0.054A
Output power test(class 2) Channel 0, 39, 78 -2dBm Output Power +3.0dBm
Power control Channel 39 2dBm<∆<8dBm
Initial Carrier Frequency Tolerance
Test
Channel 39 -25KHz<∆<25KHz
Carrier Frequency Drift Test Channel 78 Drift Rate/50us: -20KHz<∆<20KHz
DH1: -25KHz<∆<25KHz
DH3: -40KHz<∆<40KHz
DH5: -40KHz<∆<40KHz
PT
Multi-slot Sensitivity Test Channel 0,39,78
(BER<0.1%)
-84dBm
+1.66
1.66dBm
![](/img.php?id=1765091&img=bg6.png)
Confidential 6
Modulation Characteristics Test Channel 0 140kHz f1avg 175kHz
f2max 115kHz
f2avg/ f1avg 0.8(80%)
Maximum Input Power Channel 0, 39, 78
(BER<0.1%) -20dBm
Test
Station Test Items Test Condition Test Spec and Comments
EDR Relative Tx Power
(3Mbps only) Channel 0, 39, 78 P[GFSK]-4dB<P[DPSK]< P[GFSK]+1dB
Channel 0, 39, 78 -75 kHz < i < 75 kHz
Channel 0, 39, 78 -10kHz< 0 <10kHz
Channel 0, 39, 78 RMS DEVM<=0.13 for all 8DPSK
Channel 0, 39, 78 Peak DEVM<=0.25 for all 8DPSK
EDR Carrier Frequency Stability
and Modulation Accuracy
(3Mbps only)
Channel 0, 39, 78 99% DEVM<=0.2 for 99% 8DPSK
EDR Sensitivity
(3Mbps only) Channel 0, 39, 78 -78dBm
PT
Check BD Address N/A Match with the ID in Label
![](/img.php?id=1765091&img=bg7.png)
Confidential 7
4. Bluetooth tool Utility and install @ Window XP

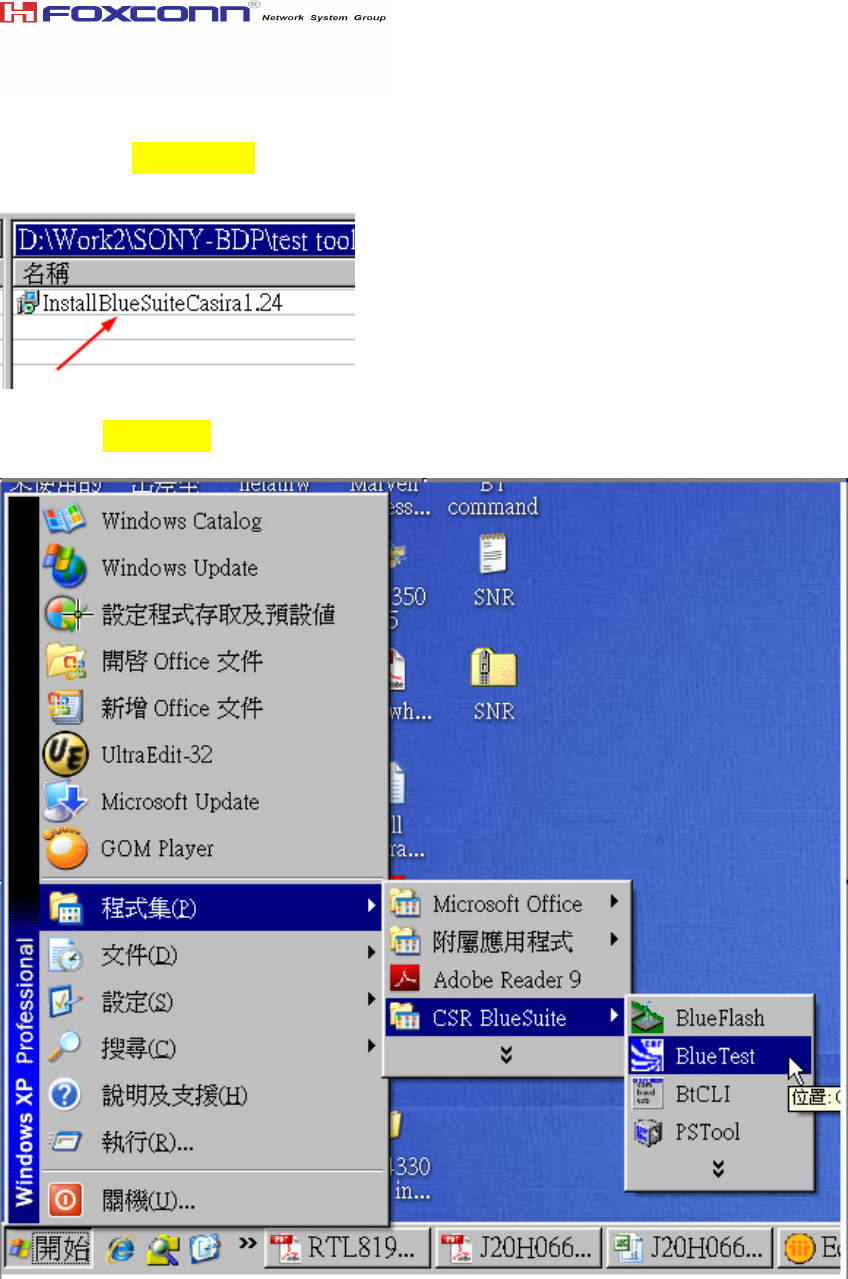

4.1 Install Bluesuite tool
4.2 Run BlueTest
![](/img.php?id=1765091&img=bg8.png)
Confidential 8
4.3 Set Protocol
4.4 Tx command
![](/img.php?id=1765091&img=bg9.png)
Confidential 9
4.5 Rx command
