Quick Installation Manual
ADB - 1761WF
2
SAFETY INFORMATION AND WARNINGS
Before any operation is performed, please read the operation instructions and pre-
cautions carefully in order to minimize the possibility of accidents.
When you use this Product you shall always respect basic safety measures in
order to reduce risk of fire, electric shock or injury, following below instruc-
tions.
Power Source
Use only the Class II power adapter provided with the Product. The Product should be
operated only with power source of the same kind as indicated on the power adapter
rating plate.
The power adapter provided is a limited power source as per UL 60950-1/CAN/CSA-
C22.2 No. 60950-1 and it is compliant to national standards of the specific country
where the Product is installed. It is strictly forbidden to use different type of power
source.
The plug socket serves as the main power connection for the Product. Be sure that
the power socket being used is easily accessible and located as close to the Product
as possible.
In order to reduce the risk of fire or electric shock, do not overload the electrical outlet,
power strip, or extension power cable.
Cleaning Instructions
Unplug the Product from the power outlet (or socket) and any other telecommunica-
tion interfaces before cleaning.
Use a damp cloth for cleaning. Do not use liquid or aerosol cleansers.
Maintenance
Do not open the case in order to avoid electric shock or exposition to overvoltages.
Improper mounting can cause electric shock during further use of the Product. There
are no parts inside the Product that can be substituted by the user.
Damage requiring service/replacement
In case the Product requires service unplug the Product from the electrical outlet and
contact your service provider.
Typical conditions which may require service:
– Liquid has been spilled into the Product.
– The Product does not operate normally when you follow the operating instructions.
– The Product has been dropped or damaged.
– There are noticeable signs of overheating.
– The power cord, extension cord, or plug is damaged.
– A burning smell or smoke is perceived from the device.
Environmental conditions for product installation and use:
The Product shall be installed and configured in accordance with the user guide.
The Product shall be used and installed indoor with a maximum ambient temperature
of 40° C.
The Product shall be installed in offices and residential areas only, as they are free from
conducting polluting agents (i.e. areas considered pollution degree 2 environments as
per standard IEC 1010).
The Product shall not be placed near any source of heat or direct sunlight.
The Product shall be placed in a well-ventilated area in order to prevent overheating.
Do not cover or block the air vents on the Product. These are necessary for proper
ventilation.
Do not use this Product near water or in close proximity to bath tub, wash bowl,
kitchen sink, or laundry basin, in a wet basement, or near a swimming pool.
The Product shall not get in contact with water and moisture. Moving the Product
from a cold environment to a hot one may cause moisture on some internal parts of
the device. Wait until the Product is totally dry before turning it on. In case of fire, do
not use water for fire-extinguishing.
The Product shall not be used during a lightning storm. There is a remote risk of electric
shock from lightning.
Connections
Ethernet ports must be connected only to devices that support the same kind of in-
terface, and the cable used must not leave the building where the Product is installed.
This Product is not available to connect to outdoor cable distribution system
USB
The equipment has to be connected to a standard USB device compliant with limited
current circuit (as per UL 60950-1).
3
GETTING STARTED
UNPACKING YOUR DIGITAL RECEIVER FRONT PANEL
Receiver Power Supply
Installation
Guide
Quick Installation
Guide
HD TV
Power supply
Home Cinema
Ethernet
router
SD TV
SD card slot
Led indicator in the power on/off button:
Blue - operating mode. Blinks while receiving signals from the RCU
Red - deep standby mode
Purple - normal standby mode. Blinks during software update.
Rec LED - Red when recording is in progress (only when the ADB HDD
module is connected).
WiFi NETWORK CONFIGURATION
If you decide to use wireless network please perform the steps listed in the
“Connections” section. Make sure the ethernet cable is disconnected. On
your TV the “Application Screen” shall appear:
1. select the WiFi network from the list,
2. enter the password if applicable.
The front panel LED indicator shall display the following information:

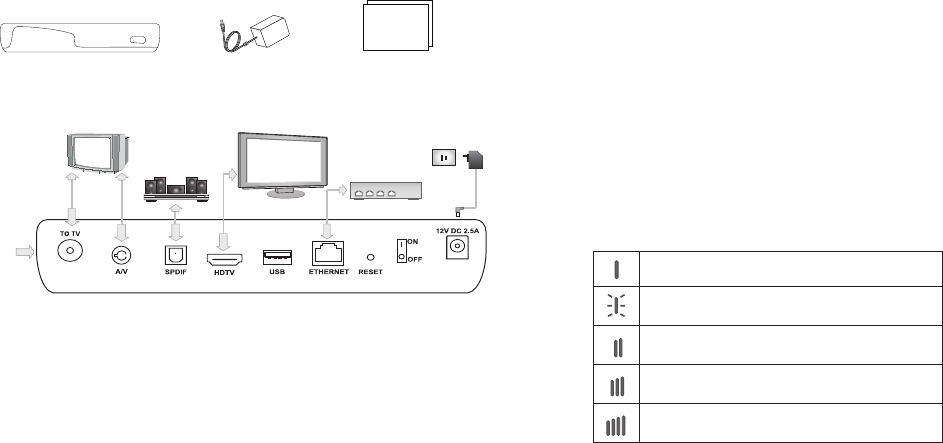

CONNECTIONS
Installation Notice: Connecting your TV directly to the Audio/Video
output of your Set-Top Box will assure a more vivid picture and enhance
your viewing enjoyment.
Plug in all cables before connecting the decoder to the power supply.
Similarly always unplug the decoder from the power supply first, before
disconnecting cables from the decoder or reconnecting them.
1. Connect the Ethernet cable or configure WiFi network.
2. Depending on the type of your TV set, connect your receiver either
with the HDMI cable (for an HD TV set), jack connector (for an SD
TV) or RF cable.
3. You can also connect audio devices such as home cinema.
4. The last step is connecting the decoder to the power supply socket.
Now you can switch on your TV set. Make sure that you have selected
the appropriate source of signal in the TV. If you are unsure how to do it,
please consult your TV user manual.
Red bar - no network connection.
Blinking red bar - connecting in progress.
Two yellow bars - poor signal.
Three blue bars - medium strength.
Four blue bars - strong signal.
RF RCU CONFIGURATION
Important: Remote Control Unit is packed separetly.
In case when you are provided with an RF RCU please perform
simultaneously the following steps in order to pair it with your STB:
1. RF RCU - enter the pairing mode according to the instructions
attached to the device.
2. STB - please keep the On/Off button pressed for 5 seconds.
END OF LIFE DISPOSAL
INFORMATION FOR USERS as per Directive 2012/19/EU and Directive 94/62/EC about waste
electrical and electronic equipment, and packaging and packaging waste.
Manufactured by ADB SA
Avenue de Tournay 7 – 1292 Chambésy - Switzerland
For further information http://adbglobal.com
The HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trade marks of HDMI Licensing LLC in the United States
and other countries.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
registered trademarks of Dolby Laboratories.
This item incorporates copy protection technology that is protected by U.S. patents
and other intellectual property rights of Rovi Corporation. Reverse engineering and
disassembly are prohibited
®
FCC INFORMATION
Please use the supplied Power Adapter to ensure FCC compliance.
Please use a good quality shielded video signal cable.
Use of other adapters may cause interference with radio and television reception.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference
• This device must accept any interference received, including interfer-
ence that may cause undesired operation.
This equipment generates, uses, and can radiate radio-frequency energy. If it is not installed and
used properly — that is, in strict accordance with the instructions — it may cause interference with
radio and television reception.
This equipment has been tested and found to comply with the limits for a Class B digital device
in accordance with the specifications in Part 15 of FCC rules. These specifications are designed to
provide reasonable protection against such interference in a residential installation. However, there
is no guarantee that interference will not occur in a particular installation.
You can determine whether this equipment is causing interference by turning it off. If the interfer-
ence stops, it was probably caused by this equipment or one of the peripheral devices.
If this equipment does cause harmful interference to radio or television reception, the user is en-
couraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment. In that event, user’s right to use the equipment
may be limited by FCC regulations, and he may be required to correct any interference to radio or
television communications at his own expense.
The user may find the following booklet, prepared by the Federal Communications Commission,
helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available
from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.
Wireless Radio Use
The band 5250-5730 MHz will be disabled by the software during the manufacturing and cannot
be changed by the end user. This device meets all the other requirements specified in Part 15E,
Section 15.407 of the FCC Rules.
Exposure to Radio Frequency Energy
The radiated output power of this equipment is below the FCC radio frequency exposure limits
for uncontrolled equipment. This device should be operated with a minimum distance of 20 cm
between the device and a person’s body and must not be co-located or operated with any other
antenna or transmitter subject to the conditions of the FCC Grant.
The crossed-out wheeled bin symbol on the Product or on its packaging indicates that
this Product must not be disposed of with your other household waste. Instead, it is
your responsibility to dispose of your waste equipment by handing it over to a desig-
nated collection point for the recycling of waste electrical and electronic equipment, or
to return it to the dealer when purchasing a new appliance
The separate collection and recycling of your waste equipment at the time of disposal will help to
conserve natural resources and ensure that it is recycled in a manner that protects human health
and the environment and supports the reuse and/or recycling of materials the equipment is made
of. For more information about where you can drop off your waste equipment for recycling, please
contact your local city office or your household waste disposal service.
The unlawful disposal of the product by the user may entail a fine.
Safety Regulations
The product is UL-listed and is in compliance with:
US Safety Regulation according to UL 60950-1
Canadian Safety Regulations according to CAN/CSA
-C22.2 No. 60950-1
Waste packaging should be separated and delivered at the collection points in accordance
with the local waste collection rules.
DO NOT DISPOSE OF AS HOUSEHOLD UNSORTED WASTE
