part.5 Navigation

K_UM_G4.0[EN]AVN PART 5.indd 5-1K_UM_G4.0[EN]AVN PART 5.indd 5-1 2014-10-02 오전 9:20:542014-10-02 오전 9:20:5

5-2 I Navigation

Navigation

Basic Features

Operating Navigation Screen

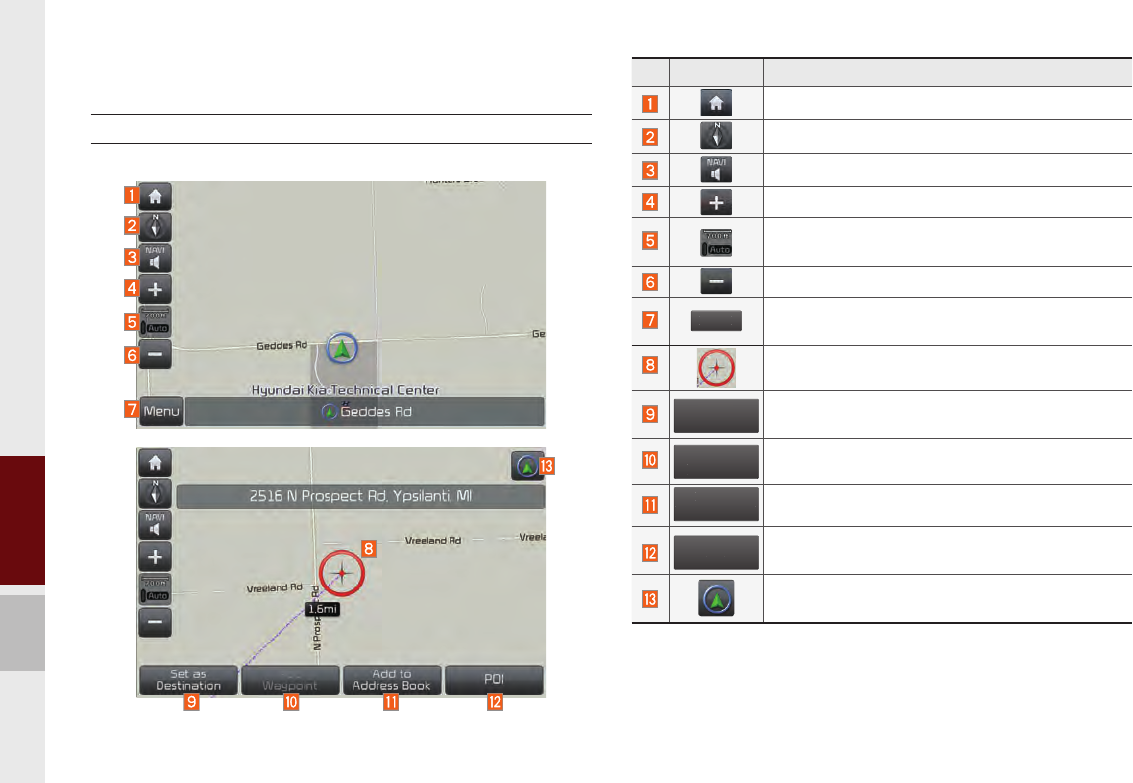

Basic features on the map screen.

Name Description

Go to the Home screen.

Change the map view mode.

Voice Guidance On/Off.

Zoom in the map.

Set the zoom level automatically according to the

guidance.

Zoom out the map.

Quick and easy selection of a destination and

options.

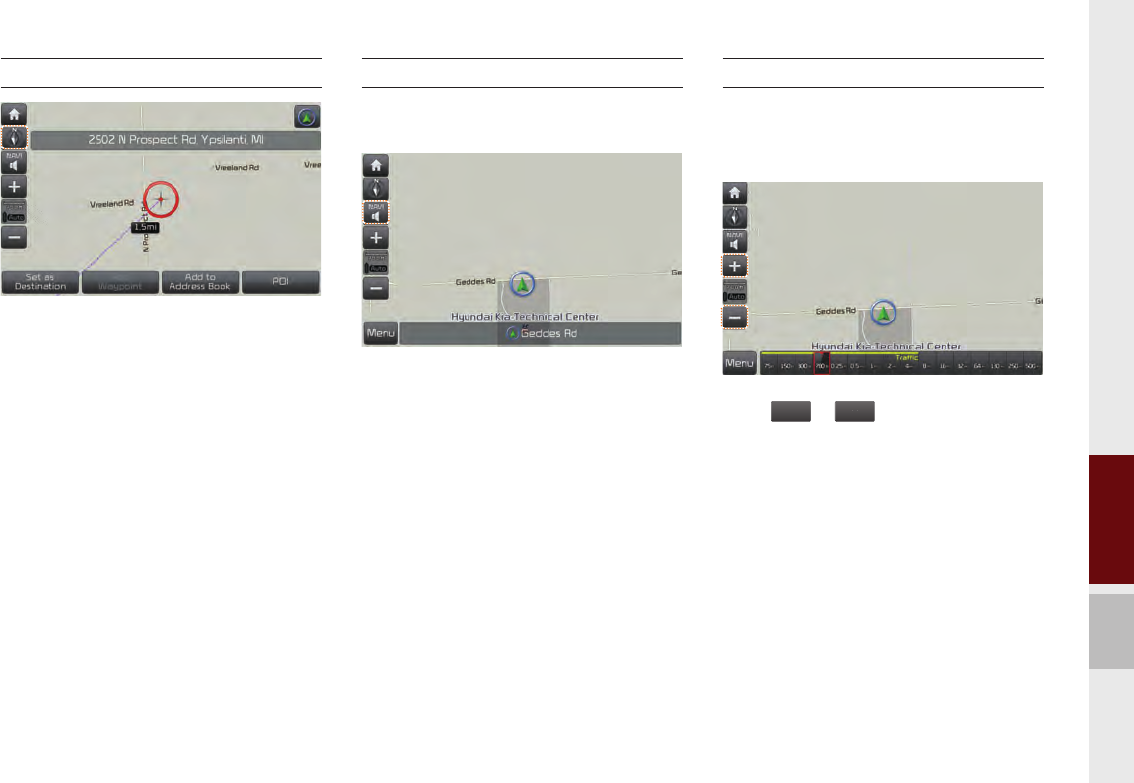

Touch to scroll the map.

Quick and easy selection of a destination from the

map screen.

Set a waypoint to the current route.

dd to

ddress Book

Save frequently used address to address book.

Find a POI(Point Of Interest) around the current

position.

View the vehicle’s current position on the map

screen.

K_UM_G4.0[EN]AVN PART 5.indd 5-2K_UM_G4.0[EN]AVN PART 5.indd 5-2 2014-10-02 오전 9:21:062014-10-02 오전 9:21:0

Basic Features I 5-3

Changing Map View

Touch the compass arrow icon to toggle

between a map oriented to the North, or

oriented parallel to the direction that the

vehicle’s heading.

Voice Guidance Volume On/Off

Press the NAVI sound button to turn the

volume on and off.

Zoom In /Zoom Out

Zoom the map view screen in and out.

Zoom In and Zoom Out

Press

to set the zoom level.

K_UM_G4.0[EN]AVN PART 5.indd 5-3K_UM_G4.0[EN]AVN PART 5.indd 5-3 2014-10-02 오전 9:21:142014-10-02 오전 9:21:1

5-4 I Navigation

Map Scale

Sets the zoom level automatically accord-

ing to the road class.

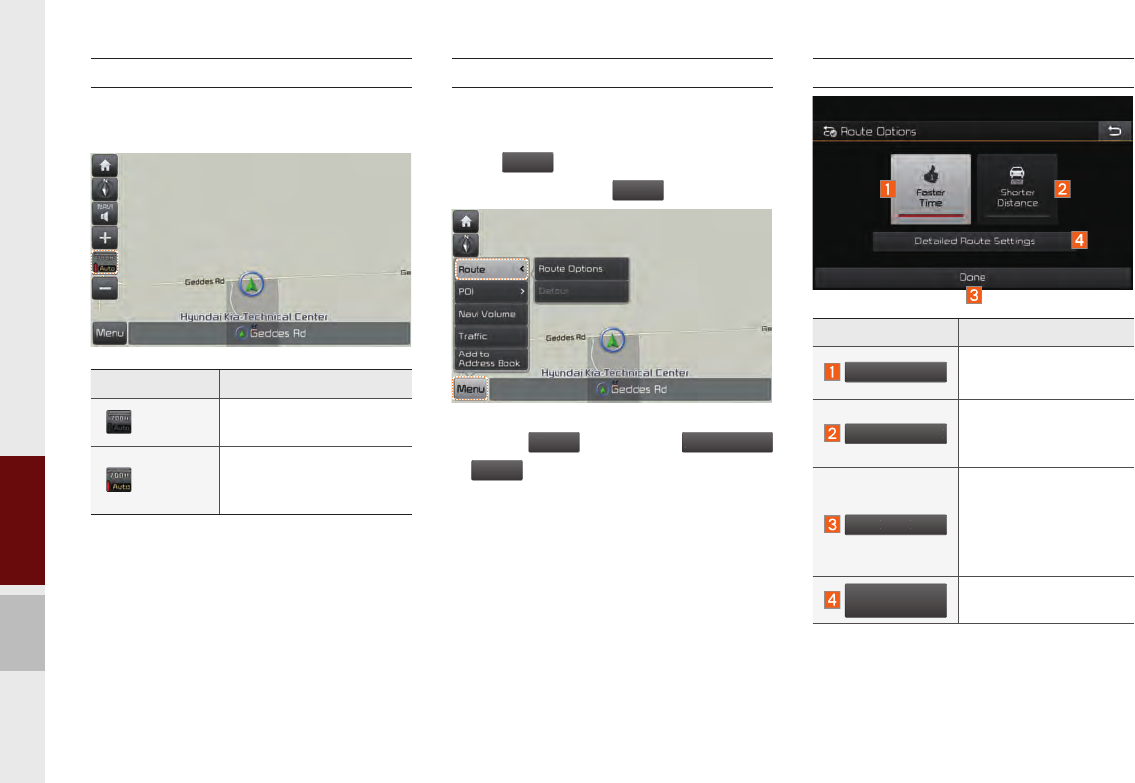

Name Description

Scale Fix Manually adjust the map

scale.

Auto Scale

Change the map scale

automatically depending

on the road class.

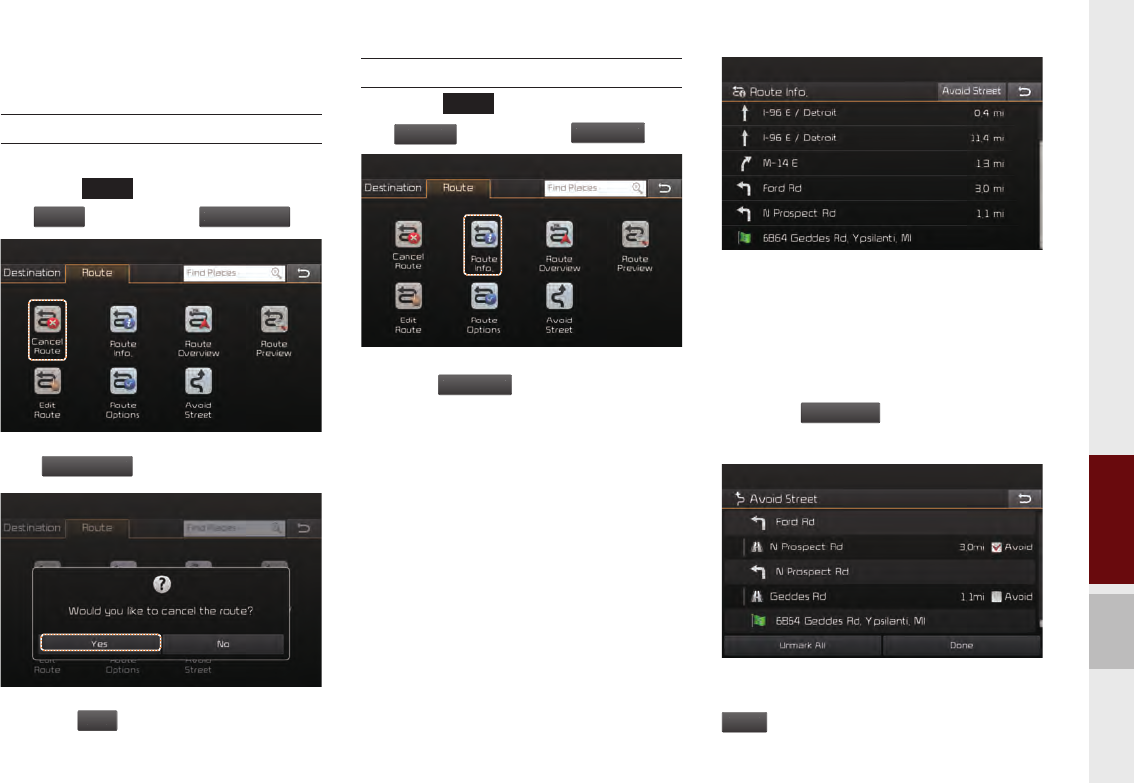

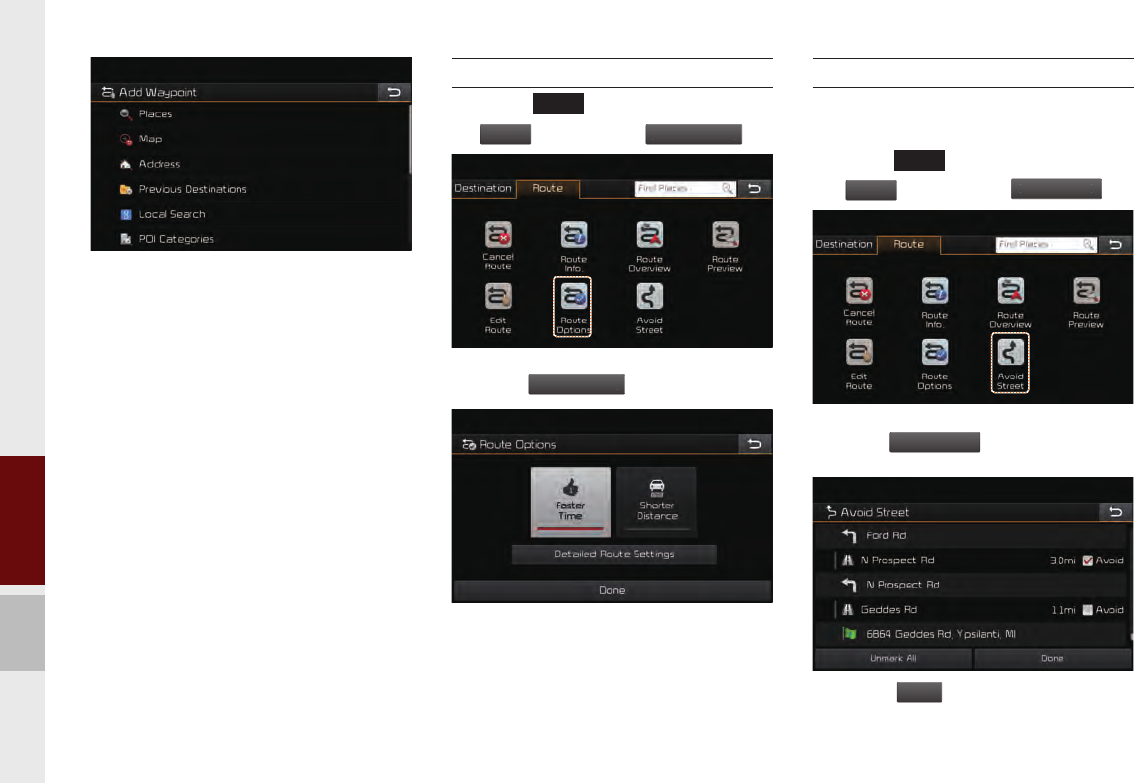

Route

Press

button on the bottom left of

the screen ▶ Press

button.

Press the

button to set

oute

tions

our

Route Option

Name Description

Calculates the fastest

time of arrival.

ance

Calculates the short-

est distance to desti-

nation.

one

Save the option. Route

will be calculated

based on the selected

option when setting a

destination.

tti

Set more route options.

K_UM_G4.0[EN]AVN PART 5.indd 5-4K_UM_G4.0[EN]AVN PART 5.indd 5-4 2014-10-02 오전 9:21:142014-10-02 오전 9:21:1

Basic Features I 5-5

Detour

The

our

button is active only when the

route is planned.

Selected distance is detoured from the

current location.

Press the

Usin

button to select the

distance ahead to avoid. (Highlighted grey

indicates distance to avoid)

Navigation Volume

Press the

i Volume

button to adjust the

volume.

Press the

i Volum

button.

Name Description

Reduce the length of the

section to avoid.

Increase the length of the

section to avoid.

our

Confirm detour.

K_UM_G4.0[EN]AVN PART 5.indd 5-5K_UM_G4.0[EN]AVN PART 5.indd 5-5 2014-10-02 오전 9:21:172014-10-02 오전 9:21:1

5-6 I Navigation

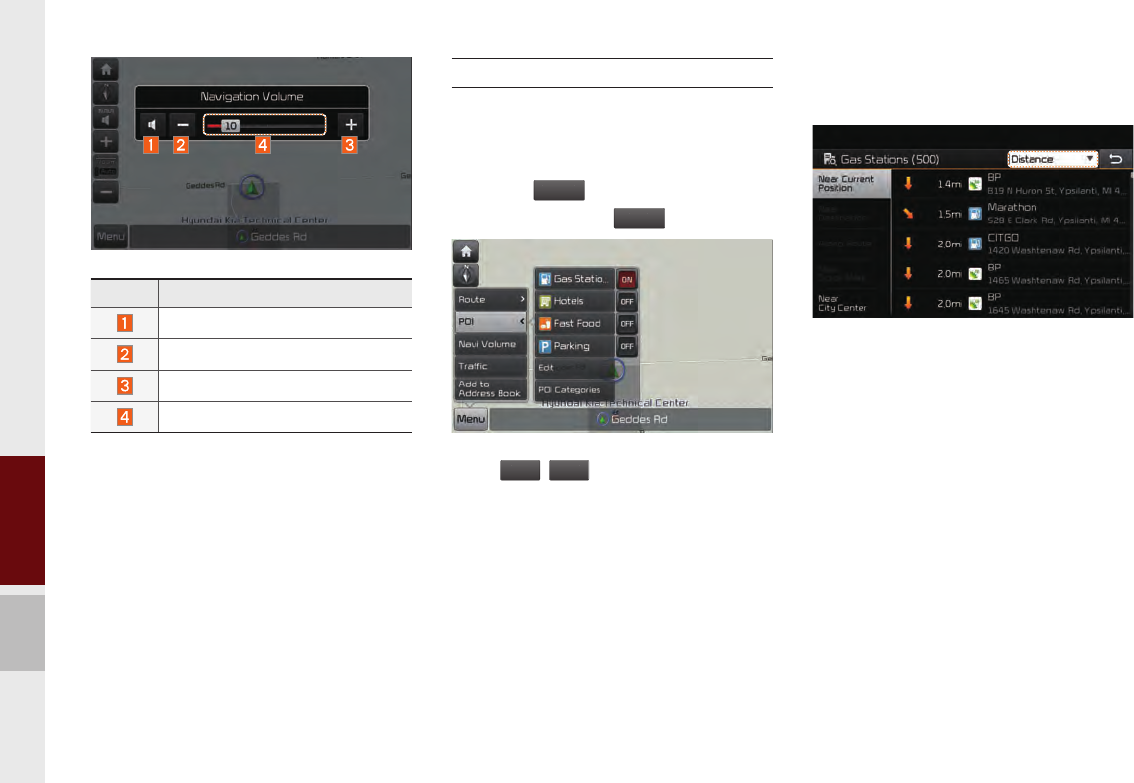

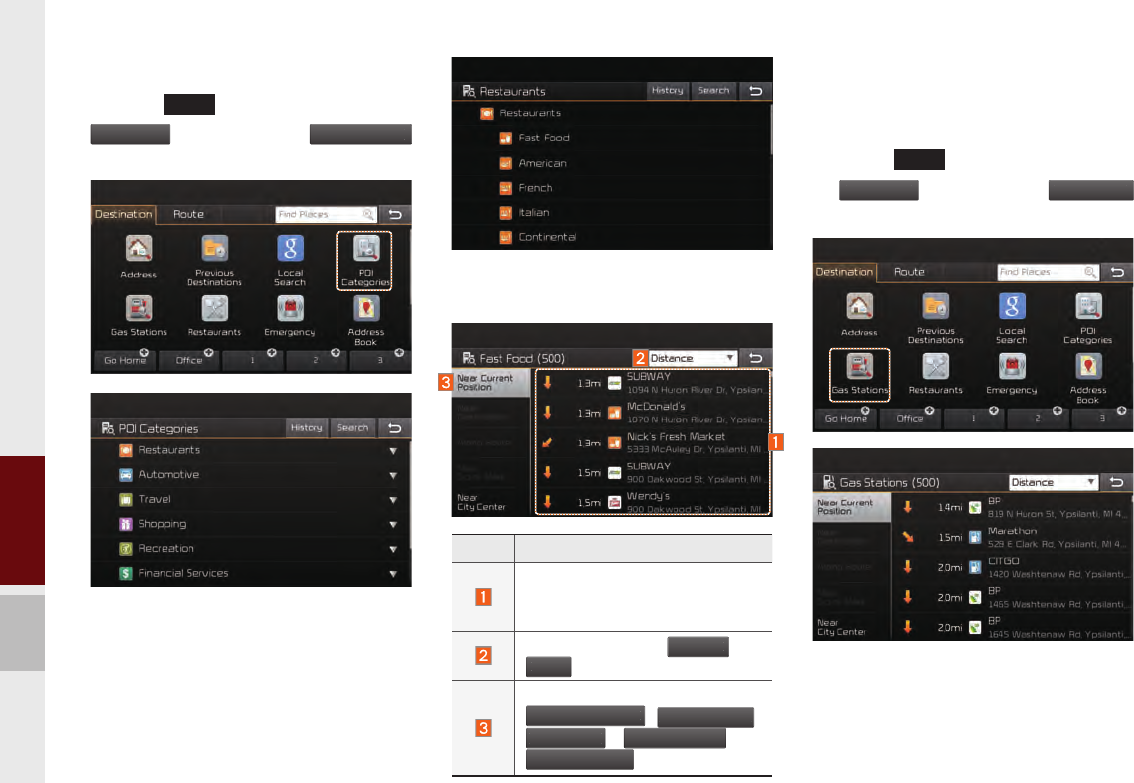

Nearby POIs

Display nearby POIs on the map.

View Nearby POIs

Select the

on the bottom of the left

screen. ▶ Select the

button.

Press

button to set whether to

show nearby POIs or not. When catego-

ries are selected, they will appear on the

map. (ex. Gas Station)

The lists of nearby gas stations are dis-

played.

Display in order of distance, name, and

price.

Name Description

Set the volume to mute.

Turn the volume down.

Turn the volume up.

Slide to set the volume.

K_UM_G4.0[EN]AVN PART 5.indd 5-6K_UM_G4.0[EN]AVN PART 5.indd 5-6 2014-10-02 오전 9:21:192014-10-02 오전 9:21:1

Basic Features I 5-7

Name Description

Call to the selected

location (Phone needs

to be connected via

Bluetooth).

Set the place as a des-

tination.

Set the location as a

waypoint.

dd to

ddress Book

Save the location.

Search nearby POIs.

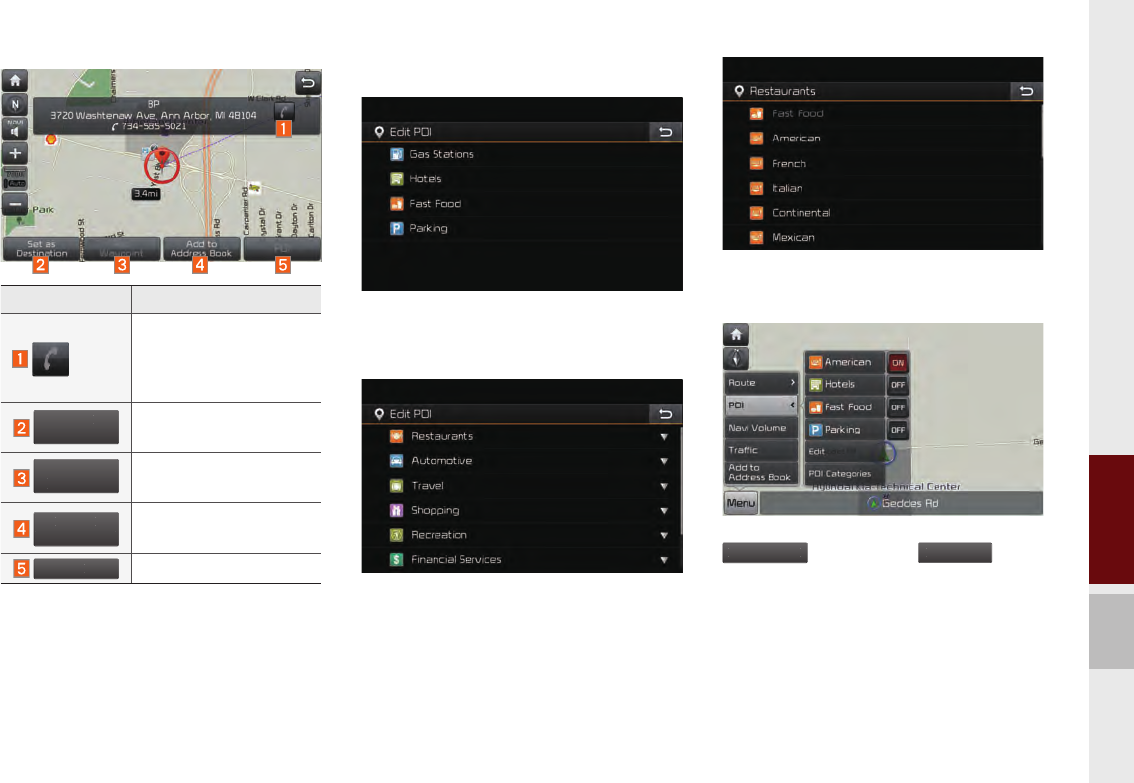

•Editing

Change the shortcut POIs to display (ex.

Gas Station)

Select the desired category to change. (ex

Restaurants)

Select new category to display (ex.

American)

ons

is changed to

merican

K_UM_G4.0[EN]AVN PART 5.indd 5-7K_UM_G4.0[EN]AVN PART 5.indd 5-7 2014-10-02 오전 9:21:222014-10-02 오전 9:21:2

5-8 I Navigation

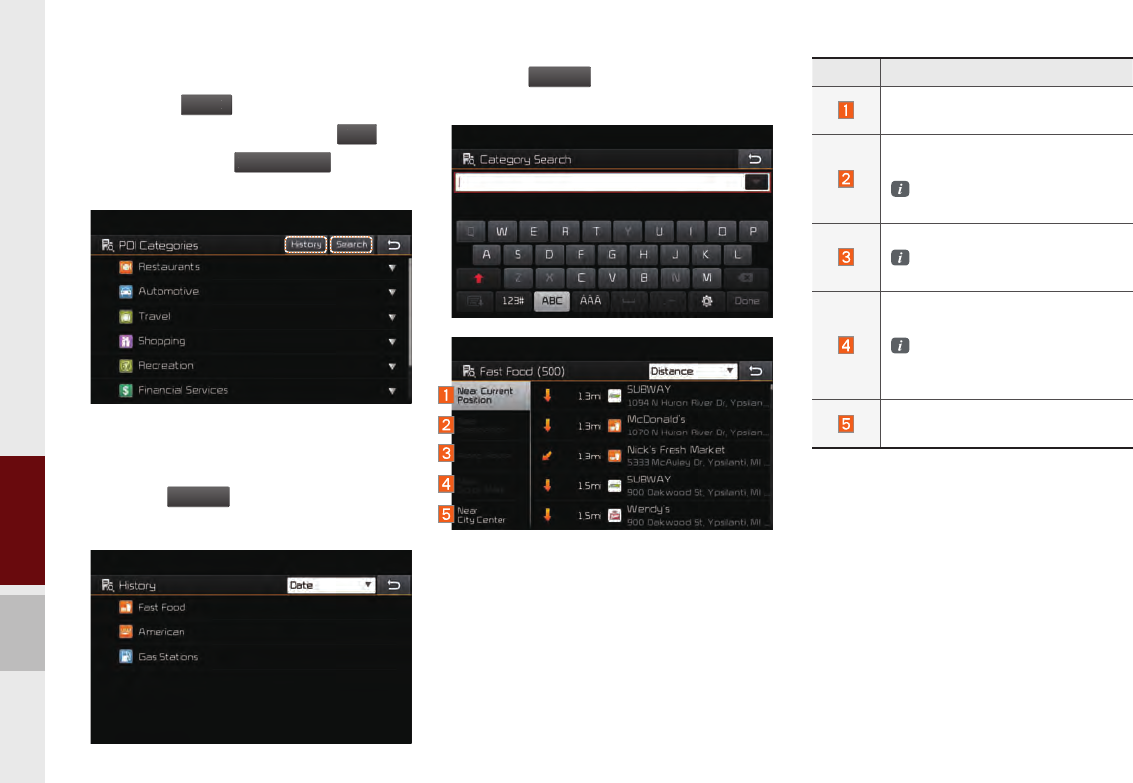

•Searching POI categories

Select the

button on the bottom

left of the screen. ▶ Select the

but-

ton. ▶ Select the

I Cate

orie

button. ▶

Select the desired item.

Select the item to search.

Press the

button to check the pre-

vious search result.

Press the

earc

button to search the

POI category by name.

Select the desired POI to check the loca-

tion and for detailed information.

Name Description

Search POI around the current

position.

Search POI around the destina-

tion.

Active only when a route’s

planned.

Search POI along route.

Active only when a route’s

planned.

Search POI around the current

cursor when the map scrolled.

Active only when the cursor

position is different from the

vehicle position.

Search POI around the city

selected.

K_UM_G4.0[EN]AVN PART 5.indd 5-8K_UM_G4.0[EN]AVN PART 5.indd 5-8 2014-10-02 오전 9:21:262014-10-02 오전 9:21:2

Basic Features I 5-9

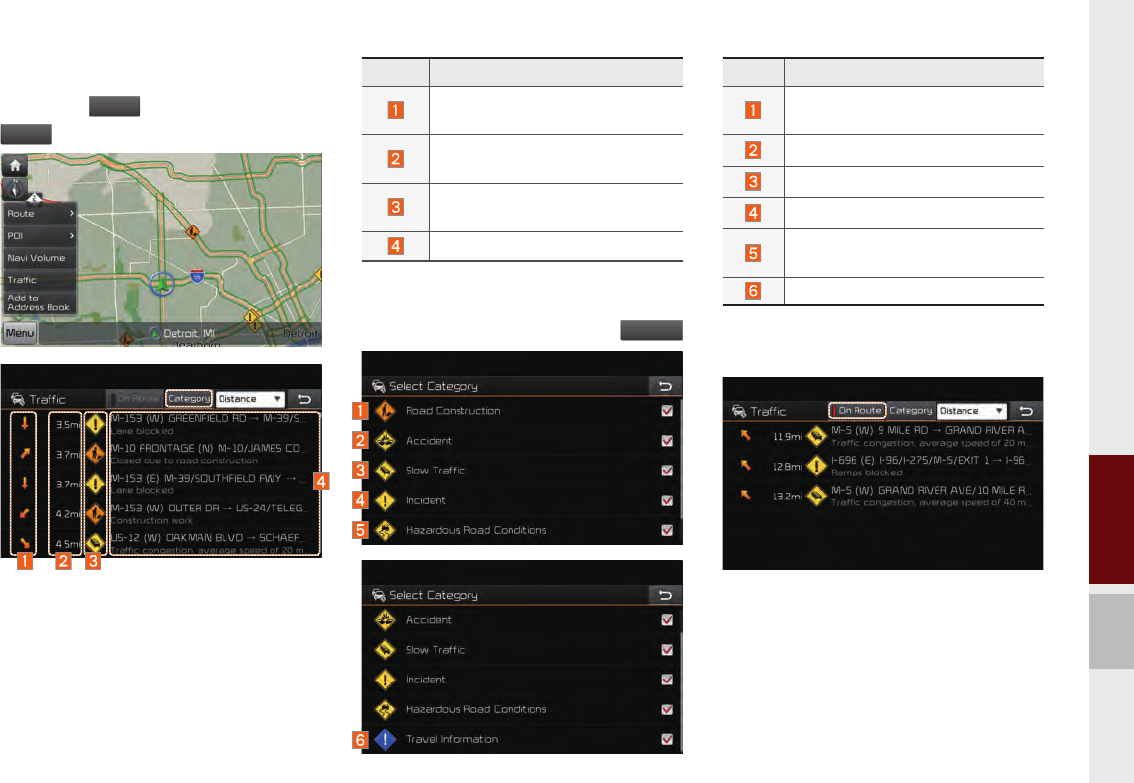

Trafﬁ c List

Press the

button. ▶ Select the

ffic

button.

On the traffic list, the current traffic/road

event information is displayed in order of

distance.

Additional traffic information may be dis-

played upon clicking on the button

When On Route is activated, only traffic

information on your route is displayed.

Name Description

Direction from the current loca-

tion.

Distance from the current loca-

tion (mi or km).

Displays traffic info symbol based

on the type of event.

Description of traffic event.

Name

Description

Display ‘Road Construction’ informa-

tion.

Display ‘Accident’ information.

Display ‘Slow Traffic’ information.

Display ‘Incident’ information.

Display ‘Hazardous Road

Conditions’ information.

Display ‘Travel Information’.

K_UM_G4.0[EN]AVN PART 5.indd 5-9K_UM_G4.0[EN]AVN PART 5.indd 5-9 2014-10-02 오전 9:21:292014-10-02 오전 9:21:2

5-10 I Navigation

On the traffic list, the current basic traf-

fic/road event information is displayed in

order of distance.

Select the combo box to change the

arrangement in order of distance/cate-

gory.

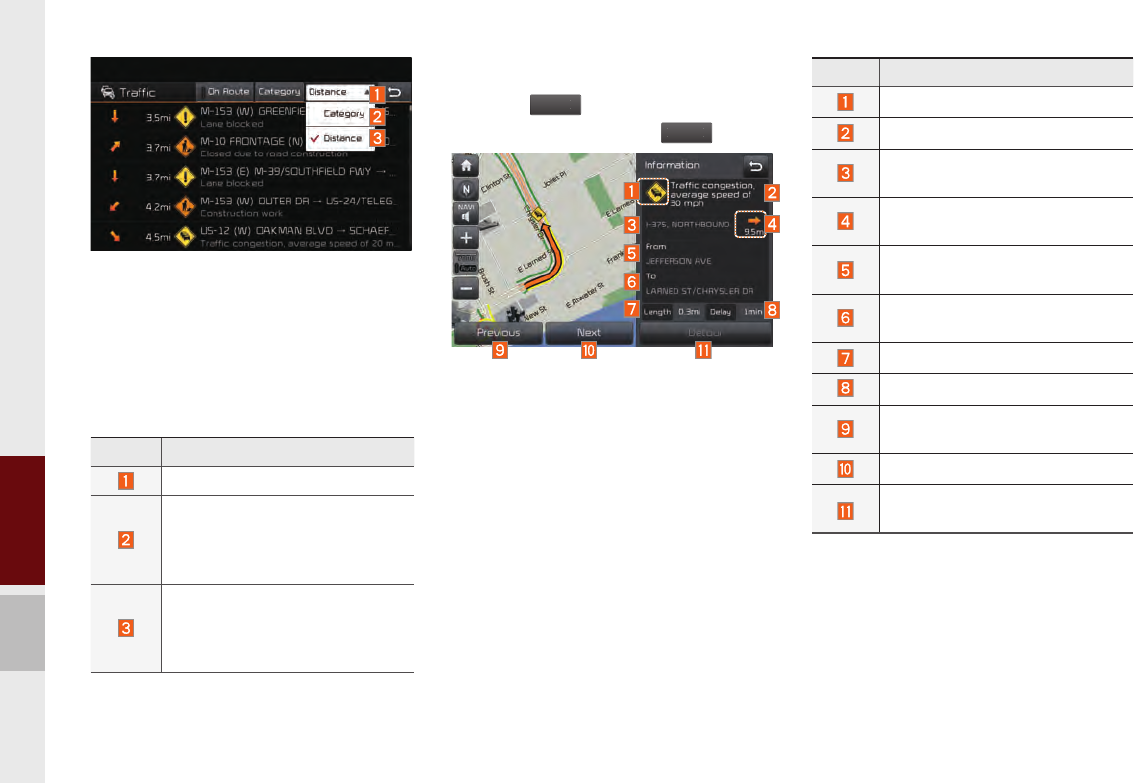

Trafﬁ c detail

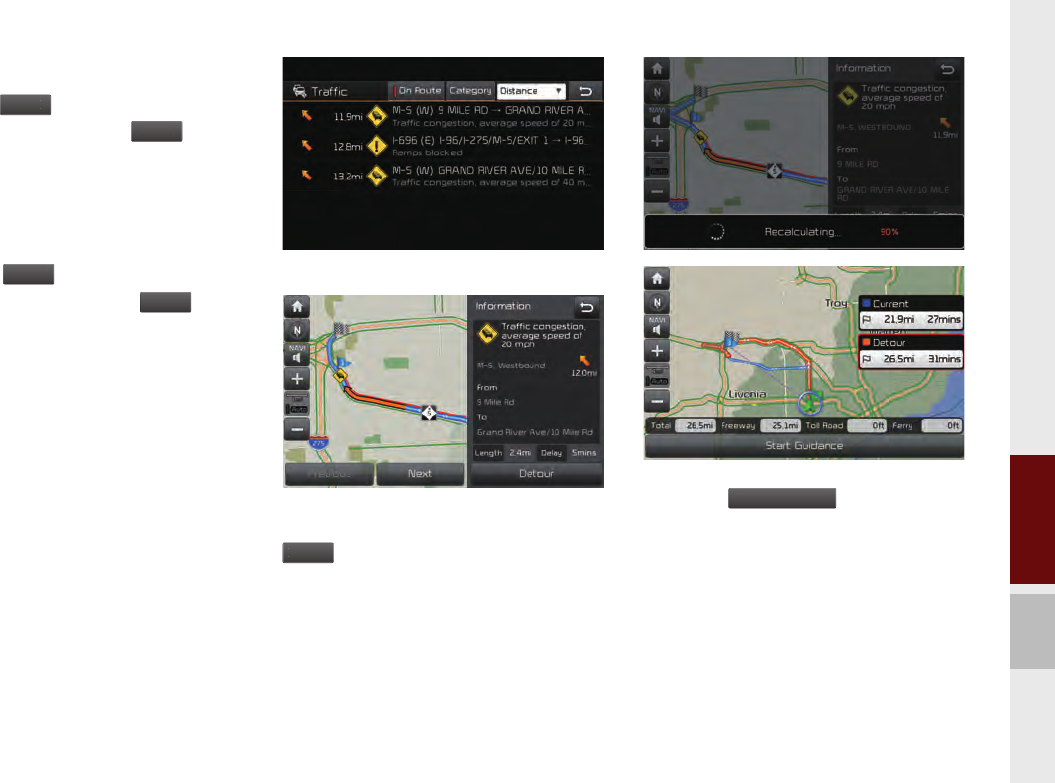

Press the

button on the bottom left

of the screen. ▶ Select the

ffic

button.

Select the traffic information on the traffic

list to display the detailed screen as shown

in the screen.

Display the symbol of traffic event and

arrow which indicates the road from start

to end of the traffic event. Detailed infor-

mation is available on the right screen.

Name Description

Select the combo box to arrange.

Arrangement by category : Display

traffic information arranged in

order of traffic information event

type.

Arrangement by distance : Display

the traffic information in order

of distance closer to the current

location.

Name Description

Symbol of traffic event.

Event name of traffic information.

Road name / road number includ-

ing direction.

Direction and distance from the

current location.

Intersection where traffic event

starts.

Intersection where traffic event

ends.

Total distance of traffic event.

Estimated delay time.

Check the previous traffic infor-

mation.

Check the next traffic information.

Detour the route based on the

traffic information.

K_UM_G4.0[EN]AVN PART 5.indd 5-10K_UM_G4.0[EN]AVN PART 5.indd 5-10 2014-10-02 오전 9:21:362014-10-02 오전 9:21:3

Basic Features I 5-11

Trafﬁ c detour

Press the

button on the bottom left

of the screen. ▶ Select the

ffic

button.

If there is traffic information on the route,

it is possible to detour the route with traffic

information and search other routes.

When the

our

button is enabled in the

View Traffic Detail, press the

our

button

to detour.

on.

Select the desired section.

Check the information and press the

our

button.

Press the

ance

button to apply

the detoured sections and search other

routes.

K_UM_G4.0[EN]AVN PART 5.indd 5-11K_UM_G4.0[EN]AVN PART 5.indd 5-11 2014-10-02 오전 9:21:452014-10-02 오전 9:21:4

5-12 I Navigation

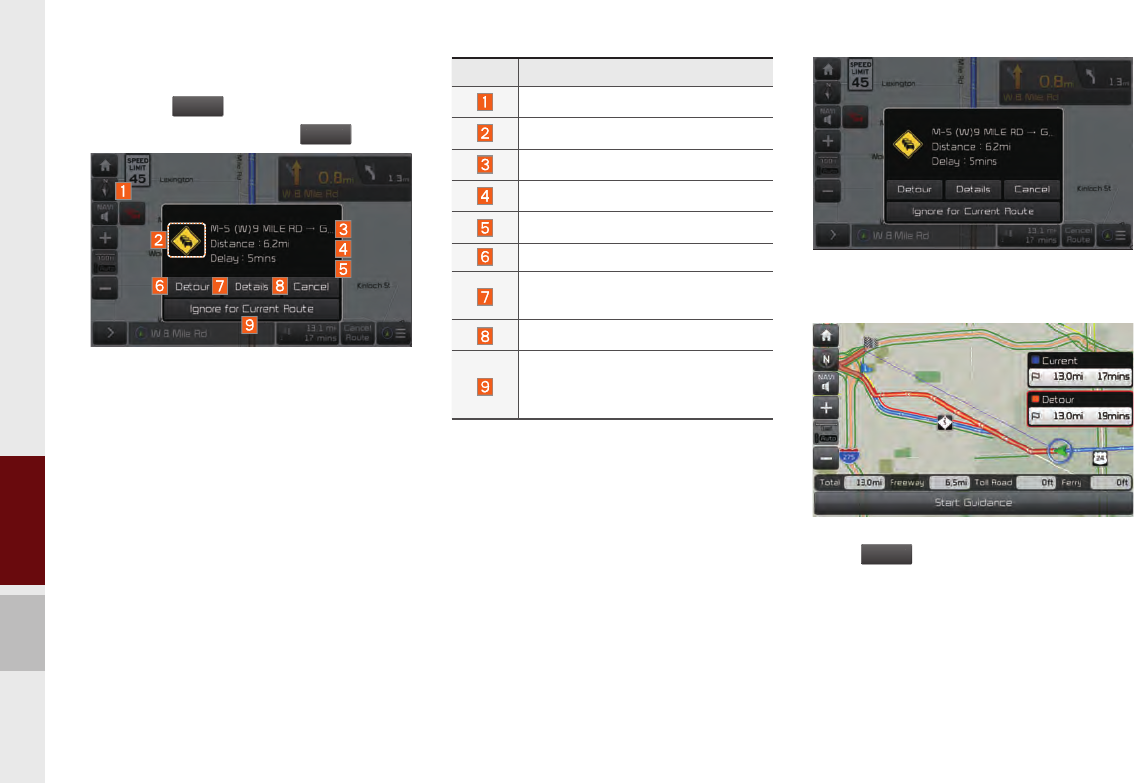

Trafﬁ c Pop-up

Press the

button on the bottom left

of the screen. ▶ Select the

ffic

button.

If there is “red traffic flow” on the route, a

traffic information pop-up is displayed.

On the traffic information pop-up window,

brief information is displayed and Details

and Detour can be selected.

If you do not want to pop up anything on

the current route, select Do not show for

this route.

On the traffic information pop-up, select

detour or details to perform action.

Press

our

to change the route.

Name Description

Pop-up Icon

Symbol of traffic event

Road Name / Road Number

Distance from current location.

Estimated delay time.

Search detour route.

View the detailed information

regarding traffic event.

Close the pop-up message.

Set not to display pop-up on the

current route. (Maintained until

the destination is reset)

K_UM_G4.0[EN]AVN PART 5.indd 5-12K_UM_G4.0[EN]AVN PART 5.indd 5-12 2014-10-02 오전 9:21:452014-10-02 오전 9:21:4

Basic Features I 5-13

Press

for further information.

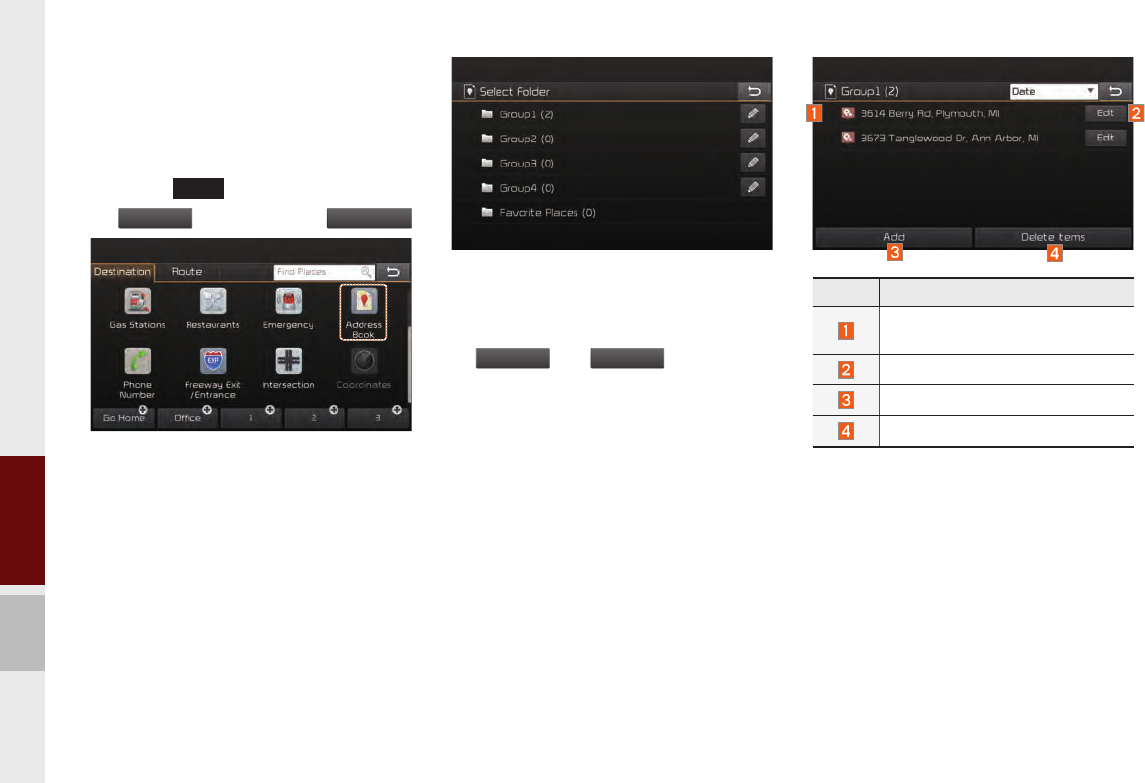

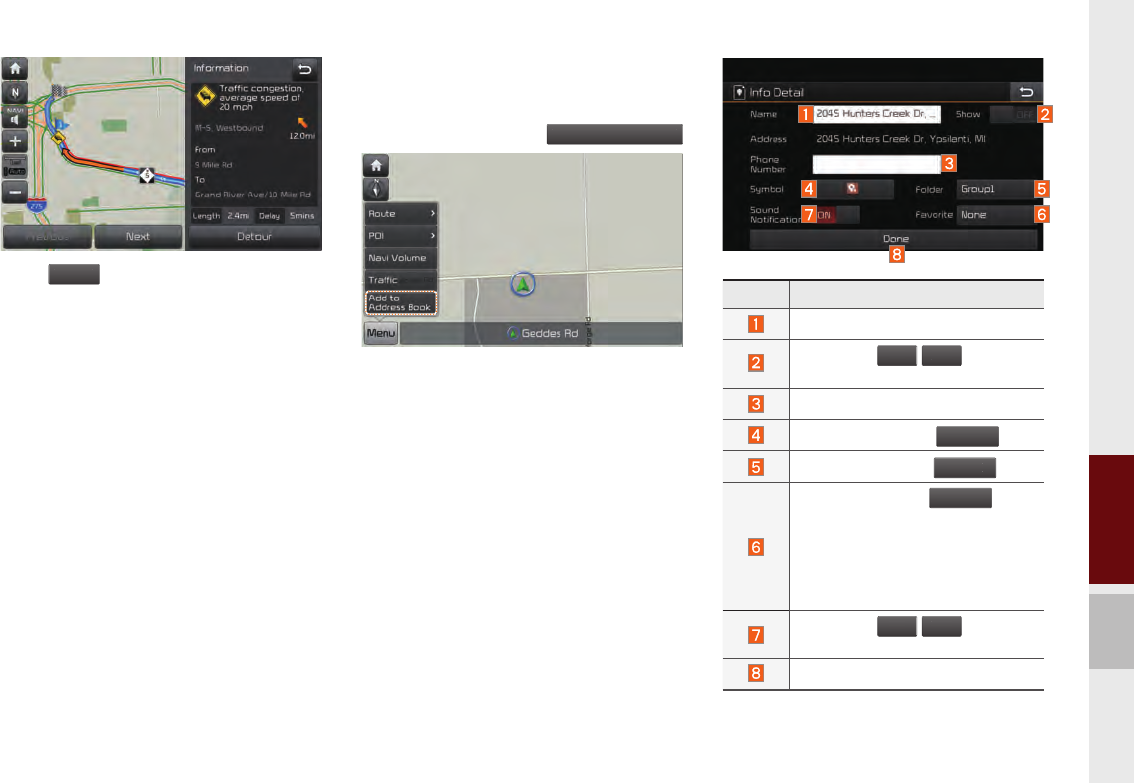

Add to Address Book

Press the button on the left bottom of the

screen. ▶ Select the

dd to

ddress Book

To store the location on the current map to

the address book.

Name Description

Change the name.

Press the

button to

display on the map.

Enter the phone number.

Possible to register

Change the stored

Designate to the

item.

When the favorite is designated,

press the button on the bottom

of the Destination menu and

request the route guide immedi-

ately.

Press the

button to

set the sound notification.

Save the setting.

K_UM_G4.0[EN]AVN PART 5.indd 5-13K_UM_G4.0[EN]AVN PART 5.indd 5-13 2014-10-02 오전 9:21:512014-10-02 오전 9:21:5

5-14 I Navigation

Places

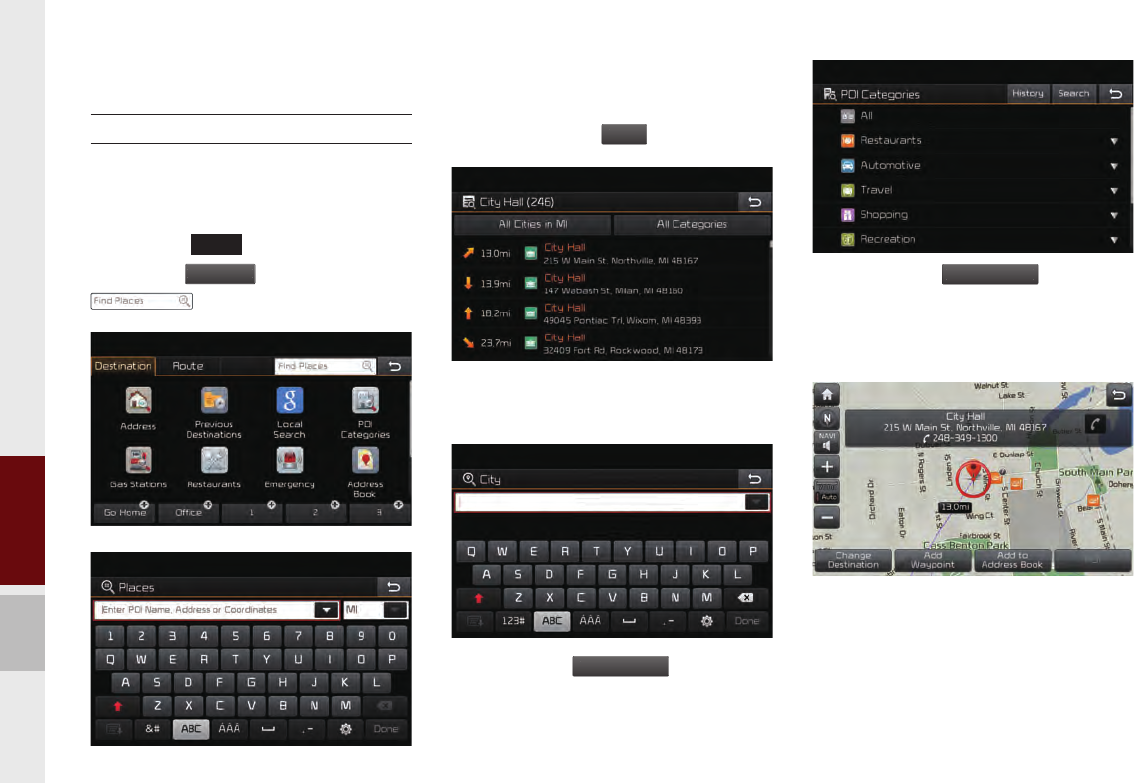

You can enter POI Name, Address or

Coordinates that you wish to search by.

Press the

NAVI

head unit key. ▶

Select the

tab. ▶ Select the

Search Bar.

Enter the POI Name, Address and Coordinates

of the location you want in the input window

above, and press the

one

button.

If you select a location from the search

result list, it will bring you to the point.

If you press the

ll Cities in MI

button on the

search result screen, it will bring you to the

City search screen where you can filter the

search results by city names.

If you press the

I Cate

orie

button from

the search result screen, it will bring you to

the POI Categories screen where you can

filter the search results by POI Categories.

It will bring you from the search result

screen to the screen of the point where

you can set a destination or a waypoint, or

book.

K_UM_G4.0[EN]AVN PART 5.indd 5-14K_UM_G4.0[EN]AVN PART 5.indd 5-14 2014-10-02 오전 9:21:562014-10-02 오전 9:21:5

Search I 5-15

Address

Set destination by address search.

Press the

NAVI

head unit key. ▶ Select

the

tab. ▶ Select the

ddress

icon.

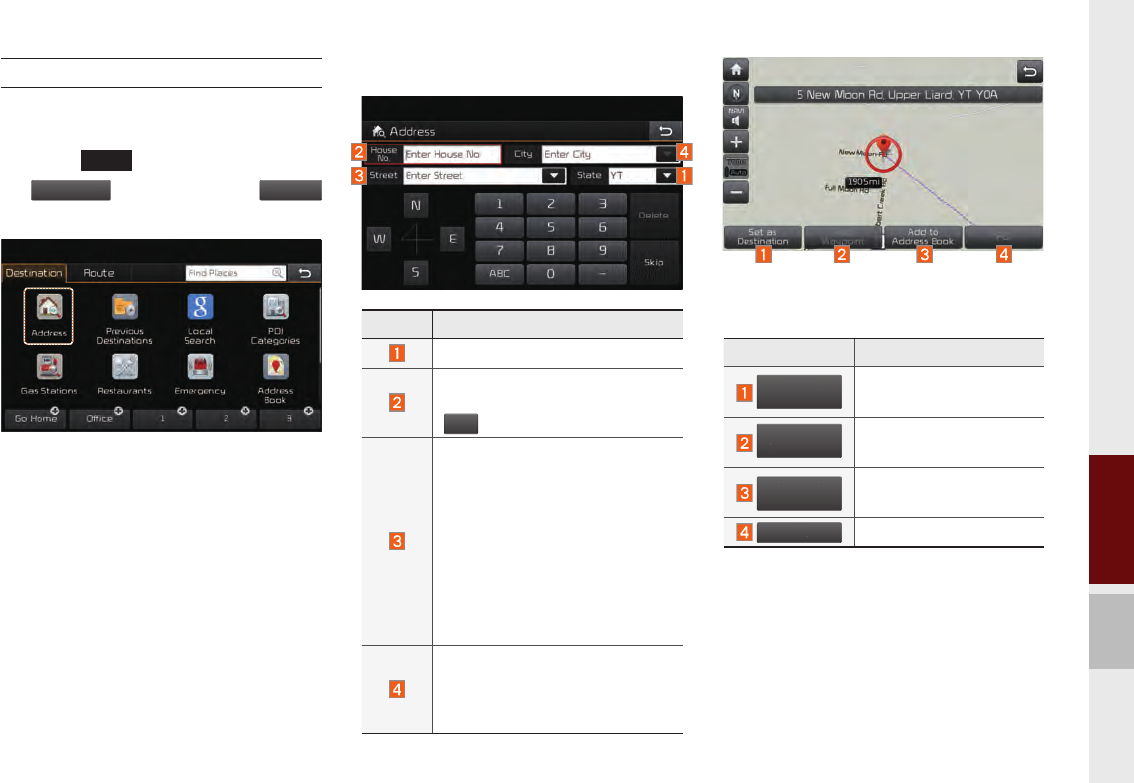

How to Search Address

Enter the address to check the location

information on the map.

Name Description

Select state to search.

Enter house number. If you don’t

know the house number, press

Skip

button.

Enter the street name. Entering

exact street name is required.

The letters on the keyboard

are automatically enabled and

disabled based on the search

result, and words are automati-

cally completed.

When same street names are

available in other cities, the lists

of city are displayed.

Select a city before entering

the street name. Addresses are

searched only from the selected

city.

Name Description

Set the location as a

destination.

Set the location as a

waypoint.

dd to

ddress Book

Save the location.

Search nearby POIs.

K_UM_G4.0[EN]AVN PART 5.indd 5-15K_UM_G4.0[EN]AVN PART 5.indd 5-15 2014-10-02 오전 9:21:582014-10-02 오전 9:21:5

5-16 I Navigation

Previous Destination

Select from previously inputted addresses

and POIs.

Press the

NAVI

head unit key.▶

Select the

tab. ▶ Select the

ous

ons

icon.

Arrange by all, latest destinations, latest

searched places and latest departing places.

Arrange in order of date and time.

Press the

button to delete the

information.

Name Description

Display all destinations,

departing places, and

searched places.

ons

Display previous desti-

nation places for route

guidance.

Display previous depart-

ing places for route

guidance.

earc

Display previously

searched places for route

guidance.

But, not displayed

when the searched

places are set as des

tination.

Name Description

ark

Select all.

Unmark

Deselect all.

Delete the selected

item(s).

K_UM_G4.0[EN]AVN PART 5.indd 5-16K_UM_G4.0[EN]AVN PART 5.indd 5-16 2014-10-02 오전 9:22:112014-10-02 오전 9:22:1

Search I 5-17

Local Search

Press the

NAVI

head unit key.▶ Select the

tab. ▶ Select the

oca

earc

icon.

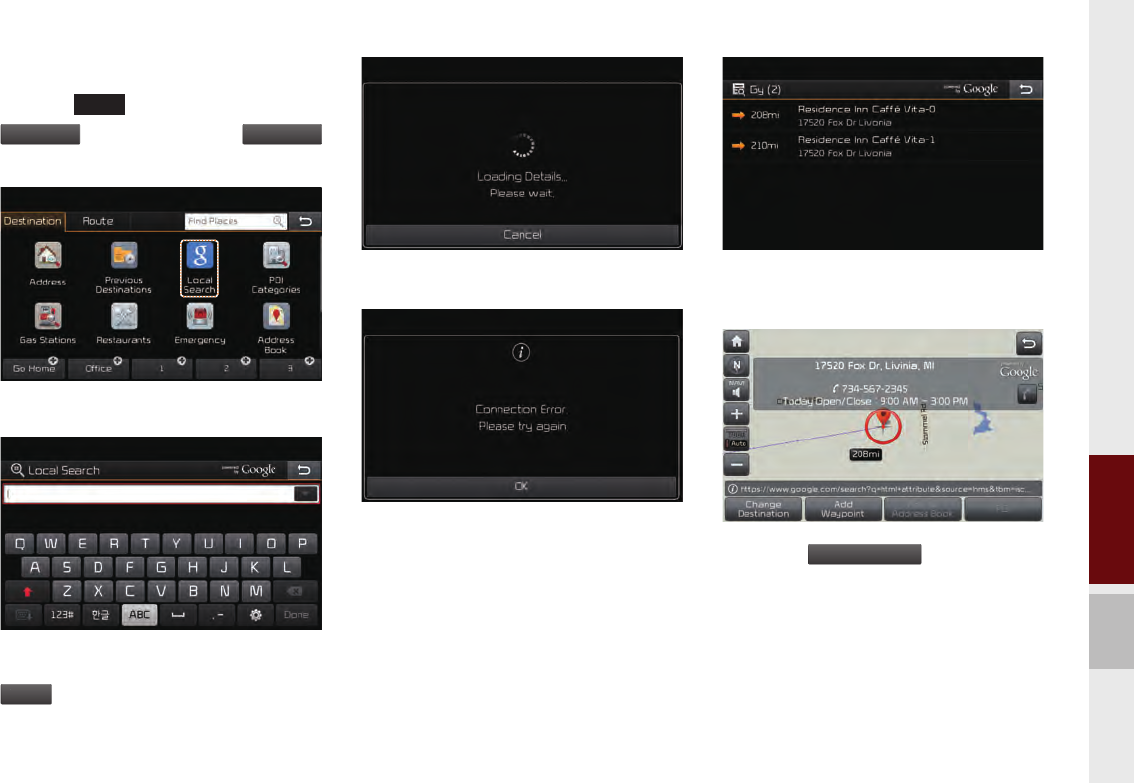

Runs Google Local Search.

Enter the desired keywords and press the

one

button.

Searching is in progress.

If search failed, the above screen is dis-

played. Please try again.

Search result displayed. Select one of the

search results.

Press the

button to start

guidance.

K_UM_G4.0[EN]AVN PART 5.indd 5-17K_UM_G4.0[EN]AVN PART 5.indd 5-17 2014-10-02 오전 9:22:182014-10-02 오전 9:22:1

5-18 I Navigation

POI Categories

Press the

NAVI

head unit key.▶ Select the

tab. ▶ Select the

I Cate

orie

icon.

Select the desired item.

Select the desired item in the sub-catego-

ries.

Gas Station

Search gas stations.

Press the

NAVI

head unit key.▶ Select

the

tab. ▶ Select the

ons

icon.

Select the desired destinations among the

search items.

Name Description

Select the desired destination

among the searched items and

add it as a way point.

Arrange in order of

ance

and

ame

Arrange in order of

ear Current Position

ear Destination

lon

Rout

ear Scroll

ark

and

ear Cit

Center

K_UM_G4.0[EN]AVN PART 5.indd 5-18K_UM_G4.0[EN]AVN PART 5.indd 5-18 2014-10-02 오전 9:22:192014-10-02 오전 9:22:1

Search I 5-19

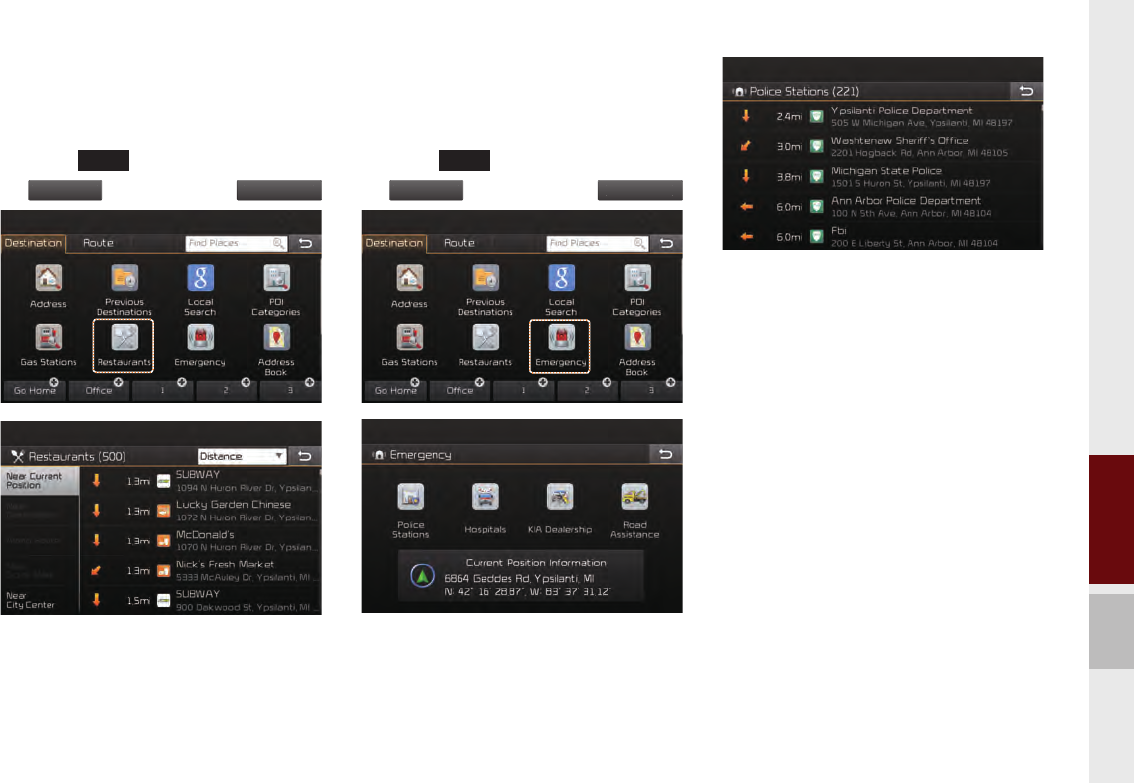

Restaurants

Search restaurants.

Press the

NAVI

head unit key. ▶ Select

the

tab. ▶ Select the

auran

Select the desired destination among the

searched items.

Emergency

Search emergency facilities.

Press the

NAVI

head unit key. ▶ Select

the

tab. ▶ Select the

mer

enc

Check the current location information and

select the desired item in the sub menu (ex.

Police Station)

Select the desired destination among the

searched items.

K_UM_G4.0[EN]AVN PART 5.indd 5-19K_UM_G4.0[EN]AVN PART 5.indd 5-19 2014-10-02 오전 9:22:212014-10-02 오전 9:22:2

5-20 I Navigation

Address Book

Search the destination with the address

book.

Press the

NAVI

head unit key.▶ Select

the

tab. ▶ Select the

ddress Book

Select the desired group.

Save in the Favorite Places, then route

can be set easily by using 3 buttons such

ome

and

ffice

on the button

of the menu.

Name Description

Select the desired destination

from the searched items.

Edit the destination.

Delete the desired item.

K_UM_G4.0[EN]AVN PART 5.indd 5-20K_UM_G4.0[EN]AVN PART 5.indd 5-20 2014-10-02 오전 9:22:222014-10-02 오전 9:22:2

Search I 5-21

Phone Number

Press the

NAVI

head unit key.▶ Select

the

Phone

umber

to search POI by phone.

Search destination by phone number.

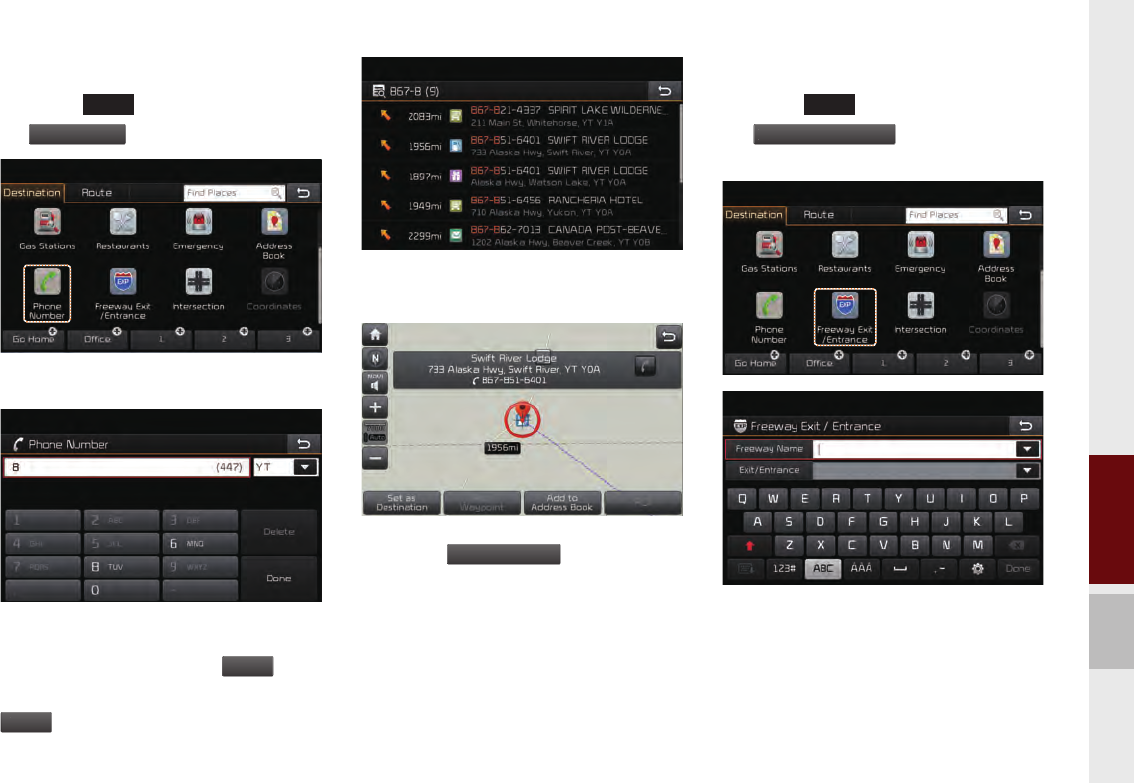

Type phone number to search. To search

for a list of numbers, press

one

when

results are narrowed and the button

one

is activated.

Select the desired destination among the

searched items.

Press the

button to start

guidance.

Freeway Exit / Entrance

Press the

NAVI

head unit key.▶ Select

the

Freewa

Exit/Entrance

to search by free-

way exit/entrance.

Type freeway name and exit/entrance.

K_UM_G4.0[EN]AVN PART 5.indd 5-21K_UM_G4.0[EN]AVN PART 5.indd 5-21 2014-10-02 오전 9:22:252014-10-02 오전 9:22:2

5-22 I Navigation

Press the

button to start

guidance.

Intersection

Press the

NAVI

head unit key.▶ Select

the

ersec

to search by intersection.

Type 1st Street name, the State, 2nd

Street name.

Press the

button to start

guidance.

K_UM_G4.0[EN]AVN PART 5.indd 5-22K_UM_G4.0[EN]AVN PART 5.indd 5-22 2014-10-02 오전 9:22:262014-10-02 오전 9:22:2

Search I 5-23

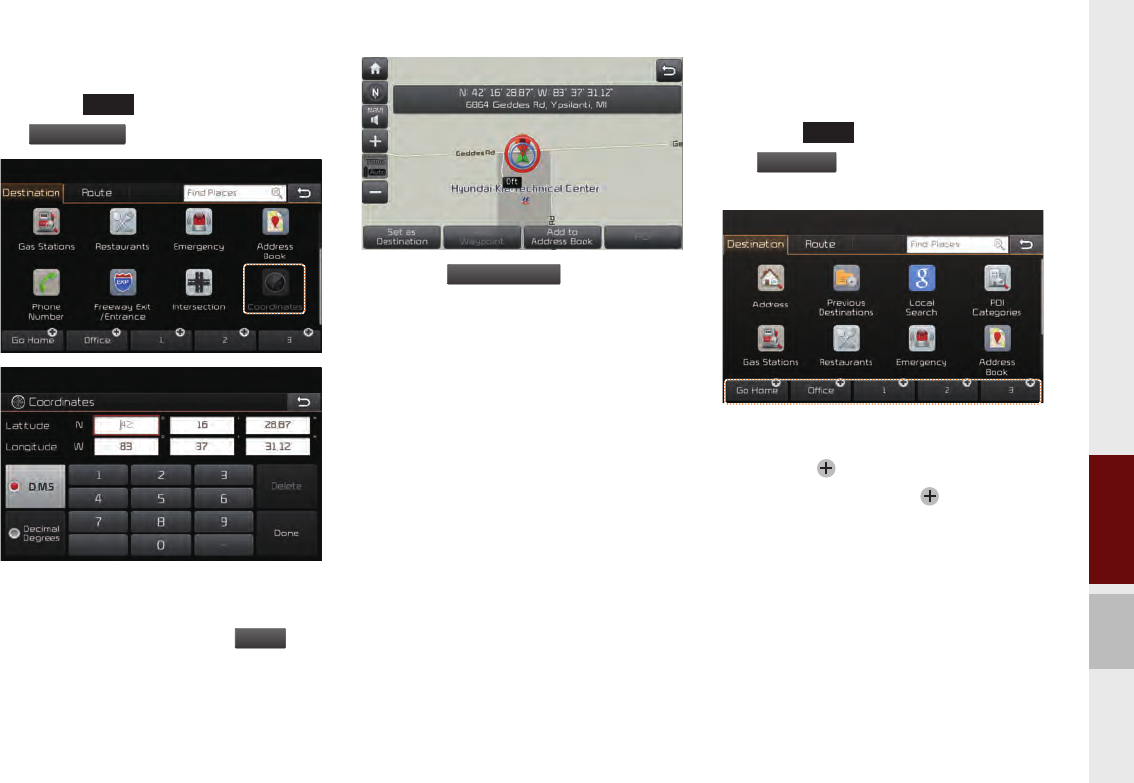

Coordinates

Press the

NAVI

head unit key.▶ Select

the

oor

to search by coordinates.

There are two ways to search by coordi-

nates (D.M.S or Decimal degrees). After

typing coordinates, press the

one

but-

ton to search.

Press the

button to start

guidance.

Favorite Places

Set the route using your favorite places.

Press the

NAVI

head unit key. ▶ Select

the

tab. ▶ Select from our

favorite places.

On the button where locations are not reg-

istered, the icon is displayed. When a

location is registered, the button disap-

pears and the buttons 1 to 3 are displayed

as your favorite places.

K_UM_G4.0[EN]AVN PART 5.indd 5-23K_UM_G4.0[EN]AVN PART 5.indd 5-23 2014-10-02 오전 9:22:272014-10-02 오전 9:22:2

5-24 I Navigation

Press the

ome

button and then

popup appears. Press the

button for

setting.

in various searching

methods. By using the same methods,

possible to register Office, Special 1,

Special 2, and Special 3.

Route guidance starts by pressing one of

favorite place buttons.

Route Setting

After searching the destination, possible to

set a route.

While the destination is set, the buttons

and

dd Wa

oint

appear.

Press each button to change a destination

or add a waypoint.

K_UM_G4.0[EN]AVN PART 5.indd 5-24K_UM_G4.0[EN]AVN PART 5.indd 5-24 2014-10-02 오전 9:22:282014-10-02 오전 9:22:2

Search I 5-25

Destination Setting(Change)

After searching the destination, press the

button to set the location

as a destination and search a route.

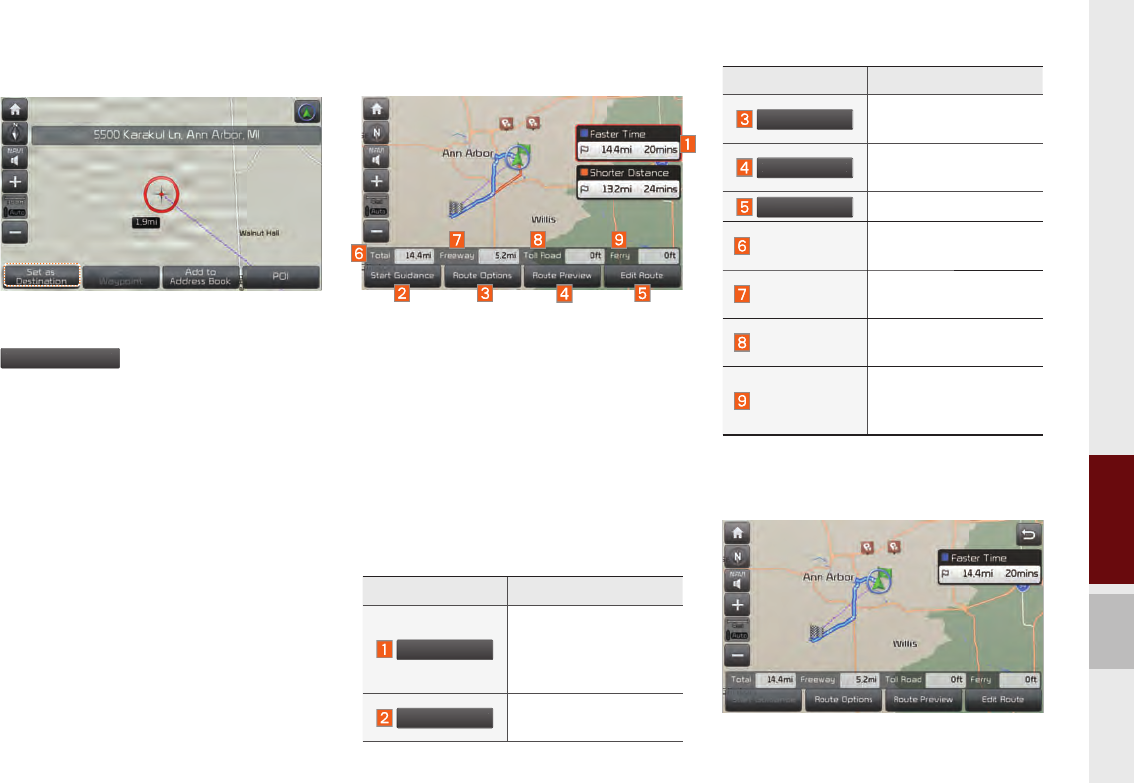

All Routes

When the alternative routes option is

enabled in navigation setting, two routing

options are displayed based on faster time

and shorter distance.

• Faster Time : Select time-optimized route,

being the fastest roads.

• Shorter Distance : Select short distance, irre-

spective of how fast or slow progress will be

calculated.

The route will be calculated using the

option “Faster Time” by default.

Name Description

Display total distance,

travel time, and toll

fees. Select the

desired route.

ance

Start the guidance

with the route.

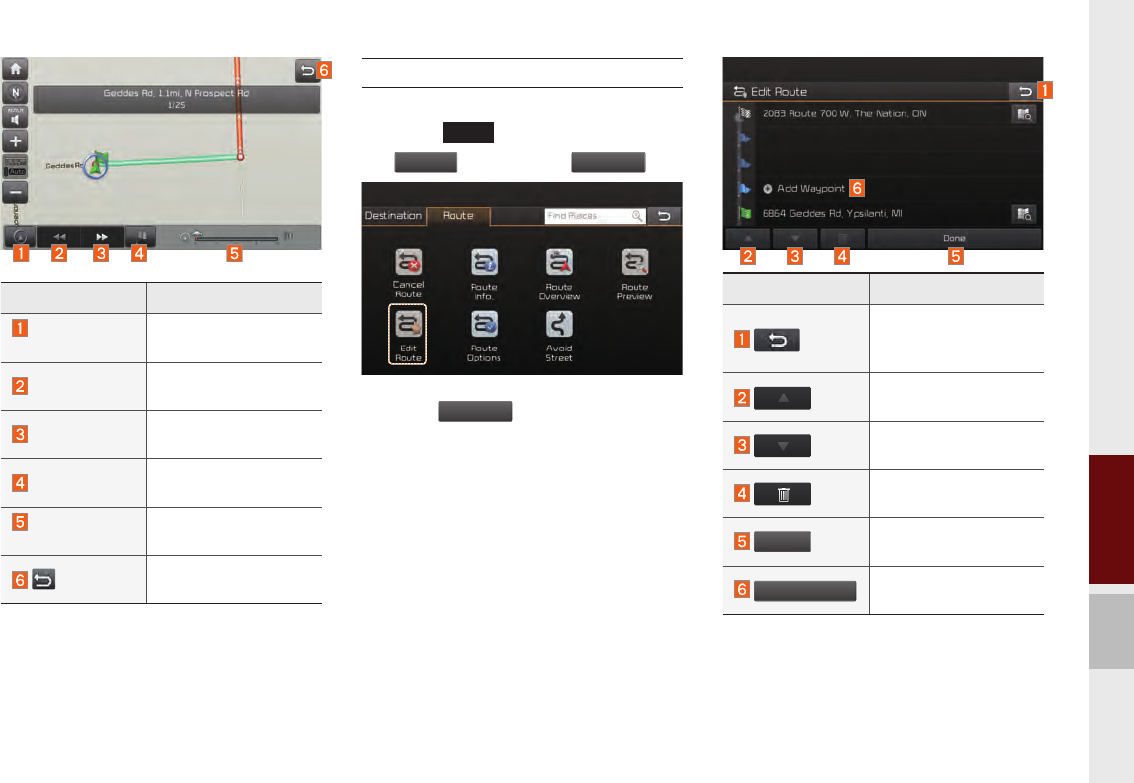

Name Description

oute

tions

Change the route

option.

Preview turn-by-turn

list.

Edit

Edit the route.

Total Display total distance

of the route.

Freeway Display length of

freeway on the route.

Toll Road Display length of toll

road on the route.

Ferry

Display length of

Ferry route on the

route.

K_UM_G4.0[EN]AVN PART 5.indd 5-25K_UM_G4.0[EN]AVN PART 5.indd 5-25 2014-10-02 오전 9:22:292014-10-02 오전 9:22:2

5-26 I Navigation

Alternative routes can be suggested if

necessary,

SETUP

key ▶

avi

ation

Icon

▶ Route ▶ Alternative : ON

Adding Waypoint

Press the

dd Wa

oint

button to set the

position as a waypoint and search the

route.

Registering Location

Press

dd to

ddress Book

at the desired

location to register the location.

Enter the detailed information of the loca-

tion to save.

Name Description

Display the selected

point on the map

screen.

Move the selected item

up.

Move the selected item

down.

Delete the selected

item.

one

Press the button to fin-

ish editing.

dd Wa

oint

Press the button to add

waypoint.

K_UM_G4.0[EN]AVN PART 5.indd 5-26K_UM_G4.0[EN]AVN PART 5.indd 5-26 2014-10-02 오전 9:22:352014-10-02 오전 9:22:3

Search I 5-27

Route Guidance

Possible to get the detailed information on

route guidance.

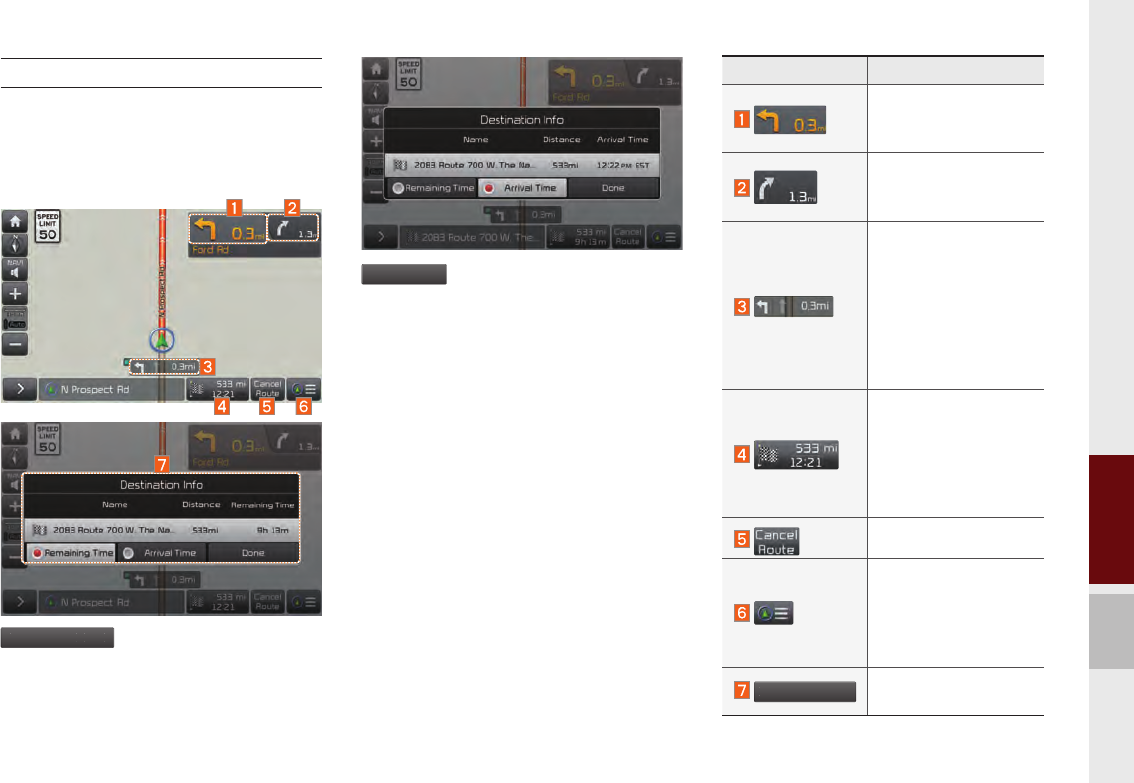

Route Guidance Screen

ema

: Display the time remain-

ing until destination.

rri

al Tim

: Display the estimated time of

arrival.

Name Description

Displays the distance

and direction to the

first turn point.

Displays the distance

and direction to the

second turn point.

Displays the lane infor-

mation at the current

location. Display the

recommended direc-

tion in white, travelable

direction in white, and

the non-travelable

direction in grey.

Displays the distance

to the destination and

the estimated time

of arrival. Press the

button to check the

detailed information.

Cancel the route.

Possible to change to

preliminary guidance,

TBT guidance, and

zoom-on guidance

screens.

Displays the destina-

tion information.

K_UM_G4.0[EN]AVN PART 5.indd 5-27K_UM_G4.0[EN]AVN PART 5.indd 5-27 2014-10-02 오전 9:22:392014-10-02 오전 9:22:3

5-28 I Navigation

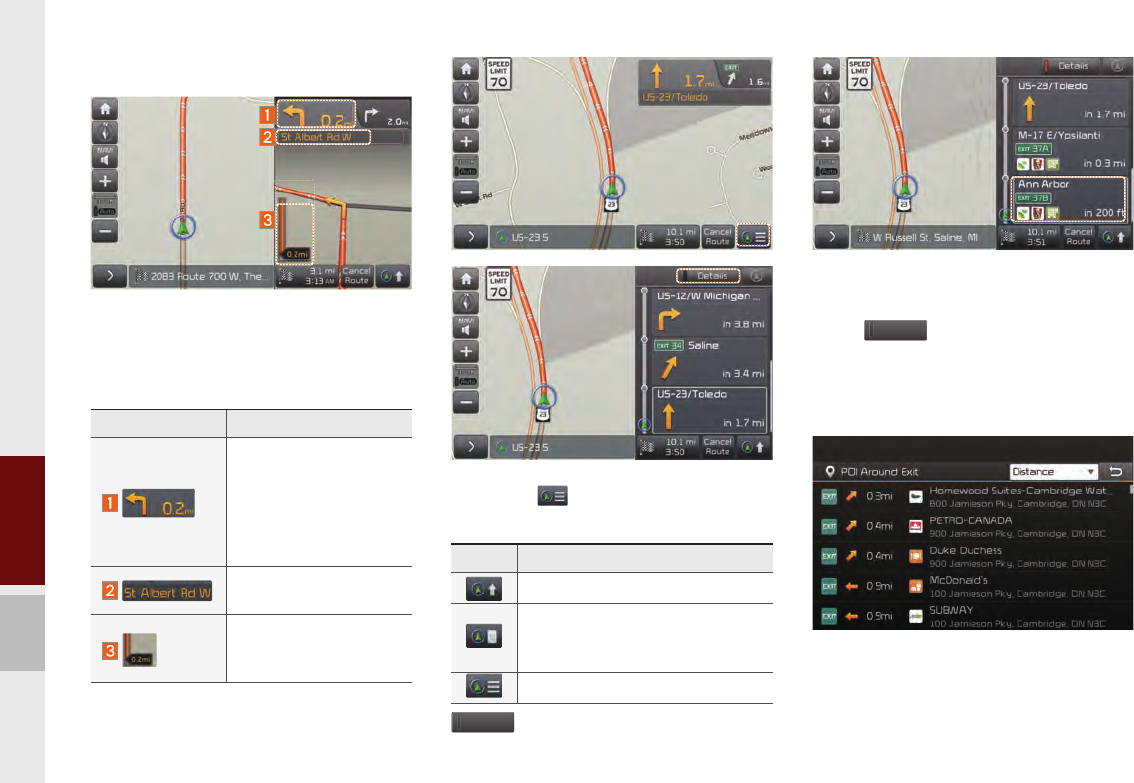

Split Screen during Route Guidance

Approaching the turning point, the detailed

road and travel information is automatically

displayed on the right side of the screen.

Touch the button to change display

view mode as below.

additional info can be displayed

on Freeway.

Additional info of Freeway exit or Rest

area can be displayed by pressing the

button

Detailed information for POIs around free-

way exit is listed by pressing POI symbols.

Name Description

•Turn Point : Displays

direction and shape

to turn shortly.

•Distance to turn :

Displays distance to

next turn point.

Road name to maneu-

ver : Info of the road.

Detail Distance Bar :

Displays distance to next

turn point.

Name Description

Display the full map screen.

Junction View, Split screen.

(Active only when images are

available)

Display Turn-by-turn information.

K_UM_G4.0[EN]AVN PART 5.indd 5-28K_UM_G4.0[EN]AVN PART 5.indd 5-28 2014-10-02 오전 9:22:442014-10-02 오전 9:22:4

Route I 5-29

Route

Canceling Route

Cancel the route.

Press the

NAVI

head unit key ▶ Press

the

tab. ▶ Select

ance

Click

ance

the icon.

Press the

button to cancel the route.

Display Route Information

Press the

NAVI

head unit key ▶ Press

the

tab. ▶ Select

Press the

icon.

Check the information on the map. Select

the desired item to see the map informa-

tion.

Avoiding a road

Click the

oid Street

button to avoid the

street or road.

Check the desired item and press the

one

button to finish.

K_UM_G4.0[EN]AVN PART 5.indd 5-29K_UM_G4.0[EN]AVN PART 5.indd 5-29 2014-10-02 오전 9:22:472014-10-02 오전 9:22:4

5-30 I Navigation

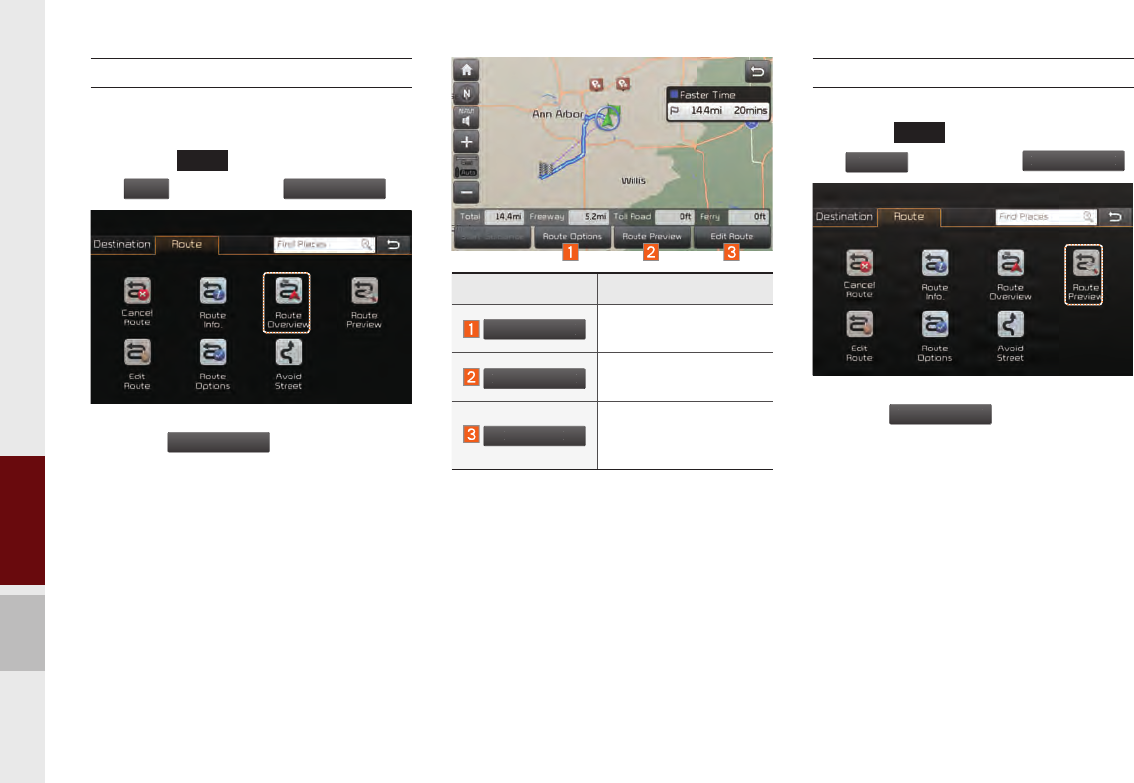

Route Overview

Check the information on route including

the distance, Estimated time, toll fees, etc.

Press the

NAVI

head unit key ▶ Press

the

tab. ▶ Select

oute

Press the

oute

icon.

Route Preview

Check the detailed turn-by-turn list.

Press the

NAVI

head unit key ▶ Press

the

tab. ▶ Select

Press the

icon.

Name Description

oute

tions

Change the search

option.

Preview turn-by-turn

list.

Edit

Provide information

on surrounding facili-

ties.

K_UM_G4.0[EN]AVN PART 5.indd 5-30K_UM_G4.0[EN]AVN PART 5.indd 5-30 2014-10-02 오전 9:22:492014-10-02 오전 9:22:4

Route I 5-31

Editing Route

Edit the current route.

Press the

NAVI

head unit key ▶ Press

the

tab. ▶ Select

Edit

Press the

Edit

icon.

Name Description

Departure

Place

Move to the departure

location.

Previous Move to the previous

maneuver.

Forward Move to the next

maneuver.

Destination Move to the destina-

tion location.

Section

Displaying Bar

Touch bar to move to

the specific position.

Close the route pre-

view.

Name Description

Display the selected

point on the map

screen.

Move the selected

item up.

Move the selected

item down.

Delete the selected

item.

one

Press the button to

finish editing.

dd Wa

oint

Press the button to

add an waypoint.

K_UM_G4.0[EN]AVN PART 5.indd 5-31K_UM_G4.0[EN]AVN PART 5.indd 5-31 2014-10-02 오전 9:22:512014-10-02 오전 9:22:5

5-32 I Navigation

Add the waypoint through various search-

ing methods.

Route Options

Press the

NAVI

head unit key ▶ Press

the

tab. ▶ Select

oute

tions

Press the

oute

tions

icon.

Choose between faster time or shorter

distance.

Avoid Street

Search new route by avoiding the selected

street(s).

Press the

NAVI

head unit key ▶ Press

the

tab. ▶ Select

oid Street

Press the

oid Street

icon.

Press the

one

to plan new route after

selecting the street(s) that you want to

avoid.

K_UM_G4.0[EN]AVN PART 5.indd 5-32K_UM_G4.0[EN]AVN PART 5.indd 5-32 2014-10-02 오전 9:22:592014-10-02 오전 9:22:5

Navigation Settings I 5-33

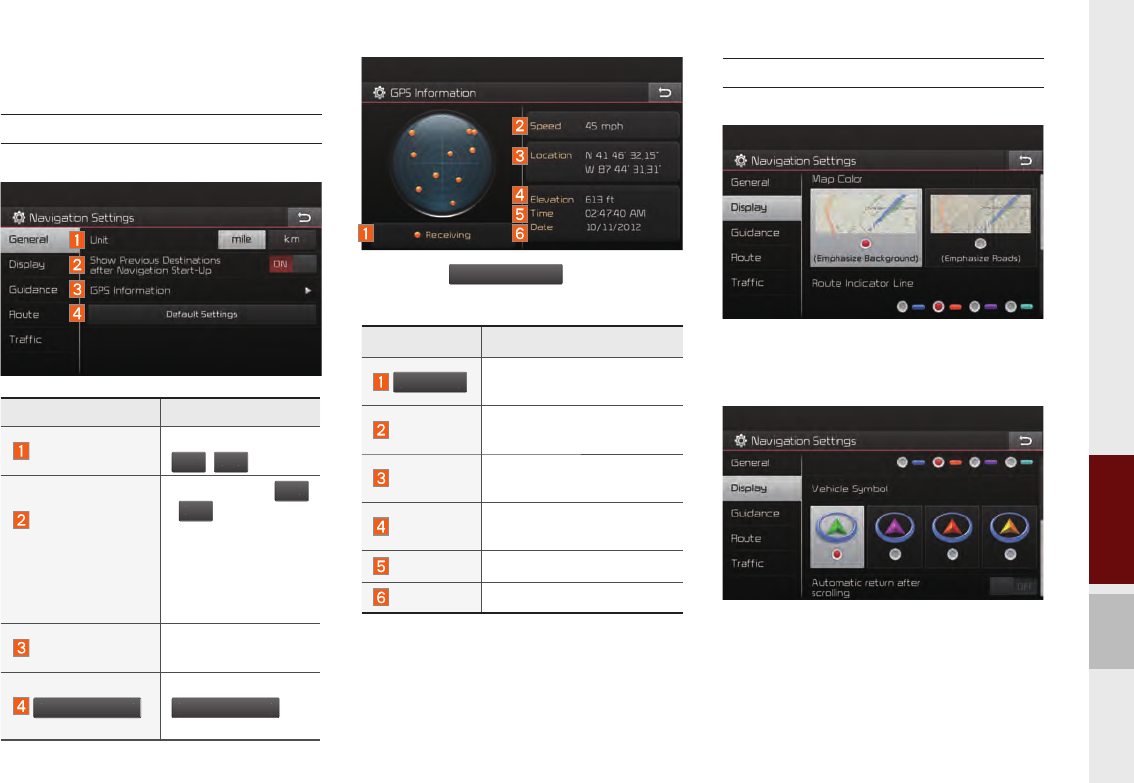

Navigation Settings

General

Change general settings.

Press the

GPS

orma

to display the

detail GPS satellites information.

Display

Change the display environment settings.

Change the map colors and the route

guidance line colors.

Change the vehicle symbol.

Name Description

Unit Change the unit of

Show Previous

Destinations

after Navigation

Start-Up

Press the

button to

change the pre-

vious destination

view setting when

starting the naviga-

tion.

GPS Information Check the GPS

information.

tti

Press the

tti

button to initialize.

Name Description

ece

Active when current posi-

tion is being calculated.

Speed Display current speed of

the vehicle.

Location Display current position of

the vehicle.

Elevation Display current elevation

of the vehicle.

Time Display time.

Date Display date.

K_UM_G4.0[EN]AVN PART 5.indd 5-33K_UM_G4.0[EN]AVN PART 5.indd 5-33 2014-10-02 오전 9:23:002014-10-02 오전 9:23:0

5-34 I Navigation

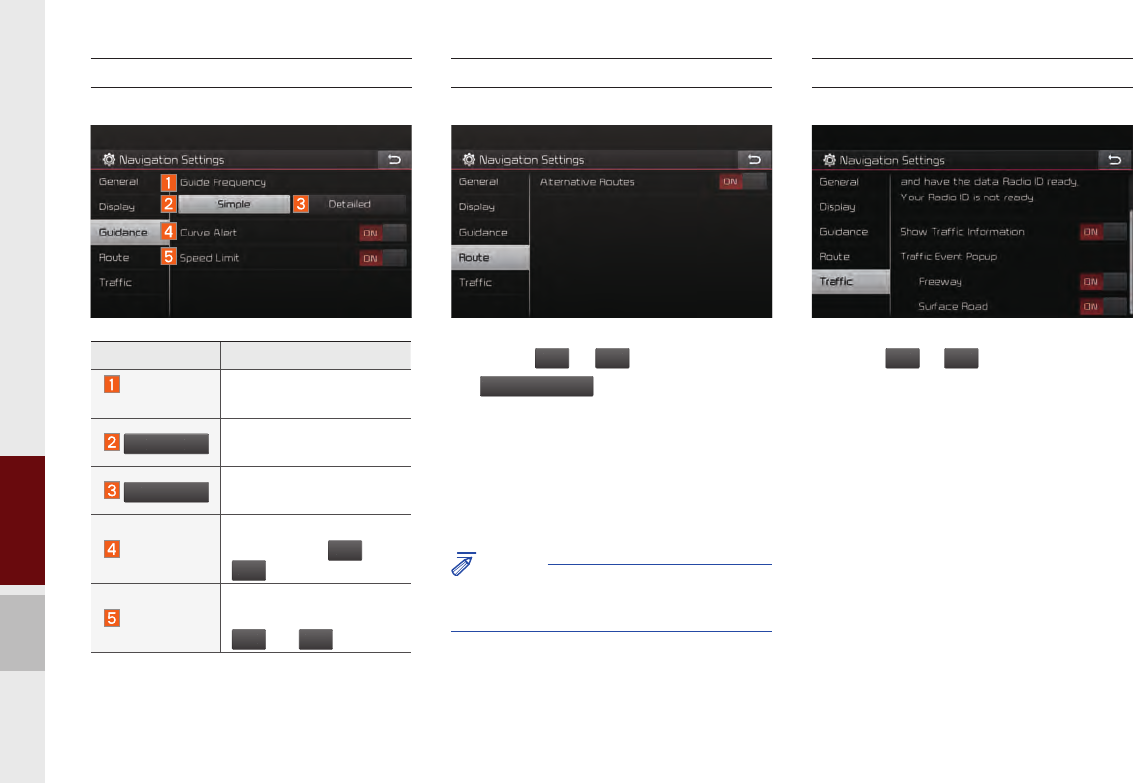

Guidance

Change the guidance setting.

Route

Change the route setting.

Press the

button to change

the

lternati

e Routes

setting.

• Alternative on : Alternative routes will

be suggested(depending on the route

preference between “Faster time” and

“Shorter Distance”).

NOTICE

• Alternative routes can be shown only while

the vehicle is not moving.

• Alternative off : No alternative routes will

be suggested. Guidance will start right

after calculating with the route prefer-

ence (Faster time or Shorter distance).

Trafﬁ c

Change the traffic information setting.

Press the

button to change the

settings.

• Show Traffic Information On/Off : Select

whether to display traffic information or

not.

• Traffic Event Pop-up Freeway On/Off :

Select whether to display Pop-up mes-

sage for traffic information on freeway.

• Traffic Event Pop-up Surface Road On/

Off : Select whether to display Pop-up

message for traffic information on sur-

face road.

Name Description

Guide

Frequency

Set the frequency of

guidance.

Route guidance is given

less frequently.

Guidance will be pro-

vided frequently.

Curve Alert

Change whether to turn

curve alert

and

Speed Limit

Change whether to show

speed limit by pressing

and

K_UM_G4.0[EN]AVN PART 5.indd 5-34K_UM_G4.0[EN]AVN PART 5.indd 5-34 2014-10-02 오전 9:23:072014-10-02 오전 9:23:0

Troubleshooting I 5-35

Troubleshooting

The current position as shown on the navigation may differ from

the actual position under the following conditions.

The following occurrences are not malfunctions :

•When driving on Y-shaped roads

with narrow angles the current

position may be displayed in the

opposite direction

•Within city streets, the current posi-

tion may be displayed on the oppo-

site side or on an off-road position

•When changing the zoom level

from maximum to a different level,

the current position may become

displayed on a different road

•If the vehicle is loaded onto a ferry

or a car transport vehicle, the cur-

rent position may become stalled

on the last position prior to loading

•When driving on a spiral-shaped

road

•When driving in mountain regions

with sharp turns or sudden brakes

•When entering a road after passing

an underground parking structure,

building parking structure, or roads

with many rotations

•When driving in heavy traffic with

frequent starts and stops

•When driving under slippery condi-

tions, such as heavy sand, snow, etc.

•When driving on spiral-shaped roads

•When the tires have recently been

replaced (Especially upon use of

spare or studless tires).

•When using tires of improper size

•When the tire pressure for the 4 tires

are different

•When the replacement tire is worn or

used (Especially studless tires having

passed a second season).

•When driving near high-rise buildings

•When a roof carrier has been installed

•When a long distance route is calcu-

lated while driving on an expressway

In such cases, continued driving will

automatically enable the system

to conduct map matching or use

updated GPS information to provide

the current position (In such cases, up

to several minutes may be required)

Correct route guidance may not occur due to search conditions

or driving position.

The following occurrences are not malfunctions :

•Guidance to go straight may be

given while driving on a straight

road

•Guidance may not be given even

when having turned at an inter-

section

•There are certain intersections in

which guidance may not occur

•A route guidance signaling for

a u-turn may occur in some No

u-turn intersections

•Route guidance signaling

entrance into a No-entry zone

may occur (No-entry zone, road

under construction, etc.)

•Guidance may be given to a posi-

tion that is not the actual destina-

tion if roads to reach the actual

destination do not exist or are too

narrow

•Faulty voice guidance may be

given if the vehicle breaks away

from the designated route. (e.g. if

a turn is made at an intersection

while the navigation provided

guidance to go straight.)

These situations may occur after conducting route calculation.

The following occurrences are not malfunctions :

•Guidance may be given to a

position differing from the current

position when turning at an inter-

section

•When driving in high speeds,

route recalculation may take a

longer period of time

•Route guidance signaling for a

u-turn may occur in some No

u-turn intersections

•Route guidance signaling entrance

into No-entry zone may occur.

(No-entry zone, road under construc-

tion, etc.)

•Guidance may be given to a position

removed from the actual destination

if roads to reach the actual destina-

tion do not exist or are too narrow

•Faulty voice guidance may be given

if the vehicle breaks away from the

designated route (e.g. If a turn is

made at an intersection while the

navigation provided guidance to go

straight.)

K_UM_G4.0[EN]AVN PART 5.indd 5-35K_UM_G4.0[EN]AVN PART 5.indd 5-35 2014-10-02 오전 9:23:122014-10-02 오전 9:23:1

END USER LICENSE AGREEMENT

PLEASE READ THIS END USER LICENSE AGREEMENT (“EULA”) CAREFULLY BEFORE USING THE NAVIGATION SYSTEM.

This is a license agreement between you and Hyundai MnSoft, INC. including its affiliates (“Kia”) regarding a copy of the Kia navigable

map database together with associated software, media and explanatory printed documentation published by Kia(jointly the “Product”).

The Product is provided for your personal, internal use only and not for resale. It is protected by copyright and is subject to the following

terms which are agreed to by you, on the one hand, and Kia and its licensors (and their licensors and suppliers) (collectively, “Licensors”)

on the other hand.

By using the Product, you accept and agree to all terms and conditions in this End User License Agreement (“EULA”). IF YOU DO NOT

AGREE TO THE TERMS OF THIS EULA, YOU MUST PROMPTLY EXIT THE PRODUCT OPERATION PROGRAM AND DO NOT USE

OR ACCESS TO THE PRODUCT. YOU AGREE THAT YOUR RIGHTS UNDER THIS EULA MAY BE TERMINATED AUTOMATICALLY

WITHOUT NOTICE IF YOU FAIL TO COMPLY WITH ANY TERM(S) OF THIS EULA.

K_UM_G4.0[EN]AVN PART 5.indd 5-36K_UM_G4.0[EN]AVN PART 5.indd 5-36 2014-10-02 오전 9:23:122014-10-02 오전 9:23:1

Terms and Conditions

Personal Use Only. You agree to use this Product together with Kia authorized application for the solely personal, non-commercial pur-

poses for which you were licensed, and not for service bureau, time-sharing or other similar purposes. Accordingly, but subject to the

restrictions set forth in the following paragraphs, you agree not to otherwise reproduce, copy, modify, decompile, disassemble, create any

derivative works of, or reverse engineer any portion of this Data, and may not transfer or distribute it in any form, for any purpose, except

to the extent permitted by mandatory laws. You may not assign this EULA or any of the rights or licenses granted under this EULA, except

when installed in the system for which it was created.

Restrictions. Except where you have been specifically licensed to do so by Kia, and without limiting the preceding paragraph, you may

not use the Product (i) with any products, systems, or applications installed or otherwise connected to or in communication with vehicles,

capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet management or similar applications; or (ii) with or in

communication with any positioning devices or any mobile or wireless-connected electronic or computer devices, including without limita-

tion cellular phones, palmtop and handheld computers, pagers, and personal digital assistants or PDAs.

COPYING OR USE OF THE PRODUCT EXCEPT AS PERMITTED BY THIS EULA IS UNAUTHORIZED AND IS COPYRIGHT

INFRINGEMENT UNDER THE LAWS OF YOUR COUNTRY. IF YOU COPY OR USE THE PRODUCT WITHOUT

KIA

PERMISSION,

EXCEPT AS PERMITTED BY THIS EULA, YOU ARE VIOLATING THE LAW AND LIABLE TO

KIA

AND ITS LICENSORS FOR

DAMAGES, AND YOU MAY BE SUBJECT TO CRIMINAL PENALTIES.

THE PRODUCT MAY INCLUDE ENFORCEMENT TECHNOLOGY DESIGNED TO PREVENT (i) UNAUTHORIZED COPYING OF

THE PRODUCT ONTO PHYSICAL STORAGE MEDIA OR VIA TRANSFER OVER THE INTERNET OR OTHER ELECTRONIC

COMMUNICATION MEANS AND/OR (ii) ILLEGAL USAGE OF THE PRODUCT OTHER THAN BY A SPECIFICALLY AUTHORIZED

DEVICE. YOU AGREE THAT KIA MAY USE THESE MEASURES TO PROTECT KIA AND THE LICENSORS AGAINST COPYRIGHT

INFRINGEMENT.

K_UM_G4.0[EN]AVN PART 5.indd 5-37K_UM_G4.0[EN]AVN PART 5.indd 5-37 2014-10-02 오전 9:23:122014-10-02 오전 9:23:1

Uploads. The Product may provide functionality through which you are able to upload certain information about your use of the Product

(collectively, “Uploads”) to Kia servers or receive other services from Kia (collectively, the “Services”). If you use such functionality, you

authorize Kia to retain your Uploads on its servers. Kia will have no obligation to provide any Services, may change the form and nature

of any Services at any time with or without notice to you, will have no liability whatsoever to you for any failure of the Product or Services

to transmit your Uploads to or from Kia servers, may cease providing any Services at any time with or without notice to you, and will have

no obligation to retain your Uploads (or any other materials you may provide to Kia) on its servers or return your Uploads (or any other

materials you may provide to Kia) to you before deleting them from its servers.

Storage. The Product may provide functionality through which you are able to store information (such as images) on the device on which

you are using the Product. Kia will have no liability whatsoever to you or any third party for any failure of the Product to store any such

information on such device.

Personal Information. By using the Product, you agree to the collection, retention and processing of your personal data (including the

location of your mobile device) by Kia and to the storage and processing of such personal information on computers located outside of

the country in which you reside. Even though Kia has taken steps intended to protect your personal information from being intercepted,

accessed, used, or disclosed by unauthorized persons, Kia cannot fully eliminate security risks associated with your personal information

and cannot guarantee that its systems will not be breached. See [*] for additional information regarding Kia use of your personal informa-

tion.

K_UM_G4.0[EN]AVN PART 5.indd 5-38K_UM_G4.0[EN]AVN PART 5.indd 5-38 2014-10-02 오전 9:23:122014-10-02 오전 9:23:1

WARNING.

THE PRODUCT REFLECTS REALITY AS EXISTING BEFORE YOU RECEIVED THE PRODUCT AND IT COMPRISES

DATA AND INFORMATION FROM GOVERNMENT OTHER SOURCES. ACCORDINGLY, THE PRODUCT MAY CONTAIN INACCU-

RATE OR INCOMPLETE INFORMATION DUE TO THE PASSAGE OF TIME, CHANGING CIRCUMSTANCES, SOURCES USED

AND THE NATURE OF COLLECTING COMPREHENSIVE GEOGRAPHIC PRODUCT, ANY OF WHICH MAY LEAD TO INCOR-

RECT RESULTS.

RECT RESULTS. THE PRODUCT AND SERVICES MAY NOT TO BE USED FOR SAFETY OF LIFE APPLICATIONS, OR FOR ANY

OTHER APPLICATION IN WHICH THE ACCURACY OR RELIABILITY OF THE PRODUCT OR SERVICES COULD CREATE A

SITUATION WHERE PERSONAL INJURY OR DEATH MAY OCCUR.

DO NOT ATTEMPT TO CONFIGURE

THE PRODUCT OR INPUT

INFORMATION WHILE DRIVING. FAILURE TO PAY FULL ATTENTION TO THE OPERATION OF YOUR VEHICLE COULD RESULT IN

DEATH, SERIOUS INJURY, OR PROPERTY DAMAGE. BY USING THE PRODUCT, YOU ASSUME ALL RESPONSIBILITY AND RISK.

Disclaimer of Warranty. THE PRODUCT IS PROVIDED TO YOU “AS IS,” AND YOU AGREE TO USE IT AT YOUR OWN RISK. SUBJECT

TO THE APPLICABLE LAWS, KIA AND THE LICENSORS MAKE NO GUARANTEES, REPRESENTATIONS OR WARRANTIES

OF ANY KIND, EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING BUT NOT LIMITED TO, CONTENT,

QUALITY, ACCURACY, COMPLETENESS, EFFECTIVENESS, RELIABILITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR

A PARTICULAR PURPOSE, NON-INFRINGEMENT, USEFULNESS, USE OR RESULTS TO BE OBTAINED FROM THE PRODUCT,

OR THAT THE PRODUCT OR SERVER WILL BE UNINTERRUPTED OR ERROR-FREE, OR THAT ERRORS IN THE PRODUCT OR

NONCONFORMITY TO ITS DOCUMENTATION CAN OR WILL BE CORRECTED. YOU ACKNOWLEDGE THAT THE PROVISIONS OF

THIS SECTION ARE A MATERIAL INDUCEMENT AND CONSIDERATION TO KIA AND THE LICENSORS TO GRANT THE LICENSE

CONTAINED IN THIS EULA AND TO PROVIDE YOU WITH ACCESS TO THE SERVICES.

K_UM_G4.0[EN]AVN PART 5.indd 5-39K_UM_G4.0[EN]AVN PART 5.indd 5-39 2014-10-02 오전 9:23:122014-10-02 오전 9:23:1

Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED UNDER THE APPLICABLE LAWS, KIA AND THE LICENSORS

SHALL NOT BE LIABLE TO YOU: IN RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF THE

CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, INCURRED

BY YOU OR ANY THIRD PARTY WHICH MAY ARISE IN CONNECTION WITH OR RESULT FROM THE USE OR POSSESSION OF

THE PRODUCT; OR FOR ANY LOSS OF DATA, PROFIT, REVENUE, CONTRACTS OR SAVINGS, OR OTHER DIRECT, INDIRECT,

INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THE PRODUCT,

ANY DEFECT IN THE PRODUCT, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT

OR TORT OR BASED ON A WARRANTY, EVEN IF KIA OR THE LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES AND NOTWITHSTANDING THE FAILURE OF ANY LIMITED REMEDY PROVIDED HEREIN.

K_UM_G4.0[EN]AVN PART 5.indd 5-40K_UM_G4.0[EN]AVN PART 5.indd 5-40 2014-10-02 오전 9:23:122014-10-02 오전 9:23:1

Exclusions. Some jurisdictions do not allow certain warranty exclusions or the limitation or exclusion of liability, so to that extent the above

exclusion may not apply to you. To the extent that Kia may not, as a matter of applicable law, disclaim any implied warranty or limit its lia-

bilities, the scope and duration of such warranty and the extent of Kia liability shall be the minimum permitted under such applicable law.

The disclaimer of warranty and limitation of liability set forth in this EULA does not affect or prejudice your statutory rights where you have

acquired the Product otherwise than in the course of business.

Third-Party Copyright Notices. The third-party sourced data has been incorporated into or made a part of the Product and is being subli-

censed to you subject to the terms and conditions of this EULA. In this regard, you shall not remove or tamper with any intellectual prop-

erty rights notice attached or used in relation to data supplied by the Licensors.

Entire Agreement. This EULA is the entire agreement between Kia (and the Licensors) and you pertaining to the subject matter hereof,

and supersedes in their entirety any and all previous written or oral communications or documents (including, if you are obtaining an

update, any agreement that may have been included with an earlier version of the Product) with respect to such subject matter.

Governing Law. This EULA shall be governed by the laws of the jurisdiction in which you reside at the date of acquisition of the Product.

Should you at that moment reside outside the European Union or Switzerland, the law of the jurisdiction within the European Union or

Switzerland where you acquired the Product shall apply. In all other cases, or if the jurisdiction where you acquired the Product cannot

be defined, the laws of the Republic of Korea shall apply. This EULA will not be governed by the U.N. Convention on Contracts for the

International Sale of Goods. The courts competent at your place of residence at the time you acquired the Product shall have jurisdiction

over any dispute arising out of, or relating to this EULA, without prejudice to Kia right to bring claims at your then current place of resi-

dence.

K_UM_G4.0[EN]AVN PART 5.indd 5-41K_UM_G4.0[EN]AVN PART 5.indd 5-41 2014-10-02 오전 9:23:122014-10-02 오전 9:23:1

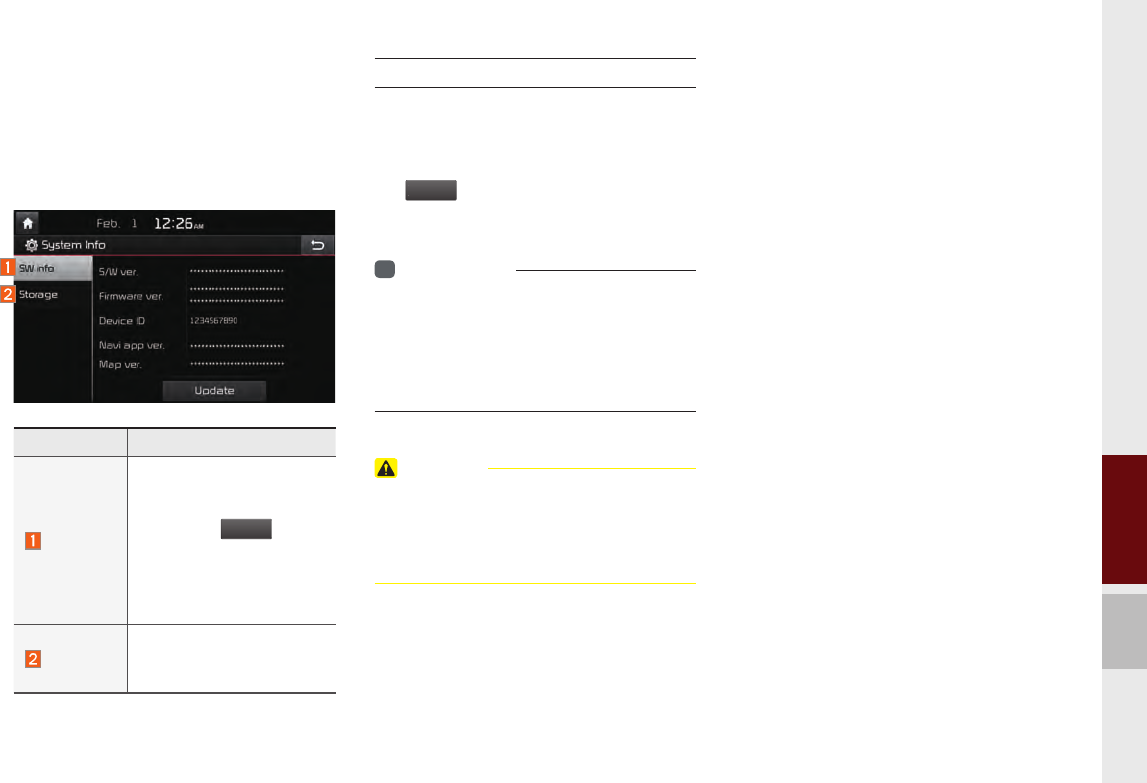

About Map Updates

• You can contact your Kia dealer or call at 888-757-0010.

Information

• This product requires regular updates for new functions and map updates. Updating may require up to 1 hour depending on the data

size.

• Turning off the power or ejecting the SD card during the update process may result in data loss. Make sure to keep the ignition on and

wait until updating is complete.

CAUTION

• Please use only the SD card that was included with the vehicle purchase.

• The use of a separately purchased SD card may result in damage due to heat related deformation.

• Product malfunctions caused by the use of separately purchased SD cards shall not be covered within the product warranty.

• Repeatedly connecting/disconnecting the SD card in a short period of time may cause damage to the device.

K_UM_G4.0[EN]AVN PART 5.indd 5-42K_UM_G4.0[EN]AVN PART 5.indd 5-42 2014-10-02 오전 9:23:122014-10-02 오전 9:23:1

What is Voice Recognition?

Recommendations

Required for Successful Voice Recognition

Starting/Ending and Setting Voice Recognition

Voice Recognition Screen Overview

Voice Commands

UVO Voice Local Search

Siri Eyes Free

part.6 Voice Recognition

K_UM_G4.0[EN]AVN PART 6.indd 6-1K_UM_G4.0[EN]AVN PART 6.indd 6-1 2014-10-02 오후 12:16:462014-10-02 오후 12:16:4

6-2 I Voice Recognition

What is Voice

Recognition?

Voice recognition technology runs the sys-

tem as ordered by recognizing your voice

command to ensure the safe operation of

multimedia while you are driving the car.

Regretfully, not all possible voice com-

mands are recognized by the system due

to technological limitations. To make up for

these limitations, the system displays the

voice commands that are available for you

to use.

There are errors in communication between

people. Likewise, voice recognition some-

times misunderstands your voice command

in some circumstances. If this happens,

either check the screen for the available

options and say the command again, or

manually select and press the button for the

corresponding command on the screen.

Recommendations

Required for Successful

Voice Recognition

1. Voice recognition supports only the

commands that are displayed on the

screen and written in the User's Guide.

2. To ensure the correct recognition and

execution of your command, say your

command when you hear the beep after

a voice prompt.

3. Voice recognition automatically ends if:

1) A call is incoming or outgoing

2) A media (USB or iPod, etc.) is con-

nected or disconnected

3) The front or rear view camera is

operated (optional)

4) The car engine starts or stops

5) A system key, such as

RADIO

MEDIA

is selected

6) An emergency occurs, for example

re-searching for the route after the

navigation route has been lost

4. The microphone that recognizes your

voice is located over the head part in

the driver's seat. To make your com-

mands better understood, keep your

body straight in the driver's seat when

speaking the command.

5. Speaking naturally and clearly will

ensure better recognition of your voice

commands.

6. In the following cases voice recognition

will be affected by ambient noise.

1) The sound of the wind if any win-

dow or the sun roof is open.

2) A strong wind blowing from the air

vents. Set climate control to blow

softer than level 3.

3) Vibrations from passing through a

tunnel.

4) Vibrations from driving on an

uneven road.

5) Storms and heavy rain.

Voice Recognition

K_UM_G4.0[EN]AVN PART 6.indd 6-2K_UM_G4.0[EN]AVN PART 6.indd 6-2 2014-10-02 오후 12:16:482014-10-02 오후 12:16:4

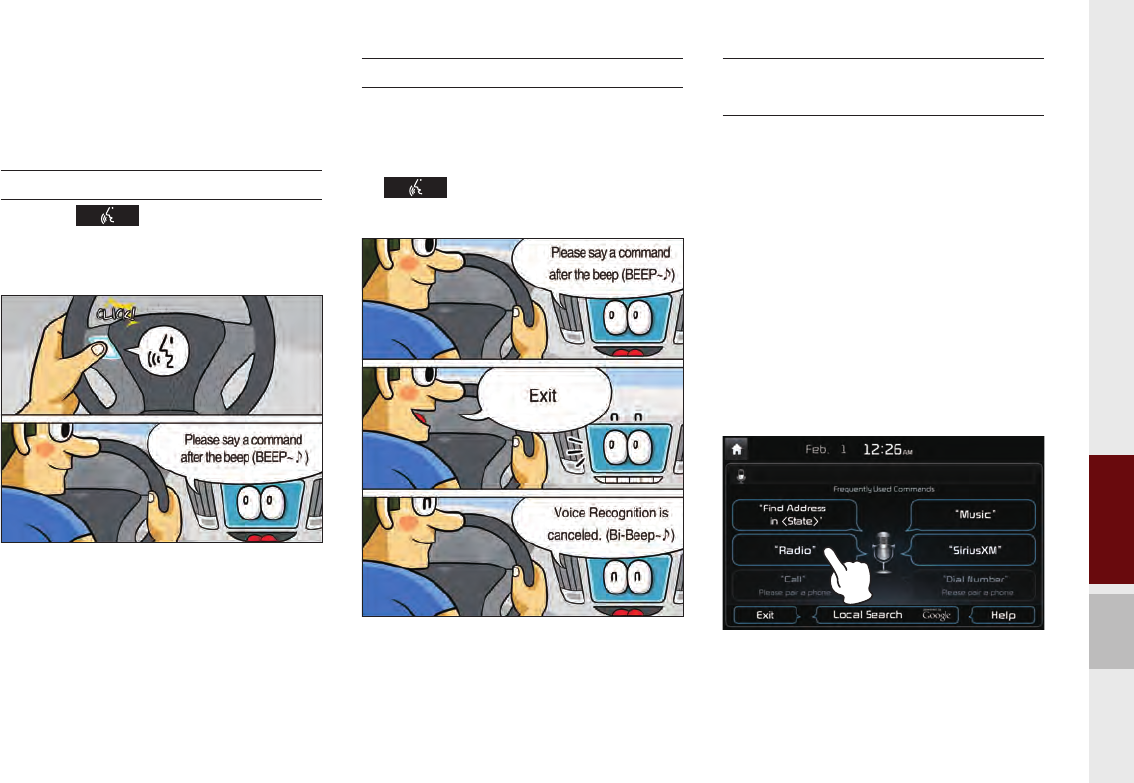

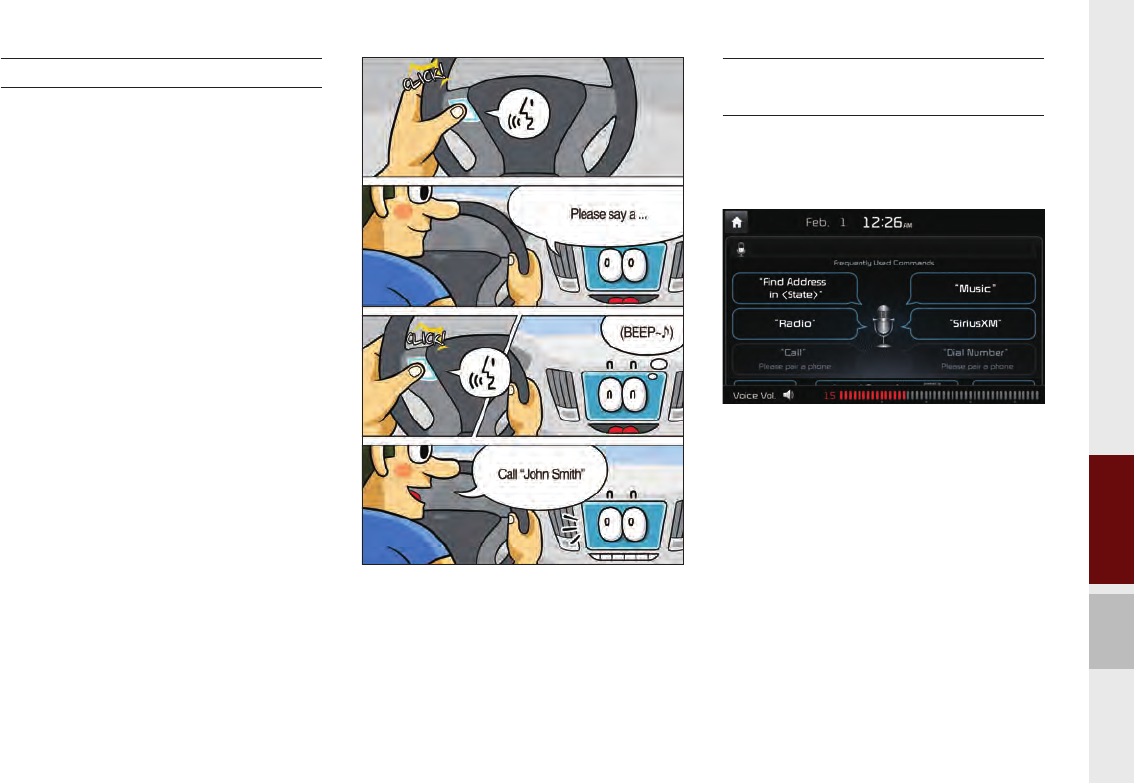

Starting/Ending and Setting Voice Recognition I 6-3

Starting/Ending

and Setting Voice

Recognition

Starting Voice Recognition

Press the key briefly (less than 0.8

seconds) on the steering wheel remote

control to activate voice recognition.

Ending Voice Recognition

1. Select “Exit” to the left of the bottom of

the screen to end voice recognition.

2. Press and hold (over 0.8 seconds) the

key on the steering wheel

remote control to end voice recognition.

Quick Run of Voice

Recognition (Manual Mode)

Usually, you are supposed to say a com-

mand to execute the desired operation

after the voice guidance. However, it takes

a little time to wait for the voice guidance.

If you would like to activate the desired

operation more quickly, you can just touch

the commands displayed on the screen.

This feature is useful when you feel the

voice guidance is too long or voice com-

mands do not work as you desired.

K_UM_G4.0[EN]AVN PART 6.indd 6-3K_UM_G4.0[EN]AVN PART 6.indd 6-3 2014-10-02 오후 12:16:482014-10-02 오후 12:16:4

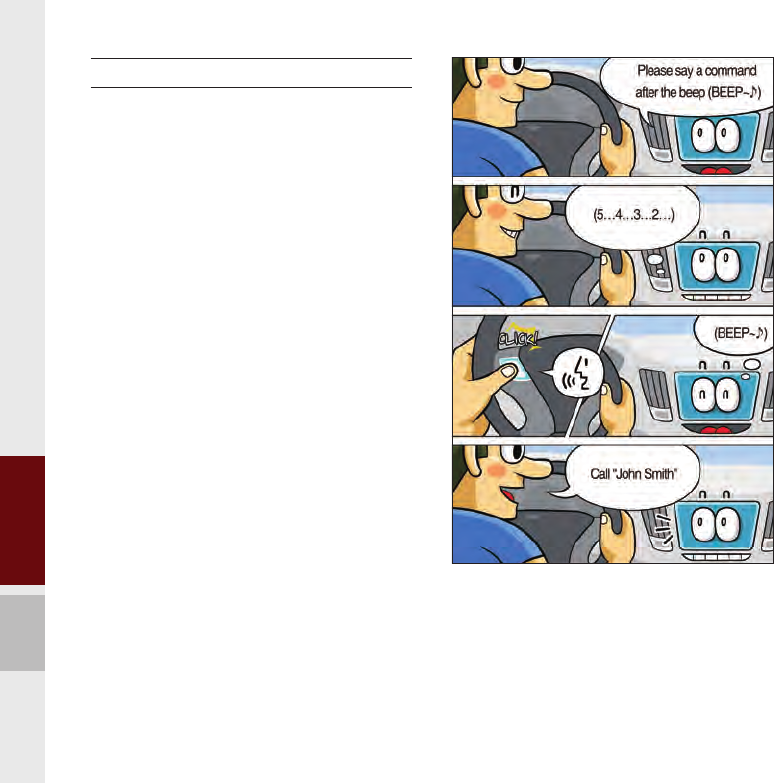

6-4 I Voice Recognition

Extending the Standby Time

When the system is waiting for your com-

mand, after the voice prompt and beep

have been heard, if you press the voice

recognition icon for less than 0.8 sec-

onds, then the beep will sound again and

standby mode will restart.

When activated,voice recognition waits for

your command for 5 seconds. If you say

nothing for 5 seconds, a voice prompt will

ask for your command.

K_UM_G4.0[EN]AVN PART 6.indd 6-4K_UM_G4.0[EN]AVN PART 6.indd 6-4 2014-10-02 오후 12:17:132014-10-02 오후 12:17:1

Starting/Ending and Setting Voice Recognition I 6-5

Skipping Prompt Messages

When you hear the prompt message,

lightly touch the voice recognition icon on

the steering wheel remote control to skip

the message and go directly to standby

mode to say your command.

This results in faster operation when

you feel the message is too long or you

already know the command to use.

Adjusting Voice

Recognition Volume

During voice recognition, turn the volume

knob to the left/right to adjust the message

volume.

K_UM_G4.0[EN]AVN PART 6.indd 6-5K_UM_G4.0[EN]AVN PART 6.indd 6-5 2014-10-02 오후 12:17:432014-10-02 오후 12:17:4

6-6 I Voice Recognition

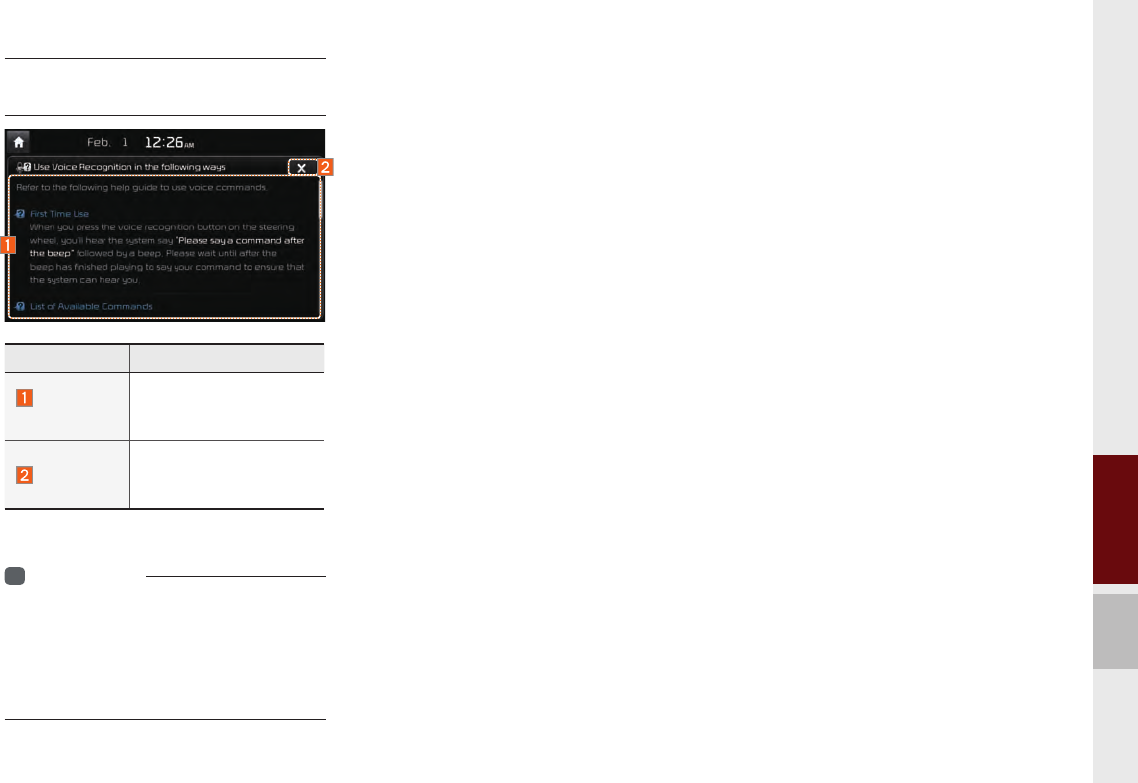

Voice Recognition

Screen Overview

Start Screen

Help Display

Name Description

Most

frequently

used

commands

Displays the six most fre-

quently used commands.

Not

available

command

Displays commands that

are not available due to

a failure in meeting the

conditions for using them

and thus need additional

settings. The conditions

required for using them

will be described briefly

under each command.

Name Description

Voice

recognition

status icons

Standby

Voice guidance

Voice command

process

User's

speaking

volume being

recognized

Displays the voice

command volume in

real time.

Recognized

results

Displays the voice rec-

ognition result.

Help

Displays all available

help commands in a

tree format.

Exit Ends the voice recog-

nition.

Name Description

Command

list

• Shows the available

commands.

•Select or say a com-

mand to display addi-

tional commands in

detail.

How to

use for

selected

item

This section shows how to

use voice recognition for

the selected item.

How to

use in

general

This section displays how

to use voice recognition in

general.

K_UM_G4.0[EN]AVN PART 6.indd 6-6K_UM_G4.0[EN]AVN PART 6.indd 6-6 2014-10-02 오후 12:17:472014-10-02 오후 12:17:4

Voice Recognition Screen Overview I 6-7

Instructions for Using

Voice Recognition

Information

• In the instructions screen, no voice is

recognized, so you must manually issue

commands. Because the instructions screen

displays a lot of content, you can not view it

while driving for safety precautions.

Name Description

Detail

instruction

This section describes

how to use voice recog-

nition in detail.

Close button

Closes the screen and

restarts voice recogni-

tion.

K_UM_G4.0[EN]AVN PART 6.indd 6-7K_UM_G4.0[EN]AVN PART 6.indd 6-7 2014-10-02 오후 12:17:542014-10-02 오후 12:17:5

6-8 I Voice Recognition

Voice Commands

Types of Commands

Voice recognition commands are classified as "Global Commands"

and "Local Commands."

1. Global Commands (󰥋): Commands that can be used immedi-

ately after activating voice recognition.

2. Local Commands (◯): Commands that can be used when a

multimedia, navigation, or Bluetooth call is running, or dis-

played on the screen, after activating voice recognition.

Call Commands

* Check the following before using call commands :

1. Voice commands related to phone calls can be used after con-

necting the Bluetooth device.

2. To call a person, for example “Call <John Smith>” whose name

is listed in Contacts, you must first download the Contacts

list. For details on downloading contacts, see “Part 3. Using

Bluetooth > Chapter 3. Bluetooth Phone > 3.10 Contacts”.

3. After downloading the Bluetooth contacts, it will take some

time to convert the Contacts into voice data during which time

you cannot make a call by name yet. The time takes to convert

voice data may vary depending on the number of Contacts

downloaded.

Command Operation

󰥋Call Displays downloaded Contacts, after this

you can make a call by saying the name.

󰥋Call <Name> You can directly call a person by <Name>

in the downloaded Contacts.

󰥋Call <Name> on

Mobile

You can call a person directly <Name> to

the number that is saved as "Mobile" in the

downloaded Contacts.

e.g.) Call “John Smith” on Mobile

󰥋Call <Name> in

Office

You can call a person directly <Name> to

the number that is saved as "Office" in the

downloaded Contacts.

e.g.) Call “John Smith” in Office

󰥋Call <Name> at

Home

ou can call a person directly <Name> to

the number that is saved as “Home” in the

downloaded Contacts.

e.g.) Call “John Smith” at Home

󰥋Call <Name> on

Other

You can call a person directly <Name> to

the number that is saved as "other" than

“Mobile, Home, or Office” in the down-

loaded Contacts.

e.g.) Call “John Smith” on Other

󰥋Dial Number Displays a screen where you can say a

phone number to dial.

󰥋Dial <Phone #> You can directly say the number to call.

e.g.) Dial 111 555 1234

󰥋Redial Directly calls at the number that you last

dialed.

󰥋Call History Displays your Call History, where you can

say the list number to make a call.

K_UM_G4.0[EN]AVN PART 6.indd 6-8K_UM_G4.0[EN]AVN PART 6.indd 6-8 2014-10-02 오후 12:17:562014-10-02 오후 12:17:5

Voice Commands I 6-9

Navigation Commands

* Check the following before you use navigation commands :

1. Search for and find addresses located in the state or province

your car is currently in.

If you want to search in another state, say the name of state/

province and then look it up.

Find Address is classified by states/provinces to provide you

with faster service.

2. Some commands such as “Cancel Route” are available only

when the destination is fixed.

Command Operation

󰥋POIs Near

Destination

Finds POIs near the destination.

After this command, you can find the name of

a location step-by-step.

󰥋

Near

Destination

Find <Category> near the destination.

For details of <Category>, see “Find the

Nearest <Category> list”.

e.g.) “Banks” Near Destination

󰥋Map Moves to the current position on the naviga-

tion map

󰥋Previous

Points

Displays a list combining Previous Destinations,

Previous Searches, and Previous Starting Points

all together.

You can then set a destination by saying the list

number.

󰥋Previous

Destinations

Displays a list of recent destinations that you

can return to by saying the number in the list.

󰥋Previous

Searches

Displays a list of recent searches, where you

can set a destination by saying the number in

the list.

󰥋Previous

Starting Points

Displays a list of recent starting points that you

can return to by saying the number in the list.

󰥋Traffic

Information Moves to the Traffic Information menu screen.

󰥋Go Home

Set the destination to your home.

Your home must first be set in the Navigation

system.

󰥋Go to Office

Set the destination to your office/work.

Your office/work must first be set in the

Navigation system.

Command Operation

󰥋Find Address

in <State>

•Finds the address in <State> and sets it

as the destination.

e.g.) Find Address in California

•To find an address, you should say "House

Number → Street → City" (in order,

excluding the state).

e.g.) 300 (Three Zero Zero) Main Street, Almond

󰥋Find Address Finds the address and sets it as the destination.

󰥋Find the

Nearest POI

Find the nearest points of interest from your

current location.

After this command, you can find the name

of a location step-by-step.

󰥋

Find the

Nearest

Immediately finds <Category> nearest to

your current location.

For details of <Category>, see “Find the

Nearest <Category> list”.

e.g.) Find the Nearest “Banks”

K_UM_G4.0[EN]AVN PART 6.indd 6-9K_UM_G4.0[EN]AVN PART 6.indd 6-9 2014-10-02 오후 12:17:562014-10-02 오후 12:17:5

6-10 I Voice Recognition

Command Operation

󰥋Hospital

Displays a list of the nearest hospitals.

You can then set a destination by saying the

list number.

󰥋Dealership

Displays a list of the nearest car dealerships.

You can then set a destination by saying the

list number.

󰥋Road

Assistance

Displays a list of the nearest road assistance

locations.

You can then set a destination by saying the

list number.

󰥋Show Route Displays a map overview of the entire route

to your destination.

Command Operation

󰥋Turn Guidance

On Turns on the voice guidance system.

󰥋Turn Guidance

Off Turns off the voice guidance system.

󰥋Zoom All the

Way Out

Zooms out from the navigation map to the

fullest.

󰥋Zoom All the

Way In Zooms in on the navigation map to the fullest.

󰥋Cancel Route Cancels the route to the fixed destination and

exits guidance.

󰥋Destination

Information

Tells you the remaining distance and time to

your destination.

󰥋Route Options

Restarts the route to your destination.You can

then select either “Faster Time” or “Shorter

Distance”.

󰥋Find Faster

Time Route

Starts a new route to your destination that will

take the least amount of time.

󰥋

Find Shorter

Distance

Route

Starts a new route to your destination that will

use the shortest distance.

󰥋Emergency

Services

Displays a list of nearest Police Station,

Hospital, Dealership, or Road Assistance.

You can then set a destination by saying the

list number.

󰥋Police Station

Displays a list of the nearest police stations.

You can then set a destination by saying the

list number.

K_UM_G4.0[EN]AVN PART 6.indd 6-10K_UM_G4.0[EN]AVN PART 6.indd 6-10 2014-10-02 오후 12:17:562014-10-02 오후 12:17:5

Voice Commands I 6-11

Command Operation

󰥋Radio Plays the most recent radio channels from

FM, AM, and SiriusXM™.

󰥋FM Plays FM radio.

󰥋FM

<87.5~107.9>

Tunes to FM <Frequency> according to

what you say.

e.g.) FM 87.5: FM eighty seven point five

󰥋SiriusXM Plays SiriusXM™ radio.

󰥋

SiriusXM

Channel

<0~999>

Tunes to SiriusXM™ Channel <Channel

Number> according to what you say.

e.g.) SiriusXM Channel 23: SiriusXM

Channel twenty three

󰥋AM Plays AM radio.

󰥋AM <530~1710>

Tunes to AM <Frequency> according to

what you say.

e.g.) AM 530: AM five thirty

󰥋Preset <1~18> Tunes to your preset stations (1 to 18).

󰥋Channel

<0~999>

In SiriusXM™ Radio mode, turns on the

<Channel Number> that you say.

Radio Commands

K_UM_G4.0[EN]AVN PART 6.indd 6-11K_UM_G4.0[EN]AVN PART 6.indd 6-11 2014-10-02 오후 12:17:562014-10-02 오후 12:17:5

6-12 I Voice Recognition

Media Commands

* Check the followings before you use media commands.

1. If no media is connected or if no playable files exist at the time

when you use these commands, a voice message will tell you

that this is not available at present.

2. If you say the name of the media that is currently playing again,

then that media will continue playing.

e.g.) Saying “USB” while USB content is playing.

Command Operation

󰥋Music Continues the last media you played.

󰥋iPod

Plays the iPod currently connected. This

will work the same when an iPhone is con-

nected. If a USB is connected, then it will

be played instead of the iPod.

󰥋USB

Plays the music on the USB currently con-

nected.

If an iPod is connected, then the iPod will

be played instead of the USB.

󰥋Bluetooth Audio

Plays the music on the Bluetooth phone

currently connected.

This may not be supported depending on

the Bluetooth connection status.

󰥋AUX Plays external devices that are currently

connected.

󰥋My Music Plays My Music files stored in the system.

󰥋Pandora Radio

Plays Pandora Radio that is currently con-

nected. Pandora Radio operates according

to the iPod® that is currently connected.

K_UM_G4.0[EN]AVN PART 6.indd 6-12K_UM_G4.0[EN]AVN PART 6.indd 6-12 2014-10-02 오후 12:17:562014-10-02 오후 12:17:5

Voice Commands I 6-13

2. MP3 CD / USB Music / iPod / My Music Command

Command Operation

󰥋Play Plays a selected file.

Maintains the current settings during playback.

󰥋Pause

Pauses a file that is playing.

Maintains current settings while paused during

playback.

󰥋Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled play-

back.

󰥋Shuffle Off

Cancels Shuffle and plays tracks sequentially.

Maintains current settings during sequential

playback.

󰥋Repeat

Plays the current track or file repeatedly.

Maintains the current settings during repeat play-

back.

󰥋Repeat Off

Cancels Repeat and plays multiple tracks or

files.

Maintains current settings during multiple track

playback.

1. Audio CD Command

Command Operation

󰥋Play Plays a paused track.

Maintains the current settings during playback.

󰥋Pause

Pauses a track that is currently playing.

Maintains current settings while paused during

playback.

󰥋Track

<1~99> Plays a desired track number.

󰥋Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled play-

back.

󰥋Shuffle Off

Cancels Shuffle and plays tracks sequentially.

Maintains current settings during sequential

playback.

󰥋Repeat

Plays the current track repeatedly.

Maintains the current settings during repeat play-

back.

󰥋Repeat Off

Cancels Repeat and plays multiple tracks or

files.

Maintains current settings during multiple track

playback.

K_UM_G4.0[EN]AVN PART 6.indd 6-13K_UM_G4.0[EN]AVN PART 6.indd 6-13 2014-10-02 오후 12:17:562014-10-02 오후 12:17:5

6-14 I Voice Recognition

4. Bluetooth Audio / AUX Command

•Bluetooth Audio supports different functions according to con-

nected devices, therefore some commands are unavailable,

including Play, Stop, Previous Song, and Next Song.

•For external devices (AUX) and some commands are unavail-

able, including Play, Stop, Previous, and Next.

3. Pandora Radio command

Command Operation

󰥋Skip Moves to the next track.

󰥋Thumbs up

If you like the genre of the music currently

playing, say “Thumbs up” so that more

similar music will play.

󰥋Thumbs down

If you don’t like the music currently playing,

say “Thumbs down” to minimize the number

of playbacks of similar genre music.

K_UM_G4.0[EN]AVN PART 6.indd 6-14K_UM_G4.0[EN]AVN PART 6.indd 6-14 2014-10-02 오후 12:17:562014-10-02 오후 12:17:5

Voice Commands I 6-15

Other Commands List

(Commands used in List / Help)

Command Operation

󰥋Help

Moves to the voice recognition help screen.

All available commands can then be identified

and used.

󰥋Line 1~5

(One~Five)

When you cannot select a certain name,

such as in Call History, you can select it

using numbers.

Simple numbers can be recognized, such

as “One” or “Two."

󰥋Yes / No

When voice recognition is activated, this

command is used when an answer is

requested for a confirmation question.

󰥋Previous Page /

When five or more searched items are listed,

you can move to the previous or next page

using a voice command.

󰥋Manual Input

When Dial or POI Name search results are

displayed, this command is used to search

manually, rather than to search with a voice

command.

Voice recognition stops after this command

is used.

󰥋Go Back Moves to the previous screen.

UVO eServices Commands List (Optional)

Command Operation

󰥋Roadside Assist Connect with a Roadside Assist agent.

󰥋Vehicle

Diagnostics

Informs you if diagnostic issues are found

in your vehicle

󰥋My POIs Displays Points of Interest list which were

downloaded from Google Maps and MyUVO

󰥋eService Guide Provides guidance on how to use UVO

eServices

K_UM_G4.0[EN]AVN PART 6.indd 6-15K_UM_G4.0[EN]AVN PART 6.indd 6-15 2014-10-02 오후 12:17:562014-10-02 오후 12:17:5

6-16 I Voice Recognition

“Find the Nearest <Category>” List

Navigation location names can be changed after an update.

1. Restaurants

Restaurants

Fast Food

Arby's

Boston Market

Burger King

Carl's Jr

Church's Chicken

Dairy Queen

Firehouse Subs

Fleming's

Hardee's

In-N-Out Burger

Jack in the Box

Jimmy John's

KFC

McAlister's Deli

McDonald's

Panera Bread

Popeyes

Quiznos Sub

Schlotzsky's

Sonic

Subway

Taco Bell

Taco John's

Wendy's

White Castle

American

Applebee's

Bahama Breeze

Boston's Restaurant & Sports Bar

Cheeseburger in Paradise

Chili's Grill & Bar

Cool River

Denny's

Frisch's Big Boy

Good Eats

III Forks

Lee Roy Selmon's

Lone Star Steakhouse & Saloon

Longhorn Steakhouse

Luckys Cafe

Outback Steakhouse

Ponderosa

Publix

Seasons 52

Sheetz

Silver Fox

Texas Roadhouse

TGI Friday's

The Capital Grille

French

Italian

Bonefish Grill

Carrabba's Italian Grill

Chuck E Cheese's

Domino's

Olive Garden

Papa John's

Papa Murphy's

Pizza 73

Pizza Hut

Pizza Pizza

Continental

Mexican

Cantina Laredo

Chevys

El Chico

Japanese

Chinese

PF Chang's China Bistro

Korean

Vegetarian Food

Seafood

Red Lobster

Latin American

Asian

African

Coffee Shop

Starbucks

Dunkin' Donuts

Others

Auntie Anne's

Baskin-Robbins

K_UM_G4.0[EN]AVN PART 6.indd 6-16K_UM_G4.0[EN]AVN PART 6.indd 6-16 2014-10-02 오후 12:17:562014-10-02 오후 12:17:5

Voice Commands I 6-17

Restaurants

Haagen-Dazs

Hooters

Roy's

TCBY

Van Der Valk

Automotive

Kia Dealerships

Gas Stations

ampm

ARCO

Canadian Tire

Chevron

CITGO

Conoco

Esso

Exxon

Fleetfuels

GetGo

Giant Gasoline

GTO

Gulf

Husky

Ingles Gas Express

Martin's Gasoline

Meijer

Mobil

Murphy Express

Murphy USA

Petro Stopping Centers

Petro-Canada

Phillips 66

Pioneer

QuikTrip

Rutter's

Sheetz

Shell

Sinclair

Sunoco

Sunoco Canada

Texaco

TravelCenters of America

Ultramar

Valero

Wawa

Parking

Auto Services

America's Tire

BOSCH Car Service

Certigard

Discount Tire

Kal Tire

Napa

Sears Auto Center

Roadside Assistance

Automobile Dealerships

Auto Parts

Car Washes

Motorcycle Dealerships

2. Automotive

K_UM_G4.0[EN]AVN PART 6.indd 6-17K_UM_G4.0[EN]AVN PART 6.indd 6-17 2014-10-02 오후 12:17:572014-10-02 오후 12:17:5

6-18 I Voice Recognition

Tra ve l

Airports

Hotels

Americas Best Value Inn

AmericInn

Andaz

Ascend Collection

Baymont Inn & Suites

Best Western

Cambria Suites

Canadas Best Value Inn

Candlewood Suites

Clarion Hotel

Comfort INN

Comfort Suites

Conrad

Country Inn & Suites by Carlson

Courtyard By Marriott

Crowne Plaza

Days Inn

Delta

Doubletree

Econo Lodge

Embassy Suites

Grand Residences by Marriott

Hampton Inn

Hampton Inn & Suites

Hawthorn Suites

Hilton

Hilton Garden Inn

Hilton Grand Vacations

Holiday Inn

Holiday Inn Express

Homewood Suites

Hotel Indigo

Howard Johnson

Hyatt Place

Hyatt

Hyatt Summerfield Suites

Intercontinental

JW Marriott

La Quinta Inn

Lexington

Mainstay Suites

Marriott

Marriott Vacation Club

Microtel Inns & Suites

Motel 6

Novotel

Omni Hotels

Park Inn

Park Plaza

Quality Inn

Radisson

Radisson SAS

RAMADA

Red Roof Inn

Regent Hotels & Resorts

Renaissance

Residence Inn

Ritz-Carlton Club

Rodeway Inn

Sheraton

Sleep Inn

Sofitel

Staybridge Suites

Studio 6

Suburban Extended Stay

Super 8

Thriftlodge Canada

Travelodge

Travelodge Canada

VAN DER VALK

Waldorf Astoria Collection

Wingate by Wyndham

Wyndham

Rest Area

Tourist Information

Tourist Attractions

Travel Agents

City Centers

Rental Car Agencies

Alamo

AVIS

Budget

Dollar Rent A Car

National

Thrifty

Campgrounds

Ferry Terminals

Bus Stations

3. Travel

K_UM_G4.0[EN]AVN PART 6.indd 6-18K_UM_G4.0[EN]AVN PART 6.indd 6-18 2014-10-02 오후 12:17:572014-10-02 오후 12:17:5

Voice Commands I 6-19

Tra ve l

Local Transit

Train Stations

Shopping

Department Stores

Canadian Tire

Kmart

Kohl's

Nordstrom

Sears

Sears Hometown Store

T.J. Maxx

Walmart

Convenience Stores

7-Eleven

ampm

Circle K

Fleetfuels

GetGo

GTO

Murphy Express

Murphy USA

Petro Stopping Centers

QuikTrip

Rutter's

Sunoco Canada

TravelCenters of America

Wawa

Shopping Centers

Grocery Stores

Giant Eagle

Giant Food Stores

IGA

Ingles Markets

Martin's Food Markets

Meijer

Publix

Sav-Mor Foods

Save-A-Lot

SuperValu

Music Stores

Bookstores

Barnes & Noble

Electronics

Best Buy

Future Shop

Staples

OfficeMax

Gifts

Sporting Goods

Dick's Sporting Goods

Sports Authority

Home Specialty Stores

ABC Fine Wine & Spirits

Costco

Home Depot

Clothing

Mark's Work Wearhouse

Shoe Stores

Pharmacies

Giant Drugstore

Ingles Pharmacy

Kmart Pharmacy

Martin's Drugstore

Meijer Pharmacy

Rite Aid

Shoppers Drug Mart

Walgreens

4. Shopping

K_UM_G4.0[EN]AVN PART 6.indd 6-19K_UM_G4.0[EN]AVN PART 6.indd 6-19 2014-10-02 오후 12:17:572014-10-02 오후 12:17:5

6-20 I Voice Recognition

Recreation

Amusement Parks

Museums

Cinemas

Golf Courses

Sports Complexes

Sports Activities

Wineries

Video & Game Rental

Ski Resorts

Recreation Areas

Other Recreation Areas

Financial Services

Banks

Chase

RBC Bank

Wells Fargo

ATMs

Check Cashing Services

Money Transfer

Community

Police Stations

Post Offices

Libraries

Schools

Fire Departments

Convention Centers

City Halls

Civic Centers

Court Houses

Government Offices

Waste & Sanitary

Utilities

Business Facilities

Services

Hospitals

Medical Services

Physicians

Tax Services

Attorneys

Funeral Homes

Hair & Beauty

Cleaning & Laundry

Social Services

Communication

Dentists

Photography

Tailor & Alteration

Movers

5. Recreation 6. Financial Services 7. Community 8. Services

K_UM_G4.0[EN]AVN PART 6.indd 6-20K_UM_G4.0[EN]AVN PART 6.indd 6-20 2014-10-02 오후 12:17:572014-10-02 오후 12:17:5

UVO Voice Local Search I 6-21

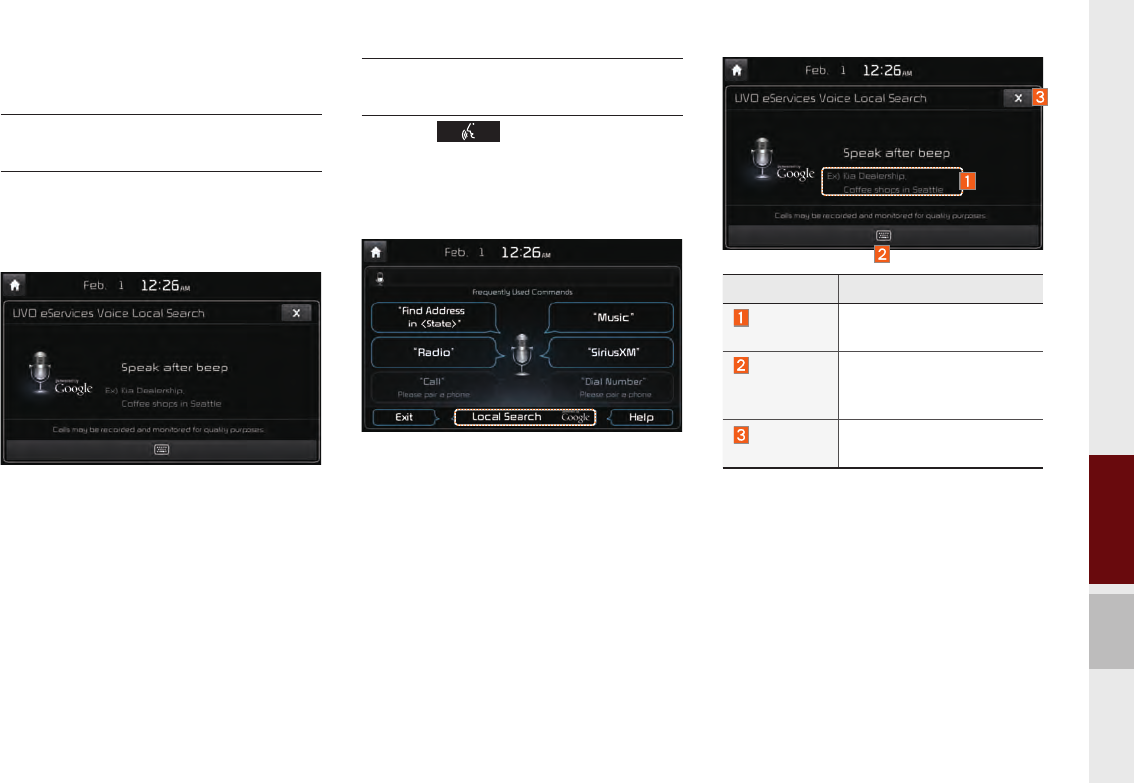

UVO Voice Local Search

What is UVO Voice

Local Search?

With UVO network service, you can

search for Google-provided place names

with your voice.

The search is done through network ser-

vices; it is only available when connected

to a communication network.

Starting UVO Voice

Local Search

Press the key briefly (less than 0.8

seconds) on the steering wheel control to

activate voice recognition and say “Local

Search”

Name Description

Example

command

Shows an example to ask

for place search

Manual

switch

button

Switches the UVO Voice

Local Search screen to

search.

End

button

Ends UVO Voice Local

Search.

K_UM_G4.0[EN]AVN PART 6.indd 6-21K_UM_G4.0[EN]AVN PART 6.indd 6-21 2014-10-02 오후 12:17:572014-10-02 오후 12:17:5

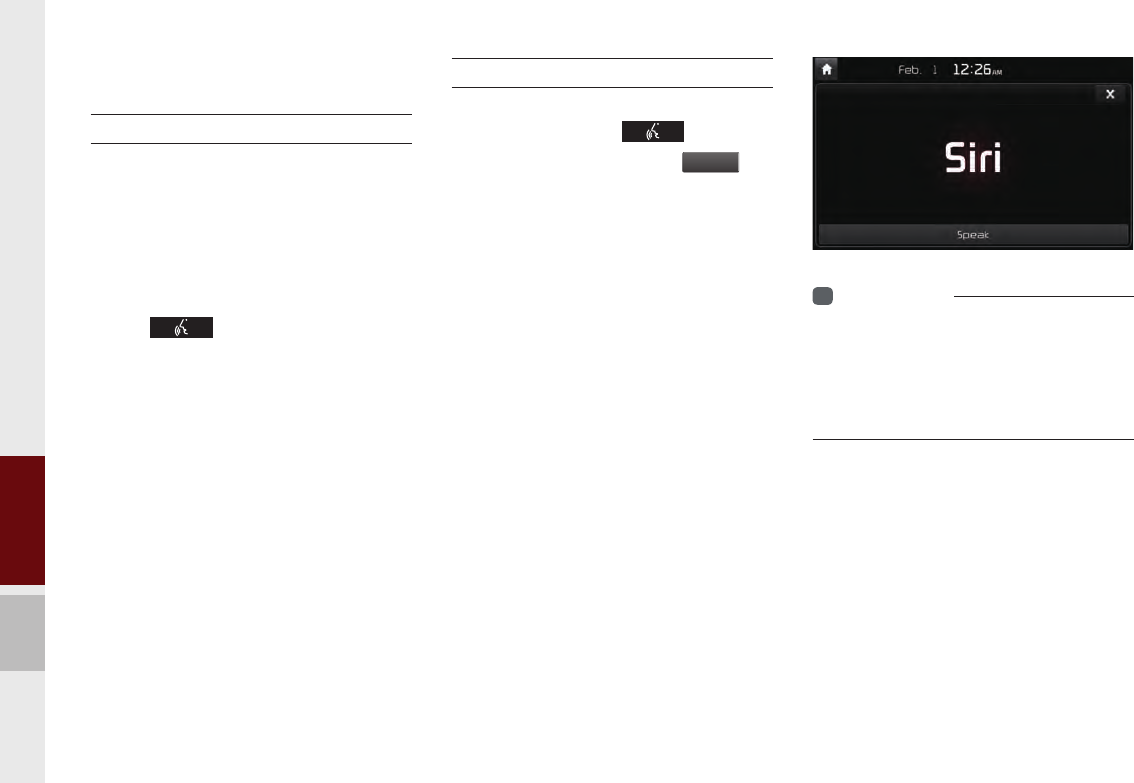

6-22 I Voice Recognition

Siri Eyes Free

How to start Siri

If you want to use Siri, you have to con-

nect your iOS device to Multimedia system

through Bluetooth.

(Please check whether your iOS device

supports Siri and turning Siri On)

Then you can use Siri while pressing and

holding key on the steering wheel.

How to use Siri

When you access the Siri screen while

pressing and holding key on the

steering wheel, you can press

but-

ton and then you can speak what you

want. Please see the Multimedia system

only supports “Phone” related functions.

Other functions will be performed in your

iOS device. If you press voice key quickly,

Siri would re-start. If you hold down voice

key, Siri would be terminated and the

screen would go back to the previous

screen. Eyes-Free mode would be acti-

vated automatically while you are driving.

When shifting gears into P or putting the

Parking break on, Eyes-Free mode would

be deactivated automatically.

Information

• Functions and feedbacks from voice

commands via Siri are executed in iOS

device. If iOS version changed, functions and

feedbacks can be changed according to iOS

device.

K_UM_G4.0[EN]AVN PART 6.indd 6-22K_UM_G4.0[EN]AVN PART 6.indd 6-22 2014-10-02 오후 12:18:012014-10-02 오후 12:18:0

Start Up

Pandora Radio Mode

Download Center

SiriusXM™ Data

SoundHound

part.7 Info

K_UM_G4.0[EN]AVN PART 7.indd 7-1K_UM_G4.0[EN]AVN PART 7.indd 7-1 2014-10-02 오후 1:06:162014-10-02 오후 1:06:1

7-2 I Info

Start Up

Press the

INFO

key on head unit to enter

the information screen. The screen is com-

posed of : “Pandora” to listen to Pandora

Radio by connecting a smart phone;

“Quick Guide” to provide information about

how to controls and major functions;

“Climate” to show air-conditioning and

heating information for the car; “SiriusXM

Data” to show weather, traffic, stock, gas

station, sports, and movie information pro-

vided by SiriusXM™ Travel Link.

Pandora Radio Mode

Press the “Pandora” icon after selecting All

Menus or the

INFO

hard-key to enter

Pandora Radio mode.

Info

K_UM_G4.0[EN]AVN PART 7.indd 7-2K_UM_G4.0[EN]AVN PART 7.indd 7-2 2014-10-02 오후 1:06:192014-10-02 오후 1:06:1

Pandora Radio Mode I 7-3

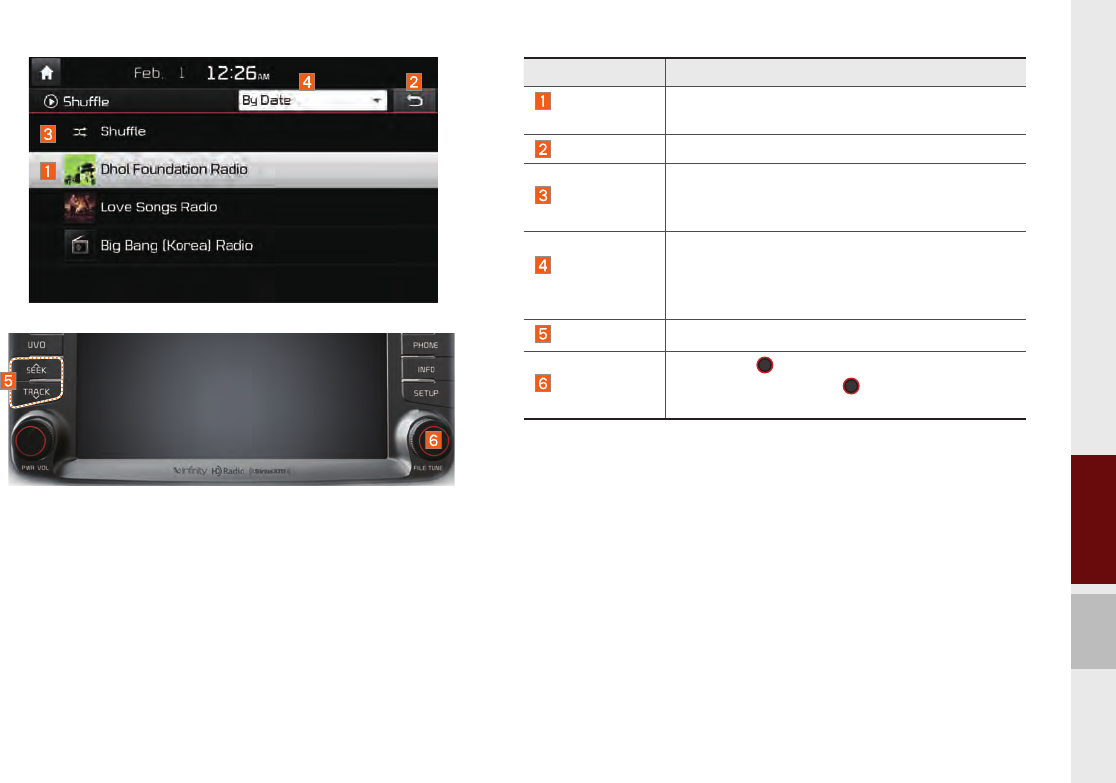

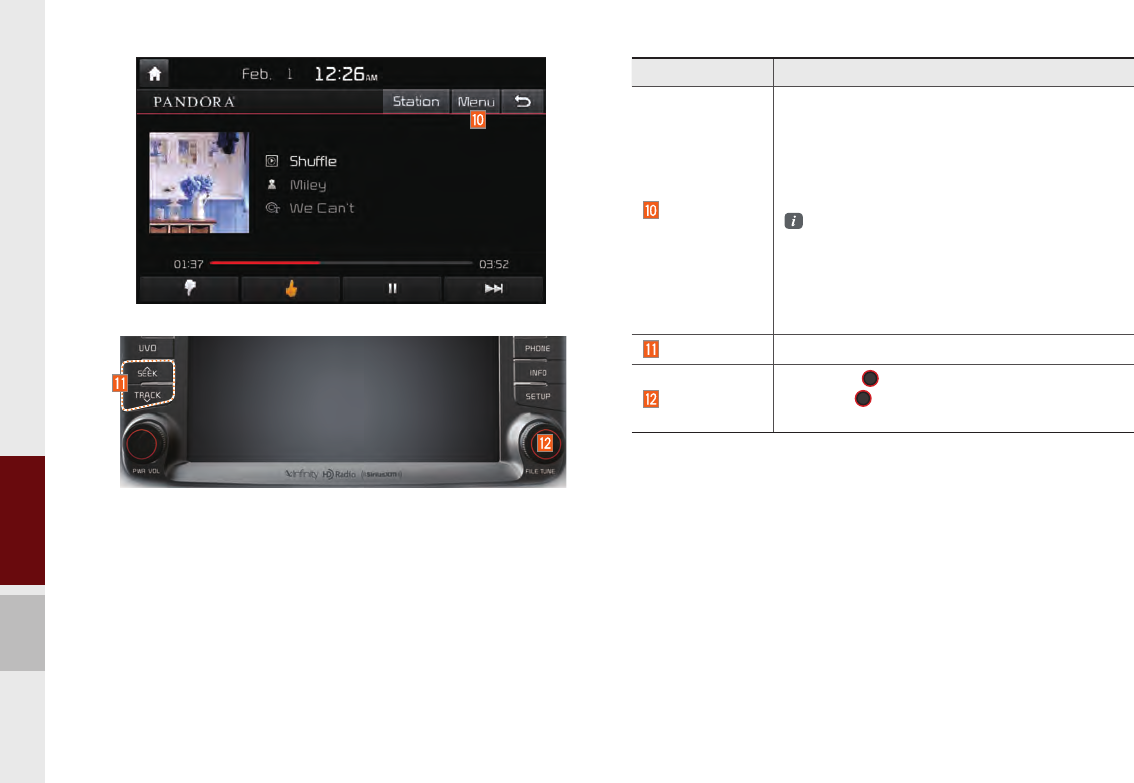

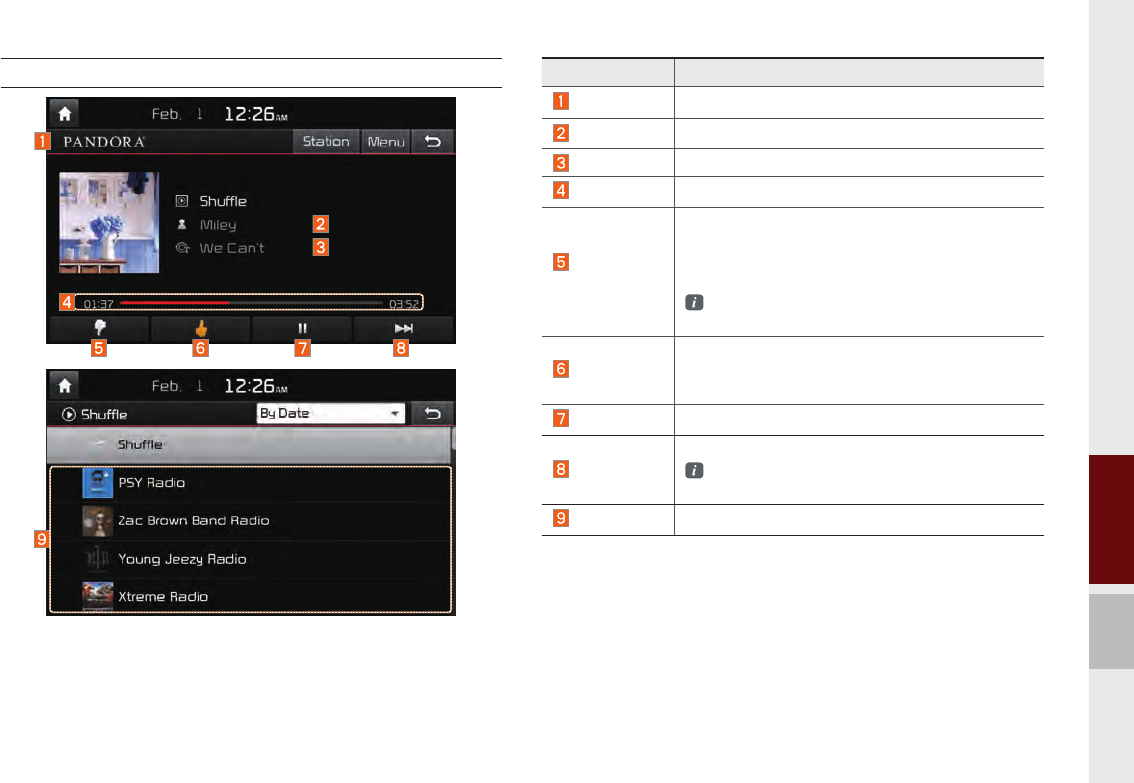

Pandora Radio Mode Screen Controls

Name Description

Mode Displays currently operating mode.

Station Info Shows the station name currently playing.

Track Info Shows the artist/title information currently playing.

Play Time Displays the current play time.

Thumb

Down

If you don’t like the music currently playing, press

this button to move to the next music and to min-

imize the number of playbacks of similar genre

music.

You can move to the next song up to specific

number of times which Pandora allows

Thumb up

If you like the genre of the music currently playing,

press this button to send a “Thumb Up” signal to

Pandora so that more similar music will play.

Play/Pause Plays/pauses the current song

SKIP

Moves to the next track

You can move to the next song up to specific

number of times which pandora allows

Station List Moves to the station list screen.

K_UM_G4.0[EN]AVN PART 7.indd 7-3K_UM_G4.0[EN]AVN PART 7.indd 7-3 2014-10-02 오후 1:06:192014-10-02 오후 1:06:1

7-4 I Info

Name Description

•Bookmark Track

Adds the music currently playing to the book-

marks list.

•Bookmark Artist

Adds the artist of the music currently playing

to the bookmarks list.

You can view your bookmarked artists and

songs from your Pandora profile online. Go to

pandora.com, then click on the “Your Profile”

button above the player. That will bring up a

page with your stations, bookmarked artists,

and bookmarked songs.

SEEK/TRACK Press briefly to play the next song.

TUNE

Rotate the TUNE knob to search for a station.

Press the TUNE knob to play the station when

you find the name that you want.

K_UM_G4.0[EN]AVN PART 7.indd 7-4K_UM_G4.0[EN]AVN PART 7.indd 7-4 2014-10-02 오후 1:06:262014-10-02 오후 1:06:2

Pandora Radio Mode I 7-5

Name Description

Current

Station

Shows the name of the station currently dis-

played.

Previous Switches to the play mode screen.

Shuffle

Shuffling your stations provides a more diverse

mix of music by randomly playing songs from the

stations in your list.

Sorts stations by the items in the menu.

•A-Z: Sorts stations in alphabetical order.

•By Date: Sorts stations in the order they were

generated.

SEEK/TRACK Press briefly to play the next song.

TUNE

Rotate the TUNE knob to move to the previ-

ous/next list. Press the TUNE knob to play a

selected file.

K_UM_G4.0[EN]AVN PART 7.indd 7-5K_UM_G4.0[EN]AVN PART 7.indd 7-5 2014-10-02 오후 1:06:302014-10-02 오후 1:06:3

7-6 I Info

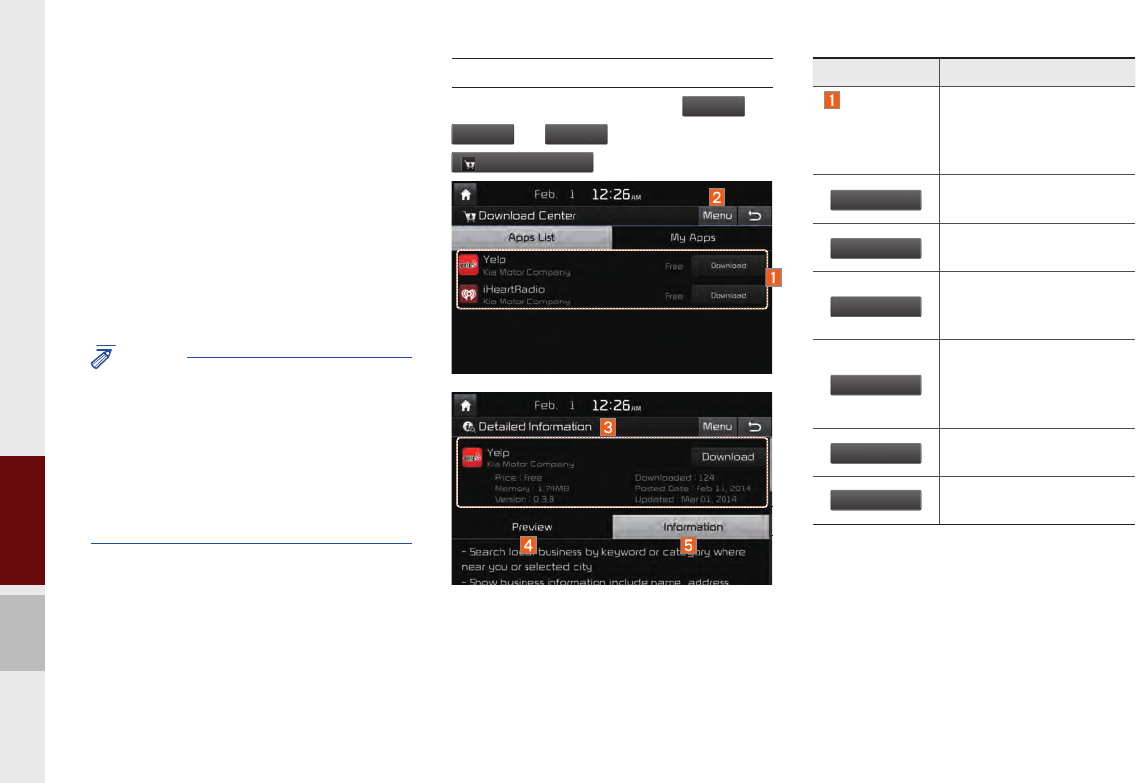

Download Center

With Download Center, you can install

paid/free applications or check for related

information. Only UVO center verified

applications can be installed.

You can use Download Center after agree-

ing to the User Agreement and Privacy

Policy. (Only 1 time for initial launch)

NOTICE

• To use Download Center, your vehicle must

be connected to Wi-Fi.

• Details on how to connect to a Wi-Fi network

can be checked within the “Wi-Fi Settings” in

Part 9.

• Apps available for download may vary

depending on the environment.

Apps List

Select Home-screen ▶

ll Menus

▶

Apps

▶ and then select

Name Description

Application

Download

and Run

buttons

Button state changes

according to the applica-

tion state.

Downloads free applica-

tions.

urc

Downloads paid applica-

tions.

Downloads deleted

applications after previ-

ously installing them.

Downloads the applica-

tions that failed to down-

load due to network or

system errors.

Runs installed applica-

tions.

ance

Cancels any downloads

and updates.

K_UM_G4.0[EN]AVN PART 7.indd 7-6K_UM_G4.0[EN]AVN PART 7.indd 7-6 2014-10-02 오후 1:06:352014-10-02 오후 1:06:3

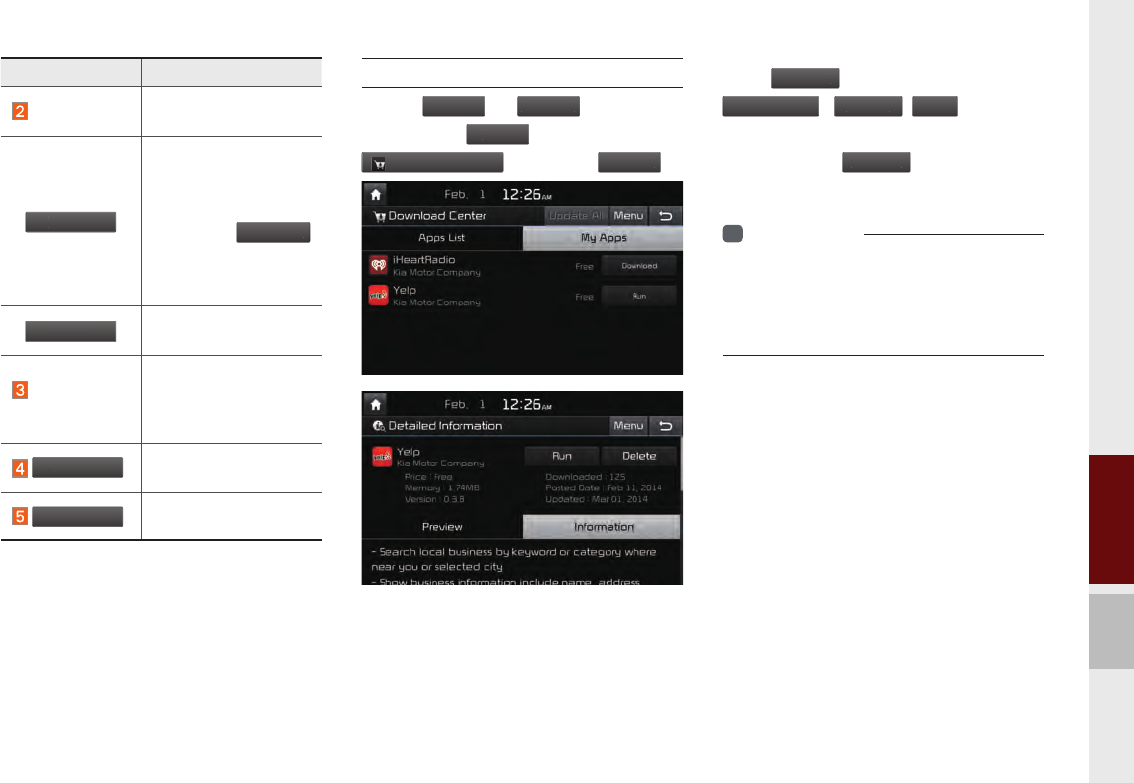

Download Center I 7-7

My Apps

Select

ll Menus

from Home

screen ▶

App

▶ followed by

and then ▶

App

The

App

menu displays the

Upd

options for

downloaded applications.

All functions of

App

are the same as

those in the app list.

Information

• You can update applications already running

only after closing them.

• Details on downloaded apps can be checked

within the Download Center.

Name Description

Menu Updates and refreshes

the menu.

Upd

After installation, it

shows applications

requiring updates.

The update screen

shows the

date

button to update all

applications that need

updates.

res

Refreshes the app list

status.

Detailed

Information

When the application

list area is pressed, it

moves to the Detailed

Information screen.

Displays application

images.

orma

Displays application

information.

K_UM_G4.0[EN]AVN PART 7.indd 7-7K_UM_G4.0[EN]AVN PART 7.indd 7-7 2014-10-02 오후 1:06:402014-10-02 오후 1:06:4

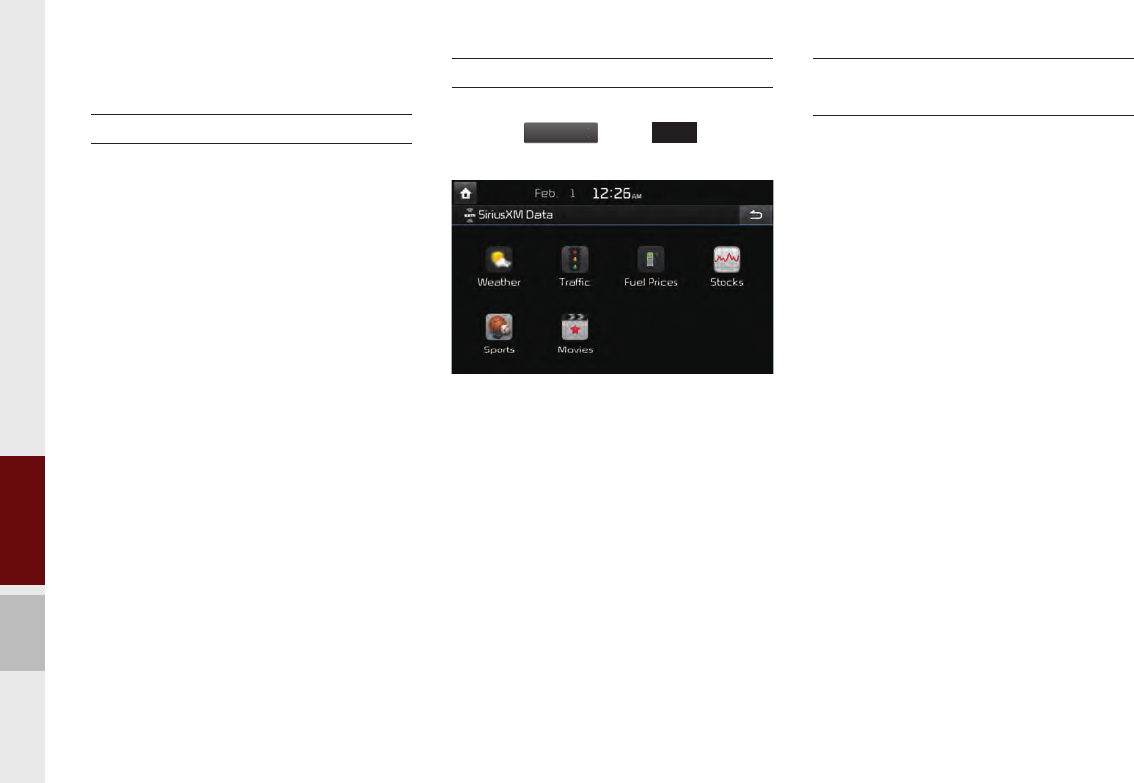

7-8 I Info

SiriusXM™ Data

About SiriusXM™ Data Service

The SiriusXM™ Data Service is a paid

membership Satellite radio service which

provides users with traffic, stock, sports,

and weather information.

However, weather information is not sup-

ported for vehicles purchased in Canada.

Accessing SiriusXM™ Data

Press the “SiriusXM Data” icon after

selecting

ll Menus

or the

INFO

head unit

key to enter the SiriusXM™ Data mode.

SiriusXM™ Weather

Announcement

At the “SiriusXM Data” screen, press

the “Weather” icon to enter the Weather

Announcement mode.

K_UM_G4.0[EN]AVN PART 7.indd 7-8K_UM_G4.0[EN]AVN PART 7.indd 7-8 2014-10-02 오후 1:06:432014-10-02 오후 1:06:4

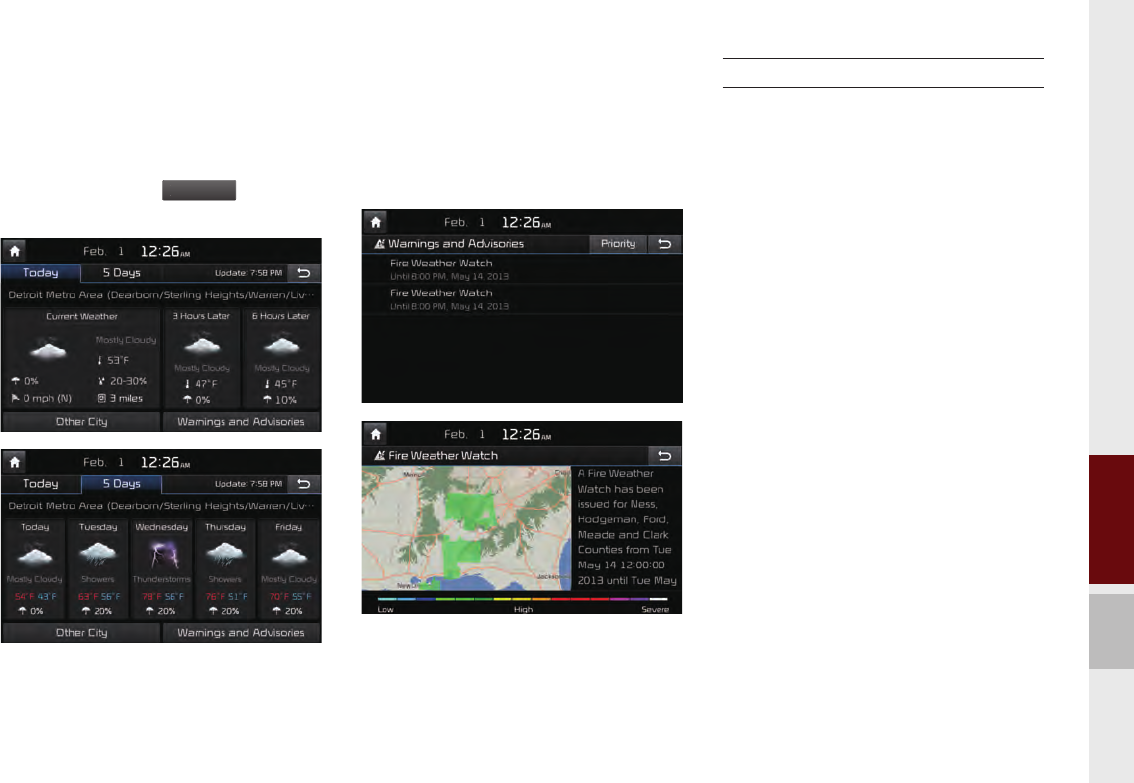

SiriusXM™ Data I 7-9

Weather Forecast

This service provides current weather

information and weather forecasts for the

next five days in your region. To change

the region, press the

ther Cit

button and

select the desired region.

Warnings and Advisories

This service provides weather warn-

ings and advisories, such as tornado,

storm, Floodflood, etc. as symbols on the

Navigation map.

SiriusXM™ Trafﬁ c Information

At the “SiriusXM Data” screen, press

the “Traffic” icon to enter the Traffic

Announcement mode.

K_UM_G4.0[EN]AVN PART 7.indd 7-9K_UM_G4.0[EN]AVN PART 7.indd 7-9 2014-10-02 오후 1:06:442014-10-02 오후 1:06:4

7-10 I Info

SiriusXM™ Fuel Price

Information

At the “SiriusXM Data” screen, press the

“Fuel Prices” icon to enter the Fuel Prices

Information mode.

Search for Nearby Stations, and

Stations

Search for nearby stations with the “Nearby

Stations” menu.

It shows station locations, starting from the

nearest one, and select “Nearest” menu

on the top right side to further sort them

by price or brand name.

Select the

★

button to the right of the

list to register key locations as a Favorite

Station so that you can go there again with

the “Favorite Stations” menu. Select the list

to move to navigation destination select

screen to receive guidance.

K_UM_G4.0[EN]AVN PART 7.indd 7-10K_UM_G4.0[EN]AVN PART 7.indd 7-10 2014-10-02 오후 1:06:462014-10-02 오후 1:06:4

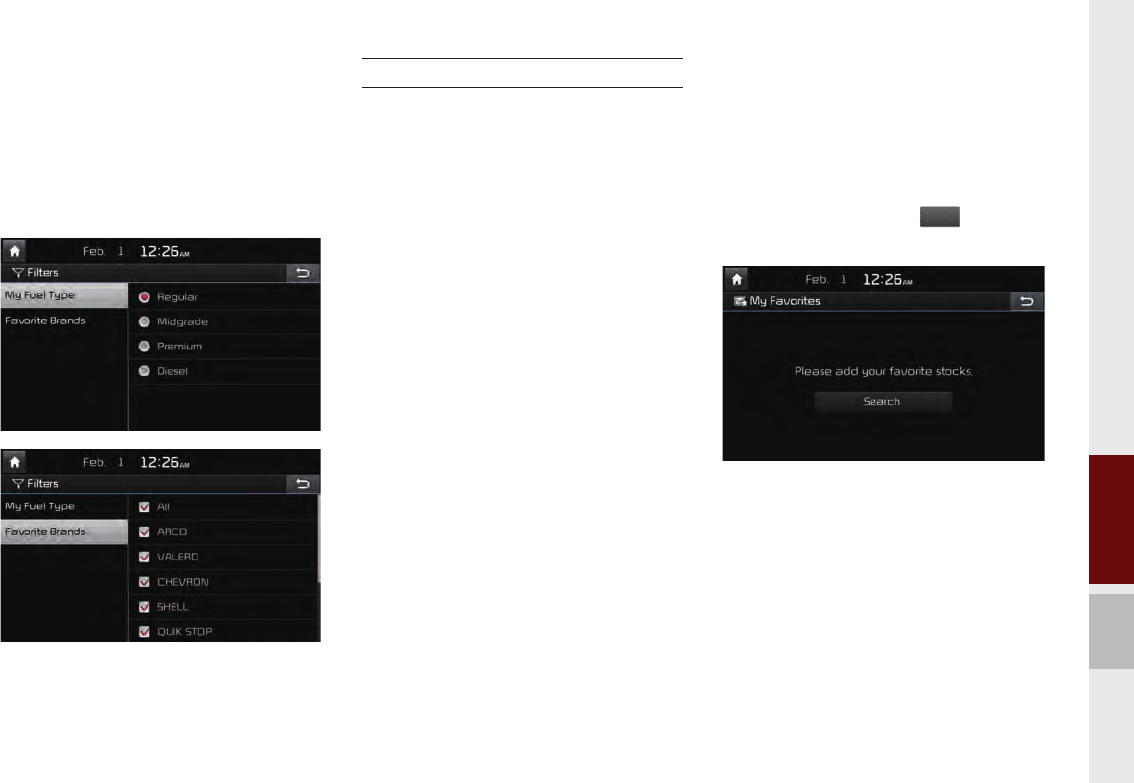

SiriusXM™ Data I 7-11

My Fuel Type Settings

With the “Filters” menu, you can select fuel

types and favorite brands.

When searching for Nearby Stations, the

results will reflect selected fuel types and

brand information.

SiriusXM™ Stock Information

In the “SiriusXM Data” screen, press the

“Stocks” icon to enter the Stocks mode.

Stocks is a feature that shows the current

value and change of stocks.

For symbols which you are interested in,

press the icon to save the symbol as a

part of Saved symbols can be viewed from

the My Favorites button on the Stock Main

screen.

My Favorites

My Favorites shows a list of stocks added

by the user. When entering the Stocks

menu for the first time, a screen is dis-

played for you to add your favorite stock

information. Press the

button to

move to the stock search screen.

K_UM_G4.0[EN]AVN PART 7.indd 7-11K_UM_G4.0[EN]AVN PART 7.indd 7-11 2014-10-02 오후 1:06:482014-10-02 오후 1:06:4

7-12 I Info

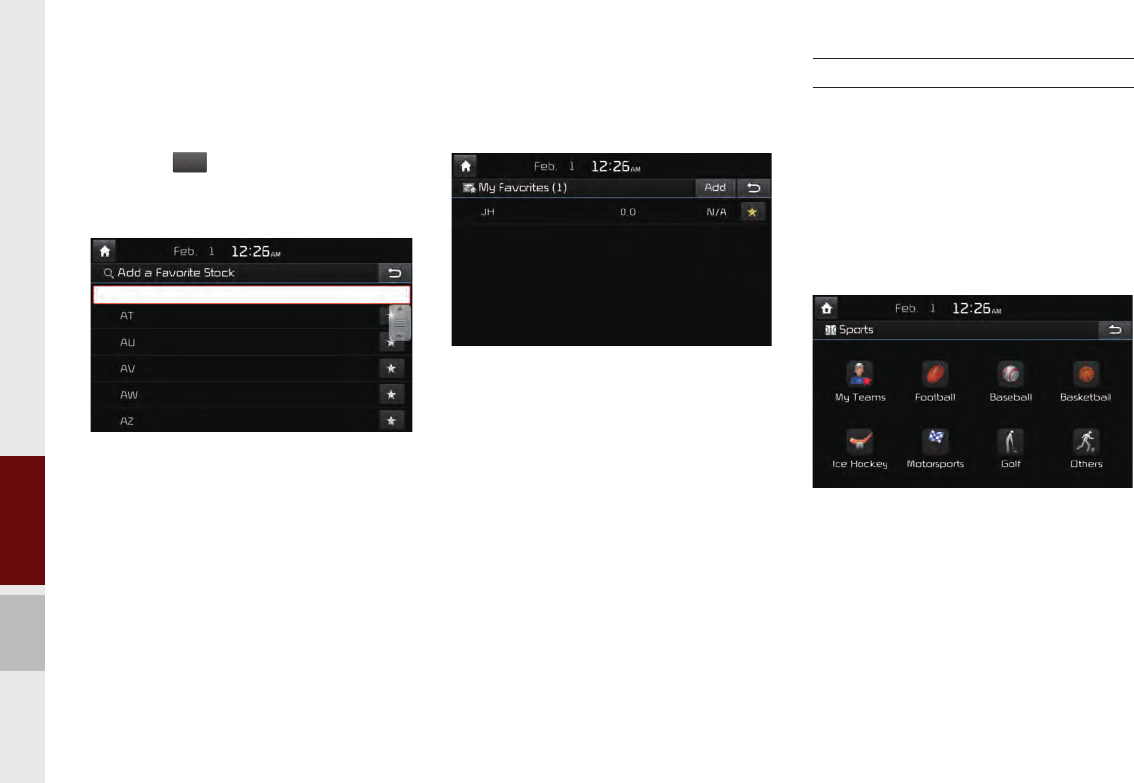

Stock Search

Use the Stock Search menu to search for

specific stocks.

Press the

★

button after searching for

your favorite stocks to save them in “My

Favorite”.

In the My Favorites screen, you can find

the selected stock information that you

registered.

SiriusXM™ Sports Information

Press the “Sports” icon to enter the Sports

mode.

This service provides real-time updated

information on scores and schedules for

major sports, such as NFL, NBA, NCAA

football, NCAA basketball, NHL, MLB,

NASCAR and more.

K_UM_G4.0[EN]AVN PART 7.indd 7-12K_UM_G4.0[EN]AVN PART 7.indd 7-12 2014-10-02 오후 1:06:492014-10-02 오후 1:06:4

SiriusXM™ Data I 7-13

My Teams

You can save teams which you are inter-

ested in as part of My teams to easily view

related scores and schedules.

Select the My Teams menu and then

press the

button to search for and

Search for your favorite teams and press

the

★

button on the right to add it to the

“My Teams” list.

You can always check the list of teams

that you added in the “My Teams” menu.

Press the

★

button on the right side of

the team name to delete the team from “My

Teams” or press the

button to add

other teams.

Press the team name to check daily

results and recent schedules for that team.

K_UM_G4.0[EN]AVN PART 7.indd 7-13K_UM_G4.0[EN]AVN PART 7.indd 7-13 2014-10-02 오후 1:06:512014-10-02 오후 1:06:5

7-14 I Info

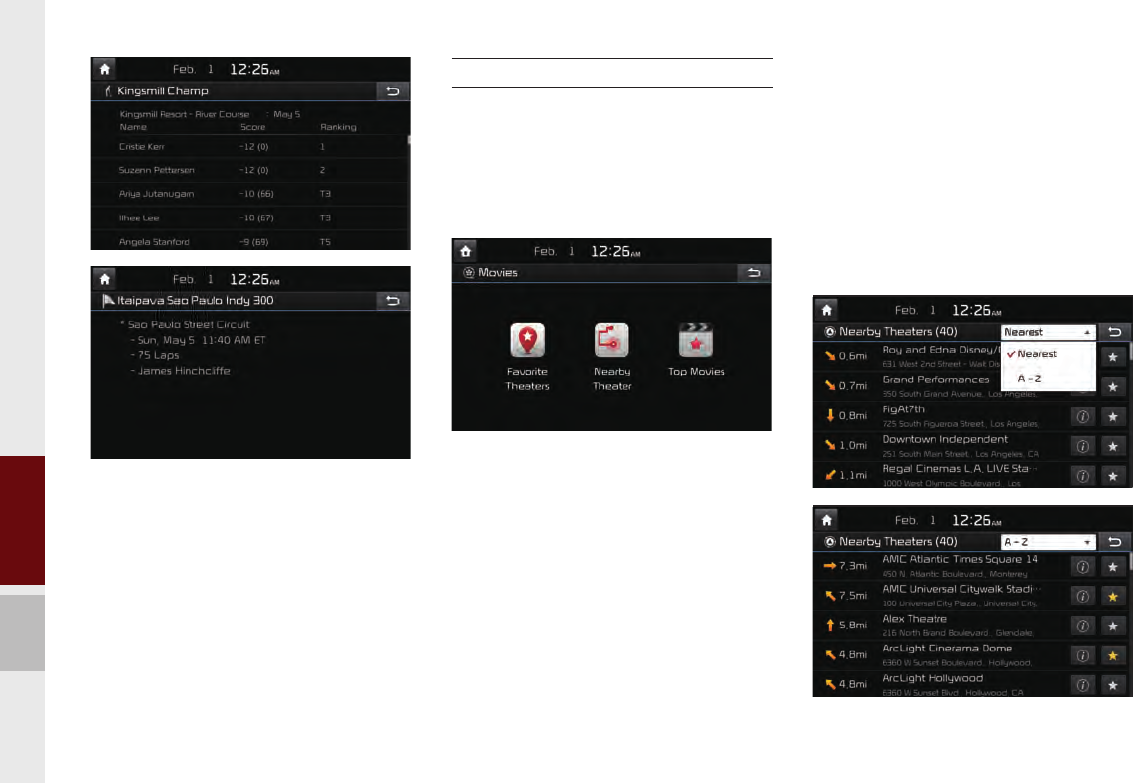

SiriusXM™ Movie Information

Press the “Movies” icon to enter the Movie

mode.

You can check recent movies and nearby

theaters, and also register your favorite

theater locations.

Search for Nearby Theaters, and

Theaters

In the “Nearby Theaters” menu, you can

search for any nearby theaters.

It shows theaters, starting from the nearest

one, and selecting the “Nearest” menu at

the top right side will sort them by name.

K_UM_G4.0[EN]AVN PART 7.indd 7-14K_UM_G4.0[EN]AVN PART 7.indd 7-14 2014-10-02 오후 1:06:542014-10-02 오후 1:06:5

SiriusXM™ Data I 7-15

Select the

★

button to the right of the

list to register your favorite theater so that

you can always check it again using the

“Favorite Theaters” menu and selecting

the button to view the current movie

information for that theater.

Select from the list to move to the select

navigation destination screen and receive

directions.

In the “Top Movies” menu, you can check

for any movies that are currently popular.

Press button to the right of a movie

title to view the plot summary and any

other detailed information.

K_UM_G4.0[EN]AVN PART 7.indd 7-15K_UM_G4.0[EN]AVN PART 7.indd 7-15 2014-10-02 오후 1:06:572014-10-02 오후 1:06:5

7-16 I Info

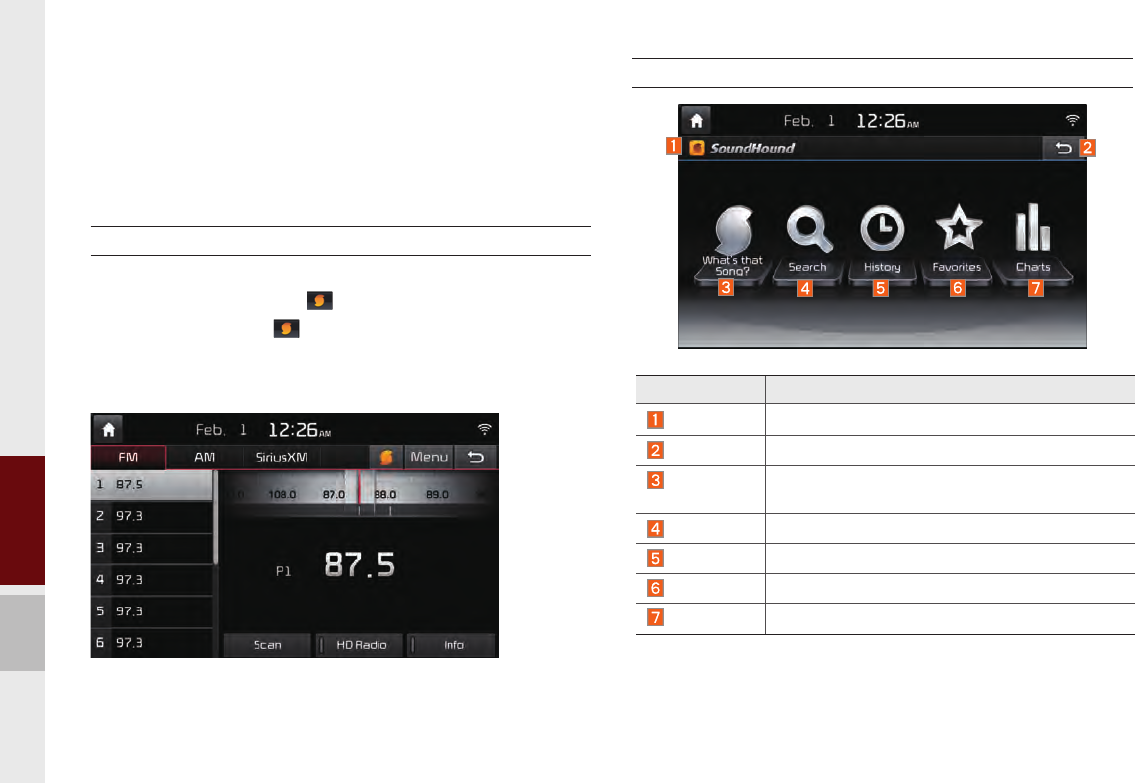

SoundHound

SoundHound is a music search engine. It enables users to identify

music by playing or singing a song. It is also possible to search by

typing the name of the artist, song, album or lyrics.

Accessing SoundHound

1. From the Home screen, select All Menus, My Menu or Apps

then select SoundHound button.

2. Select SoundHound button on Radio modes (AM, FM and

SiriusXM) or Media modes (CD, Bluetooth Audio, iPod, USB,

My Music and AUX).

SoundHound Main Screen

Name Description

Mode Displays current operating mode.

Back button Goes back to previous mode.

What’s that

Song?

Starts the song recognition process. After this pro-

cess is complete, it goes to Song screen.

Search Goes to Search screen.

History Goes to History screen.

Favorites Goes to Favorites screen.

Charts Goes to Charts screen.

K_UM_G4.0[EN]AVN PART 7.indd 7-16K_UM_G4.0[EN]AVN PART 7.indd 7-16 2014-10-02 오후 1:06:592014-10-02 오후 1:06:5

SoundHound I 7-17

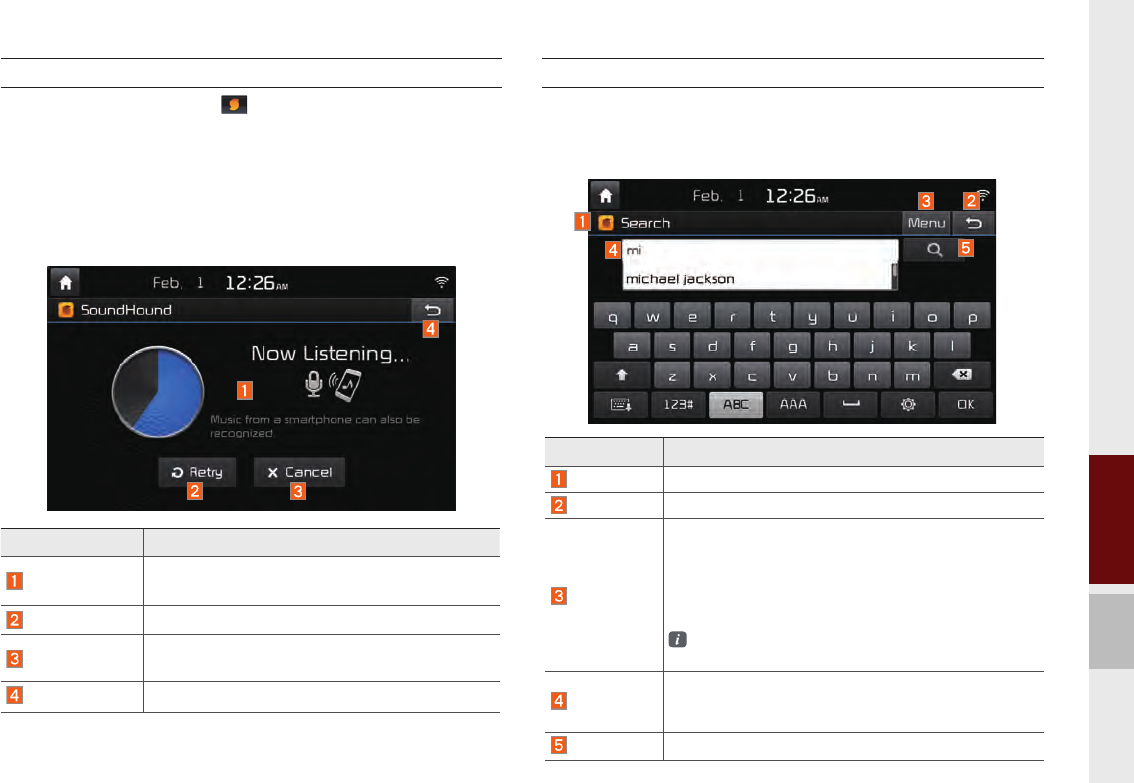

Recognizing Music

After selecting SoundHound button, the song recognition pro-

cess is activated, the system will match current playing song with

the SoundHound music database.

Music from Smartphones and MP3 players that are not connected

to head unit can also be recognized.

Searching Music

Music can also be searched by selecting the Search option in

SoundHound main screen and typing a song, artist, album or lyr-

ics into the search field.

Name Description

Search Displays current operating mode.

Back button Goes back to SoundHound main screen.

Displays menu options:

Home: Goes back to SoundHound main screen.

History: Goes to History screen.

Favorites: Goes to Favorites screen.

Exit: Exits SoundHound application and goes back to

previous media mode.

Delete option is available in Favorites and History

screens.

Search field Displays search field. Once text is typed, recommended

song, artist, album or lyrics information that might match

the search criteria is displayed in the scroll menu.

Search icon Starts the searching process.

Name Description

Now listening… Message displayed while SoundHound is pro-

cessing the music.

Retry Starts over the song recognition process.

Cancel Cancels song recognition process and Exits

SoundHound.

Back button Goes back to previous screen.

K_UM_G4.0[EN]AVN PART 7.indd 7-17K_UM_G4.0[EN]AVN PART 7.indd 7-17 2014-10-02 오후 1:07:052014-10-02 오후 1:07:0

7-18 I Info

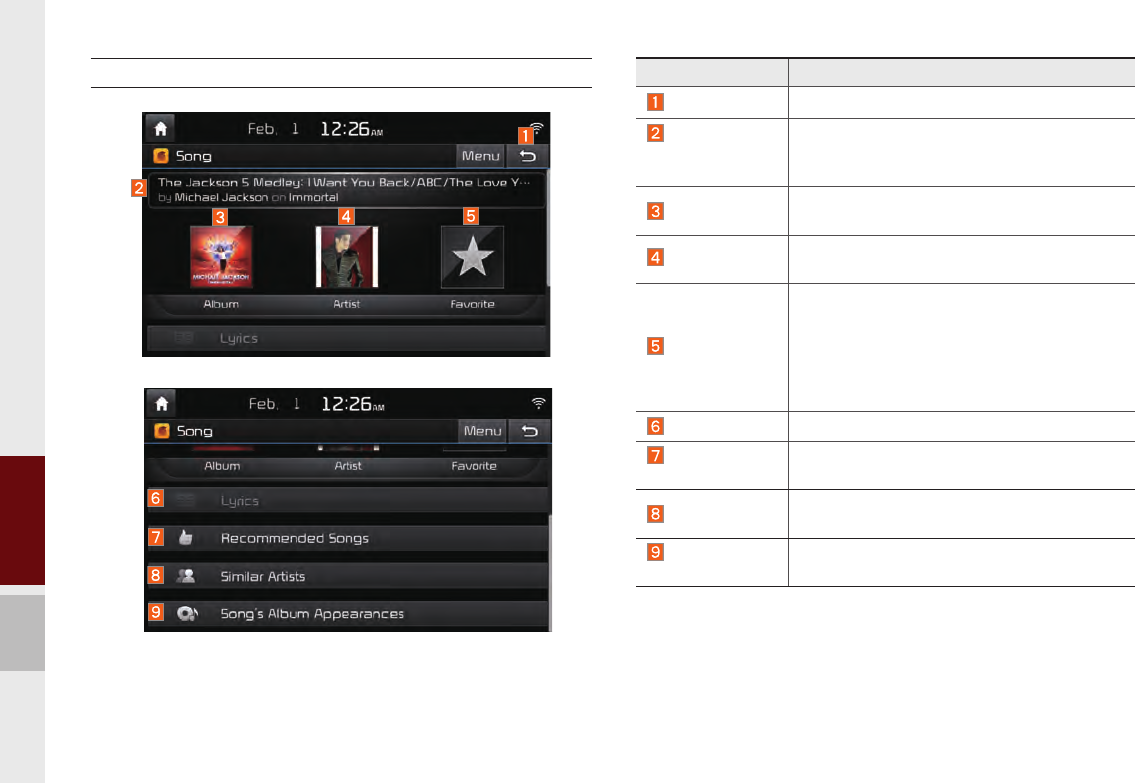

Song Main Screen

Name Description

Back button Goes back to previous screen.

Song, Artist

and Album

information

Displays song, artist and album information of

currently playing song.

Album Image If album image is selected, album artwork

screen is displayed.

Artist Image If artist image is selected, artist image screen

is displayed.

Favorite

It saves current playing song into Favorites

by tapping on the star icon. Star icon will be

highlighted when song has been saved into

Favorites. To delete song from Favorites, select

the star icon again or go to Favorites menu

screen.

Lyrics Displays current playing song’s lyrics.

Recommended

Songs

Displays a list of recommended songs by

SoundHound.

Similar Artists Displays list of similar artists to currently play-

ing artist.

Song’s Album

Appearances

Displays list of albums on which currently play-

ing song appears.

K_UM_G4.0[EN]AVN PART 7.indd 7-18K_UM_G4.0[EN]AVN PART 7.indd 7-18 2014-10-02 오후 1:07:122014-10-02 오후 1:07:1

Climate Mode

Camera (Optional)

part.8 Other Features

K_UM_G4.0[EN]AVN PART 8.indd 8-1K_UM_G4.0[EN]AVN PART 8.indd 8-1 2014-10-02 오후 1:15:222014-10-02 오후 1:15:2

8-2 I Other Features

Other Features

Climate Mode

Operating Climate Mode

Press the

CLIMATE

key for the climate system to see status infor-

mation in the full screen display.

While multimedia or navigation is in use, the climate system infor-

mation will be displayed over top when you control the tempera-

ture (TEMP) or turn on the air conditioner (A/C).

Basic Mode Screen

Name Description

Set the temperature

of the driver's seat

and passenger

seats

Displays the configured temperature set-

tings for the driver's seat and the passenger

seats. Cooling or heating will continue until

the temperature matches the configured

temperature settings.

The internal temperaure can be con-

trolled in increments of 1°F within a range

of 63°F to 89°F.

LOW is displayed when the tempera-

ture is set to anything below 63°F, and

HIGH is displayed when it is set to

anything above 89°F.

Air direction Displays the configured air direction set-

tings.

Air volume Displays the configured air volume settings

Cooling/

heating control

status (AUTO)

Displayed when the

AUTO

key is pressed

and cooling/heating operates automatically

according to the configured temperature set-

tings

AUTO will be turned off when you try to

do the following with AUTO on:

- Control the air volume

- Control the air direction

- Turn the air conditioning (A/C) on/off

- Turn on the moisture removal function

for the windshield

Air conditioning

control status

Displayed when the

A/C

key is pressed

and the air conditioning starts cooling/heat-

ing.

K_UM_G4.0[EN]AVN PART 8.indd 8-2K_UM_G4.0[EN]AVN PART 8.indd 8-2 2014-10-02 오후 1:15:252014-10-02 오후 1:15:2

Climate Mode I 8-3

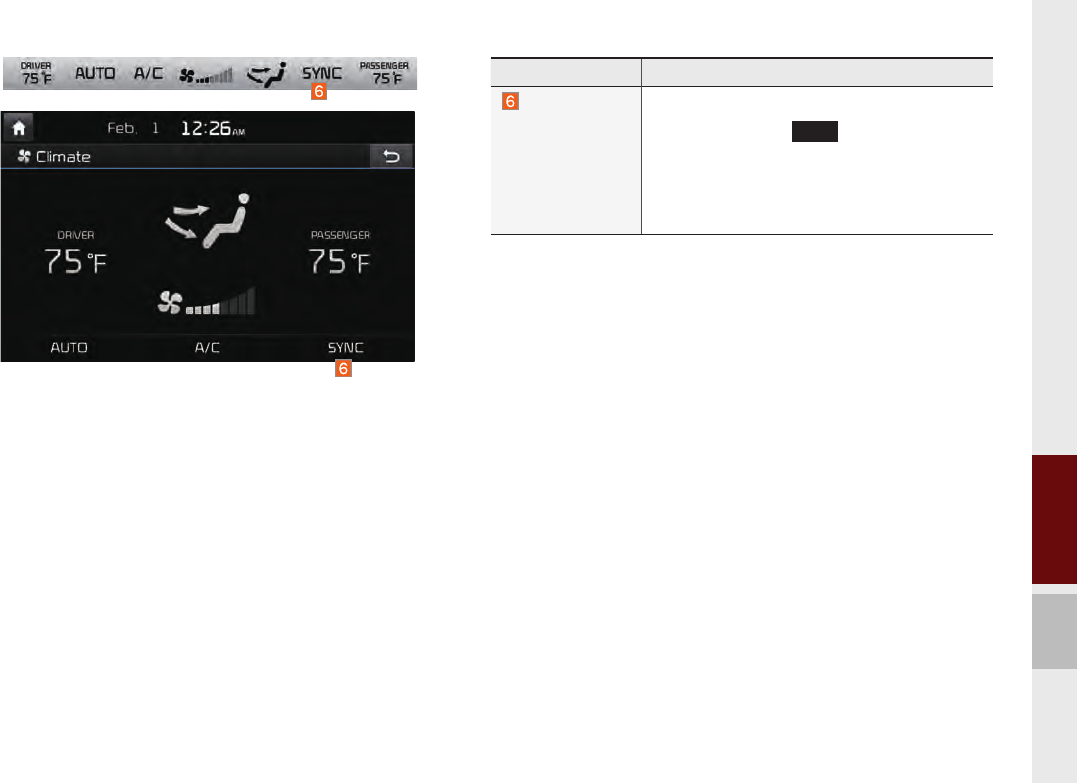

Name Description

Simultaneous

temperature

settings for the

driver's seat

and the

passenger

seats (SYNC)

Displayed when the

SYNC

key is pressed

and the temperatures of the driver's seat and

the passenger seats can be configured at the

same time.

K_UM_G4.0[EN]AVN PART 8.indd 8-3K_UM_G4.0[EN]AVN PART 8.indd 8-3 2014-10-02 오후 1:15:322014-10-02 오후 1:15:3

8-4 I Other Features

Camera (Optional)

About Rear Detection Camera

•This device is connected to a rear

detection camera to see behind the car

for safe reversing.

•When the engine starts, shift the gear to

"R" to activate the rear detection cam-

era.

•Shift the gear to another position to

deactivate the rear detection camera.

Information

• While the device boots up, shift the gear to

"R" to activate the rear detection cameras.

• A separate chipset is used for the camera

screen while booting up, so it may be different

after booting up.

• When booted up, blinking may occur when

you switch to a UI screen.

CAUTION

• A wide-angle lens is installed as the rear

detection camera to get a wider view, so

there may be some difference between the

actual distance and the distance that appears

on-screen. For safety, make sure to view

the back, right, and left sides of the car for

yourself.

AVM (Around View Monitor)

With the power on, the AVM is connected

to the AVM camera to see the front, rear,

and back of the car when driving at low

speeds (10km/h or less). It is optional.

•The AVM-camera front detection mode

will be activated when driving at low

speeds (10km/h or less). When the car

drives over 10km/h, the AVM camera

screen is disabled.

•When the key is pressed and

the gear is in a position other than P or

R while the engine is running, the AVM

camera automatically starts when the

car accelerates.

•Shift gears to P or R and turn off the

key to disable the front detec-

tion camera screen.

•The rear detection mode of the AVM

camera is activated with the gear is

positioned to R.

K_UM_G4.0[EN]AVN PART 8.indd 8-4K_UM_G4.0[EN]AVN PART 8.indd 8-4 2014-10-02 오후 1:15:362014-10-02 오후 1:15:3

Camera (Optional) I 8-5

Front AVM

Select the key after starting the

engine.

If the gear is in a position other than P or

R, it automatically switches to the front

detection AVM camera mode when the

car accelerates.

Name Description

AVM Displays all of the images

around the car.

Front Displays the front image.

Front left Displays the front-left

image.

Front right Displays the front-right

image.

Settings Displays the Parki ng

Guidance Settings screen.

Rear AVM

If the gear is positioned to R, the rear AVM

camera is automatically switched to the

operational mode.

Name Description

AVM Displays all of the images

around the car.

Rear Displays the rear image.

Rear left Displays the rear-left

image.

Rear right Displays the rear-right


Settings Displays the Parking

Guidance Settings screen.

K_UM_G4.0[EN]AVN PART 8.indd 8-5K_UM_G4.0[EN]AVN PART 8.indd 8-5 2014-10-02 오후 1:15:382014-10-02 오후 1:15:3

8-6 I Other Features

Parking Guidance Settings

Name Description

Display

Guidelines

Guidelines are displayed

in the Rear View Camera

screen, as shown below.

F/R

Proximity

Warnings

Provides a warning

when an object is in

close proximity to the

front or rear of the vehi-

cle.

Front View

Mode

Displaying the front

AVM, select the basic

display mode of the

camera screen. (AVM,

Front left, Front right,

and Front.)

Rear View

Mode

Displaying the rear AVM,

select the basic display

mode of the camera

screen. (AVM, Rear left,

Rear right, and Rear.)

CAUTION

• A wide-angle lens is installed for the front

detection camera to get a wider view, so

there may be some difference between the

actual distance and the distance that appears

onscreen. For safety, make sure to check the

front, right, and left sides for yourself.

K_UM_G4.0[EN]AVN PART 8.indd 8-6K_UM_G4.0[EN]AVN PART 8.indd 8-6 2014-10-02 오후 1:15:482014-10-02 오후 1:15:4

part.9 Setup

Setup

Navigation Settings

Sound Settings

Display Settings

Phone Settings

UVO eServices Settings

Voice Recognition Settings

Clock Settings

Wi-Fi Settings

Language Settings

Keyboard Settings

Downloaded Apps Settings

Screen Saver Settings

System Info

K_UM_G4.0[EN]AVN PART 9.indd 9-1K_UM_G4.0[EN]AVN PART 9.indd 9-1 2014-10-02 오후 1:20:482014-10-02 오후 1:20:4

9-2 I Setup

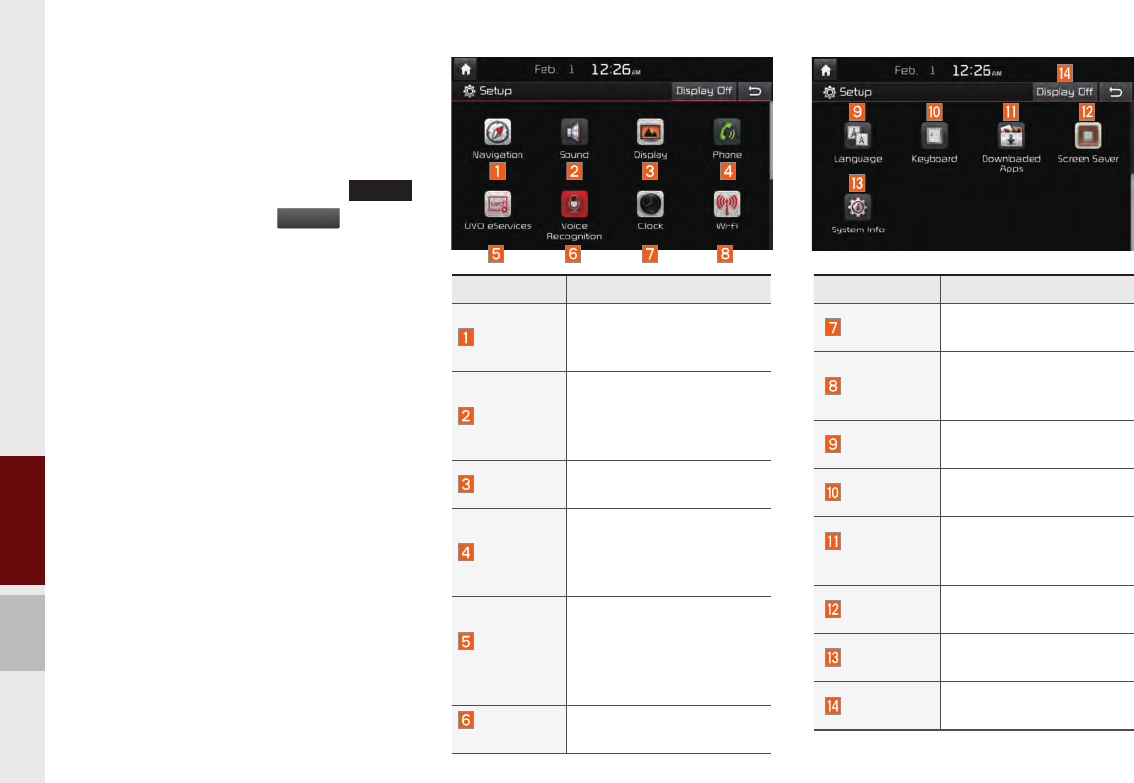

Setup

Setup is the screen to control system set-

tings of the AVN.

To enter the screen, select the

SETUP

key of the device or the

button in

All Menus.

Features Description

Navigation

Provides Normal/Screen/

Guidance/Route/Safety

Setting.

Sound

Provides the sound

control options for Position,

Bass, Mid, Treble, Volume,

Ratio and Advanced settings.

Display Provides the Adjust/Mode

settings.

Phone

Provides the Bluetooth

Connection/Auto Connection

Priority/Ringtone/System

Bluetooth Information settings.

UVO

eServices

Provides the 911 Connect/

Parking Minder/My Car

Zone/ Scheduled

Diagnostics/Trip Info Sync

Reminder Settings.

Voice

Recognition

Provides the Guidance and

Priority settings.

Features Description

Clock Provides the Time and

View settings.

Wi-Fi

Provides the Wi-Fi On

and Network Connection

settings.

Language Provides the Change

Language settings.

Keyboard Provides settings to

switch keyboard layouts.

Downloaded

Apps

Provides the removal

settings for downloaded

and installed apps.

Screen Saver Provides the Clock/

None settings.

System Info Provides software and

storage space information.

Display Off Provides the Display Off

(touch activation) function.

K_UM_G4.0[EN]AVN PART 9.indd 9-2K_UM_G4.0[EN]AVN PART 9.indd 9-2 2014-10-02 오후 1:20:502014-10-02 오후 1:20:5

Setup I 9-3

Navigation Settings

For more details, refer to part 5. Navigation

Settings.

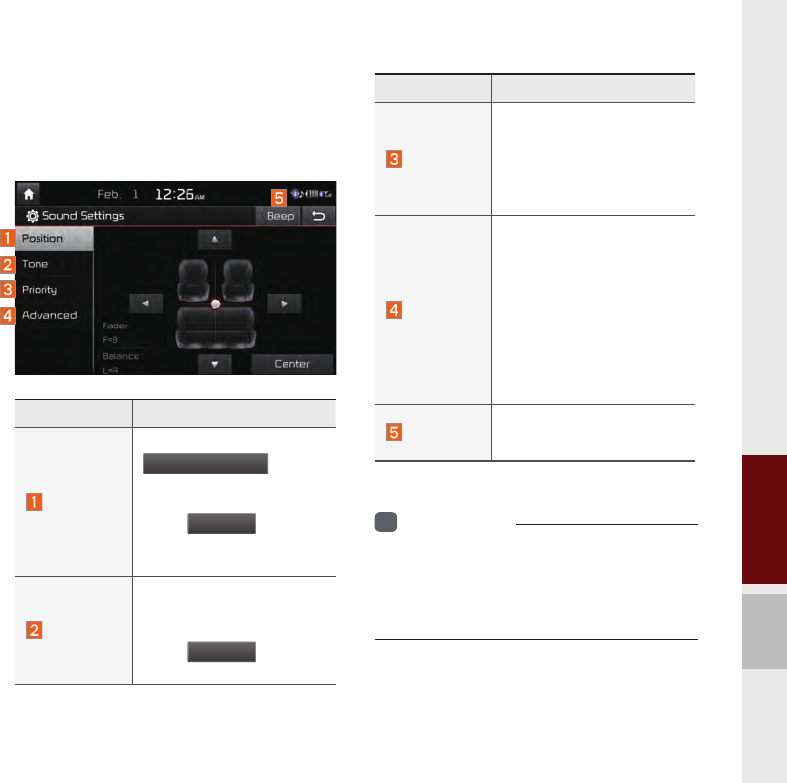

Sound Settings

Adjusts the sound effects for the whole

system.

Features Description

Position

Select the

/Down/Left/Ri

button

to control sound position-

ing.

Press

to con-

centrate the sound on the

center of vehicle.

Tone

Drag the slide bar to

control bass/mid/treble

settings.

Press

to initial-

ize the settings.

Features Description

Priority

You can adjust the volume

ratio between navigation

announcements and reg-

ular audio.

Advanced

Select additional audio

options such as “Speed

Dependent Volume

Control” that automatically

controls Audio volume

according to vehicle speed

as well as “Variable EQ”,

“Surround”, and “Quantum

Logic Surround”.

Beep Select to activate a beep

when pressing buttons.

Information

• Advanced sound settings may differ

according to selected AMP option.

• The seat shape may differ according to

vehicle model.

K_UM_G4.0[EN]AVN PART 9.indd 9-3K_UM_G4.0[EN]AVN PART 9.indd 9-3 2014-10-02 오후 1:21:062014-10-02 오후 1:21:0

9-4 I Setup

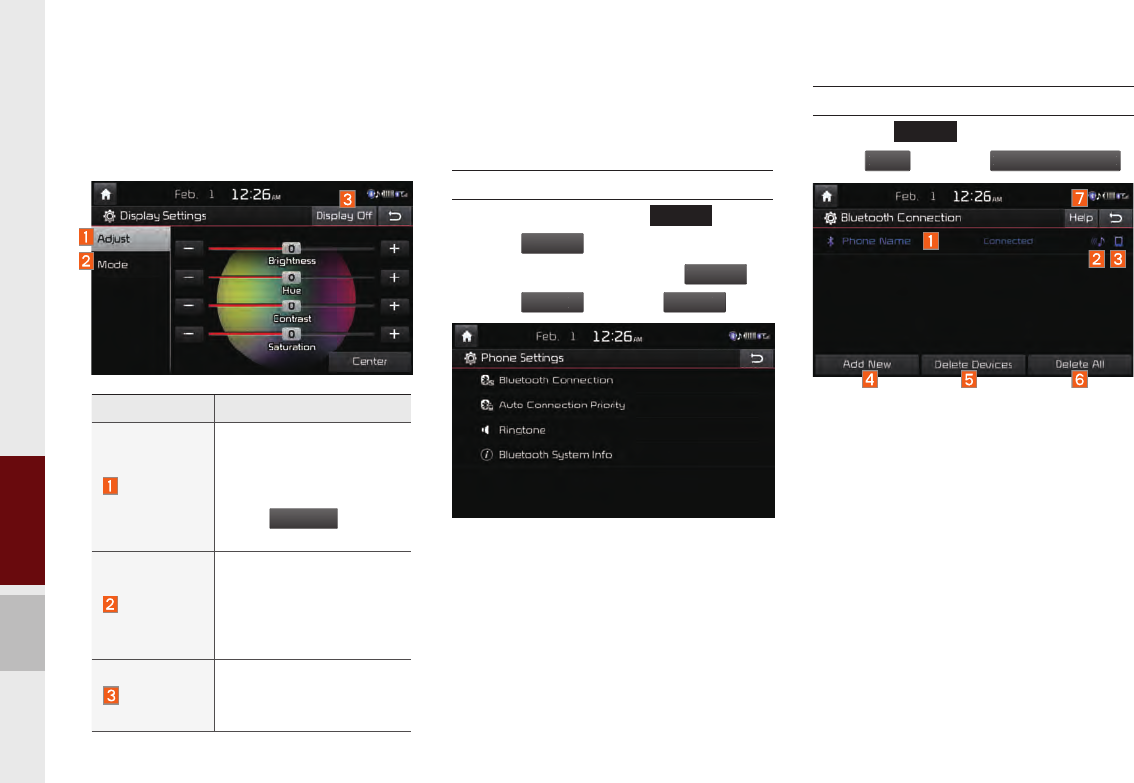

Display Settings

Controls the display brightness and image

rate for the whole system.

Phone Settings

Changes Bluetooth phone settings.

Phone Settings

•Select the head unit

SETUP

key ▶

Select

one

•Home screen ▶ Select

ll Menus

▶

Select

▶ Select

one

Bluetooth® Connection Settings

Select the

SETUP

key in the head unit ▶

Select

one

▶ Select

onnec

Features Description

Adjust

Drag the slide bar to

control the Brightness/

Hue/Contrast/Saturation

settings.

Press

to initial-

ize the settings.

Mode

You can select Daylight/

Night/Automatic options

for the display bright-

ness according to mode

changes.

Display Off

Provides the Display off

(touch activation) function.

K_UM_G4.0[EN]AVN PART 9.indd 9-4K_UM_G4.0[EN]AVN PART 9.indd 9-4 2014-10-02 오후 1:21:122014-10-02 오후 1:21:1

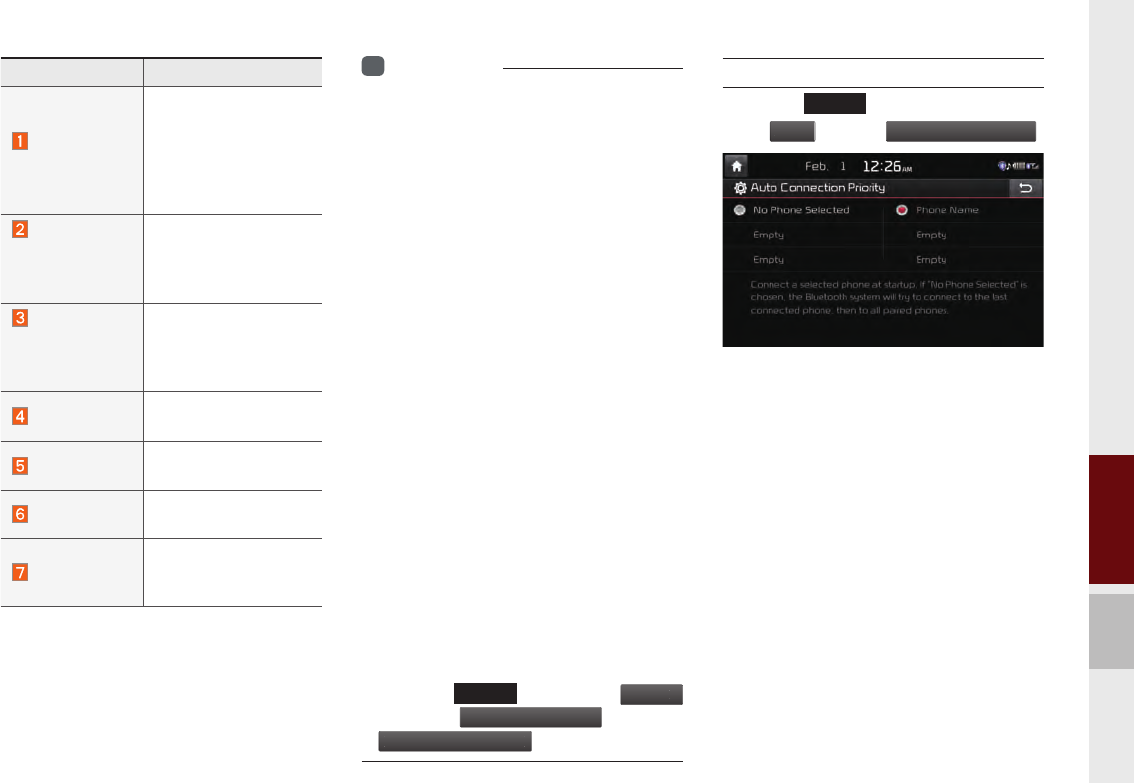

Setup I 9-5

Features Description

Paired Device

List

Displays the paired

Bluetooth device list.

When selecting from

the list, the device is

connected or discon-

nected.

Bluetooth

Audio

Connection

Status

An icon appears when

you make a Bluetooth

Audio connection.

Bluetooth

Hands-Free

Connection

Status

An icon appears when

you make a Bluetooth

hands-free connec-

tion.

Add New Register a new

Bluetooth device.

Delete Devices Select and delete a

paired device.

Delete All Delete all paired

devices.

Help

Switches to the

Bluetooth Connection

Help screen.

Information

• Up to 5 Bluetooth devices can be paired.

• Only one Bluetooth device can be

connected at a time.

• During a Bluetooth device connection,

another device cannot be paired.

• When you delete a paired device, the Call

History and Contacts stored in the head unit

are also completely deleted.

• Bluetooth Hands-free and Bluetooth Audio

functions are supported.

• Hands-free and audio-supported devices,

such as a Bluetooth smartphone or audio,

will function normally.

• When a Bluetooth device is connected, if

the Bluetooth connection is unexpectedly

disconnected, due to being out of

communication range, the device powering

off, or a Bluetooth communication error, the

Bluetooth device automatically searches for

and connects to nearby Bluetooth devices.

• If the system is not stable, due to a vehicle-

Bluetooth device communication error,

restore the Default Factory Settings.

• For Default Factory Settings, the bluetooth

settings are reset to factory settings

• Select the

SETUP

key ▶ Select

one

▶Select

tti

Auto Connection Priority

Select the

SETUP

key in the head unit ▶

Select

one

▶ Select

uto Connection Priorit

When the engine is running, the selected

Bluetooth device is automatically con-

nected. If you fail to connect the selected

device, the previously-connected device is

automatically connected, and if it also fails,

then it tries to connect all paired devices

sequentially.

Depending on auto connection priority,

connection to a device may take time.

K_UM_G4.0[EN]AVN PART 9.indd 9-5K_UM_G4.0[EN]AVN PART 9.indd 9-5 2014-10-02 오후 1:21:202014-10-02 오후 1:21:2

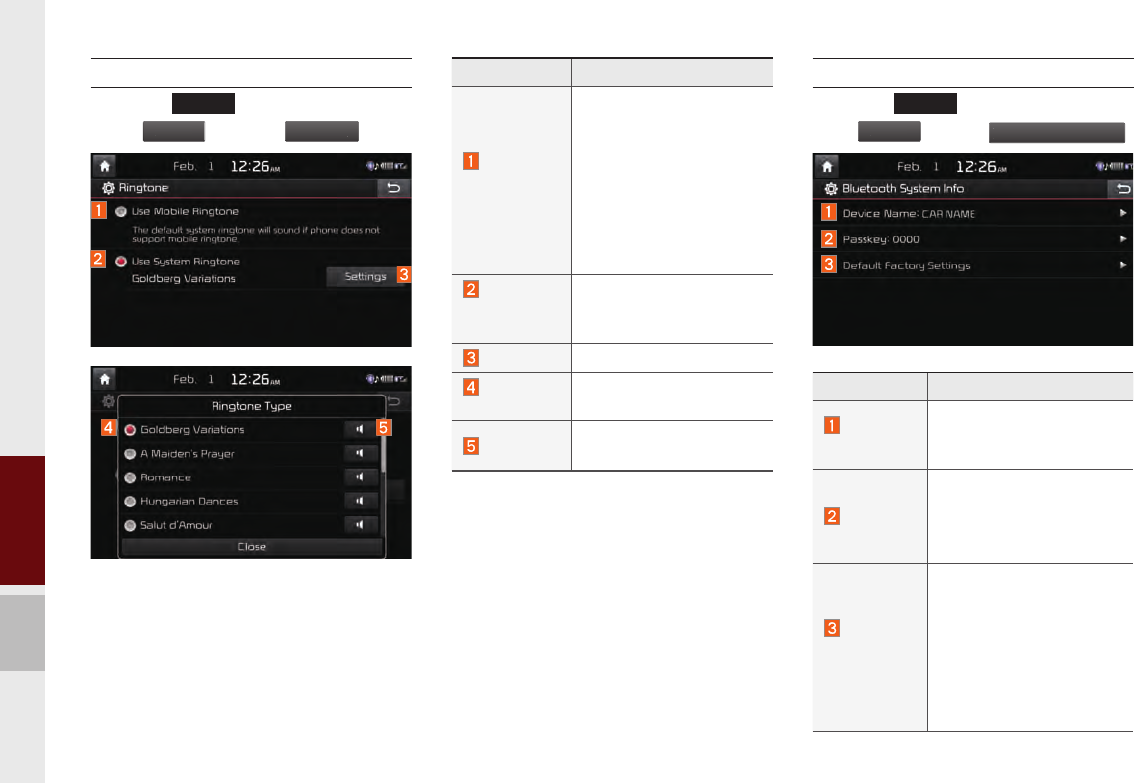

9-6 I Setup

Ringtone

Select the

SETUP

key in the head unit ▶

Select

one

▶ Select

one

Features Description

Use

Mobile

Ringtone

The configured mobile

ringtone comes out

through the vehicle

speakers when you

receive a call. When a

mobile device doesn’t

support it, the basic ring-

tone of the vehicle will be

used.

Use

System

Ringtone

The system ringtone will

be used.

Settings Changes the ringtone.

Ringtone

Type

Selects a ringtone by

name.

Preview Previews the available

ringtones.

System Bluetooth® Information

Select the

SETUP

key in the head unit ▶

Select

one

▶ Select

Features Description

Device

Name

You can change the

Bluetooth device name of

the vehicle.

Passkey

You can change the pass-

key used for Bluetooth

device authentication. the

initial passkey is 0000.

Default

Factory

Settings

You can delete all paired

devices and restore

the Default Bluetooth

Settings. For Default

Factory Settings, all paired

devices are deleted, and

the system is reset to fac-

tory settings.

K_UM_G4.0[EN]AVN PART 9.indd 9-6K_UM_G4.0[EN]AVN PART 9.indd 9-6 2014-10-02 오후 1:21:242014-10-02 오후 1:21:2

Setup I 9-7

Information

• The device name above is an example. Check

the actual information on the product.

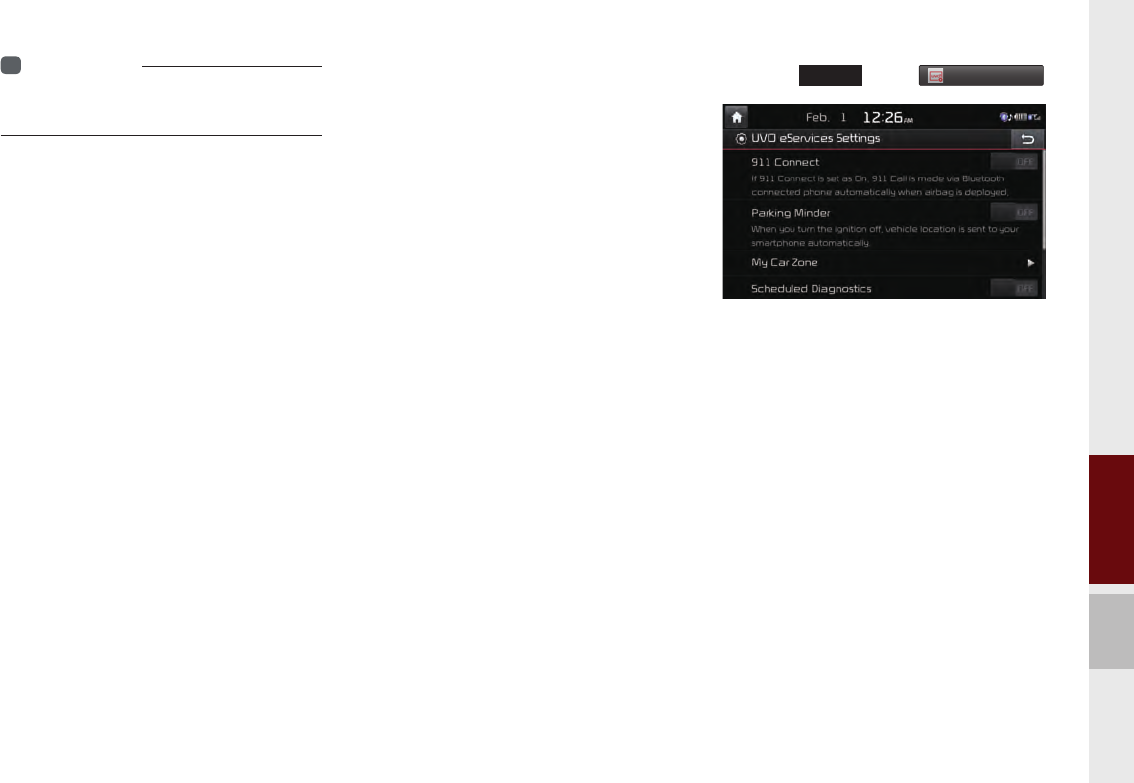

UVO eServices Settings

Within the eServices Settings screen,

UVO eServices related features can be set,

such as activating 911 Connect, Parking

Minder and setting the My Car Zone.

For safety reasons, My Car Zone Settings

can not be adjusted while driving. Park

the vehicle before making any changes to

your settings.

Press the

SETUP

key ▶

UVO eServices

K_UM_G4.0[EN]AVN PART 9.indd 9-7K_UM_G4.0[EN]AVN PART 9.indd 9-7 2014-10-02 오후 1:21:342014-10-02 오후 1:21:3

9-8 I Setup

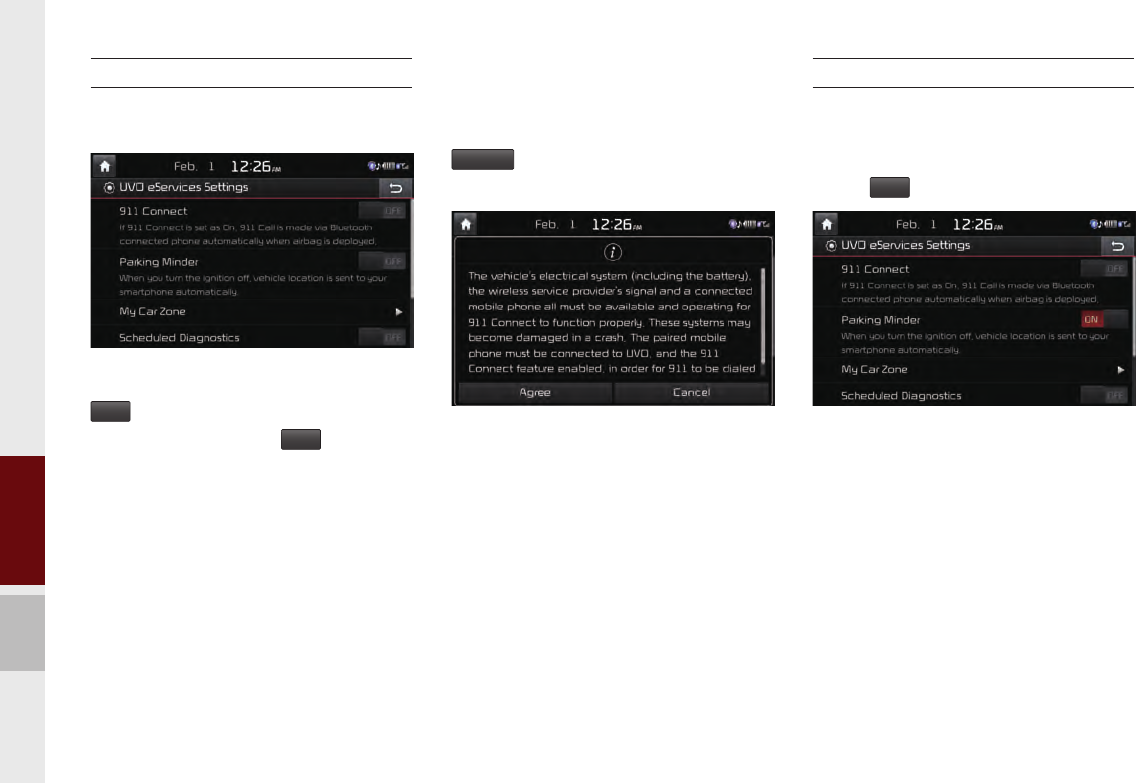

911 Connect

This feature is used to used to turn on or

off the 911 Connect feature.

To enable 911 Connect, ensure that the

button is selected. To disable this

feature, ensure the

OFF

button is

selected.

When enabing this feature, you must first

agree to the 911 Connect tems of use.

After reading the tems of use, press the

Agree

button on the touch screen to

accept.

Parking Minder

If you want to send vehicle location to your

smartphone automatically when you turn

the ignition off, turn the Parking Minder

feature

K_UM_G4.0[EN]AVN PART 9.indd 9-8K_UM_G4.0[EN]AVN PART 9.indd 9-8 2014-10-02 오후 1:21:352014-10-02 오후 1:21:3

Setup I 9-9

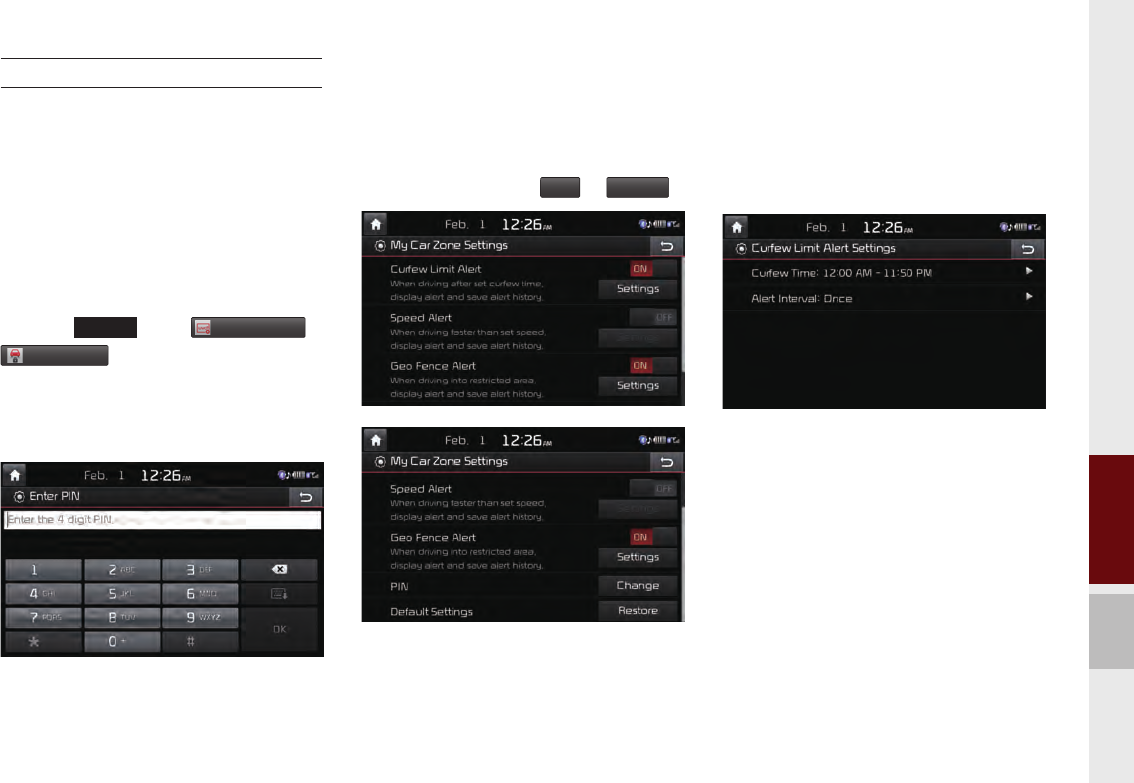

My Car Zone

This feature is used to set My Car Zone

(Curfew Limit, Speed, Geo Fence) alert

conditions.

My Car Zone Settings is unavailable when

UVO eServices has not been activated or

GPS signals cannot be received.

Press the

SETUP

key ▶

UVO eServices

▶

My Car Zone

The PIN must be entered to use My Car

Zone Settings.

This screen is used to turn Curfew Limit,

Speed, and Geo Fence Alert features On/

Off.

Set the alert conditions

▶

Settings

Curfew Limit Alert Settings

Within Curfew Limit Alert Settings, you can

set the Curfew Limit Alert Start and End

Time. You can also set the Alert Interval of

alerts upon Curfew Limit.

K_UM_G4.0[EN]AVN PART 9.indd 9-9K_UM_G4.0[EN]AVN PART 9.indd 9-9 2014-10-02 오후 1:21:352014-10-02 오후 1:21:3

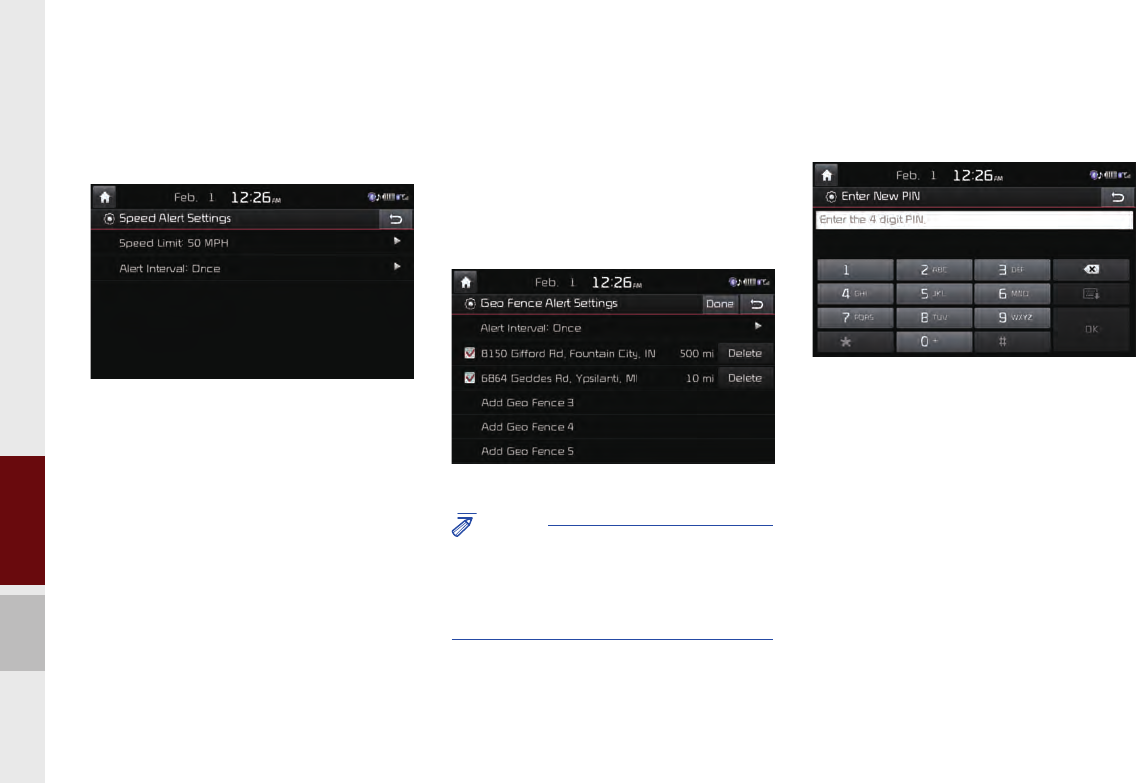

9-10 I Setup

Speed Alert Settings

Within Speed Alert Settings, you can set

the vehicle speed limit and Alert Interval of

alerts upon overspeeding.

Geo Fence Alert Settings

Within Geo Fence Alert Settings, you can

set entry-restricted areas. Press Add Geo

Fence and set the center point and radius

of the desired Geo Fence on the Map

screen. You can also set the Alert Interval

of alerts upon Geo Fence alerts.

NOTICE

• Geo Fence Alert cannot be set if there is no

SD card with Maps. At least one Geo Fence

must be added to turn on Geo Fence Alert

Settings.

This feature is used to change the PIN to

enter My Car Zone Settings.

K_UM_G4.0[EN]AVN PART 9.indd 9-10K_UM_G4.0[EN]AVN PART 9.indd 9-10 2014-10-02 오후 1:21:362014-10-02 오후 1:21:3

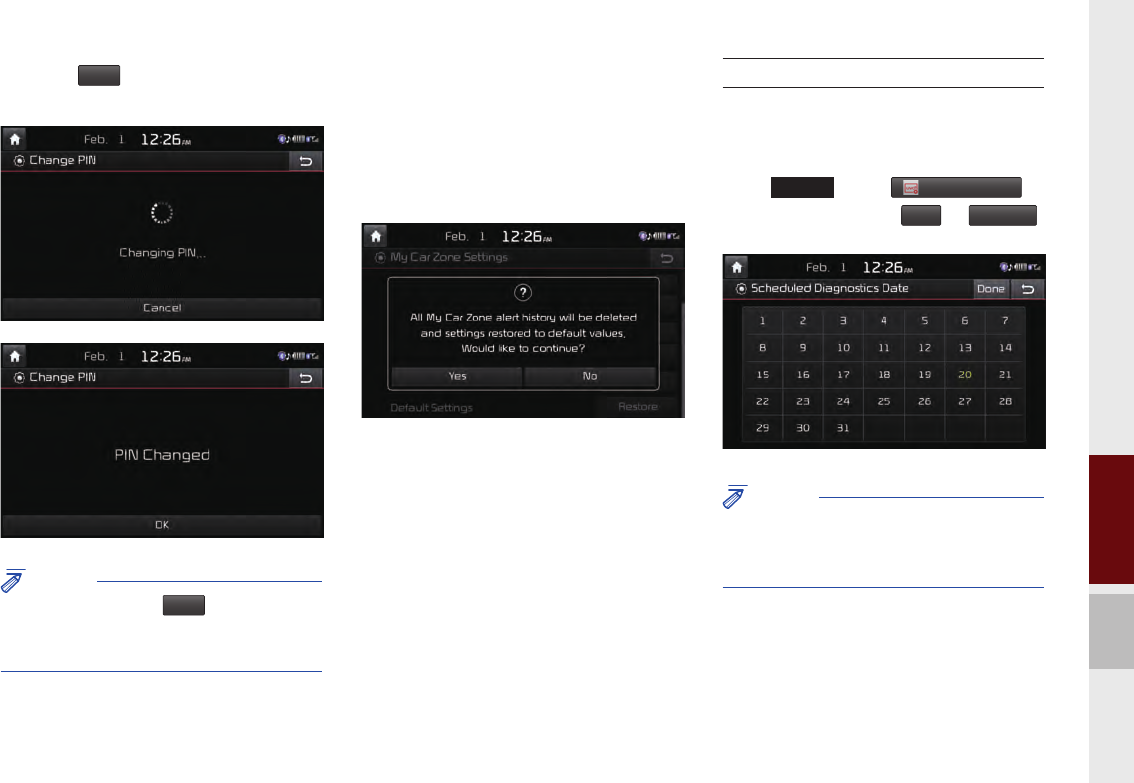

Setup I 9-11

Press the

button to transmit the new

PIN to your My UVO com account.

NOTICE

• Before pressing

, ensure your

smartphone is connected to UVO eServices

system via USB cable.

Restore Factory Settings

This feature is used to restore all My Car

Zone alert history and settings back to

default state.

Scheduled Diagnostics

This feature is for setting when scheduled

diagnostics alerts display.

Press

SETUP

key ▶

UVO eServices

▶

Scheduled Diagnostics

▶

Settings

NOTICE

• For months without the corresponding day,

the last day of the month will automatically be

set as the scheduled diagnostics date.

K_UM_G4.0[EN]AVN PART 9.indd 9-11K_UM_G4.0[EN]AVN PART 9.indd 9-11 2014-10-02 오후 1:21:372014-10-02 오후 1:21:3

9-12 I Setup

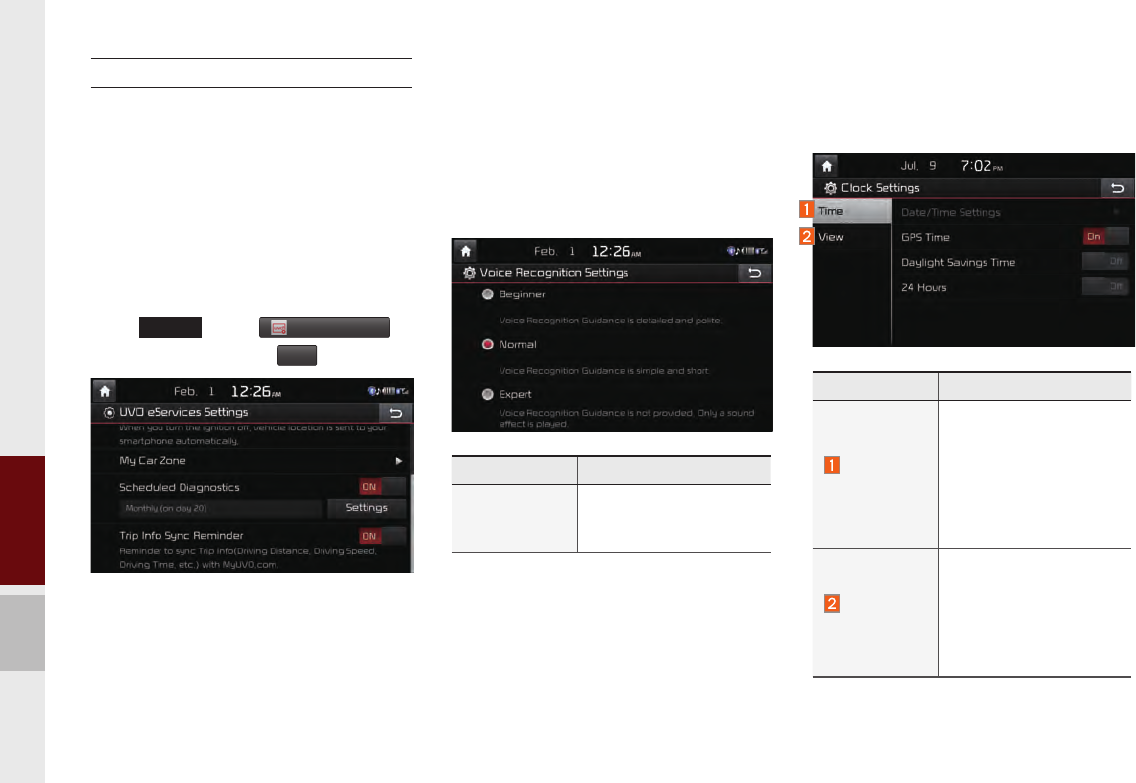

Trip Info Sync Reminder

Trip Info is a feature used to set whether

system displays alert when trip info(Driv-

ing Distance, Driving Speed, Driving Time,

etc). reaches 90% of memory.

UVO eServices must be activated to use

this feature.

Press

SETUP

key ▶

UVO eServices

▶

Trip Info Sync Reminder

Voice Recognition

Settings

Configure how to make a call with

Voice Recognition Guidance and Voice

Recognition.

Features Description

Guidance

Select an option from

Beginner, Normal, or

Expert.

Clock Settings

Provides the time and date settings.

Features Description

Time

Settings

Provides the GPS Time,

Date/Time Settings,

Daylight Savings Time,

and 24 Hours options.

Time Zone Menu is dis-

played only when there

is no memory card.

View

Settings

Provides options to

select a digital or ana-

log clock widget for the

screen saver or home

screen, and to select the

Display Date settings.

K_UM_G4.0[EN]AVN PART 9.indd 9-12K_UM_G4.0[EN]AVN PART 9.indd 9-12 2014-10-02 오후 1:21:392014-10-02 오후 1:21:3

Setup I 9-13

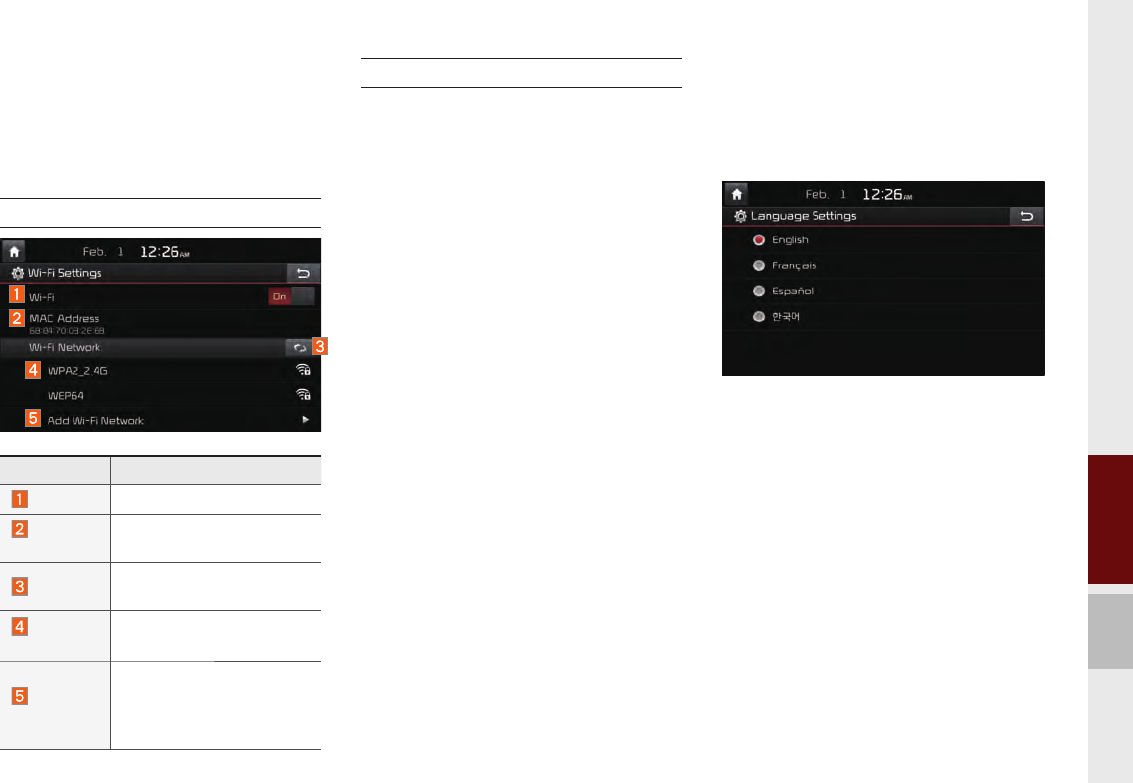

Wi-Fi Settings

You can share a digital-device network

with the vehicle device through Wi-Fi.

Wi-Fi Settings Screen

Features Description

Wi-Fi Turn on/off Wi-Fi.

MAC

Address Displays the MAC address.

Refresh Searches available net-

works near the vehicle.

Wi-Fi

Network

Displays available network

AP (Access Point) names.

Add Wi-Fi

Network

Enter the network ID/

password to connect to a

hidden network AP (Access

Point).

How to Connect to a Network

1. In the Wi-Fi settings of a digital device,

activate Internet sharing (hot spot).

2. In the vehicle network list, select the

desired device to connect to. Enter the

password to connect, if any.

Language Settings

You can configure the displayed system

language.

When the language is changed, the

system language is automatically

changed.

Unique data including MP3 file name is

not changed and some languages don’t

support voice recognition.

K_UM_G4.0[EN]AVN PART 9.indd 9-13K_UM_G4.0[EN]AVN PART 9.indd 9-13 2014-10-02 오후 1:21:412014-10-02 오후 1:21:4

9-14 I Setup

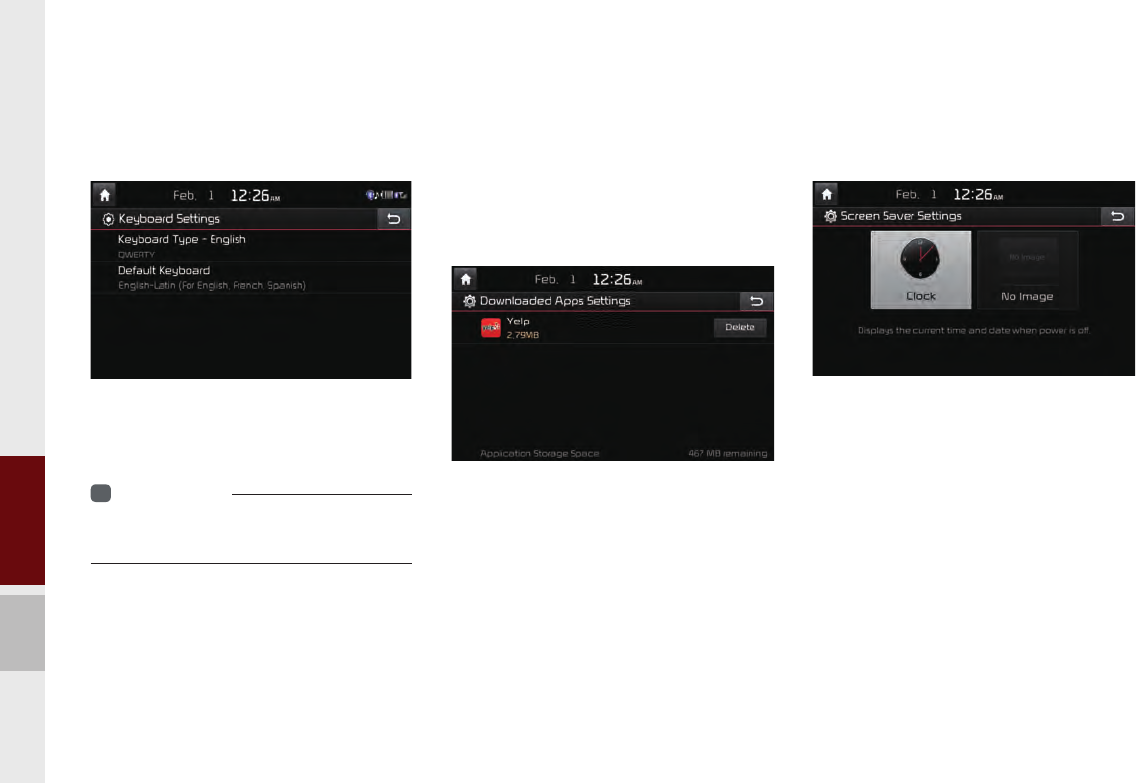

Keyboard Settings

You can configure the keyboard layout for

each language.

You can configure ABCD or QWERTY

keyboards for the system.

Information

• Conﬁ gured keyboard layouts are applied to all

input modes.

Downloaded Apps

Settings

Displays the applications that were down-

loaded through the Download Center. View

the memory status of installed applications

or delete them.

You can delete downloaded applications in

the Download Center. To recover a deleted

application, you can re-install the applica-

tion with the re-download function in the

Download Center.

Screen Saver Settings

Configures a screen to be displayed when

the system is powered off.

K_UM_G4.0[EN]AVN PART 9.indd 9-14K_UM_G4.0[EN]AVN PART 9.indd 9-14 2014-10-02 오후 1:21:472014-10-02 오후 1:21:4

Setup I 9-15

System Info

At the System Info screen, software ver-

sion information, updates, and storage

status details are available.

Features Description

SW Info

System version informa-

tion and update details are

available.

Select the

Upd

button

to update the system. After

update is complete, the

system will reboot auto-

matically.

Storage

Displays the memory

space available for media

files and applications.

System Update

At the System Info screen, insert the

updated memory (USB or SD card) with

the latest file downloaded, and then select

the

Upd

button to begin updating. The

system will then reboot automatically.

Information

• This product needs supplemented software

updates, additional new functions, and

renewed maps, which collectively may take

some time to complete, depending on the

amount of data.

CAUTION

• If the power is disconnected or the USB or

SD card is removed during an update, the

data might be damaged. Please wait until the

update is complete while the engine is on.

K_UM_G4.0[EN]AVN PART 9.indd 9-15K_UM_G4.0[EN]AVN PART 9.indd 9-15 2014-10-02 오후 1:21:482014-10-02 오후 1:21:4

9-16 I Setup

MEMO

K_UM_G4.0[EN]AVN PART 9.indd 9-16K_UM_G4.0[EN]AVN PART 9.indd 9-16 2014-10-02 오후 1:21:522014-10-02 오후 1:21:5

Product Specification

Before Thinking the Product Has Malfunctioned

Troubleshooting

FAQ

part.10 Appendix

K_UM_G4.0[EN]AVN PART 10.indd 10-1K_UM_G4.0[EN]AVN PART 10.indd 10-1 2014-10-02 오후 1:22:532014-10-02 오후 1:22:5

10-2 I Appendix

Product Specification

TFT-LCD

Screen Size Navigation Device - 8 inch(176.4 x 99.36mm)

Resolution

Navigation Device - 384,000 pixels (Resolution: 800 x 480)

Operating

Method TFT(Thin Film Transistor) Active Matrix

Viewing

Angle Left/Right, Top/Bottom : ALL 89°

Internal Lighting

LED

Radio

Channels

FM : 87.5 MHz ~ 107.9 MHz(Step : 200 kHz)

AM : 530 kHz ~ 1710 kHz(Step : 10 kHz)

Sensitivity FM : Under 10dBu/AM : Under 35dBu

Distortion Factor

Within 2%

Common

Name Car TFT LCD Display Navigation Unit

Power Supply DC 14.4V Operating

Power DC 9V ~ DC 16V

Current

Consumption 2.5A Sleep

Current

0.5mA

(Head Unit Only)

Operating

Temperature

-20 ~ +70℃

(-4 ~ +158

℉

)

Storage

Temperature

-40 ~ + 85℃

(-40 ~ +185

℉

)

Dimensions 178 X 102 X138mm ( Main BOX)

Weight 3.0 kg

Appendix

K_UM_G4.0[EN]AVN PART 10.indd 10-2K_UM_G4.0[EN]AVN PART 10.indd 10-2 2014-10-02 오후 1:22:562014-10-02 오후 1:22:5

Appendix I 10-3

Wi-Fi Details

Frequency 2412 ~ 2462MHz

Specification 802.11b/g/n

Number of

Channels 11 channels

Operating

Temperature -20 ~ + 70℃ (-4 ~ +158

℉

)

Bluetooth®

Wireless Technology

Frequency

Range 2402 ~ 2480 MHz

Supported

Bluetooth

Specification

3.0

Supported

Profile Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)

Output 0.125mW

Number of

Channels 79 channels

CAUTION

• The producer and installer cannot provide services related to life

safety as the concerned radio equipment is liable to radio interference.

K_UM_G4.0[EN]AVN PART 10.indd 10-3K_UM_G4.0[EN]AVN PART 10.indd 10-3 2014-10-02 오후 1:22:562014-10-02 오후 1:22:5

10-4 I Appendix

Before Thinking the Product Has

Malfunctioned

1. Errors which occur during the operation or installation of the

device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions

listed below.

3. If the problems persist, contact your Kia dealer.

Problem Possible Cause

There are small red,

blue, or green dots on

the screen

•Because the LCD is manufactured with

technology requiring high point density,

a pixel or lighting deficiency may occur

within 0.01% of total pixels

The sound or image is

not working

•Has the Switch for the vehicle been turned

to [ACC] or [ON]?

•Has the SYSTEM been turned OFF?

The screen is being dis-

played but sound is not

working

•Has the volume been set to a low level?

•Has the volume been muted?

When the power is

turned on, the corners of

the screen are dark

•The display appearing somewhat dark

after prolonged periods of use is normal

with LCD panels. It is not a malfunction

•If the screen is very dark, contact your

nearest Kia dealer for assistance

Sound is working from

only one speaker

•Are the positions of Fader or Balance

sound controls adjusted to only one side?

Problem Possible Cause

Sound does not work in

AUX mode

•Are the audio connector jacks fully

inserted into the AUX terminal?

The external device is

not working

•Is the external device connected with a

standard connector cable?

Upon turning power on,

the most recent mode

screen is not displayed

Within modes that play files by reading

external sources, such as discs, USB, iPod,

or Bluetooth

streaming mode, the most

recently played mode screen prior to turning

off power may not properly load

•If there is no disc or the corresponding

device is not connected, the mode oper-

ated prior to the most recent mode will

operate

•If the previous mode still cannot be prop-

erly played, the mode operated prior to

that will operate

K_UM_G4.0[EN]AVN PART 10.indd 10-4K_UM_G4.0[EN]AVN PART 10.indd 10-4 2014-10-02 오후 1:22:562014-10-02 오후 1:22:5

Appendix I 10-5

Troubleshooting

Problem Possible Cause Countermeasure

The image

color/tone

quality is low

•The brightness, satura-

tion, hue, and contrast

levels are not set prop-

erly

•Properly adjust the bright-

ness, saturation, hue, and

contrast levels through

Display Setup

Sound does

not work

•The volume level

is set to the lowest

level

•The connection is

not proper

•The device is

currently fast-for-

warding, rewinding,

scanning, or playing

in slow mode

•Adjust the volume level

•Check to see that the device

has been properly con-

nected

•The sound will not work

when the device is fast-for-

warding, rewinding, scan-

ning, or playing in slow

mode

The sound or

image quality

is low

•Vibration is occur-

ring from where the

conversion switch

has been installed

•Image color/tone

quality is low

•The sound may be short-cir-

cuited and the image dis-

torted if the device vibrates

•The device will return to nor-

mal once vibrations stop

Problem Possible Cause Countermeasure

The power

does not turn

The fuse is discon-

nected

•Replace with a suitable fuse

•If the fuse is disconnected

again, please contact your

point of purchase or service

center

Device is not properly

connected

•Check to see that the device

has been properly con-

nected

The system

does not

play

The vehicle battery is

low

•Charge the battery If the

problem persists, contact

your point of purchase or

service center

K_UM_G4.0[EN]AVN PART 10.indd 10-5K_UM_G4.0[EN]AVN PART 10.indd 10-5 2014-10-02 오후 1:22:562014-10-02 오후 1:22:5

10-6 I Appendix

Problem Possible Cause Countermeasure

The USB

does not

work

•USB memory is

damaged

•USB memory has

been contaminated

•A separately pur-

chased USB HUB is

being used

•A USB extension

cable is being used

•A USB which is not

a Metal Cover Type

USB Memory is

being used

•An HDD type, CF,

SD Memory is being

used

•There are no music

files which can be

played

•Please use after formatting

the USB into FAT 12/16/32

format

•Remove any foreign sub-

stances on the contact

surface of the USB memory

and multimedia terminal

•Directly connect the USB

memory with the multimedia

terminal on the vehicle

•Use standard USB Memory

•Only MP3, WMA file formats

are supported. Please use

only the supported music file

formats

The iPod is

not recog-

nized even

though it has

been con-

nected

•There are no titles

which can be played

•The iPod firmware

version has not

been properly

updated

•The iPod device

does not recognize

downloads

•Use iTunes to download and

save MP3 files into the iPod

•Use iTunes to update the firm-

ware version and reconnect

the iPod with the device

•Reset the iPod and reconnect

with the device

Information

• While operating the device, if an abnormality occurs that cannot be

corrected with the above described measures, press the RESET key to

reset the system.

• Press and hold the RESET key (over 1 seconds). The device power will

turn off and the system will reset.

K_UM_G4.0[EN]AVN PART 10.indd 10-6K_UM_G4.0[EN]AVN PART 10.indd 10-6 2014-10-02 오후 1:22:562014-10-02 오후 1:22:5

Appendix I 10-7

FAQ

About Pairing Mobile Phones

Q I cannot pair my mobile phone. What is the cause?

A Check to see that the mobile phone supports Bluetooth® func-

tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set

it to ON. If the cell phone still can’t be registered, try again after

turning Bluetooth off and on, or delete the device registration on

the AVN and cell phone and then register the cell phone again.

Q What is the difference between pairing a mobile phone and con-

necting a mobile phone?

A Pairing occurs through authenticating the head unit and mobile

phone. Mobile phones paired to the head unit can be connected

and disconnected until the paired mobile phone is deleted from

the system. Bluetooth® Handsfree features, such as making/

answering calls or managing contacts, are supported only in

mobile phones connected with the head unit.

Q What is a Passkey?

A A passkey is the password used to authenticate the connection

between the head unit and mobile phone. The passkey only

needs to be entered once when pairing the mobile phone for the

first time.

The initial passkey is 0000. You can change it with

SETUP

▶

one

▶

ass

options.

K_UM_G4.0[EN]AVN PART 10.indd 10-7K_UM_G4.0[EN]AVN PART 10.indd 10-7 2014-10-02 오후 1:22:562014-10-02 오후 1:22:5

10-8 I Appendix

About Making/Answering Phone Calls

Q How can I answer a call?

A When there is an incoming call, a notification pop-up will

become displayed. To answer the incoming call, press the

cce

button on the screen or the key on the steering

remote controller.

To reject the call, press the

button on the screen or

press the key on the steering remote control.

Q What should I do if I am talking on the Handsfree but want to

switch the call to the mobile phone?

A While on a call, press and hold (over 0.8 seconds) the

key on the steering remote controller or press the

button at the bottom of the Phone screen to switch the call to

your mobile phone.

About

Bluetooth

Wireless Technology/

Head Unit Use Environment

Q What is the range of my wireless connection?

A The wireless connection can be used within 15 yards.

Q How many mobile phones can be paired?

A It is possible to pair up to five mobile phones.

Q Why is call quality sometimes poor?

Check the reception sensitivity of the mobile phone when call

quality becomes worsened. The call quality may deteriorate when

the signal strength is low. Call quality may also worsen if metal

objects, such as beverage cans, are placed near the mobile

phone. Check to see if there are metal objects in the vicinity of the

mobile phone. The call sound and quality may differ depending on

the type of mobile phone.

K_UM_G4.0[EN]AVN PART 10.indd 10-8K_UM_G4.0[EN]AVN PART 10.indd 10-8 2014-10-02 오후 1:22:572014-10-02 오후 1:22:5

Index I 10-9

0~9

911 Connect …………………… 4-7, 9-8

About

Bluetooth

Wireless Technology/

Head Unit Use Environment …………10-8

About Disc ……………………………2-11

About HD Radio™ Technology ……… 2-4

About iPod® ……………………………2-30

About Making/Answering Phone Calls …10-8

About Pairing Mobile Phones …………10-7

About Rear Detection Camera ……… 8-4

About SiriusXM™ Data Service ……… 7-8

About USB ……………………………2-22

About UVO eServices ………………… 4-4

Accept/Reject Call …………………… 3-7

Accessing FM/AM Mode …………… 2-2

Accessing SiriusXM™ Data ………… 7-8

Accessing SoundHound ………………7-16

Activating UVO eServices …………… 4-6

Address ………………………………5-15

Adjusting Voice Recognition Volume … 6-5

Apps List ……………………………… 7-6

Auto Connection Priority ……………… 9-5

Automatic Diagnostics …………………4-12

AUX ……………………………………2-37

AVM (Around View Monitor) ………… 8-4

Avoid Street ……………………………5-32

Basic Features ………………………… 5-2

Basic Mode Screen ………… 2-16, 2-19

Basic Mode Screen

(HD Radio™ reception ON) ………… 2-5

Basic Mode Screen …………………… 8-2

Battery Warning Message ……………1-10

Before Playing a USB MP3 ……………2-22

Before Playing an MP3 Disc …………2-14

Before Thinking the Product Has

Malfunctioned …………………………10-4

Before Using the Bluetooth® Handsfree … 3-2

Before using UVO eServices ………… 4-5

Bluetooth® Audio Mode ………………2-38

Bluetooth® Audio ………………………2-38

Bluetooth® Connection Settings ……… 9-4

Bluetooth® Connection ……………… 3-4

Bluetooth® Connections Settings ……2-39

Bluetooth® Phone …………………… 3-6

Call Commands ……………………… 6-8

Call History …………………………… 3-9

Camera (Optional) …………………… 8-4

Canceling Route ………………………5-29

CAUTIONS upon Connecting Bluetooth®

Phone ………………………………… 3-3

CD Mode ………………………………2-16

Changing Map View ………………… 5-3

Climate Mode ………………………… 8-2

Clock Settings …………………………9-12

Component Names and Functions … 1-5

Conducting Vehicle Diagnostics ……… 4-9

Connecting an External Device ………2-37

Connecting Bluetooth ………………… 4-5

Connecting Bluetooth® Devices ……… 3-4

Connecting to smartphone via USB … 4-6

Contacts ………………………………3-10

Curfew Limit Alert ……………………4-13

Index

K_UM_G4.0[EN]AVN PART 10.indd 10-9K_UM_G4.0[EN]AVN PART 10.indd 10-9 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5

10-10 I Index

Deleting Bluetooth® Devices ………… 3-5

Detour ………………………………… 5-5

Dial …………………………………… 3-7

Direct Tune …………………………… 2-8

Disc/Content Format Compatibility ……2-12

Disconnecting Bluetooth® Devices …… 3-5

Display Route Information ……………5-29

Display Settings ……………………… 9-4

Display …………………………………5-33

Download Center …………………… 7-6

Downloaded Apps Settings …………9-14

Editing Route …………………………5-31

Ending Voice Recognition …………… 6-3

eServices Guide ………………………4-16

Extending the Standby Time ………… 6-4

FAQ ……………………………………10-7

Favorites ………………………………3-11

Find the Nearest <Category> List ……6-16

FM/AM Mode ………………………… 2-2

Front AVM …………………………… 8-5

General ………………………………5-33

Geo Fence Alert ………………………4-14

Guidance ………………………………5-34

Head Unit ……………………………… 1-5

Help Display …………………………… 6-6

Home Screen …………………………1-11

How to Connect to a Network …………9-13

How to start Siri ………………………6-22

How to use Siri …………………………6-22

Initiating a 911 Call …………………… 4-7

Instructions for Using Voice Recognition … 6-7

iPod® ……………………………………2-34

Key Product Features ………………… 1-4

Keyboard Settings ……………………9-14

Language Settings ……………………9-13

Map Scale …………………………… 5-4

Media Commands ……………………6-12

Media Mode ……………………………2-10

Menu ………………………………… 5-4

My Apps ……………………………… 7-7

My Car Zone …………………… 4-12, 9-9

My Music ………………………………2-40

My POIs ………………………………4-16

Navigation Commands ……………… 6-9

Navigation Settings ……………… 5-33, 9-3

Navigation Volume …………………… 5-5

Nearby POIs ………………………… 5-6

K_UM_G4.0[EN]AVN PART 10.indd 10-10K_UM_G4.0[EN]AVN PART 10.indd 10-10 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5

Index I 10-11

On-Screen Touch Controls ……………1-12

Operating Climate Mode ……………… 8-2

Operating Navigation Screen ………… 5-2

Other Commands List

(Commands used in List / Help) ………6-15

Pair a device from Bluetooth-enabled

phone ………………………………… 4-5

Pairing a New Device ………………… 3-4

Pandora Radio Mode Screen Controls … 7-3

Pandora Radio Mode ………………… 7-2

Parking Guidance Settings …………… 8-6

Parking Minder …………………… 4-15, 9-8

Phone Settings ……………………… 9-4

Phone Status Icons ………………… 3-6

Places …………………………………5-14

Precautions for Safe Driving ………… 3-2

Precautions upon Handling Discs ……2-11

Product Specification …………………10-2

Quick Run of Voice Recognition

(Manual Mode) ……………………… 6-3

Radio Commands ……………………6-11

Rear AVM …………………………… 8-5

Recognizing Music ……………………7-17

Recommendations Required for Successful

Voice Recognition …………………… 6-2

Restrictions on Features for Safety

Measures ………………………………1-10

Ringtone ……………………………… 9-6

Roadside Assist ……………………… 4-8

Route Guidance ………………………5-27

Route Option ………………………… 5-4

Route Options …………………………5-32

Route Overview ………………………5-30

Route Preview …………………………5-30

Route Setting …………………………5-24

Route ………………………… 5-29, 5-34

Schedule Service ……………………4-10

Scheduled Diagnostics ……… 4-11, 9-11

Screen Saver Settings …………………9-14

Search …………………………………5-14

Searching Music ………………………7-17

Selecting through Channel/

Category List ………………………… 2-8

Send Report …………………………4-10

Sending Parking Location ……………4-15

Sending Points of Interest to Your Navigation

System …………………………………4-16

Setup ………………………………… 9-2

Siri Eyes Free …………………………6-22

SiriusXM™ Mode Display Controls … 2-6

SiriusXM™ Data ……………………… 7-8

SiriusXM™ Fuel Price Information ……7-10

SiriusXM™ Mode Hard Key Controls … 2-5

SiriusXM™ Mode …………………… 2-5

SiriusXM™ Movie Information ………7-14

SiriusXM™ Sports Information ………7-12

SiriusXM™ Stock Information …………7-11

SiriusXM™ Traffic Information………… 7-9

SiriusXM™ Weather Announcement … 7-8

K_UM_G4.0[EN]AVN PART 10.indd 10-11K_UM_G4.0[EN]AVN PART 10.indd 10-11 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5

10-12 I Index

Skipping Prompt Messages ………… 6-5

Song Main Screen ……………………7-18

Sound Settings ……………………… 9-3

SoundHound Main Screen ……………7-16

SoundHound …………………………7-16

Speed Alert ……………………………4-14

Start Screen …………………………… 6-6

Start Up ……………………………… 7-2

Starting Mode …………………………2-10

Starting the System for the First Time … 1-9

Starting UVO Voice Local Search ……6-21

Starting Voice Recognition …………… 6-3

Starting/Ending and Setting Voice

Recognition …………………………… 6-3

Steering Wheel Remote Controller …… 1-7

Supported Disc Formats ………………2-12

Supported Image Specifications………2-24

System Bluetooth® Information ……… 9-6

System Info ……………………………9-15

System Reset ………………………… 1-9

System Update ………………………9-15

The 911 Connect feature may not operate in

the following situations. ……………… 4-2

Traffic …………………………………5-34

Trip Info Sync Reminder ………………9-12

Troubleshooting ……………… 5-35, 10-5

Turning the System On/Off …………… 1-9

Types of Commands ………………… 6-8

USB Image ……………………………2-28

USB MP3 Information and

Precautions ……………………………2-24

USB Music ……………………………2-25

Using iPod® Devices …………………2-30

Using MP3 Mode ……………………2-19

Using the Menu During a Phone Call … 3-8

UVO eServices Commands List

(Optional) ………………………………6-15

UVO eServices Settings ………… 4-16, 9-7

UVO Voice Local Search ………………6-21

Vehicle Diagnostics …………………… 4-9

Viewing Menu ………………………… 2-8

Voice Commands …………………… 6-8

Voice Guidance Volume On/Off ……… 5-3

Voice Recognition Screen Overview … 6-6

Voice Recognition Settings ……………9-12

Warnings and Precautions …………… 1-2

What is

Bluetooth

Wireless

Technology? …………………………… 3-2

What is UVO Voice Local Search? ……6-21

What is Voice Recognition? ………… 6-2

Wi-Fi Settings Screen …………………9-13

Wi-Fi Settings …………………………9-13

Zoom In /Zoom Out …………………… 5-3

K_UM_G4.0[EN]AVN PART 10.indd 10-12K_UM_G4.0[EN]AVN PART 10.indd 10-12 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5

Important Safety Information

Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual ("User's

Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.

Keep User's Guide in Vehicle

When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please

make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions and

safety information carefully.

Warning:

Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other

serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a

safe and legal manner before attempting these operations. This is important since while setting up or changing some functions you might

be required to distract your attention away from the road and remove your hands from the wheel.

General Operation

K_UM_G4.0[EN]AVN PART 10.indd 10-13K_UM_G4.0[EN]AVN PART 10.indd 10-13 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5

Voice Command Control

Functions within the Multimedia system may be accomplished using only voice commands. Using voice commands while driving allows

you to operate the system without removing your hands from the wheel.

Prolonged Views of Screen

Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before

attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous

if your attention has been diverted away from your driving task at a critical time.

Volume Setting

Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while

driving. Driving while unable to hear these sounds could cause an accident.

Navigation Features

Any navigation features included in the system are intended to provide turn by turn instructions to get you to a desired destination. Please

make certain all persons using this system carefully read and follow instructions and safety information fully.

K_UM_G4.0[EN]AVN PART 10.indd 10-14K_UM_G4.0[EN]AVN PART 10.indd 10-14 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5

Distraction Hazard

Some navigation features may require manual (non-verbal) setup. Attempting to perform such set-up or insert data while driving can seri-

ously distract your attention and could cause an accident or other serious consequences. Stop the vehicle in a safe and legal manner

before attempting these operations.

Let Your Judgment Prevail

Any navigation features are provided only as an aid. Make your driving decisions based on your observations of local conditions and exist-

ing traffic regulations. Any such feature is not a substitute for your personal judgment. Any route suggestions made by this system should

never replace any local traffic regulations or your personal judgment or knowledge of safe driving practices.

Route Safety

Do not follow the route suggestions if doing so would result in an unsafe or illegal maneuver, if you would be placed in an unsafe situation,

or if you would be directed into an area that you consider unsafe. The driver is ultimately responsible for the safe operation of the vehicle

and therefore, must evaluate whether it is safe to follow the suggested directions.

Potential Map Inaccuracy

Maps used by this system may be inaccurate because of changes in roads, traffic controls or driving conditions. Always use good judg-

ment and common sense when following the suggested routes.

K_UM_G4.0[EN]AVN PART 10.indd 10-15K_UM_G4.0[EN]AVN PART 10.indd 10-15 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5

Emergency Services

Do not rely on any navigation features included in the system to route you to emergency services. Ask local authorities or an emergency

services operator for these locations. Not all emergency services such as police, fire stations, hospitals and clinics are contained in the

map database for navigation features.

Use of Speech Recognition Functions

Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any

speech recognition functions included in the system and address any errors.

K_UM_G4.0[EN]AVN PART 10.indd 10-16K_UM_G4.0[EN]AVN PART 10.indd 10-16 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5

FCC Warning

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this

equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum 20 cm between the radiator and your body.

This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the

FCC.

K_UM_G4.0[EN]AVN PART 10.indd 10-17K_UM_G4.0[EN]AVN PART 10.indd 10-17 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5

IC Warning

“This device complies with Industry Canada licence-exempt RSS standard(s).”

Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interfer-

ence,

including interference that may cause undesired operation of the device.

This equipment should be installed and operated with minimum 20 cm between the radiator and your body.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est

autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas provoquer de brouillage, et (2) l’appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Cet équipement doit être installé et utilisé avec un minimum de 20 cm entre le radiateur et votre corps.

K_UM_G4.0[EN]AVN PART 10.indd 10-18K_UM_G4.0[EN]AVN PART 10.indd 10-18 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5

HYUNDAI MOBIS AVB30D5AN DIGITAL CAR AVN SYSTEM User Manual Part 2

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AVN SYSTEM Part 2

Contents

User Manual - Part 2

Navigation menu

Namespaces

Views

Navigation
